Remote Sens. 2014, 6(12), 12593-12618; doi:10.3390/rs61212593

Persistent Scatterer Interferometry Processing of COSMO-SkyMed StripMap HIMAGE Time Series to Depict Deformation of the Historic Centre of Rome, Italy

1
British Geological Survey (BGS), Natural Environment Research Council (NERC), Nicker Hill, Keyworth, NG12 5GG Nottingham, UK
2
Institute of Methodologies for Environmental Analysis (IMAA), National Research Council (CNR), c/da S.Loja, Tito Scalo, 85050 Potenza, Italy
3
Institute for Archaeological and Monumental Heritage (IBAM), National Research Council (CNR), c/da S.Loja, Tito Scalo, 85050 Potenza, Italy
4
School of Engineering, University of Basilicata, Via Nazario Sauro 85, 85100 Potenza, Italy
5
Department of Geography, Institute of Hazard, Risk and Resilience (IHRR), Durham University, Lower Mountjoy, South Road, Durham DH1 3LE, UK
Authors are listed in alphabetical order.
*
Author to whom correspondence should be addressed.
Received: 6 August 2014 / Revised: 25 November 2014 / Accepted: 27 November 2014 / Published: 15 December 2014
(This article belongs to the Special Issue New Perspectives of Remote Sensing for Archaeology)
View Full-Text   |   Download PDF [12167 KB, uploaded 15 December 2014]   |

Abstract

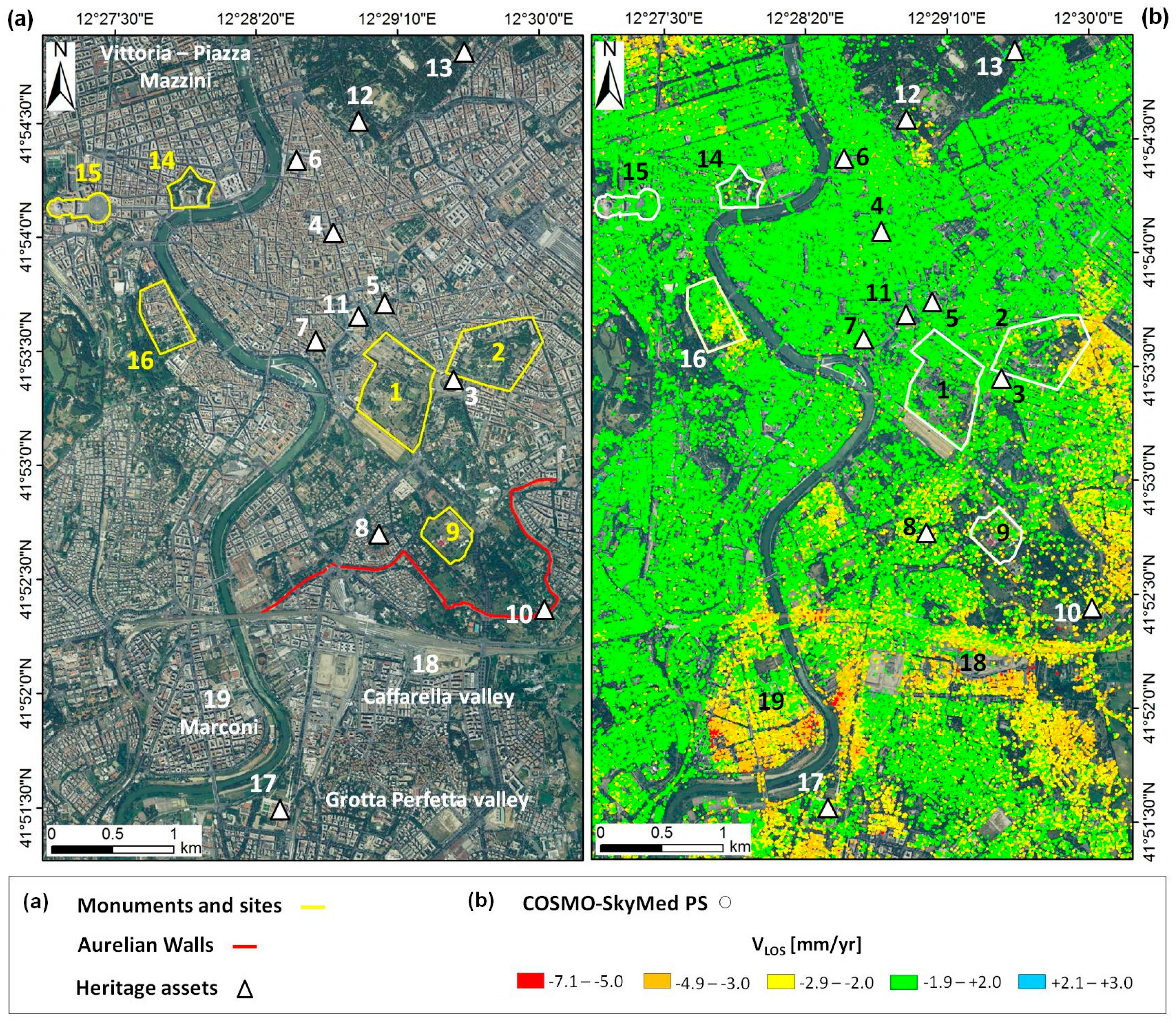

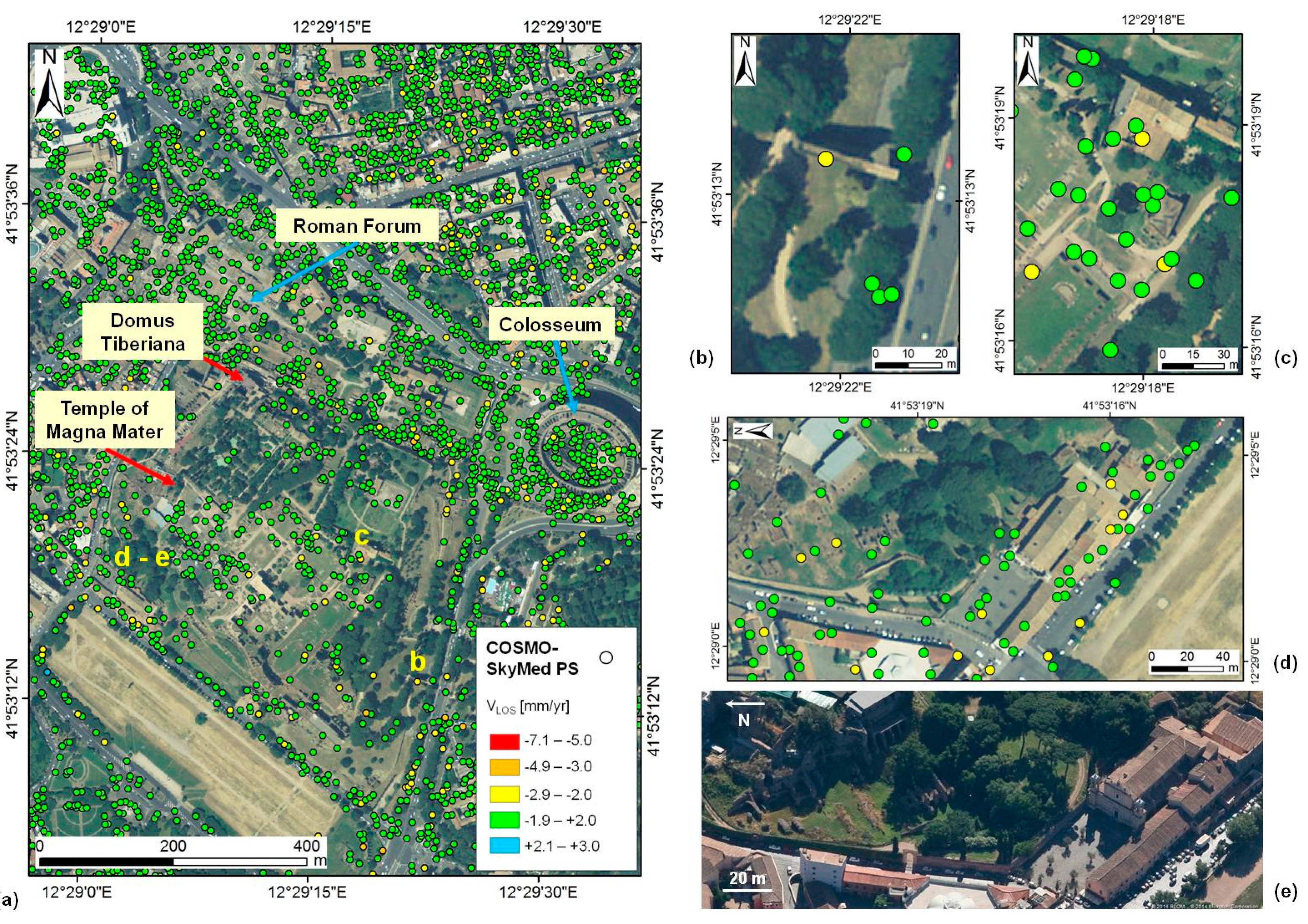

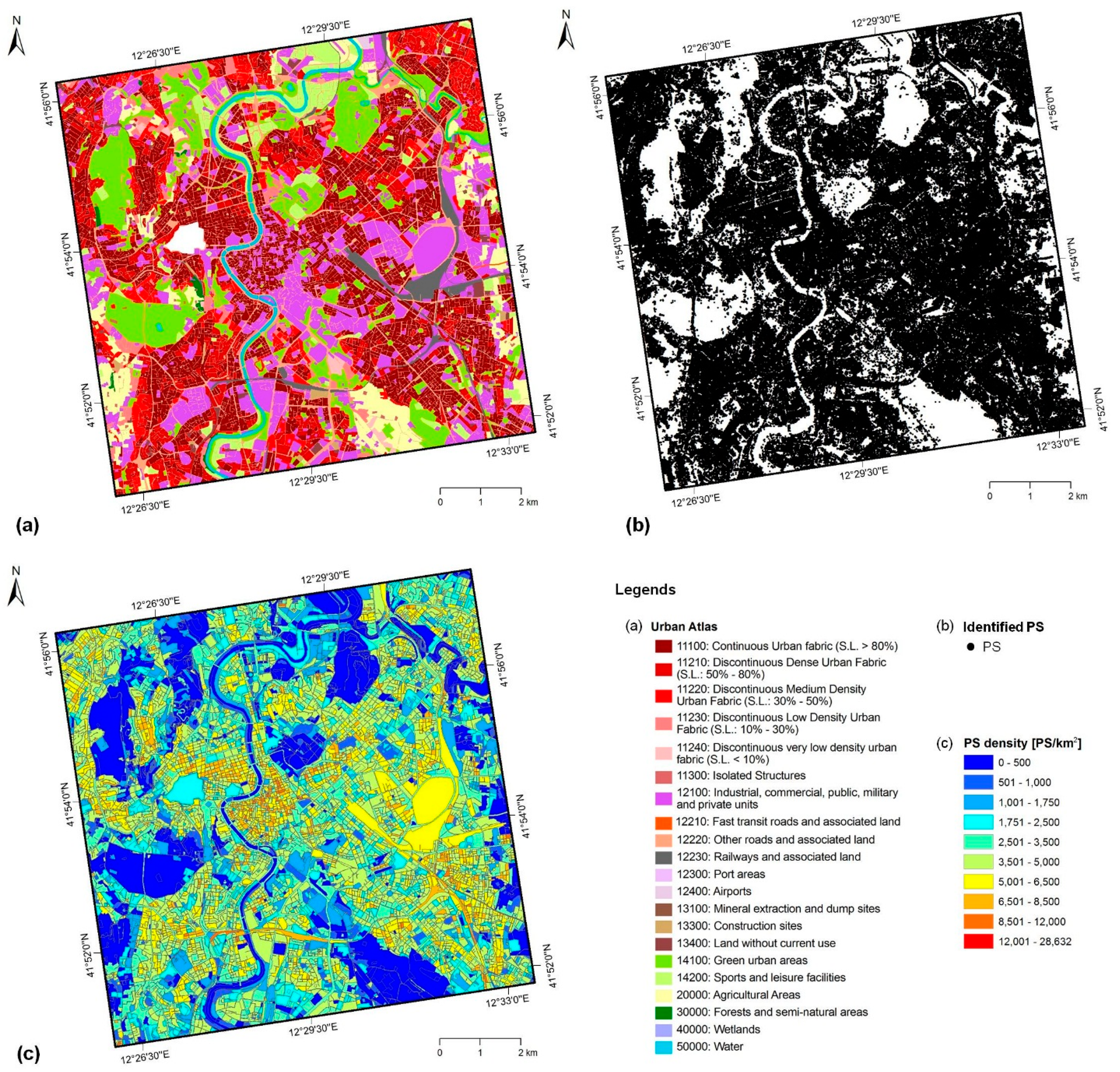

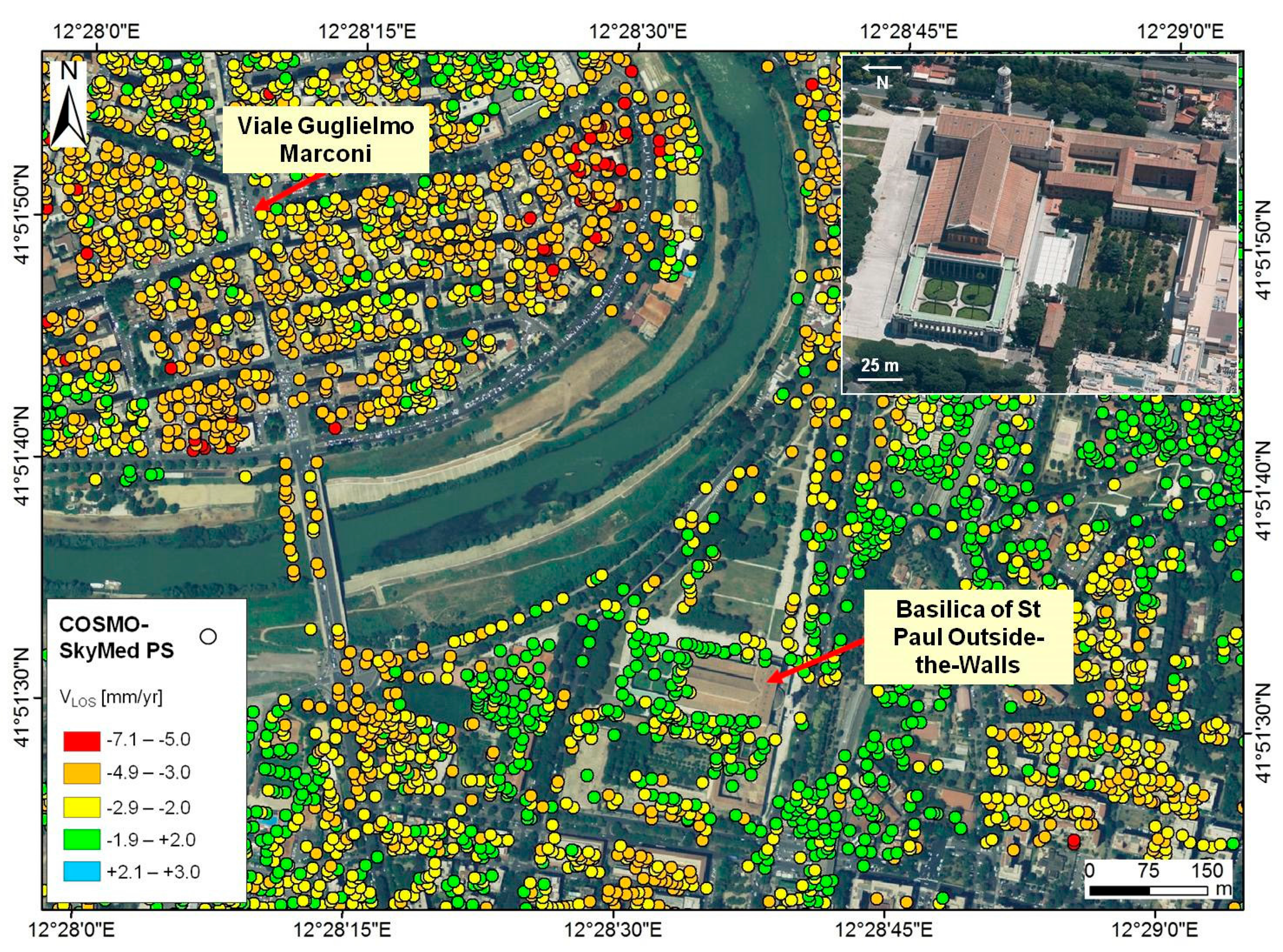

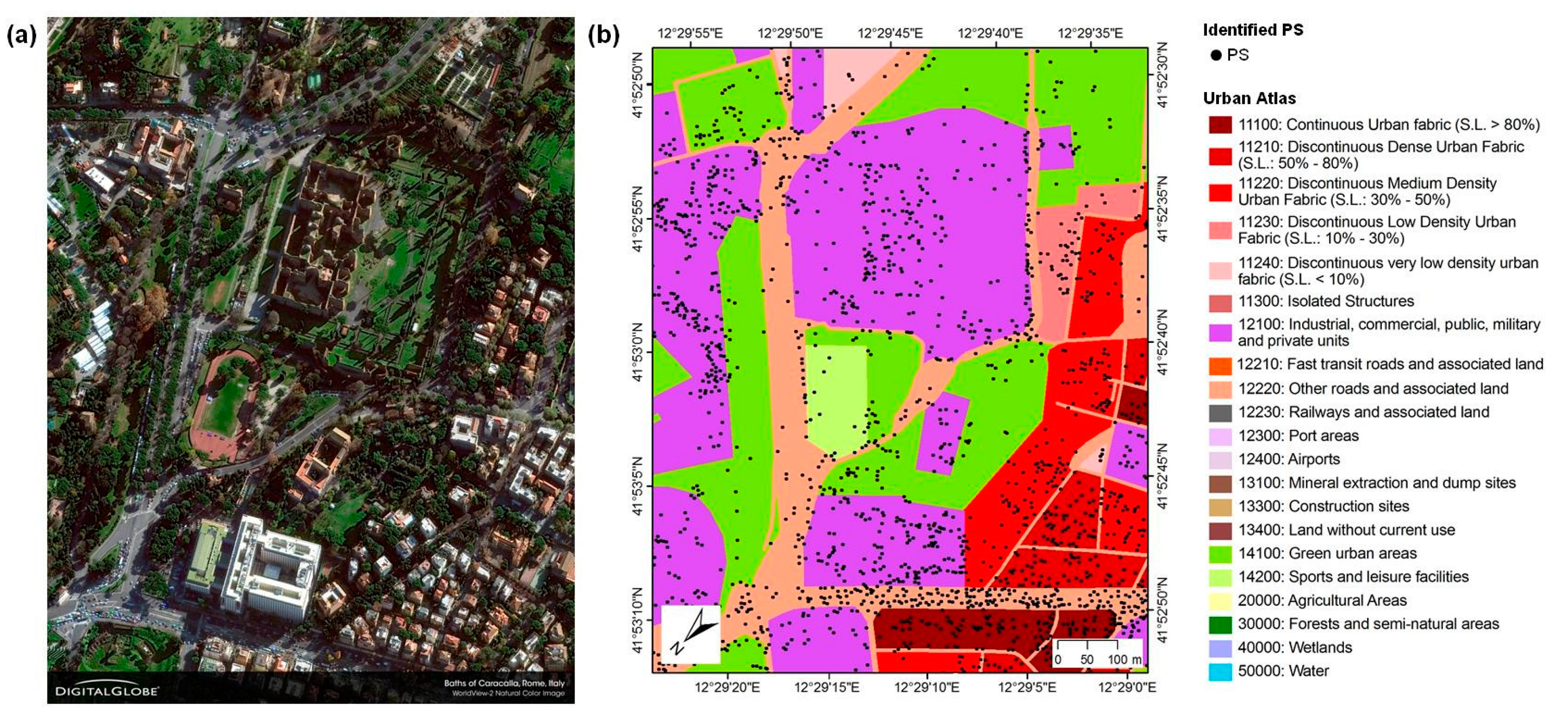

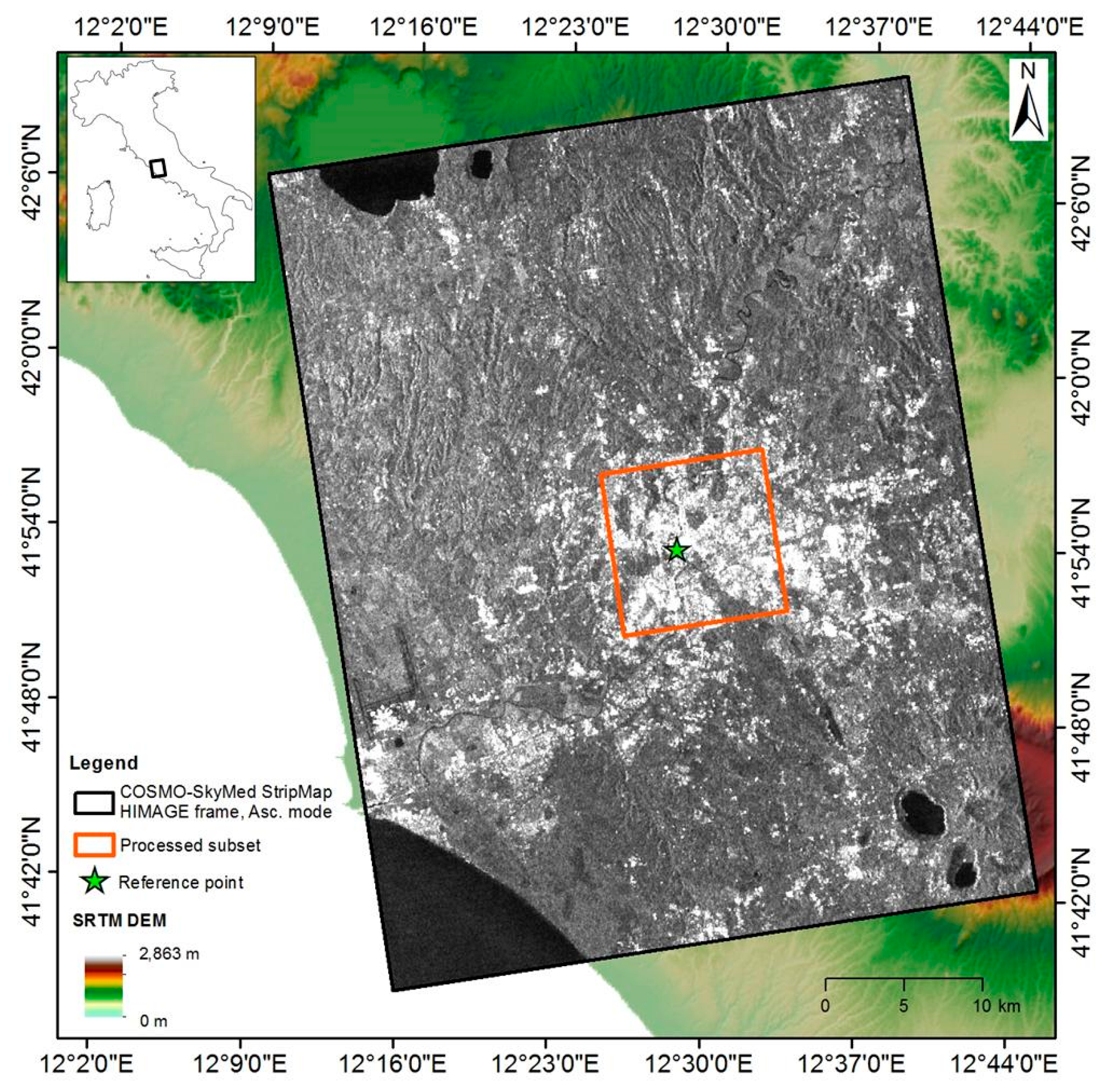

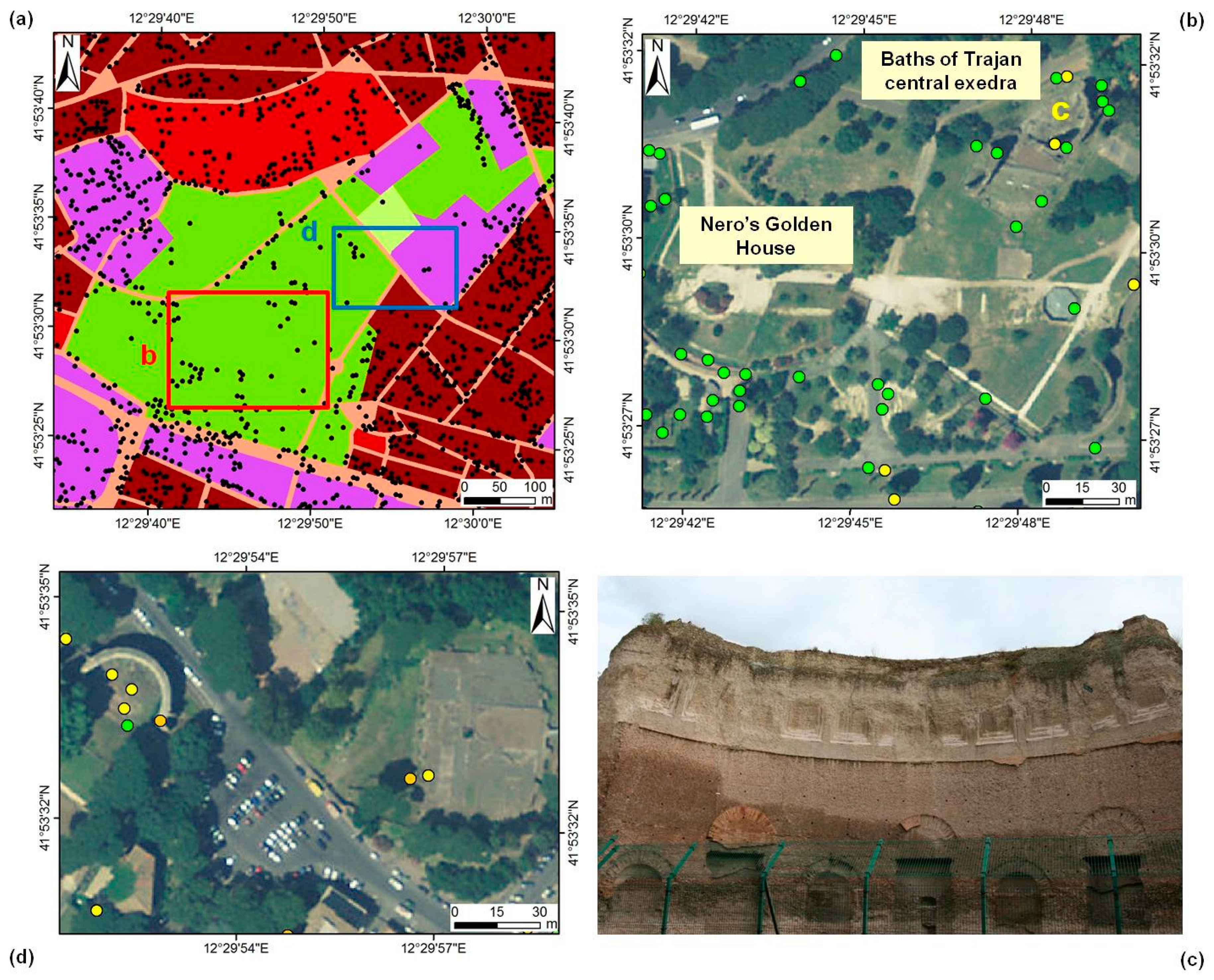

We processed X-band COSMO-SkyMed 3-m resolution StripMap HIMAGE time series (March 2011–June 2013) with the Stanford Method for Persistent Scatterers (StaMPS), to retrieve an updated picture of the condition and structural health of the historic centre of Rome, Italy, and neighbouring quarters. Taking advantage of an average target density of over 2800 PS/km2, we analysed the spatial distribution of more than 310,000 radar targets against: (1) land cover; (2) the location of archaeological ruins and restoration activities; and (3) the size, orientation and morphology of historical buildings. Radar interpretation was addressed from the perspective of conservators, and the deformation estimates were correlated to local geohazards and triggering factors of structural collapse. In the context of overall stability, deformation was identified at the single-monument scale, e.g., for the Roman cistern and exedra in the Oppian Hill. Comparative assessment against InSAR processing of C-band imagery (1992–2010) published in the literature confirms the persistence of ground motions affecting monuments and subsidence in southern residential quarters adjacent to the Tiber River, due to the consolidation of compressible deposits. Vertical velocity estimated from COSMO-SkyMed PS exceeds −7.0 mm/y in areas of recent urbanization. View Full-Text
Keywords: synthetic aperture radar; persistent scatterer interferometry; COSMO-SkyMed; deformation monitoring; subsidence; Rome; cultural heritage synthetic aperture radar; persistent scatterer interferometry; COSMO-SkyMed; deformation monitoring; subsidence; Rome; cultural heritage
