Remote Sensing 2013, 5(10), 5209-5264; doi:10.3390/rs5105209

Article
Quality Assessment of Pre-Classification Maps Generated from Spaceborne/Airborne Multi-Spectral Images by the Satellite Image Automatic Mapper™ and Atmospheric/Topographic Correction™-Spectral Classification Software Products: Part 2 — Experimental Results
Andrea Baraldi 1,*, Michael Humber 1 and Luigi Boschetti 2
1
Department of Geographical Sciences, University of Maryland, 4321 Hartwick Rd, Suite 209, College Park, MD 20740, USA; E-Mail: mhumber@umd.edu
2
College of Natural Resources, University of Idaho, 875 Perimeter Drive, Moscow, ID 83844, USA; E-Mail: luigi@uidaho.edu
*
Author to whom correspondence should be addressed; E-Mail: andrea6311umd@gmail.com; Tel.: +1-301-314-1467; Fax: +1-301-405-6806.
Received: 1 July 2013; in revised form: 17 September 2013 / Accepted: 9 October 2013 /

Abstract

: This paper complies with the Quality Assurance Framework for Earth Observation (QA4EO) international guidelines to provide a metrological/statistically-based quality assessment of the Spectral Classification of surface reflectance signatures (SPECL) secondary product, implemented within the popular Atmospheric/Topographic Correction (ATCOR™) commercial software suite, and of the Satellite Image Automatic Mapper™ (SIAM™) software product, proposed to the remote sensing (RS) community in recent years. The ATCOR™-SPECL and SIAM™ physical model-based expert systems are considered of potential interest to a wide RS audience: in operating mode, they require neither user-defined parameters nor training data samples to map, in near real-time, a spaceborne/airborne multi-spectral (MS) image into a discrete and finite set of (pre-attentional first-stage) spectral-based semi-concepts (e.g., “vegetation”), whose informative content is always equal or inferior to that of target (attentional second-stage) land cover (LC) concepts (e.g., “deciduous forest”). For the sake of simplicity, this paper is split into two: Part 1—Theory and Part 2—Experimental results. The Part 1 provides the present Part 2 with an interdisciplinary terminology and a theoretical background. To comply with the principle of statistics and the QA4EO guidelines discussed in the Part 1, the present Part 2 applies an original adaptation of a novel probability sampling protocol for thematic map quality assessment to the ATCOR™-SPECL and SIAM™ pre-classification maps, generated from three spaceborne/airborne MS test images. Collected metrological/statistically-based quality indicators (QIs) comprise: (i) an original Categorical Variable Pair Similarity Index (CVPSI), capable of estimating the degree of match between a test pre-classification map’s legend and a reference LC map’s legend that do not coincide and must be harmonized (reconciled); (ii) pixel-based Thematic (symbolic, semantic) QIs (TQIs) and (iii) polygon-based sub-symbolic (non-semantic) Spatial QIs (SQIs), where all TQIs and SQIs are provided with a degree of uncertainty in measurement. Main experimental conclusions of the present Part 2 are the following. (I) Across the three test images, the CVPSI values of the SIAM™ pre-classification maps at the intermediate and fine semantic granularities are superior to those of the ATCOR™-SPECL single-granule maps. (II) TQIs of both the ATCOR™-SPECL and the SIAM™ tend to exceed community-agreed reference standards of accuracy. (III) Across the three test images and the SIAM™’s three semantic granularities, TQIs of the SIAM™ tend to be significantly higher (in statistical terms) than the ATCOR™-SPECL’s. Stemming from the proposed experimental evidence in support to theoretical considerations, the final conclusion of this paper is that, in compliance with the QA4EO objectives, the SIAM™ software product can be considered eligible for injecting prior spectral knowledge into the pre-attentive vision first stage of a novel generation of hybrid (combined deductive and inductive) RS image understanding systems, capable of transforming large-scale multi-source multi-resolution EO image databases into operational, comprehensive and timely knowledge/information products.
Keywords:
attentive vision; confusion matrix; degree of uncertainty in measurement; harmonization (reconciliation) of ontologies; land cover classification; multi-spectral image; overlapping area matrix; pre-attentive vision; preliminary classification; probability sampling; quality indicators of operativeness; categorical and spatial accuracy of thematic maps

1. Introduction

One visionary goal of the Quality Assurance Framework for Earth Observation (QA4EO) guidelines, delivered by the international Group on Earth Observations (GEO)-Committee on Earth Observation Satellites (CEOS) [1,2], is to develop information processing systems capable of transforming automatically, i.e., without user interactions, large-scale multi-source multi-resolution Earth observation (EO) image databases into “operational, comprehensive and timely knowledge/information products” [13], at spatial extents ranging from local to global scale [4].

In compliance with the QA4EO guidelines [2], this paper pursues a quality assessment of two operational (turnkey) software products, suitable for automatic preliminary classification (pre-classification [5]) of spaceborne/airborne Earth Observation (EO) multi-spectral (MS) images: the Spectral Classification of surface reflectance signatures (SPECL) and the Satellite Image Automatic Mapper™ (SIAM™). The former is implemented as a non-validated secondary product within the popular Atmospheric/Topographic Correction™ (ATCOR™)-2/3/4 commercial software toolbox [69]. The latter has been presented in recent years in the remote sensing (RS) literature [1019], where enough information is provided for the SIAM™ implementation to be reproduced [11,17].

To the best of these authors’ knowledge, the ATCOR™-SPECL and SIAM™ software products are, to date, the only two pre-attentive vision expert systems (deductive inference systems for pre-attentional vision) in operating mode made available to the RS community for “fully automatic” near real-time pre-classification of radiometrically calibrated spaceborne/airborne MS images, irrespective of their spatial resolution. The term “pre-attentive vision” is used herein as a synonym of “low-level vision”, according to the terminology of neural science [5,1019] (refer to the Part 1, Section 2.3 [20]). “Fully automatic” means that the information processing system requires neither user-defined parameters nor training data samples to run [21] (refer to the Part 1, Section 4.1 [20]).

For the sake of simplicity this paper is split into two: Part 1—Theory [20] and Part 2—Experimental results.

The Part 1 of this paper provides the present Part 2 with an interdisciplinary terminology and a theoretical background [20]. To cope with cognitive problems [22,23], like RS image understanding [24,25], the proposed terminology encompasses multiple disciplines, like philosophical hermeneutics [26,27], machine learning [22,23], artificial intelligence [28,29], computer vision [30] and human vision [5], in addition to the traditional RS jargon [31] (refer to the Part 1, Section 2 [20]). Based on theoretical considerations exclusively, the Part 1 concludes that the proposed assessment and comparison of the ATCOR™-SPECL and SIAM™ deductive pre-classifiers is appropriate, well-timed and of potential interest to a large portion of the RS readership.

To comply with the principles of statistics and the QA4EO guidelines [1,2], recalled in the Part 1 [20], and with the GEO-CEOS land product accuracy validation criteria [3], the present Part 2 of this paper applies a novel probability sampling protocol for thematic map quality assessment, selected from the existing literature [32], to the ATCOR™-SPECL and SIAM™ pre-classification maps generated from three spaceborne/airborne MS test images. Main characteristics of the proposed probability sampling protocol are that [32]: (i) it introduces a novel Categorical Variable Pair Similarity Index (CVPSI) ∈ [0, 1], able to assess the degree of match between a pair of reference and test thematic map legends which, in general, do not coincide and must be harmonized before comparison, (ii) its sample estimates are statistically valid (refer to the Part 1, Section 2.6 [20]) [24,25], (iii) two independent sets of metrological/statistically-based quality indicators (QIs) are generated from the test thematic map, namely, pixel-based thematic (semantic, categorical) quality indicators (TQIs) and polygon-based sub-symbolic (asemantic) spatial quality indicators (SQIs), and (iv) TQIs and SQIs are statistically significant, i.e., they are provided with a degree of uncertainty in measurement, in compliance with the principles of statistics and the QA4EO guidelines (refer to the Part 1, Section 3 [20]).

Stemming from experimental evidence collected in the Part 2 and supported by theoretical considerations presented in the Part 1, conclusions of this paper may have an impact on the design and implementation of a novel generation of hybrid (combined deductive and inductive) RS image understanding systems (RS-IUSs) in operating mode, capable of coping with large-scale multi-source multi-resolution RS image databases [1020].

The rest of the present Part 2 is organized as follows. Section 2 presents the test data set. In Section 3, a probability sampling protocol is proposed for quality assessment of the ATCOR™-SPECL and SIAM™ pre-classification maps generated from the test image set. Section 4 reports on the comparison of QIs of operativeness (QIOs) estimated from the ATCOR™-SPECL and SIAM™ software products in operating mode. Conclusions are reported in Section 5. The Appendix presents two different formulations of the CVPSI.

2. Test Image Set

To assess the accuracy of pre-classification maps of EO images acquired across time, space and MS imaging sensors, two spaceborne high resolution (HR) MS test images and one airborne very high resolution (VHR) MS test image are selected and radiometrically calibrated, in accordance with: (i) the input data constraints of physical models (refer to the Part 1, Section 2.2 [20]), (ii) the calibration/validation (Cal/Val) requirements of the QA4EO guidelines (refer to the Part 1, Section 3 [20]) and (iii) the GEO-CEOS land product accuracy validation criteria [3] (refer to Section 1). The three EO test images are described below (refer to Table 1).

(1).

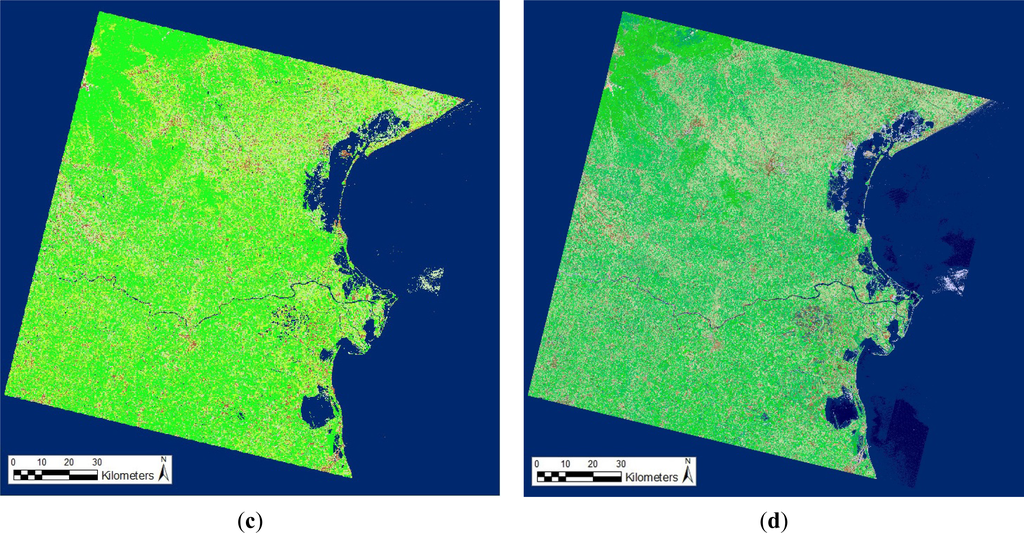

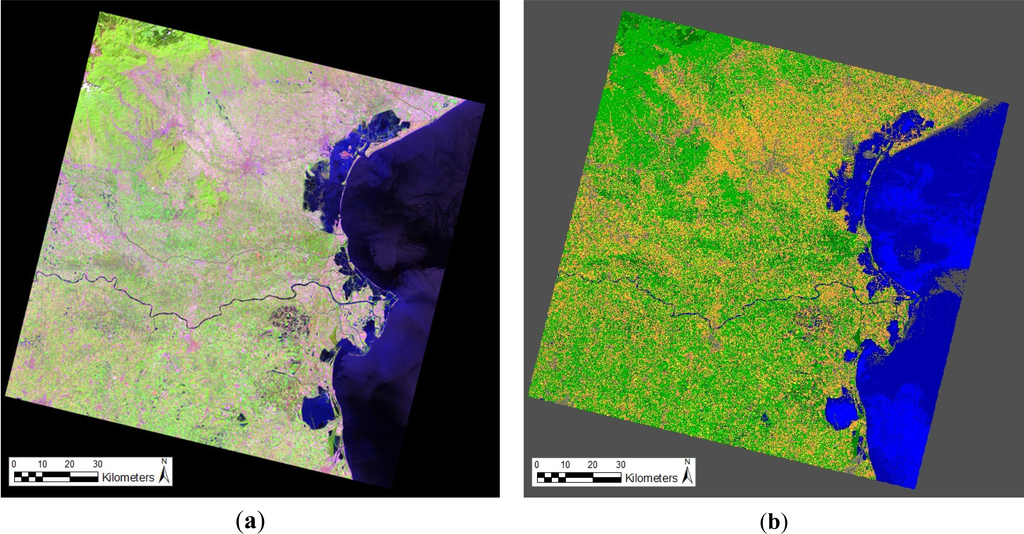

One spaceborne 23.5 m-resolution 4-band (visible green (G), visible red (R), near infra-red (NIR), medium infra-red (MIR)) Indian Remote sensing Satellite (IRS)-P6 medium resolution Linear Imaging Self-Scanner (LISS)-3 image, acquired over the Veneto region of Italy (Venice lagoon) on 13 June 2006. The raw image is orthorectified and radiometrically calibrated into top-of-atmosphere (TOA) reflectance (TOARF) values (refer to the Part 1, Section 4.2.1 [20]), see Figure 1a. The scene is characterized by the presence of the Adriatic Sea in the east, the city of Venice in the northeast, agricultural land to the south and forested areas in the northwest. The IRS-P6 LISS-3 test image is unique in the scope of this work in that it is the only test image presenting clouds (in the top left portion of the image). This test image is input to the ATCOR™-SPECL single-granule pre-classifier (see Figure 1b, whose legend is shown in Table 2; courtesy of Daniel Schläpfer, ReSe Applications Schläpfer) and to the SPOT-like SIAM™ (S-SIAM™) three-granule pre-classification and three-scale segmentation software product (refer to the Part 1, Tables 3 and 4 [20]), see Figure 1c,d. The S-SIAM™ fine-granularity map legend is shown in Table 3.

(2).

One spaceborne 20 m-resolution 4-band (G, R, NIR, MIR) Satellite Pour l’Observation de la Terre (SPOT)-4 High Resolution Visible & Infrared (HRVIR) image, acquired over the Veneto region of Italy across the city area of Verona on 2006-07-21. The raw image is orthorectified and radiometrically calibrated into TOARF values, see Figure 2a. The scene is distinguished by the mountains dominating the northern part of the image, the city area of Verona to the southern portion of the image and a mixture of agricultural and built-up land to the southeast. This test image is input to the ATCOR™-SPECL single-granule pre-classifier (see Figure 2b, whose legend is shown in Table 2; courtesy of Daniel Schläpfer, ReSe Applications Schläpfer) and to the S-SIAM™ three-granule pre-classification and three-scale segmentation software product (refer to the Part 1, Tables 3 and 4 [20]), see Figure 2c,d. The S-SIAM™ fine-granularity map legend is shown in Table 3. Since the SPOT-4 HRVIR test image is similar to the IRS-P6 LISS-3 test image in terms of spectral resolution, spatial resolution and acquisition time, while the surface area depicted in the former is a subset of that of the latter, the difference between the ATCOR™-SPECL and SIAM™ mapping results collected from these two test cases are expected to be (to some degree) correlated (aligned). If verified experimentally, this conjecture would prove, first, the robustness of the two alternative MS image mapping systems to small changes in spectral resolution and image acquisition conditions and, second, the consistency of the proposed protocol for thematic map quality assessment.

(3).

One airborne 0.25 m-resolution 4-band (visible blue (B), G, R, NIR) Leica Airborne Digital Scanner (ADS)-80 image, acquired over an unknown location in the French Alps on 1 September 2007. The raw MS image is radiometrically calibrated into surface reflectance (SURF) values, see Figure 3a (courtesy of Daniel Schläpfer, ReSe Applications Schläpfer). Notably, SURF ⊆ TOARF, i.e., SURF values are a special case of TOARF values, where SURF ≈ TOARF in very clear sky conditions and flat terrain conditions [12,32,33] (refer to the Part 1, Section 4.2.1 [20]). In this test case, visible features include dense tree cover in the southern portion and house development in the northern portion of the image. This test image is input to the ATCOR™-SPECL single-granule pre-classifier (see Figure 3b; courtesy of Daniel Schläpfer, ReSe Applications Schläpfer) and to the QuickBird-like SIAM™ (Q-SIAM™) three-granule pre-classification and three-scale segmentation software product (refer to the Part 1, Tables 3 and 4 [20]), see Figure 3c,d. The Q-SIAM™ fine-granularity map legend is shown in Table 4.

To recapitulate, to test the robustness of alternative MS image mapping systems to changes in the input data set, two test images are selected from different imaging sensors, but their spatial resolution, spectral resolution and acquisition conditions, excluding the depicted area size, are similar one another, while the third test image features a radiometric unit of measure, spatial resolution, spectral resolution and acquisition conditions totally different from the first two test images.

Notably, in the following experimental session only segmentation maps of the VHR Leica image generated by the SIAM™ software product are considered for SQI estimation, since spatial resolutions of the IRS and SPOT test images are too coarse to consider shape properties of image-objects as salient for the recognition of man-made land cover (LC) classes, like “building” and “road”. Since it delivers as output no segmentation map, the ATCOR™-SPECL commercial software secondary product is not investigated by SQIs.

3. Probability Sampling Protocol for Thematic Map Accuracy Assessment

An information map, where information is either continuous or categorical (thematic), provides a reduced representation of a target geospatial population. Map accuracy assessment is an established component of the process of creating and distributing information maps [24]. The fundamental basis of a map accuracy assessment protocol is a location-specific comparison, across a geographic region of interest (GEOROI), between the test map or predicted map to be evaluated [34] and corresponding ground condition(s) or “reference” condition(s) collected from a target (“true”) geospatial population, to be univocally identified on the ground [35], which may be represented as a complete-coverage reference map (also called truth map [34]), if any exists.

Before being used in scientific investigations and policy decisions, thematic or continuous maps generated from RS images should be: (1) validated by means of probability sampling criteria, which guarantee statistical consistency (validity) of sample variables [24,25] (refer to the Part 1, Section 2.6 [20]) and (2) provided with a documented and fully traceable set of mutually uncorrelated, quantifiable, metrological/statistically-based QIs, featuring a degree of uncertainty in measurement to be considered statistically significant [2] (refer to the Part 1, Section 3 [20]).

Largely overlooked by the RS community, the two basic requirements of statistical validity and statistical significance of metrological/statistically-based QIs extracted from RS-IUS’s output products are almost never satisfied in the RS common practice. This means that, to date, operational qualities, including mapping accuracy, of existing RS-IUSs remain largely unknown in statistical terms, in contrast with the principles of statistics and the QA4EO guidelines (refer to the Part 1, Section 2.5 [20]).

In this section, a six-step probability sampling protocol for accuracy assessment of thematic maps generated from spaceborne/airborne EO images is selected from a related work [32]. The selected probability sampling protocol is sketched as follows [32].

(i)

Identification of the GEOROI, test map taxonomy, reference sample set taxonomy and “correct” entries in the contingency table (error matrix). A contingency table is the Cartesian product between two discrete and finite sorted sets of concepts, the test and the reference vocabulary, which may not coincide. Before the contingency table is instantiated with probability values, “correct” entries of the contingency table must be selected by a “knowledge engineer” (domain expert) [28]. Identified as CVPSI ∈ [0, 1] (refer to Section 1), a metrological QI of the semantic harmonization between the test and reference map taxonomies is estimated from the distribution of “correct” entries in the contingency table.

(ii)

Probability sampling design, where the following decisions must be taken.

  • Estimation of the sample set cardinality depending on the project’s requirements specification in terms of: (i) target overall accuracy and confidence interval, (ii) target per-class accuracy and confidence interval and (iii) costs of sampling in compliance with the project budget.

  • Selection of the sampling frame. A sampling frame provides a complete partition of a GEOROI into sampling units and allows access to the elements of the target population spread across the GEOROI [35]. There are two types of sampling frames: (one-dimensional) list frames and (two-dimensional) area frames [24].

  • Selection of the spatial type(s) of sampling units, e.g., pixel, polygon or block of pixels [35]. For example, these three spatial types of sampling units are appropriate for TQI assessment, but the polygon sampling unit type is necessary for SQI assessment (refer to Section 1).

  • Selection of the sampling strategy, e.g., simple random sampling, systematic sampling, stratified random sampling, etc.

(iii)

Evaluation protocol. This procedure collects information pertaining to the thematic determination of both reference and test sampling units. Typically, information pertaining to the thematic determination of the reference sampling units is collected by means of field campaigns, photointerpretation of EO images “one step closer to the ground” than the RS data used to make up the test map [36], i.e., EO images whose spatial and/or spectral quality is higher than that of the RS images employed for the generation of the test map, or a combination of these two information sources.

(iv)

Labeling protocol, consisting of rules to assign one or more class indexes to each reference sampling unit and each test sampling unit, based on the information collected in the evaluation protocol.

(v)

Analysis protocol, where a contingency table, whose “correct” entries are selected in step (i), is instantiated with occurrence or probability values.

(vi)

Estimation protocol, where an optimized set of mutually independent summary statistics, e.g., TQIs and SQIs (see Section 1), provided with their confidence interval, are estimated from the contingency table(s) and assessed in comparison with reference standards [2].

In the rest of this section, the aforementioned probability sampling procedure is instantiated for accuracy assessment of twelve pre-classification maps (refer to Section 1), generated from the three test images, described in Section 2, by the SIAM™ three-granule software product (refer to the Part 1, Tables 3 and 4 [20]) and the ATCOR™-SPECL single-granule software secondary product (refer to the Part 1, Table 2 [20]).

3.1. Identification of the GEOROI, Reference Class Taxonomy, Test Map Taxonomy and “Correct” Entries in the Contingency Table

According to Stehman, the two most common categories of thematic map pair comparison (out of four possible types) are when [37]:

  • Two thematic maps of the same GEOROI and featuring the same thematic map’s legend are compared.

  • Two thematic maps of the same GEOROI, but featuring two different thematic map’s legends are compared. This second type of thematic map comparison includes the first type as a special case.

While the first type of map pair comparisons is by far the most common in the RS literature, in many practical cases the second type of map pair comparisons occurs, where there is a need to reconcile (harmonize, match) different LC class vocabularies before comparing different thematic maps. The semantic harmonization of different legends of thematic maps [3843] is equivalent to solving semantic heterogeneity in a hierarchical organization of ontologies, to guarantee their semantic interoperability, like in ontology-driven geographic information systems [41,42]. In practice, the development of ontologies (e.g., spatio-temporal ontologies of the 4-D world-through-time, refer to the Part 1, Section 2.3 [20]) can facilitate the capture of domain knowledge in such a way as to detect or prevent errors when semantic data sources must be integrated. In the words of Cerba et al. [44], “harmonisation of classifications schemes and systems, codelists, terminology and vocabulary (i.e., selection of corresponding items, definition of rules for mapping languages) must be created before the building of (data) harmonisation tools”. As noted by Ahlqvist, “many scholars have acknowledged a need to negotiate and compare information from different origins, such as data that use different classification systems... Once a classification scheme has been transformed into a formalized categorization, a translation can be achieved by matching the concepts in one system with concepts in another, either directly or through an intermediate classification” [38]. In the words of philosophical hermeneutics [26,27], the notion of “information-as-(an interpretation)process” (refer to the Part 1, Section 2.1 [20]), which always takes place in the communication between a speaker and an inquirer (receiver), where the receiver always plays a pro-active role in the generation of information as interpreted data, implies that any “fusion (harmonization, reconciliation) of ontologies”, occurring between the sender and the receiver, is inherently equivocal (subjective), to be community-agreed upon (refer to the Part 1, Section 2.1 [20]).

In the present Part 2, an inherently equivocal reconciliation of a pair of thematic map taxonomies must be accomplished for validation of a pre-classification map, generated by the ATCOR™-SPECL or the SIAM™ software product, against a reference (“ground truth”) sample set of LC classes. It is important to stress that, as pointed out in the Part 1, Section 4.1 [20], a symbolic (categorical) pre-classification map of an input RS image, generated as output by a pre-attentive vision first stage in agreement with the Marr theory of vision [5], must not be confused with a traditional LC map, delivered as output by an attentive vision second stage. On one hand, an LC map’s legend consists of a discrete and finite set of LC classes (concepts), where each concept is a class of real-world (4-D) objects in the 4-D world-through-time, e.g., “deciduous forest”, “grassland”, “building”, “road”, etc. [18,19,29,44,45]. To have significance to a human observer in the 4-D world-through-time, each LC class name carries a 4-D spatio-temporal information that tends to dominate spectral (color) information [46], which explains why achromatic vision remains effective despite the loss of color information [20]. On the other hand, the vocabulary of a pre-classification map consists of a discrete and finite set of spectral-based semi-concepts, also called spectral categories, where each spectral-based semi-concept is a set of one or more LC classes whose spectral (color) properties can overlap, e.g., “vegetation”, “bare soil or built-up”, “water or shadow”, etc., irrespective of spatio-temporal properties of LC classes. In the words of Adams et al. on popular spectral mixture analysis, LC “classes that mimic one another are grouped and labeled by numbered category” [46]. As a consequence, the semantic information conveyed by a color-driven pre-classification map’s legend is always equal or inferior (coarser), i.e., never superior (finer), to that of an LC map. It means that one spectral-based semi-concept can be associated with one or more (many) LC classes, e.g., spectral category “strong vegetation” can be linked to LC classes “grassland” or “crop”, just like “endmember fractions cannot always be inverted to unique class names” ([46], p. 147). Analogously, one LC class can encompass different color quantization levels, e.g., the LC class “deciduous forest” can be depicted with several tones of color green, equivalent to spectral categories “average vegetation”, “dark vegetation”, etc.

To recapitulate, a one-to-many labeling relationship, typical of LC class mixing, is widely known. Unfortunately, in the RS common practice, spectral categories, although conceptually similar to LC class mixtures, are often confused with LC classes. Hence, it is important to conclude that, in general, vocabularies (ontologies) of pre-classification maps and LC maps generated from the same RS image do not coincide and must be harmonized (reconciled) for assessment and comparison purposes [32].

3.1.1. Selection of “Correct” Entries in a Contingency Table

In our experimental session, geographic coordinates of each test image define a GEOROI, while legends of the ATCOR™-SPECL (refer to Table 2) and SIAM™ pre-classification maps (refer to Tables 3 and 4) are adopted as the test vocabulary. Next, a reference LC class taxonomy, specific for each test image, is selected by an expert photointerpreter. A test image-specific reference LC class taxonomy must be mutually exclusive and totally exhaustive, in compliance with the Congalton and Green requirements of a classification scheme [36]. To satisfy the mutual exclusivity requirement of a classification scheme, LC classes which may spectrally overlap are defined on the basis of spectral rules that are mutually exclusive, to prevent one pixel from belonging to more than one LC class. For example, in Tables 5 and 6, the two LC classes identified as “Vegetation with very low to medium NIR response” (featuring acronym VL-M NIR) and “Vegetation with high to very high NIR response” (featuring acronym H-VH NIR) provide a partition of the vegetation mask (parent-class) into two totally exhaustive and mutually exclusively child-nodes, where the TOARF value ∈ [0, 1] in the NIR band is, respectively, ≤ than or > than a crisp TOARF threshold, say, 0.4. Reference LC class definitions and acronyms selected for each test image are listed in Tables 5 and 7.

In general, test and reference taxonomies are discrete and finite sorted sets of concepts that may differ in semantics, order of presentation and/or cardinality (set size) [35,38,4749]. An either square or non-square contingency table, otherwise called overlapping area matrix (OAMTRX), bi-dimensional association matrix [37], cross-tabulation matrix [34] or full semantic change matrix [47], is the Cartesian product (product set) of a given pair of test and reference taxonomies, which may or may not coincide. If and only if the two test and reference taxonomies are the same sorted set of concepts, then an OAMTRX becomes a popular (square and sorted) confusion matrix (CMTRX) [36,50,51]. Hence, relation OAMTRX ⊇ CMTRX always holds, i.e., the latter is a special case of the former.

In this paper, twelve OAMTRX instances are generated as Cartesian products between the three test image-specific reference LC class taxonomies, refer to Tables 5 and 7, with the three legends collected from the SIAM™ three-granule pre-classifier (refer to Tables 3 and 4) plus one legend of the ATCOR™-SPECL single-granule pre-classifier (refer to Table 2). Six of these twelve OAMTRX instances are shown in Tables 8 and 13 where, for the sake of simplicity, depicted table rows are only those whose test class occurrence is greater than 0.15% in the test map.

Finally, in the so-called definition phase of an OAMTRX instance, a “knowledge engineer” [28] identifies “correct” entries as reference-test class relations capable of harmonizing (matching) the two given test and reference taxonomies. This “harmonization of ontologies” or categorical variable pair matching is a cognitive (interpretation) process. As such, it is inherently equivocal (subjective, refer to the Part 1, Section 2.1 [20]). This means that, in general, categorical variable pair matching requires negotiation and to be community-agreed upon [38,39,4244,46]. Notably, the categorical variable pair matching phase is independent of the OAMTRX instantiation with probability values. In common practice, the former predates the latter (also refer to the introduction to Section 3).

Examples of “correct” entries, selected by the present authors according to their own personal expertise, are shown as yellow checkmarks in Tables 8 and 13 for six out of twelve OAMTRX instances generated in this experimental session. In an OAMTRX instance, “correct” entries can be diagonal or off-diagonal cells. Their distribution identifies many-to-many inter-vocabulary relations, whose special cases are one-to-many, many-to-one and one-to-one relations [32]. This means that comprehensive interpretation of an OAMTRX can be very challenging, complex and time consuming [37,4147], which is not the case for a traditional (square and sorted) CMTRX, whose interpretation is simple and intuitive because it is guided by the main diagonal [36,50,51].

For the sake of completeness, the twelve full-size OAMTRX instances defined and instantiated in this experimental session can be accessed through anonymous ftp [52].

In terms of knowledge/information representation, relation OAMTRX ⊆ CMTRX means that correct one-to-one semantic associations identified in a CMTRX are inherently unambiguous, while no such level of unequivocal information is guaranteed to exist in an OAMTRX instance, where many-to-many test-reference class relations are allowed. This is tantamount to saying that the mapping information conveyed by a (square or non-square) OAMTRX is equal or inferior (i.e., never superior) to that of a (square and sorted, unambiguous) CMTRX [32]. On the other hand, although more ambiguous (fuzzier) than one-to-one relations, many-to-many mapping functions do convey some degree of mapping information, superior to the null information carried by all-to-all relations. In recognition of the amount of useful inter-vocabulary information, whose range of change goes from totally uninformative all-to-all relations up to unequivocal one-to-one relations, the CVPSI measure is proposed to quantify the level of information carried by the distribution of “correct” entries in an OAMTRX instance [32]. For more details about alternative CVPSI formulations, refer to the next Section 3.1.2.

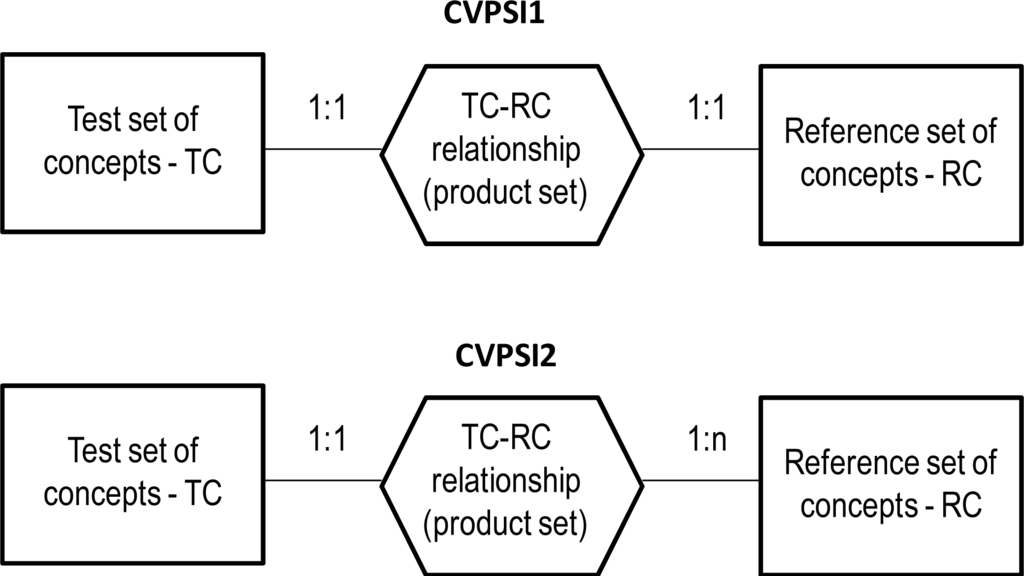

3.1.2. Alternative CVPSI Formulations

Independent of thematic map accuracy, a normalized degree of match between a pair of test and reference categorical variables, which may not coincide, is estimated from an OAMTRX instance and called CVPSI ∈ [0, 1] [32]. In the Appendix, a novel CVPSI formulation, identified as CVPSI2, is proposed as a relaxed version of the original CVPSI1 expression presented in [32], i.e., relation CVPSI2 ≥ CVPSI1 always holds. Designed to be maximized by different distributions of “correct” entries in an OAMTRX instance, the CVPSI1 and CVPSI2 expressions have different application domains. A CVPSI1 estimate increases if inter-vocabulary mapping functions are one-to-one, like in the comparison of two different LC maps whose legends are the same set of concepts, but their orders of presentation are different. A CVPSI2 estimate increases if test-to-reference class relationships are one-to-one (e.g., one color name matches with exactly one target LC class) while reference-to-test class relationships can be either one-to-one or one-to-many (e.g., one reference LC class matches with at least one or more color names). Notably, between the two CVPSI1 and CVPSI2 formulations, the latter is the one suitable for best modeling the mapping problem at hand, from reference LC classes to test spectral categories and vice versa, refer to the Appendix.

Hereafter, the acronym CVPSI is used to mean the ensemble of CVPSI1 and CVPSI2 values.

Notably, variable (1 − CVPSI) ∈ [0, 1], complementary to CVPSI, can be interpreted as a normalized estimate of the mapping (classification) effort required to fill up the residual semantic gap from the test to the reference pair of semantic vocabularies. For example, if CVPSI = 0.4 at the pre-attentive vision first stage of a two-stage RS-IUS, then (1 − CVPSI) = 0.6 is the residual semantic gap from test to reference vocabularies to be filled up by the attentive vision second stage, refer to the Part 1, Figure 1c [20].

Let us identify the total number of “correct” entries in an OAMTRX instance as CE, such that CETC × RC, where TC identifies the cardinality of the test classification taxonomy and RC represents the cardinality of the reference classification taxonomy. As an example, a CVPSI1 value is computed from the OAMTRX instance shown in Table 8 according to Equation (A3) to Equation (A5) in the Appendix. In this case, RC = 6 and TC = 14.

  • Suppose that all elements of the OAMTRX instance of size TC × RC = 14 × 6 = 64 are “correct” entries, such that CE = 64, equivalent to a dumb (non-informative) mapping case. In accordance with condition (A1.c) in the Appendix, it is expected that CVPSI → 0. Based on Equation (A3) to Equation (A5) in the Appendix:

    CVPSI 1 = 1 6 + 14 ( 6 × f RC ( 14 ) + 14 × f TC ( 6 ) ) = 1 20 ( 6 × 0.00043 + 14 × 0.00193 ) = 0.00148 0
    This result proves that Equation (A3) to Equation (A5) satisfy constraint (A1.c) when all inter-vocabulary semantic relationships are allowed.

  • Suppose CE is defined as the total number of elements identified by yellow checkmarks in Table 8, then CE = 29 ≤ TC × RC = 14 × 6 = 64. In accordance with condition (A1.e) in the Appendix, it is expected that CVPSI1 ∈ (0, 1]. Based on Equation (A3) to Equation (A5) in the Appendix:

    CVPSI 1 = 1 6 + 14 ( r = 1 RC = 6 f RC ( A E + , r ) + t = 1 TC = 14 f TC ( AE t , + ) ) = 1 20 ( f RC ( 2 ) + f RC ( 3 ) + 2 × f RC ( 5 ) + 2 × f RC ( 7 ) + t = 1 17 f TC ( AE t , + ) ) = 1 20 ( 3.12956 + f TC ( 0 ) + 3 × f TC ( 1 ) + 5 × f TC ( 2 ) + 4 × f TC ( 3 ) + f TC ( 4 ) ) = 1 20 ( 3.12956 + 8.47092 ) = 0.58002

This result proves that Equation (A3) to Equation (A5) satisfy constraint (A1.e) for the OAMTRX shown in Table 8. The estimated CVPSI1 value of 0.58 means that 58% of the information gap from sensory data to LC classes is filled up at the pre-attentive vision first stage, while 42% of this gap remains to be filled, from intermediate semi-concepts to final concepts, by an attentive vision second stage.

In general, for a given reference vocabulary (say, a reference set of apple types: “apple_1”, “apple_2”, etc.), it is unreasonable to expect the CVPSI value to monotonically increase with the cardinality of the test set of concepts (say, a test set of orange types: “orange_1”, “orange_2”, etc.), irrespective of the semantic matching between the two vocabularies. For example, the CVPSI value between reference apples and test oranges is zero irrespective of the cardinality of the test set of oranges. In particular cases, when the two test and reference vocabularies are semantically “consistent” (say, a reference set of apple types: “apple_1”, “apple_2”, etc., and a single test class called “fruits”), a finer semantic granularity of the test vocabulary or reference vocabulary or both causes the CVPSI to increase or remain the same (never decrease), meaning that the inter-vocabulary mapping becomes less ambiguous, like a quantization error is monotonically non-increasing with the number of quantization levels.

Let us examine if, in these experiments, the CVPSI variable increases with the number of spectral categories detected by the deductive pre-classification first stage at hand. Table 14 reports the CVPSI1 and CVPSI2 estimates collected from the twelve OAMTRX instances (including those sketched in Table 8 and Table 13) generated by the cross-tabulation of the SIAM™’s three-granule legend plus the ATCOR™-SPECL’s single-granule legend with the three test image-specific reference LC class sets reported in Tables 5 and 7. Table 14 reveals the following.

  • Across image-specific reference vocabularies, the CVPSI values estimated from the SIAM™ three-granule legend increase monotonically with the cardinality of the test set of spectral categories. This evidence proves that the “subjective” work performed by the knowledge engineer, who selected the “correct” entries in the OAMTRX instances, can be considered consistent overall, because it does not hinder an existing correlation among sets of SIAM™’s maps featuring a parent-child relationship (refer to the Part 1, Figure 4 [20]).

  • With only one exception in 12 experiments involving both the ATCOR™-SPECL and SIAM™ pre-classifiers, estimated CVPSI values increase with the cardinality of the test set of spectral categories. It means that, in these experiments, the ATCOR™-SPECL semantic vocabulary is correlated with the fine, intermediate and coarse hierarchical levels of the SIAM™ taxonomy (refer to the Part 1, Table 4 [20]). In practice, the ATCOR™-SPECL’s set of spectral categories (refer to Table 2) can be considered as yet-another aggregation of the SIAM™’s set of primitive concepts at fine semantic granularity.

  • For all test images, the CVPSI values of the S-SIAM™ and Q-SIAM™ maps at intermediate and fine semantic granularities (refer to Table 4 in Part 1 [20]) are superior to those of the ATCOR™-SPECL, whose semantic granularity (equal to 19, see Table 2) is coarser.

  • For the S-SIAM™ and Q-SIAM™ maps at coarse semantic granularity, the CVPSI values are inferior to those of the ATCOR™-SPECL in two out of three cases, where the semantic cardinality of the latter (equal to 19, see Table 2) is greater than those of the former (equal to 15 and 12 respectively, refer to Table 4 in Part 1 [20]).

  • Overall, across all test images, both the ATCOR™-SPECL and SIAM™ pre-classifiers accomplish a CVPSI value higher than 50%, which means they both fill at least 50% of the information gap from sensory data to LC classes (refer to the Part 1, Figure 1c [20]), right at the pre-attentive vision first stage, without user interactions and in near real-time, which means at no cost in manpower and computer power.

To recapitulate, in these experiments, where the semantic degree of match between spectral categories and target LC classes is estimated as a scalar value, CVPSI ∈ [0, 1], independent of the mapping accuracy indexes, TQIs and SQIs (refer to the farther Section 3.4.1), conclusions are the following.

  • The SIAM™ multi-granule pre-classifier appears more effective than the ATCOR™-SPECL single-granule pre-classifier in filling up the information gap from sensory data to LC classes (refer to the Part 1, Section 2.3 and Figure 1c [20]).

  • Approximately 50% of the information gap from sensory data to LC classes is filled by the SIAM™ pre-classification first stage and accomplished without user’s supervision and in near real-time. To be considered of potential interest, in addition to being informative because its CVPSI value scores high, the SIAM™ pre-classification first stage must also be accurate, i.e., its TQIs and SQIs must score high simultaneously with the CVPSI.

3.2. Probability Sampling Design

It is impractical to obtain a census of a target geospatial population distributed across a GEOROI (refer to Section 3.1). In practice, a reference map that covers the entire GEOROI almost never exists. When a complete-coverage reference map does not exist, a reference sample set must be collected in compliance with a sampling protocol [24,25]. To provide sample estimates with the necessary probability foundation to permit generalization from the sample data set to the target geospatial population, probability sampling design and implementation become mandatory under constraints discussed in Part 1, Section 2.6 [20]. Probability sampling design consists of the following steps. (i) Estimation of the sample set cardinality depending on the project’s requirements specification. (ii) Selection of the sampling frame. (iii) Selection of the spatial type(s) of sampling units. (iv) Selection of the sampling strategy. These steps are developed below.

3.2.1. Reference Sample Set Cardinality and Degree of Uncertainty in Measurement

Statistical functions that link the sample overall accuracy of a thematic map with the sample degree of tolerance and the reference sample set size are selected from the existing literature. Next, a minimum reference sample cardinality is estimated as a function of the target overall accuracy and error tolerance listed in the project requirements specification.

Statistical Level of Confidence and Level of Significance of a Sample overall Accuracy

In order to estimate the minimum number of reference sampling units to be sampled and labeled for each reference class, Lunetta and Elvidge propose a statistical criterion which depends on the project requirements specification, namely, the target class-specific accuracy and error tolerance, but is independent of costs of sampling to be accounted for in the project budget [50]. This statistical criterion is described below.

An overall accuracy (OA) measure is represented by a probability accuracy estimate (a random variable), pOA, and its associated confidence interval (an error tolerance), ±δ. Furthermore, the half-width of the error tolerance, δ, exists at a specified confidence level (1−∝) such that 0 < δ < pOA ≤ 1 with ∝ ∈ [0,1]. The desired level of significance, represented by ∝, defines the risk that the actual error is larger than ±δ.

Assuming that reference samples are independent and identically distributed (i.i.d.; notably, the i.i.d. property is almost always violated in the RS common practice, due to spatial autocorrelation within neighboring pixels of the same LC type), the half-width of the error tolerance, δ, can be computed based upon the desired accuracy estimate, confidence level, and sample set size (SSS) according to [50]:

δ = χ ( 1 , 1 ) 2 P O A ( 1 P O A ) SSS
where χ ( 1 , 1 ) 2 is the upper (1–α) × 100th percentile of the chi-square distribution with one degree of freedom, e.g., if the level of confidence is (1 − 0.01) = 0.99, then χ ( 1 , 0.99 ) = 6.63 2. It follows that the necessary reference dataset size, SSS, may be estimated as
SSS = χ ( 1 , 1 ) 2 P O A ( 1 P O A ) δ 2

For the purpose of assessment of individual classes involved in the classification process, for each c-th class with c=1, … , C, where C is the total number of classes, it is possible to prove that [50]

δ c = χ ( 1 , 1 / C ) 2 P OA , c ( 1 P OA , c ) SSS c , c = 1 , , C

Similarly, the minimum number of samples to be taken for each class involved in the classification process is defined by Equation (6).

SSS c = χ ( 1 , 1 / C ) 2 P OA , c ( 1 P OA , c ) δ c 2 , c = 1 , , C

When comparing accuracy estimates provided with a degree of tolerance, e.g., pOA1 ± δ1 and pOA2 ± δ2, the following considerations hold [37].

  • In the case where two confidence intervals do not overlap at all, it is possible to draw the conclusion that there is a statistically significant difference (at the confidence level (1−∝) or significance level ∝) between the two accuracy estimates.

  • If two confidence intervals overlap such that the central point of one or other interval falls within the second interval, then there is no statistically significant difference (at the confidence level (1−∝) or significance level ∝) between the two estimates.

  • In the third case, where the intervals overlap but the central point of neither interval lies within the second interval, “we cannot draw a conclusion about the significance of the relative algorithm performance and we must resort to different methods to formally determine the statistical significance of the differences between two algorithms, such as non-parametric tests independent of the underlying distribution, like the Sign test, suitable to determine the significance of the difference between a summary statistic of two different distributions, and the Kolmogorov-Smirnov test, used to investigate the statistical significance of the differences between the distributions themselves” [37].

Estimation of the Reference Sample Set Size Necessary to Satisfy the Project Requirements Specification

In this work, the project requirements specification is as follows.

  • The target number of reference LC classes, RC, is image specific.

    • ○ For the IRS test image, RC = 6, see Table 5.

    • ○ For the SPOT test image, RC = 5, see Table 6.

    • ○ For the Leica test image, RC = 6 + 1 (“Outlier”), see Table 7.

  • In accordance with the U.S. Geological Survey (USGS) standards, the target probability estimate, pOA, and associated confidence interval, ± δ, is fixed at 0.85 ± 2% [13]. The significance level, ∝, is fixed at 0.05, thus χ ( 1 , 1 ) 2 = χ ( 1 , 1 0.05 ) 2 ≈ 3.84.

  • Per-class accuracy estimates, pOA,c, and associated confidence intervals, ± δ, should be consistent and greater than or equal to 0.70% ± 5% [13,53]. In this work, the reference per-class accuracy, pOA,c, is considered equal to 0.85% ± 5%. Additionally, the per-class significance level, ∝/C, is fixed at 0.01, thus χ ( 1 , 1 / C ) 2 = χ ( 1 , 1 0.01 ) 2 ≈ 6.63.

Given these project requirements, sample set size estimates are calculated as follows.

  • According to Equation (4), the minimum sample set size, independent of the test image and sampling costs, necessary to assess the overall accuracy assuming USGS parameters is

    • Equation ( 4 ) = SSS = χ ( 1 , 1 α ) 2 p OA ( 1 p OA ) δ 2 3.84 0.85 ( 1 0.85 ) 0.02 2 1 , 225

  • According to Equation (6), the minimum sample set size (dependent upon the test image reference class set, RC) necessary to assess the per-class accuracy assuming the previously defined parameters is

    • Equation ( 6 ) = SSS c = χ ( 1 , 1 α / RC ) 2 p OA , c ( 1 p OA , c ) δ c 2 , c = 1 , , RC 6.63 0.85 ( 1 0.85 ) 0.05 2 340

    • ○ The number of samples per image is the product of the number of reference classes, RC, and the per-class sample set size, SSSc. For example,

      • ▪ The minimum total number of samples necessary for the IRS test image is RC × 340 = 6 × 340 = 2,040.

      • ▪ The minimum total number of samples necessary for the SPOT test image is RC × 340 = 5 × 340 = 1,700.

      • ▪ The minimum total number of samples necessary for the Leica test image is RC × 340 = 6 × 340 = 2,040, plus “Outliers”.

It is clear that the minimum number of total samples estimated via Equation (4), equal to 1,225, is exceeded by the total number of samples per image estimated via Equation (6), equal to 2,040, 1,700 and 2,040 respectively. Therefore, the worst case selected as minimum sample size for the IRS, SPOT and Leica test images is 2,040, 1,700 and 2,040 respectively, with a minimum class-specific sample size equal to 340.

3.2.2. Selection of the Sampling Frame

Compulsory to the instantiation of a sampling design is specification of a finite sample space, S, which is assumed to coincide with the target GEOROI, such that S ≡ GEOROI, with S represented by a finite set of discrete (areal) spatial units (sampling units, e.g., pixels, blocks of pixels, or polygons [35]) forming a complete (spatially exhaustive) partition of the GEOROI, such that S is a superset of the finite population U to be sampled, thus US ≡ GEOROI. The 2-D sampling universe S ≡ GEOROI formed by areal sampling units can be represented by one of two forms of sampling frames: a one-dimensional (1-D) list frame or a two-dimensional (2-D) area frame [24,35].

List frames consist of a list of all spatial units forming a complete (exhaustive) partition of the GEOROI, accompanied by a spatial address (i.e., location) for each unit. The sample, selected randomly or otherwise, is then evaluated from the list frame, independently of the 2-D sample space S ≡ GEOROI [35]. Because the list frame represents the collection of all spatial units, selection of spatial units is a one-step process.

Alternatively, sampling from an area frame involves selection of sampling units in the 2-D sample space S ≡ GEOROI [24]. Area frame sampling requires, as a first step, identification of dimensionless spatial locations (also called sample candidates or sample locations [24]), otherwise termed geo-atoms [45], equivalent to a dimensionless atomic abstraction of geographic information. An explicit rule for associating a unique sampling unit, say, either a pixel, polygon or block of pixels, with any spatial location within the area frame must be established. For example, a rule for associating a unique polygon with a randomly selected point location is to sample that polygon within which the random point fell. This particular area frame sampling strategy illustrates that it is not necessary to delineate all polygons in the target population to obtain the sample, like in a list-frame sampling. Furthermore, area frames better retain the 2-D spatial structure important for systematic sampling of a geospatial population [24].

In this work, where no complete coverage reference maps are available for the test maps, no list frame can be adopted for sampling. Rather, an area frame is employed for sampling.

3.2.3. Selection of the Spatial Types of Sampling Units

The (areal) sampling unit represents the 2-D unit of the GEOROI upon which accuracy assessment is carried out. The sampling unit can be defined without specifying what will be observed on that unit on the ground; thus no assumption about homogeneity of thematic classes for the sampling unit is necessary [32]. For any type of sampling unit, there are multiple acceptable sampling and response designs. It is therefore necessary to clearly define the sampling unit before attempting to determine the sampling and response designs [24]. Three basic types of areal sampling units exist [24].

  • Pixels, representing small areas (e.g., 30 m pixel), are related to the dimensionless sample location described in Section 3.2.2, but because pixels still possess some areal extent, they partition the mapped population into a finite, though large, number of sampling units.

  • Polygons, typically irregular in shape and differing in size to approximate the shape and size of a target 3-D object, e.g., a target building.

  • Fixed-area plots, generally regular in shape and area which cover a chosen areal extent (typically a 3 × 3 or 5 × 5 pixel plot).

It should be noted that pixels and polygons are special cases of the fixed-area plot spatial unit type. In the present paper, pixel units are adopted to represent all samples used by the TQI estimators (refer to the farther Section 3.4.1) while polygons are necessary for SQI estimators of reference image-objects (segments) whose shape is salient for detection, such as single-date (2-D) image-objects depicting man-made 4-D objects in the world-through-time, like “buildings” and “roads” (refer to the farther Section 3.4.1). Notably, image-objects depicting single instances of man-made objects-through-time (e.g., buildings, roads, etc.) are visible only in the VHR Leica image, see Figure 3 and refer to Tables 5 and 7. It means that segment-based SQIs can be estimated only from the Leica test image.

3.2.4. Selection of the Sampling Strategy

Simple random sampling (SIRS), stratified random sampling (consisting of a SIRS of nh elements from the Nh elements in stratum h), systematic sampling (with a random start and sampling interval K, where K is an integer), and cluster sampling are all probability sampling designs considered as reference standards because, in compliance with the definition of probability sampling (refer to the Part 1, Section 2.6 [20]), they guarantee that: (i) each element u in the population U to be sampled has a positive inclusion probability, πu > 0, ∀ uU, (ii) the probability of an element being included in an arbitrary sample S of the population U, with US ≡ GEOROI, is known and (iii) inclusion probabilities associated with non-sampled units need only be knowable [32].

In this work, no reference map is readily available for identification of class-specific strata on an a priori basis, therefore no stratified random sampling is possible. Given that samples in this work are acquired via photointerpretation (rather than, say, field campaigns), cost reduction achieved by cluster sampling is essentially zero. Hence, cluster sampling is not recommended herein.

Instead, to cope with the project requirements specification of the minimum size of a reference class-specific sample set, SSSc ≈ 340, c = 1, ..., RC (refer to Section 3.2.1), a non-standard SIRS strategy is implemented: it allows the photointerpreter to stop random sampling as soon as the required set of 340 samples per reference class is successfully selected. This non-standard SIRS strategy adopts a “hit/miss” SIRS approach to target a reference class population whose distribution across the test image is unknown a priori. (Non-areal) sample locations (refer to Section 3.2.2), randomly selected across the 2-D sample space S ≡ GEOROI, are labeled by an expert photointerpreter as “hit” if they intersect the target reference class in compliance with the evaluation and labeling protocol (refer to the farther Section 3.3), while sample locations which do not intersect the target reference class are considered a “miss” and discarded from further analysis [32], see Figure 4.

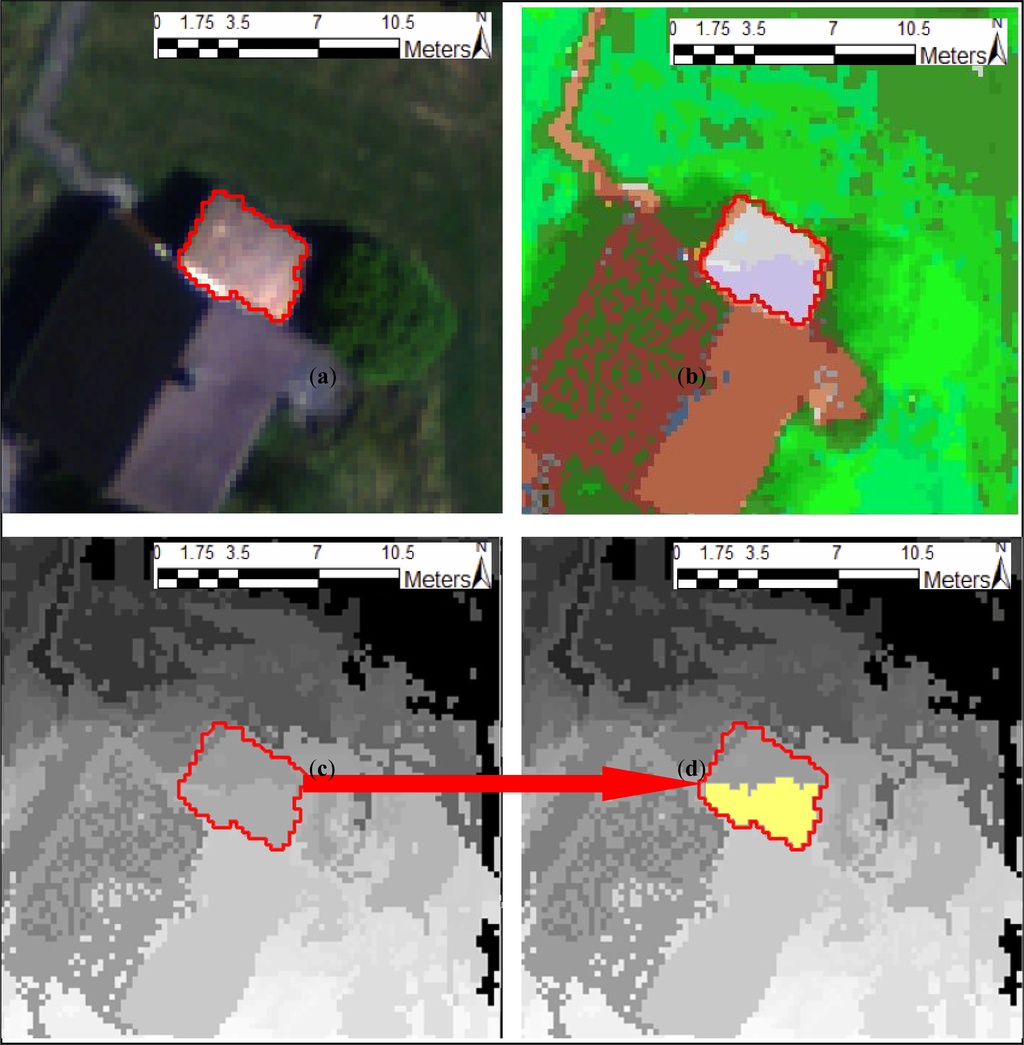

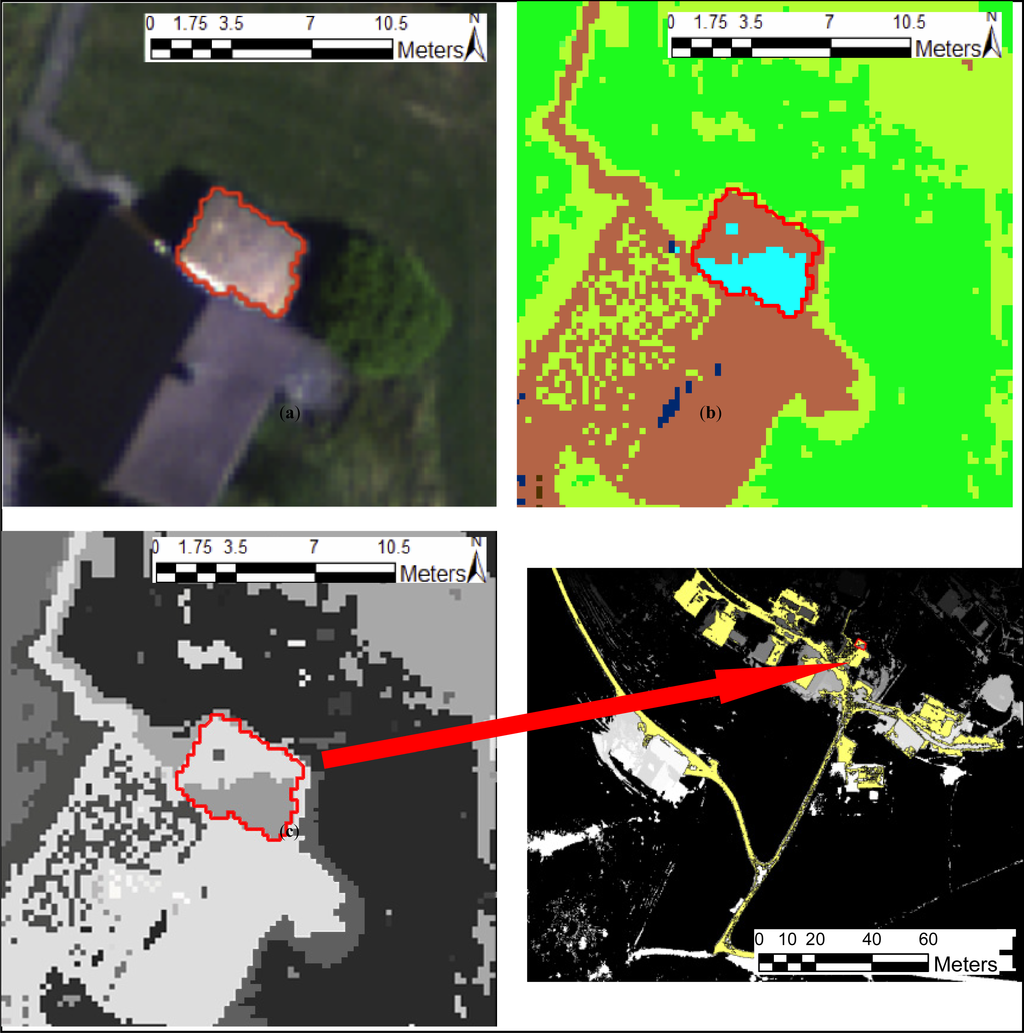

With regard to the polygon-based SQI assessment of the SIAM™ maps generated from the VHR Leica image (refer to Section 3.2.3), the same “hit/miss” SIRS approach described in the previous paragraph would normally be adopted to select instances of the reference class “buildings”, which is a subset of the logical OR-combination of reference LC classes “Light-tone Built-up or Bright Bare Soil” (“LtBBrS”) and “Dark-tone Built-up or Dark Bare Soil” (“DkBDkS”), whose spatial type is polygon, refer to Table 7. However, since it is obvious that there are not enough buildings in the VHR Leica image to reach the required cardinality of 340 instances per class (refer to Section 3.2.1), all buildings detected by an expert photointerpreter in the Leica image are included in the sample set of the reference class “buildings” for SQI estimation.

3.3. Response Design: Evaluation and Labeling Protocol

The purpose of response design is to assign a value or label to (areal) sampling units where (non-areal) sample locations, selected through the sampling strategy (refer to Section 3.2.4), fell. Response design consists of two steps: (i) the evaluation protocol and (ii) the labeling protocol [24].

The evaluation protocol comprises the means through which a spatial support region, defined as the area where “truth” classification evidences are collected, is attached to every sampling unit where a sample location fell [32].

A general rule of thumb would require to select the reference data source “one step closer to the ground” than the RS data used to make up the test map [36] (refer to the introduction to Section 3). Unfortunately, when dealing with thematic maps generated from VHR imagery, it is often the case there is no reference data source originated: (I) at the same time of the VHR image acquisition and (II) one step closer to the ground. For example, to assess the accuracy of thematic maps generated from, say, the VHR Leica test image acquired in year 2007 and adopted in this work (refer to Section 2), pre-existing VHR thematic maps dated 2007 would be required, since ground visits cannot be performed back in time. In general, in these cases the sole data source available for reference population sampling is the same VHR image adopted as input by the RS-IUS whose output map has to be evaluated. In other words, the test and reference data sources coincide with the VHR image at hand. The lack of a reference data source one step closer to the ground than the HR/VHR image at hand should not be considered a problem, provided that the second knowledge expert (reference cognitive agent), the one in charge of implementing the sample evaluation and labeling phases of the map accuracy assessment protocol (refer to the farther Section 3.4), interprets the HR/VHR images by independent means from the first (test) cognitive agent, namely, the RS-IUS whose maps are being validated. This is to say that the reference data set should be acquired independently of the test map to be evaluated.

In these experiments, where the spatial type of sampling units involved with TQI estimators is pixel exclusively (refer to Section 3.2.3), the spatial support region is defined as a 2-D neighborhood, 10 × 10 pixel in size, centered on the pixel upon which the sample location fell. Similarly, the size of the spatial support region for sampling units involved with SQI estimators, whose spatial type is polygon, is defined as 10 times the size of the polygon belonging to the target reference class (e.g., “buildings”) where the sample location fell.

In series with the evaluation protocol, the labeling protocol assigns one (crisp) or more than one (fuzzy) reference class labels to each sampling unit where a sample location fell, based on “truth” classification evidences collected across the spatial support region centered on that sampling unit. In these experiments, for all test images and for all selected spatial support regions, visual evidence is collected by an expert photointerpreter to provide a crisp (“hit” or “miss”) labeling (refer to Section 3.2.4) [32].

3.4. Analysis and Estimation Protocol

Traditional symbolic pixel-based TQIs are summary statistics of class-specific first-order histograms [36,50], which means they are spatial context-insensitive, i.e., they are insensitive to changes in the 2-D spatial distribution of mapping errors. In other words, symbolic pixel-based TQIs investigate “quantification error” independently of “location error” [53,54]. On the other hand, traditional sub-symbolic context-sensitive SQIs investigate “location error” irrespective of “quantification error” [55]. Although highly recommended in the existing literature [53,54], location error estimation is almost never accomplished in the RS common practice. If a location error overlook appears justified in traditional moderate to low resolution EO image applications, where shape of image-objects is less discernible [32,49], this lack appears unreasonable in VHR image analysis.

In this section, in compliance with the original probability sampling protocol proposed in [32], a set of sub-symbolic polygon-based SQIs is estimated in the 2-D pre-classification map domain independently of a set of symbolic pixel-based TQIs, estimated from an OAMTRX instance (refer to Section 3.1).

3.4.1. Thematic Accuracy Assessment of a Classification Map

Unlike traditional TQIs of a traditional (square and sorted) CMTRX instance, whose associated CVPSI value is trivial because always equal to 1 (refer to Section 3.1.2), TQIs estimated from an OAMTRX instance, where (ambiguous) many-to-many reference-test class relationships are allowed, must always be assessed and compared in combination with an OAMTRX-derived CVPSI value in range [0, 1] (refer to Section 3.1.2). For example, if two thematic maps of the same EO image feature the same set of TQI values, but CVPSI = 0.5 and 0.9 respectively, then the second map is to be considered the “best” one overall, because it maximizes TQIs and the CVPSI simultaneously.

Proposed TQIs are mutually independent to cope with the non-injective property of any QI (refer to the Part 1, Section 2.5 [20]) and are provided with a degree of uncertainty in measurement, in accordance with the principles of statistics and the QA4EO guidelines [2].

TQI Formulations

In a relevant portion of the existing RS literature, the use of popular pixel-based TQIs estimated from a CMTRX, such as the kappa coefficient, is strongly discouraged [51,5658]. In line with these recommendations, well-known pixel-based TQIs selected in this paper are the traditional overall accuracy (pOA), user’s accuracy (pUA) and producer’s accuracy (pPA) probabilities.

Due to the well-known non-injective property of any QI (refer to the Part 1, Section 2.5 [20]), pOA alone is not sufficient to characterize thematic map accuracy, i.e., different thematic maps may feature the same pOA value. Since every error is an omission from the correct category and a commission to a wrong category [36], the commission error (false positive) and the omission error (false negative), inversely related to the pUA and the pPA estimators respectively, are commonly used in literature in combination with the pOA. All of these TQIs, namely, pOA, pUA and the pPA, directly illustrate the probability of encountering a correct or incorrect labeled pixel, i.e., they allow comparisons between digital maps consisting of sampling units whose spatial type is pixel (refer to Section 3.2.3).

The selected pixel-based TQIs are generally expressed in terms of the (square and sorted) CMTRX ⊆ OAMTRX, where reference classes are conventionally identified as columns [37] (refer to Section 3.1.1). In the specific case of a CMTRX, the sum of correctly classified pixels pOA is equivalent to the sum of the main diagonal cells, given RC reference classes [32]:

p OA = c = 1 R C p c , c

User’s accuracy, pUA, represents the conditional probability that an areal unit classified as class c, with c = 1, …, RC, in the test map is also classified as class c in the reference sample set. Hence, pUA is inversely related to commission error (false positive samples). In the specialized case of a CMTRX, pUA is defined as follows [32,36].

p U A , c = p c , c i = 1 R C p c , i = p c , c p c , +

Similarly, pPA represents the conditional probability than an areal unit classified as class c, with c = 1, …, RC, in the reference sample set is also classified as class c in the test map. Hence, pPA is inversely related to omission error (false negative samples). In the specialized case of a CMTRX, pPA is defined as follows [32,36].

p P A , c = p c , c i = 1 R C p i , c = p c , c p + , c

As previously noted (refer to Section 3.1), a (square and sorted) CMTRX is impractical to implement in the context of this work and is replaced by OAMTRX instances, e.g., refer to Table 8 and Table 13. It is therefore necessary to adjust the numerators of Equations (911) to account for the many-to-many relationships allowed in any OAMTRX instance. Additionally, parameter RC = TC in Equations (10) and (11) must be split into two, namely, the cardinality of the test vocabulary, TC (e.g., refer to Table 14), and that of the reference vocabulary, RC, where, in general, RCTC (e.g., refer to Tables 5 and 7).

Overall Accuracy Estimation

An analysis of Table 15 reveals the following.

Overall, the pOA index scores “very high” across pre-classifiers and input data sets. This is not due to a positive bias in the quality assessment protocol, in fact small but statistically significant differences in accuracy between the two alternative mapping systems are detected. Rather, this overall effect is perfectly in line with theory: (ambiguous, fuzzy, vague) many-to-many inter-vocabulary relationships in an OAMTRX instance are easier to satisfy than (are relaxed versions of) unambiguous one-to-one inter-vocabulary relationships typical of traditional CMTRX instances (also refer to Section 3.1.2). This is like saying that when a statement is reasonable, but vague, then it is almost always right.

Collected across pre-classifiers and input data sets, pOA estimates at the 95 percent level of confidence exceed the USGS pOA reference standard, equal to 85% ± 2% (refer to Section 3.2.1) in three out of three cases by the ATCOR™-SPECL and nine out of nine cases by the SIAM™. For the ATCOR™-SPECL the minimum pOA value is 84.26% ± 2.08% generated from the pre-classification map of the IRS test image while the maximum pOA estimate is 96.18% ± 1.09% for the pre-classification map of the VHR Leica image. The SIAM™ deductive pre-classifier produces a minimum pOA estimate of 90.49% ± 1.67% and a maximum of 99.35% ± 0.50%.

At the 95 percent confidence interval, the pre-classification maps of the IRS image feature the lowest accuracy scores across input data sets for both the SIAM™ and ATCOR™-SPECL software products. These low pOA values are caused in part by misclassification of cloud pixels, found only in the IRS image (refer to Section 2).

When the input is the Leica or the SPOT test image, the SIAM™’s pOA values at intermediate and fine semantic granularities tend to be statistically equivalent: their corresponding confidence intervals overlap, with the central point of one or other interval falling within the second interval (refer to Section 3.2.1). Across test data sets and pre-classification systems, the highest pOA estimates are generated from pre-classification maps of the VHR Leica image. This outcome can be explained as follows. First, the fine spatial resolution (0.25 m) of the Leica image results in fewer mixed pixels, whose lack tends to increase the map accuracy of both the ATCOR™-SPECL and SIAM™ software products. Second, the Leica image is the sole available test data set radiometrically calibrated into SURF rather than TOARF values (refer to Section 2). If the atmospheric correction pre-processing stage is correct (refer to the Part 1, Figure 2), per-class data variability is expected to decrease and classification accuracy to increase.

Overall, at the 95 percent confidence interval, all the SIAM™’s maps, but one, exhibit significantly higher pOA values than their ATCOR™-SPECL counterparts, where pairs of corresponding confidence intervals do not overlap at all (refer to Section 3.2.1). In the single case of the Q-SIAM™ coarse-granularity map of the Leica image, the two confidence intervals overlap, but the central point of neither interval lies within the second interval, thus we cannot draw a conclusion about the significance of this pOA pair difference (refer to Section 3.2.1).

The conclusion of this section is that statistically significant differences in pOA estimates between the ATCOR™-SPECL and SIAM™ deductive pre-classifiers tend to increase in favor of the latter if, first, the semantic cardinality of the SIAM™ pre-classification map increases and, second, the spatial resolution of the input image gets coarser.

Producer’s Accuracy Estimation

An analysis of Table 16 reveals the following.

Overall, the SIAM™ provides, at fine, intermediate and coarse semantic granularity, statistically significant higher values of pPA than the ATCOR™-SPECL in 14 of 51 instances, while the ATCOR™-SPECL preliminary classification maps show statistically significant higher values of pPA than the SIAM™ preliminary classification maps in three of 51 instances. The pPA values of the two pre-classifiers are not significantly different in the remaining 34 cases.

The adopted pPA requirement of 70% ± 5% (refer to Section 3.2.1) is exceeded in 15 out of 17 cases by the ATCOR™-SPECL, with one class below the threshold and one class not significantly different than the threshold at the 99 percent confidence interval. The SIAM™ pre-classification maps at coarse, intermediate and fine semantic granularity exceed this threshold in 49 out of 51 cases, with two reference LC classes falling below the threshold. The four cases not above the target pPA threshold are examined hereafter.

In the pre-classification maps of the IRS image, index pPA scores low for the reference class “Clouds, cloud-shadows or shadows” (“Cl/Sh). These pPA estimates are 16.47% for the ATCOR™-SPECL and 55.88%, 55.88% and 83.53% for the SIAM™ maps at coarse, intermediate and fine semantic granularity. Misclassifications of the reference class “Cl/Sh” in the ATCOR™-SPECL pre-classification are often due to soil-related spectral categories, e.g., “sparse vegetation/soil”, “dry vegetation/soil” and “dark vegetation”, refer to Table 2. In the SIAM™ pre-classifications these mapping errors are related to the coarse spectral categories “Barren land or Built-up” (“BB”) and “Vegetation” (“V”). In both cases, misclassification of vegetation-related categories occurs in areas of strong shadows over forest cover while misclassification of soil-related classes is located within clouds. Separation of the reference class “Cl/Sh” into two distinct reference classes, “Cl” and “Sh”, would allow more comprehensive analysis of these errors. However, the practical consideration that, in the IRS test image, the occurrence of this reference class is below the minimum per-class sample size of 340 pixels required by the modified SIRS strategy implemented in this work makes a split of parent-class “Cl/Sh” into child-classes Cl” and “Sh” impractical (refer to Section 3.2.1). Alternatively, a “fuzzy” reference labeling scheme which applies more than one label to a reference sample could be implemented. Unfortunately, whereas the construction of an OAMTRX/CMTRX is straightforward and non-controversial when the semantic labels of sampling units are crisp (hard), the method to construct an OAMTRX/CMTRX is not obvious at all when semantic labels are soft (fuzzy) [32,34].

To summarize, the SIAM™ appears capable of outperforming the ATCOR™-SPECL in the color mapping of clouds and cloud-shadows. However, both first-stage deductive pre-classifiers are not expected to be successful as cloud detectors based on per-pixel (color) properties exclusively, while spatial information is ignored. This means that, to detect clouds effectively, a second-stage context-sensitive one-class cloud detection classifier, driven by the SIAM™’s first-stage knowledge, should be developed in compliance with the novel hybrid RS-IUS architecture proposed in [1019] (refer to the Part 1, Section 4.1).

With regard to the multi-granule pre-classification of the SPOT test image, Table 16 shows that pPA indicators are lower than expected for the reference LC class “Water” in the ATCOR™-SPECL map (62.82% ± 6.71%) and the SIAM™ map at coarse granularity (82.94% ± 5.25%). In this reference LC class, misclassifications occur with spectral category “Asphalt/dark sand” for the ATCOR™-SPECL and spectral category “Thin cloud over shrub-rangeland or herbaceous rangeland or bare soil and built-up” (“TNCL_SHRBR_HRBCR_BB”) for the SIAM™ maps, respectively.

Finally, in the pre-classification maps of the Leica image, all pPA indicators far exceed the 70% ± 5% per-class accuracy target (refer to Section 3.2.1). Slight decreases in performance are observed in the ATCOR™-SPECL pre-classification map overlapping with the reference LC class “Dark Built-up or Dark Soil” (“DkBDkS”) (79.71% ± 5.62%, with misclassification errors attributed to the spectral category “not classified”. Similarly, the SIAM™ pre-classification map at fine semantic granularity demonstrates a pPA value below average for the LC class “Shadow” (“SH”). Many so-called errors in this LC class are due to spectral category “Average shrub-rangeland with very low near-infrared response” (“ASHRBRVLNIR”), which actually features a spectral overlap with vegetation in shadow, since the SIAM™ is capable of “looking-through” both haze/thin clouds and shadows (refer to the Part 1, Section 4.2.1 [20]). To say that this spectral category should be no longer considered as a source of errors for the detection of the LC class “SH”. This case is proposed as an example of reference-test class relation, subjectively interpreted as “incorrect” by a knowledge engineer, which would deserve to be reconsidered to become community-agreed upon. If the reference-test class pair (“SH”, “ASHRBRVLNIR”) is considered as a “correct” entry, then TQI values, like pOA and pPA, are expected to increase at the cost of a decrease of the CVPSI value. This combination of effects should be carefully assessed by the domain expert, because mutually independent TQIs, SQIs and the CVPSI should be maximized simultaneously (also refer to Section 3.1.2).

User’s Accuracy Estimation

Complete pUA measures are accessible via anonymous ftp [52]. While pUA is a useful TQI for many purposes (refer to the introduction to Section 3.4.1), the adopted probability sampling design specifies the cardinality of reference rather than test classes (refer to Section 3.2.1). The consequence is that while it is ensured that each reference category obtains a minimum of 340 samples, for practical reasons no such requirement is imposed for test categories. For example, with a possible 68 output spectral categories in an S-SIAM™ map at fine semantic granularity (refer to Table 3), user’s accuracy assessment could require up to 340 × 68 = 23,120 samples overall, according to the Lunetta and Elvidge sample size estimation criterion (refer to Section 3.2.1). As a result, in the test maps at hand many test categories are non-represented or underrepresented (which is particularly true in the SIAM™’s maps at fine semantic granularity), therefore they suffer from a large error tolerance.

User’s accuracy tables, available via anonymous ftp [52], show that pUA measures for test categories, whose occurrence in the test maps at hand is considered conventionally significant (greater than 0.15% of the test map area, refer to Table 8 and Table 13) typically exceed the target per-class 70 percent accuracy threshold (refer to Section 3.2.1), with some notable exceptions. Considered as exceptions and shown in Table 17 are spectral categories whose pUA value is low while their occurrence is greater than 100 samples, arbitrarily set as a filtering criterion of “adequate sampling”. Table 17 also shows that sources of pUA errors are in agreement with the low pPA estimates found in Table 16. For example, in the ATCOR™-SPECL pre-classification map of the IRS test image, low pUA scores observed for test classes “Dry Vegetation/Soil” and “Sparse Vegetation/Soil” in Table 17 account for the low pPA value scored by the reference class “Cl/Sh” in Table 16.

3.4.2. Spatial Accuracy Assessment of a Classification Map

Ground-level 4-D objects-through-time, whose shape information is salient for classification purposes, such as man-made objects like “buildings” and “roads”, are typically indistinguishable as image-objects in spaceborne moderate (e.g., Landsat) to low (e.g., Moderate Resolution Imaging Spectroradiometer, MODIS) spatial resolution images. Single entities of man-made objects are more clearly distinguishable in spaceborne/airborne VHR (<5 m) imagery, like the airborne Leica test image shown in Figure 3. Hence, in the Leica test image, the spatial type of image-objects belonging to the reference LC class “buildings” is polygon (refer to Section 3.2.3).

In the computer vision and RS literature, a segmentation map is a sub-symbolic partition of an image where a discrete 2-D segment is a connected image-object (polygon) whose sub-symbolic identifier, provided with no semantic information (refer to the Part 1, Section 2.1 [20]), is typically an integer number, e.g., segment 1, segment 2, etc. Notably, a unique (sub-symbolic) segmentation map can be generated from a (symbolic) thematic map (binary or multi-level image) [31], but the contrary does not hold because different thematic maps can generate the same segmentation map, i.e., no thematic map can be unequivocally inferred from a segmentation map (refer to the Part 1, Section 4.4).

In compliance with the original protocol proposed in [32], a set of sub-symbolic polygon-based SQIs is estimated in the 2-D pre-classification map domain independently of a set of traditional symbolic pixel-based TQIs extracted from an OAMTRX instance (refer to Section 3.4.1). Proposed SQIs are independent one another, to cope with the non-injective property of any QI (refer to the Part 1, Section 2.5 [20]), and are provided with a degree of uncertainty in measurement in compliance with the principles of statistics and the QA4EO guidelines [2].

SQI Formulations

In typical geographic object-based image analysis (GEOBIA) applications [5966] (refer to the Part 1, Section 2.2 [20]), like building detection in VHR images, possible SQI formulations are proposed by McGlone and Shufelt in [67] and applied by Hermosilla et al. [68]. Inversely related to spatial error indices originally presented by Persello and Bruzzone in the RS literature [55], four general-purpose global SQIs are proposed in [32]. A global (image-wide) SQI is computed as the mean of the sum over all the values of a local SQI estimator. A local SQI estimator investigates a specific spatial relationship, e.g., oversegmentation, undersegmentation or edge mis-location, between the i-th reference image-object belonging to a reference LC class c, ROi,c, and its corresponding target (mapped) image-object, identified as TOi,c, located in the test segmentation map as the sub-symbolic segment with the most pixels in common with the reference object, such that [55]:

TO i , c = A r g T O j T O max | RO i , c T O j | , c = 1 , , R C , i = 1 , , R T ( c )
where symbol |·| represents the set cardinality, namely, the size of the segment-pair overlapping area, and RT(c) is the total number of reference objects in reference class c, with c = 1, ..., RC. Therefore, a reference class-specific global SQI is computed as:
SQI c = 1 RT ( c ) i = 1 RT ( c ) SQI i , c ( RO i , c , TO i , c ) , SQI i , c ( RO i , c , TO i , c ) ( 0 , 1 ] , SQI c ( 0 , 1 ] , c = 1 , , RC

It is worth mentioning that this global SQI formulation accounts for the polygon-specific inclusion probability, which increases with the polygon size and whose inverse value determines the weight attached to each sampling unit in probability sampling [32].

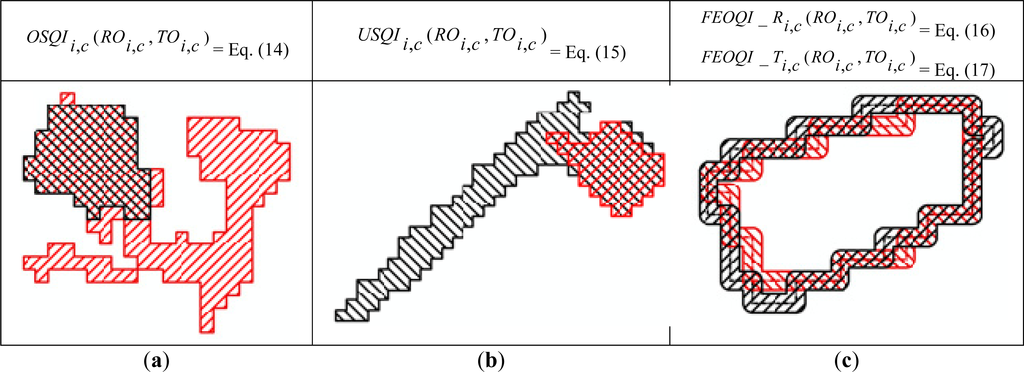

The four local SQI estimators proposed in [32] are summarized hereafter. Inversely related to the oversegmentation error presented in [55], the local Oversegmentation SQI (OSQI) estimator quantifies the degree of overlap between ROi,c and TOi,c with respect to ROi,c [32].

OSQI i , c ( RO i , c , TO i , c ) = | RO i , c TO i , c | | RO i , c | ( 0 , 1 ] , c = 1 , , RC

Complementary to the local OSQI function, the local Undersegmentation SQI (USQI) estimator is inversely related to the undersegmentation error presented in [55]. In practice, observed OSQI and USQI values tend to be inversely related, though this observed relationship is not axiomatic (which is evidence that the OSQI and USQI are in fact not correlated). The local USQI quantifies the degree of overlap between ROi,c and TOi,c with respect to TOi,c.

USQI i , c ( RO i , c , TO i , c ) = | RO i , c TO i , c | | TO i , c | ( 0 , 1 ] , c = 1 , , R C

Image-contour detection is the dual problem of image-object segmentation [1019]. Inspired to the edge location error index presented in [55], two Fuzzy Edge Overlap SQIs (FEOQIs) measure the precision (inverse of distance) of the contour of the target object relative to the contour of the reference object and vice versa. For the purpose of edge extraction, a buffer half-width distance parameter, represented as e (·), must be user-defined. The included buffer distance is necessary to create an areal object around an edge (since edges are lines, hence have no thickness), but is also useful for reducing the impact of accidental spatial errors inevitably introduced in the localization of reference contours through human photointerpretation. It is worth noting that while the buffer half-width distance is a free parameter to be user-defined, the value of e should be as small as possible to avoid inflating FEOQI values. For example, 2 pixels seems a reasonable buffer half-width in the Leica test image whose spatial resolution is 0.25 m, therefore e is set equal to 0.50 m. The first local FEOQI estimator, called FEOQI_Reference (FEOQI_R) ∈ (0, 1), which quantifies the similarity between reference and test object edges with respect to the reference object, is computed as follows [32].

FEOQI_R i , c ( RO i , c , TO i , c ) = | e ( RO i , c ) e ( TO i , c ) | | e ( RO i , c ) | ( 0 , 1 ] , c = 1 , , R C .

The second local FEOQI estimator, called FEOQI_Test (FEOQI_T) ∈ (0, 1], which quantifies the similarity between reference and test object edges with respect to the test object is the dual function of the FEOQI_R estimator. It is computed as follows [32].

FEOQI_T i , c ( RO i , c , TO i , c ) = | e ( RO i , c ) e ( TO i , c ) | | e ( TO i , c ) | ( 0 , 1 ] , c = 1 , , R C .

The goal of an image segmentation algorithm would be to maximize the aforementioned SQIs up to value 1 (whereas error indices, like those in [55], should be minimized to 0), where 1 represents perfect agreement (with respect to the divisor) between reference and target objects. In the worst case scenario, where only one pixel is in common between every reference and mapped object pair, SQIs approach zero. The four proposed local SQI estimators are shown in Figure 5. For example, in Figure 5a, there is perfect agreement between the areas of the ROi,c and TOi,c with respect to TOi,c, but not with respect to ROi,c. Hence, in Figure 5a, OSQIi,c(ROi,c, TOi,c) is expected to be “low” while USQIi,c(ROi,c, TOi,c) is expected to tend to 1.

SQI Estimation

It is common knowledge that the generation of a segmentation map from a binary or multi-level image (e.g., a thematic map) is a well-posed problem in the Hadamard sense (i.e., the problem solution exists and is unique) [69] (refer to the Part 1, Section 4.4 [20]). This well-posed segmentation problem is typically solved by means of a computationally efficient two-pass connected-component image labeling algorithm ([31]; p. 197). For example, the SIAM™ software product univocally and automatically generates a three-scale sub-symbolic image segmentation map from a three-granule preliminary classification map of an input EO optical image using an 8-adjacency pixel connectivity model. Hence, the SIAM™ three-scale sub-symbolic image segmentation map of the VHR Leica image (see Figure 3c) can be selected for polygon-based SQI assessment of the reference class “buildings”.

Unfortunately, unlike the SIAM™, the ATCOR™-SPECL software toolbox does not deliver as output any segmentation map together with its single-granule pre-classification map of an input MS image. Therefore, the polygon-based SQI assessment procedure cannot be applied to any ATCOR™-SPECL’s segmentation map, but to the SIAM™’s maps of the Leica test image exclusively.

To account for a reference class-specific sample size requirement of 340 samples (refer to Section 3.2.1), all buildings identified by an expert photointepreter in the Leica test image are selected as reference image-objects.

SQI estimates of the SIAM™’s three-scale segmentation map generated from the VHR Leica test image are displayed in Table 18. Overall these SQI values tend to be lower than their respective TQI values. In line with theoretical expectations, the USQI, FEOQI_T, and Average SQI (ASQI) values increase (vice versa, decrease) with the SIAM™ semantic cardinality (vice versa, granularity), while the OSQI values, complementary to USQI’s, decrease with semantic cardinality. On the contrary, FEOQI_R shows no definitive trend with regard to semantic granularity. These results agree with theory because of the difference in semantics between spectral categories in the (2-D) image domain and LC classes in the 4-D world-through-time (refer to the Part 1, Section 2.3 [20]). For example, adjacent but distinct 3-D objects observed at a given time, if composed of materials with similar spectral properties, like instances of class “roads” and class “buildings”, may be mapped onto the same SIAM™ spectral category label at coarse semantic granularity, but onto different color-based category labels at fine semantic granularity [11,36]. This explains why OSQI is monotonically decreasing with the SIAM’s semantic cardinality while USQI and FEOQI_T are monotonically increasing. An example of this phenomenon is illustrated in Figure 6.

Conversely, at fine semantic granularity, underestimation of the ASQI value can be due to a phenomenon causing reference-test image-object pair mismatches different from that described in the previous paragraph. This underestimation effect occurs when a single reference image-object, featuring a homogeneous symbolic meaning (e.g., a reference image-object belonging to the LC class “buildings”), receives multiple labels of color-based categories (refer to the Part 1, Section 4.2), typically as a result of intra-object changes in solar illumination conditions. This case of test-reference segmentation mismatch is shown in Figure 7.

Furthermore, as alluded to in the formulation of the FEOQI estimators, accidental errors introduced by the photointerpretation process are expected to have a greater role in the SQI calculations than in the TQI calculations, due to the fact that delineation of reference image-object boundaries is more difficult than assigning a semantic label to a specific pixel location.

3.4.3. Remarks

Based on a realistic many-to-many association model (represented by “correct” entries distributed across an OAMTRX instance, refer to Section 3.1) between a pair of test and reference semantic vocabularies which, in general, may not coincide (refer to the Part 1, Section 4.2 [20]), symbolic pixel-based TQIs, collected in this section, are: (i) inversely related to so-called “quantification errors” [53,54], and (ii) insensitive to the geospatial distribution of errors, related to the so-called “location error” [53,54], refer to the introduction to Section 3.4.

On the other hand, based on a one-to-one association model between one reference polygon and one mapped sub-symbolic polygon, see Equation (12), sub-symbolic polygon-specific SQIs, collected in this section, are: (i) inversely related to “location errors”, estimated according to Equations (1217), and (ii) insensitive to so-called “quantification errors” [53,54]. For example, SQIs are independent of the semantic label of the mapped polygon detected via Equation (12), i.e., they are insensitive to whether or not the pair of semantic labels of the reference and mapped objects identifies a “correct” entry in the OAMTRX instance at hand.

Moreover, Equation (12), adopted to detect a sub-symbolic mapped polygon of a reference polygon, is unable to capture any possible “correct” one-to-many association between one polygon belonging to a specific reference class (e.g., an LC class) with one or more polygons belonging to a set of “correct” test classes (e.g., spectral categories). This means that, based on theoretical considerations exclusively, in the second type of inter-map comparisons described in the introduction to Section 3.1, where reference and test thematic vocabularies do not coincide and where one-to-many reference-to-test class relations (e.g., one LC class maps into several spectral categories) can be considered “correct”, in agreement with the CVPSI2 formulation proposed in the Appendix, SQIs computed according to Equations (1217) are expected to be negatively biased (i.e., underestimated), whereas the same SQI formulas have no bias when applied to the first type of inter-map comparisons, described in the introduction to Section 3.1, where one-to-one test-reference class relations can be found exclusively.

To conclude this section, in a thematic map accuracy assessment task, where many-to-many associations typically hold between reference LC classes and test classes, like in Tables 813, it is reasonable to expect that estimated TQI values are higher than SQI estimates, because the latter are, first, better suited to cope with one-to-one inter-vocabulary associations and, second, negatively affected by undesired effects (like those shown in Figures 6 and 7). This may explain why, in the proposed experiments, the ASQI values reported in Table 18 are significantly lower than TQI values shown in Tables 15 and 16.

4. QIOs Assessment

In agreement with the Part 1, Section 2.5 [20], a set of QIOs is selected and instantiated for the comparison of the ATCOR™-SPECL and SIAM™ software products in operating mode, to comply with the QA4EO guidelines (refer to the Part 1, Section 3 [20]).

Since the ATCOR™-SPECL and SIAM™ static decision-tree pre-classifiers share the abstraction levels of computational theory and, to some degree, knowledge/information representation, but differ at the abstraction levels of algorithms and implementation (refer to the Part 1, Section 4 [20]), their corresponding QIO values are expected to be different, but “similar”, which means they are expected to share the same order of magnitude.

Estimated QIOs of the ATCOR™-SPECL and SIAM™ software products are compared as follows.

(i)

Degree of automation. It is estimated as the inverse of the number of system free-parameters to be user-defined, which is null, hence degree of automation is maximum, i.e., it cannot be surpassed by alternative approaches. Both preliminary classifiers are termed “fully automatic” [21], i.e., they require neither input parameters to be user-defined nor training data to run (refer to the Part 1, Section 4.1 [20]).

(ii)

Effectiveness, intended as accuracy of the pre-classification map. Map accuracy measures are split into independent QIs, namely, TQIs, SQIs and the CVSPI, see Section 3. The TQI values of the SIAM™ tend to be significantly higher (in statistical terms) than the ATCOR™-SPECL’s. Also the CVPSI values of the SIAM™ at the intermediate and fine semantic granularities are higher than those of the ATCOR™-SPECL single-granule maps. Estimated for the SIAM™ exclusively, SQIs tend to be lower than their corresponding TQIs (refer to Section 3.4.2).

(iii)

Efficiency is estimated as the inverse of computation time, because memory occupation is negligible, both algorithms being pixel-based. The two deductive pre-classifiers are context-insensitive (pixel-based), non-iterative (one-pass) and non-adaptive to input data (prior knowledge-based), hence they are computationally efficient. For example, in a laptop computer provided with a Windows operating system, SIAM™ requires three minutes to generate as output three pre-classification maps from a 7-band Landsat full scene, approximately 7,000 × 7,000 pixels in size. In practice, both pre-classifiers can be considered near real-time.

(iv)

Robustness to changes in input parameters cannot be surpassed by alternative approaches, because no system free-parameter exists.

(v)

Robustness to changes in input data acquired across time, space and sensors is investigated in Section 3, in addition to the existing literature [619]. It can be considered (qualitatively) “high”. This is due to a combination of effects. First, the required radiometric calibration constraint guarantees harmonization of MS data acquired across time, space and sensors (refer to the Part 1, Section 4.2.1 [20]). Second, the two pre-classifiers are pixel-based, i.e., both systems work at the spatial resolution of the imaging sensor whatever it is, i.e., they are spatial resolution-independent. Third, the two rule-based mapping system implementations pursue redundancy of the rule set. Actually, redundancy of the SIAM™ rule set appears far superior to that of the ATCOR™-SPECL rule set at the expense of a higher level of software complexity of the former. In practice, both systems are eligible for use with any existing or future planned spaceborne/airborne optical mission whose spectral resolution overlaps with Landsat’s, irrespective of spatial resolution (e.g., refer to the Part 1, Table 3 and the Part 1, Table 4 [20]). For example, starting from a Landsat spectral resolution of seven bands, ranging from visible to thermal electromagnetic wavelengths (refer to the Part 1, Tables 3 and 4 [20]), the SIAM™ decision tree can work with as low as two input bands, namely, one visible and one NIR channel [1214].

(vi)

Scalability, to cope with changes in sensor specifications, is investigated in Section 3, in addition to the existing literature [619]. It can be considered “high”, for the same reasons of point (v).

(vii)

Timeliness, from data acquisition to data-derived high-level product generation, is equivalent to computation time, because user interactions are zero. Since their computation time is low then their timeliness is extremely favorable (“low”).

(viii)

Costs. The combination of high computation efficiency with no user interactions implies that costs in computer power and manpower are “low”.

To summarize, according to collected QIO values, including CVPSI, TQI and SQI values (refer to Section 3), the ATCOR™-SPECL and SIAM™ deductive pre-classifiers accomplish automatic and near real-time detection of spectral categories in an input single-date MS imagery, where automation does not come at the expense of accuracy, robustness to changes in the input data set or scalability, but at the expense of the informative content of the output spectral-based semi-concepts whose semantic meaning is “low”, namely, is equal or inferior to that of target 4-D LC classes-through-time (refer to the Part 1, Section 2.3 [20]). In the proposed set of experiments, the CVPSI and TQI values of the SIAM™ tend to outperform those of the ATCOR™-SPECL.

5. Conclusions

The primary objective of this paper is to provide, in accordance with the Quality Assurance Framework for Earth Observation (QA4EO) guidelines [2], a quality assessment of two alternative operational (turnkey, ready-to-go) software products: the Spectral Classification of surface reflectance signatures (SPECL) and the Satellite Image Automatic Mapper™ (SIAM™). The former is implemented as a non-validated secondary product within the Atmospheric/Topographic Correction (ATCOR™)-2/3/4 commercial software toolbox [68,9]. The latter has been presented in recent years in the remote sensing (RS) literature [1019], where enough information is provided for the SIAM™ implementation to be reproduced [11,17].

To the best of these authors’ knowledge, the ATCOR™-SPECL and SIAM™ software products are the only two pre-attentive vision expert systems (deductive inference systems for pre-attentional vision) in operating mode made available to date to the remote sensing (RS) community for “fully automatic” near real-time preliminary classification (pre-classification) of radiometrically calibrated spaceborne/airborne multi-resolution MS images. “Fully automatic” means that the pre-attentional data mapping system requires neither user-defined parameters nor training data sample to run [21].

For the sake of simplicity, this paper is split into two: Part 1—Theory [20] and the present Part 2—Experimental results.

The Part 1 provides the present Part 2 with an interdisciplinary terminology and a theoretical background. To comply with the principle of statistics and the QA4EO guidelines discussed in the Part 1 [20], the present Part 2 applies a novel probability sampling protocol for thematic map quality assessment, selected from the recent literature [32], to the ATCOR™-SPECL and SIAM™ pre-classification maps. Three sets of independent metrological/statistically-based quality indicators (QIs) are estimated to investigate the mapping effectiveness (accuracy) of the ATCOR™-SPECL and SIAM™ deductive pre-classifiers.

  • ➢ A Categorical Variable Pair Similarity Index (CVPSI) ∈ [0, 1]. The CVPSI is a normalized estimate of the degree of semantic harmonization (reconciliation) between the test and reference class taxonomies which, in general, may not coincide. Vice versa, (1 − CVPSI) ∈ [0, 1] is a normalized estimate of the residual of the semantic gap from sub-symbolic data to symbolic reference classes filled up, totally or in part, by the intermediate vocabulary of test classes. In the present Part 2 of this paper, a novel CVPSI2 formulation is proposed (refer to the Appendix).

  • ➢ A set of symbolic pixel-based thematic quality indicators (TQIs), independent of a set of sub-symbolic polygon-based Spatial Quality Indicators (SQIs). These two sets of QIs are eligible for coping with the well-known non-injective property of any QI (refer to the Part 1, Section 2.5 [20]). Selected symbolic pixel-based TQIs are the overall accuracy, user's and producer's accuracies. Selected sub-symbolic object-based SQIs assess oversegmentation, undersegmentation and fuzzy edge overlap phenomena. In accordance with the Part 1, Section 3 [20], these TQIs and SQIs feature:

    • Statistical validity (consistency [24,25]), i.e., sample estimates are provided with the necessary probability foundation to permit generalization from the sample data subset to the whole target population being sampled.

    • Statistical significance, i.e., TQIs and SQIs are provided with a degree of uncertainty in measurement at a known level of statistical significance, in compliance with the principles of statistics and the QA4EO requirements [2].

Notably, statistical validity and statistical significance of metrological QIs are almost never accomplished in the RS common practice. As a consequence, QIs of existing RS-IUSs remain largely unknown in statistical terms.

In accordance with the CEOS land product accuracy validation criteria [3], the Part 2 selects a test set of Earth observation (EO) images comprising three spaceborne/airborne MS images featuring different spatial resolutions, spectral resolutions, acquisition conditions and radiometric calibrations of digital numbers into top-of-atmosphere reflectance or surface reflectance values.

Based on collected values of QIs of operativeness (QIOs) proposed in the Part 1 [20], which include TQI, SQI and CVPSI estimates, main experimental conclusions of the present Part 2 are summarized below.

(1)

Degree of semantic harmonization between output spectral categories (e.g., “vegetation”) and target land cover (LC) classes (e.g., “deciduous forest”). In all test images, the CVPSI values of the SIAM™ maps at fine and intermediate granularity are superior to those of the ATCOR™-SPECL single-granule maps, whose semantic cardinality is smaller (vice versa, whose semantic granularity is coarser). Notably, in both the ATCOR™-SPECL and the SIAM™ deductive pre-classification first stage, more than 50% of the information gap from sensory data to LC classes (see Table 14) is filled up automatically and in near real-time by spectral categories (refer to the Part 1, Figure 1c [20]), irrespective of the mapping accuracy estimated via TQIs and SQIs.

(2)

Pre-classification map’s semantic accuracy. Across the three test images and the SIAM™’s three semantic granularities, symbolic pixel-based TQIs of the SIAM™ tend to be significantly higher (in statistical terms) than the ATCOR™-SPECL’s. In the only image of the test set where clouds are present, the ATCOR™-SPECL pre-classifier scores extremely low (16.47% ± 5.18%) in the detection of the reference LC class “Cloud/Shadow” (“Cl/Sh”). This indicates that the ATCOR™-SPECL implementation of spectral-based decision rules capable of mapping clouds and cloud-shadows requires a significant improvement.

(3)

Pre-classification map’s spatial accuracy. In a three-scale segmentation map automatically generated from the SIAM™’s three-granule pre-classification map of the very high resolution airborne Leica test image, SQI values tend to increase (respectively, decrease) with the SIAM™’s semantic cardinality (respectively, semantic granularity). These SQI estimates are negatively biased (underestimated) compared to TQI values due to: (i) their inability to model many-to-many associations between reference and test classes and (ii) undesired neighboring effects pointed out in this work (see Figures 6 and 7).

(4)

Collected QIO values, including the aforementioned CVPSI, TQI and SQI values, reveal that the peculiar capability of the two alternative ATCOR™-SPECL and SIAM™ deductive pre-classifiers, which is to infer automatically and in near real-time output spectral categories from an input single-date MS imagery, does not come at the expense of accuracy, robustness to changes in the input data set or scalability, but at the expense of the informative content of the output spectral-based semi-concepts, whose semantic meaning is “low”, namely, equal or inferior to that of target 4-D LC classes-through-time.

Stemming from experimental evidence, collected in the Part 2, in support of theoretical considerations, presented in the Part 1 [20], the final conclusion of this paper is that the SIAM™ software product: (A) outperforms the alternative ATCOR™-SPECL secondary software product and (B) appears eligible for use in the pre-attentive vision first stage of a novel generation of hybrid RS-IUSs in operating mode (see Part 1, Figure 1c [20]). Alternative to existing state-of-the-art Geographic Object-based Image Analysis (GEOBIA, see Part 1, Figure 1b [20]) and iterative Geographic Object-Oriented Image Analysis (GEOOIA) systems, whose productivity (respectively, timeliness) appears low (respectively, high) to increasing portions of the RS literature [18,19,66], the proposed novel generation of hybrid RS-IUSs, where prior knowledge is injected starting from the pre-attentive vision first stage, is expected to transform large-scale multi-source multi-resolution EO image databases into operational, comprehensive and timely knowledge/information products, in compliance with the QA4EO objectives [2].

Since experimental conclusions of the Part 2 are consistent across mapping algorithms, semantic granularities and test data sets in agreement with theory discussed in the Part 1 [20], a subsidiary conclusion of this paper is that the adopted probability sampling strategy, originally proposed in a related work [32], is proved to be robust and effective for thematic and spatial accuracy assessments of either pre-classification first-stage or classification second-stage thematic maps, generated from spaceborne/airborne EO images, whose spatial resolution ranges from low to very high.

Acronyms and Abbreviations

ADSAirborne Digital Scanner
ATCOR™Atmospheric/Topographic Correction™
ASQIAverage Spatial Quality Indicator
B(Visible) Blue
CEOSCommittee on Earth Observation Satellites
CMTRX(Square and sorted) Confusion Matrix
CVPSICategorical Variable Pair Similarity Index
EOEarth Observation
FEOQIFuzzy Edge Overlap Spatial Quality Indicator
G(Visible) Green
GEOBIAGeographic Object-Based Image Analysis
GEOOIAGeographic Object-Observation Image Analysis
GEOROIGeographic Region Of Interest
GISGeographic Information System
HRHigh Resolution
HRVIRHigh Resolution Visible & Infrared
IRInfra-Red
IRSIndian Remote sensing Satellite
LAILeaf Area Index
LCLand Cover
LCCLand Cover Change
LISSmedium resolution Linear Imaging Self-Scanner
MIRMedium infra-red
MODISModerate Resolution Imaging Spectroradiometer
MSMulti-Spectral
OAMTRXOverlapping Area Matrix
OSQIOversegmentation Spatial Quality Indicator
QA4EOQuality Accuracy Framework for Earth Observation
QIQuality Indicator
QIOQuality Indicator of Operativeness
Q-SIAM™QuickBird-like Satellite Image Automatic Mapper™
R(visible) Red
RSRemote Sensing
RS-IUSRemote Sensing Image Understanding System
SIAM™Satellite Image Automatic Mapper™
SIRSSimple random sampling
SPECLSpectral Classification of surface reflectance signatures
SPOTSatellite Pour l’Observation de la Terre
SQISpatial Quality Indicator
S-SIAM™SPOT-like Satellite Image Automatic Mapper™
SURFSurface Reflectance
TIRThermal Infra-Red
TMTrademark
TOTarget image-Object
TOATop-Of-Atmosphere
TOARFTop-Of-Atmosphere Reflectance
TQIThematic Quality Indicator
USGSUS Geological Survey
USQIUndersegmentation Spatial Quality Indicator
VHRVery High Resolution

This work received partial support by the National Aeronautics and Space Administration (NASA) under awards NNX11AF39G and NNX11AH83G and by the United States Department of Agriculture (USDA) under award USDA NIFA 2011-32100-06016. These authors wish to thank R. Richter for providing us with a revised version of the ATCOR™-SPECL rule set. Many thanks are due to Daniel Schläpfer, ReSe Applications Schläpfer, Langeggweg 3, CH-9500 Wil, Switzerland, for helpful discussions on the ATCOR™ data processing workflow and his provision of the ATCOR™-SPECL pre-classification maps employed in this experimental work for testing purposes. A. Baraldi is particularly grateful to R. Capurro for his hospitality, patience, politeness and open-mindedness. All authors also wish to thank the Editor-in-Chief, Associate Editor, and reviewers for their competence and willingness to help.

Conflict of Interest

The authors declare no conflict of interest.

References

  1. Global Earth Observation (GEO). The Global Earth Observation System of Systems (GEOSS) 10-Year Implementation Plan, 16 February 2005. Available online: http://www.earthobservations.org/docs/10-Year%20Implementation%20Plan.pdf (accessed on 15 November 2012).
  2. Global Earth Observation (GEO)/Committee on Earth Observation Satellites (CEOSS). A Quality Assurance Framework for Earth Observation. Version 4.0; 2010. Available online: http://qa4eo.org/docs/QA4EO_Principles_v4.0.pdf (accessed on 15 November 2012).
  3. Committee on Earth Observation Satellites (CEOS). CEOS Working Group on Calibration and Validation—Land Product Validation Subgroup. Available online: http://lpvs.gsfc.nasa.gov/ (accessed on 10 January 2012).
  4. Gutman, G.; Janetos, A.C.; Justice, C.O.; Moran, E.F.; Mustard, J.F.; Rindfuss, R.R.; Skole, D.; Turner, B.L.; Cochrane, M.A. Land Change Science; Kluwer: Dordrecht, The Netherlands, 2004.
  5. Marr, D. Vision; W.H. Freeman and Company: San Francisco, CA, USA, 1982.
  6. Dorigo, W.; Richter, R.; Baret, F.; Bamler, R.; Wagner, W. Enhanced automated canopy characterization from hyperspectral data by a novel two step radiative transfer model inversion approach. Remote Sens 2009, 1, 1139–1170.
  7. Richter, R.; Schläpfer, D. “Atmospheric/Topographic Correction for Satellite Imagery,” ATCOR-2/3 User Guide. Version 8.2.1; DLR/ReSe, DLR-IB 565-01/13; DLR: Wessling, Germany, 2013. Available online: http://www.rese.ch/pdf/atcor3_manual.pdf (accessed on 28 May 2013).
  8. Richter, R.; Schläpfer, D. “Atmospheric/Topographic Correction for Airborne Imagery,” ATCOR-4 User Guide. Version 6.2.1; DLR-IB 565-02/13; DLR: Wessling, Germany, 2013. Available online: http://www.rese.ch/pdf/atcor4_manual.pdf (accessed on 28 May 2013).
  9. Schläpfer, D.; Richter, R.; Hueni, A. Recent Developments in Operational Atmospheric and Radiometric Correction of Hyperspectral Imagery. Proceeding of the 6th EARSeL SIG IS Workshop, Tel-Aviv, Israel, 16–19 March 2009.
  10. Baraldi, A. Impact of radiometric calibration and specifications of spaceborne optical imaging sensors on the development of operational automatic remote sensing image understanding systems. IEEE J. Sel. Top. Appl. Earth Observ. Remote Sens 2009, 2, 104–134.
  11. Baraldi, A.; Puzzolo, V.; Blonda, P.; Bruzzone, L.; Tarantino, C. Automatic spectral rule-based preliminary mapping of calibrated Landsat TM and ETM+ images. IEEE Trans. Geosci. Remote Sens 2006, 44, 2563–2586.
  12. Baraldi, A.; Durieux, L.; Simonetti, D.; Conchedda, G.; Holecz, F.; Blonda, P. Automatic spectral rule-based preliminary classification of radiometrically calibrated SPOT-4/-5/IRS, AVHRR/MSG, AATSR, IKONOS/QuickBird/OrbView/GeoEye and DMC/SPOT-1/-2 imagery—Part I: System design and implementation. IEEE Trans. Geosci. Remote Sens 2010, 48, 1299–1325.
  13. Baraldi, A.; Durieux, L.; Simonetti, D.; Conchedda, G.; Holecz, F.; Blonda, P. Automatic spectral rule-based preliminary classification of radiometrically calibrated SPOT-4/-5/IRS, AVHRR/MSG, AATSR, IKONOS/QuickBird/OrbView/GeoEye and DMC/SPOT-1/-2 imagery—Part II: Classification accuracy assessment. IEEE Trans. Geosci. Remote Sens 2010, 48, 1326–1354.
  14. Baraldi, A.; Durieux, L.; Simonetti, D.; Conchedda, G.; Holecz, F.; Blonda, P. Corrections to Automatic spectral rule-based preliminary classification of radiometrically calibrated SPOT-4/-5/IRS, AVHRR/MSG, AATSR, IKONOS/QuickBird/OrbView/GeoEye and DMC/SPOT-1/-2 Imagery. IEEE Trans. Geosci. Remote Sens 2010, 48, 1635.
  15. Baraldi, A.; Simonetti, D.; Gironda, M. Operational two-stage stratified topographic correction of spaceborne multi-spectral imagery employing an automatic spectral rule-based decision-tree preliminary classifier. IEEE Trans. Geosci. Remote Sens 2010, 48, 112–146.
  16. Baraldi, A.; Wassenaar, T.; Kay, S. Operational performance of an automatic preliminary spectral rule-based decision-tree classifier of spaceborne very high resolution optical images. IEEE Trans. Geosci. Remote Sens 2010, 48, 3482–3502.
  17. Baraldi, A. Fuzzification of a crisp near-real-time operational automatic spectral-rule-based decision-tree preliminary classifier of multisource multispectral remotely sensed images. IEEE Trans. Geosci. Remote Sens 2011, 49, 2113–2134.
  18. Baraldi, A.; Boschetti, L. Operational automatic remote sensing image understanding systems: Beyond Geographic Object-Based and Object-Oriented Image Analysis (GEOBIA/GEOOIA)—Part 1: Introduction. Remote Sens 2012, 4, 2694–2735.
  19. Baraldi, A.; Boschetti, L. Operational automatic remote sensing image understanding systems: Beyond Geographic Object-Based and Object-Oriented Image Analysis (GEOBIA/GEOOIA)—Part 2: Novel system architecture, information/knowledge representation, algorithm design and implementation. Remote Sens 2012, 4, 2768–2817.
  20. Baraldi, A.; Humber, M.; Boschetti, L. Quality assessment of pre-classification maps generated from spaceborne/airborne multi-spectral images by the Satellite Image Automatic Mapper™ and Atmospheric/Topographic Correction-Spectral Classification software products: Part 1—Theory, submitted for consideration for publication. Remote Sens, 2013. submitted.
  21. Yu, Q.; Clausi, D.A. SAR sea-ice image analysis based on iterative region growing using semantics. IEEE Trans. Geosci. Remote Sens 2007, 45, 3919–3931.
  22. Cherkassky, V.; Mulier, F. Learning from Data: Concepts, Theory, and Methods; Wiley: New York, NY, USA, 1998.
  23. Bishop, C.M. Neural Networks for Pattern Recognition; Clarendon Press: Oxford, UK, 1995.
  24. Stehman, S.V.; Czaplewski, R.L. Design and analysis for thematic map accuracy assessment: Fundamental principles. Remote Sens. Environ 1998, 64, 331–344.
  25. Overton, W.S.; Stehman, S.V. The Horvitz-Thompson theorem as a unifying perspective for probability sampling: With examples from natural resource sampling. Am. Stat 1995, 49, 261–268.
  26. Capurro, R.; Hjørland, B. The concept of information. Annu. Rev. Inform. Sci. Technol 2003, 37, 343–411.
  27. Capurro, R. Hermeneutics and the Phenomenon of Information. In Metaphysics, Epistemology, and Technology: Research in Philosophy and Technology; JAI/Elsevier: Amsterdam, The Netherlands, 2000; Volume 19, pp. 79–85.
  28. Laurini, R.; Thompson, D. Fundamentals of Spatial Information Systems; Academic Press: London, UK, 1992.
  29. Mather, P. Computer Processing of Remotely-Sensed Images—An Introduction; John Wiley & Sons: Chichester, UK, 1994.
  30. Matsuyama, T.; Hwang, V.S. SIGMA: A Knowledge-Based Aerial Image Understanding System; Plenum Press: New York, NY, USA, 1990.
  31. Sonka, M.; Hlavac, V.; Boyle, R. Image Processing and Machine Vision; Thompson Learning: Toronto, ON, Canada, 2008.
  32. Baraldi, A.; Boschetti, L.; Humber, M. Probability sampling protocol for thematic and spatial quality assessments of classification maps generated from spaceborne/airborne very high resolution images. In IEEE Trans. Geosci. Remote Sens.; 2014. in press..
  33. Chavez, P.S. An improved dark-object subtraction technique for atmospheric scattering correction of multispectral data. Remote Sens. Environ 1988, 24, 459–479.
  34. Kuzera, K.; Pontius, R.G. Importance of matrix construction for multiple-resolution categorical map comparison. GIScience Remote Sens 2008, 45, 249–274.
  35. Stehman, S.V.; Wickham, J.D. Pixels, blocks of pixels, and polygons: Choosing a spatial unit for thematic accuracy assessment. Remote Sens. Environ 2011, 115, 3044–3055.
  36. Congalton, R.G.; Green, K. Assessing the Accuracy of Remotely Sensed Data; Lewis Publishers: Boca Raton, FL, USA, 1999.
  37. Stehman, S.V. Comparing thematic maps based on map value. Int. J. Remote Sens 1999, 20, 2347–2366.
  38. Ahlqvist, O. Extending post-classification change detection using semantic similarity metrics to overcome class heterogeneity: A study of 1992 and 2001 US National Land Cover Database changes. Remote Sens. Environ 2008, 112, 1226–1241.
  39. Herold, M.; Woodcock, C.; di Gregorio, A.; Mayaux, P.; Belward, A.S.; Latham, J.; Schmullius, C. A joint initiative for harmonization and validation of land cover datasets. IEEE Trans. Geosci. Remote Sens 2006, 44, 1719–1727.
  40. Feng, C.C.; Flewelling, D.M. Assessment of semantic similarity between land use/land cover classification systems. Comput. Environ. Urban Syst 2004, 28, 229–246.
  41. Kavouras, M.; Kokla, M. A method for the formalization and integration of geographical categorizations. Int. J. Geogr. Inf. Sci 2002, 16, 439.
  42. Fonseca, F.; Egenhofer, M.; Agouris, P.; Câmara, G. Using ontologies for integrated geographic information systems. Trans. GIS 2002, 6, 231–257.
  43. Fonseca, F.; Egenhofer, M.; Davis, C.; Câmara, G. Semantic granularity in ontology-driven geographic information systems. AMAI Ann. Math. Artif. Intell 2002, 36, 121–151.
  44. Cerba, O.; Charvat, K.; Jezek, J. Data Harmonization towards CORINE Land Cover. Available online: www.efita.net/apps/accesbase/bindocload.asp (accessed on 6 November 2012).
  45. Goodchild, M.F.; Yuan, M.; Cova, T.J. Towards a general theory of geographic representation in GIS. Int. J. Geogr. Inf. Sci 2007, 21, 239–260.
  46. Adams, J.B.; Donald, E.S.; Kapos, V.; Almeida Filho, R.; Roberts, D.A.; Smith, M.O.; Gillespie, A.R. Classification of multispectral images based on fractions of endmembers: Application to land-cover change in the Brazilian Amazon. Remote Sens. Environ 1995, 52, 137–154.
  47. Ahlqvist, O. Using uncertain conceptual spaces to translate between land cover categories. Int. J. Geogr. Inf. Sci 2005, 19, 831–857.
  48. Beauchemin, M.; Thomson, K.P.B. The evaluation of segmentation results and the overlapping area matrix. Int. J. Remote Sens 2010, 18, 3895–3899.
  49. Baraldi, A.; Bruzzone, L.; Blonda, P. Quality assessment of classification and cluster maps without ground truth knowledge. IEEE Trans. Geosci. Remote Sens 2005, 43, 857–873.
  50. Lunetta, R.S.; Elvidge, C.D. Remote Sensing Change Detection: Environmental Monitoring Methods and Applications; Taylor & Francis: London, UK, 1999; pp. 288–300.
  51. Stehman, S.V. Selecting and interpreting measures of thematic classification accuracy. Remote Sens. Environ 1997, 62, 77–89.
  52. Anonymous FTP. Available online: ftp://ftp.iluci.org/Paper/remotesensing-29006_2013 (accessed on 15 October 2013).
  53. Foody, G.M. Status of land cover classification accuracy assessment. Remote Sens. Environ 2002, 80, 185–201.
  54. Pontius, R.G. Quantification error versus location error in comparison of categorical maps. Photogramm. Eng. Remote Sens 2000, 66, 1011–1016.
  55. Persello, C.; Bruzzone, L. A novel protocol for accuracy assessment in classification of very high resolution images. IEEE Trans. Geosci. Remote Sens 2010, 48, 1232–1244.
  56. Pontius, R.G.; Millones, M. Death to Kappa: Birth of quantity disagreement and allocation disagreement for accuracy assessment. Int. J. Remote Sens 2011, 32, 4407–4429.
  57. Pontius, R.G.; Connors, J. Expanding the Conceptual, Mathematical and Practical Methods for Map Comparison. Proceedings of the Meeting on Spatial Accuracy, Lisbon, Portugal, 5–7 July 2006; pp. 64–79.
  58. Nishii, R.; Tanaka, S. Accuracy and inaccuracy assessments in landcover classification. IEEE Trans. Geosci. Remote Sens 1999, 37, 491–498.
  59. Lang, S. Chapter 1.1. Object-Based Image Analysis for Remote Sesning Applications: Modeling Reality-Dealing with Complexity. In Object-Based Image Analysis: Spatial Concepts for Knowledge-Driven Remote Sensing Applications; Blaschke, T., Lang, S., Hay, G.J., Eds.; Springer-Verlag: New York, NY, USA, 2008; pp. 3–27.
  60. Definiens Imaging GmbH. eCognition Elements User Guide 4; Definiens Imaging GmbH: Munich, Germany, 2004.
  61. Definiens, A.G. Developer 8 Reference Book; Definiens AG: Munich, Germany, 2011.
  62. Esch, T.; Thiel, M.; Bock, M.; Roth, A.; Dech, S. Improvement of image segmentation accuracy based on multiscale optimization procedure. IEEE Geosci. Remote Sens. Lett 2008, 5, 463–467.
  63. Baatz, M.; Schäpe, A. Multiresolution Segmentation: An Optimization Approach for High Quality Multi-Scale Image Segmentation. In Angewandte Geographische Informationsverarbeitung XII; Strobl, J., Ed.; Herbert Wichmann Verlag: Berlin, Germany, 2000; Volume 58, pp. 12–23.
  64. Baatz, M.; Hoffmann, C.; Willhauck, G. Chapter 1.4. Progressing from Object-Based to Object-Oriented Image Analysis. In Object-Based Image Analysis: Spatial Concepts for Knowledge-Driven Remote Sensing Applications; Blaschke, T., Lang, S., Hay, G.J., Eds.; Springer-Verlag: New York, NY, USA, 2008; pp. 29–42.
  65. Trimble eCognition Developer. Available online: http://www.ecognition.com/products/ecognition-developer (accessed on 15 November 2012).
  66. Hay, G.J.; Castilla, G. Object-Based Image Analysis: Strengths, Weaknesses, Opportunities and Threats (SWOT). Proceedings of the 1st International Conference on Object-Based Image Analysis (OBIA), Salzburg, Austria, 4–5 July 2006.
  67. McGlone, J.C.; Shufelt, J.A. Projective and Object Space Geometry for Monocular Building Extraction. Proceedings of the 1994 IEEE Computer Society Conference on Computer Vision and Pattern Recognition, Seattle, WA, USA, 21–23 June 1994; pp. 54–61.
  68. Hermosilla, T.; Ruiz, L.; Recio, J.; Estornell, J. Evaluation of automatic building detection approaches combining high resolution images and LiDAR data. Remote Sens 2011, 3, 1188–1210.
  69. Hadamard, J. Sur les problemes aux derivees partielles et leur signification physique. Princet. Univ. Bull 1902, 13, 49–52.

Appendix: Alternative Formulations of the CVPSI Estimated from an OAMTRX Instance

An original degree of match between a pair of test and reference categorical variables (nominal variables, legends, taxonomies) is estimated from an OAMTRX instance, where OAMTRX ⊇ CMTRX, based on two formulations identified, respectively, as CVPSI1 ∈ [0,1], originally presented in [32], and CVPSI2 ∈ [0,1], proposed hereafter as a relaxed version of CVPSI1, such that relation CVPSI2 ≥ CVPSI1 always hold. Notably, symbol CVPSI is adopted to mean the ensemble of CVPSI1 and CVPSI2 values.

Vice versa, variable (1 − CVPSI) ∈ [0, 1] is a normalized estimate of the residual of the semantic gap from sub-symbolic data to symbolic reference classes filled up, totally or in part, by the intermediate test class vocabulary.

In an OAMTRX instance, like in a CMTRX as a special case, it is typical that columns represent the reference classification while the rows indicate the test map to be evaluated [62]. Let us identify as TC the cardinality of the test classification taxonomy and as RC the cardinality of the reference sample taxonomy. The total number of “correct” elements (cells, entries) in an OAMTRX is identified as CE, such that 0 ≤ CERC × TC. In addition, symbol “==” is adopted to mean ‘equal to’.

A1. Categorical Variable Pair Similarity Index, Version 1, CVPSI1, Where “correct” Inter-Vocabulary Reference-Test Class Relations are One-to-One

The CVPSI1 computation problem is constrained as follows.

(A1.a)

CE = t = 1 TC r = 1 RC CE t , r , with CE t , r { 0 , 1 } = { correct entry ( t , r ) , noncorrect entry ( t , r ) } , CE { 0 , RC × TC }

(A1.b)

If (CE == 0) then CVPSI1 = 0. It means that, when no “correct” entry exists, then the degree of match between the two categorical variables is zero.

(A1.c)

If (CE == RC×TC) then CVPSI1 → 0. It means that when all table entries are considered “correct”, then nothing is meaningful or makes the difference between the two categorical variables.

(A1.d)

If

{ [ ( t = 1 TC CE t , r = CE + , r ) = = 1 , r = 1 , ... , RC ] AND [ ( r = 1 RC CE t , r = CE t , + ) = = 1 , t = 1 , ... , TC ] } ,
i.e., if [(CERC = RC) AND (CETC = TC)], then CVPSI1 = 1. It means that when the reference and test map legends “match” each other by means of one-to-one relations exclusively, then the OAMTRX is equivalent to a (square and sorted) CMTRX and CVPSI1 is maximum.

(A1.e)

If [not condition(A1.b) AND not condition(A1.c) AND not condition(A1.d)] then CVPSI1 ∈ (0,1).

For example, in a (square and sorted) CMTRX, then CVPSI1 = 1 according to condition (A1.d). In practice, CVPSI1 ∈ [0, 1] is a fuzzy degree of similarity between: (i) an OAMTRX whose definition requires the selection by a domain expert of the “correct” entries, i.e., “correct” (allowed) reference-to-test class relations which are, in general, many-to-many and (ii) an (ideal) CMTRX version of an OAMTRX, where allowed reference-to-test class relations are one-to-one exclusively, irrespective of the fact that “correct” entries are diagonal or off-diagonal entries.

To satisfy the set of aforementioned constraints (A1.a) to (A1.e), the following set of original equations is proposed.

CVPSI 1 [ 0 , 1 ] , CVPSI 1 = 1 RC + TC ( r = 1 RC f RC ( CE + , r ) + t = 1 TC f T C ( CE t , + ) )
with
f R C ( i ) = { 0 if i = 0 , e ( i 1 ) 2 ( T C 3 ) 2 if i > 0 , i { 0 , T C } I 0 + , where i = CE + , r , r { 1 , RC }
f TC ( j ) = { 0 if j = 0 , e ( j 1 ) 2 ( R C 3 ) 2 if j > 0 , j { 0 , RC } I 0 + , where j = CE t , + , t { 1 , T C }

It is trivial to prove that Equation (A3) to Equation (A5) satisfy the aforementioned requirements (A1.a) to (A1.d). In the core of the present paper, it is proved that requirement (A1.e) is satisfied too (refer to Section 3.1.2).

A2. Categorical Variable Pair Similarity Index, Version 2, CVPSI2, Where “correct” Test-to-Reference Class Relations are Considered One-to-One, While “correct” Reference-to-Test Class Relations Can be One-to-Many

The CVPSI2 computation problem is relaxed with respect to the CVPSI1 formulation proposed in the Appendix A.2. In the CVPSI1 formulation, test-to-reference class relations together with reference-to-test class relations are “correct” if one-to-one. In its relaxed version CVPSI2, “correcttest-to-reference class relations are one-to-one while “correct” reference-to-test class relations can be one-to-many, which include relations one-to-one as a special case, see Figure A1. Since CVPSI2 is a relaxed version of CVPSI1, then it is always true that CVPSI2 ≥ CVPSI1.

Remotesensing 05 05209fa1 200
Figure A1. Entity-relationship conceptual model representation of the test class (TC)-reference class (RC) relationship and its cardinalities required in the CVPSI1 and CVPSI2 estimates.

Click here to enlarge figure

Figure A1. Entity-relationship conceptual model representation of the test class (TC)-reference class (RC) relationship and its cardinalities required in the CVPSI1 and CVPSI2 estimates.
Remotesensing 05 05209fa1 1024

To appreciate the conceptual difference between the CVPSI1 and CVPSI2 formulations, let us consider the case where the test semantic vocabulary is a specialized version of the reference semantic vocabulary, e.g., the test taxonomy = {“Dark-tone bare soil”, “Light-tone bare soil”, “Deciduous Forest”, “Evergreen Forest”} and the reference taxonomy = {“Bare soil”, “Forest”}. In an OAMTRX, where reference classes are considered as columns and test classes as rows, “correct” entries, equivalent to (row, column) pairs, are: (“Dark-tone bare soil”, “Bare soil”), (“Light-tone bare soil”, “Bare soil”), (“Deciduous Forest”, “Forest”), (“Evergreen Forest”, “Forest”). In this OAMTRX instance, CVPSI1 is below its maximum, i.e., CVPSI1 ∈ (0, 1), while CVPSI2 is maximum, i.e., CVPSI2 = 1. It means that (1 − CVPSI2) = 0, i.e., according to CVPSI2 there is no additional (classification) work to pass from the test vocabulary to the reference vocabulary, because the latter is an aggregated (simplified, coarser) version of the former. In other words, there is no semantic gap to fill up when moving from the test semantic vocabulary to the reference semantic vocabulary (at most, there is an aggregation of concepts to perform).

As another example, let us consider the comparison of a test thematic map, generated from a spaceborne optical image by the SIAM™ software product, with a reference LC map (e.g., the U.S. National Land Cover Dataset 2006 [59]). SIAM™ generates as output spectral categories, say, “vegetation”, equivalent to color names. In this case, the ideal (in terms of discrimination capability) test-to-reference class relation is one-to-one, such that one color matches only one reference LC class. On the other hand, it is obviously true that a reference LC class can be described by more than one color. Hence, in the comparison of a test SIAM™ map with a reference LC map, CVPS2 is better suited than CVPS1 to describe the physical relations existing between test spectral categories (colors) and reference LC classes.

The CVPSI2 computation problem is constrained as follows.

(A2.a)

Same as in CVPSI1.

CE = t = 1 TC r = 1 RC CE t , r , with CE t , r { 0 , 1 } = { correct entry ( t , r ) , noncorrect entry ( t , r ) } , CE { 0 , RC × TC }

(A2.b)

Same as in CVPSI1. If (CE == 0) then CVPSI2 = 0. It means that, when no “correct” entry exists, then the degree of match between the two categorical variables is zero.

(A2.c)

Same as in CVPSI1. If (CE == RC×TC) then CVPSI2 → 0. It means that when all table entries are considered “correct”, then nothing is meaningful or makes the difference between the two categorical variables.

(A2.d)

If

{ [ ( t = 1 T C CE t , r = CE + , r ) > 0 , r = 1 , ... , RC ] AND [ ( r = 1 RC CE t , r = CE t , + ) = = 1 , t = 1 , ... , T C ] }
then CVPSI2 is maximum, i.e., CVPSI2 = 1.

(A2.e)

If [not condition(A2.b) AND not condition(A2.c) AND not condition(A2.d)] then CVPSI2 ∈ (0,1).

For example, in a (square) CMTRX, then CVPSI2 = 1 according to condition (A2.d).

To satisfy the set of aforementioned constraints (A2.a) to (A2.e), the following set of original equations is proposed.

CVPSI 2 [ 0 , 1 ] , CVPSI 2 = 1 RC + TC ( r = 1 RC f RC ( CE + , r ) + t = 1 TC f TC ( CE t , + ) )
with
f RC ( i ) = { 0 i f i = 0 , 1 i f i > 0 , i { 0 , TC } I 0 + , where i = CE + , r , r { 1 , RC }
f TC ( j ) = { 0 if j = 0 , e ( j 1 ) 2 ( R C 3 ) 2 if j > 0 , j { 0 , RC } I 0 + , where j = CE t , + , t { 1 , TC } .

It is trivial to prove that Equation (A8A10) satisfy the aforementioned requirements (A2.a) to (A2.d). In the core of this work, it is proved that requirement (A2.e) is satisfied too (refer to Section 3.2.1).

Remotesensing 05 05209f1a 200Remotesensing 05 05209f1b 200
Figure 1. (a) False-color (R = MIR band, G = NIR band, B = Green band) IRS-P6 LISS-3 image of Northern Italy (11°53′E, 45°8′N). Spatial resolution: 23.5 m. Acquisition time: 13 June 2006 at 10:15:05.83. Orbit: 13 786. Frame: 37. Orthorectified and radiometrically calibrated into TOARF values. (b): Atmospheric/Topographic Correction (ATCOR™)-Spectral Classification of surface reflectance signatures (SPECL) map, 19 spectral categories. Map legend: refer to Table 2. Courtesy of Daniel Schläpfer, ReSe Applications Schläpfer. (c): SPOT-like SIAM™ (S-SIAM™) pre-classification map at coarse semantic granularity, 15 spectral categories. Map legend: generated from Table 3. (d): S-SIAM™ pre-classification map at fine semantic granularity, 68 spectral categories. Map legend: refer to Table 3.

Click here to enlarge figure

Figure 1. (a) False-color (R = MIR band, G = NIR band, B = Green band) IRS-P6 LISS-3 image of Northern Italy (11°53′E, 45°8′N). Spatial resolution: 23.5 m. Acquisition time: 13 June 2006 at 10:15:05.83. Orbit: 13 786. Frame: 37. Orthorectified and radiometrically calibrated into TOARF values. (b): Atmospheric/Topographic Correction (ATCOR™)-Spectral Classification of surface reflectance signatures (SPECL) map, 19 spectral categories. Map legend: refer to Table 2. Courtesy of Daniel Schläpfer, ReSe Applications Schläpfer. (c): SPOT-like SIAM™ (S-SIAM™) pre-classification map at coarse semantic granularity, 15 spectral categories. Map legend: generated from Table 3. (d): S-SIAM™ pre-classification map at fine semantic granularity, 68 spectral categories. Map legend: refer to Table 3.
Remotesensing 05 05209f1a 1024Remotesensing 05 05209f1b 1024
Remotesensing 05 05209f2 200
Figure 2. (a) False-color (R = MIR band, G = NIR band, B = Green band) SPOT-4 HRVIR image of the Veneto region, Italy (10°10′E, 45°36′N). Spatial resolution: 20 m. Acquisition time: 21 July 2006 at 10:34:42. Path: 060. Row: 258. Orthorectified and radiometrically calibrated into TOARF values. (b): ATCOR™-SPECL map, 19 spectral categories. Map legend: refer to Table 2. Courtesy of Daniel Schläpfer, ReSe Applications Schläpfer. (c): SPOT-like SIAM™ (S-SIAM™) pre-classification map at intermediate semantic granularity, 40 spectral categories. Map legend: generated from Table 3. (d): S-SIAM™ pre-classification map at fine semantic granularity, 68 spectral categories. Map legend: refer to Table 3.

Click here to enlarge figure

Figure 2. (a) False-color (R = MIR band, G = NIR band, B = Green band) SPOT-4 HRVIR image of the Veneto region, Italy (10°10′E, 45°36′N). Spatial resolution: 20 m. Acquisition time: 21 July 2006 at 10:34:42. Path: 060. Row: 258. Orthorectified and radiometrically calibrated into TOARF values. (b): ATCOR™-SPECL map, 19 spectral categories. Map legend: refer to Table 2. Courtesy of Daniel Schläpfer, ReSe Applications Schläpfer. (c): SPOT-like SIAM™ (S-SIAM™) pre-classification map at intermediate semantic granularity, 40 spectral categories. Map legend: generated from Table 3. (d): S-SIAM™ pre-classification map at fine semantic granularity, 68 spectral categories. Map legend: refer to Table 3.
Remotesensing 05 05209f2 1024
Remotesensing 05 05209f3 200
Figure 3. (a): False-color (R = Red band, G = NIR band, B = Blue band) Leica ADS-80 image. Spatial resolution: 0.25 m. Acquired on 2007-09-01, covering a surface area over France (6°37′E, 46°06′N), radiometrically calibrated into SURF values, Courtesy of Daniel Schläpfer, ReSe Applications Schläpfer. (b): ATCOR™-SPECL map, 19 spectral categories. Map legend: refer to Table 2. Courtesy of Daniel Schläpfer, ReSe Applications Schläpfer. (c): QuickBird-like SIAM™ (Q-SIAM™) 4-adjacency contour map, depicting image-object contours, automatically generated from the Q-SIAM™ pre-classification map at fine semantic granularity, shown at bottom-right. (d): Q-SIAM™ pre-classification map at fine semantic granularity, 52 spectral categories. Map legend: refer to Table 4.

Click here to enlarge figure

Figure 3. (a): False-color (R = Red band, G = NIR band, B = Blue band) Leica ADS-80 image. Spatial resolution: 0.25 m. Acquired on 2007-09-01, covering a surface area over France (6°37′E, 46°06′N), radiometrically calibrated into SURF values, Courtesy of Daniel Schläpfer, ReSe Applications Schläpfer. (b): ATCOR™-SPECL map, 19 spectral categories. Map legend: refer to Table 2. Courtesy of Daniel Schläpfer, ReSe Applications Schläpfer. (c): QuickBird-like SIAM™ (Q-SIAM™) 4-adjacency contour map, depicting image-object contours, automatically generated from the Q-SIAM™ pre-classification map at fine semantic granularity, shown at bottom-right. (d): Q-SIAM™ pre-classification map at fine semantic granularity, 52 spectral categories. Map legend: refer to Table 4.
Remotesensing 05 05209f3 1024
Remotesensing 05 05209f4 200
Figure 4. Original non-standard class-specific simple random sampling (SIRS) strategy for the reference class “grassland”, using a set of random spatial locations (sample candidates), whose selected spatial unit is pixel, see Table 7. Green random locations (selected as “hits”) are included in the “grassland” class-specific reference sample set, while red points (recognized as “misses”) are excluded.

Click here to enlarge figure

Figure 4. Original non-standard class-specific simple random sampling (SIRS) strategy for the reference class “grassland”, using a set of random spatial locations (sample candidates), whose selected spatial unit is pixel, see Table 7. Green random locations (selected as “hits”) are included in the “grassland” class-specific reference sample set, while red points (recognized as “misses”) are excluded.
Remotesensing 05 05209f4 1024
Remotesensing 05 05209f5 200
Figure 5. Illustration of the four local Spatial Quality Indicator (SQI) estimators adopted in the probability sampling protocol for thematic map accuracy assessment selected from [32]. The i-th reference image-object belonging to land cover (LC) class c, identified as ROi, is shown in red and the mapped (test) image-object, located via Equation (12) and identified as TOi,c, is shown in black. (a) Example where the OSQIi,c(ROi,c,TOi,c) value is low. (b) example where the USQIi,c(ROi,c,TOi,c) is low. (c) example where 1 ≥ FEOQI_Ri,c(ROi,c,TOi,c) > FEOQI_Ti,c(ROi,c,TOi,c)≥ 0.

Click here to enlarge figure

Figure 5. Illustration of the four local Spatial Quality Indicator (SQI) estimators adopted in the probability sampling protocol for thematic map accuracy assessment selected from [32]. The i-th reference image-object belonging to land cover (LC) class c, identified as ROi, is shown in red and the mapped (test) image-object, located via Equation (12) and identified as TOi,c, is shown in black. (a) Example where the OSQIi,c(ROi,c,TOi,c) value is low. (b) example where the USQIi,c(ROi,c,TOi,c) is low. (c) example where 1 ≥ FEOQI_Ri,c(ROi,c,TOi,c) > FEOQI_Ti,c(ROi,c,TOi,c)≥ 0.
Remotesensing 05 05209f5 1024
Remotesensing 05 05209f6 200
Figure 6. Target (mapped) image-object selection in the SIAM™ map of the Leica image at coarse semantic granularity, refer to Equation (12). (a): The closed red contour identifies a reference image-object of the LC class “buildings”, selected by an expert photointerpreter in the Leica image. (b): SIAM™’s pre-classification map of the Leica image at coarse semantic granularity. The boundary of the reference segment is superimposed in red. (c): SIAM™’s segmentation map automatically generated from the SIAM™ pre-classification map at coarse semantic granularity. Each (connected) segment is identified by a different integer value and (should be) depicted in a different gray-tone. The boundary of the reference segment is superimposed in red. (d): The yellow segment is the target (mapped) object selected according to the reference-test segment pair selection criterion, see Equation (12). Spatial adjacency and spectral similarity of roads and buildings leads to the selection of a mapped object (in yellow) whose extension covers a large portion of the image, equivalent to an undersegmentation error. Hence, the USQI and FEOQI-T values tend to be low when the semantic granularity of the SIAM™ pre-classification map is coarse.

Click here to enlarge figure

Figure 6. Target (mapped) image-object selection in the SIAM™ map of the Leica image at coarse semantic granularity, refer to Equation (12). (a): The closed red contour identifies a reference image-object of the LC class “buildings”, selected by an expert photointerpreter in the Leica image. (b): SIAM™’s pre-classification map of the Leica image at coarse semantic granularity. The boundary of the reference segment is superimposed in red. (c): SIAM™’s segmentation map automatically generated from the SIAM™ pre-classification map at coarse semantic granularity. Each (connected) segment is identified by a different integer value and (should be) depicted in a different gray-tone. The boundary of the reference segment is superimposed in red. (d): The yellow segment is the target (mapped) object selected according to the reference-test segment pair selection criterion, see Equation (12). Spatial adjacency and spectral similarity of roads and buildings leads to the selection of a mapped object (in yellow) whose extension covers a large portion of the image, equivalent to an undersegmentation error. Hence, the USQI and FEOQI-T values tend to be low when the semantic granularity of the SIAM™ pre-classification map is coarse.
Remotesensing 05 05209f6 1024
Remotesensing 05 05209f7 200
Figure 7. Target (mapped) image-object selection in the SIAM™ map of the Leica image at fine semantic granularity, refer to Equation (12). (a): The closed red contour identifies a reference image-object of the LC class “buildings”, selected by an expert photointerpreter in the Leica image. (b): SIAM™’s pre-classification map of the Leica image at fine semantic granularity. The boundary of the reference segment is superimposed in red. (c): SIAM™’s segmentation map automatically generated from the SIAM™’s pre-classification map at fine semantic granularity. Each (connected) segment is identified by a different integer value and (should be) depicted in a different gray-tone. The boundary of the reference segment is superimposed in red. (d): The yellow segment is the target (mapped) object selected according to the reference-test segment pair selection criterion, see Equation (12). Note that the relevance of the road/building adjacency and spectral similarity effect, discussed in Figure 6 as a possible cause of undersegmentation errors, decreases in the SIAM™’s map at fine semantic granularity, which is more prone to oversegmentation errors.

Click here to enlarge figure

Figure 7. Target (mapped) image-object selection in the SIAM™ map of the Leica image at fine semantic granularity, refer to Equation (12). (a): The closed red contour identifies a reference image-object of the LC class “buildings”, selected by an expert photointerpreter in the Leica image. (b): SIAM™’s pre-classification map of the Leica image at fine semantic granularity. The boundary of the reference segment is superimposed in red. (c): SIAM™’s segmentation map automatically generated from the SIAM™’s pre-classification map at fine semantic granularity. Each (connected) segment is identified by a different integer value and (should be) depicted in a different gray-tone. The boundary of the reference segment is superimposed in red. (d): The yellow segment is the target (mapped) object selected according to the reference-test segment pair selection criterion, see Equation (12). Note that the relevance of the road/building adjacency and spectral similarity effect, discussed in Figure 6 as a possible cause of undersegmentation errors, decreases in the SIAM™’s map at fine semantic granularity, which is more prone to oversegmentation errors.
Remotesensing 05 05209f7 1024
Table 1. Test data set. Acronyms: top-of-atmosphere (TOA) reflectance (TOARF), surface reflectance (SURF).

Click here to display table

Table 1. Test data set. Acronyms: top-of-atmosphere (TOA) reflectance (TOARF), surface reflectance (SURF).
Test imageSensorRadiometric CalibrationAcquisition Date and TimeCentral Image, Geographic CoordinatesSpatial Resolution (m)Swath WidthSpectral Resolution (μm) per Band
Spaceborne IRS-P6LISS-3TOARF2006-06-13, 10:15:05.8311°53′E, 45°8′N (Northern Italy)23.5141 × 141 km1-G: 0.52–0.59, 2-R: 0.62–0.68, 3-NIR: 0.77–0.86, 4-MIR: 1.55–1.70
Spaceborne SPOT-4HRVIRTOARF2006-07-21, 10:34:4210°10′E, 45°36′N (Veneto region, Italy)2060 × 60 km1-G: 0.50–0.59, 2-R: 0.61–0.68, 3-NIR: 0.78–0.89, 4-MIR: 1.58–1.75
AirborneADS-80SURF2007-09-016°37′E, 46°06′N (East France)0.2564 (degrees)1-B: 0.420–0.492, 2-G: 0.533–0.587, 3-R: 0.604–0.664, 4-NIR: 0.833–0.920
Table 2. Preliminary classification map legend adopted by the ATCOR™-SPECL single-granule pre-classifier and consisting of 19 spectral categories [6], refer to the Part 1, Table 2 [20].

Click here to display table

Table 2. Preliminary classification map legend adopted by the ATCOR™-SPECL single-granule pre-classifier and consisting of 19 spectral categories [6], refer to the Part 1, Table 2 [20].
IndexSpectral CategoryPseudo-Color
1Snow/ice Remotesensing 05 05209i1
2Cloud Remotesensing 05 05209i2
3Bright bare soil/sand/cloud Remotesensing 05 05209i3
4Dark bare soil Remotesensing 05 05209i4
5Average vegetation Remotesensing 05 05209i5
6Bright vegetation Remotesensing 05 05209i6
7Dark vegetation Remotesensing 05 05209i7
8Yellow vegetation Remotesensing 05 05209i8
9Mix of vegetation/soil Remotesensing 05 05209i9
10Asphalt/dark sand Remotesensing 05 05209i10
11Sand/bare soil/cloud Remotesensing 05 05209i11
12Bright sand/bare soil/cloud Remotesensing 05 05209i12
13Dry vegetation/soil Remotesensing 05 05209i13
14Sparse veg./soil Remotesensing 05 05209i14
15Turbid water Remotesensing 05 05209i15
16Clear water Remotesensing 05 05209i16
17Clear water over sand Remotesensing 05 05209i17
18Shadow Remotesensing 05 05209i18
19Not classified (outliers) Remotesensing 05 05209i19
Table 3. Preliminary classification map’s legend, adopted by the SPOT-like SIAM™ (S-SIAM™) at fine semantic granularity, consisting of 68 spectral categories (refer to the Part 1, Table 4 [20]). Pseudo-colors of the spectral categories are grouped on the basis of their spectral endmember (e.g., “bare soil or built-up”) or parent spectral category (e.g., “high” leaf area index (LAI) vegetation types). The pseudo-color of a spectral category is chosen so as to mimic natural colors of pixels belonging to that spectral category. This legend gives a clue about the symbolic parent-child relationships supported by S-SIAM™ at different semantic granularity levels (refer to the Part 1, Figure 4 [20]). For example, a line-specific OR-combination of the 68 “child” spectral categories detected at the fine semantic granularity level across the 10 lines of Table 3 would provide 10 “parent” spectral categories at a coarser level of semantic granularity. Since it deals with symbolic reasoning, then this semantic aggregation is inherently subjective (equivocal) in nature, refer to the Part 1, Section 2.1 [20].

Click here to display table

Table 3. Preliminary classification map’s legend, adopted by the SPOT-like SIAM™ (S-SIAM™) at fine semantic granularity, consisting of 68 spectral categories (refer to the Part 1, Table 4 [20]). Pseudo-colors of the spectral categories are grouped on the basis of their spectral endmember (e.g., “bare soil or built-up”) or parent spectral category (e.g., “high” leaf area index (LAI) vegetation types). The pseudo-color of a spectral category is chosen so as to mimic natural colors of pixels belonging to that spectral category. This legend gives a clue about the symbolic parent-child relationships supported by S-SIAM™ at different semantic granularity levels (refer to the Part 1, Figure 4 [20]). For example, a line-specific OR-combination of the 68 “child” spectral categories detected at the fine semantic granularity level across the 10 lines of Table 3 would provide 10 “parent” spectral categories at a coarser level of semantic granularity. Since it deals with symbolic reasoning, then this semantic aggregation is inherently subjective (equivocal) in nature, refer to the Part 1, Section 2.1 [20].
Spectral CategoryPseudo-Color
“High” leaf area index (LAI) vegetation types (LAI values decreasing left to right) Remotesensing 05 05209i20
“Medium” LAI vegetation types (LAI values decreasing left to right) Remotesensing 05 05209i21
Shrub or herbaceous rangeland Remotesensing 05 05209i22
Other types of vegetation (e.g., vegetation in shadow, dark vegetation, wetland) Remotesensing 05 05209i23
Bare soil or built-up Remotesensing 05 05209i24
Deep water, shallow water, turbid water or shadow Remotesensing 05 05209i25
Thick cloud and thin cloud over vegetation, or water, or bare soil Remotesensing 05 05209i26
Thick smoke plume and thin smoke plume over vegetation, or water, or bare soil Remotesensing 05 05209i27
Snow and shadows snow Remotesensing 05 05209i28
Unknowns Remotesensing 05 05209i29
Table 4. Preliminary classification map’s legend, adopted by the QuickBird-like SIAM™ (Q-SIAM™) at fine semantic granularity, consisting of 52 spectral categories (refer to the Part 1, Table 4 [20]). Pseudo-colors of the spectral categories are grouped on the basis of their spectral end member (e.g., “bare soil or built-up”) or parent spectral category (e.g., “high” leaf area index (LAI) vegetation types). The pseudo-color of a spectral category is chosen so as to mimic natural colors of pixels belonging to that spectral category. This legend gives a clue about the symbolic parent-child relationships supported by Q-SIAM™ at different semantic granularity levels (refer to the Part 1, Figure 4 [20]). For example, a line-specific OR-combination of the 52 “child” spectral categories detected at the fine semantic granularity level across the nine lines of Table 4 would provide nine “parent” spectral categories at a coarser level of semantic granularity. Since it deals with symbolic reasoning, then this semantic aggregation is inherently subjective (equivocal) in nature, refer to the Part 1, Section 2.1 [20].

Click here to display table

Table 4. Preliminary classification map’s legend, adopted by the QuickBird-like SIAM™ (Q-SIAM™) at fine semantic granularity, consisting of 52 spectral categories (refer to the Part 1, Table 4 [20]). Pseudo-colors of the spectral categories are grouped on the basis of their spectral end member (e.g., “bare soil or built-up”) or parent spectral category (e.g., “high” leaf area index (LAI) vegetation types). The pseudo-color of a spectral category is chosen so as to mimic natural colors of pixels belonging to that spectral category. This legend gives a clue about the symbolic parent-child relationships supported by Q-SIAM™ at different semantic granularity levels (refer to the Part 1, Figure 4 [20]). For example, a line-specific OR-combination of the 52 “child” spectral categories detected at the fine semantic granularity level across the nine lines of Table 4 would provide nine “parent” spectral categories at a coarser level of semantic granularity. Since it deals with symbolic reasoning, then this semantic aggregation is inherently subjective (equivocal) in nature, refer to the Part 1, Section 2.1 [20].
Spectral CategoryPseudo-Color
“High” leaf area index (LAI) vegetation types (LAI values decreasing left to right) Remotesensing 05 05209i30
“Medium” LAI vegetation types (LAI values decreasing left to right) Remotesensing 05 05209i31
Shrub or herbaceous rangeland Remotesensing 05 05209i32
Other types of vegetation (e.g., vegetation in shadow, dark vegetation, wetland) Remotesensing 05 05209i33
Bare soil or built-up Remotesensing 05 05209i34
Deep water, shallow water, turbid water or shadow Remotesensing 05 05209i35
Smoke plume over water, over vegatation or over bare soil Remotesensing 05 05209i36
Snow and shadows snow Remotesensing 05 05209i37
Unknowns Remotesensing 05 05209i38
Table 5. Reference class definitions and acronyms for the IRS-P6 LISS-3 test image, 23.5 m resolution, see Figure 1a.

Click here to display table

Table 5. Reference class definitions and acronyms for the IRS-P6 LISS-3 test image, 23.5 m resolution, see Figure 1a.
Reference Class AcronymSpatial TypeDefinition
Cl/ShPixelClouds or cloud shadows or strong shadows over bare soil or strong shadows over vegetation
BBSPixelBuilt-up or Bare Soil
Range/MPPixelRangeland or mixed vegetation/soil pixels
VL-M NIRPixelVegetation with very low to medium NIR response (TOARF values in range {0, 255} < 80)
H-VH NIRPixelVegetation with high to very high NIR response (TOARF values in range {0, 255} ≥ 80)
WaterPixelAll bodies of water, including oceans, lagoons, rivers, lakes, etc.
Table 6. Reference class definitions and acronyms for the SPOT-4 HRVIR test image, 20 m resolution, see Figure 2a.

Click here to display table

Table 6. Reference class definitions and acronyms for the SPOT-4 HRVIR test image, 20 m resolution, see Figure 2a.
Reference Class AcronymSpatial TypeDefinition
BBSPixelBuilt-up or Bare Soil
Range/MPPixelRangeland or mixed vegetation/soil pixels
VL-M NIRPixelVegetation with very low to medium NIR response (TOARF values in range {0, 255} < 80)
H-VH NIRPixelVegetation with high to very high NIR response (TOARF values in range {0, 255} ≥ 80)
WaterPixelAll bodies of water, including oceans, lagoons, rivers, lakes, etc.
Table 7. Reference class definitions and acronyms for the Leica ADS-80 test image, 0.25 m resolution, see Figure 3a.

Click here to display table

Table 7. Reference class definitions and acronyms for the Leica ADS-80 test image, 0.25 m resolution, see Figure 3a.
Reference Class AcronymSpatial TypeDefinition
LtBBrSPolygon if building, otherwise pixelLight-tone Built-up or Bright Bare Soil distinguished by high response in visible wavelength
DkBDkSPolygon if building, otherwise pixelDark-tone Built-up or Dark Bare Soil distinguished by low response in visible wavelength
NDVI1PixelGrassland with high NDVI (≥0.7)
NDVI2PixelGrassland with lower NDVI (<0.7)
TrCrPixelTree Crowns
SHPixelShadow over vegetation, built-up, or soil land covers
OutlierPixelUnidentifiable objects
Table 8. ATCOR™-SPECL pre-classification of the IRS test image. Overlapping area matrix (OAMTRX) instance between test classes (refer to Table 2) and reference classes (refer to Table 5), represented as table rows and columns respectively. For the sake of simplicity, only test classes (table rows) whose occurrence is greater than 0.15% in the test map being investigated are shown. “Correct” entries selected by the present authors for inter-vocabulary reconciliation are shown as yellow checkmarks.

Click here to display table

Table 8. ATCOR™-SPECL pre-classification of the IRS test image. Overlapping area matrix (OAMTRX) instance between test classes (refer to Table 2) and reference classes (refer to Table 5), represented as table rows and columns respectively. For the sake of simplicity, only test classes (table rows) whose occurrence is greater than 0.15% in the test map being investigated are shown. “Correct” entries selected by the present authors for inter-vocabulary reconciliation are shown as yellow checkmarks.
Spectral CategoryCl/ShBBSRange/MPVL-M NIRH-VH NIRWater
Bare SoilXXXXX
Average VegetationXXX
Bright VegetationXXX
Dark VegetationXXX
Yellow VegetationXXX
Mix of Vegetation/SoilXX
Asphalt/Dark SandXXXXX
Sand/Bare Soil/CloudXXXX
Bright Sand/Soil/CloudXXXX
Dry Vegetation/SoilXXXX
Sparse Vegetation/SoilXXXX
Turbid WaterXXXX
Clear Water Over SandXXXXX
Not ClassifiedXXXXXX
Table 9. Coarse-granularity S-SIAM™ pre-classification of the IRS test image. OAMTRX instance between test classes (related to those shown in Table 3) and reference classes (refer to Table 5), represented as table rows and columns respectively. For the sake of simplicity, only test classes (table rows) whose occurrence is greater than 0.15% in the test map being investigated are shown. “Correct” entries selected by the present authors for inter-vocabulary reconciliation are shown as yellow checkmarks.

Click here to display table

Table 9. Coarse-granularity S-SIAM™ pre-classification of the IRS test image. OAMTRX instance between test classes (related to those shown in Table 3) and reference classes (refer to Table 5), represented as table rows and columns respectively. For the sake of simplicity, only test classes (table rows) whose occurrence is greater than 0.15% in the test map being investigated are shown. “Correct” entries selected by the present authors for inter-vocabulary reconciliation are shown as yellow checkmarks.
Spectral CategoryCl/ShBBSRange/MPVL-M NIRH-VH NIRWater
UnclassifiedXXXXXX
VXXX
RXXX
WRXXXX
BBXXXXX
WASHXXXX
CLXXXXX
TNCL_SHRBR_HRBCR_BBXXX
UNXXXXXX
Table 10. ATCOR™-SPECL pre-classification of the SPOT test image. OAMTRX instance between test classes (refer to Table 2) and reference classes (refer to Table 6), represented as table rows and columns respectively. For the sake of simplicity, only test classes (table rows) whose occurrence is greater than 0.15% in the test map being investigated are shown. “Correct” entries selected by the present authors for inter-vocabulary reconciliation are shown as yellow checkmarks.

Click here to display table

Table 10. ATCOR™-SPECL pre-classification of the SPOT test image. OAMTRX instance between test classes (refer to Table 2) and reference classes (refer to Table 6), represented as table rows and columns respectively. For the sake of simplicity, only test classes (table rows) whose occurrence is greater than 0.15% in the test map being investigated are shown. “Correct” entries selected by the present authors for inter-vocabulary reconciliation are shown as yellow checkmarks.
Spectral CategoryBBSRange/MPVL-M NIRH-VH NIRWater
Average VegetationXX
Bright VegetationXX
Dark VegetationXX
Yellow VegetationXX
Mix of Vegetation/SoilX
Asphalt/Dark SandXXXX
Sand/Bare Soil/CloudXXXX
Dry Vegetation/SoilXXX
Sparse Vegetation/SoilXXX
Turbid WaterXXXX
Clear Water Over SandXXXX
Not ClassifiedXXXXX
Table 11. Intermediate-granularity S-SIAM™ pre-classification of the SPOT test image. OAMTRX instance between test classes (related to those shown in Table 3) and reference classes (refer to Table 6), represented as table rows and columns respectively. For the sake of simplicity, only test classes (table rows) whose occurrence is greater than 0.15% in the test map being investigated are shown. “Correct” entries selected by the present authors for inter-vocabulary reconciliation are shown as yellow checkmarks.

Click here to display table

Table 11. Intermediate-granularity S-SIAM™ pre-classification of the SPOT test image. OAMTRX instance between test classes (related to those shown in Table 3) and reference classes (refer to Table 6), represented as table rows and columns respectively. For the sake of simplicity, only test classes (table rows) whose occurrence is greater than 0.15% in the test map being investigated are shown. “Correct” entries selected by the present authors for inter-vocabulary reconciliation are shown as yellow checkmarks.
Spectral CategoryBBSRange/MPVL-M NIRH-VH NIRWater
UnclassifiedXXXXX
SVXXX
AVXX
ASHRBRXX
WEDRXXX
PBXXX
BBB_VBBBXXXX
SBBXXXX
ABBXXXX
DPWASHXXXX
SLWASHXXXX
TWASHXXXX
SASLWAXXXX
TNCLV_SHRBR_HRBCRXX
TNCLWA_BBXXX
UN3XXXXX
Table 12. ATCOR™-SPECL pre-classification of the Leica test image. OAMTRX instance between test classes (refer to Table 2) and reference classes (refer to Table 7), represented as table rows and columns respectively. For the sake of simplicity, only test classes (table rows) whose occurrence is greater than 0.15% in the test map being investigated are shown. “Correct” entries selected by the present authors for inter-vocabulary reconciliation are shown as yellow checkmarks.

Click here to display table

Table 12. ATCOR™-SPECL pre-classification of the Leica test image. OAMTRX instance between test classes (refer to Table 2) and reference classes (refer to Table 7), represented as table rows and columns respectively. For the sake of simplicity, only test classes (table rows) whose occurrence is greater than 0.15% in the test map being investigated are shown. “Correct” entries selected by the present authors for inter-vocabulary reconciliation are shown as yellow checkmarks.
Spectral CategoryLtBBrsDkBDkSNDVI1NDVI2TrCrSHOutlier
Average VegetationXXXX
Bright VegetationXXXX
Dark VegetationXXX
Yellow VegetationXXXXX
Mix of Vegetation/SoilXXX
Asphalt/Dark SandXXXXX
Sand/Bare Soil/CloudXXXXX
Bright Sand/Soil/CloudXXXXX
Dry Vegetation/SoilXXXX
Sparse Vegetation/SoilXXXX
Turbid WaterXXXXXX
Not ClassifiedXXXXXX
Table 13. Fine-granularity Q-SIAM™ pre-classification of the Leica test image. OAMTRX instance between test classes (refer to Table 4) and reference classes (refer to Table 7), represented as table rows and columns respectively. For the sake of simplicity, only test classes (table rows) whose occurrence is greater than 0.15% in the test map being investigated are shown. “Correct” entries selected by the present authors for inter-vocabulary reconciliation are shown as yellow checkmarks.

Click here to display table

Table 13. Fine-granularity Q-SIAM™ pre-classification of the Leica test image. OAMTRX instance between test classes (refer to Table 4) and reference classes (refer to Table 7), represented as table rows and columns respectively. For the sake of simplicity, only test classes (table rows) whose occurrence is greater than 0.15% in the test map being investigated are shown. “Correct” entries selected by the present authors for inter-vocabulary reconciliation are shown as yellow checkmarks.
Spectral CategoryLtBBrSDkBDkSNDVI1NDVI2TrCrSHOutlier
UnclassifiedXXXXXXX
SVVH2NIRXXXX
SVVH1NIRXXXX
SVVHNIRXXXX
SVHNIRXXX
SVMNIRXXX
SVLNIRXXXX
SVVLNIRXXXX
AVVH1NIRXXXX
AVVHNIRXXXX
ASHRBRHNIRXX
ASHRBRMNIRXX
ASHRBRLNIRXX
ASHRBRVLNIRXX
BBB_TNCLXXXXX
SBBNFXXXXX
ABBVFXXXXX
ABBNFXXXXX
DBBVFXXXX
DBBFXXXX
DBBNFXXXX
TWASHXXXXX
SN_CL_BBBXXXXXX
UN3XXXXXX
Table 14. CVPSI2 ≥ CVPSI1 ∈ [0, 1] values collected from the proposed 12 thematic maps, refer to Equation (A3) to (A10) in the Appendix.

Click here to display table

Table 14. CVPSI2 ≥ CVPSI1 ∈ [0, 1] values collected from the proposed 12 thematic maps, refer to Equation (A3) to (A10) in the Appendix.
Test Data SetATCOR™ SPECL (19 sp. cat.) CVPSI1ATCOR™ SPECL (19 sp. cat.) CVPSI2S-SIAM™ (Coarse = 15 sp. cat.) CVPSI1S-SIAM™ (Coarse = 15 sp. cat.) CVPSI2S-SIAM™ (Interm. = 40 sp. cat.) CVPSI1S-SIAM™ (Interm. = 40 sp. cat.) CVPSI2S-SIAM™ (Fine = 68 sp. cat.) CVPSI1S-SIAM™ (Fine = 68 sp. cat.) CVPSI2
IRS-P6 LISS-3, 23.5 m-resolution, 4-band (G, R, NIR, MIR)0.66310.76960.48550.64800.71100.77550.76530.8034
SPOT-4 HRVIR, 20 m-resolution, 4-band (G, R, NIR, MIR)0. 57320.66880.47460.61350.66590.72080.74490.7796
ATCOR™ SPECL (19 sp. cat.) CVPSI1ATCOR™ SPECL (19 sp. cat.) CVPSI2Q-SIAM™ (Coarse = 12 sp. cat.) CVPSI1Q-SIAM™ (Coarse = 12 sp. cat.) CVPSI2Q-SIAM™ (Interm. = 28 sp. cat.) CVPSI1Q-SIAM™ (Interm. = 28 sp. cat.) CVPSI2Q-SIAM™ (Fine = 52 sp. cat.) CVPSI1Q-SIAM™ (Fine = 52 sp. cat.) CVPSI2
Leica ADS-40, 0.25 m-resolution, 4-band (B, G, R, NIR)0.50000.60730.42490.63370.56420.66640.63100.6911
Table 15. Overall Accuracy (OA) = pOA = Equation (9) ±δ = Equation (3) for the ATCOR™-SPECL and SIAM™ pre-classifications of the three test images, with α = 0.05, 1 − α = 0.95, χ2 = 3.84 in Equation (3).

Click here to display table

Table 15. Overall Accuracy (OA) = pOA = Equation (9) ±δ = Equation (3) for the ATCOR™-SPECL and SIAM™ pre-classifications of the three test images, with α = 0.05, 1 − α = 0.95, χ2 = 3.84 in Equation (3).
Test Data SetATCOR™-SPECL (19 sp.cat.), POA = Eq. (9)+/− δEq. (3)S-SIAM™ (Coarse = 15 sp.cat.), POA = Eq. (9)+/−δ=Eq. (3)S-SIAM™ (Interm. = 40 sp.cat.), POA = Eq. (9)+/−δ= Eq. (3)S-SIAM™ (Fine = 68 sp.cat.), POA = Eq. (9)+/−δ= Eq. (3)Number of Randomly Selected Reference Samples (Spatial Type: Pixel)
IRS-P6 LISS-3, 23.5 m-resolution, 4-band (G, R, NIR, MIR)84.26%2.08%90.49%1.67%91.47%1.59%96.81%1.00%2040
SPOT-4 HRVIR, 20 m-resolution, 4-band (G, R, NIR, MIR)92.00%1.69%95.47%1.30%98.71%0.70%99.35%0.50%1700
ATCOR™-SPECL (19 sp.cat.), POA = Eq. (9)Q-SIAM™ (Coarse = 12 sp.cat.), POA = Eq. (9)Q-SIAM™ (Interm. = 28 sp.cat.), POA = Eq. (9)Q-SIAM™ (Fine = 52 sp.cat.), POA = Eq. (9)
Leica ADS-80, 0.25 m-resolution, 4-band (B, G, R, NIR)96.18%1.09%97.55%0.88%99.17%0.52%99.22%0.50%2045
Table 16. Producer’s Accuracy = pPA = Equation (11) ±δ = Equation (5) for the ATCOR™-SPECL and SIAM™ pre-classifications of the three test images with α = RC/100, 1 − α/RC = 0.99, χ2(1, 1-α/RC) = 6.63 in Equation (5).

Click here to display table

Table 16. Producer’s Accuracy = pPA = Equation (11) ±δ = Equation (5) for the ATCOR™-SPECL and SIAM™ pre-classifications of the three test images with α = RC/100, 1 − α/RC = 0.99, χ2(1, 1-α/RC) = 6.63 in Equation (5).
IRS-P6 LISS-3, 23.5 m-Resolution, 4-Band (G, R, NIR, MIR), Reference LC Classes (Refer to Table 5)ATCOR™- SPECL (19 sp. cat.), PPA = Eq. (11)+/− δ = Eq. (5)S-SIAM™ (Coarse = 15 sp. cat.), PPA = Eq. (11)+/− δ = Eq. (5)S-SIAM™ (Interm. = 40 sp. cat.), PPA = Eq. (11)+/− δ = Eq. (5)S-SIAM™ (Fine = 68 sp. cat.), PPA = Eq. (11)+/− δ = Eq. (5)Number of Randomly Selected Reference Samples (Spatial Type: Pixel)
Cl/Sh16.47%5.18%55.88%6.93%55.88%6.93%83.53%5.18%340
BBS99.41%1.07%94.12%3.29%94.12%3.29%98.24%1.84%340
Range/MP97.94%1.98%99.71%0.76%99.71%0.76%99.71%0.76%340
VL-M NIR98.53%1.68%98.53%1.68%99.71%0.76%100.00%0.00%340
H-VH NIR100.00%0.00%99.71%0.76%100.00%0.00%100.00%0.00%340
Water93.24%3.51%95.00%3.04%99.41%1.07%99.41%1.07%340

SPOT-4 HRVIR, 20 m-Resolution, 4-Band (G, R, NIR, MIR), Reference LC Classes (Refer to Table 6)ATCOR™- SPECL (19 sp. cat.), PPA = Eq. (11)+/− δ = Eq. (5)S-SIAM™ (Coarse = 15 sp. cat.), PPA = Eq. (11)+/− δ = Eq. (5)S-SIAM™ (Interm. = 40 sp. cat.), PPA = Eq. (11)+/− δ = Eq. (5)S-SIAM™ (Fine = 68 sp. cat.), PPA = Eq. (11)+/− δ = Eq. (5)Number of Randomly Selected Reference Samples (Spatial Type: Pixel)

BBS98.82%1.51%94.41%3.21%94.41%3.21%97.65%2.12%340
Range/MP97.65%2.12%100.00%0.00%100.00%0.00%100.00%0.00%340
VL-M NIR99.71%0.76%100.00%0.00%100.00%0.00%100.00%0.00%340
H-VH NIR100.00%0.00%100.00%0.00%100.00%0.00%100.00%0.00%340
Water63.82%6.71%82.94%5.25%99.12%1.31%99.12%1.31%340

Leica ADS-80, 0.25 m-Resolution, 4-Band (B, G, R, NIR), Reference LC Classes (Refer to Table 7)ATCOR™- SPECL (19 sp. cat.), PPA = Eq. (11)+/− δ = Eq. (5)Q-SIAM™ (Coarse = 12 sp. cat.), PPA = Eq. (11)+/− δ = Eq. (5)Q-SIAM™ (Interm. = 28 sp. cat.), PPA = Eq. (11)+/− δ = Eq. (5)Q-SIAM™ (Fine = 52 sp. cat.), PPA = Eq. (11)+/− δ = Eq. (5)Number of Randomly Selected Reference Samples (Spatial Type: Pixel)

LtBBrS99.71%0.76%97.94%1.98%97.94%1.98%97.94%1.98%340
DkBDkS79.71%5.62%97.65%2.12%97.35%2.24%97.35%2.24%340
NDVI1100.00%0.00%100.00%0.00%100.00%0.00%100.00%0.00%340
NDVI298.82%1.51%100.00%0.00%100.00%0.00%100.00%0.00%340
TrCr100.00%0.00%100.00%0.00%100.00%0.00%100.00%0.00%340
SH98.53%1.68%99.41%1.07%99.41%1.07%89.71%4.24%340
Outlier--------5
Table 17. Notable test spectral categories demonstrating low User’s Accuracy = pUA = Equation (10) ±δ = Equation (5) for the ATCOR™-SPECL and SIAM™ pre-classification maps of the three test images with α = TC/100, 1 − α/TC = 0.99, χ2(1, 1-α/TC) = 6.63 in Equation (5).

Click here to display table

Table 17. Notable test spectral categories demonstrating low User’s Accuracy = pUA = Equation (10) ±δ = Equation (5) for the ATCOR™-SPECL and SIAM™ pre-classification maps of the three test images with α = TC/100, 1 − α/TC = 0.99, χ2(1, 1-α/TC) = 6.63 in Equation (5).
Pre-ClassifierTest ImageNumber of Test Classes = TCTest Spectral Category*pUA = Eq. (10) ± δ = Eq. (5).Source of Error
ATCOR™-SPECLIRS, 23.5 m-resolution, 4-band (G, R, NIR, MIR)19 sp. cat.Dry Vegetation/Soil55.86% ± 12.12%Clouds/Shadows

Sparse Vegetation/Soil21.83% ± 7.58%Clouds/Shadows

SPOT, 20 m-resolution, 4-band (G, R, NIR, MIR)19 sp. cat.Asphalt/Dark Sand17.27% ± 8.26%Water

S-SIAM™IRSCoarse = 15 sp. cat.BB (Bare soil or Built-up)50.49% ± 8.97%Clouds

SPOTCoarse = 15 sp. cat.TNCL_SHRBR_HRBCR_BB66.26% ± 9.54%Water

*Note: Only classes which are “adequately sampled” (>100 samples) are included.

Table 18. Mean of the sum over all values of a local SQI estimator = Equation (14) to Equation (17) ±δ = Equation (3), where the mapped sub-symbolic image-objects are identified via Equation (12) from the reference segments of class buildings. Mapped image-objects belong to the three-scale segmentation map automatically generated from the SIAM™ three-granule pre-classification map of the Leica test image, with α = 0.05, 1 − α = 0.95, χ2 = 3.84 in Equation (3).

Click here to display table

Table 18. Mean of the sum over all values of a local SQI estimator = Equation (14) to Equation (17) ±δ = Equation (3), where the mapped sub-symbolic image-objects are identified via Equation (12) from the reference segments of class buildings. Mapped image-objects belong to the three-scale segmentation map automatically generated from the SIAM™ three-granule pre-classification map of the Leica test image, with α = 0.05, 1 − α = 0.95, χ2 = 3.84 in Equation (3).
Q-SIAM™ Semantic GranularityNumber of Randomly Selected Reference Samples (Spatial Type: Polygon)OSQI × 100% = Eq. (14)+/− δ = Eq. (3)USQI × 100% = Eq. (15)+/− δ = Eq. (3)FEOQI-R × 100% = Eq. (16)+/− δ = Eq. (3)FEOQI-T × 100 = Eq.(17)+/− δ = Eq. (3)Percent Average SQI (ASQI)
Coarse = 1210988.76%5.92%31.88%8.74%78.18%7.75%26.28%8.26%56.28%
Intermediate = 2810981.73%7.25%50.07%9.38%82.09%7.19%38.50%9.13%63.10%
Fine = 5210975.62%8.05%77.78%7.8%77.75%7.8%56.92%9.29%72.02%
Remote Sens. EISSN 2072-4292 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
