Article

Developing a Quality Index Associated with Rain for Hurricane Winds from SAR

1
School of Marine Sciences, Nanjing University of Information Science and Technology, Nanjing 210044, China
2
Bedford Institute of Oceanography, Fisheries and Oceans, Dartmouth, NS B2Y4A2, Canada
3
Risk Management Solutions, Tallahassee, FL 32304, USA
*
Author to whom correspondence should be addressed.
Remote Sens. 2018, 10(11), 1783; https://doi.org/10.3390/rs10111783
Submission received: 20 August 2018 / Revised: 5 November 2018 / Accepted: 7 November 2018 / Published: 10 November 2018
(This article belongs to the Special Issue Sea Surface Roughness Observed by High Resolution Radar)

Abstract

:
Differences in synthetic aperture radar (SAR)-retrieved hurricane wind speeds from co-polarization and cross-polarization measurements are found to be correlated with rain rate. A quality index is proposed for the SAR-retrieved wind speed product to recognize heavy rain- affected areas by taking account of the different imaging mechanisms of the radar backscattering from the ocean surface via cross-polarization and co-polarization observations. A procedure is proposed to rectify wind retrievals in the rain-contaminated areas within the hurricane core, based on the theoretical physical profile for hurricanes. The effectiveness of the proposed methodology for heavy rain area recognition and wind speed reconstruction in the rain-affected areas is validated against step frequency microwave radiometer measurements from hurricane reconnaissance missions and the hurricane surface wind analysis product (HWIND). The quality flags provide confidence levels of hurricane surface winds from SAR, which together with the proposed method to correct wind retrievals in rain-contaminated areas, can contribute to improved operational applications of SAR-derived winds under hurricane conditions.

Graphical Abstract

1. Introduction

From the very first spaceborne synthetic aperture radar (SAR)-SEASAT (seafaring satellite), storm signatures have been seen, mainly in the unique structure of storm-related rain footprints over the ocean surface [1,2]. Unique mesoscale features such as rain bands [3], eye morphology [4], and vortices [5] have also been observed by follow-on SAR missions. Significant efforts for the retrieval of quantitative information from SAR have been conducted for ocean surface wind. After several decades of development, the algorithms for SAR wind retrieval have reached operational applications for routine sea conditions; for example, the Alaskan coastal SAR program [6] and the Canadian National SAR Wind program [7]. These developments have especially benefited from large datasets of associated microwave frequency band scatterometer wind products. Based on the continuous improvements in wind speed retrieval under conventional wind conditions, it is appropriate to test the potential capability of high wind speed retrieval from SAR, for hurricanes. The motivation is highlighted by the critical demands for enhanced wind observations during hurricanes, especially over the ocean, before storms make landfall.
Modern SAR instruments have a capability for multiple polarization measurements. Among these, co-polarization (hereafter: co-pol), i.e., HH and/or VV polarization (H: Horizontal, V: vertical, with the first letter standing for radar transmission polarization and the second letter for receiving polarization), is mostly used in ocean studies, especially in early satellite SAR missions e.g., Reference [6]. The wind vector retrieval methods based on these co-pol SAR measurements have been successful, based on a series of geophysical model functions (GMFs), such as CMOD5.N [8], for C-band SAR, which are leading to the operational monitoring of wind fields under low to moderate wind conditions (i.e., 0–35 m/s). For example, ocean wind products are operationally provided in the Sentinel SAR L2 product data by the European Space Agency. Attempts to retrieve hurricane-force wind from co-pol SAR have also been made, as shown in References [9,10]. Mathematically, it is straightforward to apply the SAR wind algorithm derived for conventional wind conditions to SAR hurricane images, however, challenges remain. For example, studies show that co-pol SAR signals suffer signal saturation under high wind speeds e.g., Reference [8], which result in decreased sensitivity of radar backscattered signals with increased wind speed. This is thought to be mainly induced by suppressed Bragg waves under high wind conditions, due to sea spray [11] or changes in the atmospheric surface layer [12]; however, the detailed mechanism is still unclear due to limited in situ observations. Under low radar incidence angles (<30°), the normalized radar cross section (NRCS) even appears to decrease as observed by laboratory [13] and aircraft measurements [14], leading to speed ambiguity in SAR wind retrievals for high wind speeds [15]. The CMOD5.N GMF captures this natural saturation effect; thus, an ambiguity removal scheme needs to be applied so that hurricane-force wind speed can be obtained from co-pol radar returns [16].
Meanwhile, the capability of cross-polarization (hereafter: cross-pol) measurements for high wind speed retrieval has been revealed, benefiting from the high-quality radiometric calibration performance of C-band RADARSAT-2 SAR. Compared to higher frequency microwave bands, for example X-band, C-band radar is less influenced by rain, and thus more widely used for hurricane wind retrieval. Studies show that cross-pol has increased sensitivity under high wind speeds, which makes it especially suitable for high wind speed monitoring. Data analysis has revealed that the cross-pol radar NRCS monotonically increases with wind speed, with no dependence on wind direction and no or little dependence on radar incidence angle. Thus, by collocating observations of radar NRCS with wind data from buoys, dropsondes, models etc., empirical GMFs have been developed [17,18,19]. For example, the authors of study [18] proposed a linear model between radar NRCS and wind speed for quad-polarization SAR measurements; and the authors of study [19] proposed a piecewise linear model with a noise suppression procedure for ScanSAR mode RADARSAT-2 SAR data, which is the most widely used mode for hurricane observations [incidence angles, 20–49°]. Since wind direction is not needed in these models, wind speed can be directly retrieved from radar measurements without additional information regarding wind direction as required for wind speed retrieval from co-pol radar signals. These empirical GMFs have been successful in quantifying the relationship between radar backscattered signals and wind speed, which can be difficult to establish for a theoretical model, due to the complicated state of the ocean surface under high wind speeds, involving processes such as wave breaking induced sea spray and foam.
Although empirical geophysical model functions are able to quantify the relationship between the radar NRCS and wind vectors, and accommodate different wind-induced dynamical processes implicitly, there are non-wind-induced external processes in the ocean which can contribute additional radar backscattered signals [20] Rain is one of these processes. Naturally, heavy precipitation is present in tropical storms and heavy rainfall-induced flooding is a major threat to human society. As mentioned previously, the signatures of heavy rainfall have been observed from the very beginning of SAR satellite remote sensing, e.g., Reference [2]. Many studies have focused mainly on the morphology of rain signatures in SAR images. In 1994, Atlas [2] first explained these hurricane footprints in SAR imagery as a result of rain downdrafts. A recent 2016 study by Alpers et al. [21] suggested a C-band SAR imaging mechanism for rain under low to moderate wind conditions. The rain morphology [3] apparent from SAR images indicates possible contamination to the retrieved wind speeds in affected areas. Attempts to build a scattering model due to rain effects on the rough sea surface have also been pursued e.g., References [22,23]. However, most of these studies rely on rain rate measurements from other sources. A method to retrieve wind and rain simultaneously from ERS scatterometer data has been tested and is possible [24] under moderate wind conditions. Thus far, no GMF explicitly includes rain estimation for wind retrieval under hurricane conditions. For hurricane-force wind, rain can contribute up to 100% error ([25] Figure 2) for wind retrieval from airborne stepped frequency microwave radiometer (SFMR) observations (incidence angles −40°–+40°). Compared to SFMR, wind retrieval from SAR suffers similar apparent effects from heavy rain on the ocean surface, because the presence of rain not only changes the brightness temperature which is measured by SFMR, but also surface roughness which is captured by SAR. Thus it is necessary to consider the rain effect in hurricane wind retrieval from SAR.
Finding a method to recognize rain-affected wind cells in SAR images is not a simple task. Because of its antenna design, the scatterometer can assign a quality flag for each retrieved wind vector based on the consistency of multiple measurements from different incidence angles [24,26]. SAR has only one incidence angle for each observation, and thus it is difficult to make a similar quality assessment based on its measurements, although the removal of directional ambiguity has been possible based on the concentric wind structure that is generally followed for hurricanes [10].
However, similar to the multi-looking directional measurements from scatterometers, modern SAR instruments have special multiple-polarization capabilities, such as RADARSAT-2 SAR, which is able to conduct dual-polarization (dual-pol hereafter) and quad-polarization measurements. Dual-pol mode can be operated at ScanSAR swath, with swath widths as much as 500 km, which is suitable for observing hurricanes. The two polarization measurements of dual-pol mode are cross-pol (VH or HV) and co-pol (VV or HH), which have different imaging mechanisms. For cross-pol, volume scattering dominates, whereas for co-pol Bragg scattering is more important [19]. Study [21] indicated that non-Bragg scattering may be a dominant scattering mechanism for rain cells. Therefore, the combination of both measurements has been important for wind vector retrieval, in rain-free areas, owing to the advantage of wind speed retrieval from cross-pol measurements and the wind direction sensitivity of co-pol measurements [27]. This combination has also been shown to be useful for the detection of various targets, for example, oil [28], wind turbines [29], macroalgae bloom patches [30] etc. Under hurricane conditions, a recent study showed that both co- and cross-polarized SAR measurements can be used for extreme wind retrieval. Using their combined geophysical model functions, they obtained wind speeds up to 60 m/s [31].
In this paper, we extend the application of multiple polarization measurements for rain under hurricane conditions. This is achieved by introducing the principle of rain recognition from SAR described in Section 2, based on SAR measurements and co-located SFMR measurements. In Section 3, results are given for SAR-retrieved hurricane wind speeds with a rain flag as a quality index. A methodology to correct the rain-contaminated areas is introduced in Section 4 and the rain-corrected wind field is validated by HWIND data from Risk Management Solutions (RMS; www.rms.com/models/hwind), which are post-analysis winds based on objective analysis of best available observations during the storm. Discussions of uncertainties and future plans are presented in Section 5, followed by conclusions in Section 6.

2. Principle of Rain Recognition from SAR

Although microwave radar is able to penetrate through cloud and light rain, because of its long wavelength as compared to the size of rain drops, heavy rainfall will modulate the radar signals through various mechanisms [21,22]. Study [22] summarized the effect of rain into two categories: In the atmosphere, raindrops induce volumetric scattering and attenuation of radar waves, whereas on the ocean surface, rain alters the roughness of the ocean surface by the competitive functions of rain damped ocean surface waves, and rain splashing enhanced ring waves. Although both negative and positive effects exist in the atmosphere and in ocean surface components of radar backscattered signals, the negative effects are dominant for high wind speeds [25]. A detailed quantification of each component is complicated. Nevertheless, all these effects will eventually be combined together and represented by the radar NRCS. In contrast to the stronger NRCS caused by higher winds under hurricane conditions, rain makes a relatively smaller contribution to the NRCS in high winds as compared to that made under moderate wind conditions. Figure 1 shows an example of rain features in Hurricane Patricia (2015), for moderate wind speeds (15 m/s), as compared to high wind speeds (35 m/s), where rain features are more prominent in (a,b) than in (c,d).
For solely wind-induced radar roughness, both the co-pol and the cross-pol radar NRCSs are constrained by the geophysical model functions; radar measurements from either polarization or combined can lead to wind speed retrieval. However, for radar roughness generated by other processes, for example rain, it is hypothesized that the same rain rate causes different radar modulations for co-pol radar as compared to cross-pol radar measurements. This is shown in Figure 1, and it results from the different imaging mechanisms for cross-pol and co-pol SAR measurements, which will show up as different wind speed retrievals in the rain-affected areas. These differences can potentially lead to detection of non-wind-induced features in the SAR images themselves. This principle will be explained in more detail in the following sections.

3. Rain Recognition from Dual-Pol SAR Imagery

In order to develop a methodology to recognize the rain contaminated ocean surface areas under hurricane conditions, we studied RADARSAT-2 SAR imagery of the most intense winds observed in Hurricane Patricia (2015), together with SFMR wind speeds and rain rate measurements from hurricane reconnaissance missions. During 20–24 October 2015, Hurricane Patricia intensified from a tropical storm to a Category 5 hurricane and made landfall on the Pacific coast of Mexico (Figure 2). According to aircraft measurements conducted by the United States National Hurricane Center (NHC) of NOAA (National Ocean and Atmosphere Administration), the lowest pressure was 879 mbar and maximum sustained winds were 200 mph (~89 m/s) at 05:33PM UTC 23 October 2015, which confirms Hurricane Patricia as the most intense cyclone recorded in the western hemisphere in terms of barometric pressure, and the most intense globally in terms of measured maximum sustained winds [32].
RADARSAT-2 SAR measurements during the most intense phase of Hurricane Patricia took place at 12:45PM UTC on 23 October 2015. RADARSAT-2 SAR has multiple imaging modes and polarizations. Almost all the hurricane images taken by RADARSAT-2 SAR are in ScanSAR mode with dual-polarizations (VV and VH). For ScanSAR, only signal intensity is recorded. For other modes, phase information can be processed by request. The SAR measurements for Hurricane Patricia (2015) were taken in dual-pol mode, and two images with co-pol VV polarization and cross-pol VH polarization were captured. These two RADARSAT-2 SAR images are also notable for capturing the most intense wind speed that has thus far been recorded by SAR measurements over the ocean surface.
Hurricane track data are from the NHC (www.nhc.noaa.gov/). The color of the track as indicated with dots shows the strength of the maximum wind speeds. The square box shows the coverage of the RADARSAT-2 SAR image at 12:45 UTC on 23 October 2015, and the black line shows the NOAA 43 SFMR track in the hurricane core area.
The flowchart of the proposed procedure to recognize rain areas from SAR is shown in Figure 3. Firstly, RADARSAT-2 SAR dual-pol measurements are processed to obtain the radiometric calibrated NRCS (dB). Hurricane wind speeds are then retrieved from the cross-pol mode image, using a VH dual-pol GMF [19]. Similar to other cross-pol GMFs, this GMF [19] was developed by collocating SAR measurements with data from in situ buoys. However, this model function targets VH dual-pol data only instead of also including quad-pol data which has different radiometric accuracy. Since most, if not all, of the cross-pol RADARSAT-2 SAR hurricane images are taken in the VH dual-pol mode, this approach is expected to better fit the objectives of this study. In previous work [19], we also introduced a noise removal scheme which significantly removed the apparent “seams” between different beams of the ScanSAR mode image. The VH dual-pol GMF was further evaluated in Reference [33] by comparing SAR winds with the state-of-art hurricane wind analysis product, HWND, from NOAA (now provided by RMS). HWIND uses expertly standardized and quality controlled wind observations from multiple platforms (aircraft, surface-based stations, buoys, remote sensing, etc.) in a storm-relative framework to map a tropical cyclone’s wind field [34]. Validation results show that wind patterns retrieved from the VH dual-pol GMF are consistent with HWIND, with SAR speed underestimates of −1.3 m/s over the whole hurricane area, and −7.05 m/s in the hurricane core area (within 100 km of the hurricane center). The root mean square difference is 4.5 m/s. Heavy rain may contribute to a larger bias in the core area, which is a focus of the present paper.
We simulated the co-pol radar NRCS based on wind speed retrieved from VH SAR measurements (hereafter, VH wind speed), using the co-pol GMF CMOD5.N [8], which would be used for comparison with the measured co-pol data. For the co-pol GMF, wind direction is required to be known a priori. We adopted the hurricane sea surface inflow angle parameterization model from Reference [35] to obtain the hurricane wind direction. To decrease any possible bias induced from uncertainty in the wind direction away from the hurricane center, we focus on the wind field within 100 km of the hurricane eye.
We then compared the simulated co-pol radar NRCS to the NRCS from observations. The difference between the simulated and measured co-pol NRCS was taken as a quality index as shown in Equation (1). To avoid possible errors induced by speed ambiguity from co-pol wind retrieval under low incidence angles, we did not directly compare the wind retrievals from the two polarization modes; instead, we used an alternate approach to quantify the rain-induced differences in the dual-pol measurements. Note these attenuations are a natural phenomenon in NRCS for high winds measurements by co-pol SAR. We simulated the co-pol radar NRCS based on the wind speed retrieved from the VH wind speed, using the co-pol GMF CMOD5.N.
When there was an apparent difference between the simulated co-pol radar NCRS and the measurements, we labeled the corresponding areas as rain contaminated. Ideally, there should be no difference between these areas and rain-free areas. However, there is always random noise in SAR measurements. RADARSAT-2 SAR has a radiometric accuracy of 0.3 dB [36]; a SAR wind White Paper [37] suggested that the radiometric error should be less than 0.5 dB in order to obtain high resolution wind retrieval from SAR. By accommodating these factors, we set the threshold value for the difference to be 0.5 dB. The low wind area (here <20 m/s) within the hurricane eye was not labeled for quality assessment, based on two considerations: firstly, that the hurricane eye area may have complex wind dynamics, for example mesovortices [38], thus the wind direction parametric model adopted for co-pol simulation may not apply, as it was developed mostly for areas outside the eyewall [35]; and secondly, the eye area is usually cloud-free as observed from optical imagery, thus is not directly affected by rain. For Hurricane Patricia (2015), this low wind eye area is within a 7 km radius of the hurricane center.
I n d e x = | σ cmod 5 . N ( U , φ , θ ) σ SAR o b s |
where, σ is NRCS in dB, U is VH wind speed, ϕ is radar incidence angle, θ is wind direction.
SAR-retrieved wind speeds were compared with SFMR measurements from the NOAA hurricane hunter mission. A storm-relative coordinate system was adopted by firstly adjusting the SAR hurricane center to the SFMR observed hurricane center, and thus we retrieved SAR observations along the SFMR track. The hurricane center from SAR is determined by fitting the position of the hurricane maximum wind speed (eyewall) as retrieved from cross-pol image to an ellipse as in study [4]. The center of the ellipse is taken as the center of hurricane. We note that Hurricane Patricia remained relatively steady from 12:00PM to 06:00PM as indicated by the hurricane best track analysis by the National Hurricane Center. The lowest surface pressure was estimated to be 872 mbar at around 12:00PM and 879 at 05:39PM, according to 43 SFMR measurements [30].
Figure 4 shows a comparison of both measurements along the SFMR track. The SAR-retrieved wind speed from the cross-polarization data reaches 85 m/s, and the SFMR peak wind speed indicates about 93 m/s, with simultaneous rain measurements showing strong precipitation in the hurricane eyewall area, located to the right of the peak wind as indicated by SFMR observations (Figure 4a). By adopting the hurricane inflow angle model [35] to CMOD5.N GMF, wind speed is also obtained from co-pol SAR measurements; the peak wind speed obtained by co-pol SAR observations is over 100 m/s (Figure 4b). Generally, for the rain-free area, both estimates for SAR winds are consistent with SFMR measurements. However, in the heavy rain area (>30 mm/h), the winds derived from co-pol SAR data underestimate the wind speed by about 20–30 m/s, whereas the cross-pol observations seem less affected. Figure 4 shows the underestimation of the SAR-derived winds in the heavy precipitation area, which once again confirms the overall attenuation effect of rain under hurricane-force wind conditions. This has previously been shown in the analysis of QuikSCAT measurements [24] and in our data in Figure 1.
Figure 5a shows the performance of the co-pol backscattered signals along the SFMR tracks. In the heavy precipitation area, the co-pol NRCS measurements decrease by 2–4 dB, compared to the nearby rain-free observations. Comparing the two lines in Figure 4, it is found that the co-pol data are more heavily affected by rain than the cross-pol data. Consequently, the rain leads to greater underestimation of the wind speed retrieval from co-pol SAR measurements than from cross-pol SAR measurements, with cross-pol showing no apparent underestimation of wind speed, and co-pol showing an underestimation of wind speed of about ~20 m/s.
For areas with rain rates exceeding 30 mm/h, the wind difference between the two GMFs output is larger than 10 m/s (Figure 4), which is more than three times the standard deviation of SAR-retrieved winds in the 3 × 3 image pixels.
By applying the proposed rain flag methodology as expressed in Equation (1), we label the rain-affected areas in the SAR image and compare them with the SFMR measured rain rate. Overall, the retrieved rain area is consistent with the high rain rate domain as suggested by SFMR measurements (Figure 5b). The two peak index values at ~−15 km and 40 km correspond to high rain rates (>20 mm/h) in these areas. However, the index value does not monotonically increase with higher rain rates. Outside the eyewall area, a larger index value is achieved, benefiting from the higher sensitivity to rain in lower wind speed areas as shown previously in Figure 1. The relatively lower rain rate areas (3–5 mm/h) at −40 km and 35 km also have high index values of 1.5–2 dB. The index values in these areas are even higher than in the very high rain rate areas around the eyewall at around −10–−20 km, where the rain rate reaches 50 mm/h. Figure 4 suggests that the wind speed in these corresponding high rain rate areas is around >60 m/s, whereas the wind speed in the relatively low rain rate areas is around <40 m/s.
Comparing this quality index with SFMR measurements suggests that the 0.5 dB threshold corresponds to a 5 mm/h rain rate in hurricane eyewall areas and 2–3 mm/h in moderate wind speed areas. In the full 2 Dimension spatial domain of the SAR image, Figure 6 presents results of the high precipitation areas of Hurricane Patricia (2015). With the proposed index as a third dimension, this figure shows the 3 Dimension view of possible rain contamination in the SAR image. A clearly evident rain band stands out. This rain band is shaped like the number ‘6’, with a larger index value on the left side of the hurricane eyewall. This is consistent with the radar reflectivity measurements obtained from hurricane reconnaissance mission at 05:35PM 23 October 2015 (Figure 7a) which shows a similar rain band pattern as revealed in Figure 6. The radar reflectivity shown in Figure 7a is from the lower fuselage radar mounted on the NOAA WP-3D aircraft which operated at the same C-band as RADARSAT-2 SAR (http://www.aoml.noaa.gov/hrd/about_hrd/HRD-P3_radar.html). The WP-3D radar recognizes areas of strong precipitation by measuring radar reflectivity when flying through hurricanes. In Figure 7a, the strong precipitation area is located at the hurricane eyewall; with another strong precipitation area ~100 km away from the hurricane center and outside of the SAR image coverage. The strong precipitation close to the eyewall is in a spatial pattern of the number ‘6’.
We label the retrieved rain area by taking the absolute value of Equation (1) as an index of the quality of the SAR-retrieved wind speed. The recognized rain area is given a quality flag of 1, which indicates the presence of strong precipitation, and other areas are given a quality flag of 0, indicating the absence of strong precipitation. Figure 7b shows the results of the quality flag corresponding to Hurricane Patricia as shown in Figure 6. Figure 7b is a 2D view of Figure 6, where spatial locations of possible rain areas are presented. Figure 7b may be directly compared to Figure 7a, as both figures show the horizontal 2D structure of rain. Despite the time differences of the two measurements (~5 h), recall that Hurricane Patricia (2015) maintains very strong intensity with relatively steady state during 12:00 and 06:00PM [39]. Moreover, the two datasets show the consistent spatial patterns of rain in the shape of the number ‘6’. Figure 7b misses the high radar reflectivity area to the north of the hurricane eye; this bias suggests areas for potential improvement for the proposed method, as discussed in the following section. The quality flag presents quality assessments for each grid cell in a SAR image indicating possible contamination by rain. This flag can be used as a reference when SAR-retrieved wind is used in operational analyses.

4. Correction for Rain-Contaminated Wind Cells

The rain flag provides a valuable quality assessment for SAR-retrieved hurricane wind speed. Since rain causes contamination for these flagged wind vector cells, caution is required when using SAR-derived wind products in rain conditions. One way to resolve the problem is to mask all the rain-flagged areas. However, the mask leaves a number of areas that are devoid of any wind information, which may be filled by assimilating SAR winds into comprehensive numerical prediction models (NWP). Sometimes it may be desirable to obtain quick estimations of the full hurricane wind field, for example, in order to facilitate rapid decision making and response. Under these circumstances, the following simple methodology may be used to quickly fill these missing values in a quality-flagged wind field.

4.1. Hurricane Wind Radial Profile Model

A hurricane is a strong mesoscale atmospheric low pressure system, defined by a low pressure center with low wind speeds and an eyewall with very high wind speeds, and maintains a unique wind profile along the radial direction. There exists a strong physical relationship between such a radial profile and the strength of the hurricane, which can be represented by a radial profile model, for example [40,41]. Radial profile models have been widely used to represent and reconstruct hurricane wind fields from hurricane best tracks. As shown in Reference [40], a Rankine combined vortex model shown in Equation (2) below can be used to simulate the hurricane wind profile along each radial transect. More sophisticated models involving more parameters, such as pressure, and wind measurements along the radial profile have been proposed by the authors of [41]. For this study, we use Equation (2), which requires no additional information for input. Thus, we demonstrate the methodology for wind correction for rain-contaminated wind cells. Wind speed is given by:
v = { v m ( r / r v m ) r < r v m v m ( r v m / r ) 0.5 r r v m
where v is the wind speed, rm is radial distance of maximum wind speed vm from the hurricane eye, and r is the radial distance. Both r m and v m are parameters to be retrieved based on the VH wind speed with the rain flag of 0, in each radial direction.
Figure 8 gives examples of the model (2) applied to the wind profile of Hurricane Patricia’s wind field derived from the VH SAR image. The parameters in model (2) are obtained by applying a least squares method to fit the model to the VH SAR wind data along each radial direction. The model represents the pattern of the hurricane wind profile in the radial direction very well. Therefore, for wind data with partly missing values, the model can be used to estimate and reconstruct the missing values. Note that the model does not account for the high frequency variations shown in Figure 7b.

4.2. Wind Correction for Rain-Contaminated Cells

In Section 4.1, we have shown that the hurricane wind profile along the radial direction can be used to rebuild the missing values due to the rain flag. In this section, we adopt this method to correct the rain-contaminated wind retrievals from SAR. Based on the proposed quality index methodology, the heavy rain-contaminated wind cells are flagged. We hereafter treat these rain- flagged areas as pixels with missing values. Thus, we use this radial profile simulation method to rebuild the entire wind profile as a best estimate for the wind field values in the heavy rain areas.
For Hurricane Patricia, Figure 9 presents the corrected wind field, as well as the original wind retrievals from SAR with rain, and the results for rain-flagged winds. The strong underestimation bias for wind speeds in the left and lower portions of the eyewall (Figure 9a) are recognized as heavy rain-contaminated areas (Figure 9b). The results show a more consistent circular wind pattern for Hurricane Patricia. The wind reconstruction method (Figure 3) takes advantage of all the quality-controlled wind data, both outside the eyewall and within the eyewall. Therefore, the wind radial profile can be reconstructed, and further used to correct underestimated wind retrievals due to heavy rainfall contamination. Note that we take all the qualified SAR winds along the radial direction to obtain estimates of the physical wind profile, rather than using the maximum wind speed along the corresponding radial direction only. This is different from when the Holland model was originally developed, as this was targeting limited hurricane parameters from forecasts, such as the maximum wind radius etc. In fact, benefiting from the dense data points from high resolution SAR measurements, the model has the ability to retrieve the maximum wind speed v m and the associated radius r m along each radial direction. Therefore, the method does not assume symmetric hurricane wind structure, which in principle is useful for all hurricane wind configurations.
The rain flag and the rain correction method were evaluated against SFMR measurements along the flight track (Figure 1). Figure 10 shows both original wind retrieval where rain is neglected, and rain labeled/corrected wind results, as compared to SMFR measured wind speeds. As shown previously, the quality index was able to flag the rain-contaminated areas as in Figure 10a,b. The reconstructed wind field is able to somewhat correct the wind bias induced by the rain. Since the wind correction model adopted all SAR winds along each of the wind profiles, the maximum wind speed also shows somewhat better performance as compared to SFMR measurements. Figure 10c shows that most of the corrections bring the scattered data closer to the line of equality. The root mean square difference (rms) is reduced from 5.86 m/s to 3.78 m/s (Figure 10c).
Similar analysis was conducted for additional examples of hurricane measurements. Eight more hurricane cases (Table 1) were studied. Although the limited number of SAR images is far from a thorough validation, the objective here was to further demonstrate the effectiveness of the method. The winds retrieved from cross-pol mode SAR images of these hurricanes have been studied previously [33] without taking into account the possible rain contamination in the wind speed retrieval algorithm. We used the rain flag and wind correction method introduced in this study for these examples. Comparisons against hurricane surface wind analysis data HWIND [34] are summarized in Table 1. Compared to previous studies when rain is not removed, the rain correction methodology proposed in this study provides improved wind analysis, which confirms the influence of heavy rain on wind retrieval from SAR.

5. Discussion

Reliable forecasts of hurricanes depend on accurate understanding of the physical processes related to their formation and development and should be based on accurate observations. Although the hurricane modeling community claims that the basic physics are well understood [42,43], estimating and forecasting hurricane winds is still challenging [44] due to the difficulty in obtaining accurate hurricane observations, especially surface winds. SAR has been proven to be capable of obtaining hurricane-force winds over the ocean surface from co-pol and cross-pol satellite measurements.
Despite the progress made on the methodology, and algorithms based on improved understanding of hurricane imaging theory and advanced SAR instruments in the past decades, the operational application of SAR-retrieved hurricane winds has still not been achieved. Many factors are at play in this situation. For example, due to the high power requirements, SAR only acquires data when ordered. Thus, temporal continuity and intervals separating data are irregular. This is different from other conventional wind observation systems, such as scatterometer, with regular revisiting periods. Another approach is Sentinel SAR, which continuously acquires images in the globally pre-defined areas. Numerical models could benefit by assimilating these high resolution SAR time series. However, hurricanes don’t necessarily occur in these pre-defined areas, and particular data analysis and assimilation schemes are needed to enable these temporally irregular SAR observations to help hurricane forecasting. Meanwhile, SAR’s capability to provide detailed wind structure within the hurricane core makes it unique for capturing high frequency wind variations, such as strong wind shear, hurricane-related atmospheric boundary layer rolls etc. [5]. Abrupt variations of wind speed can happen on small spatial scales due to turbulence etc., which are important for hurricane-related disaster assessment, risk management, insurance industries etc. Considering these advantages and potential applications of SAR hurricane winds, it is of urgency to introduce these data into operational applications. Such methodology has been shown to be useful [45] to improve the track and intensity forecasting of Hurricane Isabel (2003) when SAR-retrieved hurricane wind vectors were assimilated into a numerical weather prediction model.
In this paper, we developed a methodology to assess the quality of SAR-retrieved wind speed based on two different modes of SAR observations. We demonstrated a capability to label poor-quality wind retrievals where the two observation modes are inconsistent. The capability of SAR to recognize strong precipitation areas in hurricanes is important, since it will not only lessen the dependence on external measurements to obtain the corresponding information, but also presents a useful tool for assessment of the quality of SAR-retrieved winds, in each wind cell. These differences in the rain effect on SAR-retrieved wind speeds under co-pol and cross-pol measurements are due to the different contributions of rain on the SAR Bragg-scattering and volume scattering mechanisms. Although cross-pol is relatively weakly affected by rain, as compared to co-pol, the rain bias on wind speed is still visible (Figure 9a). Thus, the difference in wind speeds retrieved from co-pol and cross-pol can be linked to non-wind contributions. For hurricanes, this non-wind contribution is mostly due to the contamination of heavy precipitation. Therefore, the methodology provides assessments of the validity of SAR-retrieved wind speed, and can be used as a quality index for the SAR wind product. To the best of our knowledge, this is the first time that a quality flag has been applied to SAR-retrieved wind speed, which we hope will be helpful for the operational application of SAR wind products. The proposed methodology is motivated by the quality flag for scatterometer wind products, where the product quality flag is based on various measurements from different antenna [24], comparable to the different polarizations of SAR dual-pol measurements that are applied here. Scatterometer data flagged as poor-quality are often eliminated from wind estimation. For the specific processes considered here, i.e., hurricanes, a dynamically consistent wind profile along the radial direction is adopted to rebuild the wind field for the rain-contaminated area, providing a tool for wind correction for poor quality SAR wind data. This methodology takes advantage of the particular wind structure of hurricanes, which is a robust physical mechanism for hurricanes. Such methodology has been successfully adopted for deriving hurricane wind direction information from co-pol SAR [10], for removing the speed ambiguity problem for high wind retrieval from co-pol SAR [16], and for rebuilding the full wind field of SAR images that only partly cover hurricanes [46].
Optimal performance of the proposed quality index depends on the accuracy of GMFs for wind retrieval from co-pol and cross-pol SAR measurements. With continued advancement in our understanding of the air-sea boundary layer physics underlying hurricanes, and more comprehensive collocated datasets for SAR measurements and wind vectors, the related SAR wind GMFs are expected to continuously improve. Thus, the quality of the proposed SAR winds index will be improved accordingly. The hurricane wind profile model along the radial direction adopted here considers a single eyewall hurricane only. For double or triple eyewall hurricanes, a different model would be developed and applied to represent the radial wind profile. SAR may be used to discriminate the unique multiple-eyewall structure based on its high-resolution imaging capability as shown in Reference [4]. Our proposed method will benefit from future improvement of parametric hurricane models for improved wind correction of rain-contaminated areas. The present study assumes consistent radar returns from co-pol and cross-pol SAR measurements induced by the wind to recognize non-wind-induced features by examining the inconsistent radar returns in the SAR measurements of the two different polarizations. Even though the concept introduced here does not rely on the GMF itself, the methodology and performance of the outcome would be affected by the accuracy of GMFs. Therefore, future advancement in the development of GMFs will also be beneficial. By including hurricane images with various spatial structures and at different stages, it will be possible to build a generalized dataset, which can be used to optimize the concept and methodology into broad hurricane conditions, and therefore provide improved, more robust accuracy assessments.
The threshold value of 0.5 dB was chosen based on comparisons between wind differences from two measurements of SAR and the SFMR rain rate. Our study shows this threshold value corresponds to rain rates higher than 5 mm/h in high wind areas, and 2–3 mm/h in moderately high wind speed conditions. The index has increased sensitivity at lower wind speeds. This confirms the decreased contamination of rain on radar backscattered signals as revealed by Figure 1. The threshold value is also based on current state of radiometric calibration accuracy of this SAR instrument, and applies to most of the current SAR instruments. Future SAR sensors might be able to achieve higher performance, thus with more accurate GMFs for wind retrieval, a smaller threshold value might be achieved. For hurricanes, the 0.5 dB threshold value should remain valid to detect rain areas, since rain is usually heavy in hurricanes. Figure 5b and Figure 6 present the relationship of the rain-induced NRCS difference in regard to the rain rates; therefore, a formula for rain rate retrieval based on SAR imagery seems possible in the future. In order to achieve this goal, a comprehensive dataset needs to be built with SAR measurements and collocated simultaneous rain information. By recognizing the complicated processes related to rain modulation of the ocean surface roughness, and the fact that the sensitivity of the proposed quality index changes under different wind speeds, this may lead to a multi-factor non-linear relationship.
Despite decades of efforts in improved monitoring of hurricane core structures, methods for high resolution wind measurements are limited. The hurricane hunter radar reconnaissance missions conducted by NHC NOAA provide valuable but limited data in a temporally and spatially changing coordinate. Synthetic aperture radar, which is suitable for conducting high spatial resolution hurricane monitoring, is capable of filling this gap. By conducting simultaneous wind measurements over hurricanes, SAR captures fine-scale wind features within hurricanes. The comparison of SAR wind to in situ measurements of high wind speeds is challenging. The time difference of the measurements could be critical for highly dynamical hurricane processes. Future studies may consider developing an enhanced dataset by pairing multiple SAR images with the collocated flight/buoy measurements at SAR observation times. With more SAR platforms going into orbit, SAR-derived winds are expected to play a key role in future hurricane prediction systems.

6. Conclusions

Synthetic aperture radar provides unique wind observations over the ocean surface under hurricane conditions, with very high spatial resolution. Heavy precipitation can modify radar backscattered signals and contaminate SAR wind retrievals, making it difficult to adopt SAR winds in operational applications for hurricane forecasting. A hurricane wind quality index was developed to evaluate SAR wind retrievals from dual-pol SAR measurements. This index is used as a flag for rain-contaminated wind cells, thus providing a reference for SAR wind data quality control.
A methodology for wind correction under heavy rain-contaminated cells was also developed, based on the unique radial profile structure of hurricane winds. Therefore, the rain-contaminated wind retrieval can be rebuilt, providing a reliable estimate of hurricane wind analysis from SAR. The proposed methodologies are solely based on dual-polarization radar measurements, and do not rely on any external dataset, which makes it feasible for them to be adopted into operational applications.
Looking to the future, the launch of future SAR missions, such as the RADARSAT Constellation Mission (RCM), plus the combination of multiple satellites, will significantly improve the possibility of SAR images that can observe hurricanes. With reliable quality control, the hurricane wind data from SAR are expected to play a more important role in hurricane forecasting and related decision making processes.

Author Contributions

Initiation of idea, H.S. and W.P.; SAR processing and development of algorithms, H.S.; data processing for HWIND, C.S.; writing-review and editing, all authors contributed; supervision, W.P., M.P. and Y.H.; funding acquisition, W.P. and Y.H.

Funding

This research was funded by the International Cooperation Project of the National Natural Science Foundation of China, Grant 41620104003; the National Programme on Global Change and Air-Sea Interaction, Grant GASI-IPOVAI-04; the Canadian Space Agency DUAP program; and the Office of Energy Research and Development (OERD).

Acknowledgments

The authors would like to thank the academic editor and the five anonymous reviewers for their detailed and insightful comments which have greatly improved our manuscript. We thank the Canadian Space Agency for the RADARSAT-2 SAR images through the Hurricane Watch program, the Hurricane Research Division of NOAA for providing aircraft-based data measurements, and Risk Management Solutions for HWIND re-analysis data.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Fu, L.L.; Holt, B. Seasat Views Oceans and Sea Ice with Synthetic Aperture Radar; Jet Propulsion Laboratory: Pasadena, CA, USA, 1982; pp. 81–120. [Google Scholar]
  2. Atlas, D. Origin of storm footprints on the sea seen by synthetic aperture radar. Science 1994, 266, 1364–1366. [Google Scholar] [CrossRef] [PubMed]
  3. Katsaros, K.B.; Vachon, P.W.; Liu, W.T.; Black, P.G. Microwave remote sensing of tropical cyclones from space. J. Oceanogr. 2002, 58, 137–151. [Google Scholar] [CrossRef]
  4. Li, X.; Zhang, J.A.; Yang, X.; Pichel, W.G.; DeMaria, M.; Long, D.; Li, Z. Tropical cyclone morphology from spaceborne Synthetic Aperture Radar. Bull. Amer. Meteor. Soc. 2013, 94, 215–230. [Google Scholar] [CrossRef]
  5. Foster, R. Signature of large aspect ratio roll vortices in synthetic aperture radar images of tropical cyclones. Oceanography 2013, 26, 58–67. [Google Scholar] [CrossRef]
  6. Monaldo, F.; Jackson, C.R.; Pichel, W.G.; Li, X. A weather eye on coastal winds. Eos Trans. Am. Geophys. Union 2015, 96, 16–19. [Google Scholar] [CrossRef]
  7. Khurshid, S.; Bradley, D.; Manore, M. National SAR Wind Product—User Requirements Document; Meteorological Service of Canada, Environment Canada: Montreal, QC, Canada, 2012. [Google Scholar]
  8. Hersbach, H. Comparison of C-Band scatterometer CMOD5.N equivalent neutral winds with ECMWF. J. Atmos. Oceanic Technol. 2010, 27, 721–736. [Google Scholar] [CrossRef]
  9. Horstmann, J.; Thompson, D.R.; Monaldo, F.; Iris, S.; Graber, H.C. Can synthetic aperture radars be used to estimate hurricane force winds? Geophys. Res. Lett. 2005, 32, L22801. [Google Scholar] [CrossRef]
  10. Shen, H.; Perrie, W.; He, Y. A new hurricane wind retrieval algorithm for SAR images. Geophys. Res. Lett. 2006, 33, L21812. [Google Scholar] [CrossRef]
  11. Andreas, E.L. Spray stress revisited. J. Phys. Oceanogr. 2004, 34, 1429–1440. [Google Scholar] [CrossRef]
  12. Smith, R.K.; Montgomery, M.T. On the existence of the logarithmic surface layer in the inner core of hurricanes. Q.J.R. Meteorol. Soc. 2014, 140, 72–81. [Google Scholar] [CrossRef]
  13. Donelan, M.A.; Haus, B.K.; Reul, N.; Plant, W.J.; Stiassnie, M.; Graber, H.C.; Brown, O.B.; Saltzman, E.S. On the limiting aerodynamic roughness of the ocean in very strong winds. Geophys. Res. Lett. 2004, 31, L18306. [Google Scholar] [CrossRef]
  14. Fernandez, D.E.; Carswell, J.R.; Frasier, S.; Chang, P.S.; Black, P.G.; Marks, F.D. Dual-polarized C- and Ku-band ocean backscatter response to hurricane-force winds. J. Geophys. Res. 2006, 111, C08013. [Google Scholar] [CrossRef]
  15. Shen, H.; Perrie, W.; He, Y. On SAR wind speed ambiguities and related geophysical model functions. Can. J. Remote Sens. 2009, 35, 310–319. [Google Scholar] [CrossRef]
  16. Shen, H.; He, Y.; Perrie, W. Speed ambiguity in hurricane wind retrieval from SAR imagery. Int. J. Remote Sens. 2009, 30, 2827–2836. [Google Scholar] [CrossRef]
  17. Vachon, P.W.; Wolfe, J. C-band cross-polarization wind speed retrieval. IEEE Geosci. Remote Sens. Lett. 2011, 8, 456–459. [Google Scholar] [CrossRef]
  18. Zhang, B.; Perrie, W. Cross-polarized Synthetic Aperture Radar: A new potential measurement technique for hurricanes. Bull. Am. Meteorol. Soc. 2012, 93, 531–541. [Google Scholar] [CrossRef]
  19. Shen, H.; Perrie, W.; He, Y.; Liu, G. Wind speed retrieval from VH dual-polarization radarsat-2 SAR images. IEEE Trans. Geosci. Remote Sens. 2014, 52, 5820–5826. [Google Scholar] [CrossRef]
  20. Pugliese Carratelli, E.; Dentale, F.; Reale, F. Numerical PSEUDO—Random simulation of SAR sea and wind response. In Advances in SAR Oceanography from ENVISAT and ERS Missions, Proceedings of the SEASAR 2006 (ESA SP-613), Frascati, Italy, 23–26 January 2006; Lacoste, H., Ed.; ESA Publications Division: Noordwijk, The Netherlands, 2006. [Google Scholar]
  21. Alpers, W.; Zhang, B.; Mouche, A.; Zeng, K.; Chan, P.W. Rain footprints on C-band synthetic aperture radar images of the ocean—Revisited. Remote Sens. Environ. 2016, 187, 169–185. [Google Scholar] [CrossRef]
  22. Zhang, G.; Li, X.; Perrie, W.; Zhang, B.; Wang, L. Rain effects on the hurricane observations over the ocean by C-band Synthetic Aperture Radar. J. Geophys. Res. Oceans 2016, 121, 14–26. [Google Scholar] [CrossRef]
  23. Xu, F.; Li, X.; Wang, P.; Yang, J.; Pichel, W.G.; Jin, Y.Q. A backscattering model of rainfall over rough sea surface for Synthetic Aperture Radar. IEEE Trans. Geosci. Remote Sens. 2015, 53, 3042–3054. [Google Scholar] [CrossRef]
  24. Nie, C.; Long, D.G. A C-Band scatterometer simultaneous wind/rain retrieval method. IEEE Trans. Geosci. Remote Sens. 2008, 46, 3618–3631. [Google Scholar] [CrossRef]
  25. Klotz, B.; Uhlhorn, E.W. Improved stepped frequency microwave radiometer tropical cyclone surface winds in heavy precipitation. J. Atmos. Ocean. Technol. 2014, 31, 2392–2408. [Google Scholar] [CrossRef]
  26. Mears, C.A.; Smith, D.; Wentz, F.J. Detecting rain with QuikScat. In Proceedings of the IEEE International Geoscience and Remote Sensing Symposium, (Cat. No.00CH37120), Honolulu, HI, USA, 24–28 July 2000; Volume 3, pp. 1235–1237. [Google Scholar] [CrossRef]
  27. Zhang, B.; Perrie, W.; Vachon, P.W.; Li, X.; Pichel, W.G.; Guo, J.; He, Y. Ocean vector winds retrieval from C-band fully polarimetric SAR measurements. IEEE Trans. Geosci. Remote Sens. 2012, 50, 4252–4261. [Google Scholar] [CrossRef]
  28. Zhang, B.; Perrie, W.; Li, X.; Pichel, W.G. Mapping sea surface oil slicks using RADARSAT-2 quad-polarization SAR image. Geophys. Res. Lett. 2011, 38. [Google Scholar] [CrossRef] [Green Version]
  29. Li, H.; Perrie, W.; He, Y.; Lehner, S.; Brusch, S. Target detection on the ocean with the relative phase of compact polarimetry SAR. IEEE Trans. Geosci. Remote Sens. 2013, 51, 3299–3305. [Google Scholar] [CrossRef]
  30. Shen, H.; Perrie, W.; Liu, Q.; He, Y. Detection of macroalgae blooms by complex SAR imagery. Mar. Pollut. Bull. 2014, 78, 190–195. [Google Scholar] [CrossRef] [PubMed]
  31. Mouche, A.; Chapron, B.; Zhang, B.; Husson, R. Combined co- and cross-polarized SAR measurements under extreme wind conditions. IEEE Trans. Geosci. Remote Sens. 2017. [Google Scholar] [CrossRef]
  32. Kimberlain, T.B.; Blake, E.S.; Cangialosi, J.P. Hurricane Patricia—National Hurricane Center—NOAA. National Hurricane Center Tropical Cyclone Report. EP202015; 2016. Available online: http://www.nhc.noaa.gov/data/tcr/EP202015_Patricia.pdf (accessed on 23 May 2018).
  33. Shen, H.; Perrie, W.; He, Y. Evaluation of hurricane wind speed retrieval from cross-dual-pol SAR. Int. J. Remote Sens. 2016, 37, 599–614. [Google Scholar] [CrossRef]
  34. Powell, M.D.; Houston, S.H.; Amat, L.R.; Morisseau-Leroy, N. The HRD real-time hurricane wind analysis system. J. Wind Eng. Ind. Aerodyn. 1998, 77–78, 53–64. [Google Scholar] [CrossRef]
  35. Zhang, J.A.; Uhlhorn, E.W. Hurricane sea surface inflow angle and an observation-based parametric model. Mon. Wea. Rev. 2012, 140, 3587–3605. [Google Scholar] [CrossRef]
  36. Luscombe, A.P. RADARSAT-2 SAR image quality and calibration operations. Can. J. Remote Sens. 2014, 30, 345–354. [Google Scholar] [CrossRef]
  37. Dagestad, K.-F.; Horstmann, J.; Mouche, A.; Perrie, W.; Shen, H.; Zhang, B.; Li, X.; Monaldo, F.; Pichel, W.; Lehner, S.; et al. Wind retrieval from Synthetic Aperture Radar—An overview, SAR Wind Whitepaper. In Proceedings of the SEASAR 2012 Advances in SAR Oceanography, ESA SP-709, Tromso, Norway, 18–22 June 2012. [Google Scholar]
  38. Kossin, J.; Schubert, W. Mesovortices in hurricane ISABEL. Bull. Am. Meteorol. Soc. 2004, 85, 151–153. [Google Scholar] [CrossRef]
  39. Rogers, R.F.; Aberson, S.; Bell, M.M.; Cecil, D.J.; Doyle, J.D.; Kimberlain, T.B.; Morgerman, J.; Shay, L.K.; Velden, C. Rewriting the Tropical Record Books: The Extraordinary Intensification of Hurricane Patricia (2015). Bull. Amer. Meteor. Soc. 2017, 98, 2091–2112. [Google Scholar] [CrossRef]
  40. Holland, G.J. An analytic model of the wind and pressure profiles in hurricanes. Mon. Weather Rev. 1980, 108, 1212–1218. [Google Scholar] [CrossRef]
  41. Holland, G.J.; Belanger, J.I.; Fritz, A. A revised model for radial profiles of hurricane winds. Mon. Weather Rev. 2010, 138, 4393–4401. [Google Scholar] [CrossRef]
  42. Emanuel, K. Tropical cyclones. Annu. Rev. Earth Planet Sci. 2003, 31, 75–104. [Google Scholar] [CrossRef]
  43. Chan, J.C.L. The physics of tropical cyclone motion. Annu. Rev. Fluid Mech. 2005, 37, 99–128. [Google Scholar] [CrossRef]
  44. Rappaport, E.N.; Franklin, J.L.; Avila, L.A.; Baig, S.R.; Beven, J.L., II; Blake, E.S.; Burr, C.A.; Jiing, J.-G.; Juckins, C.A.; Knabb, R.D.; et al. Advances and challenges at the National Hurricane Center. Weather Forecast. 2009, 24, 395–419. [Google Scholar] [CrossRef]
  45. Perrie, W.; Zhang, W.; Bourassa, M.; Shen, H.; Vachon, P.W. Impact of satellite winds on marine wind simulations. Weather Forecast. 2008, 23, 290–303. [Google Scholar] [CrossRef]
  46. Zhang, G.; Perrie, W.; Li, X.; Zhang, J.A. A hurricane morphology and sea surface wind vector estimation model based on C-Band cross-polarization SAR imagery. IEEE Trans. Geosci. Remote Sens. 2017, 55, 1743–1751. [Google Scholar] [CrossRef]

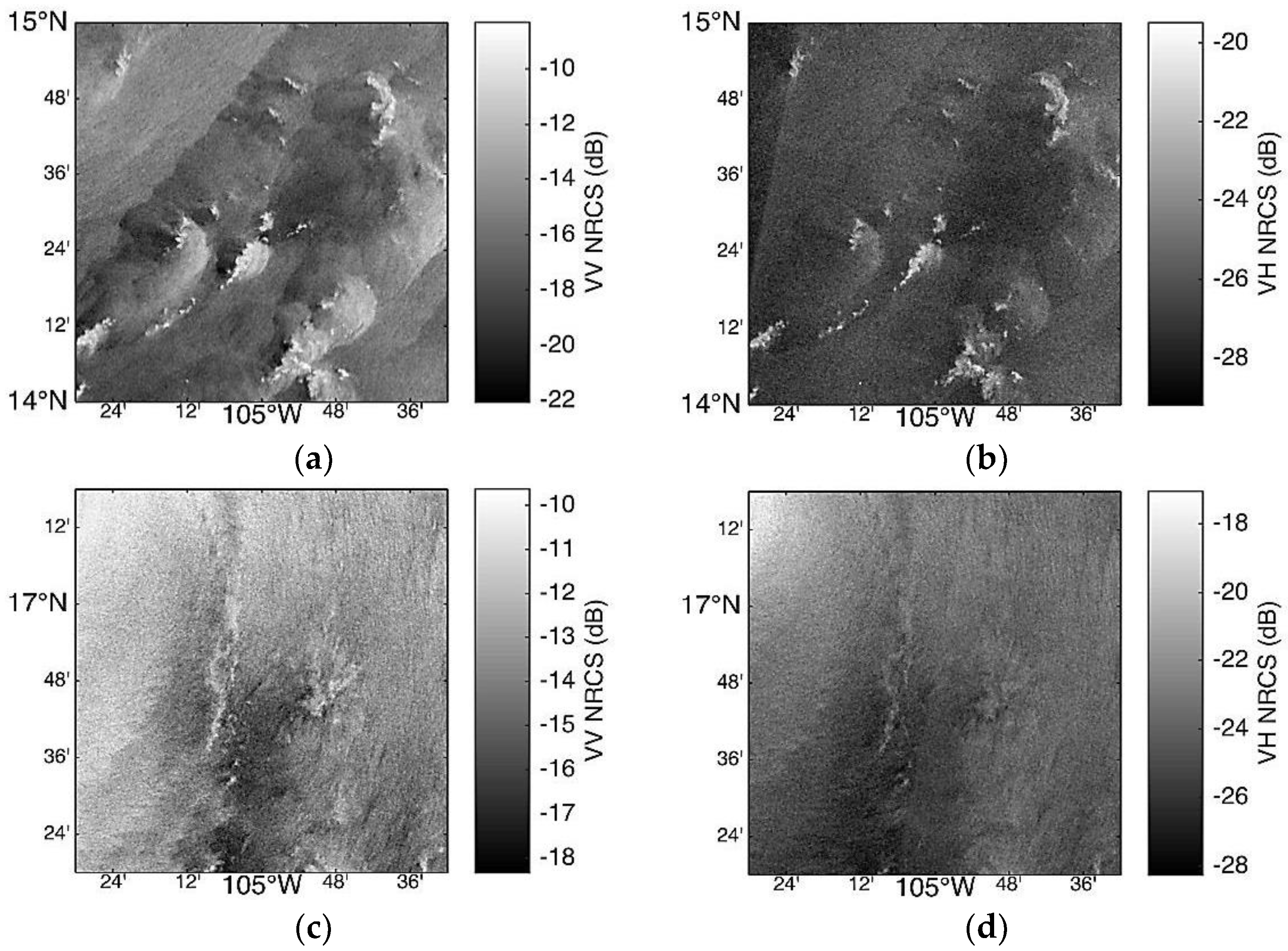

Figure 1. Rain cells in the outer range areas of synthetic aperture radar (SAR) images of Hurricane Patricia. Upper panels (a,b) are 125 km from the eye where the wind speed is 15 m/s. Lower panels (c,d) are 40 km from the eye where wind speed is 35 m/s. Left panels (a,c) show VV normalized radar cross section (NRCS). Right panels (b,d) show VH NRCS. Note the differences in the grayscale bars.
Figure 1. Rain cells in the outer range areas of synthetic aperture radar (SAR) images of Hurricane Patricia. Upper panels (a,b) are 125 km from the eye where the wind speed is 15 m/s. Lower panels (c,d) are 40 km from the eye where wind speed is 35 m/s. Left panels (a,c) show VV normalized radar cross section (NRCS). Right panels (b,d) show VH NRCS. Note the differences in the grayscale bars.
Remotesensing 10 01783 g001

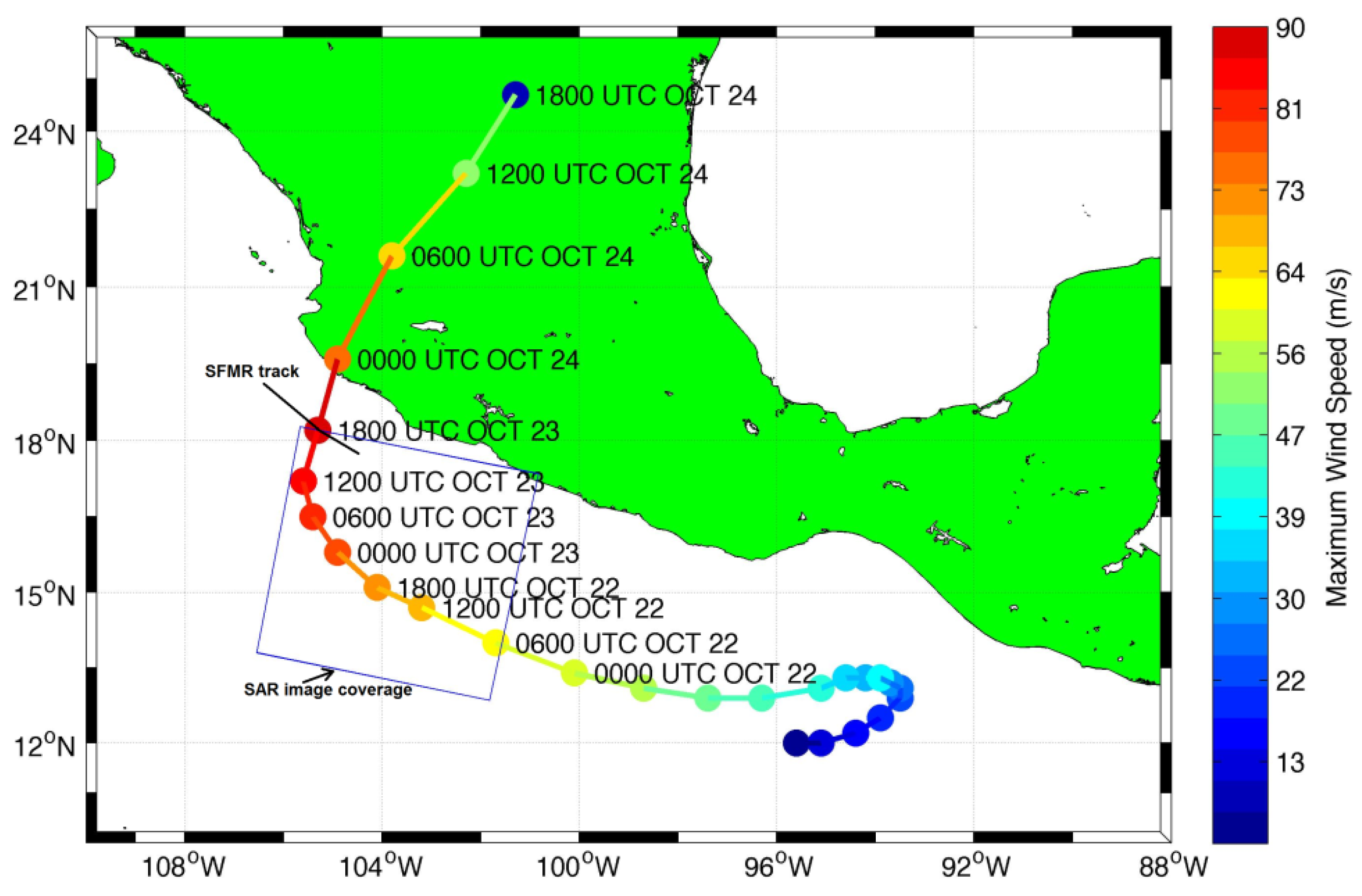

Figure 2. Track of Hurricane Patricia (2015).
Figure 2. Track of Hurricane Patricia (2015).
Remotesensing 10 01783 g002

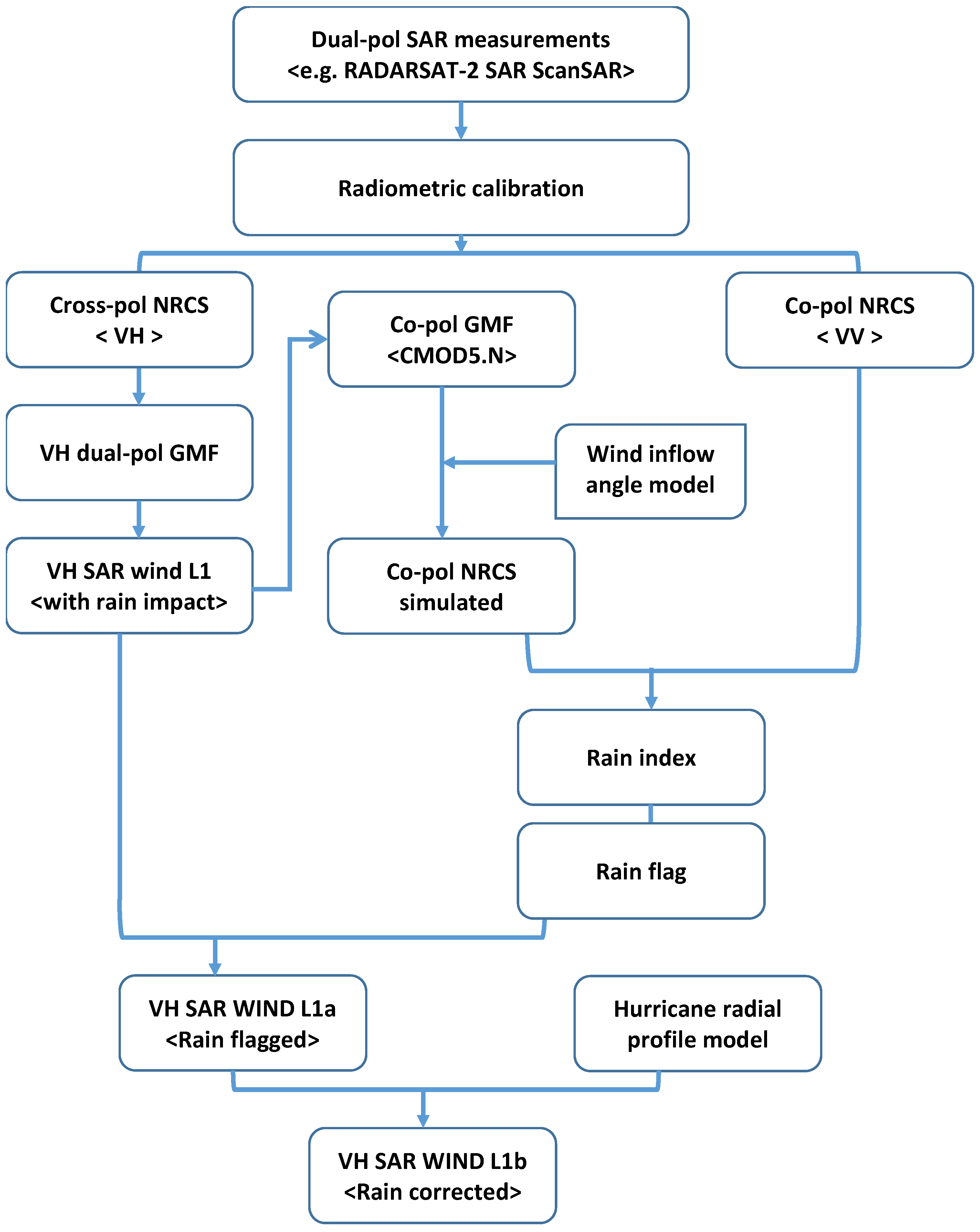

Figure 3. Flowchart of the hurricane wind quality index from SAR with proposed rain correction procedure.
Figure 3. Flowchart of the hurricane wind quality index from SAR with proposed rain correction procedure.
Remotesensing 10 01783 g003
Figure 4. SAR wind speed retrieved from (a) cross-polarization (cross-pol), and (b) co-polarization (co-pol) profiles, overlaid with the rain rate along the airborne track of the NOAA43 stepped frequency microwave radiometer (SFMR) measurements.
Figure 4. SAR wind speed retrieved from (a) cross-polarization (cross-pol), and (b) co-polarization (co-pol) profiles, overlaid with the rain rate along the airborne track of the NOAA43 stepped frequency microwave radiometer (SFMR) measurements.
Remotesensing 10 01783 g004

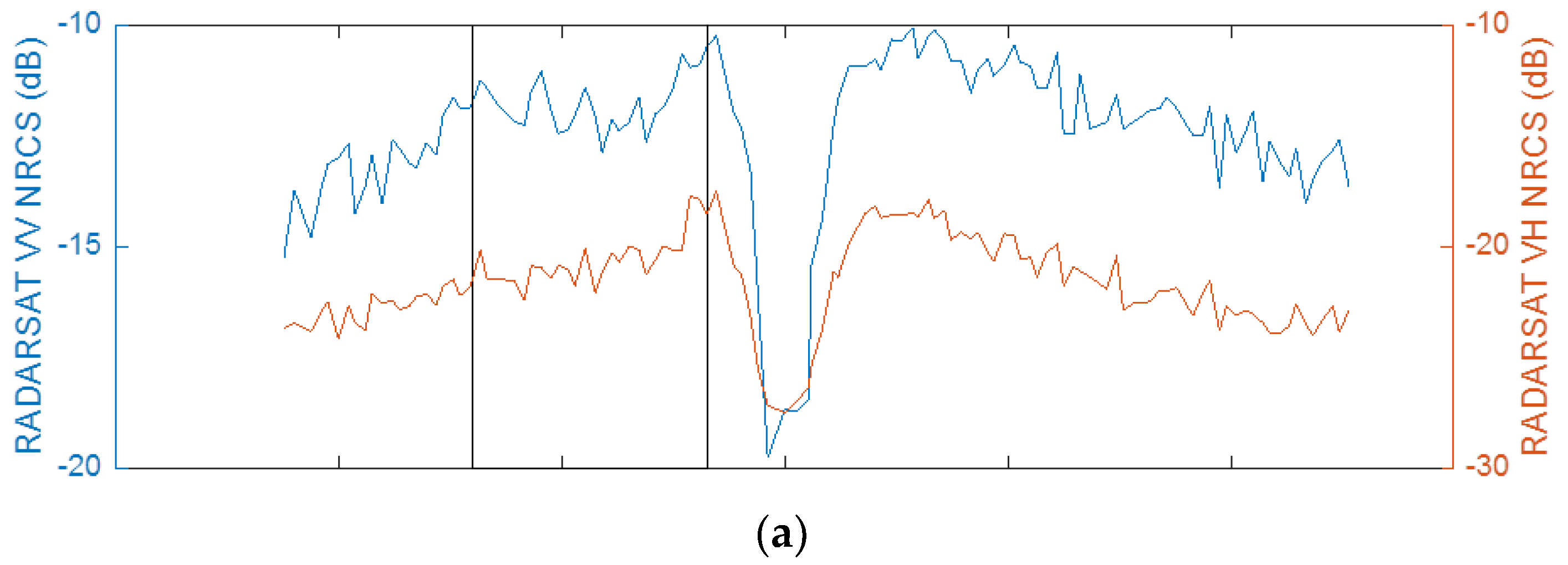

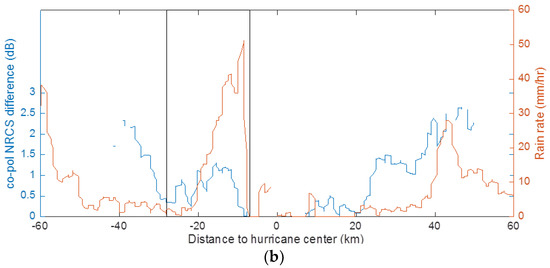

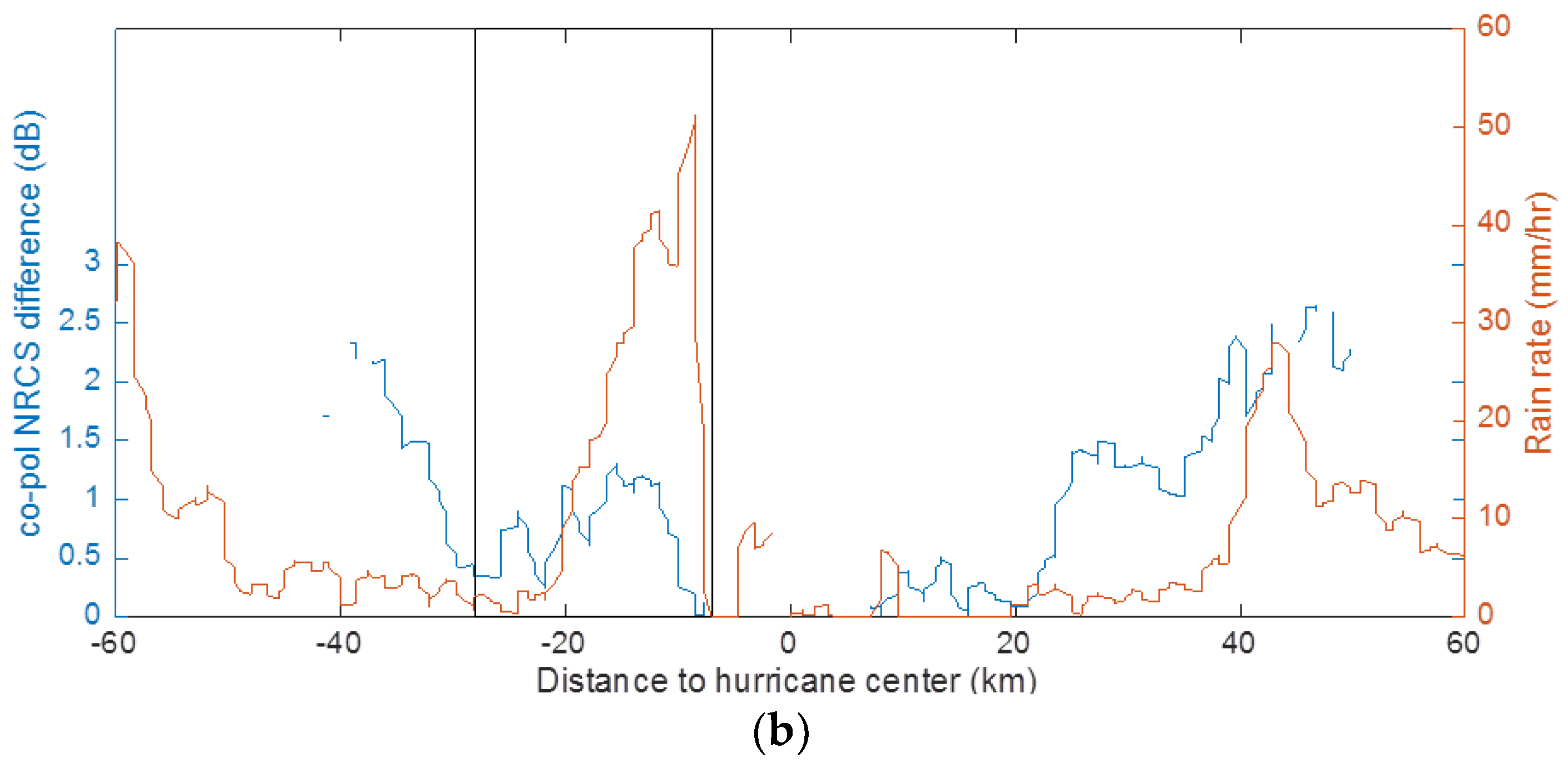

Figure 5. NRCS of (a) SAR co-pol, and (b) difference between SAR and simulated co-pol profiles, overlaid with the rain rate along the airborne track of the NOAA43 SFMR measurement. The area in the box corresponds to heavy rainfall in the eyewall. The lower panel also shows rain-induced co-pol NRCS changes as recognized by SAR observations and model simulations.
Figure 5. NRCS of (a) SAR co-pol, and (b) difference between SAR and simulated co-pol profiles, overlaid with the rain rate along the airborne track of the NOAA43 SFMR measurement. The area in the box corresponds to heavy rainfall in the eyewall. The lower panel also shows rain-induced co-pol NRCS changes as recognized by SAR observations and model simulations.
Remotesensing 10 01783 g005aRemotesensing 10 01783 g005b

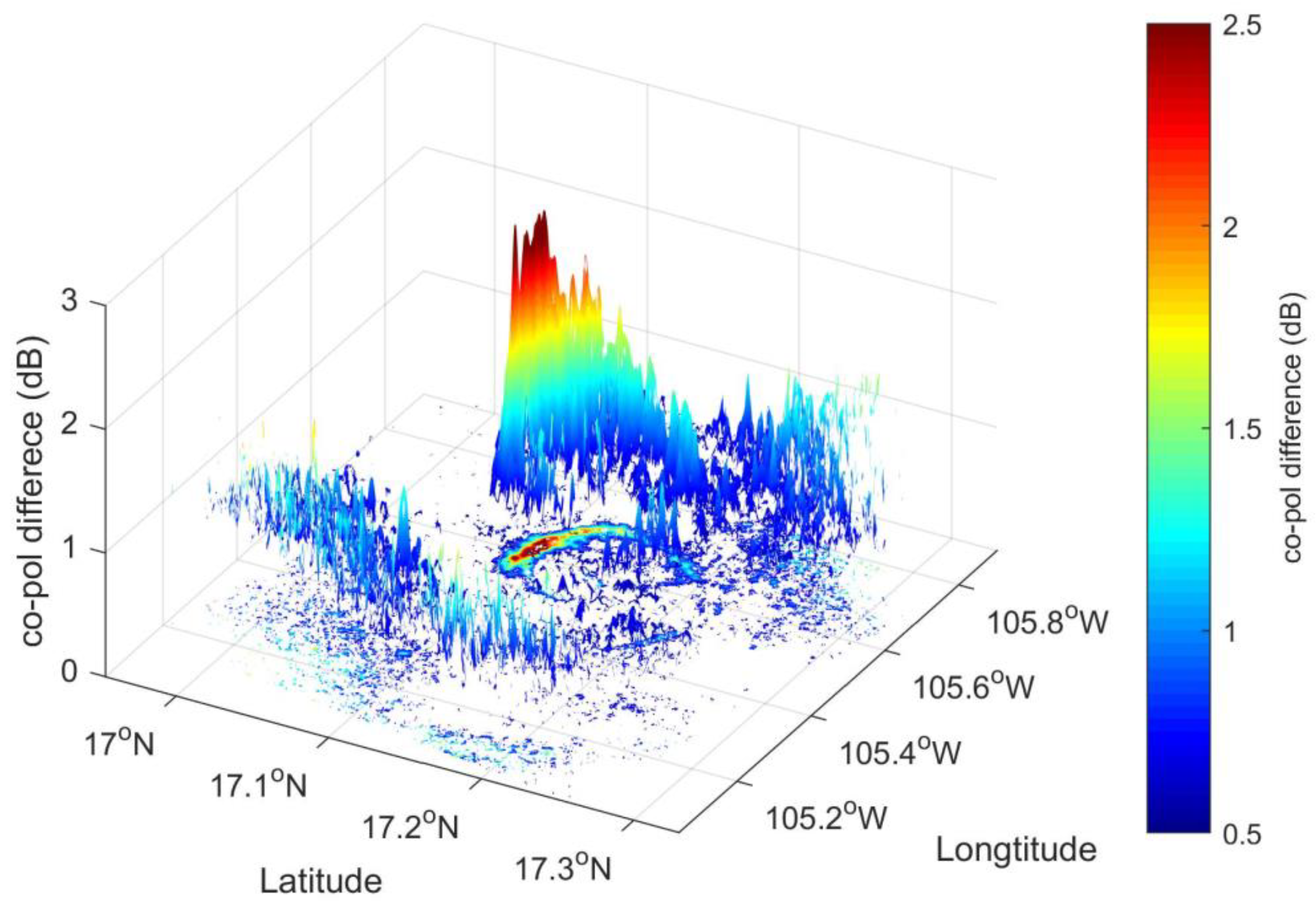

Figure 6. The rain index for Hurricane Patricia (2015) as derived from the proposed quality index based on the difference of co-pol NRCSs between SAR observations and model simulation.
Figure 6. The rain index for Hurricane Patricia (2015) as derived from the proposed quality index based on the difference of co-pol NRCSs between SAR observations and model simulation.
Remotesensing 10 01783 g006

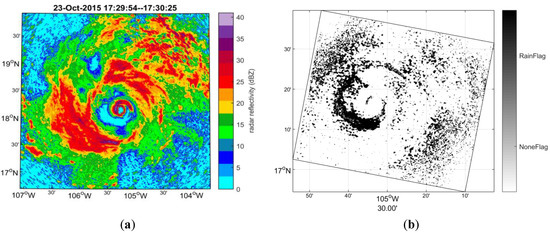

Figure 7. Radar reflectivity measured on board NOAA 43 flight at 05:30PM 23 October 2015: (a,b) rain flag of Hurricane Patricia at 12:45 UTC on 23 October 2015 as retrieved from SAR. Both figures show a heavy precipitation pattern in the shape of the number “6” in Hurricane Patricia. The observed spatial pattern in (a) is consistent with that of the rain index from SAR in figure (b).
Figure 7. Radar reflectivity measured on board NOAA 43 flight at 05:30PM 23 October 2015: (a,b) rain flag of Hurricane Patricia at 12:45 UTC on 23 October 2015 as retrieved from SAR. Both figures show a heavy precipitation pattern in the shape of the number “6” in Hurricane Patricia. The observed spatial pattern in (a) is consistent with that of the rain index from SAR in figure (b).
Remotesensing 10 01783 g007

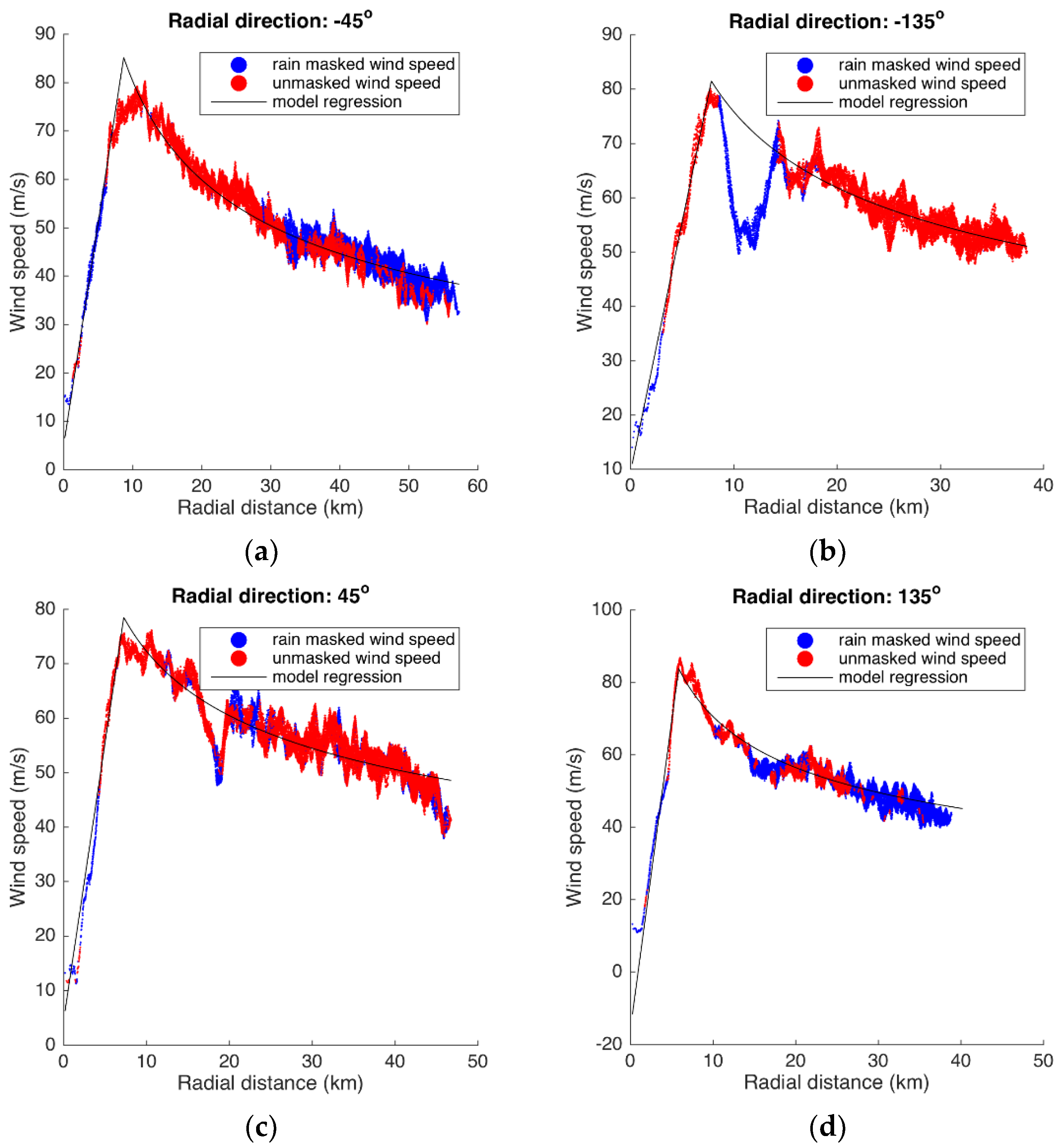

Figure 8. Wind speed in four radial profiles overlaid by Holland’s (1980) regression model in four directions: (a) −45°; (b) −135°; (c) 45°; and (d) 135°. The red curve is the VH SAR wind with rain-flagged values removed; the blue curve is with rain; black is the regression model.
Figure 8. Wind speed in four radial profiles overlaid by Holland’s (1980) regression model in four directions: (a) −45°; (b) −135°; (c) 45°; and (d) 135°. The red curve is the VH SAR wind with rain-flagged values removed; the blue curve is with rain; black is the regression model.
Remotesensing 10 01783 g008

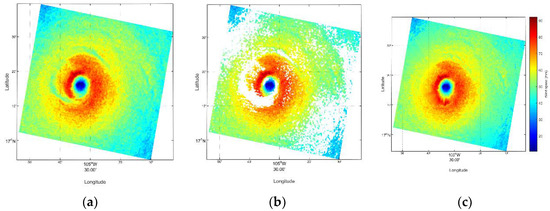

Figure 9. Wind field of Hurricane Patricia: (a) with rain; (b) with rain flagged; (c) after rain correction.
Figure 9. Wind field of Hurricane Patricia: (a) with rain; (b) with rain flagged; (c) after rain correction.
Remotesensing 10 01783 g009

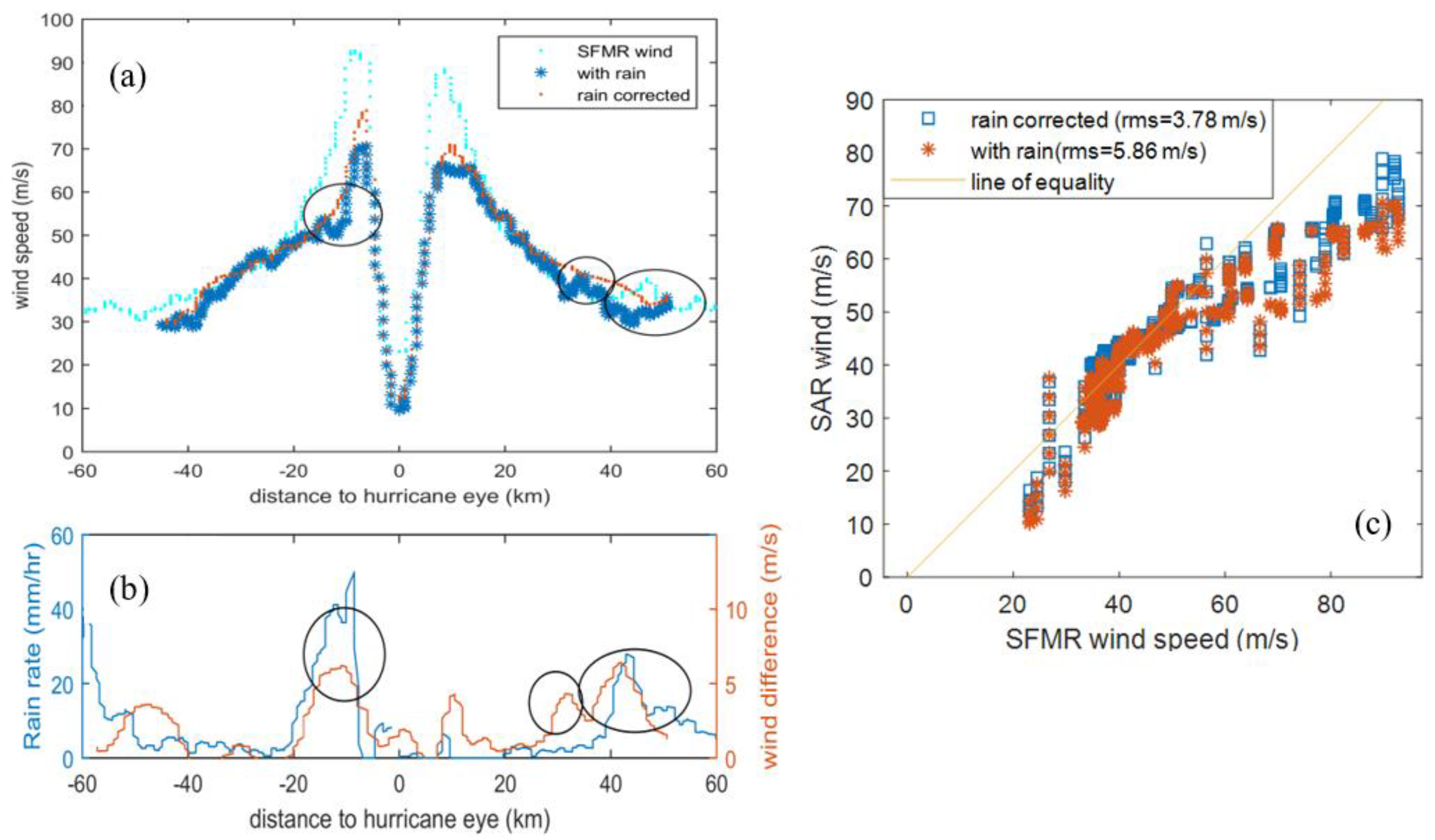

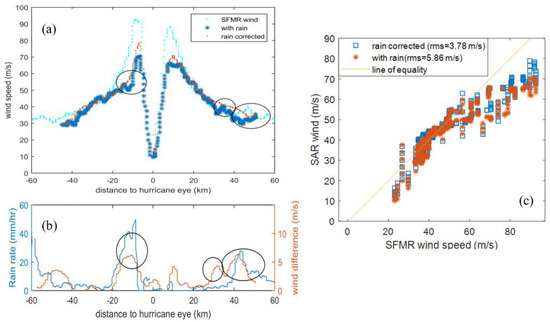

Figure 10. Comparisons of wind speed before and after rain flag along the NOAA flight. (a) Wind speed along SFMR track, (b) rain rate from SFMR measurements and associated speed difference from SAR, (c) scatterplot of wind speed before and after rain correction as compared to SFMR wind measurements. Note: the capability of the proposed method to recognize the strong precipitation areas is highlighted in the circled areas of (a,b).
Figure 10. Comparisons of wind speed before and after rain flag along the NOAA flight. (a) Wind speed along SFMR track, (b) rain rate from SFMR measurements and associated speed difference from SAR, (c) scatterplot of wind speed before and after rain correction as compared to SFMR wind measurements. Note: the capability of the proposed method to recognize the strong precipitation areas is highlighted in the circled areas of (a,b).
Remotesensing 10 01783 g010
Table 1. Statistics for VH SAR and HWIND wind speed before and after wind correction due to heavy rain contamination: ‘a’ columns show results without rain correction, ‘b’ columns show results with rain correction. The hurricane category is indicated following the Saffir-Simpson scale at the time of the SAR observation.
Table 1. Statistics for VH SAR and HWIND wind speed before and after wind correction due to heavy rain contamination: ‘a’ columns show results without rain correction, ‘b’ columns show results with rain correction. The hurricane category is indicated following the Saffir-Simpson scale at the time of the SAR observation.
IDHurricaneSAR TimeHurricane CategoryBiasRMS ErrorR
Ababab
1Gustav11:27, 30 August 20083−6.86−3.674.054.010.850.91
2Ike23:54, 10 September 20082−9.18−5.664.733.250.420.56
3Ike23:56, 10 September 20082−7.73−3.394.492.460.400.71
4Bill22:27, 22 August 20091−3.31−2.573.731.990.530.67
5Bill10:40, 23 August 20091−0.09−2.332.562.270.810.86
6Earl22:59, 02 September 20102−12.3−2.094.972.380.850.89
7Igor10:11, 19 September 20101−8.11−6.133.971.920.790.88
8Rina11:30, 26 October 20112−8.12−4.283.852.480.610.89
