Sustainability 2017, 9(8), 1362; doi:10.3390/su9081362

Experimental Investigations and Numerical Simulation of Thermal Performance of a Horizontal Slinky-Coil Ground Heat Exchanger

1
Key Laboratory of Energy Thermal Conversion and Control of Ministry of Education, School of Energy and Environment, Southeast University, Nanjing 210096, Jiangsu, China
2
School of Hydraulic, Energy and Power Engineering, Yangzhou University, Yangzhou 225127, Jiangsu, China
*
Authors to whom correspondence should be addressed.
Received: 6 July 2017 / Revised: 27 July 2017 / Accepted: 31 July 2017 / Published: 3 August 2017
(This article belongs to the Section Energy Sustainability)

Abstract

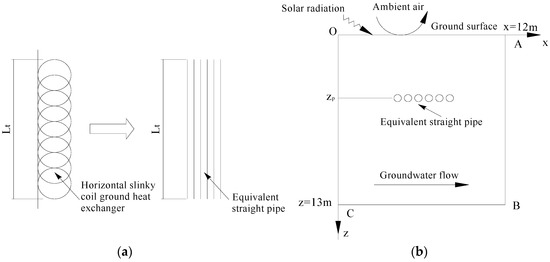

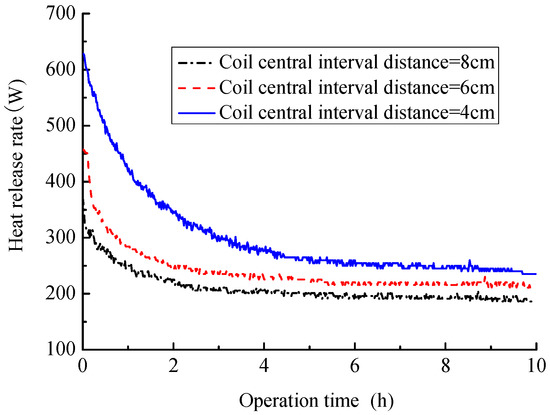

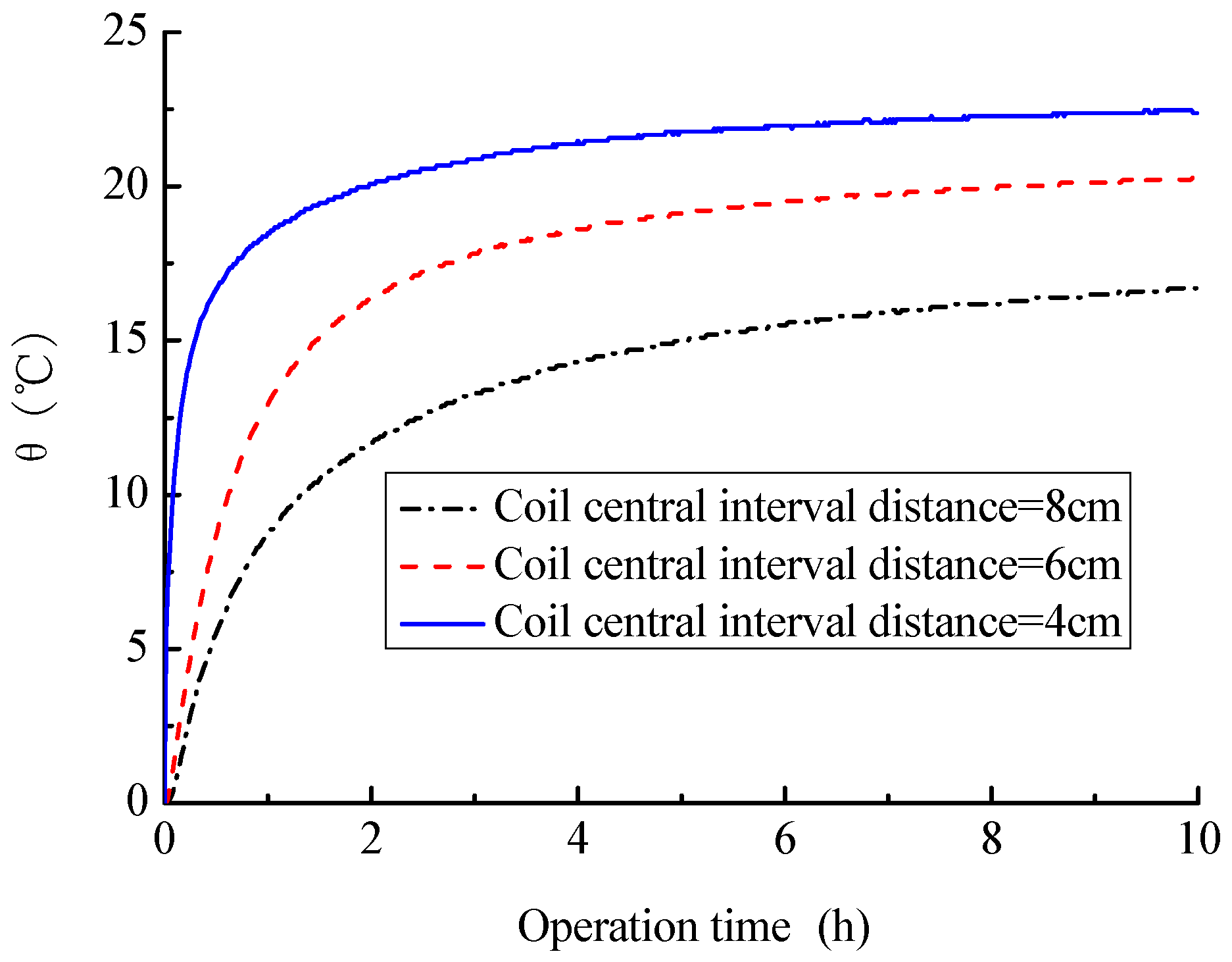

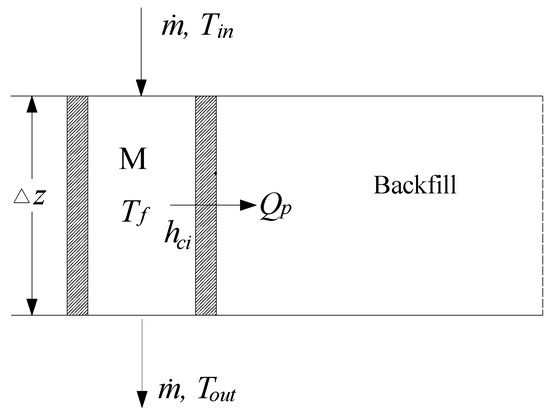

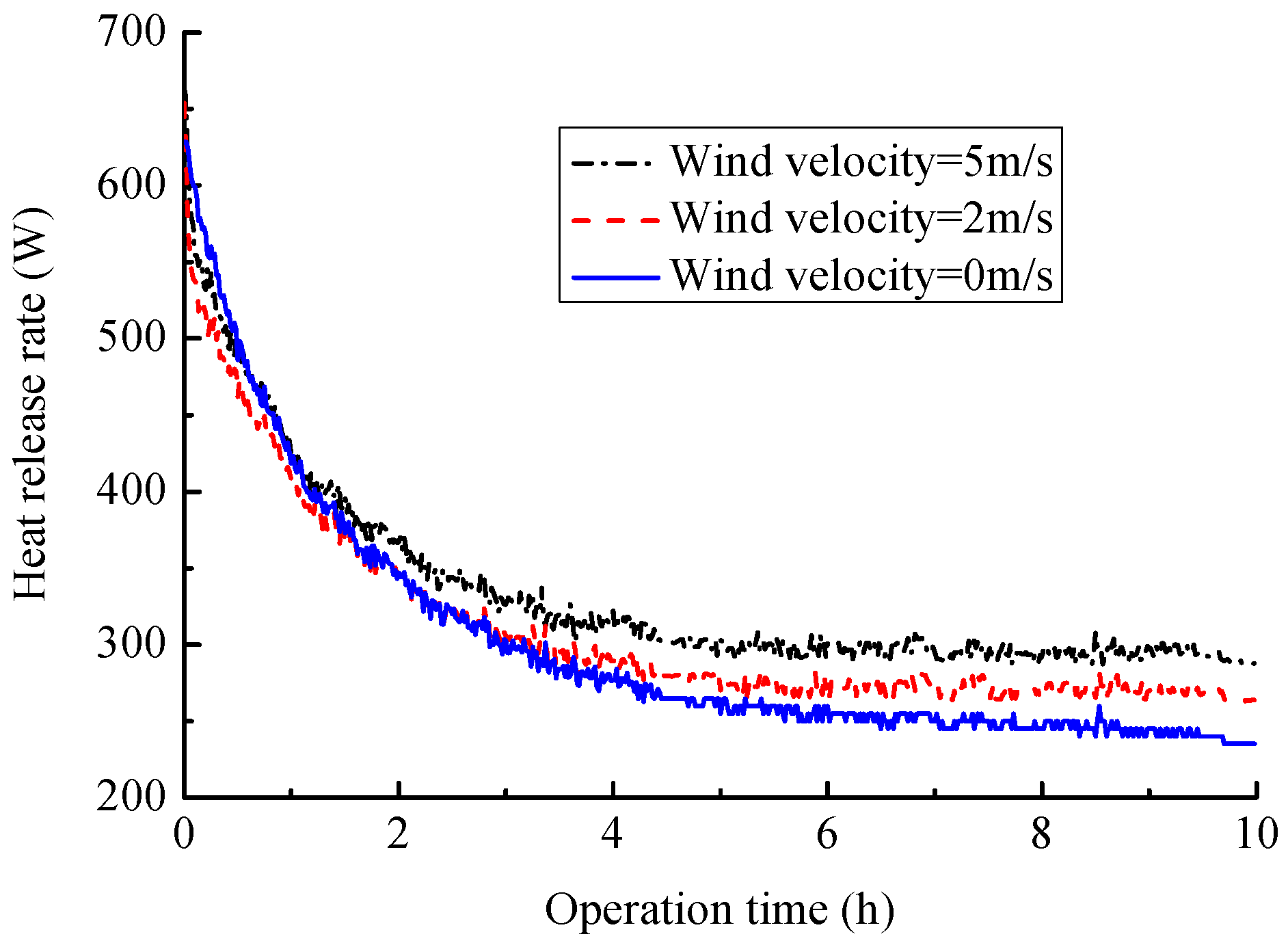

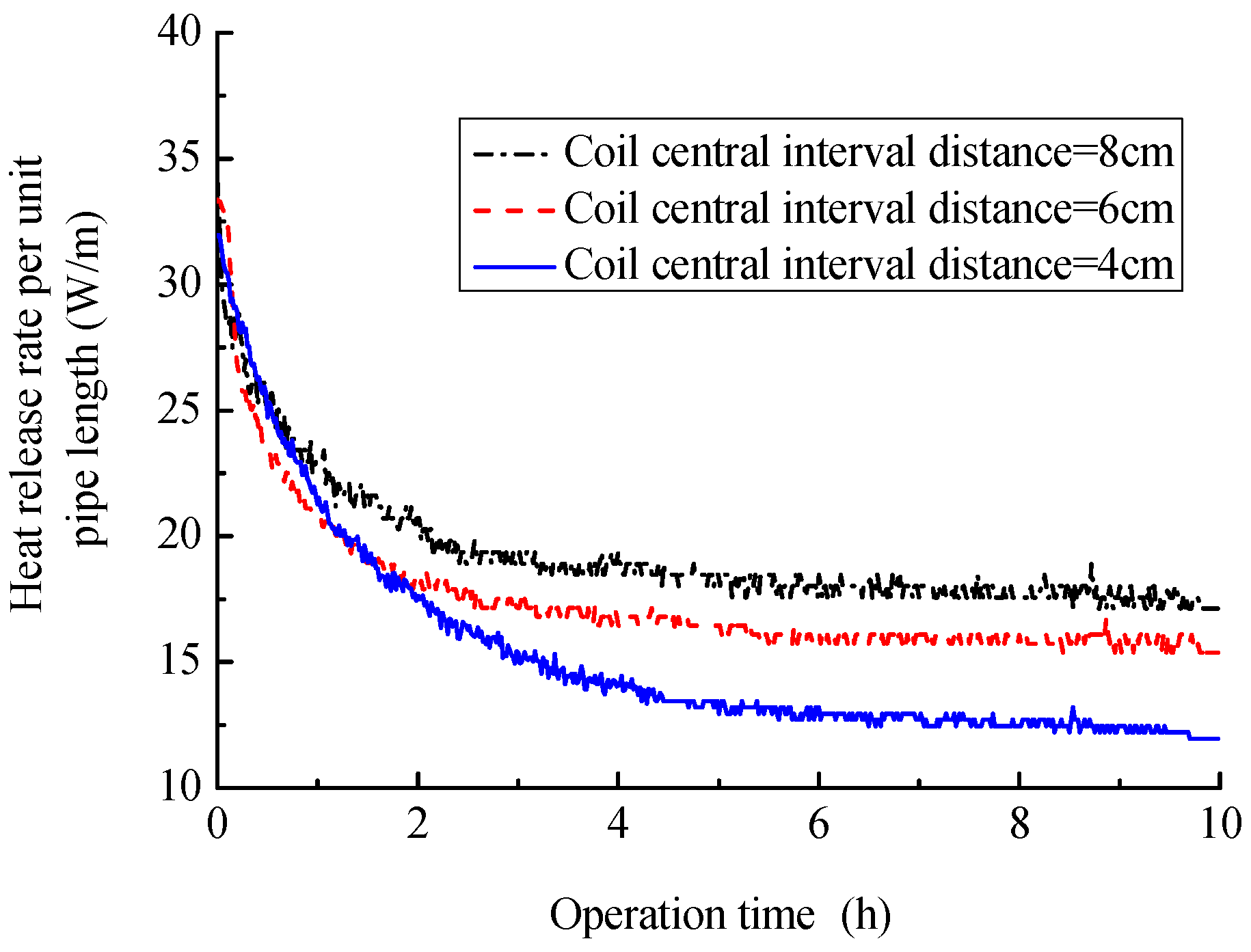

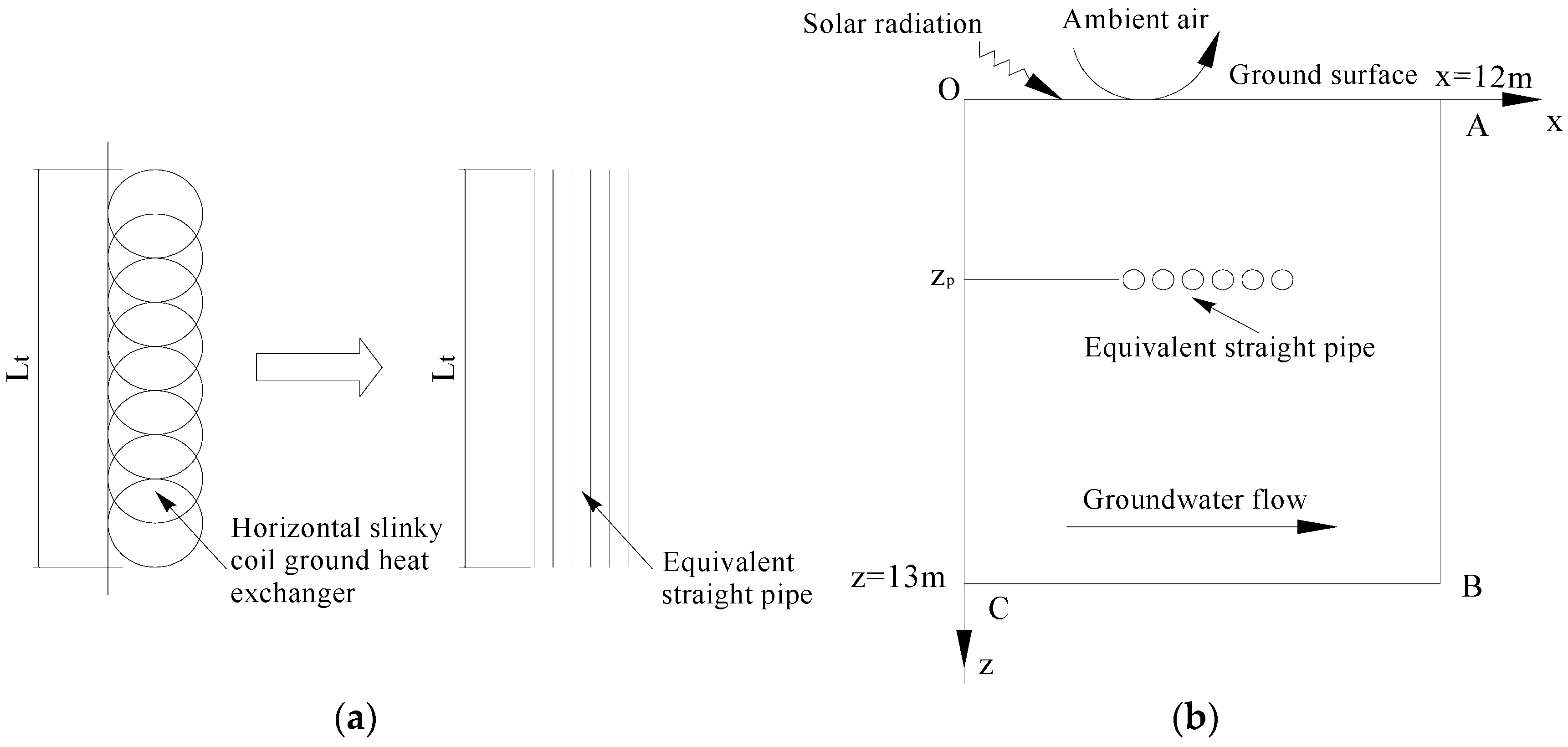

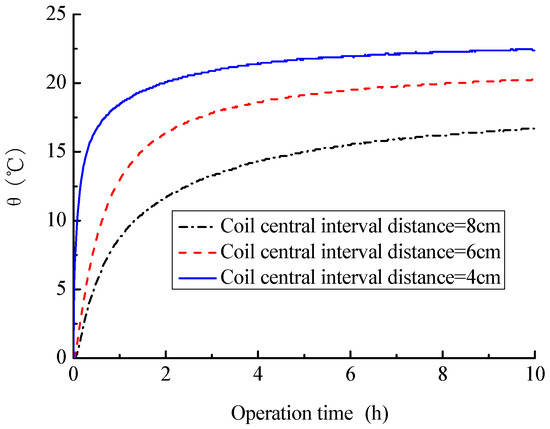

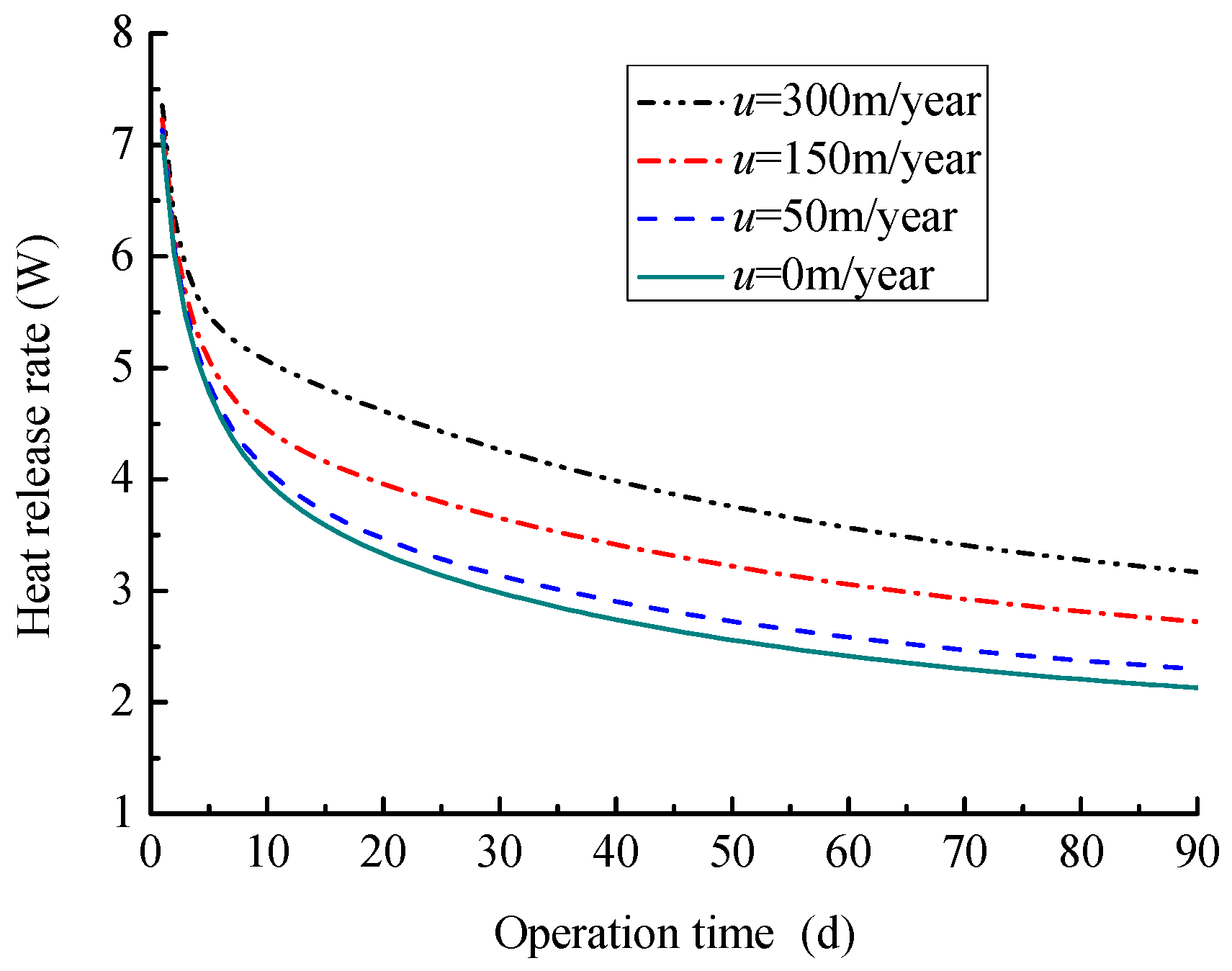

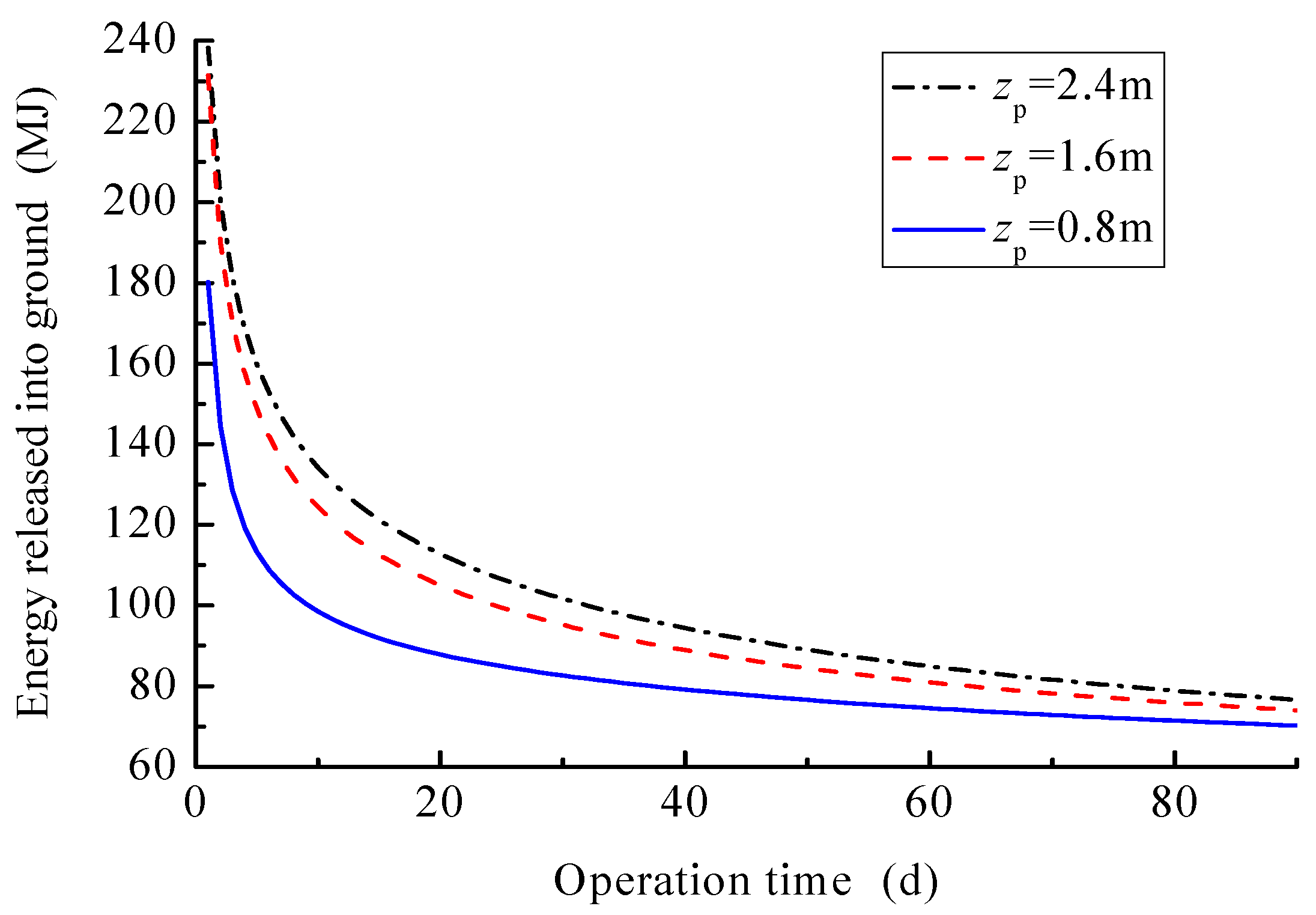

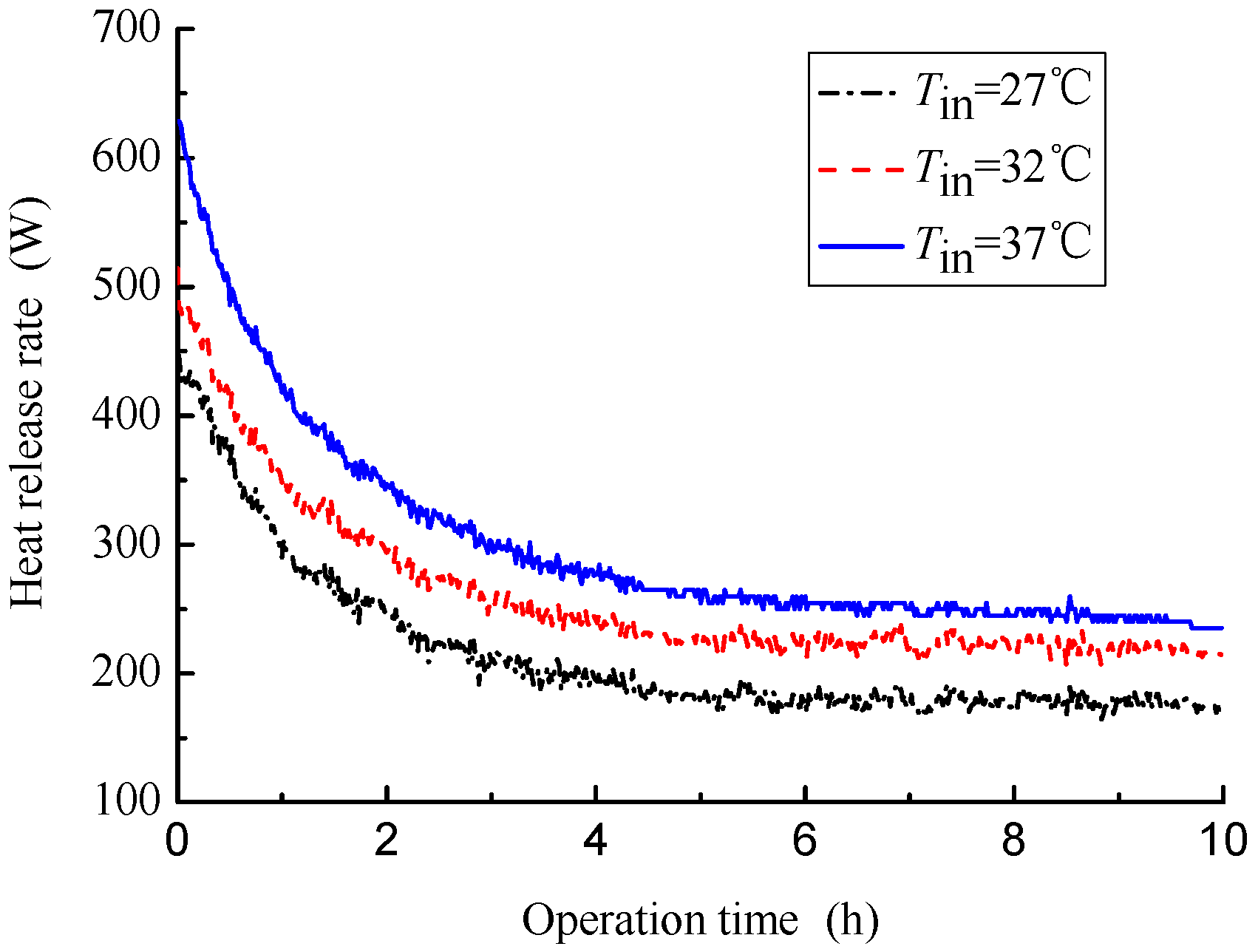

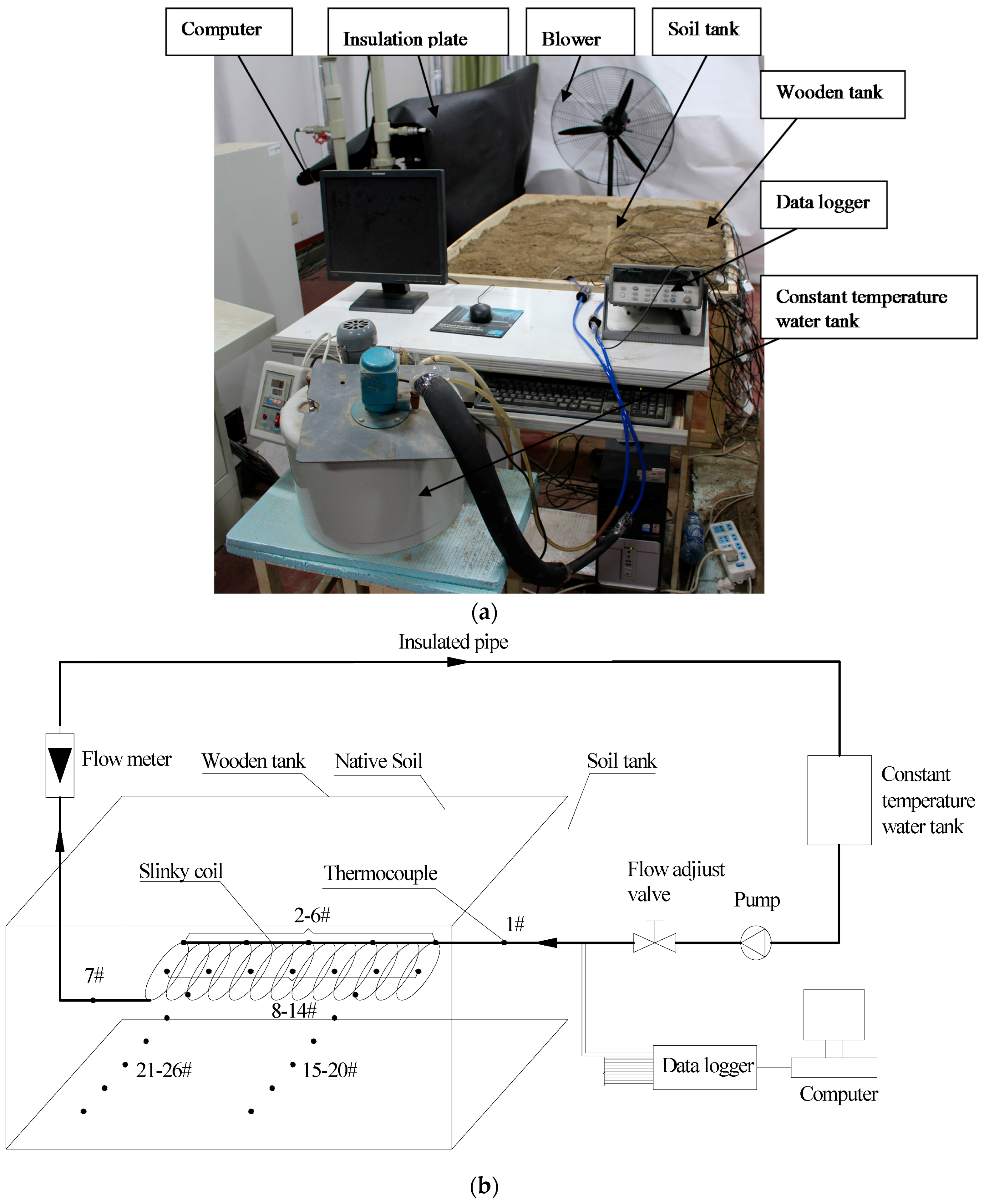

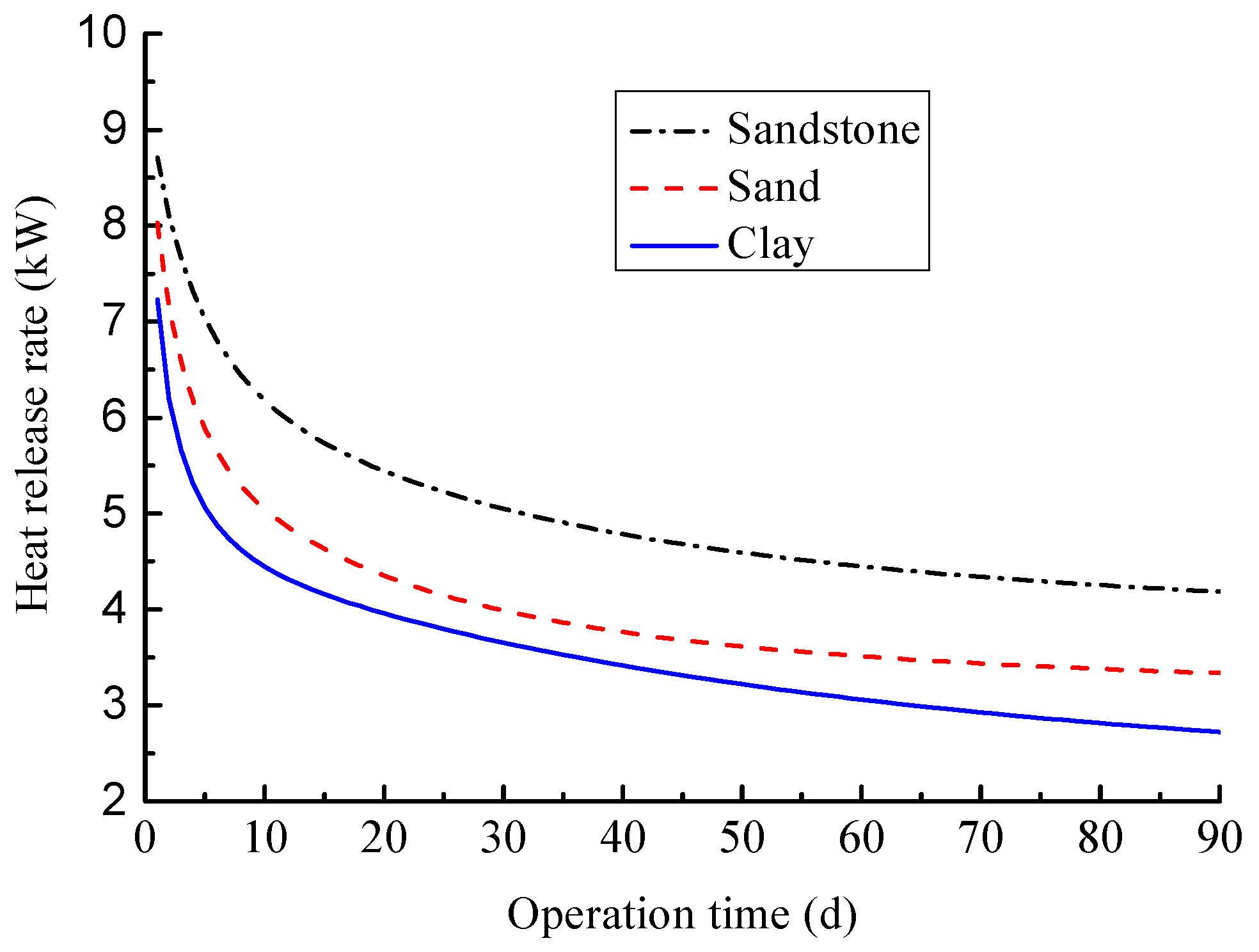

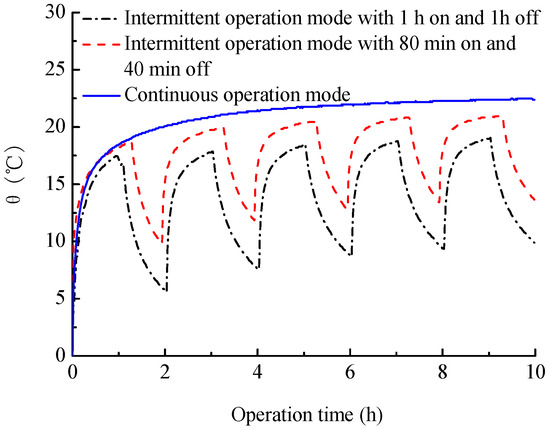

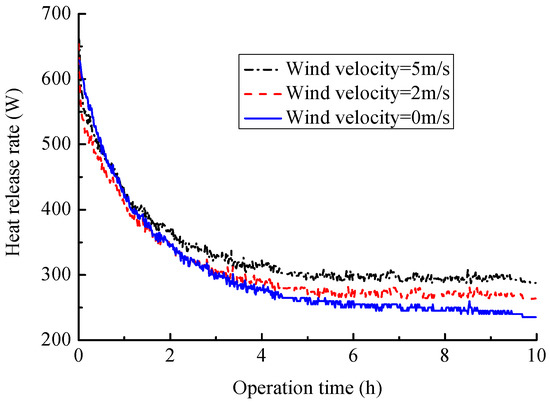

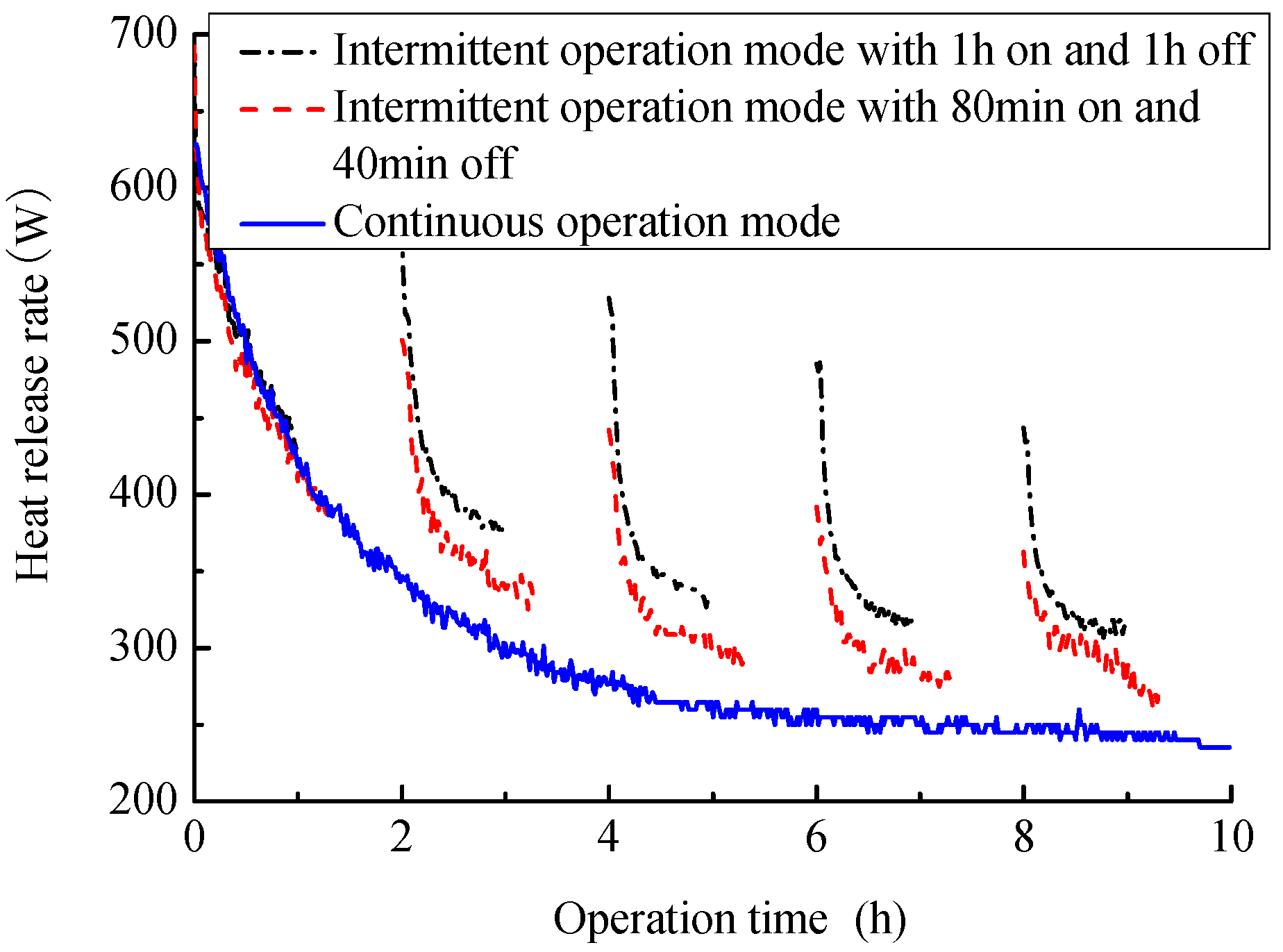

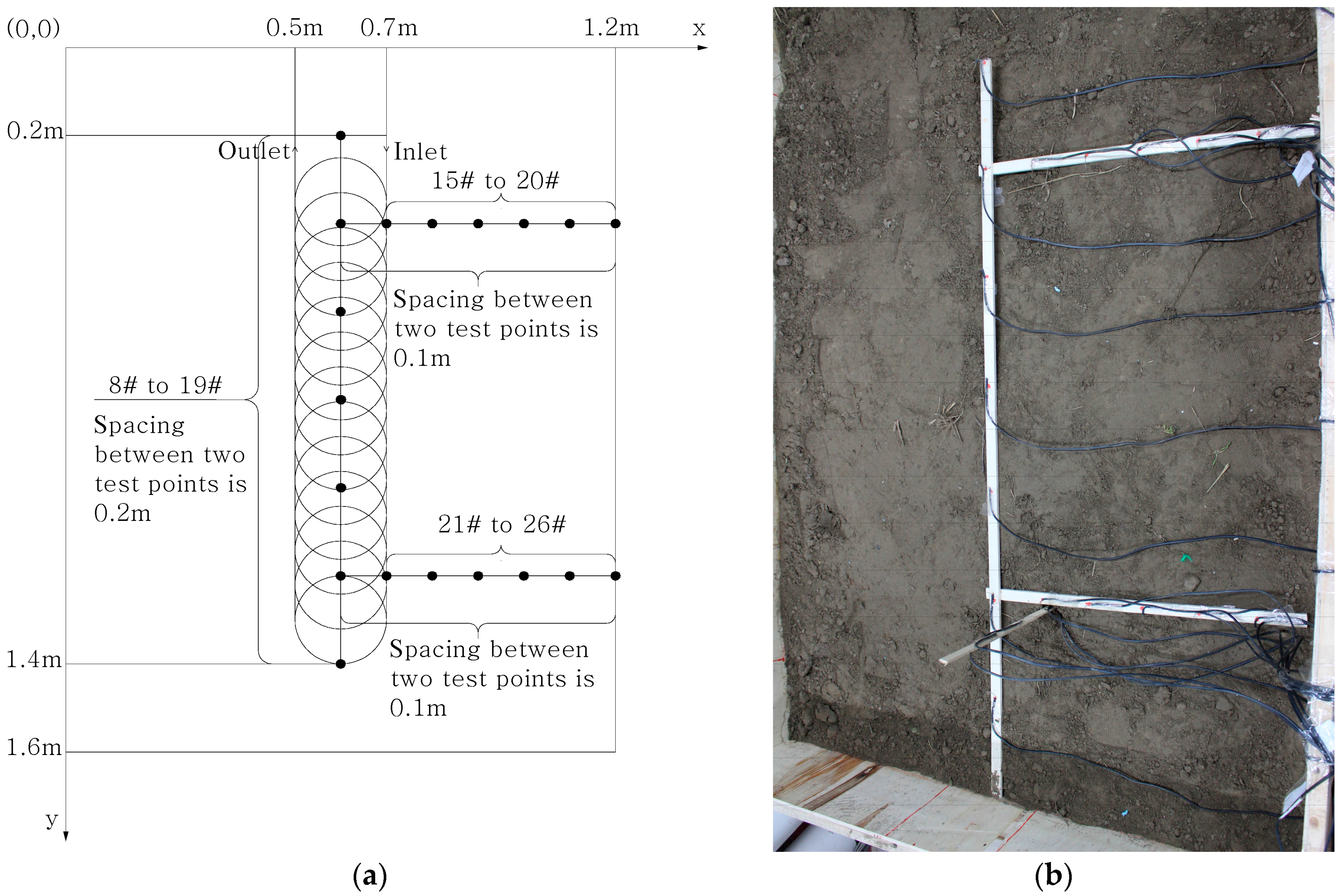

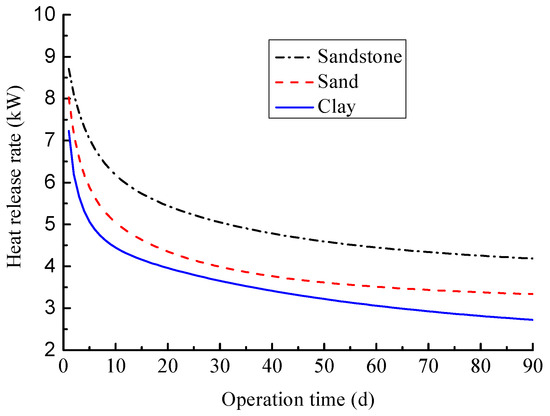

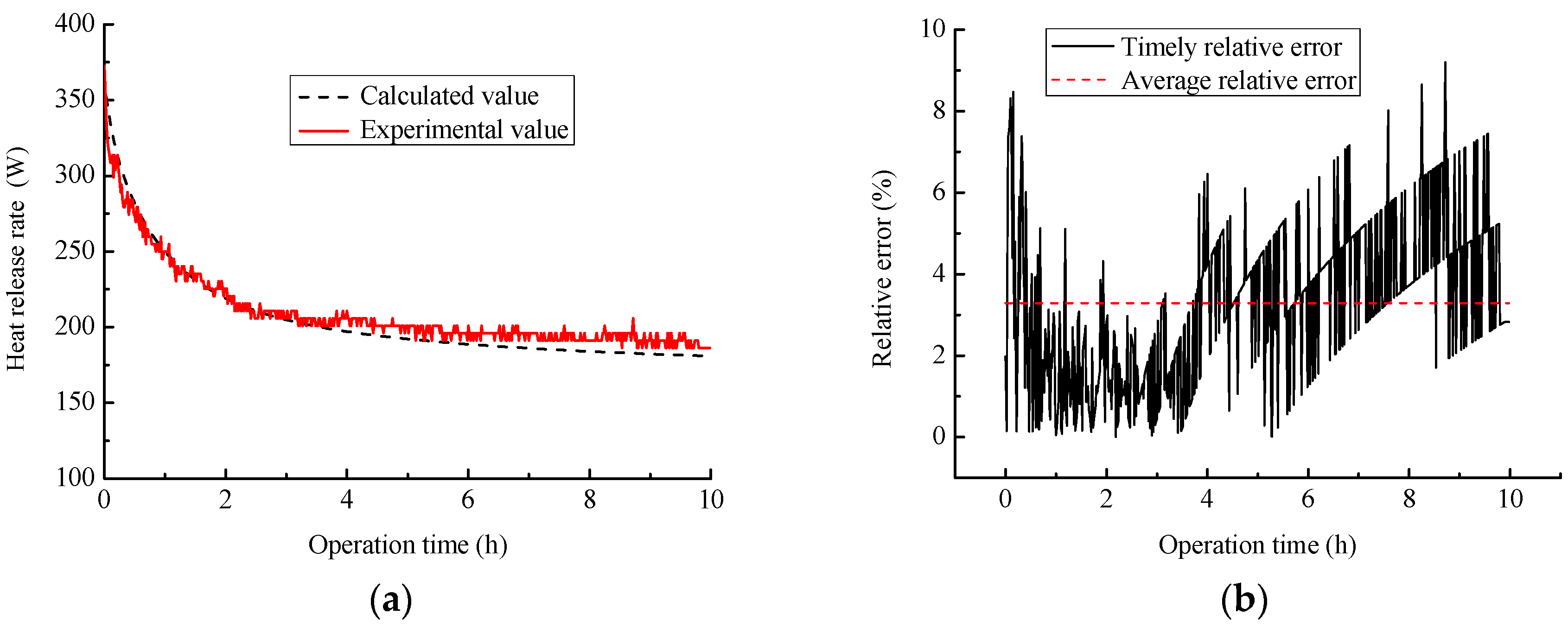

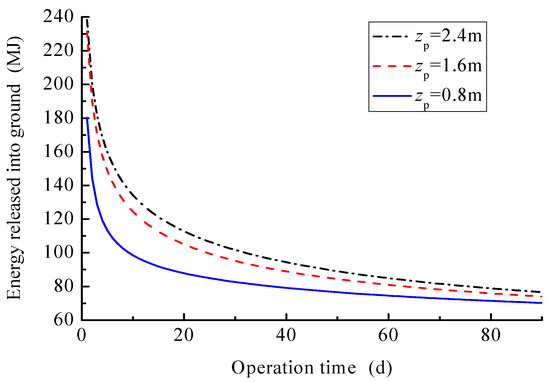

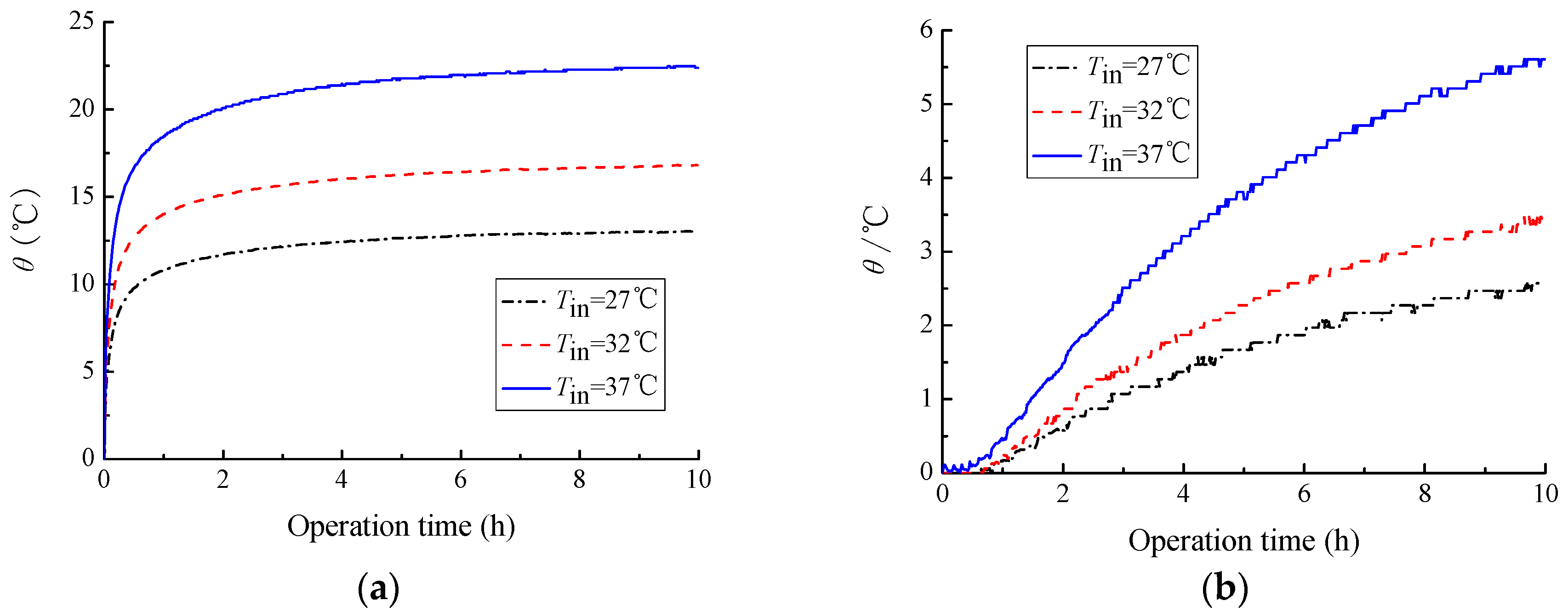

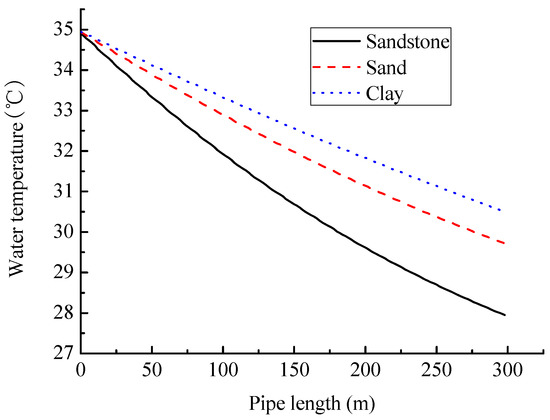

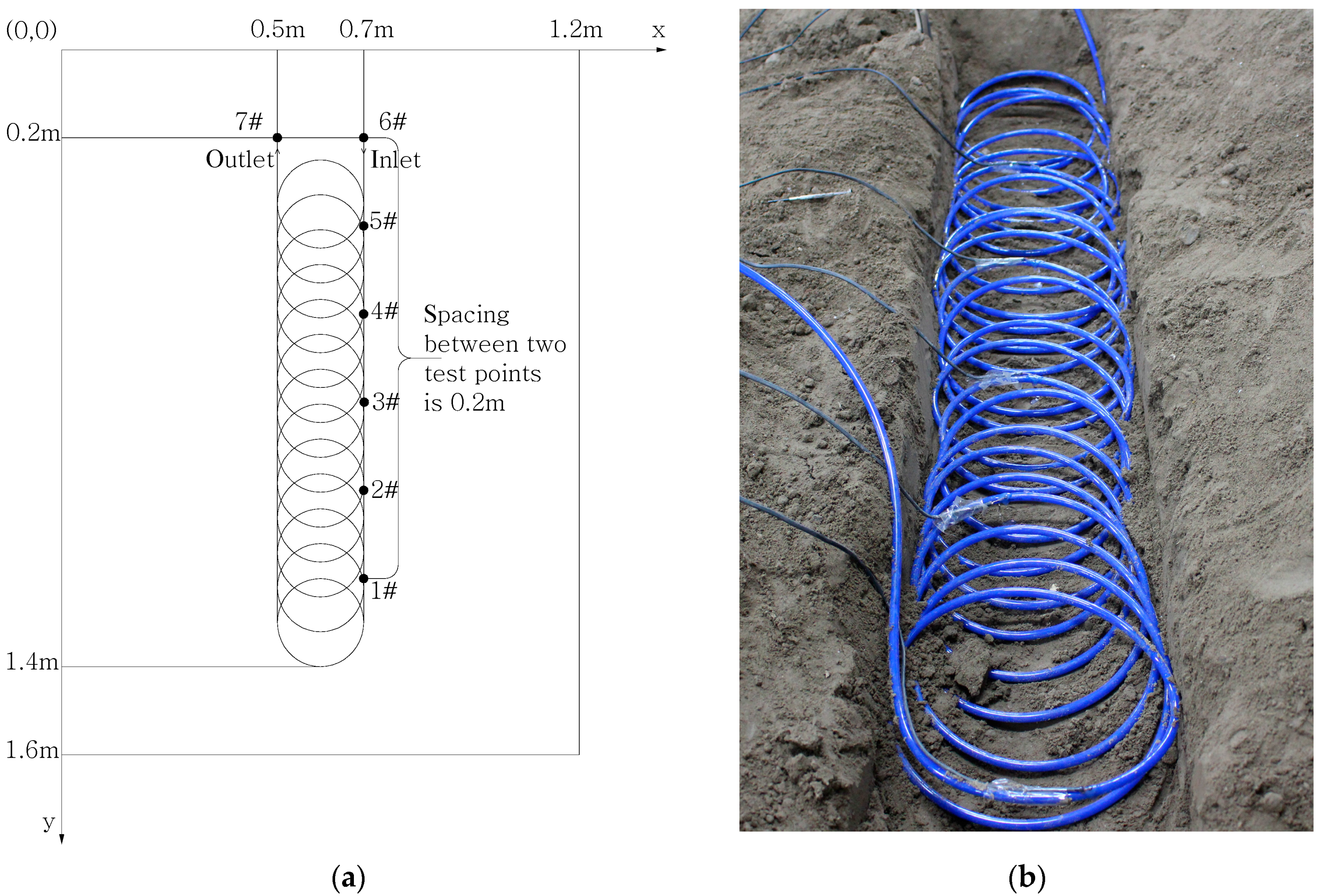

A model test system of horizontal slinky coil ground heat exchanger (HSCGHE) was established according to the similarity theory. A 2-D mathematical model of HSCGHE was built and experimentally validated. Experimental and numerical investigations of effects of different parameters on the thermal behavior of HSCGHE were undertaken. The results show that the heat release rate of the slinky coil and soil temperature around it increase as the inlet fluid temperature of coil increases. The soil temperature operated in intermittent mode can get a recovery, and thus the heat release rate of the coil can be improved effectively. For a given condition, reducing the coil central interval distance can increase the heat release rate of the HSCGHE, but also results in the decrease of the heat release rate per unit length of the coil. Therefore, the coil central interval distance cannot be decreased without limit. At the same time, the thermal performance of HSCGHE is related to the ground surface wind velocity. The heat release rate in the sandstone is the largest, followed by sand, the lowest for clay. Additionally, with the increase of buried depth of coil, the heat release rate increases, but the increase degree gradually becomes small. Thus, the buried depth cannot be too deep and should be determined by thermal performance, excavation cost and safety requirements. View Full-Text
Keywords: GCHP; horizontal slinky-coil; ground heat exchanger; heat transfer performance; experimental investigation; numerical simulation GCHP; horizontal slinky-coil; ground heat exchanger; heat transfer performance; experimental investigation; numerical simulation
