Open AccessArticle
Sustainability 2017, 9(6), 936; doi:10.3390/su9060936

Analysis of the Performance of Vacuum Glazing in Office Buildings in Korea: Simulation and Experimental Studies

1
Korea Institute of Energy Research, 152 Gajeong-ro, Yuseong-gu, Daejeon 34101, Korea
2
Department of Architectural Engineering, Graduate School of Yeungnam University, 280 Daehak-ro, Gyeongsan 38541, Korea
*
Author to whom correspondence should be addressed.
Academic Editor: Umberto Berardi
Received: 15 March 2017 / Revised: 29 May 2017 / Accepted: 31 May 2017 / Published: 2 June 2017
(This article belongs to the Special Issue Sustainability Assessments of Buildings)

Abstract

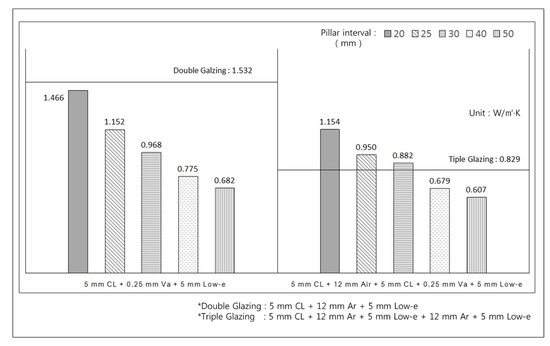

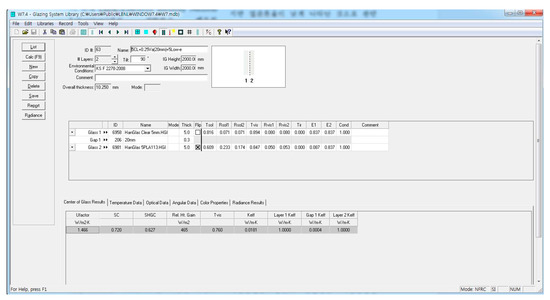

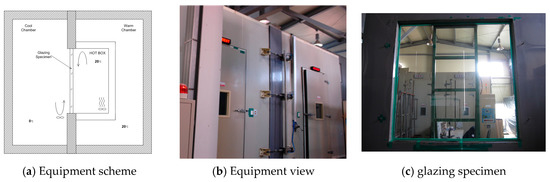

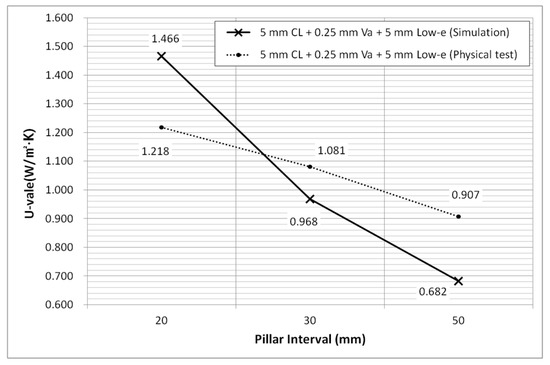

Window performance in buildings is very important for energy saving. Many efforts have been made towards saving energy in buildings, and research has focused attention on enhancing the thermal performance of windows. Vacuum glazing has attracted much interest as a means of enhancing the thermal performance of windows by strengthening insulation performance. However, the performance of vacuum glazing differs based on various component combinations, therefore, further study on vacuum glazing is needed. In this paper, through simulations, the authors confirmed the heat transfer value (U-value) of the vacuum glazing composed of various combinations (glass type, number of layers, interval of pillar, etc.). A physical test of vacuum glazing was also performed using standard test methods of windows and the U-value of the vacuum glazing by various intervals of the pillar position was confirmed. The simulation revealed a U-value for vacuum glazing of 0.682–1.466 W/m2·K as per the interval of the pillar position, the performance of solar heat gain, and visible light transmission. The U-value of the double vacuum glazing was calculated as 0.607–1.154 W/m2·K and was similar regardless of the interval of pillar position, the performance of solar heat gain, and visible light transmission. Based on the results of the energy simulation, in the case of a used low U-value of vacuum glazing, the heating and cooling energy consumption in buildings decreased by 2.46%, than when low-e glass and argon gas filled layers were used in windows. Furthermore, in double vacuum glazing, the heating and cooling energy consumption in buildings decreased by 3.91%. View Full-Text
Keywords: vacuum glazing; U-value; energy consumption; energy simulation vacuum glazing; U-value; energy consumption; energy simulation
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
