Article

Sensitivity Analysis on the Impact Factors of the GSHP System Considering Energy Generation and Environmental Impact Using LCA

Department of Architectural Engineering, Yonsei University, Seoul 03722, Korea
*
Author to whom correspondence should be addressed.
Sustainability 2016, 8(4), 376; https://doi.org/10.3390/su8040376
Submission received: 21 March 2016 / Revised: 12 April 2016 / Accepted: 13 April 2016 / Published: 16 April 2016
(This article belongs to the Special Issue Life Cycle Assessment on Green Building Implementation)

Abstract

:
The world is facing a crisis due to energy depletion and environmental pollution. The ground source heat pump (GSHP) system, the most efficient new/renewable energy (NRE) system that can reduce the load of heating/cooling equipment in a building, can be used to address this crisis. Designers and contractors have implemented such systems depending on their experience, although there are many factors that affect the performance of the GSHP system. Therefore, this study aimed to conduct a sensitivity analysis on the impact factors in terms of energy generation and environmental impact. This study was conducted as follows: (i) collecting the impact factors that affect the GSHP system’s performance; (ii) establishing the GSHP system’s scenarios with the impact factors; (iii) determining the methodology and calculation tool to be used for conducting sensitivity analysis; and (iv) conducting sensitivity analysis on the impact factors of the GSHP system in terms of energy generation and environmental impact using life cycle assessment. The results of this study can be used: (i) to establish the optimal design strategy for different application fields and different seasons; and (ii) to conduct a feasibility study on energy generation and environmental impact at the level of the life cycle.

1. Introduction

Today, the world is facing a crisis caused by energy depletion and environmental pollution. The world’s energy consumption is expected to be three-fold higher than its present level by 2035, with 60% of the energy to be consumed by developing countries, like China, India and Middle East countries, with the current rapid increase in global energy consumption. Alongside this rapid increase in global energy consumption is a dearth of fossil fuels. The reserves to production ratios are 52.5 years for oil, 54.1 years for natural gas and 110 years for coal, as calculated by British Petroleum in 2015 [1]. This suggests that the world’s fossil fuel reserves can be depleted [2,3]. In response to this, the world’s major developed countries organized the United Nations Framework Convention on Climate Change based on the recognition of the need for greenhouse gas (GHG) reduction and energy savings. In the Conference of Parties 21 held on 12 December 2015, the “Parties’ Agreement” was adopted to replace the existing Kyoto Protocol, which is to expire in 2020. Consequently, various countries around the world established a national carbon emission reduction target (CERT) (i.e., 20% by 2020 compared to the 1990 level in the EU, 34% by 2020 compared to the 1990 level in the U.K., 17% by 2020 compared to the 2005 level in the U.S., and 15% by 2020 compared to the 2005 level in Japan) and have established policies to achieve their respective targets. To keep pace with such a global trend, the South Korean government established a plan to reduce the country’s GHG emissions by 37% (850.6 million tons CO2-eq) by 2030 compared to the current estimates [4,5,6,7,8,9,10,11,12].
Along with the efforts to overcome the crisis due to the depletion of energy resources and to achieve the goal of reducing the GHG emissions, there has been a surge of interest globally in new/renewable energy (NRE) [13,14,15,16,17,18]. NRE accounted for 18% of the global electricity generation based on the level in 2009, and the energy-generating facilities constituted 25% (1230 GW of 4800 GW). According to the “NRE Medium-Term Market Report” released by International Energy Agency (IEA), the power generation from NRE is expected to increase by 40% compared to the 2011 level. This is a high growth rate, exceeding the growth rate from 2006 to 2011, and two-thirds of the new power plants are expected to be owned and operated by non-OECD countries. As the NRE-related technologies are entering a virtuous cycle of cost reduction owing to global competition, it is now possible to transfer these technologies to developing countries [19,20,21,22,23].
Meanwhile, the U.S. and EU have put more emphasis on NRE-related power stations than on fossil energy-related power stations since 2008. According to a report released by the United Nations Environment Program, NRE has already accounted for more than 50% of the power generation in the U.S. and Europe [24,25,26,27,28]. In other words, IEA forecasted that the NRE production will be double the present amount in 2035. That is, the proportion of electricity production through NRE is expected to increase by 33%, similar to the power generation from fossil fuels, by 2035 [29,30].
The South Korean government has proceeded with a number of projects for the revitalization and institutional stabilization of NRE dissemination in South Korea in line with the global trend. The basic direction of the projects is to expand the NRE market and to thus induce private investment. It also established the New and Renewable Energy Centre under the control of the Korea Energy Management Corporation (KEMCO) and implemented a system of investment incentives, such as the provision of financial support for NTE businesses, the “1 Million Green Homes Project” and feed-in-tariff. In addition, it promoted a mandatory system of public institutions and a renewable portfolio agreement to enhance the leading role of the public sector in NRE promotion. Furthermore, it built a foundation for the support of research and industrialization, such as the establishment of Core Technology Development Center to improve technologies and enhance product qualities and designated specialized colleges by area to foster skilled manpower systematically [31,32,33,34,35,36].
The ground source heat pump (GSHP) system can reduce the load of heating/cooling equipment in a building most efficiently and is regarded as a system that ensures reasonable operation and maintenance costs of the NRE systems [37,38]. Despite these advantages, however, the GSHP system also has a disadvantage: it involves excessive initial investment costs. Therefore, it is very important to accurately predict the energy load reduction of the target facility through the introduction of the GSHP system prior to the introduction of the said system and, thus, to evaluate the return on investment.
However, the reduction of the load of heating/cooling equipment effects varies depending on: (i) the regional factors (i.e., ground heat capacity, ground temperature, ground thermal conductivity); (ii) the system factor; and (iii) the design factors (i.e., borehole length, number of boreholes) in the case of load reduction by the GSHP system. There is no accurate analysis of the design variables and prediction performance, and in most cases, the analysis depends on the experience of the GSHP system design and construction companies in the existing GSHP system introduction process. It is considered that this trend exists until today, as the introduction rate of the system is relatively low, but as the rate of mandatory NRE introduction increases, an accurate analysis of the alternatives by key impact factor will be more important.
In the previous relevant studies, the factors affecting the GSHP system performance were analyzed in terms of: (i) energy generation; (ii) economic effect; and (iii) environmental impact [39,40,41,42,43,44,45,46]. Fujii et al. (2012) conducted a study for the optimization model of the slinky-coil horizontal ground heat exchanger (GHE) to be applied in the U.S. and Canada. They measured the average supply temperature by fraction to be applied to the burial depth of the GHE and the GSHP system and conducted a sensitivity analysis in terms of energy generation by measuring the seasonal heat exchange rate according to the soil type and supply direction of the fluid within the GHE [39]. Casasso et al. (2014) selected the impact factors that affect the GHE performance and conducted sensitivity analysis. The GHE length selection was found to be the most important factor in terms of the economic effect, and the U-pipe spacing and grout materials turned out to have an effect on the entire system’s performance [40]. Kim et al. (2015) performed an economic and environmental assessment for the optimization design of GHE. They conducted an analysis in terms of life cycle cost and LCA by creating a total of five scenarios according to the entering water temperature (EWT). In terms of the environmental impact, the best result was obtained at 25 °C, and in terms of the economic effect, it was achieved at 30 °C [41]. Cosentino et al. (2015) analyzed the variables of the thermal energy storage system of boreholes and presented the optimal heat charging system considering a variety of design conditions. In the study, the analysis period was assumed to be 10 and 20 years, and in the case of 10 years, the case in which the borehole length was set to 125 m and the interval to 7 m showed a 76% better result in terms of energy efficiency than the case where the interval was set to 3 m. In the case of 20 years, when the borehole length was set to 125 m and the interval to 7 m, the energy efficiency was further enhanced by 81.4% compared to the case where the interval was set to 3 m [42]. Hepbasli (2002) evaluated the operating performance of the heating/cooling system on the target facility, in which the GSHP system was installed, to analyze the economic effect of the actual system. Compared to the conventional heating/cooling system, the GSHP system was disadvantageous in terms of the initial investment cost, but it was found to be more economical than the conventional system in terms of energy consumption [43]. Boyaghchi et al. (2015) constructed a new combined cooling heating and power (CCHP) system and analyzed its heating/cooling performance using the GSHP and solar photovoltaic systems through optimization. It was found through the analysis that the performance of the system varies greatly depending on the type of refrigerant used inside the CCHP system [44]. Essen and Inalli (2009) predicted the energy performance through artificial neural networks by utilizing the experiment data on the heating/cooling performance of the GSHP system [45]. Alavy et al. (2013) analyzed the heating/cooling energy savings according to the applicable percentage of the GSHP system with ten target facilities. The analysis of the initial investment cost, payback period and operating costs revealed that the GSHP system is highly economical, as it assumes more than 80% of the entire load of heating/cooling equipment on average [46].
As mentioned earlier, various studies have been conducted on several variables that affect the GSHP system performance, but no research has been done that comprehensively considers energy generation and environmental impact in the sensitivity analysis. In addition, the study on the environmental impact analysis was limited to evaluating the CO2 emission reduction due to the change in performance that occurs when the GSHP system is installed. Sensitivity analysis is the study of how the uncertainty in the output of a system can be apportioned to different sources of uncertainty in its inputs [47,48,49]. Therefore, this study aimed to conduct sensitivity analysis on the impact factors of the GSHP system in terms of energy generation and environmental impact. This study was conducted as follows: (i) collecting the impact factors affecting the GSHP system’s performance; (ii) establishing the GSHP system’s scenarios with the impact factors; (iii) determining the methodology and calculation tool to be used for conducting sensitivity analysis; and (iv) conducting sensitivity analysis on the impact factors in terms of energy generation and environmental impact using LCA (refer to Figure 1). The results of this study can be used in future research (i.e., development of an analysis model for the GSHP system) as the impact factors to be intensively considered for the efficient design and analysis of the GSHP system.

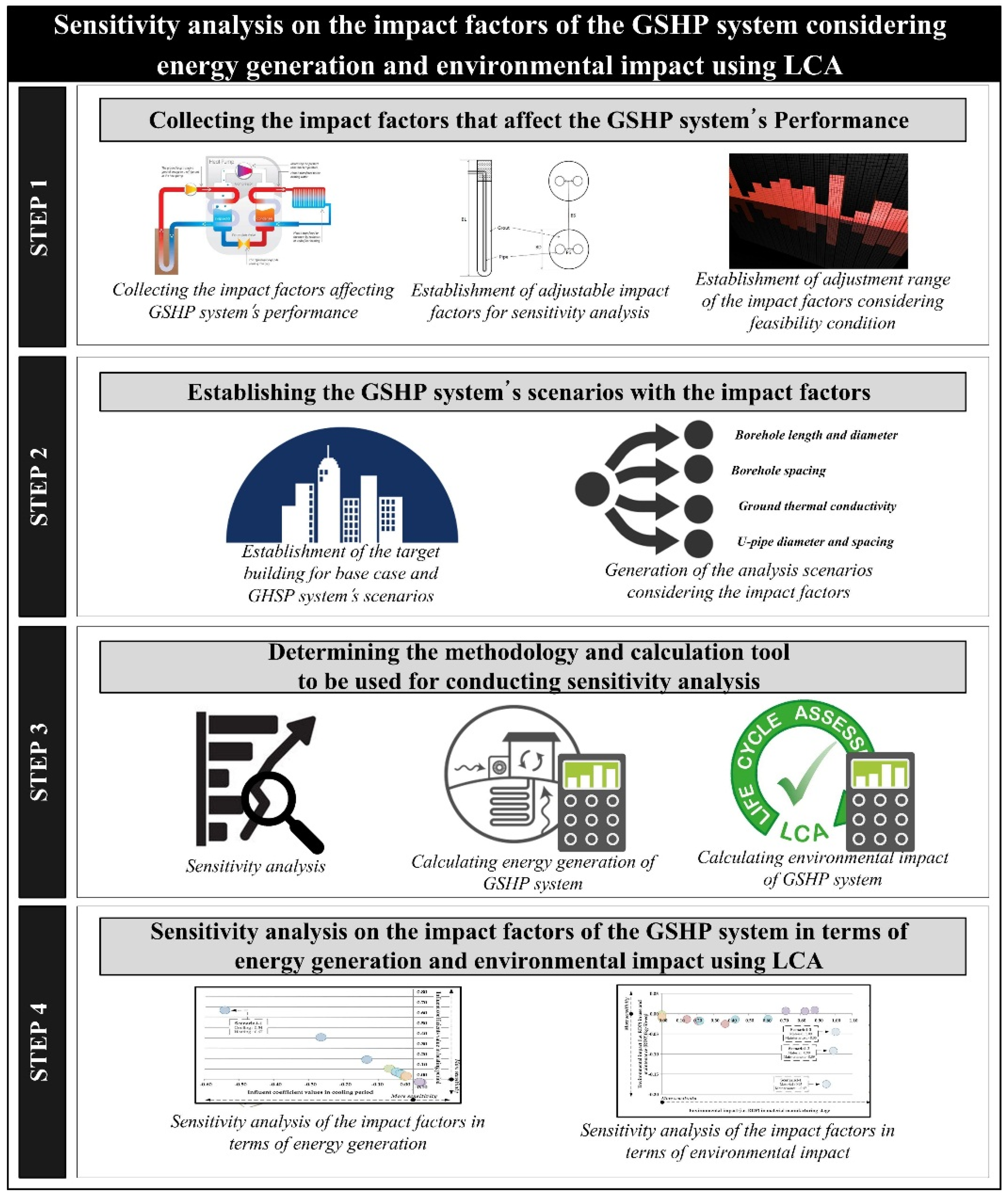

2. Materials and Methods

2.1. Collecting the Impact Factors Affecting the GSHP System’s Performance

The GSHP system is a highly efficient NRE system that uses the ground heat energy through the GHE connected to the ground to reduce the load of heating/cooling equipment in a building and provides heat through a heat pump. In this study, the adjustable impact factors to be considered in the design of the GSHP system were divided as follows: (i) regional factors; (ii) system factors; and (iii) design factors (refer to Table 1) [41]. In addition to the above factors, operation factors and other factors (e.g., control type, schedule of operation and setting of EWT) exist, and those could critically affect the energy generation and environmental impact of the GSHP system [50]. In this study, however, the impact factors affecting the GSHP system independently are selected. Of the aforementioned factors, control type and schedule of operation are influenced by the combination of the other factors and an operating environment according to the type of buildings. Because those are impact factors of a different level, other methods are required to analyze them. Therefore, the study of aforementioned factors should be conducted in future research.
First, the regional factors were classified as non-adjustable impact factors because they are external factors that affect the performance of the GSHP system in a given environment (i.e., ground temperature, soil type, ground thermal conductivity and ground heat capacity). Second, the system factors were classified as non-adjustable impact factors because the capacity is determined by the heading/cooling load of a building, and the manufacturer’s technical capability determines the cost and coefficient of performance. Third, the design factors were classified as impact factors that can adjust the detailed parameters in the design. Among the design factors, however, borehole thermal resistance was classified as a non-adjustable factor, as it appears in the form of a combination of the borehole diameter, borehole thermal conductivity, U-pipe diameter and U-pipe position. The EWT was also classified as a non-adjustable factor, as it is a result value obtained by the combination of all of the design factors. Meanwhile, the fluid type was excluded as it has an insignificant effect on the energy generation and environmental impact of GHE [41]. The borehole arrangement was also excluded because it is limited to the installation site area and site type, and the flow rate was excluded, as it is determined by the total installation capacity of the GSHP system. Accordingly, the adjustable maximum/minimum range of the detailed parameters was calculated with the rest of the impact factors, except for the above-mentioned factors (refer to Table 2).
  • Category 1 (borehole length): The borehole length represents the installed capacity of GHE. In this study, the installation range was set to 50 to 200 m. The GSHP system uses geothermal energy and shows a tendency for an up to a 50 m change in the temperature of the ground surface due to the solar radiation to occur, but an increase in temperature due to the ground heat occurs linearly from less than 50 m. The maximum design length of the GHE of the vertical closed loop is limited to 200 m, and the GHE length design programs used globally, such as “Ground loop design (GLD)” and “professional ground loop heat exchanger design (GLHEPro)”, show that the design of less than 200 m represents a reliable result [68].
  • Category 2 (grout thermal conductivity): This represents the degree of heat transfer of GHE. As the higher the thermal conductivity is, the lower the borehole resistance, the efficiency of GHE increases. The degree of grout thermal conductivity varies depending on the mixing ratio of bentonite, silica sand and water. Table A1 shows the grout thermal conductivity according to the silica sand ratio at 20% bentonite.
  • Category 3 (borehole spacing): As the heat capacity varies depending on the soil type, the optimal distance where the performance of GHE does not decrease due to the crossing of the range of the ground heat that each borehole releases and absorbs is required. In the existing study results and construction field, it was designed to be more than 4 m, and if it is less than 4 m, the severe heat interference that occurs between the boreholes (the ground temperature rises due to the heat generated from GHE in the ground) will have an adverse effect on the performance of the GSHP system. In addition, it is impossible to perform construction in a very wide range due to the restrictions on the area. Therefore, in this study, the maximum borehole spacing was limited to 7 m after an interview with experts and based on the existing records on the installation [69].
  • Category 4 (borehole diameter): It is designed considering the volume of the grout that fills the borehole and U-pipe through which the fluid flows. As the higher the thickness is, the higher the borehole thermal resistance and the lower the performance and, if it is too thick, the borehole or internal components that protect the grout can be damaged, it should be designed to have an appropriate thickness. The borehole diameter can be adjusted according to the technical skills applied in the construction, and as the wider the borehole diameter is, the higher the material costs, the higher the resistance of the borehole, the lower the thermal conductivity and, therefore, the lower the efficiency. The minimum borehole diameter size is normally determined by the diameter of the U-pipe, and the maximum borehole diameter is calculated to ensure that the U-pipe is safely embedded and that proper heat exchange is done. In this study, as the maximum size of the U-pipe diameter is 50 mm, the minimum size of the borehole diameter was calculated to be 125 mm in order to exceed the sum of the two sides of the U-tube diameter. The maximum range was limited to 200 mm based on the standards of the GHSP association in the U.K., the International Ground Source Heat Pump Association (IGSHPA) [70,71].
  • Category 5 (U-pipe diameter): There is a need for a combination that satisfies the heat load considering the low velocity of the fluid that flows inside the pipe and the subsequent heat transfer. Strength and durability exceeding a certain level are required for the part with which the fluid has direct contact. The U-pipe diameter is determined based on the standard predetermined at the time of construction. The currently-used U-pipe diameters are 25 mm, 32 mm, 40 mm and 50 mm, and 32 mm is mainly used.

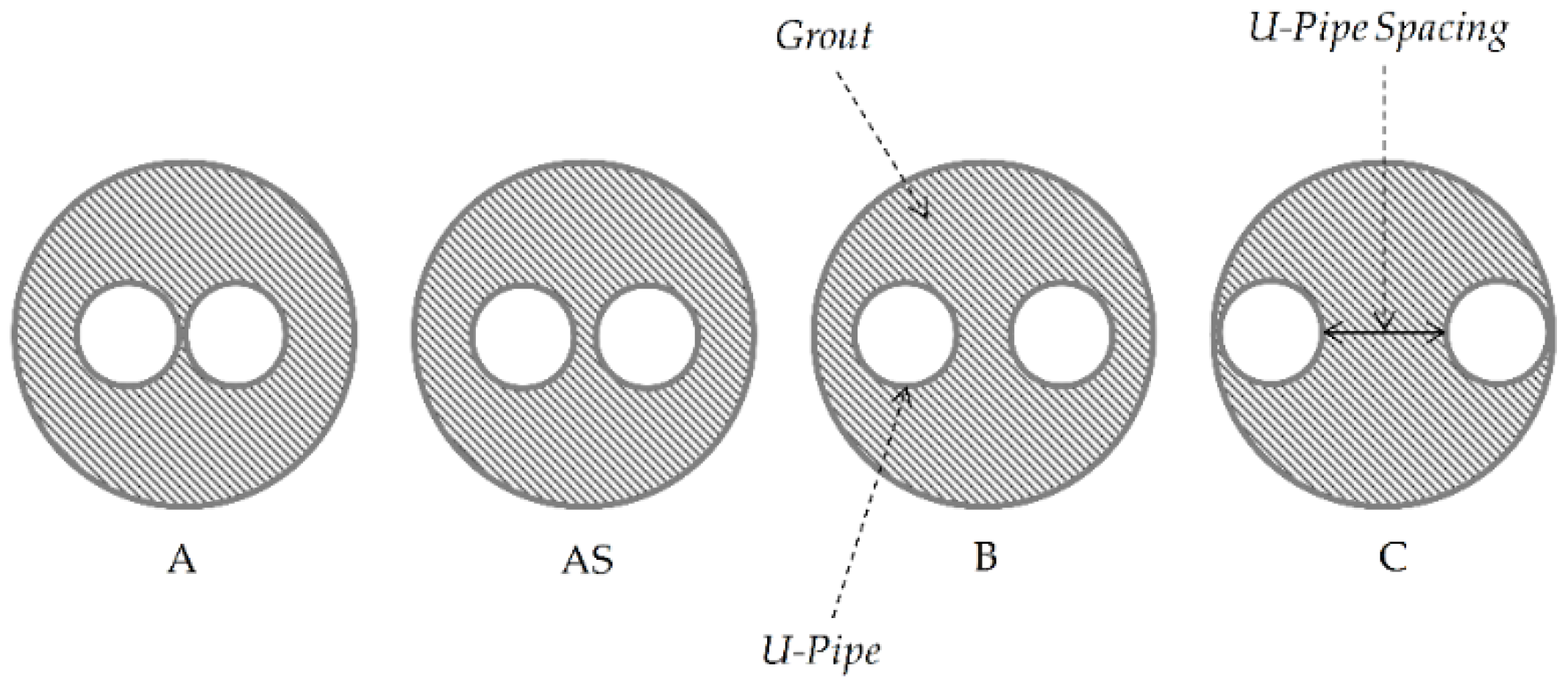

  • Category 6 (U-pipe position): This refers to the interval at which the U-pipe is installed, and the proper interval is needed to achieve sufficient heat exchange. Figure 2 shows the U-pipe position that can be introduced, and it is normally designed as the B type.

2.2. Establishing the GSHP System’s Scenario Considering the Range of Impact Factors

2.2.1. Establishment of the Target Building for the Base Case and the Analysis Scenarios

In this study, the target building was selected to fix the regional and system factors, in addition to the adjustable impact factors. The target building was selected based on the following criteria:
  • Among the buildings that require the introduction of the NRE system, a building that facilitates the construction of the GSHP system was selected. According to the 2013 statistics of the Korea Energy Agency, energy-intensive buildings, which use energy of more than 2000 TOE (tons of oil equivalent) per building annually, consumed a total of 2,307,000 TOE and emitted a total of 10,083,000 t CO2 in 2012. Among various types of buildings, universities consumed a total of 336,000 TOE and emitted a total of 1,397,000 t CO2, which accounts for about 15% of the energy consumed in the entire building sector [72]. In addition, in most cases, the newly-constructed buildings within a university have adopted the NRE system, and especially, the GSHP system has actively been introduced [73].
  • In this study, the GSHP system was analyzed, with a focus on the vertical closed-loop type among the several existing GSHP system types. This is because the vertical closed-loop type can yield more accurate simulation results compared to the other types, and the vertical closed-loop type accounts for more than 60% of all of the types used, especially in South Korea [74,75,76,77]. Therefore, a building in which the vertical-closed-loop-type GSHP system is installed was selected as the target building in this study.
  • For sensitivity analysis, a building where the daily use of the GSHP system is nearly constant, i.e., a residential building in which the daily electricity consumption does not change significantly, was selected as the target building [78].
Finally, a dormitory building in a university in Seoul where the GSHP system had been installed was selected for the sensitivity analysis. The regional factors, like the underground environment and the building heating/cooling load, were defined, and the specifications of the heat pump system were also defined. Meanwhile, the specifications of the existing GSHP system were set as a base case for the sensitivity analysis with respect to the target building in which the GSHP system had been installed. The lot area of the target building is 26,298 m2, and the gross area is 6612 m2. The heating and cooling loads are 283.1 and 349.2 kW, respectively, and the installation capacities of the existing GSHP system are 352.206 kW (heating) and 364.42 kW (cooling), respectively (refer to Table 3 and Table 4). The GSHP system’s scenarios were established with GSHP system’s base case and the range of impact factors (refer to Table 5).

2.2.2. Validation of the Designed Model

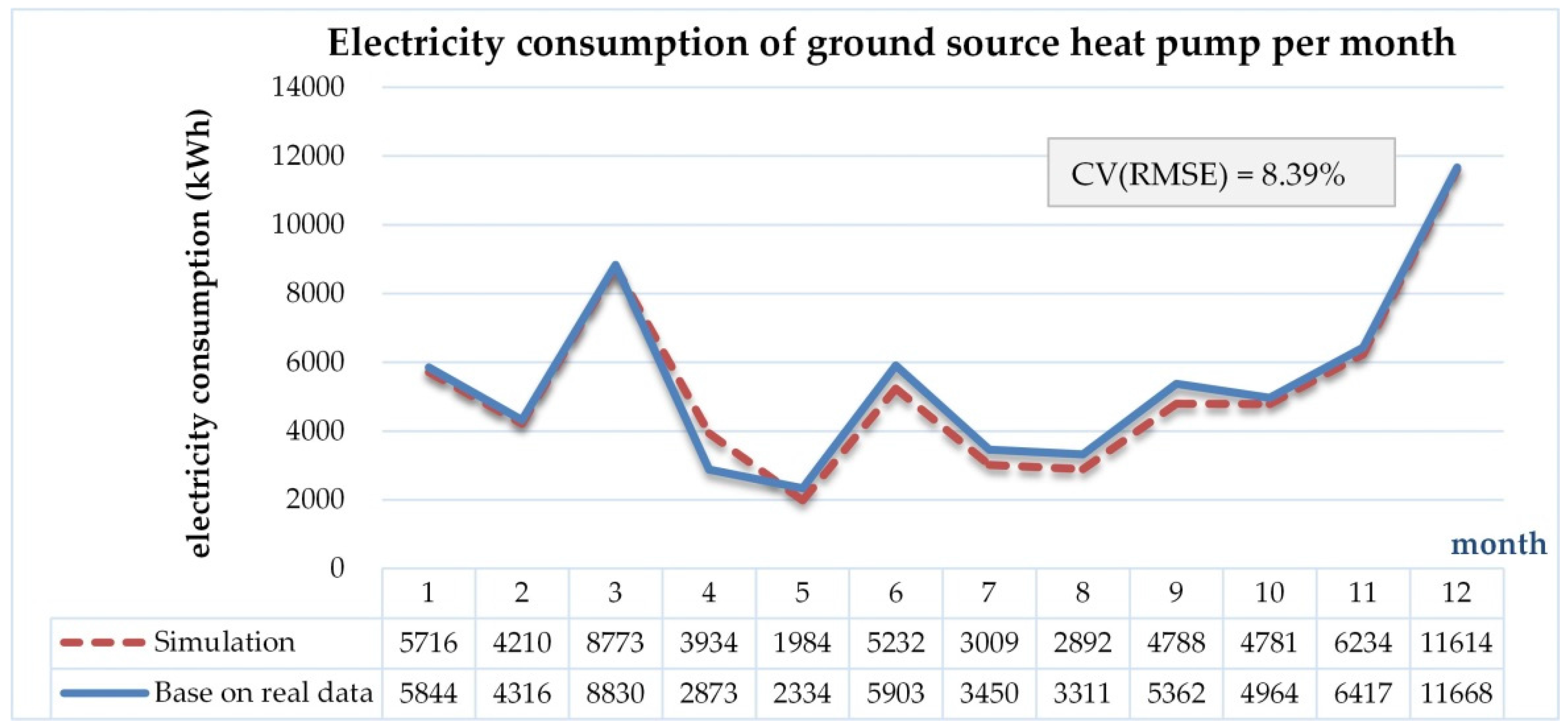

This was analyzed via CV(RMSE) to verify the validity of the model [79]. The CV(RMES) was calculated by Equation (1):
C V ( R M S E ) = i = 1 n ( M E C i - S E C i ) 2 × 1 n i = 1 n M E C i × 1 n × 100
where MEC is the measured energy consumption (kWh); SEC is the simulation-based energy consumption (kWh) during 40 years; and n is the number of compared data (months).
The actual energy consumption data of the building do not exist, because the service life of the building is less than one year. Therefore, in this study, the actual heating/cooling load of the building and the COP data of GSHP that was installed in the building were used to predict the energy consumption data of the actual building. The validation was conducted as the following steps: (i) estimating the monthly actual load of the facility (refer to Table A2); (ii) using the coefficient of performance measured through the experiment with GSHP installed in the building; during the cooling period, the COP were measured as 6.46, 5.09 and 4.16, respectively, when the EWT was at 15, 25 and 32 °C; during the heating period, the COP were measured as 3.83, 4.2 and 4.63, respectively, when the EWT was at 5, 10 and 15 °C (refer to Figure A1 and Figure A2); (iii) estimating monthly electricity consumption for 40 years through simulation (refer to Table A3); (iv) predicting the electricity consumption with the result of Steps (i) and (ii); and (v) comparing the value of predicting and comparing the predicted value with the simulation result (refer to Figure 3). The CV(RESE) value was measured as 8.39%; therefore, it was proven that the model for the GSHP system’s scenario was feasible.

2.3. Sensitivity Analysis on the Energy Generation and Environmental Impact of the GSHP System

2.3.1. Sensitivity Analysis

The previous relevant studies defined sensitivity analysis as consisting of a quantitative comparison of the changes in the outputs to the changes in the inputs [80,81,82,83]. In this study, the regional and system factors of the GSHP system were fixed, and the design factors (e.g., borehole length, grout thermal conductivity, borehole spacing, borehole diameter, U-pipe diameter and U-pipe position) of the base case were configured as inputs (e.g., scenarios by category) according to the range to establish the GSHP system’s scenarios (refer to Table 5). The sensitivity analysis on the environmental impact and energy generation of the GSHP system was performed by changing only one design factor. The sensitivity influence coefficient (IC) has been used in several studies as one of the most adequate forms of sensitivity coefficients in the assessment of sensitivity (refer to Equation (2)) [80,81,82,83].
I C = ( Δ O P / O P B C ) / ( Δ I P / I P B C )
where IC is the influence coefficient, △OP is the change in output resulting from a △IP change in input, OPBC is the base case output value and IPBC is the base case output value.
This approach resulted in a unit-less form of sensitivity coefficient, which was important for comparing parameters with different units (e.g., m for the borehole length, W/m·K for the grout thermal conductivity, m for the borehole spacing and mm for the borehole diameter). For example, an IC value of +0.2 for the borehole length means that a 1% increase in borehole length will lead to a 0.2% increase in the performance of the GSHP system. Meanwhile, a negative IC value of −0.2 for the borehole diameter means that a 1% increase in the borehole diameter will lead to a 0.2% decrease in the performance of the GSHP system.

2.3.2. Calculating the Energy Generation of the GSHP System

The process of calculating the energy generation of the GSHP system is presented herein for the sensitivity analysis on the impact factors of the GSHP system in terms of energy generation. The EWT generated from GHE and supplied to the heat pump was measured to calculate the heat efficiency of the GSHP system. EWT is an indicator of the final performance resulting from the combination of impact factors and serves as the heat pump inlet temperature from GHE that satisfies the energy demand of a facility. EWT exhibits higher efficiency when provided as a higher temperature during the heating season and as a lower temperature during the cooling season. Therefore, the load of the heat pump can be reduced, and thus, it is possible to reduce the electricity energy consumption of a building. In this study, “GLHEPro”, the GHE simulation and design program, was used to calculate the EWT and analyze the scenarios [84,85]. “GLHEPro”, which is used internationally, uses the combination of a variety of formulas and a database of the various materials of the GSHP system to design the borehole depth. In addition, through “GLHEPro”, the energy generation of GHE and the annual/monthly energy consumption of the heat pump of a building can be analyzed. In this study, the energy consumption pattern, the result of the simulation, was established to come up with the GSHP system’s analysis scenarios.

2.3.3. Calculating the Environmental Impact of the GSHP System

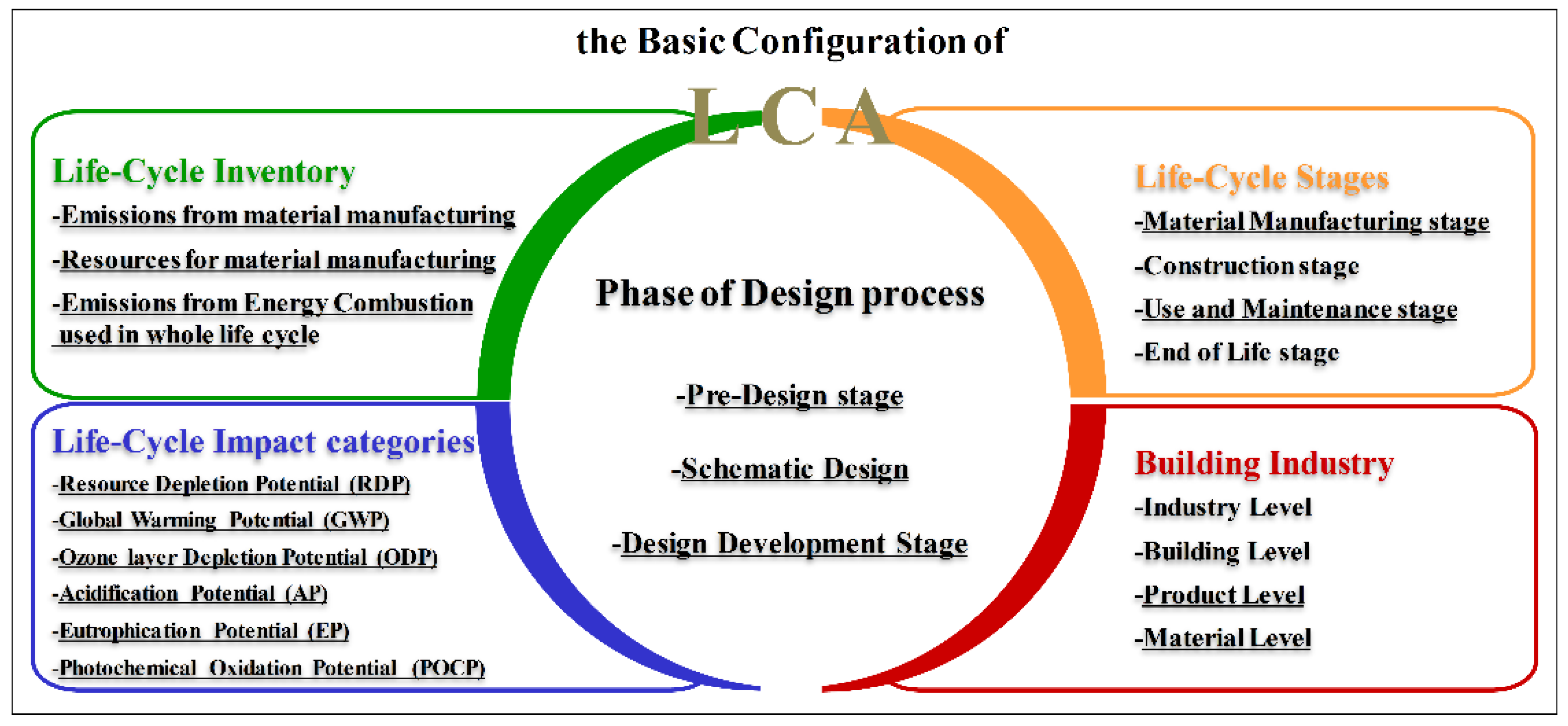

The LCA methodology is still under discussion and continues in the ISO meeting; the basic configuration is as Figure 4. In this study, LCA was used to analyze the environmental impact of the GSHP system, and the method of assessment consists of the following steps that the ISO 14040 defined [86,87,88].
  • Step 1. Practical unit and scope: The target and scope to conduct LCA should be clear. In this study, the GSHP system supplied from the material manufacturing and the use and maintenance phase for the whole life cycle is defined as the practical unit, and the relevant data for the whole life cycle is defined as the scope to conduct LCA.
  • Step 2. Life cycle inventory (LCI) analysis: The environmental impact substances can be calculated by following LCI steps. First, the energy source amount used to manufacture the components of the GSHP system over the life cycle was calculated using input-output LCA. Second, the environmental impact substances produced in the contaminant and energy production process were measured using the process-based LCA method studied in former research with the domestic LCI database established in South Korea [87,88].
  • Steps 3 and 4. Life cycle impact assessment (LCIA) and results: LCIA defines the environmental impacts using following phases: (i) classification; (ii) characterization; (iii) normalization; and (iv) weighting [86,87]. The characterization factor of each category is required for calculating the characterized impact. In this study, the scenarios of the GSHP system were analyzed in terms of environmental impact with the following categories (e.g., resource depletion potential (RDP), global warming potential (GWP), ozone layer depletion potential (ODP), acidification potential (AP), eutrophication potential (EP) and photochemical oxidation potential (POCP)). The characterized impacts are calculated using Equation (3).
    I C C n = n E s × C F s , n
where ICCn is the impact category’s (n) characterized impact, Es is the emission of substance (s) and CFs,n is the substance’s characterization factor (s) to impact category (n).

3. Results and Discussion

The impact factors of the GSHP system were analyzed through sensitivity analysis, considering the energy generation and environmental impact. Sensitivity analyses were performed on one base case and 24 scenarios in six categories. Based on the simulation results, the average maximum and minimum EWT and the monthly electricity consumption were analyzed to compare the performance of the GSHP system in the average heating period with that in the average cooling period to calculate in terms of energy generation. Furthermore, the environmental impact was calculated using LCA for the material manufacturing and use and maintenance stages.

3.1. Sensitivity Analysis on Impact Factors of the GSHP System in Terms of Energy Generation

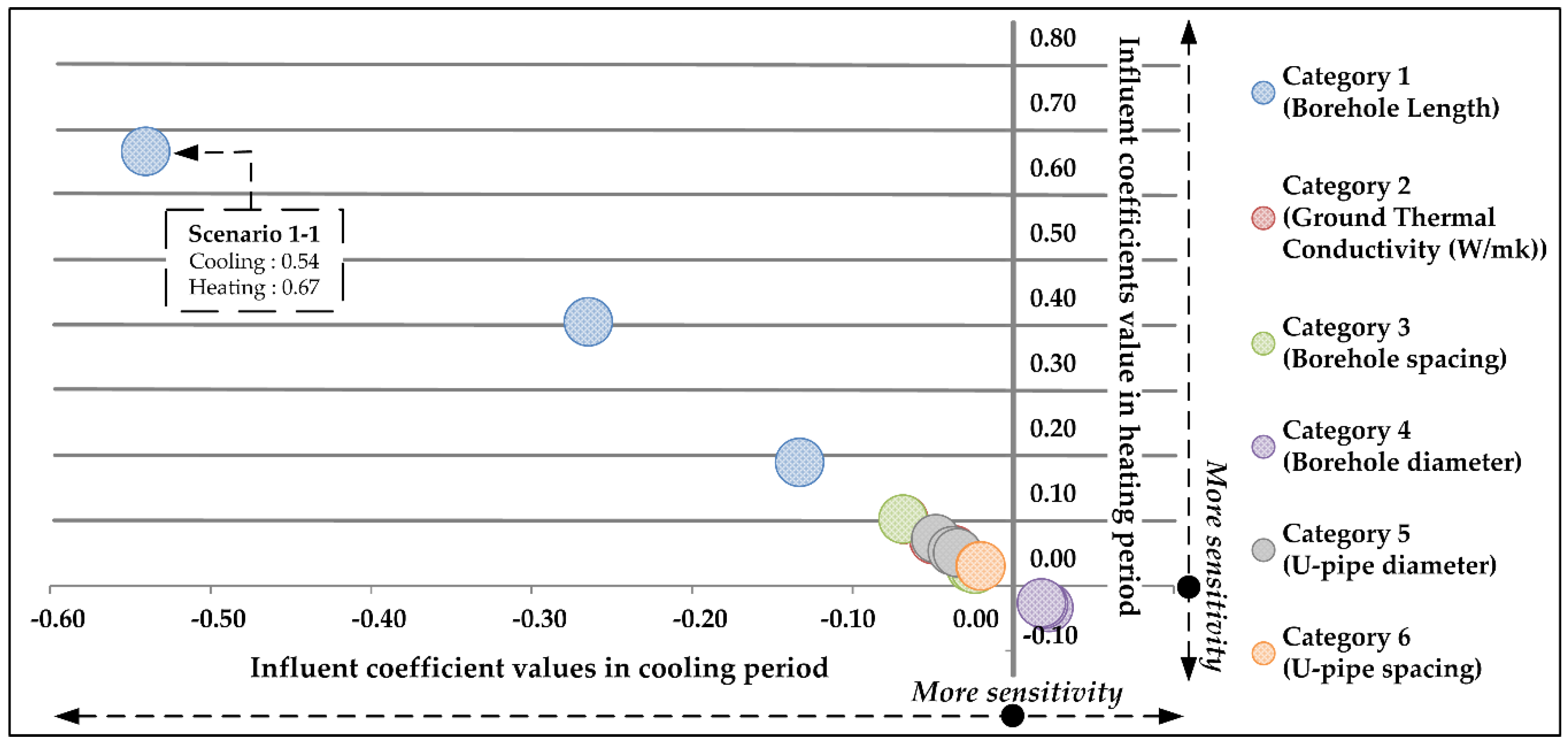

The results of the sensitivity analysis on the impact factors of the GSHP system in terms of energy generation are summarized in Figure 5 and Table 6, which show the average minimum/maximum EWT and IC values calculated for the different categories of impact factors. These IC values showed the changing influence of the impact factors on energy generation (i.e., EWT) of the GSHP system, where the EWT exhibits higher efficiency if provided as a high temperature in the heating period and as a low temperature in the cooling period. Accordingly, as the IC values of the cooling period become greater as negative values, the influence level is large, and as the IC values of the heating period become greater as positive values, the influence level is large. For the results, Category 1 (borehole length) showed the most influential impact factors for the GSHP system. Specifically, the IC of Scenario 1-1 in the cooling and heating periods was −0.54 and 0.67, respectively. In the cooling period, when the borehole length was reduced by as much as 100 m (66.7%), the EWT increased by as much as 6.82°C (36%) compared to that of the base case. In the heating period, when the borehole length was reduced by as much as 100 m (66.7%), the EWT decreased by as much as 5.63 °C (44.5%) compared to that of the base case.
Meanwhile, Category 6 (U-pipe spacing) showed the least influential impact factors for the GSHP system. Specifically, the IC of Scenario 6-1 in the cooling and heating periods was −0.02 and 0.03, respectively. In the cooling period, when U-pipe spacing was reduced by as much as 25.5 mm (88.8%), the EWT was increased by as much as 0.39 °C (2.1%) compared to that of the base case. In the heating period, the U-pipe spacing was reduced by as much as 25.5 mm (88.8%), and the EWT was decreased by as much as 0.39°C (3.1%) compared to that of the base case.
The results of other impact factors are as follows. In the case of Category 2 (grout thermal conductivity), the IC of Scenario 2-1 in the cooling and heating periods was −0.07 and 0.10, respectively. When grout thermal conductivity was reduced by as much as 0.115 W/m·K (11.6%) in the cooling period, the EWT was increased by as much as 0.15 °C (0.8%) compared to that of the base case. When the grout thermal conductivity was reduced by as much as 0.115 W/m·K (11.6%) in the heating period, the EWT was decreased by as much as 0.15 °C (1.1%) compared to that of the base case. In the case of Category 3 (borehole spacing), the IC of Scenario 3-1 in the cooling and heating periods were −0.07 and 0.10, respectively. When the borehole spacing was reduced by as much as 1 m (20%) in the cooling period, the EWT was increased by as much as 0.26 °C (1.4%) compared to that of the base case. When the bore spacing was reduced by as much as 1 m (20%) in the heating period, the EWT was decreased by as much as 0.26 °C (2.1%) compared to that of the base case. In the case of Category 5 (U-pipe diameter), the IC of Scenario 5-1 in the cooling and heating periods were −0.05 and 0.07, respectively. When the U-pipe diameter was reduced by as much as 7 mm (21.9%) in the cooling period, the EWT was increased by as much as 0.2 °C (1.1%) compared to that of the base case. When the U-pipe diameter was reduced by as much as 7 mm (21.9%) in the heating period, the EWT was decreased by as much as 0.2 °C (1.6%) compared to that of the base case. In the case of Category 4 (borehole diameter), the IC of Scenario 4-1 in the cooling and heating periods was 0.02 and −0.03, respectively. When the bore diameter was reduced by as much as 25 mm (17%) in the cooling period, the EWT was decreased by as much as 0.07 °C (0.4%) compared to that of the base case. When the bore diameter was reduced by as much as 25 mm (16.7%) in the heating period, the EWT was increased by as much as 0.07 °C (0.6%) compared to that of the base case.
To sum up, the borehole length was determined to be the most influential impact factor, and the borehole diameter and U-pipe spacing were determined to be the least influential impact factors in terms of the energy generation of the GSHP system (refer to Figure 5).

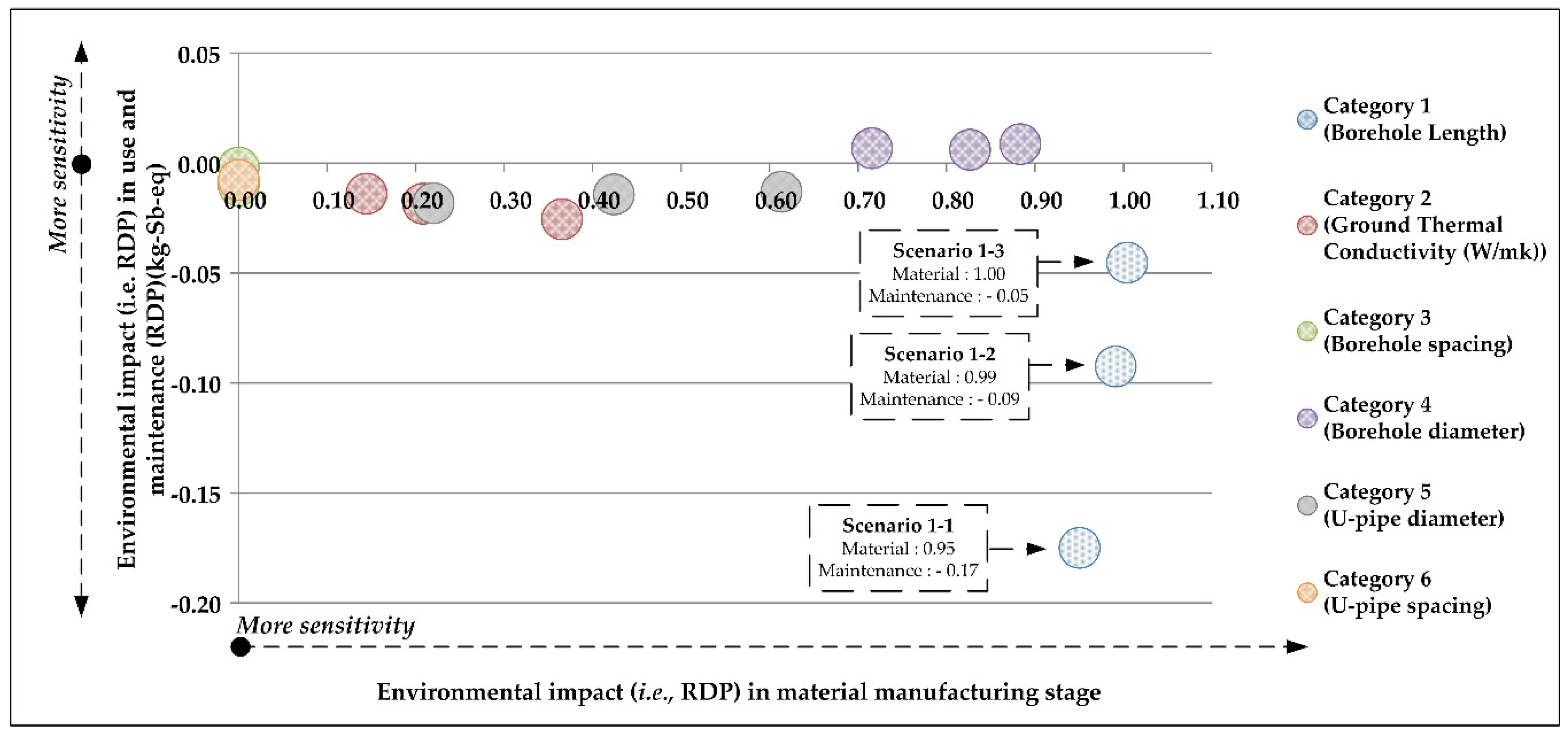

3.2. Sensitivity Analysis on the Impact Factors of the GSHP System in Terms of the Environmental Impact

The results of the sensitivity analysis on the impact factors of the GSHP system in terms of the environmental impact (i.e., six impact categories) are summarized in Figure 6, Figure A3 and Table 7, Table A4, Table A5, Table A6 and Table A7. In Section 2.3.3, the practical unit of LCA is defined as “the GSHP system supplied from the material manufacturing and use and maintenance stages for the whole service life.” Therefore, the environmental impact was assessed in two stages: (i) the material manufacturing stage; and (ii) the use and maintenance stage. Table 7 shows the results of the sensitivity analysis in terms of RDP. Table A4, Table A5, Table A6 and Table A7 show the results of the sensitivity analysis on the other environmental impact categories.
As shown in Table 7, Category 1 (borehole length) showed the most influential impact factors for the GSHP system in the material manufacturing and use and maintenance stages. Specifically, the IC of Scenario 1-4 in the material manufacturing stage and the IC of Scenario 1-1 in the use and maintenance stage were 1.00 and −0.17, respectively. In the material manufacturing stage, when the borehole length increased by as much as 50 m (33.3%) compared to that of the base case (150 m), the RDP increased by as much as 170 kg-Sb-eq (33.7%) compared to that of the base case (505 kg-Sb-eq). In the use and maintenance stage, when the borehole length was reduced by as much as 100 m (66.7%) compared to that of the base case (150 m), the RDP decreased by as much as 320 kg-Sb-eq (11.6%) compared to that of the base case (2168 kg-Sb-eq). Meanwhile, Category 3 (borehole spacing) showed the least influential impact factors for the GSHP system. Specifically, the ICs of Scenario 3-4 in the material manufacturing and use and maintenance stages were 0.00 and −0.002, respectively. In the material manufacturing stage, even when the borehole spacing increased by as much as 2 m (40%) compared to that of the base case (5 m), the RDP showed no change compared to that of the base case (505 kg-Sb-eq). In the use and maintenance stage, when the borehole spacing was reduced by as much as 2 m (40%) compared to that of the base case (5 m), the RDP decreased by as much as 2 kg-Sb-eq (0.2%) compared to that of the base case (2168 kg-Sb-eq).
The results of other impact factors are as follows. In the case of Category 2 (grout thermal conductivity), the ICs of Scenario 2-1 in the material manufacturing and use and maintenance stages were 0.37 and −0.03, respectively. In the material manufacturing stage, even when the grout thermal conductivity was decreased by as much as 0.115 W/m·K (11.6%) compared to that of the base case, the RDP was decreased by as much as 21 kg-Sb-eq (4.2%) compared to that of the base case (505 kg-Sb-eq). In the use and maintenance stage, when the grout thermal conductivity was reduced by as much as 0.115 W/m·K (11.6%) compared to that of the base case, the RDP was increased by as much as 6 kg-Sb-eq (0.3%) compared to that of the base case (2168 kg-Sb-eq). In the case of Category 4 (borehole diameter), the ICs of Scenario 4-1 in the material manufacturing and use and maintenance stages were 0.88 and 0.01, respectively. In the material manufacturing stage, even when the borehole diameter was decreased by as much as 25 mm (16.7%) compared to that of the base case, the RDP was decreased by as much as 74 kg-Sb-eq (14.7%) compared to that of the base case (505 kg-Sb-eq). In the use and maintenance stage, when the borehole diameter was reduced by as much as 25 mm (16.7%) compared to that of the base case, the RDP was decreased by as much as 3 kg-Sb-eq (0.1%) compared to that of the base case (2168 kg-Sb-eq). In the case of Category 5 (U-pipe diameter), the IC of Scenario 5-4 in the material manufacturing stage and the IC of Scenario 5-1 in the use and maintenance stage were 0.61 and −0.02, respectively. In the material manufacturing stage, when the U-pipe diameter was increased by as much as 18 mm (56.3%) compared to that of the base case, the RDP was increased by as much as 175 kg-Sb-eq (34.7%) compared to that of the base case (505 kg-Sb-eq). In the use and maintenance stage, when the U-pipe diameter was reduced by as much as 7 mm (21.9%) compared to that of the base case, the RDP was increased by as much as 8 kg-Sb-eq (0.4%) compared to that of the base case (2168 kg-Sb-eq). In the case of Category 6 (U-pipe spacing), the ICs of Scenario 6-2 in the material manufacturing and use and maintenance stages were 0.00 and −0.01, respectively. In the material manufacturing stage, even when the U-pipe spacing was decreased by as much as 25.2 mm (88.8%) compared to that of the base case, the RDP showed no change compared to that of the base case (505 kg-Sb-eq). In the use and maintenance stage, when the U-pipe spacing was reduced by as much as 25.2 mm (88.8%) compared to that of the base case, the RDP was increased by as much as 14 kg-Sb-eq (0.6%) compared to that of the base case (2168 kg-Sb-eq). As shown in Table A4, Table A5, Table A6 and Table A7, other environmental impact categories showed similar trends.
In summary, the borehole length was determined to be the most influential impact factor, and the borehole spacing and U-pipe spacing were determined to be the least influential impact factors in terms of the environmental impact of the GSHP system (refer to Figure 6).

4. Conclusions

This study aimed to conduct sensitivity analysis on the impact factors of the GSHP system in terms of energy generation and environmental impact. This study was conducted as follows: (i) collecting the impact factors affecting the GSHP system’s performance; (ii) establishing the GSHP systems’ scenarios with the impact factors; (iii) determining the methodology and calculation tool to be used for conducting sensitivity analysis; and (iv) sensitivity analysis on the impact factors in terms of energy generation and environmental impact using LCA. A dormitory building in a university in Seoul where the GSHP system had been installed was selected for the sensitivity analysis. The average maximum and minimum EWT and the monthly electricity consumption were analyzed, which could enable the comparison of the performances of the GSHP system during the heating and cooling periods based on the simulation results. Furthermore, the environmental impact was calculated using LCA for the material manufacturing and use and maintenance stages.
In terms of the energy generation of the GSHP system, the borehole length was determined to be the most influential impact factor, showing influence coefficient values of −0.54 and 0.67, respectively, during cooling and heating period. These values are relatively high compared to those of other impact factors, such as the grout thermal conductivity (−0.07 and 0.10, respectively, during the cooling and heating period), borehole spacing (−0.07 and 0.10, respectively, during the cooling and heating period), borehole diameter (0.02 and −0.03, respectively, during the cooling and heating period) and U-pipe diameter (−0.05 and 0.07, respectively, during the cooling and heating period), which indicate that the borehole length influences the energy generation of the GSHP the most. On the other hand, the U-pipe spacing was determined to be the least influential impact factor, showing influence coefficient values of −0.02 and 0.03, respectively, during the cooling and heating period. In terms of the environmental impact of the GSHP system, the borehole length was again determined to be the most influential impact factor, showing influence coefficient values of 1.00 and −0.17, respectively, in the material manufacturing and use and maintenance. These values are relatively high compared to those of other impact factors, such as the grout thermal conductivity (0.37 and −0.03, respectively, in the material manufacturing and use and maintenance), borehole spacing (−0.07 and 0.10, respectively, in the material manufacturing and use and maintenance), borehole diameter (0.88 and 0.01, respectively, in the material manufacturing and use and maintenance) and U-pipe diameter (0.61 and −0.02, respectively, in the material manufacturing and use and maintenance), which indicate that the borehole length influences the environmental impact of the GSHP the most. On the other hand, the borehole spacing and U-pipe spacing were determined to be the two least influential impact factors, showing influence coefficient values of zero and −0.01, respectively, in the material manufacturing and use and maintenance for both impact factors. To sum up, the borehole length was determined to be the most influential impact factor in terms of both energy generation and environmental impact. Meanwhile, U-pipe spacing was determined to be the least influential impact factor in terms of both energy generation and environmental impact
The results of this study can be used: (i) to establish the optimal design strategy for different application fields and different seasons; and (ii) to conduct a feasibility study on energy generation and environmental impact at the level of the life cycle.
Research on the following is recommended for future studies: (i) economic and environmental assessment for selecting the optimal implementation fraction of the GSHP system using the above-analyzed factors; and (ii) a multi-objective optimization system for the ultimate decision maker to analyze the uncountable scenarios in terms of several impact factors.

Acknowledgments

This work was supported by the National Research Foundation of Korea (NRF) grant funded by the Korea government (MSIP; Ministry of Science, ICT and Future Planning) (No. NRF-2015R1A2A1A05001657).

Author Contributions

All authors read and approved the manuscript. All authors contributed to this work, discussed the results and implications and commented on the manuscript at all stages. Taehoon Hong gave valuable advice on the establishment of the framework, as well as the design process. Jimin Kim made the model with the co-authors and helped to understand the optimization model more thoroughly. Myeongsoo Chae discussed the main idea behind the work and reviewed and revised the manuscript. Joonho Park led the development of the paper. Jaemin Jeong enhanced the quality of the manuscript at all stages. Minhyun Lee developed the revised manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

IEA
International Energy Agency
OECD
Organization for Economic Cooperation and Development
GHG
Greenhouse gas
CERT
Carbon emission reduction target
NRE
New/renewable energy
KEMCO
Korea Energy Management Corporation
GSHP
Ground source heat pump
GHE
Ground heat exchanger
IGSHPA
International Ground Source Heat Pump Association
CCHP
Combined cooling heating and power
LCA
Life cycle assessment
EWT
Entering water temperature
CV(RMSE)
Coefficient of variation of the root-mean-square error
COP
Coefficient of performance
IC
Influence coefficient
ISO
International Organization for Standardization
LCI
Life cycle inventory
LCIA
Life cycle impact assessment
RDP
Resource depletion potential
GWP
Global warming potential
ODP
Ozone layer depletion potential
AP
Acidification potential
EP
Eutrophication potential
POCP
Photochemical oxidation potential

Appendix

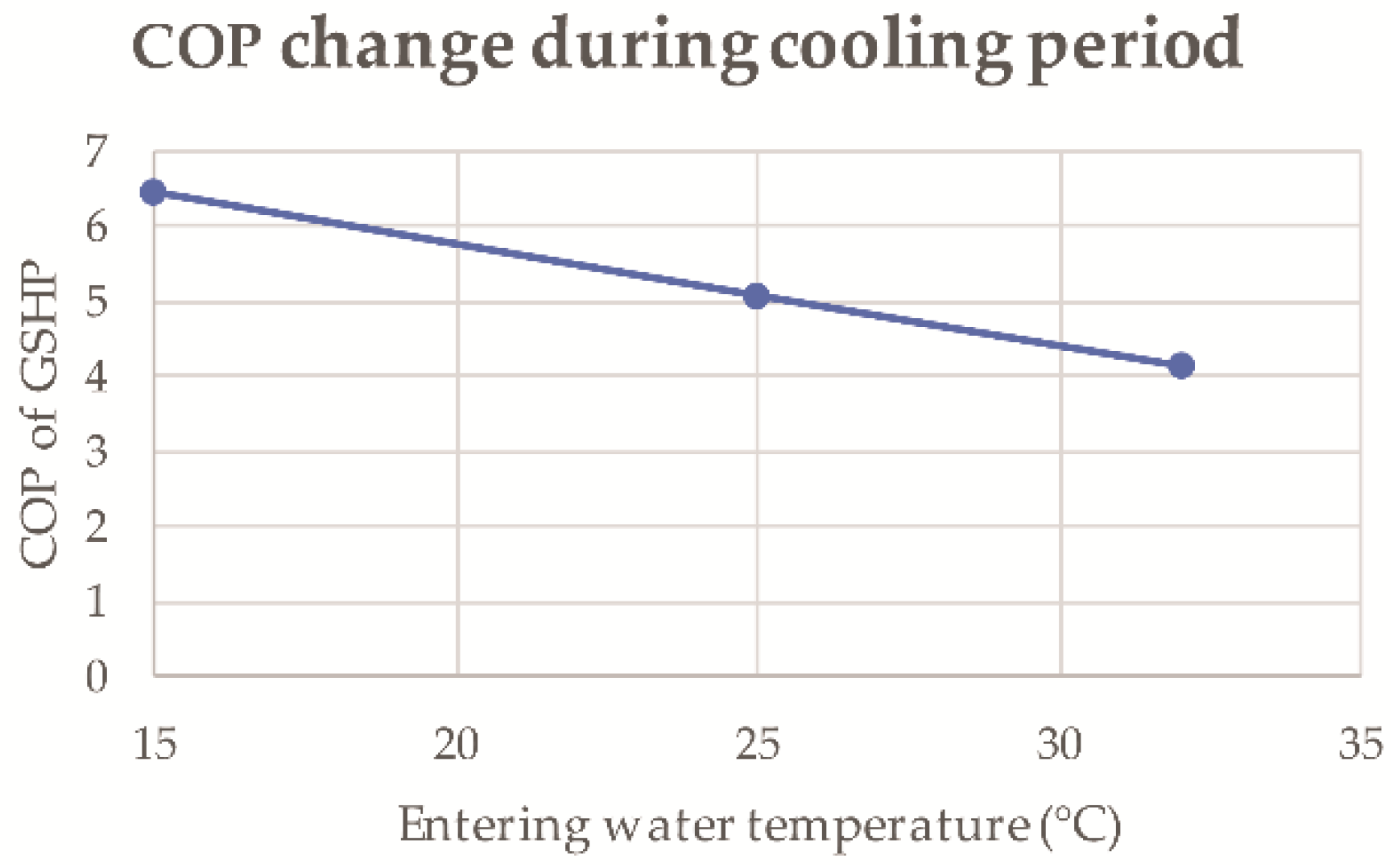

Figure A1. The coefficient of performance measured through experiment during the cooling period.
Figure A1. The coefficient of performance measured through experiment during the cooling period.
Sustainability 08 00376 g007

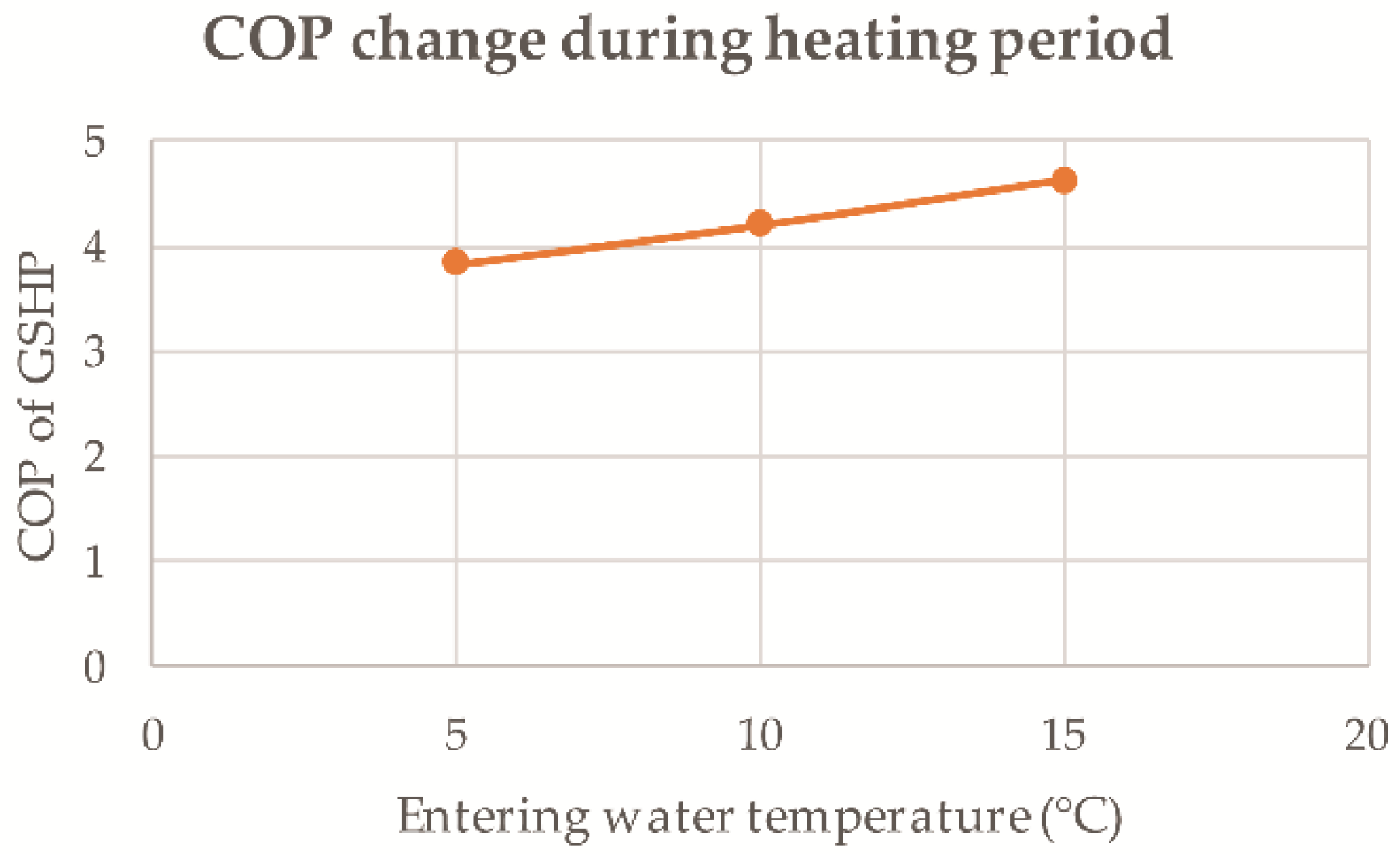

Figure A2. The coefficient of performance measured through experiment during the heating period.
Figure A2. The coefficient of performance measured through experiment during the heating period.
Sustainability 08 00376 g008

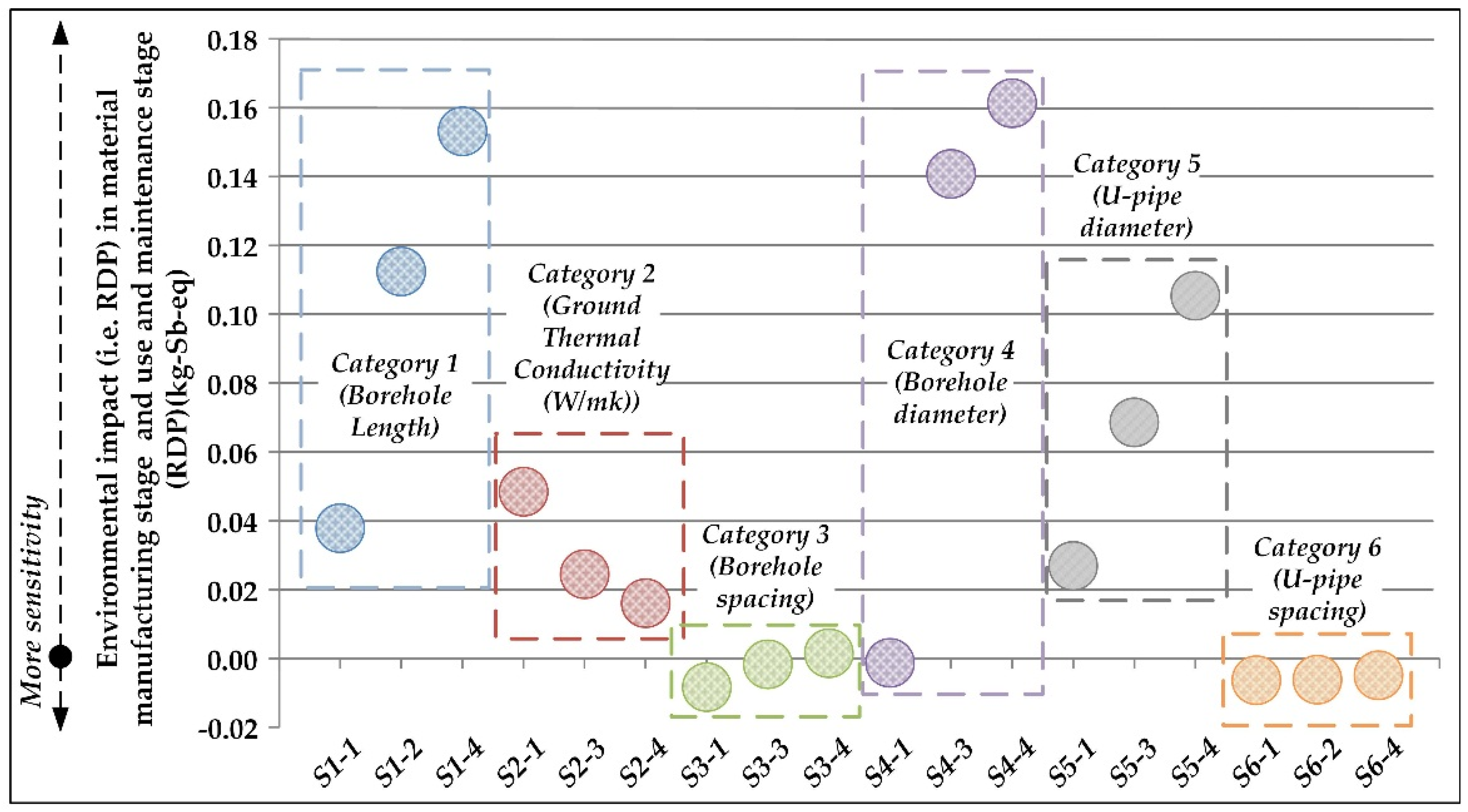

Figure A3. Influence coefficient values of different impact factors for environmental impact (i.e., resource depletion potential (RDP)), sum of material manufacturing and use and maintenance stage.
Figure A3. Influence coefficient values of different impact factors for environmental impact (i.e., resource depletion potential (RDP)), sum of material manufacturing and use and maintenance stage.
Sustainability 08 00376 g009
Table A1. Ground thermal conductivity according to silica sand mass fraction.
Table A1. Ground thermal conductivity according to silica sand mass fraction.
20% BentoniteSilica Sand Mass Fraction (%)
05101520253035404550
DY-1000.77460.86190.90550.94080.97381.05671.13731.2331.34381.49671.6107
DY-100S0.79370.90720.92790.9641.01571.08281.16531.26341.37691.50591.6504
Montigel F0.78790.88310.92110.9571.00821.07481.15081.25421.36681.49491.6383
EZ-SEAL0.80670.92210.94310.97981.03231.10051.18441.328411.39951.53061.6774
Thermal Grout0.83740.95710.9791.03481.07161.15981.22951.35041.45271.58881.7531
Volcay Grout0.76150.87460.91590.95540.98971.08841.12861.21161.29971.48391.6052
Table A2. The actual monthly load of the facility.
Table A2. The actual monthly load of the facility.
MonthTotal Load (kWh)Peak Load (kW)
January26,946236
February19,913193
March40,572142
April18,52167
May14,80085
June35,807213
July21,312306
August20,424293
September32,226191
October22,96580
November29,633107
December53,586188
Table A3. Monthly electricity consumption for 40 years through simulation.
Table A3. Monthly electricity consumption for 40 years through simulation.
MonthElectricity Consumption (kWh)EWT (°C)
January571613.9
February421014.1
March877313.0
April393415.1
May198415.9
June523217.9
July300917.1
August289217.1
September478818.3
October478114.8
November623414.3
December11,61412.8
Table A4. Influence coefficient values of different impact factors for environmental impact (i.e., global warming potential (GWP)).
Table A4. Influence coefficient values of different impact factors for environmental impact (i.e., global warming potential (GWP)).
ClassificationValuesEnvironmental Impact (GWP) (kg-CO2-eq)Influent Coefficient (IC) of Environmental Impact (GWP)
Material ManufacturingUse and MaintenanceSumMaterial ManufacturingUse and MaintenanceSum
Category 1 borehole length (m)Scenario 1-15054,4791,375,8331,430,3120.96−0.17−0.05
Scenario 1-2100101,1031,270,1321,371,2351.00−0.090.03
Scenario 1-3150151,3741,232,1661,383,539---
Scenario 1-4200201,9261,213,5831,415,5091.00−0.050.07
Category 2 grout thermal conductivity (W/m·K)Scenario 2-10.875148,5731,235,8091,384,3820.16−0.03−0.01
Scenario 2-20.99151,3741,232,1661,383,539---
Scenario 2-31.2116154,4551,227,0771,381,5320.09−0.02−0.01
Scenario 2-41.6157,2551,221,5891,378,8440.06−0.01−0.01
Category 3 borehole spacing (m)Scenario 3-14151,3741,234,6891,386,0630.00−0.01−0.01
Scenario 3-25151,3741,232,1661,383,539---
Scenario 3-36151,3741,231,6521,383,0260.000.000.00
Scenario 3-47151,3741,231,2191,382,5930.000.000.00
Category 4 borehole diameter (mm)Scenario 4-1125123,9851,230,3801,354,3651.090.010.13
Scenario 4-2150151,3741,232,1661,383,539---
Scenario 4-3175169,5031,233,5461,403,0500.720.010.08
Scenario 4-4200194,9611,234,6891,429,6490.860.010.10
Category 5 U-pipe diameter (mm)Scenario 5-125148,9041,237,0561,385,9600.07−0.02−0.01
Scenario 5-232151,3741,232,1661,383,539---
Scenario 5-340156,8071,227,7811,384,5880.14−0.010.00
Scenario 5-450169,0581,223,1151,392,1720.21−0.010.01
Category 6 U-pipe spacing (mm)Scenario 6-10151,3741,241,7121,393,0860.00−0.01−0.01
Scenario 6-23.17151,3741,240,4521,391,8250.00−0.01−0.01
Scenario 6-328.37151,3741,232,1661,383,539---
Scenario 6-486151,3741,217,2551,368,6290.00−0.01−0.01
Table A5. Influence coefficient values of different impact factors for environmental impact (i.e., acidification potential (AP)).
Table A5. Influence coefficient values of different impact factors for environmental impact (i.e., acidification potential (AP)).
ClassificationValuesEnvironmental Impact (AP) (kg-SO2-eq)Influent Coefficient (IC) of Environmental Impact (AP)
Material ManufacturingUse and MaintenanceSumMaterial ManufacturingUse and MaintenanceSum
Category 1 borehole length (m)Scenario 1-150296236226580.98−0.170.16
Scenario 1-2100569218127490.99−0.090.22
Scenario 1-315085121152966---
Scenario 1-42001135208332191.00−0.050.26
Category 2 grout thermal conductivity (W/m·K)Scenario 2-10.875829212229500.22−0.030.05
Scenario 2-20.9985121152966---
Scenario 2-31.2116875210729820.13−0.020.02
Scenario 2-41.6897209729940.09−0.010.02
Category 3 borehole spacing (m)Scenario 3-14851212029700.00−0.01−0.01
Scenario 3-2585121152966---
Scenario 3-36851211429650.000.000.00
Scenario 3-47851211429650.000.000.00
Category 4 borehole diameter (mm)Scenario 4-1125709211228221.000.010.29
Scenario 4-215085121152966---
Scenario 4-3175943211830610.650.010.19
Scenario 4-42001074212031930.790.010.23
Category 5 U-pipe diameter (mm)Scenario 5-125829212429520.12−0.020.02
Scenario 5-23285121152966---
Scenario 5-340900210830070.23−0.010.06
Scenario 5-4501010210031090.33−0.010.09
Category 6 U-pipe spacing (mm)Scenario 6-10851213229830.00−0.01−0.01
Scenario 6-23.17851213029800.00−0.01−0.01
Scenario 6-328.3785121152966---
Scenario 6-486851209029410.00−0.010.00
Table A6. Influence coefficient values of different impact factors for environmental impact (i.e., eutrophication potential (EP)).
Table A6. Influence coefficient values of different impact factors for environmental impact (i.e., eutrophication potential (EP)).
ClassificationValuesEnvironmental Impact (EP) (kg- P O 4 3 -eq) Influent Coefficient (IC) of Environmental Impact (EP)
Material ManufacturingUse and MaintenanceSumMaterial ManufacturingUse and MaintenanceSum
Category 1 borehole length (m)Scenario 1-150304404690.97−0.170.03
Scenario 1-2100574064620.99−0.090.10
Scenario 1-315084394478---
Scenario 1-42001133885001.00−0.050.14
Category 2 grout thermal conductivity (W/m·K)Scenario 2-10.875813954760.32−0.030.04
Scenario 2-20.9984394478---
Scenario 2-31.2116883924800.18−0.020.02
Scenario 2-41.6913904810.13−0.010.01
Category 3 borehole spacing (m)Scenario 3-14843944790.00−0.01−0.01
Scenario 3-2584394478---
Scenario 3-36843934780.000.000.00
Scenario 3-47843934780.000.000.00
Category 4 borehole diameter (mm)Scenario 4-1125723934650.920.820.85
Scenario 4-215084394478---
Scenario 4-3175943944880.890.820.84
Scenario 4-42001063945010.880.820.84
Category 5 U-pipe diameter (mm)Scenario 5-125813954760.19−0.020.02
Scenario 5-23284394478---
Scenario 5-340923924840.36−0.010.05
Scenario 5-4501093915000.52−0.010.08
Category 6 U-pipe spacing (mm)Scenario 6-10843974810.00−0.01−0.01
Scenario 6-23.17843964810.00−0.01−0.01
Scenario 6-328.3784394478---
Scenario 6-486843894730.00−0.010.00
Table A7. Influence coefficient values of different impact factors for environmental impact (i.e., photochemical oxidation potential (POCP)).
Table A7. Influence coefficient values of different impact factors for environmental impact (i.e., photochemical oxidation potential (POCP)).
ClassificationValuesEnvironmental Impact (POCP) (kg-C2H4-eq)Influent Coefficient (IC) of Environmental Impact (POCP)
Material ManufacturingUse and MaintenanceSumMaterial ManufacturingUse and MaintenanceSum
Category 1 borehole length (m)Scenario 1-1501953.971990.97−0.170.96
Scenario 1-21003703.663740.99−0.090.98
Scenario 1-31505523.55555---
Scenario 1-42007373.507401.01−0.051.00
Category 2 grout thermal conductivity (W/m·K)Scenario 2-10.8755223.575260.46−0.030.46
Scenario 2-20.995523.55555---
Scenario 2-31.21165843.545880.26−0.020.26
Scenario 2-41.65523.565550.000.000.00
Category 3 borehole spacing (m)Scenario 3-145523.565550.00−0.010.00
Scenario 3-255523.55555---
Scenario 3-365523.555550.000.000.00
Scenario 3-475523.555550.000.000.00
Category 4 borehole diameter (mm)Scenario 4-11254823.554850.760.010.76
Scenario 4-21505523.55555---
Scenario 4-31756113.566150.640.010.64
Scenario 4-42006883.566910.740.010.73
Category 5 U-pipe diameter (mm)Scenario 5-1255173.575210.29−0.020.28
Scenario 5-2325523.55555---
Scenario 5-3406283.546310.55−0.010.55
Scenario 5-4507993.538030.80−0.010.79
Category 6 U-pipe spacing (mm)Scenario 6-105523.585550.00−0.010.00
Scenario 6-23.175523.585550.00−0.010.00
Scenario 6-328.375523.55555---
Scenario 6-4865523.515550.00−0.010.00

References

  1. British Petroleum (BP). Statistical Review of World Energy 2015; British Petroleum: London, UK, 2015. [Google Scholar]
  2. Hong, T.H.; Koo, C.W.; Kim, H.J. A decision support model for improving a multi-family housing complex based on CO2 emission from electricity consumption. J. Environ. Manag. 2012, 112, 67–78. [Google Scholar] [CrossRef] [PubMed]
  3. Koo, C.W.; Lee, M.H.; Hong, T.H.; Park, H.S. Development for a new energy efficiency rating system for existing residential buildings. Energ. Policy 2014, 68, 218–231. [Google Scholar] [CrossRef]
  4. Ji, C.W.; Hong, T.H.; Park, H.S. Comparative analysis of decision-making methods for integrating cost and CO2 emission. Energy Build. 2014, 72, 186–194. [Google Scholar] [CrossRef]
  5. Breidenich, C.; Magraw, D.; Rowley, A.; Rubin, J.W. Kyoto Protocol to the United Nations Framework Convention on Climate Change; United Nations. Am. J. Int. Law. 1998, 92, 315–331. [Google Scholar] [CrossRef]
  6. Intergovernmental Panel on Climate Change (IPCC). Climate Change 2014: Synthesis Report; Adopted; I.P.C.C.: Copenhagen, Denmark, 2014; Available online: http://www.ipcc.ch/ (accessed on 15 April 2016).
  7. Hong, T.H.; Kim, H.J.; Kwak, T.H. Energy-Saving Techniques for Reducing CO2 Emissions in Elementary Schools. J. Manag. Eng. 2012, 28, 39–50. [Google Scholar] [CrossRef]
  8. Hong, T.H.; Kim, J.M.; Koo, C.W. LCC and LCCO2 analysis of green roofs in elementary schools with energy saving measures. Energy Build. 2012, 45, 229–239. [Google Scholar] [CrossRef]
  9. Federal Energy Management Program. Ground-Source Heat Pumps Applied to Federal Facilities—Second Editon. 2001. Available online: http://smartenergy.illinois.edu/pdf/Archive/GroundSourceHeatPumpApplication.pdf (accessed on 14 April 2016).
  10. European Environment Agency (EEA). Trend and Projections in Europe 2014: Tracking Progress towards Europe’s Climate and Energy Targets for 2020. Denmark, 2014. Available online: http://www.actu-environnement.com/media/pdf/news-23105-etude-eea-europe-climat-energie.pdf (accessed on 14 April 2016).
  11. Department of State (DOS). Fifth National Communication of the United States of America Under the United Nations Framework Convention on Climate Change: U.S. Climate Action Report 2010; U.S. Department of State (DOS): Washington, DC, USA, 2010.
  12. Jones, R.S.; Yoo, B.S. Korea’s Green Growth Strategy: Mitigating Climate Change and Developing New Growth Engines. OECD Economics Department Working Papers. 2010, Volume 54. Available online: http://dx.doi.org/10.1787/5kmbhk4gh1ns-en (accessed on 15 April 2016).
  13. Park, J.H.; Hong, T.H. Maintenance management process for reducing CO2 emission in shopping mall complexes. Energy Build. 2011, 43, 894–904. [Google Scholar] [CrossRef]
  14. Renewable Energy Policy Network for the 21st Century (REN21). Global Status Report: Renewables 2015. 2015. Available online: http://www.ren21.net/wp-content/uploads/2015/07/REN12-GSR2015_Onlinebook_low1.pdf (accessed on 14 April 2016).
  15. Renewable Energy Policy Network for the 21st Century (REN21). REN21 10 Year Report. 2014. Available online: http://www.ren21.net/Portals/0/documents/activities/Topical%20Reports/REN21_10yr.pdf (accessed on 15 April 2016).
  16. Pereira, A.O., Jr.; Costa, R.C.; Vale Costa, C.; Marreco, J.M.; Rovere, E.L.L. Perspectives for the expansion of new renewable energy sources in Brazil. Renew. Sust. Energ. Rev. 2013, 23, 49–59. [Google Scholar] [CrossRef]
  17. Schiling, M.A.; Esmundo, M. Technology S-curves in renewable energy alternatives: Analysis and implications for industry and government. Energ. Policy 2009, 37, 1767–1781. [Google Scholar] [CrossRef]
  18. Greenpeace International. Energy Revolution: A Sustainable World Energy Outlook 2015; Greenpeace International: Brussels, Belgium, 2015. [Google Scholar]
  19. Koo, C.W.; Hong, T.H.; Park, H.S.; Yun, G.C. Framework for the analysis of the potential of the rooftop photovoltaic system to achieve the net-zero energy solar buildings. Prog. Photovolt. 2014, 22, 462–478. [Google Scholar] [CrossRef]
  20. Park, H.S.; Hong, T.H. Analysis of South korea’s economic growth, carbon dioxide emission, and energy consumption using the Markov switching. Renew. Sust. Energ. Rev. 2013, 18, 543–551. [Google Scholar] [CrossRef]
  21. International Energy Agency (IEA). Medium-Term Renewable Energy Market Report 2015; OECD Publishing: Paris, France, 2015. [Google Scholar]
  22. International Energy Agency (IEA). Medium-Term Renewable Energy Market Report 2014; OECD Publishing: Paris, France, 2014. [Google Scholar]
  23. International Energy Agency (IEA). Medium-Term Renewable Energy Market Report 2012; OECD Publishing: Paris, France, 2012. [Google Scholar]
  24. Committee on Climate Change. The Fourth Carbon Budget: Reducing Emissions Through the 2020s; Committee on Climate Change: London, England, 2010; Available online: https://www.theccc.org.uk/archive/aws2/4th%20Budget/CCC_4th-Budget_interactive.pdf (accessed on 15 April 2016).
  25. Energy Information Administration (EIA). Annual Energy Outlook 2015 with projections to 2040; Energy Information Administration: Washington, DC, USA, 2015. Available online: http://www.eia.gov/forecasts/aeo/pdf/0383(2015).pdf (accessed on 15 April 2016).
  26. Department of Energy and Climate Change (DECC). 2014 UK Greenhouse Gas Emissions: Provisional Figures. UK, 2015. Available online: https://www.gov.uk/government/uploads/system/uploads/attachment_data/file/416810/2014_stats_release.pdf (accessed on 14 April 2016). [Google Scholar]
  27. International Energy Agency (IEA). Energy Technology Perspectives 2015: Mobilising Innovation to Accelerate Climate Action. 2015. Available online: https://www.iea.org/publications/freepublications/publication/EnergyTechnologyPerspectives2015ExecutiveSummaryEnglishversion.pdf (accessed on 14 April 2016).
  28. Koo, C.W.; Hong, T.H.; Lee, M.H. Estimation of the monthly average daily solar radiation using geographic information system and advanced case-based. Environ. Sci. Technol. 2013, 47, 4829–4839. [Google Scholar] [CrossRef] [PubMed]
  29. International Energy Agency (IEA). World Energy Outlook 2015; International Energy Agency: Paris, France, 2015; Available online: http://www.iea.org/Textbase/npsum/WEO2015SUM.pdf (accessed on 15 April 2016).
  30. Hong, T.H.; Koo, C.W.; Kim, H.J.; Park, H.S. Decision support model for establishing the optimal energy retrofit strategy for existing multi-family housing complexes. Energ. Policy 2014, 66, 157–169. [Google Scholar] [CrossRef]
  31. New Renewable Energy Center in the Korea Energy Management Corporation (KEMCO). Available online: http://www.energy.or.kr (accessed on 16 September 2015).
  32. Ramli, M.A.M.; Twaha, S. Analysis of renewable energy feed-in tariffs in selected regions of the globe: Lessons for Saudi Arabia. Renew. Sust. Energy. Rev. 2015, 45, 649–661. [Google Scholar] [CrossRef]
  33. Cory, K.; Couture, T.; Kreycik, C. Feed-in Tariff Policy: Design, Implementation, and RPS Policy Interactions; National Renewable Energy Laboratory (NREL): Washington, DC, USA, 2009.
  34. Hong, T.H.; Koo, C.W.; Park, J.H.; Park, H.S. A GIS(geographic information system)-based optimization model for estimating the electricity generation of the rooftop PV. Energy 2014, 65, 190–199. [Google Scholar] [CrossRef]
  35. Hong, T.H.; Koo, C.W.; Lee, S.U. Benchmarks as a tool for free allocation through comparison with similar projects: Focused on multi-family housing complex. Appl. Energy 2014, 114, 663–675. [Google Scholar] [CrossRef]
  36. Han, S.W.; Hong, T.H.; Lee, S.Y. Production prediction of conventional and global positioning system-based earthmoving systems using simulation and multiple. Can. J. Civil. Eng. 2008, 35, 574–587. [Google Scholar] [CrossRef]
  37. Bertani, R. Geothermal power generation in the world 2010–2014 updated report. Geothermics 2016, 60, 31–43. [Google Scholar] [CrossRef]
  38. Kalz, D.E.; Vellei, M.; Winiger, S. Energy and Efficiency Analysis of Heat Pump Systems in Nonresidential Buildings by Means of Long-Term Measurements. In Proceedings of the 11th REHVA World Congress and 8th International Conference on IAQVEC, Prague, Prague Czech Republic, 16–19 June 2013.
  39. Fujii, H.; Yamasaki, S.; Maehara, T.; Ishikami, T.; Chou, N. Numerical simulation and sensitivity study of double-layer Slinky-coil horizontal ground heat exchangers. Geothermics 2013, 47, 61–68. [Google Scholar] [CrossRef]
  40. Casasso, A.; Sethi, R. Efficiency of closed loop geothermal heat pumps: A sensitivity analysis. Renew. Energ. 2014, 62, 737–746. [Google Scholar] [CrossRef]
  41. Kim, J.; Hong, T.; Chae, M.; Koo, C.; Jeong, J. An Environmental and Economic Assessment for Selecting the Optimal Ground Heat Exchanger by Considering the Entering Water Temperature. Energies 2015, 8, 7752–7776. [Google Scholar] [CrossRef]
  42. Cosentino, S.; Sciacovelli, A.; Verda, V.; Noce, G. Energy and exergy analysis of ground thermal energy storage: optimal charging time in different operating conditions. In Proceedings of the ECOS 2015: The 28th International Conference on Efficiency, Cost, Optimization, Simulation and Environmental Impact of Energy System, Pau, France, 30 June 2015.
  43. Hepbasli, A. Performance evaluation of a vertical ground-source heat pump system in Izmir, Turkey. Int. J. Energy. Res. 2002, 26, 1121–1139. [Google Scholar] [CrossRef]
  44. Boyaghchi, F.A.; Chavoshi, M.; Sabeti, V. Optimization of a novel combined cooling, heating and power cycle driven by gothermal and sola energies using the water/CuO (copper oxide) nanofluid. Energy 2015, 91, 685–699. [Google Scholar] [CrossRef]
  45. Esen, H.; Inalli, M. Modelling of a vertical ground coupled heat pump system by using artificial neural networks. Expert. Syst. Appl. 2009, 36, 10229–10238. [Google Scholar] [CrossRef]
  46. Alavy, M.; Nguyen, H.V.; Leong, W.H.; Dworkin, S.B. A methodology and computerized approach for optimizing hybrid ground source heat pump system design. Renew. Energy 2013, 57, 404–412. [Google Scholar] [CrossRef]
  47. Saltelli, A. Sensitivity Analysis for Importance Assessment. Risk. Anal. 2002, 22, 1–12. [Google Scholar] [CrossRef]
  48. Saltelli, A.; Ratto, M.; Andres, T.; Campolongo, F.; Cariboni, J.; Gatelli, D.; Saisana, M.; Tarantola, S. Global Sensitivity Analysis: the Primer; John Wiley and Sons: Chichester, West sussex, Englnad, 2008. [Google Scholar]
  49. Koo, C.W.; Hong, T.H.; Hyun, C.T.; Park, S.H.; Seo, J.O. A study on the development of a cost model based on the owner’s decision making at the early stages of a construction project. Int. J. Strateg. Prop. Manag. 2010, 14, 121–137. [Google Scholar] [CrossRef]
  50. Kalz, D.E.; Pfafferott, J.; Herkel, S.; Wagner, A. Energy and efficiency analysis of environmental heat sources and sinks: In-use performance. Renew. Energy 2011, 36, 916–929. [Google Scholar] [CrossRef]
  51. Gao, J.; Zhang, X.; Liu, J.; Li, K.S.; Yang, J. Thermal performance and ground temperature of vertical pile-foundation heat exchangers: A case study. Appl. Therm. Eng. 2008, 28, 2295–2304. [Google Scholar] [CrossRef]
  52. Hepbasli, A.; Akdemir, O.; Hancioglu, E. Experimental study of a closed loop vertical ground source heat pump system. Energy Convers. Manag. 2003, 44, 527–548. [Google Scholar] [CrossRef]
  53. Zhang, Q.; Murphy, W.E. Measurement of thermal conductivity for three borehole fill materials used for GSHP. ASHRAE Trans. 2000, 106, 434. [Google Scholar]
  54. Kharseh, M.; Altorkmany, L.; Nordell, B. Global warming’s impact on the performance of GSHP. Renew. Energy 2011, 36, 1485–1491. [Google Scholar] [CrossRef]
  55. Jeon, J.; Lee, S.; Hong, D.; Kim, Y. Performance evaluation and modeling of a hybrid cooling system combining a screw water chiller with a ground source heat pump in a building. Energy 2010, 35, 2006–2012. [Google Scholar] [CrossRef]
  56. Madani, H.; Claesson, J. Retrofitting a variable capacity heat pump to a ventilation heat recovery system: Modeling and performance analysis. In Proceedings of the International Conference on Applied Energy, Singapore, 21–23 April 2010; pp. 649–658.
  57. Hepbasli, A.; Akdemir, O. Energy and exergy analysis of a ground source (geothermal) heat pump system. Energy Convers. Manag. 2004, 45, 737–753. [Google Scholar] [CrossRef]
  58. Lamarche, L.; Kajl, S.; Beauchamp, B. A review of methods to evaluate borehole thermal resistances in geothermal heat-pump systems. Geothermics 2010, 39, 187–200. [Google Scholar] [CrossRef]
  59. Butler, D.K.; Curro, J.R., Jr. Crosshole seismic testing—Procedures and pitfalls. Geophysics 1981, 46, 23–29. [Google Scholar] [CrossRef]
  60. Fan, R.; Gao, Y.; Hua, L.; Deng, X.; Shi, J. Thermal performance and operation strategy optimization for a practical hybrid ground-source heat-pump system. Energy Build. 2014, 78, 238–247. [Google Scholar] [CrossRef]
  61. Zeng, H.; Diao, N.; Fang, Z. Efficiency of vertical geothermal heat exchangers in the ground source heat pump system. J. Therm. Sci. 2003, 12, 77–81. [Google Scholar] [CrossRef]
  62. Liu, X.L.; Wang, D.L.; Fan, Z.H. Modeling on heat transfer of a vertical bore in geothermal heat exchangers. Build. Energy Environ. 2001, 2, 1–3. [Google Scholar]
  63. Beier, R.A.; Smith, M.D.; Spitler, J.D. Reference data sets for vertical borehole ground heat exchanger models and thermal response test analysis. Geothermics 2011, 40, 79–85. [Google Scholar] [CrossRef]
  64. Inalli, M.; Esen, H. Experimental thermal performance evaluation of a horizontal ground-source heat pump system. Appl. Therm. Eng. 2004, 24, 2219–2232. [Google Scholar] [CrossRef]
  65. Khan, M.A.; Wang, J.X. Development of a graph method for preliminary design of boreholeground-coupled heat exchanger in North Louisiana. Energy Build. 2015, 92, 389–397. [Google Scholar] [CrossRef]
  66. Jeon, J.; Lee, S.; Hong, D.; Kim, Y. Performance evaluation and modeling of a hybrid cooling system combining a screw water chiller with a ground source heat pump in a building. Energy 2010, 35, 2006–2012. [Google Scholar] [CrossRef]
  67. Sivasakthivel, T.; Murugesan, K.; Sahoo, P.K. Potential reduction in CO2 emission and saving in electricity by ground source heat pump system for space heating applications-a study on northern part of India. Procedia Eng. 2012, 38, 970–979. [Google Scholar] [CrossRef]
  68. Le Feuvre, P. An Investigation into Ground Source Heat Pump Technology, Its UK Market and Best Practice in System Design. Ph.D. Thesis, Strathclyde University, UK, September 2007. [Google Scholar]
  69. Lee, C.K. Effects of multiple ground layers on thermal response test analysis and ground-source heat pump simulation. Appl. Energ. 2011, 88, 4405–4410. [Google Scholar] [CrossRef]
  70. International Ground Source Heat Pump Association. Closed-Loop/Geothermal Heat Pump Systems Design and Installation Standards 2010 Edition. 2010. Available online: http://www.igshpa.okstate.edu/pdf_files/publications/standards2010s.pdf (accessed on 14 April 2016).
  71. Ground Source Heat Pump Association. Closed-Loop Vertical Borehole Design, Installation and Materials Standards; Ground Source Heat Pump Association: England, UK, 2011. [Google Scholar]
  72. Korea Energy Management Corporation (KEMCO). Annual End-Use Energy Statistics; Korea Energy Management Corporation: Seoul, Korea, 2013; Available online: http://www.kemco.or.kr/ (accessed on 28 June 2015).
  73. Korean Statistical Information Service(KOSIS). New Renewable Energy Investigation of Supply Statistics Report; Korean Statistical Information Service: Seoul, Korea, 2015; Available online: http://kosis.kr/ (accessed on 15 April 2016).
  74. Yang, H.; Cui, P.; Fang, Z. Vertical-borehole ground-coupled heat pumps: A review of models and systems. Appl. Energy 2010, 87, 16–27. [Google Scholar] [CrossRef]
  75. Lee, J.Y. Current status of ground source heat pumps in Korea. Renew. Sust. Energ. Rev. 2009, 13, 1560–1568. [Google Scholar] [CrossRef]
  76. Hong, T.H.; Koo, C.W.; Kwak, T.H. Framework for the implementation of a new renewable energy system in an educational facility. Appl Energy 2013, 103, 539–551. [Google Scholar]
  77. Hong, T.H.; Koo, C.W.; Kwak, T.H.; Park, H.S. An economic and environmental assessment for selecting the optimum new renewable energy system for educational facility. Renew. Sust. Energy Rev. 2014, 29, 286–300. [Google Scholar] [CrossRef]
  78. Swan, L.G.; Ugursal, V.I. Modeling of end-use energy consumption in the residential sector: A review of modeling techniques. Renew. Sust. Energy Rev. 2009, 13, 1819–1835. [Google Scholar] [CrossRef]
  79. American Society of Heating, Refrigerating and Air-conditioning Engineers (ASHRAE). ASHRAE Guideline 14–2002: Measurement of Energy and Demand Savings: American Society of Heating; Refrigerating and Air-conditioning Engineers: Atlanta, GA, USA, 2002. [Google Scholar]
  80. Lam, J.C.; Hui, S.C. Sensitivity analysis of energy performance of office buildings. Build. Environ. 1996, 31, 27–39. [Google Scholar] [CrossRef]
  81. Lam, J.C.; Wan, K.K.W.; Yang, L. Sensitivity analysis and energy conservation measures implications. Energ. Convers. Manag. 2008, 49, 3170–3177. [Google Scholar] [CrossRef]
  82. Heiselberg, P.; Brohus, H.; Hesselholt, A.; Rasmussen, H.; Seinre, E.; Thomas, S. Application of sensitivity analysis in design of sustainable buildings. Renew. Energy 2009, 34, 2030–2036. [Google Scholar] [CrossRef]
  83. Azar, E.; Menassa, C.C.A. Comprehensive analysis of the impact of occupancy parameters in energy simulation of office buildings. Energy Build. 2012, 55, 841–853. [Google Scholar] [CrossRef]
  84. Yavuzturk, C. Modeling of Vertical Ground Loop Heat Exchangers for Ground Source Heat Pump Systems. Ph.D. Thesis, Oklahoma State University, Stillwater, OK, USA, December 1999. [Google Scholar]
  85. Spitler, J.D. GLHEPRO-A Design Tool for Commercial Building Ground Loop Heat Exchangers. In Proceedings of the Fourth International Heat Pumps in Cold Climates Conference, Quebec, QC, Canada, 17–18 August 2000.
  86. The American Institute of Architects (AIA). A Guide to Life Cycle Assessment of Buildings; AIA: New York, NY, USA, 2010. [Google Scholar]
  87. Kim, C.J.; Kim, J.M.; Hong, T.H.; Koo, C.W.; Jeong, K.B.; Park, H.S. A program-level management system for the life cycle environmental and economic assessment of complex building projects. Environ. Impact Assess. 2015, 54, 9–21. [Google Scholar] [CrossRef]
  88. Jeong, K.B.; Ji, C.W.; Koo, C.W.; Hong, T.H.; Park, H.S. A model for predicting the environmental impacts of educational facilities in the project planning phase. J. Clean. Prod. 2014, 107, 538–549. [Google Scholar] [CrossRef]
Figure 1. Framework of the sensitivity analysis on the impact factors of the GSHP system considering energy generation and environmental impact.
Figure 1. Framework of the sensitivity analysis on the impact factors of the GSHP system considering energy generation and environmental impact.
Sustainability 08 00376 g001
Figure 2. U-pipe installation position.
Figure 2. U-pipe installation position.
Sustainability 08 00376 g002
Figure 3. Comparing the electricity consumption of the ground source heat pump for CV(RMSE).
Figure 3. Comparing the electricity consumption of the ground source heat pump for CV(RMSE).
Sustainability 08 00376 g003
Figure 4. The basic configuration of LCA.
Figure 4. The basic configuration of LCA.
Sustainability 08 00376 g004
Figure 5. Influence coefficient values of different impact factors in terms of energy generation.
Figure 5. Influence coefficient values of different impact factors in terms of energy generation.
Sustainability 08 00376 g005
Figure 6. Influence coefficient values of different impact factors in terms of environmental impact (i.e., resource depletion potential (RDP)).
Figure 6. Influence coefficient values of different impact factors in terms of environmental impact (i.e., resource depletion potential (RDP)).
Sustainability 08 00376 g006
Table 1. Overview of the impact factors.
Table 1. Overview of the impact factors.
ClassificationImpact Factor (Unit)
Regional factorsGround temperature (°C), soil type, ground thermal conductivity (W/m·K), ground heat capacity (kJ/K·m3) [51,52,53,54]
System factorsCapacity (kW), power input (kW), heat of rejection (kW), heat of extraction (kW), coefficient of performance, energy efficiency rating [55,56,57]
Design factorsBorehole length (m), borehole spacing (m), borehole diameter (mm), U-pipe position (mm), number of boreholes, arrangement, grout conductivity (W/m·K), borehole thermal resistance (K/(W/m)), U-pipe type, U-pipe diameter, fluid type, flow rate (L/s), EWT (°C) [58,59,60,61,62,63,64,65,66,67]
Table 2. Adjustable range of impact factors.
Table 2. Adjustable range of impact factors.
Impact FactorsUnitRange
Borehole Lengthm50100150200
Grout Thermal ConductivityW/m·K0.8750.991.21161.6
Borehole Spacingm4567
Borehole Diametermm125150175200
U-pipe Diametermm2532 4050
U-pipe Position-AASBC
Table 3. Overview of the target building.
Table 3. Overview of the target building.
CategoryUniversity Facility
Year established2014
LocationSeoul
Building typeResidential facility
Electricity systemOn-grid
Heating systemIndividual heating
Progressive taxNo
Gross floor area6612 m2
Major energy serviceGSHP system
Installation of capacityHeating: 352.2 kW/cooling: 364.4 kW
BoreholeLength: 150 m/ Number of borehole: 40
Table 4. Overview of the GSHP system’s base case.
Table 4. Overview of the GSHP system’s base case.
ClassificationBorehole Length (m)Grout Thermal Conductivity (W/m·K)Borehole Spacing (m)Borehole Diameter (mm)U-Pipe Diameter (mm)U-Pipe Spacing (mm)
Base case1500.99515032B
Table 5. The GSHP system’s scenarios with the impact factors.
Table 5. The GSHP system’s scenarios with the impact factors.
ClassificationBorehole Length (m)Grout Thermal Conductivity (W/m·K)Borehole Spacing (m)Borehole Diameter (mm)U-Pipe Diameter (mm)U-Pipe Spacing (mm)
Category 1 Borehole Length (m)Scenario 1-1500.99515032B = 28.67
Scenario 1-21000.99515032B = 28.67
Scenario 1-31500.99515032B = 28.67
Scenario 1-42000.99515032B = 28.67
Category 2 Grout Thermal Conductivity (W/m·K)Scenario 2-11500.875515032B = 28.67
Scenario 2-21500.99515032B = 28.67
Scenario 2-31501.2116515032B = 28.67
Scenario 2-41501.6515032B = 28.67
Category 3 Borehole spacing (m))Scenario 3-11500.99415032B = 28.67
Scenario 3-21500.99515032B = 28.67
Scenario 3-31500.99615032B = 28.67
Scenario 3-41500.99715032B = 28.67
Category 4 Borehole diameter (mm)Scenario 4-11500.99512532B = 28.67
Scenario 4-21500.99515032B = 28.67
Scenario 4-31500.99517532B = 28.67
Scenario 4-41500.99520032B = 28.67
Category 5 U-Pipe Diameter (mm)Scenario 5-11500.99515025B = 28.67
Scenario 5-21500.99515032B = 28.67
Scenario 5-31500.99515040B = 28.67
Scenario 5-41500.99515050B = 28.67
Category 6 U-Pipe spacing (mm)Scenario 6-11500.99515032A = 0
Scenario 6-21500.99515032AS = 3.17
Scenario 6-31500.99515032B = 28.67
Scenario 6-41500.99515032C = 86
Scenarios 1-3, 2-2, 3-2, 5-2, 6-3 stand for the base case; scenarios were established by considering the range of impact factors.
Table 6. Influence coefficient values of different impact factors in terms of energy generation.
Table 6. Influence coefficient values of different impact factors in terms of energy generation.
Classification of Impact FactorsAvg Min. EWT (°C)Avg. Max. EWT (°C)Influence Coefficient Values
Cooling PeriodHeating PeriodCooling PeriodHeating Period
Category 1 borehole length (m)Scenario 1-125.757.02−0.540.67
Scenario 1-220.610.94−0.260.41
Scenario 1-318.9312.65--
Scenario 1-418.0913.45−0.130.19
Category 2 grout thermal conductivity (W/m·K)Scenario 2-119.0812.5−0.070.10
Scenario 2-218.9312.65--
Scenario 2-318.7212.85−0.050.07
Scenario 2-418.513.08−0.040.06
Category 3 borehole spacing (m)Scenario 3-119.1912.39−0.070.10
Scenario 3-218.9312.65--
Scenario 3-318.8312.72−0.030.03
Scenario 3-418.7512.78−0.020.03
Category 4 borehole diameter (mm)Scenario 4-118.8612.720.02−0.03
Scenario 4-218.9312.65--
Scenario 4-318.9912.590.02−0.03
Scenario 4-419.0412.540.02−0.03
Category 5 U-pipe diameter (mm)Scenario 5-119.1312.45−0.050.07
Scenario 5-218.9312.65--
Scenario 5-318.7512.82−0.040.05
Scenario 5-418.5613.01-0.030.05
Category 6 U-pipe spacing (mm)Scenario 6-119.3212.26−0.020.03
Scenario 6-219.2712.31−0.020.03
Scenario 6-318.9312.65--
Scenario 6-418.3213.21−0.020.02
Scenarios 1-3, 2-2, 3-2, 5-2 and 6-3 stand for the base case; each scenario is described in Table 5.
Table 7. Influence coefficient values of different impact factors in terms of environmental impact (i.e., resource depletion potential (RDP)).
Table 7. Influence coefficient values of different impact factors in terms of environmental impact (i.e., resource depletion potential (RDP)).
ClassificationValuesEnvironmental Impact (RDP) (kg-Sb-eq)Influent Coefficient (IC) of Environmental Impact (RDP)
Material ManufacturingUse and MaintenanceSumMaterial ManufacturingUse and MaintenanceSum
Category 1 borehole length (m)Scenario 1-150185242126060.95−0.170.04
Scenario 1-2100338223525730.99−0.090.11
Scenario 1-315050521682673---
Scenario 1-4200675213528101.00−0.050.15
Category 2 grout thermal conductivity (W/m·K)Scenario 2-10.875484217426580.37−0.030.05
Scenario 2-20.9950521682673---
Scenario 2-31.2116529215926880.21−0.020.02
Scenario 2-41.6550214927000.14−0.010.02
Category 3 borehole spacing (m)Scenario 3-14505217226780−0.01−0.01
Scenario 3-2550521682673---
Scenario 3-36505216726720−0.002−0.002
Scenario 3-47505216626720−0.002−0.002
Category 4 borehole diameter (mm)Scenario 4-1125431216525960.880.010.17
Scenario 4-215050521682673---
Scenario 4-3175566217027360.720.010.14
Scenario 4-4200645217228170.830.010.16
Category 5 U-pipe diameter (mm)Scenario 5-125481217626570.22−0.020.03
Scenario 5-23250521682673---
Scenario 5-340559216027190.42−0.010.07
Scenario 5-450680215228320.61−0.010.11
Category 6 U-pipe spacing (mm)Scenario 6-10505218526900−0.01−0.01
Scenario 6-23.17505218226880−0.01−0.01
Scenario 6-328.3750521682673---
Scenario 6-486505214226470−0.010
Scenarios 1-3, 2-2, 3-2, 5-2 and 6-3 stand for the base case; Sb stands for Antimony (stomic number 51); each scenario is described in Table 5.

Share and Cite

MDPI and ACS Style

Hong, T.; Kim, J.; Chae, M.; Park, J.; Jeong, J.; Lee, M. Sensitivity Analysis on the Impact Factors of the GSHP System Considering Energy Generation and Environmental Impact Using LCA. Sustainability 2016, 8, 376. https://doi.org/10.3390/su8040376

AMA Style

Hong T, Kim J, Chae M, Park J, Jeong J, Lee M. Sensitivity Analysis on the Impact Factors of the GSHP System Considering Energy Generation and Environmental Impact Using LCA. Sustainability. 2016; 8(4):376. https://doi.org/10.3390/su8040376

Chicago/Turabian Style

Hong, Taehoon, Jimin Kim, Myeongsoo Chae, Joonho Park, Jaemin Jeong, and Minhyun Lee. 2016. "Sensitivity Analysis on the Impact Factors of the GSHP System Considering Energy Generation and Environmental Impact Using LCA" Sustainability 8, no. 4: 376. https://doi.org/10.3390/su8040376

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
