Sustainability 2016, 8(11), 1091; doi:10.3390/su8111091

Experimentally Investigating the Effect of Temperature Differences in the Particle Deposition Process on Solar Photovoltaic (PV) Modules

Renewable Energy Research Group, Department of Building Services Engineering, The Hong Kong Polytechnic University, Kowloon, Hong Kong, China
*
Author to whom correspondence should be addressed.
Academic Editor: Marc A. Rosen
Received: 23 May 2016 / Revised: 9 October 2016 / Accepted: 18 October 2016 / Published: 25 October 2016
(This article belongs to the Special Issue Renewable Energy Applications and Energy Saving in Buildings)
View Full-Text   |   Download PDF [1653 KB, uploaded 25 October 2016]   |

Abstract

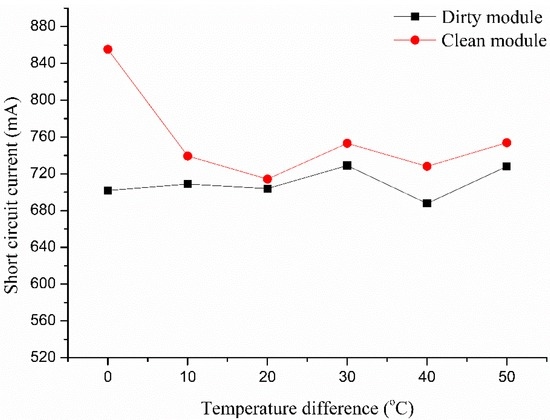

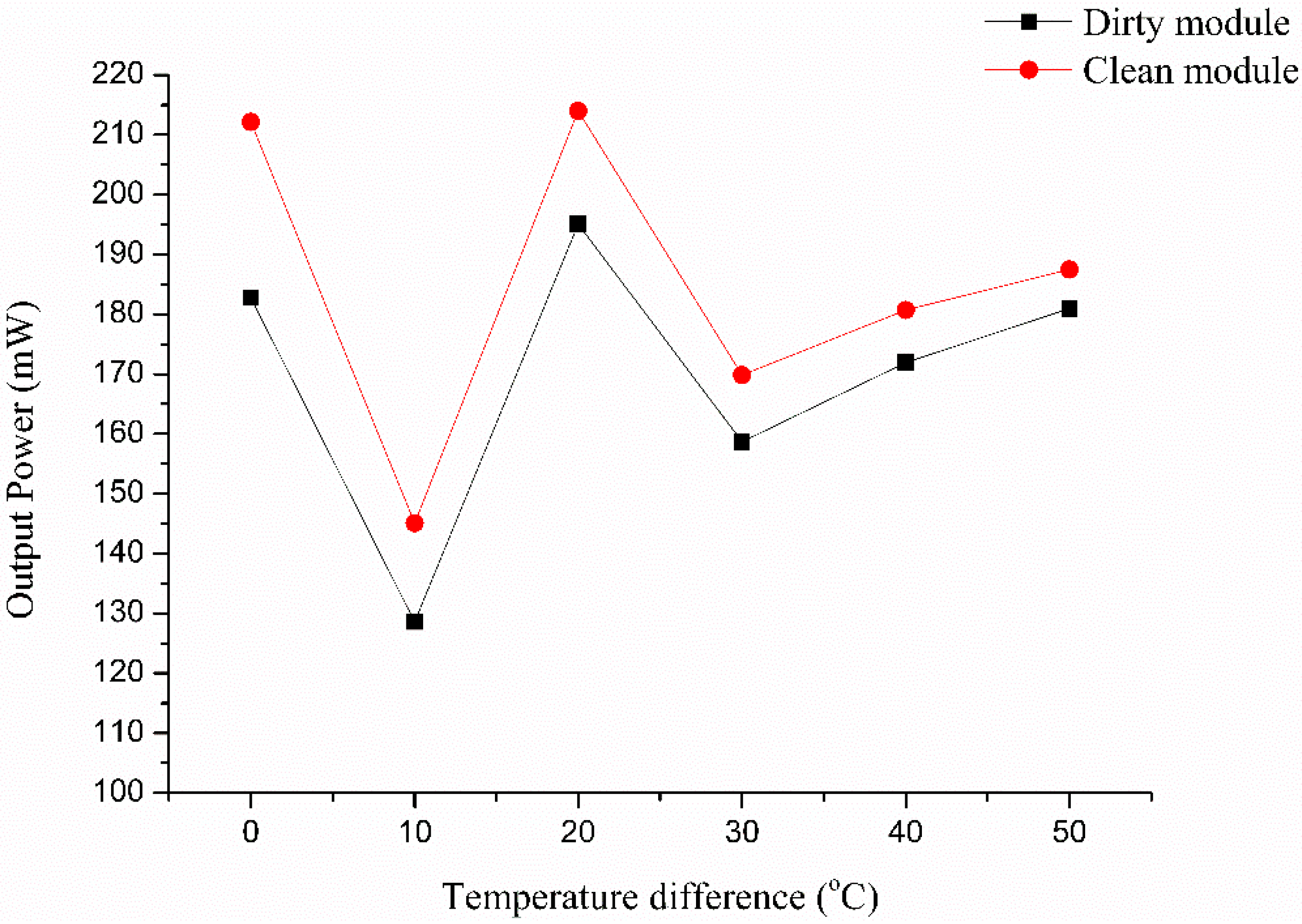

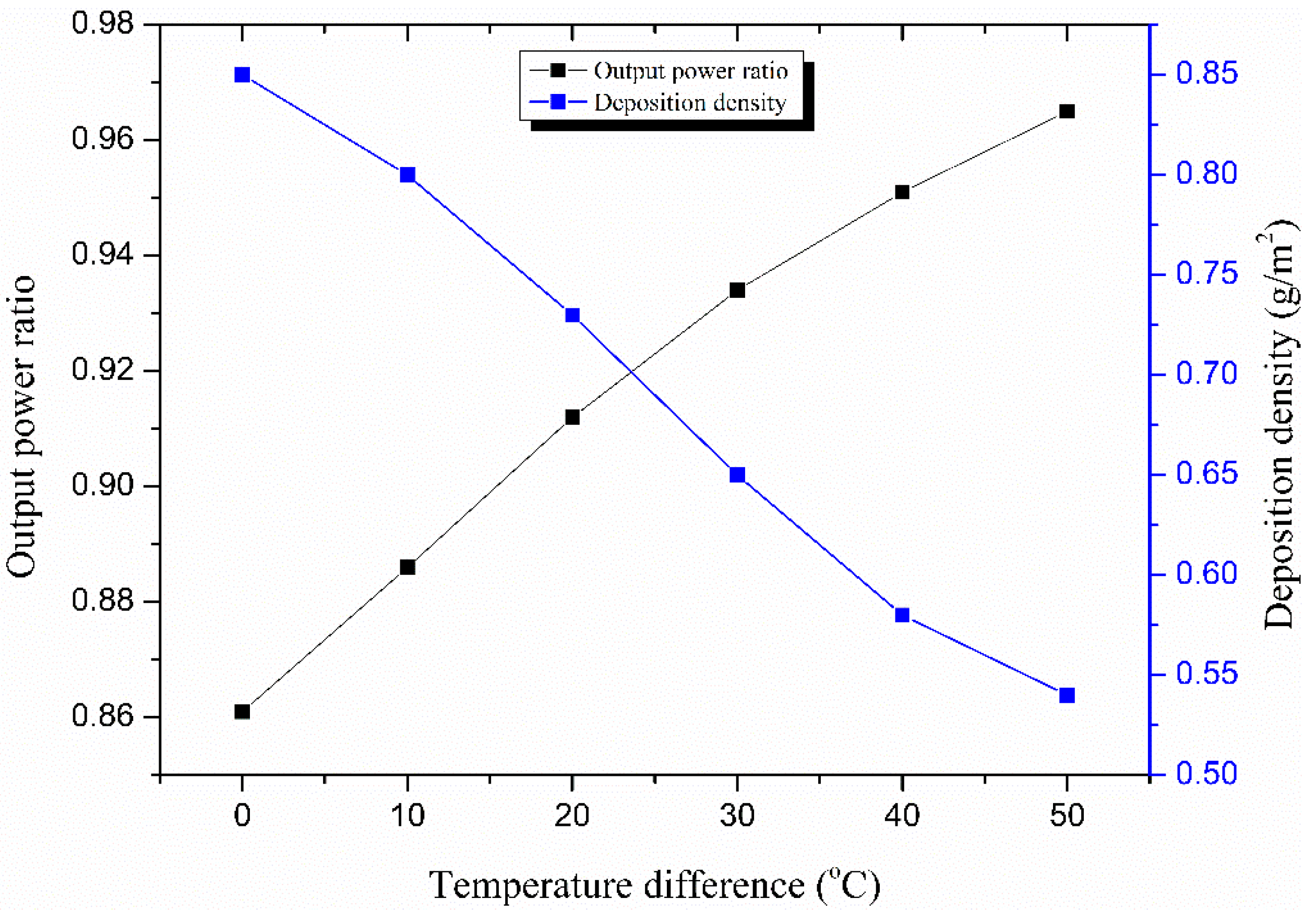

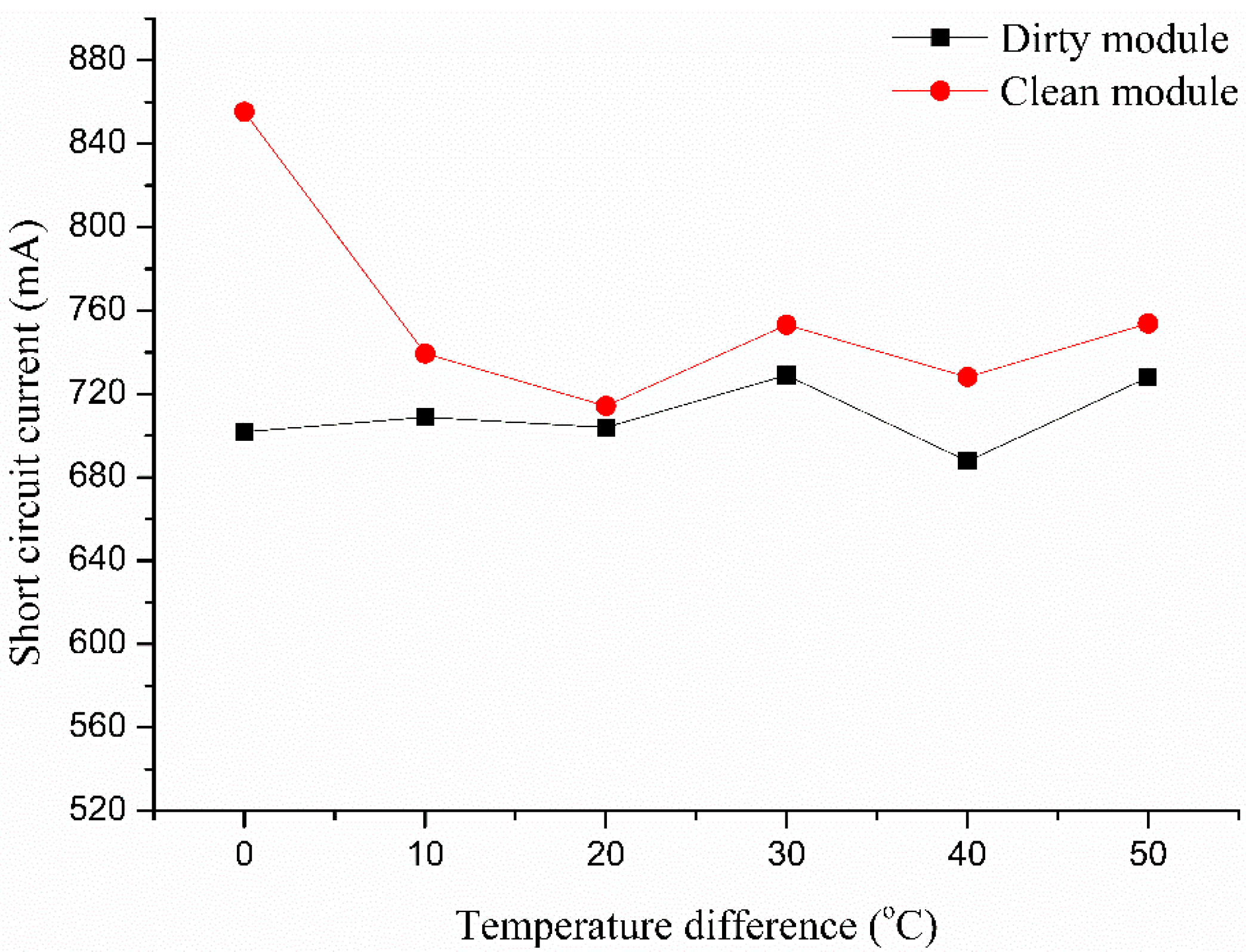

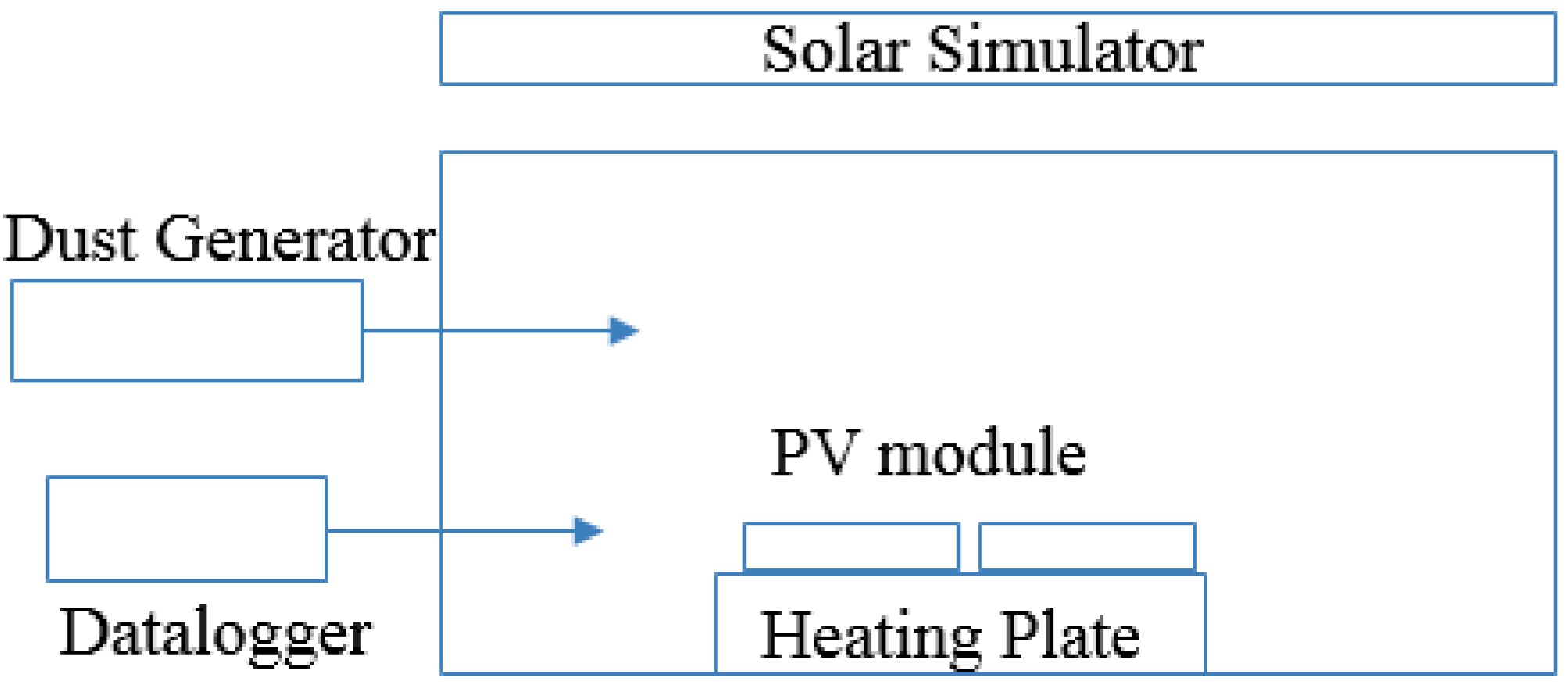

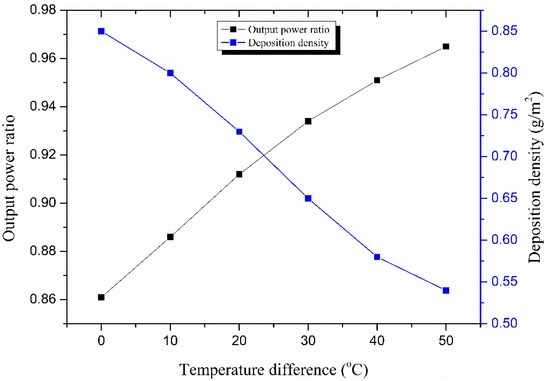

This paper reports an experimental investigation of the dust particle deposition process on solar photovoltaic (PV) modules with different surface temperatures by a heating plate to illustrate the effect of the temperature difference (thermophoresis) between the module surface and the surrounding air on the dust accumulation process under different operating temperatures. In general, if the temperature of PV modules is increased, the energy conversion efficiency of the modules is decreased. However, in this study, it is firstly found that higher PV module surface temperature differences result in a higher energy output compared with those modules with lower temperature differences because of a reduced accumulation of dust particles. The measured deposition densities of dust particles were found to range from 0.54 g/m2 to 0.85 g/m2 under the range of experimental conditions and the output power ratios were found to increase from 0.861 to 0.965 with the increase in the temperature difference from 0 to 50 °C. The PV module with a higher temperature difference experiences a lower dust density because of the effect of the thermophoresis force arising from the temperature gradient between the module surface and its surrounding air. In addition, dust particles have a significant impact on the short circuit current, as well as the output power. However, the influence of particles on open circuit voltage can be negligible. View Full-Text
Keywords: PV modules; accumulated dust; particle deposition; temperature difference; thermophoresis PV modules; accumulated dust; particle deposition; temperature difference; thermophoresis
Figures

Figure 1
