Sustainability 2012, 4(9), 1999-2021; doi:10.3390/su4091999

Article
Effects of Roof Pitch on Air Flow and Heating Load of Sealed and Vented Attics for Gable-Roof Residential Buildings
Shimin Wang and Zhigang Shen *
The Durham School of Architectural Engineering and Construction, University of Nebraska—Lincoln, 113 NH, Lincoln, NE 68588-0500, USA; Email: shiminwang@live.com
*
Author to whom correspondence should be addressed; Email: shen@unl.edu; Tel.: +1-402-472-9470; Fax: +1-402-472-4087.
Received: 29 June 2012; in revised form: 10 August 2012 / Accepted: 20 August 2012 /
Published: 30 August 2012

Abstract

: Pitch value is an important consideration in residential gable roof design and construction. However, how roof pitch, coupled with air flows in attic space, affects the energy performance of building attics has been barely investigated. In this paper, a 2D unsteady computational fluid dynamics (CFD) model is employed to investigate the effects of roof pitch on air flow and heating load of both sealed and vented attics for gable-roof residential buildings. The simulation results show that air flow in the sealed attics is steady and asymmetric, while that in the vented attics is a combination of an essentially symmetric base flow and a periodically oscillating flow. For both the sealed and vented attic cases, the heating load is found to increase with the roof pitch, and the heat transfer of turbulent air flow in attic space can be satisfactorily correlated by a simple relationship between appropriately defined Nusselt number and Rayleigh number.
Keywords:
attic; roof pitch; air flow; heating load; turbulence; CFD

Nomenclature

cpspecific heat, J kg−1 K−1
felliptic relaxation function
ggravitational acceleration, m s−2
hheat transfer coefficient, W m−2 K−1
Hattic height, m
kturbulence kinetic energy, m2 s−2
Lturbulence length scale, m
NuNusselt number
ppressure, Pa
patmatmospheric pressure, Pa
qheat flux, Wm−2
Qheat transfer rate, W/m
Rthermal resistance, K m2/W
RaRayleigh number
Sstrain rate, s−1
tcceiling thickness, m
Ttemperature, K
T0reference temperature, K
Tininlet air temperature, K
uvelocity component, m/s
Sustainability 04 01999 i020turbulence velocity variance scale, m2 s−2
Whalf width of attic, m
x,ycoordinates, m

Greeksymbols

βthermal expansion coefficient, K−1
εturbulence dissipation rate, m2 s−3
λthermal conductivity, W m−1 K−1
λcceiling thermal conductivity, W m−1 K−1
µmolecular viscosity, kg m−1 s−1
µteddy viscosity, kg m−1 s−1
ρdensity, kg m−3
σkeffective turbulence Prandtl number for k
σεeffective turbulence Prandtl number for ε
σTeffective turbulence Prandtl number for T
τturbulence time scale, s

Subscripts

aair
cceiling
cbceiling-bottom
ctceiling-top
rroof
rbroof-bottom
rtroof-top
ttotal

1. Introduction

Pitched roofs are widely used in residential building construction. In general, houses in areas with more precipitations have steeper roofs. The steepness of a roof is quantitatively measured by roof pitch, which is usually expressed as a rational fraction between the vertical rise and the corresponding horizontal run distance.

For a given roof footprint, a steeper roof requires a larger area of roof material and forms a larger and higher attic space. Therefore, it is natural to expect that roof pitch, coupled with air flows in attic space, will affect the energy performance of a building. The primary objective of this study is to numerically investigate the effects of roof pitch on air flow and heating load of sealed and vented attics for gable-roof residential buildings, which can be reasonably represented by 2D numerical models.

Attic ventilation has been a common practice in the United States since 1940s [1]. For decades, the ASHRAE Handbook—Fundamentals has included recommendations for attic ventilation in residential roof construction, and many existing building codes across the United States (e.g., the BOCA National Building Code, International Building Code, Standard Building Code, and Uniform Building Code) require attic spaces to be ventilated [2]. Typically, the net free vent area (unobstructed area where air can freely flow from outside to inside to outside) is required to be 1/150 of the floor area of the attic space being ventilated, and a reduction of the ventilation ratio from 1/150 to 1/300 is allowed only if at least 50% of the ventilating area is in the upper portion of the space and a continuous vapor retarder is installed on the warm side of the ceiling in cold climates [3].

Despite these long-established guidelines for attic ventilation in residential building construction and retrofit, the technical data used to derive these ventilation requirements are very limited [2]. Recent research has suggested that the advantages and disadvantages of providing attic ventilation need to be evaluated on a case-by-case basis, i.e., ventilation should be treated as a design option instead of a universal requirement (e.g., [2,4]). It is anticipated that this study will help us to better understand the natural ventilation phenomenon in different attic designs, by providing quantitative data on how airflow and heating load are affected by roof pitches. The quantified relationship between roof pitches, and airflow and heating load will provide much-needed scientific guidance for residential roof design.

The majority of the previous research on heat transfer in attic spaces is concerned with natural convection in triangular enclosures, as reviewed by Kamiyo et al. [5] and by Saha and Khan [6]. Although the air flow in real residential attics is almost always turbulent, a considerable number of experimental and numerical studies have been devoted to the analysis of flow and heat transfer under laminar conditions (e.g., [7,8,9,10,11,12,13,14,15,16]), and only a few studies investigated turbulent flow and heat transfer in sealed attics. For example, Ridouane et al. [17] employed a low-Reynolds-number k-ε model to simulate the turbulent natural convection in an air-filled isosceles triangular enclosure representing attic spaces under winter conditions, and Talabi et al. [18] numerically investigated the turbulent natural convections in sealed attics under both summer and winter conditions using the Reynolds stress turbulence model and considering both isothermal and isoflux boundary conditions. Air flow and heat transfer in vented attic spaces have been scarcely investigated in the past. For example, Medina et al. [19,20] proposed a correlation-based mathematical model for vented residential attics and compared model predictions with experimental data, and Moujaes and Alsaiegh [21] employed a finite element model to simulate the thermal effects of placing a radiant barrier system inside a vented residential attic for a case study under summer weather conditions. In a recent study [22], we employed a two-dimensional steady-state computational fluid dynamic (CFD) model to simulate the buoyancy-driven turbulent ventilation and heat transfer in a triangular attic space of a gable-roof residential building under winter conditions. The impacts of ambient air temperature, vent size, and ceiling insulation on heating load and ventilating air flow rate suggested that both sufficient ventilation and insulation are needed to ensure the proper functions of the attic and its energy efficiency. The attic studied in [22], however, was assumed to have a fixed roof pitch of 5/12.

In the present study, the effects of roof pitch on the thermal performance of gable-roof residential buildings are investigated by simulating attics with roof pitches of 3/12, 5/12, 8/12, 12/12, and 18/12, respectively. For each roof pitch value, both a sealed attic case and a vented attic case are modeled. Similar to [22], the turbulent air flow and natural convection heat transfer inside the attics are modeled in terms of the v2f model [23,24,25], which has been shown by previous studies (e.g., [26,27,28]) to be the best Reynolds-averaged Navier-Stokes (RANS) model for indoor air flow simulation. A major difference from [22] is that an unsteady numerical formulation is adopted in this study, because the steady model could not produce convergent solutions for some cases with roof pitches higher than 8/12, even after carefully adjusting the various under-relaxation factors. Unsteady RANS (URANS) modeling has been shown to be an effective approach to overcome numerical stiffness and improve solution convergence in previous studies for natural convection flows in enclosures [18,29,30,31,32]. Such an approach is also a recommended strategy in commercial CFD manuals [33] for solving natural convection problems. In the following sections, the numerical model is introduced followed by detailed discussion of the numerical simulation results.

2. Numerical Model

A schematic diagram of a cross-section plan of the physical model is shown in Figure 1. In the direction perpendicular to the cross-section shown in Figure 1, it is assumed that the building is long enough to ignore the effects of the gable-end walls, and thus the problem is simplified to two dimensional. The modeled attic space is in a shape of an isosceles triangle, with a ceiling width of 2W and a height of H, resulting in a pitch of H/W. In this study, the modeled attic is assumed to have a fixed ceiling width of 8 m and a height varying between 1 m and 6 m, corresponding to a roof pitch varying from 3/12 to 18/12. For simplicity, neither roofs nor ceiling trusses are included in the model, and the computational domain is only occupied by air, which is assumed to be a Boussinesq fluid with a reference temperature, T0, that is specified to the outside ambient air temperature to correctly calculate the buoyancy effects. In all the cases reported in this study, T0 = 267 K is assumed. In order to correctly account for the thermal resistances of the ceiling and roofs, which are excluded from the computational domain, convection-type boundary conditions are applied to both the ceiling and roof boundaries. For example, energy balance across the ceiling thickness gives

Sustainability 04 01999 i001

where T and λ are the temperature and thermal conductivity of air; tc and λc are the thickness and thermal conductivity of the ceiling; Tct and Tcb are the temperatures at the ceiling-top and ceiling-bottom, respectively; and the heat transfer coefficient hc is the reciprocal of the ceiling thermal resistance.

Sustainability 04 01999 g001 1024

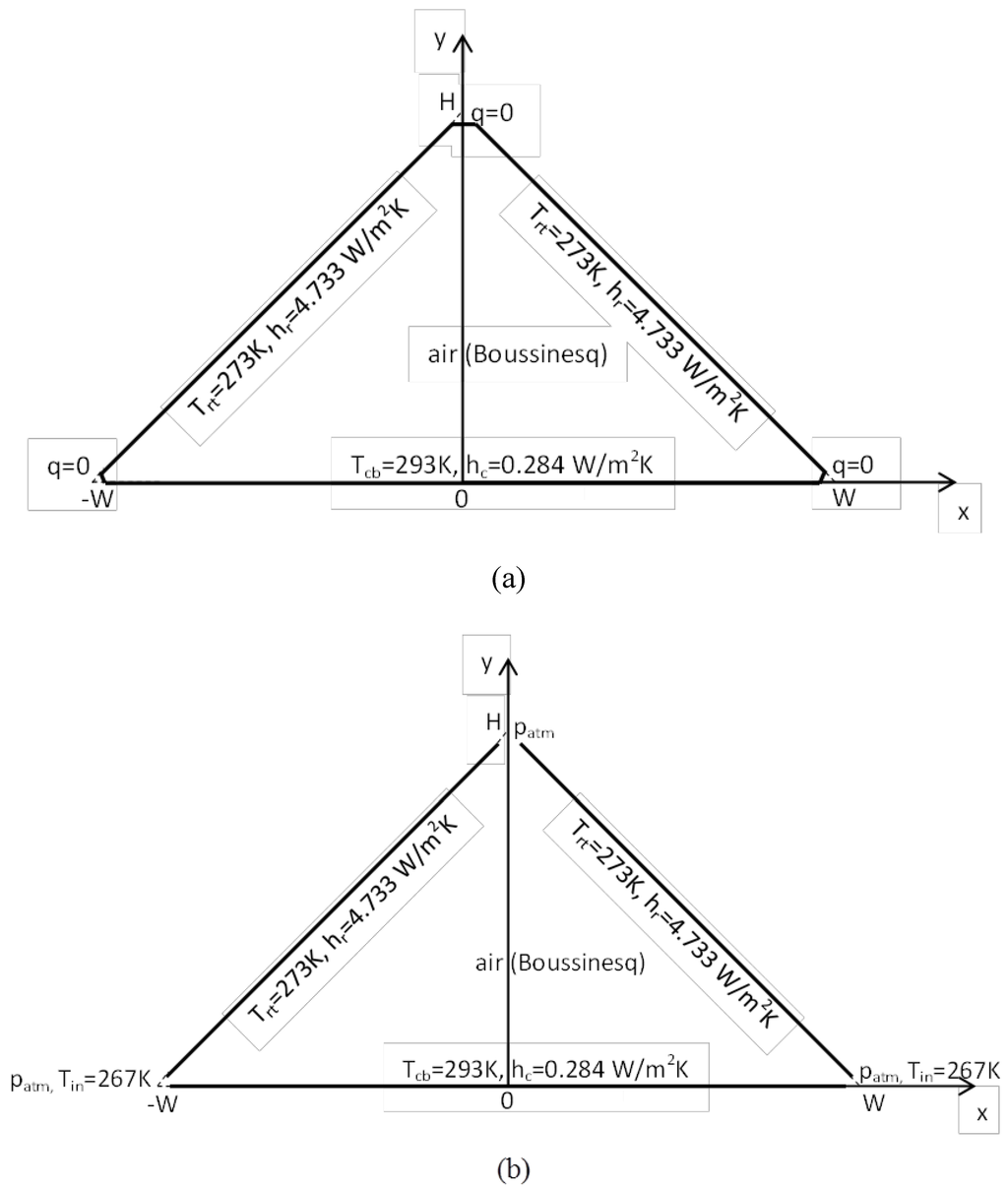

Figure 1. Schematic of the computational domain and boundary conditions for (a) sealed attics and (b) vented attics.

Click here to enlarge figure

Figure 1. Schematic of the computational domain and boundary conditions for (a) sealed attics and (b) vented attics.
Sustainability 04 01999 g001 1024

In this study, a ceiling-bottom temperature is specified to Tcb = 293 K, while a heat transfer coefficient of hc = 0.284 W/m2K is adopted to approximate a ceiling insulation level of R-20 (simulating the thermal resistance of a layer of 15 cm thick glass fiber; in this paper, the R-value is used according to the U.S. convention, i.e., R-1 = 1 h·ft²·°F/Btu = 0.176110 Km2/W). Similarly, a roof-top temperature of Trt = 273 K and a heat transfer coefficient of hr = 4.73 W/m2K (equivalent to an insulation level of R-1.2) are specified to the roof boundaries to simulate a typical condition of a 2 cm plywood roof covered by snow. It is obvious that the assumption of uniform ceiling-bottom and roof-top temperatures is an ideal simplification to the real thermal conditions of the modeled attics. However, for typical conditions when the indoor temperature only slightly varies along the ceiling-bottom and the roof-top is covered by snow, the simplified situation considered here still provides good approximation to the reality.

For all the cases investigated in this study, balanced vent areas are assumed. Both the left and right soffit vents are assumed to be 1 cm wide, while the ridge vent is assumed to 2 cm wide, resulting in a ventilation ratio of 1/200. For the sealed attic cases, as shown in Figure 1a, all the vents are represented by wall boundaries and assumed to be adiabatic. For the vented attic cases, as shown in Figure 1b, pressures at the soffit and ridge vents are all specified to the atmospheric pressure, patm. Therefore, the obtained air flow is purely driven by the thermally induced buoyancy forces, i.e., the stack effect. At the soffit vents, the inlet air is assumed to enter at the ambient temperature of 267 K with a turbulent intensity of 1%.

Following the URANS approach to turbulence, the distributions of time-averaged air velocity u, pressure p, and temperature T in the attic space shown in Figure 1 are governed by the following continuity, momentum, and energy equations:

Sustainability 04 01999 i002
Sustainability 04 01999 i003
Sustainability 04 01999 i004

where ρ, µ, cp, λ, β, σT, Sij are air density, viscosity, specific heat, thermal conductivity, thermal expansion coefficient, Prandtl number, and strain rate, respectively. The unsteady terms in the above equations account for all unsteadiness that does not belong to the turbulence, i.e., the unsteadiness that is not represented by the turbulence model [30].

The turbulence model employed in this study is the v2f model [23,24,25]. It is an eddy-viscosity model similar to the standard k-ε model, but incorporates near-wall turbulence anisotropy and non-local pressure-strain effects. As a general low-Reynolds-number turbulence model, the v2f model is valid all the way up to solid walls, and therefore does not need to make use of wall functions. In the v2f model, the eddy viscosity, μt, is defined by

Sustainability 04 01999 i005

where τ is the turbulence time scale and cµ is a constant. The eddy viscosity is determined from the following unsteady transport equations for the turbulence kinetic energy k, dissipation rate ε, velocity variance scale Sustainability 04 01999 i020, and elliptic relaxation function f:

Sustainability 04 01999 i006
Sustainability 04 01999 i007
Sustainability 04 01999 i008
Sustainability 04 01999 i009

where

Sustainability 04 01999 i010
Sustainability 04 01999 i011

and the turbulence time scale and length scale are defined by

Sustainability 04 01999 i012
Sustainability 04 01999 i013

The model constants take the following default values [23,24,25]:

Sustainability 04 01999 i014

The governing equations formulated above are solved by the commercial CFD software Ansys Fluent 13.0 [33], with the space variables being discretized by the finite volume method and time domain discretized by the fully implicit scheme. The SIMPLE algorithm is employed for solving the pressure and velocity coupling. The discretization of pressure is based on the PRESTO! scheme, while the QUICK scheme is adopted for all the other variables. Non-uniform quadrilateral-dominant grids are employed, and the boundaries are inflated with nodes tightly clustered near the walls to ensure that the y+ value for the first grid close to the walls is everywhere less than 1.

The modeling results presented in this paper are based on grids consisting of about 30,000–50,000 nodes and a time step size of 1 s. All the calculations start from initial conditions of zero velocity and uniform temperature. Within each time step, 20 iterations are executed. Numerical experiments show that decreasing the time step to 0.5 s or requiring 40 iterations in each time step generate negligible difference in solutions. In addition, a grid dependence test shows that refinement of the grids by doubling the node numbers results in less than 2% difference in the total mass flow rate and wall heat transfer rate results.

3. Results and Discussion

3.1. Sealed Attics

For sealed attics with different roof pitches and subject to the boundary conditions depicted in Figure 1a, it turns out that all the calculations converge to steady solutions after ~3000 time steps.

The predicted steady streamlines and isotherms are shown in Figure 2. Although the geometry and boundary conditions are symmetric about x = 0, the predicted air flows in the sealed attics are asymmetric, independent of the roof pitch variation. The asymmetric flow pattern found here is consistent with the previous numerical studies (e.g., [17,18,22]) and the experimental results of Holtzman et al. [10]. In this flow visualization experiment, smoke was slowly injected into an air-filled triangular enclosure, which was constructed of aluminum plates with milled passageways for circulating fluid to maintain isothermal surfaces and to impose a temperature difference between the base and upper walls. When the applied temperature difference was small, corresponding to low values of Grashof number, symmetric flow was observed in the isosceles triangle.

However, as the Grashof number was increased above a critical value, the flow was observed to undergo a supercritical pitchfork bifurcation, in which case one of two possible mirror-image asymmetric flows was obtained, since the symmetric flow was no longer physically stable. The existence of multiple solutions above the pitchfork bifurcation point (including both stable and unstable solutions) necessitates that particular care be exercised during numerical simulation, e.g., setting sufficient iterations to allow finite numerical perturbations to grow, so that the solution can deviate from an unstable symmetric result and eventually converge to one of the two stable asymmetric results.

For all the roof pitches investigated, both the flow and temperature fields shown in Figure 2 are dominated by multiple convection cells. Although the air flow in the biggest cell is always counterclockwise, while that in its neighboring small cells is always clockwise, the spatial distribution pattern of the convection cells constantly changes with the attic aspect ratio. It seems that the cells tend to line horizontally in the low pitched attics but sit one over another in the high pitched attics. Furthermore, the streamlines in Figure 2 show that the intensities of the major vortices increase with the roof pitch and control the pattern change in isotherms. The observed increase of vortex intensity with roof pitch is a manifest of the controlling role of Rayleigh number, which is proportional to the cubic of attic height, on the intensity of natural convection in sealed attics. It can also be observed in Figure 2 that for all the roof pitch cases, the predicted isotherms are tightly clustered along the ceiling and roof walls, manifesting the slenderness of the turbulence boundary layers, and elevated along a rising hot plume where the biggest convection cell meets its right-hand neighboring cell.

Figure 3 shows the predicted steady profiles of horizontal velocity and temperature along x = 0. The air flow directions are clearly controlled by the convection cell distributions, and the peak air flow rates generally increase with the roof pitch, as a stronger turbulent natural convection occurs at a higher Rayleigh number associated with a higher pitch. On the other hand, the predicted air temperatures along x = 0 are quite uniform within the height range of 0.05 < y/H < 0.9 (in contrast to the sharp variation within the near-wall boundary layers) and decrease with the increasing roof pitch. Such a dependence of attic air temperature on the roof pitch is also evident in Figure 4, which shows the predicted steady temperature distributions at the ceiling-top and roof-bottom boundaries. The peaks and valleys of the curves in Figure 4 clearly exhibit the control role of the convection cells on the temperature distributions. Furthermore, it can be observed that both the average ceiling-top (Figure 4a) and roof-bottom (Figure 4b) temperatures tend to decrease, as the roof pitch increases. The decrease of the average ceiling-top temperature with the increasing roof pitch shown in Figure 4a is a consequence of that a stronger natural convection accompanying a higher roof pitch.

Sustainability 04 01999 g002 1024
Figure 2. Predicted (left) steady streamlines (in kg/m s) and (right) isotherms (in K) in sealed attics with roof pitches of 3/12, 5/12, 8/12, 12/12, and 18/12, respectively.

Click here to enlarge figure

Figure 2. Predicted (left) steady streamlines (in kg/m s) and (right) isotherms (in K) in sealed attics with roof pitches of 3/12, 5/12, 8/12, 12/12, and 18/12, respectively.
Sustainability 04 01999 g002 1024
Sustainability 04 01999 g003 1024
Figure 3. Predicted steady profiles of (a) horizontal velocity and (b) temperature along the central vertical line x = 0 for sealed attics with different roof pitches.

Click here to enlarge figure

Figure 3. Predicted steady profiles of (a) horizontal velocity and (b) temperature along the central vertical line x = 0 for sealed attics with different roof pitches.
Sustainability 04 01999 g003 1024
Sustainability 04 01999 g004 1024

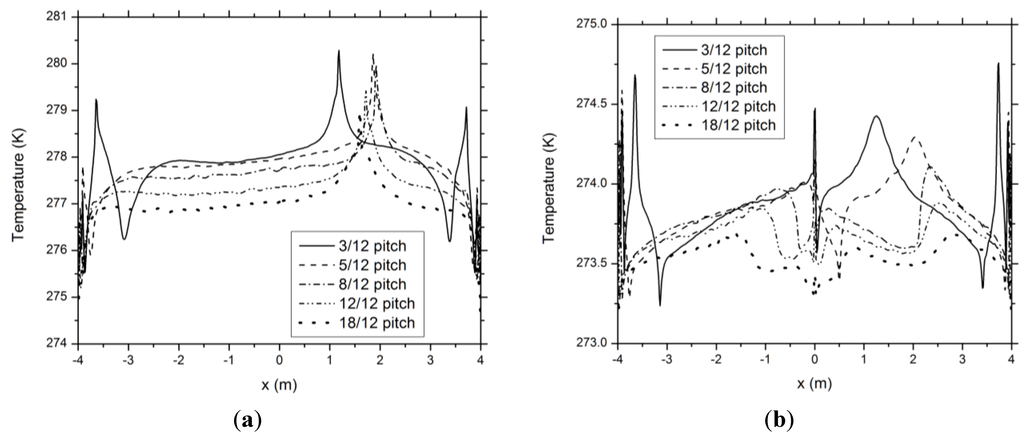

Figure 4. Predicted steady temperatures at the ceiling (a) and roof (b) boundaries for sealed attics with different roof pitches.

Click here to enlarge figure

Figure 4. Predicted steady temperatures at the ceiling (a) and roof (b) boundaries for sealed attics with different roof pitches.
Sustainability 04 01999 g004 1024

For the given ceiling-bottom temperature of 293 K, a decrease in the ceiling-top temperature indicates a greater temperature difference across the ceiling thickness and thus an increase in the attic heat loss, reflecting the enhanced heat transfer effect associated with a stronger natural convection. The decrease of the average roof-bottom temperature with the increasing roof pitch shown in Figure 4b indicates that the heat flux across the roof boundary decreases as a result of reduced temperature difference across the roof thickness. However, this decrease in roof heat flux is over compensated by the increase of roof area with the roof pitch. The net effect of the reduced heat flux and increased heat transfer area for a higher roof pitch is an increase in roof heat loss that exactly matches the increase in ceiling heat loss, as the overall energy balance of the steady flow of attic air requires.

The results shown in Figure 2, Figure 3, Figure 4 provide detailed information for the velocity and temperature distributions. Such information is critical for a better understanding of the fundamental mechanism of momentum and heat transport in the sealed attic spaces. However, for a practical engineering purpose, it is the overall energy performance of the attic spaces that is of the most importance to construction professionals and building owners. In the following, the obtained numerical results will be integrated and a new heat transfer correlation will be developed to best quantify the overall energy performance of the sealed attics.

The integrated heat transfer rates across the ceiling and roof boundaries are compared in Table 1 for the different roof pitch cases. It is clear that the heat transfer rate across each boundary increases with the roof pitch. For all the cases, the total heat gain from the ceiling is equal to the total heat loss through the roofs (as a result of the overall energy balance for the modeled closed system), and reflects the energy consumption share of the attic space in the heating load of the building. Table 1 suggests that gable-roof buildings with high pitched roofs will consume more energy for space heating, as compared with those with low pitched roofs. As the roof pitch increases from 3/12 to 5/12, 8/12, 12/12, and 18/12, the attic heating load is predicted to increase by 0.6%, 2.1%, 4.6%, 6.6%, respectively.

Table Table 1. Predicted heat transfer through the ceiling and roof boundaries for sealed attics with different roof pitches.

Click here to display table

Table 1. Predicted heat transfer through the ceiling and roof boundaries for sealed attics with different roof pitches.
PitchHeat Gain from Left Ceiling (W/m)Heat Gain from Right Ceiling (W/m)Heat Loss from Left Roof (W/m)Heat Loss from Right Roof (W/m)Qt (W/m)
3/1217.2116.7915.7818.2134.00
5/1217.3316.8715.9818.2234.20
8/1217.5717.1517.3117.4134.72
12/1217.9817.6017.7117.8635.58
18/1218.3017.9317.9918.2436.23

It is also clear from Table 1 that regardless of the roof pitch, the heat gain from the right ceiling is less than that from the left ceiling, whereas the heat loss through the right roof is more than that through the left roof. This is mainly caused by the rising hot plume, as shown by the elevated isotherms in Figure 2. The rising hot plume generates a hot spot at both the right ceiling and the right roof boundaries. However, the increased temperature within the ceiling hot spot corresponds to a reduced temperature difference across the ceiling thickness and thus results in less heat gain from the right ceiling, as compared to the left ceiling, whereas the elevated temperature within the roof hot spot involves an increased temperature difference across the roof thickness, resulting in a greater heat loss through the right roof.

A correlation for heat transfer dominated by natural convection is typically expressed as a relationship between Nusselt number (Nu) and Rayleigh number (Ra). In case of heat transfer in attic spaces, both the dimensionless numbers should be defined based on a representative constant temperature difference across the attic space, TctTrb. Although it is possible to obtain this temperature difference by subtracting a curve in Figure 4a by the one corresponding to the same roof pitch in Figure 4b and then taking average over the ceiling range, we prefer an alternative approach, i.e., evaluating TctTrb by the classical method of thermal resistance analysis. An advantage of the thermal resistance approach is that the thermal resistance of attic air flow can be obtained as well, which itself is also of engineering significance.

The thermal resistance diagram for the sealed attics, as shown in Figure 5, suggests that the total thermal resistance of the ceiling-air-roof system, Rt, equals the sum of the thermal resistances of the sub-systems

Sustainability 04 01999 i015

and can be evaluated by

Sustainability 04 01999 i016

where Qt is the total heat transfer rate, as listed in the last column of Table 1. Since the ceiling and roof insulations are specified to be R-20 and R-1.2, respectively, Equations (15,16) can be used to obtain all the thermal resistances, and the obtained results are listed in Table 2. It should be noted that the Rr column in Table 2 is obtained by scaling R-1.2 by the roof-ceiling area ratio, (W2 + H2)1/2/W, so that all the resistances are defined based on unit ceiling area. Table 2 shows that the thermal resistance of the attic air is around R-5 level and decreases about 31% from the 3/12 pitched attic to the 18/12 pitched attic.

Sustainability 04 01999 g005 1024

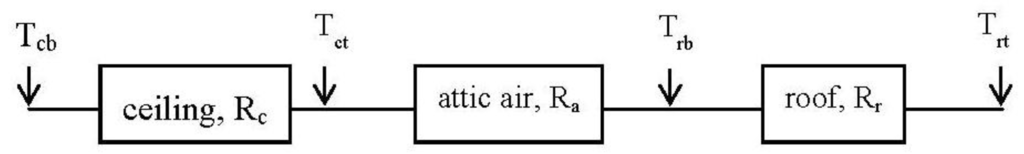

Figure 5. Diagram of thermal resistance for sealed attics.

Click here to enlarge figure

Figure 5. Diagram of thermal resistance for sealed attics.
Sustainability 04 01999 g005 1024
Table Table 2. Thermal resistances, in R-value (R-1 = 0.17611 Km2/W), for sealed attics with different roof pitches.

Click here to display table

Table 2. Thermal resistances, in R-value (R-1 = 0.17611 Km2/W), for sealed attics with different roof pitches.
PitchRt (Total)Rc (Ceiling)Rr (Roof)Ra (Air)
3/1226.721201.1645.556
5/1226.565201.1085.457
8/1226.167200.9985.179
12/1225.535200.8494.686
18/1225.077200.6664.411

In terms of the resistance diagram (Figure 5) and the thermal resistances listed in Table 2, the representative ceiling-top and roof-bottom temperatures are calculated and listed in Table 3. A comparison between Table 3 and Figure 4 confirms that the temperatures obtained by the thermal resistance analysis are indeed good representatives of the data in Figure 4. Accordingly, the Nusselt number and Rayleigh number can be evaluated for each case. The results are listed in Table 3 and plotted in Figure 6. Figure 6 shows that the (Nu, Ra) data points are almost linearly distributed on a log-log plot, suggesting the following empirical correlation for heat transfer in sealed attics

Sustainability 04 01999 i017

More experimental or numerical data are needed to fully test the applicable domain of this correlation, including if it is approximately valid for situations beyond uniform thermal conditions, e.g., those with slight variations in roof-top and ceiling-bottom temperatures.

Table Table 3. Representative ceiling-top and roof-bottom temperatures together with derived Nusselt and Rayleigh numbers for sealed attics with different roof pitches.

Click here to display table

Table 3. Representative ceiling-top and roof-bottom temperatures together with derived Nusselt and Rayleigh numbers for sealed attics with different roof pitches.
PitchTct (K)Trb (K)Nu = HQt/2W(Tct − Trb)λRa = ρ2cpgβH3(Tct − Trb)/λµ
3/12278.03273.8742.576.14 × 108
5/12277.94273.8372.232.81 × 109
8/12277.71273.76122.081.11 × 1010
12/12277.34273.66201.433.47 × 1010
18/12277.05273.53321.641.12 × 1011
Sustainability 04 01999 g006 1024

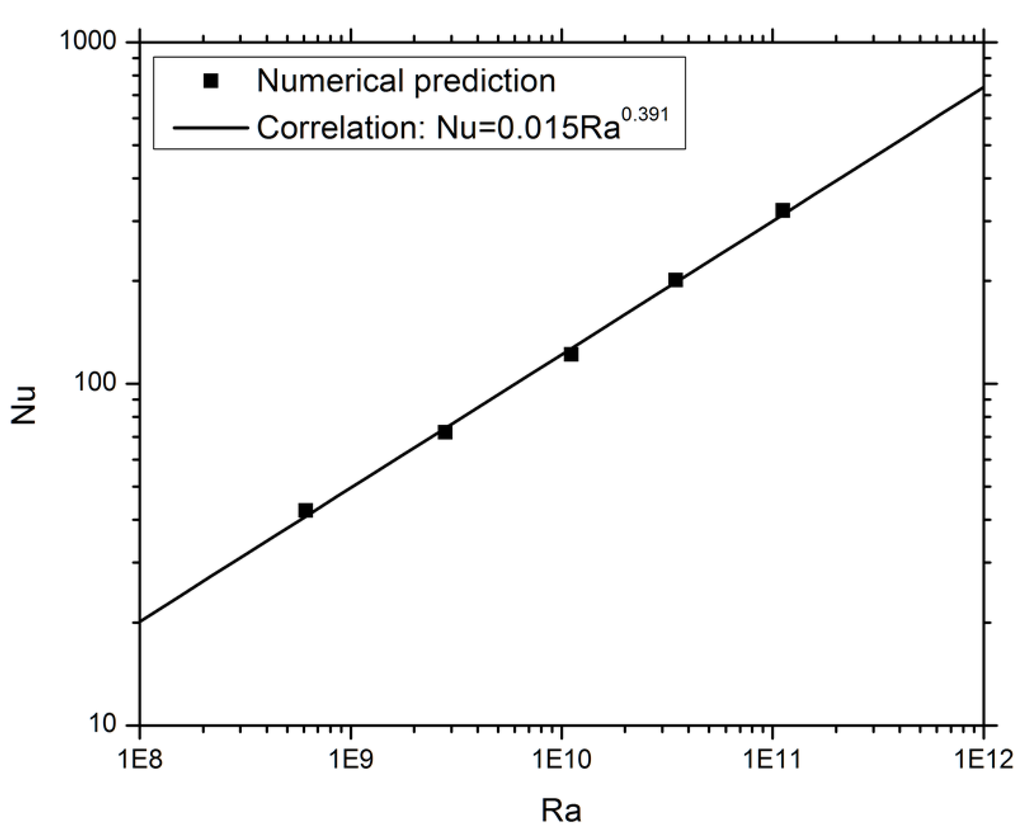

Figure 6. Correlation for heat transfer in sealed attics developed based on the numerical predictions.

Click here to enlarge figure

Figure 6. Correlation for heat transfer in sealed attics developed based on the numerical predictions.
Sustainability 04 01999 g006 1024

3.2. Vented Attics

For vented attics with different roof pitches and subject to the boundary conditions depicted in Figure 1b, the solutions converge after ~2500 time steps, as evident in Figure 7 in terms of the temporal evolution of the heat gains from the ceiling and roof boundaries as well as that of the mass flow rate across the attic space. Similar to the sealed attic cases, the attic heating load, as represented by the heat gain from the ceiling boundary, increases with the roof pitch. As the roof pitch increases from 3/12 to 5/12, 8/12, 12/12, and 18/12, the attic heating load increases by 4.8%, 7.3%, 8.6%, and 10%, respectively. Compared with the sealed attics, the vented attics are predicted to require more heating. This is mainly a consequence of that an ambient air temperature (267 K) lower than the roof temperature (273 K) is specified. If the ambient air has a temperature higher than the roof temperature, the vented attics will require less heating than the sealed attics, as shown in [22]. Another consequence of the ambient temperature lower than the roof temperature is that the ventilating air actually gains heat from the roofs, in contrast to the sealed attic cases, in which heat is transferred from attic air to the roofs. Figure 7 also shows that both the heat gain from the roofs and the mass flow rate of the ventilating air increase with the roof pitch. As the roof pitch increases from 3/12 to 5/12, 8/12, 12/12, and 18/12, the mass flow rate of the ventilating air is predicted to increase by 23%, 53%, 83%, and 124%, respectively.

Different from the sealed attic cases in which the steady solutions are obtained, the converged solutions for the vented attics actually include periodical oscillation, which is reflected by the weak waves on some of the curves in Figure 7, and is clearly shown in Figure 8 by the temporal variation of the vertical velocity at the location of x = 0 and y = H/2. To our knowledge, such periodical oscillation has never been reported for turbulent natural convection in triangles (either closed or open configurations), although similar oscillation was reported as a controversial issue by previous studies on turbulent natural convection in rectangular enclosures [29,30].

Sustainability 04 01999 g007 1024

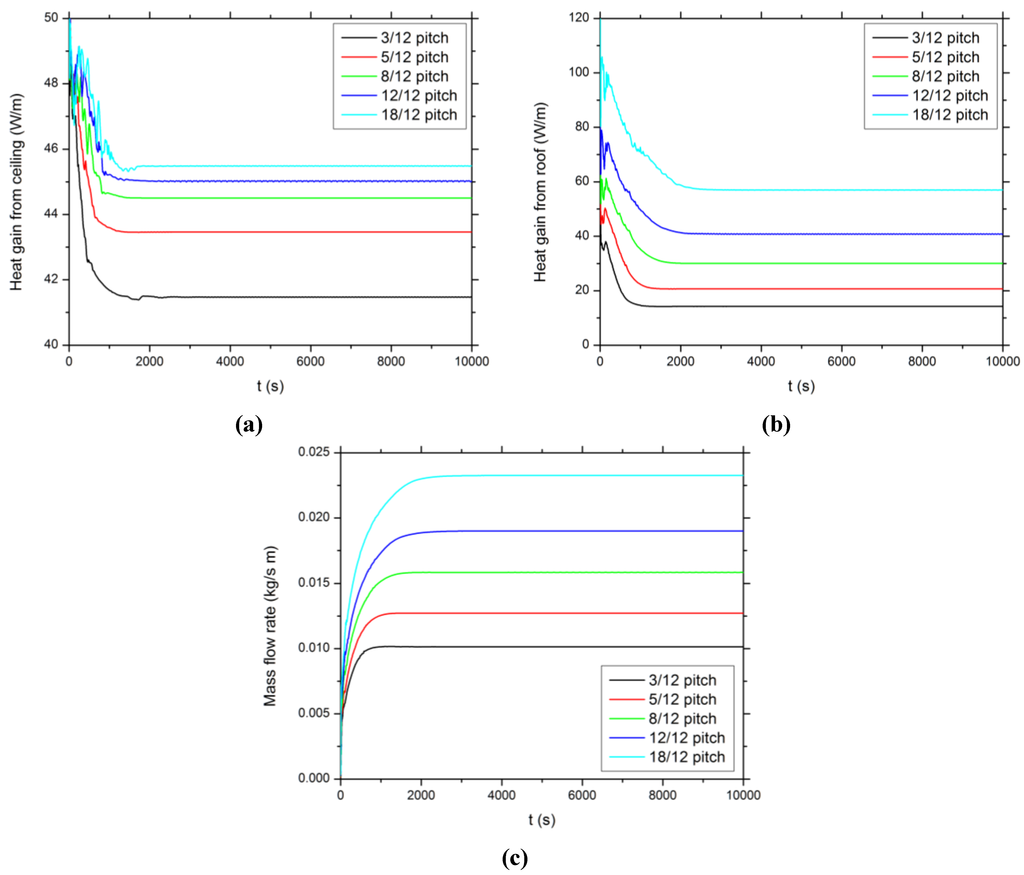

Figure 7. Temporal evolution of (a) heat gain from the ceiling boundary; (b) heat gain from the roof boundaries; and (c) mass flow rate across the attic space for vented attics with different roof pitches.

Click here to enlarge figure

Figure 7. Temporal evolution of (a) heat gain from the ceiling boundary; (b) heat gain from the roof boundaries; and (c) mass flow rate across the attic space for vented attics with different roof pitches.
Sustainability 04 01999 g007 1024
Sustainability 04 01999 g008 1024

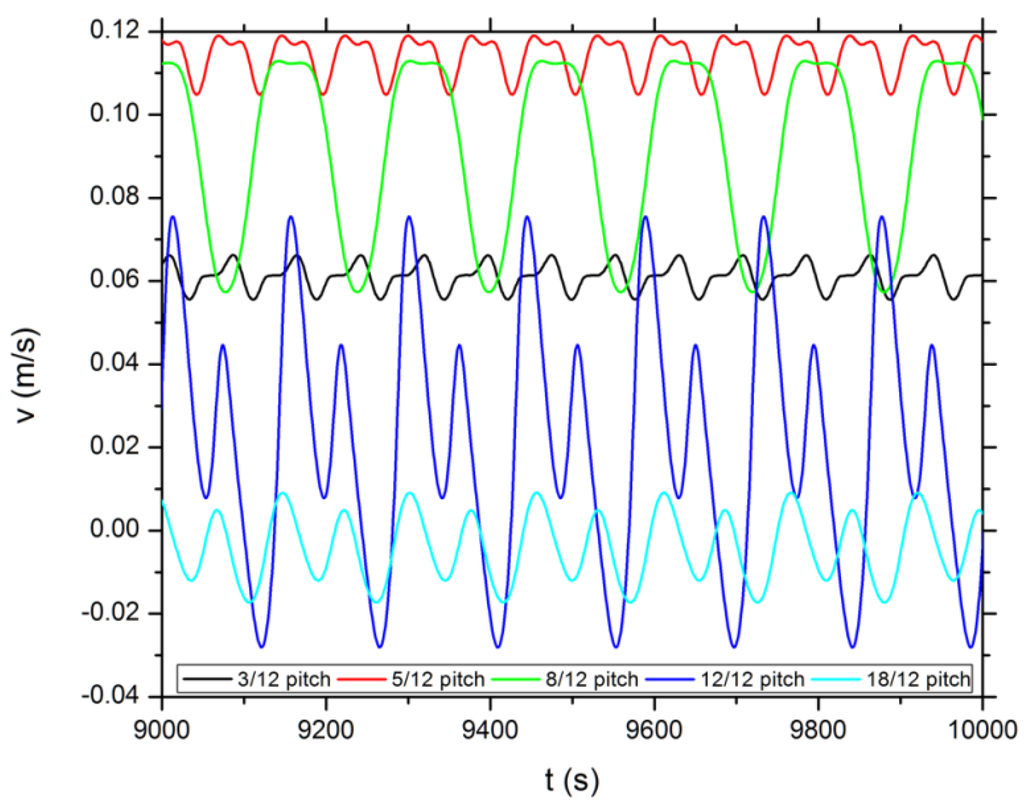

Figure 8. Periodical oscillation in vertical velocity at the location of x = 0 and y = H/2 for vented attics with different roof pitches.

Click here to enlarge figure

Figure 8. Periodical oscillation in vertical velocity at the location of x = 0 and y = H/2 for vented attics with different roof pitches.
Sustainability 04 01999 g008 1024

In order to clearly show a detailed picture of this periodical oscillation, snapshots of the velocity and temperature fields at selected instances within one oscillation cycle for the 12/12 pitch case are given in Figure 9, Figure 10, in terms of streamlines and isotherms, respectively. It can be observed from Figure 9 that the oscillation is mainly confined in the core region and related to the periodical variation in vortex intensity of multiple convection cells. As the vortex intensity varies alternately, the spatial pattern of convection cells changes as well. In turn, the flow pattern change controls the variation in isotherm pattern, as shown in Figure 10.

Although more theoretical and experimental studies are needed to determine the fundamental mechanism that generates this periodical oscillation, we consider such oscillation as physically meaningful phenomenon, instead of a reflection of numerical singularity, based on the following observations. Firstly, the periodical oscillation is independent of the selection of turbulence model. It is found that essentially the same periodical oscillation also appears in solutions based on the SST k-ω model [33] for the same vented attic problems. Secondly, the oscillation does not decay with the flow time. It does not die out even after hundreds of thousands time steps. Thirdly, the oscillation occurs in all the vented attic cases but in none of the sealed attic cases. It suggests that the oscillation may be actuated by the additional degrees of freedom provided by the ventilating air. Finally, the period of the oscillation seems to be of physical significance. As shown in Figure 8, the oscillations in the 3/12 and 5/12 attics have a period of around 75 s, while those in the 8/12, 12/12 and 18/12 attics have a period of around 150 s. Such a period double phenomenon may have a physical basis, e.g., the number of the oscillating convection cells in the high pitched attics is twice that in the lower pitched attics. Since the oscillation features captured in Figure 9, Figure 10 are hardly represented by the existing RANS turbulence models, a direct numerical simulation or large eddy simulation may be the best way to further investigate the nature of the periodical oscillation.

Figure 11 shows the distributions of streamlines and isotherms at t = 10,000 s for the vented attics with various roof pitches. Disregarding the influence of the periodical oscillation discussed above, the velocity and temperature fields for all the roof pitch cases are basically symmetric about x = 0, which is clearly different from the asymmetric fields in the sealed attics shown in Figure 2. It is also clear from Figure 11 that the temperature distribution in the upper portion is stratified, and the thermal stratified region grows remarkably with the attic height.

The predicted temperature distributions at the ceiling and roof boundaries at t = 10,000 s for the vented attics with various roof pitches are shown in Figure 12. The peaks and valleys of the curves are controlled by the convection cell distributions. For all the cases, the predicted boundary temperatures are essentially symmetric about x = 0, and not affected by the periodical oscillation. This may be explained by the strongest viscous effects existing along the boundaries. Similar to the sealed attic cases, it can be observed in Figure 12 that both the ceiling-top and roof-bottom temperatures tend to decrease with the roof pitch.

The overall thermal performance of the vented attics can be quantified based on a thermal resistance analysis, similar to the analysis for the sealed attics. The thermal resistance diagram for the vented attics is shown in Figure 13. Different from the resistances in series shown in Figure 5 for the sealed attics, the resistance diagram for the vented attics consists of two parallel branches, one for the ceiling side and the other for the roof side. Consequently, the resistances on each side are determined separately, based on the converged heat gains (Figure 7) from the ceiling and roof boundaries, respectively. The obtained various resistances are listed in Table 4, which shows that both the ceiling and roof side resistances decrease with the increase in roof pitch.

Sustainability 04 01999 g009 1024

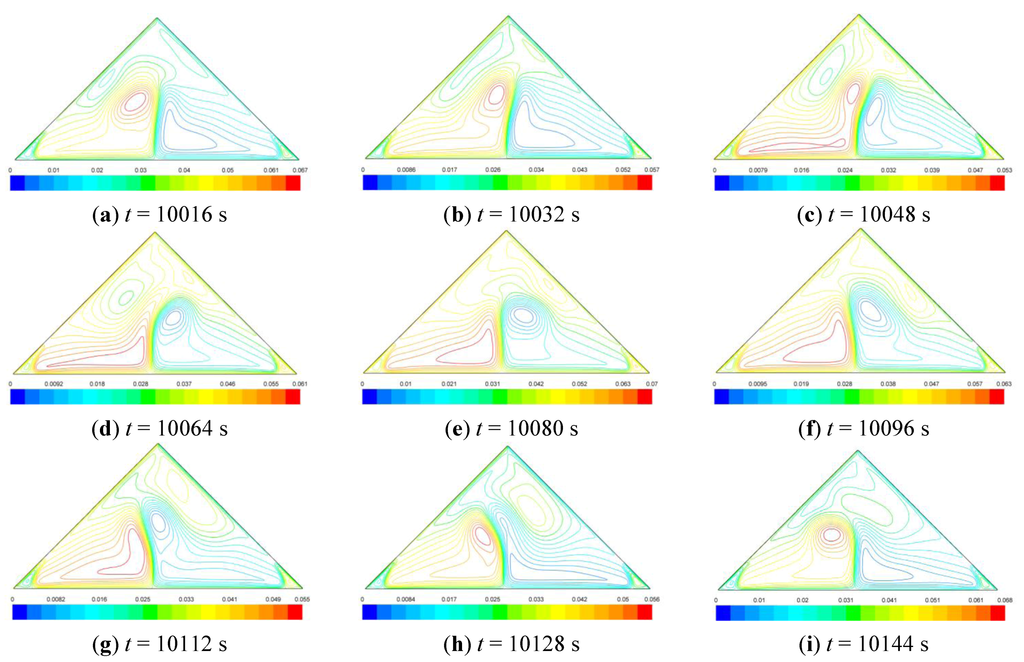

Figure 9. Snapshots of predicted streamlines (in kg/m s) at various times in the vented attic with a 12/12 pitch.

Click here to enlarge figure

Figure 9. Snapshots of predicted streamlines (in kg/m s) at various times in the vented attic with a 12/12 pitch.
Sustainability 04 01999 g009 1024
Sustainability 04 01999 g010 1024

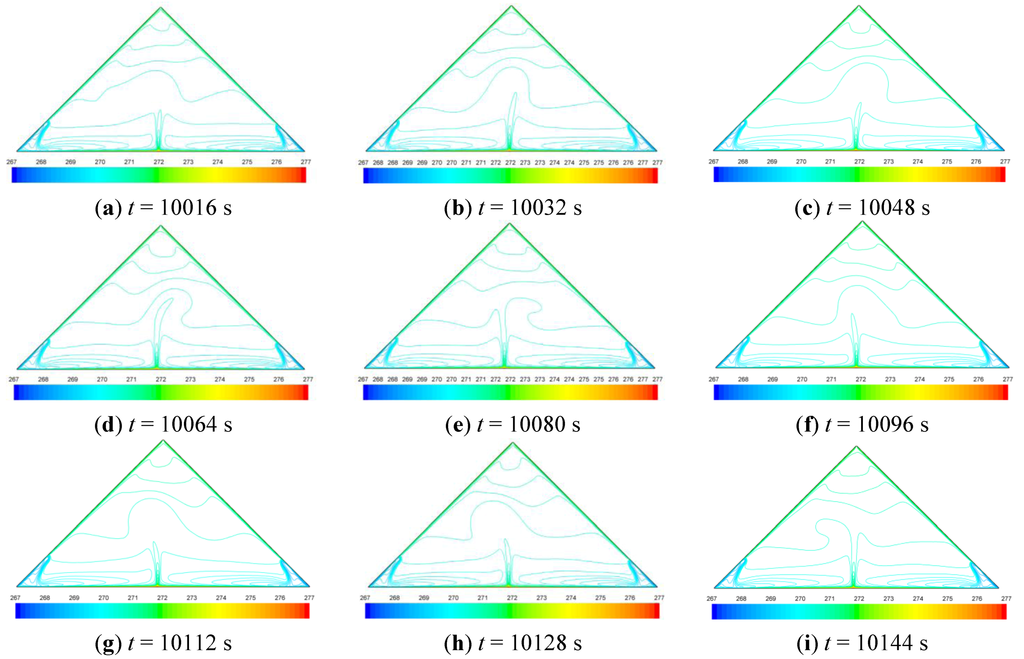

Figure 10. Snapshots of predicted isotherms (in K) at various times in the vented attic with a 12/12 pitch.

Click here to enlarge figure

Figure 10. Snapshots of predicted isotherms (in K) at various times in the vented attic with a 12/12 pitch.
Sustainability 04 01999 g010 1024
Sustainability 04 01999 g011 1024

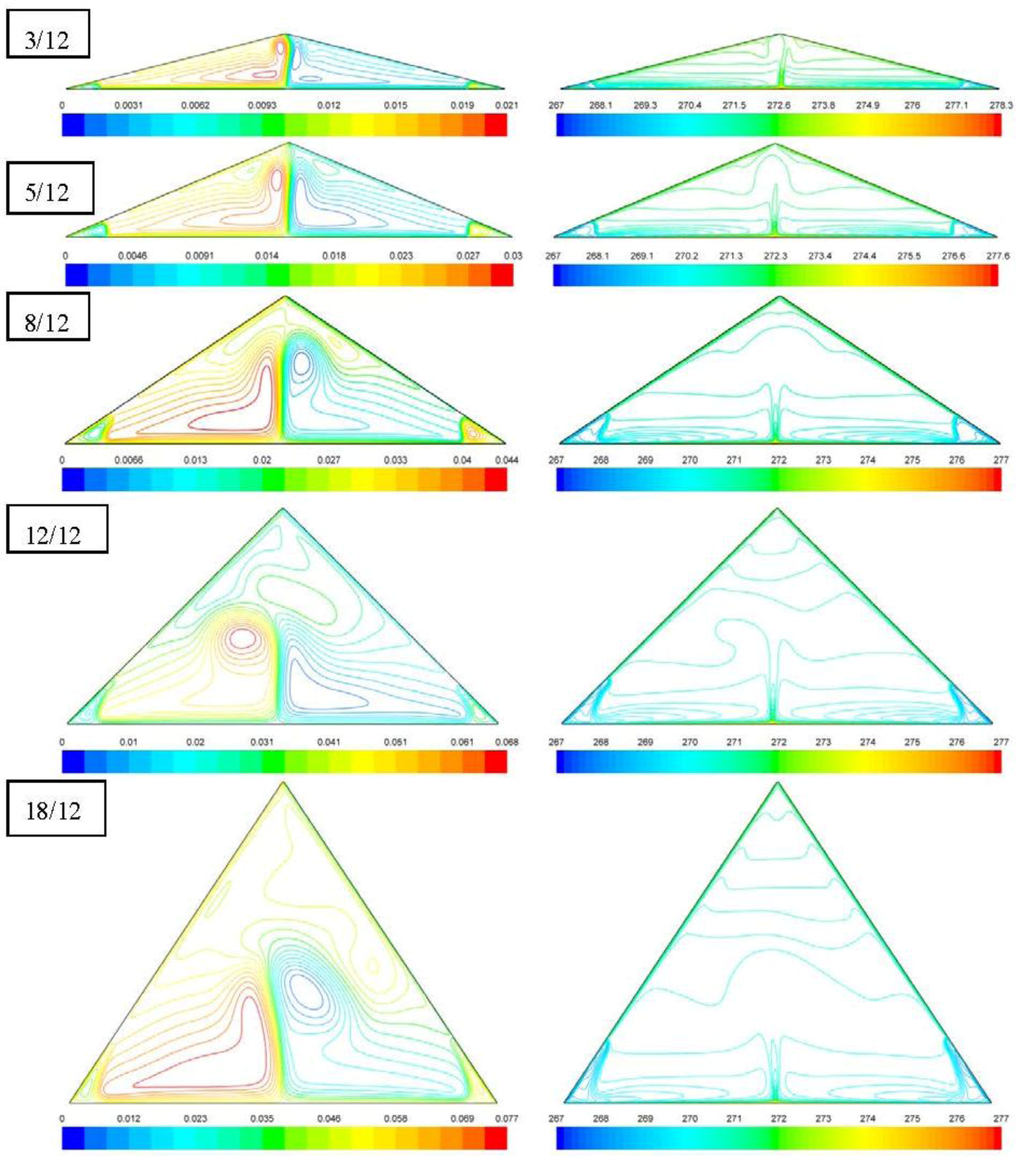

Figure 11. Predicted (left) streamlines (in kg/m s) and (right) isotherms (in K) at t = 10,000 s in vented attics with roof pitches of 3/12, 5/12, 8/12, 12/12, and 18/12, respectively.

Click here to enlarge figure

Figure 11. Predicted (left) streamlines (in kg/m s) and (right) isotherms (in K) at t = 10,000 s in vented attics with roof pitches of 3/12, 5/12, 8/12, 12/12, and 18/12, respectively.
Sustainability 04 01999 g011 1024
Sustainability 04 01999 g012 1024

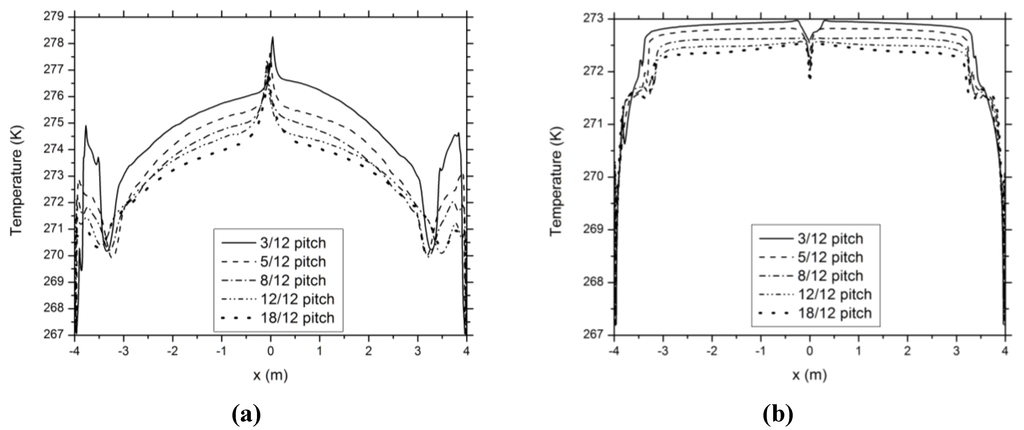

Figure 12. Predicted temperatures at the ceiling (a) and roof (b) boundaries at t = 10,000 s in vented attics with different roof pitches.

Click here to enlarge figure

Figure 12. Predicted temperatures at the ceiling (a) and roof (b) boundaries at t = 10,000 s in vented attics with different roof pitches.
Sustainability 04 01999 g012 1024
Sustainability 04 01999 g013 1024

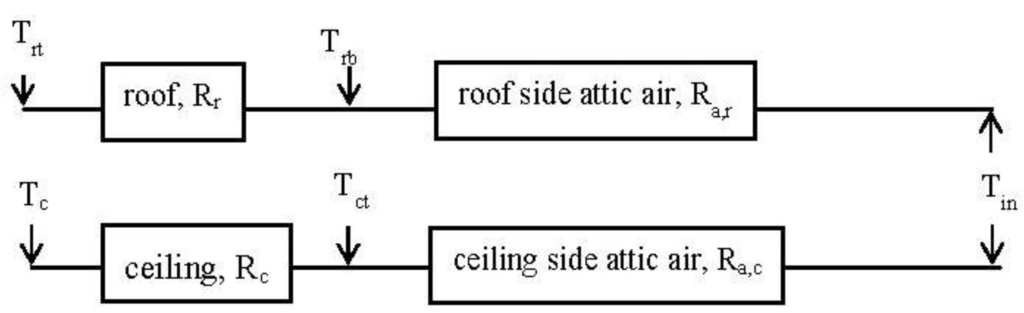

Figure 13. Diagram of thermal resistance for vented attics.

Click here to enlarge figure

Figure 13. Diagram of thermal resistance for vented attics.
Sustainability 04 01999 g013 1024
Table Table 4. Thermal resistances, in R-value (R-1 = 0.17611 Km2/W), for vented attics with different roof pitches.

Click here to display table

Table 4. Thermal resistances, in R-value (R-1 = 0.17611 Km2/W), for vented attics with different roof pitches.
PitchRt,c (Ceiling-Side Total)Ra,c (Ceiling-Side Air)Rt,r (Roof-Side Total)Ra,r (Roof-Side Air)
3/1228.4808.48019.12717.963
5/1227.1767.17613.14812.040
8/1226.5416.5419.0708.072
12/1226.2296.2296.6935.844
18/1225.9645.9644.7844.118

In terms of the resistance diagram (Figure 13) and the thermal resistances listed in Table 4, the representative ceiling-top and roof-bottom temperatures are calculated and listed in Table 5. A comparison between the temperatures listed in Table 5 and the temperature curves in Figure 12 confirms the effectiveness of the thermal resistance analysis in determining the representative boundary temperatures.

Table Table 5. Representative ceiling-top and roof-bottom temperatures together with derived Nusselt and Rayleigh numbers for vented attics with different roof pitches.

Click here to display table

Table 5. Representative ceiling-top and roof-bottom temperatures together with derived Nusselt and Rayleigh numbers for vented attics with different roof pitches.
PitchTct (K)Nu = HQc/2W(Tct− Tin)λRa = ρ2cpgβH3(Tct− Tin)/λµTrb (K)Nu = HQr/2W(Trb− Tin)λRa = ρ2cpgβH3(Trb − Tin)/λµ
3/12274.7427.911.14 × 109272.6313.188.29 × 108
5/12273.8754.914.69 × 109272.4932.783.75 × 109
8/12273.4196.421.79 × 1010272.3478.161.49 × 1010
12/12273.17152.055.83 × 1010272.24162.054.95 × 1010
18/12272.97238.121.90 × 1011272.16345.021.64 × 1011

Accordingly defined Nusselt numbers and Rayleigh numbers for both the ceiling and roof sides are listed in Table 5 as well. Figure 14 shows that the (Nu, Ra) data points for both the ceiling and roof sides are linearly distributed on a log-log plot, and the following empirical correlations are obtained by fitting the data points, i.e.,

Sustainability 04 01999 i018

for the ceiling side air flow, and

Sustainability 04 01999 i019

for the roof side air flow. Both the correlations are expected to be valid for vented attics under conditions similar to those specified in this study. More experimental or numerical data are needed to test if these correlations can be generalized to cover a wider parameter range.

Sustainability 04 01999 g014 1024

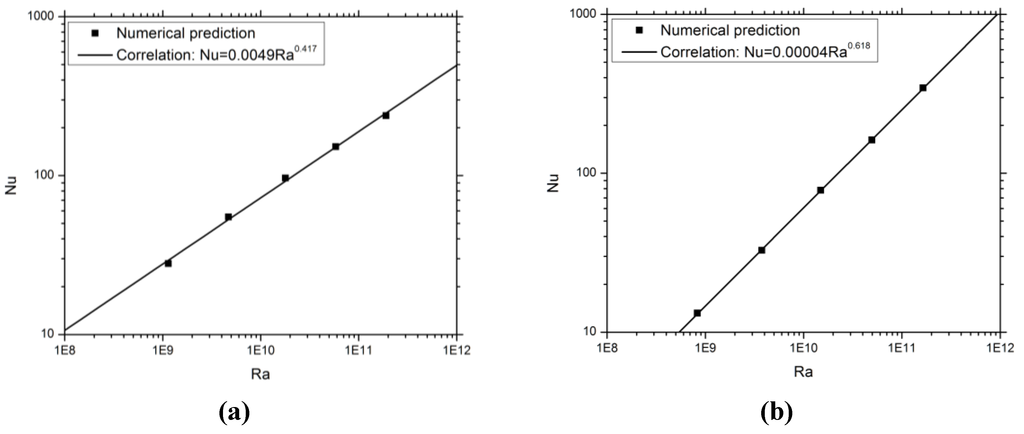

Figure 14. Correlations for heat transfer on (a) the ceiling side and (b) the roof side within vented attics developed based on numerical predictions.

Click here to enlarge figure

Figure 14. Correlations for heat transfer on (a) the ceiling side and (b) the roof side within vented attics developed based on numerical predictions.
Sustainability 04 01999 g014 1024

4. Conclusions

In this study, the buoyancy-driven turbulent air flows of the sealed and vented attics under winter conditions are simulated in terms of the CFD model. In particular, the impacts of roof pitch on air flow and heating load for sealed and vented attics are investigated. The findings from the numerical results are summarized as follows:

  • (1) all the investigated roof pitches, air flow in the sealed attics is steady and asymmetric, while that in the vented attics tend to be an essentially symmetric base flow superimposed by a periodical oscillation.

  • (2) both the sealed and vented attics, the heating load monotonically increases with the roof pitch. As the roof pitch increases from 3/12 to 5/12, 8/12, 12/12, and 18/12, the attic heating load is predicted to increase by 0.6%, 2.1%, 4.6%, 6.6%, respectively, for the sealed attics and to increase by 4.8%, 7.3%, 8.6%, and 10%, respectively, for the vented attics.

  • (3) mass flow rate of the ventilating air through the vented attics increases monotonically with the roof pitch.As the roof pitch increases from 3/12 to 5/12, 8/12, 12/12, and 18/12, the mass flow rate of the ventilating air is predicted to increase by 23%, 53%, 83%, and 124%, respectively.

  • (4) heat transfer of turbulent air flow in both the sealed and vented attics can be satisfactorily correlated by a simple relationship between appropriately defined Nusselt number and Rayleigh number.

It should be noted that the above-mentioned conclusions are subject to the limitations of the modeling assumptions adopted in this study. This research can be furthered in the following aspects:

  • (1) Investigating wind effects. The air flows presented in this study are purely driven by buoyancy. Such buoyancy-driven cases are corresponding to a worst-case scenario, because real attic ventilation is generally enhanced by winds.

  • (2) Including moisture transfer. The contribution of the latent heat associated with moisture transfer may be significant for the energy performance of attics in humid climates, especially in summer times.

Acknowledgments

This study was partially supported by the Faculty Seed Grants from the Research Council of the University of Nebraska-Lincoln (2009–2010).

References

  1. Federal Housing Administration (FHA). Property Standards and Minimum Construction Requirements for Dwellings; FHA: Washington, DC, USA, 1942.
  2. Rose, W.B.; TenWolde, A. Venting of attics and cathedral ceilings. ASHRAE J. 2002, 44, 26–33. [Google Scholar]
  3. Hutchings, J.I. National Codes Handbook; McGraw Hill: Columbus, OH, USA, 1998. [Google Scholar]
  4. Rudd, A.F.; Lstiburek, J.W. Vented and sealed attics in hot climates. ASHRAE Trans. 1998, 104, 1199–1210. [Google Scholar]
  5. Kamiyo, O.M.; Angeli, D.; Barozzi, G.S.; Collins, M.W.; Olunloyo, V.O.S.; Talabi, S.O. A comprehensive review of natural convection in triangular enclosures. ASME Appl. Mech. Rev. 2010, 63, 1–13. [Google Scholar]
  6. Saha, S.C.; Khan, M.M.K. A review of natural convection and heat transfer in attic-shaped space. Energy Build. 2011, 43, 2564–2571. [Google Scholar] [CrossRef]
  7. Flack, R.D.; Witt, C.L. Velocity measurements in two natural convection air flows using a laser velocimeter. ASME J. Heat Transf. 1979, 101, 256–260. [Google Scholar] [CrossRef]
  8. Flack, R.D. The experiment al measurement of natural convection heat transfer in triangular enclosures heated or cooled from below. ASME J. Heat Transf. 1980, 102, 770–772. [Google Scholar] [CrossRef]
  9. Poulikakos, D.; Bejan, A. Natural convection experiments in a triangular enclosure. ASME J. Heat Transf. 1983, 105, 652–655. [Google Scholar] [CrossRef]
  10. Holtzman, G.A.; Hill, R.W.; Ball, K.S. Laminar natural convection in isosceles triangular enclosures heated from below and symmetrically cooled from above. ASME J. Heat Transf. 2000, 122, 485–491. [Google Scholar] [CrossRef]
  11. Asan, H.; Namli, L. Laminar natural convection in a pitched roof of triangular cross-section: Summer day boundary conditions. Energy Build. 2000, 33, 69–73. [Google Scholar] [CrossRef]
  12. Ridouane, E.H.; Campo, A.; McGarry, M. Numerical computation of buoyant airflows confined to attic spaces under opposing hot and cold wall conditions. Int. J. Therm. Sci. 2005, 44, 944–952. [Google Scholar]
  13. Lei, C.; Armfield, S.W.; Patterson, J.C. Unsteady natural convection in a water-filled isosceles triangular enclosure heated from below. Int. J. Heat Mass Transf. 2008, 51, 2637–2650. [Google Scholar] [CrossRef]
  14. Kent, E.F. Numerical analysis of laminar natural convection in isosceles triangular enclosures. J. Mech. Eng. Sci. 2009, 223, 1157–1169. [Google Scholar] [CrossRef]
  15. Saha, S.C.; Patterson, J.C.; Lei, C. Natural convection and heat transfer in attics subject to periodic thermal forcing. Int. J. Therm. Sci. 2010, 49, 1899–1910. [Google Scholar] [CrossRef]
  16. Saha, S.C. Unsteady natural convection in a triangular enclosure under isothermal heating. Energy Build. 2011, 43, 695–703. [Google Scholar] [CrossRef]
  17. Ridouane, E.H.; Campo, A.; Hasnaoui, M. Turbulent natural convection in an air-filled isosceles triangular enclosure. Int. J. Heat Fluid Flow 2006, 27, 476–489. [Google Scholar] [CrossRef]
  18. Talabi, S.O.; Olunloyo, V.O.S.; Kamiyo, O.M.; Collins, M.W.; Karayiannis, T.G. Flow field and reynolds stress distribution in low turbulence natural convection in a triangular cavity. Int. Cent. Heat Mass Transf. 2006, 10, 511–514. [Google Scholar]
  19. Medina, M.A.; O’Neal, D.L.; Turner, W.D. A transient heat and mass transfer model of residential attics used to simulate radiant barrier retrofits, Part I: Development. ASME J. Sol. Energy Eng. 1998, 120, 32–38. [Google Scholar] [CrossRef]
  20. Medina, M.A.; O’Neal, D.L.; Turner, W.D. A transient heat and mass transfer model of residential attics used to simulate radiant barrier retrofits, Part II: Validation and simulations. ASME J. Sol. Energy Eng. 1998, 120, 39–44. [Google Scholar] [CrossRef]
  21. Moujaes, S.F.; Alsaiegh, N.T. Numerical heat transfer attic model using a radiant barrier system. J. Energy Eng. 2000, 126, 32–51. [Google Scholar] [CrossRef]
  22. Wang, S.; Shen, Z.; Gu, L. Numerical simulation of buoyancy-driven turbulent ventilation in attic space under winter conditions. Energy Build. 2010, 47, 360–368. [Google Scholar]
  23. Durbin, P.A. Separated flow computations with the k-ε-v2 model. AIAA J. 1995, 33, 659–664. [Google Scholar] [CrossRef]
  24. Behnia, M.; Parneix, S.; Shabany, Y.; Durbin, P.A. Numerical study of turbulent heat transfer in confined and unconfined impinging jets. Int. J. Heat Fluid Flow 1999, 20, 1–9. [Google Scholar] [CrossRef]
  25. Parneix, S.; Durbin, P.A.; Behnia, M. Computation of a 3D turbulent boundary layer using the V2F model. Flow Turbul. Combust. 1998, 10, 19–46. [Google Scholar]
  26. Heschl, C.H.; Sanz, W.; Klanatsky, P.; Madou, F. Comparison of Different Turbulence Models to Compute Wall Affected Room Airflows. In CFD Forum; Bad Nauheim, Wetteraukreis, Germany 19 October 2005. .
  27. Zhang, Z.; Zhang, W.; Zhai, Z.; Chen, Q. Evaluation of various turbulence models in predicting airflow and turbulence in enclosed environments by CFD: Part 2—Comparison with experimental data from literature. HVAC&R Res. 2007, 13, 871–886. [Google Scholar]
  28. El-Behery, S.M.; Hamed, M.H. A comparative study of turbulence models performance for turbulent flow in a planar asymmetric diffuser. World Acad. Sci. Eng. Technol. 2009, 53, 769–780. [Google Scholar]
  29. Ozoe, H.; Mouri, A.; Ohmuro, M.; Churchill, S.W.; Lior, N. Numerical calculations of laminar and turbulent natural convection in water in rectangular channels heated and cooled isothermally on the opposing vertical walls. Int. J. Heat Mass Transf. 1985, 28, 125–138. [Google Scholar] [CrossRef]
  30. Henkes, R.A.W.M.; van der Vlugt, F.F.; Hoogendoorn, C.J. Natural-convection flow in a square cavity calculated with low-Reynolds-number turbulence models. Int. J. Heat Mass Transfer 1991, 34, 377–388. [Google Scholar] [CrossRef]
  31. Henkes, R.A.W.M.; Hoogendoorn, C.J. Scaling of the turbulent natural convection flow in a heated square cavity. ASME J. Heat Transf. 1994, 116, 400–408. [Google Scholar] [CrossRef]
  32. Hsieh, K.J.; Lien, F.S. Numerical modeling of buoyancy-driven turbulent flows in enclosures. Int. J. Heat Fluid Flow 2004, 25, 659–670. [Google Scholar] [CrossRef]
  33. ANSYS FLUENT 13.0. ANSYS, Inc.: Canonsburg, PA, USA, 2011.
Sustainability EISSN 2071-1050 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
