A Practical Approach to Reduce Greenhouse Gas Emissions from Open Dumps through Infrastructure Restructuring: A Case Study in Nanjing City, China

Abstract

A new environmental ban has forced the restructure of open dumps in China since 1 July 2011. A technical process was established in this study that is feasible for the upgrade of open dumps through restructuring. The feasibility of restructuring and the benefit of greenhouse gas emission reductions were assessed according to field surveys of five landfills and four dumps in Nanjing. The results showed that the daily processing capacities of the existing landfills have been unable to meet the growth of municipal solid waste (MSW), making restructuring of the landfills imperative. According to an assessment of the technical process, only four sites in Nanjing were suitable for upgrading. Restructuring the Jiaozishan landfill effectively reduced the leachate generation rate by 5.84% under its scale when expanded by 60.7% in 2015. CO₂ emissions were reduced by approximately 55,000–86,000 tons per year, in which biogas power generation replaced fossil fuels Fossil fuels accounted for the largest proportion, up to 45,000–60,000 tons. Photovoltaic power generation on the overlying land has not only reduced CO₂ emissions to 26,000–30,000 tons per year but has also brought in continuing income from the sale of electricity. The funds are essential for developing countries such as China, which lack long-term financial support for landfill management after closure.

1. Introduction

With increasing urbanization and economic development, municipal solid wastes (MSW) have increased on a large scale in recent years. Although all countries across the world are trying hard to reduce the emissions of MSW [1], it is frustrating that global waste will undoubtedly exceed 2.2 billion tons by 2025 [2]. The urbanization rate in China has increased rapidly within the past 30 years, and with approximately 700 million citizens, the country already has the most urban residents in the world [3]. However, the collection, disposal, and recycling of MSW cannot keep up with rapid urban development [4]. A large amount of MSW has been dumped in the areas surrounding cities, and the phenomenon of “garbage siege” is common in developing countries such as China [5,6,7]. Previous studies have demonstrated that this phenomenon stems from three main reasons. First, the awareness of environmental protection by urban administrators is weak. Municipal garbage collectors habitually throw MSW into urban fringe areas, and these wastes gradually accumulate [8]. Second, urban administrators have insufficient experience in urban governance and cannot foresee the rapid growth of the urban population. The disposal capacity is not large enough to cope with the growing MSW generation [9]. Third, some small and medium-sized cities in developing countries lack sufficient financial resources. These limited financial resources must be preferentially used for the construction of the city’s most basic infrastructure and public facilities such as transportation, electricity, water supply, and so on [10]. Therefore, the phenomenon of garbage siege has gradually appeared in the surrounding cities.

There have also been many kinds of disposal methods dealing with the increasing MSW in the past few decades. Composting, biodegradation, incineration, open-air piling, and sanitary landfill are currently the primary disposal methods of MSW. However, there have been a variety of deficiencies when using these disposal technologies. For example, besides the low efficiency of composting and the high cost of biodegradation, they only dispose of organic degradable wastes [11]. Moreover, the cost of incineration is very high, and the incombustible parts and ash need to be further disposed of, which easily produces secondary pollution [12,13]. Sanitary landfill has been widely used in developed countries, which can simultaneously landfill organic and inorganic waste, and the cost is just 1/8–1/15 that of incineration [14,15].

There are currently more than 2000 active landfills in China, but the configuration facilities of most landfills are missing, and the pollution control effect is poor [16]. Most landfills are constructed based on open dumps, which is a common pattern in developing countries [5,6,7]. The congenital deficiencies of these landfills will not only lead to the decline of urban tourism and land value [17], but will also affect the urban environment. These deficiencies will negatively impact the groundwater and air and contribute to soil pollution [12,18,19] as well as threaten food safety and public health [20,21]. Although some studies have evaluated the effects of landfills from various aspects [22,23,24], there has been little revealed regarding reducing greenhouse gas emissions when changing open dumps to landfills. Therefore, the aims of this study were as follows: (1) to evaluate the feasibility of restructuring the existing landfills; (2) reveal the influence of upgrading open dumps through restructuring based on leachate control; and (3) explore the effects of landfill restructuring on CO₂ emissions reduction.

2. Methods and Data

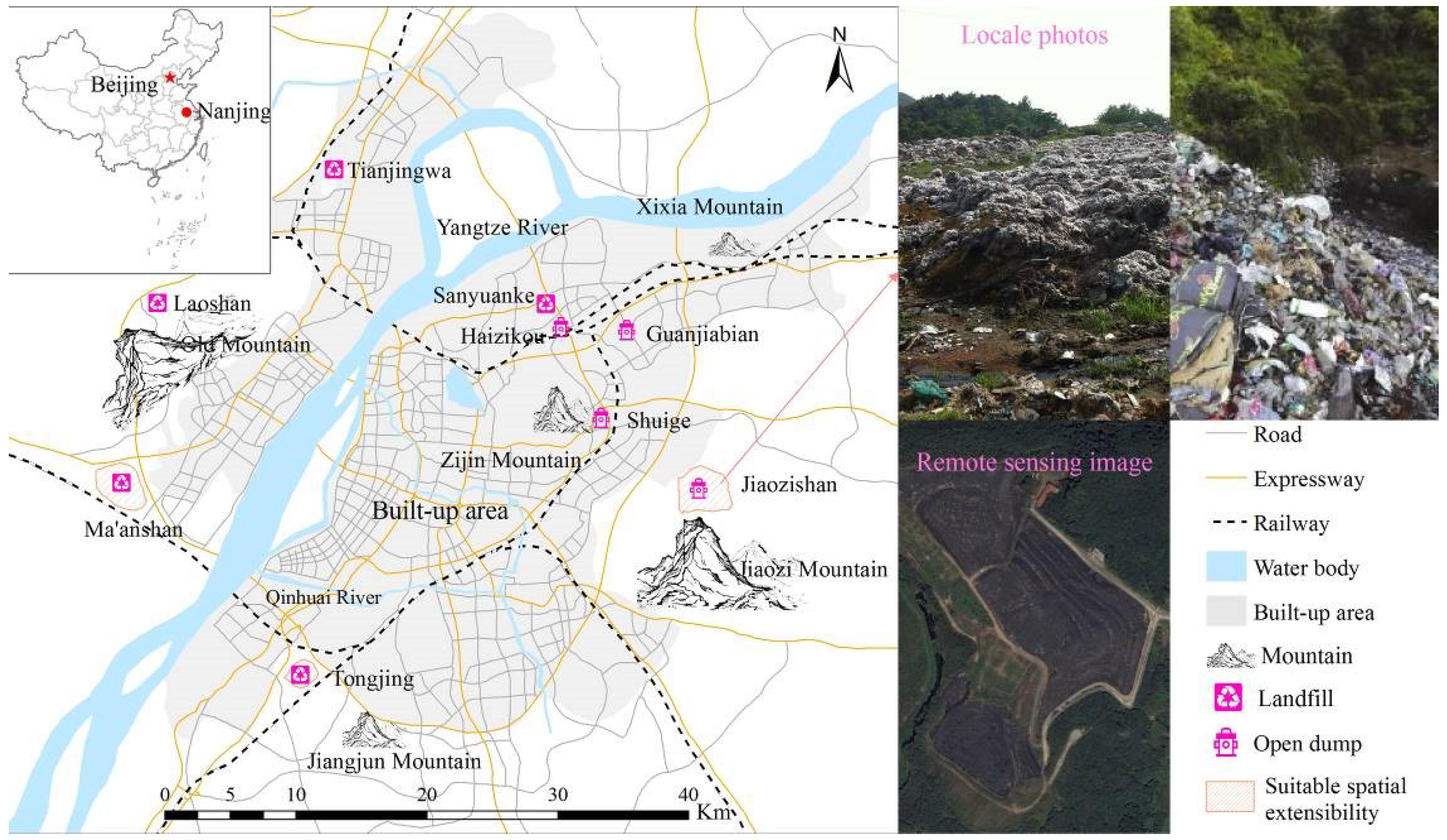

2.1. Study Area

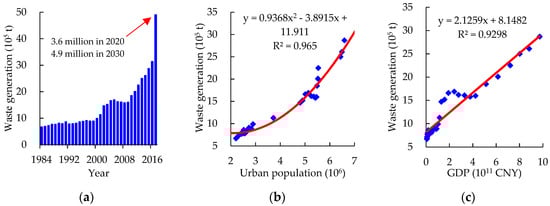

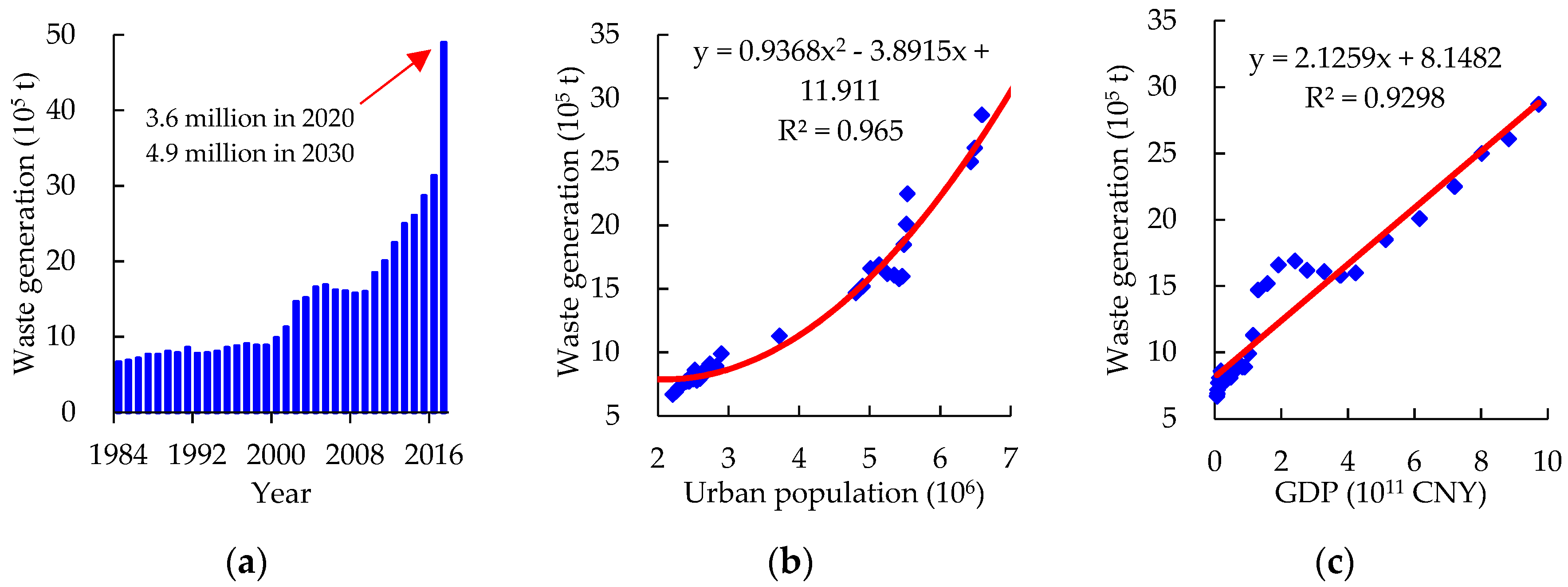

Nanjing is located at north latitude 31°14′′ to 32°37′′ and east longitude 118°22′′ to 119°14′′ [25]. Over the past 30 years, the amount of MSW has increased from 0.884 million tons to 3.139 million tons, and it will reach 3.6 and 4.9 million tons in the years 2020 and 2030, respectively [26] (Figure 1a). Meanwhile, the urban population has increased from 2.644 million to 6.704 million, and the urban gross domestic product (GDP) in Nanjing has also increased from 65.82 billion CNY to 10,503.02 billion CNY. The continued growth of the city population and GDP presents a positive relationship with the amount of MSW (Figure 1b,c).

In Nanjing, low hill areas account for 60.8% of the territory, which provides excellent location conditions for landfill site selection. The construction process of Nanjing’s landfills is tortuous. Nanjing ended the long-term historical policy of municipal garbage piled up randomly in 1993 due to the creation of the national “health and civilization city.” Three landfill sites including Shuige, Jiaozishan, and Tianjingwa were constructed successively to dispose of MSW centrally based on better city zoning sites. In 2003, according to the relevant requirements issued by the Chinese government, the second stage of expansion projects was carried out on the Jiaozishan and Tianjingwa landfills using anti-seepage measures and the corresponding sewage treatment process. After 2004, the Tongjing and Ma’anshan landfills were built. Currently, there are five regular landfills and four open dumps in Nanjing (Figure 2).

The characteristics of five regular landfills and four open dumps in Nanjing are shown in

Table 1. Characteristics of five regular landfills and four open dumps in Nanjing.

Site	Type	Area (hm2)	Treatment Capacity (t·d−1)	Remaining Service Life (Years)
Jiaozishan (JZS)	Open dump to landfill	45.0	2600.0	13
Tongjing (TJ)	Sanitary landfill	34.4	2400.0	15
Tianjingwa (TJW)	Sanitary landfill	2.2	800.0	2
Shuige (SG)	Open dump	0.4	0	Prohibited use
Maanshan (MAS)	Sanitary landfill	17.2	1200.0	9
Lanshan (LS)	Controlled	7.8	800.0	11
Haizikou (HZK)	Open dump	0.3	100.0	Limited use
Guanjiabian (GJB)	Open dump	0.5	100.0	Limited use
Sanyuanke (SYK)	Controlled	4.1	400.0	Over service life

. The four historical open dumps are typical decay landfills, which seriously threaten the ecological environment of the surrounding areas. The daily treatment capacity of these landfills is only 5600 tons, which is far below the 8600 t·d⁻¹ required by MSW management. Landfills and open dumps are overloaded to cope with the rapid growth of urban MSW output, even if they do not comply with current environmental standards. Therefore, it is imperative to restructure and upgrade the existing landfills and open dumps.

2.2. Research Methods

2.2.1. Research Framework

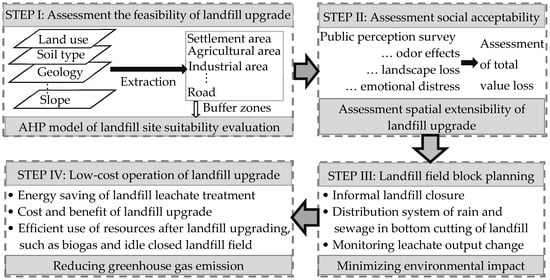

A framework for landfill restructuring was formulated to effectively control the output of leachate and outflow pollution, meet the national environmental protection requirements, reduce leachate treatment costs, and achieve energy-saving emissions reduction targets (Figure 3). This framework consists of four steps.

Step I: Assessment of the feasibility of landfill site upgrade by combining analytic hierarchy process (AHP) with GIS [27]. If the locations of existing landfills were suitable, they were considered for the possibility of an upgrade. However, if they were not, they would be abandoned and a new suitable site selected.

Step II: A public perception survey was used to evaluate the total value loss that may result from upgrading the landfills as well as to determine the feasibility of the spatial extension of upgrading existing landfills [28,29].

Step III: A reasonable zoning plan was conducted for landfill upgrading. The pre-landfill sites were closed, while the arranged rain drainage system with the “separation of rainwater and sewage” method was used in long-term landfill sites, which could reduce the leachate output and slow down the effect of landfill leachate on the surrounding soil and groundwater environment [30].

Step IV: To achieve low-carbon landfill operations in the future, it is important to make full use of biogas power generation in the landfill and use the vacant land to build photovoltaic power plants.

2.2.2. Review of Landfill Upgrading Plan and Leachate Estimation

The landfill upgrading zoning plan has been implemented since 1 July 2011 [31]. In the early dump stage, the government improved the incomplete planted final cover-defective to the planted final cover-intact of 84,000 m². Second, the plan was to accelerate the landfill work of the remaining area of the early dump stage and to implement the closure of all early-stage dumps in 2014. Third, it was to complete the 68,000 m² of the covered landfill area of the first expansion stage and carry out no planting coverage. Next, to divide the remaining 92,000 m² of the first expansion stage into two blocks, 44,000 m² was to be constructed as untreated landfill area, and the remaining 48,000 m² used for the implementation of separation of rainwater and sewage. Finally, the plan divided the 170,000 m² of the second expansion stage into four blocks. No treatment was created from the 45,000 m² start area, while the remaining 125,000 m² was divided into three pieces to carry out the separation of rainwater and sewage plan.

Previous studies have reported that the method of separation of rainwater and sewage would not only alleviate the environmental risk of large amounts of leachate infiltration but will also realize the reduction of CO₂ emissions from the landfill operation process [32]. The following empirical formula can be used to calculate the output of landfill leachate [30,33,34].

$$Q=I{\displaystyle \sum _{i=1}^n}{C}_i{A}_i$$

(1)

where Q represents the leachate output; I represents the average annual rainfall; n represents the blocks number of landfill partition; C_i represents the permeability coefficient of i block, and A_i indicates the catchment area of i block. C_i ranges from 0.1 to 0.8, which is affected by many factors, such as precipitation, evaporation, and the upper cover. According to the similar parameters of Yang et al. [35] in Shanghai and CNS [36], the C_i values in Nanjing are 0.7, 0.5, 0.2, 0.1, and 0.4, which correspond to landfill without cover, intermediate cover, unplanted final cover, planted final cover-intact, and planted final cover-defective, respectively. I is a constant, and C_i is the limited constant. Therefore, if Q is proportional to A_i, then the leachate output can be effectively reduced by using zoning planning and separation of rainwater and sewage method to decrease A_i.

2.2.3. Accounting Methods of CO₂ Emissions Reduction

Greenhouse gas (GHG) emission categories of the landfill can be divided into seven parts including CO₂ emissions from waste collection and transportation, CO₂ emissions from landfill management, CO₂ emissions from leachate treatment, GHG emissions due to fugitive CH₄, saved CO₂ emissions as a substitute for electricity production, saved CO₂ emissions as carbon sequestered in the landfill body, and other GHG emissions such as NO₂ and CO emissions [35]. The effects of landfill restructuring on CO₂ emissions have focused on CO₂ emissions from the leachate treatment and saved CO₂ emissions as a substitute for electricity production. Either the restructuring had a minimal effect on the CO₂ emissions of the other parts, or the effect could not be accurately estimated.

In the first part, the CO₂ emission reduction effect was caused by the reduced leachate after closing open dumps and the transformation of regular landfill using the separation of rainwater and sewage method, resulting in a decrease in energy consumption by the pollution treatment. First, the reduced leachate output was calculated according to Equation (1). Then, the Yang et al. [35] method was used to go through the variable transformation and combine the previous empirical parameters, and the CO₂ emissions reductions were finally calculated [31,37]. The specific formula is as follows:

$$C_{LT}=Q_r\times {\displaystyle \sum _{i=1}^n}\left(A_i\times E{F}_i\right)/1000$$

(2)

where C_LT represents the annual CO₂ emissions reduction from the leachate treatment (t); Q_r represents the volume of leachate generated from the annual landfill reduction (m³); A_i represents the amount of the ith auxiliary material or energy used in the leachate treatment process (

Table 2. Parameters used in the greenhouse gas (GHG) accounting formula for landfill restructuring.

Parameters	Definition	Values	Units	References
AGravel	Amount of gravel used for leachate collection	80–120	kg·t−1 waste	[38]
AElectricity	Amount of electricity used for official landfill systems, operation of leachate, and landfill gas collection system	22–26	kWh·m−3	[37,38]
AWater	Amount of water used for the leachate treatment	83	kg·m−3	[37]
AHCl	Amount of HCl used for the leachate treatment	3	kg·m−3	[37]
ANaOH	Amount of NaOH used for the leachate treatment	5	kg·m−3	[37]

), and EF_i represents the CO₂ emissions factor for the provision of the ith auxiliary material or energy (kg·kg⁻¹ or kg·kWh⁻¹).

Second, the biogas produced by the reformed landfill was utilized comprehensively, then, the amount of CH₄ that escaped was reduced, which led to greenhouse gas effects. The available quantity of CH₄ converted into the equivalent CO₂ value could be calculated according to the formula listed by the IPCC (Intergovernmental Panel on Climate Change) Guidelines [39], and the specific formula is as follows:

$$C_{SE}=P_{C{H}_4}\times MCF\times \frac{24.5L·mo{l}^{-1}}{16g·mo{l}^{-1}}\times \beta \times \epsilon \times LH{W}_{C{H}_4}\times \gamma \times \frac{1}{3.6MJ·kW{h}^{-1}}\times E{F}_e/1000$$

(3)

where C_SE represents the saved CH₄ emissions as substituted CO₂ emissions from electricity production (t); P_CH4 represents the CH₄ potential of waste under anaerobic conditions, which was 36.3 ± 8.5 kg·t⁻¹ in this study [40]; MCF is the CH₄ conversion factor, which was 0.8 before 2016 and 1.0 after 2020 in this study [41]; $\beta$ represents the LFG (Landfill Gas) collection efficiency, which was 50% in this study [42]; $\epsilon$ represents the CH₄ burnout rate, which was 95–99% in this study [38]; LHV_CH4 represents the lower heating value of CH₄ under normal conditions (i.e., 101 kPa, 25 °C, MJ·m⁻³), which was 37 MJ·m⁻³ in this study [38]; $\gamma$ represents the energy recovery efficiency for the electricity generation from CH₄ combustion, which was 30% in this study; and EF_e represents the CO₂ emissions factor for the national power grid in China, which was 0.7035 kg·kWh⁻¹ in this study [35].

In addition, photovoltaic power plants will be built on the vacant land after the closure of some landfills, which can replace the fossil fuel energy and realize low-carbon operations. According to the construction standard of China’s thin-film solar power stations and the annual average sunshine time in Nanjing, the annual power generation capacity of the solar power station was calculated by the substitution method and then converted to the CO₂ equivalent value. The calculation formula is as follows:

$$C_{solar}=A\times e\times h\times r\times E{F}_e$$

(4)

In the formula, C_solar indicates the converted electricity CO₂ equivalent value, which is an alternative emission reduction potential; A indicates the available area of covered vacant land of the landfill (m², approximately 60% of the overlying vacant land can be used for photovoltaic power generation); e indicates the photovoltaic power in kilowatt hours per unit area (1 ha·MW⁻¹), according to the design specifications of the photovoltaic power station [43] and land control index of the photovoltaic power station project [43]); h indicates the annual sunshine time; r indicates the comprehensive utilization coefficient 0.80 [43], and EF_e, is the same as above.

2.3. Data Collection and Processing

In January 2015, we were commissioned by the Nanjing Environmental Protection Bureau to conduct this study. Detailed information was collected for each of the nine landfills, such as storage capacity, landfill, and leachate treatment. Additionally, the groundwater quality data of monitoring the wells in the Jiaozishan (JZS) landfill were collected. In February and August of 2015, the JZS landfill leachate collection tank, monitoring wells, surrounding agricultural wells, and drilling borehole water samples were also collected, processed, and analyzed according to Network Service Provider Reliability Council [44] and Du et al. [45]. The 1:10,000 land use map, 1:50,000 geological map, soil type chart, QuickBird remote sensing image of 29 July 2015 (resolution 0.61 m), and other information were collected from the Land Resources Bureau. The AHP and perceived value loss calculation models were both constructed based on the results of related research. The SPSS19.0 software was used to analyze the data and correlate the analysis. ARCGIS 10.2 software was used to perform the overlay and buffer analysis of land use, soil type, geology, hydrology, and road distance.

3. Results

3.1. Feasibility Analysis of Landfill and Open Dump Upgrade

The AHP model was used to evaluate the feasibility of upgrading five landfills and four open dumps in Nanjing. The results showed that only three of the five landfills could continue with upgrades, while Tianjingwa (TJW) and Sanyuanke (SYK) have been surrounded by urban built area. These were not suitable as the landfills and should be immediately closed. Only the JZS landfill was suitable for upgrading among the four open dumps, whereas the other three did not meet the basic upgrading conditions (

Table 3. The results of the evaluation of the feasibility of upgrading five landfills and four open dumps in Nanjing.

Limiting Factor	Limiting Sub-Factor	JZS	TJ	TJW	SG	MAS	LS	HZK	GJB	SYK
Environmental geological factor	Topography conditions	5	3	5	3	5	5	3	5	5
	Site stability	5	5		5	5	5	5	5	5
	Distance from water source	5	3	5	3	5	5	3	3	3
	Bottom cohesive soil thickness	5	5	5	5	5	5	5	3	5
	Sidewall cohesive soil thickness	3	5	3	5	5	3	5	3	5
	Permeability of cohesive soil	3	5	3	3	5	5	5	5	5
	Groundwater depth	5	3	3	3	3	5	3	3	3
Environmental protection factor	Distance from surface water	5	3	5	1	3	5	1	3	1
	Distance from settlements	3	3	✗	✗	5	5	✗	✗	✗
	Distance from town	5	5	✗	✗	5	5	✗	✗	✗
	Distance from industrial area	3	3	✗	3	3	3	✗	✗	✗
Traffic and transportation factor	Distance from existing highway	5	5	5	5	5	5	5	5	5
	Garbage transport distance	5	3	5	5	3	3	5	5	5
Social environmental factor	Distance from scenic area	5	5	5	3	5	1	3	3	3
	Distance from railway	3	5	3	3	5	5	1	✗	3
	Distance from airport	5	5	5	5	5	5	5	5	5
	Population number within 1000 m	5	3	✗	1	5	5	✗	✗	✗
	Population number within 1500 m	5	3	✗	1	3	5	✗	✗	✗
	Population number within 2000 m	3	3	✗	3	3	5	✗	✗	✗
Anti-evaluation results		✓	✓	✗	✗	✓	✓	✗	✗	✗

Notes: scoring criteria: completely suitable, 5 points; generally suitable, 3 points; limited suitability, 1 point; completely unsuitable, ✗; once there is a completely unsuitable score, the comprehensive result is unfeasible. ✓ means suitable for upgrading.

).

3.2. Influence of Upgrading Open Dumps through Restructuring on Leachate

At the beginning, the JZS landfill was an open dump with a daily treatment capacity of only 600 tons since it was opened with an area of 120,000 m² in 1991, and it accumulated a stack of 4.7 million m³ until 2011. To cope with the continuous growth of MSW in Nanjing, the area of the JZS landfill was expanded twice in 2003 and 2011 at 160,000 m² and 170,000 m², respectively. The service was extended to 2030. The JZS landfill was expected to have a daily treatment capacity of 2600 tons for growing MSW generation after the second expansion. In addition, approximately 120,000 m² carried out the implementation of the anti-seepage transformation in the first expansion, and 84,000 m² of the early dump stage implemented the planted final cover-defective in 2008. Now, it is the largest landfill in Nanjing and has the largest daily treatment capacity (Table 1).

3.2.1. Effects of Upgrading on the Leachate Output

Due to the huge area of the JZS landfill, the costs of the leachate treatment by itself would have been very large if the scientific division was not carried out since the implementation of the new “Standard for Pollution Control on the Landfill Site of Municipal Solid Waste.” The results based on the upgrading plan of the separation of rainwater and sewage zoning and the empirical formula of leachate estimation (Equation (1)) are shown in

Table 4. The variation and forecast of leachate output before and after the upgrades to the JZS open dump.

Year	Annual Rainfall (mm)	Area (104 m2)	Coverage Status of Landfill Site						The Maximum Possible Leachate Output Without The Zoning Plan (m3)	With the Zoning Plan
			A	B	C	D	E	F		Theoretical Leachate Output (m3)	Actual Leachate Output (m3)
2011	1077.0	28.0		19.6				8.4	183,951.6	183,951.6	174,436.2
2012	917.2	28.0		16.0	3.6			8.4	150,053.9	150,053.9	161,245.4
2013	898.4	45.0		33.0	3.6		8.4		231,248.2	231,248.2	237,389.5
2014	1091.1	45.0	4.8	21.4	6.8	3.6	8.4		254,226.3	217,565.3	223,246.8
2015	1765.6	45.0	17.3	8.9		6.8	12.0		369,010.4	155,196.2	164,247.3
2020	1106.5	45.0	12.5	8.5		5.2	18.8		194,965.3	98,146.6
2030	1106.5	45.0					45.0		49,792.5	49,792.5

Note: A separation of rainwater and sewage area; B uncovered area; C intermediate cover; D unplanted final cover; E planted final cover-intact; and F planted final cover-defective.

. The zoning plan could effectively control the leachate output. Compared with the data from 2011, the landfill area in 2015 expanded by about 60.7%, while the actual leachate output decreased by 30.8%. If the zoning planning had not been implemented, the possible maximum leachate output would be 124.7% higher than the actual output. The actual leachate output correlated with the theoretical leachate output (p = 0.01), and the Pearson correlation coefficient was approximately 0.9745.

3.2.2. Mitigation of Leachate Concentration by Restructuring

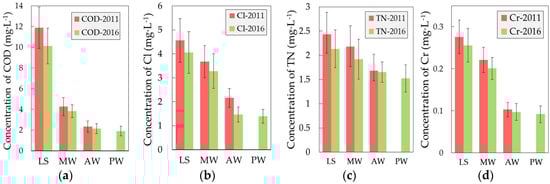

There are various physicochemical indices for leachates. For a concise comparison analysis, we only selected the COD, TN, Cl⁻, and Cr, which represented the inherent stability of organic and inorganic compounds and heavy metals [46]. The JZS landfill daily water quality monitoring data and borehole sampling analysis results in February and August of 2011 and 2016 are shown as follows (Figure 4). The COD, TN, Cl, and Cr contents were highest in the leachate collection pond, and the concentrations in the landfill surrounding the monitoring well were slightly lower, while the concentrations in the surrounding agricultural well water and borehole water sampling were the lowest. Compared with 2011, the COD content changed the most in 2016, and the decline rate was up to 17.6%. The changes of other indicators were relatively small, but the overall index in 2016 was better than that in 2011. These results imply that the JZS landfill has effectively mitigated the pollution of leachates to the surrounding groundwater.

3.3. Effect of Landfill Restructuring on CO₂ Emission Reduction

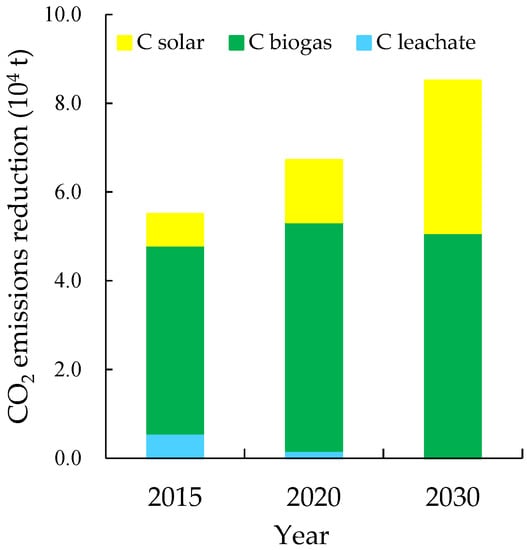

According to Equations (2)–(4) and Table 4, the contributions of leachate output reductions caused by landfill restructuring, biogas power generation replacing fossil energy, and photovoltaic power generation to CO₂ emission reductions were each calculated separately. After landfill restructuring, the actual leachate output decreased by approximately 10,188.9 m³. At the same time, biogas could be collected by sealing the areas of the open dump stage and the first upgrading stage, and a solar power station built on the vacant upper covering land (Table 4). The annual CO₂ emissions were approximately 48,000–55,000 tons in 2015, and the CO₂ emissions reductions each year after 2030 may reach approximately 80,400–86,000 tons (Figure 5). The benefits of CO₂ emissions reductions brought by the leachate treatment were significant in the initial stage. With the gradual closure of the landfill site, the area of rainwater diversion at the bottom of the field was reduced, and there was no obvious role of leachate output reduction.

Meanwhile, the JZS landfill was very large with many closed staging blocks, which is important for biogas power with a stable source of biogenic gas. After the closure of the landfill, a solar power plant will be built on the vacant upper covering land of the landfill. Other benefits in addition to CO₂ emissions reductions of the solar power plant are shown as follows:

(1)

Upper covering vacant land resources are effectively used.

(2)

It helps to alleviate the lack of space for construction land available in major cities in China.

(3)

A practical approach of low-carbon and sustainable management for post-landfilling operations is provided to achieve CO₂ emissions reductions and alleviate financial pressure on the government. Regardless of carbon rights trading, the photovoltaic electric tariff charged up to 20–40 million CNY, which can fully meet the funding requirements of the daily landfill operation and management after landfill closure.

4. Discussion

MSW is an important carbon source; its recycling and CO₂ emissions reduction potential have always been a research hotspot [47,48,49,50]. From the estimated results, the benefits of landfill restructuring are obvious. The results showed that biogas power generation replacing fossil energy could save 45,000–60,000 tons of CO₂ emissions per year. Considering the life cycle of the landfill, the saved CO₂ emissions of the biogas power generation from the JZS landfill accounted for 33.2–44.3% of the total CO₂ emissions of the entire MSW disposal. This ratio was slightly lower than the proportion of 40.0–60.0% CO₂ emissions reduction in China’s landfill gas generation alternative to fossil fuels that was estimated by Yang et al. [35], while it was higher than that in some developing countries [41]. In fact, the proportion of saved CO₂ emissions from the incineration of MSW was higher and reached up to 80% or higher in some countries [51]. Incineration treatment in landfills should be vigorously promoted from the perspective of CO₂ emissions reduction.

Furthermore, local governments should focus on environmental protection measures of landfill restructuring and convince the public of its benefits [4,19]. Previous studies have focused on the risk of landfills from natural risks, social risks, and financial risks. The natural risks of landfills were comprehensively assessed regarding topographic, geological, hydrological, soil, and land use factors [52,53,54]. The social risks of the landfills were entirely determined regarding agricultural land, residential areas, industrial zones, and scenic spots [28,55,56]. The financial risks of landfills were adequately estimated according to the distance from the landfill to highways and railways [57,58]. In this study, all of the environmental, hydrological, and geological factors were considered when restructuring the open dumps. Furthermore, these risks were significantly reduced after the implication of separation of rainwater and sewage zoning planning.

The operation and management of closed landfills is another important problem [13]. Most countries have primarily used general upper covering vacant land of closed landfills as country parks [59]. However, these parks have been much criticized by the public due to their poor location, poor security, low utilization rate, and high operating costs [60]. The planning of landfill for parks has made operating costs a long-term burden for local governments in major cities in China. Therefore, long-term and stable income is especially important for post-landfill operation and management [16]. We suggest here that a solar power station would be a priority for the upper covering vacant land. After being fully closed in 2030, the vacant land is conservatively estimated to be enough to build 30 MW photovoltaic power stations, which is equivalent to an annual saving of 26,000–30,000 tons of CO₂. At the same time, the photovoltaic power station could generate 20–40 million CNY from the annual electricity sales, which could fund approximately 20 years of continuous operation and management of the landfill after closure, which is also very attractive to government policy-makers.

In this study, the upgraded landfill site could effectively reduce greenhouse gas emissions, which has enhanced confidence and provided technical references for the large number of open dumps in developing countries. However, unlike transportation, electricity, and the water supply, landfill development planning has not yet received government attention [16,61,62]. Landfills and open dumps are overloaded to cope with the rapid growth of urban MSW output, even if they do not comply with current environmental standards. Therefore, it is imperative to restructure and upgrade the existing landfills and open dumps in developing countries in the future.

5. Conclusions

As China’s environmental standards for MSW disposal have become increasingly stricter, many informal landfills cannot meet the requirements of environmental protection and must upgrade through restructuring. We established a technical process in this study that is applicable for upgrading open dumps in China. An analytic hierarchy process model was used to evaluate five landfills and four dumps based on field investigations in Nanjing. The results showed that only four sites were suitable for upgrading and restructuring. After the upgrading and restructuring of the JZS landfill using the bottom separation of rainwater and sewage zoning planning, the actual leachate output was reduced by 5.84%, far less than 120% of the maximum possible leachate output without zoning planning. Biogas power generation replacing fossil energy could save 45,000–60,000 t·year⁻¹ of CO₂ emissions, which account for 33.2–44.3% of CO₂ emissions from the total MSW disposal. The upper covering vacant land of the post-landfill can be used to build a photovoltaic power station, which could not only reduce 26,000–30,000 t·year⁻¹ of CO₂ emissions but will also generate 20–40 million CNY annually from the sale of electricity. These funds would be beneficial in alleviating the continuous financial pressure of post-landfill operation and management in the future.
