- freely available
Pharmaceutics 2011, 3(3), 572-581; doi:10.3390/pharmaceutics3030572
Published: 29 August 2011

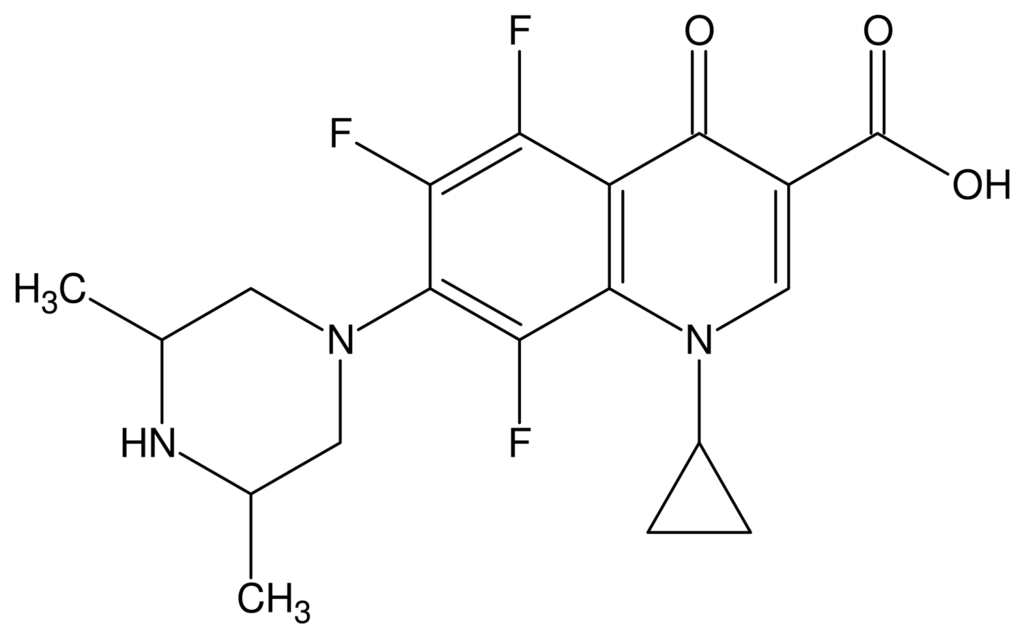

Abstract: Orbifloxacin is a fluoroquinolone with broad-spectrum antimicrobial activity, and belongs to the third generation of quinolones. Regarding the quality control of medicines, a validated microbiological assay for determination of orbifloxacin in pharmaceutical formulations has not as yet been reported. For this purpose, this paper reports the development and validation of a simple, sensitive, accurate and reproducible agar diffusion method to quantify orbifloxacin in tablet formulations. The assay is based on the inhibitory effect of orbifloxacin upon the strain of Staphylococcus aureus ATCC 25923 used as test microorganism. The results were treated statistically by analysis of variance and were found to be linear (r = 0.9992) in the selected range of 16.0–64.0 μg/mL, precise with relative standard deviation (RSD) of repeatability intraday = 2.88%, intermediate precision RSD = 3.33%, and accurate (100.31%). The results demonstrated the validity of the proposed bioassay, which allows reliable orbifloxacin quantitation in pharmaceutical samples and therefore can be used as a useful alternative methodology for the routine quality control of this medicine.
The fluoroquinolones are a class of compounds that comprise a large and expanding group of synthetic antimicrobial agents. Orbifloxacin (Figure 1) (1-cyclopropyl-5,6,8-trifluoro-1,4-dihydro-7-(cis-3,5-dimethyl-1-piperazinyl)-4-oxoquinoline-3-carboxylic acid) is a new third-generation fluoroquinolone antibacterial drug, developed exclusively for the treatment of gastrointestinal and respiratory infections in animals [1-3], but it is also used for treatment of skin, soft tissue, and urinary tract infections (in dogs and cats, especially) [4,5]. In addition, research is still being carried out on the antimicrobial effects of this analyte. Recent studies have focused on the effectiveness of orbifloxacin in the treatment of staphylococcal pyoderma both superficial and deep , the antimicrobial activity of orbifloxacin against Pseudomonas aeruginosa isolated from canine otitis  and activity against Staphylococcus intermedius isolated from canine skin and ear infections . Research is also being conducted on the possibility of widening the scope of orbifloxacin applications and using it for treatment of other animals, such as horses or rabbits [4,5,9].
Fluoroquinolones have become an important group, particularly for the treatment of infections caused by antibiotic-resistant bacteria .
Antimicrobial resistance of bacteria is a phenomenon that has been in constant evolution since the introduction of antibiotics. Several factors are known to promote bacterial resistance, including poor compliance with treatment regimen [10,11], prophylactic use of antibiotics  and the use of antibiotics as growth promoters [13,14], thus emphasizing the importance of dosage and appropriate treatment.
For an appropriate dosage of the pharmaceutical form orbifloxacin analytical methods should be developed and validated. To date, all methods described in the scientific literature for determination of this analyte in biological and others materials involve liquid chromatography, with UV detection [2,4,15-19], fluorimetry detection [5,19-27] or mass spectrometry [21-24,28] and a spectroscopic technique coupled to a flow system  as detection techniques.
There have been few reported methods for orbifloxacin, nor is there a method described in official compendia and no method for determination of orbifloxacin in dosage forms. Hence, an attempt has been made to develop a simple, sensitive, accurate and reproducible method for the determination of orbifloxacin in pharmaceutical dosage forms along with method validation.
2. Experimental Section
The orbifloxacin reference substance (assigned purity 99.8%) was supplied by Sigma-Aldrich. The pharmaceutical form tablets were commercially obtained and claimed to contain 22.7 mg orbifloxacin (Orbax®-Schering-Plough, Brazil). All reagents used were analytical grade. Purified water was used in all experiments.
2.2. Orbifloxacin Reference Solutions
An accurately weighed amount of powder equivalent to 5 mg of orbifloxacin reference standard was transferred to 50 mL volumetric flask and dissolved in 0.5 M hydrochloride acid solution to obtain final concentration of 100 μg/mL. Aliquots of this solution were diluted in the phosphate buffer solution pH 6.0 to give concentrations of 16.0, 32.0 and 64.0 μg/mL (S1, S2 and S3, respectively), which were used in the bioassay.
2.3. Preparation of the Sample Solutions
Twenty tablets were weighed and pulverized. An amount of powder equivalent to 10 mg of orbifloxacin was transferred to a 100 mL volumetric flask with 50 mL 0.5 M hydrochloride acid solution and shaken for 30 min in ultrasonic. This was followed by making up to volume with the same solvent. Aliquots of this solution were further diluted in phosphate buffer solution pH 6.0 to obtain the concentrations of 16.0, 32.0 and 64.0 μg/mL (T1, T2 and T3, respectively) which were tested against S1, S2 and S3.
2.4. Microorganism and Inoculum Standardization
The strain of Staphylococcus aureus ATCC 25923 shows to be the most appropriated test microorganism because of its susceptibility to orbifloxacin and capacity to form sharply defined inhibition of growth zones, allowing precision in the measurements.
The cultures of S. aureus ATCC 25923 were cultivated and maintained on Casoy culture medium (Difco, Brazil). The microorganism standardization was made according to the procedure described in the Brazilian and The United States Pharmacopeias [30,31]. Prior to use, the microorganism was grown in a BHI broth in a conical flask, which was incubated during 24 h at 35 ± 2 °C. Using a spectrophotometer with the wavelength set at 580 nm and a 10 mm absorption cell, the broth containing the microorganism was diluted to give a suspension with 25 ± 2% turbidity (transmittance) with the some broth sterile solution as the blank. From this standardized suspension, aliquots of 1.0 mL were added to each 100 mL of Grove–Randall's 11 culture medium (Difco, Brazil) at 48 °C, and used as the inoculated layer in the plate.
2.5. Agar Diffusion Bioassay
The base layer agar was composed of 20 mL Grove–Randall's 1 culture medium (Difco) that was poured into a 100 × 20 mm Petri dish [30,31]. After solidification of this layer, portions of 5 mL of inoculated Grove–Randall's 11 medium was poured onto the base layer.
In each plate, six stainless steel cylinders of uniform size (8 × 6 × 10 mm) were placed on the surface of the inoculated medium. Three alternated cylinders were filled with 200 μL of the reference solutions (S1, S2, and S3), and the other 3 cylinders were filled with the concentrations of the sample solutions (T1, T2, and T3; Figure 2). Six plates were used for each assay. The plates were incubated at 35 °C aerobically for 18 h. The growth inhibition zone diameters (mm) were carefully measured with a digital caliper.
2.6. Calculation of Activity and Method Validation
To calculate the activity of orbifloxacin, the Hewitt equation was used . The assays were calculated statistically by the linear parallel model and regression analysis and verified using analysis of variance (ANOVA).
Linearity—In order to assess the validity of the assay, 3 doses of the reference substance were used. The linearity was evaluated by linear regression analysis, which was calculated by the least-squares method.
Precision—The precision of the method was determined by repeatability and intermediate precision and was expressed as the relative standard deviation (RSD). The repeatability was examined by assaying 7 samples of orbifloxacin on the same day (intraday) and under the same experimental conditions against the orbifloxacin reference standard. The intermediate precision of the method was evaluated through the performance of the analysis on 3 days (interday) and by having different analysts perform the analysis in the same laboratory (between-analysts).
Accuracy—To determine the accuracy of the proposed method, the test was performed over 3 concentration levels, 80, 100 and 120%, covering the specified range. Accurately aliquots of 0.48, 0.8, and 1.12 mL of the reference standard solution (100 μg/mL) were transferred into 5 mL volumetric flasks together with aliquots of sample solutions (100 μg/mL) and diluted with phosphate buffer solution pH 6.0 to give final concentrations of 25.6, 32.0, and 38.4 μg/mL, respectively.
Robustness—The robustness of the method was determined by analyzing the same sample under a variety of conditions. The factors considered were incubation time, volume of the inoculated layer (thickness), volume filled in cylinders, the solvent used for standard and sample dilution and the microorganism concentration on the inoculated layer.
3. Results and Discussion
The development and validation of analytical methods for the potency determination has received considerable attention in recent years, mainly from regulatory agencies, because of their importance in pharmaceutical analysis [36-39].
In this case, a microbiological assay was proposed as a suitable method for the determination of orbifloxacin in tablet forms.
The experimental conditions were tested and adjusted to accurately determine the performance of the assay. The strain of Staphylococcus aureus ATCC 25923 was found to be an appropriate test microorganism because of its sensitivity to orbifloxacin and its capacity to form sharply defined inhibition growth zones, allowing measurements with precision.
The potency of an antibiotic may be demonstrated under suitable conditions by comparing the growth inhibition of sensitive microorganisms induced by known concentrations of the antibiotic to be examined and a reference standard [30,31].
In this experimental work of 3 × 3 design (Figure 2), 3 dose levels for each standard and sample, were respectively used following the procedures described in the Brazilian Pharmacopoeia . The calculation procedures normally assume a direct relationship between the observed zone diameter and the logarithm of the applied dose. The results of growth inhibition zone diameter of orbifloxacin reference substance are shown in Table 1.
The calibration curve for orbifloxacin was constructed by plotting zone diameter (mm) versus log of concentrations (μg/mL) and showed good linearity in the 16–64 μg/mL range.
The representative linear equation for orbifloxacin was y = 8.5263 Ln(x) + 9.2756 (n = 3, r = 0.9996), where x is log dose and y is zone diameter. The experimental values obtained for the determination of orbifloxacin in samples are presented in Table 1. According to the Brazilian  and The United States  Pharmacopeias, if a parallel-line model is chosen, the 2 log dose-response lines of the preparation to be examined and the reference preparation must be parallel, and they must be linear over the range of doses used in the calculation. These conditions must be verified by validity tests for a given probability, usually P = 0.05. The assays were validated by means of the ANOVA, as described in those official codes. There were no deviations from parallelism and linearity with the obtained results (P < 0.05).
The method precision in terms of repeatability (intra-assay) was evaluated by analyzing, on the same day, seven samples of orbifloxacin reference substance with same theoretical concentration. The intermediate precision was determined by analyzing the same sample on 3 days (between-day) with obtained RSD values of 2.88 and 3.33%, respectively. The orbifloxacin activity ranged from 99.18 to 101.84%, with a RSD value of 1.42%. The lower RSD values achieved confirm that the proposed method has capacity to generate, for the same sample, reproducible results with low response variation between independent assays.
The accuracy of the method was evaluated at 80, 100 and 120% of the nominal analytical concentration in the specified range of 16.0–64.0 μg/mL. The mean accuracy was 100.31% and RSD was 1.04% (Table 2), which confirms the ability of the method to determine with accuracy the orbifloxacin concentration within the range of 80–120% and, in the same way, shows that the results obtained from the bioassay were close to the true concentration values of the samples.
The quantification of antibiotic components by chemical methods, such as HPLC and UV spectrophotometry, although precise, cannot provide a true indication of biological activity. Attempts to correlate antibiotic bioassay results with those from chemical methods have proved disappointing. Therefore, bioassays continue to play an essential role in manufacturing and quality control of antibiotic medicines, and still demand considerable skill and expertise to assure success . Although the biological assays can have a high variability, the analysis of the obtained results demonstrated that the proposed method might be very useful for determination of this drug in pharmaceutical dosage forms.
The results obtained in this study were very satisfactory, and the performed validation proved that microbiological assay is a good alternative methodology for pharmaceutical analysis of orbifloxacin in tablets. It is a useful analytical tool as a supplement or substitution for the physicochemical method.
The results indicated that the microbiological cylinder plate assay demonstrated good linearity, precision and accuracy at concentration ranging from 16.0 to 64.0 μg/mL, therefore, being an acceptable alternative method for the routine quality control of orbifloxacin in pharmaceutical forms. The method uses simple reagents, with minimum sample preparation procedures, and no toxic residues, encouraging its application in routine analysis.
|Table 1. Diameters of growth inhibition zones for orbifloxacin reference substance solutions obtained for standard curve.|
|Concentration, μg/mL||Range of zone size, mma||Mean diameters of growth inhibition zones,b mm||RSD, %|
aDigital caliper resolution is 0.01 mm;bMean of 3 assays with 6 plates en each.
|Table 2. Accuracy of the microbiological assay of orbifloxacin.|
|Run||Amount of standard, μg/mL||Recovery,a%||RSD, %|
aMean of 3 assays.
The authors would like to thank you FAPESP, CNPq, FUNDUNESP and PACD-FCF-UNESP. E.C.L.C. is supported by FAPESP.
Conflict of Interest
The authors declare no conflict of interest.
- Nakamura, S. Veterinary use of the new quinolones in Japa. Drugs 1995, 49, 152–158. [Google Scholar]
- Matsumoto, S.; Nakai, M.; Yoshida, M.; Katae, H. A study of metabolites isolated from urine samples of pigs and calves administered orbifloxacin. J. Vet. Pharmacol. Ther. 1999, 22, 286–289. [Google Scholar]
- Martinez, M.; McDermott, P.; Walker, R. Pharmacology of the fluoroquinolones: a perspective for the use in domestic animals. Vet. J. 2006, 172, 10–28. [Google Scholar]
- Davis, J.L.; Papich, M.G.; Weingarten, A. The pharmacokinetics of orbifloxacin in the horse following oral and intravenous administration. J. Vet. Pharmacol. Ther. 2006, 29, 191–197. [Google Scholar]
- Marín, P.; Fernández-Varón, E.; Escudero, E.; Vancraeynest, D.; Cárceles, C.M. Pharmacokinetic-pharmacodynamic integration of orbifloxacin in rabbits after intravenous, subcutaneous, and intramuscular administration. J. Vet. Pharmacol. Ther. 2008, 31, 77–82. [Google Scholar]
- Scott, D.W.; Peters, J.; Miller, W.H. Efficacy of orbifloxacin tablets for the treatment of superficial and deep pyoderma due to Staphylococcus intermedius infection in dogs. Can. Vet. J. 2006, 47, 999–1002. [Google Scholar]
- McKay, L.; Rose Crystal, D.S.; Matousek, J.L.; Schmeitzel, L.S.; Gibson, N.M.; Gaskin, J.M. Antimicrobial testing of selected fluoroquinolones against Pseudomonas aeruginosa isolated from canine otitis. J. Am. Anim. Hosp. Assoc. 2007, 43, 307–312. [Google Scholar]
- Ganière, J.P.; Médaille, C.; Etoré, F. In vitro antimicrobial activity of orbifloxacin against Staphylococcus intermedius isolates from canine skin and ear infections. Res. Vet. Sci. 2004, 77, 67–71. [Google Scholar]
- Haines, G.R.; Brown, M.P.; Gronwall, R.R.; Merritt, K.A.; Baltzley, L.K. Pharmacokinetics of orbifloxacin and its concentration in body fluids and in endometrial tissues of mares. Can. J. Vet. Res. 2001, 65, 181–187. [Google Scholar]
- DiPersio, J.R.; Jones, R.N.; Barrett, T.; Doern, G.V.; Pfaller, M.A. Fluoroquinolone-resistant Moraxella catarrhalis in a patient with pneumonia: report from the SENTRY antimicrobial surveillance program. Diagn. Microbiol. Infect. Dis. 1998, 32, 131–135. [Google Scholar]
- Grave, K.; Tanem, H. Compliance with short term oral antibacterial drug treatment in dogs. J. Small. Anim. Pract. 1999, 40, 158–162. [Google Scholar]
- Rantala, M.; Holso, K.; Lillas, A.; Huovinen, P.; Kaartinen, L. Survey of condition-based prescribing of antimicrobial drugs for dogs at a veterinary teaching hospital. Vet. Rec. 2004, 155, 259–262. [Google Scholar]
- Boerlin, P.; Wissing, A.; Aarestrup, F.M.; Frey, J.; Nicolet, J. Antimicrobial growth promoter ban and resistance to macrolides and vancomycin in enterococci from pigs. J. Clin. Microbiol. 2001, 39, 4193–4195. [Google Scholar]
- Emborg, H.D.; Andersen, J.S.; Seyfarth, A.M.; Wegener, H.C. Relations between the consumption of antimicrobial growth promoters and the occurrence of resistance among Enterococcus faecium isolated from broilers. Epidemiol. Infect. 2004, 132, 95–105. [Google Scholar]
- Morimura, T.; Ohno, T.; Matsukura, H.; Nobuhara, Y. Degradation kinetics of the new antibacterial fluoroquinolone derivative, orbifloxacin, in aqueous solution. Chem. Pharm. Bull. 1995, 43, 1052–1054. [Google Scholar]
- Morimura, T.; Ohno, T.; Matsukura, H.; Nobuhara, Y. Photodegradation kinetics of the new antibacterial fluoroquinolone derivative, orbifloxacin, in aqueous solution. Chem. Pharm. Bull. 1995, 43, 1000–1004. [Google Scholar]
- Morimura, T.; Nobuhara, Y.; Matsukura, H. Photodegradation products of a new antibacterial fluoroquinolone derivative, orbifloxacin, in aqueous solution. Chem. Pharm. Bull. 1997, 45, 373–377. [Google Scholar]
- Matsumoto, S.; Takahashi, M.; Kitadai, N.; Katae, H. A study of metabolites isolated from the urine samples of cats and dogs administered orbifloxacin. J. Vet. Med. Sci. 1998, 60, 1259–1261. [Google Scholar]
- Hung, S.-W.; Shih, C.-W.; Chen, B.-R.; Tu, C.-Y.; Ling, Y.-F.; Tsou, L.-T.; Ho, S.-P.; Wang, W.-S. A new detection technique for fluoroquinolone-conjugated proteins by high performance liquid chromatography with UV/fluorescence detectors. J. Food. Drug Anal. 2007, 15, 71–74. [Google Scholar]
- García, M.A.; Solans, C.; Aramayona, J.J.; Rueda, S.; Bregante, M.A. Determination of orbifloxacin in rabbit plasma by high-performance liquid chromatography with fluorescence detection. J. Chromatogr. Sci. 1999, 37, 199–202. [Google Scholar]
- Johnston, L.; Mackay, L.; Croft, M. Determination of quinolones and fluoroquinolones in fish tissue and seafood by high-performance liquid chromatography with electrospray ionisation tandem mass spectrometric detection. J. Chromatogr. A 2002, 982, 97–109. [Google Scholar]
- Schneider, M.J.; Donoghue, D.J. Multiresidue analysis of fluoroquinolone antibiotics in chicken tissue using liquid chromatography-fluorescence-multiple mass spectrometry. J. Chromatogr. B 2002, 780, 83–92. [Google Scholar]
- Schneider, M.J.; Donoghue, D.J. Multiresidue determination of fluoroquinolone antibiotics in eggs using liquid chromatography–fluorescence–mass spectrometry. Anal. Chim. Acta 2003, 483, 39–49. [Google Scholar]
- Schneider, M.J.; Vázquez-Moreno, L.; Bermúdez-Almada, M.C.; Guardado, R.B.; Ortega-Nieblas, M. Multiresidue determination of fluoroquinolones in shrimp by liquid chromatography-fluorescence-mass spectrometry. J. AOAC Int. 2005, 88, 1160–1166. [Google Scholar]
- Schneider, M.J.; Reyes-Herrera, I.; Donoghue, D.J. Evaluation of serum as a potential matrix for multiresidue determination of fluoroquinolone antibiotics in chicken using liquid chromatography-fluorescence-mass spectrometry. J. AOAC Int. 2007, 90, 1716–1723. [Google Scholar]
- Marín, P.; Escudero, E.; Fernández-Varón, E.; Cárceles, C.M. Pharmacokinetics and milk penetration of orbifloxacin after intravenous, subcutaneous, and intramuscular administration to lactating goats. J. Dairy Sci. 2007, 90, 4219–4225. [Google Scholar]
- Abd El-Aty, A.M.; Choi, J.H.; Ko, M.W.; Khay, S.; Goudah, A.; Shin, H.C.; Kim, J.S.; Chang, B.J.; Lee, C.H.; Shim, J.H. Approaches for application of sub and supercritical fluid extraction for quantification of orbifloxacin from plasma and milk: Application to disposition kinetics. Anal. Chim. Acta 2009, 631, 108–115. [Google Scholar]
- Yamada, R.; Kozono, M.; Ohmori, T.; Morimatsu, F.; Kitayama, M. Simultaneous determination of residual veterinary drugs in bovine, porcine, and chicken muscle using liquid chromatography coupled with eletrospray ionization tandem spectrometry. Biosci. Biotechnol. Biochem. 2006, 70, 54–65. [Google Scholar]
- Llorent-Martínez, E.J.; Ortega-Barrales, P.; Molina-Díaz, A.; Ruiz-Medina, A. Implementation of terbium-sensitized luminescence in sequential-injection analysis for automatic analysis of orbifloxacin. Anal. Bioanal. Chem. 2008, 392, 1397–1403. [Google Scholar]
- Brazilian Pharmacopeial Convention. Brazilian Pharmacopoeia, 4rd ed.; Atheneu: São Paulo, Brazil, 1988. [Google Scholar]
- U.S. Pharmacopeial Convention. The U.S. Pharmacopeia, 34th ed.; U.S. Pharmacopeial Convention: Rockville, MD, USA, 2011. [Google Scholar]
- Hewitt, W. Microbiological Assay for Pharmaceutical Analysis: A Rational Approach; Interpharm/CRC Press: Boca Raton, FL, USA, 2003; pp. 97–115. [Google Scholar]
- ICH. Harmonised Tripartite Guideline. Validation of Analytical Procedures: Text And Methodology — Q2(R1), In Proceedings of International Conference on Harmonisation, Geneva, The Switzerland, November 2005.
- Marona, H.R.N.; Schapoval, E.E.S. Desarrollo de análisis microbiológico para la determinación de esparfloxacino en polvo y en comprimidos de 200 mg. Inf. Tecnol. 1998, 9, 151–154. [Google Scholar]
- AOAC INTERNATIONAL. Official Methods of Analysis, 18th ed.; AOAC INTERNATIONAL: Gaithersburg, MD, USA, 2005. [Google Scholar]
- Gomes, G.C.; Salgado, H.R.N. Microbiological assay for determination of lomefloxacin in coated tablets. J. AOAC Int. 2006, 89, 1077–1079. [Google Scholar]
- Salgado, H.R.N.; Lopes, C.C.G.O.; Lucchesi, M.B.B. Microbiological assay for gatifloxacin in pharmaceutical formulations. J. Pharm. Biom. Anal. 2006, 40, 443–446. [Google Scholar]
- Moreno, A.R.; Salgado, H.R.N. Microbiological assay for ceftazidime injection. J. AOAC Int. 2007, 90, 1379–1382. [Google Scholar]
- Tozo, G.C.G.; Salgado, H.R.N. Microbiological assay for cefoxitin sodium in dosage form. J. AOAC Int. 2007, 90, 452–455. [Google Scholar]
- Baird, R.M.; Hodges, N.A.; Denyer, S.P. Handbook of Microbiological Quality Control: Pharmaceuticals and Medical Device; CRC Press: Boca Raton, FL, USA, 2000. [Google Scholar]
