Article

Envelope Protein Mutations L107F and E138K Are Important for Neurovirulence Attenuation for Japanese Encephalitis Virus SA14-14-2 Strain

1
Department of Viral Vaccine, Chengdu Institute of Biological Products Co., Ltd., China National Biotech Group, Chengdu 610023, China
2
Department of Microbiology and Immunology, North Sichuan Medical College, Nanchong 637007, China
3
Department of Arbovirus Vaccine, National Institutes for Food and Drug Control, Beijing 100050, China
4
China National Biotech Group, Beijing 100029, China
5
State Key Laboratory of Biotherapy and Cancer Center, West China Hospital, Sichuan University and Collaborative Innovation Center for Biotherapy, Chengdu 610000, China
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Viruses 2017, 9(1), 20; https://doi.org/10.3390/v9010020
Submission received: 31 October 2016 / Revised: 1 January 2017 / Accepted: 16 January 2017 / Published: 21 January 2017
(This article belongs to the Special Issue Advances in Flavivirus Research)

Abstract

:
The attenuated Japanese encephalitis virus (JEV) strain SA14-14-2 has been successfully utilized to prevent JEV infection; however, the attenuation determinants have not been fully elucidated. The envelope (E) protein of the attenuated JEV SA14-14-2 strain differs from that of the virulent parental SA14 strain at eight amino acid positions (E107, E138, E176, E177, E264, E279, E315, and E439). Here, we investigated the SA14-14-2-attenuation determinants by mutating E107, E138, E176, E177, and E279 in SA14-14-2 to their status in the parental virulent strain and tested the replication capacity, neurovirulence, neuroinvasiveness, and mortality associated with the mutated viruses in mice, as compared with those of JEV SA14-14-2 and SA14. Our findings indicated that revertant mutations at the E138 or E107 position significantly increased SA14-14-2 virulence, whereas other revertant mutations exhibited significant increases in neurovirulence only when combined with E138, E107, and other mutations. Revertant mutations at all eight positions in the E protein resulted in the highest degree of SA14-14-2 virulence, although this was still lower than that observed in SA14. These results demonstrated the critical role of the viral E protein in controlling JEV virulence and identified the amino acids at the E107 and E138 positions as the key determinants of SA14-14-2 neurovirulence.

1. Introduction

The Japanese encephalitis virus (JEV) belongs to the Flavivirus genus and causes frequent endemic and epidemic infections in Asia, with JEV infection leading to acute encephalitis in humans and resulting in high mortality rates. The wild-type JEV SA14 strain was isolated from mosquitoes in Xi’An, China in 1954, and the attenuated JEV SA14-14-2 strain was obtained by serial passages of the JEV SA14 strain in mouse brain and primary hamster kidney (PHK) cells, followed by purification by plaque screening [1]. The purified SA14-14-2 strain was used to produce the attenuated live Japanese encephalitis (JE) vaccine for humans, with >600 million doses of this vaccine being administered in China and other countries in Southeast Asia, including Korea, Nepal, India, and Thailand, since 1989. The safety and efficacy of this vaccine have been well demonstrated by clinical data [2], and on 10 September 2013, it passed World Health Organization prequalification and was entered into the list of vaccines available for international purchase. As with all attenuated live viral vaccines, its reversion to virulent status remains a concern. This study explored the molecular mechanisms underpinning the attenuated neurovirulence of the live JE vaccine (SA14-14-2) by reverting specific amino acids in the SA14-14-2 envelope (E) protein to their counterparts in the parental virulent strain (SA14) and testing the virulence of the revertant viruses.
Our findings indicated no neurovirulence observed in adult mice inoculated intracerebrally (i.c.) with attenuated JEV SA14-14-2 at 106 plaque-forming units (PFUs), as compared with mice inoculated with the parental strain, which caused 100% mortality in mice within 1 week. The marked virulence attenuation of JEV SA14-14-2 is believed to result from specific substitutions at 24 amino acid positions, including eight amino acid mutations in the E protein, throughout the viral genome [3,4,5], as well as mutations in nonstructural proteins [6]. However, the specific mutations that determine the attenuated SA14-14-2 phenotype remain unknown.
The attenuated yellow fever virus (YFV) 17D strain differs from its parental Asibi strain by 32 amino acid substitutions. Among these, 12 mutations are located in the E protein. Remarkably, as few as one mutation (E303) in the E protein can change the attenuated phenotype of the Asibi strain [7]. The crucial role of amino acid mutations in the E protein, associated with attenuation, was reported in other attenuated viral vaccines, including the chimeric yellow fever-dengue 1 vaccine virus [8]. That study hypothesized that the attenuated phenotype of the JEV SA14-14-2 strain might also be attributed to specific mutations in the E protein. Here, we investigated the roles of five amino acid residues (E107, E138, E176/177, and E279) in the E protein in the attenuated strains, as compared with the virulent parental strain (Table 1), followed by an assessment of the neurovirulence and neuroinvasiveness of these revertants in mice. Our results demonstrated that amino acids at the E138 and E107 positions played key roles in neurovirulence attenuation in the JEV SA14-14-2 strain.

2. Materials and Methods

2.1. Cells, Plasmids, and Viruses

BHK-21 cells (CCL-10; American Type Culture Collection, Manassas, VA, USA) were cultured in an Eagle minimum essential medium (MEM; Gibco; Thermo Fisher Scientific, Waltham, MA, USA) supplemented with 10% heat-inactivated fetal bovine serum. The multiple-cloning site of the low-copy plasmid pACNR was modified to contain the restriction sites AscI, KasI, BglII, BspEI, BamHI, BclI, XbaI, and XhoI. The JEV SA14-14-2 strain was generated in PHK cells isolated from 9- to 10-day-old specific pathogen-free (SPF) hamsters at the Chengdu Institute of Biological Products Co., Ltd. (Chengdu, China).

2.2. DNA Cloning

The RNA of the JEV SA14-14-2 strain was extracted using a High Pure viral RNA kit (Roche, Basel, Switzerland), and cDNA was synthesized by reverse transcription (RT) using SuperScript III reverse transcriptase (Invitrogen, Carlsbad, CA, USA). Briefly, 20 ng RNA was mixed with 10 pmol 3′-terminal primers, heated for 5 min at 65 °C, cooled on ice for 1 min, and then incubated with SuperScript III in the recommended buffer for 1 h at 55 °C, followed by heating to 70 °C for 15 min. cDNA amplification was performed with the phusion polymerase (New England Biolabs, Ipswich, MA, USA) using a touchdown polymerase chain reaction (PCR) program: one cycle at 98 °C for 1 min, 10 cycles at 98 °C for 15 s, 58.5 °C to 53.5 °C for 15 s, and 72 °C for 3 min, followed by 20 cycles at an annealing temperature of 53.5 °C and elongation for 10 min at 72 °C. PCR products were purified using a DNA purification kit (Qiagen, Hilden, Germany) and cloned into the pGEM-T easy vector (Promega, Durham, NC, USA). The correct clones were identified by DNA sequencing.
All plasmids were constructed using two-plasmid systems as described previously [9,10]. One plasmid contained the 5′ terminal 3.4-kb cDNA and the other contained the 3′ terminal 7.6-kb fragment of the SA14-14-2 strain. The first fragment (1–476 nt) contained AscI and KasI restriction sites [11] and was cloned into the low-copy plasmid pACNR. The second fragment, from position 476 to 2654, and the third fragment, from position 2640 to 3446, were inserted into the KasI/BglII and BglII/BspEI sites, respectively, to generate the plasmid pACNR-5′JEV (harboring the 5′ terminal 3.4-kb fragment). The fourth fragment, from position 3444 to 5581; the fifth fragment, from position 5575 to 7092; the sixth fragment, from position 7086 to 9136; and the seventh fragment, from position 9130 to 10977, were cloned into the pACNR to create the plasmid pACNR-3′JEV (containing the 3′ terminal 7.6-kb fragment). This 7.6-kb fragment of JEV was then inserted into the plasmid pACNR-5′JEV to create the plasmid pACNR-JEV containing the full-length cDNA of JEV SA14-14-2. Mutations in the E protein gene were generated by PCR-based site-directed mutagenesis, and all plasmids were sequenced to verify the engineered mutations.

2.3. In Vitro RNA Transcription, Transfection, and Viral Recovery

The pACNR-JEV plasmid was linearized by restriction digest using XhoI and used as a template for in vitro transcription. The RNA used for transfection was synthesized using the RiboMAX large-scale RNA production system Sp6 kit (Promega) in the presence of Ribo m7G cap analog (Promega). Reaction products were treated with DNase I (RQ1 RNase-free DNase; Promega), followed by purification with the RNeasy mini kit (Qiagen). BHK-21 cells were washed twice with cold phosphate-buffered saline, then 4 × 106 cells in 200 µL were mixed with the synthesized RNA in vitro (1 µg) and pulsed at 140 V for 25 ms using a Gene Pulser II apparatus (Bio-Rad, Hercules, CA, USA). Transfected BHK-21 cells were cultivated at 37 °C in a 5% CO2 incubator, and the viruses were harvested at day 5 post-transfection upon observation of the cytopathic effect. The harvested viruses were passaged two additional times in BHK-21 cells, titrated for the plaque assay, and stored at −80 °C until further use.

2.4. Nucleotide Sequencing of the Revertant Viruses

Briefly, viral RNA was extracted from the recovered viruses using the High Pure viral RNA kit (Roche). cDNA from position 468 to 2667 containing the prM/E protein gene was synthesized by RT, followed by the amplification of the prM/E fragment using the phusion polymerase (New England Biolabs). The PCR products were purified using the QIAquick gel extraction kit (Qiagen) and sequenced to determine the consensus sequence (Invitrogen).

2.5. Growth Analysis of Revertants and Control Viruses

BHK-21 cells were infected with the revertants or control viruses at a multiplicity of infection of 0.5. After 1 h of absorption at 37 °C, viral inocula were removed, and 20 mL MEM containing 2% inactivated newborn calf serum was added. Culture supernatant (1 mL) was collected every 24-h post-infection for 96 h. Titers of the collected viruses were determined as described for the plaque assay.

2.6. Mouse Experiments

To assess and compare neurovirulence, groups (n = 4) of 3-week-old SPF Kunming mice were inoculated with 0.03 mL of 10-fold dilutions of the revertants or the control viruses by the i.c. route, and inoculated mice were monitored for 14 days. All moribund mice were euthanized, and the median lethal dose (LD50) was determined by the Reed and Muench calculation. Neurovirulence results for each virus were recorded as LD50 (log10PFU; the viral dose capable of inducing 50% mortality). Neuroinvasiveness was measured by inoculating 3-week-old SPF Kunming mice with 0.1 mL of 10-fold dilutions of the revertants or the control viruses by the subcutaneous (s.c.) route, and the neuroinvasive results were also recorded as LD50 (log10PFU). The average survival time (AST) was determined by inoculating 0.03 mL of viruses containing equal plaque titers (5.18 log10PFU) in another group of mice (n = 6) by the i.c. route. Mice in a moribund condition were euthanized and scored as deaths.

2.7. Statistical Analysis

Statistical analysis of the AST was performed using analysis of variance, and a p < 0.05 was considered statistically significant. All analyses were performed using SPSS software version 17.0 (SPSS, Inc., Chicago, IL, USA).

2.8. Ethical Approval

The experimental protocols involving mice were approved by the Experimental Animal Welfare and Ethical Committee of the National Institutes for Food and Drug Control, China.

3. Results

3.1. Construction of Infectious JEV Full-Length cDNA Clones Containing Specific Reverse Mutations in the E Protein

All pACNR-JEV plasmids containing specific mutations were verified by sequencing, and the viruses used for testing were amplified by three passages in the BHK-21 cells. The E protein-coding region of each virus was sequenced an additional time, with the results confirming that the sequences of all engineered plasmids and revertant viruses were correct and that no new mutations had been introduced.

3.2. Growth Analysis of Revertants and Control Viruses

One mechanism of viral attenuation involves crippled viral replication [12]; therefore, the effects of reverse mutations on JEV replication were measured by infecting BHK-21 cells, followed by a determination of the production of revertants and control viruses at different time intervals following infection. Growth-curve results showed that all viruses exhibited similar replication capacities, although the SA14 virus replicated at a modestly faster rate, with 5.7 log10PFU/mL at 24-h post-infection, which was higher than the other viruses tested. However, the peak SA14 titer was not the highest among all viruses, which was likely due to the highest SA14 titer not being collected at the denoted time points (Figure 1).
Additionally, analysis of the plaque sizes of all viruses revealed that those of SA14 (2–3 mm) were larger than those of SA14-14-2 (1–2 mm) and the other viruses (1–2 mm). We observed no significant difference in plaque size between SA14-14-2 and all the revertant viruses, except for that of rJEV4 (E279) (0.5–1 mm), which was significantly smaller than those of the other viruses (Figure 2).

3.3. Mutation at Residue E138 in Combination with E107 Is Critical to the Attenuated Neurovirulence of JEV SA14-14-2

To determine the amino acids in the E protein that attenuate JEV SA14-14-2 neurovirulence, we measured the LD50 (log10PFU) values of all the revertant viruses (Table 2), with low LD50 (log10PFU) values indicating high degrees of neurovirulence. Among revertants containing a single amino acid substitution, rJEV1 (E107) and rJEV2 (E138) exhibited lower LD50 (log10PFU) values as compared with that of the SA14-14-2 virus, whereas the revertant viruses rJEV3 (E176/E177) and rJEV4 (E279) exhibited similar LD50 (log10PFU) values to that of SA14-14-2. Among these four revertants, rJEV2 (E138) exhibited the lowest LD50 (log10PFU) value, indicating the highest degree of neurovirulence, followed by rJEV1 (E107). The reverse mutation of E138 in combination with E107 significantly decreased the LD50 (log10PFU) value as compared with those of rJEV1 (E107) and rJEV2 (E138), and the LD50 (log10PFU) value of rJEV10 (E107, E138, E176/177, and E279; 1.43) was slightly lower than that of rJEV9 (E107, E138, and E176/177; 1.99). The rJEV11/SA14 virus, wherein the E protein of SA14-14-2 was replaced with the E protein of wild-type SA14, exhibited the lowest LD50 (log10PFU) value (0.66) among all the revertants, although it was still higher than that of the virulent wild-type SA14 virus (−0.92). These findings suggested, that among the five tested amino acid residues, E138 and E107 played the most important roles in the attenuation of SA14-14-2 neurovirulence.

3.4. Reverse Mutations in the E Protein Increased the Mortality and Decreased the AST of I.C.-Inoculated Mice

The virulence phenotype of the revertant viruses was further evaluated by determining the mortality and AST of mice inoculated by the i.c. route with 5.18 log10PFU revertant virus (Table 3). Mice inoculated with rJEV2, rJEV5, rJEV7, rJEV8, rJEV9, rJEV10, rJEV11, or SA14 exhibited 100% mortality, whereas rJEV1 or rJEV3 inoculation resulted in 83.3% and 16.7% mortality, respectively, and SA14-14-2 or rJEV4 (E279) inoculation resulted in 0% mortality. These results showed that the E138 and E107 residues were more important than E279 and E176/177 at effecting SA14-14-2 virulence. The wild-type SA14 group exhibited the shortest AST (4 days), followed by the rJEV11 group (E107/E138/E176/177/E264/E279/E315/E439), with an AST of 5 days (p ≤ 0.05, compared with SA14). The AST of mice inoculated with rJEV2 (E138) exhibited an AST of 6 days, and the ASTs of the rJEV1 (E107) and the rJEV6 (E107/E176/177) groups were 6.6 and 9 days, respectively (p ≤ 0.05, comparing rJEV1 to rJEV6). The rJEV3 group (E176/177) exhibited the longest AST of 11 days. These results demonstrated that the E138 residue was a greater determinant of attenuated SA14-14-2 virulence, as compared with other residues in the E protein.

3.5. Effects of Specific Reverse Mutations on JEV SA14-14-2 Neuroinvasiveness

The neuroinvasiveness of all the revertants was tested using the same protocol as that used to test neurovirulence, except that the mice were inoculated by the s.c. route (Table 4). The LD50 (log10PFU) values of all the revertants containing single amino acid substitutions were similar to that of the attenuated SA14-14-2 strain, whereas the other revertants showed lower LD50 (log10PFU) values than that of SA14-14-2. The LD50 (log10PFU) values of the mice inoculated with rJEV5 (E107 and E138), rJEV7 (E138 and E176/177), or rJEV8 (E138 and E279) were ≥6.54, 5.76, and 6.01, respectively, suggesting that the E107 revertant mutation combined with E138 did not show the same synergistic effect as observed in the neurovirulence test. The LD50 (log10PFU) value of mice inoculated with rJEV10 (E107/E138/E176/E177/E279) was slightly higher than that of rJEV9 (E107/E138/E176/E177)-inoculated mice, and rJEV9 (E107/E138/E176/E177)-, rJEV10 (E107/E138/E176/E177/E279)-, and rJEV11/SA14-inoculated mice exhibited low LD50 (log10PFU) values of 5.40, 5.53, and 3.17, respectively. Furthermore, the LD50 (Log10PFU) value of mice inoculated with rJEV11 (rJEV11/SA14) was higher than that of mice infected with virulent SA14, indicating that other regions in the JEV genome also contributed to the neuroinvasive phenotype.

4. Discussion

Reverse genetics is a powerful tool for studying the replication, virulence attenuation, and gene functions of positive-strand RNA viruses. The key step in this strategy involves constructing stable cDNA clones containing the full-length viral sequence. However, constructing the full-length cDNA clone of the JEV SA14-14-2 strain was hindered by the instability and toxicity of some gene products in Escherichia coli [13,14,15]. Previous studies utilized two strategies to overcome these hurdles. One was an in vitro ligation approach [16] and the second involved using low-copy plasmids, such as those containing artificial bacterial chromosomes, to stabilize the full-length cDNA of JEV [17]. Here, a different low-copy plasmid (pACNR) was employed to stably maintain the full-length cDNA of the infectious JEV. To generate a marker in the recombinant viruses, a silent mutation was inserted at nucleotide 473 (from A to C) that also created a new restriction site (KasI) for DNA cloning. This genetic marker allowed confirmation that the recovered viruses were derived from the infectious cDNA. Furthermore, this cDNA cloning system previously enabled the mechanistic study of the virulence attenuation of Flaviviruses and the development of other Flavivirus vaccines [18].
Several studies reported nucleotide changes potentially underlying the attenuated phenotype of the JEV SA14-14-2 strain through comparisons with its parental strain SA14 [3,4,19]. Major nucleotide changes in Flavivirus E proteins responsible for viral neurovirulence were also revealed by comparing the JEV AT31 strain with its attenuated derivative [20] and between YFV (the Asibi train) and its attenuated 17D strain [21]. The results of mouse-infection studies showed that single substitutions at amino acid positions E107, E138, E176/177, or E279 differentially modulated viral virulence [22]. Our results showed that inoculation with the rJEV2 (E138) mutation increased SA14-14-2 neurovirulence to the highest level, followed by that of the rJEV1 (E107) mutation, whereas the single revertant mutation of E279 had no effect on neurovirulence. A synergistic virulence effect was observed when the E138 revertant mutation was combined with E107, but not E176/177 or E279, whereas infection with rJEV5 (E138/E107) exhibited the lowest LD50 (log10PFU) value (1.70). These results were consistent with observations that after five passages in the suckling mouse brain, the revertant mutations at E138 and E107, from JEV SA14-14-2 to those of the parental SA14 strain, increased the neurovirulence of the resulting virus [22].
Residue E107 is located within a highly-conserved hairpin motif spanning amino acids 98 to 111 in domain II [23]. This region contains a fusogenic peptide according to studies of the tick-borne encephalitis virus, the Murray Valley encephalitis virus, and the dengue type 2 virus [24,25]. Mutations in close proximity to this region alter the fusion properties of the E protein in cell culture and are associated with changes in the neurovirulence of the dengue virus and the tick-borne encephalitis virus [26,27]. Residue E138 is located in the ‘hinge’ region at the interface of domains I and II of the E protein, and mutation at this position alters E protein conformation and function. Previous studies of Flaviviruses indicated that mutations within this region modulate viral virulence in mice [28,29,30,31,32], thereby supporting the results of this study.
The effect of the E176/177 cluster on viral neurovirulence is interesting. In contrast to other reverse mutations that increased SA14-14-2 virulence, single substitutions in the E176/177 cluster elevated viral virulence to a lesser extent than other substitutions; however, when combined with mutations at E107 or E138, E176/177 mutations significantly decreased viral virulence. Additionally, the virulence of rJEV6 (E107/E176/E177) was lower than that observed for rJEV1 (E107) (5.69 vs. 3.97), the virulence of rJEV7 (E138/E176/E177) was lower than that observed for rJEV2 (E138) (3.64 vs. 2.89), and the virulence of rJEV9 (E107/E138/E176/E177) was lower than that of rJEV5 (E107/E138) (1.99 vs. 1.77). Therefore, we concluded that the E176/177 mutations significantly neutralized the function of E107 and E138.
Residue E279 is located in the hinge region of the E protein, suggesting a possible regulatory role in E protein function, similar to that of E138. Previous studies showed that reverse mutation of residue E279 from methionine to lysine significantly increased neurovirulence [33]. Additionally, mutations in close proximity to E279 in the Murray Valley encephalitis virus impair hemagglutination and fusion properties of the E protein and reduce neuroinvasiveness in mice [28,34]. By contrast, reverse mutation of E279 in this study did not affect SA14-14-2 neurovirulence. The neutral effect of the E279 mutation might be explained by the decreased ability of the virus harboring the mutation to infect host cells, given that inoculation with rJEV4 (E279) resulted in that formation of the smallest plaques among all tested viruses, including SA14-14-2.
A previous study reported that the molecular determinants associated with the prM-E region of the attenuated JE SA14-14-2 virus are insufficient to confer an attenuated phenotype upon the JE Nakayama virus [6]. This suggested a role for determinants located in the 5′ untranslated region and/or the capsid protein of the JE SA 14-14-2 viral genome in influencing the virulent properties of the JE Nakayama virus in mouse models. Here, we observed that the revertant rJEV11 virus, having the same eight amino acids in the E protein as the parental virulent SA14 strain, exhibited significantly lower neurovirulence and neuroinvasiveness in mice as compared with JEV SA14 (Table 2 and Table 4). These data demonstrated that mutations in viral proteins (including nonstructural protein) other than the E protein in JEV SA14-14-2 may also contribute to attenuated neurovirulence and neuroinvasiveness.
A previous report utilized a chimeric YFV/JEV SA14-14-2 virus to characterize the attenuation mechanism [35]. This chimeric virus contained the backbone of YFV and the prM and E protein sequences from the attenuated JEV SA14-14-2 strain. Consistent with our findings, Arroyo et al. [35] reported the importance of the E138 amino acid together with amino acid residues at other positions in neurovirulence attenuation; however, other results from that study differed from our findings. Arroyo et al. [35] reported that inoculation with variants harboring single reverse mutations of E107, E138, and E176/177 did not cause sickness or death in mice and that the single reverse mutation of E279 caused death in only 13% of mice. By contrast, we observed that inoculation with each of the three single reverse mutations (E107, E138, and E176/177) resulted in sickness or death in some of the mice and isolation of the revertant viruses in the brain. Additionally, the single reverse mutation of E279 did not cause sickness or death in mice. These discrepancies might be explained by the different inoculation doses used between the two studies, given that our inoculated mice became sick or died only when inoculated with >4.0 log10PFU of the revertants rJEV1 (E107), rJEV3 (E176/E177), and rJEV6 (E107/E176/E177), whereas the previous study used inoculation doses via i.c. of <4.0 log10PFU (10,000 PFU) [35]. Additionally, the results of that study did not suggest an important role for the single mutation of E107 in JEV attenuation, whereas our results provided a more detailed account of the roles of E176/177 and E279 in JEV attenuation, in combination with E138. Furthermore, Arroyo et al. [35] reported that the single substitution at E176/177 greatly enhanced virulence in combination with other mutations, whereas we observed decreased virulence associated with this mutation in combination with others. One explanation for these discrepancies might be use of a chimeric virus with YFV as the backbone in the previous study [35], whereas the JEV SA14 virus was used in this study to investigate the attenuation mechanism.
Yun et al. [36] showed that the passage of the JEV SA14-14-2 strain in the mouse brain was selected for mutations at the E244 position, which drastically altered the viral phenotype [36]. In this study, this amino acid position was not tested because the E244 position in the SA14 viral population harbors two different amino acids in the mouse brain (Figure 3), with glutamic acid at this position in wild-type SA14/USA and glycine at this position in the SA14/CDC and SA14/JAP strains (Table 1 and Figure 3).
The mechanisms associated with viral attenuation are complicated and involve membrane fusion [24,25], replication capacity [12], and heparin-binding activity [37]. In addition to the SA-14 E protein, our findings suggested that other regions of the viral genome likely also contribute to the attenuated phenotype. This was supported by our results showing that the virulence of the revertant rJEV11/SA14 strain remained lower than that of the parental SA14 strain, despite substitution with the intact E protein from wild-type SA14.

5. Conclusions

In summary, this study demonstrated that amino acids at positions E107, E138, E176/177, and E279 differentially contributed to virulence attenuation in the SA14-14-2 virus. Our findings indicated that the E138 position played the most important role in sustaining neurovirulence, but not the attenuated neuroinvasive phenotype associated with JEV SA14-14-2. Additionally, the role of the E107 position in attenuating virulence was revealed by its synergistic effect with the E138 position, although E107 alone also contributed to virulence attenuation. Compared with the E107 and E138 positions, E176/177 and E279 exhibited relatively minor roles in virulence attenuation. These results identified the key residues in the E protein involved in regulating attenuated JEV SA14-14-2 virulence, thereby elucidating the molecular mechanisms of JEV attenuation. The data presented in this study supported JEV vaccine guidelines stating that the stability of the E protein sequence should be used as the main safety indicator for the attenuated live JE vaccine (SA14-14-2 strain).

Acknowledgments

We would like to thank all members of the Animal Biotechnological Center for their contributions to this study. This study was supported by the national key projects of “863” High Technology, China (No. 2012AA02A401) and the Chinese Mega Project of Science Research for major new drug innovation and developmental research for quality control of the JE live attenuated vaccine and polio vaccine (Grant No. 2014ZX09304316-003). The funders had no role in study design, data collection and analysis, decision to publish, or manuscript preparation.

Author Contributions

Y.L. and H.Y. conceived and designed the experiments. J.Y., H.Y., Z.L., W.W., H.L., L.L., X.L., and Q.N. performed the experiments. X.Z. and Y.W. analyzed the data. J.Y. and H.Y. wrote the paper. J.Y. and H.Y. contributed equally to this work.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wills, M.R.; Sil, B.K.; Cao, J.X.; Yu, Y.X.; Barrett, A.D. Antigenic characterization of the live attenuated Japanese encephalitis vaccine virus SA14-14-2: A comparison with isolates of the virus covering a wide geographic area. Vaccine 1992, 10, 861–872. [Google Scholar] [CrossRef]
  2. Liu, Z.L.; Hennessy, S.; Strom, B.L.; Tsai, T.F.; Wan, C.M.; Tang, S.C.; Xiang, C.F.; Bilker, W.B.; Pan, X.P.; Yao, Y.J.; et al. Short-term safety of live attenuated Japanese encephalitis vaccine (SA14-14-2): Results of a randomized trial with 26,239 subjects. J. Infect. Dis. 1997, 176, 1366–1369. [Google Scholar] [CrossRef] [PubMed]
  3. Ni, H.; Burns, N.J.; Chang, G.J.; Zhang, M.J.; Wills, M.R.; Trent, D.W.; Sanders, P.G.; Barrett, A.D. Comparison of nucleotide and deduced amino acid sequence of the 5’ non-coding region and structural protein genes of the wild-type Japanese encephalitis virus strain SA14 and its attenuated vaccine derivatives. J. Gen. Virol. 1994, 75, 1505–1510. [Google Scholar] [CrossRef] [PubMed]
  4. Ni, H.; Chang, G.J.; Xie, H.; Trent, D.W.; Barrett, A.D. Molecular basis of attenuation of neurovirulence of wild-type Japanese encephalitis virus strain SA14. J. Gen. Virol. 1995, 76, 409–413. [Google Scholar] [CrossRef] [PubMed]
  5. Yu, Y. Phenotypic and genotypic characteristics of Japanese encephalitis attenuated live vaccine virus SA14-14-2 and their stabilities. Vaccine 2010, 28, 3635–3641. [Google Scholar] [CrossRef] [PubMed]
  6. Chambers, T.J.; Droll, D.A.; Jiang, X.; Wold, W.S.; Nickells, J.A. JE Nakayama/JE SA14-14-2 virus structural region intertypic viruses: Biological properties in the mouse model of neuroinvasive disease. Virology 2007, 366, 51–61. [Google Scholar] [CrossRef] [PubMed]
  7. Jennings, A.D.; Gibson, C.A.; Miller, B.R.; Mathews, J.H.; Mitchell, C.J.; Roehrig, J.T.; Wood, D.J.; Taffs, F.; Sil, B.K.; Whitby, S.N.; et al. Analysis of a yellow fever virus isolated from a fatal case of vaccine-associated human encephalitis. J. Infect. Dis. 1994, 169, 512–518. [Google Scholar] [CrossRef] [PubMed]
  8. Taffs, R.E.; Chumakov, K.M.; Rezapkin, G.V.; Lu, Z.; Douthitt, M.; Dragunsky, E.M.; Levenbook, I.S. Genetic stability and mutant selection in Sabin 2 strain of oral poliovirus vaccine grown under different cell culture conditions. Virology 1995, 209, 366–373. [Google Scholar] [CrossRef] [PubMed]
  9. Chambers, T.J.; Liang, Y.; Droll, D.A.; Schlesinger, J.J.; Davidson, A.D.; Wright, P.J.; Jiang, X. Yellow fever virus/dengue-2 virus and yellow fever virus/dengue-4 virus chimeras: Biological characterization, immunogenicity, and protection against dengue encephalitis in the mouse model. J. Virol. 2003, 77, 3655–3668. [Google Scholar] [CrossRef] [PubMed]
  10. Chambers, T.J.; Nestorowicz, A.; Mason, P.W.; Rice, C.M. Yellow fever/Japanese encephalitis chimeric viruses: Construction and biological properties. J. Virol. 1999, 73, 3095–3101. [Google Scholar] [PubMed]
  11. Chambers, T.J.; Jiang, X.; Droll, D.A.; Liang, Y.; Wold, W.S.; Nickells, J. Chimeric Japanese encephalitis virus/dengue 2 virus infectious clone: Biological properties, immunogenicity, and protection against dengue encephalitis in mice. J. Gen. Virol. 2006, 87, 3131–3140. [Google Scholar] [CrossRef] [PubMed]
  12. Muylaert, I.R.; Chambers, T.J.; Galler, R.; Rice, C.M. Mutagenesis of the N-linked glycosylation sites of the yellow fever virus NS1 protein: Effects on virus replication and mouse neurovirulence. Virology 1996, 222, 159–168. [Google Scholar] [CrossRef] [PubMed]
  13. Mishin, V.P.; Cominelli, F.; Yamshchikov, V.F. A “minimal” approach in design of flavivirus infectious DNA. Virus Res. 2001, 81, 113–123. [Google Scholar] [CrossRef]
  14. Ruggli, N.; Rice, C.M. Functional cDNA clones of the Flaviviridae: Strategies and applications. Adv. Virus Res. 1999, 53, 183–207. [Google Scholar] [PubMed]
  15. Zhang, F.; Huang, Q.; Ma, W.; Jiang, S.; Fan, Y.; Zhang, H. Amplification and cloning of the full-length genome of Japanese encephalitis virus by a novel long RT-PCR protocol in a cosmid vector. J. Virol. Methods 2001, 96, 171–182. [Google Scholar] [CrossRef]
  16. Sumiyoshi, H.; Hoke, C.H.; Trent, D.W. Infectious Japanese encephalitis virus RNA can be synthesized from in vitro-ligated cDNA templates. J. Virol. 1992, 66, 5425–5431. [Google Scholar] [PubMed]
  17. Yun, S.I.; Kim, S.Y.; Rice, C.M.; Lee, Y.M. Development and application of a reverse genetics system for Japanese encephalitis virus. J. Virol. 2003, 77, 6450–6465. [Google Scholar] [CrossRef] [PubMed]
  18. Lai, C.J.; Monath, T.P. Chimeric flaviviruses: Novel vaccines against dengue fever, tick-borne encephalitis, and Japanese encephalitis. Adv. Virus Res. 2003, 61, 469–509. [Google Scholar] [PubMed]
  19. Nitayaphan, S.; Grant, J.A.; Chang, G.J.; Trent, D.W. Nucleotide sequence of the virulent SA-14 strain of Japanese encephalitis virus and its attenuated vaccine derivative, SA-14-14-2. Virology 1990, 177, 541–552. [Google Scholar] [CrossRef]
  20. Zhao, Z.; Date, T.; Li, Y.; Kato, T.; Miyamoto, M.; Yasui, K.; Wakita, T. Characterization of the E-138 (Glu/Lys) mutation in Japanese encephalitis virus by using a stable, full-length, infectious cDNA clone. J. Gen. Virol. 2005, 86, 2209–2220. [Google Scholar] [CrossRef] [PubMed]
  21. Galler, R.; Freire, M.S.; Jabor, A.V.; Mann, G.F. The yellow fever 17D vaccine virus: Molecular basis of viral attenuation and its use as an expression vector. Braz. J. Med. Biol. Res. 1997, 30, 157–168. [Google Scholar] [CrossRef] [PubMed]
  22. Wu, Y.L.; Liu, J.; Yang, H.Q.; Zhao, Y.; Wang, W.; Mu, J.C.; Huang, Y.X.; Liu, R.; Sun, Y.; Yu, Y.X.; et al. Genetic property of attenuated Japanese encephalitis virus strain SA14-14-2 after subculture in suckling mouse brain. Chin. J. Biol. 2007, 20, 19–21. [Google Scholar]
  23. Kolaskar, A.S.; Kulkarni-Kale, U. Prediction of three-dimensional structure and mapping of conformational epitopes of envelope glycoprotein of Japanese encephalitis virus. Virology 1999, 261, 31–42. [Google Scholar] [CrossRef] [PubMed]
  24. Roehrig, J.T.; Hunt, A.R.; Johnson, A.J.; Hawkes, R.A. Synthetic peptides derived from the deduced amino acid sequence of the E-glycoprotein of Murray Valley encephalitis virus elicit antiviral antibody. Virology 1989, 171, 49–60. [Google Scholar] [CrossRef]
  25. Roehrig, J.T.; Johnson, A.J.; Hunt, A.R.; Bolin, R.A.; Chu, M.C. Antibodies to dengue 2 virus E-glycoprotein synthetic peptides identify antigenic conformation. Virology 1990, 177, 668–675. [Google Scholar] [CrossRef]
  26. Despres, P.; Frenkiel, M.P.; Deubel, V. Differences between cell membrane fusion activities of two dengue type-1 isolates reflect modifications of viral structure. Virology 1993, 196, 209–219. [Google Scholar] [CrossRef] [PubMed]
  27. Rey, F.A.; Heinz, F.X.; Mandl, C.; Kunz, C.; Harrison, S.C. The envelope glycoprotein from tick-borne encephalitis virus at 2 A resolution. Nature 1995, 375, 291–298. [Google Scholar] [CrossRef] [PubMed]
  28. Chen, L.K.; Lin, Y.L.; Liao, C.L.; Lin, C.G.; Huang, Y.L.; Yeh, C.T.; Lai, S.C.; Jan, J.T.; Chin, C. Generation and characterization of organ-tropism mutants of Japanese encephalitis virus in vivo and in vitro. Virology 1996, 223, 79–88. [Google Scholar] [CrossRef] [PubMed]
  29. Gualano, R.C.; Pryor, M.J.; Cauchi, M.R.; Wright, P.J.; Davidson, A.D. Identification of a major determinant of mouse neurovirulence of dengue virus type 2 using stably cloned genomic-length cDNA. J. Gen. Virol. 1998, 79, 437–446. [Google Scholar] [CrossRef] [PubMed]
  30. Hasegawa, H.; Yoshida, M.; Shiosaka, T.; Fujita, S.; Kobayashi, Y. Mutations in the envelope protein of Japanese encephalitis virus affect entry into cultured cells and virulence in mice. Virology 1992, 191, 158–165. [Google Scholar] [CrossRef]
  31. McMinn, P.C.; Marshall, I.D.; Dalgarno, L. Neurovirulence and neuroinvasiveness of Murray Valley encephalitis virus mutants selected by passage in a monkey kidney cell line. J. Gen. Virol. 1995, 76, 865–872. [Google Scholar] [CrossRef] [PubMed]
  32. Sumiyoshi, H.; Tignor, G.H.; Shope, R.E. Characterization of a highly attenuated Japanese encephalitis virus generated from molecularly cloned cDNA. J. Infect. Dis. 1995, 171, 1144–1151. [Google Scholar] [CrossRef] [PubMed]
  33. Monath, T.P.; Arroyo, J.; Levenbook, I.; Zhang, Z.X.; Catalan, J.; Draper, K.; Guirakhoo, F. Single mutation in the flavivirus envelope protein hinge region increases neurovirulence for mice and monkeys but decreases viscerotropism for monkeys: Relevance to development and safety testing of live, attenuated vaccines. J. Virol. 2002, 76, 1932–1943. [Google Scholar] [CrossRef] [PubMed]
  34. McMinn, P.C.; Weir, R.C.; Dalgarno, L. A mouse-attenuated envelope protein variant of Murray Valley encephalitis virus with altered fusion activity. J. Gen. Virol. 1996, 77, 2085–2088. [Google Scholar] [CrossRef] [PubMed]
  35. Arroyo, J.; Guirakhoo, F.; Fenner, S.; Zhang, Z.X.; Monath, T.P.; Chambers, T.J. Molecular basis for attenuation of neurovirulence of a yellow fever virus/Japanese encephalitis virus chimera vaccine (ChimeriVax-JE). J. Virol. 2001, 75, 934–942. [Google Scholar] [CrossRef] [PubMed]
  36. Yun, S.I.; Song, B.H.; Kim, J.K.; Yun, G.N.; Lee, E.Y.; Li, L.; Kuhn, R.J.; Rossmann, M.G.; Morrey, J.D.; Lee, Y.M. A molecularly cloned, live-attenuated Japanese encephalitis vaccine SA14–14–2 virus: A conserved single amino acid in the ij hairpin of the viral E glycoprotein determines neurovirulence in mice. PLoS Pathog. 2014, 10, e1004290. [Google Scholar] [CrossRef] [PubMed]
  37. Silva, L.A.; Khomandiak, S.; Ashbrook, A.W.; Weller, R.; Heise, M.T.; Morrison, T.E.; Dermody, T.S. A single-amino-acid polymorphism in Chikungunya virus E2 glycoprotein influences glycosaminoglycan utilization. J. Virol. 2014, 88, 2385–2397. [Google Scholar] [CrossRef] [PubMed]

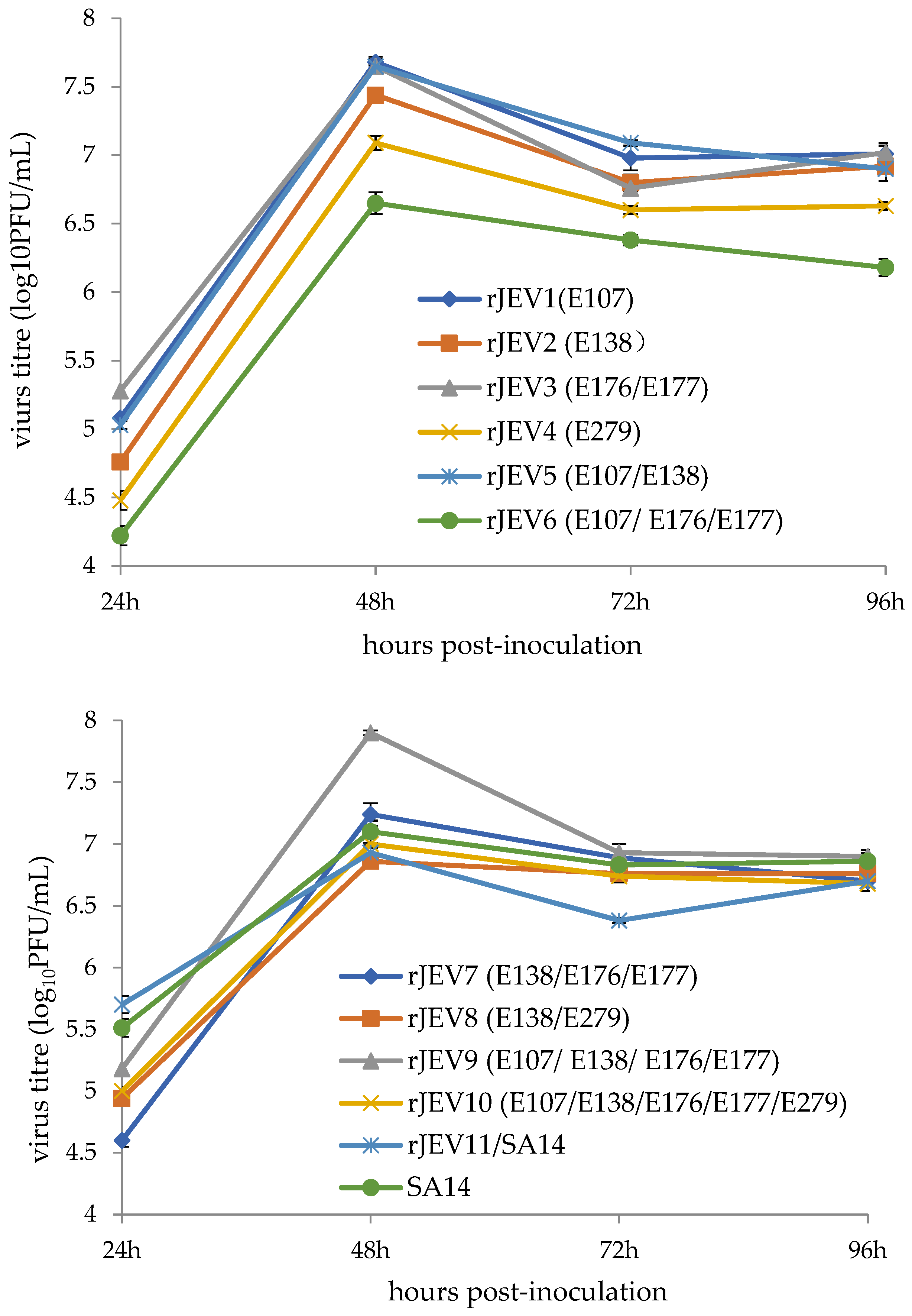

Figure 1. Growth curves of the revertants and the control viruses.
Figure 1. Growth curves of the revertants and the control viruses.
Viruses 09 00020 g001
Figure 2. Plaque sizes of the revertants and the control viruses.
Figure 2. Plaque sizes of the revertants and the control viruses.
Viruses 09 00020 g002

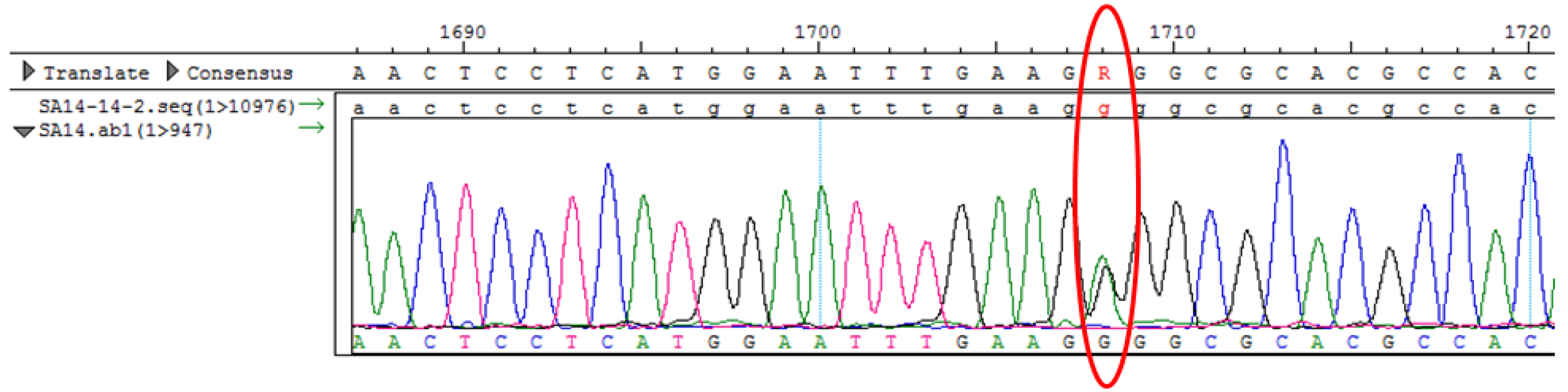

Figure 3. An equal proportion of two different amino acids exists at position E244 in the SA14 virus.
Figure 3. An equal proportion of two different amino acids exists at position E244 in the SA14 virus.
Viruses 09 00020 g003
Table 1. Amino acid differences in the viral E protein between Japanese encephalitis virus (JEV) strains SA14, SA14-14-2, and SA14-5-3 [3,4].
Table 1. Amino acid differences in the viral E protein between Japanese encephalitis virus (JEV) strains SA14, SA14-14-2, and SA14-5-3 [3,4].
Positions in E Protein aVirulent StrainAttenuated Strain
SA14/USASA14/CDCSA14/JAPSA14-14-2/PHKSA14-14-2/PDKSA14-5-3
E107LLLFFF
E138EEEKKK
E176IIIVVV
E177TTTATT
E264QQQHQQ
E279KKKMMM
E315AVAVVV
E439KRKRRR
a Amino acids that differ between the virulent JEV strain SA14 and the attenuated SA14-14-2 and SA14-5-3 strains are highlighted in bold letters. E177 was studied along with E176 due to their close proximity.
Table 2. Neurovirulence of the mutated viruses in 3-week-old mice inoculated by the i.c. route.
Table 2. Neurovirulence of the mutated viruses in 3-week-old mice inoculated by the i.c. route.
VirusesLD50 (log10PFU) *
rJEV (SA14-14-2)≥6.48
rJEV1 (E107)3.97
rJEV2 (E138)2.89
rJEV3 (E176/E177)≥6.43
rJEV4 (E279) ≥6.24
rJEV5 (E107/E138)1.70
rJEV6 (E107/E176/E177)5.69
rJEV7 (E138/E176/E177)3.64
rJEV8 (E138/E279)2.82
rJEV9 (E107/E138/E176/E177)1.99
rJEV10 (E107/E138/E176/E177/E279)1.43
rJEV11/SA140.66
SA14−0.92
* LD50 (log10PFU) represents the plaque titers that cause death in 50% of tested mice; Virus rJEV4 did not cause neurovirulence.
Table 3. AST and mortality of mice inoculated with the viruses by the i.c. route.
Table 3. AST and mortality of mice inoculated with the viruses by the i.c. route.
VirusesNo. of Dead Mice/Total No. of Mice (%)AST (day) Mean ± SD
rJEV (SA14-14-2)0/6 (0)-
rJEV1 (E107)5/6 (83.3%)6.6 ± 0.9 $
rJEV2 (E138)6/6 (100%)6 ± 0 #,$
rJEV3 (E176/E177)1/6 (16.7%)11 ± 0
rJEV4 (E279)0/6 (0)-
rJEV5 (E107/E138)6/6 (100%)6 ± 0 #
rJEV6 (E107/E176/E177)3/6 (50%)9 ± 0
rJEV7 (E138/E176/E177)6/6 (100%)6 ± 0 #
rJEV8 (E138/E279)6/6 (100%)6 ± 0 #
rJEV9 (E107/E138/E176/E177)6/6 (100%)6 ± 0 #
rJEV10 (E107/E138/E176/E177/E279)6/6 (100%)6 ± 0 #
rJEV11/SA146/6 (100%)5 ± 0 *
SA146/6 (100%)4 ± 0 *
# p = 1, compared with each other; * p ≤ 0.05, compared with each other; $ p ≤ 0.05, compared with each other.
Table 4. Neuroinvasiveness of the revertant viruses in 3-week-old mice inoculated by the s.c. route.
Table 4. Neuroinvasiveness of the revertant viruses in 3-week-old mice inoculated by the s.c. route.
InoculaLD50 (log10PFU)
rJEV (SA14-14-2)≥6.14
rJEV1 (E107)≥7.32
rJEV2 (E138)≥6.20
rJEV3 (E176/E177)≥6.93
rJEV4 (E279)≥6.74
rJEV5 (E107/E138)≥6.54
rJEV6 (E107/E176/E177)≥6.71
rJEV7 (E138/E176/E177)5.76
rJEV8 (E138/E279)6.01
rJEV9 (E107/E138/E176/E177)5.40
rJEV10 (E107/E138/E176/E177/E279)5.53
rJEV11/SA143.17
SA141.86
