- freely available
Viruses 2010, 2(7), 1411-1426; doi:10.3390/v2071411
Published: 5 July 2010
Abstract: Cleavage of Gag and Gag-Pol precursors by the viral protease is an essential step in the replication cycle of HIV. Protease inhibitors, which compete with natural cleavage sites, strongly impair viral infectivity and have proven to be highly valuable in the treatment of HIV-infected subjects. However, as with all other antiretroviral drugs, the clinical benefit of protease inhibitors can be compromised by resistance. One key feature of HIV resistance to protease inhibitors is that the mutations that promote resistance are not only located in the protease itself, but also in some of its natural substrates. The best documented resistance-associated substrate mutations are located in, or near, the cleavage sites in the NC/SP2/p6 region of Gag. These mutations improve interactions between the substrate and the mutated enzyme and correspondingly increase cleavage. Initially described as compensatory mutations able to partially correct the loss of viral fitness that results from protease mutations, changes in Gag are now recognized as being directly involved in resistance. Besides NC/SP2/p6 mutations, polymorphisms in other regions of Gag have been found to exert various effects on viral fitness and or resistance, but their importance deserves further evaluation.
Protease inhibitors (PIs) are among the most active antiretroviral drugs currently used in the treatment of HIV infection. These compounds, which mimic the natural Gag and Gag-Pol substrates of the HIV protease, inhibit the proteolytic activity of the enzyme and exert a powerful inhibitory effect on HIV replication both in vitro and in vivo. In a large majority of treated patients, combinations of antiretroviral drugs that include PIs result in complete suppression of active HIV replication, and in remarkable recovery of immunodeficiency and reduction of AIDS-related mortality. However, as with all other antiretroviral drugs, failure by PIs to fully suppress HIV replication leads to the development of viral resistance. A unique feature of HIV resistance to PIs is the fact that resistance mutations not only arise in the protease itself – the direct target of the inhibitors – but also in some of the natural substrates of the protease – the Gag cleavage sites. We will review here the evidence that Gag cleavage site mutations are an important element of HIV resistance to PIs and discuss the mechanisms and implications of this phenomenon.
2. The HIV-1 protease and its natural substrates
The HIV protease is required to cleave the Gag and Gag-Pol polyproteins into their final functional protein products, leading to the assembly of a fully mature and infectious viral particle. The protease is encoded as part of the Gag-Pol polyprotein itself and becomes activated following a dimerization event that is only possible at sites where the concentration of Gag-Pol polyproteins is high, essentially at the site of virion assembly and budding. The protease domain cleaves itself out of the Gag-Pol polyprotein to constitute a symmetrically assembled homodimer, in which the substrate-binding site is a central, symmetrical cavity that is equally defined by each of the two subunits of the homodimer. Proteolytic cleavage of Gag and Gag-Pol polyproteins by the protease can be viewed as a switch from a configuration of the polyproteins that favors assembly and budding at the cell surface, to a configuration that promotes reassembly of a free mature capsid structure that can be released into the cytoplasm of the target cell, where it will deliver the fully functional replicative machinery of the virus. Proper assembly of this mature capsid structure requires that cleavage of the Gag and Gag-Pol polyproteins by the protease occur in an ordered and controlled manner [1,2,3].
The order of cleavage of the Gag polyprotein is depicted in Figure 1. The first cleavage event separates the nucleocapsid protein (NC) from the capsid (CA) protein downstream of a 14-amino acid linker peptide termed SP1 (spacer peptide 1, formerly termed p2). Next, the CA protein is separated from the matrix (MA) protein, which remains associated with the virion membrane. This event that is almost simultaneous to the release of the C-terminal p6 Gag protein, downstream of another linker peptide located between NC and p6, termed SP2 (spacer peptide 2, formerly termed p1). Finally, the two linker peptides SP1 and SP2 are trimmed from the CA and NC proteins, respectively. The SP1 spacer peptide appears to play an important part in the overall maturation of Gag [4,5] and in the proper regulation of the ordered cleavage of Gag by the protease [3,6], however the role of SP2 remains unclear. An important factor in the ordered cleavage of Gag by the protease is the amino acid sequence of the cleavage site substrates . These natural substrates are constituted of seven amino acids, whose position relative to the cleaved peptide bond are designated from N to C terminus: P4-P3-P2-P1 / P1’-P2’-P3’, with cleavage occurring between P1 and P1’ . The amino acid sequence of the different cleavage site substrates within Gag strikingly differs from one site to another, some sites (most notably the SP1/NC site) being even remarkably polymorphic between HIV-1 clinical strains [8,9,10,11,12]. The difference in the amino acid sequence of these different substrates explains at least in part their differential rate of cleavage by the protease [2,7]. Interestingly, in spite of their marked sequence diversity, there is a strong similarity in the three-dimensional structure of these peptides in Gag [13,14], which explains why they all constitute strong and specific substrates for this enzyme, albeit with different cleavage rate efficiencies.
3. HIV resistance to PIs: protease mutations
HIV resistance to PIs is the consequence of accumulation of amino acid substitutions in the protease. During viral escape in vitro or in vivo, mutations accumulate gradually, leading to a progressive increase in the level of resistance [15,16]. Some mutations affect amino acids that are an integral part of the substrate binding domain of the enzyme: these mutations, often termed primary mutations, generally initiate the process of resistance evolution, and can differ from one PI to another. One of the most characteristic primary mutations is the substitution V82A, which is seen in most viruses having developed resistance to various PIs. Interestingly, this mutation modifies a strong point of contact between the enzyme and the inhibitors, but only one of the two valine residues at position 82 in the homodimeric protease is important for contact with the natural substrates . Subsequently, secondary mutations are selected, which involve amino acids located away from the substrate-binding cavity. These secondary mutations are less drug-specific than primary mutations but are nonetheless critical for high-level resistance. Both primary and secondary mutations modify the shape and size of the substrate-binding cavity of the HIV protease, thereby reducing the affinity and the inhibitory potential of the inhibitors [18-20].
Overall, both primary and secondary resistance mutations appear to enlarge the substrate-binding cavity of the protease . This enlargement seems to have more important consequences on the binding of the inhibitors, most of which are dependent upon a strong and tight interaction with the active site of the enzyme, than on the binding of the natural substrates of the protease in Gag and Gag-Pol. Indeed, Gag and Pol precursors interact less tightly with the enzyme [17,18,19,20], a property that is consistent with their ordered and regulated cleavage by the protease. With a few exceptions, strong and radical changes in inhibitor affinity cannot be achieved by single changes in the protease, and high level resistance requires subtle distortions of the substrate binding site that are both efficient in terms of resistance and tolerable for enzyme function.
6. Cleavage site mutations as resistance mutations
Besides the well documented effect of Gag cleavage site mutations on resistance-associated loss of viral fitness, evidence has been accumulating that these mutations could also directly affect HIV susceptibility to PIs in a manner that is independent of their effect on fitness. In their 1997 study, Zhang et al.  observed that the presence of the mutation A431V in NC/SP2 could improve the kinetics of viral replication not only in the absence of indinavir, but also in the presence of moderate concentrations of that drug. Similarly, Carron de la Carrière et al.  observed that the presence of the same A431V mutation strongly improved the selective advantage profile of some protease mutants in the presence of ritonavir, a parameter that reflects the ability of viral variants to outgrow wild-type virus according to the concentration of drug in the culture. In line with these earlier findings, Maguire et al. , studying the effect of Gag mutation P453L in viruses carrying the amprenavir-specific I50V protease mutation, again observed that beyond merely correcting viral fitness, the Gag mutation could also significantly increase the IC50 of amprenavir in these mutants. Finally, Prado et al.  reported that the Gag mutation L449F, in the context of amprenavir-selected mutations L10F/I84V, increased phenotypic resistance to all PI tested. In these four studies, however, the extent to which the increase in resistance was dependent or independent of the effect of Gag mutations on viral fitness was not clearly determined. This point was solved by two recent studies [40,41], which clearly demonstrated that Gag cleavage site mutations, independently of their role in viral fitness, should be considered as authentic PI resistance mutations.
In a study by Nijhuis et al. , a laboratory strain of HIV-1 was subjected to selection through repeated cell culture passaging in the presence of increasing concentrations of an experimental PI, RO033-4649. Remarkably, viral variants selected by this process did not carry any resistance mutations in the protease. Instead, these variants exhibited mutations in the SP2 spacer peptide, K436E and I437T or V. Introduction of these mutations in combination in a wild-type reference proviral clone showed a clear, although moderate, increase in the IC50 of RO033-4649 and of other PIs, thereby demonstrating the direct impact of Gag mutations on resistance to a wide range of protease inhibitors, in the absence of protease mutations. The impact of Gag cleavage site mutations in PI resistance was further emphasized in a study by Dam et al. , examining the phenotype of different recombinant viral clones carrying different Gag or Gag-Pol segments from highly evolved viruses that had accumulated multiple PI resistance mutations in treated patients. All of these primary viral sequences also carried one or more of the characteristic mutations in the NC/SP2/p6 Gag cleavage sites as described in Figure 2. In this study, it was found that the association of mutated Gag sequences together with mutated protease sequences produced markedly higher IC50 levels and fitness values. This effect was fully recapitulated by a segment of the viral genome expressing the NC/SP2/p6 region of Gag (Figure 3). Strikingly, reversion of individual cleavage site mutations A431V or I437V in these viruses markedly reduced their level of resistance, but had only a marginal effect on fitness, strongly suggesting that these mutations were indeed essentially acting by themselves as authentic resistance mutations. In contrast, their benefit in terms of viral fitness appeared more complex, and while the mutations within cleavage site sequences such as A431V or I437V certainly exert a positive impact on fitness at early stages of resistance evolution, this effect may be diverted or confounded by further co-evolution and adaptation of as yet poorly defined determinants in the NC/SP2/p6 region.
7. Mechanisms of action of Gag cleavage site mutations
The mechanisms through which Gag cleavage site mutations can increase resistance and improve viral fitness are yet to be fully understood. These mechanisms are centered on three key questions.
The first question, addressing how single mutations act locally on the interaction between the cleavage site substrate and the protease, has been partially answered by structural crystallographic studies of wild-type or mutated substrates in the presence of wild-type or mutated protease. In particular, it is well understood how the A431V mutation can improve cleavage of the NC/SP2 site by a protease bearing the V82A mutation (Figure 4) . The smaller alanine residue at position 82 in the protease, compared to wild-type valine, opens a space between the enzyme and protease inhibitors, thereby decreasing affinity of the inhibitor for the enzyme and producing resistance. This change, however, also reduces to some extent the contact between the protease and the NC/SP2 substrate. As shown in Figure 4, the A431V mutation creates a protrusion of the NC/SP2 peptide in a space within the substrate-binding domain that is not naturally occupied by the substrate. Interestingly, this structural change does not involve any of the substrate residues that are in direct contact with the amino acid at position 82, but instead creates a different, alternative contact between the enzyme and substrate that compensates for the loss of contact resulting from the protease mutation. This model, following which substrate changes can fill gaps between substrate and mutated enzyme and thereby improve cleavage, provides a highly credible explanation for the effect of Gag cleavage site mutations on viral fitness and is likely to apply to other cleavage site mutations observed in PI-resistant viruses. It is corroborated by observations that cleavage sites carrying the characteristic mutations described earlier behave as better substrates for the protease in vitro, whether mutated or wild-type . This improvement in cleavage cannot be selected for in the absence of PIs, most likely in view of the fact that cleavage at the NC/SP2/p6 sites needs to be fully balanced with cleavage at other sites, and that viruses with increased NC/SP2/p6 cleavage efficiency may not necessarily be advantaged in the absence of PIs and/or in the context of a wild-type protease.
The second question that needs to be answered is why most PI resistance-associated Gag mutations are clustered around the SP2 peptide. Coren et al.  have evaluated the replicative importance of cleavage at the NC/SP2 and at the SP2/p6 sites in viruses carrying mutations that reduced cleavage at these sites. Surprisingly, full obliteration of NC/SP2 cleavage in one of these mutant viruses did not affect HIV-1 replication. This finding strongly contrasts with the observations of Dam et al. , where it appeared that the extent of cleavage at this site, as measured by the amount of mature NC protein relative to incompletely cleaved NC-SP2 products in recombinant viruses carrying wild-type or A431V mutated NC/SP2 sequences, was proportional to virus infectivity, whether in the presence (a measure of resistance) or in the absence (a measure of fitness) of protease inhibitor lopinavir. Regarding the importance of improving cleavage at the SP2/p6 sites, the mutational studies by Coren et al. cited above suggest that cleavage at this site is critical for HIV infectivity. The extent to which mutations in SP2/p6, in SP2, or even in NC/SP2, could impact SP2/p6 cleavage and release of mature p6 protein is unclear. In the Nijhuis et al. study , where viruses carrying substitutions at positions 436 and 437 within SP2 were studied, these mutations appeared to decrease the amounts of an incompletely cleaved NC-SP2-p6 intermediate product, but their effect on the amounts of mature p6 protein was not seen.
The third unanswered question is to understand how improved cleavage by the protease can produce resistance, independently of changes in fitness. One possibility is that a better substrate will constitute a better competitor for protease binding in the presence of protease inhibitors. This may appear unlikely, especially in view of the fact that affinity of PIs for the HIV protease is several orders of magnitude greater (picomolar versus micromolar) than the affinity of Gag cleavage sites . This potential balance, however, may be strongly affected by the local concentration of the competing partners: the concentration of Gag cleavage sites can be considered as being very high at the site of virion assembly, release and maturation, and the intracellular or intravirion concentration of PIs is largely unknown. An alternative model has been proposed, according to which Gag cleavage site mutations would improve the efficiency of ribosomal frameshift at the Gag-Pol junction, thus increasing the amounts of protease . This model, however, remains controversial .
8. Role of other mutations or polymorphisms in Gag in HIV resistance to PIs
Most studies on the role of Gag in resistance to PIs have essentially focused on mutations affecting cleavage site sequences in the NC/SP2/p6 region of Gag. In their study establishing the role of cleavage site mutations in this region, Dam et al.  dismissed a potential role of changes in other Gag domains in resistance and/or fitness. Indeed, the phenotype of recombinants carrying only patient-derived NC/SP2/p6 domains from highly resistant patient-derived viruses did not differ from that of recombinants carrying whole patient-derived Gag sequences. Recent data by Parry et al. , however, also studying Gag sequences from highly resistant primary viruses, clearly demonstrated that domains in the matrix (MA) and capsid (CA) protein of HIV-1 were able to confer higher resistance and improved replicative capacity to viruses bearing mutations in the protease. Unlike the mechanisms discussed above, these changes do not directly target the MA/CA cleavage site. Instead, multiple polymorphisms are involved, which could improve fitness and resistance by improved MA/CA cleavage through modifications of the overall conformation of the Gag precursor. Two other studies have examined the impact of Gag mutations outside of cleavage sites on the fitness of PI-resistant viruses [47,48]. Both studies observe that changes in the NC/SP2/p6 region can significantly improve fitness of replication-impaired viruses carrying mutations in the protease. These phenomena, in line with the observations of Dam et al. on the fitness of viruses in which NC/SP2 mutations had been reverted, may again relate to increases in cleavage efficiency by overall conformational changes of this region of Gag.
9. Gag cleavage site mutations in a clinical context: frequency, kinetics of emergence, and impact on treatment response in vivo
Existing data on the frequency of cleavage site mutations in treatment-naïve and -experienced patients is limited. Recently Verheyen et al.  explored the prevalence of polymorphisms and treatment-associated mutations in the NC/SP2/P6 cleavage sites (431V, 436R, 437V, 449F/H/V, 451T, 452S, 453A/L) among a large set of therapy naïve patients whose viruses did not carry primary resistance mutations (n = 1846). While polymorphisms were relatively frequent, in particular at position 449 and 451, the residues involved were clearly distinct from therapy-associated mutations. Only three therapy-associated mutations (436R, 453L and 437V) were found in more than 1% of these patients (8.5%, 5.7% and 1.7%, respectively). In striking contrast, in a group of therapy naïve patients who carried primary PIs resistance mutations (suggesting transmission of a resistant virus) the 431V mutation was found at a high frequency (22%), while this mutation did not exceed 0.5% in patients from the first group . As in most other studies, the large majority of samples were from subtype-B HIV-infected patients. Differences in the prevalence of mutations and polymorphisms were noted between subtype-B and non-B viruses, although the limited number of samples from each subtype did not allow specific association. This is a relevant issue, since polymorphisms in Gag may facilitate the selection of specific protease mutations, by reducing their fitness cost.
The frequency and the kinetics of emergence of Gag cleavage site mutations during the course of evolution of HIV resistance to PIs have not been fully evaluated. Several studies have compared treatment-naïve and -experienced patients, and concluded on a higher frequency of mutations in the second group. However, to quantify the difference, relatively large cohorts should be considered, and group definition should be clearly stated. Verheyen et al.  reported that approximately 10% of treatment-naïve patients without primary resistance mutations (n = 275) harbored treatment-associated mutation(s) in NC/SP2/P6 cleavage sites. In the same study, 60% of treatment-experienced patients carrying at least one primary resistance mutation (n = 225) had one or more cleavage site mutation . The frequency appears to increase with the duration of exposure to PIs, since highly evolved viruses from patients having failed multiple lines of PI-based antiretroviral therapy, carrying multiple resistance mutations in the protease and expressing high levels of resistance, almost always bear mutations in Gag cleavage sites . It is worth stressing that subtype-B viruses were largely prevalent in these studies. The emergence of subtype-specific Gag mutations and their implication in resistance development deserve dedicated surveillance, as different solutions for resistance may characterize genetically distinct viruses. As an example, a recent study on subtype-G infected patients (n = 21) suggested that the frequent polymorphism 453T favored the selection of 453I rather than the treatment-associated 453L change observed in subtype-B viruses .
Because mutations in Gag were until recently essentially considered as fitness compensatory changes rather than as true resistance mutations, most resistance genotype assays do not take these mutations into account in their interpretation algorithms. These algorithms are for the most part based on correlations between response to PI treatment and genotype. Furthermore, if Gag cleavage site mutations emerge in the context of heavily mutated protease genes, their individual statistical impact on clinical response is likely to be confounded by the overall protease genotype. There are, however, some indications that the presence of Gag cleavage site mutations may correlate with virological outcome in patients in whom first line PI therapy has failed and in whom salvage therapy involves another compound of the same class [35,50]. This further suggests that these mutations not only affect viral fitness, but could also act as bona fide resistance mutations.

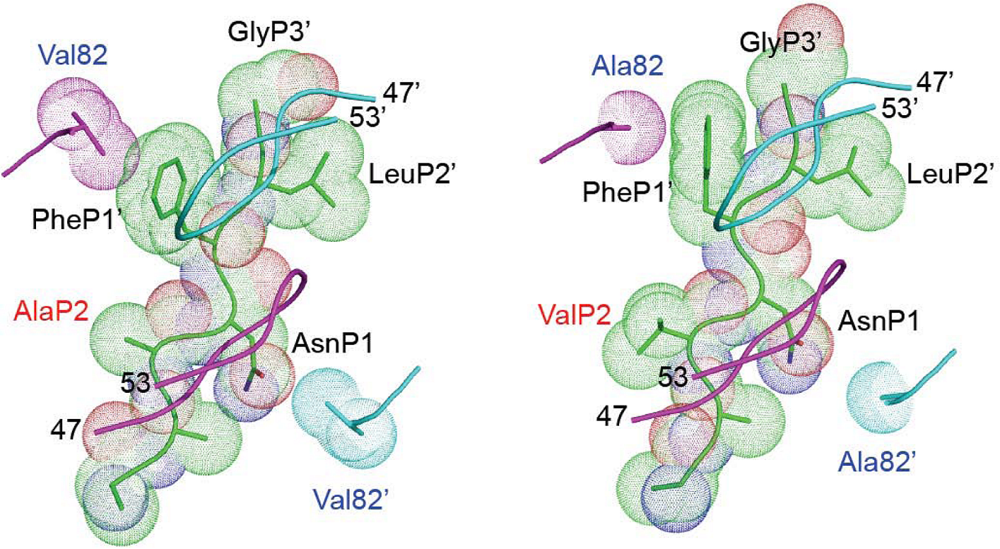

The authors would like to thank Celia Schiffer (University of Massachusetts Medical School) for kindly providing the illustration for Figure 4.
- Pettit, S.C.; Clemente, J.C.; Jeung, J.A.; Dunn, B.M.; Kaplan, A.H. Ordered processing of the human immunodeficiency virus type 1 GagPol precursor is influenced by the context of the embedded viral protease. J.Virol. 2005, 79, 10601–10607, doi:10.1128/JVI.79.16.10601-10607.2005. 16051852
- Pettit, S.C.; Lindquist, J.N.; Kaplan, A.H.; Swanstrom, R. Processing sites in the human immunodeficiency virus type 1 (HIV-1) Gag-Pro-Pol precursor are cleaved by the viral protease at different rates. Retrovirology 2005, 2, 66, doi:10.1186/1742-4690-2-66. 16262906
- Pettit, S.C.; Moody, M.D.; Wehbie, R.S.; Kaplan, A.H.; Nantermet, P.V.; Klein, C.A.; Swanstrom, R. The p2 domain of human immunodeficiency virus type 1 Gag regulates sequential proteolytic processing and is required to produce fully infectious virions. J. Virol. 1994, 68, 8017–8027. 7966591
- Gross, I.; Hohenberg, H.; Wilk, T.; Wiegers, K.; Grattinger, M.; Muller, B.; Fuller, S.; Krausslich, H.G. A conformational switch controlling HIV-1 morphogenesis. EMBO J. 2000, 19, 103–113, doi:10.1093/emboj/19.1.103. 10619849
- Krausslich, H.G.; Facke, M.; Heuser, A.M.; Konvalinka, J.; Zentgraf, H. The spacer peptide between human immunodeficiency virus capsid and nucleocapsid proteins is essential for ordered assembly and viral infectivity. J. Virol. 1995, 69, 3407–3419. 7745687
- Shehu-Xhilaga, M.; Kraeusslich, H.G.; Pettit, S.; Swanstrom, R.; Lee, J.Y.; Marshall, J.A.; Crowe, S.M.; Mak, J. Proteolytic processing of the p2/nucleocapsid cleavage site is critical for human immunodeficiency virus type 1 RNA dimer maturation. J. Virol. 2001, 75, 9156–9164, doi:10.1128/JVI.75.19.9156-9164.2001. 11533179
- Pettit, S.C.; Henderson, G.J.; Schiffer, C.A.; Swanstrom, R. Replacement of the P1 amino acid of human immunodeficiency virus type 1 Gag processing sites can inhibit or enhance the rate of cleavage by the viral protease. J. Virol. 2002, 76, 10226–10233, doi:10.1128/JVI.76.20.10226-10233.2002. 12239298
- Bally, F.; Martinez, R.; Peters, S.; Sudre, P.; Telenti, A. Polymorphism of HIV type 1 gag p7/p1 and p1/p6 cleavage sites: clinical significance and implications for resistance to protease inhibitors. AIDS Res. Hum. Retroviruses 2000, 16, 1209–1213. 10957718
- Brumme, Z.L.; Chan, K.J.; Dong, W.W.; Wynhoven, B.; Mo, T.; Hogg, R.S.; Montaner, J.S.; O'Shaughnessy, M.V.; Harrigan, P.R. Prevalence and clinical implications of insertions in the HIV-1 p6Gag N-terminal region in drug-naive individuals initiating antiretroviral therapy. Antivir. Ther. 2003, 8, 91–96. 12741620
- de Oliveira, T.; Engelbrecht, S.; Janse van Rensburg, E.; Gordon, M.; Bishop, K.; zur Megede, J.; Barnett, S.W.; Cassol, S. Variability at human immunodeficiency virus type 1 subtype C protease cleavage sites: an indication of viral fitness? J. Virol. 2003, 77, 9422–9430, doi:10.1128/JVI.77.17.9422-9430.2003. 12915557
- Gallego, O.; de Mendoza, C.; Corral, A.; Soriano, V. Changes in the human immunodeficiency virus p7-p1-p6 gag gene in drug-naive and pretreated patients. J. Clin. Microbiol. 2003, 41, 1245–1247, doi:10.1128/JCM.41.3.1245-1247.2003. 12624058
- Verheyen, J.; Knops, E.; Kupfer, B.; Hamouda, O.; Somogyi, S.; Schuldenzucker, U.; Hoffmann, D.; Kaiser, R.; Pfister, H.; Kucherer, C. Prevalence of C-terminal gag cleavage site mutations in HIV from therapy-naive patients. J. Infect. 2009, 58, 61–67, doi:10.1016/j.jinf.2008.11.009. 19110315
- Bandaranayake, R.M.; Prabu-Jeyabalan, M.; Kakizawa, J.; Sugiura, W.; Schiffer, C.A. Structural analysis of human immunodeficiency virus type 1 CRF01_AE protease in complex with the substrate p1-p6. J. Virol. 2008, 82, 6762–6766, doi:10.1128/JVI.00018-08. 18434392
- Prabu-Jeyabalan, M.; Nalivaika, E.; Schiffer, C.A. Substrate shape determines specificity of recognition for HIV-1 protease: analysis of crystal structures of six substrate complexes. Structure 2002, 10, 369–381, doi:10.1016/S0969-2126(02)00720-7. 12005435
- Condra, J.H.; Holder, D.J.; Schleif, W.A.; Blahy, O.M.; Danovich, R.M.; Gabryelski, L.J.; Graham, D.J.; Laird, D.; Quintero, J.C.; Rhodes, A.; Robbins, H.L.; Roth, E.; Shivaprakash, M.; Yang, T.; Chodakewitz, J.A.; Deutsch, P.J.; Leavitt, R.Y.; Massari, F.E.; Mellors, J.W.; Squires, K.E.; Steigbigel, R.T.; Teppler, H.; Emini, E.A. Genetic correlates of in vivo viral resistance to indinavir, a human immunodeficiency virus type 1 protease inhibitor. J. Virol. 1996, 70, 8270–8276. 8970946
- Molla, A.; Korneyeva, M.; Gao, Q.; Vasavanonda, S.; Schipper, P.J.; Mo, H.M.; Markowitz, M.; Chernyavskiy, T.; Niu, P.; Lyons, N.; Hsu, A.; Granneman, G.R.; Ho, D.D.; Boucher, C.A.; Leonard, J.M.; Norbeck, D.W.; Kempf, D.J. Ordered accumulation of mutations in HIV protease confers resistance to ritonavir. Nat. Med. 1996, 2, 760–766, doi:10.1038/nm0796-760. 8673921
- Prabu-Jeyabalan, M.; Nalivaika, E.A.; King, N.M.; Schiffer, C.A. Structural basis for coevolution of a human immunodeficiency virus type 1 nucleocapsid-p1 cleavage site with a V82A drug-resistant mutation in viral protease. J. Virol. 2004, 78, 12446–12454, doi:10.1128/JVI.78.22.12446-12454.2004. 15507631
- Logsdon, B.C.; Vickrey, J.F.; Martin, P.; Proteasa, G.; Koepke, J.I.; Terlecky, S.R.; Wawrzak, Z.; Winters, M.A.; Merigan, T.C.; Kovari, L.C. Crystal structures of a multidrug-resistant human immunodeficiency virus type 1 protease reveal an expanded active-site cavity. J. Virol. 2004, 78, 3123–3132, doi:10.1128/JVI.78.6.3123-3132.2004. 14990731
- Prabu-Jeyabalan, M.; King, N.M.; Nalivaika, E.A.; Heilek-Snyder, G.; Cammack, N.; Schiffer, C.A. Substrate envelope and drug resistance: crystal structure of RO1 in complex with wild-type human immunodeficiency virus type 1 protease. Antimicrob. Agents Chemother. 2006, 50, 1518–1521, doi:10.1128/AAC.50.4.1518-1521.2006. 16569872
- Prabu-Jeyabalan, M.; Nalivaika, E.A.; Romano, K.; Schiffer, C.A. Mechanism of substrate recognition by drug-resistant human immunodeficiency virus type 1 protease variants revealed by a novel structural intermediate. J. Virol. 2006, 80, 3607–3616, doi:10.1128/JVI.80.7.3607-3616.2006. 16537628
- Mammano, F.; Trouplin, V.; Zennou, V.; Clavel, F. Retracing the evolutionary pathways of human immunodeficiency virus type 1 resistance to protease inhibitors: virus fitness in the absence and in the presence of drug. J. Virol. 2000, 74, 8524–8531, doi:10.1128/JVI.74.18.8524-8531.2000. 10954553
- Martinez-Picado, J.; Savara, A.V.; Sutton, L.; D'Aquila, R.T. Replicative fitness of protease inhibitor-resistant mutants of human immunodeficiency virus type 1. J. Virol. 1999, 73, 3744–3752. 10196268
- Zennou, V.; Mammano, F.; Paulous, S.; Mathez, D.; Clavel, F. Loss of viral fitness associated with multiple Gag and Gag-Pol processing defects in human immunodeficiency virus type 1 variants selected for resistance to protease inhibitors in vivo. J. Virol. 1998, 72, 3300–3306. 9525657
- Nijhuis, M.; Schuurman, R.; de Jong, D.; Erickson, J.; Gustchina, E.; Albert, J.; Schipper, P.; Gulnik, S.; Boucher, C.A. Increased fitness of drug resistant HIV-1 protease as a result of acquisition of compensatory mutations during suboptimal therapy. AIDS 1999, 13, 2349–2359, doi:10.1097/00002030-199912030-00006. 10597776
- Barbour, J.D.; Wrin, T.; Grant, R.M.; Martin, J.N.; Segal, M.R.; Petropoulos, C.J.; Deeks, S.G. Evolution of phenotypic drug susceptibility and viral replication capacity during long-term virologic failure of protease inhibitor therapy in human immunodeficiency virus-infected adults. J. Virol. 2002, 76, 11104–11112, doi:10.1128/JVI.76.21.11104-11112.2002. 12368352
- Bleiber, G.; Munoz, M.; Ciuffi, A.; Meylan, P.; Telenti, A. Individual contributions of mutant protease and reverse transcriptase to viral infectivity, replication, and protein maturation of antiretroviral drug-resistant human immunodeficiency virus type 1. J. Virol. 2001, 75, 3291–3300, doi:10.1128/JVI.75.7.3291-3300.2001. 11238855
- Carron de la Carriere, L.; Paulous, S.; Clavel, F.; Mammano, F. Effects of human immunodeficiency virus type 1 resistance to protease inhibitors on reverse transcriptase processing, activity, and drug sensitivity. J. Virol. 1999, 73, 3455–3459. 10074202
- Mammano, F.; Petit, C.; Clavel, F. Resistance-associated loss of viral fitness in human immunodeficiency virus type 1: phenotypic analysis of protease and gag coevolution in protease inhibitor-treated patients. J. Virol. 1998, 72, 7632–7637. 9696866
- Doyon, L.; Croteau, G.; Thibeault, D.; Poulin, F.; Pilote, L.; Lamarre, D. Second locus involved in human immunodeficiency virus type 1 resistance to protease inhibitors. J. Virol. 1996, 70, 3763–3769. 8648711
- Zhang, Y.M.; Imamichi, H.; Imamichi, T.; Lane, H.C.; Falloon, J.; Vasudevachari, M.B.; Salzman, N.P. Drug resistance during indinavir therapy is caused by mutations in the protease gene and in its Gag substrate cleavage sites. J. Virol. 1997, 71, 6662–6670. 9261388
- Banke, S.; Lillemark, M.R.; Gerstoft, J.; Obel, N.; Jorgensen, L.B. Positive selection pressure introduces secondary mutations at Gag cleavage sites in human immunodeficiency virus type 1 harboring major protease resistance mutations. J. Virol. 2009, 83, 8916–8924, doi:10.1128/JVI.00003-09. 19515784
- Brann, T.W.; Dewar, R.L.; Jiang, M.K.; Shah, A.; Nagashima, K.; Metcalf, J.A.; Falloon, J.; Lane, H.C.; Imamichi, T. Functional correlation between a novel amino acid insertion at codon 19 in the protease of human immunodeficiency virus type 1 and polymorphism in the p1/p6 Gag cleavage site in drug resistance and replication fitness. J. Virol. 2006, 80, 6136–6145, doi:10.1128/JVI.02212-05. 16731952
- Cote, H.C.; Brumme, Z.L.; Harrigan, P.R. Human immunodeficiency virus type 1 protease cleavage site mutations associated with protease inhibitor cross-resistance selected by indinavir, ritonavir, and/or saquinavir. J. Virol. 2001, 75, 589–594, doi:10.1128/JVI.75.2.589-594.2001. 11134271
- Maguire, M.F.; Guinea, R.; Griffin, P.; Macmanus, S.; Elston, R.C.; Wolfram, J.; Richards, N.; Hanlon, M.H.; Porter, D.J.; Wrin, T.; Parkin, N.; Tisdale, M.; Furfine, E.; Petropoulos, C.; Snowden, B.W.; Kleim, J.P. Changes in human immunodeficiency virus type 1 Gag at positions L449 and P453 are linked to I50V protease mutants in vivo and cause reduction of sensitivity to amprenavir and improved viral fitness in vitro. J. Virol. 2002, 76, 7398–7406, doi:10.1128/JVI.76.15.7398-7406.2002. 12097552
- Malet, I.; Roquebert, B.; Dalban, C.; Wirden, M.; Amellal, B.; Agher, R.; Simon, A.; Katlama, C.; Costagliola, D.; Calvez, V.; Marcelin, A.G. Association of Gag cleavage sites to protease mutations and to virological response in HIV-1 treated patients. J. Infect. 2007, 54, 367–374, doi:10.1016/j.jinf.2006.06.012. 16875739
- Robinson, L.H.; Myers, R.E.; Snowden, B.W.; Tisdale, M.; Blair, E.D. HIV type 1 protease cleavage site mutations and viral fitness: implications for drug susceptibility phenotyping assays. AIDS Res. Hum. Retroviruses 2000, 16, 1149–1156. 10954890
- Verheyen, J.; Litau, E.; Sing, T.; Daumer, M.; Balduin, M.; Oette, M.; Fatkenheuer, G.; Rockstroh, J.K.; Schuldenzucker, U.; Hoffmann, D.; Pfister, H.; Kaiser, R. Compensatory mutations at the HIV cleavage sites p7/p1 and p1/p6-gag in therapy-naive and therapy-experienced patients. Antiv. Ther. 2006, 11, 879–887.
- Launay, O.; Duval, X.; Dalban, C.; Descamps, D.; Peytavin, G.; Certain, A.; Mouajjah, S.; Ralaimazava, P.; Verdon, R.; Costagliola, D.; Clavel, F. Lamivudine and indinavir/ritonavir maintenance therapy in highly pretreated HIV-infected patients (Vista ANRS 109). Antivir. Ther. 2006, 11, 889–899. 17302251
- Prado, J.G.; Wrin, T.; Beauchaine, J.; Ruiz, L.; Petropoulos, C.J.; Frost, S.D.W.; Clotet, B.; D'Aquila, R.T.; Martinez-Picado, J. Amprenavir-resistant HIV-1 exhibits lopinavir cross-resistance and reduced replication capacity. AIDS 2002, 16, 1009–1017, doi:10.1097/00002030-200205030-00007. 11953467
- Dam, E.; Quercia, R.; Glass, B.; Descamps, D.; Launay, O.; Duval, X.; Krausslich, H.G.; Hance, A.J.; Clavel, F. Gag mutations strongly contribute to HIV-1 resistance to protease inhibitors in highly drug-experienced patients besides compensating for fitness loss. PLoS Path. 2009, 5, e1000345, doi:10.1371/journal.ppat.1000345.
- Nijhuis, M.; van Maarseveen, N.M.; Lastere, S.; Schipper, P.; Coakley, E.; Glass, B.; Rovenska, M.; de Jong, D.; Chappey, C.; Goedegebuure, I.W.; Heilek-Snyder, G.; Dulude, D.; Cammack, N.; Brakier-Gingras, L.; Konvalinka, J.; Parkin, N.; Krausslich, H.G.; Brun-Vezinet, F.; Boucher, C.A. A novel substrate-based HIV-1 protease inhibitor drug resistance mechanism. PLoS Med. 2007, 4, e36, doi:10.1371/journal.pmed.0040036. 17227139
- Coren, L.V.; Thomas, J.A.; Chertova, E.; Sowder, R.C.; Gagliardi, T.D.; Gorelick, R.J.; Ott, D.E. Mutational analysis of the C-terminal gag cleavage sites in human immunodeficiency virus type 1. J. Virol. 2007, 81, 10047–10054, doi:10.1128/JVI.02496-06. 17634233
- Moore, M.L.; Bryan, W.M.; Fakhoury, S.A.; Magaard, V.W.; Huffman, W.F.; Dayton, B.D.; Meek, T.D.; Hyland, L.; Dreyer, G.B.; Metcalf, B.W. Peptide substrates and inhibitors of the HIV-1 protease. Biochem. Biophys. Res. Commun. 1989, 159, 420–425, doi:10.1016/0006-291X(89)90008-9. 2649094
- Doyon, L.; Payant, C.; Brakier-Gingras, L.; Lamarre, D. Novel Gag-Pol frameshift site in human immunodeficiency virus type 1 variants resistant to protease inhibitors. J. Virol. 1998, 72, 6146–6150. 9621079
- Girnary, R.; King, L.; Robinson, L.; Elston, R.; Brierley, I. Structure-function analysis of the ribosomal frameshifting signal of two human immunodeficiency virus type 1 isolates with increased resistance to viral protease inhibitors. J. Gen. Virol. 2007, 88, 226–235, doi:10.1099/vir.0.82064-0. 17170455
- Parry, C.M.; Kohli, A.; Boinett, C.J.; Towers, G.J.; McCormick, A.L.; Pillay, D. Gag determinants of fitness and drug susceptibility in protease inhibitor-resistant human immunodeficiency virus type 1. J. Virol. 2009, 83, 9094–9101, doi:10.1128/JVI.02356-08. 19587031
- Gatanaga, H.; Suzuki, Y.; Tsang, H.; Yoshimura, K.; Kavlick, M.F.; Nagashima, K.; Gorelick, R.J.; Mardy, S.; Tang, C.; Summers, M.F.; Mitsuya, H. Amino acid substitutions in Gag protein at non-cleavage sites are indispensable for the development of a high multitude of HIV-1 resistance against protease inhibitors. J. Biol. Chem. 2002, 277, 5952–5961, doi:10.1074/jbc.M108005200. 11741936
- Myint, L.; Matsuda, M.; Matsuda, Z.; Yokomaku, Y.; Chiba, T.; Okano, A.; Yamada, K.; Sugiura, W. Gag non-cleavage site mutations contribute to full recovery of viral fitness in protease inhibitor-resistant human immunodeficiency virus type 1. Antimicrob. Agents Chemother. 2004, 48, 444–452, doi:10.1128/AAC.48.2.444-452.2004. 14742193
- Knops, E.; Daumer, M.; Awerkiew, S.; Kartashev, V.; Schulter, E.; Kutsev, S.; Brakier-Gingras, L.; Kaiser, R.; Pfister, H.; Verheyen, J. Evolution of protease inhibitor resistance in the gag and pol genes of HIV subtype G isolates. J. Antimicrob. Chemother. 2010, 65, 1472–1476, doi:10.1093/jac/dkq129. 20430786
- Lambert-Niclot, S.; Flandre, P.; Malet, I.; Canestri, A.; Soulie, C.; Tubiana, R.; Brunet, C.; Wirden, M.; Katlama, C.; Calvez, V.; Marcelin, A.G. Impact of gag mutations on selection of darunavir resistance mutations in HIV-1 protease. J. Antimicrob. Chemother. 2008, 62, 905–908, doi:10.1093/jac/dkn338. 18765410
© 2010 by the authors; licensee MDPI, Basel, Switzerland This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
