Evidence to support the roles of replication proteins in DI-RNA formation has been obtained with the helicase-like protein 1a of BMV. Mutations within the 1a protein altered the sites of RNA recombination when compared with BMV infections containing the wt 1a [38]. In addition, mutational studies on BMV 2a polymerase also indicated the replicase’s role in recombination [39]. A 2a mutation affected the precision as well as the location of RNA recombination sites. Similarly, mutation in the polymerase gene of influenza virus, led to an increase in the synthesis of DI-RNAs [40]. The authors proposed that the mutation destabilized the polymerase-viral RNA complex during the elongation step. A role for the replicase in RNA recombination was further bolstered by studies on the p33 auxiliary replication protein for CNV [41]. Frequency of recombination for tombusvirus DI-RNA was affected by mutations in the RNA binding (RPR) domain of p33 (Figure 2). Two p33 mutants tested enhanced the recombination and 5 of the 17 mutants tested slowed down the accumulation of recombinants. Interestingly, the recombination promoting mutants also increased the level of subgenomic RNA transcription [42]. The connection between transcription and recombination is not that surprising as both processes utilize the viral replicase complex. Mutations within the N-terminal portion of p92^pol polymerase, which overlaps with p33, did not have similar affects on recombination, suggesting different roles for RPR in p33 and p92^pol proteins with respect to RNA recombination. How these mutations affect recombination, or how they enhance template-switching remains to be tested.

Most plant RNA viruses code for two or more replication proteins and the amount and the ratio of the replication proteins could be another factor affecting RNA recombination and DI-RNA formation. This was tested with the tombusvirus p92^pol and p33 replication proteins in yeast, a surrogate model host [43]. High level of p33 was shown to increase the accumulation of recombinant DI-RNA. The effect on recombination was even more profound when p92^pol was expressed at a high level in yeast. In addition, the ratio of p33 and p92^pol also affected recombinant DI-RNA formation. It is possible that too high a level of p92^pol RdRp makes the viral replicase complexes less precise and more prone to template switching.

The role of cis-acting replication elements in RNA recombination has been proposed before in several viral systems [18], including the replication enhancer element of TCV and TBSV, the subgenomic promoter region of BMV and RII sequence of TBSV that binds to the replication proteins [20,23,24,44]. The cis-acting replication elements likely promote the formation of DI-RNAs as well, as shown for the RIII enhancer element and for RII that is required for RNA recruitment during TBSV replication [20,25,45,46]. The DI-RNAs containing duplicates or triplicates of RIII, recombined at much higher rates in N. benthamiana protoplasts [41]. The recombination junctions were imprecise and clustered around RIII, suggesting RIII acted as a recombination “hot spot”.

Additional highly active “hot-spot” regions for RNA recombination that might also promote DI-RNA formation consist of AU-rich stretches or stable secondary structures [47,48]. Insertion of a short AU-rich stretch into DI-72, a model template for TBSV, rendered this RNA highly recombinogenic [49]. Comparable AU-rich stretches in BMV and Human immunodeficiency virus, a retrovirus, also promoted recombination [47,50,51]. In contrast, GC-rich sequences in BMV acted as recombination “cold spots” [52]. The similar insertion of a GC-rich sequence in TBSV DI-RNA did not delay or inhibit the accumulation of recombinants [49], suggesting that some RNA sequences are utilized with different efficiencies by the BMV and TBSV replicases.

Strong RNA secondary structures in templates can also serve as recombination hot spots. These structures might form between two viral RNAs containing short complementary sequences, leading to the formation of a heteroduplex [48]. Strong hairpins also exist in viral RNAs and they might promote RNA recombination. Experimental evidence supporting the role of hairpin structures in DI-RNA evolution was obtained with Cymbidium ringspot virus (CymRSV) [53].

Hairpin structures serve frequently as cis-acting replication elements that bind to viral or host proteins. For example, region II (RII) in TBSV is a recombination hot spot [20,32], which is likely due to its ability to bind to the p33 replication protein [54]. Another factor that could make RII a recombination hot spot is the presence of the strong RII(+)-SL hairpin that acts as a road block for the host Xrn1p, a 5’-3’ exoribonuclease. This in turn, creates partially degraded viral RNAs that can serve as efficient substrates for RNA recombination, and also promote DI-RNA formation [24,30,32,33].

In spite of significance in virus replication and possibly DI-RNA formation, our understanding of the role of the hosts in RNA recombination is rather limited. Significant progress has been made by establishing yeast as a model host for TBSV replication/recombination [55]. Serviene and co-workers screened the yeast single gene knock out library for the effect of individual gene deletions on the accumulation of recombinant DI-RNAs [33] and identified 11 host genes that promoted/modified viral recombinant accumulation, while 5 host genes were found to act as TBSV recombination suppressors. Additional work on one of the identified host factors, namely XRN1 5° to 3° exoribonuclease involved in the RNA degradation pathway, led to the discovery of partial TBSV RNA degradation products in xrn1Δ yeast and xrn4-silenced N. benthamiana plants [30-33]. The partial TBSV RNA degradation products served as recombination substrates, promoting the formation of novel DI-RNA molecules. In vitro data using purified Xrn1p, as well as in vivo work of overexpression of this exoribonuclease demonstrated that Xrn1p works as a suppressor of TBSV RNA recombination [32]. Moreover, expression of the Arabidopsis thaliana AtXrn4p, which is an orthologue of the yeast Xrn1p in Nicotiana benthamiana, led to degradation of viral RNAs (Cheng et al. 2007). In agreement with the yeast data, silencing of XRN4 in N. benthamiana led to higher accumulation of the DI-RNA recombinants (Jaag and Nagy 2009).

The screening of host genes for TBSV DI-RNA recombination was further extended to 800 essential yeast genes [56]. The authors reported the discovery of 16 genes modulating the accumulation of DI-RNA recombinants. Studies showed that down regulation of these host genes affected the recombination in different ways. For example, (i) some host genes changed the ratio of replication proteins p92^pol and p33 in yeast, which affected DI-RNA formation [43]; (ii) others altered the stability of DI-72; and (iii) some affected the replication of the template. It is important to note that in the above reports, de novo generation of DI-RNAs from the parent virus was not studied, instead, already generated DI-RNA was used as a model template.

Another example of the host’s role in generation of DI-RNA is the demonstrated requirement of host dicer in production of DI-RNAs [35]. The authors found that dcl-2 (the host dicer gene) mediated the generation of DI-RNA associated with a hypovirus infecting Cryphonectria parasitica, the chestnut blight fungus. Moreover, in Δdcl-2 strain, the absence of DI-RNA indicated that replicase errors might not be the only factors affecting the generation/accumulation of DI-RNAs [35].

Apart from the roles of viral replicase proteins and the replication/recombination elements present in the viral genomic RNA, host specificity and growth conditions have also been implicated to affect the synthesis DI-RNAs [57]. For example, DI-RNAs associated with Broad bean mottle virus (BBMV) infection were observed in some host plants even when infections were started with low multiplicity of inocula (MOI), whereas in other plants, high MOI for several passages were needed to generate DI-RNAs. Interestingly, the sizes of the DI-RNAs as well as the rate of their accumulation varied with the growth temperature. It is not yet known whether these changes are because of some change in selection pressures on DI-RNA accumulation (i) due to variable activities of the host defense mechanisms, such as gene silencing; (ii) due to altered RdRp activities, such as template-switching, under various conditions; or (iii) due to changes in the structure of the viral RNA. We also cannot rule out the combination of all the above factors.

The important role of the host for TBSV DI-RNA accumulation was further supported by an altered rate of DI-RNA accumulation in N. benthamiana and pepper (Capsicum annuum) [58]. In N. benthamiana, DI-RNA accumulation was easily detectable and able to attenuate the symptoms, whereas, in pepper, even continuous virus passages failed to generate detectable levels of DI-RNA. Moreover, the pepper plants showed severe local and systemic chlorosis. Thus, the results from N. benthamiana indicates that DI-RNA formation is a way for plants to attenuate virus-induced symptoms.

DI-RNAs are mainly formed via RNA recombination/genome rearrangements. It is likely that, even though they are more robust, only a fraction of DI-RNAs formed will be replication competent and able to compete in plants. The replication competent DI-RNAs have to compete with the helper virus for the viral RdRp and with other DI-RNAs, resulting in continuous DI-RNA evolution under high selection pressure. DI-RNAs with mosaic genomes, such as the TBSV-associated DI-RNAs (Figure 1) are formed in a step-wise deletion fashion, followed by additional changes to tailor their sizes and RNA structures until they become maximally competitive under that particular environment/selection pressure [6]. The authors suggested that the primary driving force in DI-RNA evolution is the replication efficiency of the DI genome. One of the classical examples is the evolution of DI-73 RNA into DI-72 RNA by the deletion of sequences between RIII and RIV (Figure 1). The deleted region, designated as R3.5, contains a Y-shaped structure that acts as a translation enhancer in the TBSV genomic RNA (Figure 1). It is likely that this region interacts with translational factors and promotes translation of viral protein. This, in turn, would lead to competition between translation and replication, which are mutually exclusive processes. Accordingly, DI-73 RNA would need to be rescued from translation or stripped from bound translation factors prior to entering replication. This step would make DI-73 less efficient in DI-RNA recruitment into replication. In contrast, DI-72 and other DI-RNAs lacking R3.5 sequences do not face this competing process and can directly enter replication. This difference likely explains why DI-73 evolves to DI-72 over time [6].

Albeit sequence deletions and rearrangements are the most common events during DI-RNA formation, additional genetic changes also occur frequently. For example, DI-RNAs can undergo other types recombination events, such as segment duplication or nucleotide insertions that could enhance their competitiveness [62,63]. By using DI-73, a prototypical TBSV DI- RNA, the authors in this study showed that after serial passaging for 10 times in protoplasts, DI-73 evolved to a shorter DI-RNA with structures similar to DI-72 RNA. However, in one of the cases, DI-73 evolved to a longer DI-RNA, designated as DI-R1, containing duplication of a 130 nt sequence derived from RII in the 6th passage. But by 9th passage DI-R1 was no longer detectable and was replaced by a shorter DI-RNA, similar to DI-72 in size (termed DI-B103). Competition assays using co-inoculation of these DI-RNAs in the presence of the helper virus in cucumber protoplasts revealed that DI-R1 was more competitive than DI-73 or DI-72 RNAs. It is likely that duplication of the critical RII sequence involved in RNA recruitment for replication [54] provided an extra cis-element for binding to the viral p33/p92^pol replicase proteins. This in turn, could result in enhanced viral RNA recruitment in case of DI-R1. A single U insertion in RII was found to make DI-B103, containing only one RII, more competitive than DI-R1 containing two wt RIIs. This insertion may have made the single RII in DI-B103 more efficient at binding p33, however this idea remains to be tested.

Competition for limited viral- and host resources drives the evolution of DI-RNAs at faster rates than that of their parental virus. Accordingly, we observed rapid evolution with a minimal DI-RNA carrying only a minimal set of essential cis-acting elements required for the assembly of replicase complex. This minimal DI-RNA goes through rapid evolution in yeast and in plants by sequence duplication and even triplication. (Pathak KB, Panaviene, Z. and Nagy, PD, unpublished data). The presence of multiple cis-acting elements may help the new DI-RNAs to increase binding to more replicase proteins cooperatively or facilitating fast recruitment for replication. It is interesting to note that too strong competition with the helper virus for the replicase complex could be counterproductive for the DI-RNA, since then this leads to reduced number of helper virus genomes per cell, followed by reduction in the synthesis of viral replication proteins. This in turn, limits further replication of the DI-RNAs. Therefore, it is likely that the best adapted DI-RNAs are capable of compromise, allowing the helper virus to replicate as well. Many RNA viruses also utilize “cis-preferential” replication [42,64-66] where the viral RNA that produces one of the replication proteins has an advantage for replication, likely due to more efficient binding to the replication protein. In contrast, trans-replicating DI-RNAs have to “steal” the replication proteins from a pool of newly synthesized proteins.

Nevertheless, their small size and limited or no contribution to expression of functional proteins give DI-RNAs a major advantage over their helper virus. In many cases, this results in attenuation of disease symptoms caused by the helper virus. In order to systemically infect the host plants, the DI-RNAs also have to move from cell to cell via plasmodesmata. If viral movement proteins bind cooperatively to the viral RNA, DI-RNAs would be at a disadvantage, as they have short genomes. To circumvent this problem, DI-RNAs might generate head-to-tail dimers [67]. In this study the authors reported more cell-to-cell movement for head-to-tail dimers of CymRSV DI-RNAs when compared with monomers. However, in protoplasts, where cell-to-cell movement does not occur, accumulation of DI-RNA monomers and dimers took place at similar levels.

In the absence of DI-RNAs, the pool of replication proteins, host factors, nucleotides, host membranes and all other factors is utilized entirely by the helper virus for its own multiplication. Once DI-RNAs are in the picture, the above factors then have to be shared by both the viral and sub-viral RNAs. Eventually, the helper virus is out-multiplied by the more competitive DI-RNAs. This type of helper virus inhibition by DI-RNA is known to be dose-dependent. The co-infection experiments done in N. benthamiana protoplasts with TBSV and DI-RNAs, showed 65% suppression of TBSV genomic RNA accumulation when equimolar amount of helper versus DI-RNAs were used [68].

Several studies on the attenuation effects of DI-RNAs on the symptoms caused by the helper virus did not fit into the simple model of competition desribed above. For example, when N. benthamiana plants were co-infected with TBSV genomic transcripts and DI-RNAs, the reduction in viral genomic RNA replication proteins accumulation was less dramatic than the reduction in the levels of p19 suppressor of gene silencing and p22 movement proteins along with the levels of subgenomic (sg) RNA2 [70]. Not only the amounts of these viral factors were decreased but also the spatial and temporal distribution was affected, suggesting that the DI-RNA preferentially interfered with the production and/or translation of sgRNA2.

RNA interference (RNAi) or posttranscriptional gene silencing (PTGS) is a eukaryotic cellular response to the presence of double-stranded (ds) RNAs. These dsRNAs can be either endogenous or parasitic in nature [reviewed by 71,72]. The mechanism can be used to either regulate gene expression or to mediate resistance/host response against pathogens. Plants use this mechanism as a major anti-viral strategy [reviewed by 72,73]. The host RNAi machinery use 21-25 nt virus derived small interfering (si) RNAs to guide PTGS against viral genomic RNAs. However, viruses fight back by avoiding or delaying recognition by host surveillance due to the formation of replicase complexes hidden in host membranes and by expressing suppressors of gene silencing. For example, p19 of tombusviruses has been shown to be a potent suppressor of gene silencing [74]. Therefore, DI-RNA associated interference with the parent virus replication could be due to hindrance with the activity of p19 [75]. The authors saw a decrease in accumulation of p19 upon co-infection with tombusviruses and DI-RNAs. Moreover, the presence of DI-RNAs enhanced the generation of virus-specific siRNAs, leading to accumulation of free siRNAs unbound by p19. These free siRNAs could thus trigger robust PTGS against the helper virus. Evidence supporting this mechanism is the observation that PTGS is impaired at low temperatures and the DI-RNA-mediated attenuation of the helper virus was also hindered at low temperature.

In another study, a more direct role for DI-RNA in triggering gene silencing against its own helper virus emerged. It was shown by Szittya and colleagues [76] that the replication of CymRSV, a tombusvirus, in N. benthamiana plants triggered PTGS, resulting in the accumulation of siRNAs corresponding to the CymRSV sequence. They further showed that the PTGS machinery did not efficiently degrade the shorter DI-RNAs. Moreover, this defect was not associated with the RNase complex (RISC) because the system could efficiently silence the larger DI-RNAs and a different helper virus. The length of target molecule was not a deciding factor in this target activity, rather specific sequences and structures of the DI-RNAs played a major role in PTGS. Thus, DI-RNAs could trigger potent gene silencing response against the helper virus without hurting themselves from the same response. In a further attempt to characterize DI-RNA associated symptom attenuation, sequence elements of tombusvirus-associated DI-RNAs were identified [77,78].

The more we will learn about viral pathogenesis and the interaction and competition between DI-RNA and the helper virus, more we can focus our research to dissect DI-RNA mediated attenuation in molecular mechanistic term. It is possible that DI-RNA can modulate interaction between two or more viral proteins or affect their posttranslational modifications. It is also not unrealistic to imagine that DI-RNAs can sequester important host factor(s) away from helper virus replication and thus, reducing helper virus accumulation and moderating the symptoms associated with helper virus infections.

The use of plant viruses for recombinant protein production is widespread in research and growing for industrial production of useful proteins. In recent years, we have seen advances in both development of first-generation (based on ‘full virus’) vectors and second-generation (‘deconstructed virus’) vectors [reviewed by 79]. To this end, uses of DI-RNA sequence based constructs are also getting popular both for gene silencing [80] and expression of heterologous proteins [81,82] . The use of DI-RNAs as vectors can be more flexible in their genetic manipulations because they are not required for infection process and are subjected to less stringent selection pressure [83].

The use of plant viruses for recombinant protein production is widespread in research and growing for industrial production of useful proteins. In recent years, we have seen advances in both development of first-generation (based on ‘full virus’) vectors and second-generation (‘deconstructed virus’) vectors [reviewed by 79]. To this end, uses of DI-RNA sequence based constructs are also getting popular both for gene silencing [80] and expression of heterologous proteins [81,82] . The use of DI-RNAs as vectors can be more flexible in their genetic manipulations because they are not required for infection process and are subjected to less stringent selection pressure [83].

DI-RNAs are versatile tools at virologists’ disposal. DI-RNAs often multiply at higher rates, are smaller than the full genome of the virus and contain the cis-acting replication elements for replication and other steps in viral multiplication cycle. Since many DI-RNAs do not code for proteins, mutational studies on DI-RNAs make the results easier to interpret due to separation of trans-acting protein factors and cis-acting RNA elements. Thus, critical cis-acting replication elements important for different steps in viral replication can be deductively discovered. These RNAs also are adapted to use trans (viral and possibly other) factors for their replication enabling a more experimental control over those factors so that a virologist can regulate them spatially and/or temporally. Indeed, using DI-RNAs combined with other modern tools, many cis-acting RNA elements for tombusviruses were deciphered [reviewed by 17,84]. DI-RNAs also proved to be useful in discovering host factors modulating viral replication. To this end, a yeast system using TBSV DI-72 as an experimental replicon (rep)RNA was developed [55,85]. In the above yeast system, the repRNA works as an independent replicon, capable of assembling the viral replicase complex and performing most of the steps in replication in the absence of a helper virus. Based on the yeast/TBSV repRNA system, genome-wide and proteomics-based screens have been performed [33,56,86-90]. This in turn, accelerated the identification of more than hundred host factors affecting TBSV replication and ~40 host factors affecting RNA recombination. In addition, the system is also useful in dissection of the mechanisms by which these host factors affect viral replication and RNA recombination. To better explain the roles of cis-acting replication elements, viral and host factors discovered with the assistance of DI-RNA, we divide the replication cycle of the plus stranded RNA viruses further into different steps in chronological order [reviewed by 91,92].

Similar to the viral genomic RNA, DI-RNAs should also be recognized selectively from the large pool of host RNAs. The selection of the viral RNA requires specific interaction with viral- or host proteins. For TBSV DI-RNAs, the selective RNA recognition is mediated by the cytosol-exposed C-terminal portion of p33 replication protein in yeast [54,93]. Detailed mutational studies on DI-RNA revealed the essential role for a C°C mismatch within the RII(+)-SL sequence (Figure 1) in binding to p33 [54]. When the C°C mismatch was mutated to G=C, then binding of DI-72 to p33 was lost and this DI-RNA was unable to replicate in the yeast system or the full-length TBSV genomic RNA carrying the comparable mutation in N. benthamiana plants [54,93]. Thus, the C°C mismatch sequence can be regarded as the “identity card” of the virus, allowing the viral replicase complex to achieve high selectivity to replicate only viral RNA. As expected, the C°C mismatch region is also required for replication of DI-72 repRNA in a yeast extract capable of supporting one full cycle of replication in vitro [24,94].

In addition to interacting with the viral replication proteins, DI-RNA is likely bound by select host proteins. To identify the host proteins that bind viral RNA, TBSV DI-72 (+)RNA was used as a probe to screen RNA binding proteins in a yeast proteome-wide chip carrying 4,100 purified yeast proteins [86]. Five of the identified host proteins in the above screen were further confirmed with other approaches, e.g. gel-shift and pull-down assays. One of the factors discovered was translation elongation factor eEF1A. This protein also co-purified with the tombusvirus replicase. Further studies showed that eEF1A binds to the silencer sequence present in the 3’UTR (Figure 3) [86], which is required for the assembly of the tombusvirus replicase complex [95,96]. A mutation affecting guanine exchange factor (GEF) requirement of eEF1A inhibited DI-72 repRNA accumulation in yeast. It has been proposed that eEF1A interaction with DI-72 RNA might be needed for RNA recruitment into replicase complex or viral RNA synthesis (Z. Li and P. D. Nagy, unpublished).

Another host factor that exerts its effect on viral replication directly via binding to the viral RNA is Nsr1p (also known as nucleolin). This factor was discovered during screening of the yeast knock out (YKO) library for TBSV replication [90]. Virus replication was boosted three folds in the absence of NSR1. Further analysis revealed that Nsr1p binds to RIII in DI-72 (+)RNA (Jiang, Li and Nagy 2009; in press). Indeed the Nsr1p mediated inhibitory effect on DI-72 repRNA accumulation in vivo was lost when DI-72 repRNA missing RIII, the target for Nsr1 binding, was used as a replicon RNA in above study. This protein may inhibit TBSV replication via specific binding to the viral RNA and, thus, resulting in inefficient repRNA recruitment for replication.

After the RNA has been selected for replication, the viral proteins and RNA complex has to be transported to the site of replication. TBSV assembles the replicase complex on the cytosolic surface of peroxisomal membranes [97-99]. It has recently been shown that the host shuttle protein Pex19p, which is involved in peroxisomal membrane protein transport, play a role in TBSV protein transportation to the site of replication [100]. Pex19p binds to the peroxisomal targeting signals of p33 in vitro and is also associated with the replicase complex, albeit only temporarily. When Pex19p was mistargeted to mitochondrial membranes, the wt p33 also ended on the same mitochondrial membranes. Interestingly, viral replication as well as the replicase activity was inhibited as a result of Pex19p mislocalization to the mitochondrial membranes.

Another host protein involved in localization/transportation of the viral replication proteins is the heat shock protein 70 (Hsp70). Using a temperature-sensitive mutant of Hsp70 at nonpermissive temperature has led to cytosolic localization of p33 replication protein [101]. Shifting down to permissive temperature resulted in re-localization of p33 to the peroxisome membrane surface in yeast.

Overall, the above studies revealed that both viral- and host proteins are involved in RNA template selection and the recruitment of the viral RNA/p33/p92^pol complex to the site of replication.

The assembly of the viral replicase complex is still a poorly understood process. Interestingly, the viral RNA plays an essential role in the replicase assembly both in vivo and in vitro [94,96,102,103]. Detailed work with TBSV RNA revealed that RII(+) (Figure 1) is also crucial for the assembly of tombusvirus replicase complex in yeast [96]. In this study, authors have defined the minimal cis-acting elements required for the assembly of the tombusvirus replicase complex. The affinity purified viral replicase complex was active on external templates only when the full-length DI-72 repRNA was co-expressed with the p33 and p92^pol replication proteins in yeast. The minimal repRNA still capable of supporting the assembly of the replicase complex consisted of RII(+)-SL hairpin, the replication silencer element and genomic promoter (Figure 1) [96]. The exact role of the viral RNA in the assembly process is currently under heavy investigation. The viral RNA might provide an assembly platform to bring together the viral and host proteins. The RNA may also play a role in making structural change(s) in the viral RdRp required for activation of the polymerase function of the RdRp. Recently long-range RNA interacting elements UL and DL in the TBSV genomic RNA have been discovered that play a role in replicase assembly [104]. Long distance base pairing between UL and DL sequences juxtapose RII(+)-SL and the replication silencer and gPR within the 3'-UTR (Figure 1). These latter two elements had already been shown to be important in replicase assembly [94,96]. It is interesting to note that UL-DL interaction is not crucial for replicase assembly in DI-73, probably because RII(+)-SL and the 3'-UTR are already in close proximity (Figure 1B), unlike in the genomic RNA, where they are 3000 nt apart (Figure 1A).

Both viral replication proteins of TBSV are essential for the assembly of the functional virus replicase [94,102]. Interestingly, the p33:p33/p92^pol interaction domains in these replication proteins seem to be critical for the assembly, suggesting that these proteins are participating in multimeric complex formation, which likely needed for the formation of membrane invaginations, called spherules. These spherules are the predicted structures supporting TBSV replication [98].

In addition to the viral RNA and viral replication proteins, host factors play a role in tombusvirus replicase assembly. The best-characterized host factor in the replicase assembly process is Hsp70. Proteomics analysis of the tombusvirus replicase complex revealed the presence of Hsp70 and 5-10 other host proteins within the replicase complex [86-88]. In vitro work indicated that Hsp70 plays a role in membrane insertion of the viral replication proteins [105]. The essential role of Hsp70 in the assembly of the TBSV replicase was confirmed by Pogany and colleagues, using a yeast extract depleted in Hsp70 [94]. The addition of purified recombinant Hsp70 to the above cell-free assay complemented the defect, leading to the assembly of the viral replicase complex and active replication of the DI-72 (+)repRNA in vitro [94].

After the assembly of the replicase complex is finished, the synthesis of the complementary (-)-strand from the plus (+)-stranded DI-RNA takes place. The newly made (-)-strand then serve as a template for synthesis of new (+)DI-RNAs. The replication process of (+)-stranded RNA viruses and associated DI-RNAs is asymmetrical, leading to 20-100-fold more copies of (+)RNAs than (-)-strand RNA. One of the major factors in regulation of DI-RNA replication is the DI-RNA carrying cis-acting elements in both strands [reviewed by 17]. The cis-acting elements include the genomic promoter (gPR) in the 3° end of (+)DI-RNA [106], a complementary promoter element (cPR) in the 3° end of (-)RNA [46] and replication enhancer elements in RI(-) and RIII(-) [107]. An intriguing replication modulator element is the replication silencer (Figure 3), which is involved in the assembly of the replicase complex and possibly in the regulation of the (-)-strand synthesis [95]. This element interacts with gPR, making the promoter recognition by the RdRp weaker in vitro. It is currently under investigation how this interaction is regulated and what viral- or host proteins are involved in “unsilencing” this interaction.

The asymmetrical RNA synthesis is affected not only by cis-acting RNA replication elements, but host factors as well. One such host factor is a metabolic enzyme called glyceraldehyde-3-phosphate dehydrogenase (GAPDH), which was discovered as a component of the tombusvirus replicase complex via a proteomics analysis of a purified viral replicase preparation [88]. When TBSV DI-72 RNA was replicated in yeast cells, the cellular distribution for GAPDH changed dramatically due to re-localization from the cytosol to the site of replication (peroxisome) [108]. Down-regulation of GAPDH levels in yeast correlated with reduced level of (+)-strand DI repRNA. GAPDH was shown to bind to (-)-strand of DI-72 repRNA via an AU pentamer sequence. It was proposed that the role of GAPDH is to retain the (-)-strand repRNA intermediate in the replicase complex, thus facilitating asymmetrical replication. The data from the yeast host were also validated in N. benthamiana host [108].

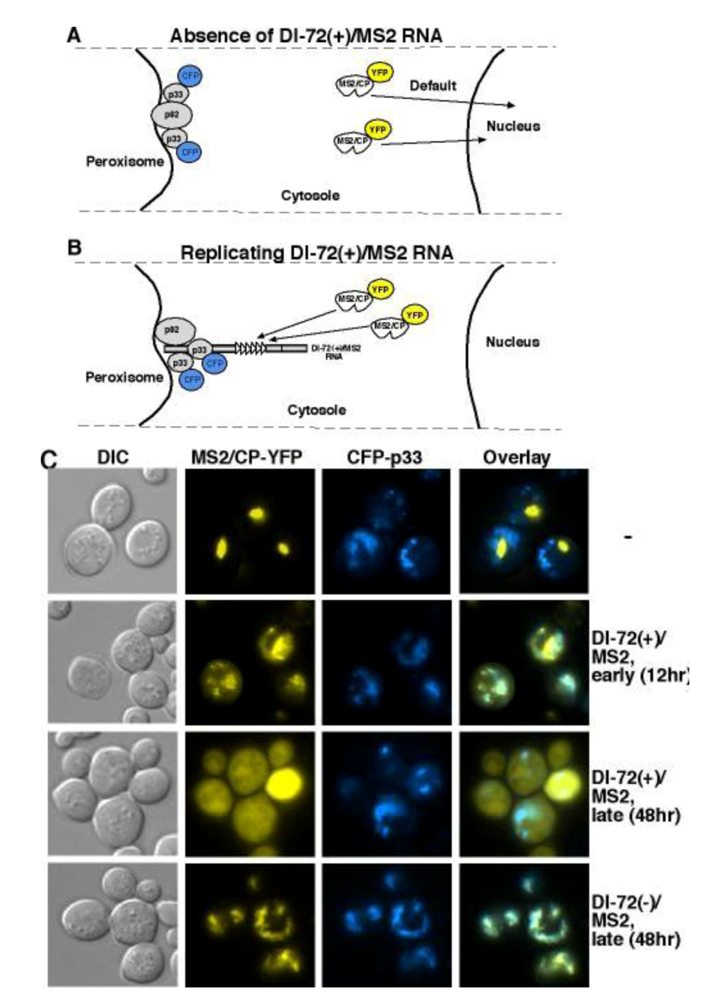

After the synthesis of the new (+)DI-RNA progeny by the replicase, (+)RNA is released to the cytosol (Figure 4B), while the (-)RNA intermediate is kept within the complex most or all the time (Figure 4C) [97].

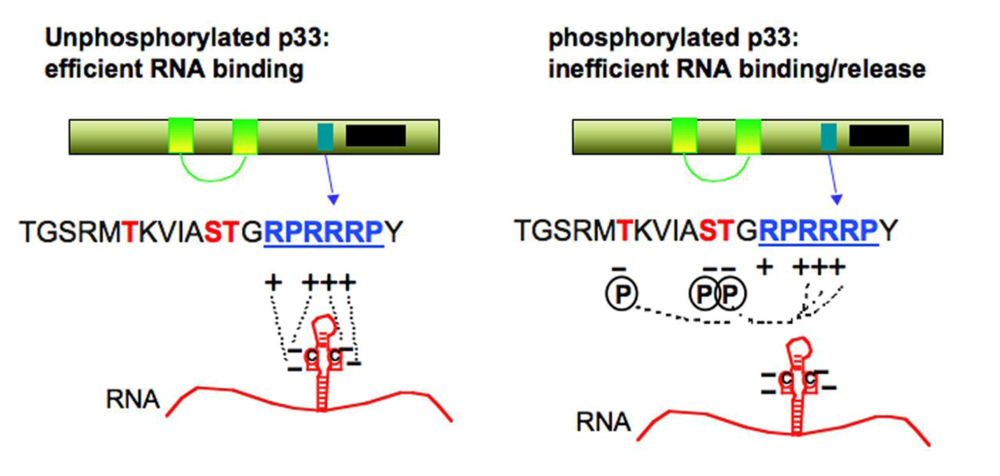

So far host factors and viral RNA sequences have not been discovered playing role(s) in the release of (+)RNA progeny. However, viral protein modification has been proposed to modulate this process [109]. This is based on the observation that p33 gets phosphorylated in vivo and in vitro as well [109,110]. The phosphorylated form of p33 lost its ability to bind to (+)DI-72 RNA associated with TBSV and in vitro phosphorylation of the p33:DI-72 RNA complex led to the release of the RNA from the complex [109]. In contrast, p33 mutants mimicking the unphosphorylated stage of the protein bound efficiently to DI-72 RNA, suggesting that phosphorylation/unphosphorylation of p33 might regulate the release of (+)RNA from the replicase complex (Figure 5).

Roles of other host proteins in viral protein modification have also been demonstrated. A host ubiquitin conjugating enzyme Cdc34p as well as Rsp5p ubiquitin ligase have been shown to ubiquitinate p33 in vitro [87,111]. However, the actual role of p33 ubiquitination is currently unknown. It is possible that this protein modification modulates the viral protein-protein or viral protein-host protein interactions important for viral replication.

Altogether, the use of DI-RNA as surrogate template contributed a great deal to our understanding of viral RNA replication and virus - host interactions. Future studies will further exploit DI-RNAs to dissect the mechanism of virus replication, recombination and the role of the host as well as compare similarities between DI-RNAs and helper viruses.
