Article

Seasonal Water Relations and Leaf Temperature in a Deciduous Dipterocarp Forest in Northeastern Thailand

1
Department of Ecology and Evolutionary Biology, University of California, Los Angeles, CA 90095, USA
2
Department of Biology, Ramkhamhaeng University, Bangkok 10240, Thailand
3
Department of Botany, Oregon State University, Corvallis, OR 97331, USA
*
Author to whom correspondence should be addressed.
Deceased.
Forests 2017, 8(10), 368; https://doi.org/10.3390/f8100368
Submission received: 10 June 2017 / Revised: 25 September 2017 / Accepted: 26 September 2017 / Published: 28 September 2017

Abstract

:
Deciduous dipterocarp forests across mainland Southeast Asia are dominated by two families: the Dipterocarpaceae and Fabaceae. Monsoon conditions produce strong seasonal climates with a hot dry season of 5–7 months extending from late November or early December through April or early May. Seasonal measurements of stomatal conductance and plant water potential found important differences between members of the two families. Despite their long dry season, Shorea siamensis and S. obtusa (Dipterocarpaceae) showed little significant patterns of seasonal change in xylem water potentials, with midday potentials never dropping below −1.3 MPa. These species present a classic example of isohydric strategies of adaptation where stomatal regulation maintains a relatively stable minimum water potential over the course of the year. However, maximum rates of stomatal conductance dropped sharply in the late dry season as the leaves heated in full sun without significant transpirational cooling, reaching as high as 44–45 °C, making them potentially sensitive to global increases in extreme temperature. The woody legumes Xylia kerrii and Dalbergia oliveri present different patterns of seasonal water relations and leaf response to high temperatures. The legumes exhibit anisohydric behavior where water potential decreases over the dry season as evaporative demand increases. Dry season midday water potentials dropped from high wet season levels to −2.4 to −3.2 MPa, moderately lowering maximum stomatal conductance. The relatively small leaflets of these legumes responded to the high temperatures of the late dry season by temporarily wilting, reducing their exposure to solar radiation and taking advantage of convective cooling. Large leaf size of dipterocarps in this community may not be an adaptive trait but rather an ancestral condition compensated for with ecophysiological adaptations.

1. Introduction

Tropical dry forests which exhibit diverse patterns of leaf lifespan among dominant species provide interesting systems to investigate how interactions of seasonal environmental conditions influence leaf structural traits, gas exchange, and water relations. Unlike temperate forests where leaf phenology and longevity are strongly synchronized by predictable seasonal progressions of temperature and major changes in photoperiod, tropical dry forests with 4–6 months or more of drought commonly lack such cues [1]. Moreover, both deciduous and evergreen species often co-occur as dominants. The longer leaf lifespan in evergreens has an advantage in that it enables carbon assimilation to begin quickly in the wet season in tropical dry forests without the investment of carbon cost for the construction of new leaves. Drought-deciduous trees, however, have an advantage if they are able to maintain hydraulic capacity in stems during the dry season and quickly produce new leaves with high photosynthetic capacity with the onset of the wet season or even earlier in the late dry season.
There has been an expanding research interest in comparing and contrasting the ecophysiology of evergreen and deciduous leaf phenologies in dry tropical forests [2]. Much of this focus has centered on divergent strategies of hydraulics and seasonal gas exchange. Evergreen trees in neotropical dry forests typically have low maximum hydraulic efficiency coupled with safety from xylem embolism in contrast to drought-deciduous trees which maximize carbon gain with associated water loss for a short period in the wet season with an efficient vascular system [3,4]. Detailed studies comparing plant water relations and hydraulics of evergreen and drought deciduous trees have been carried out in dry rainforests in Queensland [5] and dry forests in Costa Rica [6]. More recently, there have been studies comparing and contrasting the ecophysiology of evergreen trees from semi-evergreen forests and deciduous trees from dry forests in Thailand [7,8,9]. These latter studies have shown differences in ecophysiological adaptations of evergreen compared to drought deciduous trees in Thai forests. The upper canopy leaves of evergreen trees possess the ability to use water more conservatively compared with drought-deciduous trees because of significant differences in the photoprotective mechanisms [8,9]. However, differing modes of adaptation among drought deciduous tree species have not been reported.
Deciduous dipterocarp forests represent a widespread forest type in Southeast Asia, covering extensive areas from northwestern India and Myanmar across Thailand to the Mekong River drainage of Laos, Cambodia and Vietnam [10,11,12]. Seen late in the dry season in March or April, this forest community is virtually 100% deciduous. The climatic conditions which characterize deciduous dipterocarp forests present severe environmental stresses for plant growth, with drought stress as a major issue. Mean annual rainfall is about 1000–1300 (1500) mm over the range of this community, but strong monsoon influences provide 5–7 months of drought conditions from late November to late April or early May in which no more than 20% of this annual total falls. With high daily temperatures, potential evapotranspiration may exceed precipitation for up to nine months of the year [12]. Furthermore, soils are characteristically shallow and rocky, providing limited water storage capacity [12,13]. Given this severe potential for drought stress, it is not surprising that the community is deciduous. Leaf fall is not synchronous, however, with some species beginning to drop leaves in December and others not beginning leaf fall until March or April [12,14]. This is not surprising as leaf abscission in tropical deciduous forests is not always driven by extensive cavitation of xylem vessels [5,15]. Hydraulic traits associated with leaf shedding in the dry season have been shown to be variable and more dependent on species than on leaf phenology [8,9].
Most species in deciduous dipterocarp forest are leafless in February and March, but new leaves form in April well before the end of the dry season [1,12]. It is this surprising presence of new leaves late in the dry season with high ambient temperatures that presents a second environmental stress. Seasonal movements of the Intertropical Convergence Zone bring unusual warm temperatures to Southeast Asia in April and May. Daily mean maximum air temperatures in these months reach 38–40 °C, providing severe heat stress under continuing drought conditions [12]. There is additional concern for the future of this and other forest communities in Southeast Asia because of potential impacts of increases in mean and extreme temperatures that are predicted to occur in the future under models of global change [16,17].
Our objectives in this paper have been to compare and contrast leaf morphology, phenology, and ecophysiological traits of seasonal water relations, stomatal conductance, and leaf temperature balance which may relate to ecological success in members of the Dipterocarpaceae and Fabaceae which form the great majority of tree biomass and canopy cover in deciduous dipterocarp forests. Responses to seasonal drought in this community have been observed to differ between these two families. We compared leaf traits and environmental response of new mature leaves formed in the late dry season to gas exchange, water relations, and associated leaf temperature conditions. We focused attention on two species in each family: Shorea siamensis Miq. and S. obtusa Wall. in the Dipterocarpaceae and Xylia xylocarpa Craib and Hutch. and Dalbergia oliveri Prain in the Fabaceae. We additionally include a limited survey of leaf traits in other tree species in these two families from the same deciduous dipterocarp forest community to determine if a phylogenetic pattern of adaptive traits exist.

2. Materials and Methods

2.1. Field Site

Field studies were carried out at the Sakaerat Environmental Research Station near Pak Thong Chai, Nakhon Ratchasima Province, 60 km south of Khorat in northeastern Thailand (lat. 14°31′ N, long. 101°55′ E). This field station encompasses a research area of 81 km2 on the northeastern slopes of the Central Highlands of Thailand near their transition to the lower Khorat Plateau. The topography of the station is largely gentle slopes and rolling terrain at 300–560 m elevation. The shallow soils are sandy clay loams derived from sandstone parent material and are poor in availability of nutrients and soil water holding capacity [12,13]. Deciduous dipterocarp forest on the Sakaerat reserve has sharp transitions to dry evergreen forest, forest plantations, and disturbed areas with swidden agriculture from local villages [18,19].
Mean annual precipitation at Sakaerat measured from 1969–1982 was 1240 mm (Figure 1). Peak monthly rainfall is present from May through October, but begins to decline in November with the transition to the dry season. The early dry season from December through February is typically virtually without rain, but scattered light rainfall events return in the late dry season well before the beginning of the wet season with the onset of the monsoon in late May or June. March and April average 7–9 days with rain respectively, but mean precipitation events bring only about 10 mm of rainfall. Mean maximum air temperatures are 30–35 °C in the early dry season, but rise sharply to 38–40 °C in April and May (Figure 1). As the wet season begins in late May and June, mean maximum temperatures steadily decline from these high levels to a low of 25–26 °C in November and December when the dry season begins again.
Two species of Shorea, S. siamensis (sometimes classified as Pentacme siamensis) and S. obtusa, are the dominant tree species in deciduous dipterocarp forest at Sakaerat. Two other dipterocarps were also common—Shorea roxburghii G. Don. and Dipterocarpus intricatus Dyer. Woody legumes form a second conspicuous and ecologically significant component of this tree flora as well. The most important of these legumes were Xylia kerrii (Mimosoideae), Dalbergia oliveri (Papilonoideae), Dalbergia lanceolaria Moon subsp. paniculata (Roxb.) Thoth (Papilionoideae), Erythrophleum succirubrum Gagnep. (Caesalpinoideae), Albizia odoratissima (L.f.) Benth. (Mimosoideae), and Sindora siamensis Miq. (Caesalpinoideae). Woody legumes comprised 18–25% of the tree species and a similar proportion of relative tree density. The Dipterocarpaceae and Fabaceae together made up 77% of all trees in this forest community [19,21]. Tree species diversity of the deciduous dipterocarp forest at Sakaerat is surprisingly high for an open woodland community, adding to its biodiversity significance. One-hectare plots had 28–33 tree species reaching 5.0 cm or more in dbh (diameter at breast height) [22,23]. One study at Sakaerat reported 51 tree species of this size in samples of only 356 individual trees distributed in 114 plots, each 10 m × 10 m [21].

2.2. Leaf Traits and Ecophysiological Measurements

Seasonal measurements of ambient environmental conditions and leaf morpho-physiology were made from a series of 5–8 m scaffoldings that allowed access to canopy leaves of four common species. These included the two dominant dipterocarps (Shorea siamensis and S. obtusa) and two common woody legumes (Xylia kerrii and Dalbergia oliveri). More limited measurements of leaf traits were made on two additional species of dipterocarps and four additional species of legumes in the same community. Leaves sampled at all dates were the youngest fully mature leaves growing in full sun. Measurements of leaf area were made on samples of 3–12 leaves or leaflets of each species measured with a LICOR leaf area meter. A single mean value of specific leaf weight for each species was determined by weighing the bulk samples of leaves collected for foliar area.
Diurnal physiological measurements of stomatal conductance, transpiration, and leaf temperature were made on 3–5 leaf samples with a LICOR-1600 porometer during December 1991, and October 1992, April/May and November 1993 and December 1996. Irradiance for diurnal cycles was measured with a LICOR 190R quantum sensor. Gas exchange measurements of net photosynthesis and stomatal conductance were made in mid to late morning in December 1991, May 1993, and April 1996 using a LICOR-6200 photosynthesis system with a saturating photosynthetically active radiation (PAR) irradiance of 1100 μmol m−2 s−1 and a chamber temperature of 25 °C. Individual measurements were repeated 3–5 times and mean values reported. Areas of leaf tissues used for gas exchange studies were marked in the field and measured using a LICOR 3000C portable leaf area meter on the same day so that shrinkage would not occur with drying. Leaf temperatures and leaf–air temperature gradients were measured on a minimum of 3–5 leaves/leaflets using an Everest Instruments infra-red thermometer, focused to measure mean leaf surface temperature over a 1 cm2 area. Leaf water potentials were measured on 3–5 freshly cut branch tips in the field using a Schollander-type pressure chamber at predawn and midday times in December 1991 and April 1996.
Stable carbon isotope (δ13C) and leaf nitrogen analyses were carried out using a pooled sample of 3–5 mature canopy leaves from each of 7–10 individuals of each primary study species and 2–5 samples of secondary species collected in 1991, 1993, and 1996. Stable carbon isotope measurements provide a measure of relative water use efficiency of leaf tissue over the period during which carbon is fixed, with less negative values indicative of higher water use efficiency. Samples were analyzed at the Stable Isotope Laboratory of the Department of Biology, Boston University and later at the Duke University Phytotron (Durham, NC, USA) on a SIRA Series II isotope ratio mass spectrometer (VG Isotech, Middlewich, UK) operated in automatic trapping mode after combustion of samples in an elemental analyzer (NA1500, Carlo Erba Instrumentazion, Milan, Italy). The reference CO2 was calibrated against standard Pee Dee belemnite (PDB) obtained from Oztech (Dallas, TX, USA).
Comparisons of leaf traits between dipterocarp and legume species tested for significance difference using a t-test. Analyses of data on transpiration rate versus temperature differences from ambient under field conditions were made using an analysis of covariance between the two linear models.

3. Results

Leaf traits compared and contrasted between dipterocarp and legume species in the deciduous dipterocarp forest at Sakaerat display many similarities, but also two significant patterns of difference. Previous research has shown that leaf longevity of tree species exhibit significant variability between species and within individual species on an interannual basis, and appear to lack a phylogenetic relationship [24]. This longevity may range from 7 months in Shorea obtusa and as long as 10 months in S. siamensis, while the legume Sindora siamensis retains leaves on average for 11 months (Table 1). There were significant differences in individual leaf area of four dipterocarp species compared to the range of individual leaflet area, the functional photosynthetic unit, in legumes, but specific leaf weight was not significantly different. The two dominant Shorea species at Sakaerat have large leaves with S. siamensis averaging 180 cm2 in area, while leaf blades of S. obtusa had a mean area of 112 cm2, far larger than that of any of the legume leaflets. Xylia kerrii and Dalbergia oliveri had leaflets averaging 33 and 14 cm2 in area, respectively.
Mean specific leaf weights (SLW) were 130 and 118 g m−2 for the two Shorea species compared to the legumes Xylia xylocarpa and Dalbergia oliveri at 105 and 58 g m−2, respectively. A broad range of SLW was present in each family with no significant difference in mean values over this range. Additional data on leaf area and specific leaf weight for two additional dipterocarps (Shorea roxburghii and Dipterocarpus intricatus) and legume species (Dalbergia lanceolaria, Sindora siamensis, Albizzia odoratissima, and Erythrophleum succirubrum) was consistent with the pattern of small leaflet size but insignificant differences as a group in SLW compared to the dipterocarps (Table 1).
Leaf concentrations of nitrogen show a phylogenetic signal with higher concentrations in legume species than dipterocarps, consistent with the likelihood of active nitrogen fixation by root nodules. The four dipterocarp species had mean nitrogen concentrations ranging from 17.1 to 19.8 μg g−1, compared to 24.6 to 30.7 μg g−1 if Sindora, a genus not known to fix nitrogen, is excluded (Table 1).
Mean values of stable carbon isotope ratios (δ13C), a measure of integrated water use efficiency over the formation of that tissue, was not significantly different between dipterocarps and legumes. Both families exhibited a fairly narrow diversity of mean species values that ranged from −28.7 to −27.0 o/oo.
Measurements of late morning rates of photosynthesis of newly mature leaves in late April 1993 did not show a significant difference in rates between the two families, with a range of mean values from 11.2–14.4 μmol m−2 s−1 for the four dipterocarps and 8.0–13.0 μmol m−2 s−1 in four legumes (Table 1). Mean rates of stomatal conductance under these measurements were also not significant between the families, with a range of 143–383 mmol m−2 s−1 for the dipterocarps and 98–293 mmol m−2 s−1 for the legumes.
Seasonal studies of leaf water potential and stomatal conductance in the four study species demonstrated divergent patterns of seasonal water relations in the two groups. Shorea siamensis and S. obtusa showed little pattern of seasonal change in minimum midday water potentials. Predawn water potentials never dropped below −0.5 MPa in these species and only rarely in the dry season did midday water potentials drop below −1.0 MPa (Figure 2A). Stomatal conductance remained high through eight months of the year with typical values of 200–300 mmol m−2 s−1. Late dry season stomatal response in Shorea was very different, however. Although tissue water potentials remained high as in the other months of the year, mean maximum stomatal conductance dropped to levels half that typical of the wet and early dry seasons (Figure 2A).
Data for the legumes Xylia kerrii and Dalbergia oliveri showed a very different pattern of seasonal water relations. Wet season conditions of water potential in the legumes in December were quite similar to those found in the two Shorea species with midday water potentials of −0.6 to −1.2 MPa (Figure 2B). Mean maximum stomatal conductances in the wet season ranged from 200–265 mmol m−2 s−1. Dry season drought stress in late April, however, showed a pronounced effect on patterns of water relations as midday values of leaf water potential dropped to −2.4 to −3.2 MPa. Maximum stomatal conductance was generally somewhat reduced in these months with rates of 130–230 mmol m−2 s−1 (Figure 2B). There was no clear separation of early dry season rates of stomatal conductance (December and January) from late dry season values (April and May) as were present in Shorea siamensis and S. obtusa.
Despite the apparently greater water availability for Shorea siamensis and S. obtusa in the late dry season when new leaves were formed, stable carbon isotope analyses of leaf tissues suggested that these species had a similar integrated water use efficiency (WUE) than that present in the two woody legume species, as indicated by leaf δ13C values. Mean values for these species were −27.0 and −28.6 o/oo, respectively, compared to −27.8 and −28.5 o/oo each for the two legume species, with more negative values indicating lower WUE (Table 1). These differences are not significant, and a sampling of more species of Dipterocarpaceae and Fabaceae in this community found no pattern of significant difference in values of δ13C for the two families (Table 1).
While stomatal conductances of the two Shorea species commonly peaked at midday in the wet and early dry seasons, the highest conductance rates typically occurred in midmorning in the late dry season. Although solar PAR irradiance peaked at midday, peak ambient air temperatures occurred two hours later. Maximum stomatal conductance occurred at about 09:00 h, associated with increasing ambient air temperatures which peaked at 39 °C at 14:15 h (Figure 3) and the associated increase in vapor pressure gradient (VPG) which reached 1.01 kPa at this hour.
The response of Shorea species to the high ambient temperatures of 35–39 °C in the late dry season was very different from those of the leaflets of the legume species. Woody legumes including our two study species as well as others such as Dalbergia lanceolaria, Dalbergia conchinchinesis, Albizzia odoratissima, and Erythrophleum succirubrum were commonly wilted by early to mid-morning despite only moderate temperatures, thereby sharply reducing their foliar exposure to solar radiation. Shorea siamensis and S. obtusa did not wilt, however, and changed their mean leaf angles only a few degrees over the course of morning to afternoon.
Transpirational cooling has a significantly different effect in the two plant groups. Field studies carried out in late morning and midday on 3–6 May 1993, under full sun and ambient air temperatures above 33 °C found that Shorea species required transpiration rates around 12 μmol m−2 s−1 to prevent heating above ambient, while the smaller legume leaves could maintain the same ambient temperatures with a transpiration rate only half as high (Figure 4). Extrapolation of these data to the fitted lines indicate that Shorea without transpirational cooling would reach excess leaf temperatures as high as 7–8 °C over ambient air temperatures compared to only about 4 °C over temperature in Xylia and Dalbergia.
Experimental studies with seedlings of Shorea siamensis grown under greenhouse conditions established the interconnection of stomatal conductance in this species with high leaf temperatures. Maximum rates of stomatal conductance occurred at air temperatures from 28–30 °C, but fell sharply at both higher and lower temperatures. At 35 °C, conductance rates dropped to 70% of their maximum levels, and to less than 40% of this level at 40 °C. Stomatal conductance at 45 °C was just 10% of maximum rates. Although the maximum stomatal conductance measured in these well-watered seedlings was only about half maximum values observed with mature trees of this species in the field, the pattern of temperature response of stomatal conductance fitted observed field data, and thus appears to be representative.

4. Discussion

Seasonal changes in canopy stomatal conductance to water vapor and CO2 result from feed-back and/or feed-forward mechanisms driven by diverse signals originated from leaves and/or from roots at each moment. It is not surprising then that the nature of optimal stomatal regulation controlling CO2 assimilation versus water vapor loss can be complex and variable between genotypes and species. Plants face a compromise in reducing transpiration to increase water use efficiency under high temperatures, with an associated impact on assimilation, while at the same time transpiration is a major component of the leaf energy balance.
Adaptive strategies of dealing with high temperatures and photoprotection under extreme dry season temperatures have been addressed for dry evergreen forest trees in Southeast Asia. Photosynthetic depression is present from mid-morning on in the dry season for evergreen dipterocarp species in southern China [25]. Trees are able to regulate light energy allocation dynamically between photochemistry and heat dissipation during the day, with reduced actual photochemistry and increased heat dissipation in the dry season. The sustained photosynthetic depression in the uppermost-canopy leaves of these species acts as a protective response to prevent excessive water loss and consequent catastrophic leaf hydraulic dysfunction. However, there are differing adaptive responses to high temperatures in drought deciduous tree species [8,9]. Two species of drought-deciduous trees from deciduous dipterocarp forests, Shorea siamensis and Xylia kerrii included in our study, have been shown to dissipate a large proportion of electron flow through photosynthesis or alternative pathways. In contrast, evergreen trees in adjacent dry evergreen forests employ more conservative water use, reduced assimilation and electron transport rate, and an enhanced capacity for thermal dissipation of excess light energy in photoprotection [9].
Our comparison of mean species leaf traits between dipterocarp and legume species in deciduous dipterocarp forest found significant differences in leaf/leaflet size and in leaf nitrogen content. However, other leaf morphological and ecophysiological leaf traits such as leaf longevity, specific leaf weight, δ13C, and mean maximum rates of net photosynthesis were not significantly different. Higher leaf nitrogen contents in the legume species were not found to be associated with higher rates of net photosynthesis. The similar small range of values in δ13C suggests that both groups exhibit similar levels of integrated water use efficiency in their growth.
The dipterocarp species in our study present a classic example of an isohydric strategy of adaptation where stomatal regulation maintains a relatively stable minimum water potential over the course of the year compared to the legumes which exhibit anisohydric behavior in which water potential decrease over the dry season as evaporative demand increases [26,27]. This effect of stomatal regulation of seasonal patterns of gas exchange is critical in understanding the ability of tree species and genotypes to respond to environmental stress [28,29,30].
No consistent pattern of change in either predawn or midday water potential was present in Shorea siamensis and S. obtusa from wet through dry season. In contrast, woody legumes demonstrated a clear seasonal pattern of changing water potential. The lack of an observed seasonal pattern in water availability in Shorea also differs from the seasonality in water potential present in another Dipterocarpaceae, Hopea ferrea, which dominates adjacent dry evergreen forests at Sakaerat [31]. Root excavations have not been carried out in dry dipterocarp forests to determine if Shorea species are able to exploit fractures in parent rock material to reach ground water pools, but deep root systems have been shown to provide an effective means of avoiding water stress in isohydric species in seasonal mediterranean climates where drought periods may last six months or more [27,32].
Drought deciduous trees in Thailand present special challenges for understanding adaptive strategies for new leaf production, which has been widely observed to typically occur a few weeks before the onset of the wet season [1]. The production of new leaves under the extreme temperatures in the late dry season in Thailand seems counter-intuitive to expected behavior and has led to speculation on what factors act as the trigger of leaf phenological development. Both soil water availability and photoperiod appear to be environmental cues in leaf bud break, but with no common pattern to explain differences between species [1,33]. Similar bud break for the production of new leaves in the late dry season has also been reported in India [34], Australia [35], Brazil [36], and Costa Rica [36,37]. In most of these observations, the leafless period is variable between species and the synchrony of the timings of leaf fall and bud break among tree species is low. While the selective forces responsible for this seemingly counterproductive phenological characteristic have not been carefully studied, they may well relate to reduced pressure from insect herbivores on sensitive young leaves during the late dry season.
The production of new leaves in the dry season in Thailand exposes these leaves to high ambient air temperatures of 38–40 °C with even higher extremes. Woody legumes responded to this stress by restricting their photosynthetic activity to early morning hours. As higher air temperatures, higher VPG, and lower water potentials increased stress, these species temporarily wilted and folded their leaflets, thereby reducing their heat load from solar irradiance. Legume leaflets under such conditions closely tracked ambient air temperature, or even maintained slightly lower temperatures if stomata remain partially open to allow some generally much lower stomatal conductance.
High levels of irradiance and lowered stomatal conductance in Shorea siamensis and S. obtusa exposed leaves to much higher temperatures. Moderate transpiration rates in the morning allowed these species to maintain leaf temperatures at or below ambient air temperatures. As solar irradiance increased and air temperatures rose, however, these large leaves experienced significant problems maintaining ambient temperatures. Leaf wilting did not occur in these leaves and thus solar energy input remained high. While soil moisture availability for Shorea species might have been sufficient to maintain high rates of stomatal conductance and transpiration in the morning hours, and thus allow leaf cooling below ambient, the high afternoon air temperatures acted to lower rates of stomatal conductance with a consequent negative feedback and lowered transpiration.
Under such afternoon conditions, we have commonly observed Shorea leaf temperatures to reach 44–46 °C as stomatal conductance was reduced. Irregular afternoon winds reduced boundary layer resistances when canopy air was stirred, and afternoon leaf temperatures dropped intermittently to 40–42 °C. A lowering of stomatal conductance by about 50% from wet season levels would be expected to result in leaf temperatures of 38–40 °C, which were characteristic in Shorea over much of the day during the late dry season in April and May before the arrival of monsoon rains. Thus, lowered stomatal conductance was a direct factor promoting high leaf temperatures and thus reduced photosynthetic capacity in Shorea siamensis and S. obtusa during the late dry season.
What is the ecological and ecophysiological advantage of large leaves in Shorea siamensis and S. obtusa? Such an advantage may not exist. Large leaves are characteristic of the Dipterocarpaceae in general and the genus Shorea specifically. Leaves of both species fall within the normal range of size for Shorea in seasonal and nonseasonal tropical forests of Southeast Asia [38]. It seems likely that large leaf size is a genetically canalized trait in this group which is centered in lowland rainforest and montane forests of the Indo-Malaysian region where water stress is not a strong selective factor. Three species of Dipterocarpus which are characteristic of deciduous dipterocarp forests in Southeast Asia also have large leaves, with mean leaf lengths of 150–250 mm. It seems likely, therefore, that large leaf size is a genetic trait in these two genera, and that it is compensated for in the seasonal monsoon forests of Southeast Asia by alternative strategies of adaptation that may include reduced rates of photochemistry with increased heat dissipation or other biochemical means of increased heat tolerance. It is interesting to note that the five species of Dipterocarpaceae characteristic of deciduous dipterocarp forests (Shorea siamensis, S. obtusa, Dipterocarpus obtusifolius, D. tuberculatus, and D. intricatus) are the only fully deciduous taxa among the more than 550 tree species in this family.
Large leaf sizes also occurred in tree species within several other families in the deciduous dipterocarp forest at Sakaerat. These included Dillenia ovata Wall. ex Hook. f. and Thomson (Dilleniaceae) and Mitragyna rotundifolia (Roxb.) Kuntze (Rubiaceae). Although we have not investigated seasonal patterns of water relations in these species, their diurnal cycles of stomatal physiology in the late dry season appears to parallel those reported here for Shorea species. As with the Dipterocarpaceae, these taxa have evolved from Indo-Malaysian ancestors growing in nonseasonal rainforests. The great majority of woody legumes in the deciduous dipterocarp forest at Sakaerat appear to have adaptive strategies of seasonal water relations similar to that found here for Xylia kerrii and Dalbergia oliveri. These genera are more characteristic of seasonal tropical forest of Southern and Southeastern Asia and do not show a strong Indo-Malaysian ancestry (Larsen 1984). One common legume, however, is an exception to this pattern. Sindora siamensis has large, relatively sclerophyllous leaflets, and does not wilt during the high temperatures of the late dry season. This genus has clear Indo-Malaysian ancestry. While Sindora siamensis has not been studied, it may well have evolved a strategy more like that of the Dipteocarpaceae than other woody legumes.

5. Conclusions

Members of the Dipterocarpaceae and Fabaceae form major community elements of deciduous dipterocarp forests in Southeast Asia, but present differing ecophysiological strategies of adaptation to high ambient temperatures in the late dry season when new leaves are maturing. The large leaves of Shorea siamensis and S. obtusa (Dipterocarpaceae) utilize an isohdric strategy to maintain relatively constant levels of midday water potentials of −0.5 to −1.2 MPa from wet through dry seasons. However, as rates of stomatal conductance dropped sharply in the late dry season, leaves exposed to full sun reduce their stomatal conductance. Without transpirational cooling, leaf temperatures reached supra-optimal temperatures of 44–45 °C or higher. The woody legumes Xylia kerrii and Dalbergia oliveri and other legumes exhibit an anisohydric pattern of seasonal water relations with midday water potentials dropped from high wet season levels of −0.6 to −1.3 MPa to levels of −2.4 to −3.2 MPa in the dry season. Under these late dry season conditions, maximum stomatal conductance is lowered. The relatively small leaflets of these legumes responded to the high temperatures of the late dry season by wilting in early to mid-morning, reducing their exposure to solar radiation and taking advantage of convective cooling. The heat stress on new leaves in the late dry season makes species in both families potentially sensitive to global increases in extreme temperature. The high dry season temperatures of deciduous dipterocarp forest and the diversity of species present beyond the dipterocarps and legumes discussed here suggests the possibility that other novel morphological and ecophysiological traits adaptive to such supra-optimal temperatures may be found with expanded research.

Acknowledgments

This research was funded by a grant from the University of California Asian Studies Program. We would also like to thank staff members from Ramkhamhaeng University and the Sakaerat Environmental Research Station who provided critical assistance in making this research possible.

Author Contributions

P.W.R., K.B., and M.P. jointly conceived, designed the research, and carried out the field research. P.W.R. took the lead on writing and editing.

Conflicts of Interest

The authors declare no conflict of interest. There were no sponsors that had a role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, and in the decision to publish the results.

References

  1. Elliott, S.; Baker, P.J.; Borchert, R. Leaf flushing during the dry season: The paradox of Asian monsoon forests. Glob. Ecol. Biogeogr. 2006, 15, 248–257. [Google Scholar] [CrossRef]
  2. Eamus, D. Ecophysiological traits of deciduous and evergreen woody species in the seasonally dry tropics. Trends Ecol. Evol. 1999, 14, 11–16. [Google Scholar] [CrossRef]
  3. Goldstein, G.; Rada, F.; Rundel, P.; Azoca, A.; Orozco, A. Gas exchange and water relations of evergreen and deciduous tropical savanna trees. Ann. Sci. For. 1989, 46, 448s–453s. [Google Scholar] [CrossRef]
  4. Sobrado, M.A. Embolism vulnerability in drought-deciduous and evergreen species of a tropical dry forest. Acta Oecol. 1997, 18, 383–391. [Google Scholar] [CrossRef]
  5. Choat, B.; Ball, M.C.; Luly, J.G.; Holtum, J.A.M. Hydraulic architecture of deciduous and evergreen dry rainforest tree species from north-eastern Australia. Trees 2005, 19, 305–311. [Google Scholar] [CrossRef]
  6. Brodribb, T.J.; Holbrook, N.M. Leaf physiology does not predict leaf habit; examples from tropical dry forest. Trees 2005, 19, 290–295. [Google Scholar] [CrossRef]
  7. Ishida, A.; Diloksumpun, S.; Ladpala, P.; Staporn, D.; Panuthai, S.; Gamo, M.; Yazaki, K.; Ishizka, M.; Piangchit, L. Contrasting seasonal leaf habits of canopy trees between tropical dry-deciduous and evergreen forests in Thailand. Tree Physiol. 2006, 26, 643–656. [Google Scholar] [CrossRef] [PubMed]
  8. Ishida, A.; Harayama, H.; Yazaki, K.; Ladpala, P.; Sasrisang, A.; Laewpakasit, K.; Panuthai, S.; Staporn, D.; Maeda, T.; Gamo, M.; et al. Seasonal variations of gas exchange and water relations in deciduous and evergreen trees in monsoonal dry forests of Thailand. Tree Physiol. 2010, 30, 935–945. [Google Scholar] [CrossRef] [PubMed]
  9. Ishida, A.; Yamazaki, J.Y.; Harayama, H.; Yazaki, K.; Ladpala, P.; Nakano, T.; Adachi, M.; Yoshimura, K.; Panuthai, S.; Stapporn, D.; et al. Photoprotection of evergreen and drought-deciduous tree leaves to overcome the dry season in monsoonal tropical dry forests in Thailand. Tree Physiol. 2014, 34, 15–28. [Google Scholar] [CrossRef] [PubMed]
  10. Blasco, F. The transition from open forest to savanna in continental Southeast Asia. In Tropical Savannas; Bourlierè, F., Ed.; Elsevier: Amsterdam, The Netherlands, 1993; pp. 167–182. [Google Scholar]
  11. Stott, P. The savanna vegetation of mainland Southeast Asia: An ecological survey. Prog. Phys. Geog. 1984, 8, 315–335. [Google Scholar] [CrossRef]
  12. Rundel, P.W.; Boonpragob, K. Dry forest ecosystems of Thailand. In Tropical Deciduous Forests; Medina, E., Mooney, H.A., Bullock, S., Eds.; Cambridge University Press: Cambridge, UK, 1995; pp. 93–123. [Google Scholar]
  13. Murata, N.; Ohta, S.; Ishida, A.; Kanzaki, M.; Wachirinrat, C.; Artchawakom, T.; Sase, H. Soil depth and soil water regime in a catchment where tropical dry evergreen and deciduous forests coexist. J. For. Res. 2012, 17, 37–44. [Google Scholar] [CrossRef]
  14. Dhamanitayakul, P. The phenology of trees in dry dipterocarp forest and its application to timing for logging operations. Thai J. For. 1984, 3, 151–162. [Google Scholar]
  15. Brodribb, T.J.; Holbrook, N.M.; Gutiérrez, M.V. Hydraulic and photosynthetic co-ordination in seasonally dry tropical forest trees. Plant Cell Environ. 2002, 25, 1435–1444. [Google Scholar] [CrossRef]
  16. Limjirakan, S.; Limsakul, A. Observed trends in surface air temperatures and their extremes in Thailand from 1970 to 2009. J. Meteorol. Soc. Jpn. 2012, 90, 647–662. [Google Scholar] [CrossRef]
  17. Masud, M.B.; Soni, P.; Shrestha, S.; Tripathi, N.K. Changes in climate extremes over north Thailand, 1960–2099. J. Climatol. 2016. [Google Scholar] [CrossRef]
  18. Tongyai, P. The Sakaerat Environmental Research Station; Thailand Man and the Biosphere Committee: Bangkok, Thailand, 1980; p. 250. [Google Scholar]
  19. Bunjavejchewin, S. Canopy structure of the dry dipterocarp forest of Thailand. Thai For. Bull. 1983, 14, 1–14. [Google Scholar]
  20. Sukapanpotharam, V. Scarab beetle communities in deciduous dipterocarp and dry evergreen forests in northeastern Thailand. Nat. Hist. Bull. Siam Soc. 1979, 28, 55–100. [Google Scholar]
  21. Bunjavejchewin, S. Analysis of the tropical dry deciduous forest of Thailand. I. Characteristics of the dominance types. Nat. Hist. Bull. Siam Soc. 1983, 31, 109–122. [Google Scholar]
  22. Sahunalu, P. Ecological studies of leguminous tree species in dry dipterocarp forest. I. Species composition, occurrence, and abundance. Thai J. For. 1994, 13, 10–21. [Google Scholar]
  23. Sahunalu, P.; Dhanmanonda, P. Structure and dynamics of dry dipterocarp forest, Sakaerat, northeastern Thailand. In Ecosystems of East and Southeast Asia; Kluwer: The Hague, The Netherlands, 1994. [Google Scholar]
  24. Sirirattanakorn, S. Leaf Function and Leaf Demographic Studies of Productivity of Important Species in Tropical Dry Evergreen and Deciduous Dipterocarp Forest at Sakaerat, Changwat Nakhon Ratchasima. Ph.D. Thesis, Kasetsart University, Bangkok, Thailand, 1999. [Google Scholar]
  25. Zhang, J.L.; Meng, L.Z.; Cao, K.F. Sustained diurnal photosynthetic depression in uppermost-canopy leaves of four dipterocarp species in the rainy and dry seasons: Does photorespiration play a role in photoprotection? Tree Phsiol. 2009, 29, 217–228. [Google Scholar] [CrossRef] [PubMed]
  26. Tardieu, F.; Simonneau, T. Variability among species of stomatal control under fluctuating soil water status and evaporative demand: Modelling isohydric and anisohydric behaviours. J. Exp. Bot. 1998, 49, 419–432. [Google Scholar] [CrossRef]
  27. Chaves, M.M.; Costa, J.M.; Zarrouk, O.; Pinheiro, C.; Lopes, C.M.; Pereira, J.S. Controlling stomatal aperture in semi-arid regions—The dilemma of saving water or being cool? Plant Sci. 2016, 251, 54–64. [Google Scholar] [CrossRef] [PubMed]
  28. West, A.G.; Hultine, K.R.; Jackson, T.L.; Ehleringer, J.R. Differential summer water use by Pinus edulis and Juniperus osteosperma reflects contrasting hydraulic characteristics. Tree Physiol. 2007, 27, 1711–1720. [Google Scholar] [CrossRef] [PubMed]
  29. McDowell, N.G.; Pockman, W.T.; Allen, C.D.; Breshears, D.D.; Cobb, N.; Kolb, T.E.; Plaut, J.; Sperry, J.; West, A.; Willoams, D.G.; et al. Mechanisms of plant survival and mortality during drought: Why do some plants survive while others succumb to drought? New Phytol. 2008, 178, 719–739. [Google Scholar] [CrossRef] [PubMed]
  30. Bonal, D.; Guehl, J.-M. Contrasting patterns of leaf water potential and gas exchange responses to drought in seedlings of tropical rain-forest species. Funct. Ecol. 2011, 15, 490–496. [Google Scholar] [CrossRef]
  31. Rundel, P.W.; Patterson, M.T.; Boonpragob, K. Photosynthetic responses to light and the ecological dominance of Hopea ferrea (Dipterocarpaceae) in a semi-evergreen forest of northeastern Thailand. Nat. Hist. Bull. Siam Soc. 2004, 52, 55–70. [Google Scholar]
  32. Raab, N.; Meza, F.J.; Franck, N.; Bambach, N. Empirical stomatal conductance models reveal that the isohydric behavior of an Acacia caven Mediterranean savannah scales from leaf to ecosystem. Agric. For. Meteorol. 2015, 213, 203–216. [Google Scholar] [CrossRef]
  33. Williams, L.J.; Bunyavejchewin, S.; Baker, P.J. Deciduousness in a seasonal tropical forest in western Thailand: Interannual and intraspecific variation in timing, duration and environmental cues. Oecologia 2008, 155, 571–582. [Google Scholar] [CrossRef] [PubMed]
  34. Singh, K.P.; Kushwaha, C.P. Emerging paradigms of tree phenology in dry tropics. Curr. Sci. 2005, 89, 964–975. [Google Scholar]
  35. Williams, R.J.; Myers, B.A.; Muller, W.J.; Duff, G.A.; Eamus, D. Leaf phenology of woody species in a North Australian tropical savanna. Ecology 1997, 78, 2542–2558. [Google Scholar] [CrossRef]
  36. Rivera, G.; Elliott, S.; Caldas, L.S.; Nicolossi, G.; Coradin, V.T.; Borchert, R. Increasing day-length induces spring flushing of tropical dry forest trees in the absence of rain. Trees 2002, 16, 445–456. [Google Scholar] [CrossRef]
  37. Gutiérrez-Soto, M.V.; Pacheco, A.; Holbrook, N.M. Leaf age and the timing of leaf abscission in two tropical dry forest trees. Trees 2008, 22, 393–401. [Google Scholar] [CrossRef]
  38. Smitinand, T.; Santisuk, T.; Phengklai, C. The Manual of Dipterocarpaceae of Mainland Southeast Asia; Royal Forest Department: Bangkok, Thailand, 1980; p. 133.

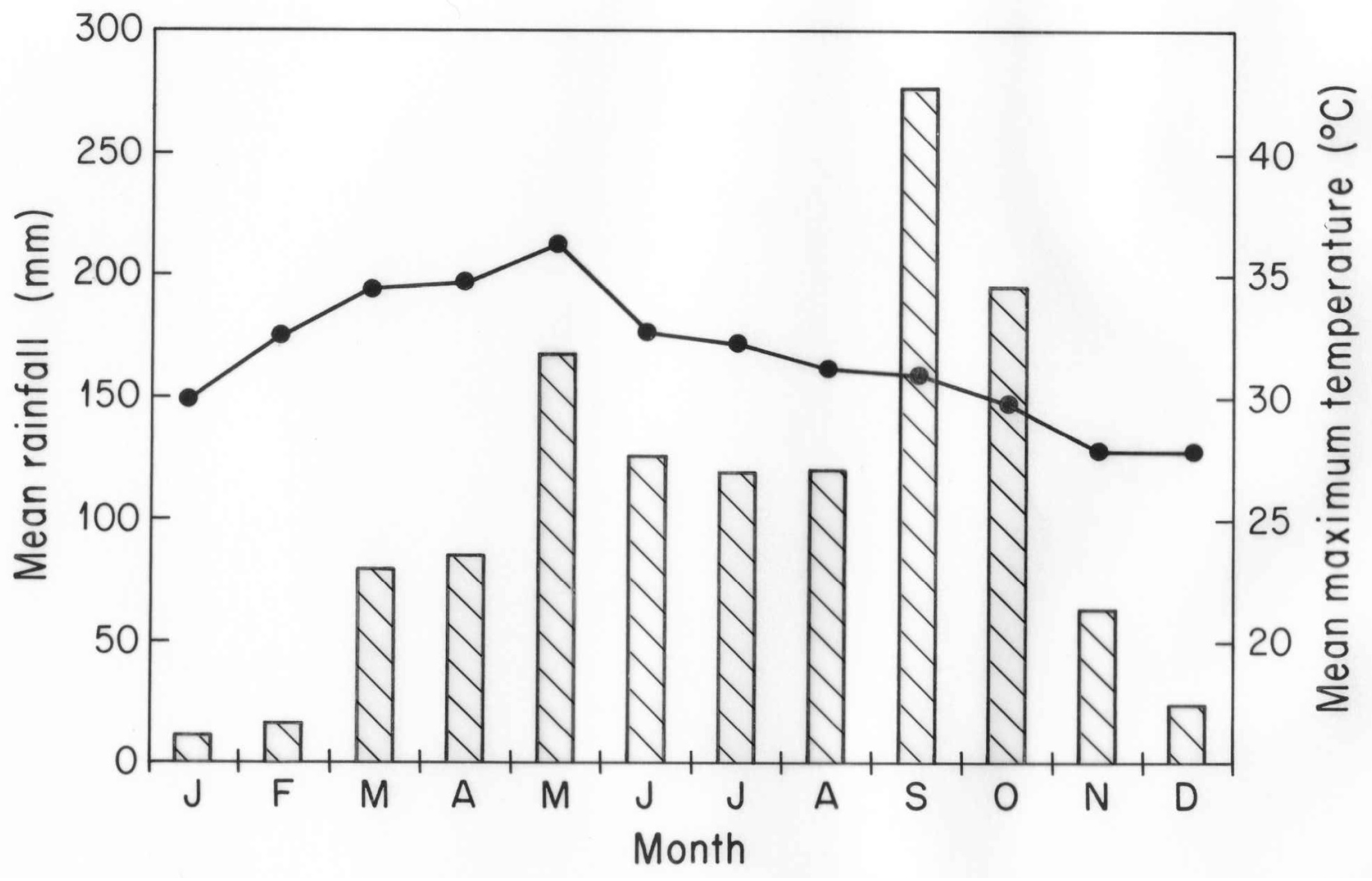

Figure 1. Seasonal pattern of mean monthly rainfall and mean maximum temperature at the Sakaerat Environmental Research Station in northeastern Thailand. Mean rainfall data is for 1969–1979 [18]. Temperature means are 1969 data taken from [20].
Figure 1. Seasonal pattern of mean monthly rainfall and mean maximum temperature at the Sakaerat Environmental Research Station in northeastern Thailand. Mean rainfall data is for 1969–1979 [18]. Temperature means are 1969 data taken from [20].
Forests 08 00368 g001

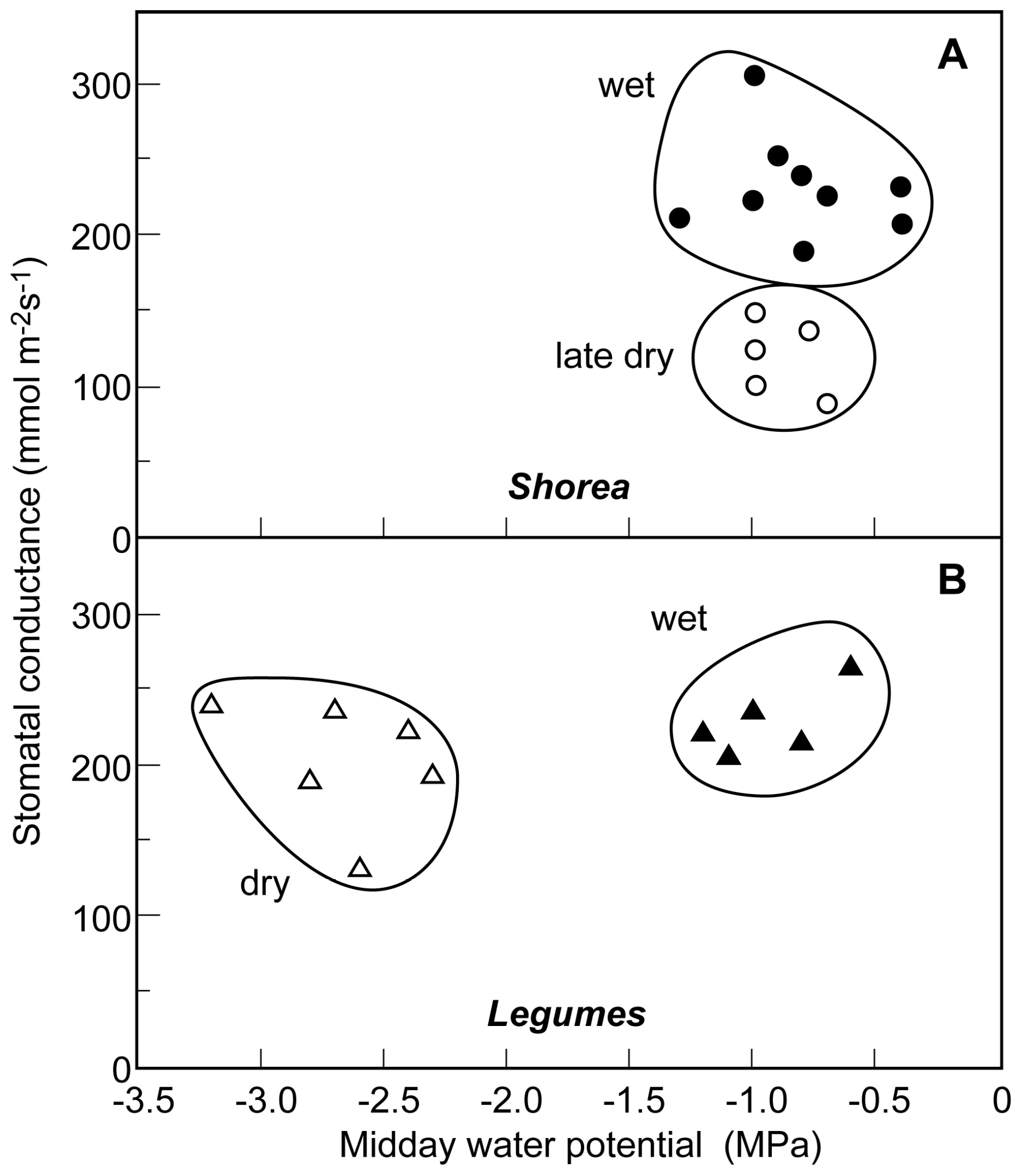

Figure 2. Seasonal patterns of midday water potential and mean maximum stomatal conductance in tree species from the deciduous dipterocarp forest at the Sakaerat Environmental Research Station in northeastern Thailand. (A) Shorea siamensis and S. obtusa; (B) legumes Xylia kerrii and Dalbergia oliveri. Wet season measurements were carried out in mid-December and dry and late dry season measurements were made in late April and early May. Each point is a mean of 3–5 measurements.
Figure 2. Seasonal patterns of midday water potential and mean maximum stomatal conductance in tree species from the deciduous dipterocarp forest at the Sakaerat Environmental Research Station in northeastern Thailand. (A) Shorea siamensis and S. obtusa; (B) legumes Xylia kerrii and Dalbergia oliveri. Wet season measurements were carried out in mid-December and dry and late dry season measurements were made in late April and early May. Each point is a mean of 3–5 measurements.
Forests 08 00368 g002

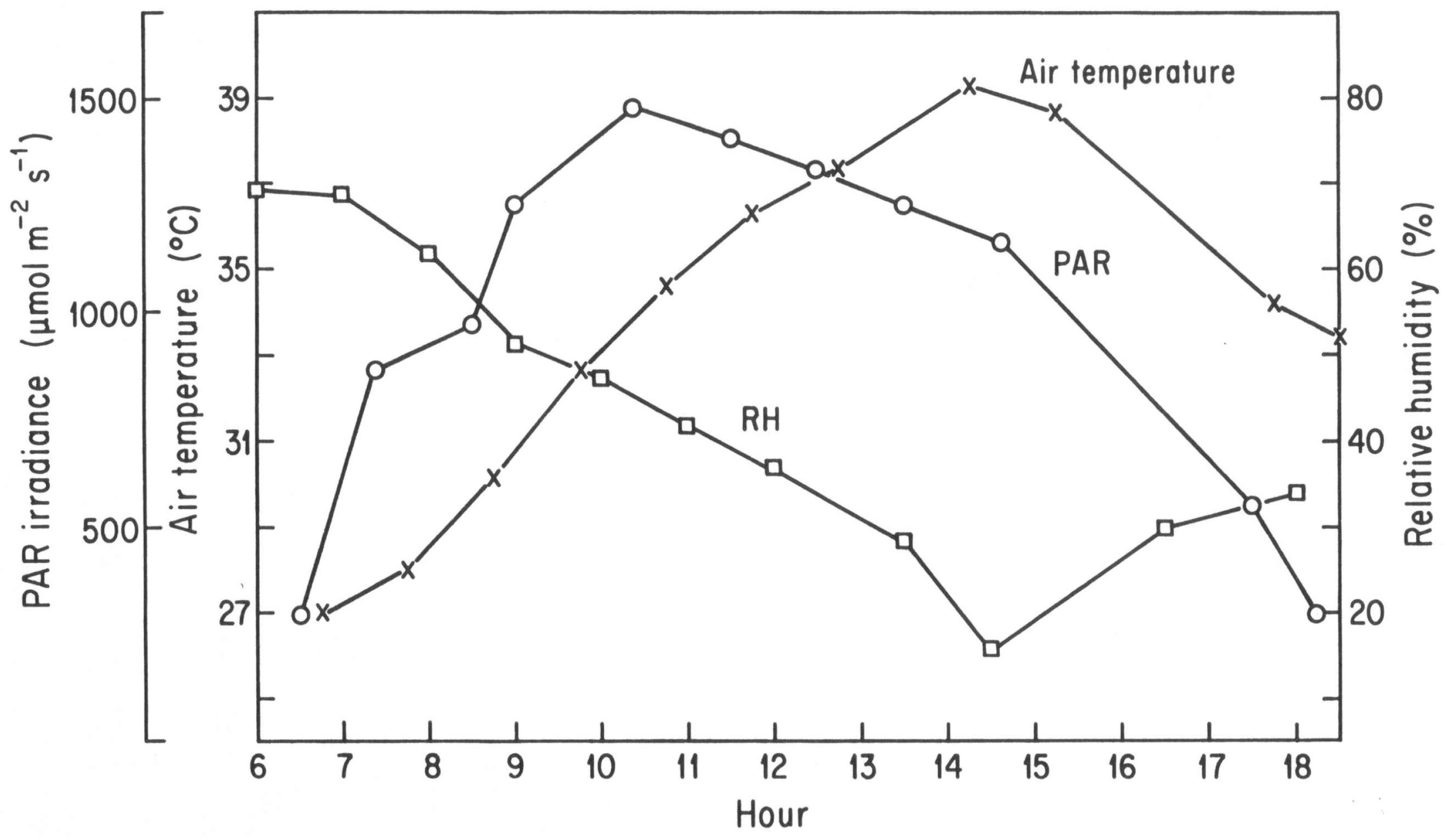

Figure 3. Diurnal cycle of PAR (photosynthetically active radiation) irradiance, air temperature, relative humidity for Shorea siamensis on 10 April 1992, in a deciduous dipterocarp forest at the Sakaerat Environmental Research Station in northeastern Thailand.
Figure 3. Diurnal cycle of PAR (photosynthetically active radiation) irradiance, air temperature, relative humidity for Shorea siamensis on 10 April 1992, in a deciduous dipterocarp forest at the Sakaerat Environmental Research Station in northeastern Thailand.
Forests 08 00368 g003
Figure 4. Leaf-to-air temperature gradients in relation to transpiration rates of Shorea siamensis and S. obtusa compared to woody legume species (Xylia xylocarpa and Dalbergia oliveri) at the Sakaerat Environmental Research Station in northeastern Thailand. For Shorea species y = 0.632 + 6.331. r2 = 0.733; for legumes y = 0.833 + 4.537, r2 = 0.832. An analysis of covariance demonstrated that while the slopes of the two lines are not significantly different (p = 0.659), differences in the intercepts are highly significant (p < 0.001). The larger Shorea leaves required significantly higher transpiration rates than woody legumes with small leaflets to maintain the ambient temperature. These measurements were made with field plants in the late dry season using a porometer and IR thermometer to measure leaf to air temperature gradients.
Figure 4. Leaf-to-air temperature gradients in relation to transpiration rates of Shorea siamensis and S. obtusa compared to woody legume species (Xylia xylocarpa and Dalbergia oliveri) at the Sakaerat Environmental Research Station in northeastern Thailand. For Shorea species y = 0.632 + 6.331. r2 = 0.733; for legumes y = 0.833 + 4.537, r2 = 0.832. An analysis of covariance demonstrated that while the slopes of the two lines are not significantly different (p = 0.659), differences in the intercepts are highly significant (p < 0.001). The larger Shorea leaves required significantly higher transpiration rates than woody legumes with small leaflets to maintain the ambient temperature. These measurements were made with field plants in the late dry season using a porometer and IR thermometer to measure leaf to air temperature gradients.
Forests 08 00368 g004
Table 1. Leaf characteristics of lifespan, area, specific leaf weight, nitrogen content, δ13C and late dry season assimilation (Pn-max) in dominant tree species in the deciduous dipterocarp forest at the Sakaerat Environmental Research Station in northeastern Thailand. Standard deviations of measurements are shown in parentheses. Family trait means were tested for significant differences.
Table 1. Leaf characteristics of lifespan, area, specific leaf weight, nitrogen content, δ13C and late dry season assimilation (Pn-max) in dominant tree species in the deciduous dipterocarp forest at the Sakaerat Environmental Research Station in northeastern Thailand. Standard deviations of measurements are shown in parentheses. Family trait means were tested for significant differences.
SpeciesLeaf Longevity (months)Leaf/Leaflet Area (cm2)Specific Leaf Weight (g m−2)Leaf Nitrogen (μg g−1)δ13C (o/oo)Pn-Max (April 1993) (μmol m−2 s−1)
Dipterocarpaceae
Shorea siamensis10 (0.21)178.6 (47.7)13019.2 (1.5)−27.0 (0.98)11.2 (2.4)
Shorea obtusa6 (0.14)112 (17.8)11817.1 (1.4)−28.6 (0.65)14.3 (3.6)
Shorea roxburghii7 (0.14)48.6 (7.3)9019.8 (2.7)−28.3 (1.02)ND
Dipterocarpus intricatus9 (0.18)123.1 (35.5)21618.0 (1.2)−28.7 (0.96)14.4 (3.8)
Mean 115.6 (53.3) *138 (54.3)18.5 (1.2) *−28.1 (0.7)13.4 (1.8)
Fabaceae
Xylia kerrii7 (0.16)32.6 (6.3)10525.5 (4.7)−27.8 (1.09)9.5 (0.2)
Dalbergia oliveri914.3 (3.9)5826.5 (3.2)−28.5 (1.29)8.0 (1.2)
Dalbergia lanceolaria86.413526.9 (1.0)−28.2 (0.64)15.2 (2.4)
Albizzia odoratissima92.8 (0.3)14424.6−27.8ND
Erythrophleum succirubrum1114.4 (1.8)10530.7−27.0ND
Sindora siamensis11 (0.14)47.6 (1.7)12418.2 (3.6)−28.7 (1.17)13.0 (1.1)
Mean 19.7 (17.1) *112 (30.7)24.3 (4.3) *−28.3 (0.6)11.4 (3.3)
* p < 0.01.
