Sensitivity Analysis of 3D Individual Tree Detection from LiDAR Point Clouds of Temperate Forests
Wei Yao 1,*, Jan Krull 1, Peter Krzystek 1 and Marco Heurich 2
1
Department of Geoinformatics, University of Applied Sciences-Munich, Munich 80333, Germany; E-Mails: jan.krull@hm.edu (J.K.); krzystek@hm.edu (P.K.)
2
Bavarian Forest National Park, Grafenau 94481, Germany; E-Mail: marco.heurich@npv-bw.bayern.de
*
Author to whom correspondence should be addressed; E-Mail: yao@hm.edu; Tel.: +49-89-1265-2632; Fax: +49-89-1265-2698.
Received: 4 March 2014; in revised form: 8 April 2014 / Accepted: 14 May 2014 /
Published: 28 May 2014

Abstract

: Light detection and ranging (LiDAR) sampling or full-area coverage is deemed as favorable means to achieve timely and robust characterizations of forests. Recently, a 3D segmentation approach was developed for extracting single trees from LiDAR data. However, key parameters for modules used in the strategy had to be empirically determined. This paper highlights a comprehensive study for the sensitivity analysis of 3D single tree detection from airborne LiDAR data. By varying key parameters, their influences on results are to be quantified. The aim of the study is to enlighten the optimal combination of parameter values towards new applications. For the experiment, a number of sample plots from two temperate forest sites in Europe were selected. LiDAR data with a point density of 25 pts/m2 over the first site in the Bavarian forest national park were captured with under both leaf-on and leaf-off conditions. Moreover, a Riegl scanner was used to acquire data over the Austrian Alps forest with four-fold point densities of 5 pts/m2, 10 pts/m2, 15 pts/m2 and 20 pts/m2, respectively, under leaf-off conditions. The study results proved the robustness and efficiency of the 3D segmentation approach. Point densities larger than 10 pts/m2 did not seem to significantly contribute to the improvement in the performance of 3D tree detection. The performance of the approach can be further examined and improved by optimizing the parameter settings with respect to different data properties and forest structures.
Keywords:
tree detection; segmentation; temperate forests; sensitivity analysis; airborne LiDAR

1. Introduction

Airborne laser scanning (ALS) or Light detection and ranging (LiDAR) has been widely used in mapping the Earth’s surface including urban and forested areas in 3D. Recent advances in LiDAR technology have demonstrated that new full waveform scanners can provide a higher spatial point density especially along the vertical dimension and additional information about the reflectional characteristics and vertical structure of trees [1,2,3,4,5]. As LiDAR instrument technology continues to improve and acquisition costs decrease, the wall-to-wall characterization of large forested areas will become more common. Therefore, LiDAR sampling or full-area coverage is deemed as favorable means to achieve timely and robust large-area characterizations of vertically and horizontal distributed forest structures.

Two main strategies on the use of LiDAR data in forestry are reported: the area-based method (ABA) and the individual tree method (ITD). In the ABA, ALS point cloud data are aggregated at the inventory plot level by describing them based on the height distribution and canopy density metrics [6,7,8], such as echo ratio, height percentiles and canopy cover percentiles. These metrics can be imported into regression models as independent variables. In this way, the response is an aggregation of single tree measurements on sample plots and could be as in the case of mean tree height, stem volume, biomass or forest fuel parameters [9,10,11,12,13].

In the ITD approach, either the canopy height model (CHM) [14,15] or the ALS raw data point clouds [3,16,17] are used to be segmented into single tree objects. Properties at single tree level can subsequently be estimated using the tree segments, such as tree height, crown diameter, tree species, crown base height and stem volume. The ITD method is more intuitive than ABA since the derived parameters refer to the single tree, which is the smallest unit in forest management. Novel methods for ITD approach tackle conceptually the segmentation problem with a 3D approach instead of using only the CHM. In combination with full waveform data Reitberger et al. [16] successfully demonstrated that the overall detection rate of single trees could be significantly improved, especially in heterogeneous forest types. The improvement happened mostly to the lower forest layers with 20%. The fusion of 3D techniques with full waveform data pushed the single tree approach to a new level of completeness. Meanwhile, the estimation of tree shape parameters benefits from 3D tree segments. Moreover, the tree reflectional characteristics gain more insights into tree structure which are significant for tree species classification and growth condition identification. The physical reflectivity property of trees could even be enhanced and better described if echo amplitude of full waveform ALS data were normalized with respect to different incidence angles [18]. Therefore, unbiased species-specific models can be used to accurately determine forest biophysical parameters even at single tree level [3,19].

Recently, an international comparison study on ITD from ALS data [20] has indicated that the extraction method is the main factor impacting achieved accuracy rather than laser point density. So far, there is lack of a comprehensive sensitivity analysis of detecting 3D individual trees in heterogeneous forest areas using LiDAR data. A fully automated method for tree detection is always desirable; a sensitivity analysis is performed to characterize and quantify the uncertainty sources of the algorithm and help optimize the selection of control parameters towards the best performance under different forest conditions. Therefore, a detailed understanding of the impact of the varying key control parameters on the performance of tree detection is required. In the former work of Reitberger et al. [16], the smoothing factor and segmentation threshold were already investigated in a preliminary configuration with a limited point density and value domain. In the past several years, a few authors have been dealing with similar topics. In [21,22], an uncertainty analysis is performed to estimate forest carbon stock and biomass from satellite imagery and LiDAR data. The dominate sources of uncertainty are the variation of input sample plot data and data saturation problems related to optical sensors. Monnet et al. [23] conducted a sensitivity analysis of a treetop detection algorithm in the French Alps by automated evaluation of detection performance for several parameter combinations. The optimization of parameters may depend on both the laser data, mainly point density, and on the forest structure and species. Palleja et al. [24] investigated the sensitivity of the tree volume estimates relative to different error sources in the spatial trajectory of a mobile terrestrial LiDAR and found out that the volume estimation was very sensitive to both errors in the determination of the distance from the LiDAR to the center of the trees and in the determination of the orientation angle of LiDAR. In [25], fuel model maps obtained based on QuickBird image and LiDAR-derived variables were used to perform a sensitivity analysis of fire behavior modeling. The study showed that the accuracy of fuel mapping could be improved by at least 13%. The objectives of this work are (i) to examine the influence of the uncertainty of control parameters on the performance of tree detection in mixed strand forests from airborne full-waveform LiDAR; (ii) to exploit the feasibility of optimizing parameter settings; and (iii) to perform a sensitivity analysis of 3D tree detection from airborne LiDAR data.

The paper is divided into five sections. Section 2 focuses on the methodology of 3D segmentation of single trees and introduces the key control parameters that undergo the sensitivity analysis. Section 3 presents the experimental results obtained from full-waveform LiDAR data of four-fold point densities in the Austrian floodplain forest. Finally, results are discussed and concluded in the last two sections.

2. Methodology

2.1. Single Tree Detection

The hybrid approach for single tree detection presented in former work [16] consists of three steps: waveform decomposition, watershed transformation with stem detection and normalized cut segmentation within merged watershed segments.

A single waveform is decomposed by fitting mixed Gaussian pulse models to the backscattered waveform which contains NR reflections. The vector Forests 05 01122 i006 is provided for each reflection i with the 3D coordinates of the echo. Additionally, the points Xi are given by the width Wi and the intensity Ii of the echo pulse [5]. The LiDAR data are corrected by referencing Wi and Ii to the pulse width and the intensity of the emitted Gaussian pulse and by correcting the intensity with respect to the run length Si (distance between laser sensor and target) of the laser beam and a nominal distance.

The coarse detection of single trees is achieved from the CHM using a watershed transformation. The CHM is derived by subdividing the Region of Interest (ROI) into a grid with having a cell spacing of cp and NC cells. Within each grid cell, the highest 3D point is selected and adapted with respect to the ground level Forests 05 01122 i007. Based on bilinear interpolation, the ground level Forests 05 01122 i007 is estimated from a given digital terrain model (DTM) with a grid size of 1 m and an absolute accuracy of 25 cm [11]. In the next step, all the highest 3D points Forests 05 01122 i008 of all NC cells are robustly interpolated in a grid that has NX and NY grid lines and a grid size gw. For this purpose an algorithm “gridfit” [26] is adopted which smoothens the surface by maintaining the surface gradients as small as possible. The trade-off between interpolation and regularization is determined by the adjustable smoothing factor λ. Both steps are carried out simultaneously in a least squares adjustment. The watershed segments derived on this CHM act as candidate regions where single trees are contained.

Within every watershed segments the 3D segmentation technique using normalized cuts [27] is used to detect point clouds associated with single trees (Figure 1). This segmentation uses the positions (xi, yi, zi) of the laser reflections and the pulse width Wi and the intensity Ii obtained from the waveform decomposition. Additionally, stem positions or local maxima derived from the watershed segmentation of CHM serve as prior knowledge. The normalized cut segmentation applied to the voxel structure of a watershed segment is based on a graph G describing the adjacent topology between each voxel (Figure 1). A pair of two disjoint Segments A and B of the graph is found by minimizing the cost function:

Forests 05 01122 i001
with Cut (A,B) = ∑iεA,jεBwij as the total sum of weights between the Segments A and B and Assoc (A,V) = ∑iεA,jεVwij as the sum of the weights of all edges ending in Segment A. The weights wij specify the similarity between the voxels and are a function of the LiDAR point distribution and various features, which are defined in Equation (2). The segmentation is realized by maximizing the similarity within the segment voxels and minimizing the similarity between Segments A and B. The graph G is recursively bi-partitioned until a stop criterion (given the normalized cut value NCutThres) is met; the spatial distribution of the LiDAR points mainly influences the weighting function. The features derived from the LiDAR points attributes of Wi and Ii also support the segmentation result.

Forests 05 01122 g001 1024

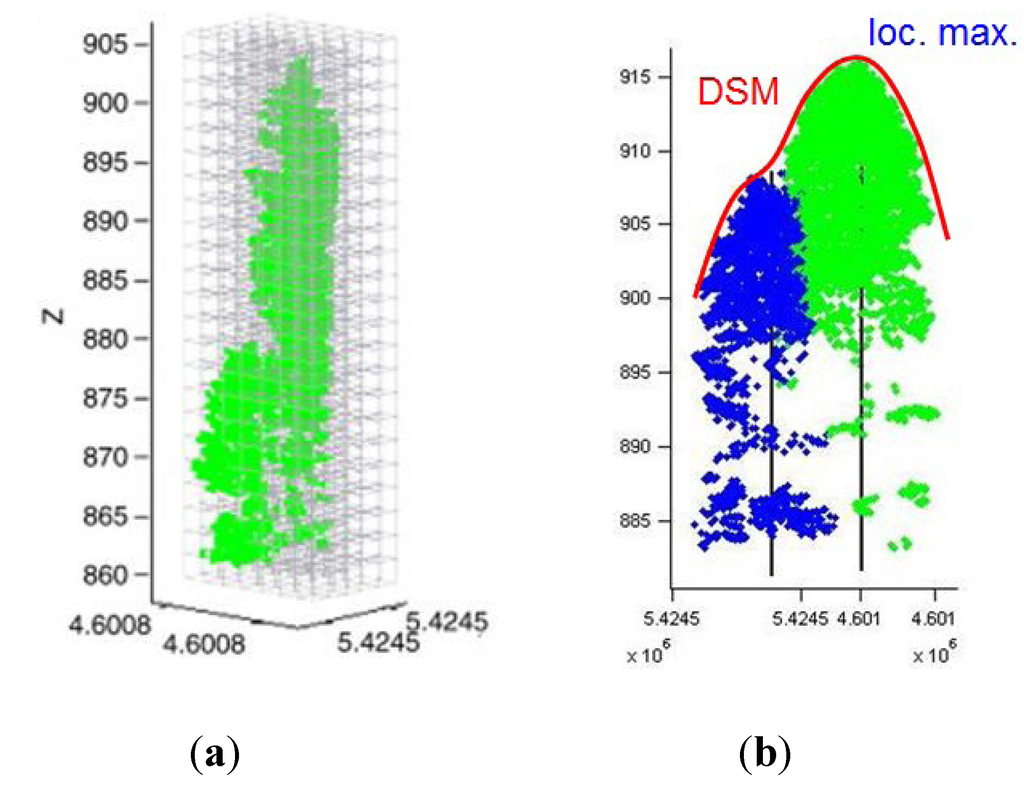

Figure 1. (a) Subdivision of the region of interest (ROI) into a voxel structure [16]; (b) Local maximum in canopy height model (CHM).

Click here to enlarge figure

Figure 1. (a) Subdivision of the region of interest (ROI) into a voxel structure [16]; (b) Local maximum in canopy height model (CHM).
Forests 05 01122 g001 1024

One of the key factors is to set up the weighting matrix W with the similarity reflecting the likelihood that two voxels belong to one tree. The similarity measure between each pair of voxels is the multiplicative exponential model:

Forests 05 01122 i002
with Forests 05 01122 i009 that computes the similarities wij between two voxels i and j within a cylinder of radius rxy around the voxel i. The components X(I,j) and Z(i,j) weight quadratic horizontal and vertical Euclidian distances between voxels. They are weighted separately to take into account information about the typical tree shape. The component F(i,j) describes the quadratic Euclidian distance between two feature vectors (mean pulse intensity Imean and pulse width Wmean) derived from the data points (=reflections) in the voxels. The fraction G(I,j) models the dependency of two voxels i and j of the local maxima by the maximal horizontal distance Forests 05 01122 i010. Hence, it is modeled that voxels nearby belong most probably belong to one tree.

2.2. Key Control Parameters for Sensitivity Analysis

Several key control parameters for 3D tree extraction algorithm from airborne LiDAR data are selected here to perform the sensitivity analysis.

2.2.1. Threshold for Normalized Cut Value NCutThres

The minimization of NCut(A,B) is solved by the corresponding generalized eigenvalue problem (DW) × y = λ × Dy, where n × n weighting matrix W represents weights wij between all n nodes of the graph G. The minimum solution y1 corresponds to the second smallest eigenvalue. Since y1 is real-valued and may only have two distinct indicator values (+1, −1) we need to binarize it by introducing a threshold into the histogram of y1. Using simply t value 0 or median (y1) leads to proper results. The results can be improved by testing several possible values with respect to the resulting value of NCut and choosing the value causing the smallest NCut value. Thus, the graph G is subdivided into two disjoint segments G1 and G2. After that, the abovementioned steps of solving the eigenvalue problem and binarization of y1 are to be performed iteratively on the sub-graphs G1 and G2 until the value for NCut reaches or exceeds the threshold NCutThres. Figure 2 shows an illustrative example of recursive normalized cut for a five-tree case study. One can observe that the way in which the tree segmentation is performed is dependent on the selection of the threshold NCutThres. Therefore, the sensitivity of tree detection performance with respect to the variation of NCutThres value needs to be examined in detail.

Forests 05 01122 g002 1024

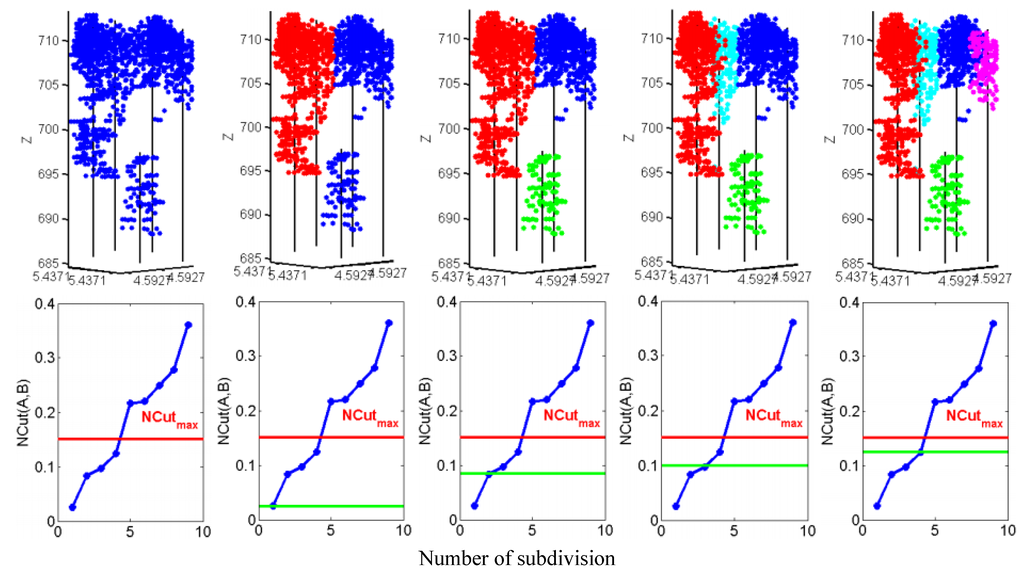

Figure 2. Recursive normalized cut for a five-tree example by progressively increasing the NCutThres value (green line) [28].

Click here to enlarge figure

Figure 2. Recursive normalized cut for a five-tree example by progressively increasing the NCutThres value (green line) [28].
Forests 05 01122 g002 1024

Number of subdivision

2.2.2. Voxel Size Vsize

To enable a 3D tree segmentation in LiDAR point clouds based on normalized cuts the ROI delineated by the watershed segmentation is subdivided into a voxel structure with a voxel spacing of Vsize and Forests 05 01122 i011 voxels (Figure 1a). Within each voxel of the size Vsize we collect N reflections Forests 05 01122 i012, where only voxels comprising at least one reflection are used in the segmentation. The voxel structure is represented as a region adjacency graph G = {V,E} with V as the voxels representing the nodes and E as the edges formed between every pair of nodes. The similarity between two nodes {i,j}∈V is described by the weights wij which are computed from features associated with the voxels. Basically, the similarity between voxels decreases with increasing distance between two voxels and drops down to zero beyond the threshold rXY for the mutual distance in order to keep the graph G at a reasonable size for computation.

2.2.3. Smoothing Factor λ for CHM Generation.

The watershed transformation is performed at the first step to segment the CHM and delineate 2D crowns of dominator trees. The watershed segments and local maxima can be viewed as candidate areas and tree positions for 3D tree segmentation under the CHM. For this purpose the “gridfit” method is adopted to generate CHM from point clouds, which smoothens the surface by keeping the surface gradients as small as possible. The balance between interpolation and regularization is determined by the adjustable smoothing factor λ. Both steps are carried out simultaneously in a least squares adjustment scheme. The result is a smoothed CHM having equally spaced posts to which the watershed segmentation is applied. Note that the factor λ controls both the smoothing and regularization in the case of ill posed situations. The local maxima of the watershed segments define possible tree positions. This segmentation procedure is mainly controlled by the parameter λ for the CHM construction, while the watershed algorithm itself does not include any parameters.

Moreover, the parameter λ affects the normalized cut segmentation, since the weighting matrix W in Equation.(2) describing the similarity measures between each two voxels incorporated the term e−G (i,j). Note that a certain smoothing of the CHM is necessary in order to avoid an oversegmentation with higher false alarms. On the other hand, neighboring trees often merge and thereby and form a tree group instead of single trees. Furthermore, the CHM should not be over-smoothed either, since the number of local maxima is directly related to the number of detected trees and fewer local maxima lead to a weaker evidence of the presence of single trees within the watershed segments. It is expected to see which kind of impact on the performance of 3D tree detection the smoothing factor could have.

3. Experiment

3.1. Material

3.1.1. Test Site I

One of the experiments was conducted in the Bavarian Forest National Park (49°3′19″ N, 13°12′9″ E), which is located in South-Eastern Germany along the border to the Czech Republic (Figure 5 and Figure 6). There are two major test sites of size between 591 ha and 954 ha in size containing sub alpine spruce forest, mixed mountain forest and alluvial spruce forest as the three major forest types. Furthermore, the trees are subdivided into three layers with respect to the top height htop of the plot, where htop is defined as the average height of the 100 highest trees per ha. The lower layer contains all trees below 50% of htop, the intermediate layer refers to all trees between 50% and 80% of htop, and finally, the upper layer contains the rest of the trees. Table 1 summarizes the characteristics of the individual sample plots in Test Site I.

Table Table 1. Characteristics of sample plots in Test Site I; N stands for the number of trees.

Click here to display table

Table 1. Characteristics of sample plots in Test Site I; N stands for the number of trees.
PlotSize (ha)Age (a)Trees/haDeciduous (%)N lower layer N interm. layer N upper layer
210.2016050066371448
220.2016054079196029
550.152408305772120
560.2317034010311927
570.1010045000441
580.10854401410430
590.104021501768554
600.1011038010082227
640.121004308713435
650.1210081096532635
740.3085700291133165
810.3070610100295996
910.3611026075311154
920.2511017010013327
930.28110240667259
940.291102509715454
950.25110240106053
960.301102008630326

Full-waveform LiDAR data of several ALS campaigns are available for the test sites, which have been collected by Milan Flug GmbH with the Riegl LMS-Q560 system. Table 2 contains details about the point density, leaf-on and leaf-off conditions during the flights and the footprint size. The term point density refers to the nominal value influenced by the pulse repetition rate (PRF), flying altitude, flying speed and strip overlap. Naturally, the reference data have been updated for the individual flying dates. The calibration of the Riegl full waveform system was determined from special calibration flights performed over an airfield in order to make the pulse intensity consistent with respect to the varied flight altitude. Several tracks were flown at different flying heights (200 m and 400 m) along and across the airfield. The mean intensity Ii, corrected with respect to the emitted intensity Ie, and the mean distance from the LiDAR to the target si were calculated in four homogeneous areas (122 m2–133 m2) for each track i. In order to reduce the impact of the scan angle we only used measurements whose scan angles were smaller than 10 degrees. The best coefficient k was estimated from all possible observation equations (3):

Forests 05 01122 i003
which can be formulated for two tracks i and j flown at different heights. Table 2 also shows the results obtained for the two flights of leaf-off and on. However, no detailed information from the hardware supplier is available on that subject. The calibrated values for k were used in the following analysis.

Table Table 2. Configurations for airborne light detection and ranging (LiDAR) campaigns for Test Site I.

Click here to display table

Table 2. Configurations for airborne light detection and ranging (LiDAR) campaigns for Test Site I.
Time of flightMay 2006May 2007
Data setIII
FoliageLeaf-offLeaf-on
ScannerRiegl LMS-Q560Riegl LMS-Q560
Pts/m22525
Above ground level (AGL) (m)400400
Beam divergence (mrad) ≤0.5≤0.5
Calibration parameter k1.9021.736

3.1.2. Test Site II

The second experiment was conducted in the Austrian floodplain forest, which is located in western Austria along the border to the Germany (47°58′19″ N, 12°55′9″ E). Seven sample plots with an area size between 200 m2 and 500 m2 were selected. The forest comprises alluvial forest, spruce monocropping, and deciduous mixed forest with partial pinewood. Practically all age classes are found. The plots comprise forest in the early and the late pole phase. Table 3 summarizes the characteristics of the individual sample plots in Test Site II.

Table Table 3. Characteristics of sample plots in Test Site II; N stands for the number of trees.

Click here to display table

Table 3. Characteristics of sample plots in Test Site II; N stands for the number of trees.
PlotSize (ha)Altitude (m)Trees/haDeciduous (%)N lower layerN intern layerN upper layer
10.0544144800012
20.044414830009
30.054414171000211
40.04441349100017
50.0544149000013
60.04440261100022
70.04440202100014
80.0344156075062
90.0544145300014
100.0544044100013
110.04440272100005
120.05439196100006
130.0543948700014
140.0543949000013
150.0643967900023
160.04440371100027
170.0543969800018
180.0548257600016
190.0548363312006
200.0546863194943
210.0546440590423
220.0546469000017
230.044483300005
240.0544747183126
250.0545669200019
260.044423400026
270.044424110017

Full waveform data were collected by Forest Mapping Management GmbH in Salzburg with the Riegl LMS-Q680i in March 2011 after snowmelt but prior to foliation with a four-fold average point density of 5–20 points/m2 (Table 4). The laser pulse repetition rate was 240 kHz, the pulse width at half maximum reached 4 ns and the laser wavelength was 1550 nm. The flying altitude of 700 m resulted in a footprint size of ca.30 cm.

Table Table 4. Configurations of the airborne LiDAR campaign in Test Site II.

Click here to display table

Table 4. Configurations of the airborne LiDAR campaign in Test Site II.
Time of flightMarch 2011
  Foliage  Leaf-off
  Scanner  Riegl LMS-Q680i
  Point density: Pts/m2  5, 10, 15, 20
  AGL (m)  700
  Beam divergence (mrad)  <=0.5
  Scan angle  0°–22.5°

Unfortunately, there were no special calibration flights performed in this data acquisition campaign to determine the calibration of the Riegl full waveform laser system. Therefore, for this test site the mean intensity Ii was calculated by the correction only with respect to the emitted intensity Ie, and the mean run length si for each track, simply assuming simply the coefficient k = 2 for all flights.

3.2. Field Data and Evaluation

3.2.1. Test Site I

At the Test Site I, we selected 18 sample plots with an area size between 1000 m2 and 3600 m2 in two test sites E and C. Reference data for all trees with DBH larger than 7 cm were collected for 688 Norway spruces (Picea abies), 812 European beeches (Fagus sylvatica), 70 fir trees (Abies alba), 71 Sycamore maples (Acer pseudoplatanus), 21 Norway maples (Acer platanoides) and two lime trees (Tilia Europaea). Tree parameters like the DBH, total tree height, stem position and tree species were measured and determined by GPS, tachometry and the “Vertex III” system. Naturally, the reference data were updated for the individual dates of the LiDAR data. A DTM with a grid size of 1 m and an absolute accuracy of 25 cm was available for the test sites [29]. Table 1 summarizes the characteristics of the individual sample plots. The descriptive statistics of the field trees are summarized in Table 5.

Table Table 5. Statistical summary of field tree variables in Test Site I.

Click here to display table

Table 5. Statistical summary of field tree variables in Test Site I.
Time of acquisitionMay 2006May 2007
Tree height (m) DBH (cm)Tree height (m)DBH (cm)
Min5.1075.107
Max50.6011350.60113
Mean25.4231.9025.2931.70
Standard deviation10.7017.9010.6817.60

3.2.2. Test Site II

We applied the strategy to the sample plots acquired under leaf-off condition and validated the results using the method of single-tree based evaluation. Reference data for all trees with DBH larger than 15 cm were collected for 62 Norway spruces (Picea abies), one European beeches (Fagus sylvatica), 24 European ash (Fraxinus excelsior), 32 Black Alder (Alnus glutinosa), four Sycamore maples (Acer pseudoplatanus), and one lime trees (Tilia Europaea). Tree parameters including the DBH, total tree height, stem position and tree species were measured and determined by GPS, tachometry and the “Vertex III hypsometer” system. Additionally, a DTM with a grid size of 1 m and an absolute accuracy of 25 cm was also available. The descriptive statistics of the field trees are summarized in Table 6.

Table Table 6. Statistical summary of field tree variables in Test Site II.

Click here to display table

Table 6. Statistical summary of field tree variables in Test Site II.
Time of acquisitionMarch 2011
Tree height (m)DBH (cm)
Min1.02.0
Max44.050.0
Mean21.222.8
Standard deviation8.710.1

3.2.3. Evaluation

The tree detection evaluation is performed based on the single-tree level by finding matched tree segments in the reference. The tree detection results are evaluated by comparison with reference data using two criteria: (i) the distance from detected trees to reference should be smaller than 60% of the mean tree spacing of the plot; (ii) the height difference between detected and reference trees should be smaller than 15% of htop. If a reference tree is assigned to more than one detected tree, the tree with the minimum distance to the reference is selected. Detected trees that are linked to one reference tree are so-called “true positives” and detected trees without any link to a tree position are treated as “false positives”. We used “completeness and correctness” measures to characterize the performance of the individual tree detection, which are defined in Equations (4) and (5), respectively.

Forests 05 01122 i004
Forests 05 01122 i005

4. Results and Discussion

4.1. Results

By applying the procedure for 3D single tree detection to the test plots in a batch procedure, the experimental results describing the impact of each selected control parameter on the performance of tree detection are illustrated in Figure 3, Figure 4, Figure 5, Figure 6, Figure 7, Figure 8, Figure 9, Figure 10 and Figure 11. Since the sensitivity analysis is performed based on varying one control parameter at each time, those parameters which did not vary during the sensitivity analysis should be assigned with constant values: NCutThre = 0.16, Vsize = 0.5, λ = 1.5.

4.1.1. Test Site I

Figure 3, Figure 4 and Figure 5 show the results for the dataset of Test Site I acquired in 2006 under leaf-off condition, while Figure 6, Figure 7 and Figure 8 show the results for Test Site I acquired in 2007 under leaf-on condition.

Forests 05 01122 g003 1024

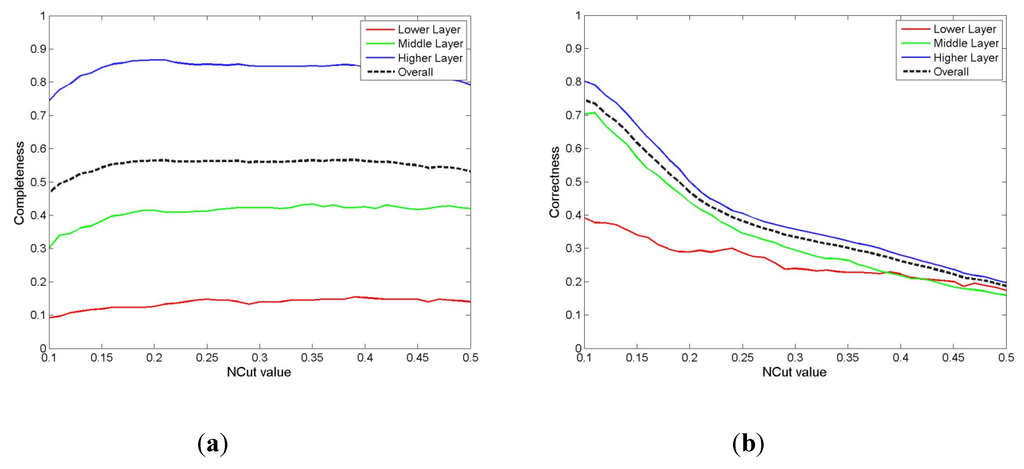

Figure 3. Sensitivity analysis with respect to the parameter NCutThres for the dataset of Test Site I acquired under leaf-off condition; (a) Completeness; (b) Correctness; colored lines indicate the forest layers.

Click here to enlarge figure

Figure 3. Sensitivity analysis with respect to the parameter NCutThres for the dataset of Test Site I acquired under leaf-off condition; (a) Completeness; (b) Correctness; colored lines indicate the forest layers.
Forests 05 01122 g003 1024
Forests 05 01122 g004 1024

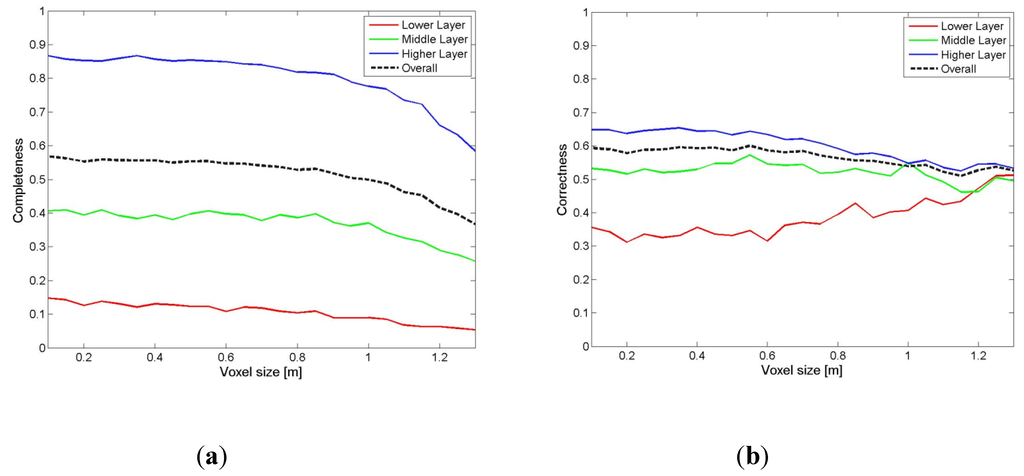

Figure 4. Sensitivity analysis with respect to the parameter Vsize for the dataset of Test Site I acquired under leaf-off condition; (a) Completeness; (b) Correctness; colored lines indicate the forest layers.

Click here to enlarge figure

Figure 4. Sensitivity analysis with respect to the parameter Vsize for the dataset of Test Site I acquired under leaf-off condition; (a) Completeness; (b) Correctness; colored lines indicate the forest layers.
Forests 05 01122 g004 1024
Forests 05 01122 g005 1024
Figure 5. Sensitivity analysis with respect to the parameter λ for the dataset of Test Site I acquired under leaf-off condition; (a) Completeness; (b) Correctness; colored lines indicate the forest layers.

Click here to enlarge figure

Figure 5. Sensitivity analysis with respect to the parameter λ for the dataset of Test Site I acquired under leaf-off condition; (a) Completeness; (b) Correctness; colored lines indicate the forest layers.
Forests 05 01122 g005 1024
Forests 05 01122 g006 1024

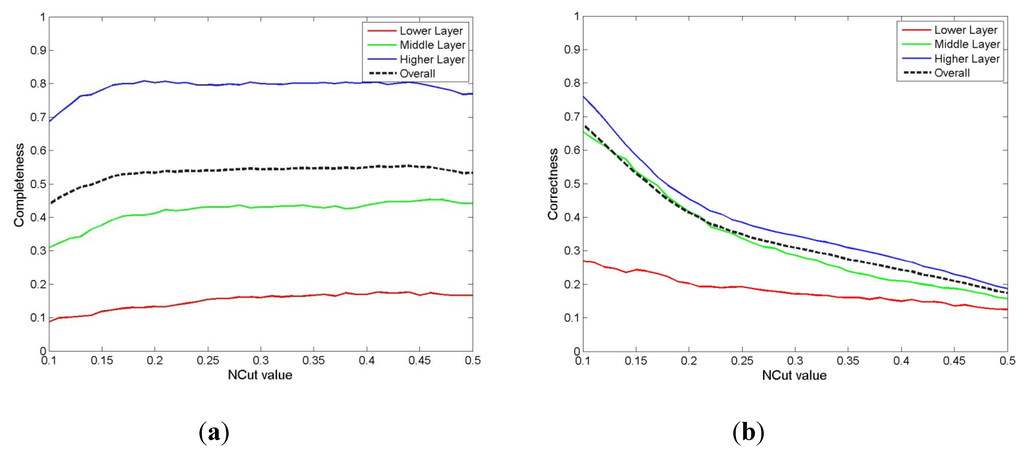

Figure 6. Sensitivity analysis with respect to the parameter NCutThres for the dataset of Test Site I acquired under leaf-on condition; (a) Completeness; (b) Correctness; colored lines indicate the forest layers.

Click here to enlarge figure

Figure 6. Sensitivity analysis with respect to the parameter NCutThres for the dataset of Test Site I acquired under leaf-on condition; (a) Completeness; (b) Correctness; colored lines indicate the forest layers.
Forests 05 01122 g006 1024
Forests 05 01122 g007 1024

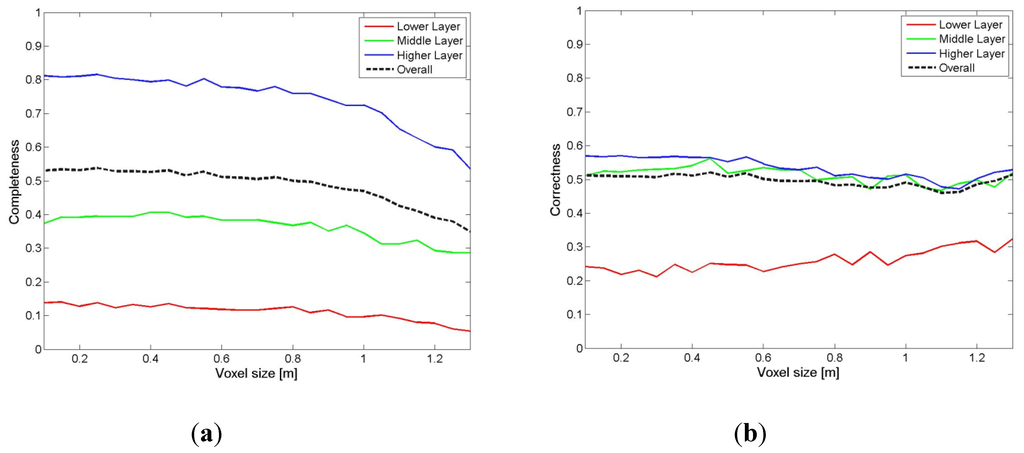

Figure 7. Sensitivity analysis with respect to the parameter Vsize for the dataset of Test Site I acquired under leaf-on condition; (a) Completeness; (b) Correctness; colored lines indicate the forest layers.

Click here to enlarge figure

Figure 7. Sensitivity analysis with respect to the parameter Vsize for the dataset of Test Site I acquired under leaf-on condition; (a) Completeness; (b) Correctness; colored lines indicate the forest layers.
Forests 05 01122 g007 1024
Forests 05 01122 g008 1024

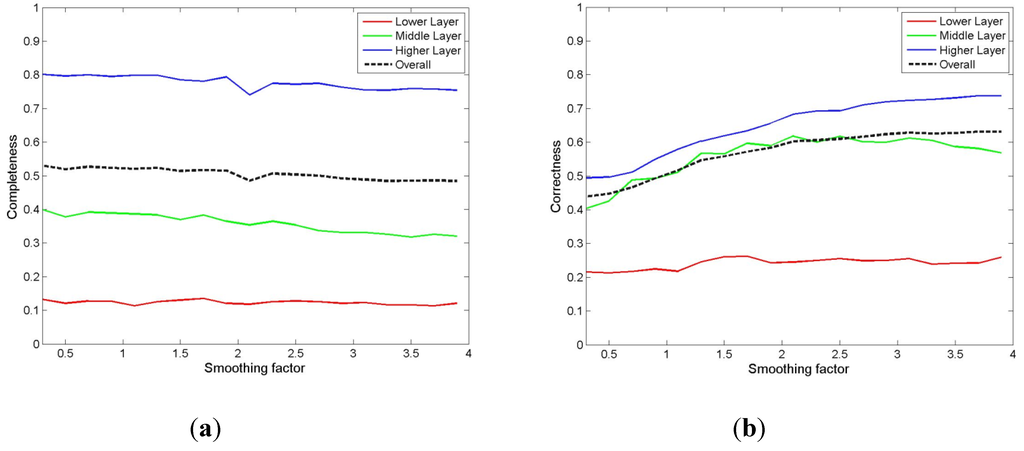

Figure 8. Sensitivity analysis with respect to the parameter λ for the dataset of Test Site I acquired under leaf-on condition, (a) Completeness; (b) Correctness; colored lines indicate the forest layers.

Click here to enlarge figure

Figure 8. Sensitivity analysis with respect to the parameter λ for the dataset of Test Site I acquired under leaf-on condition, (a) Completeness; (b) Correctness; colored lines indicate the forest layers.
Forests 05 01122 g008 1024

4.1.2. Test site II

Figure 9, Figure 10 and Figure 11 show the results for the dataset of Test Site II.

Forests 05 01122 g009 1024
Figure 9. Sensitivity analysis with respect to the parameter NCutThres for the dataset of Test Site II acquired under leaf-off condition; (a) Completeness; (b) Correctness; colored lines indicate different point densities.

Click here to enlarge figure

Figure 9. Sensitivity analysis with respect to the parameter NCutThres for the dataset of Test Site II acquired under leaf-off condition; (a) Completeness; (b) Correctness; colored lines indicate different point densities.
Forests 05 01122 g009 1024
Forests 05 01122 g010 1024

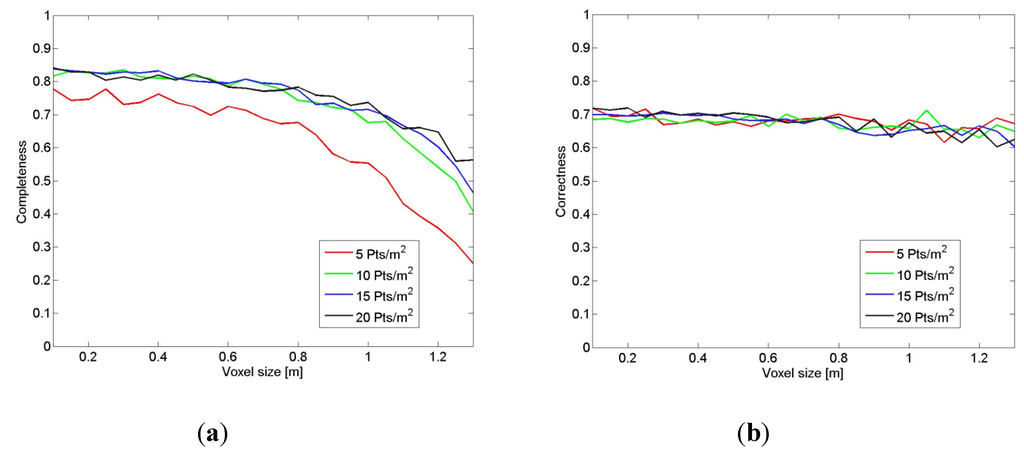

Figure 10. Sensitivity analysis with respect to the parameter Vsize for the dataset of Test Site II acquired under leaf-off condition; (a) Completeness; (b) Correctness; colored lines indicate different point densities.

Click here to enlarge figure

Figure 10. Sensitivity analysis with respect to the parameter Vsize for the dataset of Test Site II acquired under leaf-off condition; (a) Completeness; (b) Correctness; colored lines indicate different point densities.
Forests 05 01122 g010 1024
Forests 05 01122 g011 1024

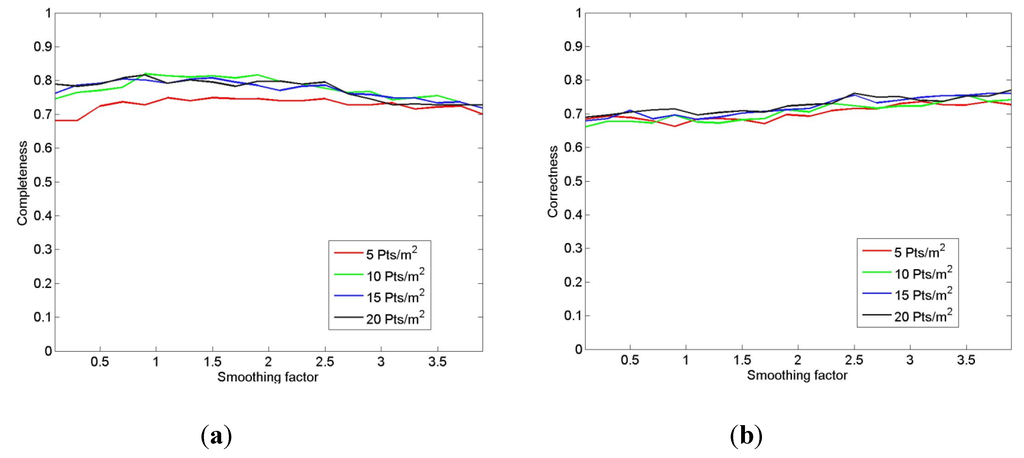

Figure 11. Sensitivity analysis with respect to the parameter λ for the dataset of Test Site II acquired under leaf-off condition; (a) Completeness; (b) Correctness; colored lines indicate different point densities.

Click here to enlarge figure

Figure 11. Sensitivity analysis with respect to the parameter λ for the dataset of Test Site II acquired under leaf-off condition; (a) Completeness; (b) Correctness; colored lines indicate different point densities.
Forests 05 01122 g011 1024

4.2. Discussion

4.2.1. Test Site I vs. Test Site II

The two test sites are characterized by different forest structures and stand properties, although they are located in the same geographical zone. Test Site I is characterized by a multi-story forest area with uneven-aged stands. Test Site II features a more homogenous forest area with a dominant upper layer and monocultural characteristics. By comparing the variation curves of the two data sites in Figure 3, Figure 4, Figure 5, Figure 6, Figure 7, Figure 8, Figure 9, Figure 10 and Figure 11 in response to the control parameters shows that the trend of the uncertainty of the tree detection performance with respect to the different algorithm parameters seems to remain stable. It verifies the important expectation that the proposed 3D segmentation method can deal with forest areas of different structural properties in a robust manner. The quantitative results for tree detection certainly become degraded if test areas have more challenging forest structures such as high stem density, mixed stand and multi-layered trees. Consequently, one can generally observe that the detection rate in Test Site II is about 20% higher than that in Test Site I, while the test site I features a 10% larger false positive rate. Moreover, according to Figure 5, Figure 8 and Figure 11 the smoothing factor λ is likely to have more distinct effects on the correctness of the tree detection results for Test Site I. The false alarm rate in Test Site I was reduced by at least 15% whereas that in Test Site II was reduced only slightly. This suggests that it is beneficial to smooth the CHM of multi-layered forest areas prior to 3D segmentation in order to eliminate redundant local maxima contributed by many small trees, since the completeness of tree detection for both test sites remained stable when the smoothing factor λ increased from one to four.

4.2.2. Foliage Condition

Since LiDAR datasets were only acquired under leaf-on condition at Test Site II, the sensitivity analysis with respect to the influence of the foliage condition is limited to Test site I. Figure 3, Figure 4, Figure 5, Figure 6, Figure 7 and Figure 8 show the sensitivity analysis results of Test Site I under two foliage conditions—leaf-on and leaf-off, respectively. Generally, the impact of the varied control parameters on the tree detection performance is not significantly biased towards the foliage condition as observed in figures for the different parameters. For completeness, overall results for tree detection neither differ much in the absolute value nor in the trend of the curve changing with an increasing parameter. Neither can one find any distinct difference among the forest height layers between leaf-on and off foliage conditions. Only trees within the upper height layer are relatively more affected, which indicates a slight improvement concerning the detection rate in the case of leaf-off conditions. It matched the assumption that tall trees in the overstory should be better detected in the leaf-off case due to the weaker saturation effect of tree crowns (as top foliage of the tree crown reflects most of the signal back in the leaf-on case) and better reflection of inner tree structure caused by higher canopy transmittance against laser pulse. Nevertheless, the dependency relationship of the performance indices on the parameters is still maintained constant, no matter which forest height layer is considered. When one takes a look at the performance aspect concerning the correctness, a lower forest height layer seems to be the component of most concern. The leaf-on case decreased the correctness of tree detection in the lower forest layer by ca. 10%, while sensitivity curves of the control parameters tended to become steadier at all the forest height layers. Especially for the voxel size parameter the correctness of tree detection in the lower height layer did not result in on any significant improvement as in the leaf-off case for voxel sizes larger than 1.2 m. Incomplete sampling of small trees in the lower layer under leaf-on condition leads to the information loss in the voxel unit which was even more extensive. Additionally, it is comprehensible to see that trees in the lower height layer are not sensible to the variation of the smoothing factor applied to CHM, since most of the trees in that layer are not represented in the CHM, which are of course not affected by the smoothing operation.

4.2.3. Point Density

The experimental results of the sensitivity analysis for both Test Site I and Test Site II with four-fold point density demonstrate that the threshold NCutThres plays a more significant role in the determination of overall performance of 3D tree detection from airborne LiDAR point clouds. The optimal value for NCutThres should be selected between 0.16 and 0.23 in order to achieve the trade-off between the completeness and correctness. Moreover, all other control parameters except NCutThres are much less sensitive with regard to the correctness and completeness for point densities larger than 5 pts/m2.

Larger NCutThres values lead to more tree segments with a higher completeness but lower correctness (over-segmentation), since the NCutThres value defines the threshold for evaluating the dissimilarity measure between sub-graphs. Lower point density datasets including one-fold (5 pts/m2) or two-fold (10 pts/m2) datasets even produce a descending completeness when NCutThres is larger than 0.4. Such low point density datasets reach their over-segmentation limit and will produce no more segments on the basis of bipartition cuts. However, the performances of 3D tree segmentation for the data sets of four different point densities are almost identical if a NCutThres value smaller than 0.25 is selected. The performance curves resulting from varying the smoothing factor λ indicate it to have only negligible significance regardless of the point density of the LiDAR data. Only the correctness appears to slightly increase. In response, the evolution of performance curves with respect to λ (Figure 11) looks like a stochastic fluctuation around a constant value. The results from the variation of the voxel size Vsize show that there is a slightly consistent impact of Vsize on the performance of the 3D tree detection leading to a degraded completeness when Vsize increases, since the progress of correctness curves follows a fluctuant distribution around the same value. Datasets with lower point density under 10 pts/m2 are especially sensible to the large voxel size whereby the completeness decreases dramatically if Vsize exceeds 0.6 m.

An interesting finding is that a higher point density (>10 pts/m2) cannot necessarily guarantee better performance or stable results for tree detection given the varied voxel size. Moreover, if the voxel size increases to more than 0.8 m an under-segmentation happens to the one/two-fold point density datasets. This could be due to the fact that the large voxel size reduces the dimension of the adjacency graph and small trees are unified into one graph node. Generally, the point density of LiDAR data seems to not play as significant a role as expected. In this case, it is difficult to state that the performance of the tree detection algorithm really benefits from high point density, at least for those datasets with a point density larger than 10 pts/m2. High point density (>10 pts/m2) seems not to contribute to any significant improvement to the tree detection results. A similar saturation effect in point density for tree detection from LiDAR data was also observed and reported in the study [20], in which the point density increased from two points to eight points per m2 and had a marginal improvement in crown delineation accuracy.

The study performed in [30] confirmed that the accuracy of predicted metrics at the plot level such as tree height DBH and basal area was also invariant to changes in pulse density at moderate to high densities no matter what kind of prediction models were used. Coverage metric including canopy cover and tree density are more sensitive to changes in point density but still not significant. They suggest that low-density LiDAR data may be capable of estimating typical forest structure metrics reliably in some situations. This study enlightens the user to achieve the trade-off between data acquisition cost and accuracy of tree detection in forest inventory products where time expenses for flight and post-processing can be simultaneously minimized at no extra cost of data quality. The study indicates that the point density may not be the major factor, which should be pursued in the data preparation for LiDAR forestry remote sensing. It may be a result of the fact that the vertical resolving ability of LiDAR towards forestry tasks is more relevant to the penetrability of laser pulses against tree crown rather than the point spacing.

5. Conclusions

It is necessary to characterize and even quantify the influence of uncertainty associated with various control parameters for single tree detection based on 3D segmentation of LiDAR point clouds, since the performance of the forest characterization based on ITD strategy is directly related to the accuracy of tree detection results. The parameter settings of the tree detection method needs to be examined and optimized towards different data acquisition conditions and forest stand properties, such as point density, flight altitude, forest type and tree growth phase. The experimental results of this work show that the threshold for normalized cut value NCutThres is the most important and influential control parameter in the entire 3D segmentation algorithm. NCutThres is also the most sensible parameter to the performance of tree detection and needs to be carefully adjusted. According to the sensitivity analysis performed here, the developed strategy for tree detection remains steady with respect to dealing with various forest structures, even though multi-layered mixed forest stands may show degraded results due to the existence of an understory. Additionally, foliage condition is more likely to have a distinct impact on the correctness of tree detection in forest understory, especially with regard to the selection of the voxel size. In particular, this means that it is feasible to enlarge Vsize to alleviate the oversegmentation effect for understory trees in leaf-on case. Finally, high point density of LiDAR data leads to high data acquisition cost and time expenses (especially for the waveform LiDAR extra time expenses for waveform decomposition are needed), but not performance improvement in proportion. The value of 10 pts/m2 seems to be a good trade-off between the cost and the quality of results.

Future work could be focused on the simultaneous optimization of multiple control parameters and the extension to the sensitivity analysis for tree species classification and forest parameter estimation. Furthermore, the sensitivity analysis on LiDAR data will enable us to identify the most influential structural parameters of forests for tree detection results, such as stem density and tree height distribution.

Acknowledgments

The authors want to thank Mr. Ing. Hermann Novak from Forest Mapping Management GmbH in Salzburg, Austria for providing us the experimental and field reference data of Test Site II.

Author Contributions

Wei Yao wrote the manuscript and was responsible for the research design and analysis. Jan Krull was responsible for experimental implementation as well as data analysis. Peter Krzystek supported the analysis and technical implementation. Marco Heurich provided the reference data from field works.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yao, W.; Stilla, U. Mutual enhancement of weak laser pulses for point cloud enrichment based on full-waveform analysis. Geosci. Remote Sens. 2010, 48, 3571–3579. [Google Scholar] [CrossRef]
  2. Vaughn, N.R.; Moskal, L.M.; Turnblom, E.C. Tree species detection accuracies using discrete point LiDAR and airborne waveform LiDAR. Remote Sens. 2012, 4, 377–403. [Google Scholar] [CrossRef]
  3. Yao, W.; Krzystek, P.; Heurich, M. Tree species classification and estimation of stem volume and DBH based on single tree extraction by exploiting airborne full-waveform LiDAR data. Remote Sens. Environ. 2012, 123, 368–380. [Google Scholar] [CrossRef]
  4. Stilla, U.; Yao, W.; Jutzi, B. Detection of weak laser pulses by full waveform stacking. In PIA07 Photogrammetric Image Analysis 2007; International Archives of Photogrammetry, Remote Sensing, and Spatial Information Sciences; Stilla, U., Ed.; Volume 36, (3/W49A). pp. 25–30.
  5. Reitberger, J.; Krzystek, P.; Stilla, U. Analysis of full waveform LiDAR data for the classification of deciduous and coniferous trees. Int. J. Remote Sens. 2008, 29, 1407–1431. [Google Scholar] [CrossRef]
  6. Næsset, E. Predicting forest stand characteristics with airborne scanning laser using a practical two-stage procedure and field data. Remote Sens. Environ. 2002, 80, 88–99. [Google Scholar] [CrossRef]
  7. White, J.C.; Wulder, M.A.; Vastaranta, M.; Coops, N.C.; Pitt, D.; Woods, M. The utility of image-based point clouds for forest inventory: A comparison with airborne laser scanning. Forests 2013, 4, 518–536. [Google Scholar] [CrossRef]
  8. He, Q.; Chen, E.; An, R.; Li, Y. Above-ground biomass and biomass components estimation using LiDAR data in a coniferous forest. Forests 2013, 4, 984–1002. [Google Scholar] [CrossRef]
  9. Andersen, H.E.; McGaughey, R.J.; Reutebuch, S.E. Estimating forest canopy fuel parameters using LiDAR data. Remote Sens. Environ. 2005, 94, 441–449. [Google Scholar] [CrossRef]
  10. Nelson, R.; Krabill, W.; Tonelli, J. Estimating forest biomass and volume using airborne laser data. Remote Sens. Environ. 1988, 24, 247–267. [Google Scholar] [CrossRef]
  11. Heurich, M.; Thoma, F. Estimation of forestry stand parameters using laser scanning data in temperate, structurally rich natural beech (Fagus sylvatica) and spruce (Picea abies) forests. Forestry 2008, 81, 645–661. [Google Scholar] [CrossRef]
  12. Kantola, T.; Vastaranta, M.; Lyytikäinen-Saarenmaa, P.; Holopainen, M.; Kankare, V.; Talvitie, M.; Hyyppä, J. Classification of needle loss of individual Scots pine trees by means of airborne laser scanning. Forests 2013, 4, 386–403. [Google Scholar] [CrossRef]
  13. Ene, L.; Næsset, E.; Gobakken, T. Single tree detection in heterogeneous boreal forests using airborne laser scanning and area-based stem number estimates. Int. J. Remote Sens. 2012, 33, 5171–5193. [Google Scholar] [CrossRef]
  14. Persson, A.; Holmgren, J.; Soderman, U. Detecting and measuring individual trees using an airborne laser scanner. Photogramm. Eng. Remote Sens. 2002, 68, 925–932. [Google Scholar]
  15. Yu, X.; Hyyppä, J.; Vastaranta, M.; Holopainen, M.; Viitala, R. Predicting individual tree attributes from airborne laser point clouds based on the random forests technique. ISPRS J. Photogramm. Remote Sens. 2011, 64, 28–37. [Google Scholar]
  16. Reitberger, J.; Schnörr, C.; Krzystek, P.; Stilla, U. 3D segmentation of single trees exploiting full waveform LiDAR data. ISPRS J. Photogramm. Remote Sens. 2009, 64, 561–574. [Google Scholar] [CrossRef]
  17. Vauhkonen, J.; Ene, L.; Gupta, S.; Heinzel, J.; Holmgren, J.; Pitkänen, J.; Solberg, S.; Wang, Y.; Weinacker, H.; Hauglin, K.M.; Lien, V.; Packalén, P.; Gobakken, T.; Koch, B.; Næsset, E.; Tokola, T.; Maltamo, M. Comparative testing of single tree detection algorithms under different types of forest. Forestry 2012, 3, 27–40. [Google Scholar]
  18. Abed, F.M.; Mills, J.P.; Miller, P.E. Echo amplitude normalization of full-waveform airborne laser scanning data based on robust incidence angle estimation. IEEE Trans. Geosci. Remote Sens. 2012, 50, 2910–2918. [Google Scholar] [CrossRef]
  19. Korpela, I.; Ørka, H.O.; Maltamo, M.; Tokola, T.; Hyyppä, J. Tree species classification using airborne LiDAR-effects of stand and tree parameters, downsizing of training set, intensity normalization, and sensor type. Silva Fenn. 2010, 44, 319–339. [Google Scholar]
  20. Kaartinen, H.; Hyyppä, J.; Yu, X.; Vastaranta, M.; Hyyppä, H.; Kukko, A.; Holopainen, M.; Heipke, C.; Hirschmugl, M.; Morsdorf, F.; Næsset, E.; Pitkänen, J.; Popescu, S.; Solberg, S.; Wolf, B.M.; Wu, J.C. An international comparison of individual tree detection and extraction using airborne laser scanning. Remote Sens. 2012, 4, 950–974. [Google Scholar] [CrossRef]
  21. Gonzalez, P.; Asner, G.P.; Battles, J.; Lefsky, M.A.; Waring, K.M.; Palace, M. Forest carbon densities and uncertainties from LiDAR, quickbird, and field measurements in California. Remote Sens. Environ. 2011, 114, 1561–1575. [Google Scholar]
  22. Lu, D.; Chen, Q.; Wang, G.; Moran, E.; Batistella, M.; Zhang, M.; Laurin, G.V.; Saah, D. Aboveground forest biomass estimation with landsat and LiDAR data and uncertainty analysis of the estimates. Int. J. For. Res. 2012. [Google Scholar] [CrossRef]
  23. Monnet, J.M.; Merminy, E.; Chanussotz, J.; Berger, F. Tree top detection using local maxima filtering: a parameter sensitivity analysis. In Proceedings of the 10th International Conference on LiDAR Applications for Assessing Forest Ecosystems (Silvilaser 2010), Freiburg, Germany, September 2010; pp. 14–17.
  24. Palleja, T.; Tresanchez, M.; Teixido, M.; Sanz, R.; Rosell, J.R.; Palacin, J. Sensitivity of tree volume measurement to trajectory errors from a terrestrial LiDAR scanner. Agric. For. Meteorol. 2010, 150, 1420–1427. [Google Scholar] [CrossRef]
  25. Mutlu, M.; Popescu, S.C.; Zhao, K. Sensitivity analysis of fire behavior modeling with LiDAR derived surface fuel maps. For. Ecol. Manag. 2008, 256, 289–294. [Google Scholar] [CrossRef]
  26. D’Errico, J. 2006, Surface fitting using gridfit. Available online: http://www.mathworks.com/matlabcentral/fileexchange (accessed on 1 October 2009).
  27. Shi, J.; Malik, J. Normalized cuts and image segmentation. Pattern Anal. Mach. Intell. 2000, 22, 888–905. [Google Scholar] [CrossRef]
  28. Reitberger, J. 3D-Segmentierung von Einzelbäumen und Baumartenklassifikation aus Daten flugzeuggetragener Full Waveform Laserscanner. Ph.D. Thesis, Technische Universitaet Muenchen, München, Germany, 2010. [Google Scholar]
  29. Heurich, M. Automatic recognition and measurement of single trees based on data from airborne laser scanning over the richly structured natural forests of the Bavarian Forest National Park. For. Ecol. Manag. 2008, 255, 2416–2433. [Google Scholar] [CrossRef]
  30. Jakubowski, M.K.; Guo, Q.; Kelly, M. Tradeoffs between LiDAR pulse density and forest measurement accuracy. Remote Sens. Environ. 2013, 130, 245–253. [Google Scholar] [CrossRef]
Forests EISSN 1999-4907 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
