Next Article in Journal
Impact of Forest Fragmentation on Patterns of Mountain Pine Beetle-Caused Tree Mortality
Previous Article in Journal
Specific Gravity of Hybrid Poplars in the North-Central Region, USA: Within-Tree Variability and Site × Genotype Effects


Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:
Background:
Article

Effect of Nondestructive Evaluation of Veneers on the Properties of Laminated Veneer Lumber (LVL) from a Tropical Species

1
Department of Forest Engineering, Faculty of Technology, University of Brasília, P.O. Box 04357, 70904-970, Brasília, DF, Brazil
2
Forest Products Laboratory, Brazilian Forest Service, Ministry of Environment, 70818-900, Brasília, DF, Brazil
3
Department of Forest Science, Luiz de Queiroz College of Agriculture, University of São Paulo, 13418-900, Piracicaba, SP, Brazil
*
Author to whom correspondence should be addressed.
Forests 2013, 4(2), 270-278; https://doi.org/10.3390/f4020270
Submission received: 28 January 2013 / Revised: 21 April 2013 / Accepted: 24 April 2013 / Published: 29 April 2013

Abstract

:
This study aimed at evaluating the potential of Schizolobium parahyba to produce laminated veneer lumber (LVL) and the feasibility of a nondestructive method for grading the veneers. Initially, 64 S. parahyba veneers were nondestructively tested using the stress wave method, and stress wave velocity (wv) and veneer dynamic modulus of elasticity (EdV) were determined. Afterwards, the veneers were graded according to EdV descending values and used to manufacture 8-ply LVL boards. After the manufacturing, the boards were also nondestructively tested, and the board dynamic modulus of elasticity (EdB) was determined. Simple linear regression analysis was run to evaluate the relationship between the nondestructive and mechanical properties of veneers/boards. A positive effect of veneer stress wave properties on the LVL properties was found. Therefore, the higher the EdV values, the higher the LVL properties. The relationships between EdV and EdB properties were highly significant with all mechanical properties. It was clearly observed that when this grading procedure was used, the veneers were indirectly graded by their density. Finally, it could be concluded that S. parahyba showed good potential to produce LVL.

1. Introduction

Nondestructive evaluation (NDE) is the science that aims to obtain properties of the material without altering its end-use, and to use this information to make decisions regarding appropriate applications [1]. With respect to isotropic materials, NDE is used to detect voids, nonhomogeneous spots and other irregularities. However, these irregularities are common in wood products, so NDE is also used to evaluate their effect on physical and mechanical properties. In spite of these irregularities, nondestructive methods have been used to evaluate the quality of several types of already consolidated wood-based composites such as oriented strandboard [2,3], wood-plastic composites [4], cement/gypsum bonded particleboard [5], bamboo particleboard [6], plywood [7], laminated veneer lumber [8] and oriented/laminated strand lumber [9]. However, the literature on NDE of wood-based materials remains relatively scarce, especially as regards engineered wood products made from tropical hardwoods.
Nevertheless, the usual approach is to employ the nondestructive method before composite manufacturing, thus assessing the quality of the raw material being processed. Visual and acoustic nondestructive methods have been used previously to sort logs, lumber and veneers employed in the manufacturing of ply-based wood composites, as seen in several works [10,11,12,13,14,15]. Wang et al. [15], while studying ultrasonically (US) rated veneer from red maple, found a positive relationship between veneer US variables and LVL billet stiffness and strength. Bortoletto [13] on the other hand did not find any effect on the properties when plywood was manufactured using randomly or ultrasonically rated veneers from Pinus merkusii. Teles et al. [12] found that lumber nondestructively tested by means of transverse vibration yielded stronger and stiffer glulam beams made from a tropical hardwood (Sextonia rubra).
The tropical hardwood species Schizolobium parahyba is a Brazilian native tree which has been studied for use as a plantation tree, and encouraging results have been obtained. It is a fast growing tree species, presents straight trunk without branches and produces low density wood, which makes this species suitable for plywood production [16]. Nowadays, the Brazilian wood industry does not employ any kind of NDE method to grade raw material based on strength or stiffness. This means that the quality control of the products is carried out only at the end of the processing. Therefore, it is very important to propose and study the application of new technologies for processing wood-based products in order to improve their quality, reliability, safety and serviceability. For instance, the Brazilian wood design code is currently under review to include three NDE methods to qualify wood for structural purposes. In this context, this study aimed at evaluating the potential of Schizolobium parahyba to produce laminated veneer lumber and the feasibility of a nondestructive method to grade the veneers, and its effect on the board’s properties.

2. Materials and Methods

2.1. Wood Material and Nondestructive Evaluation

Logs from 16-year-old Schizolobium parahayba plantation trees were rotary peeled, and veneers were made measuring 980 × 1000 × 2 mm3 (length × width × thickness). Further information about tree origin, plantation and veneer production can be obtained from our previously published work [16]. The veneers were air-dried for 10 days and then cut to reduce dimensions to 490 × 250 × 2 mm3 (length × width × thickness). A total of 64 veneers were produced. A small sample was collected and macroscopically identified through comparison with the standard samples deposited at the Wood Anatomy Section of the Forest Products Laboratory (Index Xilarium FPBw), Brazilian Forest Service.
The veneers were nondestructively tested lengthwise using stress wave method (Metriguard Stress Wave Timer model 239A) (Figure 1). The material was hit three times by an impact pendulum (Figure 1A), and two accelerometers (Figure 1B,C) connected to the veneers measured the stress wave transit time (t, µs), i.e., the time required for the wave to travel between them (span, L). The average value of t was used to determine the veneer stress wave velocity (wv, m/s) and then the stress wave dynamic modulus of elasticity (Ed, MPa), according to equations 1 and 2. Thereafter, the 64 veneers were graded according to Ed values in descending order:
wv (m/s) = VLL (m/s) = L/(t × 10−6)
Ed (MPa) = wv² × ρ
where, wv is the stress wave velocity (m/s); L is the span (m); t is the transit time (µs); and ρ is the density (kg/m³).

2.2. Manufacturing and Testing of LVL

Eight LVL boards (8-ply) were manufactured according to Ed values. Thereunto, the first board was composed of eight stiffest veneers, and successively up to the eighth board, which was composed of eight less stiff veneers. The boards were manufactured using resorcinol formaldehyde (RF) adhesive (61.5% of solid content; 2130 cP) at a spread rate of 220 g/m2, prepared by mixing five parts of resorcinol and one part of formaldehyde by weight (5:1). The boards were pressed at room temperature (25 °C) for 24 h at pressure of 2.94 MPa. Finally, the boards were trimmed to reach the final dimension of nearly 450 × 200 × 16 mm (length × width × thickness). The boards were kept at conditioning room (20 °C; 65% RH) until they reached constant weight (≈ 30 days).
Afterwards, the consolidated boards were nondestructively tested in the same way as previously described for the veneers (Figure 1), and stress wave velocity (wvB, m/s) and stress wave dynamic modulus of elasticity of the boards (EdB, MPa) were calculated. The samples were then cut from the boards to determine physical and mechanical properties according to ASTM D5456 [17] standard. The samples were also nondestructively tested and the stress wave variables were determined (wvS; EdS) in the same way as for veneers and boards (Figure 1). Moduli of rupture (fm, MPa) and elasticity (EM, MPa) were assessed at flatwise (glue-line perpendicular to load direction) as well as edgewise (glue-line parallel to load direction) positions using a span, about 18 times the specimen depth. The samples for assessing the parallel compression strength (fc,0, MPa) presented slenderness ratio about 16. Five samples per board were cut for each type of mechanical testing. The average moisture content of the samples was close to 10.7%.

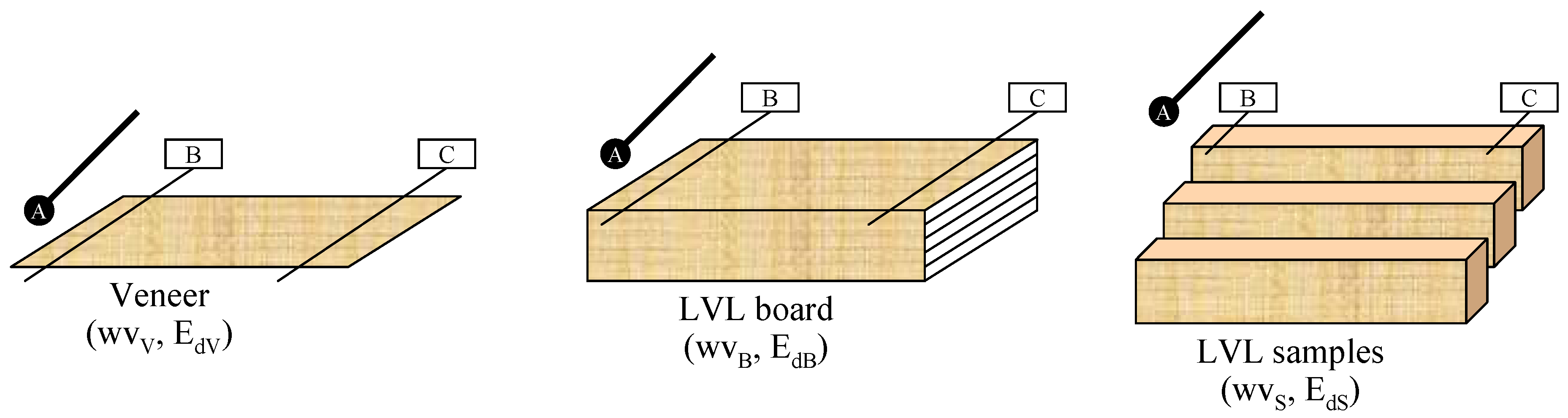

Figure 1. Scheme of nondestructive evaluation to determine stress wave velocity (wv) and dynamic modulus of elasticity (Ed) of veneer, laminated veneer lumber (LVL) boards and samples (A: impact pendulum; B, C: accelerometers).
Figure 1. Scheme of nondestructive evaluation to determine stress wave velocity (wv) and dynamic modulus of elasticity (Ed) of veneer, laminated veneer lumber (LVL) boards and samples (A: impact pendulum; B, C: accelerometers).
Forests 04 00270 g001

2.3. Statistical Analysis

The relationship between stress wave variables (wvV, EdV, wvB EdB, wvS and EdS) and mechanical properties (fM, EM and fc,0) was analyzed by means of simple linear regression analysis (y = a + bx), where stress wave variables were considered as independent variables, and mechanical properties as dependent variables. The following analyses were performed: veneer stress wave properties vs. LVL mechanical properties (N = 8); board stress wave properties vs. LVL mechanical properties (N = 8); samples stress wave properties vs. LVL mechanical properties (N = 24). These analyses aimed to fit mathematical models for explaining the variation in the mechanical properties of LVL boards.

3. Results and Discussion

Table 1 shows the results of nondestructive evaluation of veneers and boards. It was observed that the stress wave velocity in veneers was quite similar to that in boards. On the other hand, the values of dynamic modulus of elasticity observed for boards were higher compared to veneers.
Table 1. Nondestructive variables and density of veneers and boards.
Table 1. Nondestructive variables and density of veneers and boards.
Board #wvV1 [m/s]EdV [MPa]wvB [m/s]EdB [MPa]Density 2 [kg/m3]Density 3 [kg/m3]
144799098452010,561445512
24523839345059,748403478
34498802244549,227392469
44488784844849,468391462
54418771343468,861389461
64360752844099,236386475
74407728544698,835368435
84280681043768,517365442
Mean4432783744459,307392467
Note: 1 mean value of all veneers comprising the board; 2 veneers; 3 boards.
It should be emphasized that nondestructive grading of veneers based on EdV values implied density segregation; thus, denser veneers presented higher EdV values, which significantly affected the properties of manufactured LVL. As seen on Table 1, board #1 had the highest density (512 kg/m3), whereas board #8 had the lowest density (442 kg/m3). Similar behavior was found by Teles et al. [12], who employed the transverse vibration nondestructive method to grade lumber to produce glulam beams. The mechanical properties of the LVL boards are presented on Table 2. The mean values can be considered suitable compared to others found in the literature [18].
The effect of testing position (edge vs. flat) on modulus of rupture (p = 0.46679) and modulus of elasticity (p = 0.9519) was not identified. Data on Table 2 clearly show that the mechanical property values are descending from board #1 up to board #8. An exception can be observed for board #3, which was considered an outlier. Further details about this particular observation are given in the next section. The results obtained herein are in agreement with those found in the literature. Recently, Palma et al. [10] studied the effect of veneer nondestructive grading on properties of Hevea brasiliensis plywood. They found that veneer presenting high values of stress wave dynamic modulus of elasticity had a great positive impact on flexural properties, while plywood made from low-value veneer had worse performance even when combined with those first. Similar results were found by Wang et al. [15] manufacturing LVL with ultrasonically rated red maple veneers.
Table 2. Mechanical properties of LVL from Schizolobium parahayba.
Table 2. Mechanical properties of LVL from Schizolobium parahayba.
Board #EMedge [MPa]fmedge [MPa]EMflat [MPa]fmflat [MPa]fc,0 [MPa]
1997872.810,46277.035.1
2942969.39,33770.431.4
3767952.77,02451.128.1
4886261.88,81560.928.1
5891661.08,17061.629.3
6947966.59,20667.032.8
7824953.98,02051.526.6
8809254.78,00252.325.4
Mean883661.68,62961.529.6
Pio et al. [11] employed the same nondestructive method for grading Eucalyptus grandis veneers peeled from 15- and 20-year-old trees. The results pointed out that the stiffness of the veneers had a direct and positive effect on flexural properties of LVL made from this graded material. Therefore, LVL made based on the stiffness grade presented better mechanical properties. Nevertheless, Bortoletto Jr. [13] found different results, and plywood assembled with randomly or pre-graded Pinus merkusii veneers presented similar bending and shear properties.
Table 3 presents the mathematical models fitted to predict flexural properties of the boards using stress wave variables of veneers and boards. For each property there are two models: the first one involves computing all 8 replications (N = 8), while the second one includes 7 replications (N = 7), with board #3 excluded from the statistical analysis. As previously mentioned, it was observed that LVL board #3 presented discrepant values for the mechanical properties (Table 2) although the values of its nondestructive properties did not show any unusual pattern (Table 1).
Table 3. Models to predict LVL mechanical properties using nondestructive variables of veneers (EdV) and boards (EdB).
Table 3. Models to predict LVL mechanical properties using nondestructive variables of veneers (EdV) and boards (EdB).
MaterialLVL PropertyModel AR2F
VeneerEMedge3227.1 + 0.715EdV0.4044.07 NS
2780.1 + 0.7964EdV0.76621.3 **
EMflat1104.8 + 0.961EdV0.4034.05 NS
481.3 + 1.0725EdV0.80026.7 **
fmedge0.234 + 0.007EdV0.5286.72 *
−3.35 + 0.00854EdV0.79325.1 **
fmflat−21.02 + 0.011EdV0.5858.48 *
−11.7 + 0.0097EdV0.84830.7 **
fc,00.595 + 0.003EdV0.62910.21 *
−0.9048 + 0.0039EdV0.70013.8 **
BoardEMedge429.2 + 0.903EdB0.5397.02 *
909.6 + 0.8683EdB0.76921.4 **
EMflat−3506.7 + 1.304EdB0.6229.91 *
2843.5 + 1.2558EdB0.92745.9 **
fmedge−27.15 + 0.009EdB0.65611.45 *
−23.54 + 0.0093EdB0.80224.6 **
fmflat−55.02 + 0.012EdB0.69313.58 *
−33.60 + 0.0105EdB0.83528.3 **
fc,0−10.03 + 0.004EdB0.69813.89 **
−10.58 + 0.0043EdB0.71914.9 *
Note: A for each property in the first model N = 8, while N = 7 in the second; **,* statistically significant at α = 0.01 and 0.05, respectively; NS not significant.
Visually there was not any apparent defect such as bonding failure, delamination, warps, blow-up and cracks in board#3. However, it was observed that some samples taken from this board had been moderately attacked by boring insects during the acclimatization phase. Recently, Campos et al. [19] have observed unusual failure of wood I-beams whose flange was damaged by boring insects.
In terms of locations (veneers or board) and positions evaluated (flatwise and edgewise), the models were statistically significant at high level (p < 0.001), and the coefficients of determination (R2) were higher than 0.76. The models fitted to the mechanical properties presented better predictability when stress wave board variables were used as independent variables. The mean R2 value, considering all models, was about 0.81, while models fitted by means of veneer variables presented a mean near 0.78. It can be inferred that the adhesive application somehow affected these results, probably because it is more homogeneous than wood, which certainly helps to improve the predictability of the models.
Additionally, the resorcinol adhesive, a polymeric material, is stiffer than wood, leading to better results when nondestructive testing is performed. Nevertheless, the adhesive affected only the dynamic modulus of elasticity. The stress wave velocity was similar for veneers and boards (4432 m/s vs. 4445 m/s), as presented in Table 1. This phenomenon might be strictly related to density improvement observed on boards as a function of adhesive application. Taking the testing position into account, it was observed that the models presented higher R2 values at flatwise (0.85) position than at edgewise (0.78) position.
This result might be related to the LVL pressing stage, since the pressure is applied exactly on flatwise position. It may lead to a certain level of surface densification reducing wood voids, gaps and eventually improving the quality of the prediction. Nonetheless, it should be pointed out that stress wave velocity was almost the same for both positions: 4115 m/s (edge) and 4119 m/s (flat). In a recent study, DeVallance et al. [20] employed ultrasonic and optical systems to grade Pseudotsuga menziesii veneer for LVL production. They found that the integration of both methods considerably improved the prediction of LVL properties (R2 = 0.58), because the optical model takes into account average defect, density and growth ring as well.
According to the results shown in Table 3, EM could be predicted more accurately than fm and fc,0. Undoubtedly, it is a very usual result, which is widely found in the literature concerning nondestructive testing. The theory behind the wood nondestructive testing is based on its elastic behavior. Therefore, in this case the stiffness of the material usually presents better relationship than those related to maximum strength, whose determination is beyond the elastic limit of the material. It explains why fm and fc,0 (maximum strength properties) could be modeled at a level lower than EM. Nevertheless, the results found herein are important for the prediction of compression strength, as it is also a key property when LVL is used as structural member.
Table 4 shows the mathematical models for predicting samples’ flexural properties individually. In this analysis, every sample was nondestructively tested and further tested up to rupture. The models presented R2 values ranging from 0.68 to 0.81, which can be considered suitable in this kind of analysis. Meanwhile, in general all models together presented R2 values (0.74) lower than those obtained when veneer (0.78) or board (0.81) variables were used. It can be considered a discrepancy. As the evaluation was done directly on the samples, it should have reflected a more accurate evaluation and better predictability.
Table 4. Models to predict LVL mechanical properties using nondestructive variable of samples (EdS).
Table 4. Models to predict LVL mechanical properties using nondestructive variable of samples (EdS).
LVL PropertyModelR2F
EMedge657.4 + 0.9628EdS0.69349.7**
EMflat−635.4 + 1.087EdS0.68247.1**
fmedge−18.0 + 0.0094EdS0.79987.9**
fmflat−32.3 + 0.011EdS0.80791.8**
Note: ** statistically significant at α = 0.01.
Regardless of this finding, the results presented herein are within the range usually found by studies on nondestructive testing of laminated wood composites. Achim et al. [21], when studying the properties of LVL made from Populus tremuloides veneer found a strong relation (R2 = 0.83) between dynamic (ultrasound) and static bending modulus of elasticity. Souza et al. [8] employed this same nondestructive method to predict flexural properties of LVL from Pinus oocarpa and P. kesiya. Only the modulus of elasticity of P. kesiya LVL could be suitably modeled at a reasonable level (R2 = 0.586), while no other species/properties could. Ferraz et al. [9] manufactured oriented strand lumber (OSL) and laminated strand lumber (LSL) with Chrysophyllum sp wood, whose flexural properties were modeled at a level similar to that observed in the present work using stress wave variables: fm (R2 = 0.74 − 0.70) and EM (R2 = 0.80 − 0.60).

4. Conclusions

Laminated veneer lumber boards from the tropical plantation tree S. parahyba were produced. Veneer grading based on stress wave nondestructive variables showed a positive impact on LVL mechanical properties. A close relationship was found between veneer properties and LVL properties. This improvement could be significantly modeled using both veneer and board nondestructive properties. Nondestructive evaluation was found to lead to veneer density segregation, which directly reflected on the improvement of the mechanical properties. It could be concluded that S. parahyba showed good potential to produce LVL, whose properties could be enhanced using the stress wave nondestructive testing as a grading method. Nevertheless, the research effort should continue in order to improve the quality of the boards produced.

Conflict of Interest

This paper was presented at 11th Pacific Rim Bio-Based Composites Symposium held in Shizuoka, Japan (27–30 November 2012) and was fully revised and upgraded to meet the journal requirements.

References

  1. Pellerin, R.F.; Ross, R.J. Nondestructive Evaluation of Wood; Forest Products Society: Madison, WI, USA, 2002; pp. 1–210. [Google Scholar]
  2. Ross, R.J.; Yang, V.W.; Illman, B.L.; Nelson, W.J. Relationship between stress wave transmission time and bending strength of deteriorated oriented strandboard. For. Prod. J. 2003, 53, 33–35. [Google Scholar]
  3. Del Menezzi, C.H.S.; Tomaselli, I.; Souza, M.R. Avaliação não-destrutiva de painéis OSB modificados termicamente. Parte 1: Efeito do tratamento térmico sobre a velocidade de propagação de ondas de tensão. Scientia Forestalis 2007, 76, 67–75. [Google Scholar]
  4. Nzokou, P.; Freed, J.; Kamdem, D.P. Relationship between non destructive and static modulus of elasticity of commercial wood plastic composites. Holz als Roh und Werkstoff 2006, 64, 90–93. [Google Scholar] [CrossRef]
  5. Araújo, P.C.; Arruda, L.M.; Del Menezzi, C.H.S.; Teixeira, D.E. Lignocellulosic composites from Brazilian giant bamboo (Guadua magna). Part 2. Properties of cement and gypsum bonded particleboards. Maderas. Ciencia y Tecnologia 2011, 13, 295–306. [Google Scholar]
  6. Arruda, L.M.; Del Menezzi, C.H.S.; Teixeira, D.E.; Araújo, P.C. Lignocellulosic composites from Brazilian giant bamboo (Guadua magna). Part 1. Properties of resin bonded particleboards. Maderas. Ciencia y Tecnologia 2011, 13, 49–58. [Google Scholar]
  7. Han, G.; Wu, Q.; Wang, X. Stress-wave velocity of wood-based panels: Effect of moisture, product type, and material direction. For. Prod. J. 2006, 56, 28–33. [Google Scholar]
  8. Souza, F.; Del Menezzi, C.H.S.; Bortoletto, G., Jr. Material properties and nondestructive evaluation of laminated veneer lumber (LVL) made from Pinus oocarpa and P. kesiya. Eur. J. Wood Wood Prod. 2011, 69, 183–192. [Google Scholar] [CrossRef]
  9. Ferraz, J.M.; Del Menezzi, C.H.S.; Teixeira, D.E.; Okino, E.Y.A.; Souza, F.; Bravim, A.G. Propriedades de painéis de partículas laminadas paralelas utilizados com alternativa à madeira maciça. Cerne 2009, 15, 67–74. [Google Scholar]
  10. Palma, H.A.L.; Escobar, J.F.; Ballarin, A.W.; Leonello, E.C. Influência da qualidade das lâminas no desempenho mecânico à flexão de painéis compensados de Hevea brasiliensis. Floresta e Ambiente 2012, 19, 133–140. [Google Scholar] [CrossRef]
  11. Pio, N.S.; Keinert, S., Jr.; Iwakiri, S.; Cunha, U.S.; Rocha, M.P.; Lucas Filho, F.C. Análise da resistência e elasticidade em flexão de painéis LVL de Eucalyptus grandis com lâminas pré-classificadas. Floresta 2012, 42, 11–20. [Google Scholar]
  12. Teles, R.F.; Del Menezzi, C.H.S.; Souza, M.R.; Souza, F. Effect of nondestructive testing of laminations on the bending properties of glulam made from louro-vermelho (Sextonia rubra). Cerne 2010, 16, 77–85. [Google Scholar]
  13. Bortoletto, G., Jr. Effects of ply grading and assembly on the properties of plywood panels from Pinus merkusii. Cerne 2010, 16, 145–153. [Google Scholar]
  14. Ross, R.J.; Erickson, J.R.; Brashaw, B.K.; Wang, X.; Verhey, S.A.; Forsman, J.W.; Pilon, C.L. Yield and ultrasonic modulus of elasticity of red maple veneer. For. Prod. J. 2004, 54, 220–225. [Google Scholar]
  15. Wang, X.; Ross, R.J.; Brashaw, B.K.; Verhey, S.A.; Forsman, J.W.; Erickson, J.R. Flexural Properties of Laminated Veneer Lumber Manufactured from Ultrasonically Rated Red Maple Veneer; USDA/FS/FPL Research Note FPL-RN-0288; USDA: Washington, DC, USA, 2004; pp. 1–5.
  16. Bortoletto, G., Jr.; Belini, U.L. Produção de lâminas e manufatura de compensados a partir da madeira de guapuruvu (Schizolobium parayba Blake) proveniente de um plantio misto de espécies nativas. Cerne 2003, 9, 16–28. [Google Scholar]
  17. Standard Specification for Evaluation of Structural Composites Lumber; ASTM D5456; American Society for Testing and Materials: West Conshohocken, PA, USA, 2006.
  18. Palma, H.A.L.; Ballarin, A.W. Propriedades físicas e mecânicas de painéis LVL de Eucalyptus grandis. Ciênc. Florest. 2011, 21, 559–566. [Google Scholar]
  19. Campos, M.B.S.; Del Menezzi, C.H.S.; Souza, M.R. Flexural properties of wood I-beams flanged with tropical hardwoods. J. Trop. For. Sci. 2012, 24, 369–378. [Google Scholar]
  20. DeVallance, D.B.; Funck, J.W.; Reeb, J.E. Evaluation of laminated veneer lumber tensile strength using optical scanning and combined optical-ultrasonic techniques. Wood Fiber Sci. 2011, 43, 169–179. [Google Scholar]
  21. Achim, A.; Paradis, N.; Carter, P.; Hernández, R.E. Using acoustic sensors to improve the efficiency of the forest value chain in Canada: A case study with laminated veneer lumber. Sensors 2011, 11, 5716–5728. [Google Scholar] [CrossRef]

Share and Cite

MDPI and ACS Style

Del Menezzi, C.; Mendes, L.; De Souza, M.; Bortoletto, G., Jr. Effect of Nondestructive Evaluation of Veneers on the Properties of Laminated Veneer Lumber (LVL) from a Tropical Species. Forests 2013, 4, 270-278. https://doi.org/10.3390/f4020270

AMA Style

Del Menezzi C, Mendes L, De Souza M, Bortoletto G Jr. Effect of Nondestructive Evaluation of Veneers on the Properties of Laminated Veneer Lumber (LVL) from a Tropical Species. Forests. 2013; 4(2):270-278. https://doi.org/10.3390/f4020270

Chicago/Turabian Style

Del Menezzi, Cláudio, Luana Mendes, Mário De Souza, and Geraldo Bortoletto, Jr. 2013. "Effect of Nondestructive Evaluation of Veneers on the Properties of Laminated Veneer Lumber (LVL) from a Tropical Species" Forests 4, no. 2: 270-278. https://doi.org/10.3390/f4020270

Article Metrics

Back to TopTop
