Forests 2013, 4(1), 28-42; doi:10.3390/f4010028

Article
Frequency of False Heartwood of Stems of Poplar Growing on Farmland in Sweden
Tord Johansson * and Birger Hjelm
Department of Energy and Technology, Swedish University of Agricultural Sciences, Uppsala 75007, Sweden; E-Mail: birger.hjelm@slu.se
*
Author to whom correspondence should be addressed; E-Mail: tord.johansson@slu.se; Tel.: +46-18-673-830; Fax: +46-18-673-156.
Received: 30 October 2012; in revised form: 20 December 2012 / Accepted: 4 January 2013 /
Published: 9 January 2013

Abstract

: Swedish owners of poplar stands are interested in both the wood quality and the use of poplars that are soon to be harvested. An important concern is the frequency of false heartwood (FHW) in the stems. We have presented an overview of the factors causing discolored wood as well as the industrial use and quality of the end products. We have studied poplar stems growing at 22 sites in Sweden between latitudes 55° N and 60° N. The mean age of the poplar was 23 years (range 14–41), the mean stand density 1011 stems ha−1 (range 155–3493) and the diameter at breast height (DBH) (over bark) 246 mm (range 121–447). All stands were growing on clay soils (light and medium clay and light clay tills). All of the sampled stems (42) contained false heartwood. At 0%–50% of stem height, all sampled trees were discolored and at 90% of stem height, 33% were discolored. The percentage of false heartwood area by stem area was highest at 1% and 10% of stem height (26.6% and 24.7% respectively). The “FHW” part of the stem had a radius of 47 mm (range 9–93) at 30% of stem height, which corresponds to 50% of the total stem radius. A log of six meters represents about 30% of stem height. Equations describing the correlation between DBH and the diameter of FHW at different stem heights (1%, 10%, 30%, 50%, 70% and 90%) and table describing FHW volume % by total stem volume at the first 50% of stem height were constructed. These might be helpful for estimating the percentage of fresh wood in a stem. However, most of the fast-growing poplars will be harvested as biofuel.
Keywords:
clone; false heartwood; poplar; soil types

1. Introduction

There has been a general increase in interest in the management of fast-growing broadleaved trees in the Nordic countries (and elsewhere). The earliest trials with poplars in Sweden started with plant material originating from Oregon and Washington, with the aim of breeding material for the Swedish Match Company [1]. Poplar plantations in Sweden are now about 20 years old and their owners have to harvest the stands. In the future short rotation is a promising supply of poplar biomass in Sweden [2]. In Yugoslavia, research on eastern cottonwood (Populus deltoides Bartr.) has shown there is a high production of biomass over a short rotation (2–12 years) [3].

However, forest owners and farmers are also interested in managing poplar for pulpwood and, in some cases, timber, despite the lack of suitable climate-adapted clones and uncertainties regarding appropriate management, pest control, economic factors and markets. Poplar stems cut in thinnings have contained discolored wood and the owners are concerned about quality and how frequently this discolored wood occurs.

The wood quality of different broadleaf species is defined according to their “natural” properties including the color of the wood. Mostly, the wood color is uniform from the pith to the cambium. However, for individuals, parts of the wood extending from the pith can be dark (red, brown, grey or black). Darkly colored wood is normal in some species [e.g., elm (Ulmus sp.); oak (Quercus sp.); sweet chestnut (Castania sativa L.); black walnut (Juglans regia L.)] and not classified as false heartwood. Wood discoloration has been reported for some broadleaved species: poplars [4], beech, (Fagus sylvatica L.) [5], wild cherry (Prunus avium L.) [6], paper birch (Betula papyrifera Marsh.) [7], silver birch (Betula pendula Roth) [8] and ash (Fraxinus excelsior L.) [9].

When describing discoloration found in broadleaf species, there are different names for the phenomenon: affected wood, discolored wood, stained wood, wetwood, wounded wood, black heart, red heart, black heartwood, false heartwood, pathological heartwood, red heartwood etc. [10,11,12,13,14,15,16,17]. There is no common name that has been officially accepted in the terminology. Here we use false heartwood (FHW) throughout the paper but, where quoted, we use the name as written in the referenced report.

Information about different types of discoloration and species is presented among others by Hörnfeldt et al. [18] who wrote an overview of FHW in beech, birch and ash. Kerr [17] reviewed the occurrence of black heart in ash in relation to management and the influence on timber price and Ward and Pong [19] reported on the available information about wetwood in trees.

Wetwood is a type of false heartwood and appears in aspen and poplar but also in willow (Salix sp.) and fir (Abies sp.) [20]. What follows below is an overview about FHW or wetwood in poplar stems. True heartwood in aspen and poplar stems, if it exits, is difficult to distinguish in stems without discolored wood. Therefore, false heartwood in poplars is easy to observe. There are no published reports or first-hand experience of the importance and extent of false heartwood in poplar in Sweden. Below follows an overview of the main factors and experiences of this discolored wood, based on international scientific reports and knowledge.

Wetwood is a type of heartwood that has high water content [19]. In a study of balsam poplar (Populus basamifera L.) the moisture contents in sapwood was 122 (77–187)% and in wetwood 150 (100–216)% of oven dry weight [21]. In the study pH in wetwood was slightly basic and in sapwood slightly acidity. A similar result was reported in a study of black poplar (Poplulus nigra L.) [22]. The odor of fresh wetwood indicates anaerobic bacteria activity [19]. According to Wallin [20] bacteria was more frequent in wetwood (92.5% of total isolation) of balsam poplar than in sapwood (54.4%). Poplars with wetwood contain large and diverse populations of bacteria [23]. In a review of discoloration in the wood of living and cut tree species, Bauch [24] concluded that discoloration including wetwood is caused by physiological processes (environmentally initiated), biochemical and chemical reactions.

Studies of the presence of FHW in poplar stems have been reported from different countries. Wang et al. [25] reported a distribution of wet wood in all stems of P × xiaohei Hwang and Liang in stands growing in northern China. The heartwood area increased with decreasing stem number per hectare. In a study of 17 Fremont cottonwood (Populus fremontii S. Watson) plantations in Arizona, all stands had wetwood symptoms [4]. The percentage stems with wetwood in a stand varied depending on diameter. In the lowest diameter class (diameter at breast height (DBH) 1–32 cm), the percentage ranged from 14% to 80%. On the contrary, the frequency was correlated with stand density where dense stands (1–3 m) had the highest percentage.

According to the presented overview of the literature, discoloration of the wood of broadleaf species is common. From a practical point of view, there are different opinions about the quality of discolored wood in stems. Hiratsuka and Loman [26] concluded, in a review of decay of aspen and balsam poplar in Alberta, that plywood production demands decay-free, high quality logs for veneer. Discolored wood reduces the veneer quality. To reduce the higher moisture content in poplar veneer logs to 5%, it requires 15% more time to dry than spruce. Sachs et al. [27] reported that wetwood took two to six times longer to dry than sapwood in order to reach a level of 6%–8% moisture. A similar conclusion about the need for a longer drying period is reported by Boone [28]. Ward and Pong [19] concluded in their overview that wetwood is a cause of losses of wood for the industry. The wood must be dried for 50% longer than fresh wood. Dried board made of wetwood could crack more and develop other quality defects. Control of moisture content in veneer from poplars with wetwood is a technical problem that causes disruption in the processing of veneer. There were no differences in basic density between sapwood and wetwood in balsam poplar [21,29]. However, Ward and Pong [19] reported lower basic density in wetwood than in sapwood. They also reported that boards with wetwood might lower the strength properties.

In Sweden, there is great interest in the management of fast-growing broadleaved species. The demand for information about the wood quality of poplar has increased, as some of the oldest poplar plantations (20–25 years old) are now ready to be harvested. An important factor is false heartwood in poplar stems, which has been observed in thinnings after harvest. The owners want to know about the frequency of FHW in a stand, the formation in the stem, clone dependence, site relationships and influence on wood quality amongst other factors. The pulp industry has asked whether poplar wood is acceptable as pulp wood. As most of the poplar stems have discolored wood, the pulp industry may have objections about the quality and not buy the product. However, a mixture of pulp woods containing poplar with wetwood and sapwood has been shown to produce an acceptable quality of the pulp and paper when processed by pulp mills [25]. Poplar is also an interesting source of material for the pulp industry in former Yugoslavia [3].

The objectives of this paper are to present the available information about FHW in broadleaved species as a base for understanding the presence of heartwood in poplar stems. We present results from a study of FHW in living poplar stems growing on former farmland in Sweden.

2. Materials and Methods

2.1. Study Site

Data from 22 sites ranging from 55° N to 60° N and altitudes from 15 to 215 m a.s.l. were used (Figure 1 and Table 1). The stands were planted with bare roots on former farmland, which had been harrowed. Most of the stands were 20 years old or more. The most common planting density was 2000 to 2500 poplars per hectare. Some of the stands have been thinned during the rotation, but some of them were very dense. The diameter of old poplars growing in dense stand without thinning was smaller than in younger stands which were thinned. There was a lack of information about the origin of some of the planted hybrid poplars, but the most frequent in stands were clones of ‘OP-42’ (Populus maximowiczii Henry × P. trichocarpa Torr. and Gray) (10) and balsam poplar (5). Other poplar varieties found were P. trichocarpa (4) and ‘Boelare’ (P. trichocarpa × P. deltoides Bartr. ex Marshall) (2), Table 2.

Forests 04 00028 g001 200

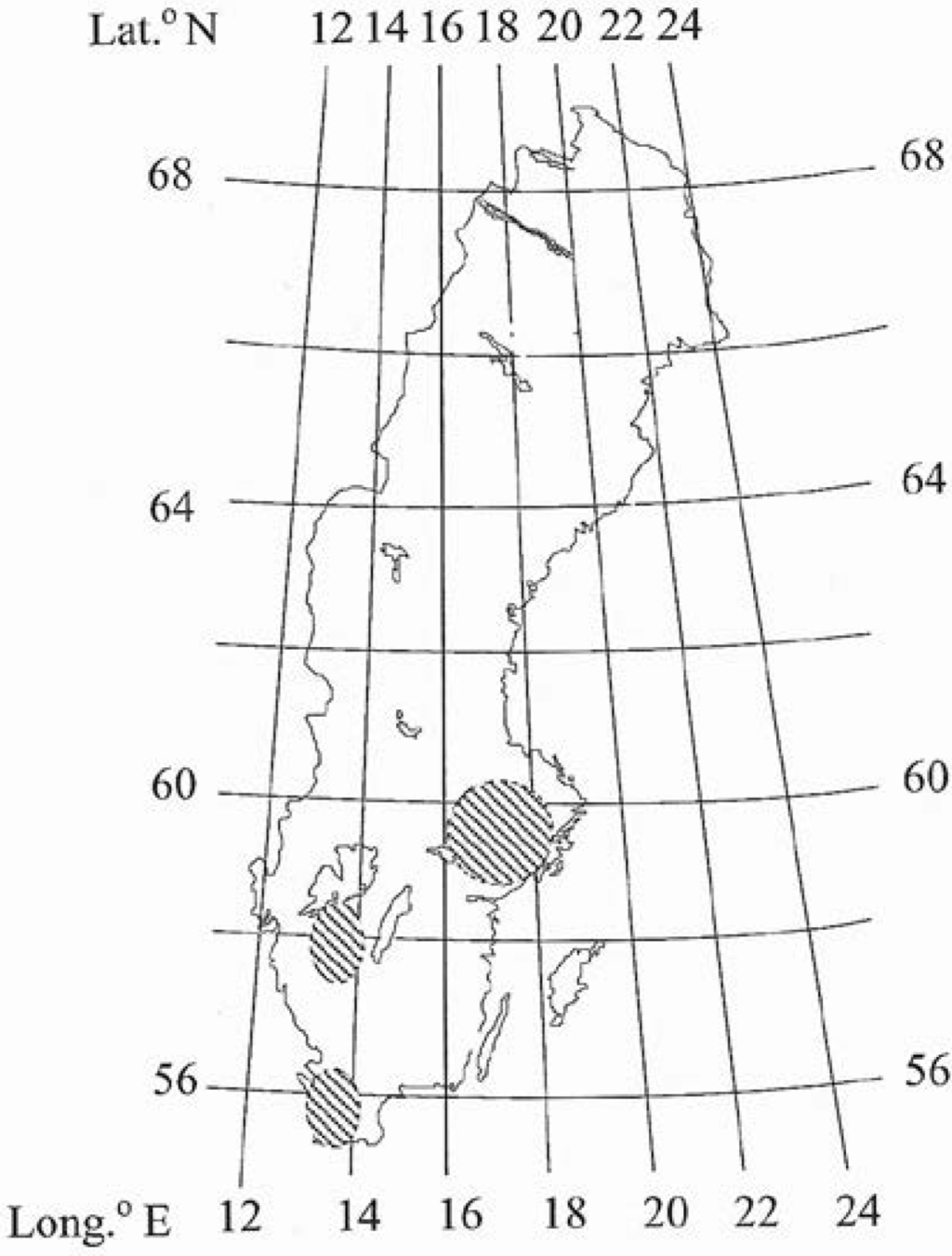

Figure 1. Locations of the study sites, all on abandoned farmland in Sweden.

Click here to enlarge figure

Figure 1. Locations of the study sites, all on abandoned farmland in Sweden.
Forests 04 00028 g001 1024
Table 1. Main characteristics of hybrid poplar stands growing on 22 sites in Sweden.

Click here to display table

Table 1. Main characteristics of hybrid poplar stands growing on 22 sites in Sweden.
LocationAge, DBH, mmHeight, No. of Basal areaSoil typeVariety 1
no.yearsMean ± SE mstems ha−1m2 ha−1
118248 ± 324.087542.3Light clay2
221330 ± 529.236130.9Light clay
320277 ± 424.554933.1Light clay4
441279 ± 1122.0128178.3Light clay2
523196 ± 722.863219.1Light clay1
634306 ± 825.784061.8Light clay1
723186 ± 521.296626.2Light clay2
816128 ± 820.2327942.2Light clay2
919246 ± 428.5125059.4Medium clay2
1034291 ± 827.239826.5Medium clay1
1124293 ± 325.945730.8Light clay3
1219193 ± 714.5111132.5Medium clay3
1320182 ± 714.6111128.9Medium clay3
1420174 ± 1020.180019.0Medium clay3
1523256 ± 922.0100551.7Medium clay4
1620236 ± 722.5101544.4Medium clay1
1721186 ± 724.6120032.6Light clay3
1814121 ± 517.8349340.2Light clay2
1919283 ± 929.150631.8Light clay tills2
2019280 ± 427.644027.1Light clay tills2
2132447 ± 1122.115524.3Light clay2
2220267 ± 624.552029.1Silty tills2
Mean ± SD23 ± 7246 ± 7323.2 ± 4.11011 ± 83436.9 ± 14.8
Range14–41121–44714.5–29.2155–349319.0–78.3

1 Clones of poplar species: 1. P. Trichocarpa; 2. ‘OP-42’ (P. maximowiczii × P. Trichocarpa); 3. P. balsamifera; 4. ‘Boelare’ (P. trichocarpa × P. deltoides).

2.2. Methods

In each stand, one to four sample trees were studied, totaling 42 trees over the whole study (Table 2). Based on the diameter distribution trees with mean diameter, diameter in the upper and lower quartile was chosen. Only one tree with mean diameter was sampled in some stands as the owner did not accept more felled trees. Most of the stands had been used earlier for a study of biomass [2]. The felled stems were examined for visible damage or decay. Disks were cut from the felled stems at 1%, 10%, 30%, 50%, 70% and 90% of tree height and at 1.3 m (DBH) and 4.0 m. (Figure 2). In the laboratory, the diameter under bark for the disks and the diameter of false heartwood were measured. The disks were cross-callipered as the pattern of discoloration was irregular. The percentage area of FHW by stem area for all disks at the section heights was calculated. Estimation of total volume and volume of FHW in stems in the first 50% of the stem height was made. The volume of the sections 1.3 m, 10%, 30% and 50% of stem height was calculated by multiplying the stem and FHW area on the middle of each section by the length of the sections and added together.

Table 2. Main characteristics of 42 sampled hybrid poplar trees at 22 sites in Sweden.

Click here to display table

Table 2. Main characteristics of 42 sampled hybrid poplar trees at 22 sites in Sweden.
Stand no.Tree no.Age, yearsDBH, mmHeight, mCrown level, mSoil typeVariety 1
111828825.010.7Light clay2
212151223.07.2Light clay
312025120.53.8Light clay4
414144221.35.6Light clay2
424129222.86.5Light clay2
512317521.04.6Light clay1
522326621.34.9Light clay1
613440325.79.6Light clay1
623424323.210.9Light clay1
712324521.65.9Light clay2
722317221.25.0Light clay2
732321819.45.4Light clay2
811614520.23.9Light clay2
821614018.15.0Light clay2
831612418.25.4Light clay2
841617021.14.0Light clay2
911943126.87.3Medium clay2
1013445632.114.3Medium clay1
1112433824.37.6Light clay3
1122427027.58.9Light clay3
1211922721.45.0Medium clay3
1221919521.08.6Medium clay3
1312023722.45.1Medium clay3
1322018520.46.1Medium clay3
1412023421.86.8Medium clay3
1422018919.95.5Medium clay3
1512326922.76.6Medium clay4
1522320322.39.8Medium clay4
1612023521.53.7Medium clay1
1622025823.44.8Medium clay1
1712143924.09.7Light clay3
1722133725.113.2Light clay3
1811416017.89.3Light clay2
1821414716.77.9Light clay2
1911948828.86.1Light clay tills2
1921941130.012.3Light clay tills2
1931918322.710.5Light clay tills2
2011923125.29.2Light clay tills2
2021935127.68.5Light clay tills2
2113248721.25.3Light clay2
2212032523.88.3Silty tills2
2222026123.09.3Silty tills2
Mean ± SD 22 ± 6227 ± 10822.8 ± 3.37.3 ± 2.7
Range 14–41124–51216.7–30.03.7–14.3

1 Clones of poplar species: 1. P. Trichocarpa; 2. ‘OP-42’ (P. maximowiczii × P. Trichocarpa); 3. P. balsamifera; 4. ‘Boelare’ (P. trichocarpa × P. deltoides).

Forests 04 00028 g002 200

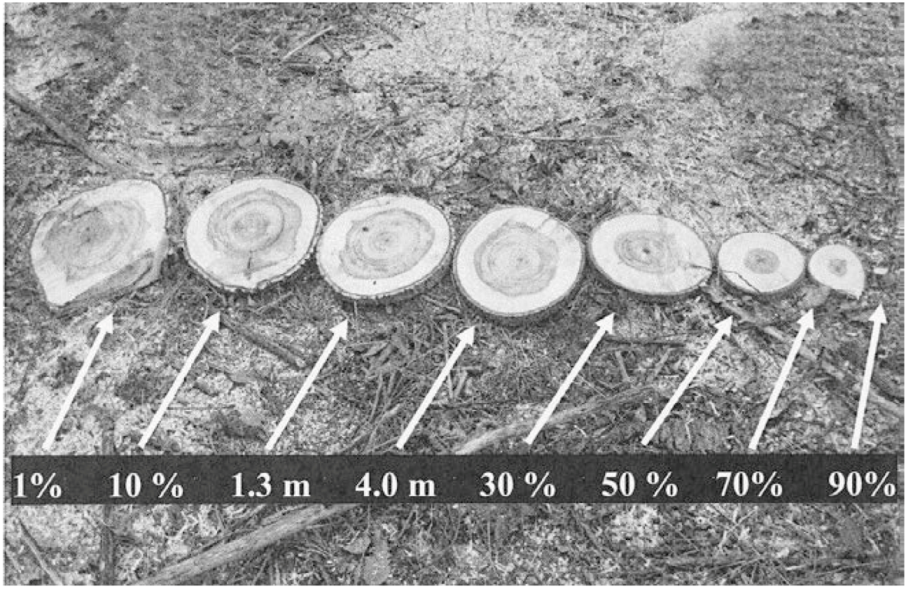

Figure 2. Disks from sections at 1%, 10%, 30%, 50%, 70%, 90% of tree height and 1.3 and 4.0 m.

Click here to enlarge figure

Figure 2. Disks from sections at 1%, 10%, 30%, 50%, 70%, 90% of tree height and 1.3 and 4.0 m.
Forests 04 00028 g002 1024

2.3. Soil Analysis

In the previously mentioned study by Johansson and Karačić [2], soil types for the stands studied were analyzed. Of all the stands in this study, 13 were growing on light clay soils, 7 on medium clay soils and 2 on till soils (Table 1).

2.4. Data Analyses

The percentage false heartwood area by stem diameter under bark representing the stem sections (1%–90%) was calculated. The distribution of false heartwood at different heights (1%–90%) of the stem was calculated on the basis of an equation describing the correlation between DBH and the diameter of the lateral distribution of the heartwood.

Two functions were tested:

A linear function FHW = β0 + β1 × DBH
A power function FHW = β0 × DBHβ1
where FHW = diameter of false heartwood, mm; DBH = diameter at breast height, mm; β0 and β1 are parameters.

The power function is frequently used [30,31].

Individual curves for the sections 1%–90% were calculated.

Data were analyzed using analysis of variance (ANOVA) with the GLM procedure using the SAS/STAT system for personal computers [32] to evaluate the differences between clones, soil types and percentage for FHW. The fit of the nonlinear regressions was assessed using the coefficient of determination [33]:

R2 = 1 − [SSE/SST (No. of observations)]
Where:
Forests 04 00028 i001
and:
Forests 04 00028 i002

The quality of the regression was also tested using the root mean squared error (RMSE):

Forests 04 00028 i003
where wi, Forests 04 00028 i010 and Forests 04 00028 i011 are the observed, mean and predicted weights (w).

Throughout this paper, means are presented together with their associated standard deviation (SD).

3. Results and Discussion

3.1. Characteristics of the Distribution of False Heartwood in Stems

In some of the studied stands, only one tree could be sampled according to the owner. The sample is therefore unbalanced and this should be considered when analyzing the results. In our study, false heartwood was found in all studied stems. The percentage of FHW area decreased with increasing stem height. At 0%–30% of stem height, all sampled stems were discolored; at 90% of stem height, 33% were discolored, Table 3.

Table 3. Percentage stems with false heartwood on different stem sections.

Click here to display table

Table 3. Percentage stems with false heartwood on different stem sections.
1%10%30%50%70%90%
100100100958133

The percentage of FHW by stem area at different sections was highest at 1% and 10% of stem height (26.1% and 26.0% respectively), Figure 3. About 50% of the radius on the 1% and 10% sections was discolored with 40% on the 30% and 50% sections. The colored part of stems was found at a mean 47 mm (range 9–93 mm) at 30% of stem height, which is about 6 m or one (timber) or two (veneer) logs, Figure 3.

The tested functions (1) and (2) fitted the data for all sections. The curves described by the functions were statistically acceptable although with moderate determination factors for function (1) (Table 4). Function (2) fitted the data best with high determination factors.

Forests 04 00028 g003 200

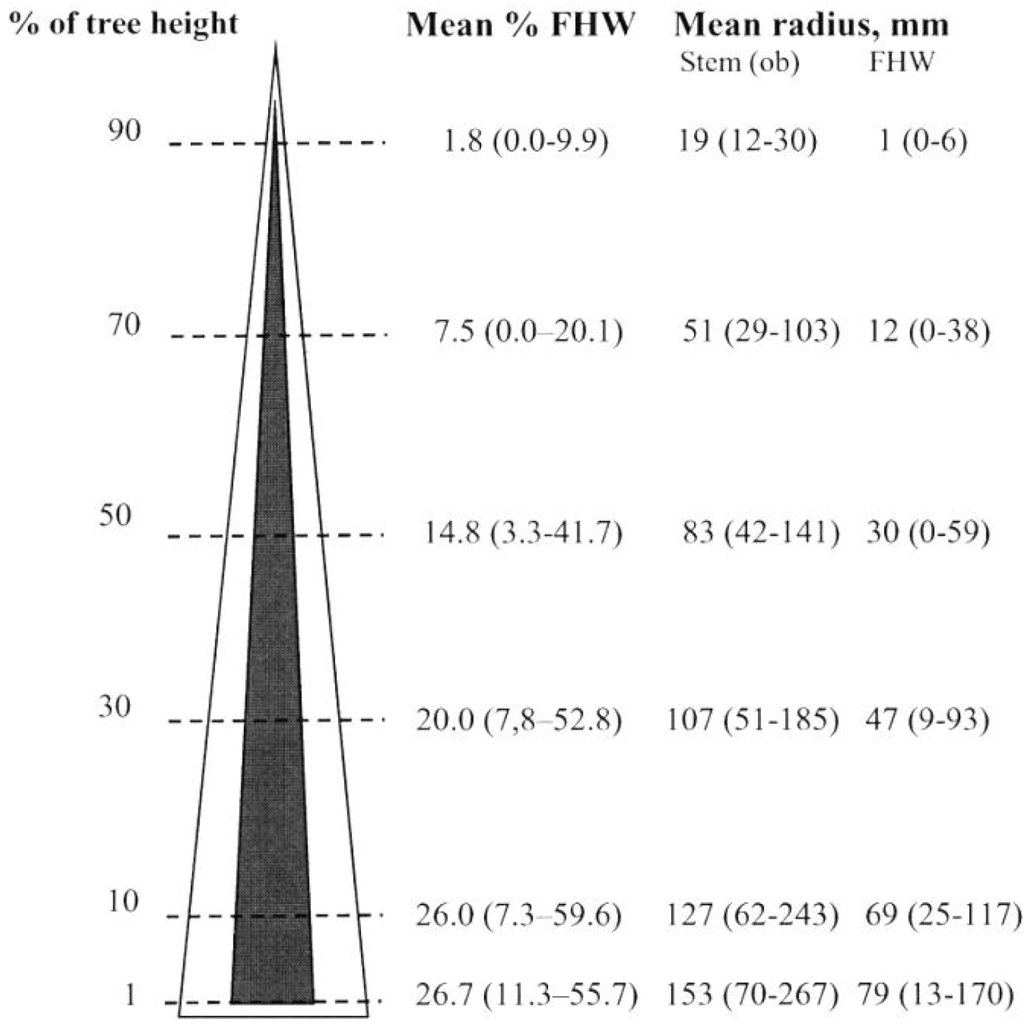

Figure 3. Mean (range) percentage area of false heartwood area by stem area at 1%–90% of tree height and mean (range) radius, mm, of stem and false heartwood in different sections (1%–90%).

Click here to enlarge figure

Figure 3. Mean (range) percentage area of false heartwood area by stem area at 1%–90% of tree height and mean (range) radius, mm, of stem and false heartwood in different sections (1%–90%).
Forests 04 00028 g003 1024
Table 4. Estimated parameters of functions (1) and (2) for diameter distribution of false heartwood (FHW), mm by DBH, mm in different stem sections of poplar trees growing on former farmland.

Click here to display table

Table 4. Estimated parameters of functions (1) and (2) for diameter distribution of false heartwood (FHW), mm by DBH, mm in different stem sections of poplar trees growing on former farmland.
ComponentsParameterParameter estimatesStandard errors of parametersR2RMSEPr > F
Function 1
1%β0−3.30562.14350.7931.2586<0.0001
β10.59540.0074
10%β030.22232.30970.5933.6823<0.0001
β10.39220.0515
30%β00.69071.39190.7520.2978<0.0001
β10.34250.0311
50%β0−3.87861.09050.7015.9028<0.0001
β10.23710.0037
70%β0−8.69740.93390.4513.6198<0.0001
β10.11880.0032
90%β01.12420.27800.02 4.0548<0.0001
β10.00540.0010
Function 2
1%β00.55320.04220.9731.2730<0.0001
β11.00950.0131
10%β01.54610.14580.9519.2008<0.0001
β10.80120.0164
30%β00.39590.03290.9620.2731<0.0001
β10.97610.0144
50%β00.21260.02150.9415.9593<0.0001
β11.00940.0175
70%β00.01170.00270.8013.6198<0.0001
β11.35200.0397
90%β00.11740.06770.31 4.0431<0.0001
β10.55580.1012

The equations constructed expressing the correlation between breast height diameter and the false heartwood area at different stem heights might be used as a tool for indicating the level of the quantity of sapwood in the stems (Figure 4). In the most valuable part of the stem, the lower 50% of stem height, FHW was found in all stems and at 90%, 33% were discolored. As we were not allowed to check all stems in our studied stands, we do not have information about the frequency of discolored stems per stand. Wang et al. [25] studied Populus xiaohei and reported discolored wood in all studied stems with a decreasing discolored area with increasing stem height. Hofstra et al. [4] found in a study of Fremont poplar (Populus fremontii S. Watson) in Arizona that there was discolored wood in all of 17 of the stands studied.

Forests 04 00028 g004 200
Figure 4. The relationship between diameter, mm, of false heartwood (FHW) in relation to diameter at breast height (DBH; mm) at 1% ( Forests 04 00028 i004), 10% ( Forests 04 00028 i005), 30% ( Forests 04 00028 i006), 50% ( Forests 04 00028 i007), 70% ( Forests 04 00028 i008) and 90% ( Forests 04 00028 i009) of tree height for poplar.

Click here to enlarge figure

Figure 4. The relationship between diameter, mm, of false heartwood (FHW) in relation to diameter at breast height (DBH; mm) at 1% ( Forests 04 00028 i004), 10% ( Forests 04 00028 i005), 30% ( Forests 04 00028 i006), 50% ( Forests 04 00028 i007), 70% ( Forests 04 00028 i008) and 90% ( Forests 04 00028 i009) of tree height for poplar.
Forests 04 00028 g004 1024

There were no significant differences between clones or soil types and percentage FHW area at DBH (Table 5). Furthermore, there were no interactions between soil types and clones.

Table 5. Test of differences between clonesclones, soil typessoil types and percentage FHW area at DBH, % percentage FWD, %, at DBH, mm and between DBH and percentage FHW area and stem number and percentage FHW area of poplar poplar stems (analysis of variance).

Click here to display table

Table 5. Test of differences between clonesclones, soil typessoil types and percentage FHW area at DBH, % percentage FWD, %, at DBH, mm and between DBH and percentage FHW area and stem number and percentage FHW area of poplar poplar stems (analysis of variance).
Source of variationDegree of freedomFP
A (Clones)30.370.7725
B (Soil types)20.080.9224
AxB30.370.7753
Error40
Total
DBH231.350.2614
Error19
Total42
Stem number231.150.3883
Error19
Total42

The total volume of sapwood and FHW for 50% of stem height in the studied stands is shown in Figure 5. In a study of stem volume of individual poplar stems 84 (75–89)% of stem volume was found in the first 50% of stem height [34]. In a previous study a test of the precision of volume estimation based on different section length showed that 3 m long section had a deviation of 2% of true volume [34]. Our estimations are an attempt to present a rough overview of the percentage FHW in the commercial part of poplar stems. In a study of Populus xiaohei planted in spacings: 2 × 5, 4 × 5 and 4 × 10 m 84%–89% of wetwood volume was accumulated in the first 10 m of the poplar height [30]. The percentage FHW volume increased with increasing DBH, Table 6.

In our study an analysis of the percentage of FHW stem area at breast height within diameter classes at breast height shows that the percentage by stems <200 mm was lower than for stems >200 mm, Figure 6. In a study of Fremont poplar, the frequency of discolored wood varied between sites and diameter classes [4]. The frequency of discolored stems increased with increasing DBH. In the smallest diameter class, 0–32 cm, about 45% of the stems were discolored; this increased to 90% in diameter class 33–64 and then 100% in classes up to 161–192 cm.

Table 6. Percentage FHW volume by total volume in the first 50% of stem height.

Click here to display table

Table 6. Percentage FHW volume by total volume in the first 50% of stem height.
Diameter at breast height, mm
150200250300350400450500
% FHW by total volume12.514.215.817.218.419.620.721.7
Forests 04 00028 g005 200

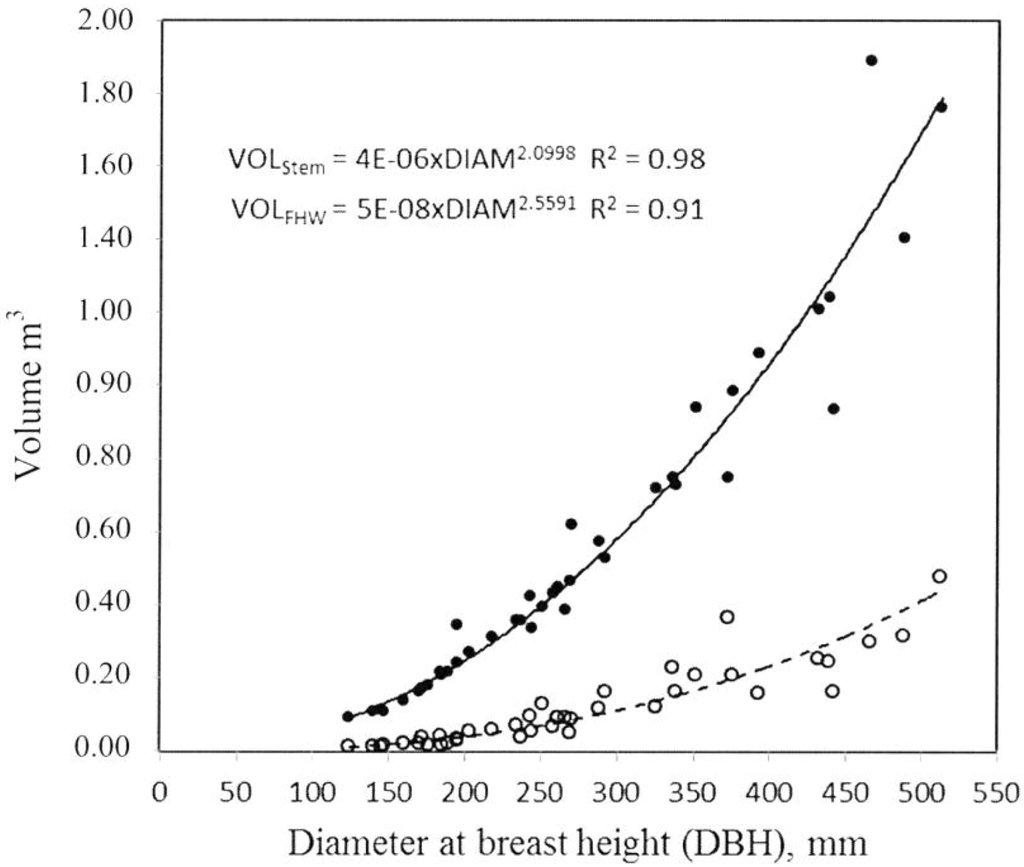

Figure 5. Total volume ( Forests 04 00028 i004) and volume of FHW ( Forests 04 00028 i005), m3, in the first 50% of stem height for poplar.

Click here to enlarge figure

Figure 5. Total volume ( Forests 04 00028 i004) and volume of FHW ( Forests 04 00028 i005), m3, in the first 50% of stem height for poplar.
Forests 04 00028 g005 1024
Forests 04 00028 g006 200

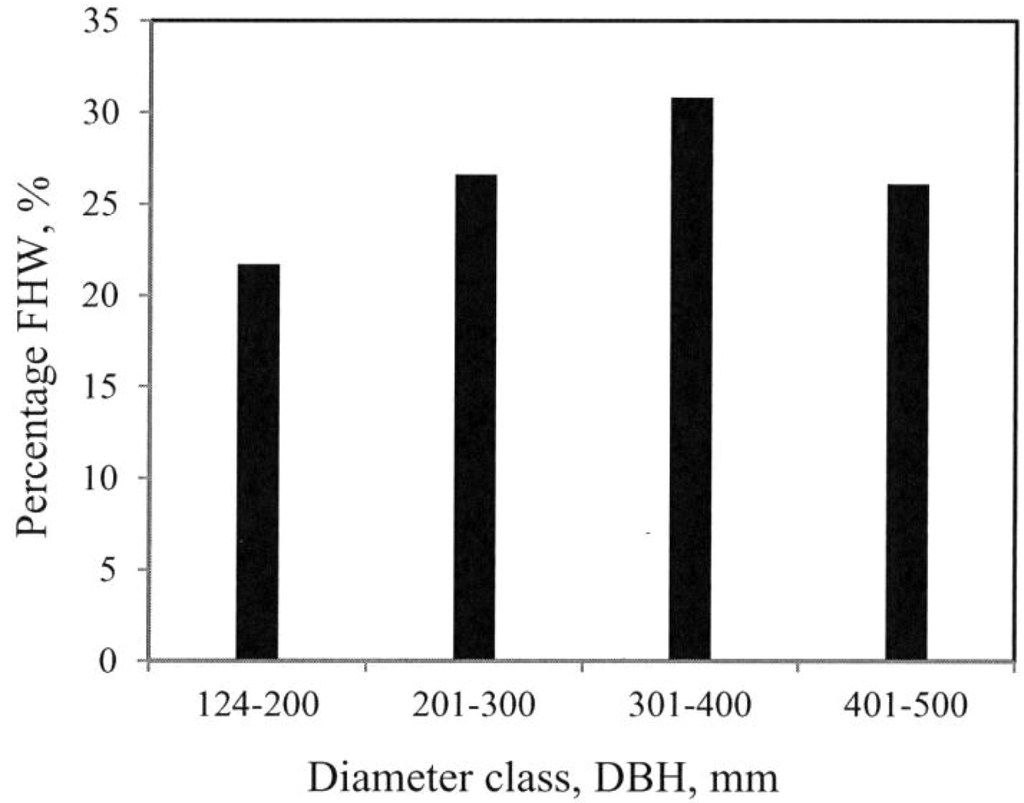

Figure 6. The percentage FHW area for different DBH.

Click here to enlarge figure

Figure 6. The percentage FHW area for different DBH.
Forests 04 00028 g006 1024

In our study, there were no significant differences between stem number per hectare or clones and the percentage FHW area at DBH, Table 5. As most of the studied stands were planted with ≥2000 stems per hectare, with no or sparse thinning, the main reason for the high frequency of FHW must be due to factors other than density. However, there have been no practical examples reported. The frequency of discolored wood and stem number has been studied on Populus xiaohei by Jiang et al. [35]. In their studies, the proportion of wetwood at DBH increased from 60% to 68.1% in stands with 1000 and 250 stems ha−1 respectively. Similar results for the same species were presented by Wang et al. [25] in a study where the poplars were planted in spacings of 2 × 5, 4 × 5 and 4 × 10 m wetwood represented 56%, 62% and 65% of total volume respectively. In a study of six hybrid poplar clones, Garret et al. [36] found different percentages of discolored wood versus stem diameter in logs. They stated that there was a possibility of rating clones on the basis of their potential for developing discolored wood.

5. Conclusions

This study has focused on the frequency of false heartwood in poplar stems. No studies on this phenomenon for poplars growing in Sweden have been described before.

There was FHW in all studied poplars. Only a few stems per stand could be felled and examined. In all studied stems, FHW was found in stem from sections at 1%, 10% and 30% of stem height.

As the variability of FHW dimensions is high the constructed function expressing the diameter of FHW for different stem heights, %, at different DBH is only a tool indicating the amount of FHW at different stem diameters. In a table the percentage FHW volume by total volume in the first 50% of stem height indicates an increasing FHW volume by increasing DBH.

Up to 50% of the radius at 30% of stem height was sapwood without FHW and might be used for veneer production. According to reports in the literature review poplar stems with FHW might be used as pulp wood. There are some doubts about the quality of poplar boards with wetwood. No reports have, to our knowledge been presented about disadvantages when using the stems with FHW as raw material for bioenergy.

Acknowledgments

Mia Johansson measured some of the poplars in field and master student Ullah Ikram measured some of the samples. Linguistic revision was made by Sees-Editing Ltd. UK. All of the above are gratefully acknowledged.

Conflict of Interest

The authors declare no conflict of interest.

References

  1. Christersson, L. Future research on hybrid aspen and hybrid poplar cultivation in Sweden. Biomass Bioenergy 1996, 11, 109–113, doi:10.1016/0961-9534(96)00014-1.
  2. Johansson, T.; Karačić, A. Increment and biomass in hybrid poplar and some practical Implications. Biomass Bioenergy 2011, 35, 1925–1934, doi:10.1016/j.biombioe.2011.01.040.
  3. Klasnja, B.; Kopiovic, S.J.; Orlovic, S. Variability of some wood properties of eastern cottonwood (Populus deltoides Bartr.) clones. Wood Sci. Technol. 2003, 37, 331–337.
  4. Hofstra, T.S.; Stromberg, J.C.; Stutz, J.C. Factors associated with wetwood intensity of Populus fremonii (Fremont cottonwood) in Arizona. Great Basin Naturalist 1999, 59, 85–91.
  5. Nečesany, V. Classification of beech hearts. Drevo 1956, 11, 93–98.
  6. Pryor, S.N. The Silviculture and Yield of Wild Cherry; Forestry Commission. Bull. No. 75; Forestry Commission: London, UK, 1988; pp. 1–23.
  7. Drouin, M.; Beauregard, R.; Duchesne, I. Variability of wood color in paper birch in Quebec. Wood Fiber Sci. 2009, 41, 333–345.
  8. Luostarinen, K.; Verkasalo, E. Birch as sawn timber and in mechanical further processing in Finland. A literature study. Silva Fenn. Monogr. 2000, 1, 1–40.
  9. Benic, R. Estimation of the proportion of brown heart in the stem of Fraxinus angustifolia. Sum. List. 1954, 78, 365–379.
  10. Jorgensen, E. Observations on the formation of protection wood. For. Chron. 1962, 38, 292–294.
  11. Siegle, H. Microbiological and biochemical aspects of heartwood stain in Betula papyrifera Marsh. Can. J. For. Res. 1967, 7, 219–226.
  12. Shigo, A.L. Successions of organisms in discoloration and decay of wood. In International Review of Forestry Research; Romberger, J.A., Mikola, P., Eds.; Academic Press: New York, NY, USA, 1967; Volume 2, pp. 237–299.
  13. Shigo, A.L.; Larson, E.H. A Photo Guide to the Patterns of Discoloration and Decay in Living Northern Hardwood Trees; United States of Department of Agriculture (USDA), Forest Service, Northeastern Forest Experimental Station: Upper Darby, PA, USA, 1969; pp. 1–100.
  14. Shigo, A.L. A New Tree Biology: Facts, Photos and Philosophies on Trees and Their Problems and Proper Care; Shigo and Trees Associates: Durham, UK, 1986; pp. 1–132.
  15. Shigo, A.L.; Hillis, W.E. Heartwood, discolored wood and microorganisms in living trees. Ann. Rev. Phytopathol. 1973, 11, 197–222, doi:10.1146/annurev.py.11.090173.001213.
  16. Basham, J.T. Stem Decay in Living Trees in Ontario’s Forests: A Users’ Compendium and Guide; Canadian Forest Service Great Lakes Forest Central Information Report 0-X-408; Forestry Canada, Ontario Region: Sault Ste. Marie, Canada, 1991; pp. 1–69.
  17. Kerr, G. A review of black heart of ash (Fraxinus excelsior L.). Forestry 1998, 71, 49–56.
  18. Hörnfeldt, R.; Droin, M.; Woxblom, L. False heartwood in beech Fagus sylvatica, birch Betula pendula, B. papyrifera and ash Fraxinus excelsior—An overview. Ecol. Bull. 2010, 53, 61–75.
  19. Ward, J.C.; Pong, W.Y. Wetwood in Trees: A timber Resource Problem; General Technical Report PNW-112; United State Department of Agriculture (USDA), Forest Service, Pacific Northwest Forest and Range Experimental Station: Portland, OR, USA, 1980; pp. 1–57.
  20. Hartley, C.; Davidson, R.W.; Crandell, B.S. Wetwood, Bacteria and Increased pH in Trees; United State Department of Agriculture (USDA), Forest Service, Forest Products Lab Report 2215: Madison, WI, USA, 1961.
  21. Wallin, W.B. Wetwood in balsam poplar. Minn. Fore. Notes 1954, 28, 1–2.
  22. Tiedemann, G.; Bauch, J.; Bock, E. Occurrence and significance of bacteria in living trees of Populus nigra L. Eur. J. For. Path. 1977, 7, 364–374, doi:10.1111/j.1439-0329.1977.tb00606.x.
  23. Scott, E.S. Populations of bacteria in poplar stems. Eur. J. For. Path. 1984, 14, 103–112, doi:10.1111/j.1439-0329.1984.tb00158.x.
  24. Bauch, J. Discoloration in the wood of living and cut trees. IAWA. Bull. N.S. 1984, 5, 92–98.
  25. Wang, X.; Jiang, Z.; Ren, H. Distribution of wet heartwood in stems of Populus xiaohei from a spacing trial. Scand. J. For. Res. 2008, 23, 38–45, doi:10.1080/02827580701763706.
  26. Hiratsuka, Y.; Loman, A.A. Decay of Aspen and Balsam Poplar in Alberta; Northern Forest Research Centre. Canadian Forest Service Environment: Alberta, Canada, 1984.
  27. Sachs, I.B.; Ward, J.C.; Kinney, R.E. Scanning electron microscopy of bacterial wetwood on a normal heartwood in poplar trees. In Proceedings of the 7th Annual Scanning Electron Microscopy Symposium: Part II, Chicago, IL, USA, 10–11 April 1974; pp. 453–460.
  28. Boone, R.S. Sorting aspen bolts and drying aspen flitches for SDR. Gen. Tech. Rep. NC-140. In Proceedings of Aspen Symposium “89”, Duluth, MN, USA, 25–27 July 1989; Adam, R.D., Ed.; United States Department of Agriculture (USDA), Forest Service North Central Forest Experimental Station: Saint Paul, MN, USA, 1990; pp. 295–299.
  29. Mackay, J.F.G. Properties of Northern aspen discolored wood related to drying problems. Wood Fiber 1975, 6, 319–325.
  30. Johansson, T. Biomass equations for determining fractions of pendula and pubescent birches growing on abandoned farmland and some practical implications. Biomass Bioenerg. 1999, 16, 223–238, doi:10.1016/S0961-9534(98)00075-0.
  31. Payandeh, B. Choosing regression models for biomass prediction models. For. Chron. 1981, 57, 229–232.
  32. SAS, Version 9.1; SAS Institute Inc.: Cary, NC, USA, 2006.
  33. Zar, J.H. Biostatistical Analysis; Prentice Hall: Englewood Cliffs, NJ, USA, 1999.
  34. Hjelm, B. Taper and Volume Equations for Poplar Trees Growing on Farmland in Sweden; Report 29. Licentiate Thesis, Department of Energy and Technology, Swedish University of Agricultural Sciences, 2011.
  35. Jiang, Z.-H.; Wang, X.Q.; Fei, B.-H.; Ren, H.-Q.; Lin, X.E. Effect of stand tree attributes on growth and wood quality characteristics from a spacing trial with Populus ziaohei. Ann. For. Sci. 2007, 64, 807–814, doi:10.1051/forest:2007063.
  36. Garret, P.W.; Shigo, A.L.; Carter, J. Variation in diameter of central columns of discoloration in six hybrid poplar clones. Can. J. For. Res. 1976, 6, 475–477, doi:10.1139/x76-065.
Forests EISSN 1999-4907 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
