Bioactive and Antibacterial Glass Powders Doped with Copper by Ion-Exchange in Aqueous Solutions

by
Marta Miola
*,† and
Enrica Verné
Applied Science and Technology Department, Politecnico di Torino, Corso Duca degli Abruzzi 24, 10129 Torino, Italy
*
Author to whom correspondence should be addressed.
†
Present address: Department of Health Sciences, Università del Piemonte Orientale, Via Solaroli 17, 28100 Novara, Italy
Materials 2016, 9(6), 405; https://doi.org/10.3390/ma9060405
Submission received: 31 March 2016 / Revised: 10 May 2016 / Accepted: 18 May 2016 / Published: 24 May 2016
(This article belongs to the Special Issue Bioactive Glasses)
Browse Figures
Versions Notes

Abstract

:
In this work, two bioactive glass powders (SBA2 and SBA3) were doped with Cu by means of the ion-exchange technique in aqueous solution. SBA2 glass was subjected to the ion-exchange process by using different Cu salts (copper(II) nitrate, chloride, acetate, and sulphate) and concentrations. Structural (X-ray diffraction-XRD), morphological (Scanning Electron Microscopy-SEM), and compositional (Energy Dispersion Spectrometry-EDS) analyses evidenced the formation of crystalline phases for glasses ion-exchanged in copper(II) nitrate and chloride solutions; while the ion-exchange in copper(II) acetate solutions lead to the incorporation of higher Cu amount than the ion-exchange in copper(II) sulphate solutions. For this reason, the antibacterial test (inhibition halo towards S. aureus) was performed on SBA2 powders ion-exchanged in copper(II) acetate solutions and evidenced a limited antibacterial effect. A second glass composition (SBA3) was developed to allow a greater incorporation of Cu in the glass surface; SBA3 powders were ion-exchanged in copper(II) acetate solutions (0.01 M and 0.05 M). Cu-doped SBA3 powders showed an amorphous structure; morphological analysis evidenced a rougher surface for Cu-doped powders in comparison to the undoped glass. EDS and X-ray photoelectron spectroscopy (XPS) confirmed the Cu introduction as Cu(II) ions. Bioactivity test in simulated body fluid (SBF) showed that Cu introduction did not alter the bioactive behaviour of the glass. Finally, inhibition halo test towards S. aureus evidenced a good antimicrobial effect for glass powders ion-exchanged in copper(II) acetate solutions 0.05 M.

1. Introduction

Bioactive glasses have been widely investigated in the orthopaedic and dental fields for their ability to chemically bond to living bone through a well-known process, which involves a rapid ion-exchange between glass and surrounding biological fluids, the formation of silica-rich layer, the incorporation of calcium and phosphates, and the crystallization of biologically active hydroxyapatite (HAp) on their surface [1,2,3,4]. The peculiar surface reactivity of bioactive glasses and their corresponding glass-ceramics has been object of investigation for many years, since several authors focalized their attention on the multi-step mechanism for the formation of the HAp layer, which was considered the critical stage for bone healing [1,2,3,4,5,6,7]. Today, bioactivity (i.e., the ability to form strong bonds to bone) is considered a useful stage for bone regeneration, but not the critical one. Recent studies report that the release of ionic dissolution products (such as Si4+, Mg2+, Ca2+) from the bioactive glass surface has stimulating effects on bone formation, playing a key role in the early stages of the bone regeneration processes [8,9,10]. For this reason, bioactive glass surfaces can stimulate both intracellular and extracellular responses and, in turn can be actively mineralized in vivo. The in vivo colonization of osteogenic stem cells and the stimulation of angiogenesis seem to be promoted by contact with bioactive glasses [8]. For these reasons, a new promising research field has been recently proposed—i.e., the “genetic design” of new bioactive glass formulations [11] by doping silicate and phosphate glasses with several active ions, including trace elements [12,13].
Recently, some authors explored the aptitude of bioactive glasses to stimulate and regenerate soft tissues [10,14,15], and they proved that several processes that control soft tissue regeneration in the early steps can be regulated by the release of ions from bioactive glasses. In this prospective, several bioactive glass compositions containing specific metallic ions (Sr, Cu, Ag, Zn, etc., reported as “bioinorganics”) with therapeutic effects were investigated [9,16,17].
Among the explored therapeutic agents, Cu was initially studied for its ability to induce differentiation of mesenchymal cells towards the osteogenic lineage [18]. More recently, a significant amount of cellular Cu has been found in human endothelial cells during angiogenesis [19], and its ability to stimulate the proliferation of endothelial cells has been investigated [20]. Some authors evidenced the ability of copper ions to promote angiogenesis [21,22] in particular by synergistic stimulating effects when associated with angiogenic growth factor FGF-2 [23]. Moreover, copper is also well known for its antimicrobial properties [24,25].
Silica-based Cu-containing bioactive glasses were obtained mainly by sol–gel process [26,27,28,29], evidencing the ability to incorporate copper up to 10% mol; the traditional melt and quenching technique was also adopted both for silica-based bioactive glasses [30] and phosphate glasses [31,32], demonstrating that the glass degradation and the consequent release of copper ions significantly reduced the bacterial adhesion and proliferation.
Moreover, Wu et al., synthesized Cu-containing mesoporous bioactive scaffolds, which promoted the osteogenic differentiation of human bone marrow stromal cells, enhanced hypoxia-like tissue reaction, and showed antibacterial properties towards E. coli, thus combining angiogenesis, osteogenesis and antibacterial properties [33].
The ion-exchange process was also used to dope the surface of glasses (mainly soda-lime glass and Schott BK7 glass) with copper ions [34,35,36,37,38]. To the authors’ knowledge, this process was always performed in molten salts using different Cu salts, such as CuCl2, CuCl, CuCl:KCl and CuSO4:Na2SO4, or vapour of CuCl:KCl, and it was not applied to bioactive glass compositions.
In the present paper, the possibility to use the ion-exchange technique in aqueous solution to introduce copper in the outer layer of two different silica-based bioactive glasses was investigated for the first time by examining the effect of the process and the Cu introduction on the structure, morphology, composition, bioactive, and antibacterial properties of the glasses.

2. Materials and Methods

2.1. SBA2 Synthesis and Characterization

A bioactive glass with the composition of (mol %) 48% SiO2, 18% Na2O, 30% CaO, 3% P2O5, 0.43% B2O3, 0.57% Al2O3 (SBA2) was produced by means of melt and quenching technique. Briefly, the reactants were mechanically mixed, melted in a platinum crucible at 1450 °C for 1 h. Subsequently, the melt was cooled in water at room temperature obtaining a frit, which was mechanically milled in a zirconia jar and sieved to a final grain size <20 μm.
The obtained glass powders were subjected to an ion-exchange process; this technique is a mass transfer driven by concentration gradients, in which ions present in the surface of the glass (usually monovalent ions) diffuse out of the glass surface and are replaced by different ions coming from a molten salt bath or an aqueous solution. In this work, the process was performed in aqueous solution containing different Cu salts in different concentrations, as shown in Table 1, in order to introduce copper ions in the glass network.
In all experiments, 1 g of glass powder was immersed in 20 mL of solution and maintained at 37 °C for 1 h at 150 rpm to allow the exchange of copper ions with modifier ions of the glass (Na+ and Ca2+). Then, the solution was removed, the powders were washed two times with bi-distilled water, filtered using disk filter paper, and dried at 60 °C for 12 h.
The obtained powders were characterized in terms of structure by means of X-ray diffraction (XRD—X’Pert Philips diffractometer, PANalytical, Eindhoven, The Netherlands) to evaluate the possible formation of crystalline phases, using the Bragg Brentano camera geometry and the Cu-Ka incident radiation. The obtained pattern was analysed with X’Pert High Score software (2.2b) and the PCPDFWIN database (http://pcpdfwin.updatestar.com/).
The morphology and composition of ion-exchanged glass powders were analysed by means of Scanning Electron Microscopy (SEM, QUANTA INSPECT 200, FEI, Eindhoven, The Netherlands) equipped with Energy Dispersion Spectrometry (EDSPV 9900, EDAX, Mahwah, NJ, USA) to estimate the influence of the ion-exchange process on the glass powders and to verify the presence of Cu.
On the basis of structural and morphological-compositional characterizations, SBA2 powders ion-exchanged in a solution 0.01 M of copper acetate was selected to verify the antibacterial effect of Cu-doped glass. In order to perform the antibacterial ability test, 200 mg of glass powders were weighed and pressed at 4 tons for 10 s in an automatic press (Graseby T-40, Specac, Kent, UK) to obtain pellets. The inhibition halo test (Kirby Bauer test) was performed in accordance with NCCLS normative [39] using a standard Staphylococcus aureus strain (ATCC 29213).
S. aureus was selected since it is one of the strains mainly involved in the development of infection [40] and since the Gram positive strains are generally more resistant to the effects of antibacterial agents [41].
Briefly, a 0.5 McFarland solution, containing approximately 1 × 108 colony forming units (CFU)/mL, was prepared by dissolving some S. aureus colonies, grown on blood agar plate, in physiological solution; the turbidity of the solution was evaluated by optical instrument—Phoenix Spec BD McFarland (Becton, Dickinson and Company, Franklin Lakes, NJ, USA). This bacterial suspension was uniformly spread on Mueller Hinton agar plate (Becton, Dickinson and Company, Franklin Lakes, NJ, USA), glass pellets were placed in contact with the agar and incubated overnight at 37 °C. At the end of incubation, the inhibition zone was observed and measured.

2.2. SBA3 Synthesis and Characterization

On the basis of the results obtained from Cu-doped SBA2 characterizations—in particular the amount of Cu introduced without affecting the glass structure and the antibacterial test (as reported in the following sections)—a second glass composition (SBA3) was developed in order to allow a greater incorporation of Cu in the glass surface. The SBA3 presents the following molar composition: 48% SiO2, 26% Na2O, 22% CaO, 3% P2O5, 0.43% B2O3, 0.57% Al2O3. In particular, the amount of Na2O was increased in order to increase the quantity of mobile monovalent ions as well as to produce a more opened amorphous network and enhance the reactivity, thus promoting the exchange of all modifier ions with copper ions.
SBA3 powders were obtained by means of melting and quenching process: SBA3 precursors were melted in a platinum crucible at 1450 °C for 1 h and cooled in water to obtain a frit, which was mechanically milled in a zirconia jar and sieved to a final grain size <20 μm.
Considering the ion-exchange conditions that allowed the introduction of Cu in the SBA2 glass without the formation of crystalline phases (as reported in the following sections), SBA3 powders (1 g) were ion-exchanged in aqueous solution of copper acetate 0.01 M and 0.05 M (20 mL) for 1 h at 37 °C and 150 rpm. At the end of the process, the solution was removed and SBA3 powders were washed and dried following the same process used for SBA2 glass.
The structure of SBA3 and ion-exchanged SBA3 (named from now on SBA3-Cu0.01 and SBA3-Cu0.05) was investigated by means of XRD (X’Pert Philips diffractometer) using the Bragg Brentano camera geometry and the Cu-Ka incident radiation; the obtained patterns were analysed with X’Pert High Score software and the PCPDF data bank. SEM-EDS analyses were performed to estimate the morphology and the composition, in particular the effective Cu introduction, of the three glasses. The composition of the glasses and the oxidation state of Cu were also investigated by means of X-ray photoelectron spectroscopy (XPS—PHI 5000 VERSA PROBE, PHYSICAL ELECTRONICS). Survey analyses were carried out to verify the glasses’ compositions, and high resolution spectra of C and Cu were performed to individuate the oxidation state of copper.
The in vitro bioactivity of SBA3, SBA3-Cu0.01, and SBA3-Cu0.05 was evaluated by immersing 100 mg of glass powders in 100 mL of simulated body fluid (SBF-Kokubo [42]), maintained at 37 °C and 150 rpm for 1, 3, 7, 14, 21, and 28 days (two samples for each time period). The pH of the solutions was monitored every 2–3 days, and at the end of each incubation time the SBF solution was removed, samples gently washed with bi-distilled water and acetone, filtered using disk filter paper, and dried at 37 °C overnight. Subsequently, samples were analysed by means of XRD and Field Emission Scanning Electron Microscopy (FESEM, ZEISS, Jena, Germany) equipped with EDS to evaluate the precipitation of hydroxyapatite (HAp) and the eventual influence of Cu in the bioactivity process.
The antibacterial effect of Cu-doped glasses was investigated by means of the inhibition halo test previously described for SBA2 glass by using Cu-doped glass pellets, a standard S. aureus strain, and respecting the NCCLS normative [39].

3. Results and Discussion

3.1. SBA2 Characterization

Figure 1 shows the morphological, compositional, and structural characterization of SBA2 powders. As can be observed (Figure 1a), the powders’ size is <20 μm and they have an irregular shape due to the milling process. EDS analysis (Figure 1b) confirmed the presence of all elements characteristics of the glass, except for boron—due to its low atomic weight, it was not detected by the instrument. The Cr peak is due to the metallization process necessary for SEM observation. Structural analysis (Figure 1c) evidenced an amorphous halo at about 2θ = 25°–35° and a lack of any discrete diffraction peaks, confirming the completely amorphous nature of the starting glass.
SBA2 powders were then subjected to the ion-exchange process in different copper salt solutions. The pH of the solutions varied in different ranges, depending on the salt used and the concentration; after 1 h of contact with glass powders, the pH of the solutions increased due to the exchange between Na+ and Ca2+ ions from the glass and H+ ions from the solution (which is concurrent with the exchange with Cu2+), reaching higher values. In the case of copper nitrate solutions, the pH of the solution before the ion-exchange process varied between 3.9 and 4.7, and after the process the pH stabilized between 4.6 and 6.2. Regarding copper chloride solutions, the starting pH varied between 3.8 and 4.8, and after the process it reached values between 4.3 and 7.8. In the case of copper acetate solutions, the pH of the solution before the ion-exchange process varied between 5.5 and 5.7, and after the process the pH stabilized between 5.8 and 9.3. Finally, the pH of copper sulphate solutions changed between 4.3 and 5, and after the process reached values between 5.9 and 9.3, inclusive.
The pH of the solution can have an impact on the dissolution of the glass; nevertheless, it was reported that a strong increase of alkali dissolution was observed for bioactive glass with low silica content below pH 3 [43]—the pH of the used solution does not reach this value. Moreover, the ion-exchange process lasts only 1 h, whereas significant dissolution of bioactive glass with similar composition was observed by L. Björkvik et al. only after 7 or 14 days of treatment at pH near 2.
The structural characterization of ion-exchanged SBA2 glasses is reported in Figure 2. The ion-exchange in copper(II) nitrate 0.1 M and 0.05 M solutions caused the precipitation of a crystalline phase (Cu4(NO3)2(OH)6); on the contrary, the ion-exchange in a 0.01 M solution did not cause any additional phase precipitation, as confirmed by the XRD spectra, which revealed only the amorphous halo (Figure 2a). The same behaviour was observed for SBA2 powders ion-exchanged in copper(II) chloride solution: the formation of a Cu2Cl(OH)3 phase was observed after the ion-exchange in 0.1 M and 0.05 M solutions (Figure 2b), while any presence of crystallization peaks was estimated for SBA2 powders ion-exchanged in copper(II) acetate (Figure 2c) and sulphate solutions (both 0.05 M and 0.01 M) (Figure 2d).
Figure 3 shows the results obtained from compositional analyses (EDS). As it can be observed, for all glasses, Cu replaced both sodium and calcium, since a decrease of both elements was observed in all glasses with respect to the estimated amount for SBA2 glass. The at % reduction of Na and Ca is a function of the ion-exchange conditions: the ion-exchange in more concentrated solutions leads to a greater decrease in the amount of these elements and, as a consequence, a higher amount of Cu was incorporated in the glass.
However, as observed in XRD analysis, for some ion-exchange conditions, a precipitation of Cu-containing crystalline phase occurred; then, in these cases, the amount of detected Cu includes both the Cu of the crystalline phase and that incorporated in the amorphous glass network. Table 2 displays the amount of Cu estimated by EDS analyses and the presence of Cu-containing crystalline phases individuated by XRD analysis for all exchanged glasses.
Since it was possible to introduce a higher amount of Cu in the glass by using copper(II) acetate as precursor, avoiding at the same time the precipitation of crystalline phases, glass powders exchanged in copper(II) acetate solutions were analysed by SEM-EDS. The morphological-compositional analysis (Figure 4) showed the presence of some Cu-containing crystals (evidenced with red circles in Figure 4) on SBA2 ion-exchanged in a copper(II) acetate 0.05 M solution, even if the presence of any additional crystalline phase was not detected by XRD analysis.
For this reason, the antibacterial test was performed on SBA2 powders ion-exchanged in copper(II) acetate 0.01 M solution; the obtained result is reported in Figure 5. As can be observed, the glass pellets were not able to create an inhibition halo towards S. aureus strain. The blue halo around the sample (Figure 5b,c) is due to Cu diffusion in the agar, but it is not an inhibition zone since bacterial colonies are visible inside the “blue area”. However, it seems that no bacteria proliferate under the sample (Figure 5c), revealing the ability of this material to affect bacterial adhesion.

3.2. SBA3 Characterization

On the basis of results obtained for SBA2 glass, SBA3 powders were subjected to ion-exchange process in an aqueous solution of copper(II) acetate 0.01 M and 0.05 M. Figure 6 shows the structural analyses of SBA3 before and after ion exchange processes. As can be noticed, SBA3 and SBA3-Cu0.01 are completely amorphous, while the SBA3-Cu0.05 spectrum shows a small peak at about 2 theta = 29.5°, which is ascribable to CaCO3; the formation of this phase could be occurring during the ion-exchange process.
Morphological characterization (Figure 7) evidenced an altered surface morphology (i.e., a rougher surface) for ion-exchanged glasses in comparison to the pristine one, in particular for SBA3-Cu0.05. Compositional analyses confirmed the starting chemical composition of the SBA3 glass and the presence of Cu peaks in both SBA3-Cu0.01 and SBA3-Cu0.05 spectra. The amount of introduced Cu was 4.2 at % for SBA3-Cu0.01 and 14.2 at % for SBA3-Cu0.05; regarding SBA3-Cu0.01, the Cu ion-exchange occurred with sodium, while the ion exchange in a more concentrated solution (0.05 M) also led to an exchange with calcium (Table 3). The Cr peak visible in the EDS spectra is due to the metallization process necessary for SEM observation.
Table 4 and Figure 8 show the results of XPS measurements. The XPS quantitative analyses (Table 3) differ with respect to EDS analyses since EDS has a larger interaction volume then XPS (microns vs. nanometers); however, as evidenced with EDS measurements, the atomic percentage of Cu increased by increasing the concentration of ion-exchange solution; contemporaneously, sodium and calcium contents decreased. Al, B, and P were not detected.
In order to estimate the oxidation state of introduced Cu, a detailed analysis of the Cu (Cu 2p) region was performed. The XPS spectra show the peaks of Cu 2p3/2 and Cu 2p1/2 characteristic of Cu element; Cu(II) can be distinguished from Cu(I) and Cu0 since Cu(II) shows shake-up satellite features at about 943–941 eV and 961 eV [44]. These satellite peaks are well visible in SBA3-Cu0.01 and SBA3-Cu0.05 spectra, so the glass surface was enriched with Cu(II) ions.
SBA3, SBA3-Cu0.01 and SBA3-Cu0.05 were subjected to in vitro bioactivity test to estimate the ability of SBA3 to induce the precipitation of hydroxyapatite and to verify the possible influence of Cu introduction and ion-exchange process on bioactivity. Figure 9 shows the XRD analyses performed on all three glasses before and after immersion in SBF solution up to 28 days. With regards to SBA3, after 1 day of SBF immersion, a broad halo between 20° and 25° ascribable to silica gel formation can be noticed. After 3 days of soaking, two peaks at 2 theta = 25.879° and 32.054° appeared; these peaks were attributed to hydroxyapatite (HAp) (ref. pattern 00-001-1008). The introduction of Cu did not influence the bioactivity mechanism: after 1 day of soaking in SBF, the characteristic halo of silica gel was also noticed in SBA3-Cu0.01 and SBA3-Cu0.05 spectra, together with a peak at about 2 theta = 29.452° ascribable to CaCO3 (ref. pattern 01-0830578). Calcite is a precursor of HAp and its precipitation has also been observed by other authors [45]. HAp precipitation was also clearly observed for Cu-doped glass after 3 days of immersion.
The results of FESEM-EDS analyses after in vitro bioactivity test are reported in Figure 10. The figure shows the sample morphology of SBA3, SBA3-Cu0.01, and SBA3-Cu0.05 after 21 (Figure 10a–c) and 28 (Figure 10g–i) days of immersion in SBF solution, and the compositional analysis (Figure 10d–f) of SBA3, SBA3-Cu0.01, and SBA3-Cu0.05 after 21 days of SBF treatment. All glasses showed a surface morphology clearly different with respect to the powders before SBF treatment, since they were covered by nanometric crystals rich in Ca and P. Micrographs after 21 and 28 days evidenced the presence of crystals grown on the glass powders; the local EDS analysis after 21 days of immersion shows very intense peaks of Ca and P. EDS analyses after 28 days were not reported since they are very similar to those after 21 days.
Then, the performed analyses indicated that the Cu introduced by ion-exchange process does not alter the bioactivity of pristine glass (SBA3), contrary to what has been observed by other authors [26,30] for Cu-doped glasses using sol-gel process or melt and quenching technique. In fact, Srivastava et al. reported that the bioactivity of melt-derived 45S5 glass doped with more than 1 wt % of CuO decreases, since Cu enhances the chemical durability of silicate glasses [30]. The same result was observed by Bejarano et al. for Cu-doped sol-gel glasses [26]—the presence of Cu in the glass decreased the ability to form surface crystalline apatite, since the incorporation of Cu generated a lower amount of Ca released and a competition between Cu2+ and Ca2+ ions in solution for the precipitation of phosphate species, which explains the lower bioactivity of the Cu-doped glasses. In the present work, Cu was introduced in very low amounts and confined in the outer surface layers. For these reasons, it is unlikely that its presence could strongly and negatively affect the release of the ions involved in the bioactivity mechanism from the doped glass (sodium and calcium in this case), as already observed by authors in a glass ion-exchanged with silver [46,47]. Moreover, as reported in Figure 7, the ion-exchange process caused an alteration of the surface morphology, with increasing roughness. As a consequence of this alteration, aside from the decrease of sodium and calcium ions (partially substituted by Cu), which should slow the bioactivity kinetics, a faster dissolution rate can be hypothesized [48] which, in turn, can positively affect the glass bioactivity, with a compensative effect toward sodium and calcium depletion.
Antibacterial testing towards a strain of S. aureus is reported in Figure 11. As can be observed, Cu diffused from both samples in the agar plate (evidenced with red dotted line in Figure 11); SBA3-Cu0.01 was not able to produce an inhibition zone, while SBA3-Cu0.05 created a significant inhibition halo of about 1 mm. In addition, in this case, no bacteria proliferated under SBA3-Cu0.01 (Figure 11c), revealing the ability of this sample to avoid bacterial adhesion.

4. Conclusions

In this work, two bioactive glasses in the system SiO2, Na2O, CaO, P2O5, B2O3, Al2O3 (SBA2 and SBA3) have been synthesized by melt and quenching route and doped with Cu by ion-exchange in aqueous solutions. The effect of doping has been evaluated by morphological, compositional, and structural viewpoints, as well as in terms of bioactivity (HAp growth by soaking in SBF) and antibacterial properties (inhibition halo test).
Depending on both the glass composition and the ion-exchange conditions, Cu was introduced in the amorphous network as ionic species and as copper salts precipitates. By tailoring the glass reactivity (connected with the amount of monovalent modifying ions and the glass network degree of opening) and by proper selection of the exchange solution (in terms of typology of the copper salt and concentration), the process was optimized in order to enrich the glass surface with Cu(II) ions.
The ion-exchange process determined a modification of the morphology of the glass surface, inducing a higher roughness. The bioactivity of the glass, in terms of HAp growth by soaking in SBF, was not affected by the presence of Cu on the surface, contrary to what has been observed in literature for bioactive glasses doped with Cu in the whole bulk, where a competition between Ca2+ and Cu2+ ions has been observed in the first stages of the bioactivity mechanism. This difference from the literature can be explained by the relatively low amount of copper ions introduced by ion-exchange and their presence only in a very thin surface layer. This, in synergy with the increased surface roughness, which partially compensates for the eventual lower ion release from the glass, led to an unaltered ability of the glass to release ions involved in the bioactivity mechanism. Antibacterial testing on the optimized Cu-doped bioactive glasses revealed their ability to limit bacterial adhesion and proliferation.
Further investigations could be addressed to assess the biocompatibility of the glass modified with this new approach, as well as its ability to stimulate angiogenesis on human endothelial cell cultures.

Acknowledgments

The authors would like to acknowledge Fucale Giacomo (Chemical, Clinical and Microbiological Analyses Department, CTO, Turin, Italy) for its assistance during antibacterial test.

Author Contributions

M.M. performed all the experiments, interpreted the data and wrote the paper. Moreover she prepared and check the paper for the submission procedures; E.V. designed and supervised the experimental part and wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hench, L.L. Bioceramics. J. Am. Ceram. Soc. 1993, 81, 1705–1728. [Google Scholar] [CrossRef]
  2. Cao, W.; Hench, L.L. Bioactive materials. Ceram. Int. 1996, 22, 493–507. [Google Scholar] [CrossRef]
  3. Kaur, G.; Pickrell, G.; Sriranganathan, N.; Kumar, V.; Homa, D. Review and the state of the art: Sol-gel or melt quenched bioactive glasses for tissue engineering. J. Biomed. Mater. Res. Part B Appl. Biomater. 2015. [Google Scholar] [CrossRef] [PubMed]
  4. Kaur, G.; Pandey, O.P.; Singh, K.; Homa, D.; Scott, B.; Pickrell, G. A review of bioactive glasses: Their structure, properties, fabrication, and apatite formation. J. Biomed. Mater. Res. Part A 2014, 102, 254–274. [Google Scholar] [CrossRef] [PubMed]
  5. Gerhardt, L.C.; Boccaccini, A.R. Bioactive Glass and Glass-Ceramic Scaffolds for Bone Tissue Engineering. Materials 2010, 33, 3867–3910. [Google Scholar] [CrossRef]
  6. Jones, J.R. Review of bioactive glass: From Hench to hybrids. Acta Biomater. 2013, 9, 4457–4486. [Google Scholar] [CrossRef] [PubMed]
  7. Verné, E. Bioactive Glass and Glass-Ceramic Coatings. In Bio-Glasses—An Introduction; Jones, R.J., Clare, A.G., Eds.; John Wiley & Sons, Ltd.: Hoboken, NJ, USA, 2012; pp. 107–119. [Google Scholar]
  8. Gerhardt, L.C.; Widdows, K.L.; Erol, M.M.; Burch, C.W.; Sanz-Herrera, J.A.; Ochoa, I.; Stämpfli, R.; Roqan, I.S.; Gabe, S.; Ansari, T.; et al. The pro-angiogenic properties of multi-functional bioactive glass composite scaffolds. Biomaterials 2011, 32, 4096–4108. [Google Scholar] [CrossRef] [PubMed]
  9. Mourino, V.; Cattalini, J.P.; Boccaccini, A.R. Metallic ions as therapeutic agents in tissue engineering scaffolds: An overview of their biological applications and strategies for new developments. J. R. Soc. Interface 2012, 9, 401–419. [Google Scholar] [CrossRef] [PubMed]
  10. Rahaman, M.N.; Day, D.E.; Bal, B.S.; Fu, Q.; Jung, S.B.; Bonewald, L.F.; Tomsia, A.P. Bioactive glass in tissue engineering. Acta Biomater. 2011, 7, 2355–2373. [Google Scholar] [CrossRef] [PubMed]
  11. Hench, L.L. Genetic design of bioactive glass. J. Eur. Ceram. Soc. 2009, 29, 1257–1265. [Google Scholar] [CrossRef]
  12. Miola, M.; Vitale Brovarone, C.; Maina, G.; Rossi, F.; Bergandi, L.; Ghigo, D.; Saracino, S.; Maggiora, M.; Canuto, R.A.; Muzio, G.; et al. In vitro study of manganese-doped bioactive glasses for bone regeneration. Mater. Sci. Eng. C 2014, 38, 107–118. [Google Scholar] [CrossRef] [PubMed]
  13. Abou Neel, E.A.; Chrzanowski, W.; Pickup, D.M.; O’Dell, L.A.; Mordan, N.J.; Newport, R.J.; Smith, M.E.; Knowles, J.C. Structure and properties of strontium-doped phosphate-based glasses. J. R. Soc. Interface 2009, 6, 435–446. [Google Scholar] [CrossRef] [PubMed]
  14. Miguez-Pacheco, V.; Hench, L.L.; Boccaccini, A.R. Bioactive glasses beyond bone and teeth: Emerging applications in contact with soft tissues. Acta Biomater. 2015, 13, 1–15. [Google Scholar] [CrossRef] [PubMed]
  15. Miguez-Pacheco, V.; Greenspan, D.; Hench, L.L.; Boccaccini, A.R. Bioactive glasses in soft tissue repair. Am. Ceram. Soc. Bull. 2015, 94, 27–31. [Google Scholar]
  16. Hoppe, A.; Güldal, N.S.; Boccaccini, A.R. A review of the biological response to ionic dissolution products from bioactive glasses and glass-ceramics. Biomaterials 2011, 32, 2757–2774. [Google Scholar] [CrossRef] [PubMed]
  17. Hoppe, A.; Mouriño, V.; Boccaccini, A.R. Therapeutic inorganic ions in bioactive glasses to enhance bone formation and beyond. Biomater. Sci. 2013, 1, 254–256. [Google Scholar] [CrossRef]
  18. Rodríguez, J.P.; Ríos, S.; González, M. Modulation of the proliferation and differentiation of human mesenchymal stem cells by copper. J. Cell. Biochem. 2002, 85, 92–100. [Google Scholar] [CrossRef] [PubMed]
  19. Finney, L.; Vogt, S.; Fukai, T.; Glesne, D. Copper and angiogenesis: Unravelling a relationship key to cancer progression. Clin. Exp. Pharmacol. Physiol. 2009, 36, 88–94. [Google Scholar] [CrossRef] [PubMed]
  20. Hu, G.F. Copper stimulates proliferation of human endothelial cells under culture. J. Cell. Biochem. 1998, 69, 326–335. [Google Scholar] [CrossRef]
  21. Giavaresi, G.; Torricelli, P.; Fornasari, P.M.; Giardino, R.; Barbucci, R.; Leone, G. Blood vessel formation after soft-tissue implantation of hyaluronan-based hydrogel supplemented with copper ions. Biomaterials 2005, 26, 3001–3008. [Google Scholar] [CrossRef] [PubMed]
  22. Xie, H.; Kang, Y.J. Role of copper in angiogenesis and its medicinal implications. Curr. Med. Chem. 2009, 16, 1304–1314. [Google Scholar] [CrossRef] [PubMed]
  23. Gérard, C.; Bordeleau, L.J.; Barralet, J.; Doillon, C.J. The stimulation of angiogenesis and collagen deposition by copper. Biomaterials 2010, 31, 824–831. [Google Scholar] [CrossRef] [PubMed]
  24. Kim, Y.H.; Choi, Y.; Kim, K.M.; Choi, S.Y. Evaluation of copper ion of antibacterial effect on Pseudomonas aeruginosa, Salmonella typhimurium and Helicobacter pylori and optical, mechanical properties. Appl. Surf. Sci. 2012, 258, 3823–3828. [Google Scholar] [CrossRef]
  25. Raffi, M.; Mehrwan, S.; Bhatti, T.M.; Akhter, J.I.; Hameed, A.; Yawar, W.; Hasan, M.M. Investigations into the antibacterial behavior of copper nanoparticles against Escherichia coli. Ann. Microbiol. 2010, 60, 75–80. [Google Scholar] [CrossRef]
  26. Bejarano, J.; Caviedes, P.; Palza, H. Sol-gel synthesis and in vitro bioactivity of copper and zinc-doped silicate bioactive glasses and glass-ceramics. Biomed. Mater. 2015, 10, 025001. [Google Scholar] [CrossRef] [PubMed]
  27. Bonici, A.; Lusvardi, G.; Malavasi, G.; Menabue, L.; Piva, A. Synthesis and characterization of bioactive glasses functionalized with Cu nanoparticles and organic molecules. J. Eur. Ceram. Soc. 2012, 32, 2777–2783. [Google Scholar] [CrossRef]
  28. Goh, Y.F.; Alshemary, A.M.; Akram, M.; Rafiq, M.; Kadir, A.; Hussa, R. Bioactive glass: An in-vitro comparative study of doping with nanoscale copper and silver particles. Appl. Glass Sci. 2014, 5, 255–266. [Google Scholar] [CrossRef]
  29. Aina, V.; Cerrato, G.; Martra, G.; Malavasi, G.; Lusvardi, G.; Menabue, L. Towards the controlled release of metal nanoparticles frombiomaterials: Physico-chemical, morphological and bioactivityfeatures of Cu-containing sol-gel glasses. Appl. Surf. Sci. 2013, 283, 240–248. [Google Scholar] [CrossRef]
  30. Srivastava, A.K.; Pyare, R. Characterization of CuO substituted 45S5 Bioactive Glasses and Glass—Ceramics. Int. J. Sci. Technol. Res. 2012, 1, 28–41. [Google Scholar]
  31. Abou Neel, E.A.; Ahmed, I.; Pratten, J.; Nazhat, S.N.; Knowles, J.C. Characterisation of antibacterial copper releasing degradable phosphate glass fibres. Biomaterials 2005, 26, 2247–2254. [Google Scholar] [CrossRef] [PubMed]
  32. Mulligan, A.; Wilson, M.; Knowles, J.C. The Effect of increasing copper content in phosphate-based glasses on biofilms of Streptococcus sanguis. Biomaterials 2003, 24, 1797–1807. [Google Scholar] [CrossRef]
  33. Wu, C.; Zhou, Y.; Xu, M.; Han, P.; Chen, L.; Chang, J.; Xiao, Y. Copper-containing mesoporous bioactive glass scaffolds with multifunctional properties of angiogenesis capacity, osteostimulation and antibacterial activity. Biomaterials 2013, 34, 422–433. [Google Scholar] [CrossRef] [PubMed]
  34. Borsella, E.; Dal Vecchio, A.; Garcıa, M.A.; Sada, C.; Gonella, F.; Polloni, R.; Quaranta, A.; van Wilderen, L.J.G.W. Copper doping of silicate glasses by the ion-exchange technique: A photoluminescence spectroscopy study. J. Appl. Phys. 2002, 91. [Google Scholar] [CrossRef]
  35. Gonella, F.; Quaranta, A.; Padovani, S.; Sada, C.; D’Acapito, F.; Maurizio, C.; Battaglin, G.; Cattaruzza, E. Copper diffusion in ion-exchanged soda-lime glass. Appl. Phys. 2005, 81, 1065–1071. [Google Scholar] [CrossRef]
  36. Gonella, F.; Quaranta, A.; Cattaruzza, E.; Padovani, S.; Sada, C.; D’Acapito, F.; Maurizio, C. Cu-alkali ion exchange in glass: A model for the copper diffusion based on XAFS experiments. Comput. Mater. Sci. 2005, 33, 31–36. [Google Scholar] [CrossRef]
  37. Sakka, K.; Kamiya, A.; Kato, K. Incorporation of Copper into Glass by the Cu-Na Ion Exchange. J. Non-Cryst. Solids 1982, 5, 77–90. [Google Scholar] [CrossRef]
  38. Dimitrova, M.; Ivanova, Y.; Dimitriev, Y. Ion-exchange colouring of float glasses in vapours and melts of copper-containing salt. J. Univ. Chem. Technol. Metall. 2012, 47, 409–414. [Google Scholar]
  39. National Committee for Clinical Laboratory Standards. Performance Standards for Antimicrobial Disk Susceptibility Tests, Approved Standard M2-A9, 9th ed.; NCCLS: Villanova, PA, USA, 2003. [Google Scholar]
  40. Capoccia, D.; Montanaro, L.; Speziale, P.; Arciola, C.R. Antibiotic-loaded biomaterials and the risks for the spread of antibiotic resistance following their prophylactic and therapeutic clinical use. Biomaterials 2010, 31, 6363–6377. [Google Scholar] [CrossRef] [PubMed]
  41. Jung, W.K.; Koo, H.C.; Kim, K.W.; Shin, S.; Kim, S.H.; Park, Y.H. Antibacterial activity and mechanism of action of the silver ion in Staphylococcus aureus and Escherichia coli. Appl. Environ. Microbiol. 2008, 74, 2171–2178. [Google Scholar] [CrossRef] [PubMed]
  42. Kokubo, T.; Takadama, H. How useful is SBF in predicting in vivo bone bioactivity? Biomaterials 2006, 27, 2907–2915. [Google Scholar] [CrossRef] [PubMed]
  43. Björkvik, L.; Wang, X.; Hupa, L. Dissolution of bioactive glasses in acidic solutions with the focus on lactic acid. Int. J. Appl. Glass Sci. 2016. [Google Scholar] [CrossRef]
  44. Biesinger, M.C.; Lau, L.W.M.; Gerson, A.R.; Smart, R.S.C. Resolving surface chemical states in XPS analysis of first row transition metals, oxides and hydroxides: Sc, Ti, V, Cu and Zn. Appl. Surf. Sci. 2010, 257, 887–898. [Google Scholar] [CrossRef]
  45. Mačković, M.; Hoppe, A.; Detsch, R.; Mohn, D.; Stark, W.J.; Spiecker, E.; Boccaccini, A.R. Bioactive glass (type 45S5) nanoparticles: In vitro reactivity on nanoscale and biocompatibility. J. Nanopart. Res. 2012, 14. [Google Scholar] [CrossRef] [Green Version]
  46. Di Nunzio, S.; Vitale Brovaronea, C.; Spriano, S.; Milanese, D.; Verné, E.; Bergo, V.; Maina, G.; Spinelli, P. Silver containing bioactive glasses prepared by molten salt ion-exchange. J. Eur. Ceram. Soc. 2004, 24, 2935–2942. [Google Scholar] [CrossRef]
  47. Verne, E.; Ferraris, S.; Miola, M.; Fucale, G.; Maina, G.; Martinasso, G.; Canuto, R.A.; di Nunzio, S.; Vitale-Brovarone, C. Synthesis and characterisation of bioactive and antibacterial glass-ceramic Part 1—Microstructure, properties and biological behaviour. Adv. Appl. Ceram. 2008, 107, 234–244. [Google Scholar] [CrossRef]
  48. Perera, G.; Doremus, R.H.; Lanford, W. Dissolution Rates of Silicate Glasses in Water at pH 7. J. Am. Ceram. Soc. 1991, 74, 1269–1274. [Google Scholar] [CrossRef]
Materials 09 00405 g001 1024
Figure 1. (a) Morphological; (b) compositional; and (c) structural analyses of SBA2 bioactive glass powders.
Figure 1. (a) Morphological; (b) compositional; and (c) structural analyses of SBA2 bioactive glass powders.
Materials 09 00405 g001
Materials 09 00405 g002 1024
Figure 2. XRD analyses of SBA2 glass ion exchanged in (a) copper(II) nitrate; (b) copper(II) chloride; (c) copper(II) acetate; and (d) copper(II) sulphate solutions.
Figure 2. XRD analyses of SBA2 glass ion exchanged in (a) copper(II) nitrate; (b) copper(II) chloride; (c) copper(II) acetate; and (d) copper(II) sulphate solutions.
Materials 09 00405 g002
Materials 09 00405 g003 1024
Figure 3. Energy Dispersion Spectrometry (EDS) analyses of SBA2 powders before ion-exchange after in (a) copper(II) nitrate (SBA2-Cu N); (b) copper(II) chloride (SBA2-Cu Cl); (c) copper(II) acetate (SBA2-Cu A); and (d) copper(II) sulphate solutions (SBA2-Cu S).
Figure 3. Energy Dispersion Spectrometry (EDS) analyses of SBA2 powders before ion-exchange after in (a) copper(II) nitrate (SBA2-Cu N); (b) copper(II) chloride (SBA2-Cu Cl); (c) copper(II) acetate (SBA2-Cu A); and (d) copper(II) sulphate solutions (SBA2-Cu S).
Materials 09 00405 g003
Materials 09 00405 g004 1024

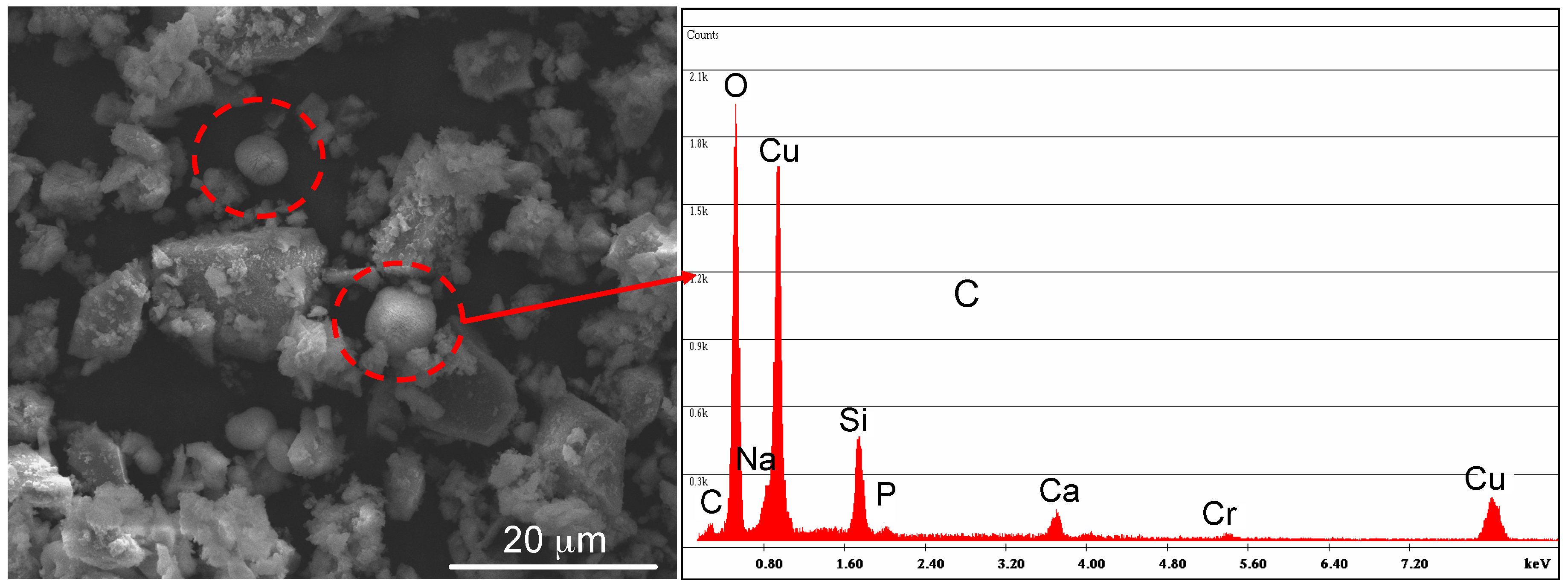

Figure 4. Morphological and compositional analyses of SBA2 ion exchanged in copper(II) acetate 0.05 M solution. Red circles evidenced a Cu-containing crystalline phase.
Figure 4. Morphological and compositional analyses of SBA2 ion exchanged in copper(II) acetate 0.05 M solution. Red circles evidenced a Cu-containing crystalline phase.
Materials 09 00405 g004
Materials 09 00405 g005 1024
Figure 5. Inhibition halo of SBA2 glass ion exchanged in copper(II) acetate 0.01 M solution. (a) time zero; (b) front of the plate after 24 h of incubation; and (c) back of the plate after 24 h of incubation.
Figure 5. Inhibition halo of SBA2 glass ion exchanged in copper(II) acetate 0.01 M solution. (a) time zero; (b) front of the plate after 24 h of incubation; and (c) back of the plate after 24 h of incubation.
Materials 09 00405 g005
Materials 09 00405 g006 1024

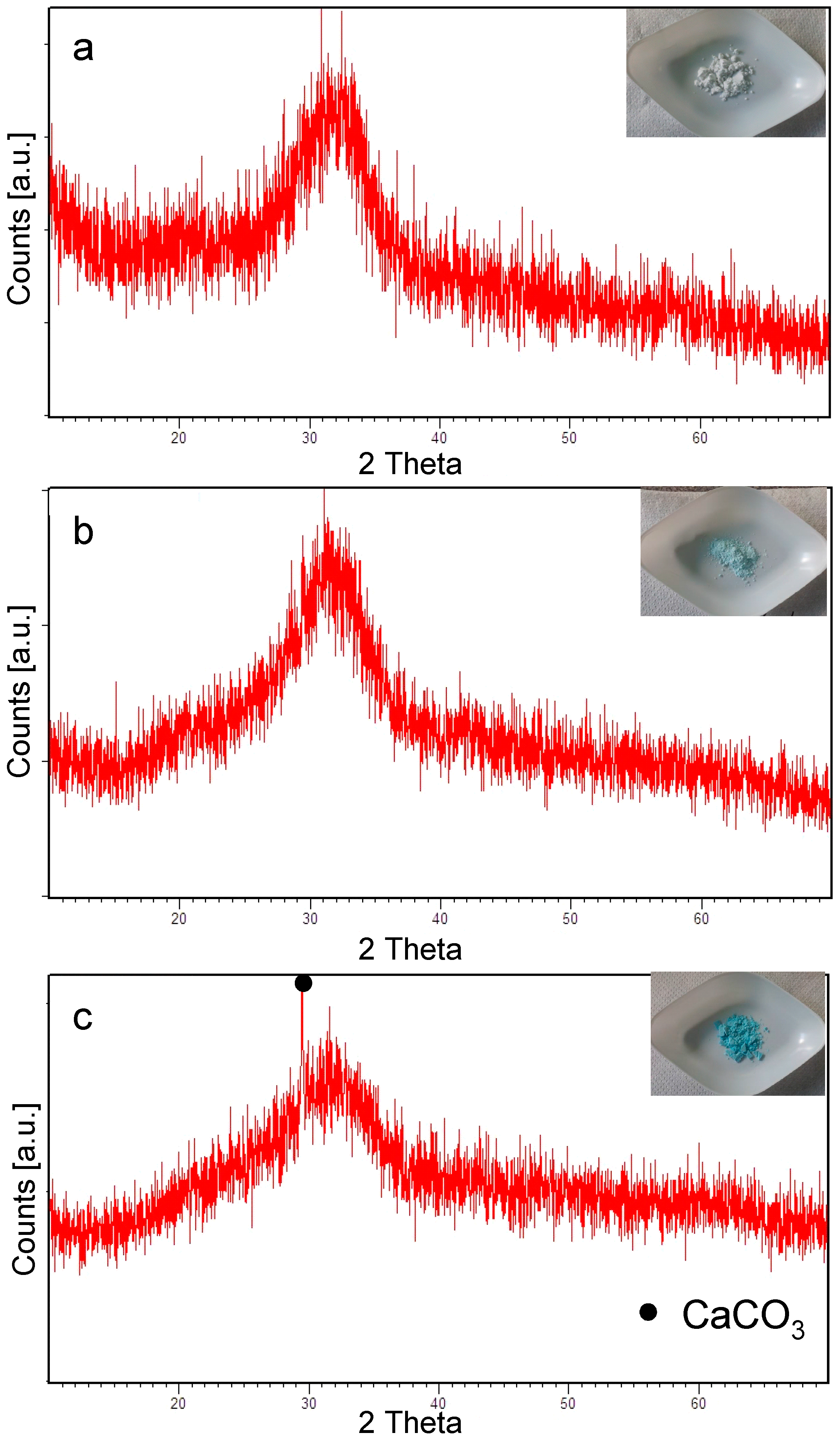

Figure 6. XRD analyses of SBA3 (a) before ion exchange; and after ion exchange in copper(II) acetate solution (b) 0.01 M and (c) 0.05 M.
Figure 6. XRD analyses of SBA3 (a) before ion exchange; and after ion exchange in copper(II) acetate solution (b) 0.01 M and (c) 0.05 M.
Materials 09 00405 g006
Materials 09 00405 g007 1024

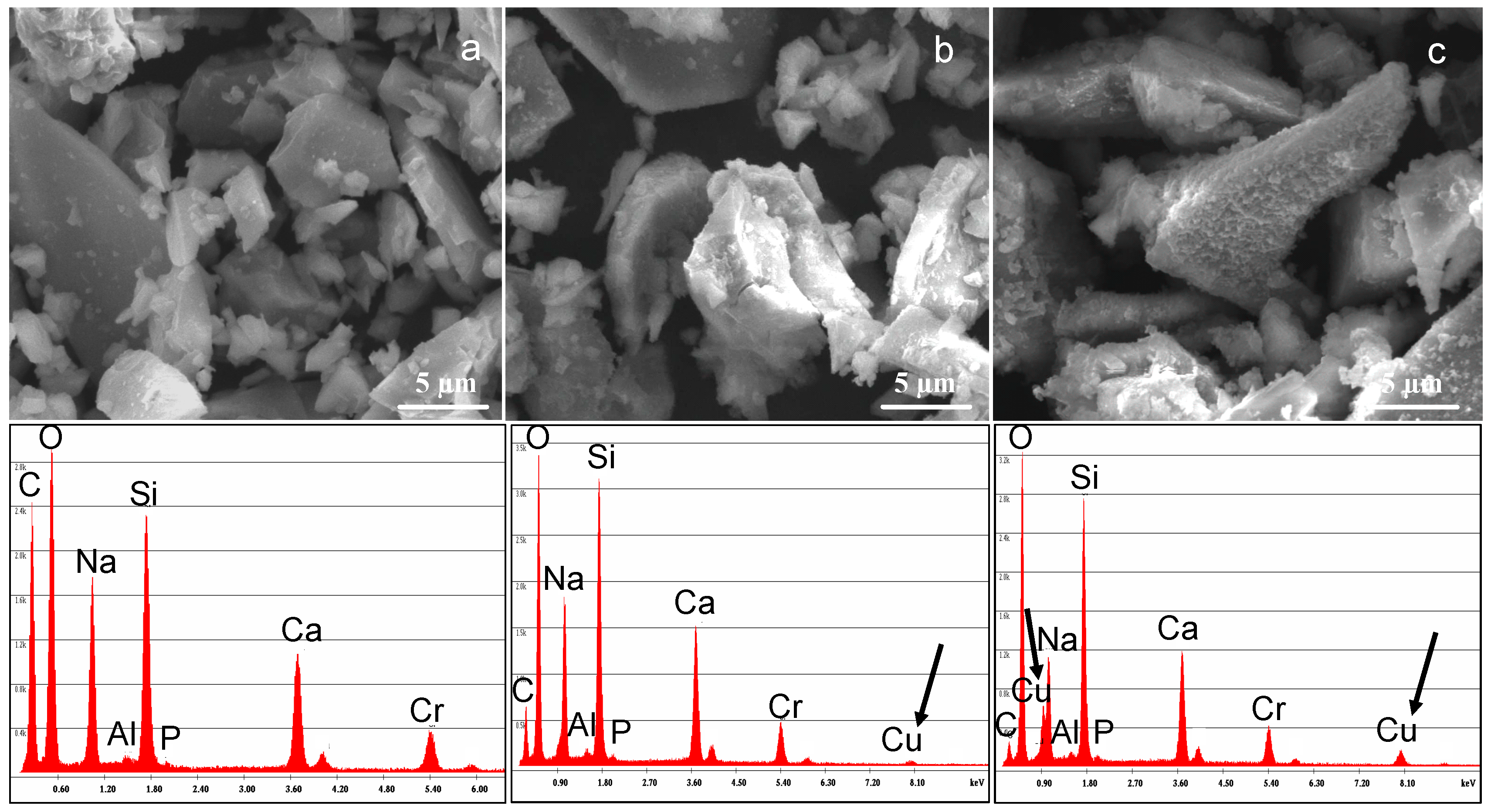

Figure 7. SEM-EDS analyses of (a) SBA3; (b) SBA3-Cu0.01; and (c) SBA3-Cu0.05.
Figure 7. SEM-EDS analyses of (a) SBA3; (b) SBA3-Cu0.01; and (c) SBA3-Cu0.05.
Materials 09 00405 g007
Materials 09 00405 g008 1024

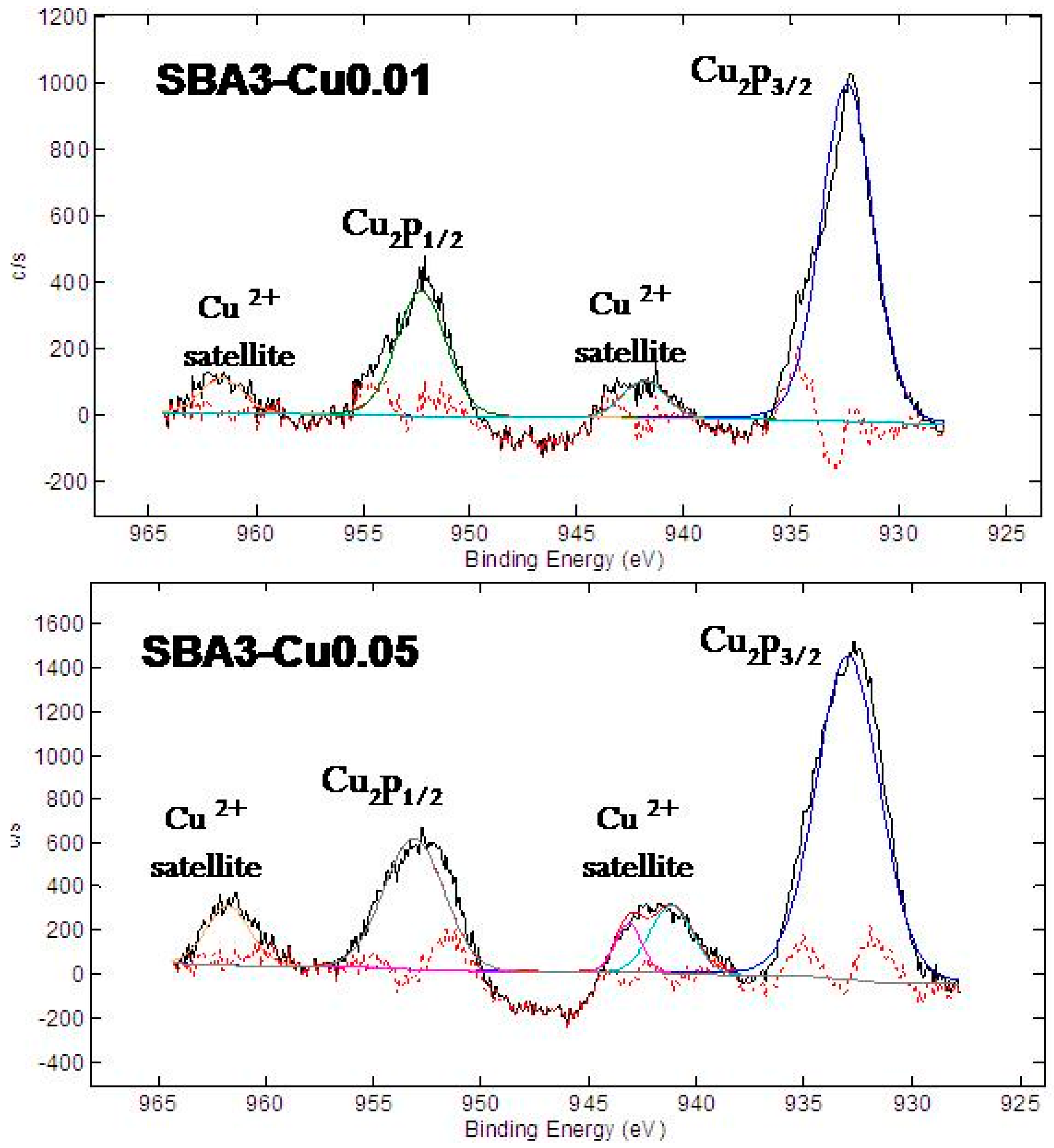

Figure 8. XPS detailed analyses of Cu 2p region of SBA3-Cu0.01 and SBA3-Cu0.05.
Figure 8. XPS detailed analyses of Cu 2p region of SBA3-Cu0.01 and SBA3-Cu0.05.
Materials 09 00405 g008
Materials 09 00405 g009 1024
Figure 9. XRD spectra of SBA3 (a); SBA3-Cu0.01 (b); and SBA3-Cu0.05 (c) before and after immersion in simulated body fluid (SBF) for 1, 3, 7, 14, 21, and 28 days. HAp: Hydroxyapatite.
Figure 9. XRD spectra of SBA3 (a); SBA3-Cu0.01 (b); and SBA3-Cu0.05 (c) before and after immersion in simulated body fluid (SBF) for 1, 3, 7, 14, 21, and 28 days. HAp: Hydroxyapatite.
Materials 09 00405 g009
Materials 09 00405 g010 1024

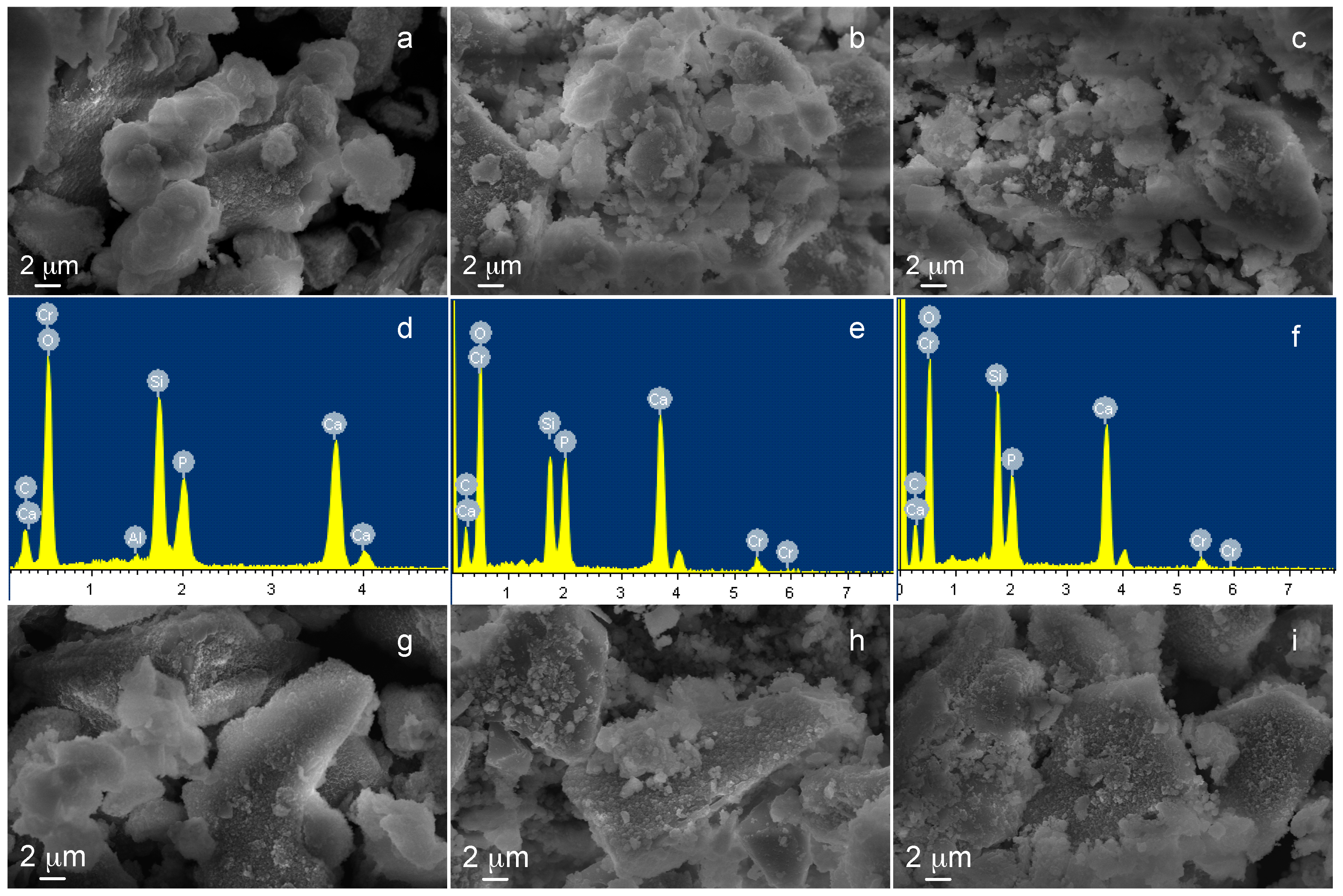

Figure 10. FESEM and EDS analysis of (a,d) SBA3; (b,e) SBA3-Cu0.01; and (c,f) SBA3-Cu0.05 after 21 days of immersion in SBF solution, and FESEM micrographs of (g) SBA3; (h) SBA3-Cu0.01; and (i) SBA3-Cu0.05 after 28 days of SBF treatment.
Figure 10. FESEM and EDS analysis of (a,d) SBA3; (b,e) SBA3-Cu0.01; and (c,f) SBA3-Cu0.05 after 21 days of immersion in SBF solution, and FESEM micrographs of (g) SBA3; (h) SBA3-Cu0.01; and (i) SBA3-Cu0.05 after 28 days of SBF treatment.
Materials 09 00405 g010
Materials 09 00405 g011 1024
Figure 11. Inhibition halo test of (a,c) SBA3-Cu0.01; and (b,d) SBA3-Cu0.05; towards S. aureus strain, (a,b) front; and (c,d) back of the plate.
Figure 11. Inhibition halo test of (a,c) SBA3-Cu0.01; and (b,d) SBA3-Cu0.05; towards S. aureus strain, (a,b) front; and (c,d) back of the plate.
Materials 09 00405 g011
Table
Table 1. Investigated conditions of ion-exchange.
Table 1. Investigated conditions of ion-exchange.
Copper Salts0.01 M0.05 M0.1 M
Copper(II) nitrate Cu(NO3)2·3H2Oxxx
Copper(II) chloride CuCl2·2H2Oxxx
Copper(II) acetate Cu(CH3COO)2·H2Oxx
Copper(II) sulphate CuSO4xx
Table
Table 2. Summary of Cu amount and presence of a crystalline phase detected by EDS and XRD analyses, respectively, for all ion-exchanged glasses.
Table 2. Summary of Cu amount and presence of a crystalline phase detected by EDS and XRD analyses, respectively, for all ion-exchanged glasses.
Copper Solutionsat % CuCrystalline Phase
Copper(II) nitrate 0.1 M9.2 ± 0.3Yes
Copper(II) nitrate 0.05 M4.5 ± 0.2Yes
Copper(II) nitrate 0.01 M3.7 ± 0.3No
Copper(II) chloride 0.1 M26.5 ± 0.6Yes
Copper(II) chloride 0.05 M9.9 ± 0.5Yes
Copper(II) chloride 0.01 M3.3 ± 0.5No
Copper(II) acetate 0.05 M7.4 ± 0.2No
Copper(II) acetate 0.01 M3.6 ± 0.5No
Copper(II) sulphate 0.05 M6.9 ± 0.1No
Copper(II) sulphate 0.01 M2.9 ± 0.1No
Table
Table 3. EDS analysis: atomic percentages of SBA3, SBA3-Cu0.01, and SBA3-Cu0.05.
Table 3. EDS analysis: atomic percentages of SBA3, SBA3-Cu0.01, and SBA3-Cu0.05.
EDSSBA3SBA3-Cu0.01SBA3-Cu0.05
Elementsat %at %at %
Na32.127.722.7
Al1.61.12
Si38.939.537.9
P0.60.70.7
Ca26.926.922.5
Cu04.214.1
Table
Table 4. Atomic percentages of elements obtained from XPS analyses of SBA3, SBA3-Cu0.01 and SBA3-Cu0.05.
Table 4. Atomic percentages of elements obtained from XPS analyses of SBA3, SBA3-Cu0.01 and SBA3-Cu0.05.
XPS-ElementsSBA3SBA3-Cu0.01SBA3-Cu0.05
Na56.938.229.4
Si25.843.346.6
Ca17.311.67.0
Cu0.006.917.0

Share and Cite

MDPI and ACS Style

Miola, M.; Verné, E. Bioactive and Antibacterial Glass Powders Doped with Copper by Ion-Exchange in Aqueous Solutions. Materials 2016, 9, 405. https://doi.org/10.3390/ma9060405

AMA Style

Miola M, Verné E. Bioactive and Antibacterial Glass Powders Doped with Copper by Ion-Exchange in Aqueous Solutions. Materials. 2016; 9(6):405. https://doi.org/10.3390/ma9060405

Chicago/Turabian Style

Miola, Marta, and Enrica Verné. 2016. "Bioactive and Antibacterial Glass Powders Doped with Copper by Ion-Exchange in Aqueous Solutions" Materials 9, no. 6: 405. https://doi.org/10.3390/ma9060405

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
