Materials 2016, 9(5), 319; doi:10.3390/ma9050319

Article
Structural Interpretation of the Large Slowdown of Water Dynamics at Stacked Phospholipid Membranes for Decreasing Hydration Level: All-Atom Molecular Dynamics
Carles Calero 1,2,3,*, H. Eugene Stanley 3 and Giancarlo Franzese 1,2,*
1
Secció de Física Estadística i Interdisciplinària—Departament de Física de la Matèria Condensada, Facultat de Física, Universitat de Barcelona, Martí i Franquès 1, Barcelona 08028, Spain
2
Institut de Nanociència i Nanotecnologia, Universitat de Barcelona, Av. Joan XXIII S/N, Barcelona 08028, Spain
3
Center for Polymer Studies and Department of Physics, Boston University, 590 Commonwealth Avenue, Boston, MA 02215, USA
*
Correspondence: Tel.: +34-934-039-212 (G.F.)
Academic Editor: Jordi Faraudo
Received: 3 March 2016 / Accepted: 21 April 2016 / Published: 27 April 2016

Abstract

: Hydration water determines the stability and function of phospholipid membranes as well as the interaction of membranes with other molecules. Experiments and simulations have shown that water dynamics slows down dramatically as the hydration decreases, suggesting that the interfacial water that dominates the average dynamics at low hydration is slower than water away from the membrane. Here, based on all-atom molecular dynamics simulations, we provide an interpretation of the slowdown of interfacial water in terms of the structure and dynamics of water–water and water–lipid hydrogen bonds (HBs). We calculate the rotational and translational slowdown of the dynamics of water confined in stacked phospholipid membranes at different levels of hydration, from completely hydrated to poorly hydrated membranes. For all hydrations, we analyze the distribution of HBs and find that water–lipids HBs last longer than water–water HBs and that at low hydration most of the water is in the interior of the membrane. We also show that water–water HBs become more persistent as the hydration is lowered. We attribute this effect (i) to HBs between water molecules that form, in turn, persistent HBs with lipids; (ii) to the hindering of the H-bonding switching between water molecules due to the lower water density at the interface; and (iii) to the higher probability of water–lipid HBs as the hydration decreases. Our interpretation of the large dynamic slowdown in water under dehydration is potentially relevant in understanding membrane biophysics at different hydration levels.
Keywords:
water; molecular dynamics; confinement; phospholipid membrane; diffusion

1. Introduction

Phospholipid membranes provide the framework of biological membranes, which are ubiquitous in nature as the limiting structures of cells and organelles and separate interior contents from external environments. They are also the main component in the formation of liposomes, which are used as drug-delivery systems and in cosmetics [1].
Phospholipid membranes consist of two leaflets of amphiphilic lipids that self-assemble due to the hydrophobic effect [2]. The study of pure component membranes can help us understand how basic biological membranes function and how they interact with the environment. It is important to comprehend the properties of phospholipid membranes at different hydration levels because water regulates membrane stability and function and mediates themembrane interaction with solutes such as ions, proteins, DNA and other membranes [3].
A range of experimental techniques have been used to study the properties of water hydrating membranes and other biomolecules, including neutron scattering [4,5], nuclear magnetic resonance (NMR) spectroscopy [6,7], infrared spectroscopy [8], ultrafast vibrational spectroscopy [9], and terahertz spectroscopy [10]. In Ref. [7], the diffusion of water confined in the lamellar phase of egg phosphatidylcholine was investigated as a function of the hydration of the membrane. A significant reduction (of approximately a factor 10) of the water diffusion coefficient was reported for weakly hydrated systems and was attributed to the interaction with the membrane. Accordingly, the authors observe a monotonic increase in the diffusion coefficient with the membrane’s hydration. Recent experiments [5,9,10] have investigated the dynamical rotational properties of water molecules at phospholipid membranes with varying water content using different choline-based phospholipids and experimental techniques. The authors of these studies show a slowdown in the dynamics of water molecules at the membrane interface and distinguish different types of water according to its rotational dynamics: fast, irrotational, and bulk-like. They related their findings to the number of hydrogen bonds (HBs) formed by water molecules. All-atom molecular dynamics (MD) simulations have provided microscopic insights into the dynamics and structure of water at the interface with phospholipid membranes, demonstrating that water can be strongly bound via HBs to polar groups of the bilayer lipids [11,12]. This interaction was shown to restrict the dynamics of water resulting in longer reorientation times and slower translational dynamics [11,12,13]. MD simulations were successfully used to interpret experimental observations of the effect of the phospholipid membrane on the reorientation dynamics with different hydration levels and infrared spectra of interfacial water [14,15].
Here, we use all-atom MD simulations to study the diffusion and rotational dynamics of water hydrating stacked dimyristoylphosphatidylcholine (DMPC) phospholipid membranes. We vary the hydration level, ω, defined as the number of water molecules per phospholipid. Among a wide variety of lipids, DMPC are phospholipids incorporating a choline as a headgroup and a tailgroup formed by two myristoyl chains. Choline based phospholipids are ubiquitous in cell membranes and used in drug targeting liposomes [1]. Our findings relate the dynamical behavior of water confined between bilayers to the structure and dynamics of the HB network formed among water molecules and between water and selected lipid groups.

2. Results and Discussion

We perform MD simulations of TIP3P water confined between DMPC phospholipid membranes (see Methods section for further details). The use of periodic boundary conditions in our simulations allows us to describe a system of perfectly stacked phospholipid bilayers with a homogeneous prescribed hydration level ω. We consider six different hydration levels ω = 4 , 7, 10, 15, 20, and 34 (Figure 1), which include the low hydrated systems probed in experiment [8,9,10] and a fully hydrated membrane (with ω = 34 ) [16].

2.1. Translational Dynamics

We characterize the translational dynamics of water confined in stacked DMPC bilayers by calculating the mean-square displacement of the molecule’s center of mass projected on the plane of the membrane (MSD ). We simulate 10 ns-trajectories saved every 0.1 ps, discard the initial 2 ps until the diffusive regime is reached, and calculate the diffusion coefficients for confined water as:
D lim t | r ( t ) - r ( 0 ) | 2 4 t ,
where r ( t ) is the projection of the center of mass of a water molecule on the plane of the membrane and the angular brackets . . . indicate the average over all water molecules and time origins (Figure 2a).
We find (Figure 2) that the average over all the water molecules indicates a significant translational slowdown that is more pronounced as the hydration of the system is lowered, in agreement with previous experimental and computational studies [9,10,14,15]. Indeed, the diffusion coefficient averaged over the entire system is always much smaller than the bulk value D bulk = 5 . 5 ± 0 . 1 nm 2 /ns and decreases monotonically for decreasing hydration (Figure 2b), from 3.4 nm 2 /ns for the completely hydrated membrane ( ω = 34 ) to D = 0 . 13 nm 2 /ns for the lowest hydrated system ( ω = 4 ). The strong dependence of D on hydration and its large drop at low ω are in qualitative agreement with experiments for similar systems [7,17]. Nevertheless, a quantitative comparison with experimental results might be problematic due to the difficulty in experiments to ensure the homogeneity of hydration and the perfect alignment of the membranes in measuring D .
We finally observe that this result is consistent with recent theoretical advances in our understanding of the dimensionality-dependence of diffusion [18] if we consider that the membrane is generating a rugged energy landscape for the confined water. Indeed, the theory of diffusion in a rugged energy landscape shows that the reduction of the diffusion coefficient from 3d to 2d can be of an order comparable to our result (∼38% in our case).

2.2. Rotational Dynamics

We next study the rotational dynamics of the water confined in stacked phospholipid bilayers. We calculate the rotational dipolar correlation function,
C sim rot ( t ) μ ^ ( t ) · μ ^ ( 0 ) ,
where μ ^ ( t ) is the direction of the water dipole vector at time t and . . . denotes the ensemble average over all water molecules and time origins (Figure 3a). This quantity is related to recent terahertz dielectric relaxation measurements used to probe the reorientation dynamics of water [10]. To quantify the relaxation of the correlation functions C sim rot ( t ) , we define the relaxation time:
τ rot 0 C sim rot ( t ) d t ,
which is not dependent on any assumptions about the functional form of the correlation function. The results for C sim rot ( t ) and the corresponding relaxation times τ rot (Table 1) confirm the monotonic slowing-down of the rotational dynamics of water for decreasing membrane hydration as found in experiments and in previous computational works [9,10,14,15].

2.3. Criticism to the Interpretation of the Rotational Dynamics in Terms of Different Types of Water Molecules

An inspection of Figure 3 might suggest the existence of different time-scales in the decay of the rotational correlation function C sim rot ( t ) for all the cases considered, i.e., an initial rapid decrease of C sim rot ( t ) followed by a much slower decay process. In the interpretation of dielectric relaxation experiments, Tielrooij et al. [10] assumed the existence of three different water species according to their reorientation dynamics, i.e., (i) bulk-like water molecules whose reorientation dynamics resemble that of bulk water, with characteristic times τ bulk of a few picoseconds; (ii) fast water molecules that reorient significantly faster than bulk water with τ fast fraction of picosecond; and (iii) irrotational water molecules that may relax with characteristic times τ irr 10 ps.
Here, we test the consistency of this hypothesis using our MD simulation results. We can identify the fractions f fast , f bulk and f irr of the three species as a function of ω by fitting C sim rot ( t , ω ) to a sum of pure exponentially decaying terms,
C sim rot ( t , ω ) = f fast ( ω ) e - t / τ fast + f bulk ( ω ) e - t / τ bulk + f irr ( ω ) e - t / τ irr ,
where
f fast ( ω ) + f bulk ( ω ) + f irr ( ω ) = 1
is the sum for each ω of the fractions f fast , f bulk , and f irr of fast, bulk-like and irrotational water molecules, respectively (see Table 2 and Figure 3b).
Although Figure 3b qualitatively accounts for the experimental behavior reported in Ref. [10], the fitting procedure is not robust because there are five fitting parameters for each ω. In addition, the parameters τ fast , τ bulk , and τ irr in Table 2 are not showing any regular behavior as a function of ω. In particular, we would expect that τ bulk should be independent of ω, but instead it is varying non-monotonically by a factor >2.
All of these observations suggest that the interpretation of the dynamics slowdown proposed in Ref. [10] in terms of these distinctive types of water may not be complete, and that a more thorough analysis is needed. In the following, we propose an interpretation based on an analysis of the structure and dynamics of the HBs.

2.4. Hydrogen Bond Structure

In order to understand the results obtained for the translational and rotational dynamical properties of water confined at stacked phospholipid bilayers, we analyze the HB network formed by the water molecules. In fact, the dynamic and thermodynamic activity in liquid water is determined by the breaking and formation of the HBs [6,19,20,21,22,23]. Here, we adopt the widely employed geometric definition of the HB. We consider two molecules that are H-bonded when the distance between donor and acceptor oxygen atoms satisfies d O O < 3 . 5 Å, and the angle formed by the OH bond of the donor molecule with the OO direction is HOO ^ < 30 . We consider HBs formed among water molecules and also among water and phosphate or ester groups of the DMPC phospholipid [12].
We find that the average number n H B of HBs formed by each water molecule decreases significantly, from 3.3 to 2.6, as we reduce the membrane hydration ω (Figure 4a). Thus, at low ω, each water molecule has fewer H-bonds than at high ω. In addition, the percentage of HBs formed between water and lipids, with respect to the total number of HBs, increases from <10% at ω = 34 to ≃45% at ω = 4 (Figure 4b). Hence, at low ω, almost half of the water HBs are directly on the membrane. Overall, these findings suggest that at low ω, water is less bonded but more adsorbed to the membrane.
To better understand how these results are related to the water slowdown, we perform a detailed analysis of the HB network for different values of ω. In particular, we calculate the distributions of the water–water HBs, the water–lipid HBs, and the sum of all them for decreasing ω (Figure 5).
For the completely hydrated membrane ( ω = 34 ), we find that a water molecule forms preferentially three or four HBs (Figure 5a). Almost all of these HBs are between water molecules and very few involve lipids. This result can be verified by calculating the probability distribution that a water molecule forms n wat HBs with other water molecules and at the same time n lip HBs with lipids in the membrane (Figure 6).
For a membrane with intermediate hydration ( ω = 10 ), we find that water H-bonding decreases, with 3 ± 1 HBs per water molecule (Figure 5b). In this case, water molecules preferentially form 1 HB with lipids and 2 HBs with other water molecules, but the probability of having only water–water HBs is high (Figure 6).
Finally, for the least hydrated membrane ( ω = 4 ), we find that a water molecule forms preferentially only two or 3 HBs, and it thus on average has fewer HBs than when ω is higher (Figure 5c). Our analysis reveals, however, that, under these conditions, there is a high probability that one or two of these HBs are with lipids , and, at the same time, with at least one other water molecule. Thus, the majority of the water–water HBs in the system bridge between water–lipids HBs. In addition, the probability that a water molecule is not bonded with at least one lipid is very small (Figure 5).

2.5. Hydrogen Bond Dynamics

To better relate our water HB structure analysis to the dynamics of confined water in stacked membranes, we investigate the time evolution of the HB network. We calculate the time correlation functions
C H B w - α ( t ) n w - α ( t ) n w - α ( 0 ) n w - α ( 0 ) ,
where n w - α ( t ) is one when at time t a given water forms a HB with another water ( α = w ) or a lipid ( α = l ), and is zero otherwise. The brackets . . . indicate averaging over all water–water or water–lipid pairs and over multiple time origins. C H B w - α ( t ) is the measure of the probability that a HB at time 0 remains intact at a later time t (Figure 7). To quantify the relaxation of the correlation functions C H B w - α ( t ) , we define the relaxation times
τ H B w - α 0 C H B w - α ( t ) d t ,
which are computed directly from the MD simulation trajectories.
We find that the relaxation of the water–water HB correlation function C H B w - w ( t ) slows down dramatically as the hydration level of the membrane decreases (Figure 7a). In fact, the relaxation times of the water–water HB network (Table 3) increase monotonically from τ H B w - w = 4 . 0 ps for the completely hydrated membrane ( ω = 34 ) to τ H B w - w = 110 ps for ω = 4 . This behavior indicates that the water–water HBs in proximity to phospholipids, i.e., at low ω, are significantly more stable than those formed in bulk, with correlation times that are ≃40 times longer than in bulk water. This result can be attributed at least to two causes:
  • the formation of water–water HBs that are in turn bonded through long-lived HBs to the phospholipid (Figure 7b), and
  • the decreased water density at the membrane interface ρ ¯ w (Table 3), which hinders the H-bonding switch between water molecules [14,21].
However, we find that the water–water HBs are faster than the water–lipid HBs at any ω. In particular, C H B w - l ( t ) exhibits a much slower relaxation than C H B w - w ( t ) for all cases (Figure 7b). We quantify the effect by calculating the slowing-down factor κ τ H B w - l / τ H B w - w , which measures the relative dynamics of water–lipid and water–water HBs. We find that κ changes from ≃10 at complete hydration to ≃2 at low hydration (Table 3), indicating that the robustness of the water–lipid HBs with respect to those among water molecules persists even at very low hydration.
We observe that the relaxation of water–lipid HBs is unaffected by increasing the level of membrane hydration above a threshold ω 10 (Figure 7b), with relaxation times that reach a stable value τ H B w - l 40 ps for ω 10 (Table 3). This result suggests that for 7 < ω < 10 , there is a saturation of the water–membrane interface where water molecules directly interact with lipid headgroups in agreement with X-ray scattering experiments [24]. As the hydration level is increased, this region of the interface is not modified.

2.6. Water Dynamics Determined by Distance to Membrane

The results presented thus far for the diffusion and rotational dynamics of water molecules confined in stacked membranes are averaged properties over all water molecules. These averages are experimentally accessible [7,10,17] but provide no further insight into the local interfacial mechanisms that govern the dynamics of confined water at different hydration levels. To achieve this, we perform a detailed analysis of our MD simulation results.
We first define the water–membrane distance in order to quantify the water–membrane interface. This definition is necessary because, within the relevant lengthscale of the problem, which corresponds to the size of a water molecule, the water–membrane interface is not flat and exhibits spatial inhomogeneities. In addition, the interface is soft and can be penetrated by water molecules, as observed in experiments [4] and numerical simulations [25,26].
In particular, we follow Pandit et al. [3,25] when defining the distance from the membrane. For each MD snapshot, we perform a two-dimensional Voronoi tessellation of the average plane of the membrane (the x y -plane) using the phosphorous and nitrogen atoms of the phospholipid heads as centers of the Voronoi cells. To each water molecule, we assign a Voronoi cell by its projection in the x y -plane and a membrane distance ξ z water - z Voronoy , where z water and z Voronoy are the z-coordinates of the water molecule and its corresponding Voronoi cell, respectively. Finally, we define three different regions relevant to the water–membrane interface, (i) the interior of the membrane, with ξ < 0 ; (ii) the first hydration layer, with 0 < ξ < 5 Å; and (iii) the exterior of the membrane, with ξ > 5 Å (Figure 8).
For each of these three regions of a completely hydrated membrane ( ω = 34 ), we calculate the average diffusion coefficient D for translations parallel to the membrane x y -plane and the average characteristic time τ rot for dipolar rotational relaxation (Table 4). We find similar results (not shown) for all hydrations, including ω = 4 and 7, but, in these cases, there is no exterior region.
Our calculations indicate that the dynamics of water in the interior of the membrane ( ξ < 0 ) are very sluggish. In particular, this water diffuses ≈30 times more slowly than bulk water, and has a rotational relaxation time ≈100 times longer than bulk water.
We find that water in the first hydration layer ( 0 < ξ < 5 Å) is also slower than bulk water, both in the translational diffusion time, ≈10 times slower than bulk water, and the rotational relaxation time, ≈10 times longer than bulk water. We interpret these results as a consequence of the strong interaction of water in the first hydration layer with the phospholipid membrane.
Finally, we observe that the dynamic behavior of water in the exterior region ( ξ > 5 Å) resembles that in bulk water, with both D and τ rot approaching the bulk water values. Nevertheless, both the translational and the rotational dynamics are slower than in bulk water, outside the error bars, indicating that the nearby membrane has a residual influence that extends beyond the first hydration layer.
These results provide a simple interpretation of how the overall dynamics of water confined in stacked phospholipid membranes depends on hydration: as the hydration increases, water first saturates the inner part of the membrane, next fills the layer in contact with the membrane (for ω 10 ), and finally fills the space between the stacked membranes layer by layer (Figure 8). As a consequence, for ω 10 , as the hydration increases, the fraction of bulk-like water molecules increases and the overall water dynamics becomes faster.

3. Methods

We prepare six different systems of hydrated phospholipid bilayers with hydration levels (i.e., water molecules per lipid) ω = 4 , 7, 10, 15, 20, and 34 (Figure 1). We examine a range that extends from the weakly hydrated systems probed in recent experiments [5,8,9,10] to a fully hydrated membrane (with hydration level ω = 34 ), which has been thoroughly studied both experimentally and using computer simulations [12,16]. The bilayer is composed of 128 dimyristoylphosphatidylcholine (DMPC) lipids distributed in two leaflets. We apply periodic boundary conditions in all three dimensions, which allows us to describe a system of stacked bilayers with perfect periodicity along a direction perpendicular to the plane of the membrane.
We perform MD simulations using the NAMD 2.9 [27] package at a temperature of 303 K and an average pressure of 1 atm. We set the simulation time step to 1 fs. We describe the structure of phospholipids and their mutual interactions using the recently parameterized force field CHARMM36 [28,29], which is able to reproduce the area per lipid in excellent agreement with experimental data. The water model employed in our simulations, consistent with the parametrization of CHARMM36, is the modified TIP3P [30,31]. We cut off the van der Waals interactions at 12 Å with a smooth switching function starting at 10 Å. We compute the long-range electrostatic forces using the particle mesh Ewald method [32] with a grid space of ≈1 Å. We update the electrostatic interactions every 2 fs. After energy minimization, we equilibrate the hydrated phospholipid bilayers for 10 ns followed by a production run of 50 ns in the NPT ensemble at 1 atm. The simulations of bulk water were equilibrated in the NPT ensemble for 1 ns, followed by a production run in the NVT ensemble of 5 ns. In the simulations, we use a Langevin thermostat [33] with a damping coefficient of 0.1 ps - 1 to control the temperature and a Nosé–Hoover Langevin barostat [34] with a piston oscillation time of 200 fs and a damping time of 100 fs to control the pressure.
The use of a Langevin thermostat as a temperature control algorithm in MD simulations has been shown to induce an artificial damping in the dynamical properties of the simulated system when strong couplings are used [35]. In the weak coupling regime (e.g., in the simulations reported in this work), it has been shown that the damping effect of the Langevin thermostat is negligible when studying hydrated membranes [36]. We have also performed simulations of 1981 bulk TIP3P water molecules in a cubic simulation box with periodic boundary conditions coupled to a Langevin thermostat that produces a diffusion coefficient ( D = 5 . 3 ± 0 . 1 at T = 298 K) that agrees with the value reported in the literature for MD simulations of TIP3P water coupled to a Berendsen thermostat [37].

4. Conclusions

We investigate the dynamical properties of water confined in stacked DMPC phospholipid membranes with different hydration levels, ranging from poorly hydrated systems (with ω = 4 water molecules per phospholipid corresponding to approximately one layer of water between the two membranes, with a membrane-to-membrane distance of h 0 . 3 nm) to a completely hydrated membrane (with ω = 34 , with ∼10 confined water layers, h 3 nm). We find that both the translational diffusion and the reorientation dynamics of water slow dramatically when the hydration level is reduced. In particular, we calculate that the diffusion coefficient of water parallel to the plane of the membrane monotonically decreases from D = 3 . 4 nm 2 /ns in a completely hydrated membrane to D = 0 . 13 nm 2 /ns in the lowest hydrated case. In addition, we find a similar behavior in the water reorientation dynamics, for which the characteristic relaxation times increase monotonically from τ rot = 12 . 4 ps at ω = 34 to τ rot = 290 ps at ω = 4 .
These results can be partially attributed to the heterogeneity of the interface, which generates a rugged energy landscape for the confined water, consistent with recent theoretical work [18], and they are in agreement with experiments performed under similar conditions. In particular, the rotational dynamics can be divided, as suggested in Ref. [10], into three contributions from three different populations of water with different relaxation times, one fast, one bulk-like, and one irrotational. However, we show that the resulting fitting parameters do not indicate a regular behavior and suggest that this interpretation might be incomplete.
We thus offer an interpretation in terms of HB structure and dynamics. We find that the most likely value for the number of HBs per water molecule is n H B = 3 for all the considered hydrations. However, the secondary peaks of the overall distribution of n H B move toward lower values as ω is decreased, implying a decrease in the average n H B . This decrease leads to an increase in the probability that a water molecule will have a single HB, which might represent the fast reorienting water observed experimentally [8,10].
We further analyze the HB dynamics and find that the translational and rotational slowdown in water confined between stacked DMPC phospholipid bilayers when the hydration level is lowered can be attributed to a combination of several factors:
(i)
the slow dynamics of water–lipid HBs,
(ii)
the higher proportion of water–lipid HBs at low hydrations,
(iii)
the slowdown of water–water HBs that bridge between persistent water–lipid HBs, and
(iv)
the slowdown of HB-switching due to the decrease of water density.
Finally, we perform a local analysis of the dynamics at the interface. We find that water molecules in the interior of the membrane are up to two orders of magnitude slower than bulk water. Water in the first hydration layer is one order of magnitude slower than bulk water, indicating that the slowdown effect of the membrane decreases rapidly as the distance from the interface is increased. Yet we find a residual influence of the membrane that slows down the water dynamics beyond the first hydration layer.
This layer-by-layer analysis suggests that there are three components contributing to the averaged water dynamics: (i) a bulk-like component from water away from the membrane; (ii) a very sluggish component (both translationally and rotationally) from the water trapped inside the membrane; and (iii) a slow component at the interface between (i) and (ii). Although this lays aside any interpretation that utilizes a fast component in water relaxation, our calculation of average quantities cannot exclude the presence of heterogeneities, such as those associated with water molecules with a single HB as discussed above.
In conclusion, although our analysis clearly shows that the formation of long-duration, slow-relaxing water HBs with lipids at the interface with the membrane causes the dynamics of water confined between membranes to slow down, and we cannot exclude the possibility that there is a fast component that contributes to the dynamics of hydration water, and more detailed study beyond the scope of this work is needed. Our results and their possible extension contribute to our understanding of the properties of biological membranes.

Acknowledgments

We thank Marco Bernabei, Valentino Bianco, Sergey Buldyrev, Jordi Martì and Oriol Vilanova for useful discussions. C.C. and G.F. acknowledge the support of Spanish MINECO grants FIS2012-31025 and FIS2015-66879-C2-2-P. C.C. acknowledges the support from the Catalan Governament Beatriu de Pinós program (BP-DGR 2011). The authors thankfully acknowledge the computer resources, technical expertise and assistance provided by the Red Española de Supercomputación. The Boston University work was supported by DOE Contract DE-AC07-05Id14517, and by NSF Grants CMMI 1125290, PHY 15 05000, and CHE-1213217.

Author Contributions

Carles Calero, H. Eugene Stanley and Giancarlo Franzese conceived and discussed the study, Carles Calero performed the simulations and analyzed the data, Giancarlo Franzese supervised the work, and Carles Calero, H. Eugene Stanley and Giancarlo Franzese wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hamley, I.W. Introduction to Soft Matter; John Wiley and Sons: West Sussex, UK, 2007. [Google Scholar]
  2. Nagle, J.F.; Tristram-Nagle, S. Structure of lipid bilayers. Biophys. Acta 2000, 1469, 159–195. [Google Scholar]
  3. Berkowitz, M.L.; Bostick, D.L.; Pandit, S. Aqueous solutions next to phospholipid membrane surfaces: Insights from simulations. Chem. Rev. 2006, 106, 1527–1539. [Google Scholar] [CrossRef] [PubMed]
  4. Fitter, J.; Lechner, R.E.; Dencher, N.A. Interactions of hydration water and biological membranes studied by neutron scattering. J. Phys. Chem. B 1999, 103, 8036–8050. [Google Scholar] [CrossRef]
  5. Trapp, M.; Gutberlet, T.; Juranyi, F.; Unruh, T.; Demé, B.; Tehei, M.; Peters, J. Hydration dependent studies of highly aligned multilayer lipid membranes by neutron scattering. J. Chem. Phys. 2010, 133, 164505. [Google Scholar] [CrossRef] [PubMed]
  6. Mazza, M.G.; Stokely, K.; Pagnotta, S.E.; Bruni, F.; Stanley, H.E.; Franzese, G. More than one dynamic crossover in protein hydration water. Proc. Natl. Acad. Sci. USA 2011, 108, 19873–19878. [Google Scholar] [CrossRef] [PubMed]
  7. Wassall, S.R. Pulsed field gradient-spin echo NMR studies of water diffusion in a phospholipid model membrane. Biophys. J. 1996, 71, 2724–2732. [Google Scholar] [CrossRef]
  8. Volkov, V.V.; Palmer, D.J.; Righini, R. Distinct Water species confined at the interface of a phospholipid membrane. Phys. Rev. Lett. 2007, 99, 078302. [Google Scholar] [CrossRef] [PubMed]
  9. Zhao, W.; Moilanen, D.E.; Fenn, E.E.; Fayer, M.D. Water at the surfaces of aligned phospholipid multibilayer model membranes probed with ultrafast vibrational spectroscopy. J. Am. Chem. Soc. 2008, 130, 13927–13937. [Google Scholar] [CrossRef] [PubMed]
  10. Tielrooij, K.J.; Paparo, D.; Piatkowski, L.; Bakker, H.J.; Bonn, M. Dielectric relaxation dynamics of water in model membranes probed by Terahertz spectroscopy. Biophys. J. 2009, 97, 2848–2492. [Google Scholar] [CrossRef] [PubMed]
  11. Róg, T.; Murzyn, K.; Pasenkiewicz-Gierula, M. The dynamics of water at the phospholipid bilayer surface: A molecular dynamics simulation study. Chem. Phys. Lett. 2002, 352, 323–327. [Google Scholar] [CrossRef]
  12. Bhide, S.Y.; Berkowitz, M.L. Structure and dynamics of water at the interface with phospholipid bilayers. J. Chem. Phys. 2005, 123, 224702. [Google Scholar] [CrossRef] [PubMed]
  13. Von Hansen, Y.; Gekle, S.; Netz, R.R. Anomalous anisotropic diffusion dynamics of hydration water at lipid membranes. Phys. Rev. Lett. 2013, 111, 118103. [Google Scholar] [CrossRef] [PubMed]
  14. Zhang, Z.; Berkowitz, M.L. Orientational dynamics of water in phospholipid bilayers with different hydration levels. J. Phys. Chem. B 2009, 113, 7676–7680. [Google Scholar] [CrossRef] [PubMed]
  15. Gruenbaum, S.; Skinner, J. Vibrational spectroscopy of water in hydrated lipid multi-bilayers. I. Infrared spectra and ultrafast pump-probe observables. J. Chem. Phys. 2011, 135, 075101. [Google Scholar] [CrossRef] [PubMed]
  16. Nagle, J.F.; Zhang, R.; Tristram-Nagle, S.; Petrache, H.I.; Suter, R.M. X-ray structure determination of fully hydrated L alpha phase dipalmitoylphosphatidylcholine bilayers. Biophys. J. 1996, 70, 1419–1431. [Google Scholar] [CrossRef]
  17. Rudakova, M.; Filippov, A.; Skirda, V. Water diffusivity in model biological membranes. Appl. Magn. Reson. 2004, 27, 519–526. [Google Scholar] [CrossRef]
  18. Seki, K.; Bagchi, K.; Bagchi, B. Anomalous dimensionality dependence of diffusion in a rugged energy landscape: How pathological is one dimension? arXiv Preprint 2016. [Google Scholar]
  19. Franzese, G.; Stanley, H.E. Liquid-liquid critical point in a Hamiltonian model for water: Analytic solution. J. Phys. Condens. Matter 2002, 14, 2201–2209. [Google Scholar] [CrossRef]
  20. Kumar, P.; Franzese, G.; Buldyrev, S.V.; Stanley, H.E. Molecular dynamics study of orientational cooperativity in water. Phys. Rev. E 2006, 73, 041505. [Google Scholar] [CrossRef] [PubMed]
  21. Laage, D.; Hynes, J.T. A molecular jump mechanism of water reorientation. Science 2006, 311, 832–835. [Google Scholar] [CrossRef] [PubMed]
  22. Stokely, K.; Mazza, M.G.; Stanley, H.E.; Franzese, G. Effect of hydrogen bond cooperativity on the behavior of water. Proc. Natl. Acad. Sci. USA 2010, 107, 1301–1306. [Google Scholar] [CrossRef] [PubMed]
  23. De los Santos, F.; Franzese, G. Relations between the diffusion anomaly and cooperative rearranging regions in a hydrophobically nanoconfined water monolayer. Phys. Rev. E 2012, 85, 010602. [Google Scholar] [CrossRef] [PubMed]
  24. Kučerka, N.; Liu, Y.; Chu, N.; Petrache, H.I.; Tristram-Nagle, S.; Nagle, J.F. Structure of fully hydrated fluid phase DMPC and DLPC lipid bilayers using X-ray scattering from oriented multilamellar arrays and from unilamellar vesicles. Biophys. J. 2005, 88, 2626–2637. [Google Scholar] [CrossRef] [PubMed]
  25. Pandit, S.A.; Bostick, D.; Berkowitz, M.L. An algorithm to describe molecular scale rugged surfaces and its application to the study of a water/lipid bilayer interface. J. Chem. Phys. 2003, 119, 2199–2205. [Google Scholar] [CrossRef]
  26. Lopez, C.F.; Nielsen, S.O.; Klein, M.L.; Moore, P.B. Hydrogen bonding structure and dynamics of water at the dimyristoylphosphatidylcholine lipid bilayer surface from a molecular dynamics simulation. J. Phys. Chem. B 2004, 108, 6603–6610. [Google Scholar] [CrossRef]
  27. Phillips, J.C.; Braun, R.; Wang, W.; Gumbart, J.; Tajkhorshid, E.; Villa, E.; Chipot, C.; Skeel, R.D.; Kalé, L.; Schulten, K. Scalable molecular dynamics with NAMD. J. Comput. Chem. 2005, 26, 1781–1802. [Google Scholar] [CrossRef] [PubMed]
  28. Klauda, J.B.; Venable, R.M.; Freites, J.A.; O’Connor, J.W.; Tobias, D.J.; Mondragon-Ramirez, C.; Vorobyov, I.; MacKerell, A.D.; Pastor, R.W. Update of the CHARMM all-atom additive force field for lipids: Validation on six lipid types. J. Phys. Chem. B 2010, 114, 7830–7843. [Google Scholar] [CrossRef] [PubMed]
  29. Lim, J.B.; Rogaski, B.; Klauda, J.B. Update of the cholesterol force field parameters in CHARMM. J. Phys. Chem. B 2012, 116, 203–210. [Google Scholar] [CrossRef] [PubMed]
  30. Jorgensen, W.L.; Chandrasekhar, J.; Madura, J.D.; Impey, R.W.; Klein, M.L. Comparison of simple potential functions for simulating liquid water. J. Chem. Phys. 1983, 79, 926–935. [Google Scholar] [CrossRef]
  31. MacKerell, A.D., Jr.; Bashford, D.; Bellott, M.L.D.R.; Dunbrack, R.L., Jr.; Evanseck, J.D.; Field, M.J.; Fischer, S.; Gao, J.; Guo, H.; Ha, S. All-atom empirical potential for molecular modeling and dynamics studies of proteins. J. Phys. Chem. B 1998, 102, 3586–3616. [Google Scholar] [CrossRef] [PubMed]
  32. Essmann, U.; Perera, L.; Berkowitz, M.L.; Darden, T.; Lee, H.; Pedersen, L.G. A smooth particle mesh Ewald method. J. Chem. Phys. 1995, 103, 8577–8593. [Google Scholar] [CrossRef]
  33. Berendsen, H.J.C.; Postma, J.P.M.; Gunsteren, W.; DiNola, A.; Haak, J.R. Molecular dynamics with coupling to an external bath. J. Phys. Chem. 1984, 81, 3684–3690. [Google Scholar] [CrossRef]
  34. Feller, S.E.; Zhang, Y.; Pastor, R.W.; Brooks, B.R. Constant pressure molecular dynamics simulation: The Langevin piston method. J. Phys. Chem. 1995, 103, 4613–4621. [Google Scholar] [CrossRef]
  35. Basconi, J.E.; Shirts, M.R. Effects of temperature control algorithms on transport properties and kinetics in molecular dynamics simulations. J. Chem. Theory Comput. 2013, 9, 2887–2899. [Google Scholar] [CrossRef] [PubMed]
  36. Aksimentiev, A.; Schulten, K. Imaging α-hemolysin with molecular dynamics: Ionic conductance, osmotic permeability, and the electrostatic potential map. Biophys. J. 2005, 88, 3745–3761. [Google Scholar] [CrossRef] [PubMed]
  37. Mahoney, M.W.; Jorgensen, W.L. Diffusion constant of the TIP5P model of liquid water. J. Chem. Phys. 2001, 114, 363–366. [Google Scholar] [CrossRef]
Figure 1. Snapshots of the six systems considered in our study, with hydration levels (a) 34; (b) 20; (c) 15; (d) 10; (e) 7; and (f) 4. Gray and red beads represent phospholipid tails and headgroups, respectively. Blue and white beads represent oxygen and hydrogen atoms of water. The dashed line indicates the size of the simulation box.
Figure 1. Snapshots of the six systems considered in our study, with hydration levels (a) 34; (b) 20; (c) 15; (d) 10; (e) 7; and (f) 4. Gray and red beads represent phospholipid tails and headgroups, respectively. Blue and white beads represent oxygen and hydrogen atoms of water. The dashed line indicates the size of the simulation box.
Materials 09 00319 g001a 1024Materials 09 00319 g001b 1024

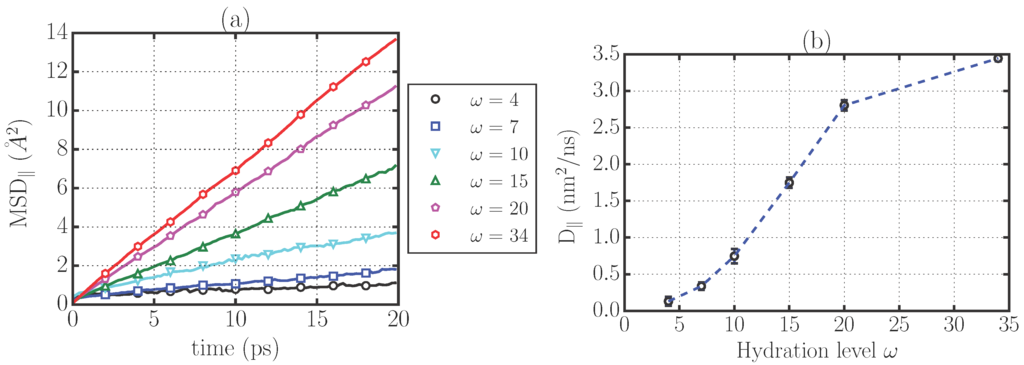

Figure 2. Translational dynamics of confined water molecules projected on the plane of the membrane for the different stacked phospholipid bilayers. (a) mean-square displacement on the plane of the membrane (MSD ) as a function of time; (b) diffusion coefficient of water molecules on the plane of the membrane for the different hydration levels considered.
Figure 2. Translational dynamics of confined water molecules projected on the plane of the membrane for the different stacked phospholipid bilayers. (a) mean-square displacement on the plane of the membrane (MSD ) as a function of time; (b) diffusion coefficient of water molecules on the plane of the membrane for the different hydration levels considered.
Materials 09 00319 g002 1024
Figure 3. (a) rotational dipolar correlation function of water molecules calculated from simulations of DMPC phospholipid bilayers with different levels of hydration ω; (b) the partition of all the water in the system into the fractions (i) f bulk of bulk-like (lower circles); (ii) f irr of irrotational (upper circles) and (iii) f fast = 1 - f bulk - f irr of fast water molecules, as a function of the hydration level ω in Equation (5), following the decomposition of the rotational correlation function proposed in Ref. [10]. The dots represent the partitioning from MD simulations. Full lines are guides for the eyes.
Figure 3. (a) rotational dipolar correlation function of water molecules calculated from simulations of DMPC phospholipid bilayers with different levels of hydration ω; (b) the partition of all the water in the system into the fractions (i) f bulk of bulk-like (lower circles); (ii) f irr of irrotational (upper circles) and (iii) f fast = 1 - f bulk - f irr of fast water molecules, as a function of the hydration level ω in Equation (5), following the decomposition of the rotational correlation function proposed in Ref. [10]. The dots represent the partitioning from MD simulations. Full lines are guides for the eyes.
Materials 09 00319 g003 1024
Figure 4. Changes in HB structure with hydration level ω. (a) average number n H B of total HBs formed by each water molecule confined in stacked phospholipid membranes; (b) fraction of HBs between water molecules and lipid groups.
Figure 4. Changes in HB structure with hydration level ω. (a) average number n H B of total HBs formed by each water molecule confined in stacked phospholipid membranes; (b) fraction of HBs between water molecules and lipid groups.
Materials 09 00319 g004 1024

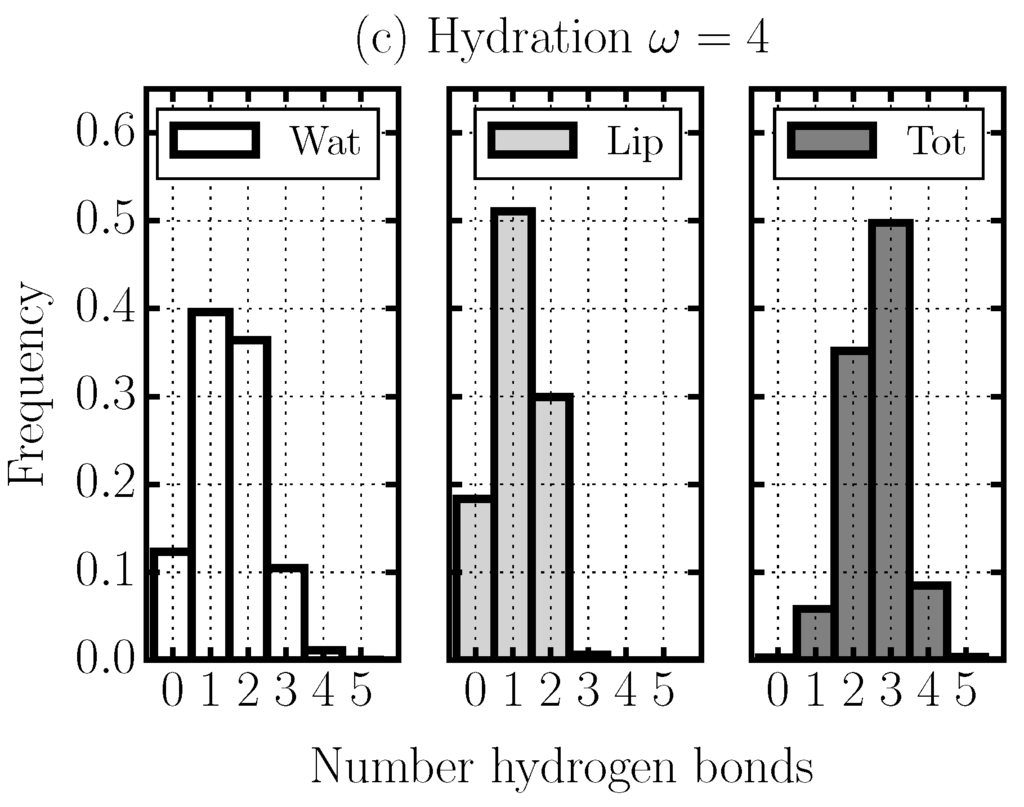

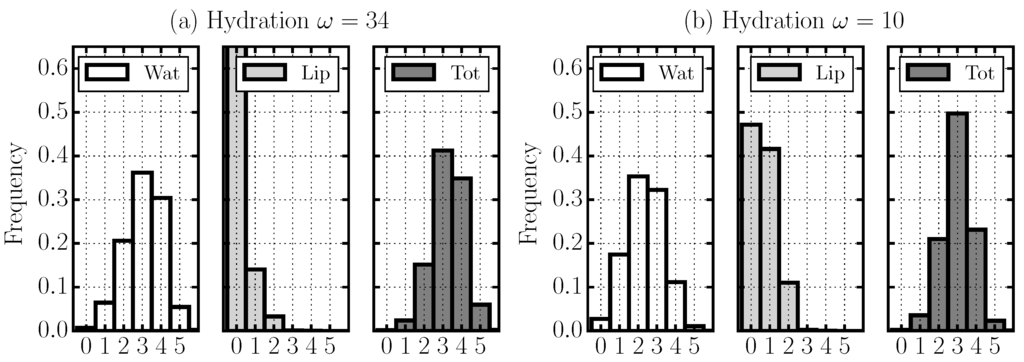

Figure 5. Normalized distributions of the number of HBs per water molecule in stacked membranes for (a) ω = 34 ; (b) ω = 10 ; and (c) ω = 4 . At each hydration level, we present the normalized distribution of water molecules forming a given number of HBs ≤5 with other water molecules (left), with lipid groups (center), and the normalized distribution of the sum of the two kinds of HBs (right).
Figure 5. Normalized distributions of the number of HBs per water molecule in stacked membranes for (a) ω = 34 ; (b) ω = 10 ; and (c) ω = 4 . At each hydration level, we present the normalized distribution of water molecules forming a given number of HBs ≤5 with other water molecules (left), with lipid groups (center), and the normalized distribution of the sum of the two kinds of HBs (right).
Materials 09 00319 g005a 1024Materials 09 00319 g005b 1024

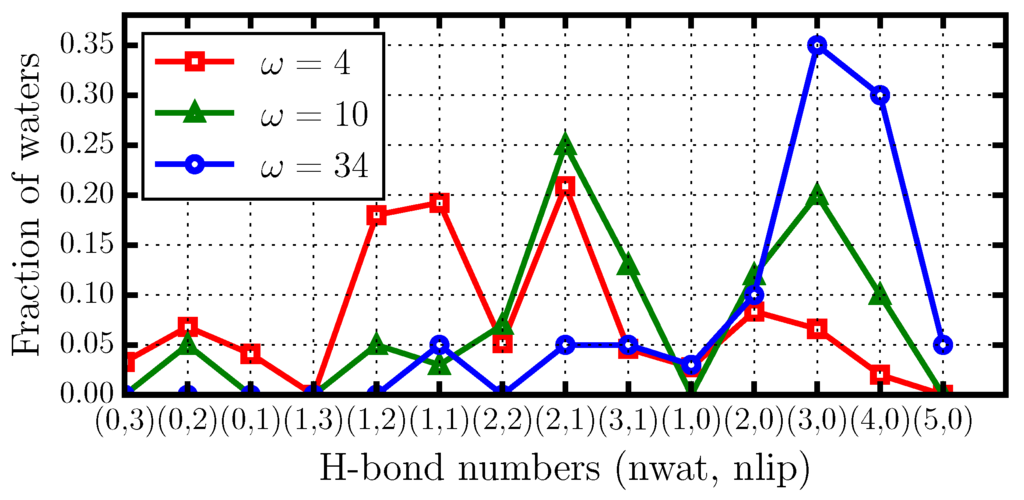

Figure 6. Fraction of water molecules forming n wat HBs with other water molecules, and, at the same time, n lip HBs with lipids, indicated along the x-axis as ( n wat , n lip ) , for different hydration levels. At high hydration ( ω = 34 , blue circles) the HBs are mainly among water molecules. At medium hydration ( ω = 10 , green triangles) the most likely structures have n wat = 2 and n lip = 1 , but still many water molecules have no HBs with lipids. At low hydration ( ω = 4 , red squares), in general, the water HBs are involving at least one lipid and one or two more water molecules.
Figure 6. Fraction of water molecules forming n wat HBs with other water molecules, and, at the same time, n lip HBs with lipids, indicated along the x-axis as ( n wat , n lip ) , for different hydration levels. At high hydration ( ω = 34 , blue circles) the HBs are mainly among water molecules. At medium hydration ( ω = 10 , green triangles) the most likely structures have n wat = 2 and n lip = 1 , but still many water molecules have no HBs with lipids. At low hydration ( ω = 4 , red squares), in general, the water HBs are involving at least one lipid and one or two more water molecules.
Materials 09 00319 g006 1024

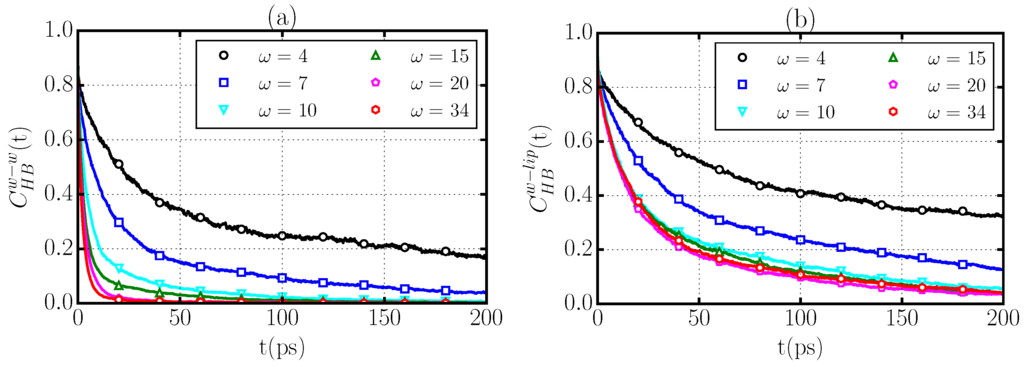

Figure 7. Relaxation of the time correlation functions C H B w - w ( t ) (a) and C H B w - l ( t ) (b) for stacked phospholipid membranes with hydration levels ω = 4 (black circles), ω = 7 (blue squares), ω = 10 (cyan triangles down), ω = 15 (green triangles up), ω = 20 (pink pentagons), ω = 34 (red hexagons).
Figure 7. Relaxation of the time correlation functions C H B w - w ( t ) (a) and C H B w - l ( t ) (b) for stacked phospholipid membranes with hydration levels ω = 4 (black circles), ω = 7 (blue squares), ω = 10 (cyan triangles down), ω = 15 (green triangles up), ω = 20 (pink pentagons), ω = 34 (red hexagons).
Materials 09 00319 g007 1024

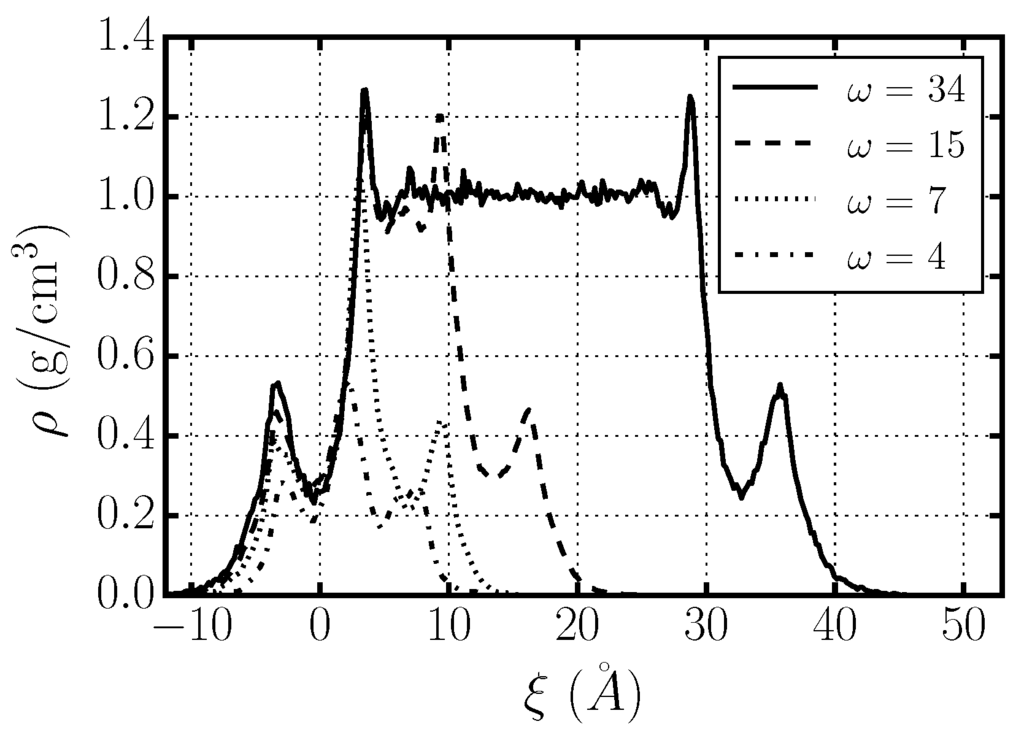

Figure 8. Density of water molecules confined between stacked DMPC bilayers with hydration level ω = 4 , 7, 15, 34, as a function of the membrane distance ξ with respect to one of the two confining membranes. We define three relevant regions: (i) interior of the membrane, with ξ < 0 ; (ii) first hydration layer, with 0 < ξ < 5 Å; (iii) exterior of the membrane, with ξ > 5 Å.
Figure 8. Density of water molecules confined between stacked DMPC bilayers with hydration level ω = 4 , 7, 15, 34, as a function of the membrane distance ξ with respect to one of the two confining membranes. We define three relevant regions: (i) interior of the membrane, with ξ < 0 ; (ii) first hydration layer, with 0 < ξ < 5 Å; (iii) exterior of the membrane, with ξ > 5 Å.
Materials 09 00319 g008 1024
Table 1. Rotational relaxation time as calculated in Equation (3) for the dipolar correlation function.
Table 1. Rotational relaxation time as calculated in Equation (3) for the dipolar correlation function.
Hydration (ω)4710152034
τ rot (ps)290 ± 1099 ± 445.6 ± 0.529.0 ± 0.521.7 ± 0.312.4 ± 0.3
Table 2. The five parameters of the fits for the rotational dipolar correlation function C sim rot ( t , ω ) resulting from MD simulations of stacked membranes with different hydration level ω.
Table 2. The five parameters of the fits for the rotational dipolar correlation function C sim rot ( t , ω ) resulting from MD simulations of stacked membranes with different hydration level ω.
ω τ fast (ps) τ bulk (ps) τ irr (ps) f fast f bulk f irr = 1 - f fast - f bulk
40.535.13210.10 ± 0 . 02 0.10 ± 0 . 02 0.8 ± 0 . 03
70.489.81680.11 ± 0 . 03 0.31 ± 0 . 01 0.58 ± 0 . 04
100.510.31540.09 ± 0 . 03 0.62 ± 0 . 02 0.29 ± 0 . 04
150.444.81210.06 ± 0 . 02 0.70 ± 0 . 01 0.24 ± 0 . 02
200.485.21300.05 ± 0 . 03 0.75 ± 0 . 01 0.2 ± 0 . 04
340.473.21170.04 ± 0 . 02 0.85 ± 0 . 02 0.11 ± 0 . 03
Table 3. Relaxation times of the correlation functions C H B w - α ( t ) , τ H B w - α , with α = w , l , for stacked phospholipid membranes with hydration level ω. For each system, we provide the value of the average water density, given by ρ ¯ w N w / ( A X Y × d ) , where N w is the number of water molecules in the system, A X Y is the area of the membrane, and d is the width of the water–membrane interface. We also explicitly indicate the slowing-down factor κ of the w - l with respect to the w - w HBs.
Table 3. Relaxation times of the correlation functions C H B w - α ( t ) , τ H B w - α , with α = w , l , for stacked phospholipid membranes with hydration level ω. For each system, we provide the value of the average water density, given by ρ ¯ w N w / ( A X Y × d ) , where N w is the number of water molecules in the system, A X Y is the area of the membrane, and d is the width of the water–membrane interface. We also explicitly indicate the slowing-down factor κ of the w - l with respect to the w - w HBs.
Hydration (ω) τ HB w - w (ps) τ HB w - l (ps) ρ ¯ w (g/cm 3 ) κ τ HB w - l / τ HB w - w
4110 ± 10 242 ± 10 0.212.2
731 ± 5 80 ± 10 0.302.6
1012 ± 2 44 ± 5 0.373.7
157.1 ± 0 . 5 38 ± 5 0.455.3
205.1 ± 0 . 5 35 ± 5 0.526.7
344.0 ± 0 . 5 38 ± 5 0.659.5
bulk1.8 ± 0 . 1 0.99
Table 4. Diffusion coefficient D in the x y -plane parallel to the membrane and rotational dipolar relaxation time τ rot , both averaged over the water molecules in different regions of the water–membrane interface at ω = 34 , compared with the values for bulk water at same thermodynamic conditions ( P = 1  atm, T = 303  K).
Table 4. Diffusion coefficient D in the x y -plane parallel to the membrane and rotational dipolar relaxation time τ rot , both averaged over the water molecules in different regions of the water–membrane interface at ω = 34 , compared with the values for bulk water at same thermodynamic conditions ( P = 1  atm, T = 303  K).
LayerD (nm 2 /ns) τ rot (ps)
Interior0.19 ± 0.05270 ± 10
1st hydration layer0.81 ± 0 . 03 37 ± 5
Exterior4.10 ± 0 . 05 3.3 ± 0.2
Bulk5.5 ± 0 . 1 2.4 ± 0.1
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
