Next Article in Journal
Enhanced Photocatalytic Activity of CdS-Decorated TiO2/Carbon Core-Shell Microspheres Derived from Microcrystalline Cellulose
Previous Article in Journal
Effect of Sn Content in a CuSnZn Metal Precursor on Formation of MoSe2 Film during Selenization in Se+SnSe Vapor
Article Menu
Issue 4 (April) cover image

Export Article

Open AccessArticle
Materials 2016, 9(4), 243;

Influence of Li2Sb Additions on Microstructure and Mechanical Properties of Al-20Mg2Si Alloy

Key Laboratory of Automobile Materials of Ministry of Education & School of Materials Science and Engineering, Nanling Campus, Jilin University, No. 5988 Renmin Street, Changchun 130025, China
Authors to whom correspondence should be addressed.
Academic Editor: Daolun Chen
Received: 9 February 2016 / Revised: 13 March 2016 / Accepted: 21 March 2016 / Published: 29 March 2016
View Full-Text   |   Download PDF [5745 KB, uploaded 29 March 2016]   |

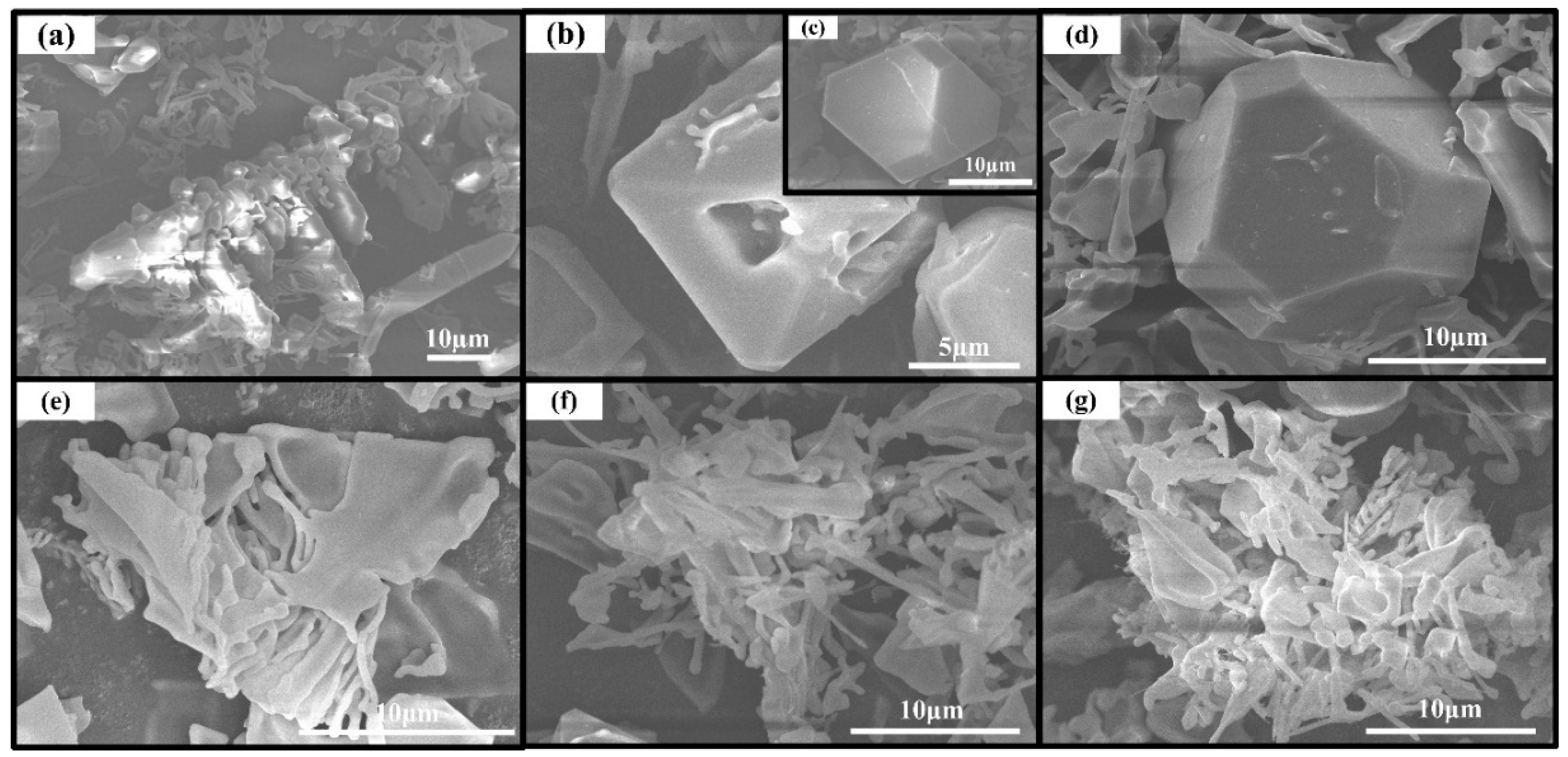

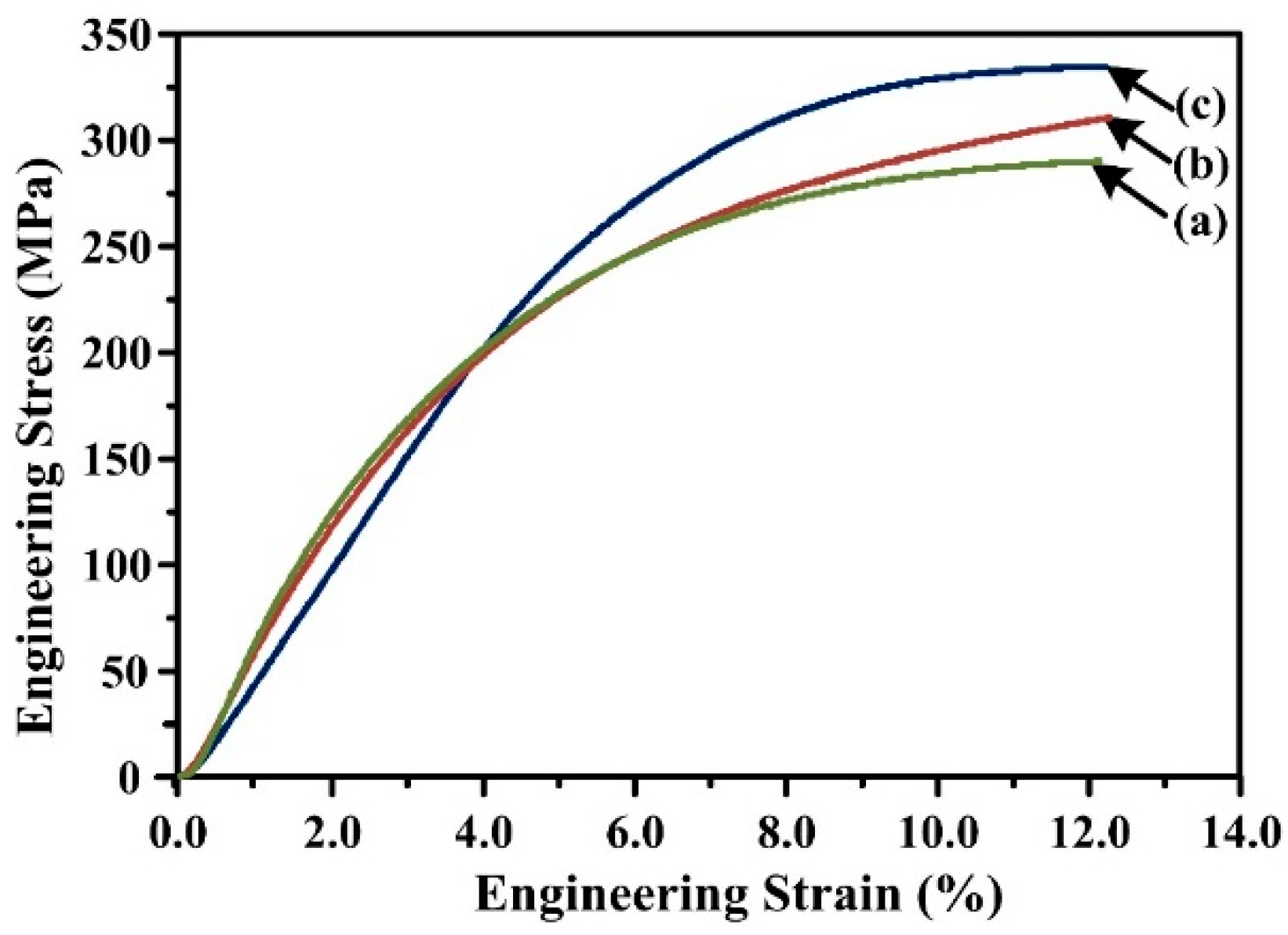

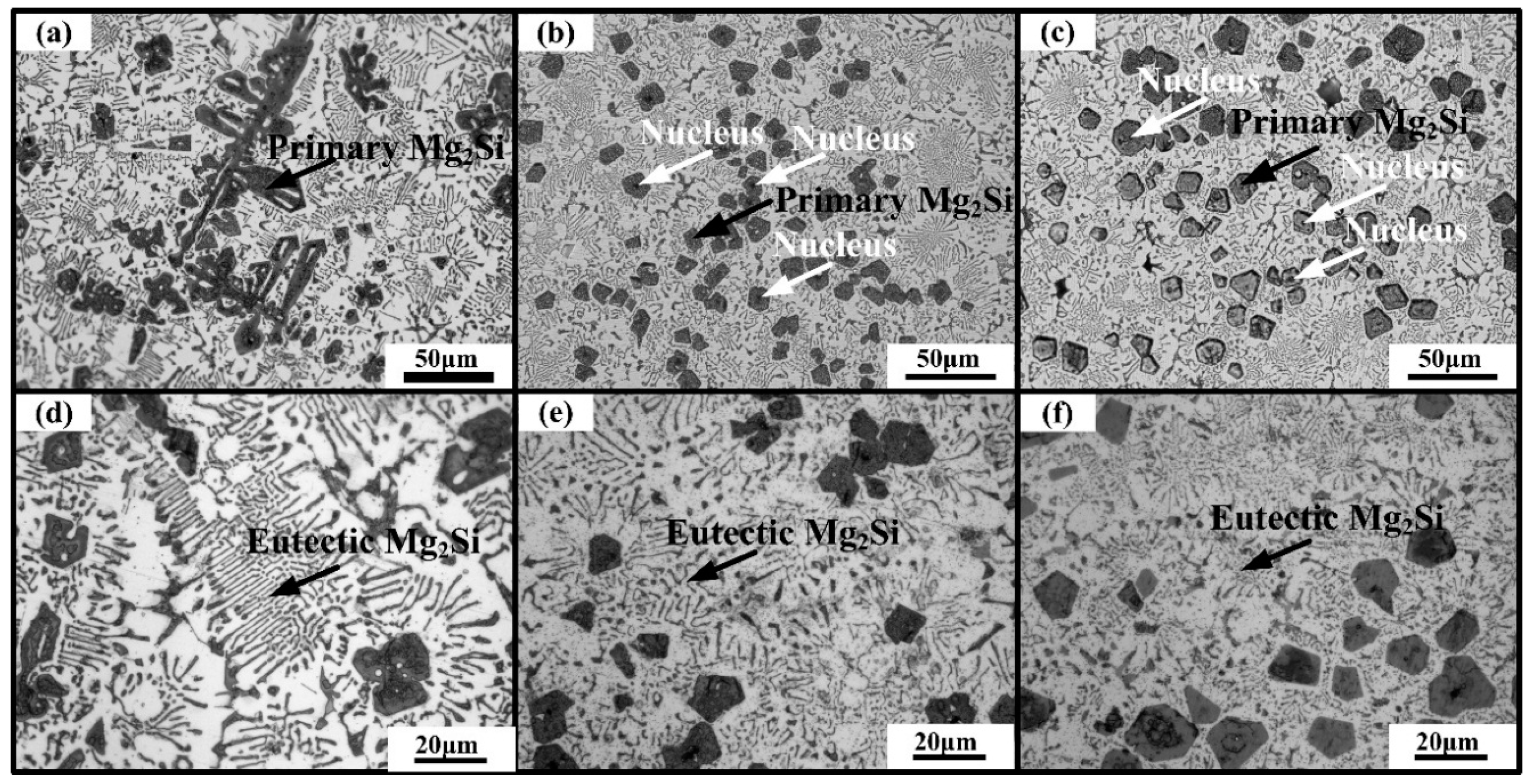

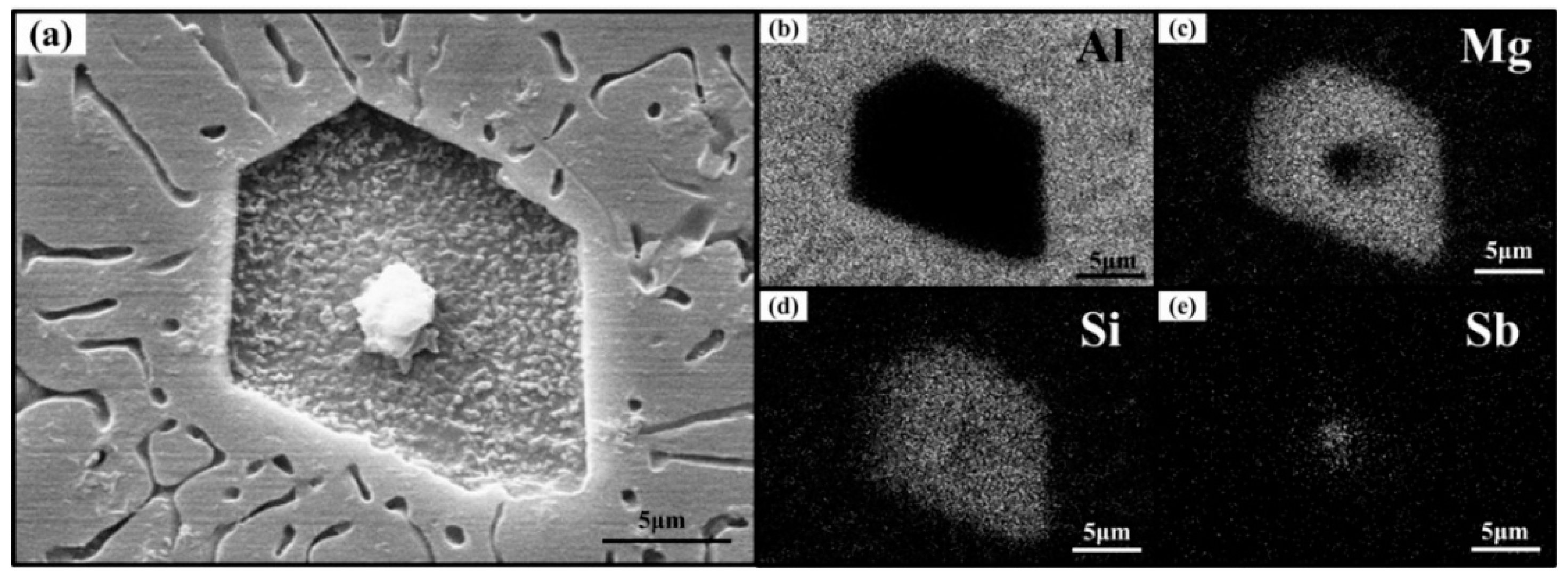

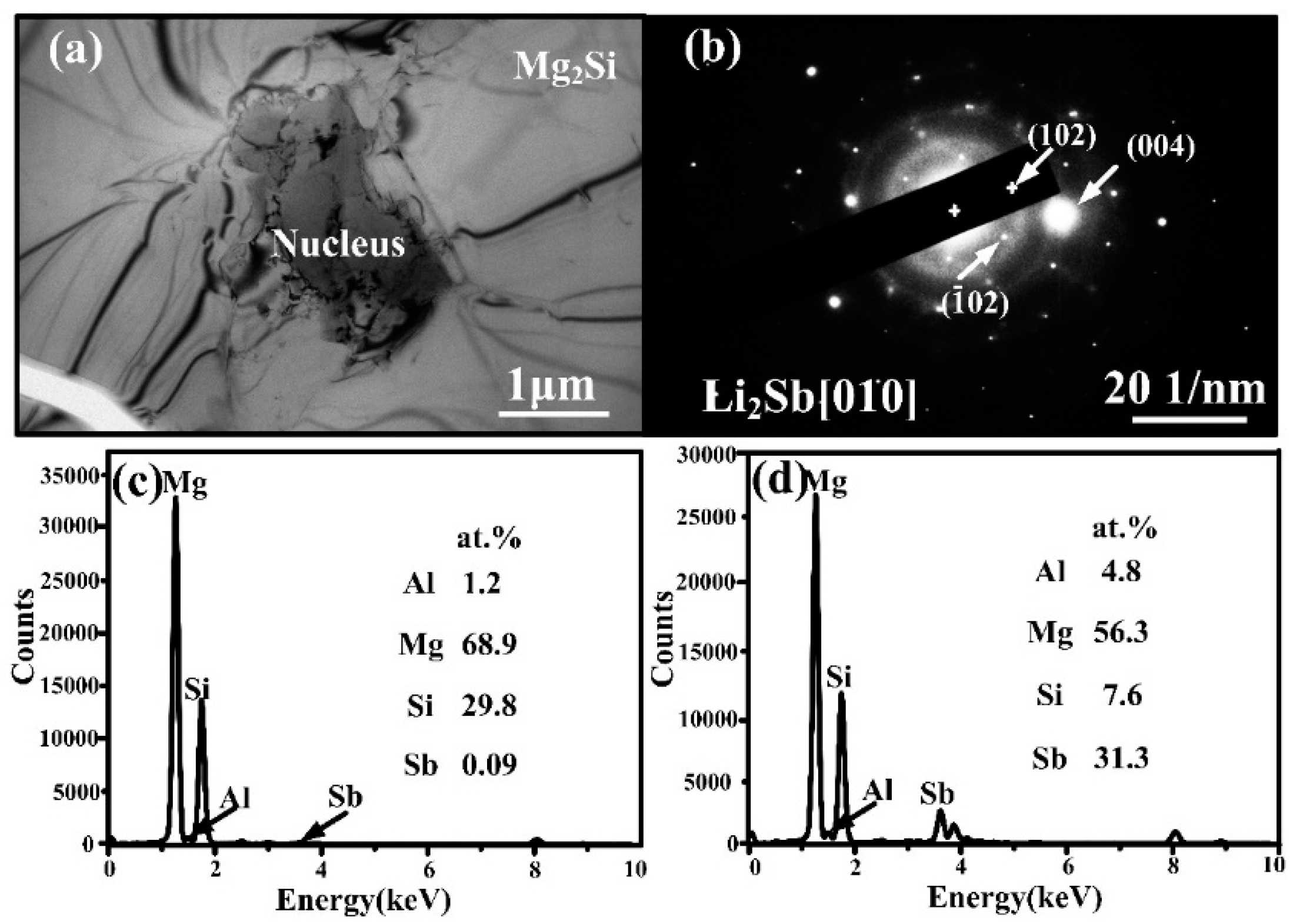

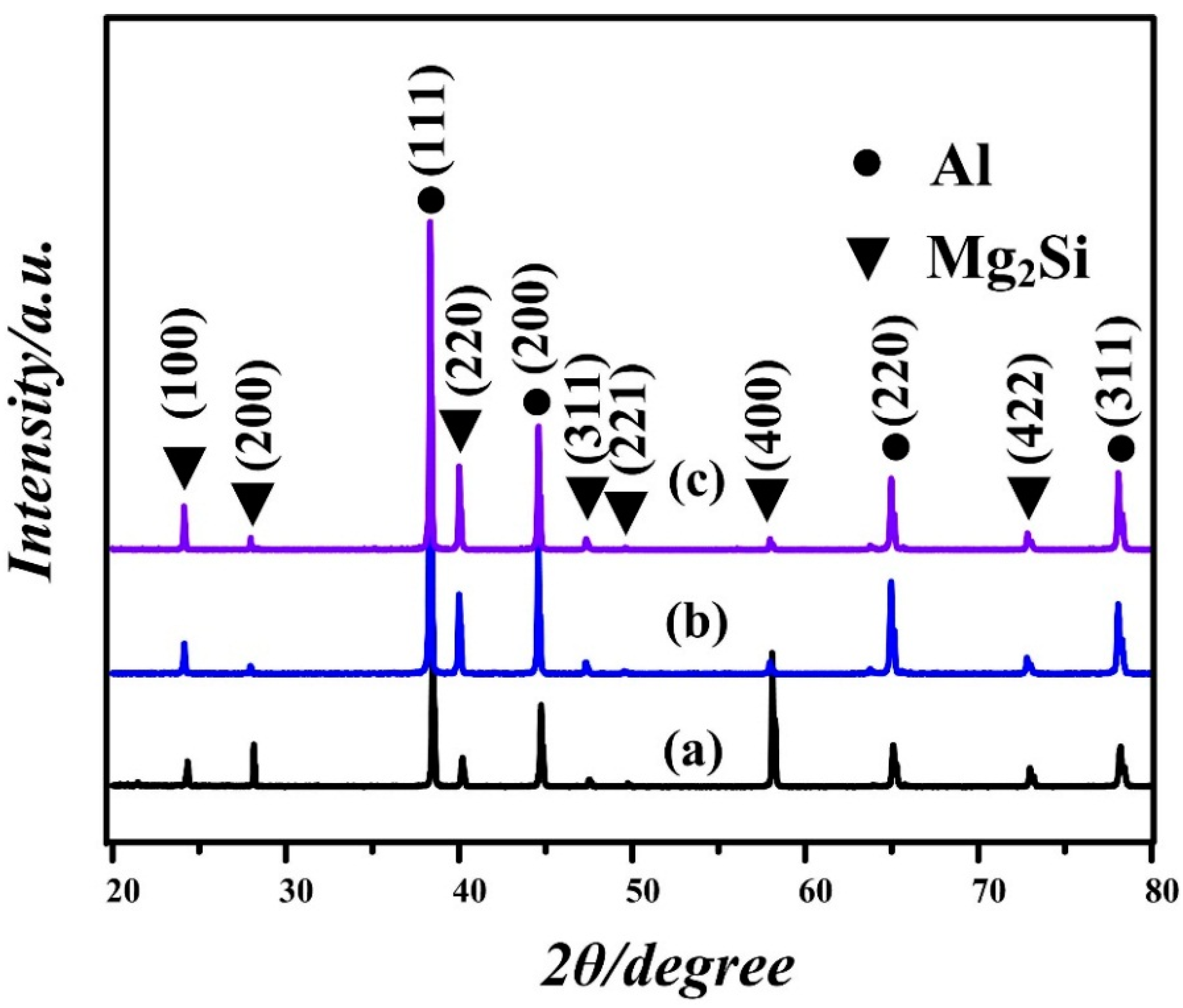

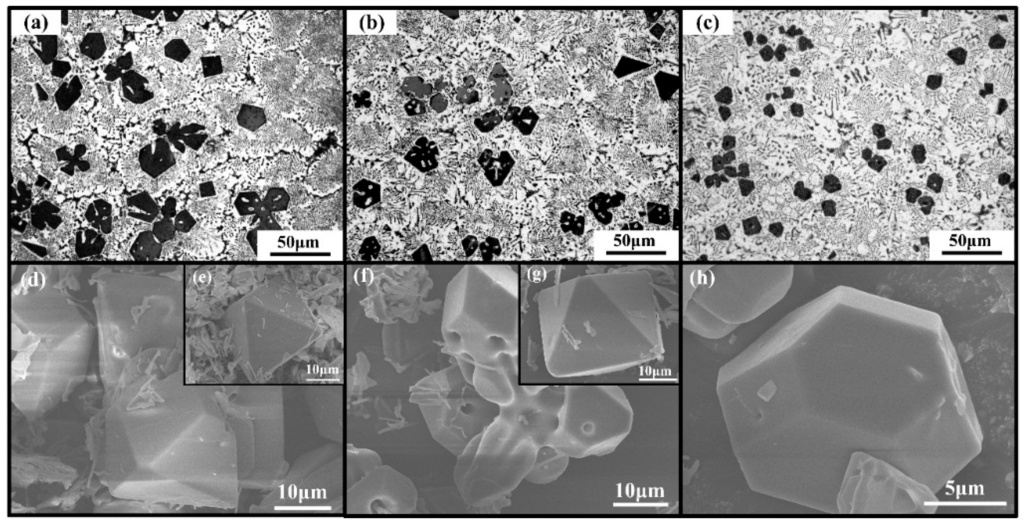

It is found that Li2Sb compound can act as the nucleus of primary Mg2Si during solidification, by which the particle size of primary Mg2Si decreased from ~300 to ~15–25 μm. Owing to the synergistic effect of the Li2Sb nucleus and adsorption-poisoning of Li atoms, the effect of complex modification of Li-Sb on primary Mg2Si was better than that of single modification of Li or Sb. When Li-Sb content increased from 0 to 0.2 and further to 0.5 wt.%, coarse dendrite changed to defective truncated octahedron and finally to perfect truncated octahedral shape. With the addition of Li and Sb, ultimate compression strength (UCS) of Al-20Mg2Si alloys increased from ~283 to ~341 MPa and the yield strength (YS) at 0.2% offset increased from ~112 to ~179 MPa while almost no change was seen in the uniform elongation. Our study offers a simple method to control the morphology and size of primary Mg2Si, which will inspire developing new Al-Mg-Si alloys with improved mechanical properties. View Full-Text
Keywords: Al-Mg-Si alloy; mechanical properties; heterogeneous nucleation; primary Mg2Si Al-Mg-Si alloy; mechanical properties; heterogeneous nucleation; primary Mg2Si

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Yu, H.-C.; Wang, H.-Y.; Chen, L.; Zha, M.; Wang, C.; Li, C.; Jiang, Q.-C. Influence of Li2Sb Additions on Microstructure and Mechanical Properties of Al-20Mg2Si Alloy. Materials 2016, 9, 243.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
