Thermally Stable Solution Processed Vanadium Oxide as a Hole Extraction Layer in Organic Solar Cells

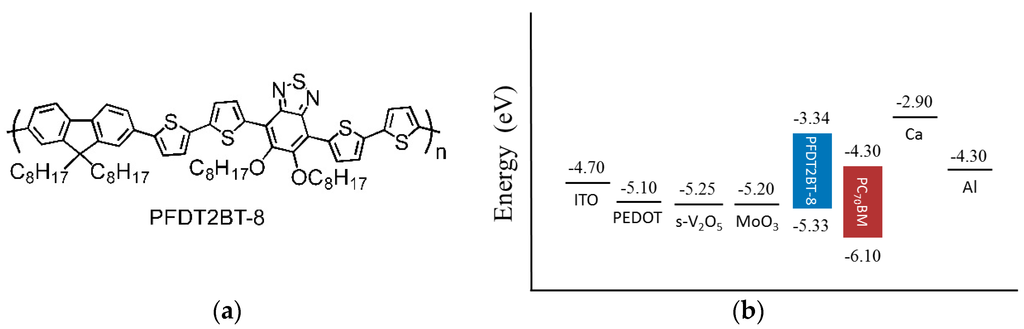

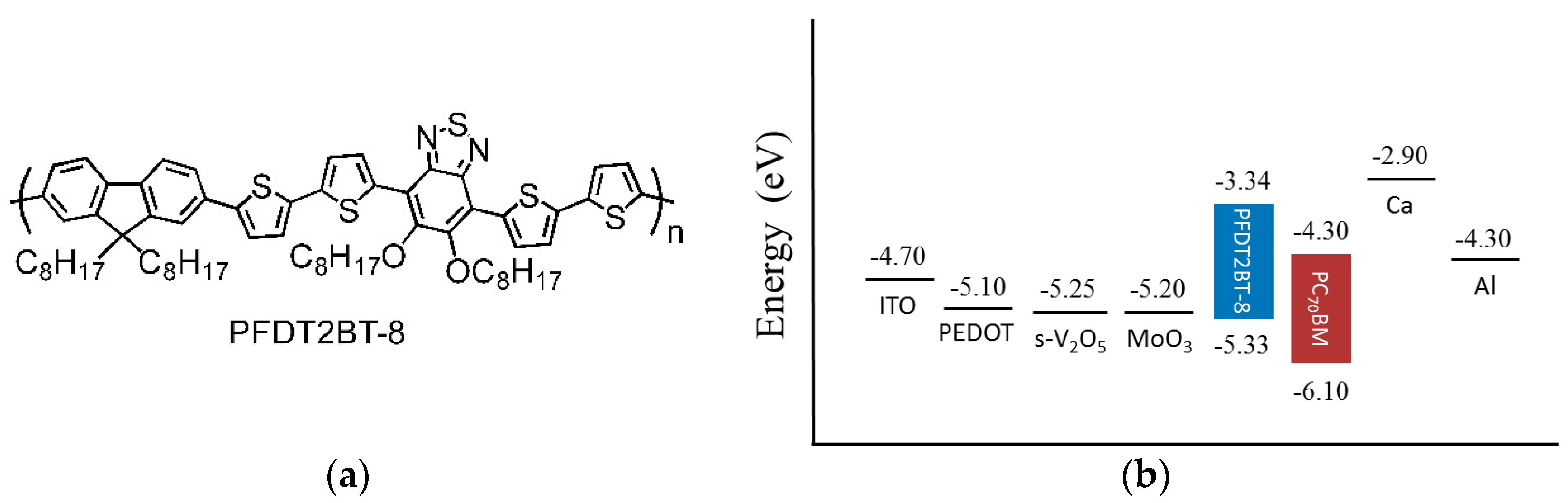

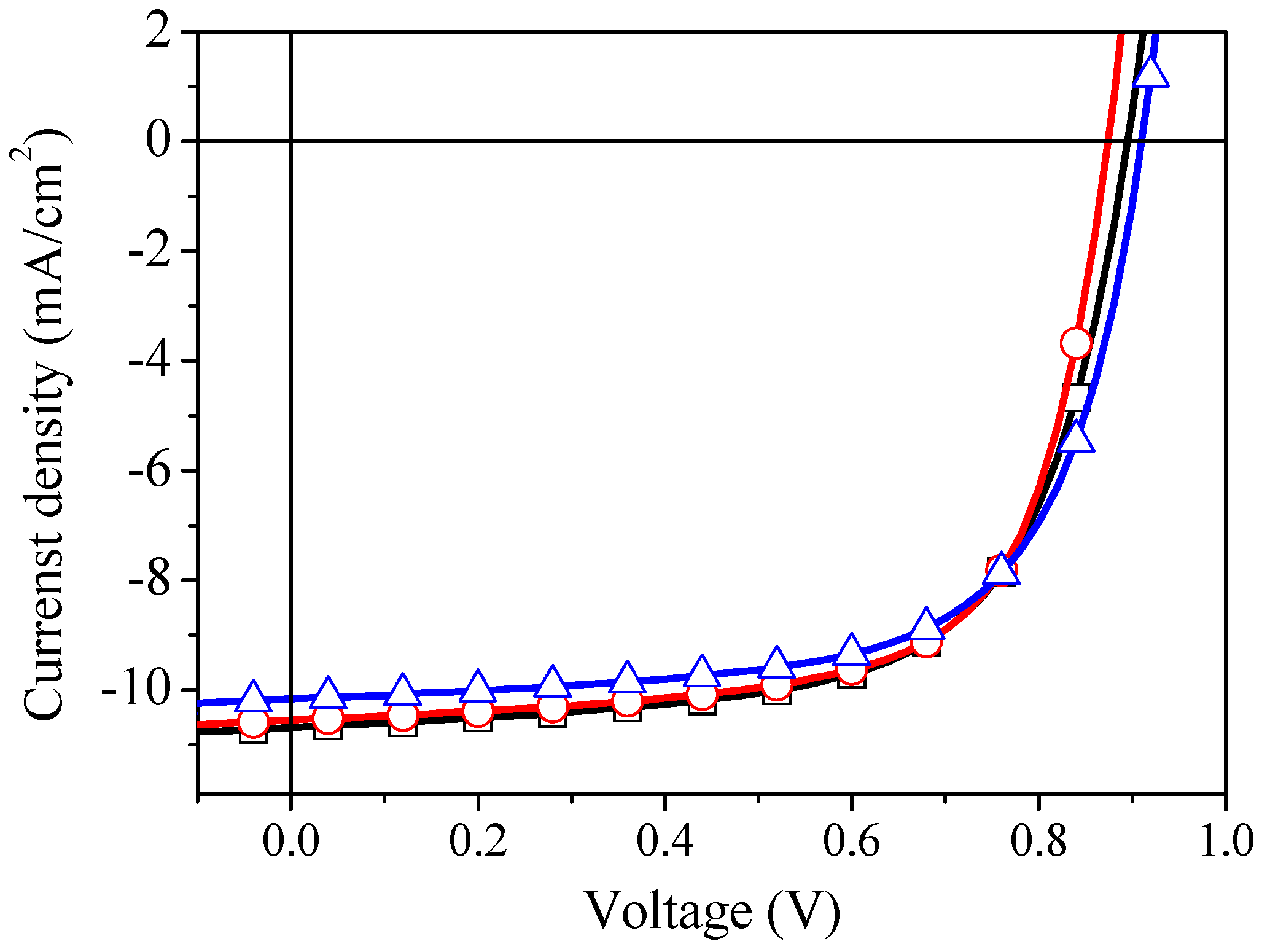

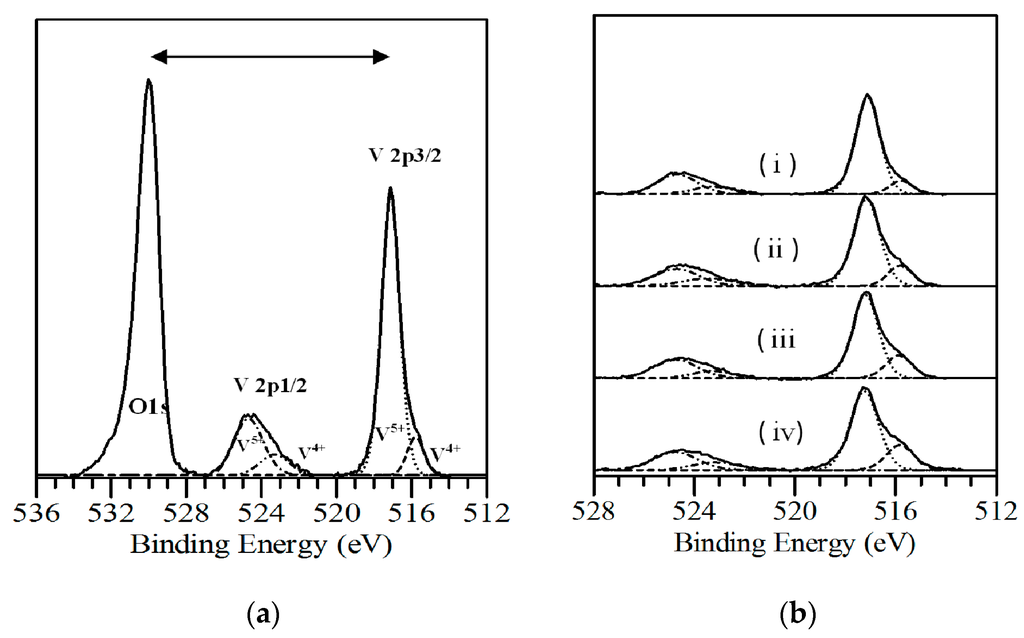

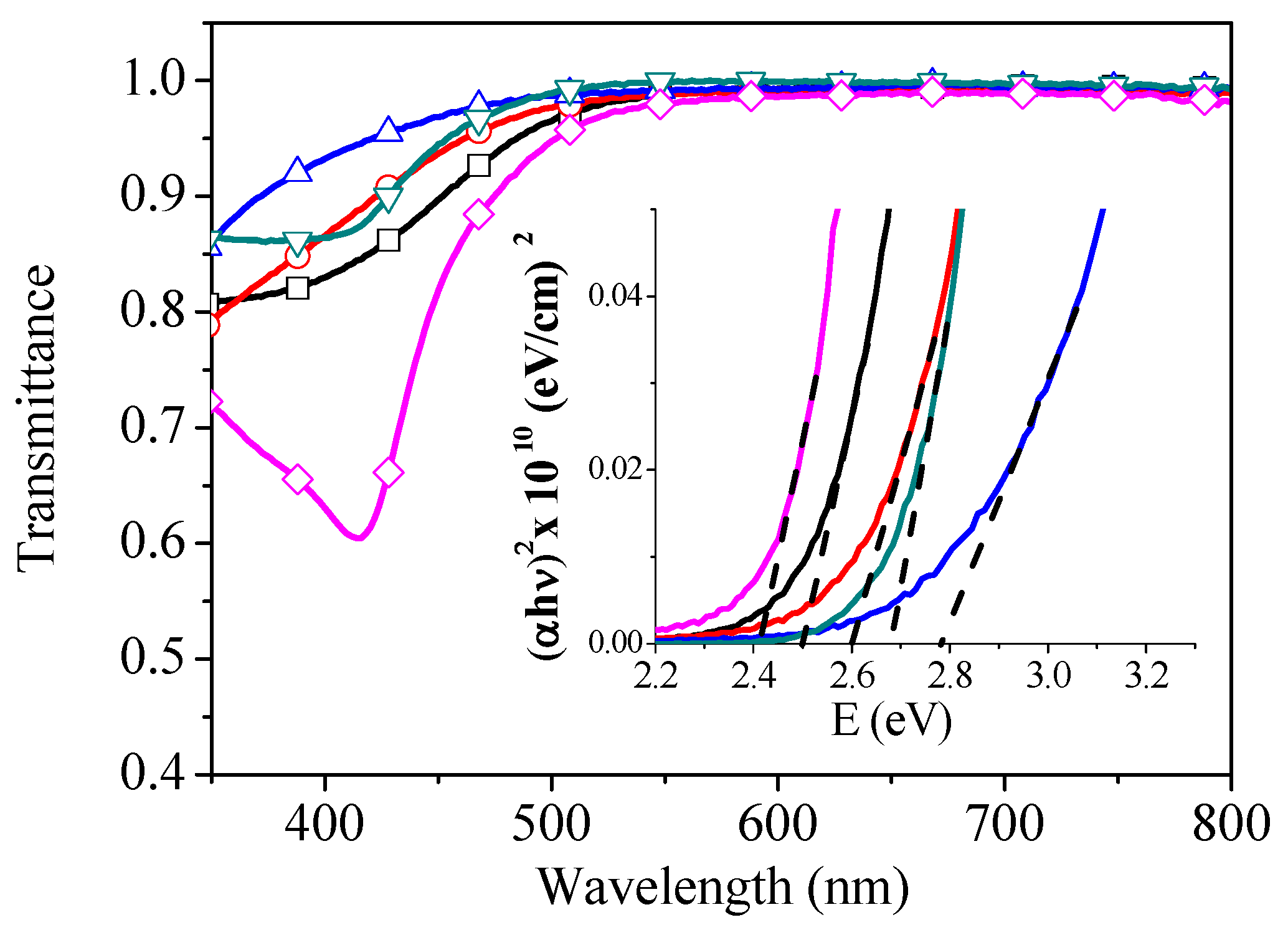

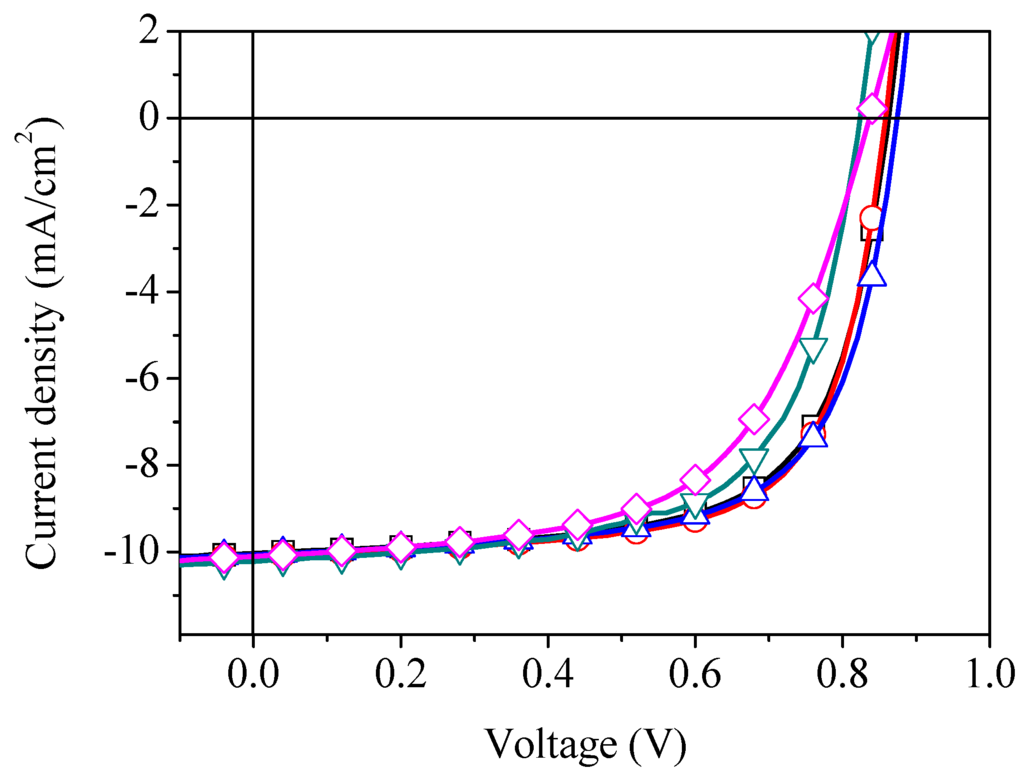

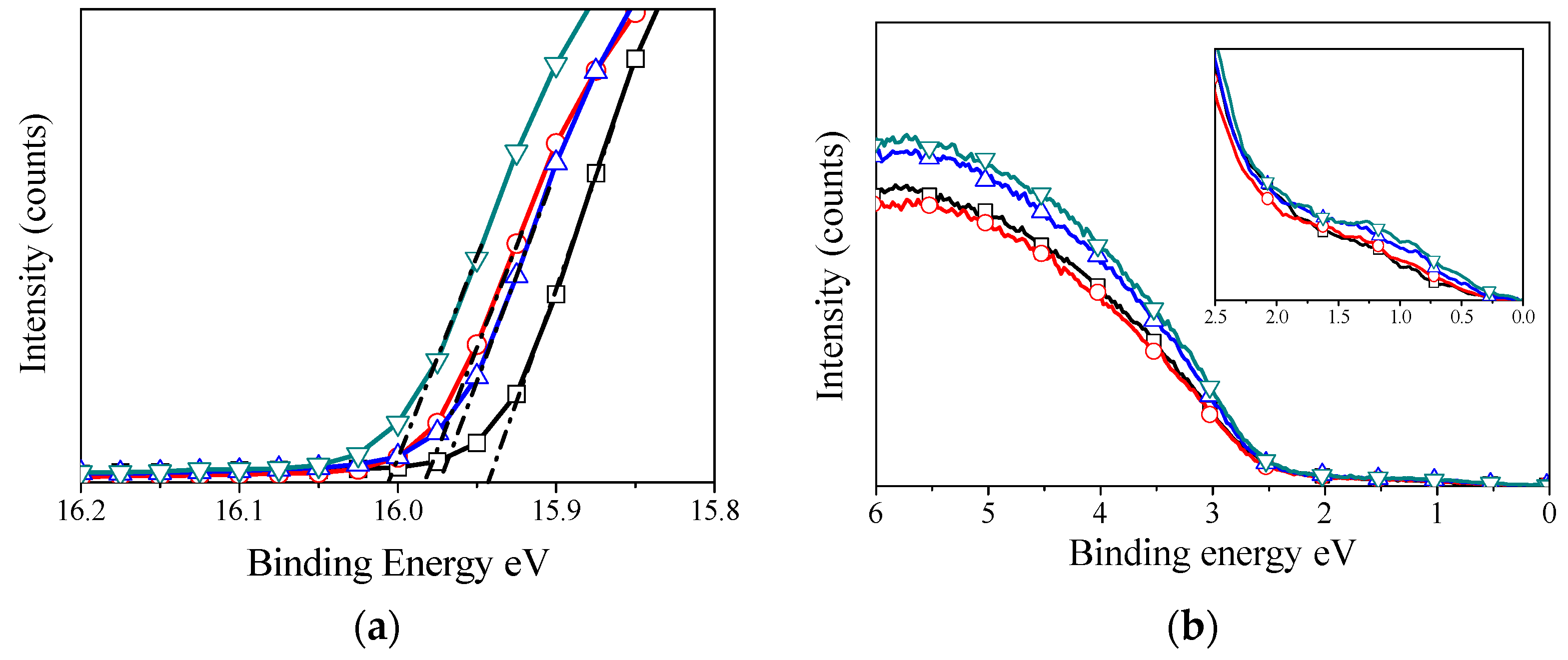

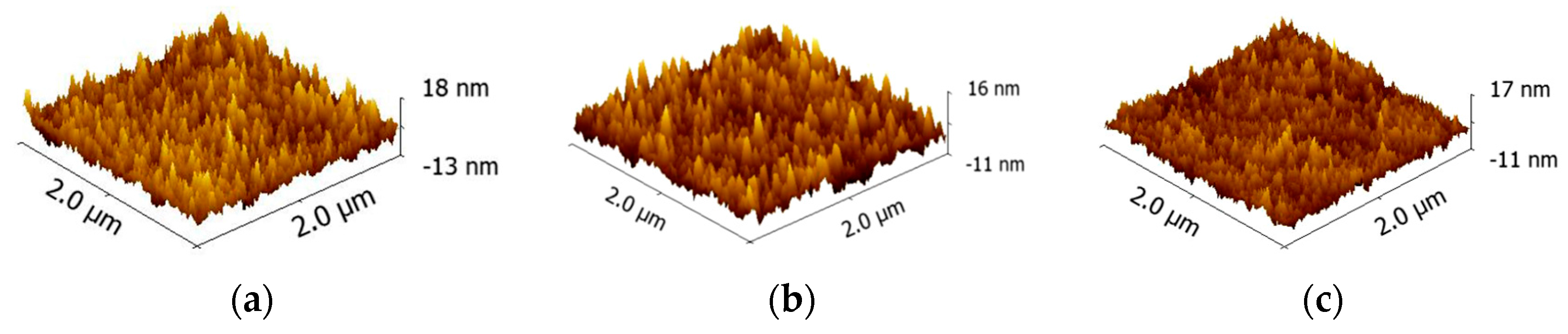

AbstractLow-temperature solution-processable vanadium oxide (V2Ox) thin films have been employed as hole extraction layers (HELs) in polymer bulk heterojunction solar cells. V2Ox films were fabricated in air by spin-coating vanadium(V) oxytriisopropoxide (s-V2Ox) at room temperature without the need for further thermal annealing. The deposited vanadium(V) oxytriisopropoxide film undergoes hydrolysis in air, converting to V2Ox with optical and electronic properties comparable to vacuum-deposited V2O5. When s-V2Ox thin films were annealed in air at temperatures of 100 °C and 200 °C, OPV devices showed similar results with good thermal stability and better light transparency. Annealing at 300 °C and 400 °C resulted in a power conversion efficiency (PCE) of 5% with a decrement approximately 15% lower than that of unannealed films; this is due to the relative decrease in the shunt resistance (Rsh) and an increase in the series resistance (Rs) related to changes in the oxidation state of vanadium. View Full-Text
Share & Cite This Article
Alsulami, A.; Griffin, J.; Alqurashi, R.; Yi, H.; Iraqi, A.; Lidzey, D.; Buckley, A. Thermally Stable Solution Processed Vanadium Oxide as a Hole Extraction Layer in Organic Solar Cells. Materials 2016, 9, 235.
Alsulami A, Griffin J, Alqurashi R, Yi H, Iraqi A, Lidzey D, Buckley A. Thermally Stable Solution Processed Vanadium Oxide as a Hole Extraction Layer in Organic Solar Cells. Materials. 2016; 9(4):235.Chicago/Turabian Style
Alsulami, Abdullah; Griffin, Jonathan; Alqurashi, Rania; Yi, Hunan; Iraqi, Ahmed; Lidzey, David; Buckley, Alastair. 2016. "Thermally Stable Solution Processed Vanadium Oxide as a Hole Extraction Layer in Organic Solar Cells." Materials 9, no. 4: 235.
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.
