Next Article in Journal
Surface Morphology and Tooth Adhesion of a Novel Nanostructured Dental Restorative Composite
Previous Article in Journal
Study of Polydiacetylene-Poly (Ethylene Oxide) Electrospun Fibers Used as Biosensors
Article Menu
Issue 3 (March) cover image

Export Article

Open AccessArticle
Materials 2016, 9(3), 199; doi:10.3390/ma9030199

Semisolid Microstructural Evolution during Partial Remelting of a Bulk Alloy Prepared by Cold Pressing of the Ti-Al-2024Al Powder Mixture

State Key Laboratory of Advanced Processing and Recycling of Nonferrous Metals, Lanzhou University of Technology, Lanzhou 730050, China
*
Author to whom correspondence should be addressed.
Academic Editor: Douglas Ivey
Received: 15 December 2015 / Revised: 29 February 2016 / Accepted: 9 March 2016 / Published: 16 March 2016
(This article belongs to the Section Structure Analysis and Characterization)

Abstract

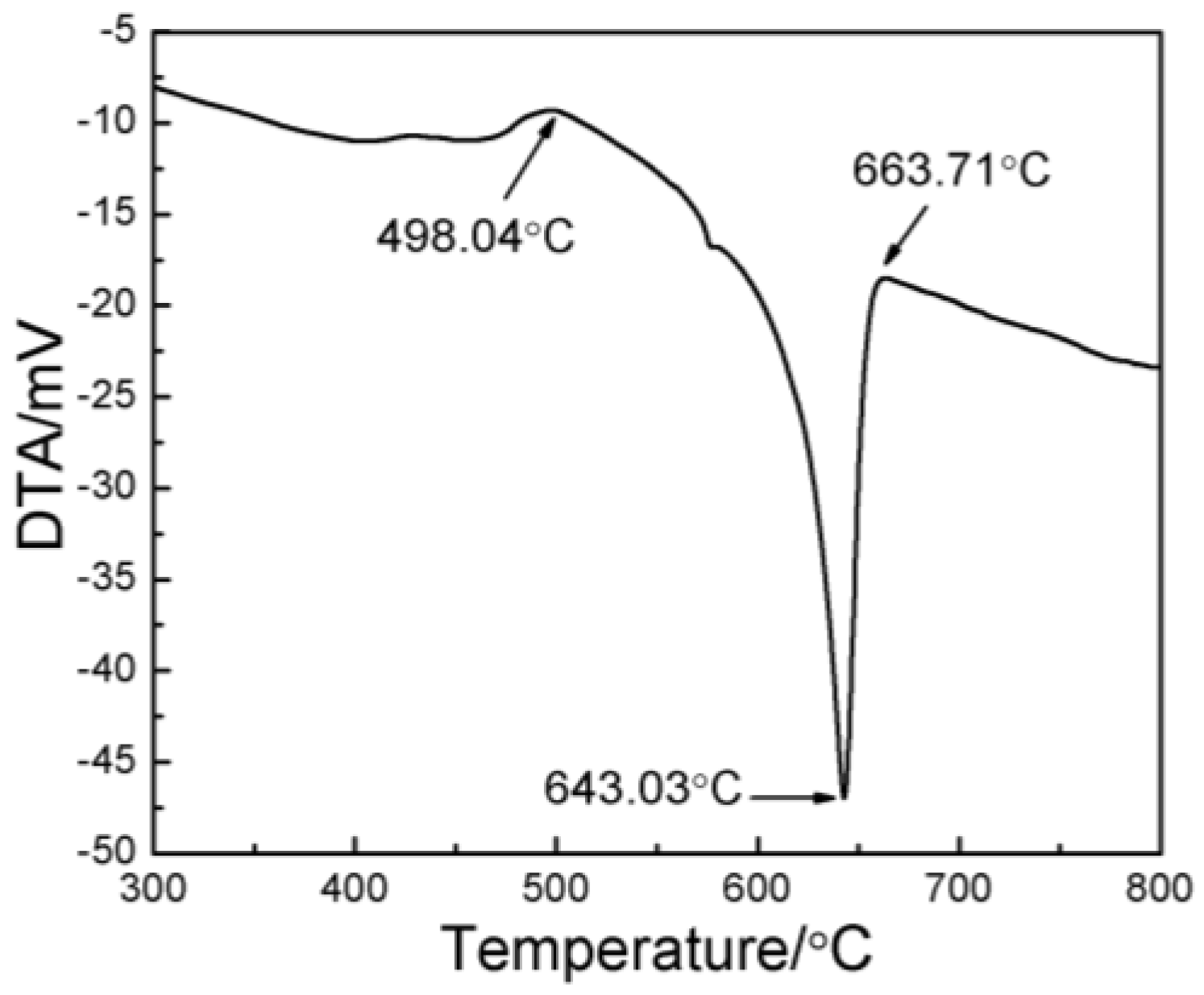

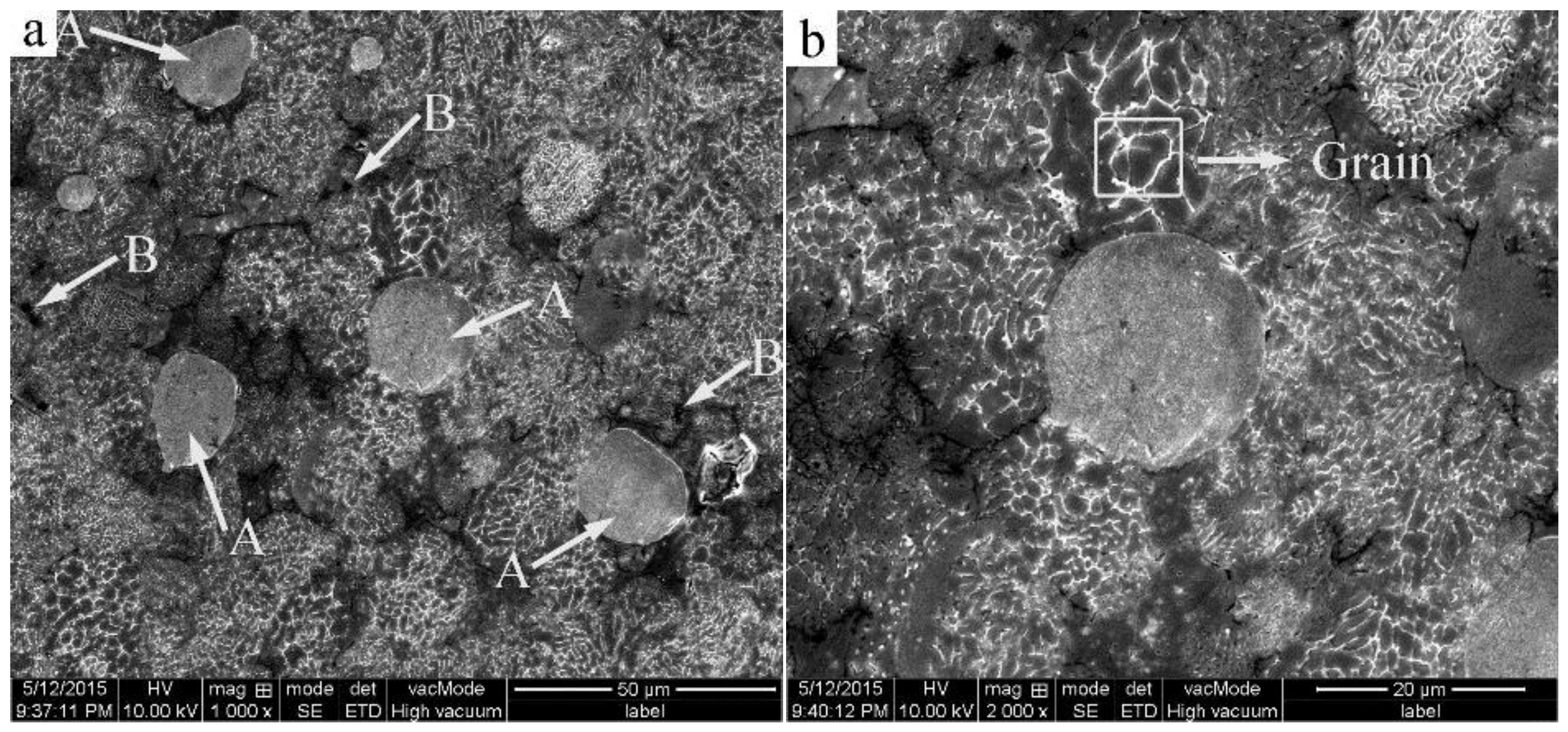

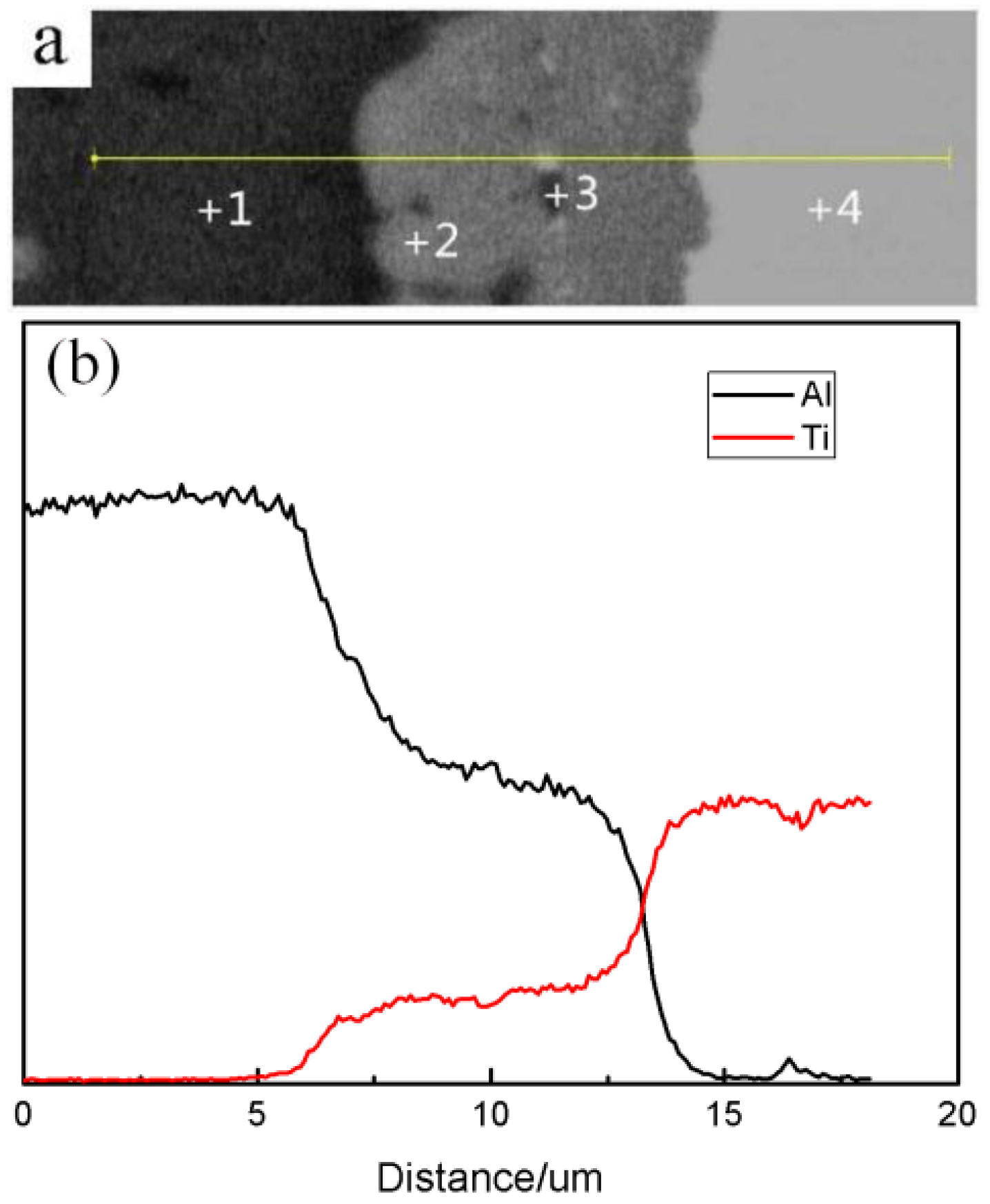

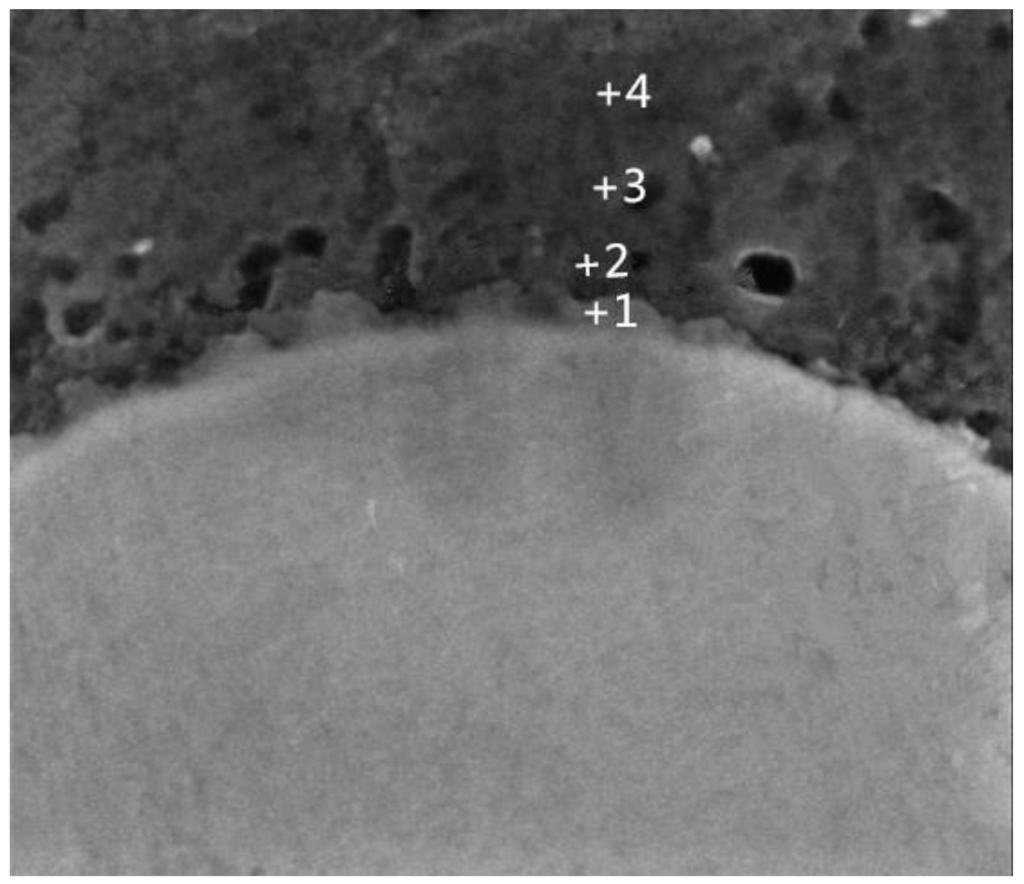

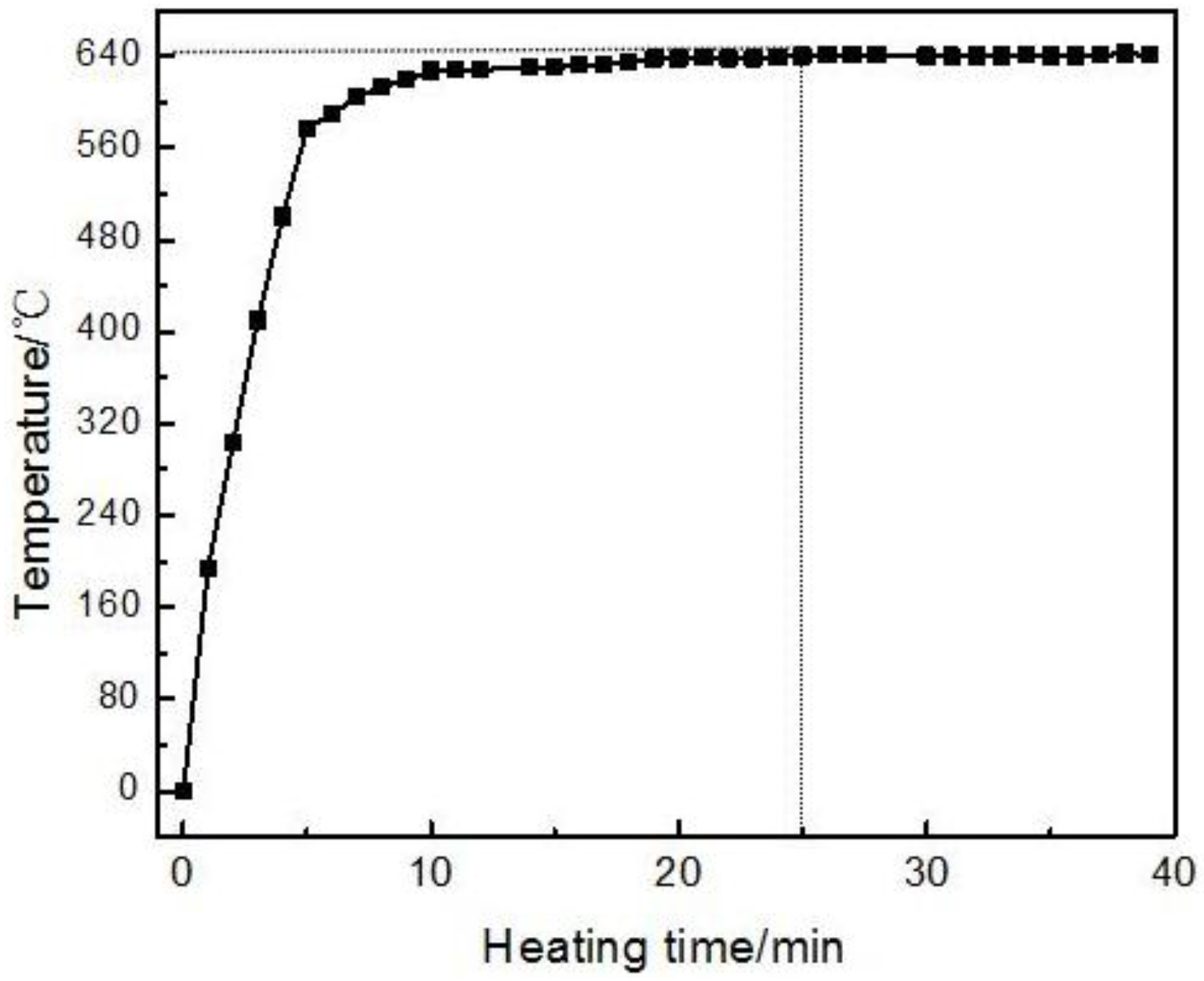

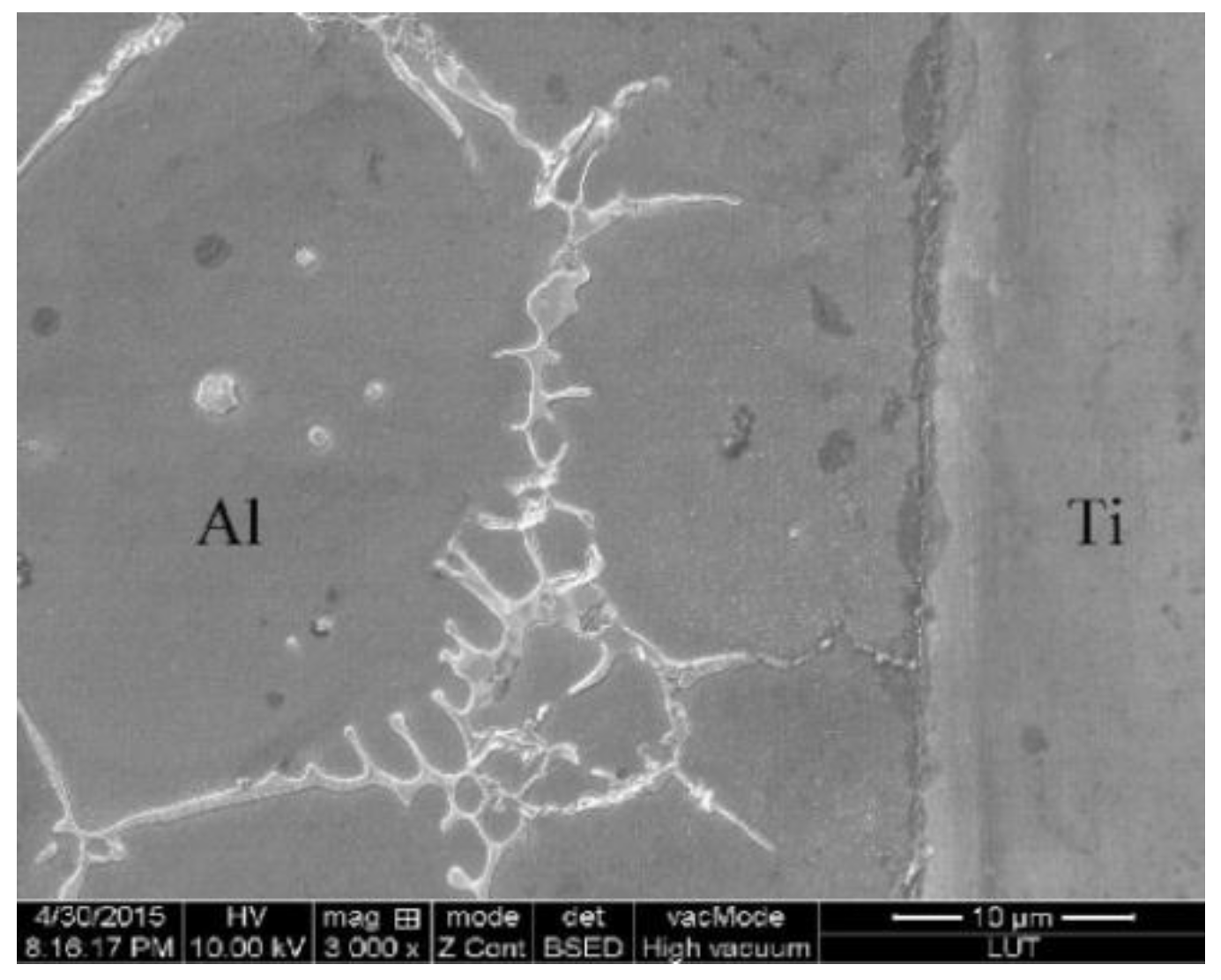

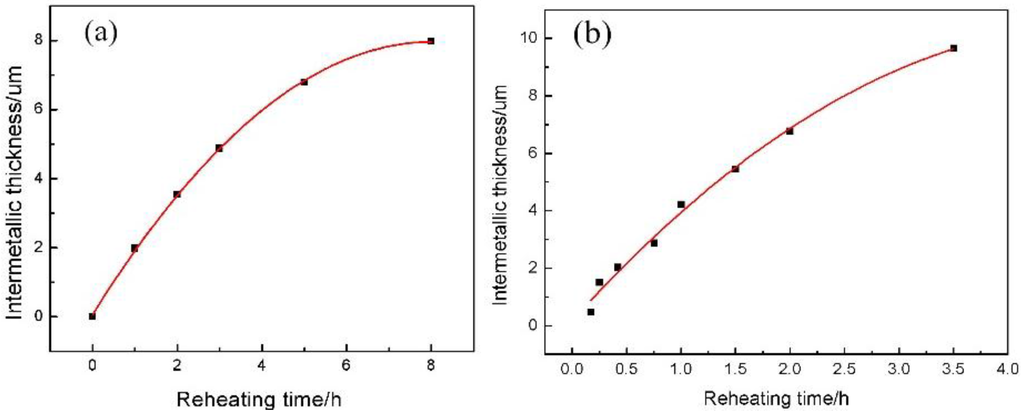

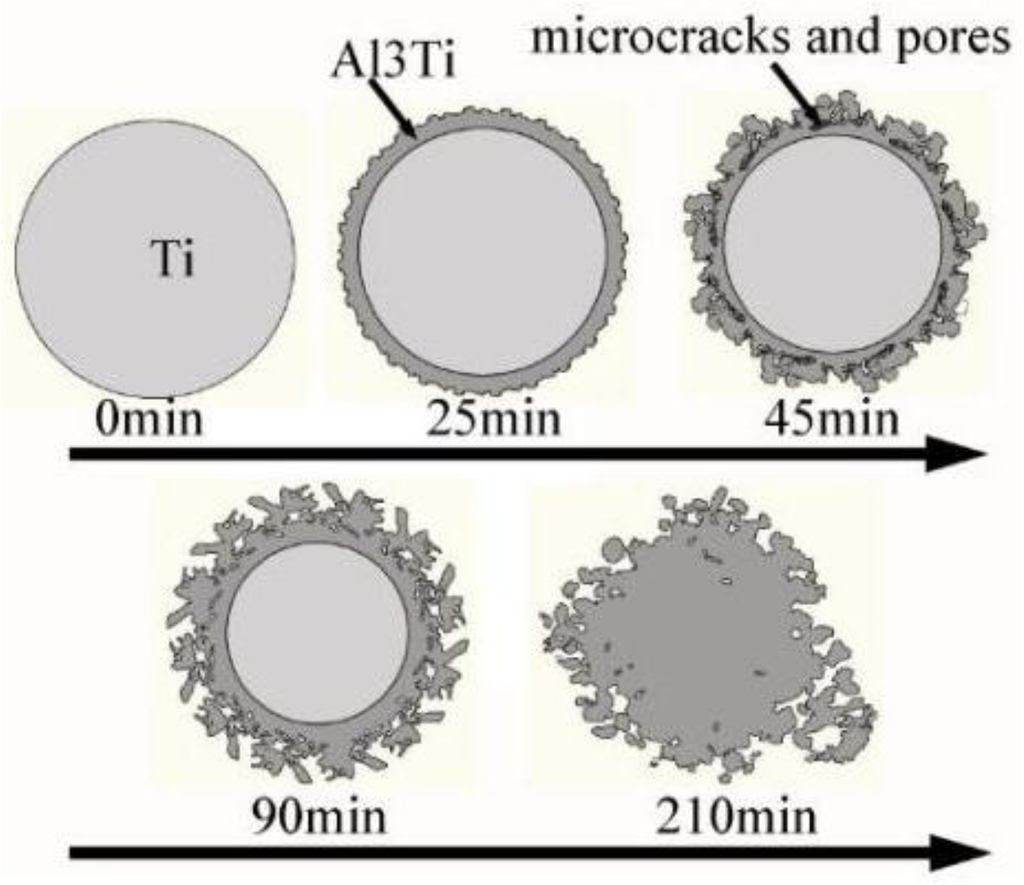

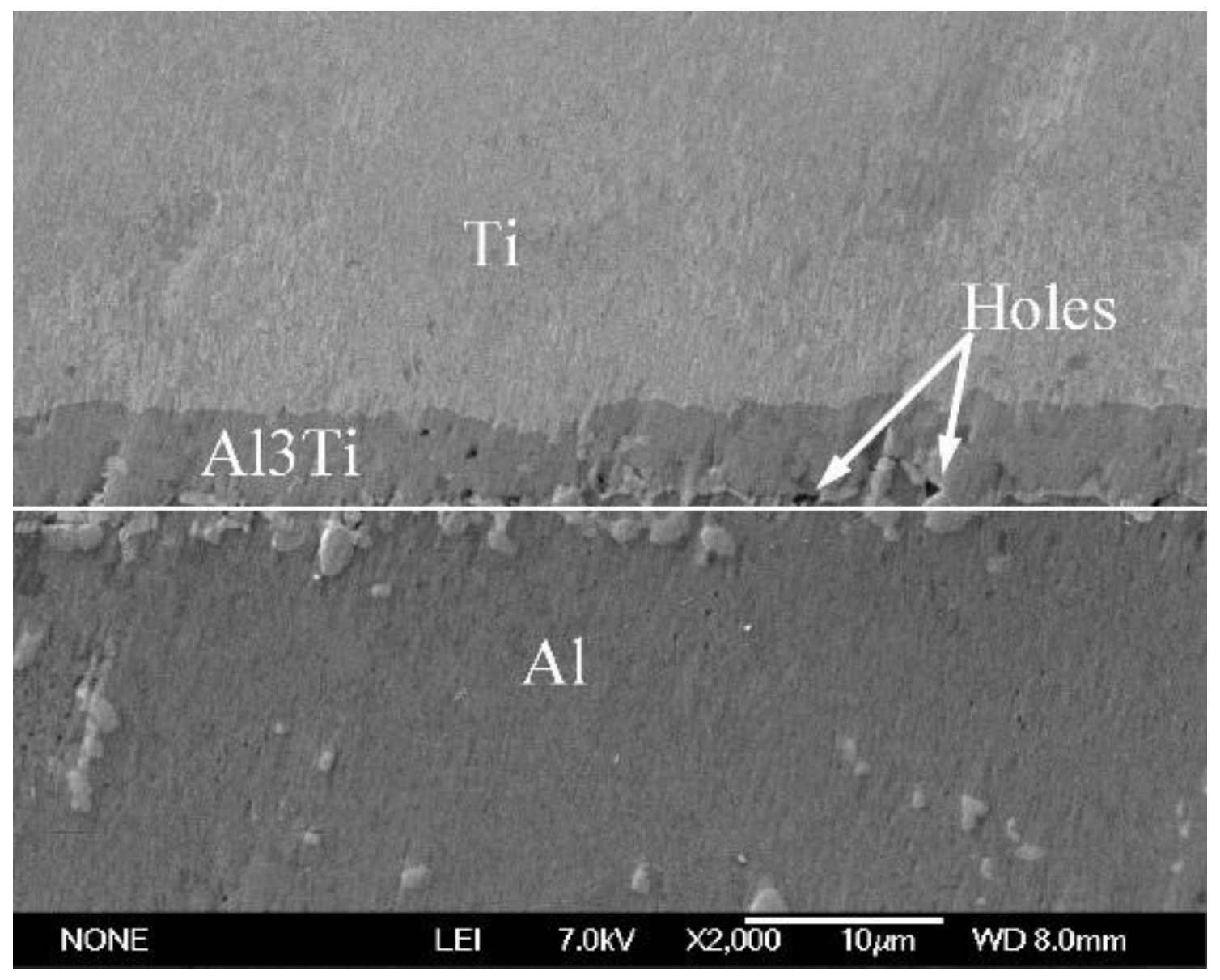

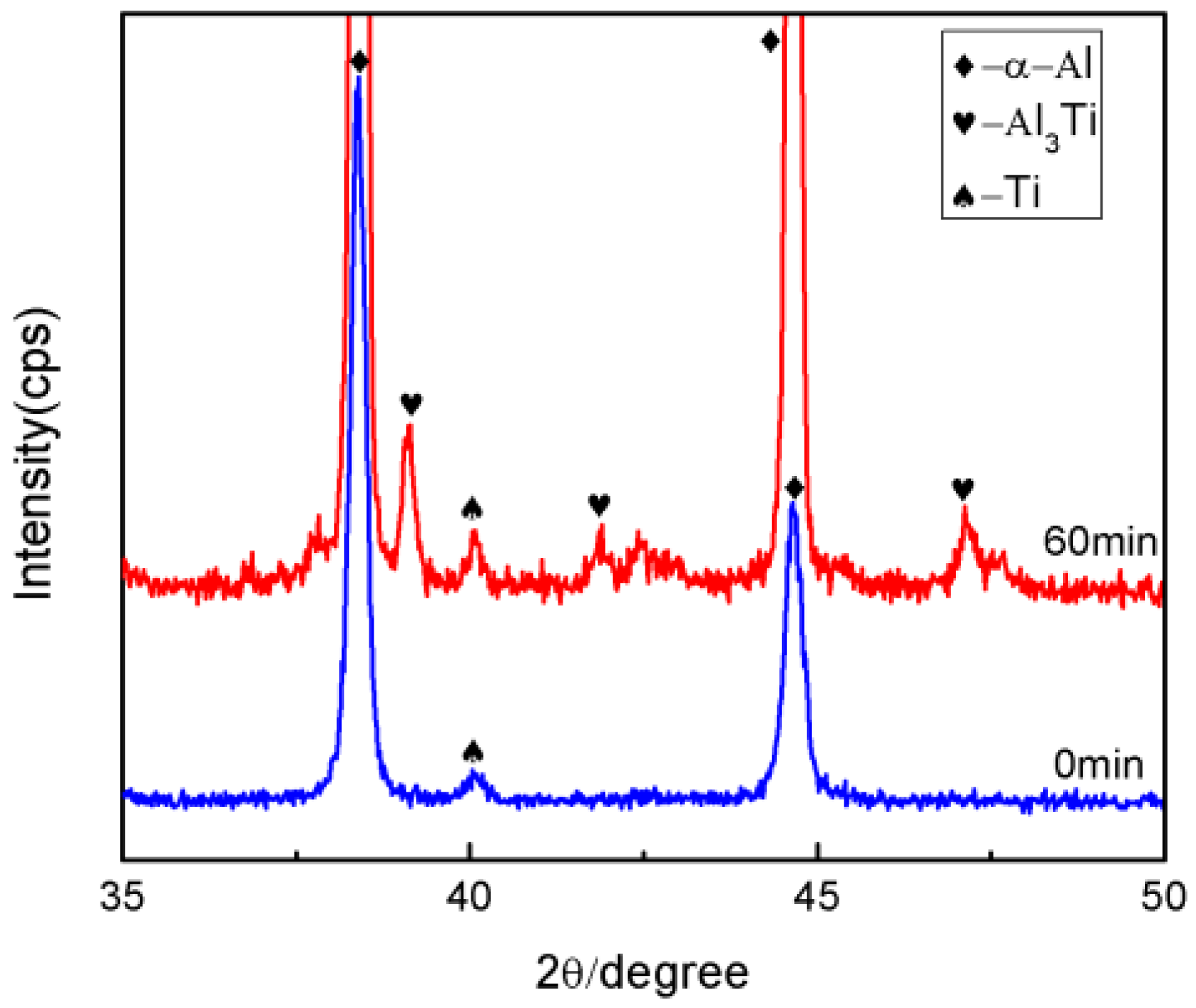

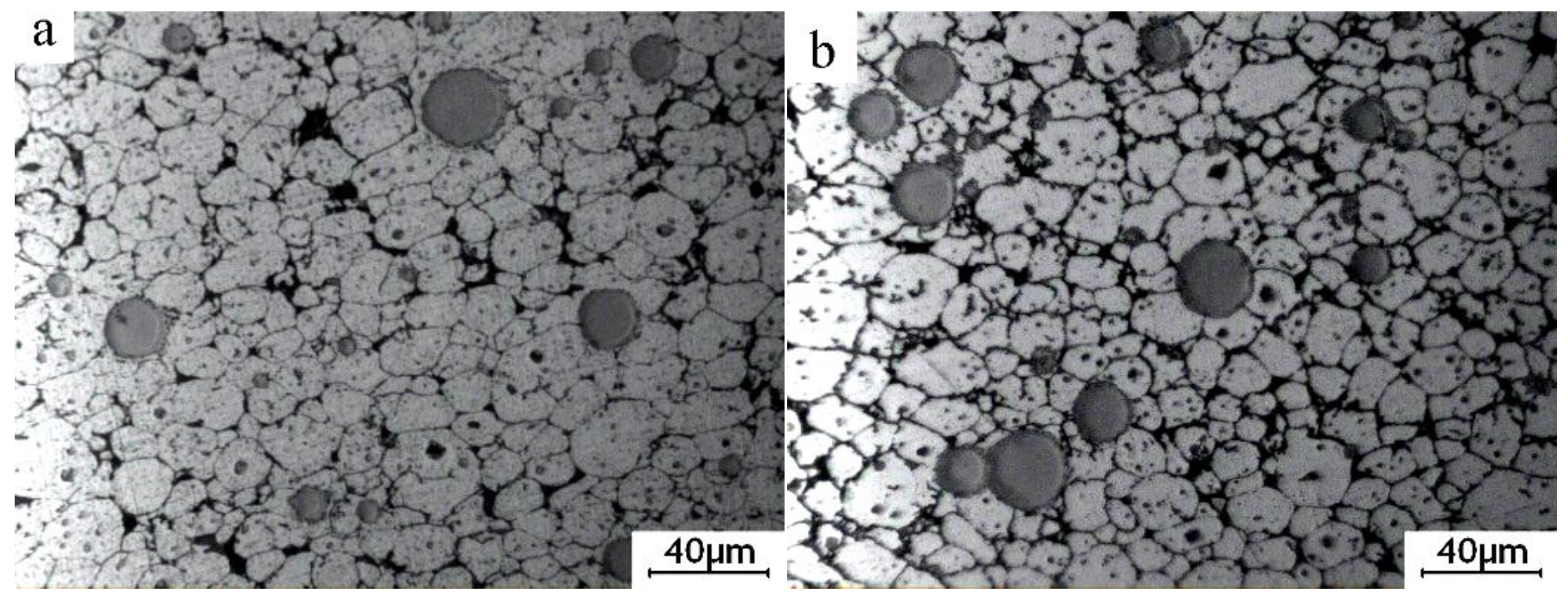

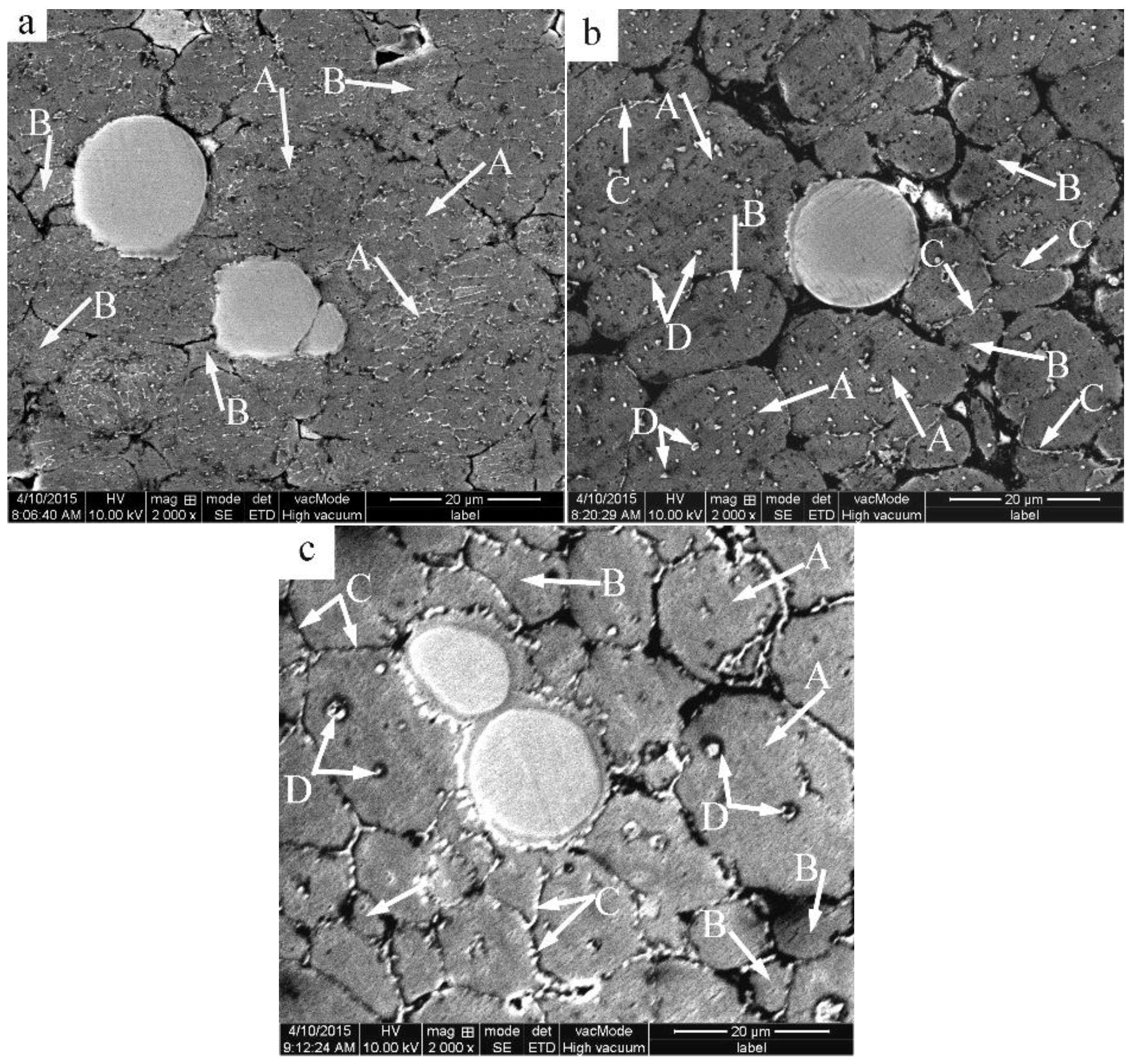

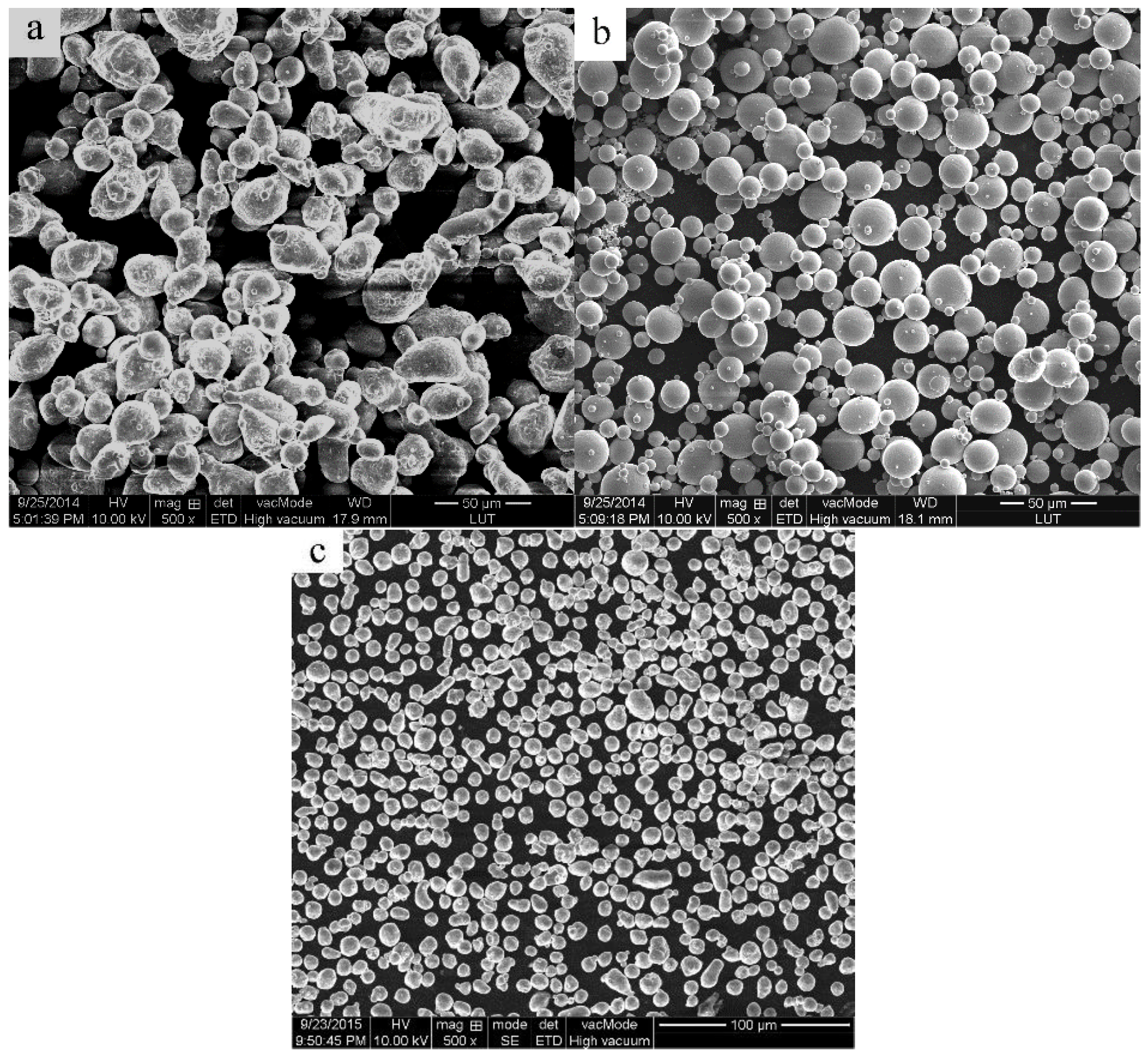

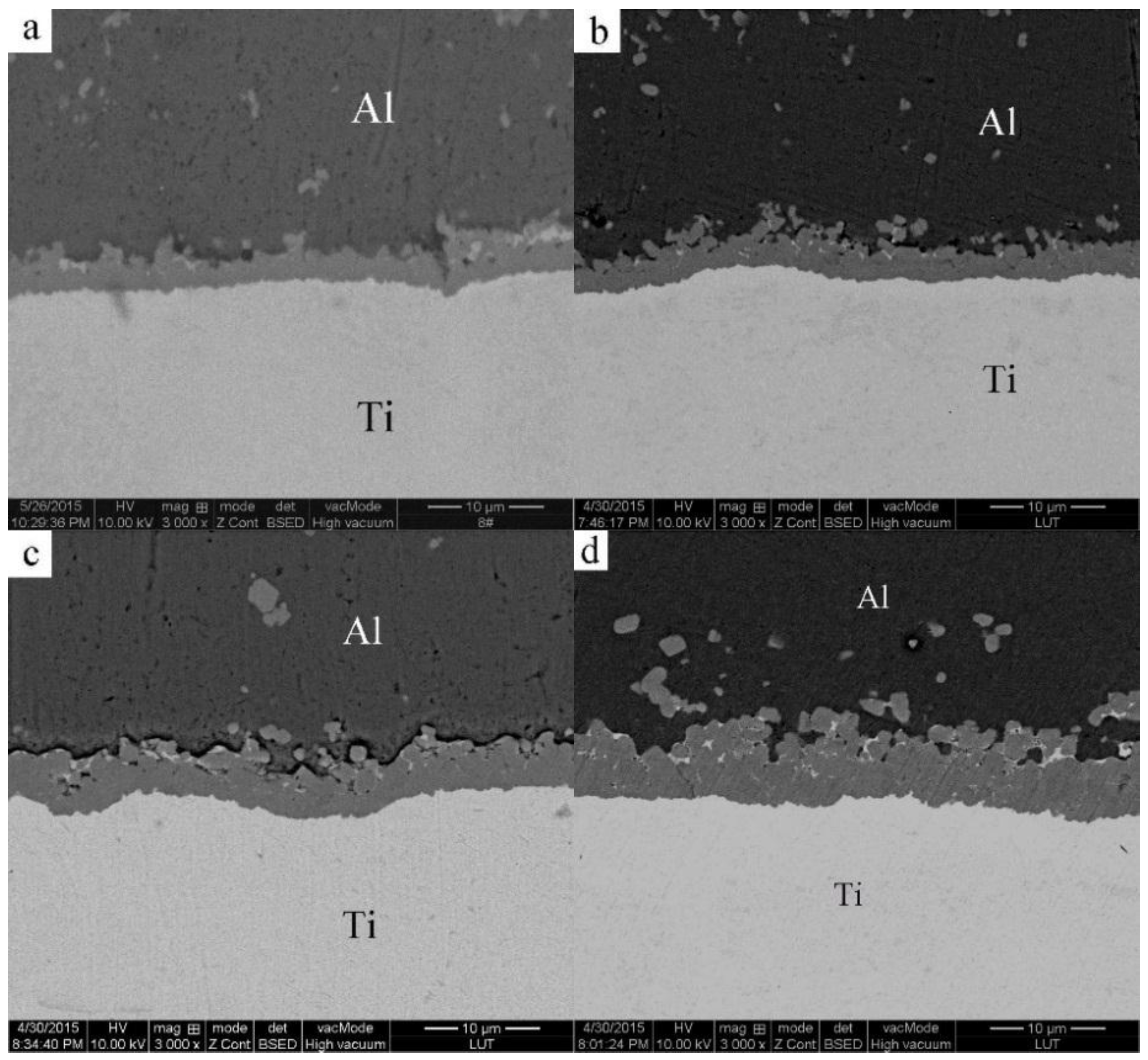

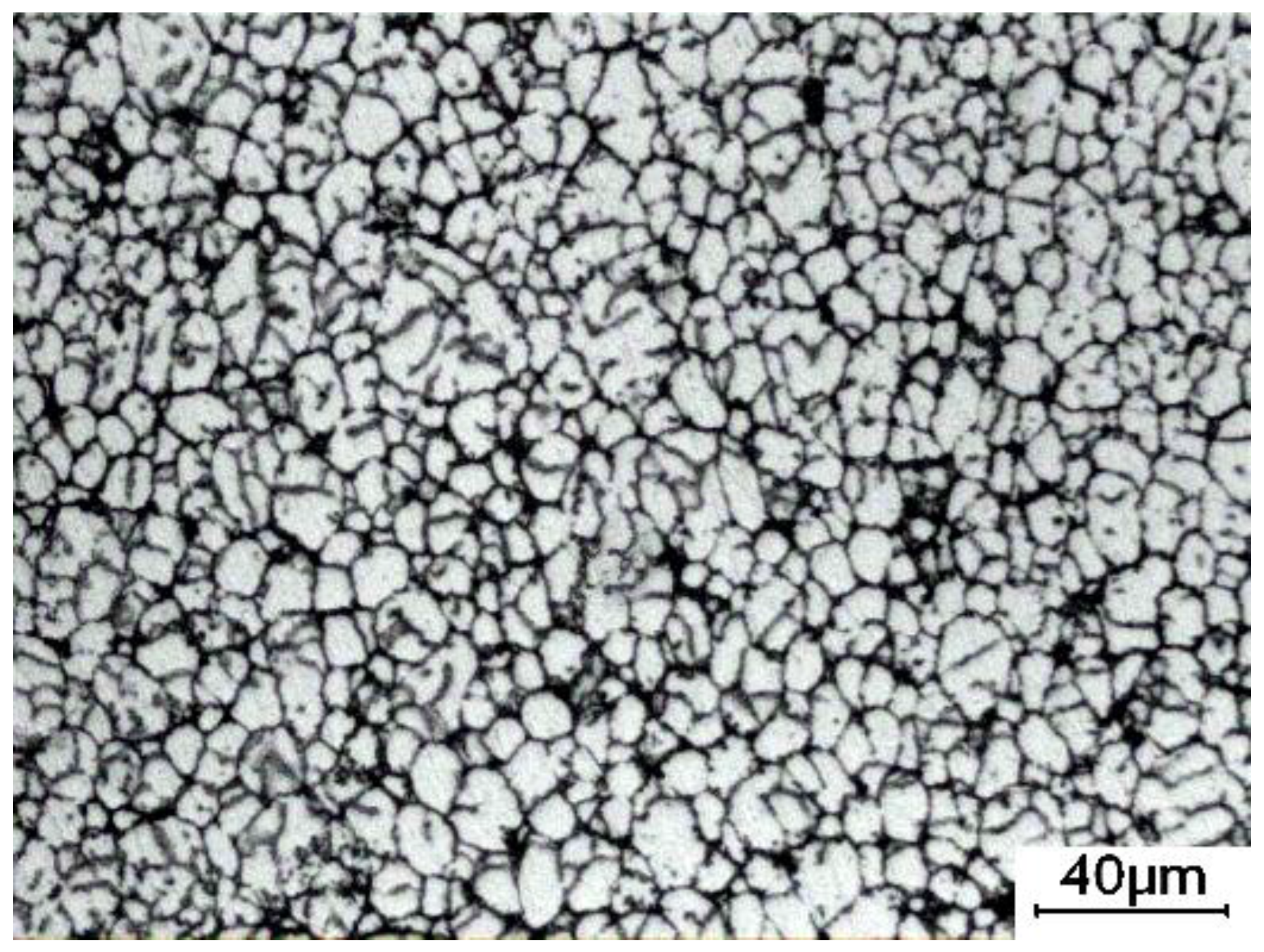

A new method, powder thixoforming, has been proposed to fabricate an in situ Al3Tip/2024Al composite. During partial remelting, the microstructural evolution of the bulk alloy prepared by cold pressing of the Ti, Al, 2024Al powder mixture was investigated, and the formation mechanism of the Al3Ti particles produced by the reaction between the Ti powder and the Al alloy melt is also discussed in detail. The results indicate that the microstructural evolution of the 2024 alloy matrix can be divided into three stages: a rapid coarsening of the powder grains; a formation of primary α-Al particles surrounded with a continuous liquid film; and a slight coarsening of the primary α-Al particles. Simultaneously, a reaction layer of Al3Ti can be formed on the Ti powder surface when the bulk is heated for 10 min at 640 °C The thickness (X) of the reaction layer increases with the time according to the parabolic law of \(X = -0.43t^{2} + 4.21t + 0.17\). The stress generated in the reaction layer due to the volume dilatation can be calculated by using the equationσ \(\sigma_{Al_{3}Ti} = -\frac{ E_{Al_{3}Ti} }{6(1-v{Al_{3}Ti})} \frac{ t^{3}_{Al_{3}Ti} }{t_{Ti}} \left(\frac{1}{R} - \frac{1}{R_{0}} \right) \). Comparing the obtained data with the results of the drip experiment, the reaction rate for the Ti powder and Al powder mixture is greater than that for the Ti plate and Al alloy mixture, respectively. View Full-Text
Keywords: microstructural evolution; Alp-Tip-2024Alp bulk alloy; powder thixoforming; partial remelting; in situ; Al3Ti phase; stress calculating; Al-Ti diffusion reaction microstructural evolution; Alp-Tip-2024Alp bulk alloy; powder thixoforming; partial remelting; in situ; Al3Ti phase; stress calculating; Al-Ti diffusion reaction

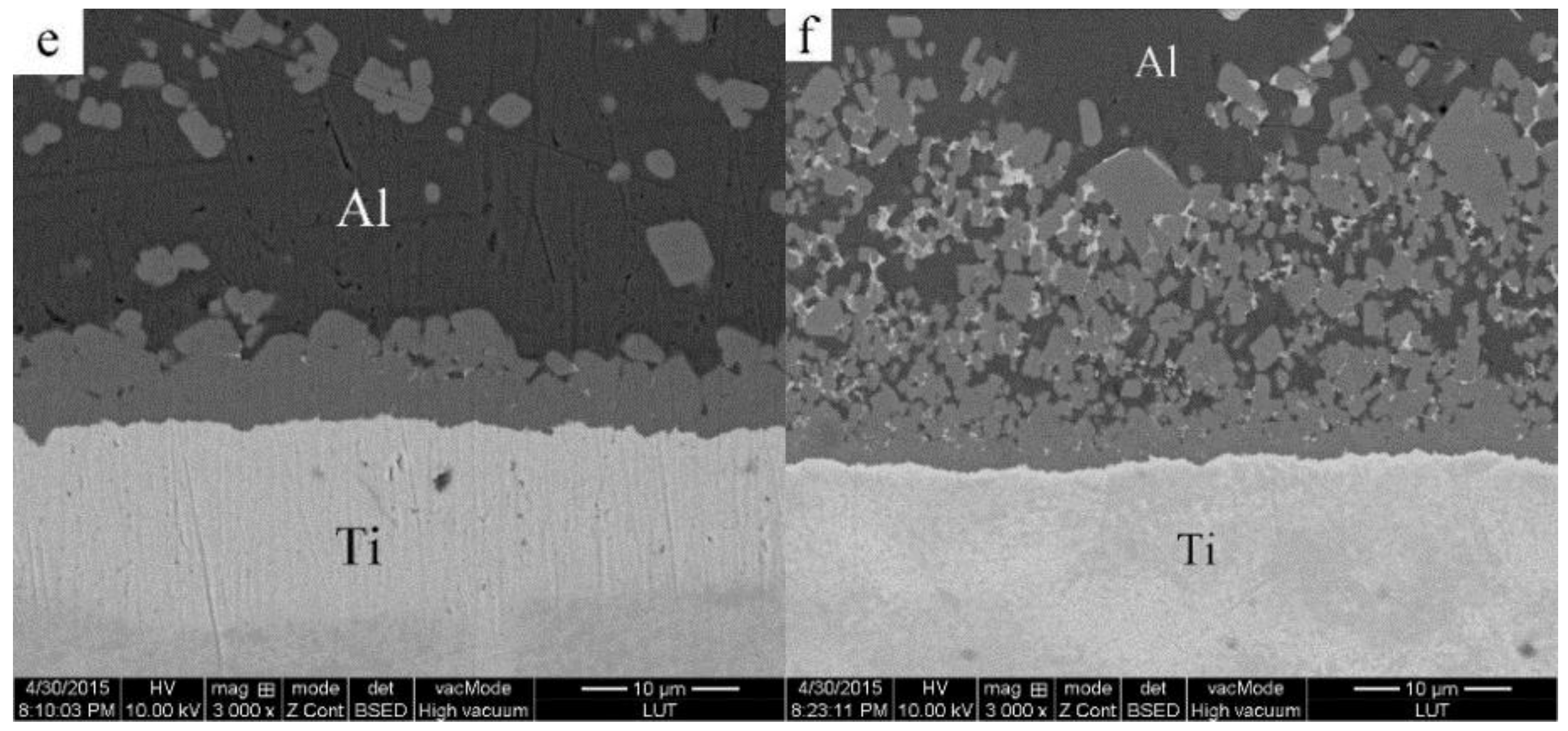

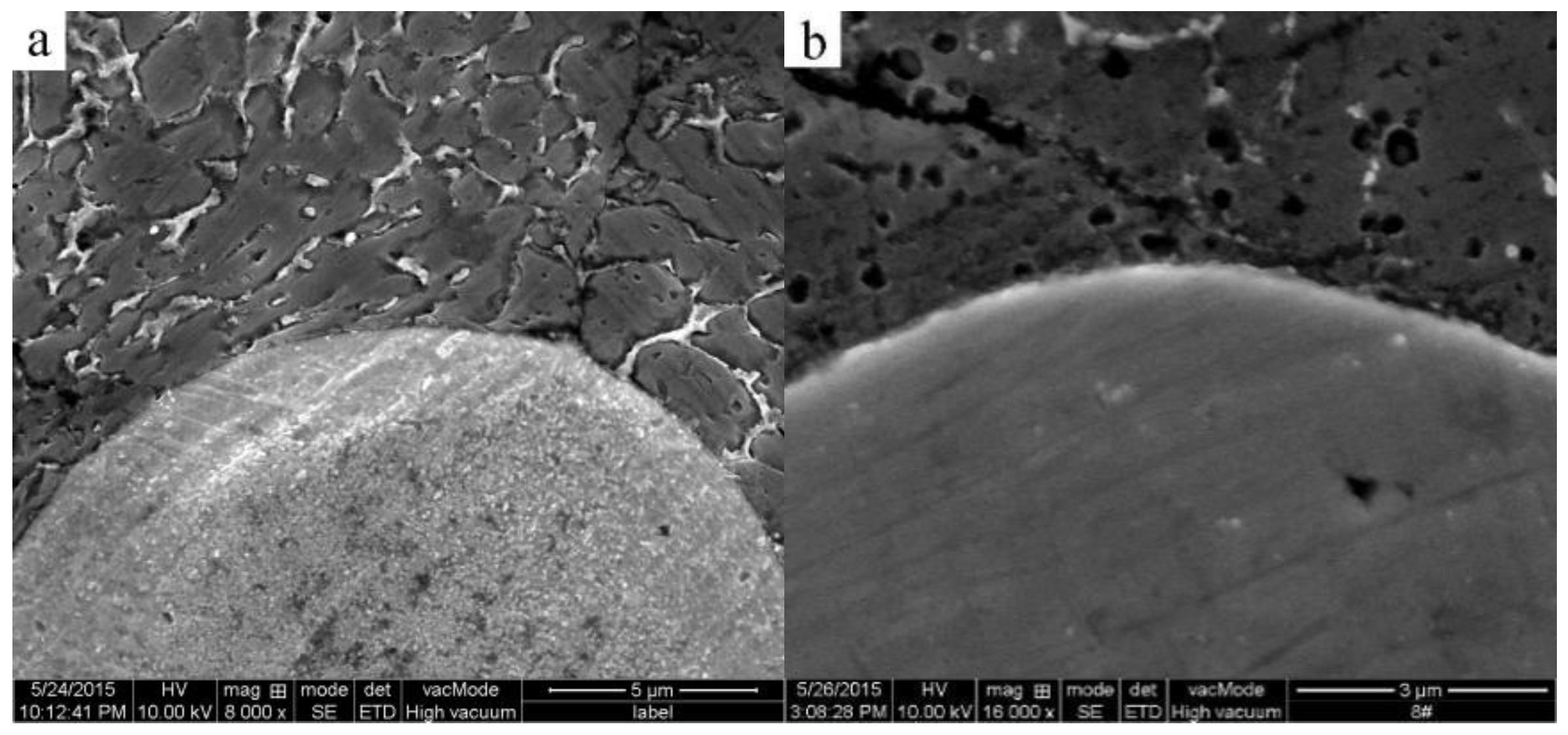

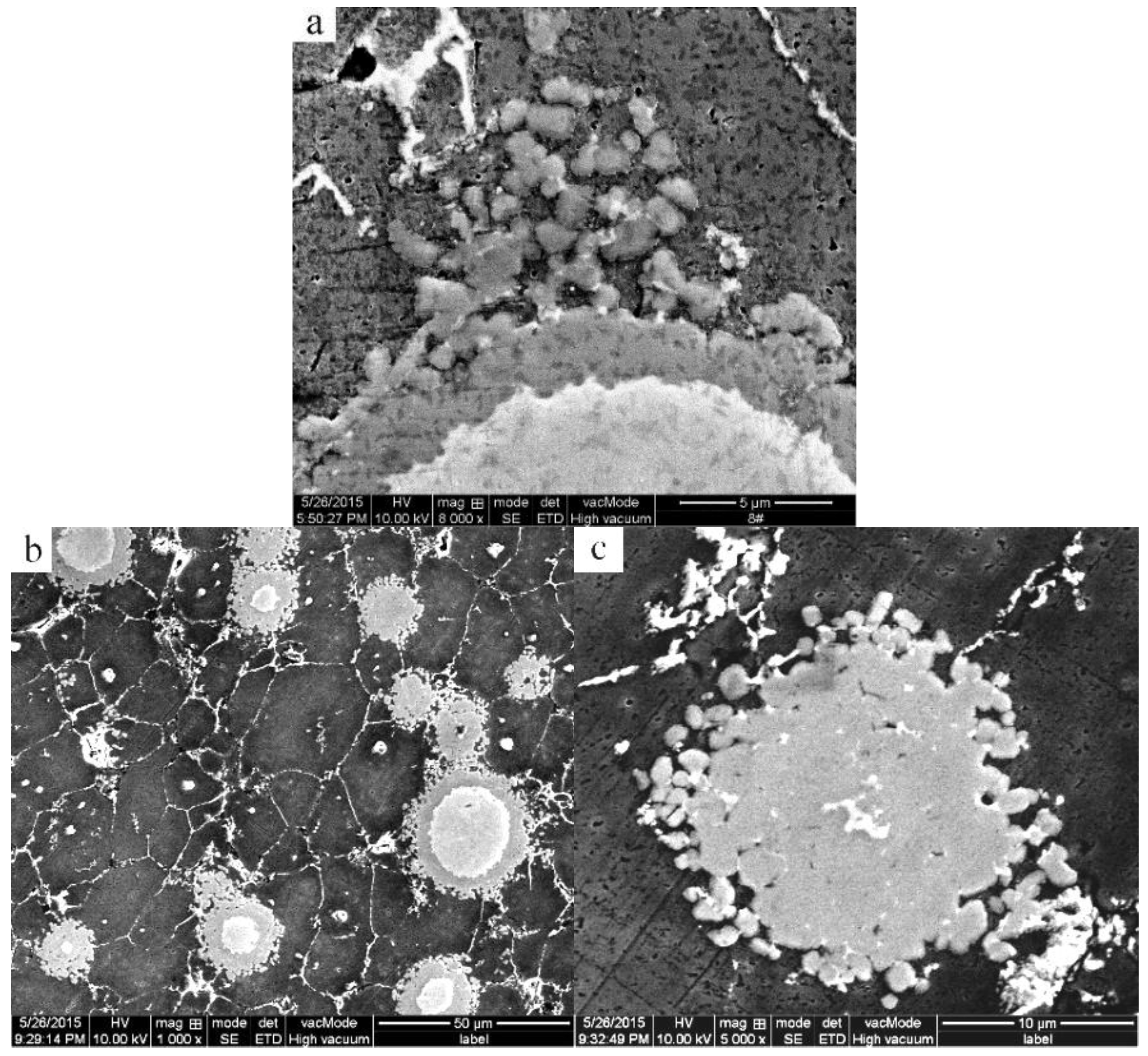

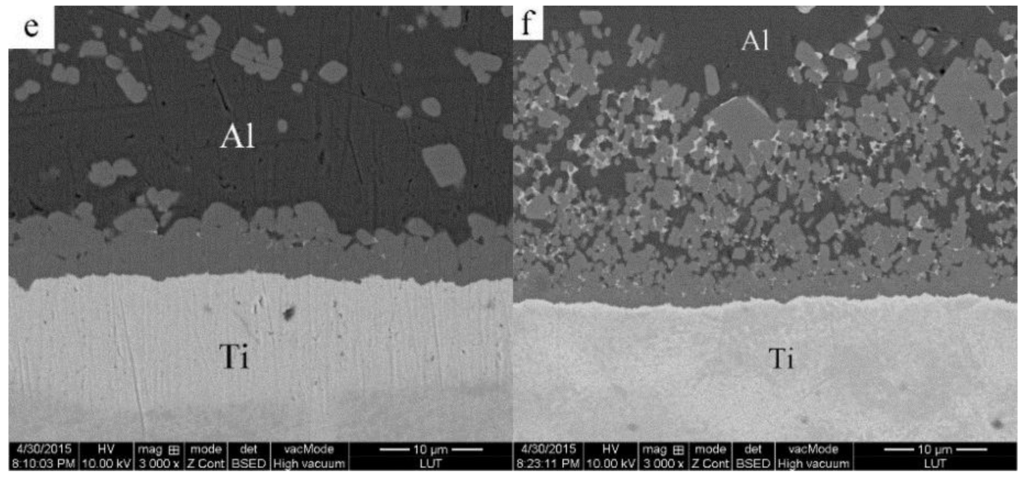

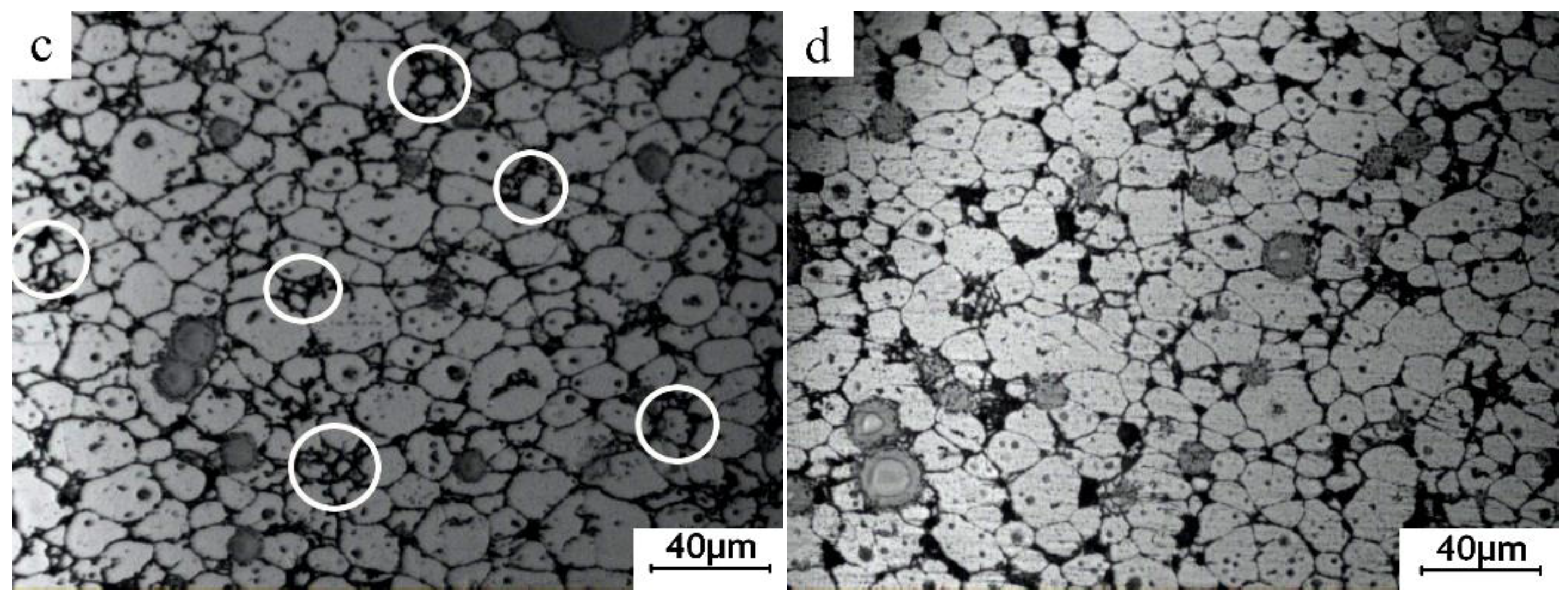

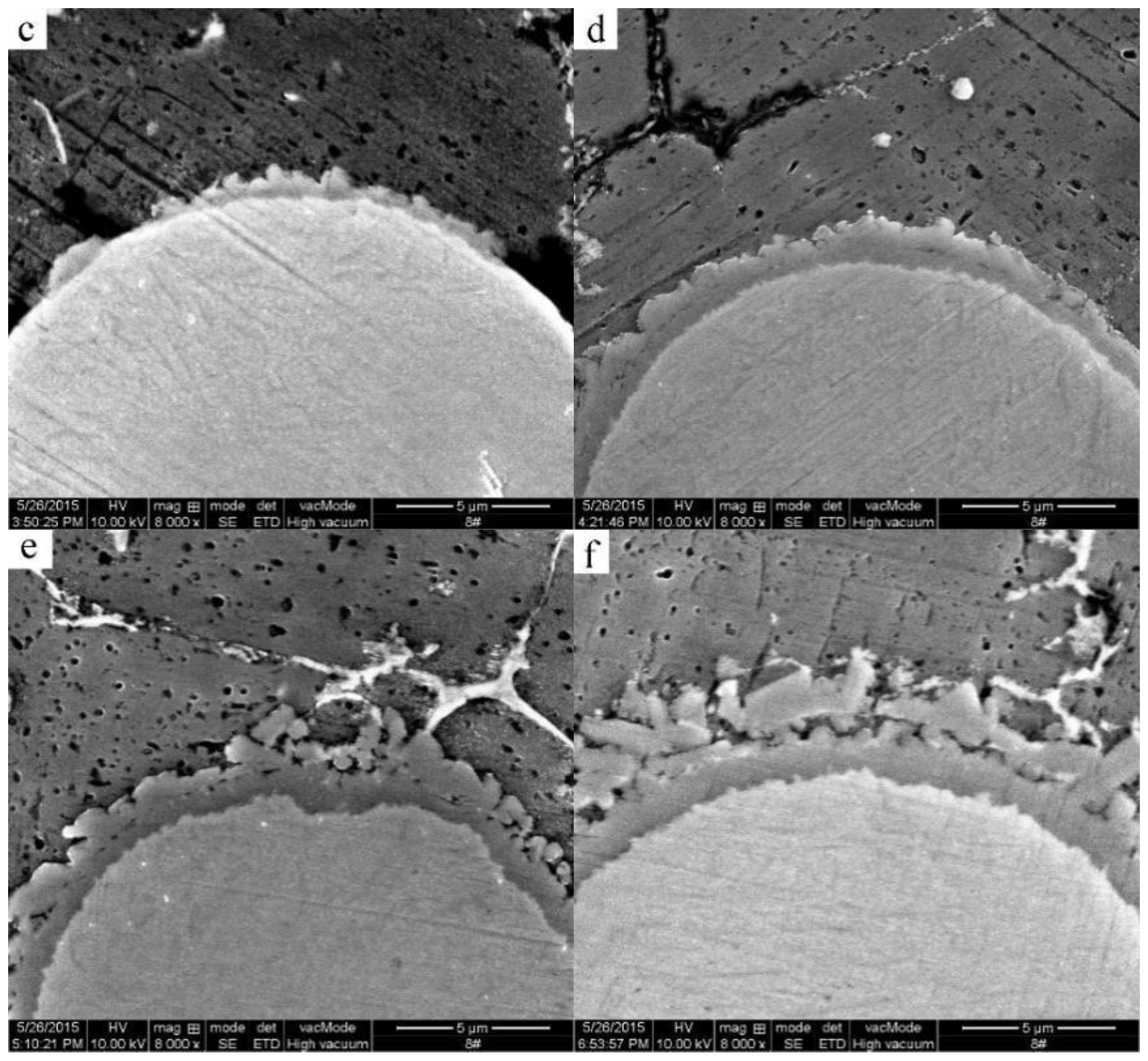

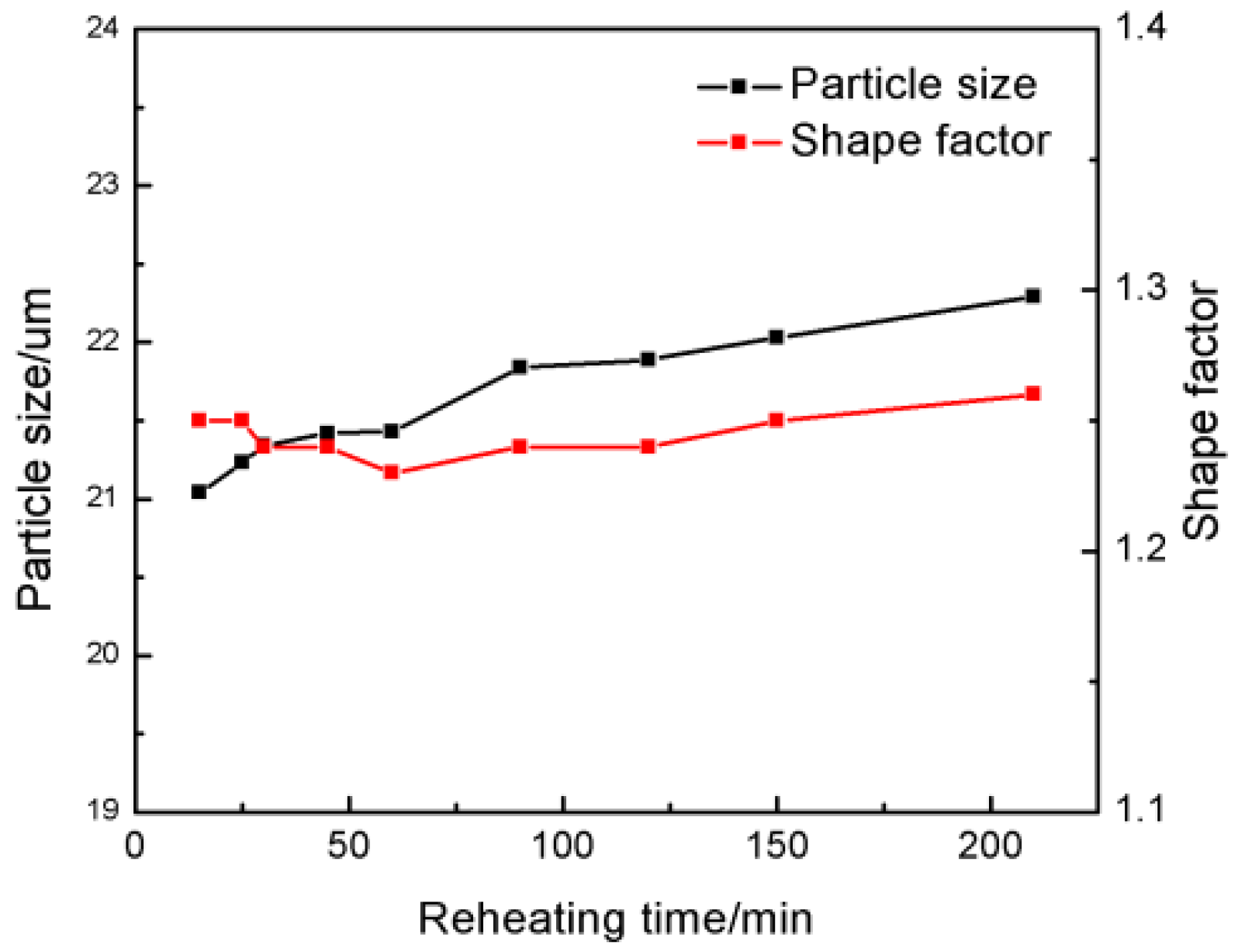

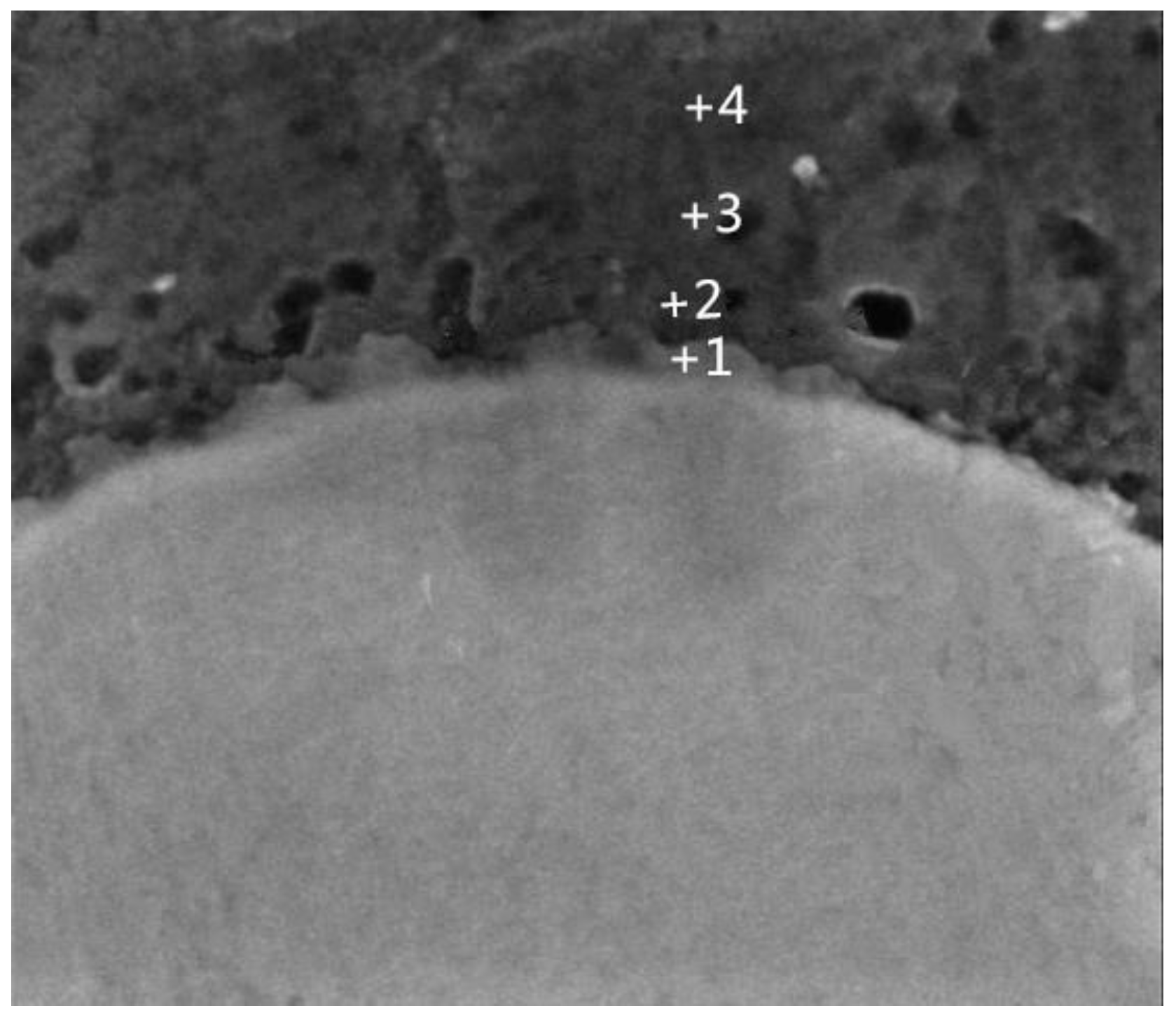

Figures

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Qin, Y.; Chen, T.; Wang, Y.; Zhang, X.; Li, P. Semisolid Microstructural Evolution during Partial Remelting of a Bulk Alloy Prepared by Cold Pressing of the Ti-Al-2024Al Powder Mixture. Materials 2016, 9, 199.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
