Open AccessArticle
Materials 2016, 9(11), 881; doi:10.3390/ma9110881

An 8-Channel Wavelength MMI Demultiplexer in Slot Waveguide Structures

Faculty of Engineering Holon, Institute of Technology (HIT), Holon 5810201, Israel
*
Author to whom correspondence should be addressed.
Academic Editors: Lioz Etgar, Seppo Honkanen, Matthieu Roussey and Antti Säynätjoki
Received: 10 August 2016 / Revised: 1 October 2016 / Accepted: 26 October 2016 / Published: 1 November 2016
(This article belongs to the Special Issue Silicon Nanophotonics)
View Full-Text   |   Download PDF [2223 KB, uploaded 1 November 2016]   |

Abstract

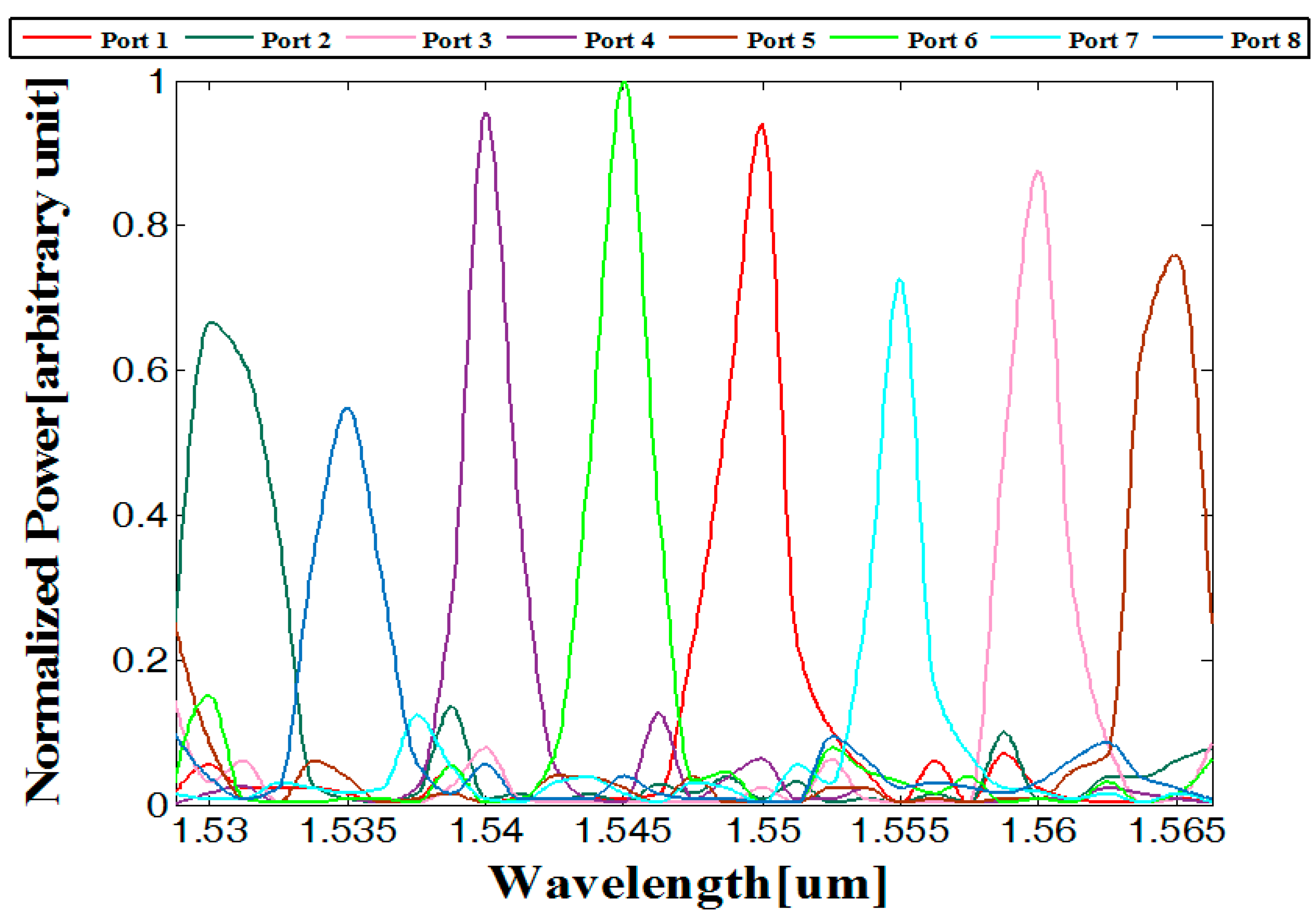

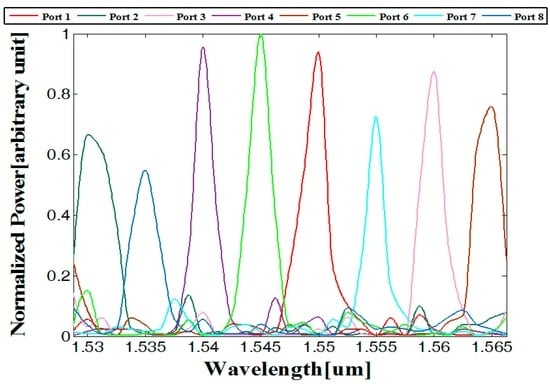

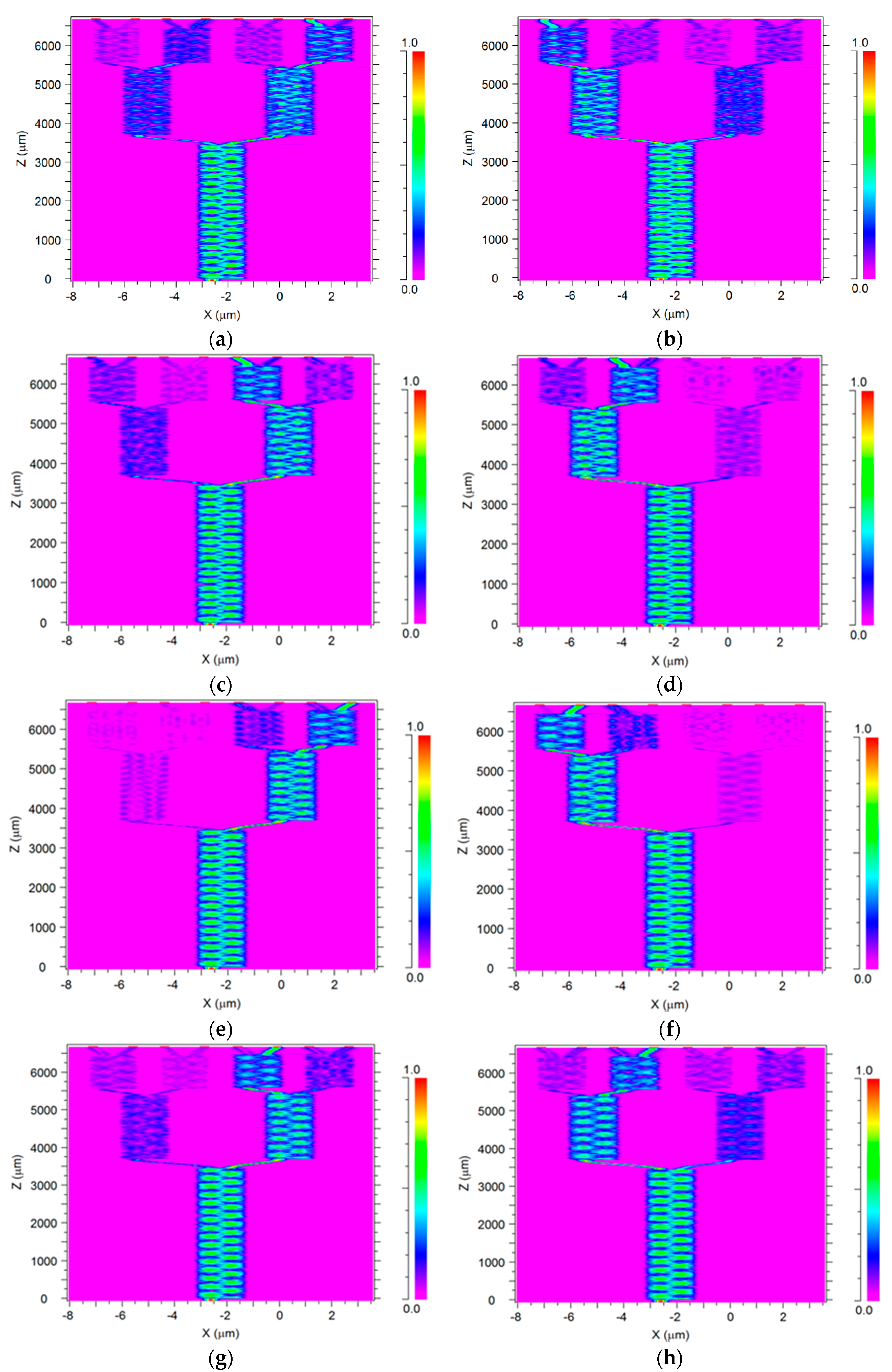

We propose a novel 8-channel wavelength multimode interference (MMI) demultiplexer in slot waveguide structures that operate at 1530 nm, 1535 nm, 1540 nm, 1545 nm, 1550 nm, 1555 nm, 1560 nm, and 1565 nm. Gallium nitride (GaN) surrounded by silicon (Si) was found to be a suitable material for the slot-waveguide structures. The proposed device was designed by seven 1 × 2 MMI couplers, fourteen S-bands, and one input taper. Numerical investigations were carried out on the geometrical parameters using a full vectorial-beam propagation method (FV-BPM). Simulation results show that the proposed device can transmit 8-channel that works in the whole C-band (1530–1565 nm) with low crosstalk (−19.97–−13.77 dB) and bandwidth (1.8–3.6 nm). Thus, the device can be very useful in optical networking systems that work on dense wavelength division multiplexing (DWDM) technology. View Full-Text
Keywords: slot-waveguide; FV-BPM; MMI; DWDM slot-waveguide; FV-BPM; MMI; DWDM
Figures

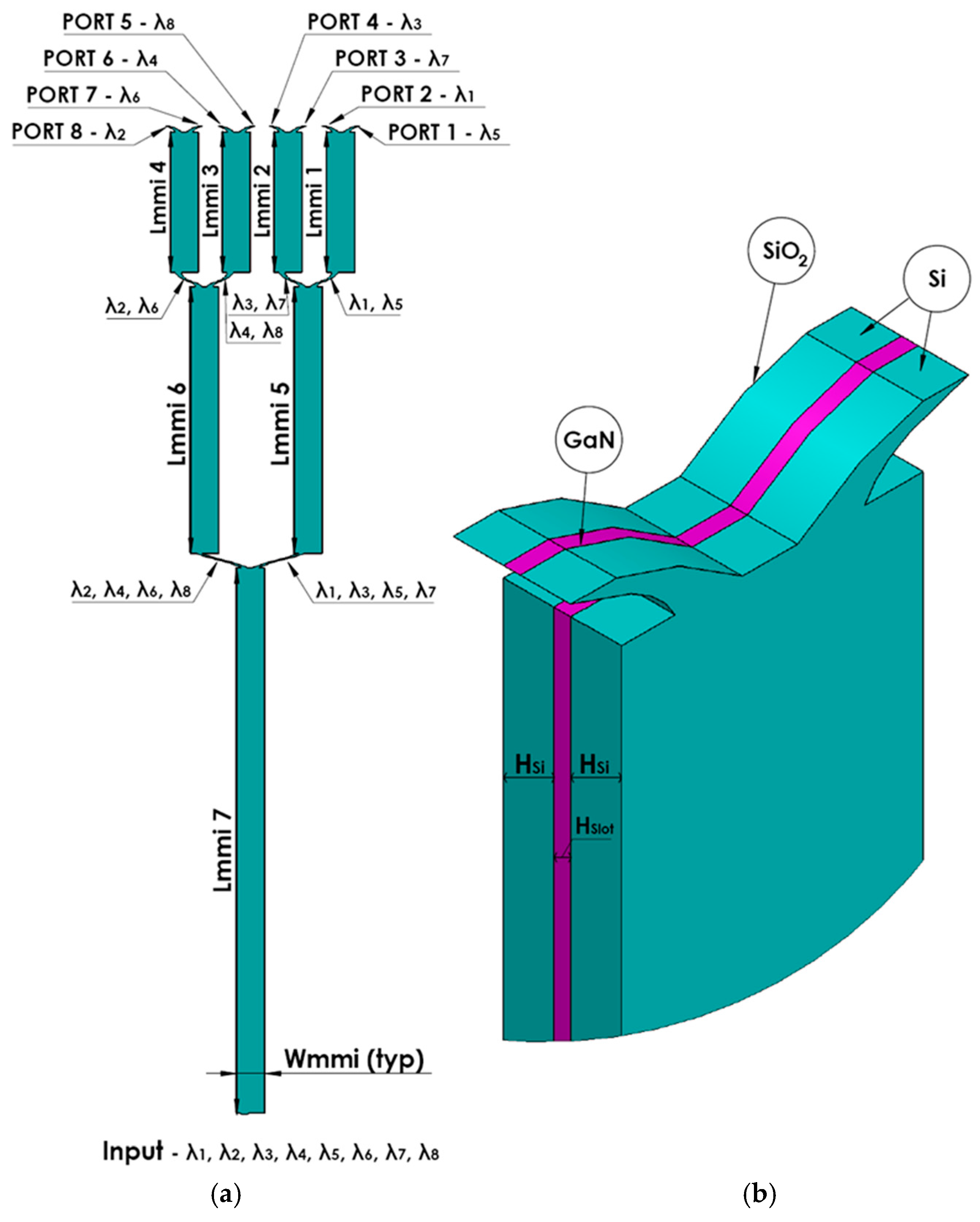

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Ben Zaken, B.B.; Zanzury, T.; Malka, D. An 8-Channel Wavelength MMI Demultiplexer in Slot Waveguide Structures. Materials 2016, 9, 881.
