Next Article in Journal
A Constitutive Relationship between Fatigue Limit and Microstructure in Nanostructured Bainitic Steels
Next Article in Special Issue
Improved Formula for the Stress Intensity Factor of Semi-Elliptical Surface Cracks in Welded Joints under Bending Stress
Previous Article in Journal
A New Compact Double-Negative Miniaturized Metamaterial for Wideband Operation
Article Menu
Issue 10 (October) cover image

Export Article

Open AccessLetter
Materials 2016, 9(10), 832; doi:10.3390/ma9100832

Evolution Law of Helium Bubbles in Hastelloy N Alloy on Post-Irradiation Annealing Conditions

1
Shanghai Institute of Applied Physics, Chinese Academy of Science (CAS), Shanghai 201800, China
2
School of Physical Sciences, University of Chinese Academy of Sciences, Beijing 100049, China
3
Institute of Modern Physics, Fudan University, Shanghai 200433, China
*
Authors to whom correspondence should be addressed.
Academic Editor: Zengtao Chen
Received: 26 September 2016 / Revised: 9 October 2016 / Accepted: 12 October 2016 / Published: 14 October 2016
(This article belongs to the Special Issue Modelling and Characterization of Defects in Metals)
View Full-Text   |   Download PDF [3728 KB, uploaded 14 October 2016]   |

Abstract

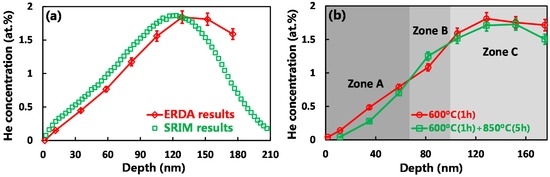

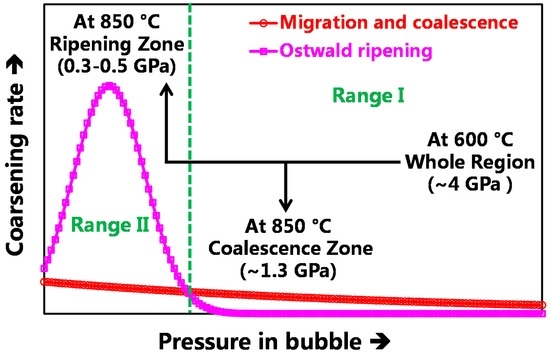

This work reports on the evolution law of helium bubbles in Hastelloy N alloy on post-irradiation annealing conditions. After helium ion irradiation at room temperature and subsequent annealing at 600 °C (1 h), the transmission electron microscopy (TEM) micrograph indicates the presence of helium bubbles with size of 2 nm in the depth range of 0–300 nm. As for the sample further annealed at 850 °C (5 h), on one hand, a “Denuded Zone” (0–38 nm) with rare helium bubbles forms due to the decreased helium concentration. On the other hand, the “Ripening Zone” (38–108 nm) and “Coalescence Zone” (108–350 nm) with huge differences in size and separation of helium bubbles, caused by different coarsening rates, are observed. The mechanisms of “Ostwald ripening” and “migration and coalescence”, experimentally proved in this work, may explain these observations. View Full-Text
Keywords: nuclear materials; radiation damage; helium bubble; denuded zone; Ostwald ripening; migration and coalescence nuclear materials; radiation damage; helium bubble; denuded zone; Ostwald ripening; migration and coalescence
Figures

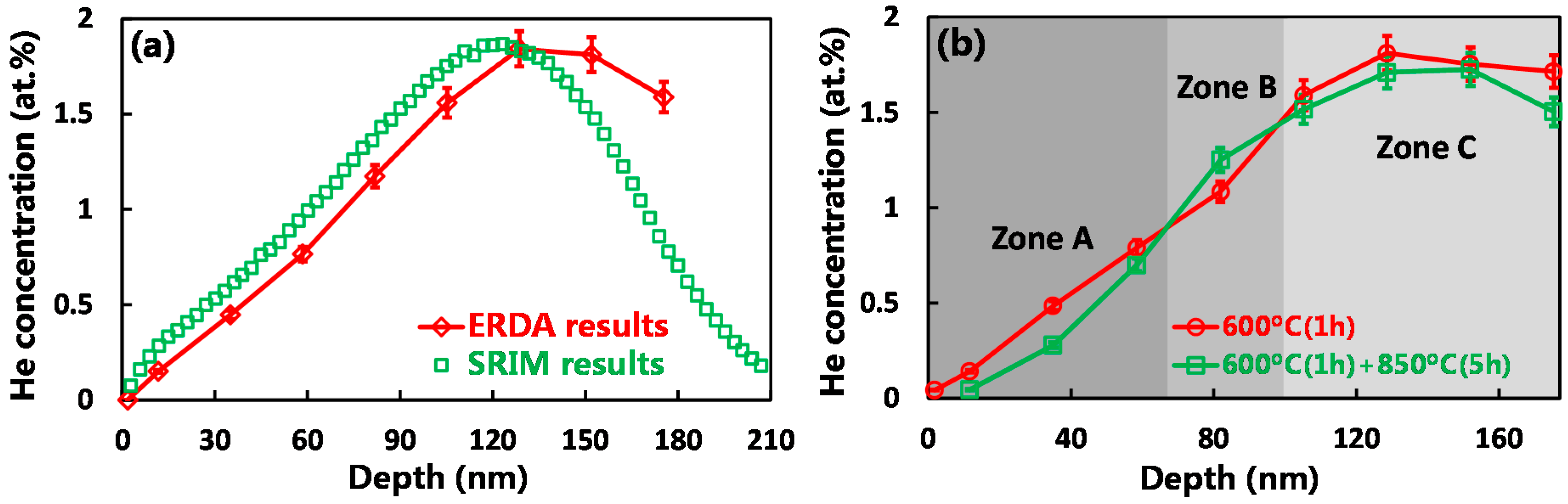

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Gao, J.; Bao, L.; Huang, H.; Li, Y.; Zeng, J.; Liu, Z.; Liu, R.; Shi, L. Evolution Law of Helium Bubbles in Hastelloy N Alloy on Post-Irradiation Annealing Conditions. Materials 2016, 9, 832.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
