Work Function Adjustment by Using Dipole Engineering for TaN-Al2O3-Si3N4-HfSiOx-Silicon Nonvolatile Memory

by
Yu-Hsien Lin
* and
Yi-Yun Yang
Department of Electronic Engineering, National United University, No. 1, Lienda, Miaoli 36003, Taiwan
*
Author to whom correspondence should be addressed.
Materials 2015, 8(8), 5112-5120; https://doi.org/10.3390/ma8085112
Submission received: 11 June 2015 / Revised: 3 August 2015 / Accepted: 5 August 2015 / Published: 7 August 2015
(This article belongs to the Section Advanced Materials Characterization)
Browse Figures
Versions Notes

Abstract

:
This paper presents a novel TaN-Al2O3-HfSiOx-SiO2-silicon (TAHOS) nonvolatile memory (NVM) design with dipole engineering at the HfSiOx/SiO2 interface. The threshold voltage shift achieved by using dipole engineering could enable work function adjustment for NVM devices. The dipole layer at the tunnel oxide–charge storage layer interface increases the programming speed and provides satisfactory retention. This NVM device has a high program/erase (P/E) speed; a 2-V memory window can be achieved by applying 16 V for 10 μs. Regarding high-temperature retention characteristics, 62% of the initial memory window was maintained after 103 P/E-cycle stress in a 10-year simulation. This paper discusses the performance improvement enabled by using dipole layer engineering in the TAHOS NVM.

1. Introduction

Nonvolatile memory (NVM), because of its high density and low cost, is widely used for portable mass storage purposes in digital cameras, tablet PCs, and smartphones [1]. A crucial challenge in the electronics industry is obtaining low-power fast NVM devices with small dimensions. A silicon-oxide-nitride-oxide-silicon (SONOS)-like structure has become widely used for charging devices because it does not have a planar scaling problem for floating gate isolation and exhibits considerable potential for achieving high program/erase (P/E) speeds, low programming voltages, and low power performance [1,2,3,4,5,6,7].
Silicon-Oxide-Nitride-Oxide-Silicon (SONOS) flash memory devices are potential candidates for replacing conventional floating-gate NAND (Not AND) flash devices in the sub-32 nm technology node [6,7]. SONOS-like devices have several advantages over the conventional floating-gate device, such as rapid programming, low-power operation, high-density integration, and excellent reliability.
According to studies on SONOS flash, TaN-Al2O3-Si3N4-SiO2-silicon (TANOS) structure flash memory [8,9,10] exhibits excellent performance because of its immunity to gate injection when metal gate TaN with a high work function is used. Moreover, several studies have presented various types of high-k dielectric trapping layers as potential candidates for replacing Si3N4 to provide discrete NVM charge storage [11,12,13,14,15,16]. Furthermore, high-k dielectric materials can improve the gate capacitance, and maintain an equivalent potential difference for a greater thickness compared with SiO2. Therefore, the leakage through the dielectric can be minimized, and the scaling limits can be extended. Moreover, to achieve a large memory window for differentiating between stable programs and erased states, a high-k dielectric trapping layer can provide sufficiently high trapping density for charge storage [17]. According to the International Technology Roadmap for Semiconductors, high-k trapping layer use in flash memory has high potential for scalability below the 32-nm node [18].
Metal gate electrodes with high-k dielectric oxide may be made more effective than poly-Si by improving the carrier mobility, thus avoiding the poly-Si depletion effect and dopant penetration through the gate oxide [19,20,21,22]. However, using a metal gate layer requires n- and p-type metals with appropriate work functions for targeting the suitable threshold voltage (Vth) for high-performance complementary metal-oxide-semiconductor (CMOS) logic applications on bulk Si [23,24]. In addition, studies have demonstrated Vth shift caused by dipole formation at high-k/SiO2 interfaces [25,26,27]. The areal density difference of oxygen atoms is the driving force in dipole formation at these interfaces [28,29]. In this study, we used the dipole engineering for NVM to modulate Vth with different high-k dielectric layers. The proposed design with adjustable Vth exhibited excellent characteristics such as a considerably large memory window, high-speed P/E, excellent endurance, and optimal disturbance.

2. Experimental Section

Figure 1 illustrates the structure of our TAHOS SONOS-like NVMs. These devices were fabricated on 6 inch Si wafers. After the active region was patterned, a 4 nm oxide tunnel was thermally grown at 1000 °C in a vertical furnace system. Next, 1 nm HfO2 and Al2O3 thin films, used in the dipole layer, were deposited using metal–organic chemical vapor deposition (MOCVD). We compared three samples: one without a dipole layer, one with a 1 nm HfO2 dipole layer, and one with a 1 nm Al2O3 dipole layer. Table 1 compares the devices. After a 10 nm trapping HfSiOx deposition, MOCVD was used to deposit a 10 nm Al2O3 thin film, which was used as a blocking oxide. Next, a 100 nm TaN layer was deposited using a sputtering method. After gate patterning, a self-aligned implantation was used to create an n+ source/drain with As+ at a dose of 5 × 1015 cm−2 and energy of 15 keV. Dopant activation and the interaction of the dipole layer with tunnel oxide were accomplished through rapid thermal annealing (RTA) at 950 °C for 15 s. The remainder of the subsequent standard CMOS procedures were completed for fabricating the TAHOS SONOS-like NVM devices.
Materials 08 05112 g001 1024

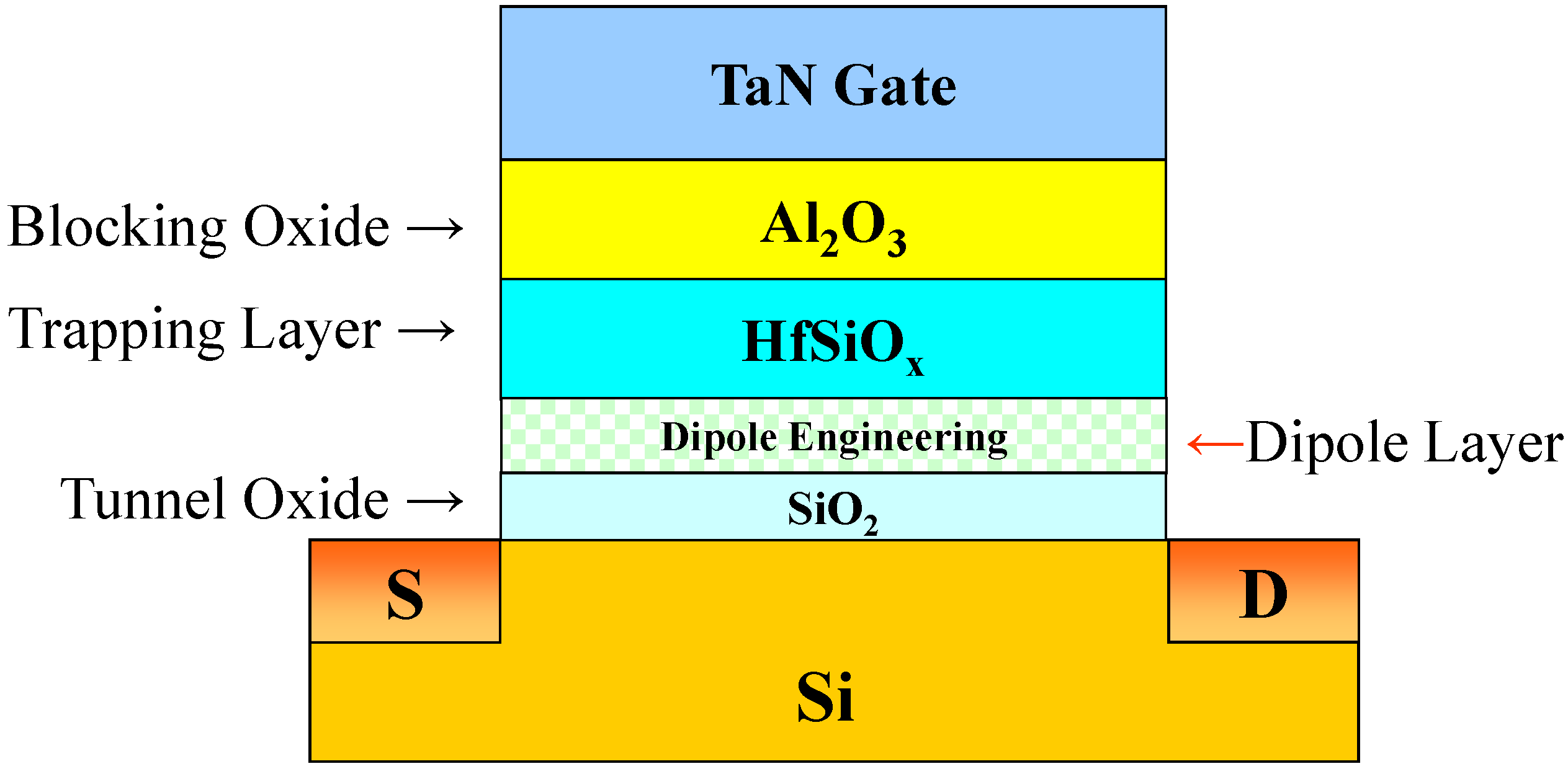

Figure 1. Cross-sectional cell structure of the TAHOS NVM device using dipole engineering.
Figure 1. Cross-sectional cell structure of the TAHOS NVM device using dipole engineering.
Materials 08 05112 g001
Table
Table 1. Dipole engineering for TAHOS NVM devices.
Table 1. Dipole engineering for TAHOS NVM devices.
Dipole engineeringw/o Dipolew/i Dipole Al2O3w/i Dipole HfO2
Tunneling oxideSiO2 40 ÅSiO2 40 ÅSiO2 40 Å
Dipole layer–Al2O3 10 ÅHfO2 10 Å
Trapping layerHfSiOx 100 ÅHfSiOx 100 ÅHfSiOx 100 Å
Blocking oxideAl2O3 100 ÅAl2O3 100 ÅAl2O3 100 Å

3. Results and Discussion

Figure 2 plots the Id-Vg curve of the proposed TAHOS NVM devices. The drain voltage (Vd) of the Id-Vg curve is 0.1 V, and Vg transverses from 0 to 5 V. The Vth at 10−7 A Id is 1.68, 2.11, and 1.82 V for the without dipole, Al2O3 dipole, and HfO2 dipole samples, respectively. Al2O3/HfO2 dipole layer incorporation in the TAHOS stacks results in a positive Vth shift in the NVM devices. The Vth tuning was found to be proportional to the net dipole moment associated with the Hf-O/Si-O and Al-O/Si-O bonds at the high-k/SiO2 interface because of electronegativity and areal density difference of oxygen atoms [28,29]. According to the electrical measurement results, the dipole effects caused by the interfacial Al2O3 and HfO2 dipole layer shift the effective work function toward p-metal. Therefore, different dipole layers can be used for Vth adjustment for tuning the conventional gate electrode work function.
X-ray photoelectron spectroscopy (XPS) was performed by using an Al Kα X-ray source (1486.6-eV photons) to determine the bonding environments of the Hf atoms. Figure 3 shows the Hf 4f photoemission peaks of the samples without dipole, with Al2O3 dipole, and with HfO2 dipole. The test sample for XPS was prepared for the without dipole or with Al2O3 dipole layer following preparation of the HfSiOx thin film after RTA at 950 °C for 15 s. In the without dipole sample, we observed well-defined 4f5/2 and 4f7/2 feature peaks for the HfSiOx thin film that correspond to Hf–O–Si bonding. For the HfO2 dipole sample, these peaks shifted to lower binding energies (4f5/2: ca. 17.7 eV; 4f7/2: ca. 16.2 eV), resulting in HfO2 dipole formation after RTA [30]. Moreover, for the Al2O3 dipole sample, these peaks shifted to higher binding energies (4f5/2: ca. 18.7 eV; 4f7/2: ca. 17.2 eV), resulting in Al2O3 dipole formation after RTA [31]. The XPS results provide definite evidence of HfO2 and Al2O3 dipole formation through dipole engineering.
Materials 08 05112 g002 1024

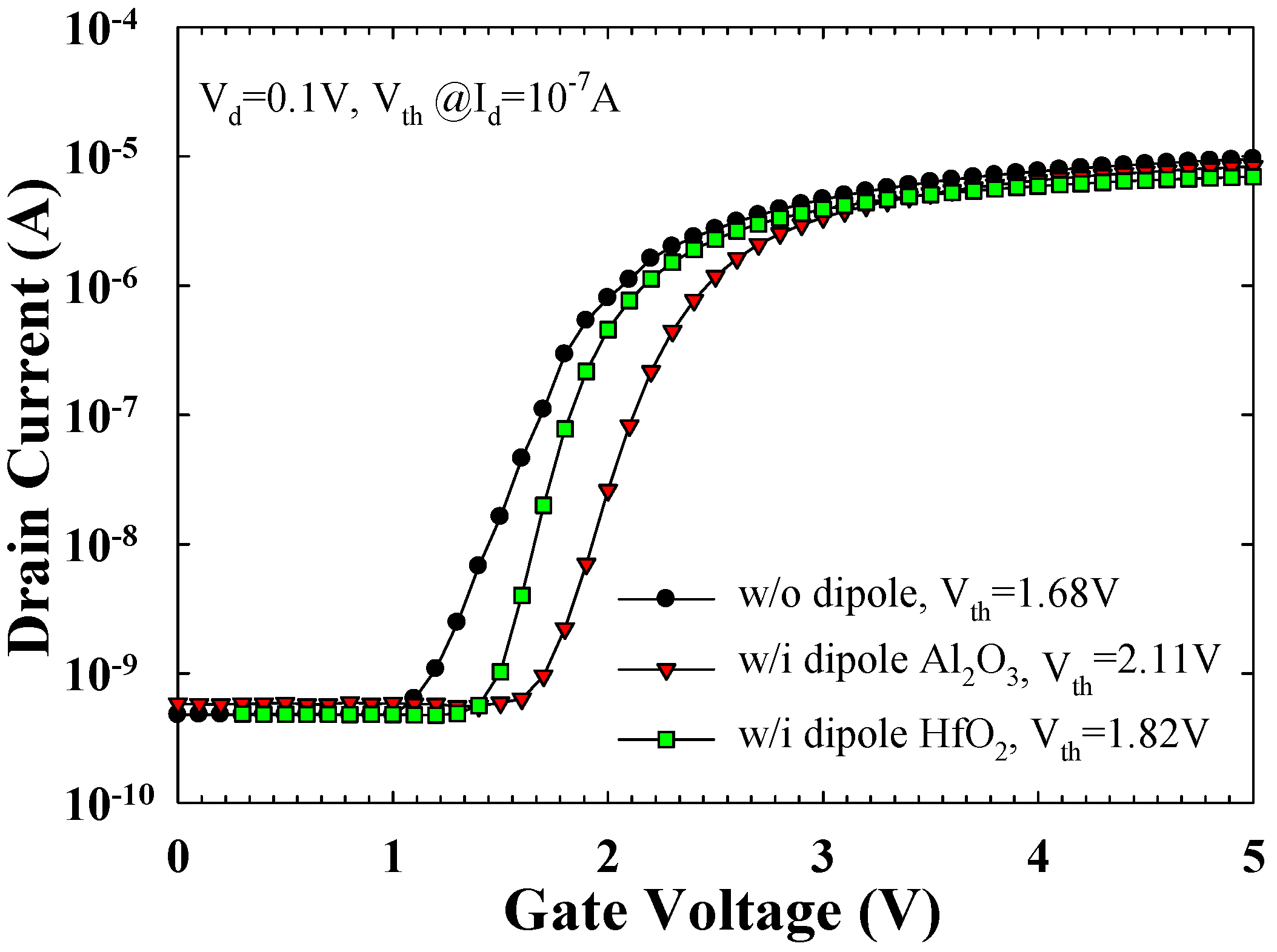

Figure 2. Id–Vg curve of the TAHOS NVM devices.
Figure 2. Id–Vg curve of the TAHOS NVM devices.
Materials 08 05112 g002
Materials 08 05112 g003 1024
Figure 3. Hf 4f XPS spectra of the samples without dipole, with Al2O3 dipole, and with HfO2 dipole.
Figure 3. Hf 4f XPS spectra of the samples without dipole, with Al2O3 dipole, and with HfO2 dipole.
Materials 08 05112 g003
Figure 4a,b presents the P/E characteristics of various pulse widths for different operation conditions. The P/E operations were performed using Fowler–Nordheim tunneling at Vg = 16 V and Vg = −15 V with Vd = Vs = 0 V. The Vth shift is defined as the threshold voltage change of a device between the written and the erased states. ΔVth increased with the P/E pulse time and bias, and the memory window was >1.5 V. In conventional flash memory, >0.8 V memory window is sufficient for judge the “1” or “0” state, the Vth window of the device between program/erase state is enough for flash memory operation. No erase saturation effect occurred even at high erase bias or over a long erase time because of TaN’s high work function (4.7 eV), which prevents the injection of electrons from the gate [10]. Regarding the dipole splits, the Al2O3 and HfO2 dipole samples have higher programming speeds than does the without dipole sample because of the low barrier height for electron tunneling. The Al2O3 or HfO2 dipole samples have slightly lower erasing speeds because of the increasing thickness of gate oxide.
Materials 08 05112 g004 1024

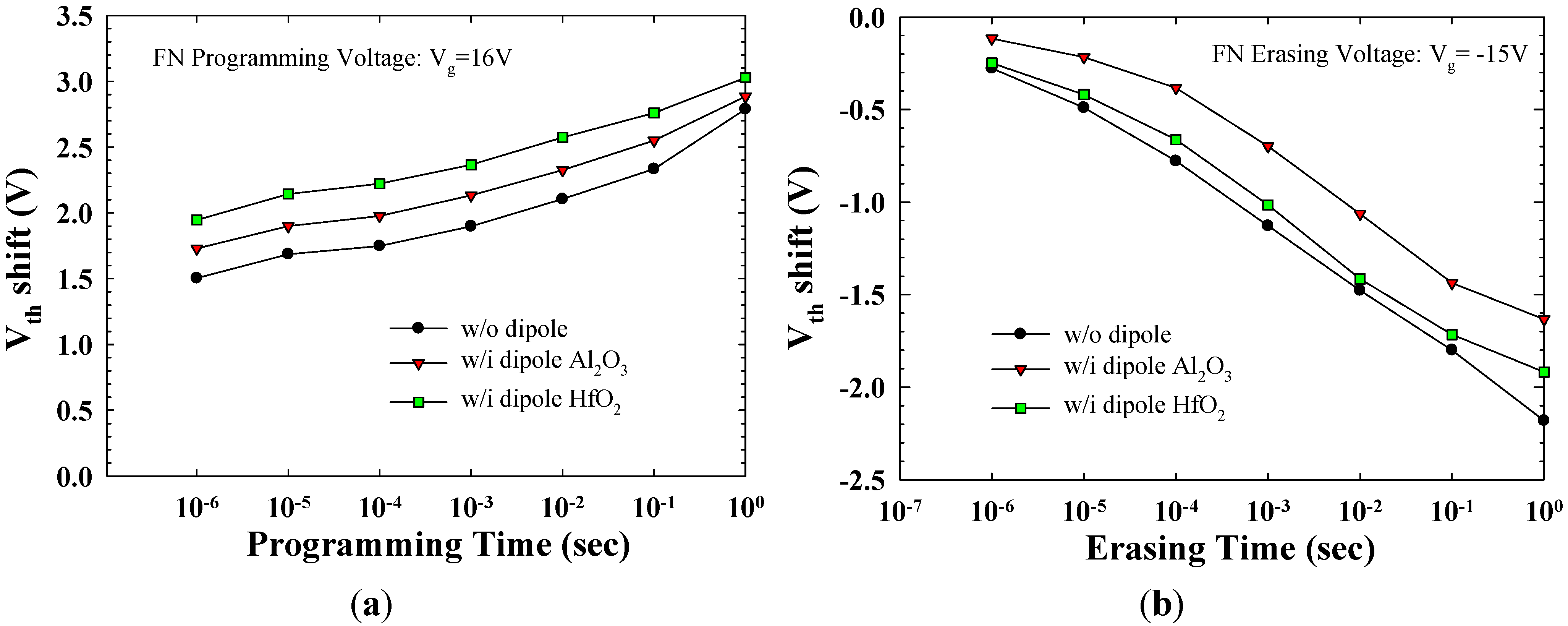

Figure 4. (a) Program characteristics of the TAHOS NVM devices; (b) Erase characteristics of the TAHOS NVM devices.
Figure 4. (a) Program characteristics of the TAHOS NVM devices; (b) Erase characteristics of the TAHOS NVM devices.
Materials 08 05112 g004
Figure 5 plots the endurance characteristic of the proposed TAHOS NVM devices. To achieve approximately the same memory window, we used the following P/E conditions: Vg = 16 V, 1 us/Vg = −15 V, and 0.1 s for the without dipole sample; Vg = 16 V, 1 us/Vg = 16 V, and 0.1 s for the Al2O3 dipole sample; and Vg = 16 V, 1 us/Vg = −16 V, and 0.1 s for the HfO2 dipole sample. The NVM device displayed more favorable endurance, retaining 75% of its initial memory window after 103 P/E cycles. For the endurance characteristics, higher erasing Vt after cycling is the reliability issue in the conventional flash memory for thick tunnel oxide degradation [2,6,8]. This result is because the degradation of the tunnel oxide (SiO2) in TAHOS NVM devices mainly depends on the electrical field. In addition, the endurance curves increase slightly as the number of P/E cycles increase, because of the formation of operation-induced trapped electrons. This is intimately related to the use of thick tunnel oxide and presence of minute residual charges in the SiO2 after cycling.
Materials 08 05112 g005 1024

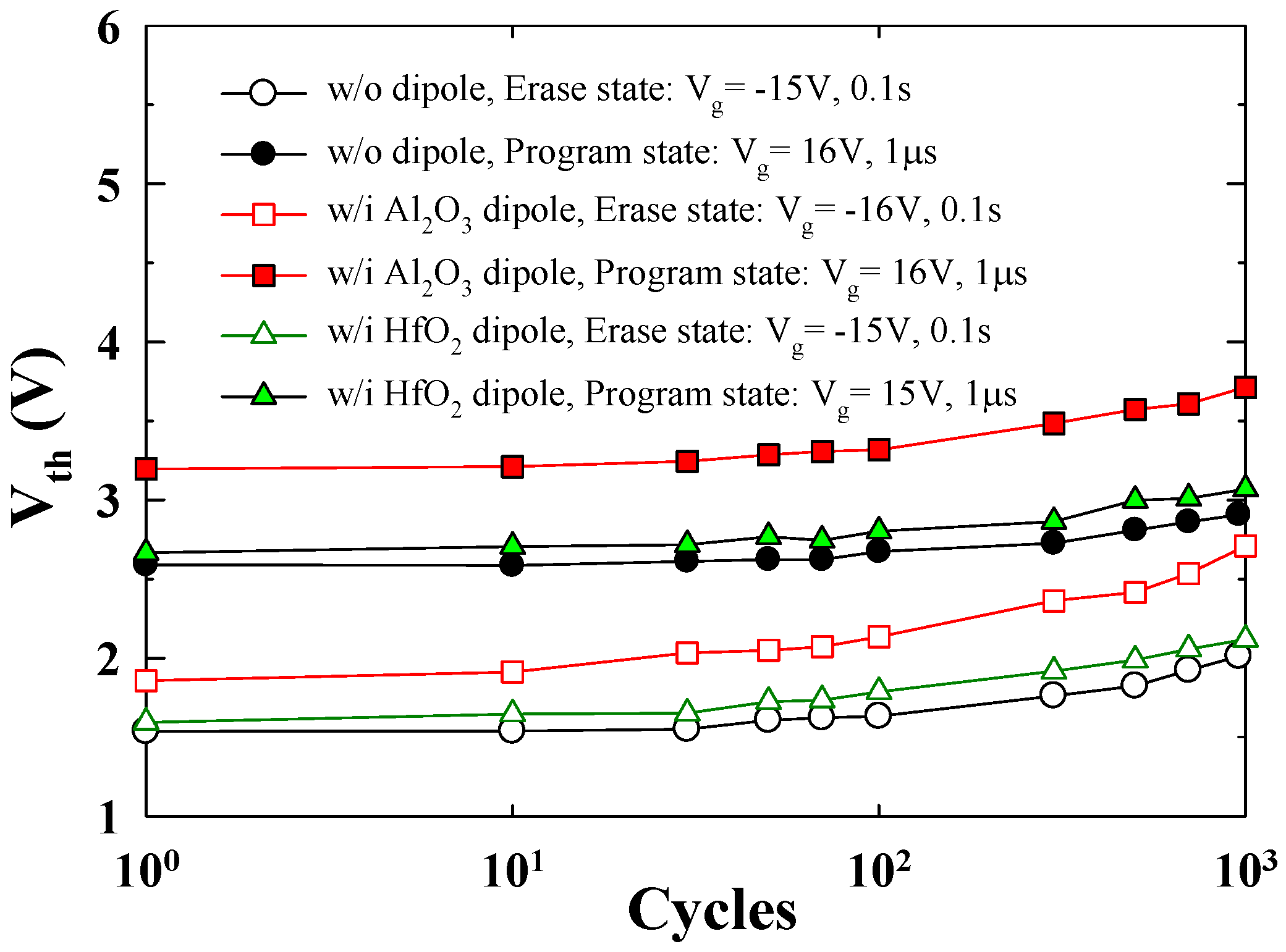

Figure 5. Endurance characteristics of the TAHOS NVM devices.
Figure 5. Endurance characteristics of the TAHOS NVM devices.
Materials 08 05112 g005
Figure 6 illustrates the retention characteristics with 103 P/E cycled stress condition of the proposed TAHOS NVM at a high temperature (T = 85 °C). The retention time was up to 108 s for 38%, 48%, and 72% charge losses for the Al2O3 dipole, HfO2 dipole, and without dipole samples, respectively. The retention of both of the dipole samples was superior to that of the without dipole sample because of the formation of a thick tunnel oxide. Moreover, the Al2O3 dipole sample exhibited superior retention to that of the HfO2 dipole sample because the Al2O3 layer has a greater electron barrier height [31].
Materials 08 05112 g006 1024

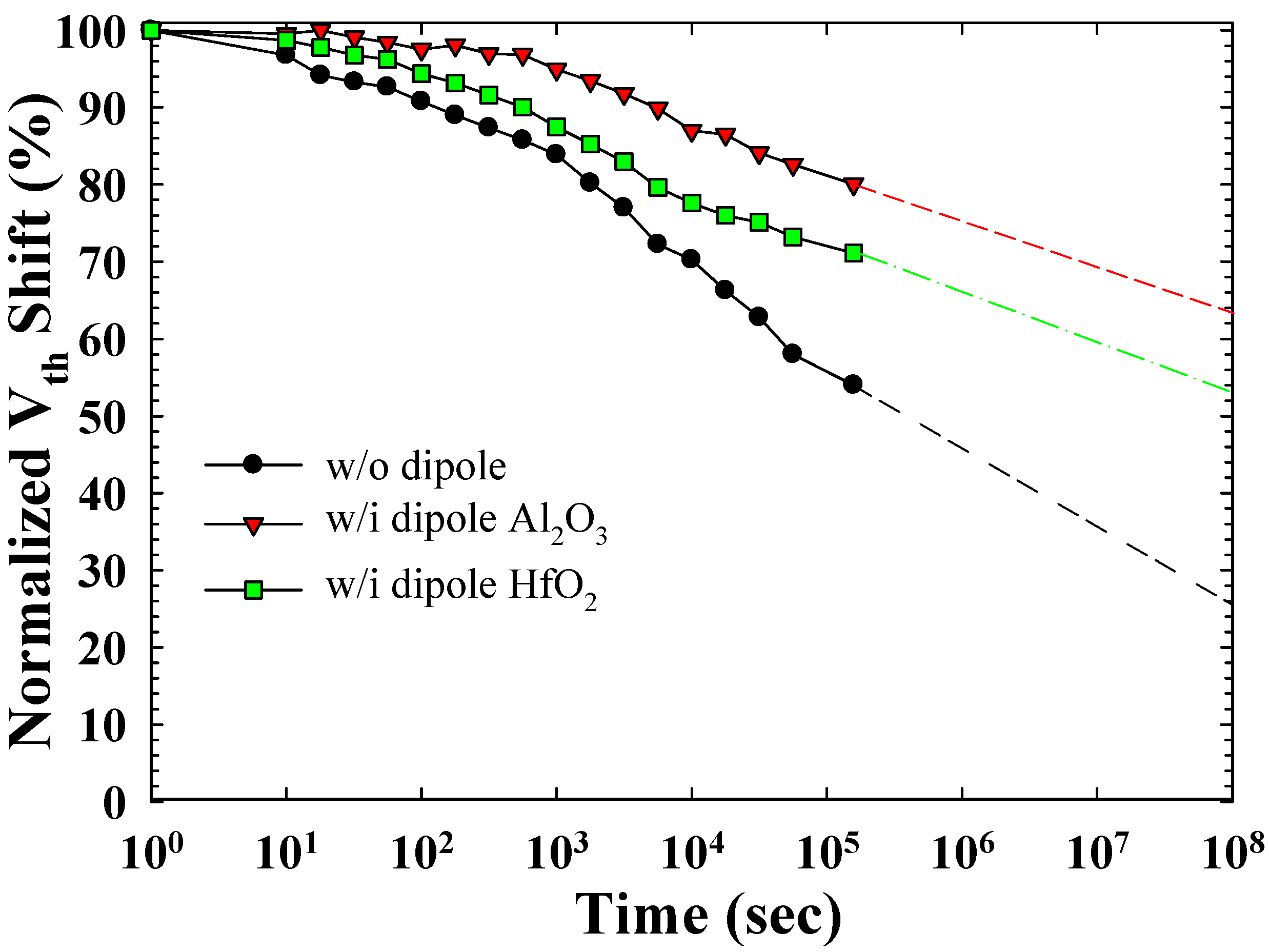

Figure 6. Retention characteristics of the TAHOS NVM devices.
Figure 6. Retention characteristics of the TAHOS NVM devices.
Materials 08 05112 g006

4. Conclusions

TAHOS NVM was fabricated using an Al2O3/HfO2 dipole layer at an HfSiOx/SiO2 interface, demonstrating a Vth shift and providing work function adjustment. A 2-V memory window was achieved by applying 15 V for only 10 μs. Regarding endurance, a 1-V of memory window was maintained after 103 P/E stress cycles. Regarding retention, 62% of the initial memory window was maintained after a 10-year simulation at high temperature (T = 85 °C). Thus, dipole engineering has great potential for work function adjustment in conventional SONOS-type NVM.

Acknowledgments

This study was sponsored by the Ministry of Science and Technology, Taiwan, under Contract No. 103-2221-E-239-034. The technical support of the National Nano Device Laboratories is also greatly appreciated.

Author Contributions

Yu-Hsien Lin organized the research and wrote the manuscript; Yi-Yun Yang performed the experiments and performed data analysis; Yu-Hsien Lin and Yi-Yun Yang discussed the experiments and the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.
