Article

Ru-N-C Hybrid Nanocomposite for Ammonia Dehydrogenation: Influence of N-doping on Catalytic Activity

1
Fuel Cell Research Center, Korea Institute of Science and Technology, Seoul 136791, Korea
2
Clean Energy and Chemical Engineering, Korea University of Science and Technology, Daejeon 34113, Korea
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Materials 2015, 8(6), 3442-3455; https://doi.org/10.3390/ma8063442
Submission received: 19 April 2015 / Revised: 29 May 2015 / Accepted: 3 June 2015 / Published: 10 June 2015
(This article belongs to the Special Issue Hydrogen Storage Materials)

Abstract

:
For application to ammonia dehydrogenation, novel Ru-based heterogeneous catalysts, Ru-N-C and Ru-C, were synthesized via simple pyrolysis of a mixture of RuCl3·6H2O and carbon black with or without dicyandiamide as a nitrogen-containing precursor at 550 °C. Characterization of the prepared Ru-N-C and Ru-C catalysts via scanning transmission electron microscopy, in conjunction with energy dispersive X-ray spectroscopy, indicated the formation of hollow nanocomposites in which the average sizes of the Ru nanoparticles were 1.3 nm and 5.1 nm, respectively. Compared to Ru-C, the Ru-N-C nanocomposites not only proved to be highly active for ammonia dehydrogenation, giving rise to a NH3 conversion of >99% at 550 °C, but also exhibited high durability. X-ray photoelectron spectroscopy revealed that the Ru active sites in Ru-N-C were electronically perturbed by the incorporated nitrogen atoms, which increased the Ru electron density and ultimately enhanced the catalyst activity.

1. Introduction

To address the growing demand for clean and sustainable technologies for portable, automobile, and stationary fuel cell applications, the development of potentially feasible hydrogen storage materials has become a bourgeoning field of research over the last decade. Relevant materials include metal hydrides [1,2], metal-organic frameworks [3,4,5], and chemical hydrides [6,7]. Among these materials, chemical hydrogen storage materials, such as sodium borohydride [8,9,10] and ammonia borane [11,12], are of particular interest because they can store a large quantity of hydrogen in a safe manner [8,9,10,11,12]. In addition to the solid materials, liquid or gaseous fuels, such as formic acid [13] and ammonia [14], are promising candidates for chemical hydrogen storage applicable to fuel cells since they can provide economically viable hydrogen storage and delivery methods for on-site power generation using existing infrastructure [15,16].
Ammonia, a gas that can be condensed under mild conditions (20 °C and 0.8 MPa), has attracted increasing attention as a hydrogen carrier due to its significantly high hydrogen storage density of 17.8 wt%; furthermore, hydrogen can be produced on demand from ammonia in the presence of an appropriate catalyst [14,17]. In addition, H2-release from ammonia is essentially CO-free, which allows direct feeding of the product stream into polymer electrolyte membrane fuel cells (PEMFCs), which is a potential advantage over conventional hydrocarbon reforming that requires an expensive, external hydrogen purification system. Moreover, nitrogen gas, the spent-fuel produced upon ammonia dehydrogenation, can readily be regenerated into ammonia by the Haber-Bosch process [18].
For ammonia to be useful in fuel cell applications, complete conversion (>99%) is required to circumvent poisoning of the PEMFC catalysts by unreacted ammonia, although an efficient adsorbent can decrease the quantity of residual ammonia to <200 ppb [19,20]. To achieve such high conversion, high reaction temperatures (>400 °C) are generally required to overcome the high activation barriers. In this context, numerous Ru-based heterogeneous catalysts, including Ru/carbon nanotubes (CNT) [21,22,23,24,25], Ru/Al2O3 [21,26,27,28,29], and Ru/SiO2 [27] have been developed to promote ammonia dehydrogenation. Notably, Ru catalysts on carbon-based supports, such as CNTs and carbon nanofibers (CNFs), are highly active for the desired reaction. The activity of Ru/CNT [22,30] and Ru/CNF [31] has been further enhanced by increasing the charge density of the carbon supports via nitrogen doping. In addition to the catalysts for NH3 decomposition, we recently developed a novel Fe-N-C electrocatalyst for the oxygen reduction reaction (ORR) that possesses a number of Fe-N-C interfaces [32]. In such nanostructures, the incorporated nitrogen atoms were proposed to donate electron density to the Fe metal centers, ultimately enhancing the ORR activity. The previous results obtained with the use of the N-doping strategy, along with our recent discovery, inspired us to develop a Ru-based catalyst supported on N-doped carbon materials given that the Ru-N-C interface is expected to provide improved catalyst activity and durability via the electronic interactions between Ru and the N-C sites.
In this contribution, we report the synthesis, characterization, and H2-release properties of a Ru-N-C heterogeneous catalyst for ammonia dehydrogenation. The catalyst was prepared by pyrolysis of the precursors containing Ru, N, and C atoms. Numerous analytical techniques indicated the formation of hollow, hybrid nanostructures of Ru-N-C. In addition, the prepared Ru-N-C nanocomposite exhibited enhanced activity and durability compared to Ru-C at the temperatures ranging from 475 to 550 °C. The influence of nitrogen doping on enhancing the catalytic performance of Ru-N-C was further proposed, based on the results obtained by a number of analyses.

2. Results and Discussion

Preparation of the Ru-N-C hybrid nanostructure was achieved by a modified procedure based on a previous report [32]. Ru metal ions were chemically chelated on carbon black spheres by thermal treatment of a mixture of dicyandiamide (HN-(CN)2), RuCl3, and carbon in aqueous medium at 100 °C in air. The resulting Ru3+-chelated composites were further calcined at 550 °C for 4 h in a N2 atmosphere, which facilitated the formation of hybrid and graphitized Ru-N-C structures (Scheme 1). A possible mechanism for the formation of Ru-N-C is that the added Ru3+(aq) ions could initially be interacted with nitrogen atom (HN-(CN)2) at dicyandiamide via an attractive force between Ru3+ and nitrogen lone pairs. The weakly interacted species, Ru3+-NH-(CN)2 may then be transformed into the graphitized Ru-N-C structure in the presence of excess carbon species upon calcination at 550 °C by forming new chemical bonds between Ru-N and C via doping. Ru-C and C-N materials were likewise synthesized in the absence of the nitrogen-containing precursor, dicyandiamide, or RuCl3 as control catalysts. The Ru content of the Ru-N-C and Ru-C materials were determined to be 0.97 wt% and 0.86 wt%, respectively, by using inductively coupled plasma optical emission spectroscopy (ICP-OES). In addition, the N content of Ru-N-C was found to be 14.2 wt%, as measured by SEM-EDX. The Ru, C and N contents of Ru-N-C and Ru-C are presented in Table S1.

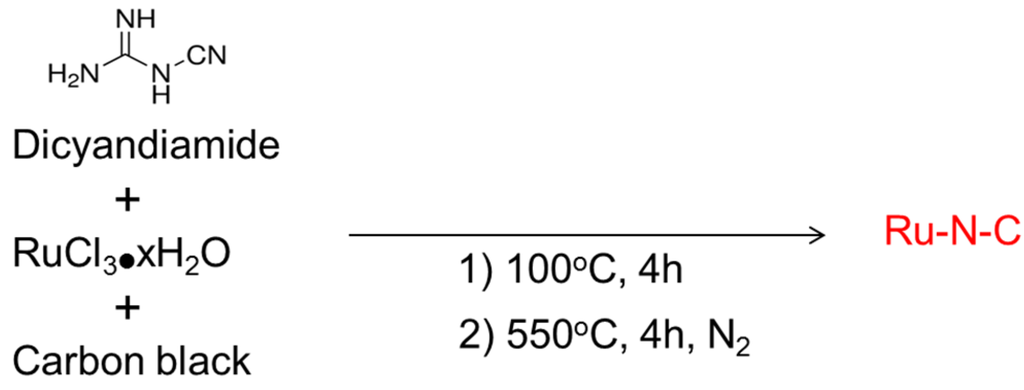

Scheme 1. The synthetic procedure of Ru-N-C.
Scheme 1. The synthetic procedure of Ru-N-C.
Materials 08 03442 g011
The transmission electron microscope (TEM) image of Ru-N-C demonstrates the formation of hollow graphitized structure even in the absence of a sacrificial template (Figure 1a,b); this approach to achieving such structures may potentially contribute to the reduction of chemical wastes [32] given that the formation of hollow carbon structures usually requires multistep processes with different templates [33,34]. The Ru-C catalyst also had a hollow structure, but aggregated Ru particles were observed with sizes of ~20 nm (Figure 1c,d). These results imply that the added nitrogen-containing precursor, dicyandiamide, facilitated uniform dispersion of the Ru species during pyrolysis. Given that Fe species promote the formation of hollow carbon nanostructures [32], the Ru species employed in the current synthetic procedure likewise played important roles in catalyzing the generation of hollow, N-doped graphitized nanostructures upon pyrolysis of the precursors containing carbon and/or nitrogen [35,36].
Elemental mapping of Ru-N-C using high-angle annular dark-field scanning transmission electron microscopy (HAADF-STEM) and energy-dispersive X-ray (EDX) indicated that Ru, C, and N were well dispersed over the catalyst (Figure 2, Figure S1 and Figure S2). X-ray diffraction (XRD) analysis of Ru-N-C and Ru-C showed broadened peaks centered at 25.2° (Figure 3), which is attributed to the graphitic stacking of C3N4 [37]. Ruthenium carbide, previously synthesized under high pressure (50,000 bar) and temperature (2000 K), appeared at 18.67°, 20.22°, and 21.23° [38]. Such peaks were not found in the XRD spectra, indicating that no ruthenium carbide species were formed under the reaction conditions employed in this study. A broad peak centered at 42.2° corresponding to metallic Ru was detected in the EDX profile of the Ru-N-C hybrid nanocomposite, indicating the formation of Ru nanoparticles with a size of 1.3 nm, calculated using the Scherrer equation. In contrast, additional sharp peaks centered at 38.5°, 44.2°, 58.5°, 69.7°, 78.7°, and 86.3° were observed in the spectrum of Ru-C, which are clearly attributed to the metallic Ru species (PDXL ver. 2.3.1). The average size of the Ru particles in Ru-C was likewise calculated to be 5.1 nm using the Scherrer equation, which is larger than that of the Ru particles in Ru-N-C. These results are consistent with the TEM observations (Figure 1b vs. 1d).
Figure 1. TEM images of the prepared catalysts: (a,b) Ru-N-C and (c,d) Ru-C.
Figure 1. TEM images of the prepared catalysts: (a,b) Ru-N-C and (c,d) Ru-C.
Materials 08 03442 g001
Figure 2. HAADF STEM images of: (a) Ru-N-C and (b) Ru-N-C with elemental mapping for (c) Ru; (d) C; and (e) N.
Figure 2. HAADF STEM images of: (a) Ru-N-C and (b) Ru-N-C with elemental mapping for (c) Ru; (d) C; and (e) N.
Materials 08 03442 g002
The textural properties of both catalysts were further determined from the N2 adsorption–desorption isotherms. The BET surface area of Ru-N-C (898 m2·g−1) was lower than that of Ru-C (1110 m2·g−1) and there was also a slight reduction of the pore size and pore volume of Ru-N-C (Table 1). The stabilities of the as-prepared catalysts were also evaluated by thermogravimetric analysis (TGA). The TGA profile of Ru-N-C indicated reasonable stability up to 550 °C, after which there was a sharp loss of mass (Figure 4, red). The slight loss of mass at <100 °C is attributed to the desorption of adsorbed water species from the catalyst surface, while the sharp decrease beyond 550 °C may be associated with decomposition of the C-N support structure [39,40,41]. In contrast, decomposition of Ru-C was initiated at 380 °C, followed by a continual mass loss with increasing temperature (Figure 4, black) that may be attributable to collapse of the hollow carbon structure. The results suggest that the doped N atoms played an additional role in increasing the thermal stability of the catalyst, which can likely affect catalytic activity (vide infra).

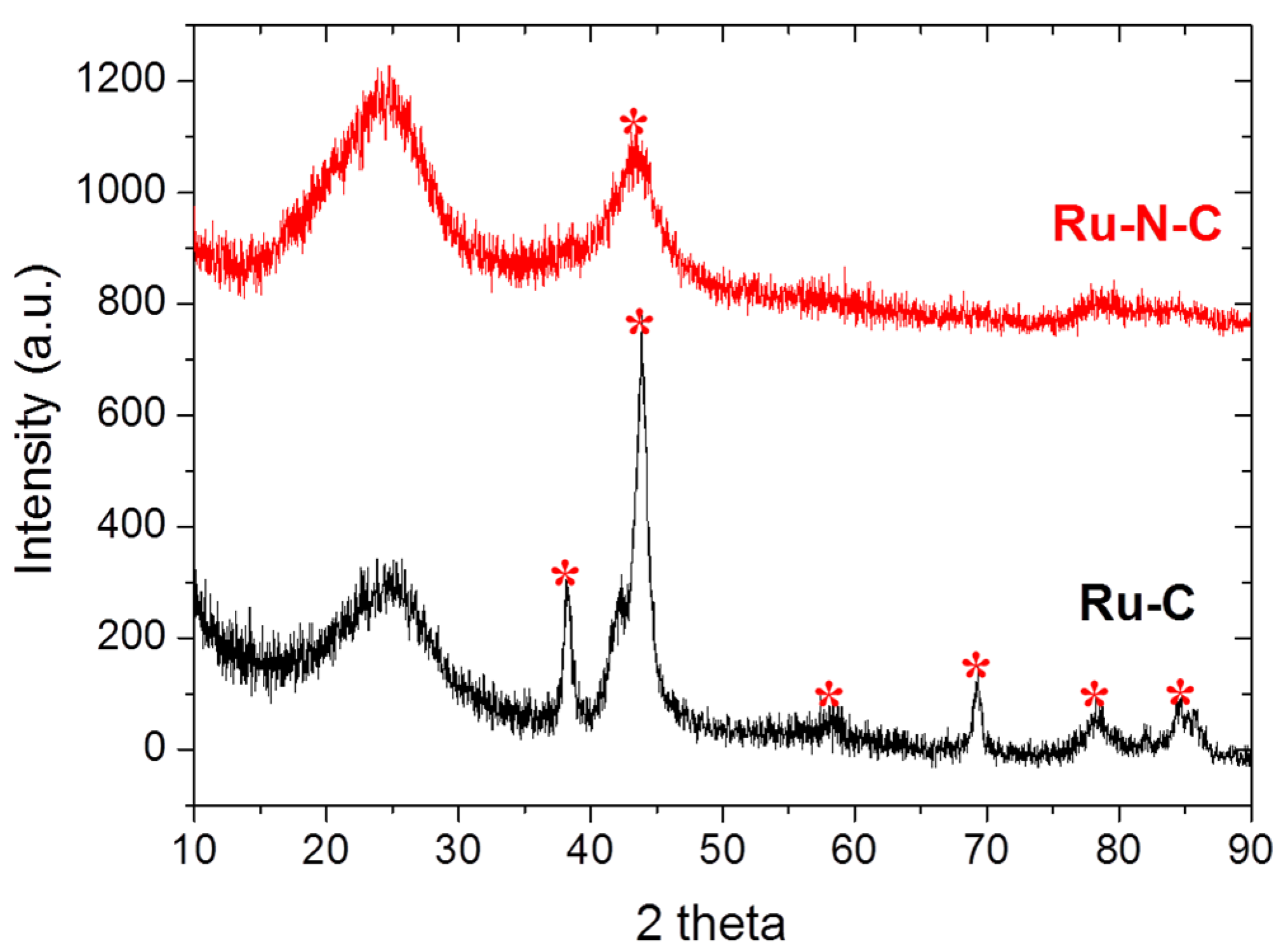

Figure 3. The XRD patterns of Ru-N-C (red) and Ru-C (black). The asterisk indicates Ru metallic phase.
Figure 3. The XRD patterns of Ru-N-C (red) and Ru-C (black). The asterisk indicates Ru metallic phase.
Materials 08 03442 g003
Table 1. BET surface area, pore size, and pore volume of the Ru-based catalysts.
Table 1. BET surface area, pore size, and pore volume of the Ru-based catalysts.
CatalystBET Surface Area a (m2·g−1)Pore Size a (nm)Pore Volume a (cm3·g−1)
Ru-N-C8984.71.05
Ru-C11105.41.57
Note: a Determined by physical N2 adsorption-desorption isotherm.

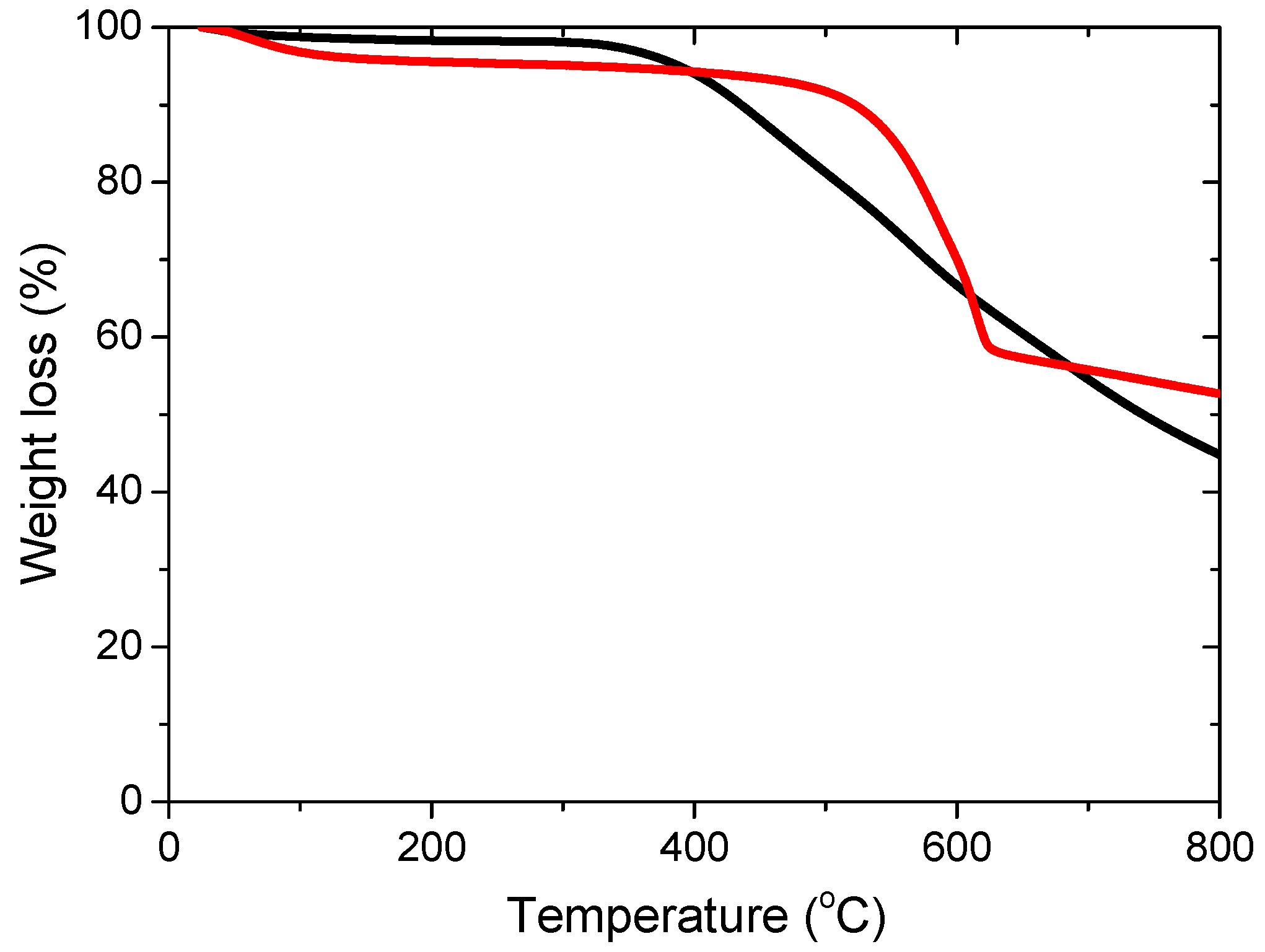

Figure 4. The TGA pattern of the Ru-N-C (red) and Ru-C (black) catalysts.
Figure 4. The TGA pattern of the Ru-N-C (red) and Ru-C (black) catalysts.
Materials 08 03442 g004
XPS was employed to determine the electronic state of the elements present in the Ru-C and Ru-N-C hybrid nanocomposites. The deconvoluted C 1s XPS spectrum of Ru-C displayed a narrow sp2 graphitic peak centered at 284.6 eV (Figure 5a). Additional peaks for C-O species were found in the range of 284–290 eV, which presumably originated from adsorbed oxygen species from the precursor employed [42,43,44]. In the case of the Ru 3p state, a dominant peak centered at 463.3 eV was observed in the deconvoluted spectrum of Ru-C (Figure 5b), which is likely attributed to the RuO2 phase [31]. An additional peak was observed at 466.1 eV for the Ru-C catalyst, presumably corresponding to RuO2·xH2O [31]. The Ru 3d spectrum of Ru-C exhibits a single peak centered at 281.2 eV (Figure S3a).

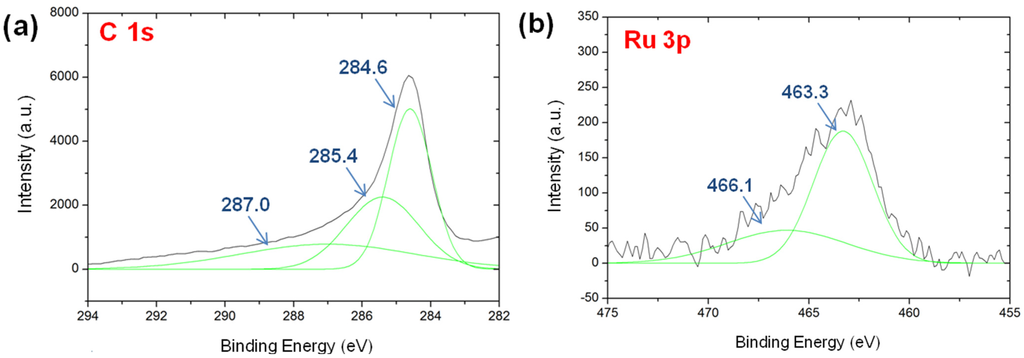

Figure 5. The XPS spectra of Ru-C: (a) C 1s and (b) Ru 3p.
Figure 5. The XPS spectra of Ru-C: (a) C 1s and (b) Ru 3p.
Materials 08 03442 g005
Similar to the case of Ru-C, a dominant, narrow sp2 graphitic carbon peak centered at 284.6 was found in the XPS spectrum of Ru-N-C (Figure 6a). Other peaks were also detected at 285–290 eV. In contrast to the peaks observed for Ru-C, these peaks may be derived from the formation of carbon species possessing C(sp2)-N and C(sp3)-N networks [45], indicating that nitrogen atoms were introduced into the graphitic structure upon pyrolysis. Moreover, Ru-N-C exhibited dominant N 1s peaks at binding energies ranging from 396 to 408 eV (Figure 6b), suggesting the formation of pyridinic-, nitrile-, pyrrolic-, and/or graphitic-like nitrogen species [32,45,46]. The Ru 3p XPS spectrum of Ru-N-C showed a major peak centered at 462.7 eV (Figure 6c). Notably, the peak at 462.7 eV for Ru-N-C appeared at lower binding energy compared to that of Ru-C, suggesting that the incorporated nitrogen atoms donated electron density into the Ru active sites. Ru-N-C also presented a broad peak centered at 466.6 eV, again attributable to RuO2·xH2O. As in the case of the Ru 3p spectrum, the Ru 3d peak of Ru-N-C occurred at a slightly lower binding energy (281.0 eV) than that of Ru-C (Figure S3b), again supporting the proposed electron transfer from N to Ru in the Ru-N-C nanocomposite.
The increased Ru electron density in Ru-N-C induced by nitrogen doping could potentially improve the activity and durability of the catalyst for NH3 dehydrogenation, although its surface area is lower than that of Ru-C. To prove this hypothesis, the H2-release properties of the as-developed catalysts were evaluated by varying the temperature and/or GHSV. Nearly exclusive ammonia dehydrogenation (≥98%) is thermodynamically achievable even at temperatures as low as 425 °C [47]. In addition, the equilibrium ammonia conversion at 500 °C and 1 bar is close to 99.7% [15]. Due to the high kinetic barrier, however, only a limited number of catalysts show high activity at ≤500 °C. We initially assessed the catalytic activity of the as-prepared Ru catalysts for ammonia dehydrogenation as a function of temperature. As depicted in Figure 7, the activity of Ru-N-C proved to be higher than that of Ru-C at temperatures ranging from 475 to 550 °C. For example, at 550 °C, 95% NH3 conversion was achieved with Ru-N-C versus 68% conversion obtained with Ru-C. The conversion obtained at 500 °C with Ru-N-C (56%) was likewise found to be higher than that with Ru-C (20%). In the presence of C-N, negligible dehydrogenation activity was found at temperatures ≤600 °C (Figure 7, green triangles). For all the catalysts, the ammonia conversion increased with increasing temperature (Table S2), which is congruent with the endothermic nature of the dehydrogenation process.

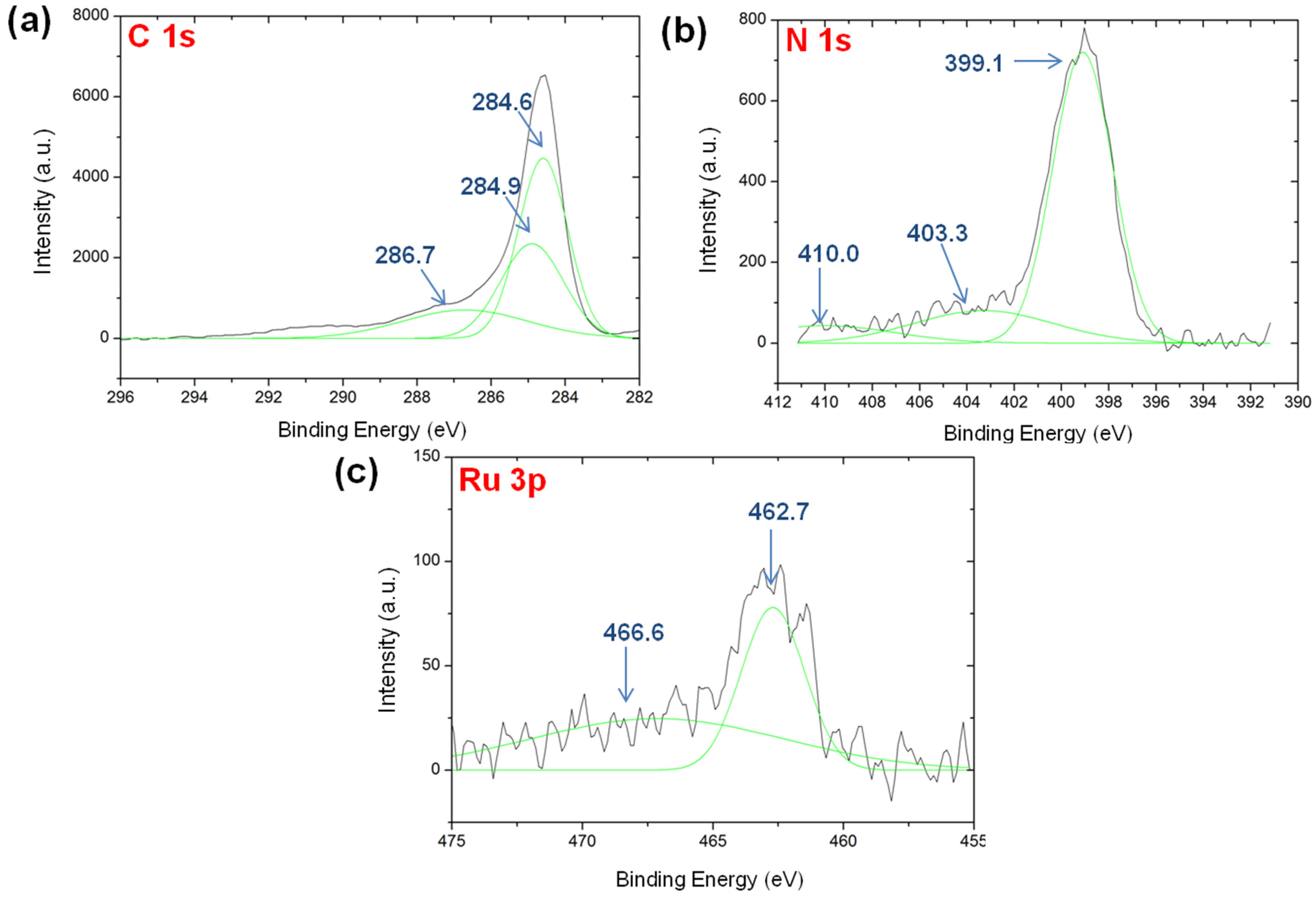

Figure 6. The XPS spectra of Ru-N-C: (a) C 1s; (b) N 1s; and (c) Ru 3p.
Figure 6. The XPS spectra of Ru-N-C: (a) C 1s; (b) N 1s; and (c) Ru 3p.
Materials 08 03442 g006

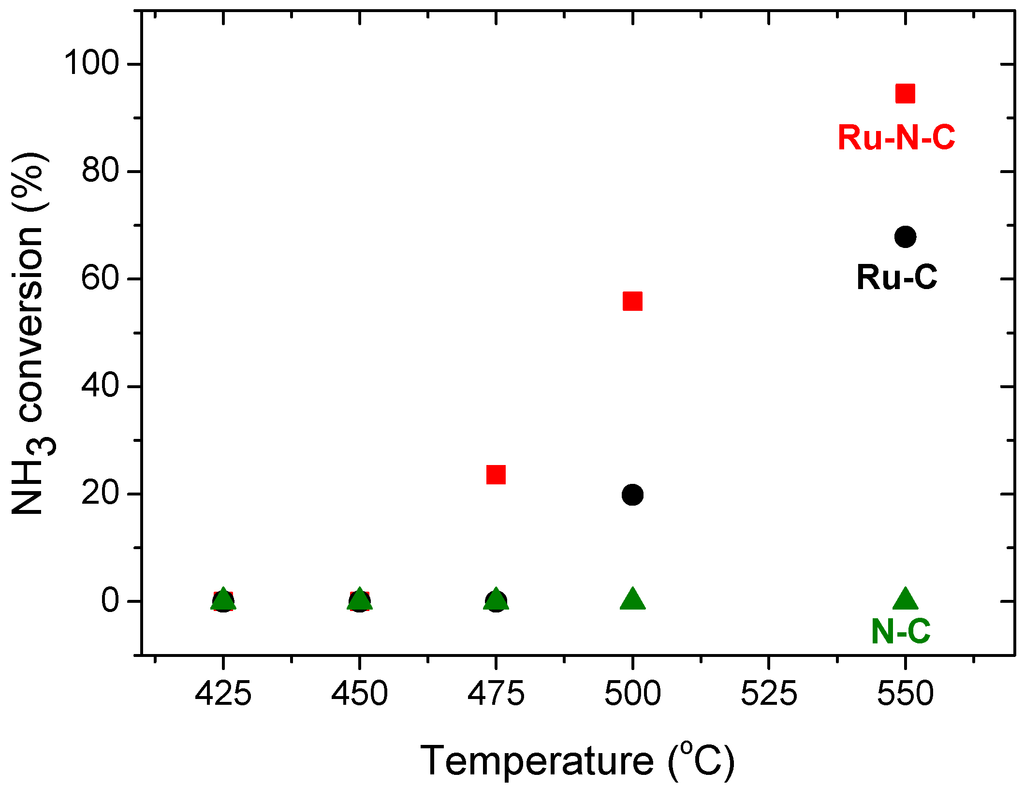

Figure 7. NH3 conversion with Ru-N-C ( ); Ru-C (●) and C-N ( ) at a GHSV of 7448 mL·g−1·h−1.
Figure 7. NH3 conversion with Ru-N-C ( ); Ru-C (●) and C-N ( ) at a GHSV of 7448 mL·g−1·h−1.
Materials 08 03442 g007
Since the Ru-N-C hybrid nanocomposite showed enhanced activity compared to Ru-C, the influence of the GHSV on NH3 dehydrogenation in the presence of Ru-N-C was evaluated at different temperatures. As illustrated in Figure 8, the NH3 conversion obtained with Ru-N-C declined as the GHSV increased at all temperatures employed (Table 2). Compared to the NH3 conversion achieved with Ru-N-C at 550 °C using a GHSV of 2234 mL·g−1·h−1 (>99%), the NH3 conversion decreased slightly to 94.5% when the GHSV was increased to 7448 mL·g−1·h−1. With a further increase of the GHSV to 11,172 mL·g−1·h−1 at 550 °C, the Ru-N-C catalyst still exhibited a high conversion of 81.5%. However, the decrease in NH3 conversion observed for Ru-N-C with increasing GHSV was found to be pronounced at temperatures of 450 °C and 500 °C. The conversion (45%) achieved with a GHSV of 2234 mL·g−1·h−1 decreased to 0% at 450 °C upon utilization of a GHSV of 7448 mL·g−1·h−1. Likewise, the conversion (>97%) acquired using a GHSV of 2234 mL·g−1·h-1 decreased to 31% at 500 °C when a GHSV of 11,172 mL·g−1·h−1 was employed. Based on the results described above, it is reasonable that the improved activity for H2-release from NH3 over Ru-N-C may originate from the incorporation of nitrogen species that contributed to: (i) the formation of the small-sized Ru nanoparticles by initially anchoring the Ru3+ precursor to prevent them from sintering (Figure 1); (ii) enhancing the thermal stability of the catalyst (Figure 4); and (iii) increasing the Ru electron density induced by the interaction between Ru and N (Figure 6).

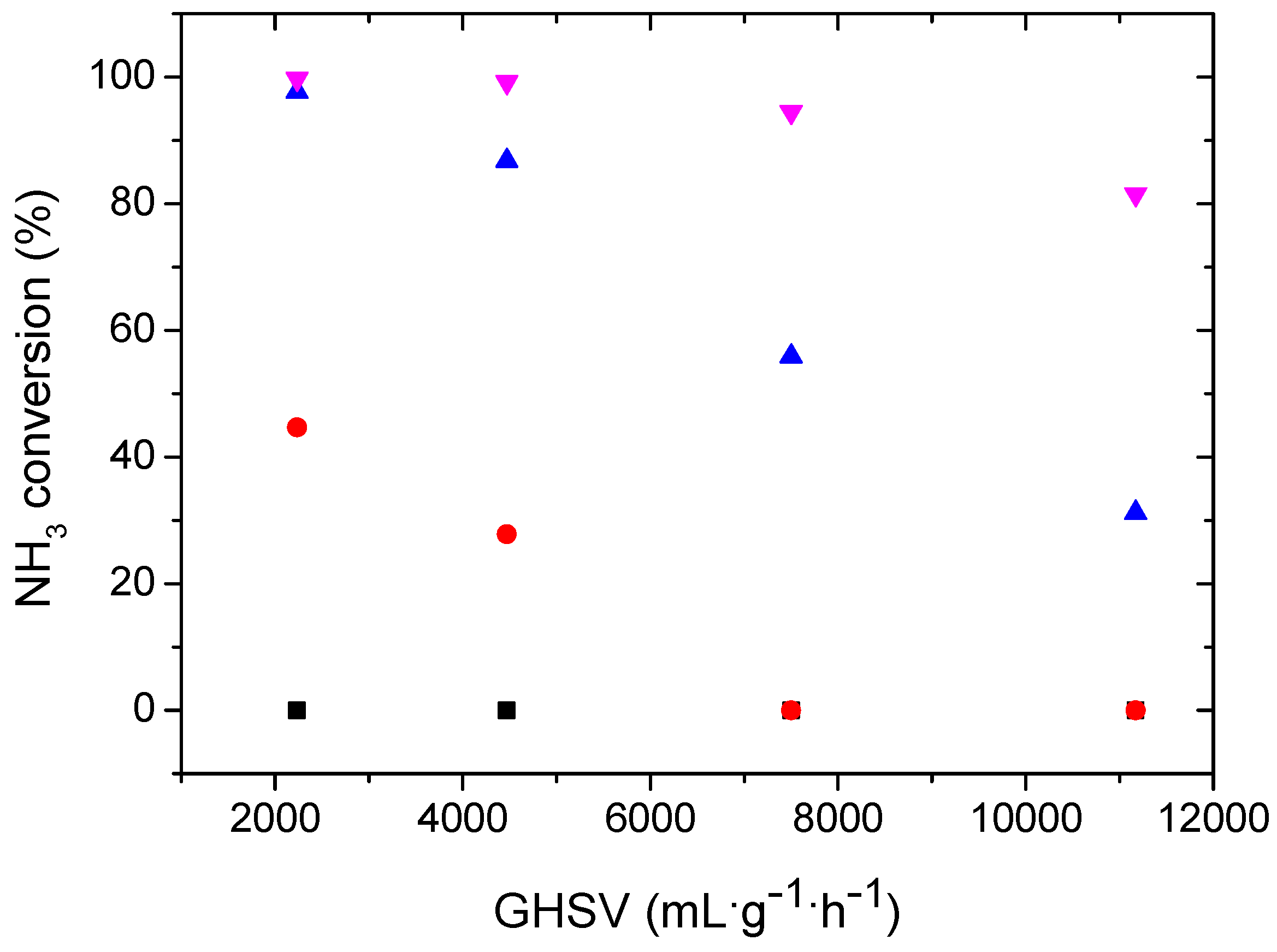

Figure 8. The influence of GHSV on NH3 dehydrogenation over Ru-N-C at different temperatures: (■) 400 °C; ( ) 450 °C; ( ) 500 °C; and ( ) 550 °C.
Figure 8. The influence of GHSV on NH3 dehydrogenation over Ru-N-C at different temperatures: (■) 400 °C; ( ) 450 °C; ( ) 500 °C; and ( ) 550 °C.
Materials 08 03442 g008
Table 2. The NH3 conversions of Ru-N-C as functions of GHSV and temperature.
Table 2. The NH3 conversions of Ru-N-C as functions of GHSV and temperature.
GHSV400 °C450 °C500 °C550 °C
2234044.797.799.7
4469027.886.899.2
74480055.994.5
11,1720031.281.5
Long-term stability is a desirable property for a number of catalytic applications. In this context, long-term experiments with Ru-N-C were carried out under dehydrogenation conditions employing a GHSV of 7448 mL·g−1·h−1 and temperatures of 500 °C and 550 °C. Initially at 550 °C, the initial NH3 conversion of 95% obtained with Ru-N-C decreased slightly to 88% after 80 h (Figure S4). Upon dehydrogenation at 500 °C, the initial NH3 conversion of ca. 60% was maintained for 80 h without apparent deactivation (Figure 9, red). Surprisingly however, the initial NH3 conversion of 19% obtained with Ru-C increased gradually to 36% after 80 h under the identical conditions (Figure 9, black). Considering that NH3 has previously been employed as the N-doping agent for carbon nanotubes [22,30], the unexpected, increased activity of Ru-C strongly suggests the transformation of Ru-C into a N-incorporated Ru-C structure analogous to that of Ru-N-C via N-doping upon NH3 dehydrogenation.

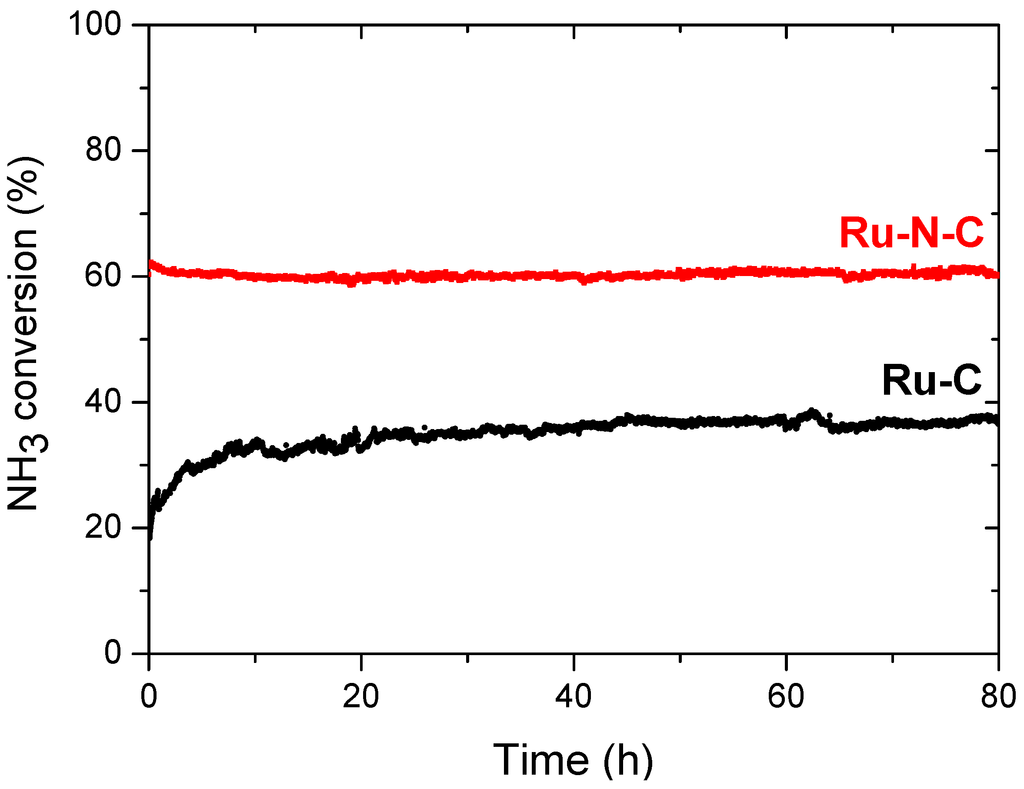

Figure 9. Long term stability for NH3 dehydrogenation at 500 °C, with a GHSV of 7448 mL·g−1·h−1, obtained by: Ru-N-C ( ) and Ru-C (●).
Figure 9. Long term stability for NH3 dehydrogenation at 500 °C, with a GHSV of 7448 mL·g−1·h−1, obtained by: Ru-N-C ( ) and Ru-C (●).
Materials 08 03442 g009
Consistently, elemental mapping with the spent Ru-C catalyst, obtained at randomly selected four different areas, revealed the presence of N element over Ru-C with an average quantity of 0.82 wt% (Figure 10 and Figure S5), again confirming the incorporation of N atoms into Ru-C during NH3 dehydrogenation. The results suggest that the as-developed Ru-N-C catalyst could be employed for a long-term fuel cell application.
Figure 10. (a) HAADF STEM images of Ru-C following the long-tem stability test for 80 h and elemental mapping with (b) Ru; (c) C; and (d) N.
Figure 10. (a) HAADF STEM images of Ru-C following the long-tem stability test for 80 h and elemental mapping with (b) Ru; (c) C; and (d) N.
Materials 08 03442 g010

3. Experimental Section

3.1. Synthesis of Ru-N-C, Ru-C, and C-N Materials

RuCl3·xH2O (0.25 g, Sigma-Aldrich, St. Louis, MO, USA), carbon black (1.0 g, Ketjen, Akzo Nobel, Chicago, IL, USA), and dicyandiamide (1.0 g, Sigma-Aldrich, St. Louis, MO, USA) were combined with distilled water (50 mL), followed by heating at 100 °C for 4 h with vigorous stirring to vaporize water. The resulting black solids obtained subsequent to complete drying were ground and pyrolyzed at 550 °C for 4 h under a N2 flow, yielding the final product, Ru-N-C as a black powder. The Ru-C and C-N materials were also synthesized using an otherwise identical procedure except for the absence of either dicyandiamide or RuCl3·xH2O. The schematic synthetic procedure is depicted in Scheme 1.

3.2. Catalytic NH3 Dehydrogenation

The performance of the catalyst was evaluated under a flow of 10% NH3/N2 at a rate of 37.2 mL·min−1 at atmospheric pressure using a fixed-bed quartz reactor. In a typical experiment, the catalyst (0.1 g, 0.05 g, 0.03 g, 0.01 g; 100–150 μm) was positioned in the reactor, followed by reduction using 50% H2/N2 at a flow rate of 30 mL·min−1 using a temperature of 550 °C and a duration of 1 h. The in-situ reduced catalyst was then flushed with N2 for 1 h, and the NH3 dehydrogenation reactions were then executed at temperatures ranging from 550 to 450 °C while decreasing the temperature in 25 °C increments. The compositions of the effluent gases were determined by using an online gas chromatograph (Agilent 7890A, Santa Clara, CA, USA) equipped with Porapak Q and Molecular sieve capillary columns as well as a thermal conductivity detector (TCD, Agilent, Santa Clara, CA, USA). The content of unreacted NH3 was analyzed using a tunable diode laser ammonia gas analyzer (Model Airwell+7, KINSCO Technology, Seoul, Korea). The dehydrogenation activity of the catalysts was monitored as a function of the GHSV and the temperature.

3.3. Catalyst Characterization

The crystalline patterns of the as-prepared materials were initially determined by XRD studies using a Rigaku X-ray diffractometer with CuKα radiation at 40 kV and 20 mA. Continuous scanning at a rate of 0.5°·min−1 was performed in the 2θ range of 20°–80°. The specific surface area, pore size, and pore volume of the materials were determined using a nitrogen adsorption instrument (Micrometrics ASAP 2000, Dr. Norcross, GA, USA) at 77 K. The thermal stability of the catalysts was evaluated by TGA at a heating rate of 10 °C·min−1 in the temperature range of 25–1000 °C.
The morphology of the synthesized catalysts was characterized using a HRTEM (FEI Tecnai F20, FEI Corporate, Hillsboro, OR, USA) and a HAADF-STEM (FEI Titan, FEI Corporate, Hillsboro, OR, USA) at 200 kV. Electron energy loss spectra (EELS) of C (K edge, 284 eV), N (K edge, 401 eV), and Fe (L3 edge 708 eV) were collected by using a Quantum 996 instrument (Quantum instrument, Bartlett, IL, USA) to determine the atomic distribution of the elements.
The electronic structure and local bonding environment of Ru-N-C were further identified by using an XPS instrument equipped with a PHI 50000 Versa Probe (Ulvac-PHI, Kanagawa, Japan) using a monochromated Al Kα X-ray (1486.6 eV) beam calibrated by the C 1s peak (284.6 eV) with a background pressure of 6.7 × 10−8 Pa. The Ru contents of the catalytic materials were determined by means of inductively coupled plasma-optical emission spectrometry (ICP-OES) (Varian 720ES Agilent, Santa Clara, CA, USA) and scanning electron microscopy-energy dispersive X-ray (SEM-EDX, FEI Corporate, Hillsboro, OR, USA) analysis. CO chemisorption experiments were conducted to evaluate the Ru dispersion.

4. Conclusions

The simple synthetic strategy presented herein provides an economical route for large-scale production of the highly active Ru-N-C catalyst. The Ru-N-C catalyst displayed excellent performance for NH3 dehydrogenation with high stability. The incorporated nitrogen atoms were proposed to play pivotal roles in: (i) generating uniformly distributed, small-sized Ru nanoparticles; (ii) improving the thermal stability of the catalyst; and (iii) donating electron density to Ru via electronic interactions between Ru and N. For the undoped Ru-C catalyst, the reactant NH3 further revealed to act as a N-doping agent to convert Ru-C into N-doped Ru-C structure during NH3 dehydrogenation, which ultimately enhancing the desired activity. The as-developed Ru-N-C hybrid nanocomposite is thus applicable for on-site hydrogen production from ammonia with relevant catalyst optimization, and further provides insight for the development of various M-N-C catalysts (M = transition metals) for a number of chemical transformations.

Supplementary Materials

Supplementary materials can be accessed at: https://www.mdpi.com/1996-1944/8/6/3442/s1.

Acknowledgments

This work was supported by the New and Renewable Energy Core Technology Program of the Korea Institute of Energy Technology Evaluation and Planning (KETEP), granted financial resource from the Ministry of Trade, Industry and Energy, Republic of Korea (No. 20143030031360). Part of the research is also supported by the Global Research Laboratory Program through the National Research Foundation of Korea funded by the Ministry of Science, ICT and Future Planning of Republic of Korea as well as basic research program from Korea Institute of Science and Technology.

Author Contributions

Nguyen Thi Bich Hien and Hyo Young Kim contributed equally to this original research paper. They prepared and characterized the catalysts, and contributed to the major part of manuscript writing. Mina Jeon and Jin Hee Lee evaluated the activity of the catalysts during ammonia dehydrogenation over the catalysts. Muhammad Ridwan and Rizcky Tamarany contributed to interpretation of the obtained data and critique of the manuscript. Chang Won Yoon contributed to the conception and design of the research concept as well as to overseeing manuscript writing.

Conflicts of Interest

The authors declare no conflict of interest.
