Properties of Cadmium-(bis)dodecylthiolate and Polymeric Composites Based on It

by
Nadezhda Agareva
1,
Anton A. Smirnov
1,
Andrey Afanasiev
1,
Semen Sologubov
2,
Alexey Markin
2,
Evgenia Salomatina
1,2,
Larisa Smirnova
1,2 and
Nikita Bityurin
1,*
1
Institute of Applied Physics of Russian Academy of Sciences, 46 Ul'yanov Street, 603950 Nizhny Novgorod, Russia
2
Department of Chemistry, N.I. Lobachevsky State University of Nizhny Novgorod, 23 Gagarin Ave, Building 5, 603950 Nizhny Novgorod, Russia
*
Author to whom correspondence should be addressed.
Materials 2015, 8(12), 8691-8700; https://doi.org/10.3390/ma8125487
Submission received: 20 October 2015 / Revised: 23 November 2015 / Accepted: 4 December 2015 / Published: 11 December 2015
(This article belongs to the Section Advanced Composites)
Browse Figures
Versions Notes

Abstract

:
We study the thermo-physical and photoluminescence (PL) properties of cadmium-(bis)dodecylthiolate (Cd(C12H25S)2). Significant attention is drawn to characterization of Cd(C12H25S)2 by different methods. The laser-induced PLs of Cd(C12H25S)2 and Cd(C12H25S)2/(polymethyl methacrylate) (PMMA) composites are studied. Samples of Cd(C12H25S)2/PMMA are synthesized by the polymerization method. Ultraviolet (UV)-pulsed laser irradiation of the samples under relatively small fluences leads to the formation of induced PL with the maximum near the wavelength of 600 nm. This process can be attributed to the transformation of Cd(C12H25S)2 within the precursor grains. Another PL peak at 450–500 nm, which appears under the higher fluences, relies on the formation of CdS complexes with a significant impact of the polymer matrix.

Graphical Abstract

1. Introduction

Nanocomposite materials containing metal or semiconductor particles are of primary interest for researchers because of the wide range of their applications [1,2]. In situ methods of semiconductor nanoparticle growth can be performed with the help of precursors admixed into polymer matrices. Ultraviolet (UV) lamp or laser irradiation of the materials consisting of a polymer matrix with precursors of different kinds, possibly followed by annealing, can result in the creation of nanoparticles within the irradiated domains. Such photoinduced nanocomposites are promising for photonics applications due to the strong alteration of their optical properties compared to the initial non-irradiated materials [1,3,4,5].
The precursors are molecules containing metal atoms [1,3,4,5] (in the case of plasmon media) or atoms constituting a semiconducting material [2,6] (in the case of excitonic media). The precursors, when exposed to radiation, decompose with the subsequent formation of either plasmon or semiconducting nanoparticles, respectively, in the solid or liquid media, for example in the polymer matrix. The photoinduced plasmon nanocomposites with polymer matrices have been studied for a decade [3,4,5]. Recently, the creation and study of exciton-photoinduced nanocomposites have come to the forefront [7,8,9,10,11,12,13,14,15,16,17,18].
The essential point in these studies is the proper choice of the precursor species. The most popular precursors for laser-induced CdS nanoparticle formation are cadmium-(bis)thiolates. CdS particles can be prepared from them through thermal as well as laser decomposition. Thermal treatment of cadmium-(bis)thiolates is described in [8,9]. Laser processing is a more promising way to form particles in polymer matrices. It provides the ability to irradiate the chosen area, which is of interest for laser writing [10], and includes a great number of variable parameters, such as pulse repetition rate, wavelength, and laser fluence, for the processing optimization. The process of laser-induced semiconductor nanoparticle formation from cadmium-(bis)thiolates is described in [11,12,13,14]. The elucidation of the properties of the precursor is of fundamental importance. In this paper, we study the thermal properties of cadmium-(bis)dodecylthiolate (Cd(C12H25S)2) in detail. We also focus on the thermal and optical properties of the composites of polymethyl methacrylate (PMMA) containing Cd(C12H25S)2. (Cd(C12H25S)2/PMMA) prepared by radical polymerization as bulk samples. Most of the previous studies deal with film samples, whereas bulk samples allow for three-dimensional (3D) laser structuring applications [19]. We also investigated photoluminescence (PL) spectra of a thermally treated and laser-irradiated precursor powder and compare them with similar properties of the laser-irradiated (Cd(C12H25S)2/PMMA) bulk samples.

2. Experimental Section

2.1. The Synthesis of Cadmium-(bis)dodecylthiolate

We used the following materials: Cadmium nitrate tetrahydrate Cd(NO3)2·4H2O, absolute ethanol, dodecanethiol, acetone, methyl methacrylate (MMA), and azo-(bis)isobutyronitrile (AIBN).
The synthesis of Cd(C12H25S)2 was performed in accordance with the modified technique described in [8,9,20]. Cd(NO3)2·4H2O and dodecanethiol were dissolved separately in absolute ethanol with concentrations 0.8 and 1.6 mol/L respectively. A dodecanethiol solution was added to an equal volume of the Cd(NO3)2·4H2O solution. The addition of the first drops of the dodecanethiol solution leads to the appearance of a white precipitate. The mixture was stirred intensively for 1 h. The precipitate was separated by decantation, rinsed two times in ethanol and centrifuged, then washed two times in acetone, centrifuged again, and dried to constant weight. The volume of the solvents used for each step of the precipitate product rinsing was equal to the total amount of two initial solvents. All steps were carried out at 25 °C in the air. The dried product was a white powder insoluble both in polar and non-polar organic solvents at 20–25 °C, but it is soluble in hot toluene at temperatures of up to 70 °C.

2.2. CHNS-Analysis of Cadmium-(bis)dodecylthiolate with General Formula Cd(C12H25S)2 and Molecular Weight of 514 Da

We performed elemental analysis of the cadmium compound synthesized with a Vario El cube CHNS elemental analyzer (Elementar Analysensysteme, Hanau, Germany) using the equipment of the Collective Usage Center “New Materials and Resource-Saving Technologies” (N.I. Lobachevsky State University of Nizhny Novgorod, project RFMEFI59414X0005). The weighing was performed with an A&D GR-202 analytical balance (A&D Company, Limited, Tokyo, Japan). Sulfanilamide used as the reference for the elemental analysis was standardized by the device manufacturer. A weighed portion of a sample to be analyzed ((1–1.5) ± 0.01 mg) was packed into a tin capsule and then placed in the automated sampler of the device. The subsequent combustion of the sample and absorption of the released CO2 were performed in automated mode. The analytical data were processed and the mass content of carbon in the sample was calculated by using original software provided by the device manufacturer. For each set of analyses, calibration was performed against a standard sulfanilamide sample.
Metrological characteristics [21] of the original Elementar’s procedure for determination of carbon in organic and inorganic samples were preliminarily verified. Sulfanilamide standardized by the manufacturer of the elemental analyzer and shipped with the device was used as the standard sample. It was shown that the average confidence interval δ estimated from 10 successive measurements of a 1–2 g weighed portion of sulfanilamide is 0.7 wt % (see Table 1). The systematic error estimated using the t-criterion is statistically nonsignificant. Metrological characteristics of the original Elementar’s procedure were used for determining the mass content of carbon in organic and inorganic samples (n = 10 and P = 0.95, with sulfanilamide as the reference).
Table
Table 1. Metrological characteristics of the Elementar’s procedure.
Table 1. Metrological characteristics of the Elementar’s procedure.
CharacteristicsValue
Found content, wt %41.1
True content, wt %41.8
s, wt %1
±δ, wt %0.7
tp, f = n − 12.3
tfound2.2
Weighing inaccuracy gave the main contribution to the random determination error. The relative root-mean-square (rms) deviation of balance readings in the primary verification for a weighed portion mass of 1.5 mg is 1.5%. This value constitutes about two-thirds of the relative rms deviation of the result of single determination of the mass fraction of carbon in a sample (2.4%).
The results of the cadmium compound analysis are presented in Table 2. Thus, the product of the synthesis is Cd(C12H25S)2. The purity of the compound was 99.9%.
Table
Table 2. Elemental composition of Cd(SR)2.
Table 2. Elemental composition of Cd(SR)2.
ElementTheoretically Calculated Content of Elements in the Cadmium bis-(dodecylthiolate), wt %Experimental Results of Elements Content in the Obtained Cd(SR)2, wt %
С56.0355.9 ± 0.40
H9.7310.0 ± 0.40
S12.4512.49 ± 0.17
Cd21.7821.61 ± 0.40

2.3. Differential Scannig Calorymetry (DSC) and Thermogravimetric Analysis (TGA)

To study the thermal behavior of Cd(C12H25S)2 and Cd(C12H25S)2/PMMA samples, we used a differential scanning calorimeter (model: DSC 204 F1 Phoenix, Netzsch Gerätebau, Selb, Germany). The calorimeter was calibrated and tested against melting of n-heptane, mercury, tin, lead, bismuth, and zinc. Standard uncertainty for temperature was u(T) = 0.5 °C and the relative standard uncertainty for the enthalpies of transformations was ur(ΔfusHm) = 0.01. The temperatures and the enthalpies of transitions were evaluated according to the standard Netzsch Software Proteus procedure [22,23]. The measurement was carried out in the argon atmosphere.
The thermogravimetric (TG) analysis of Cd(C12H25S)2 was done using a thermal microbalance (model TG 209 F1 Iris, Netzsch Gerätebau, Germany). Thermogravimetric Analysis (TGA) was carried out in the range from 20 to 160 °C in the argon atmosphere. The thermal microbalance TG 209 F1 Iris allows fixing the mass change in ±0.1 μg. The average heating rate was 10 °C·min−1. The measuring technique of TGA was standard, according to Netzsch Software Proteus (Netzsch Gerätebau, Selb, Germany).

2.4. Synthesis of the Bulk Polymeric Samples Containing Cadmium-bis(dodecylthiolate)

Bulk radical polymerization of MMA containing 0.02 M of AIBN and 1% to 3% (weight) of Cd(C12H25S)2 was carried out at 70 °C. Cd(C12H25S)2 is insoluble in MMA. To achieve a uniform mixture of this compound and monomer, and to avoid its precipitation during the synthesis of polymethyl methacrylate (PMMA), a glass ampoule filled with reaction mixture was sonicated for 1 h at room temperature without the radical initiator. Then the reaction mixture was heated to 70 °C and AIBN was introduced. Sonication was continued up to the onset of the gel effect and was stopped when the reaction mixture became viscous enough to avoid the precipitation of Cd(C12H25S)2. The polymerization was proceeded for 4 h. Then the reaction mixture was heated up to 140 °C and kept at that temperature for 1 h.
The molecular weight distributions were obtained by gel permeation chromatography (Prominence LC-20VP, Shimadzu Corporation, Tokyo, Japan): the average molecular weight Mw = 1.4·× 106 g/mol, the polydispersity index was Mw/Mn = 4.15.

2.5. Laser Processing of Samples and Study of Their Luminescent Properties

The irradiation is performed with a Nd:YAG laser LS-2137 («Lotis ТII», Minsk, Belarus) operated at the fourth harmonic at a wavelength of 266 nm. The repetition rate is 1 laser pulse per second, and the laser fluence is chosen in the range 150–300 mJ/cm2. The diameter of the laser beam is about 1.5 mm. The samples are mounted on an optical table with three-coordinate adjustment for irradiation by the laser beam.
Luminescent properties of the obtained samples are tested by excitation with a laser diode at a wavelength of 405 nm. Scattered and luminescent light is collected with a condenser lens into the Ocean Optics QE65Pro spectrometer fiber probe (Ocean Optics, Dunedin, FL, USA). A sharp-edged low-pass spectral filter ET-425LP (Chroma Technology Corp, Bellows Falls, VT, USA) is used for the excitation wavelength cutoff. The spectrum was analyzed using a spectrometer calibrated with an HL2000 lamp (Ocean Optics). Thermal power sensor Thorlabs S302C (Thorlabs GmbH, Dachau, Germany) is used for the optical power and energy detection. Confocal microscope Zeiss LSM710 (Carl Zeiss Microscopy GmbH, Jena, Germany) is used for obtaining microimages of the samples with irradiated area and for detection of the local luminescent spectral characteristics.

3. Results and Discussion

3.1. Thermophysical Characteristics of Cadmium-bis(dodecylthiolate)

Different metal thiolates are widely used precursors for obtaining the corresponding metal sulfides in various polymer matrices. The purity of the compounds being studied is of considerable importance. Therefore, it is necessary to have a rapid method of purity control. If reliable reference data are available, the simplest way to identify the purity of a solid-state material is determination of the melting point by the capillary method. Melting points of a wide range of metal thiolates are reported in [20].
However, we did not observe the formation of liquid droplets in the glass capillary filled with Cd(C12H25S)2 at 42 °C as reported in [20]. It can be assumed that the authors of [20] did not make a convincing conclusion about the nature of the first transition on the curve obtained by differential scanning calorimetry (DSC) of metal thiolates. We consider the DSC data analysis of Cd(C12H25S)2 (Figure 1a) in more detail.
The thermal stability of Cd(C12H25S)2 was studied by the TG method (Figure 1b). According to these results, the detectable weight loss in the sample is obtained at temperatures above 160 °C. The DSC data give evidence for two endothermic effects in different temperature ranges from 36 to 56 °С and from 112 to 152 °С, which are reproduced in the iterated stages of the cooling-heating of Cd(C12H25S)2 from 20 to 150 °C. Both effects can be attributed to the phase transition. The transition enthalpies amount to ΔH°1 = 2.23 mJ/mol and ΔH°2 = 0.12 J/mol. The enthalpy of the first transition corresponds to the enthalpy of conformal transitions in the Cd(C12H25S)2 molecule in solid state [24]. The second transition relies on the melting of the studied compound. Taken together, the DSC and TG data point to the incongruent melting of Cd(C12H25S)2, which is in contradiction to the data available in the literature [20].
Materials 08 05487 g001 1024
Figure 1. Differential scanning calorimetry (DSC) (a) and thermogravimetric (TG) (b) measurements of Cd(C12H25S)2 powder in an argon atmosphere.
Figure 1. Differential scanning calorimetry (DSC) (a) and thermogravimetric (TG) (b) measurements of Cd(C12H25S)2 powder in an argon atmosphere.
Materials 08 05487 g001
It should be noted that when analyzing the DSC results, it is necessary to take into account that the endothermic processes may indicate not only the melting, but also other physical processes, and conformal transitions in particular. The numerical values of the corresponding enthalpies should be taken into account.
For the purpose of studying the thermal effect on the luminescent properties of Cd(C12H25S)2, we study the evolution of its PL spectra after heating in the furnace. This effect is reversible when the temperature is less than the melting point. The spectra of a “hot” sample and of the same sample at room temperature have different forms (see Figure 2a). At room temperature, two wide maxima can be observed: one at 460 nm and another at 580 nm. The second maximum disappears in the case of high temperature, but it comes back as the sample is cooled. We suppose this effect can be attributed to the conformal transition in the range 36–56 °C.
Materials 08 05487 g002 1024
Figure 2. (a) Normalized PL spectra of Cd(C12H25S)2 powder measured at 25 and 70 °C. (b) The evolution of normalized PL spectra of Cd(C12H25S)2 powder annealed at 240 °C: 1–5 min, 2–40 min, 3–60 min, measured at room temperature.
Figure 2. (a) Normalized PL spectra of Cd(C12H25S)2 powder measured at 25 and 70 °C. (b) The evolution of normalized PL spectra of Cd(C12H25S)2 powder annealed at 240 °C: 1–5 min, 2–40 min, 3–60 min, measured at room temperature.
Materials 08 05487 g002
When the sample is heated to the melting point (about 140 °C), the maximum at 580 nm is no longer obtained even after the cooling. If the sample is heated at higher temperatures, the melting process will become more intense, with irreversible transformation of the PL spectrum. The change of color from white to yellow and orange can be observed. At high temperatures, the sample is liquid and transparent, and it becomes opaque when cooled. We keep the sample at 240 °C for 1 h. The photoluminescence intensity increases dramatically compared to the initial spectrum. The maximum of the PL signal moves towards the higher wavelengths, from 500 to 570 nm, in the course of thermal annealing (Figure 2b).

3.2. Luminescence Properties of the Laser-Irradiated Cadmium-bis(dodecylthiolate)

The main feature of cadmium-(bis)thiolates is their poor solubility. That is why we have the precursor dispersed in the matrix with grains of the average size of a few microns.
Therefore, it is useful to compare the effect of laser radiation on the composite PMMA/Cd(C12H25S)2 samples and the results of irradiation of a pure precursor. If the effect of laser radiation on the polymer samples is reduced to the modification of the precursor within the grains, then the luminescent properties of the laser-irradiated pure Cd(C12H25S)2 powder and polymer PMMA/Cd(C12H25S)2 samples will be close to each other.
Two types of samples are chosen: pure Cd(C12H25S)2 powder and bulk PMMA samples with 1% (weight) of Cd(C12H25S)2 (fine polished discs 10 mm in diameter and about 1 mm thick). For the irradiation experiment, we used laser pulses with fluences 150, 190, 290 mJ/cm2 to compare their effects on the precursor and the PMMA/Cd(C12H25S)2 samples. The initial PL signals of obtained samples are weak (see Figure 3).
Materials 08 05487 g003 1024
Figure 3. The evolution of PL emission spectra of Cd(C12H25S)2 powder irradiated with various numbers of UV laser pulses of 266 nm wavelength. The laser fluence is 150 mJ/cm2 (a), 190 mJ/cm2 (b), 290 mJ/cm2 (c).
Figure 3. The evolution of PL emission spectra of Cd(C12H25S)2 powder irradiated with various numbers of UV laser pulses of 266 nm wavelength. The laser fluence is 150 mJ/cm2 (a), 190 mJ/cm2 (b), 290 mJ/cm2 (c).
Materials 08 05487 g003
If a pure precursor powder is irradiated, then the induced PL can be observed even after the first pulse (Figure 3). When irradiated with many pulses, the signal increases and tends toward saturation. The maximum of the PL spectrum is observed at 600–615 nm, and this wavelength depends neither on the laser fluence nor on the number of pulses. This spectrum is close to that obtained by the thermal annealing described above. This implies that the laser heating of the precursor could play an important role in the material alteration by the laser treatment. During the laser processing, we observe that white powder changes its color to yellow. A brief summary of features of the PL spectra of Cd(C12H25S)2 subjected to heating and laser irradiation is given in Table 3.
Table
Table 3. Features of the photoluminescence (PL) spectra related to the Cd(C12H25S)2 powder treatment.
Table 3. Features of the photoluminescence (PL) spectra related to the Cd(C12H25S)2 powder treatment.
Way of TreatmentDescription of PL Spectrum
Heating at 70 °CReversible transformation
Heating at 240 °CIrreversible increase in PL signal with the maximum movement towards the longer wavelengths from 500 to 570 nm
Laser irradiation at 266 nmIncrease in PL signal with the maximum wavelength at 600–615 nm

3.3. DSC and TG Characterizations of the Cd(C12H25S)2/PMMA Samples

DSC and TG measurements were performed for the Cd(C12H25S)2/PMMA sample before the laser irradiation. DSC measurements revealed an endothermic effect in the temperature range of 117–136 °C with a transition temperature of 128 °C and enthalpy of 1.61 J/g (see Figure 4a, region ABC). A similar endothermic effect in the range of 106–153 °C for a pure Cd(C12H25S)2 powder was discussed above. This effect was attributed to the incongruent melting of the precursor. In the case of a Cd(C12H25S)2/PMMA sample, the transition temperature is lower, which is obvious if the interaction between Cd(C12H25S)2 and the PMMA matrix is taken into account. Thermal destruction of the sample takes place at a temperature of about 200 °C (point D), which can be seen from the TG curve (Figure 4b). The exothermic effect in the temperature range of 135–165 °C is peculiar for the sample of PMMA with a precursor and is observed neither for the pure PMMA sample, nor for the Cd(C12H25S)2 powder. It can be due to the chemical interaction between the products of thermal degradation of Cd(C12H25S)2 and the polymer matrix. However, this needs special analysis.
Materials 08 05487 g004 1024

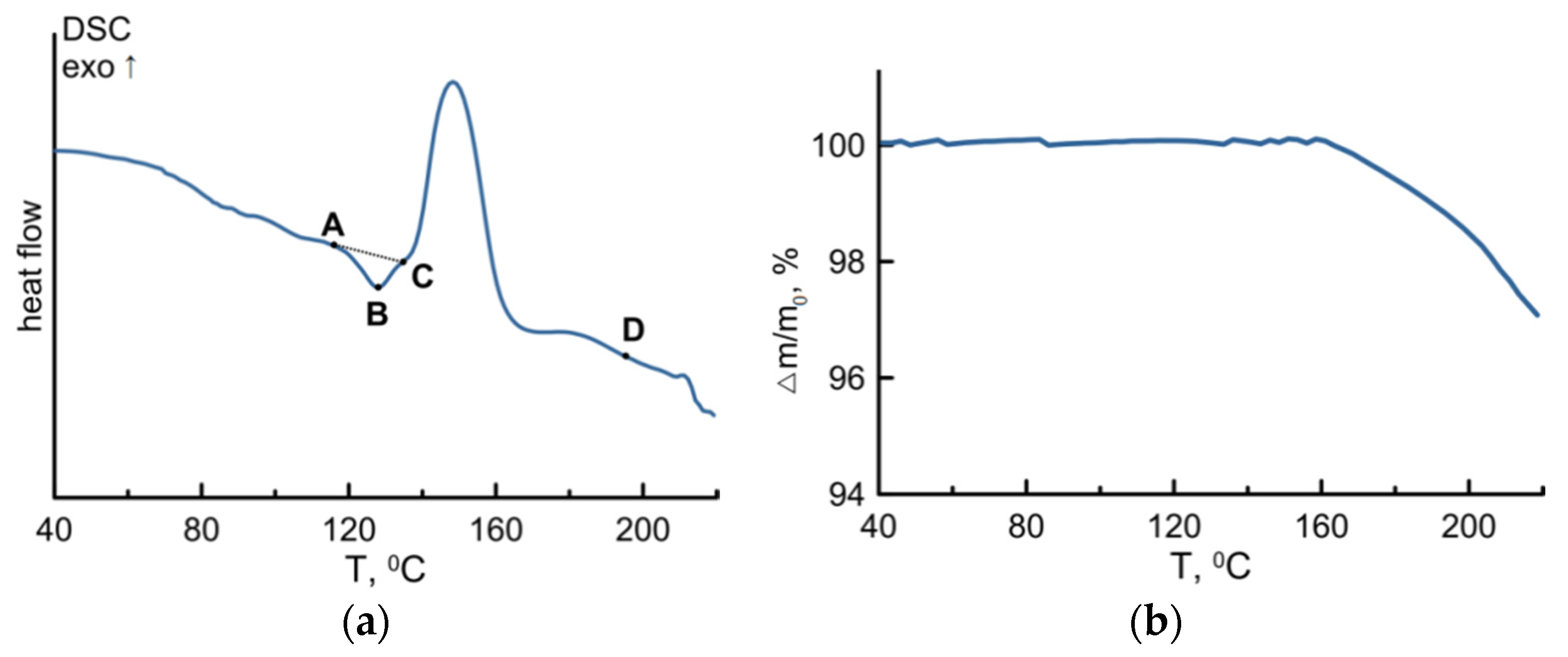

Figure 4. DSC (a) and TG (b) measurements of the Cd(C12H25S)2/PMMA sample in an argon atmosphere.
Figure 4. DSC (a) and TG (b) measurements of the Cd(C12H25S)2/PMMA sample in an argon atmosphere.
Materials 08 05487 g004

3.4. Luminescence Properties of the Laser-Irradiated Cd(C12H25S)2/PMMA Samples

The irradiation of Cd(C12H25S)2/PMMA samples with a fluence of 150 mJ/cm2 leads to the induced PL signal at 600 nm, which probably corresponds to the modification of a pure precursor within the grains (Figure 5a). If the laser fluence is higher, then the induced PL spectra differ from the spectra of the irradiated pure precursor. We observe an increase in PL both at 475–500 nm and near 600 nm (Figure 5b,c). When the fluence is 290 mJ/cm2, the main increase in the PL signal occurs near 500 nm, while the peak is saturated at 600 nm.
Materials 08 05487 g005 1024
Figure 5. The evolution of photoluminescence (PL) emission spectra of 1% Cd(C12H25S)2/PMMA samples irradiated with various numbers of UV laser pulses. The laser fluence is 150 mJ/cm2 (a), 190 mJ/cm2 (b), and 290 mJ/cm2 (c).
Figure 5. The evolution of photoluminescence (PL) emission spectra of 1% Cd(C12H25S)2/PMMA samples irradiated with various numbers of UV laser pulses. The laser fluence is 150 mJ/cm2 (a), 190 mJ/cm2 (b), and 290 mJ/cm2 (c).
Materials 08 05487 g005
Thus, when the pulses are weak, the spectrum of induced PL relies on the transformation of a pure precursor. At the higher fluences, the impact of the matrix is significant. The band gap of pure CdS corresponds to a wavelength of about 515 nm. Therefore, the formation of CdS particles is usually revealed through the PL spectrum located at a wavelength shorter than 500–520 nm. The peaks at the longer wavelengths rely on the trap states, whose nature depends on the particle environment and defects on their surface [25,26]. In our work, we find that, in a pure irradiated precursor, there is no PL peak near 500 nm, but the luminescence at 600 nm is very intense. It should be noted that the luminescence in this range (located near 600 nm) has been observed in [19,26]. The authors of [26] connect this emission with the surface Cd having sulfur vacancy sites. In our case, it could be connected with the defect states, not necessarily at the surface but also within the bulk of the created clusters. In the Cd(C12H25S)2/PMMA samples, the PL peak typical of CdS is observed only for fairly strong irradiating pulses.
To explain the observed phenomena, we assume that the major part of the precursor distributed in the PMMA matrix constitutes agglomerates because of its poor solubility in this polymer, while the other part is better dispersed within the matrix. These components may have different effects on the PL properties of the sample under laser irradiation.
The sufficiently large agglomerates could be considered as inert filling compounds which have the properties of pure Cd(C12H25S)2 and give a PL signal with the maximum at 600–620 nm. Laser irradiation of the relatively small grains of Cd(C12H25S)2 with a high value of the relative surface area and strong intermolecular interaction with the PMMA matrix results in the appearance of a PL band at about 500 nm. The latter band can be associated with the CdS nanoparticles having a smaller content of trapped states.
Fluorescence images of the irradiated regions on the Cd(C12H25S)2/PMMA samples are presented in Figure 6a. One can see that the signal of luminescence is recorded from areas whose size is about a few microns. We associate them with the agglomerates of precursor grains of different sizes. Here, the precursor transformed into semiconductor clusters as a result of the laser irradiation. PL spectra form two different points of the irradiated area (Figure 6b). Point 1 is located within the precursor agglomerate, while point 2 belongs to the PMMA matrix. It should be noted that PMMA matrices without the precursor were also irradiated as control samples. The laser fluences that were used for the processing do not affect a clean matrix.
Materials 08 05487 g006 1024
Figure 6. (a) Fluorescence images of the irradiated area of a 1% Cd(C12H25S)2/PMMA sample. (b) PL spectra from two different points, 1 and 2, of the region exposed to laser irradiation.
Figure 6. (a) Fluorescence images of the irradiated area of a 1% Cd(C12H25S)2/PMMA sample. (b) PL spectra from two different points, 1 and 2, of the region exposed to laser irradiation.
Materials 08 05487 g006

4. Conclusions

The melting points of different metal thiolates in the range of 40–42 °C given in [20] are doubtful. The corresponding DSC peak is attributed to conformal transitions in the hydrocarbon chain of metal thiolates.
Detailed experimental study of the thermal behavior of Cd(C12H25S)2 using two independent methods and their comparison with the previous data in the literature, as well as the numerical values of the energy of the first identified effect, conclusively rule out its interpretation as of the phase transition point, and the thermodynamic classification attributes it to conformal transitions in solid state. The results on the Cd(C12H25S)2 thermal behavior were confirmed by the studies of the luminescent properties of the Cd(C12H25S)2 powder carried out at several fixed values of temperature. Irradiation of pure Cd(C12H25S)2 by the UV laser at a wavelength of 266 nm (15 ns pulses) leads to the appearance of luminescence with the maximum at 600 nm, which is close to the result of thermal annealing of the precursor powder at temperatures higher than the incongruent melting point.
The polymeric glass samples containing Cd(C12H25S)2 have been obtained by MMA bulk polymerization. The main feature of cadmium-(bis)thiolates is their poor solubility. The precursor is dispersed in the matrix with grains having an average size of a few microns. This was confirmed by luminescent microscopy of the laser-irradiated samples. Irradiation of the Cd(C12H25S)2/PMMA samples at relatively small fluences results in the appearance of a PL spectrum with the maximum wavelength close to the maximum of the spectrum of a pure Cd(C12H25S)2 powder. This effect is due to the precursor transformation within the grains. A more intense maximum that appeared near 500 nm in the bulk samples irradiated under higher fluences can be attributed to the formation of CdS particles with a smaller content of trapped states. The difference in PL spectra of the pure precursor and bulk Cd(C12H25S)2/PMMA samples proves a significant role of the matrix in the process of the photoinduced composite formation.

Acknowledgments

The authors thank Alexander Pikulin for a useful discussion. The authors are grateful to the Russian Scientific Foundation (project No. 14-19-01702) for financial support.

Author Contributions

Nadezhda Agareva prepared the samples (precursor synthesis, polymerization), she wrote Section 2.1 and Section 2.4, Evgenia Salomatina and Larisa Smirnova took part in samples preparation, they are responsible for sample characterizations, they wrote Section 2.2 and contributed to part 3, Semen Sologubov and Alexey Markin performed the Differential Scannig Calorymetry (DSC) and Thermogravimetric (TG) experiments and analyzed these results, they wrote Section 2.3 and contributed to part 3, Anton A. Smirnov and Andrey Afanasiev conceived, designed and performed the optical part of the experiment (laser irradiation of the sample, optical characterizations, data analysis), they wrote Section 2.5, and contributed to part 3. Nikita Bityurin is responsible for the problem formulation, overall supervision, he conceived the experiments, analyzed the data, wrote introduction and conclusions, and contributed to part 3 of the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bityurin, N.M. Laser Nanostructuring of Polymers. In Fundamentals of Laser-Assisted Micro- and Nanotechnologies; Veiko, V.P., Konov, V.I., Eds.; Springer International Publishing: Cham, Switzerland, 2014; pp. 293–314. [Google Scholar]
  2. Talapin, D.V.; Lee, J.-S.; Kovalenko, M.V.; Shevchenko, E.V. Prospects of colloidal nanocrystals for electronic and optoelectronic applications. Chem. Rev. 2010, 110, 389–458. [Google Scholar] [CrossRef] [PubMed]
  3. Alexandrov, A.; Smirnova, L.; Yakimovich, N.; Sapogova, N.; Soustov, L.; Kirsanov, A.; Bityurin, N. UV initiated growth of gold nanoparticles in PMMA matrix. Appl. Surf. Sci. 2005, 248, 181–184. [Google Scholar] [CrossRef]
  4. Yakimovich, N.O.; Sapogova, N.V.; Smirnova, L.A.; Aleksandrov, A.P.; Gracheva, T.A.; Kirsanov, A.V.; Bityurin, N.M. Gold-containing nanocomposition materials on the basis of homo- and copolymers of methylmethacrylate. Russ. J. Phys. Chem. B 2006, 2, 128–134. [Google Scholar]
  5. Bityurin, N.; Alexandrov, A.; Afanasiev, A.; Agareva, N.; Pikulin, A.; Sapogova, N.; Soustov, L.; Salomatina, E.; Gorshkova, E.; Tsverova, N.; et al. Photoinduced nanocomposites—Creation, modification, linear and nonlinear optical properties. Appl. Phys. A 2013, 112, 135–138. [Google Scholar] [CrossRef]
  6. Malik, M.A.; Afzaal, M.; O’Brien, P. Precursor chemistry for main group elements in semiconducting materials. Chem. Rev. 2010, 110, 4417–4446. [Google Scholar] [CrossRef] [PubMed]
  7. Brennan, J.G.; Siegrist, T.; Carroll, P.J.; Stuczynski, S.M.; Reynders, P.; Brus, L.E.; Steigerwald, M.L. Bulk and nanostructure group II-VI compounds from molecular organometallic precursors. Chem. Mater. 1990, 2, 403–409. [Google Scholar] [CrossRef]
  8. Antolini, F.; Di Luccio, T.; Laera, A.M.; Mirenghi, L.; Piscopello, E.; Re, M.; Tapfler, L. Direct synthesis of II-VI compound nanocrystals in polymer matrix. Phys. Stat. Sol. B 2007, 244, 2768–2781. [Google Scholar] [CrossRef]
  9. Antolini, F.; Burresi, E.; Stroea, L.; Morandi, V.; Ortolani, L.; Accorsi, G.; Blosi, M. Time and temperature dependence of CdS nanoparticles grown in a polystyrene matrix. J. Nanomater. 2012. [Google Scholar] [CrossRef]
  10. Sun, Z.-B.; Dong, X.-Z.; Chen, W.-Q.; Nakanishi, S.; Duan, X.-M.; Kawata, S. Multicolor polymer nanocomposites: In situ synthesis and fabrication of 3D microstructures. Adv. Mater. 2008, 20, 914–919. [Google Scholar] [CrossRef]
  11. Antolini, F.; Ghezelbash, A.; Eposito, C.; Trave, E.; Tapfer, L.; Korgel, B.A. Laser-induced nanocomposite formation for printed nanoelectronics. Mater. Lett. 2006, 60, 1095–1098. [Google Scholar] [CrossRef]
  12. Athanassiou, A.; Cingolani, R.; Tsiranidou, E.; Fotakis, C.; Laera, A.M.; Piscopiello, E.; Tapfer, L. Photon-induced formation of CdS nanocrystals in selected areas of polymer matrices. Appl. Phys. Lett. 2007, 91. [Google Scholar] [CrossRef]
  13. Fragouli, D.; Laera, A.M.; Caputo, G.; Resta, V.; Pompa, P.P.; Tapfer, L.; Cingolani, R.; Athanassiou, A. The effect of polymer matrices in the in-situ CdS formation under UV irradiation of precursor-polymer films. J. Nanosci. Nanotechnol. 2010, 10, 1267–1272. [Google Scholar] [CrossRef] [PubMed]
  14. Fragouli, D.; Resta, V.; Pompa, P.P.; Laera, A.M.; Caputo, G.; Tapfer, L.; Cingolani, R.; Athanassiou, A. Patterned structures of in situ size controlled CdS nanocrystals in a polymer matrix under UV irradiation. Nanotechnology 2009, 20. [Google Scholar] [CrossRef] [PubMed]
  15. Bansal, A.K.; Antolini, F.; Sajjad, M.T.; Stroea, L.; Mazzaro, R.; Ramkumar, S.G.; Kass, K.-J.; Allard, S.; Scherf, U.; Samuel, I.D.W. Photophysical and structural characterization of in situ formed quantum dots. Phys. Chem. Chem. Phys. 2014, 16, 9556–9564. [Google Scholar] [CrossRef] [PubMed]
  16. Resta, V.; Laera, A.M.; Camposeo, A.; Piscopiello, E.; Persano, L.; Pisignano, D.; Tapfer, L. Spatially confined CdS NCs in situ synthesis through laser irradiation of suitable unimolecular precursor-doped polymer. J. Phys. Chem. C 2012, 116, 25119–25125. [Google Scholar] [CrossRef]
  17. Onwudiwe, D.C.; Kruger, T.P.J.; Strydom, C.A. Laser assisted solid state reaction for the synthesis of ZnS and CdS nanoparticles from metal xanthate. Mater. Lett. 2014, 116, 154–159. [Google Scholar] [CrossRef]
  18. Khanna, P.K.; Singh, N. Light emitting CdS quantum dots in PMMA: Synthesis and optical studies. J. Lumin. 2007, 127, 474–482. [Google Scholar] [CrossRef]
  19. Li, X.; Bullen, C.; Chon, J.W.M.; Evans, R.A.; Gu, M. Two-photon-induced three-dimensional optical data storage in CdS quantum-dot doped photopolymer. Appl. Phys. Lett. 2007, 90. [Google Scholar] [CrossRef]
  20. Carotenuto, G.; Martorana, B.; Perlo, P.; Nicolais, L. A universal method for the synthesis of metal and metal sulfide clusters embedded in polymer matrices. J. Mater. Chem. 2003, 13, 2927–2930. [Google Scholar] [CrossRef]
  21. Eurachem/CITAC Guide: Quantifying Uncertainty in Analytical Measurement, 2nd ed.; Ellison, S.L.R.; Roesslein, M.; Williams, A. (Eds.) Eurachem/CITAC: London, UK, 2000.
  22. Höhne, G.W.H.; Hemminger, W.F.; Flammersheim, H.-J. Differential Scanning Calorimetry, 2nd ed.; Springer: Heidelberg, Germany, 2003. [Google Scholar]
  23. Drebushchak, V.A. Calibration coefficient of heat-flow DSC. Part II. Optimal calibration procedure. J. Therm. Anal. Cal. 2005, 79, 213–218. [Google Scholar] [CrossRef]
  24. Fox, D.; Labes, M.M.; Weissberger, A. Physics and Chemistry of Organic Solid State; Wiley: Hoboken, NJ, USA, 1965; Volume 1. [Google Scholar]
  25. Woggon, U. Optical Properties of Semiconductor Quantum Dots; Springer-Verlag: Berlin, Germany, 1997. [Google Scholar]
