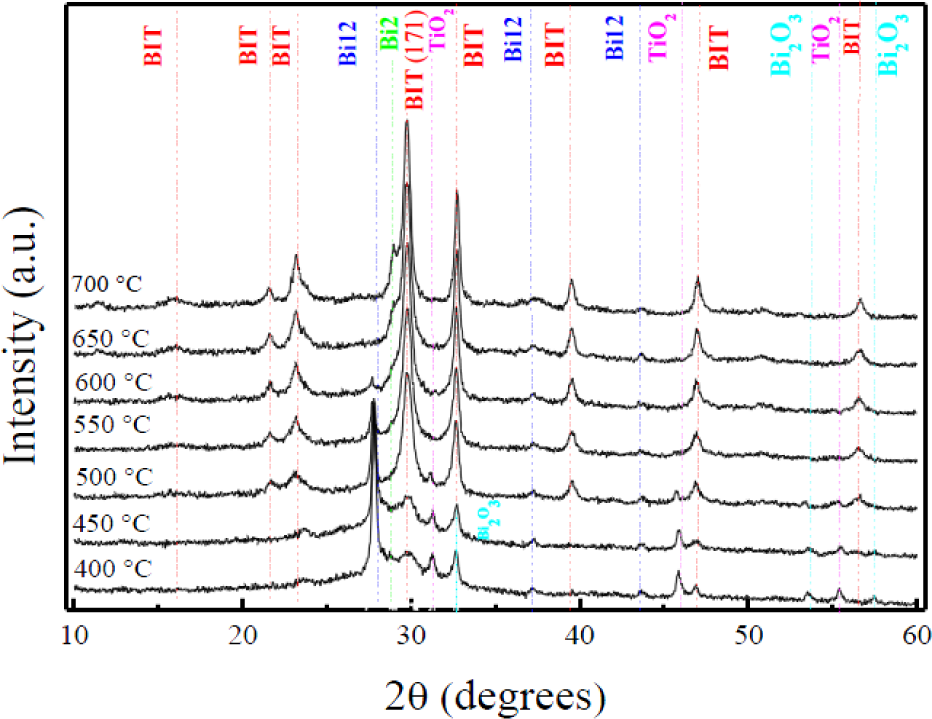

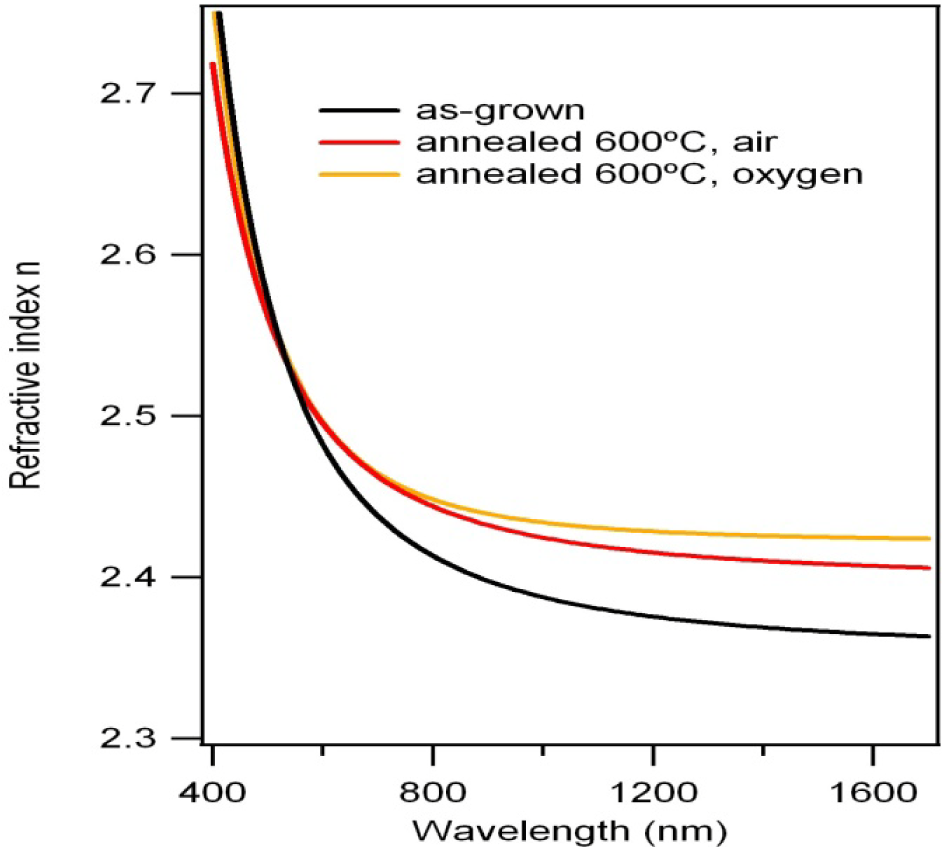

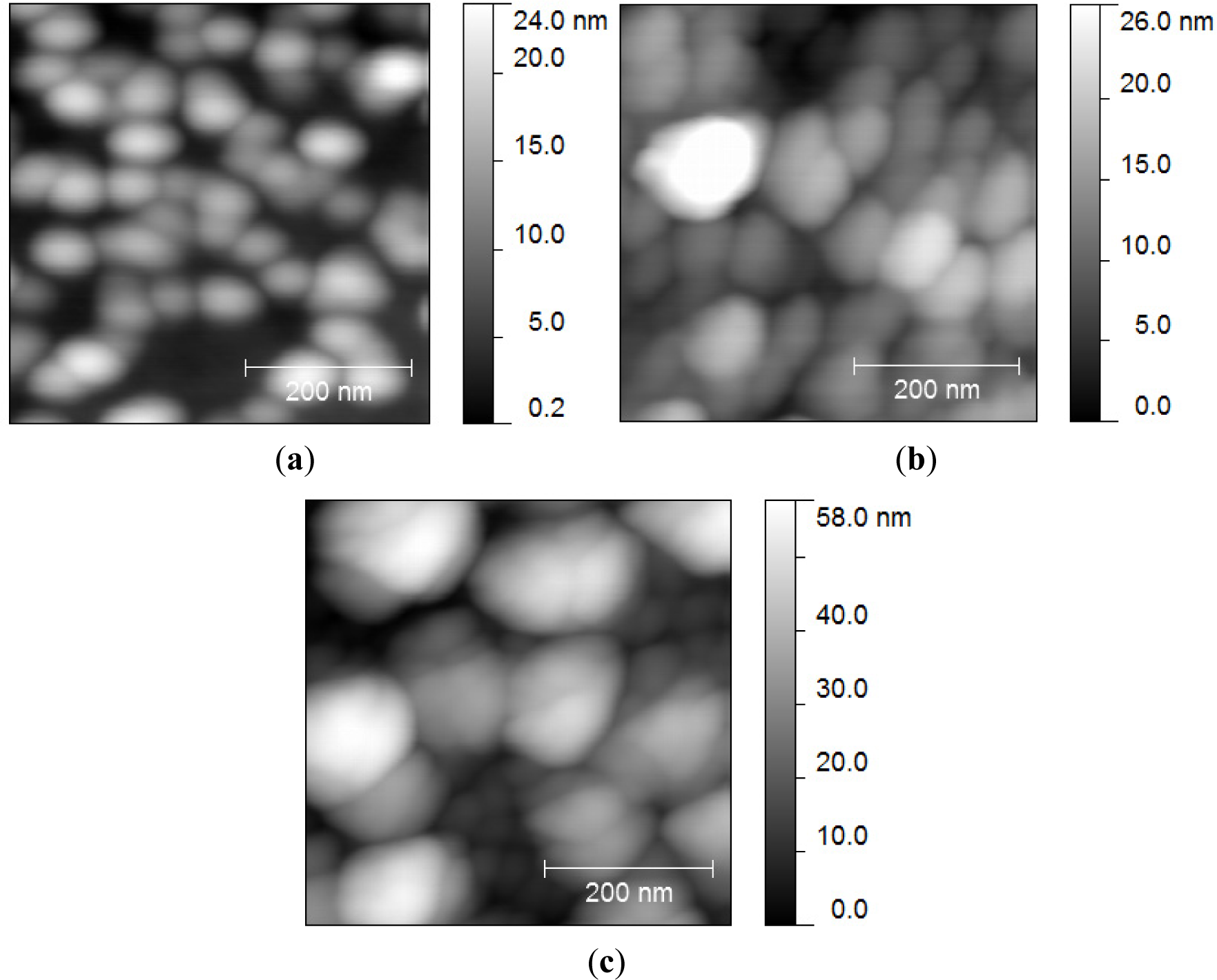

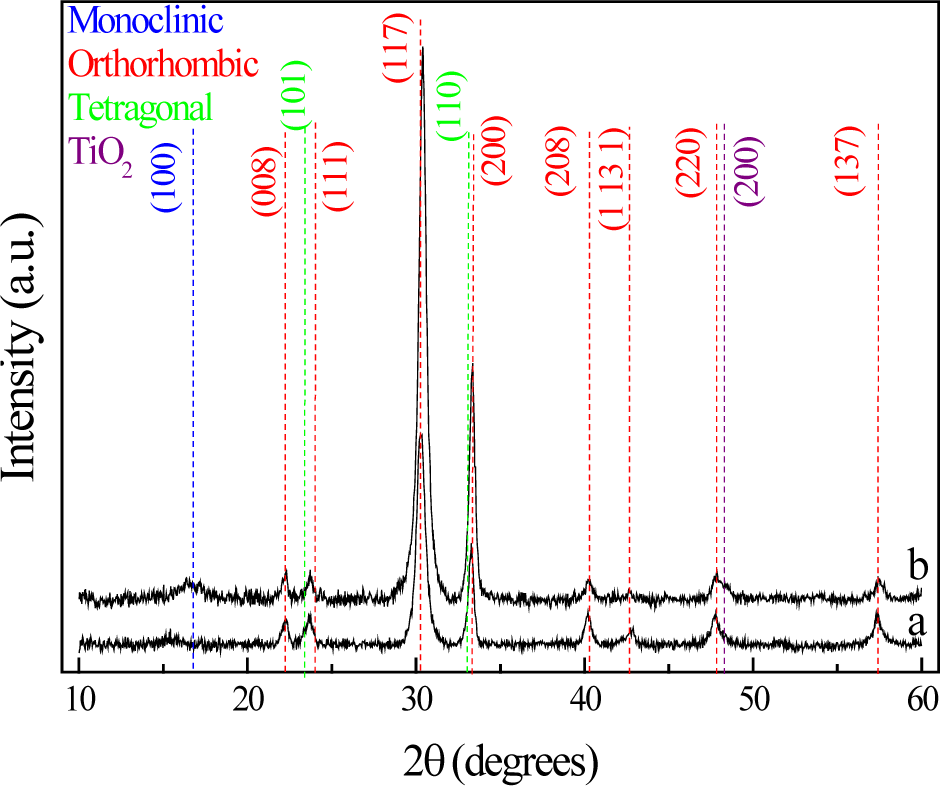

Abstract: The aim of this work is to assess the evolution of the structural and optical properties of BixTiyOz films grown by rf magnetron sputtering upon post-deposition annealing treatments in order to obtain good quality films with large grain size, low defect density and high refractive index similar to that of single crystals. Films with thickness in the range of 220–250 nm have been successfully grown. After annealing treatment at 600 °C the films show excellent transparency and full crystallization. It is shown that to achieve larger crystallite sizes, up to 17 nm, it is better to carry the annealing under dry air than under oxygen atmosphere, probably because the nucleation rate is reduced. The refractive index of the films is similar under both atmospheres and it is very high (n =2.5 at 589 nm). However it is still slightly lower than that of the single crystal value due to the polycrystalline morphology of the thin films.
This is an open access article distributed under the
Creative Commons Attribution License which permits unrestricted use, distribution,
and reproduction in any medium, provided the original work is properly cited.
Export to BibTeX
MDPI and ACS Style
Alfonso, J.E.; Olaya, J.J.; Bedoya-Hincapié, C.M.; Toudert, J.; Serna, R. Annealing Effect on the Structural and Optical Properties of Sputter-Grown Bismuth Titanium Oxide Thin Films. Materials 2014, 7, 3427-3434.
Alfonso JE, Olaya JJ, Bedoya-Hincapié CM, Toudert J, Serna R. Annealing Effect on the Structural and Optical Properties of Sputter-Grown Bismuth Titanium Oxide Thin Films. Materials. 2014; 7(5):3427-3434.
Alfonso, José E.; Olaya, Jhon J.; Bedoya-Hincapié, Claudia M.; Toudert, Johann; Serna, Rosalia. 2014. "Annealing Effect on the Structural and Optical Properties of Sputter-Grown Bismuth Titanium Oxide Thin Films." Materials 7, no. 5: 3427-3434.
