Electrical Characteristics of the Uniaxial-Strained nMOSFET with a Fluorinated HfO2/SiON Gate Stack

Department of Electronic Engineering, Lunghwa University of Science and Technology, Guishan, Taoyuan 333, Taiwan
Materials 2014, 7(3), 2370-2381; https://doi.org/10.3390/ma7032370
Submission received: 3 January 2014 / Revised: 10 March 2014 / Accepted: 12 March 2014 / Published: 20 March 2014
(This article belongs to the Special Issue High-k Materials and Devices)

Abstract

: The channel fluorine implantation (CFI) process was integrated with the Si3N4 contact etch stop layer (SiN CESL) uniaxial-strained n-channel metal-oxide-semiconductor field-effect transistor (nMOSFET) with the hafnium oxide/silicon oxynitride (HfO2/SiON) gate stack. The SiN CESL process clearly improves basic electrical performance, due to induced uniaxial tensile strain within the channel. However, further integrating of the CFI process with the SiN CESL-strained nMOSFET exhibits nearly identical transconductance, subthreshold swing, drain current, gate leakage and breakdown voltage, which indicates that the strain effect is not affected by the fluorine incorporation. Moreover, hydrogen will diffuse toward the interface during the SiN deposition, then passivate dangling bonds to form weak Si-H bonds, which is detrimental for channel hot electron stress (CHES). Before hydrogen diffusion, fluorine can be used to terminate oxygen vacancies and dangling bonds, which can create stronger Hf-F and Si-F bonds to resist consequent stress. Accordingly, the reliability of constant voltage stress (CVS) and CHES for the SiN CESL uniaxial-strained nMOSFET can be further improved by the fluorinated HfO2/SiON using the CFI process. Nevertheless, the nMOSFET with either the SiN CESL or CFI process exhibits less charge detrapping, which means that a greater part of stress-induced charges would remain in the gate stack after nitrogen (SiN CESL) or fluorine (CFI) incorporation.
Keywords:
fluorine; strain; HfO2

1. Introduction

According to the international technology roadmap of semiconductors (ITRS), the equivalent oxide thickness (EOT) of the gate stack for metal-oxide-semiconductor field-effect transistors (MOSFETs) has to be scaled gradually to fulfill and increase device performance [1]. However, a drastically increasing direct tunneling leakage current in thin gate dielectrics cannot be tolerated for low standby power or low operation power applications. High-permittivity (high-k) metal oxides are thought to be gate dielectric materials for silicon (Si)-based devices, since a larger physical thickness than silicon dioxide (SiO2) or silicon oxynitride (SiON) can be utilized to reduce gate leakage current by suppression of direct tunneling, while maintaining required specific gate capacitance [26]. For these reasons, various high-k dielectrics, including yttrium oxide (Y2O3), zirconium oxide (ZrO2), lanthanum oxide (La2O3) and hafnium oxide (HfO2) have been extensively studied as alternative gate dielectrics [28].

Among these high-k dielectrics, HfO2 and ZrO2 are the greatest potential candidates under investigation, due to the high dielectric constant, wide band gap and high conduction band offset with respect to Si [9]. Although ZrO2 has similar properties to HfO2, interface reaction between ZrO2 and Si has been acknowledged [10]. Consequently, HfO2 has been chosen as the gate dielectric. Unfortunately, bias temperature instability (BTI) becomes a serious reliability problem for deep-submicron MOSFETs with high-k gate dielectrics, due to high bulk and interfacial defect densities [11,12]. Moreover, high defect densities within the gate stack would also increase scattering probability for channel carriers, and result in mobility degradation and drain current reduction [2,13]. Hence, strain technology has been successfully integrated with current complementary metal-oxide-semiconductor (CMOS) technology in order to increase both carrier mobility and drain current.

Biaxial or uniaxial strain has been demonstrated to improve carrier mobility in recent years [14]. A strain-Si/SiGe channel was originally proposed to drastically improve both electron and hole mobility [15,16]. However, the integration of the biaxial strain process with existing CMOS technology has become complicated and not easily reduced in cost. Various uniaxial strain technologies have been therefore developed to improve carrier mobility, such as strain source/drain, a high stress Si3N4 contact etch stop layer (SiN CESL) and stress memorization technology [1720]. By controlling the stress type of the CESL film on the channel region, for instance, using tensile stress for n-channel MOSFET (nMOSFET), while using compressive stress for p-channel MOSFET (pMOSFET), SiN CESL becomes the simplest process to improve carrier mobility among these uniaxial strain technologies. However, a large amount of hydrogen during SiN CESL deposition would diffuse into the gate stacks to from Si-H/Hf-H bonds. The binding energy of the Si-H/Hf-H bonds is too small to resist subsequent channel hot electron stress (CHES) or constant voltage stress (CVS), which results in a considerable threshold voltage (VTH) shift and reliability degradation for the SiN CESL uniaxial-strained MOSFETs [21,22].

Furthermore, the dielectric properties and device reliabilities of the MOSFETs can be improved by fluorine incorporation processes, such as fluorine plasma treatment, channel fluorine implantation (CFI), source/drain region fluorine implantation and fluorinated silicate glass (FSG) passivation [2327]. Incorporating fluorine within high-k gate stacks can terminate interfacial dangling bonds and bulk oxygen vacancies during subsequent processes, which is useful to reduce gate leakage current and improve the charge-to-breakdown and VTH instability, as well [28]. Although fluorine passivation technology has been widely used to replace weak Si-H bonds within the high-k gate stack to improve stress reliability, the impact of combining the fluorine incorporation effect with the SiN CESL-strained nMOSFET has not been fully investigated. Therefore, in this paper, fluorine incorporation using the CFI process has been used to comprehensively evaluate the electrical performance and device reliability of the SiN CESL uniaxial-strained nMOSFET with the fluorinated HfO2/SiON gate stack, which is expected to reduce VTH shift during both CVS and CHES, while maintaining a high drain current. Figure 1 presented the schematic cross-section of the SiN CESL strained nMOSFETs with a fluorinated HfO2/SiON gate stack using the CFI process, where fluorine passivation is indicated. A control device without applying both CFI and SiN CESL processes was also prepared for comparison.

2. Results and Discussion

Figure 2 shows the SIMS depth profile of the HfO2/SiON gate-stacked nMOSFET with CFI and SiN CESL. Although the fluorine atoms have been implanted into a silicon substrate before the dielectric deposition, the result obviously indicates that fluorine can be out-diffused from the substrate and effectively incorporated into the HfO2/SiON gate stack during the subsequent high temperature process, which is helpful for passivating the oxygen vacancies to form stronger Hf-F bonds, and therefore, reducing charge trapping [28]. Moreover, the peak of fluorine concentration gathers closer to the bottom interface. As a result, fluorine can pile up at the interface between the HfO2/SiON gate stack and the Si substrate, which also reveals that the CFI process exhibits a high probability of terminating interfacial dangling bonds to create robust Si-F bonds to resist subsequent reliability stress. The XPS spectra of the Hf4f signal for the HfO2/SiON gate stack with and without the CFI process is displayed in Figure 3. Detected binding energy is calibrated by the C1s signal at 284.5 eV. Compared with un-fluorinated dielectrics, the fluorinated gate stack clearly increases the binding energy more than 0.5 eV for both the Hf4f5/2 and Hf4f7/2 signals. The binding energy of the Hf4f5/2 signal increases from 17.64 eV to 18.16 eV, while the binding energy of the Hf4f7/2 signal increases from 16.14 eV to 16.66 eV. Fluorine incorporation into the HfO2/SiON gate stack is further confirmed due to a conspicuous signal at ~685 eV, as shown in the inset, which means that the fluorine has been successfully bonded to the HfO2.

Figure 4a presents the transfer curve and extracted transconductance of nMOSFETs measured with a small drain voltage (VDS = 0.05 V). The maximum transconductance (Gm) of the control and SiN CESL-strained nMOSFET are 115 μS and 248 μS, respectively. Compared to the control device, the SiN CESL-strained nMOSFET obviously improves Gm more than 116%, due to a high uniaxial tensile strain [21]. Moreover, a large amount of hydrogen-based species during the SiN CESL deposition would diffuse into the interface between the gate stack and the Si substrate and then passivate interfacial dangling bonds. Therefore, the SiN CESL-strained device can significantly improve the subthreshold swing (SS) from 108 mV/dec to 97 mV/dec. Further combining the CFI process with the SiN CESL-strained nMOSFET only slightly improves Gm and SS to 254 μS and 96 mV/dec, respectively. The saturation drain current (IDSsat) of the nMOSFETs is compared in Figure 4b. Compared with the control device, the SiN CESL-strained device clearly increases IDSsat more than 36%, while combining the CFI process with the SiN CESL-strained nMOSFET further increases the IDSsat by more than 38%.

Figure 5 plots the gate leakage current characteristics of the nMOSFETs under the positive (inversion) and negative (accumulation) polarity. Compared with the control device, reduced gate leakage current, as well as an increased breakdown voltage has been observed for the SiN CESL-strained device with or without gate stack fluorination. Since gate leakage current and breakdown voltage strongly depend on defect densities, a superior gate insulating property of the nMOSFETs with the SiN CESL and CFI process can be primarily attributed to defect density reduction (e.g., dangling bonds and oxygen vacancies) by hydrogen/nitrogen and fluorine atoms, respectively [19,27]. Although the fluorinated high-k dielectrics widely exhibits superior dielectric characteristics, due to the reduction of the oxygen vacancies and dangling bonds [27,28], further combining of the CFI process negligibly improves the as-fabricated electrical performance of the SiN CESL-strained nMOSFET in this paper, including transconductance, drain current, subthreshold swing, gate leakage current and breakdown voltage. Consequently, stress-induced drain current enhancement has been proven not to be affected by the fluorine incorporation.

Figure 6 exhibits the VTH shift of the nMOSFETs during CHES at a maximum substrate current (Isub). The substrate current during the CHES is also shown in the inset. Obviously, the substrate current of the SiN CESL-strained nMOSFETs with and without the CFI process is much larger than the control device. Although the high tensile stress SiN layer could be used to increase the channel mobility, the substrate current also drastically increases, due to an apparently increased drain current [22], which is demonstrated in Figure 4b. During the SiN layer deposition, a large amount of hydrogen will diffuse into the interface between the gate stack and Si substrate and form weak Si-H bonds, which are easily broken under the subsequent stress and result in a significant VTH shift. Moreover, a stressed gate voltage (VGS) at the maximum Isub for the SiN CESL-strained nMOSFETs is larger than the control device, which also partially contributes to a larger CHES-induced VTH shift. Therefore, the SiN CESL-strained nMOSFET obviously demonstrates a worse VTH shift than the control device.

Further incorporating fluorine into the SiN CESL-strained nMOSFET results in a nearly identical substrate current and stressed gate voltage (VGS), which can infer that the generated hot electron concentration and injection efficiency is also identical for the SiN CESL-strained nMOSFET with and without the CFI process. However, the CHES degradation is not identical. Combining the CFI process with the SiN CESL-strained nMOSFET obviously reduces the VTH shift more than 23% after 1000 s of CHES. The CFI process prior to the gate stack fabrication can be used to easily create robust Si-F bonds near the interface, which have a much higher binding energy than Si-H bonds (the binding energy of the Si-F bond (5.74 eV) is much higher than the Si-H bond (<3.11 eV)) [29]. The nMOSFET with the fluorinated gate stack exhibits a much faster VTH shift saturation, which, in turn, demonstrates a more robust fluorine passivation effect. Moreover, the fluorine-incorporated nMOSFET possesses a higher critical energy to create interface traps during CHES [30]. Accordingly, the SiN CESL-strained MOSFET with a fluorinated HfO2/SiON gate stack using the CFI process is considered beneficial for suppressing the CHES-induced VTH shift.

Figure 7 indicates the charge trapping and detrapping behavior of the nMOSFETs during the CVS, which are stressed (trapped) at 4 V and relaxed (detrapped) at −4 V. The device implemented with either nitrogen (SiN CESL) or fluorine (CFI) incorporation obviously suppresses the VTH shift. Since the CVS-induced VTH shift is mostly related to bulk traps rather than interface traps, a large amount of nitrogen species would diffuse toward the gate stack and then passivate bulk oxygen vacancies and interfacial dangling bonds, which results in less electron trapping charges (Qtrap) and a small VTH shift during the CVS [19]. Moreover, combining the CFI process into the SiN CESL-strained nMOSFET obviously enhances the passivation of the vacancies, due to robust Hf-F bonds formation (6.75 eV), which can further suppress electron trapping and the VTH shift during the CVS [29,31]. As a result, combining the CFI process with the SiN CESL-strained nMOSFET is demonstrated to reduce the VTH shift during both CVS and CHES, while maintaining a high drain current simultaneously.

The detrapping charges (Qdetrap), which are extracted from the VTH shift during the detrapping period, for the SiN CESL-strained nMOSFETs are less than the control device, implying that a larger part of the CVS-induced charges would remain in the gate stack after nitrogen or fluorine incorporation. After the charge detrapping, 35% of the trapped charges (residual charges, Qres) remain in the gate stack of the control device. However, 44% and 51% of the trapped charges will remain in the gate stack of the SiN CESL-strained nMOSFET without and with the CFI process, respectively. Fitting with Frenkel–Poole conduction [32], the effective trapping barrier of the control device is 1.11 eV, while the effective trapping barrier of the SiN CESL-strained nMOSFET without and with the CFI process is 1.2 eV and 1.23 eV, respectively. Schematic diagrams of charge detrapping for the gate stack with a shallow trapping barrier (control device) and a deep trapping barrier (SiN CESL-strained nMOSFET with and without the CFI process) are also plotted in Figure 8. Although either nitrogen or fluorine incorporation could effectively improve the CVS reliability, unfortunately, trapped charges within the nitrided or fluorinated HfO2/SiON gate stack become more difficult to be detrapped, due to a deeper trapping barrier.

3. Experimental

The nMOSFETs were fabricated on 6 in p-type (100) Si wafers with 1–10 Ω-cm resistivity utilizing a conventional self-alignment process. Before 15 nm of sacrificial oxide stripping, fluorinated nMOSFETs were split into CFI at low energy (10 keV) with a 1 × 1012 cm−2 dosage, followed by the cleaning with a hydrofluoric (HF) acid-last process. A relatively low energy and light dosage was used to mainly prevent significant channel damage and to avoid eliminating SiN CESL-induced tensile strain in the channel. Prior to the high-k gate dielectric deposition, a 0.5-nm interfacial SiON was grown by rapid thermal processing in a nitrous oxide (N2O) ambient at 800 °C in order to obtain a SiO2-like interface between the high-k dielectric and the Si substrate. A 3-nm HfO2 gate dielectric was subsequently deposited by the metal organic chemical vapor deposition system at 500 °C, followed by post deposition annealing at 600 °C in a nitrogen (N2) ambient for 30 s to improve the HfO2 film quality. A 200-nm poly-Si gate was then deposited by a low-pressure chemical vapor deposition system using silane (SiH4) gas at 620 °C.

After typical gate electrode patterning using a lithography stepper and subsequent phosphorous implantation at 25 keV, 5 × 1015 cm−2, the dopants were activated at 950 °C for 30 s in N2 ambient. Afterward, a 300 nm SiN CESL with 370 MPa of tensile strain was deposited using a plasma-enhanced chemical vapor deposition system at 300 °C with SiH4 and ammonia (NH3). Finally, contact hole etching and aluminum metallization were performed using a standard CMOS process, followed by 400-°C sintering for 30 min.

The electrical properties and reliability characteristics of nMOSFETs with the HfO2/SiON gate stack were measured using a semiconductor parameter analyzer. The EOT of the gate stack was extracted from high-frequency (1 MHz) capacitance-voltage (C-V) curves at strong inversion without considering the quantum effect using a inductance-capacitance-resistance meter. A nearly identical EOT was obtained from all devices, which indicated that both SiN CESL and CFI processes would not cause further interfacial oxidation. Furthermore, the content and distribution of fluorine atoms were measured by secondary-ion mass spectroscopy (SIMS). The binding energy of the hafnium and fluorine atom was extracted from the X-ray photoelectron spectrometer (XPS).

4. Conclusions

Fluorine incorporation using the CFI process has been used to comprehensively evaluate the electrical performance and device reliability of the SiN CESL uniaxial-strained nMOSFET with the HfO2/SiON gate stack in order to recover the CHES degradation of the CESL-strained device, while maintaining a superior drain current. Basic electrical performance can be drastically improved while introducing the SiN CESL process, due to the induced uniaxial tensile strain within the channel. During the SiN CESL deposition, however, a large amount of hydrogen-based species will diffuse toward the interface and passivate interfacial dangling bonds to form weak Si-H bonds, which is detrimental for CHES. In addition, bulk oxygen vacancies can be terminated by nitrogen atoms during the SiN CESL deposition, which is beneficial for the CVS. An opposite tendency for CVS with respect to CHES for the SiN CESL-strained nMOSFET can be attributed to CVS being mostly related with bulk defects, while CHES is primarily dominated by interfacial defects.

Moreover, the SiN CESL-strained device with a fluorinated HfO2/SiON gate stack integrating the CFI process exhibits a nearly identical basic electrical performance. Bulk oxygen vacancies and interfacial dangling bonds can also be bound to fluorine atoms for the nMOSFET with the CFI process and subsequently create stronger Hf-F and Si-F bonds to resist consequent CVS and CHES. Accordingly, both the CVS and CHES reliability of the SiN CESL-strained nMOSFET is further improved by the CFI process. Unfortunately, the nMOSFET, with either the SiN CESL or CFI process, exhibits a smaller charge detrapping ratio, implying that a larger part of the stress-induced charges would remain in the gate stack after nitrogen or fluorine incorporation. The results clearly indicate both detrapping characteristics, and residual charges should be taken into consideration, while implementing the uniaxial strain or fluorine incorporation process on current or future CMOS devices with high-k gate stacks.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Semiconductor Industry Association (SIA), International Technology Roadmap for Semiconductors; SIA: Washington, DC, USA, 2011.
  2. Chau, R.; Datta, S.; Doczy, M.; Doyle, B.; Kavalieros, J.; Metz, M. High-k/metal-gate stack and its MOSFET characteristics. IEEE Electron. Device Lett 2004, 25, 408–410. [Google Scholar]
  3. Luo, W.; Yuan, T.; Kuo, Y.; Lu, J.; Yan, J.; Kuo, W. Breakdown phenomena of zirconium-doped hafnium oxide high-k stack with an inserted interface layer. Appl. Phys. Lett 2006, 89. [Google Scholar] [CrossRef]
  4. Alarcon-Flores, G.; Aguilar-Frutis, M.; Falcony, C.; Garcia-Hipolito, M.; Araiza-Ibarra, J.J.; Herrera-Suarez, H.J. Low interface states and high dielectric constant Y2O3 films on Si substrates. J. Vac. Sci. Tech. B 2006, 24, 1873–1877. [Google Scholar]
  5. Kerber, A.; Cartier, E.A. Reliability Challenges for CMOS Technology Qualifications With Hafnium Oxide/Titanium Nitride Gate Stacks. IEEE Trans. Device Mater. Rel 2009, 9, 147–162. [Google Scholar]
  6. Duenas, S.; Castan, H.; Garcia, H.; Gómez, A.; Bailón, L.; Kukli, K.; Niinisto, J.; Ritala, M.; Leskela, M. Electrical properties of thin zirconium and hafnium oxide high-k gate dielectrics grown by atomic layer deposition from cyclopentadienyl and ozone precursors. J. Vac. Sci. Tech. B 2009, 27, 389–393. [Google Scholar]
  7. Zhao, Y. Design of higher-k and more stable rare earth oxides as gate dielectrics for advanced CMOS devices. Materials 2012, 5, 1413–1438. [Google Scholar]
  8. Bliznetsov, V.N.; Bera, L.K.; Soo, H.Y.; Balasubramanian, N.; Kumar, R.; Lo, G.Q.; Yoo, W.J.; Tung, C.H.; Linn, L. Plasma etching for sub-45-nm TaN metal gates on high-k dielectrics. IEEE Trans. Semicond. Manuf 2007, 20, 143–149. [Google Scholar]
  9. Wilk, G.D.; Wallace, R.M.; Anthony, J.M. High-k gate dielectrics: Current status and materials properties considerations. J. Appl. Phys 2001, 89, 5243–5275. [Google Scholar]
  10. Gribelyuk, M.A.; Callegari, A.; Gusev, E.P.; Copel, M.; Buchanan, D.A. Interface reactions in ZrO2 based gate dielectric stacks. J. Appl. Phys 2002, 92, 1232–1237. [Google Scholar]
  11. Deora, S.; Bersuker, G.; Loh, W.-Y.; Veksler, D.; Matthews, K.; Kim, T.W.; Lee, R.T.P.; Hill, R.J.W.; Kim, D.-H.; Wang, W.-E.; et al. Positive bias instability and recovery in InGaAs channel n-MOSFETs. IEEE Trans. Device Mater. Reliab 2013, 13, 507–514. [Google Scholar]
  12. Guha, S.; Gusev, E.P.; Okorn-Schmidt, H.; Copel, M.; Ragnarsson, L.A.; Bojarczuk, N.A. High temperature stability of Al2O3 dielectrics on Si: Interfacial metal diffusion and mobility degradation. Appl. Phys. Lett 2002, 81, 2956–2958. [Google Scholar]
  13. Zhu, W.; Han, J.P.; Ma, T.P. Mobility measurement and degradation mechanisms of MOSFETs made with ultrathin high-k dielectrics. IEEE Trans. Electron. Devices 2004, 51, 98–105. [Google Scholar]
  14. Liu, C.W.; Maikap, S.; Yu, C.Y. Mobility-enhancement technologies. IEEE Circuits Devices Mag 2005, 21, 21–36. [Google Scholar]
  15. Donnelly, J.P.; Kelly, D.Q.; Garcia-Gutierrez, D.I.; Jose-Yacaman, M.; Banerjee, S.K. High mobility strained Ge PMOFETs with high-k gate dielectric and metal gate on Si substrate. Electron. Lett 2008, 44, 240–241. [Google Scholar]
  16. Huang, S.H.; Lu, T.M.; Lu, S.C.; Lee, C.H.; Liu, C.W.; Tsui, D.C. Mobility enhancement of strained Si by optimized SiGe/Si/SiGe structures. Appl. Phys. Lett 2012, 101, 042111. [Google Scholar]
  17. Ang, K.W.; Tung, C.H.; Balasubramanian, N.; Samudra, G.S.; Yeo, Y.C. Strained n-Channel Transistors with Silicon Source and Drain Regions and Embedded Silicon/Germanium as Strain-Transfer Structure. IEEE Electron. Device Lett 2007, 28, 609–612. [Google Scholar]
  18. Ang, K.W.; Chui, K.J.; Tung, C.H.; Balasubramanian, N.; Li, M.F.; Samudra, G.S.; Yeo, Y.C. Enhanced Strain Effects in 25-nm Gate-Length Thin-Body nMOSFETs With Silicon–Carbon Source/Drain and Tensile-Stress Liner. IEEE Electron. Device Lett 2007, 28, 301–304. [Google Scholar]
  19. Lee, K.T.; Kang, C.Y.; Park, I.S.; Lee, B.H.; Park, H.K.; Hwang, H.S.; Tseng, H.H.; Jammy, R.; Jeong, Y.H. A study of strain engineering using CESL stressor on reliability comparing effect of intrinsic mechanical stress. IEEE Electron. Device Lett 2009, 30, 760–762. [Google Scholar]
  20. Liao, C.C.; Chiang, T.Y.; Lin, M.C.; Chao, T.S. Benefit of NMOS by compressive SiN as stress memorization technique and its mechanism. IEEE Electron. Device Lett 2010, 31, 281–283. [Google Scholar]
  21. Lu, C.Y.; Lin, C.Y.; Lee, Y.J. Dynamic NBTI characteristics of PMOSFETs with PE-SiN capping. Microelectron. Reliab 2007, 47, 924–929. [Google Scholar]
  22. Lu, C.S.; Lin, H.C.; Huang, J.M.; Lee, Y.J. Impacts of a polycrystalline-silicon buffer layer on the performance and reliability of strained n-channel metal-oxide-semiconductor field-effect transistors with SiN capping. Appl. Phys. Lett 2007, 90. [Google Scholar] [CrossRef]
  23. Chen, Y.T.; Wang, Y.; Xue, F.; Zhou, F.; Lee, J.C. Physical and electrical analysis of post-HfO2 fluorine plasma treatment for the improvement of In0.53Ga0.47As MOSFETs’ performance. IEEE Trans. Electron. Devices 2012, 59, 139–144. [Google Scholar]
  24. Wang, Y.; Chen, Y.T.; Xue, F.; Zhou, F.; Lee, J.C. HfO2 dielectrics engineering using low power SF6 plasma on InP and In0.53Ga0.47As metal-oxide-semiconductor field-effect-transistors. Appl. Phys. Lett 2012, 100. [Google Scholar] [CrossRef]
  25. Lu, W.T.; Chien, C.H.; Lan, W.T.; Lee, T.C.; Lehnen, P.; Huang, T.Y. Improved reliability of HfO2/SiON gate stack by fluorine incorporation. IEEE Electron. Device Lett 2006, 27, 240–242. [Google Scholar]
  26. Chang, M.; Jo, M.; Park, H.; Hwang, H.; Lee, B.H.; Choi, R. Effect of F2 postmetallization annealing on the electrical and reliability characteristics of HfSiO gate dielectric. IEEE Electron. Device Lett 2007, 28, 21–24. [Google Scholar]
  27. Hsieh, C.R.; Chen, Y.Y.; Lou, J.C. Effect of fluorinated silicate glass passivation layer on electrical characteristics and dielectric reliabilities for the HfO2/SiON gate stacked nMOSFET. Microelectron. Eng 2010, 87, 2241–2246. [Google Scholar]
  28. Tseng, H.H.; Tobin, P.J.; Kalpat, S.; Schaeffer, J.K.; Ramon, M.E.; Fonseca, L.R.C.; Jiang, Z.X.; Hegde, R.I.; Triyoso, D.H.; Semavedam, S. Defect passivation with fluorine and interface engineering for Hf-based high-k/metal gate stack device reliability and performance enhancement. IEEE Trans. Electron. Devices 2007, 54, 3267–3275. [Google Scholar]
  29. Lide, D.R. Molecular Structure and Spectroscopy. In CRC Handbook of Chemistry and Physics, 84th ed; CRC Press: Boca Raton, FL, USA, 2003. [Google Scholar]
  30. Kasai, N.; Wright, P.J.; Saraswat, K.C. Hot-carrier-degradation characteristics for fluorine-incorporated nMOSFET’s. IEEE Trans. Electron. Devices 1990, 37, 1426–1431. [Google Scholar]
  31. Hsieh, C.R.; Chen, Y.Y.; Lu, K.W.; Lin, G.; Lou, J.C. Effect of interfacial fluorination on the electrical properties of the inter-poly high-k dielectrics. Microelectron. Eng 2011, 88, 945–949. [Google Scholar]
  32. Kwon, H.M.; Choi, W.H.; Han, I.S.; Na, M.K.; Park, S.U.; Bok, J.D.; Kang, C.Y.; Lee, B.H.; Jammy, R.; Lee, H.D. Carrier Transport mechanism in La-incorporated high-k dielectric/metal gate stack MOSFETs. Microelectron. Eng 2011, 88, 3399–3403. [Google Scholar]

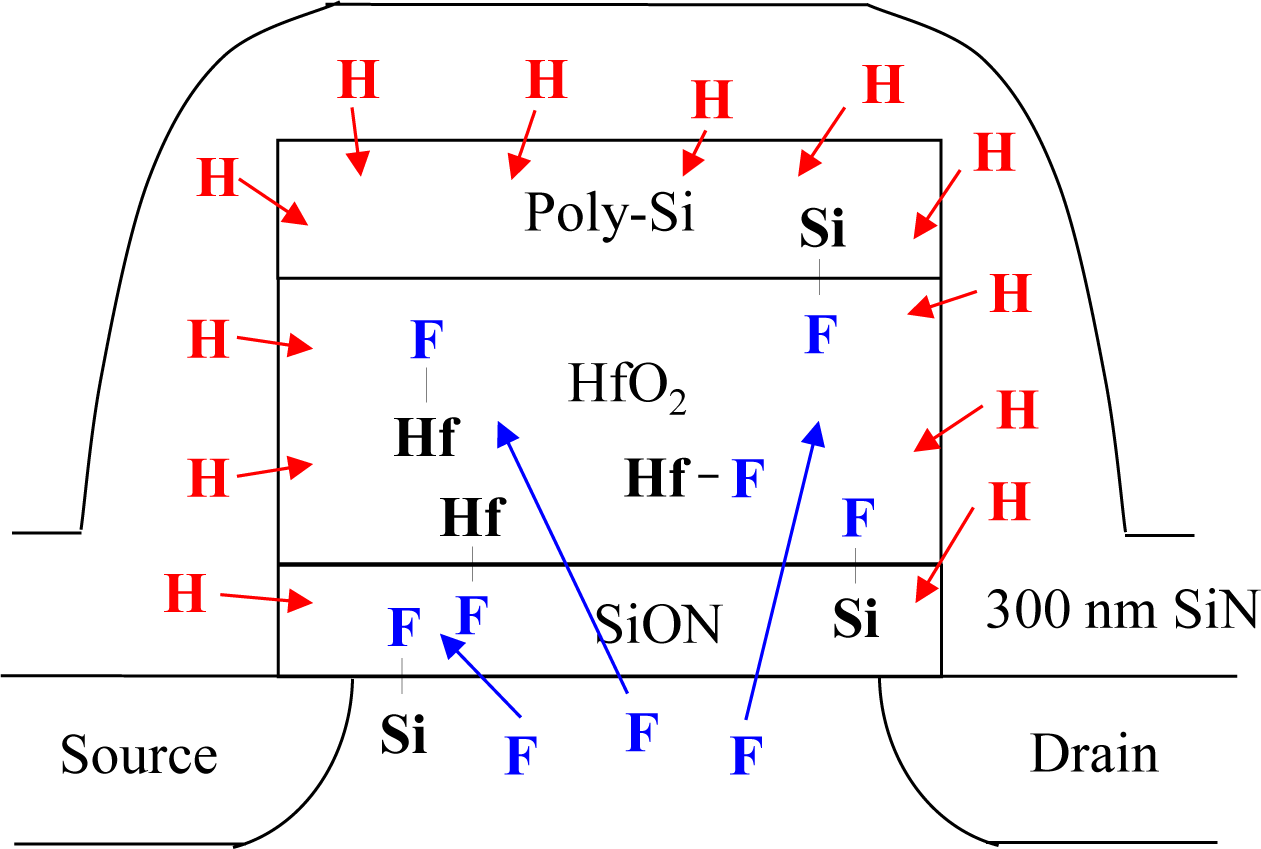

Figure 1. A schematic cross-section of the Si3N4 contact etch stop layer (SiN CESL) uniaxial-strained n-channel metal-oxide-semiconductor field-effect transistor (nMOSFET) with a fluorinated HfO2/SiON gate stack using the channel fluorine implantation (CFI) process.
