Materials 2014, 7(2), 787-804; doi:10.3390/ma7020787

Article
Inhibition of Mild Steel Corrosion in Sulfuric Acid Solution by New Schiff Base
Ahmed A. Al-Amiery 1,2,*, Abdul Amir H. Kadhum 1, Abdulhadi Kadihum 2, Abu Bakar Mohamad 1, Chong K. How 1 and Sutiana Junaedi 1
1
Department of Chemical & Process Engineering, University Kebangsaan Malaysia (UKM), Bangi, Selangor 43000, Malaysia; E-Mails: amir@eng.ukm.my (A.A.H.K.); drab@eng.ukm.my (A.B.M.); howardchong90@gmail.com (C.K.H.); sutianajnd10@gmail.com (S.J.)
2
Applied Science Department, University of Technology (UOT), Baghdad 10001, Iraq; E-Mail: abdulhadikadhim5@gmail.com (A.K.)
*
Author to whom correspondence should be addressed; E-Mail: dr.ahmed1975@gmail.com; Tel.: +60-163-923-439.
Received: 21 October 2013; in revised form: 22 November 2013 / Accepted: 2 January 2014 /
Published: 28 January 2014

Abstract

: The efficiency of Schiff base derived from 4-aminoantipyrine, namely 2-(1,5-dimethyl-4-(2-methylbenzylidene)amino)-2-phenyl-1H-pyrazol-3(2H)-ylidene) hydrazinecarbothioamide as a corrosion inhibitor on mild steel in 1.0 M H2SO4 was investigated using electrochemical impedance spectroscopy (EIS), potentiodynamic polarization (PD) and electrochemical frequently modulation (EFM) in addition to the adsorption isotherm, corrosion kinetic parameters and scanning electron microscopy (SEM). The results showed that this inhibitor behaved as a good corrosion inhibitor, even at low concentration, with a mean efficiency of 93% and, also, a reduction of the inhibition efficiency as the solution temperature increases. A polarization technique and EIS were tested for different concentrations and different temperatures to reveal that this compound is adsorbed on the mild steel, therefore blocking the active sites, and the adsorption follows the Langmuir adsorption isotherm model. The excellent inhibition effectiveness of 2-(1,5-dimethyl-4-(2-methylbenzylidene)amino)-2-phenyl-1H-pyrazol-3(2H)-ylidene)hydrazinecarbothioamide was also verified by scanning electron microscope (SEM).
Keywords:
electrochemical measurements; SEM; corrosion inhibitor

1. Introduction

Inhibitors are chemical compounds added in small quantities in order to reduce the corrosion rate [1]. The presence of such compounds retards the corrosion process and keeps its rate to a minimum and, thus, prevents economic losses due to metallic corrosion. The chemicals that can act as corrosion inhibitors may be inorganic or organic [2]. Inhibitors slow corrosion processes [3] by:

  • Reducing the anodic and cathodic reaction speed;

  • Reducing the movement or diffusion of ions to and from the metallic surface;

  • Increasing the electrical resistance of the metal surface.

Organic corrosion inhibitors are an attractive field of research, due to their usefulness in various industries. The efficiency of an inhibitor depends on the stability of the formed chelate, and the inhibitor molecule should have centers that are capable of forming bonds with the metal surface via an electron transfer [4]. Most organic inhibitors adsorb on the metal surface by displacing water molecules on the surface and forming a compact barrier. The availability of non-bonded (lone pair) and p-electrons in inhibitor molecules facilitate the electron transfer from the inhibitor to the metal [5]. The efficiency of the inhibitor depends on the stability of the chelate formed [6], so it mainly depends on the type and the nature of the substituents present in the inhibitor molecule [7]. The choice of the inhibitors is based on two considerations: first, they could be synthesized conventionally from relatively cheap (our inhibitor synthesis from thiosemicarbazide) raw materials; second, they contain the electron clouds or the electronegative atoms [8,9]. A coordinate covalent bond involving the transfer of electrons from the inhibitor to the metal surface may be formed [10]. The strength of the chemisorption bond depends upon the electron density on the donor atom of the functional group and also the polarizability of the group. When an H atom attached to the C in the ring (heterocyclic ring) is replaced by a substituent group (–NH2, –NO, –CHO or –COOH), it improves the inhibition [11]. The electron density of the metal at the point of attachment changes, resulting in the retardation of cathodic or anodic reactions. Electrons are consumed at the cathode and are furnished at the anode [12]. Generally, a strong coordination bond causes higher inhibition efficiency, the inhibition increasing in the sequence O < N < S < P [13]. Organic inhibitors generally have heteroatoms. O, N and S are found to have higher basicity and electron density and, thus, act as corrosion inhibitors. O, N and S are the active centers for the process of adsorption on the metal surface [14]. The inhibitor molecule should have centers capable of forming bonds with the metal surface of the electron transfer, in which the metal acts as an electrophile and the inhibitor acts as a Lewis base, whose nucleophilic centers are O and/or N atoms with free electron pairs, which are readily available for sharing. Schiff base compounds are a condensation product of an amine and a ketone/aldehyde. Schiff base inhibitors have been reported as effective corrosion inhibitors for steel, copper and aluminum [1517]. However, the presence of a hydrophilic functional group in the molecule would increase the solubility of the inhibitors [18]. The effectiveness of an organic substance as an inhibitor depends on the structure of the inhibitor [19]. The aim of the present investigation is to examine the inhibitory action of Schiff base derived from 4-aminoantipyrine and thiosemicarbazide for the corrosion of mild steel in 1.0 M H2SO4 solution. The effects of concentrations, temperatures and molecular structures on the inhibition efficiencies of the Schiff base have been studied systematically.

2. Results and Discussion

2.1. Electrochemical Impedance Spectroscopy (EIS)

The corrosion of mild steel in 1.0 M H2SO4 solution in the presence of corrosion inhibitors was studied at temperatures of 30 °C, 40 °C, 50 °C and 60 °C. Figure 1 illustrates the Nyquist plots for mild steel in 1.0 M H2SO4 with different concentrations of the corrosion inhibitor at 30 °C, while Figure 2 represents the Nyquist plots for mild steel in 1.0 M H2SO4 containing 0.25 mM of the corrosion inhibitor at different temperatures.

Based on Figure 1, the increase in resistance can be detected significantly with increasing concentrations of the corrosion inhibitor. Each concentration of the corrosion inhibitor has a distinctive semicircular graph. A semicircle diameter can be associated with the rate of corrosion inhibition. The semicircle diameter increases with the increase in the concentration of the corrosion inhibitor, which means that the corrosion rate decreases. In other words, the rate of corrosion inhibition is increasing. Based on Figure 2, the diameter of the semicircle becomes smaller as the temperature is increased to 30 °C and to 60 °C. The higher the temperature of the solution, the smaller the diameter of the semicircle. This result means that the rate of corrosion inhibition is decreasing with the solution temperature increasing. The semicircle in Figures 1 and 2 is less perfect when the corrosion inhibitor concentration increases (in the solution), due to roughness and other imperfections on the surface of the mild steel samples and the phenomenon known as the “dispersing effect” [20]. Gamry Echem Analyst software can analyze the data of electrochemical impedance spectroscopy (EIS) experiments, such as the CPE matching, calculating the solution resistance, Rs, the constant phase element, CPE, the charge transfer of resistance, Rct, and the double-layer charge, Cdl. Table 1 shows the CPE matching data for mild steel in 1.0 M H2SO4 with different concentrations of the corrosion inhibitor at 30 °C, whereas Table 2 shows the CPE matching data for mild steel in 1.0 M H2SO4 having 0.25 mM of the corrosion inhibitor at different temperatures. Based on Table 1, the Rct value increases with the increasing concentration of the corrosion inhibitor. This means that the corrosion inhibitor molecules were adsorbed on the surface of mild steel samples and form a film that protects the mild steel samples. Therefore, the inhibition efficiency (IE) increases with the increasing concentration of the corrosion inhibitor. Based on Table 2, an increase in temperature from 30 °C to 60 °C has caused the Rct and IE to decrease. The corrosion inhibitor molecules adsorbed on a metal surface will experience desorption if the solution temperature is increasing.

Once the results of the electrochemical impedance spectroscopy (EIS) were measured, the matching of the circuit was performed using the equivalent circuit model. A CPE circuit was selected as an equivalent model to do the matching. In Scheme 1, Rs is the solution resistance, Rct is the charge transfer resistance and CPE is the constant phase element.

2.2. Potentiodynamic Polarization

The electrochemical kinetic parameters obtained from Tafel line extrapolation, such as corrosion current density (icorr), corrosion potential (Ecorr), corrosion rate and anodic and cathodic Tafel slope (βa and βc), are shown in Table 3. Inhibition efficiency (IE) is calculated by the following formula:

I E ( % ) = i c o r r 0 i c o r r i c o r r 0 × 100

where icorr0 and icorr are the corrosion current density values without and with the corrosion inhibitor, respectively.

Based on Figure 3, the transition of values of Ecorr to more negative values were detected in different corrosion inhibitor concentrations. In addition, the cathodic and anodic current density also decreased with the increasing concentrations of the corrosion inhibitor. This point can be explained by the adsorption of corrosion inhibitor molecules on the sample surface, forming a protective mild steel surface. Based on Table 3, it was found that the anodic Tafel slope (βa) and the cathodic Tafel slope (βc) had changed with the addition of the corrosion inhibitors. This shows that the corrosion inhibitor influences the anodic and cathodic reactions. As shown in Table 3, the corrosion current density (icorr) became lower and the inhibition efficiency (IE) increased with increasing concentrations of the corrosion inhibitor. The corrosion inhibitor is effective in protecting mild steel in a H2SO4 solution.

Based on Figure 4 and Table 4, it was found that the anodic Tafel slope (βa) and cathodic Tafel slope (βc) increased with the increasing of the temperature of the H2SO4 solution with 0.25 mM of the corrosion inhibitor. Corrosion current density (icorr) was higher, and the inhibition efficiency (IE) also decreased. Increasing temperatures of the H2SO4 solution with the corrosion inhibitors has resulted in corrosion inhibitor molecule desorption from the surface of the metal and caused corrosion of the metal occurring at a faster rate.

2.3. Adsorption Isotherm

Adsorption isotherms can provide basic information about the interaction between the inhibitor and mild steel surface [21]. The corrosion inhibition of organic inhibitors on mild steel in sulfuric acid can be explained via the molecular adsorption method. The adsorption process is influenced by the structure of the organic compounds, the charge distribution in the molecules, the nature of the surface-charged metals and the types of media used [22]. The phenomenon of interaction between the metal surface and the inhibitor can be better understood in terms of the adsorption isotherm. The plots of c i n h θ (Figure 5) against Cinh yield a straight line with an approximately unit-slope, indicating that the inhibitor under study obeys the Langmuir adsorption isotherm [23], as in the equation below.

C i n h θ = 1 K a d s + C i n h

where Cinh is the concentration of the inhibitor and Kads is the adsorption constant obtained from the intercept of the straight line. Kads is associated with the standard free energy of adsorption, (ΔG0ads), where ΔG0ads is given as below:

Δ G a d s 0 = RT ln ( 55.5 K a d s )

where the value of 55.5 represents the molar concentration of water in solution expressed in units of M, R is the universal gas constant and T is the absolute temperature [24,25].

From Figure 5, the value of kads and ΔG0ads was calculated. The value of kads is 12,048.19 mol−1 dm3, while the value of ΔG0ads is −33.81 kJ mol−1. The negative value of ΔG0ads indicates the spontaneous adsorption of the corrosion inhibitor on the mild steel surface and the strong interaction between the inhibitor molecules and the surface of the mild steel corrosion. Generally, a value of ΔG0ads around −20 kJ/mol is consistent with physical adsorption, while a value of ΔG0ads around −40 kJ/mol or higher is chemical adsorption occurring with the sharing or transfer of electrons from organic molecules to the surface of the mild steel. The calculated value of ΔG0ads is around −40 kJ/mol and explains the adsorption mechanism of the corrosion inhibitor through chemical adsorption [26].

Corrosion Kinetic Parameters

The activation energy (Ea) in the corrosion process is calculated based on the results of experimental measurements of potentiodynamic polarization. The correlation between the corrosion current density on corrosion temperature can be expressed by the Arrhenius equation. The Arrhenius equation is represented by the following equation [26]:

i c o r r = A exp ( E a R T )

where icorr is the corrosion current density in the A·cm−2, A is the electrochemical constant, Ea is the activation energy in J·mol−1, R is the gas constant worth 8314 J·mol−1·K−1 and T is the temperature in units of K. The Arrhenius equation can be converted into logarithmic form and become the following equation:

ln i c o r r = ( E a R ) ( 1 T ) + ln A

The Arrhenius plot represented by the graph of lnicorr against 1000/T is plotted based on the results of potentiodynamic polarization measurement. As shown in Figure 6, Ea can be calculated by using the slope of the graph and is shown in Table 5.

The following equation shows the Arrhenius equation transition state. The activation enthalpy and entropy of activation, ΔHa and ΔSa, are calculated by the Arrhenius equation [4]:

i c o r r = R T N h exp ( Δ S a R ) exp ( Δ H a R T )

where N is Avogadro’s number valued 6.02 × 1023 mol−1, and h is the Plank constant, 6.63 × 10−34 m2·kg·s−1. The Arrhenius equation of state will transition into the following equation by using the algorithm:

ln ( i c o r r T ) = ( Δ H a R ) ( 1 T ) + [ ln ( R N h ) + Δ S a R ]

The plots of ln(icorr/T) versus 1000/T are shown in Figure 7. The graph is a straight line graph. The value of the enthalpy of activation, ΔHa, is calculated from the slope of the graph (−ΔHa/R), while the entropy of activation, ΔSa, is calculated from the intersection with the y-axis [ln(R/Nh) + (ΔSa/R)]. The values are shown in Table 5.

As shown in Table 5, the value of Ea for mild steel in 1.0 M H2SO4 without any corrosion inhibitor is 149.00 kJ·mol−1, while for mild steel in 1.0 M H2SO4 with 0.25 mM of the corrosion inhibitor it is 183.44 kJ·mol−1. The increase in the value of the activation energy, Ea, in the presence of corrosion inhibitors suggested the adsorption of the corrosion inhibitor on the surface of mild steel as 0.25 mM of the corrosion inhibitor is added in 1.0 M H2SO4. When the temperature increases, a reduction of the inhibitor adsorption on metal surfaces occurs. At higher temperatures, corrosion inhibitor molecule desorption occurs and causes mild steel surfaces to be exposed to corrosion. The values of Ea also suggest that the inhibition process is a controlled surface reaction, because the values of Ea for both situations, with and without the presence of a corrosion inhibitor, exceed 20 kJ·mol−1 [27].

The value of the enthalpy of activation, ΔHa, for mild steel in 0.25 mM of the corrosion inhibitor is higher than that without the corrosion inhibitor. This can be explained by the presence of the energy barrier for the reaction, which is the corrosion inhibitor adsorption process that led to the higher value of ΔHa [28].

The value of the entropy of activation, ΔSa, increased when 0.25 mM of the corrosion inhibitor was added in 1.0 M H2SO4. The mild steel surface is covered by corrosion inhibitor molecules. This will slow down the release of hydrogen ions on the metal surface, causing the system to move from a more organized into a more random order and, thus, increasing the entropy of activation [29].

2.4. Electrochemical Frequency Modulation (EFM)

The experimental results of electrochemical frequency modulation (EFM) are the spectrum of current response as a function of frequency. This spectrum is known as the intermodulation spectrum. The spectrum containing the current response is used to determine the peak harmony current and peak intermodulation current. A larger peak was used to calculate the current density (icorr), Tafel slope (β1 and β2) and causality factor (CF-2 and CF-3). The electrochemical parameters were determined by Gamry Echem Analyst software [28]. Table 6 shows the EFM electrochemical parameters for mild steel in 1.0 M H2SO4 at 30 °C with different concentrations of the corrosion inhibitor, while Table 7 shows the EFM electrochemical parameters for mild steel in 1.0 M H2SO4 with 0.25 mM of the corrosion inhibitor at different temperatures.

Based on Table 6, the corrosion current density, icorr, decreased by increasing the concentration of the corrosion inhibitor. The inhibition efficiency (IE) is calculated by the following formula [29]:

I E E F M ( % ) = i c o r r 0 i c o r r i c o r r 0 × 100

where icorr0 and icorr are the corrosion current density values without and with the corrosion inhibitor, respectively.

The parameters in Tables 6 and 7 show that the data collected does not have a good quality if compared to the standard value of 2.0 for CF-2 and 3.0 for CF-3 [30]. If the CFs differ significantly from the theoretical value, it can be concluded that the measurements are affected by noise. When the difference in CF-2 and CF-3 is in the range of 0.2 and 0.3, the EFM data is accurate. The difference in the theoretical value of the CF may be caused by an amplitude perturbation that is too small or a spectral frequency resolution that is not high enough [26]. Values of icorr were converted to a corrosion rate with units of milli-inch per year (mpy). The corrosion rate as shown in Table 6 is low, with the increasing of the corrosion inhibitor concentration. The efficiency of the inhibition increased when the concentration of the corrosion inhibitor changed from 0.00 mM to 0.25 mM.

Based on Table 7, the data also had a poor quality when compared with the standard value of 2.0 for CF-2 and 3.0 for CF-3. The value of icorr increased with the increasing temperature of the H2SO4 solutions with 0.25 mM of the corrosion inhibitors. The corrosion rate became higher with increasing solution temperature. The inhibition efficiency became lower when the solution temperature increased from 30 °C to 60 °C.

2.5. The Mechanism of Inhibition

Generally, organic inhibitors are adsorbed on the metal surface and prevent further dissolution of metal by blocking either the cathodic or anodic reaction or both. Organic inhibitors, capable of forming insoluble complexes, or chelates, with metallic ions present on the surface of metal [31]. The inhibition efficiency of our corrosion inhibitor against the corrosion of steel in 1.0 M H2SO4 can be explained on the basis of the number of adsorption sites, their charge density, molecular size, mode of interaction with the metal surface and the ability to form a metallic complex. The π electrons and free electrons on the S and N atoms form bonds with the metal surface; see Scheme 2.

2.6. Scanning Electron Microscope

A scanning electron microscope test was conducted at the UKM Electron Microscopy Unit. Based on Figure 8, as expected, serious corrosion of mild steel occurred where the mild steel surface, which was originally clean and smooth, became rough. The mild steel surface was significantly attacked by H2SO4. Based on Figure 9, the mild steel surface did not suffer serious corrosion. The corrosion inhibitor provided protection to the mild steel from the corrosion attack caused by H2SO4.

3. Experimental Section

All of the chemicals used in the present study were reagent grade (supplied Sigma-Aldrich, Kuala Lumpur, Malaysia) and were used as supplied without further purification. The FTIR spectra were measured using a Thermo Scientific Model Nicolate 6700 Spectrophotometer. NMR spectra were recorded on a model AVANCE III 600 MHz spectrometer.

3.1. Synthesis of Corrosion Inhibitor

The corrosion inhibitor was synthesized according to [32], and the structure was confirmed with elemental analyses and spectral analyses (IR, 1H-NMR).

3.2. Corrosion

Mild steel specimens obtained from the Metal Samples Company were used as the working electrodes throughout this study. The composition (wt%) of the mild steel was as follows: Fe, 99.21; C, 0.21; Si, 0.38; P, 0.09; S, 0.05; Mn, 0.05; and Al, 0.01; and it had an active surface area of 4.5 cm2. The specimens were cleaned according to the ASTM standard procedure, G1-03 [33]. The measurements were conducted in aerated, non-stirred 1.0 M sulfuric acid solutions at 30, 40, 50 and 60 °C at the following 2-(1,5-dimethyl-4-(2-methylbenzylidene)amino)-2-phenyl-1H-pyrazol-3(2H)-ylidene)hydrazinecarbothioamide corrosion inhibitor concentrations: 0 mM, 0.05 mM, 0.10 mM, 0.15 mM, 0.2 mM and 0.25 mM. The acid concentrations were selected based on the conditions commonly encountered during the pickling process in industrial facilities. The solutions were freshly prepared using distilled water. Each measurement was repeated three times, and only the average values were reported to verify the reproducibility of the experiments. The cell contained three electrodes, working, counter and reference, which consisted of mild steel, a graphite bar and a saturated calomel electrode (SCE), respectively. The potentiodynamic current-potential curves were swept from −0.2 to 0.2 VSCE at a scan rate of 0.5 mV·s−1. The measurements were performed using the Gamry Instrument Potentiostat/Galvanostat/ZRA (REF 600) model. The DC105 and EIS300 software packages developed by Gamry were used to perform the potentiodynamic scan and the electrochemical impedance spectroscopy (EIS) measurements, respectively. The collection of the electrochemical measurements began approximately 30 min after the working electrode was immersed in the solution to allow for the stabilization of the steady-state potential.

3.3. Metallographic Examination

Scanning electron microscopy (SEM, TM1000 Hitachi Tabletop Microscope at 2000× magnification, was used to examine the mild steel samples that had been immersed in H2SO4, both with and without the corrosion inhibitor, for 3 h.

4. Conclusions

In this study, a 4-aminoantipyrine derivative, was synthesized and characterized using various spectroscopic methods. Changes in the electrochemical impedance spectroscopy (EIS), and potentiodynamic polarization were used to study the corrosion inhibition of mild steel in 1.0 M H2SO4 solutions at 30, 40, 50 and 60 °C, using 2-(1,5-dimethyl-4-(2-methylbenzylidene)amino)-2-phenyl-1H-pyrazol-3(2H)-ylidene)hydrazinecarbothioamide as an inhibitor. This compound exhibited excellent inhibition performance as a mixed-type inhibitor. In general, the acidic corrosion of mild steel was reduced by the addition of an appropriate concentration. The inhibition efficiencies increased with inhibitor concentration, but were reduced proportionally with temperature. The inhibition efficiencies obtained from the EIS data were comparable with those obtained from the polarization measurements in which the inhibitory solution had higher values than those of the non-inhibitory solution. The inhibitor act as an efficient corrosion inhibitor on a mild steel surface obeys the Langmuir adsorption isotherm. The SEM micrographs demonstrated that the inhibitor molecules form a protective film on the steel surface.0 M sulfuric acid and exhibits a maximum inhibition efficiency of 93%.

The authors gratefully acknowledge the Universiti Kebangsaan Malaysia under grant DIP-2012-02.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. López, D.A.; Simison, S.N.; de Sanchez, S.R. Inhibitors performance in CO2 corrosion EIS studies on the interaction between their molecular structure and steel microstructure. Corros. Sci 2005, 47, 735–755. [Google Scholar]
  2. El-Etre, A.Y. Inhibition of acid corrosion of carbon steel using aqueous extract of olive leaves. J. Colloid Interface Sci 2007, 314, 578–583. [Google Scholar]
  3. Emregu, K.C.; Orhan Atakol, E.D. The application of some polydentate Schiff base compounds containing aminic nitrogens as corrosion inhibitors for mild steel in acidic media. Corros. Sci 2006, 48, 3243–3260. [Google Scholar]
  4. Aytac, A.U.; Ozmen, M.; Kabasakalŏaglu, M. Investigation of some Schiff bases as acidic corrosion of alloy AA3102. Mater. Chem. Phys 2005, 89, 176–181. [Google Scholar]
  5. Amitha, R.B.E.; Bharathi, B.J.B. Green inhibitors for corrosion protection of metals and alloys: An overview. Int. J. Corros 2012. [Google Scholar]
  6. Scendo, M. The influence of adenine on corrosion of copper in chloride solutions. Corros. Sci 2008, 50, 2070–2077. [Google Scholar]
  7. Li, S.L.; Wang, Y.G.; Chen, S.H.; Yu, R.; Lei, S.B.; Ma, H.Y.; Liu, D.X. Some aspects of quantum chemical, calculations for the study of Schiff base corrosion inhibitors on copper in NaCl. Corros. Sci 1999, 41, 1769–1782. [Google Scholar]
  8. Sorkhabi, H.A.; Shaabani, B.; Seifzadah, D. Corrosion inhibition of mild steel by some Schiff base compounds in hydrochloric acid. Appl. Surf. Sci 2005, 239, 154–164. [Google Scholar]
  9. Hosseini, M.G.; Ehteshamzadeh, M.; Shahrabi, T. Protection of mild steel corrosionwith Schiffbasesin 0.5 M H2SO4 solution. Electrochim. Acta 2007, 52, 3680–3685. [Google Scholar]
  10. Khaled, K.F.; Babic-Samard, K.; Hackerman, N. Theoretical study of the structural effects of polymethylene amines on corrosion inhibition of iron in acid solutions. Electrochim. Acta 2007, 50, 2515–2520. [Google Scholar]
  11. Ali, S.A.; Saeed, M.T.; Rahman, S.U. The isoxazolidines: A new class of corrosion inhibitors of mild steel in acidic medium. Corros. Sci 2003, 45, 253–266. [Google Scholar]
  12. Kartsonakis, I.A.; Balaskas, A.C.; Koumoulos, E.P.; Charitidis, C.A.; Kordas, G. Evaluation of corrosion resistance of magnesium alloy ZK10 coated with hybrid organic–inorganic film including containers. Corros. Sci 2012, 65, 481–493. [Google Scholar]
  13. Khadom, A.A.; Musa, A.Y.; Kadhum, A.A.H.; Mohamad, A.B.; Takriff, M.S. Adsorption kinetics of 4-amino-5-phenyl-4H-1,2,4-triazole-3-thiol on mild steel surface. Port. Electrochim. Acta 2010, 28. [Google Scholar] [CrossRef]
  14. Fouda, A.S.; Al-Sarawy, A.A.; El-Katori, E.E. Pyrazolone derivatives as corrosion inhibitors for C-steel HCl solution. Desalination 2006, 201, 1–13. [Google Scholar]
  15. Bilgic, S.; Caliskan, N. An investigation of some Schiff bases as corrosion inhibitors for austenitic chromium–nickel steel in H2SO4. J. Appl. Electrochem 2001, 31, 79–83. [Google Scholar]
  16. Shokry, H.; Yuasa, M.; Sekine, I.; Issa, R.M.; El-baradie, H.Y.; Gomma, G.K. Corrosion inhibition of mildsteel by Schiffbase compounds in various aqueous solutions: Part 1. Corros. Sci 1998, 40(98), 00102–4. [Google Scholar] [CrossRef]
  17. Emrgul, K.C.; Atakol, O. Corrosion inhibition of iron in 1.0 M HCl solution with Schiff base compounds and derivatives. Mater. Chem. Phys 2004, 83, 373–379. [Google Scholar]
  18. Evans, U.R. The Corrosion and Oxidation of Metals; Hodder Arnold: London, UK, 1976. [Google Scholar]
  19. Asan, A.; Kabasakaloǧlu, M.; Işiklan, M.; Kiliç, Z. Corrosion inhibition of brass in presence of terdentate ligands in chloride solution. Corros. Sci 2005, 47, 1534–1544. [Google Scholar]
  20. Tang, Y.-M.; Yang, W.-Z.; Yin, X.-S.; Liu, Y.; Wan, R.; Wang, J.-T. Phenyl-substituted amino thiadiazoles as corrosion inhibitors for copper in 0.5 M H2SO4. Mater. Chem. Phys 2009, 116, 479–483. [Google Scholar]
  21. Khamis, A.; Saleh, M.M.; Awad, M.I. The counter ion influence of cationic surfactant and role of chloride ion synergism on corrosion inhibition of mild steel in acidic media. Int. J. Electrochem. Sci 2012, 7, 10487–10500. [Google Scholar]
  22. Vracar, L.M.; Drazic, D.M. Adsorption and corrosion inhibitive properties of some organic molecules on iron electrode in sulfuric acid. Corros. Sci 2002, 44, 1669–1680. [Google Scholar]
  23. Zhao, T.P.; Mu, G.N. The adsorption and corrosion inhibition of anion surfactants on aluminium surface in hydrochloric acid. Corros. Sci 1999, 41, 1937–1944. [Google Scholar]
  24. Badawy, W.A.; Ismail, K.M.; Fathi, A.M. Corrosion control of Cu-Ni alloys in neutral chloride solutions by amino acids. Electrochim. Acta 2006, 51, 4182–4189. [Google Scholar]
  25. Migahed, M.A.; Mohammed, H.M.; Al-Sabagh, A.M. Corrosion inhibition of H-11 type carbon steel in 1 M hydrochloric acid solution by N-propyl amino lauryl amide and its ethoxylated derivatives. Mater. Chem. Phys 2003, 80, 169–175. [Google Scholar]
  26. Musa, A.Y.; Kadhum, A.A.H.; Mohamad, A.B.; Takriff, M.S. Molecular dynamics and quantum chemical calculation studies on 4,4-dimethyl-3-thiosemicarbazide as corrosion inhibitor in 2.5 M H2SO4. Mater. Chem. Phys 2011, 129, 660–665. [Google Scholar]
  27. Herrag, L.; Hammouti, B.; Elkadiri, S.; Aouniti, A.; Jama, C.; Vezin, H.; Bentiss, F. Adsorption properties and inhibition of mild steel corrosion in hydrochloric solution by some newly synthesized diamine derivatives: Experimental and theoretical investigations. Corros. Sci 2010, 52, 3042–3051. [Google Scholar]
  28. Singh, A.K.; Shukla, S.K.; Quraishi, M.A.; Ebenso, E.E. Investigation of adsorption characteristics of N,N′-[(methylimino)dimethylidyne]di-2,4-xylidine as corrosion inhibitor at mild steel/sulphuric acid interface. J. Taiwan Inst. Chem. Eng 2012, 43, 463–472. [Google Scholar]
  29. Khaled, K.F.; Amin, M.A. Corrosion monitoring of mild steel in sulphuric acid solutions in presence of some thiazole derivatives—Molecular dynamics, chemical and electrochemical studies. Corros. Sci 2009, 51, 1964–1975. [Google Scholar]
  30. Abdel-Rehim, S.S.; Khaled, K.F.; Abd-Elshafi, N.S. Electrochemical frequency modulation as a new technique for monitoring corrosion inhibition of iron in acid media by new thiourea derivative. Electrochim. Acta 2006, 51, 3269–3277. [Google Scholar]
  31. Mistry, B.M.; Patyl, N.S.; Sahoo, S.; Junhari, S. Experimental and quantum chemical studies on corrosion inhibition performance of quinoline derivatives for MS in 1N HCl. Bull. Mater. Sci 2012, 35, 459–469. [Google Scholar]
  32. Al-Amiery, A.A.; Kadhum, A.A.H.; Mohamad, A.B.; Junaedi, S. A novel hydrazinecarbothioamide as a potential corrosion inhibitor for mild steel in HCl. Materials 2013, 6, 1420–1431. [Google Scholar]
  33. Junaedi, S.; Al-Amiery, A.A.; Kadihum, A.; Kadhum, A.A.H.; Mohamad, A.B. Inhibition effects of a synthesized novel 4-aminoantipyrine derivative on the corrosion of mild steel in hydrochloric acid solution together with quantum chemical studies. Int. J. Mol. Sci 2013, 14, 11915–11928. [Google Scholar]
Materials 07 00787f1 1024

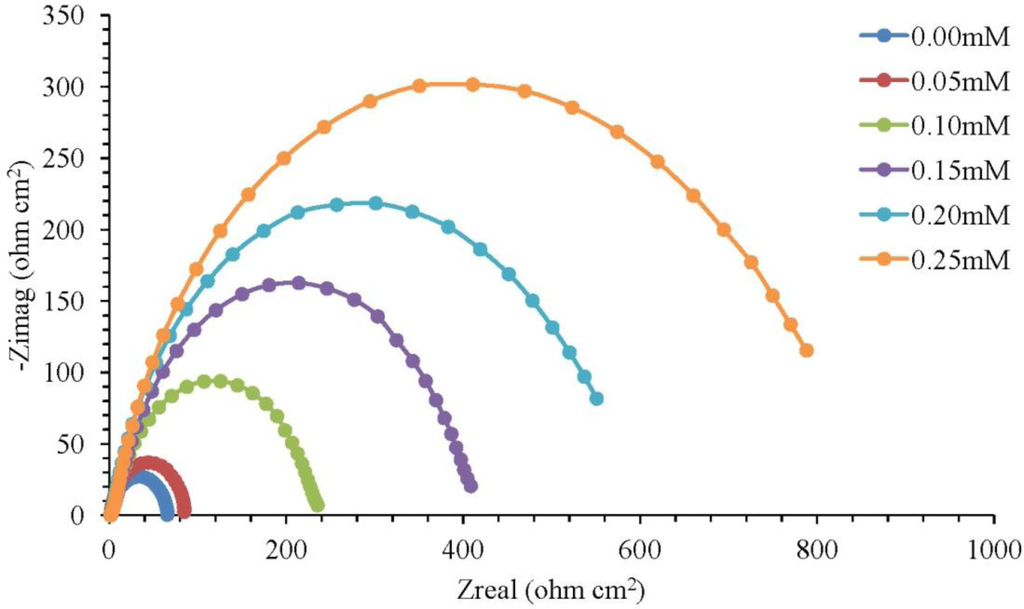

Figure 1. Nyquist plot for mild steel in 1.0 M H2SO4 with different concentrations of the corrosion inhibitor at 30 °C.

Click here to enlarge figure

Figure 1. Nyquist plot for mild steel in 1.0 M H2SO4 with different concentrations of the corrosion inhibitor at 30 °C.
Materials 07 00787f1 1024
Materials 07 00787f2 1024

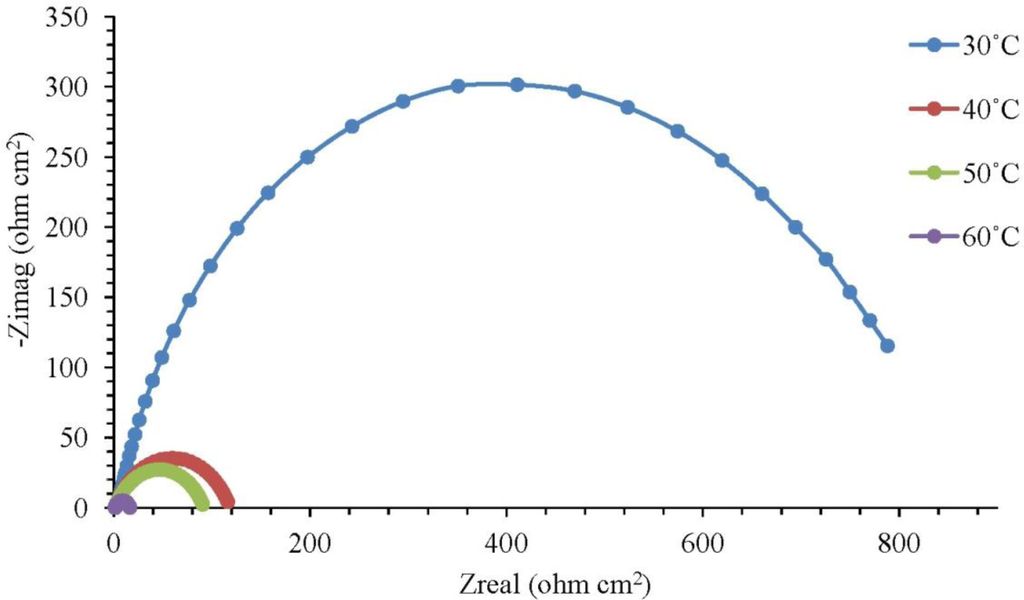

Figure 2. Nyquist plot for mild steel in 1.0 M H2SO4 with 0.25 mM of the corrosion inhibitor at different temperatures.

Click here to enlarge figure

Figure 2. Nyquist plot for mild steel in 1.0 M H2SO4 with 0.25 mM of the corrosion inhibitor at different temperatures.
Materials 07 00787f2 1024
Materials 07 00787f3 1024

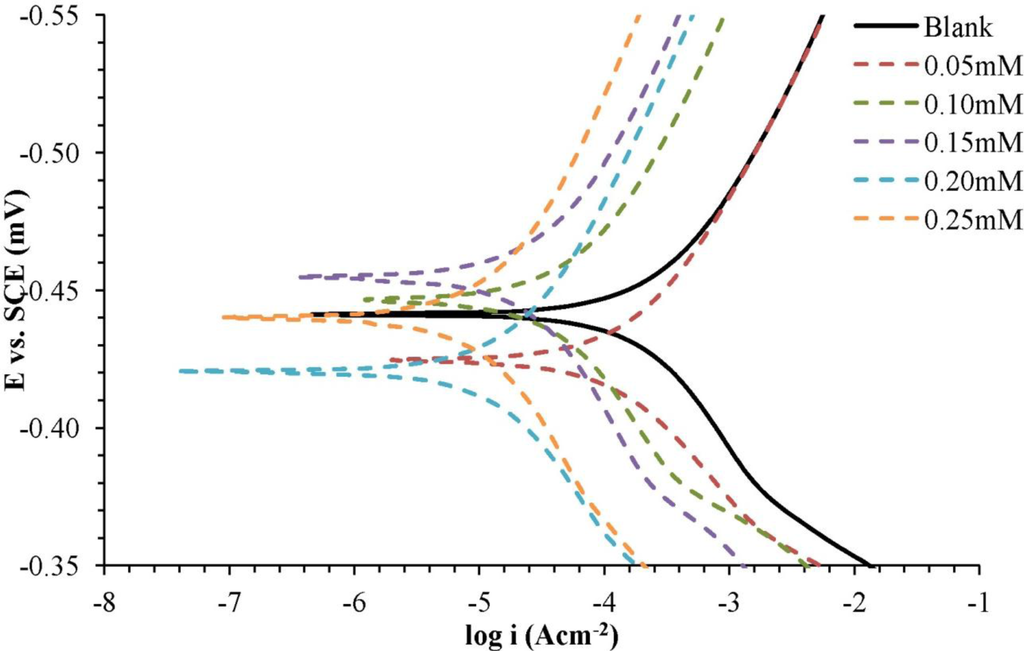

Figure 3. Potentiodynamic polarization curve for mild steel in 1.0 M H2SO4 with different concentrations of the corrosion inhibitor at 30 °C. SCE, saturated calomel electrode.

Click here to enlarge figure

Figure 3. Potentiodynamic polarization curve for mild steel in 1.0 M H2SO4 with different concentrations of the corrosion inhibitor at 30 °C. SCE, saturated calomel electrode.
Materials 07 00787f3 1024
Materials 07 00787f4 1024

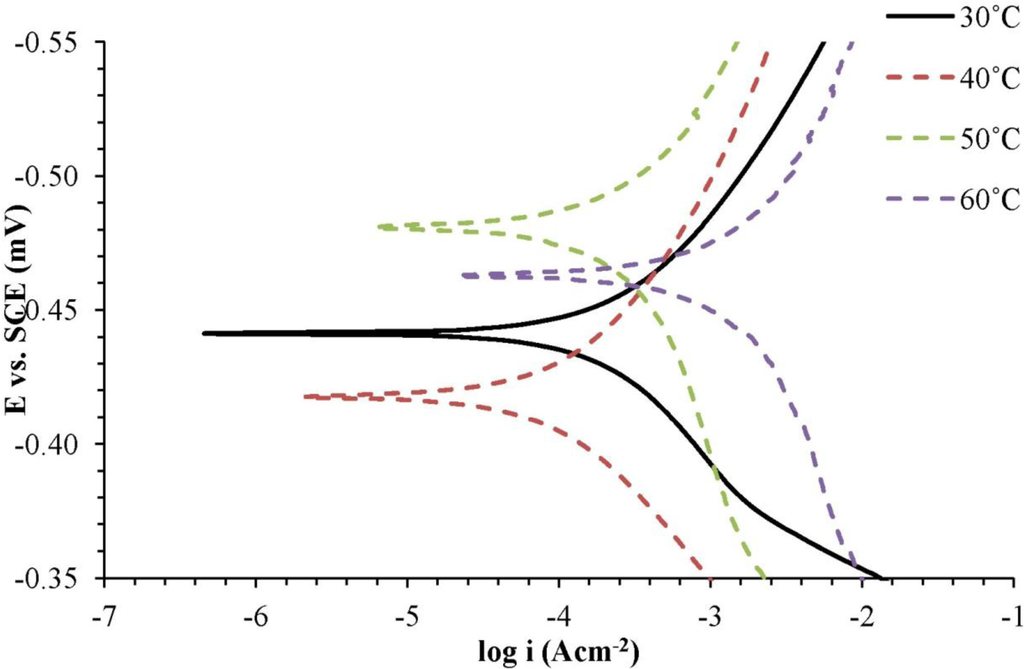

Figure 4. Potentiodynamic polarization curve for mild steel in 1.0 M H2SO4 with 0.25 mM of the corrosion inhibitor at different temperatures.

Click here to enlarge figure

Figure 4. Potentiodynamic polarization curve for mild steel in 1.0 M H2SO4 with 0.25 mM of the corrosion inhibitor at different temperatures.
Materials 07 00787f4 1024
Materials 07 00787f5 1024
Figure 5. Adsorption isotherm for mild steel in 1.0 M H2SO4 with different concentrations of the corrosion inhibitor.

Click here to enlarge figure

Figure 5. Adsorption isotherm for mild steel in 1.0 M H2SO4 with different concentrations of the corrosion inhibitor.
Materials 07 00787f5 1024
Materials 07 00787f6 1024

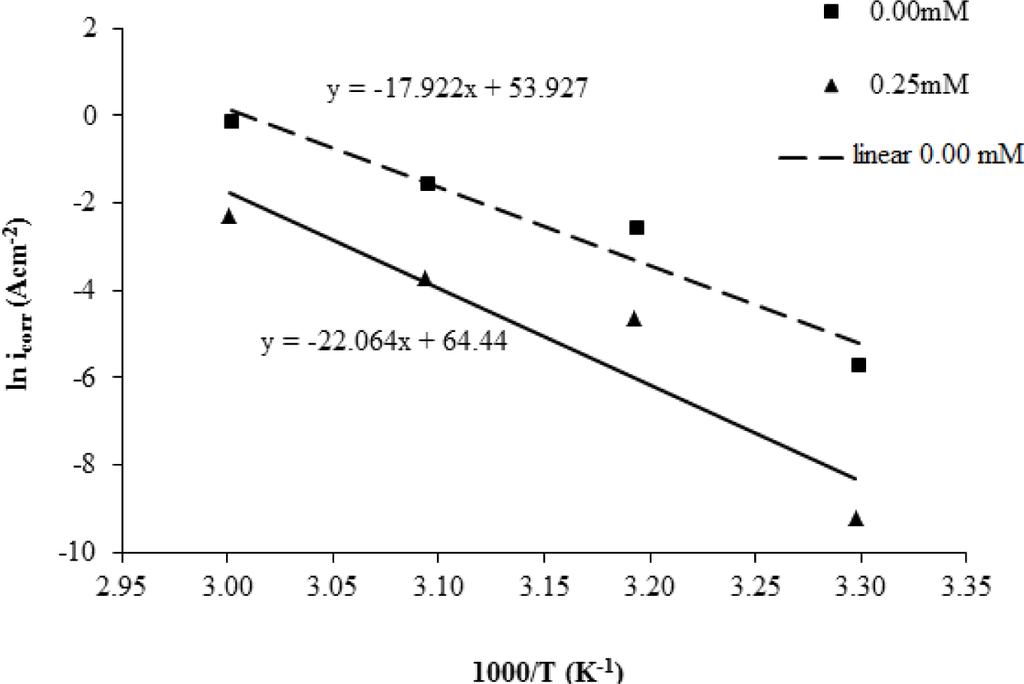

Figure 6. The Arrhenius plot for mild steel in 1.0 M H2SO4 with 0.00 mM and 0.25 mM concentrations of the corrosion inhibitor.

Click here to enlarge figure

Figure 6. The Arrhenius plot for mild steel in 1.0 M H2SO4 with 0.00 mM and 0.25 mM concentrations of the corrosion inhibitor.
Materials 07 00787f6 1024
Materials 07 00787f7 1024
Figure 7. The situation plot for mild steel in 1.0 M H2SO4 with 0.00 mM and 0.25 mM concentrations of the corrosion inhibitor.

Click here to enlarge figure

Figure 7. The situation plot for mild steel in 1.0 M H2SO4 with 0.00 mM and 0.25 mM concentrations of the corrosion inhibitor.
Materials 07 00787f7 1024
Materials 07 00787f8 1024
Figure 8. The SEM micrographs for mild steel in 1.0 M H2SO4 without the corrosion inhibitor at 30 °C. (a) 100×; (b) 500×; (c) 1000×; (d) 3000×; (e) 5000×.

Click here to enlarge figure

Figure 8. The SEM micrographs for mild steel in 1.0 M H2SO4 without the corrosion inhibitor at 30 °C. (a) 100×; (b) 500×; (c) 1000×; (d) 3000×; (e) 5000×.
Materials 07 00787f8 1024
Materials 07 00787f9 1024
Figure 9. The SEM micrographs for mild steel in 1.0 M H2SO4 with 0.25 mM of the corrosion inhibitor at 30 °C. (a) 100×; (b) 500×; (c) 1000×; (d) 3000×; (e) 5000×.

Click here to enlarge figure

Figure 9. The SEM micrographs for mild steel in 1.0 M H2SO4 with 0.25 mM of the corrosion inhibitor at 30 °C. (a) 100×; (b) 500×; (c) 1000×; (d) 3000×; (e) 5000×.
Materials 07 00787f9 1024
Materials 07 00787f10 1024

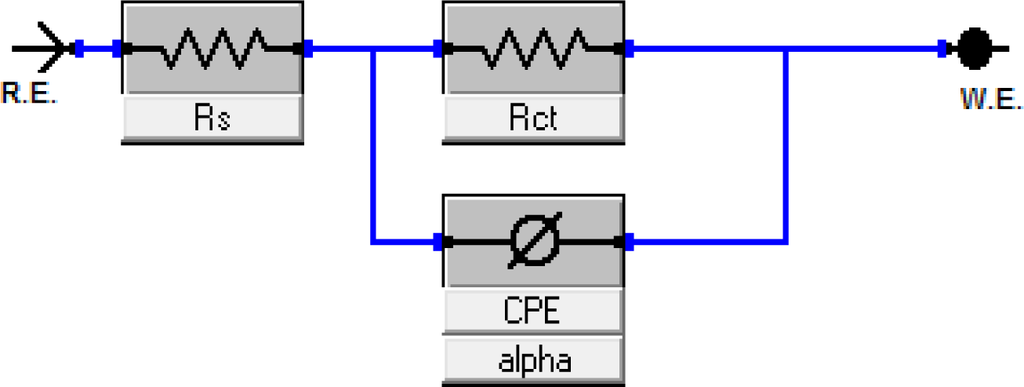

Scheme 1. The equivalent circuit model used to fit the impedance data for mild steel in the presence of the inhibitor.

Click here to enlarge figure

Scheme 1. The equivalent circuit model used to fit the impedance data for mild steel in the presence of the inhibitor.
Materials 07 00787f10 1024
Materials 07 00787f11 1024

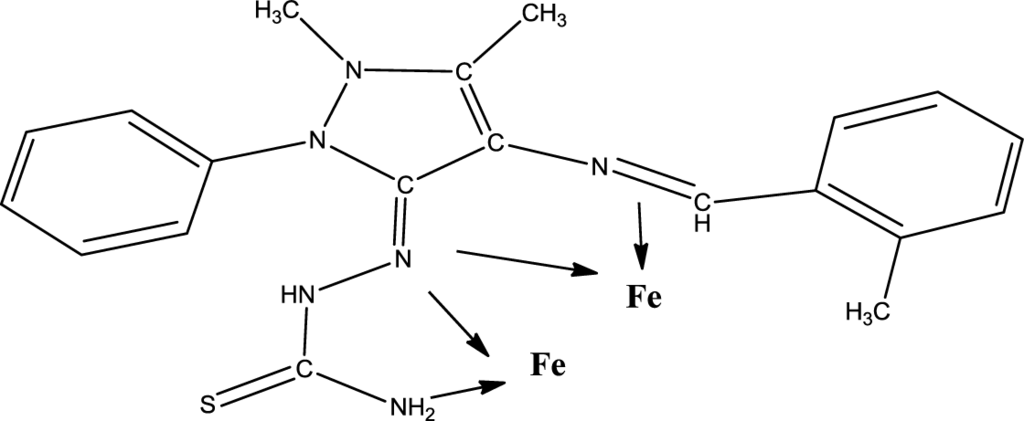

Scheme 2. The mechanism of inhibition.

Click here to enlarge figure

Scheme 2. The mechanism of inhibition.
Materials 07 00787f11 1024
Table Table 1. Data of constant phase element (CPE) matching for mild steel in 1.0 M H2SO4 with different concentration of the corrosion inhibitor at 30 °C. Rs, solution resistance; Rct, charge transfer of resistance; Cdl, double-layer charge; IE, inhibition efficiency (IE).

Click here to display table

Table 1. Data of constant phase element (CPE) matching for mild steel in 1.0 M H2SO4 with different concentration of the corrosion inhibitor at 30 °C. Rs, solution resistance; Rct, charge transfer of resistance; Cdl, double-layer charge; IE, inhibition efficiency (IE).
Concentration (mM)Rs (ohm cm2)Rct (ohm cm2)CPEdl
Cdl (μF cm−2)IE (%)
Yo (μS sα cm−2)α
Blank1.3164.08425.330.91293.460.00
0.051.4285.14980.890.90754.0124.74
0.101.59247.01432.670.78232.0574.06
0.151.89441.59329.560.77182.6685.49
0.201.53606.15504.000.80376.1689.43
0.251.71893.70348.440.76243.2092.83
Table Table 2. Data for the CPE matching for mild steel in 1.0 M H2SO4 with 0.25 mM of the corrosion inhibitor at different temperatures.

Click here to display table

Table 2. Data for the CPE matching for mild steel in 1.0 M H2SO4 with 0.25 mM of the corrosion inhibitor at different temperatures.
Temperature (°C)Concentration (mM)Rs (ohm cm2)Rct (ohm cm2)CPEdl
Cdl (μF cm−2)IE (%)
Yo (μS sα cm−2)α
30Blank1.3164.08425.330.91293.460.00
0.251.71893.70348.440.76243.2092.83
40Blank1.219.344368.890.701135.420.00
0.251.05114.41490.670.69136.6891.84
50Blank1.196.063882.220.70774.620.00
0.250.9790.99466.000.69109.3893.34
60Blank1.074.042962.220.72539.090.00
0.250.9315.53553.110.74100.0672.70
Table Table 3. Polarization parameters for mild steel in 1.0 M H2SO4 with different concentrations of the corrosion inhibitor at 30 °C. mpy, milli-inch per year.

Click here to display table

Table 3. Polarization parameters for mild steel in 1.0 M H2SO4 with different concentrations of the corrosion inhibitor at 30 °C. mpy, milli-inch per year.
Concentration (mM)Potentiodynamic Polarization Measurement
βa (V dec−1)βc (V dec−1)icorr (μA cm−2)Ecorr (mV vs. SCE)Corrosion Rate (mpy)IE (%)
Blank0.0770.099342.22441.00156.900.00
0.050.0680.096224.44424.00102.7034.42
0.100.0580.09046.44446.0021.2486.43
0.150.0600.09122.44455.0010.3293.44
0.200.0550.08813.80421.006.3295.97
0.250.0700.09812.18440.005.5896.44
Table Table 4. Polarization parameters for mild steel in 1.0 M H2SO4 with 0.25 mM of the corrosion inhibitor at different temperatures.

Click here to display table

Table 4. Polarization parameters for mild steel in 1.0 M H2SO4 with 0.25 mM of the corrosion inhibitor at different temperatures.
Temperature (°C)Concentration (mM)Potentiodynamic polarization (PD) Measurement
βa (mV dec−1)βc (mV dec−1)icorr (mA cm−2)Ecorr (mV vs. SCE)Corrosion Rate (mpy)IE (%)
30Blank76.7099.000.34441.00156.900.00
0.2570.2098.100.01440.005.5896.44
40Blank99.70138.307.94425.00807.800.00
0.2596.40131.700.95418.0097.1287.98
50Blank117.40166.1021.30414.002,169.000.00
0.25202.60150.202.40481.00244.4088.73
60Blank189.70286.3087.70415.008,925.000.00
0.25142.40163.109.99463.001,017.0088.60
Table Table 5. Corrosion kinetic parameters for mild steel in 1.0 M H2SO4 without and with 0.25 mM of the corrosion inhibitor. Ea, activation energy; ΔHa, activation enthalpy; ΔSa, entropy of activation.

Click here to display table

Table 5. Corrosion kinetic parameters for mild steel in 1.0 M H2SO4 without and with 0.25 mM of the corrosion inhibitor. Ea, activation energy; ΔHa, activation enthalpy; ΔSa, entropy of activation.
ConcentrationEa (kJ mol−1)ΔHa (kJ mol−1)ΔSa (J mol−1 K−1)
without inhibitor149.00146.36194.59
0.25 mM of inhibitor183.44180.80282.01
Table Table 6. Electrochemical frequency modulation (EFM) electrochemical parameters for mild steel in 1.0 M H2SO4 with different concentrations of the corrosion inhibitor at 30 °C. icorr, current density; βN, Tafel slope; CF, causality factor.

Click here to display table

Table 6. Electrochemical frequency modulation (EFM) electrochemical parameters for mild steel in 1.0 M H2SO4 with different concentrations of the corrosion inhibitor at 30 °C. icorr, current density; βN, Tafel slope; CF, causality factor.
Concentration (mM)icorr (μA cm−2)β1 (mV dec−1)β2 (mV dec−1)Corrosion Rate (mpy)IEEFM (%)CF-2CF-3
Blank286.6775.6994.14131.300.001.854.30
0.05224.0073.3096.07102.6021.861.904.53
0.1091.5183.47133.4041.9268.071.852.68
0.1560.8789.83160.0027.8878.771.963.60
0.2044.8097.93149.6020.5284.372.004.11
0.2533.1398.35155.4015.1888.441.965.41
Table Table 7. EFM electrochemical parameters for mild steel in 1.0 M H2SO4 with 0.25 mM of the corrosion inhibitor at different temperatures.

Click here to display table

Table 7. EFM electrochemical parameters for mild steel in 1.0 M H2SO4 with 0.25 mM of the corrosion inhibitor at different temperatures.
Temperature (°C)Concentration (mM)icorr (mA cm−2)β1 (mV dec−1)β2 (mV dec−1)Corrosion Rate (mpy)IEEFM (%)CF-2CF-3
30Blank0.2975.6994.14131.300.001.854.30
0.250.0398.35155.4015.1888.441.965.41
40Blank6.8189.93111.90692.800.001.993.61
0.251.16107.80193.70117.9082.981.954.18
50Blank19.1493.68109.601,948.000.002.065.77
0.252.26129.40242.70230.5088.171.965.77
60Blank56.74119.60146.505,776.000.001.811.42
0.2510.85144.00192.501,104.0080.891.905.14
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
