Materials 2014, 7(1), 375-398; doi:10.3390/ma7010375

Article
Characterization of Thermo-Mechanical and Fracture Behaviors of Thermoplastic Polymers
Elhem Ghorbel 1, Ismail Hadriche 1, Giuseppe Casalino 2,* and Neila Masmoudi 3
1
Laboratory of Mechanics and Materials of the Civil Engineering (L2MGC-EA4114), University of Cergy Pontoise, 5 mail Gay-Lussac, Neuville sur Oise, Cergy Pontoise Cedex 95031, France; E-Mails: elhem.ghorbel@u-cergy.fr (E.G.); ismail_hadriche@yahoo.fr (I.H.)
2
Department of Mechanics Management and Mathematics (DMMM), Politecnico di Bari, Viale Japigia, 182, Bari 70126, Italy
3
Electromechanical Systems Laboratory (LASEM-LR99ES36), National Engineering School of Sfax, University of Sfax, Cité El Habib BP29, Sfax 3052, Tunisia; E-Mail: neila.masmoudikhabou@enis.rnu.tn
*
Author to whom correspondence should be addressed; E-Mail: g.casalino@poliba.it; Tel.: +39-80-5962753.
Received: 28 October 2013; in revised form: 14 December 2013 / Accepted: 16 December 2013 /
Published: 13 January 2014

Abstract

: In this paper the effects of the strain rate on the inelastic behavior and the self-heating under load conditions are presented for polymeric materials, such as polymethyl methacrylate (PMMA), polycarbonate (PC), and polyamide (PA66). By a torsion test, it was established that the shear yield stress behavior of PMMA, PC, and PA66 is well-described by the Ree-Eyring theory in the range of the considered strain rates. During the investigation, the surface temperature was monitored using an infrared camera. The heat release appeared at the early stage of the deformation and increased with the strain and strain rate. This suggested that the external work of deformation was dissipated into heat so the torsion tests could not be considered isothermal. Eventually, the effect of the strain rate on the failure modes was analyzed by scanning electron microscopy.
Keywords:
polymeric materials; torsion test; infrared camera; self-heating; thermo-mechanical behavior

1. Introduction

The development of innovative products made of plastic materials represents a great challenge when it comes to the material selection. The choice of a suitable material for a given application is influenced by the knowledge of its behavior.

Therefore, the identification of the equations of the material behavior is highly desirable and it is generally based on experimental trials. Unfortunately, the equations depend on a great number of parameters that must be identified using a limited number of experiments. Several authors have proposed constitutive laws that accurately describe the behavior under tension and compression but overestimate the shear strength [1,2].

After the results of some experimental investigations, this can be explained by a change in the rigidity of the polymeric materials during the deformation due to a temperature change [3,4]. In fact, the temperature rise influences the mechanical behavior of the material during torsion deformation, as well as the geometry and the microstructure during welding, which calls for the inclusion of the temperature in the constitutive thermo-mechanical model of the material [5,6].

The main aim of this study is to assess the temperature modification that occurs during torsion deformation for several amorphous and semi-crystalline thermoplastic materials. The heat release appeared at the early stage of the deformation, and increased with the train and strain rate. The experiments were performed at different strain rates, using polymethyl methacrylate (PMMA), polycarbonate (PC), and polyamide (PA66) thermoplastic materials.

The mechanical tests were performed at various strain rates and room temperature. The thermographic images were recorded using an infrared camera (Fluke, Everett, WA, USA). Thermography is a measurement technique, which provides an image of the distribution of the temperature on the surface of the examined object, and allows controlling the thermal gradient without any contact [79].

Moreover, the failure mechanisms of the thermoplastic polymers were studied by scanning electron microscopy (SEM) (Leica, Heerbrugg St. Gallen, Switzerland).

Eventually, this paper contributes to the understanding of the relationship between deformation mechanisms and self-heating for thermoplastic polymers, which is of great interest in technological applications [10].

2. Materials and Experimental Methods

2.1. Fourier Transform Infrared Spectroscopy (FTIR) Measurement

Three industrial thermoplastics are used: polymethyl methacrylate (PMMA), polycarbonate (PC), and polyamide (PA66).

Fourier transform infrared spectroscopy (FTIR) measurements are performed in order to identify the polymers under investigation. The test was conducted using a FTIR TENSOR 27 (Bruker Optics GmbH, Wien, Austria) spectrophotometer in the range of 400–4000 cm−1 at a spectral resolution of 4 cm−1.

The analysis of the FTIR spectra and the assignments of the peaks (Table 1) confirm that the polymers under study are PMMA (Figure 1), PA66 (Figure 2), and PC (Figure 3).

2.2. Differential Scanning Calorimetric (DSC) Measurement

Differential scanning calorimetric (DSC) tests were realized to determine the physical properties of these polymers. The DSC Q100 equipment (TA Instruments, New Castle, DE, USA) with a heating rate of 10 °C/min with 25 mL/min Helium protection was used. The weight fraction crystallinity was assessed by means of Equation (1):

X c = Δ H f Δ H

where ∆Hf is the enthalpy of fusion of samples and ∆H is the extrapolated value of the enthalpy, which corresponds to the 100% fusion of a perfect infinite crystalline sample. For PA66, values of 188 J/g and 47.7 J/g were chosen for ∆H and ∆Hf, respectively [1114].

The glass transition temperature Tg, the melting temperature Tf, and the weight fraction crystallinity obtained using this experimental technique is shown in Table 2.

2.3. Mechanical Testing and Scanning Electron Microscopy

Torsion tests were conducted on cylindrical samples, which were machined and polished from extruded bars (Figure 4). A “DELTALAB EM400” torsion testing machine (Deltalab, Carcassonne, France), equipped with strain gauges torque meters for a maximum measuring value of 20 Nm, was used. Infrared thermography was realized using a thermal camera, FLUKE “ThermoView Ti30” (Fluke, Everett, WA, USA). The objective was to quantify the change in temperature, which occurs during torsion deformation for amorphous and semi-crystalline thermoplastic, and its effect on the yielding and fractography behaviors.

This technique requires calibrating its radiant energy, which requires the emissivity “ζ” for each polymer. ζ = 0.95 can be used for all the tested polymers. The measured temperature is close to the actual one, with an accuracy of ±2% and a resolution of 0.1 °C. Several images were captured during each test. The analysis of these thermographs was done with the “InsideIR-FLUKE” software (Fluke, Everett, WA, USA).

Torsion tests were performed at room temperature (T = 23 °C) in order to investigate the effects of strain rates on the yielding, the mechanical characteristics, and self-heating of glassy and semi-crystalline polymers. The fracture surfaces to be characterized by scanning electron microscopy (SEM) were treated with metallization with gold, with “POLARON Sputter Coater SC502” (Gala Instrumente, Bad Schwalbach, Germany). The used SEM was a “Leica Stereoscan 430i” model.

3. Results and Discussion

3.1. Deformation Behavior under Torsion

Figures 57 represent the shear stress during the torsion tests, which were performed at various rotation speeds 0.5, 6, 12, and 25 rad/min, which correspond to the shear strain rates γ ˙ of 3.93 × 10−3, 4.71 × 10−2, 9.42 × 10−2 and of 1.96 × 10−1·s−1.

It can be observed that the behavior under torsion of these polymers was strongly nonlinear. The analysis of the curves revealed that PA66 samples did not show an intrinsic yield drop when they were subjected to the torsion load, whereas, for PC and PMMA, a peak followed by a drop was observed. Hence, the yield stress τ0 was measured by adopting a conventional offset of 0.3% [16,17]. Thus, to determine the experimental yield shear stress τ0exp, at which yielding occurred, an equivalent conventional offset of 0.3% was adopted. It is known that the inelastic strain tensor is written as follows [3]:

ε ¯ ¯ = [ ε γ 2 0 ε 0 ε ]

Hence, the inelastic accumulated equivalent strain is ε eq = 2 ε 2 + γ 2 / 3.

By neglecting ε, the expression of the equivalent strain εeq is given by Equation (3):

ε eq = γ 3

It follows that the adopted angular deviation offset “γ0” is equal to 5.2 × 10−3 rad. This leads to determine the yield shear stress τ0exp for a given loading condition.

The effect of strain rate was studied at the room temperature. Torsion tests were conducted at different equivalent strain rates ε ˙ eq varying in the range of 0.00227 s−1 to 0.113 s−1. It can be noticed that, for small deformations corresponding to γ ≈ γ0, where γ0 was the angular deformation required to reach τ0exp, the mechanical behavior was quite independent of strain rate, while, as soon as an inelastic angular deviation appeared, the response of the polymers depended strongly on the strain rate. The shear moduli were calculated and their values were reported versus the equivalent strain rates ε ˙ eq (Figure 8). It can be observed that the shear modulus was independent of strain rate for PC, while a dependency is observed for PA66 and PMMA. However, this dependency is not significant and can be neglected in the constitutive equation of the mechanical behavior of the polymers.

Hence an elasto-visco-plastic constitutive equation was used to describe the mechanical behavior under torsion of these polymers. The elastic region is the result of intermolecular interactions between chains due to van der Waal forces, while plasticity is attributed to molecular movements.

3.2. Effect of Strain Rate on the Shear Yield Stress

The values of yield shear stresses τ0max determined by adopting an angular deviation offset γ0 equal to 5.2 × 10−3 rad (or εeq = 0.3%) are presented in Figure 9. These values are compared to those determined according to the ISO 6721-6:1996 standard [18] (Table 3). In this last case, the yield shear stress was assumed as the nominal maximum stress reached by the polymer during torsion test. This definition imposed the observation of a load drop. One of the problems in adopting this approach is that the curves obtained under a given loading conditions cannot exhibit the formation of an intrinsic yield drop, such as for PA66 under torsion, while a load drop was observed in the tensile tests.

Several models can be used to fit the rate dependent experimental yield data of polymer behavior. Among these, the Ree-Eyring model, and the more recent Argon model are the most applied ones for amorphous polymers. In this study, both models were used and compared for the prediction of the strain rate effects on yield stress of the polymers subjected to tensile, compressive, and shear tests.

According to Miehe et al. [19], the viscoplastic flow of amorphous glassy polymers is a thermally activated, stochastic process. The isotropic resistance to plastic deformation of amorphous glassy polymers is described by the intermolecular barrier to chain segment rotation model originally proposed by Argon and modified by Boyce et al. [20]. The rate and temperature dependent flow stress in shear is expressed as follows [21,22]:

τ = ( s + α p p ) [ 1 + k B T A ( s + α p p ) ] Ln ( γ ˙ γ ˙ 0 ) 5 6

where τ is the rate and temperature dependent shear flow stress, s is the shear strength, αp is the pressure coefficient, p is the pressure, kB is the Boltzmann constant, T is the applied absolute temperature, A(s + αpp) is the zero stress level activation energy modified to include pressure dependence, γ ˙ is the applied shear strain rate, and γ ˙ 0 is the pre-exponential factor proportional to the attempt frequency. Thus, the Argon-Boyce equation, which describes the shear yield stress, can be simplified as follows:

τ 0 exp T = a [ c b Ln ( γ ˙ ) ] 5 6

where a, b, and c are experimental material constants.

From a micromechanical point of view, Equation (4) well-describes polymers’ yield stress dependency on temperature and strain rate. Several researchers adopt this expression, even if the physical arguments underlying Argon’s view are still debated [22].

The model of Eyring, developed in 1936, is widely used to describe the rate-dependent plasticity in amorphous polymers. In Eyring’s theory, yield processes are thermally activated and molecular motions can be carried on only if an energy barrier is overcome. This model indicates that yielding in polymers is controlled by cooperative movements of several molecular chains. Hence, the representation of the yield stress versus logarithm of the strain rate should be linear for a given temperature (assumption of a single thermal activation mechanism). It is the case of the polycarbonate yield behavior for a wide field of temperatures and strain rates [23].

However, neither Eyring nor Argon models were applied as much as the Ree-Eyring model, which was established in 1955, to fit the rate dependent yield data of amorphous polymers. This model, based on several activation processes [24], is a modification of the Eryring model and its expression is given by Equation (6) where a, b, and c are materials constants.

τ 0 exp T = a Ln ( ε ˙ eq ) + b sin h 1 ( d ε ˙ eq ) + c . Where ε ˙ eq = γ ˙ 3

The tensile deformation behavior of the same polymers was studied by the authors in a previous work [25]. It was established that the best model predicting tensile yield stress, σst of amorphous and semi-crystalline polymers is the Ree-Eyring model (Figure 10). Moreover, it appears that both Argon model and Ree-Eyring predict successfully the tensile yield stress σst at moderate strain rates (Figure 11).

In this study both models were used to model the effect of strain rate on the shear yield stress of PC, PA66, and PMMA.

Argon and Ree-Eyring models were used to fit the experimental data. The curves parameters are summarized in Table 4. It appears that Ree-Eyring model provided the best prediction of shear yield stress. Hence, it can be suitable to introduce the Ree-Eyring model in the constitutive equations dedicated to the modeling of the thermo-mechanical behavior of glassy and semi-crystalline polymers.

3.3. The Yield Criterion

During the torsion test the polymers showed a linear elastic behavior until the yield point had been reached. Then, the viscoplasticity took place. Several models, based on thermodynamics with internal variables, can be used to predict the thermo-mechanical behavior of polymers under service conditions. The method is based on the definition of a yield function to express the form of the viscoplastic potential and to establish the equations governing hardening variables. Some yield criteria, based on the classical plasticity, including hydrostatic pressure effects and assumptions, such as isotropy, were previously established and widely used, such as those derived from the modified Von Mises criteria (MMC) and the Drucker–Prager yield criterion (MMP). They are expressed in the normalized plane by the equations Equation (7) and are based on two stresses invariants I1 and J2.

( 3 J 2 σ ST ) n + m n 1 m + 1 ( I 1 σ ST ) = m ( m n 1 + a ) m + 1 , where  m = σ SC σ ST 1 and  { n = 1    MMC n = 2    MMP where  I 1 = t r ( σ ¯ ¯ )   ,   J 2 = 1 2 t r ( S ¯ ¯ 2 )   and    S ¯ ¯ = σ ¯ ¯ t r ( σ ¯ ¯ ) 3 I ¯ ¯

where σST is the tensile yield stress and σSC is the uniaxial compressive yield stress.

As it was established, yield stress was dependent on temperature and strain rate and pressure effects. The compressive and tensile tests were performed on the studied polymers to investigate the effect of the equivalent strain rate on the parameter “ m = σ SC σ ST”. The obtained results are presented in Figure 12 where it clearly appears that “m” is constant as a function of equivalent strain rate and is estimated equal to 1.4 for PMMA, equal to 1.155 for PC, and equal to 1.067 for PA66.

Both criteria well described the polymers yielding behavior for high hydrostatic pressure values. However, they did not allow an accurate description when the main deformation mechanism occurred by shear banding. In fact, both of them were derived from the von Mises model, based on a non-directional octahedral shear stress more appropriate for the description of homogeneous deformation mechanisms. To improve the prediction of isotropic polymers yielding behavior a generalized yield criterion was proposed [1]. Its expression is given by Equation (8), based on three stress invariants, I1, J2, and J3.

f = 3 J 2 σ ST ψ ( J 2 , J 3 ) + ( m + 1 ) ( 1 κ 8 ) I 1 ( 1 κ 8 ) m  σ ST , where   J 3 = 1 3 t r ( S ¯ ¯ 3 ) , ψ ( J 2 , J 3 ) = ( 1 27 32 κ J 3 2 J 2 3 ) ,   κ = ( 1 3 r m )   and   r = τ 0exp σ ST

where τ0exp is the yield stress determined from simple shear test. It can be observed that when κ0 = 0 (i.e., r = m / 3), the dependence on the third deviatoric stress invariant is removed; the MMP criterion is recovered. The convexity of the yield surface is ensured for 0 ≤ κ ≤ 1.

The ratio r was calculated and its evolution as a function of the strain rate was investigated. It can be observed (Figure 13) that r was quasi-constant for a given polymer.

To reduce the number of tests necessary to the identification of the parameters of the suggested criterion the authors proposed a simplification by setting κ = 1, which did not affect the convexity of the function f. The assumption of κ = 1 meant that r = m / 3 and therefore 3 r 2 m could be neglected with regard to 1. In other words, the yield stress obtained experimentally through shear tests was lower than the predicted one using the yield function: τ o = m 3 σ ST. Hence, Equation (8) was reduced to Equation (9) which represents the expression of the PROPOSED yield function in this study.

f = 3 J 2 σ ST Ψ ( J 2 , J 3 ) + 7. ( m 1 ) 8 I 1 7 m 8 σ ST  with  Ψ ( J 2 , J 3 ) = ( 1 27 32 J 3 2 J 2 3 )

The different criteria (MMP, MMC, and PROPOSED) were compared, and their ability to describe the yielding of these polymers was discussed. It was observed that the introduction of the third invariant did not affect the yield strength in the uniaxial tension load, in uniaxial compression load and under hydrostatic pressure condition. This was in agreement with the deformation mechanisms taking place for those loading conditions, which did not involve rotation. Moreover, it was observed that the PROPOSED criterion allowed matching the experimental results better than the other criteria when polymers were subjected to shear tests at high strain rates for PMMA (Figure 14) and for PA66 (Figure 15). The explanation lies in the fact that the main deformation mechanism for semi-crystalline polymers occurred mainly by shear banding.

For PC, which deformed non-homogeneously, no differences could be observed between the three yield surfaces (Figure 16). Despite the improvements provided by modifying the yield function, some differences were observed between predicted and experimental values of the shear stress at yielding for the semi-crystalline polymer PA66, which were slightly over-estimated.

To conclude, the PROPOSED yield function allowed predicting correctly the yielding of amorphous and semi-crystalline polymers for a wide range of strain rates. The dependency of the yield stress on temperature and strain rate was well-reproduced by the Ree-Eyring model.

3.4. Self-Heating Induced by Torsion Deformation

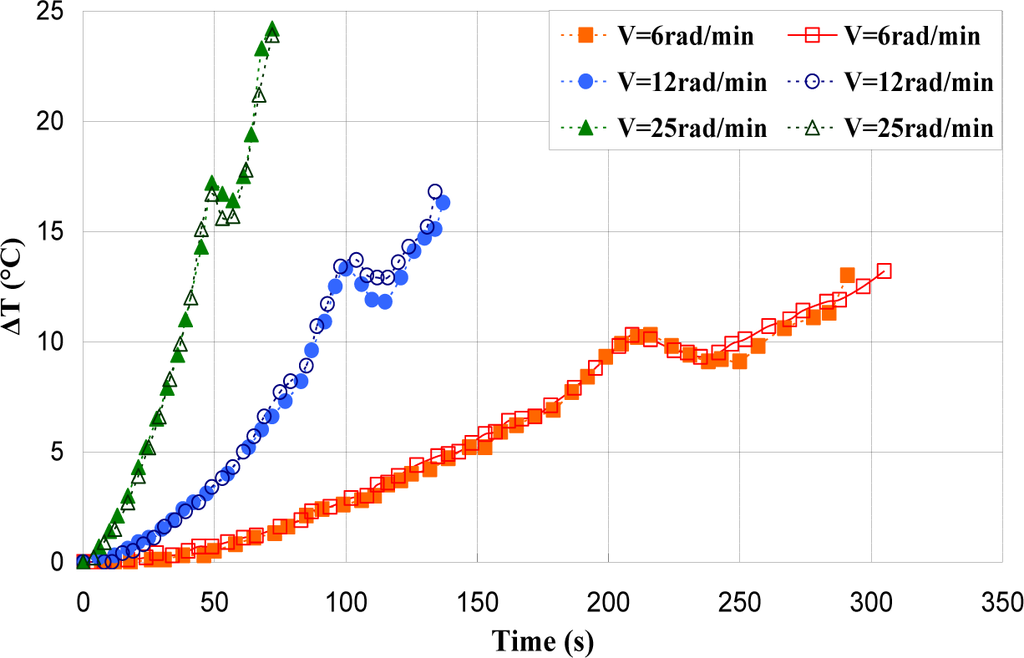

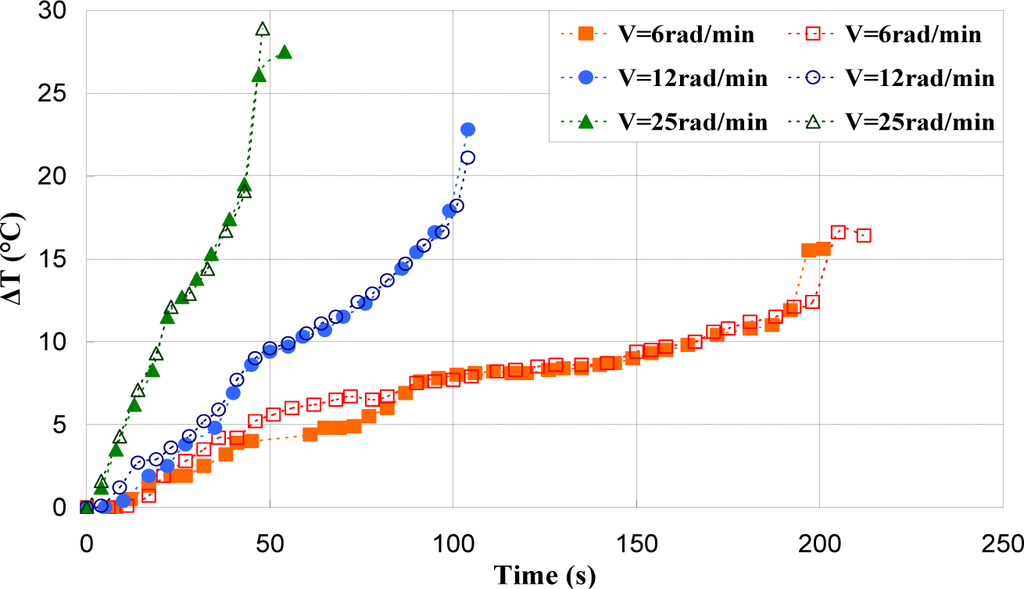

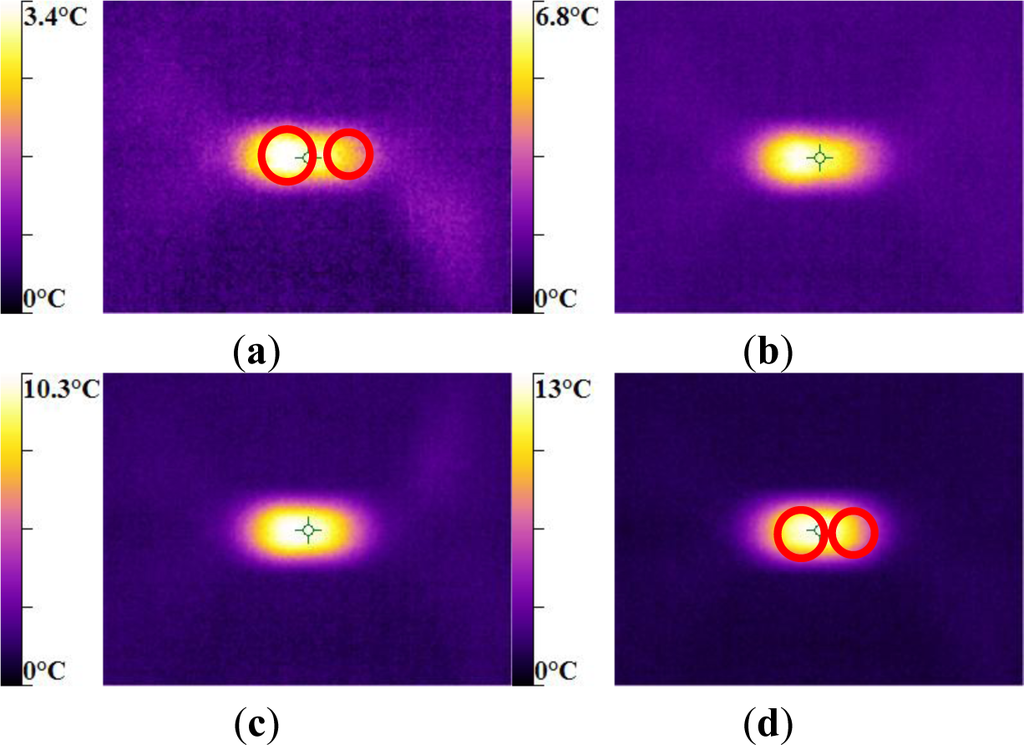

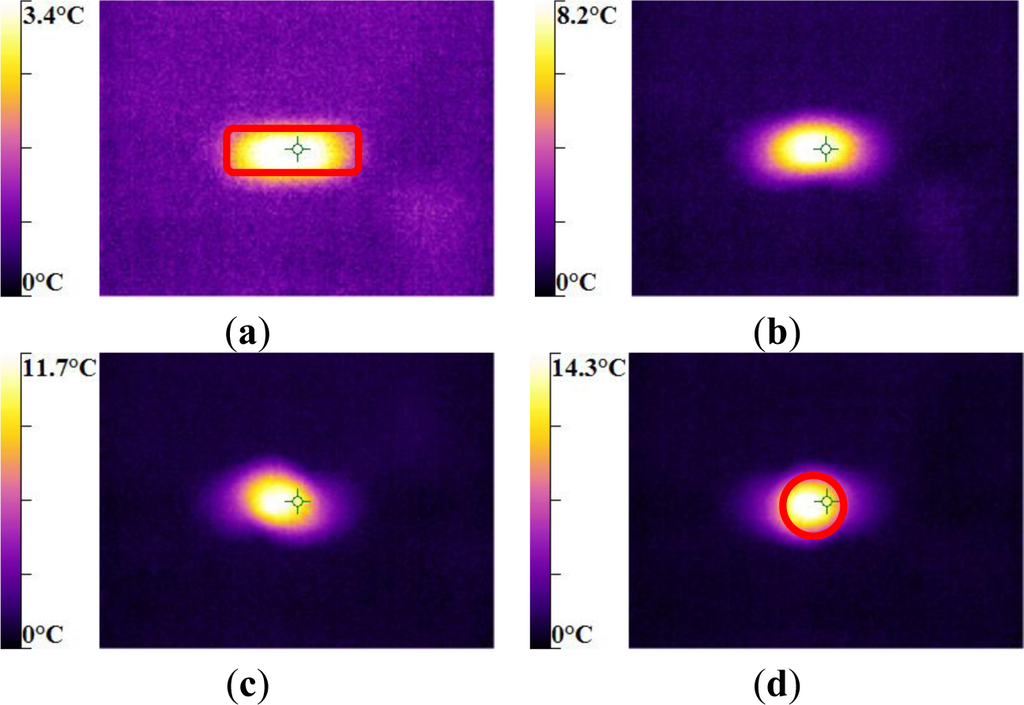

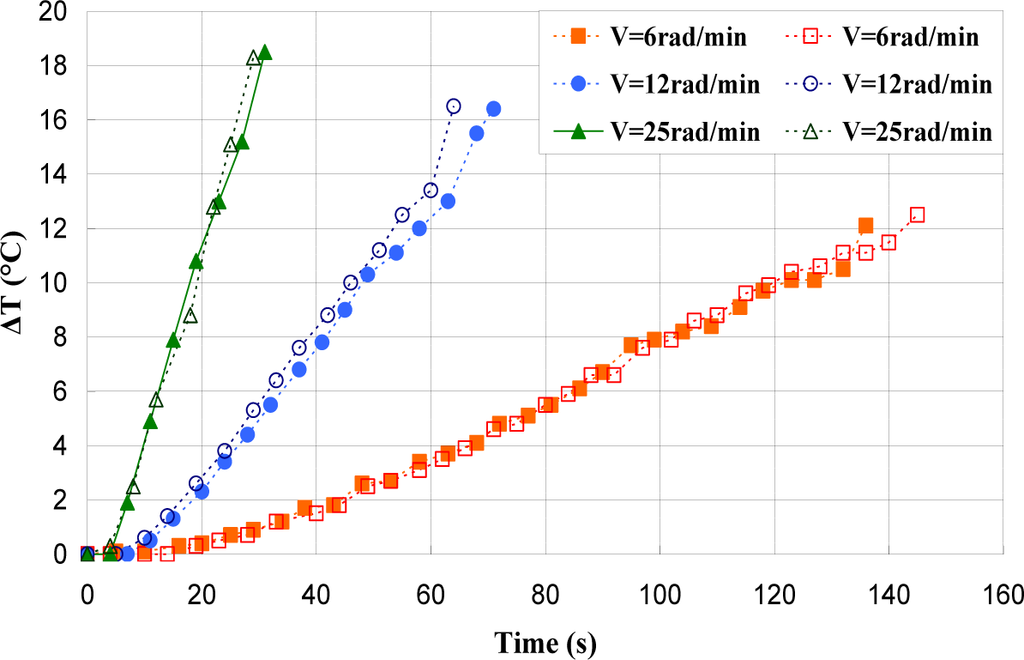

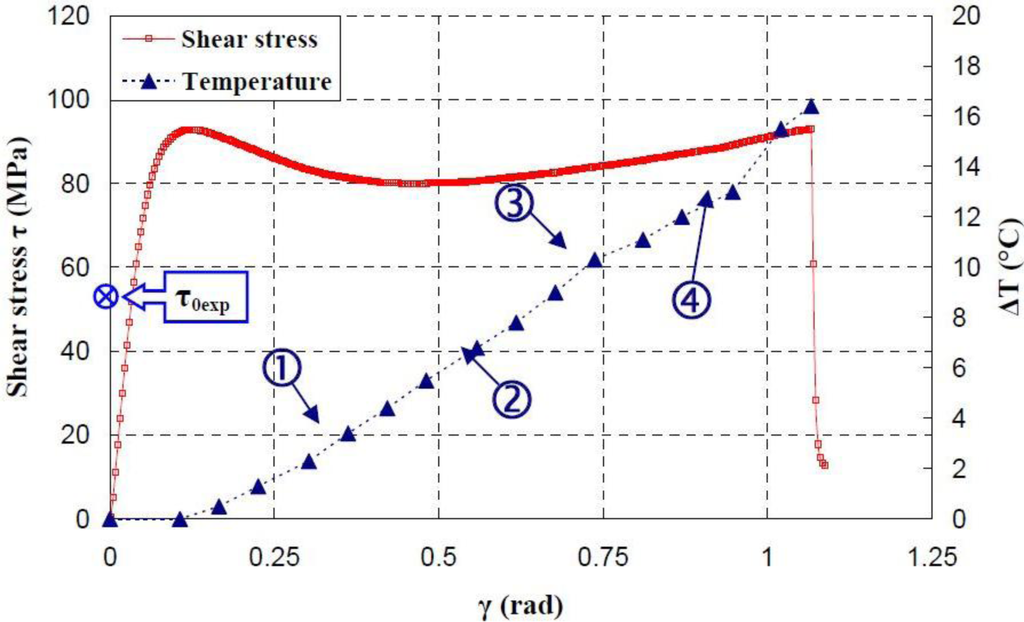

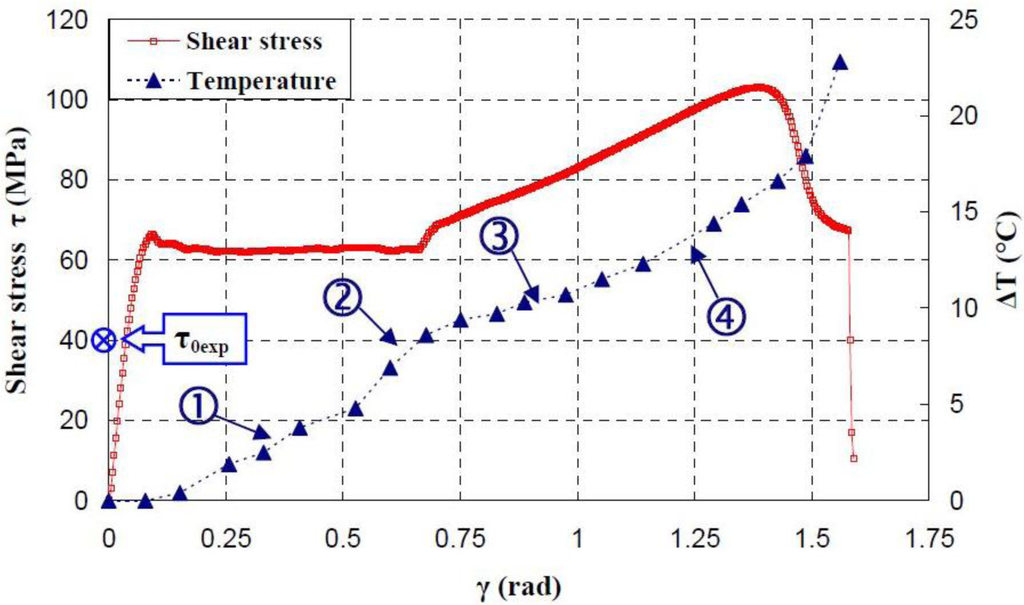

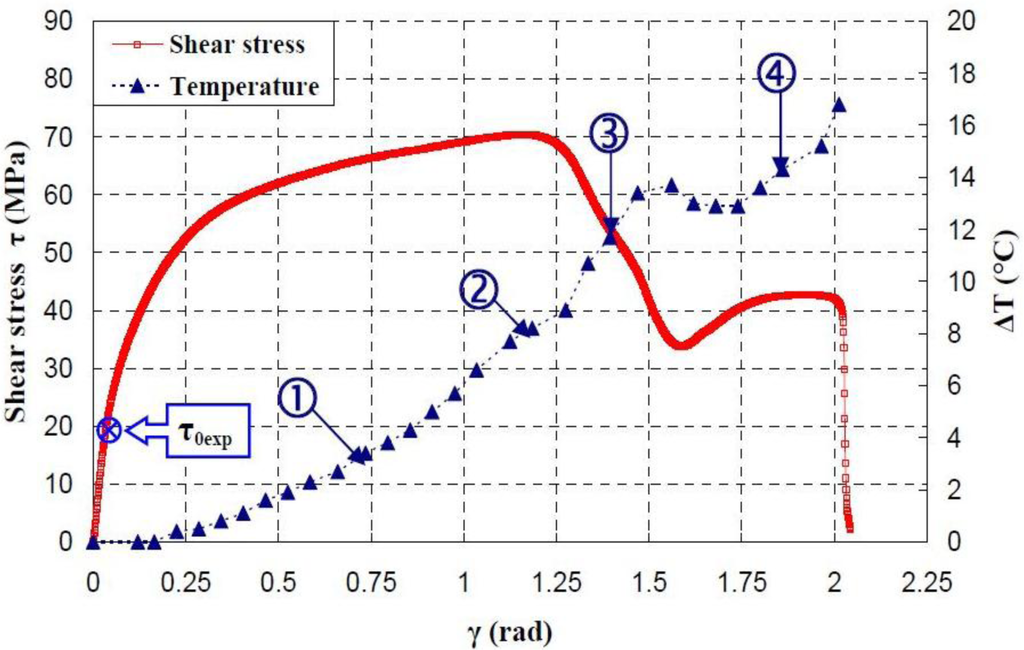

Figures 1719 show the evolution of the maximum temperature recorded at the specimen surface during the deformation of PA66, PMMA, and PC, respectively. It indicates that, as the strain rate was increased the surface temperature increased due to the viscoplastic energy. On the other hand, no rise in temperature was detected for a loaded deformation of 0.5 rad/min corresponding to a strain rate equal to 2.27 × 10−3·s−1. Moreover, a rise in the temperature above 28 °C in PC was noticed for a 25 rad/min rate strain. It is interesting to note that this phenomenon was more significant when the strain rate increased. The assumption that those tests were isothermal was debated.

Hence, as soon as the polymer was inelastically strained, the temperature increased and the polymer softened. The observed yield drop corresponded to the contribution of the intrinsic strain and thermal softening of the polymer. With large deformations, competing effects occurred and thermal softening offset the strain hardening.

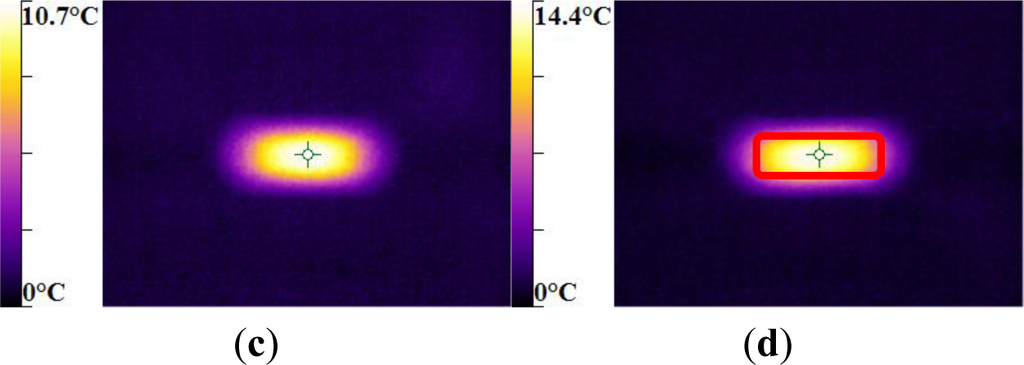

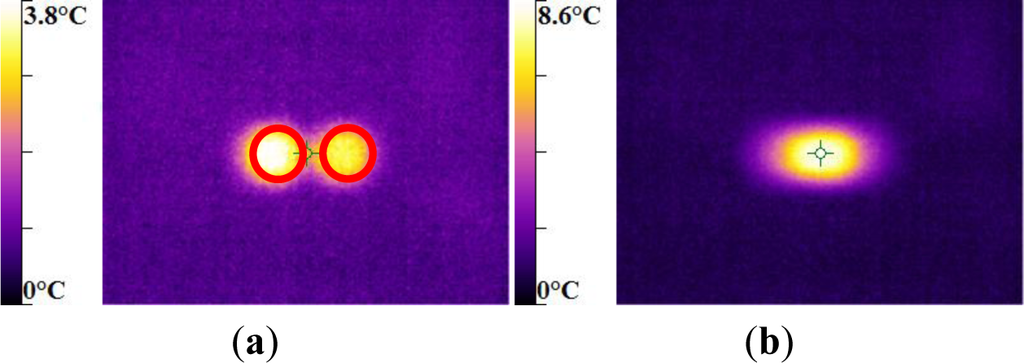

For the same experimental condition (V = 25 rad/min), the temperature rise depends on the polymer.

The maximum was roughly 18.5 °C for the PMMA, 24 °C for the PA66, while it exceeded 28 °C in the case of the PC. From the thermography analysis (Figures 2022), it appeared that the temperature distribution was not uniform throughout the surface of the samples. Hence, it can be assumed reasonably that the deformation mechanisms were not homogeneous, especially after yielding. These results proved the correctness of introducing the third invariant in the yield surface to take into account all deformation mechanisms occurring under different mechanical loading conditions. The stress-strain response was plotted versus the heat temperature measurements (Figures 2325).

For the PA66 semi-crystalline polymer, the heat distribution was extended to all surfaces as the stress exceeds the yield stress (Figure 23).

This was not the same in the case of the amorphous polymers. After reaching the yield stress, two points of heat source were located on the specimen extremities of PC and PMMA (Figures 24 and 25). For PMMA, as the deformation increased, these sources extended and merged together until the fracture occurred. These results showed, qualitatively, that self-heating was linked to the strain rate on the one hand and to the type of polymer (according to its Tg and degree of crystallinity) on the other hand.

The self-heating dissipation after reaching the yield stress during the torsional test can be related to the deformation mechanisms of polymers during the material flow. It has to be introduced into the constitutive equations dedicated to model the mechanical behavior of polymers.

3.5. SEM Fractography

The effect of strain rates on failure modes of polymers subjected to torsion was analyzed by scanning electron microscopy. Fracture involved breaking of covalent bonds in the chains and exhibited characteristic features, such as a mirror zone at the origin, a mist region, and rib marks. The investigated polymers showed either brittle or ductile fracture behaviors [26].

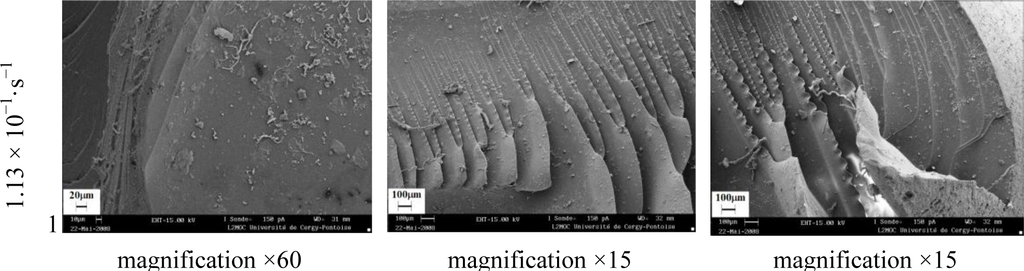

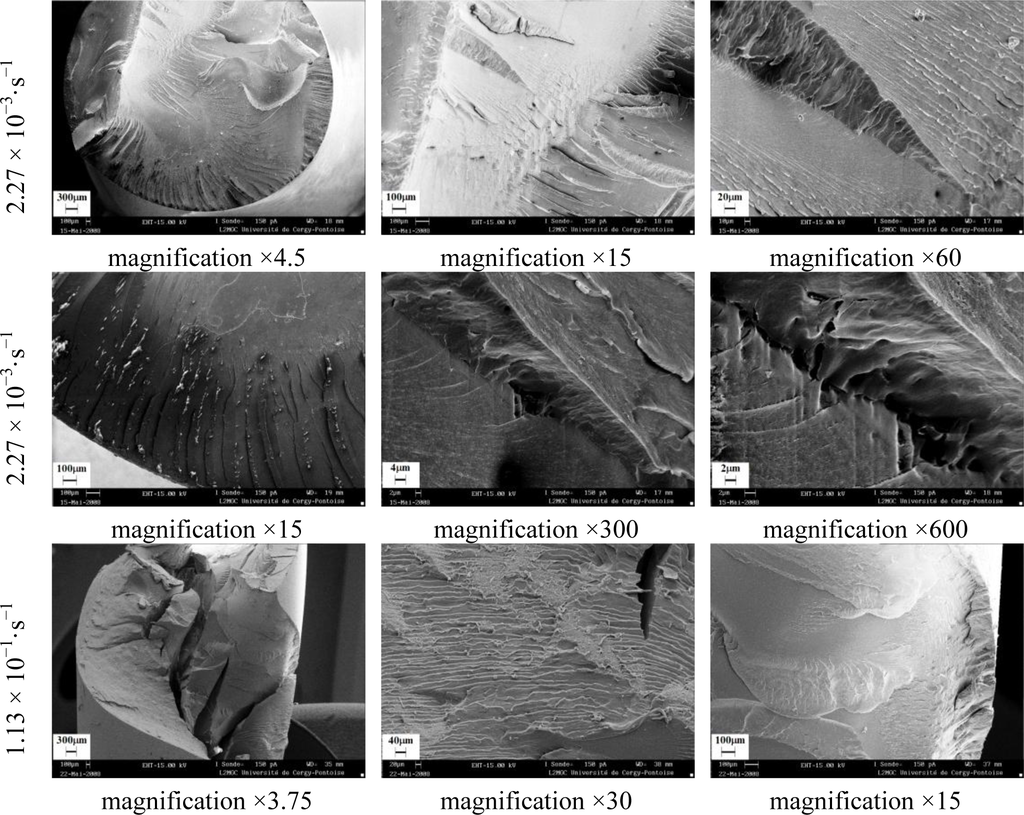

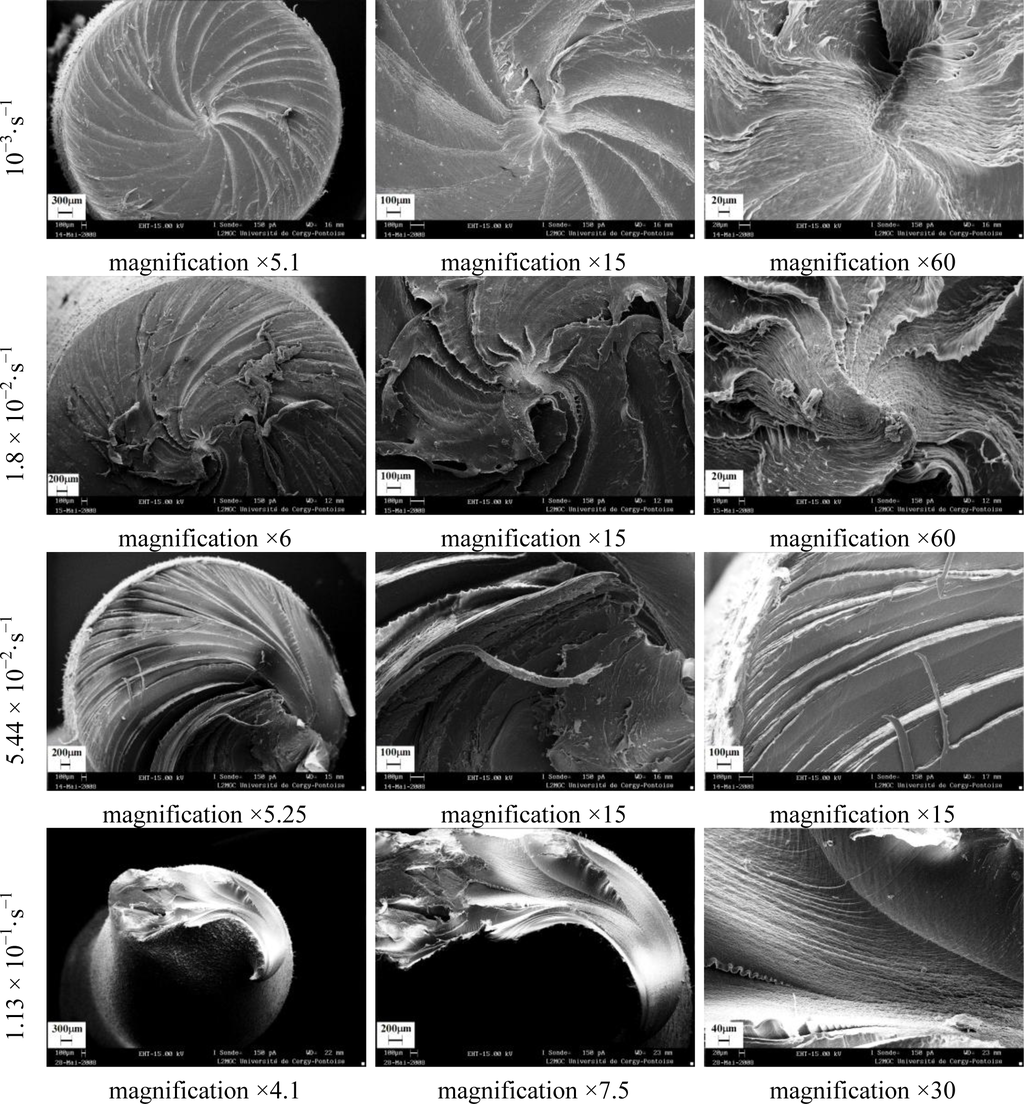

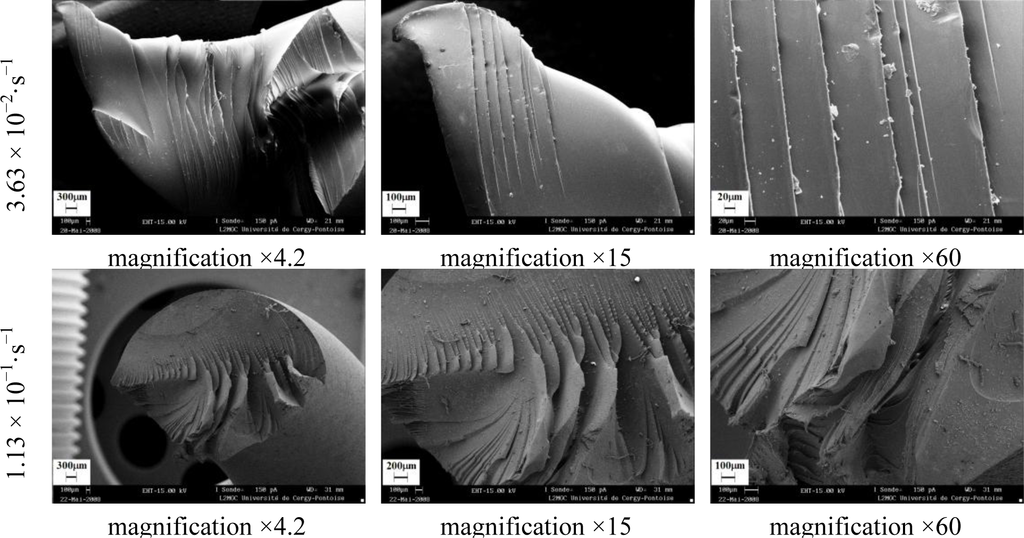

Figures 2628 show the collected SEM images for PA66, PMMA, and PC. These images give an account, at a glance, of the complex propagation of the fracture surfaces for different strain rates.

It can be seen that the torsional shear stress produced the typical striations pattern. A change in the fracture pattern was typically observed for equivalent strain rates higher than 1.8 × 10−2·s−1 for PA66 (Figure 26). The fracture surface of the failed specimens revealed ductile zones with peak formation. Ductile failure was slow and used a great deal of energy in the failure. Cracks grew slowly, the extension (strain) at final fracture was high, and the fracture surfaces tended to have a fibrous appearance with a peaks length >10 μm The transition can be attributed to the self-heating, which increased with higher strain rates. By increasing the strain rate, the temperature increased, which resulted in an important softening of the polymer and, therefore, a change in failure mode from brittle to ductile. The transition from ductile to brittle behavior was also affected by the speed of crack growth in the material.

During the brittle fracture, the cleavage stopped and the fracture plans recombined during the course of further propagation. Chips formed in front of the crack propagation line and they explain the occurrence of step-like cracking patterns. The peaks length was less than 1 μm. PMMA and PC showed brittle behavior, which was not significantly influenced by the strain rate (Figures 27 and 28). The PMMA susceptibility to cracking and brittle fracture was also found during compression testing. It was due to any local inhomogeneity in the specimen that could lead to a local tensile stress, which initialized the brittle failure [27].

4. Conclusions

The investigation concerned the effects of the strain rate on the mechanical behavior of thermoplastics polymers. It was demonstrated that a third invariant had to be introduced in order to predict correctly the polymers yielding behavior. A yield function was proposed and the dependency of the yield stress on the temperature and strain rate was taken into account using the Ree-Eyring model.

Self-heating dissipation occurred after reaching the yield stress for all polymers during the torsion test. It was related to both the deformation mechanism and the strain rate.

The strain rate yielding criterion described the self-heating effects on the mechanical and the fractures behavior of the investigated thermoplastics polymers, which provided an opportunity to explain failure process and to illustrate the loading limit of the materials.

Hence, as soon as the polymer was inelastically strained, the temperature increased and the polymer softened. The yield drop, which was observed when the polymer was loaded, corresponded to the contribution of the intrinsic strain and the thermal softening. The strain hardening balanced the thermal softening effect when large deformations occurred.

The description and classification of the fracture mode were realized by SEM analysis.

PC and PMMA exhibited brittle fracture, with a mirror zone at the origin, a mist region, and rib marks. The brittle fracture was insensitive to the equivalent strain rate.

Brittle-ductile transition was observed for PA66 at an equivalent strain rate higher than 1.8 × 10−2·s−1, which made PA66 fracture behavior more temperature-sensitive than that of PMMA and PC.

The authors thank TIC (Technique Inspection and Control) Tunisia, for Thermal camera FLUKE “ThermoView Ti30” provided and useful information.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ghorbel, E. A viscoplastic constitutive model for polymeric materials. Int. J. Plast 2008, 24, 2032–2058.
  2. Tomita, Y. Constitutive modelling of deformation behavior of glassy polymers and applications. Int. J. Mech. Sci 2000, 42, 1455–1469.
  3. Hadriche, I.; Masmoudi, N.; Ghorbel, E.; El. Halouani, F. Experimental Characterisation of the Deformation Behavior of Thermoplastic Polymers under Torsion, In Proceedings of the 4th International Conference on Advances in Mechanical Engineering and Mechanics (ICAMEM), Hammamet, Tunisia, 16–18 December 2008.
  4. Arruda, E.M.; Boyce, M.C.; Jayachandran, R. Effects of strain rate, temperature and thermomechanical coupling on the finite strain deformation of glassy polymers. Mech. Mater 1995, 19, 193–212.
  5. Ghorbel, E.; Casalino, G.; Abed, S. Laser diode transmission welding of polypropylene: Geometrical and microstructure characterisation of weld. Mater. Design 2009, 30, 2745–2751.
  6. Hadriche, I.; Ghorbel, E.; Masmoudi, N.; Casalino, G. Investigation on the effects of laser power and scanning speed on polypropylene diode transmission welds. Int. J. Adv. Manuf. Technol 2010, 50, 217–226.
  7. Clark, M.; Cann, D.; Forde, M. Application of infrared thermography to the non-destructive testing of concrete and masonry bridges. NDT E Int 2003, 36, 265–275.
  8. Ummenhofer, T.; Medgenberg, J. On the use of infrared thermography for the analysis of fatigue damage processes in welded joints. Int. J. Fatigue 2009, 31, 130–137.
  9. Toubal, L.; Karama, M.; Lorrain, B. Damage evolution and infrared thermography in woven composite laminates under fatigue loading. Int. J. Fatigue 2006, 28, 1867–1872.
  10. Grellmann, W.; Seidler, S. Deformation and Fracture Behavior of Polymers; Berling, German: Springer-Verlag, 2001.
  11. Li, L.; Li, B.; Tang, F. Influence of maleic anhydride-grafted EPDM and flame retardant on interfacial interaction of glass fiber reinforced PA-66. Eur. Polym. J 2007, 43, 2604–2611.
  12. Zhang, X.; Li, Y.; Lv, G.; Zuo, Y.; Mu, Y. Thermal and crystallization studies of nano-hydroxyapatite reinforced polyamide 66 biocomposites. Polym. Degrad. Stab 2006, 91, 1202–1207.
  13. Fairclough, J.P.A.; Hamley, I.W.; Terrill, N.J. X-ray scattering in polymers and micelles. Radiat. Phys. Chem 1999, 56, 159–173.
  14. Ma, W.; Zhang, J.; Wang, X. Crystallization and surface morphology of poly(vinylidene fluoride)/poly(methylmethacrylate) films by solution casting on different substrates. Appl. Surf. Sci 2008, 254, 2947–2954.
  15. Mark, J.E. Polymer Data Handbook; New York, NY, USA: Oxford University Press, 1999.
  16. Marcellan, A.; Bunsell, A.R.; Laiarinandrasana, L.; Piques, R. A multi-scale analysis of the microstructure and the tensile mechanical behavior of polyamide 66 fibre. Polymer 2006, 47, 367–378.
  17. Hadriche, I.; Ghorbel, E.; Masmoudi, N.; El. Halouani, F. Effect of Strain Rate on the Mechanical Characteristics and the Self Heating of Thermoplastics Polymers under Tension, In Proceedings of the 3rd International Conference on Structural Analysis of Advanced Materials (ICSAAM), Tarbes, France, 7–10 September 2009.
  18. ISO 6721-6:1996. Plastics—Determination of Dynamic Mechanical Properties—Part 6: Shear Vibration—Non-Resonance Method; Geneva, Switzerland: International Organization for Standardization, 1996.
  19. Miehe, C.; Göktepe, S.; Méndez Diez, J. Finite viscoplasticity of amorphous glassy polymers in the logarithmic strain space. Int. J. Solids Struct 2009, 46, 181–202.
  20. Boyce, M.C.; Parks, D.M.; Argon, A.S. Large inelastic deformation of glassy polymers. Part I: Rate dependent constitutive model. Mech. Mater 1988, 7(1), 15–33.
  21. Estevez, R.; Tijssens, M.G.A.; van der Giessen, E. Modeling of the competition between shear yielding and crazing in glassy polymers. J. Mech. Phys. Solids 2000, 48, 2585–2617.
  22. Saad-Gouider, N.; Estevez, R.; Olagnon, C.; Séguéla, R. Calibration of a viscoplastic cohesive zone for crazing in PMMA. Eng. Fract. Mech 2006, 73, 2503–2522.
  23. Bauwens-Crowet, C.; Bauwens, J.-C.; Homès, G. The temperature dependence of yield of PC. J. Mater. Sci 1972, 7(1), 176–183.
  24. Richeton, J.; Ahzi, S.; Daridon, L.; Rémond, Y. A formulation of the cooperative model for the yield stress of amorphous polymers for a wide range of strain rates and temperatures. Polymer 2005, 46, 6035–6043.
  25. Hadriche, I.; Ghorbel, E.; Masmoudi, N.; El Halouani, F. Influence of strain rate on the yielding behavior and on the self-heating of thermoplastic polymers loaded under tension. Key Eng. Mater 2010, 446, 63–72.
  26. Parrington, R.J. Fractographic features in metals and plastics. Adv. Mater. Process 2003, 161, 37–40.
  27. Mulliken, A.D.; Boyce, M.C. Low to High Strain Rate Deformation of Amorphous Polymers, In Proceedings of the 6th International Congress and Exposition of the Society for Experimental Mechanics, Orlando, FL, USA, 2–5 June 2008.
Materials 07 00375f1 200

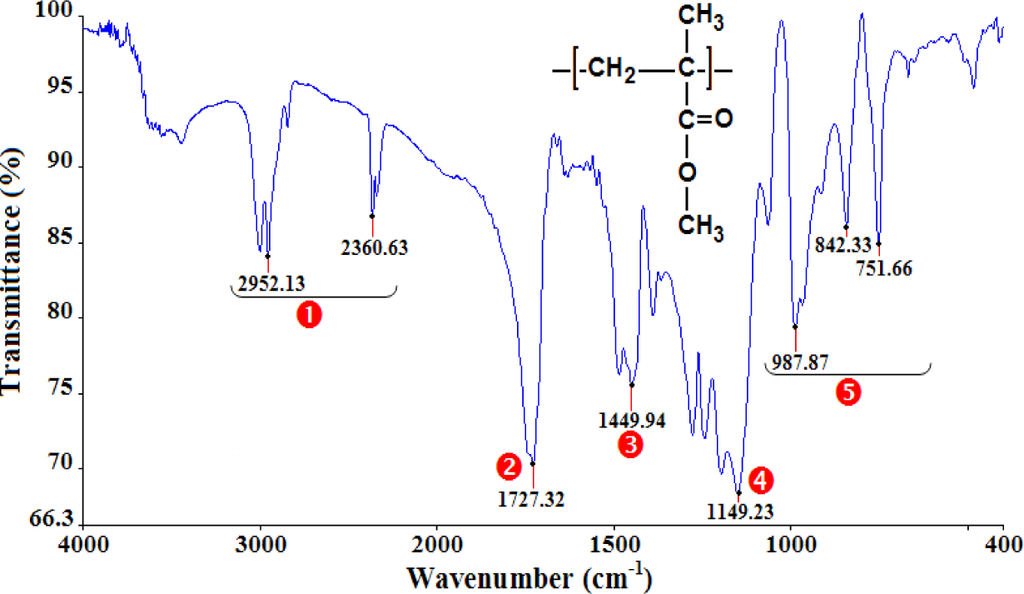

Figure 1. Infrared spectra of PMMA.

Click here to enlarge figure

Figure 1. Infrared spectra of PMMA.
Materials 07 00375f1 1024
Materials 07 00375f2 200

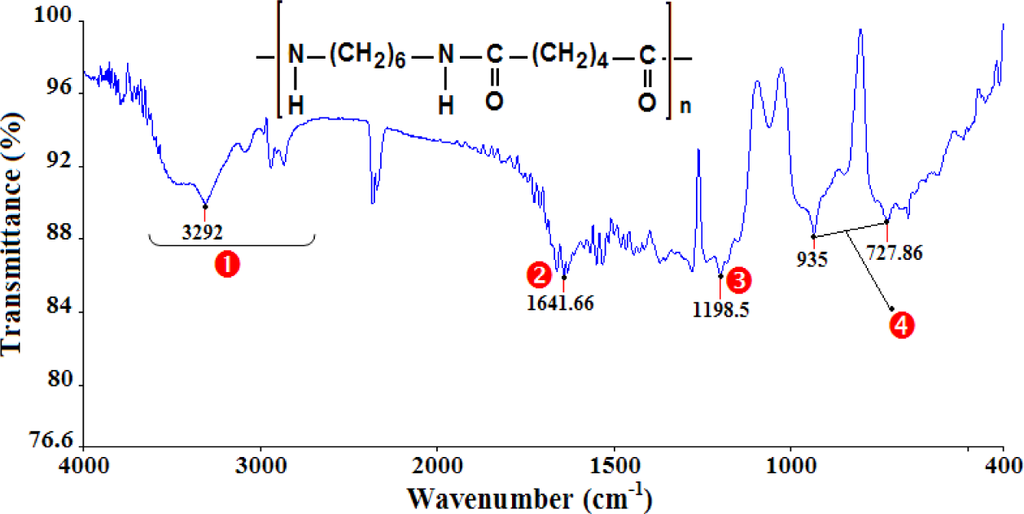

Figure 2. Infrared spectra of PA66.

Click here to enlarge figure

Figure 2. Infrared spectra of PA66.
Materials 07 00375f2 1024
Materials 07 00375f3 200

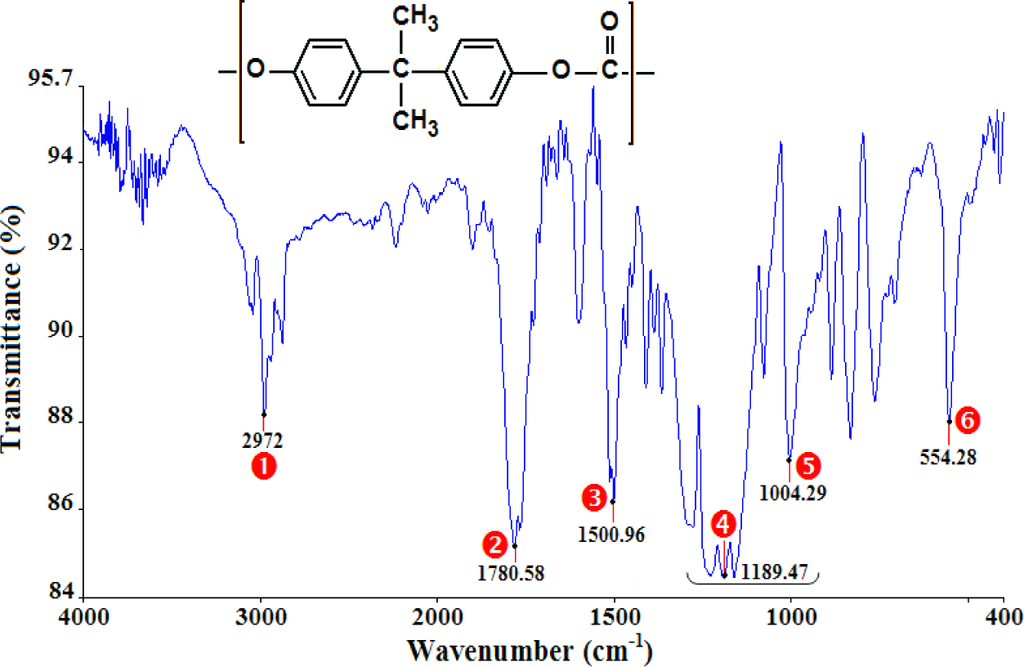

Figure 3. Infrared spectra of PC.

Click here to enlarge figure

Figure 3. Infrared spectra of PC.
Materials 07 00375f3 1024
Materials 07 00375f4 200
Figure 4. Dimensions (in mm) of the torsion test specimen.

Click here to enlarge figure

Figure 4. Dimensions (in mm) of the torsion test specimen.
Materials 07 00375f4 1024
Materials 07 00375f5 200

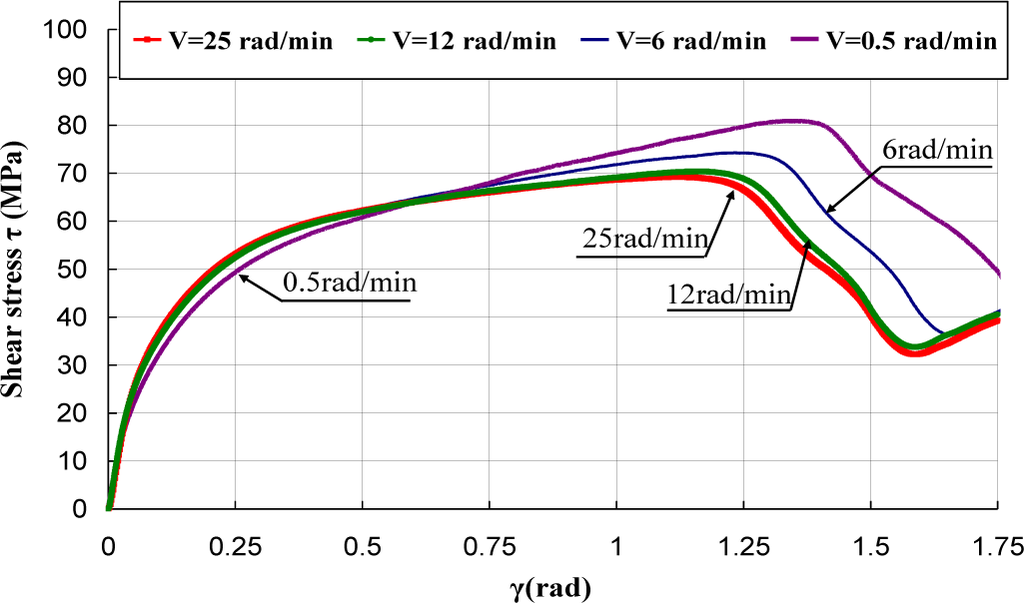

Figure 5. Torsion tests of PA66.

Click here to enlarge figure

Figure 5. Torsion tests of PA66.
Materials 07 00375f5 1024
Materials 07 00375f6 200

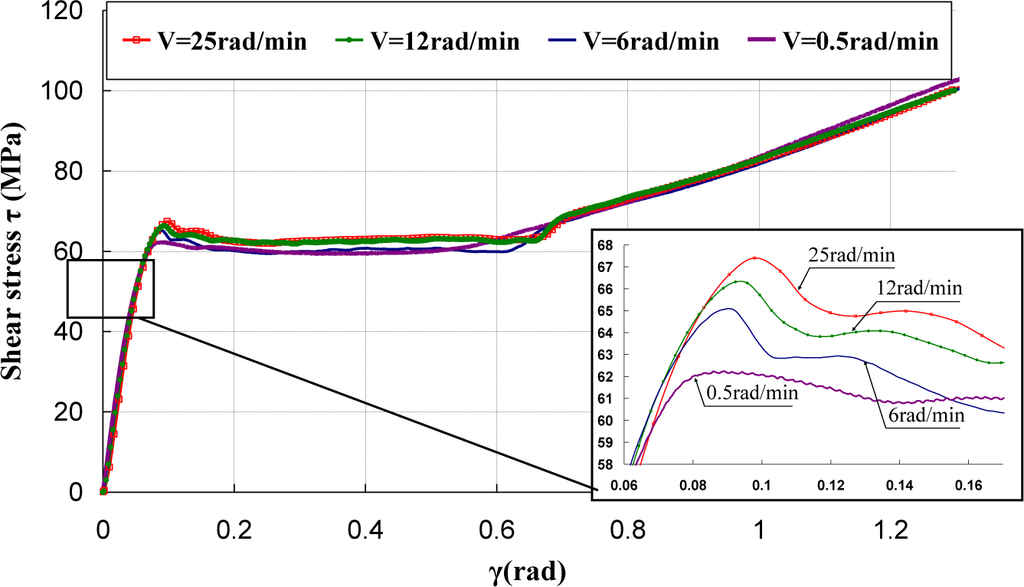

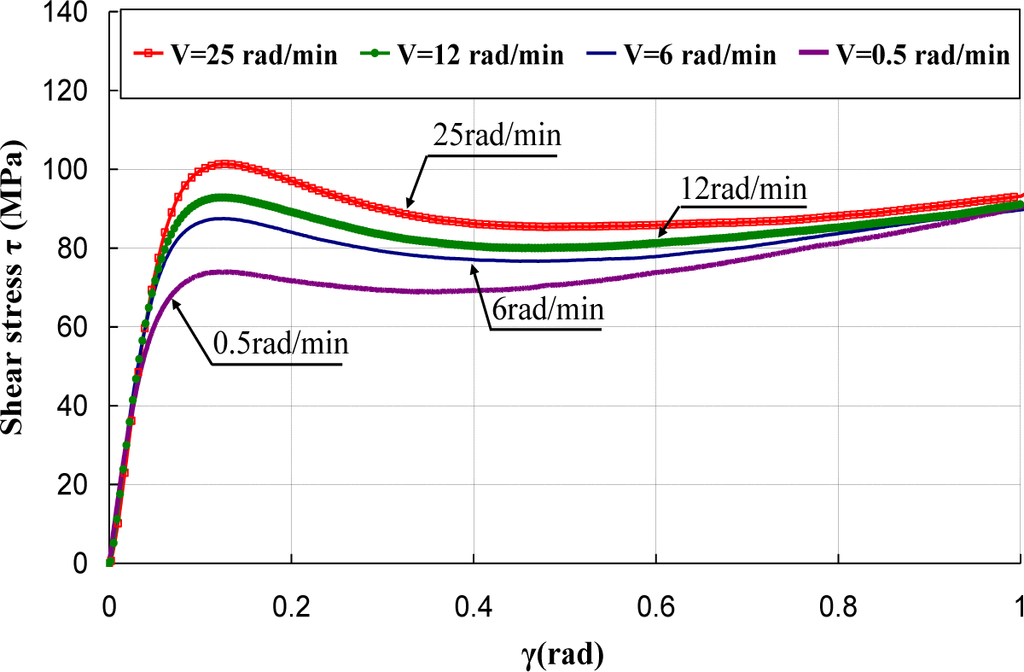

Figure 6. Torsion tests of PMMA.

Click here to enlarge figure

Figure 6. Torsion tests of PMMA.
Materials 07 00375f6 1024
Materials 07 00375f7 200
Figure 7. Torsion tests of PC.

Click here to enlarge figure

Figure 7. Torsion tests of PC.
Materials 07 00375f7 1024
Materials 07 00375f8 200

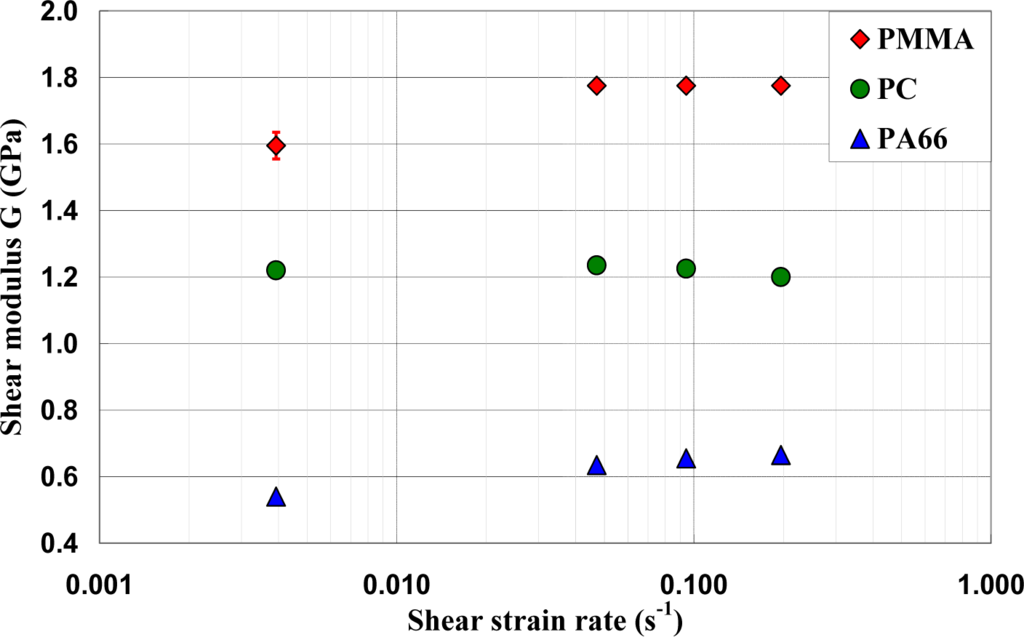

Figure 8. Shear moduli versus the equivalent strain rates.

Click here to enlarge figure

Figure 8. Shear moduli versus the equivalent strain rates.
Materials 07 00375f8 1024
Materials 07 00375f9 200

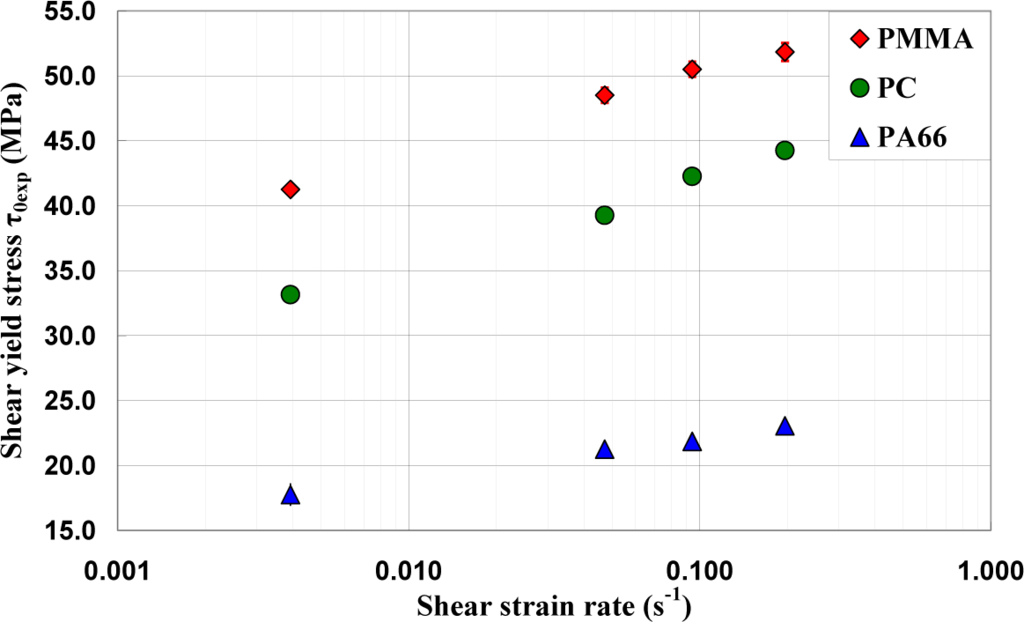

Figure 9. Yield shear stresses τ0exp of PA66, PC, and PMMA as a function of shear strain rate γ ˙.

Click here to enlarge figure

Figure 9. Yield shear stresses τ0exp of PA66, PC, and PMMA as a function of shear strain rate γ ˙.
Materials 07 00375f9 1024
Materials 07 00375f10 200

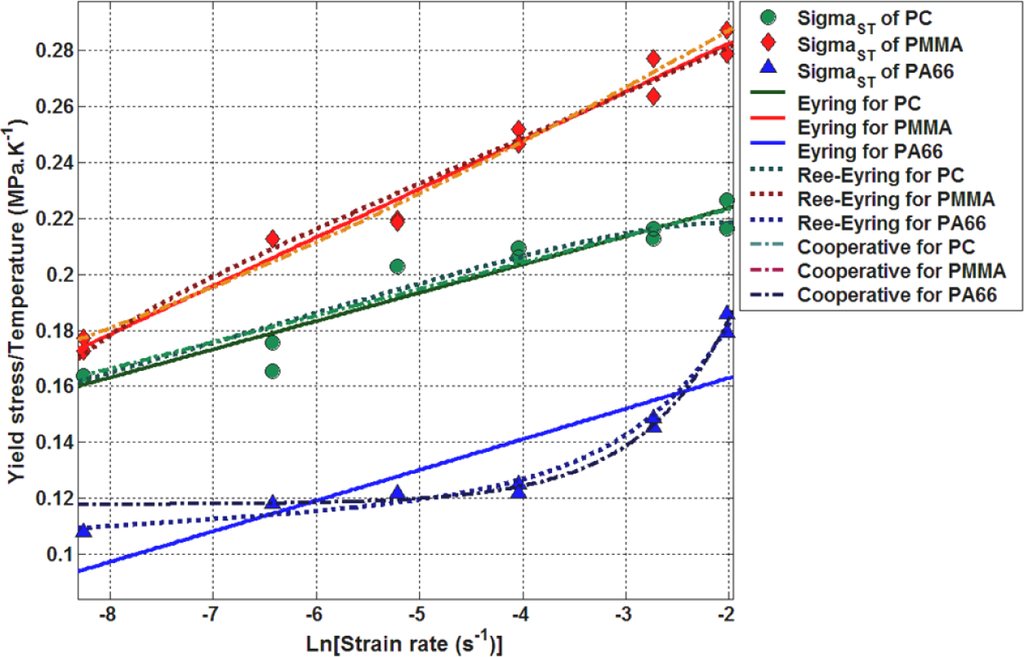

Figure 10. Evolution of the yield stress as a function of logarithm of strain rate [25].

Click here to enlarge figure

Figure 10. Evolution of the yield stress as a function of logarithm of strain rate [25].
Materials 07 00375f10 1024
Materials 07 00375f11 200

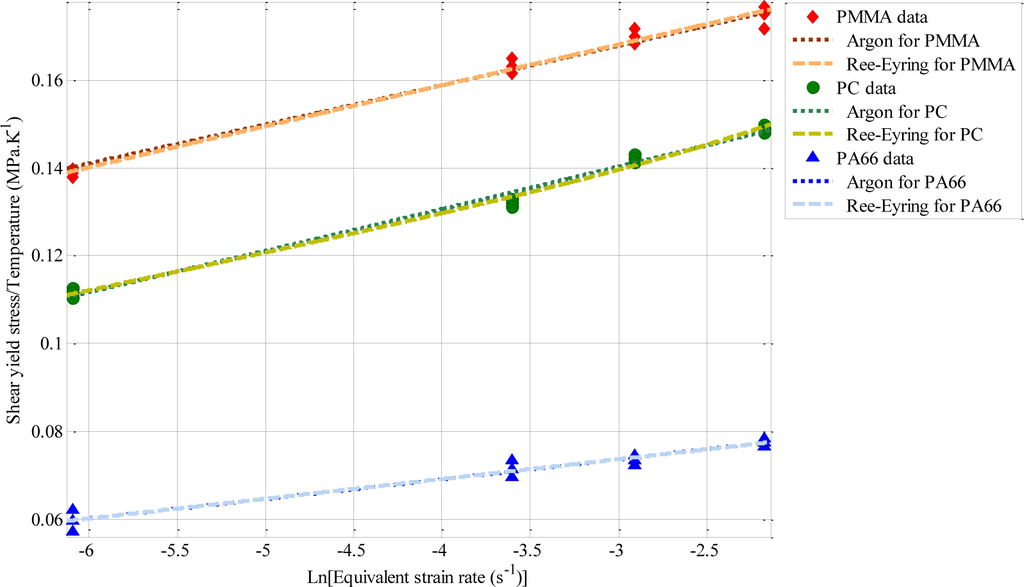

Figure 11. Best-fit evolution of the shear yield stress as a function of logarithm of equivalent strain rate [25].

Click here to enlarge figure

Figure 11. Best-fit evolution of the shear yield stress as a function of logarithm of equivalent strain rate [25].
Materials 07 00375f11 1024
Materials 07 00375f12 200

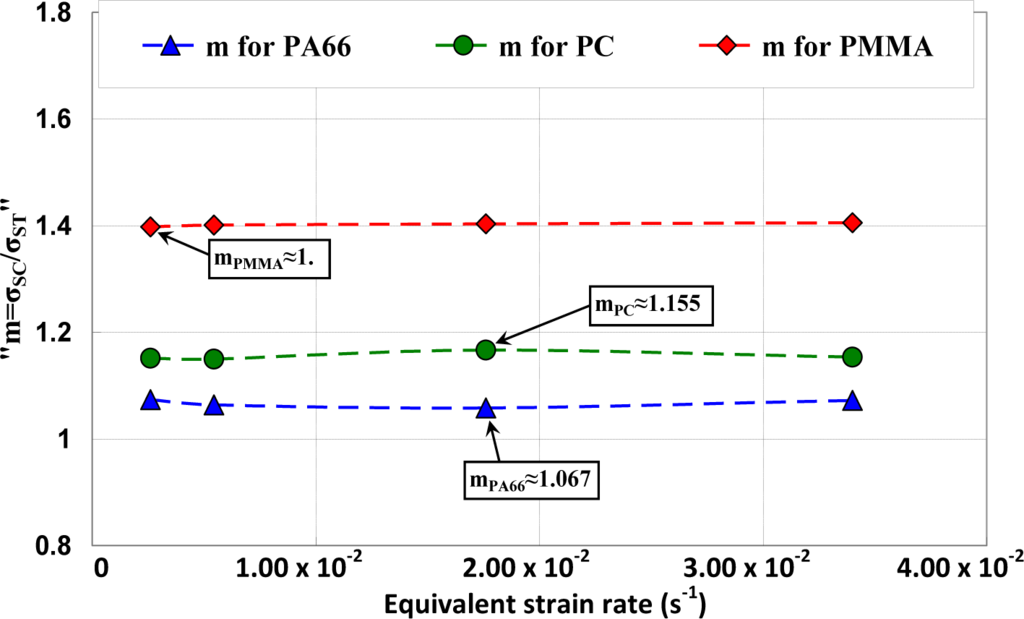

Figure 12. Relationship between the tensile yield stress and the uniaxial compressive yield stress as a function of equivalent strain rate.

Click here to enlarge figure

Figure 12. Relationship between the tensile yield stress and the uniaxial compressive yield stress as a function of equivalent strain rate.
Materials 07 00375f12 1024
Materials 07 00375f13 200

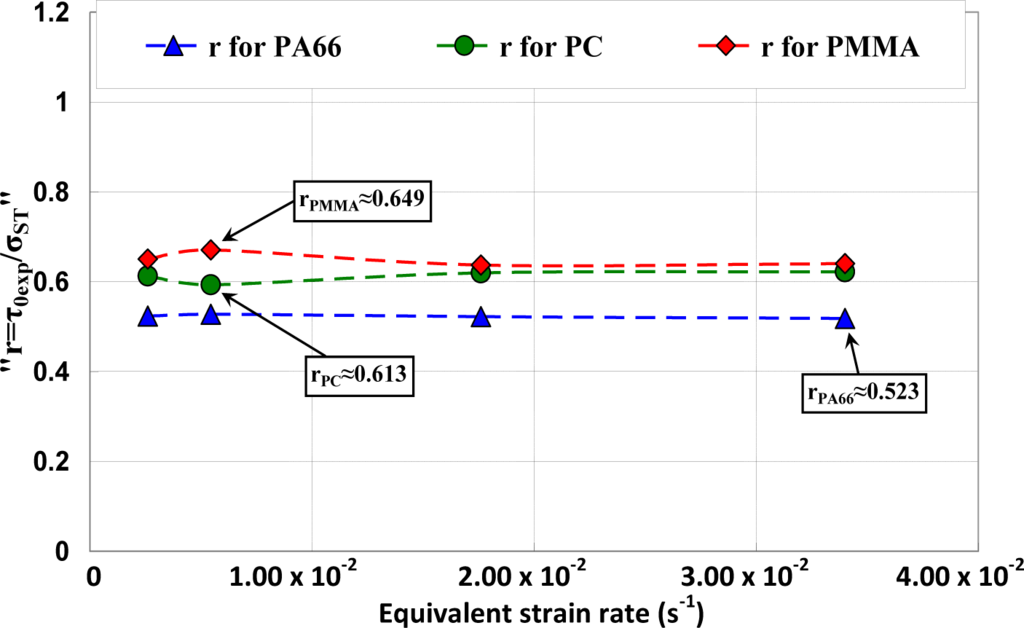

Figure 13. Relationship between yield stress and yield shear stress as a function of equivalent strain rate.

Click here to enlarge figure

Figure 13. Relationship between yield stress and yield shear stress as a function of equivalent strain rate.
Materials 07 00375f13 1024
Materials 07 00375f14 200

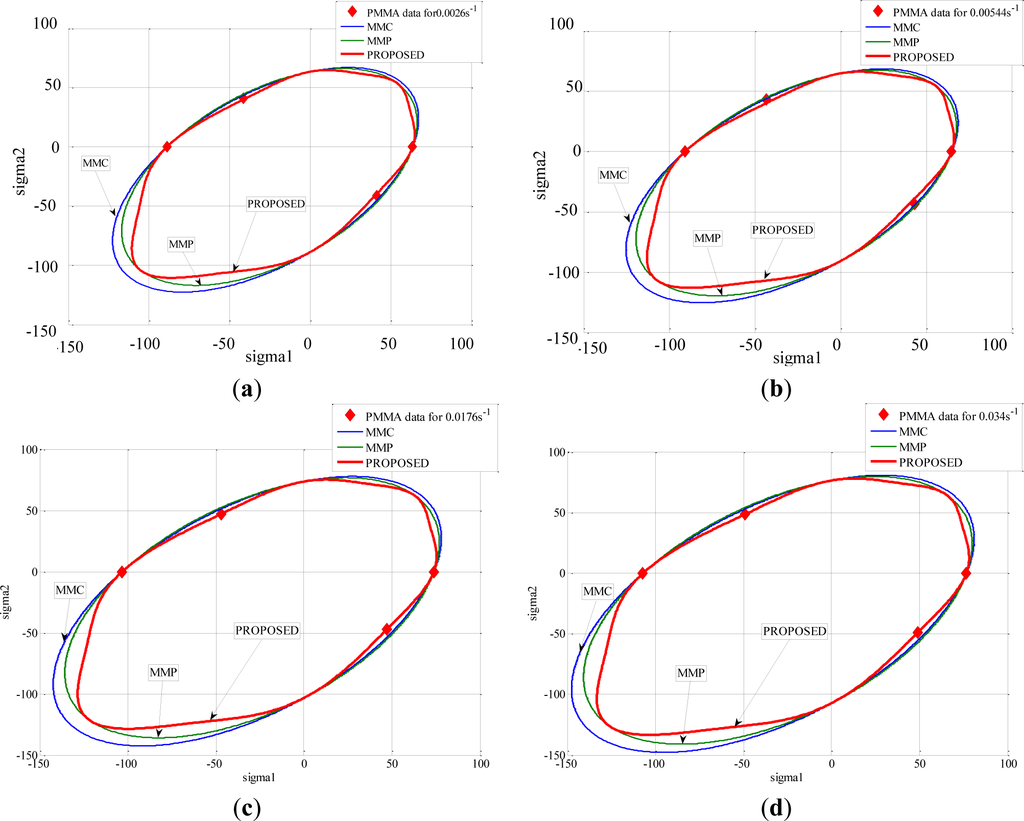

Figure 14. Predicted yield stress using different criteria and experimental results of PMMA represented in the principal stress plane (σI versus σII): for equivalent strain rate (a) 0.0026 s−1; (b) 0.00544 s−1; (c) 0.0176 s−1; and(d) 0.0034 s−1.

Click here to enlarge figure

Figure 14. Predicted yield stress using different criteria and experimental results of PMMA represented in the principal stress plane (σI versus σII): for equivalent strain rate (a) 0.0026 s−1; (b) 0.00544 s−1; (c) 0.0176 s−1; and(d) 0.0034 s−1.
Materials 07 00375f14 1024
Materials 07 00375f15 200

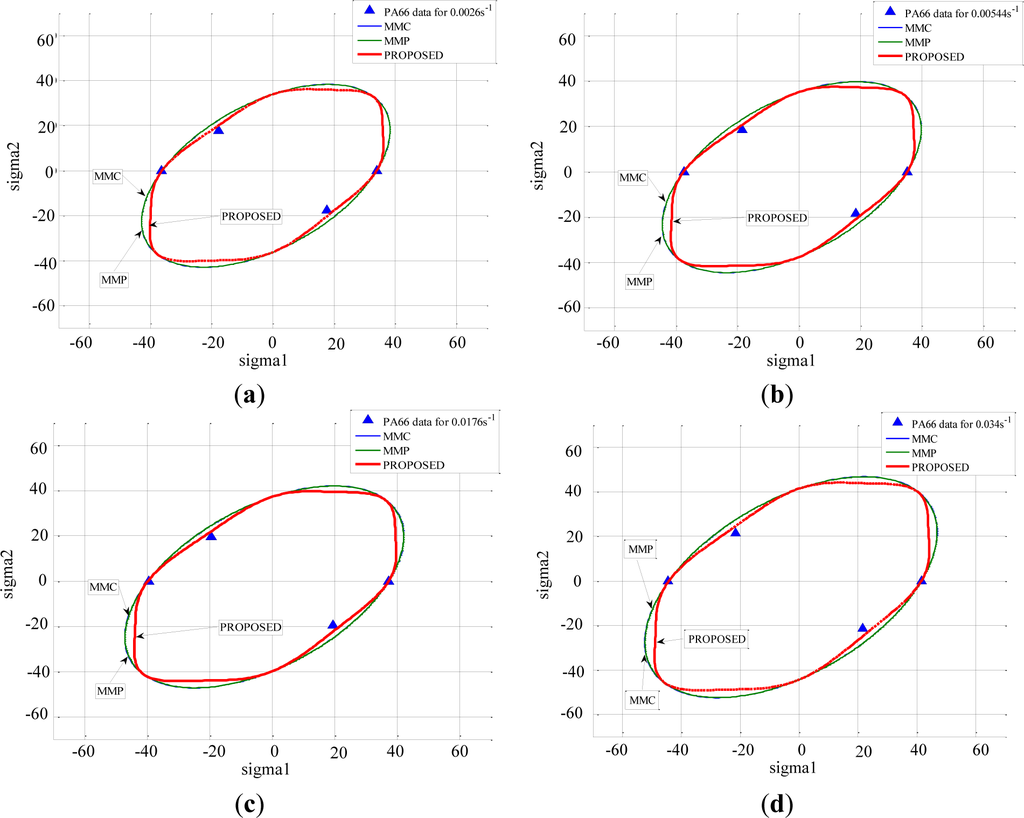

Figure 15. Predicted yield stress using different criteria and experimental results of PA66 represented in the principal stress plane (σI versus σII): for equivalent strain rate (a) 0.0026 s−1; (b) 0.00544 s−1; (c) 0.0176 s−1; and (d) 0.0034 s−1.

Click here to enlarge figure

Figure 15. Predicted yield stress using different criteria and experimental results of PA66 represented in the principal stress plane (σI versus σII): for equivalent strain rate (a) 0.0026 s−1; (b) 0.00544 s−1; (c) 0.0176 s−1; and (d) 0.0034 s−1.
Materials 07 00375f15 1024
Materials 07 00375f16 200Materials 07 00375f16a 200

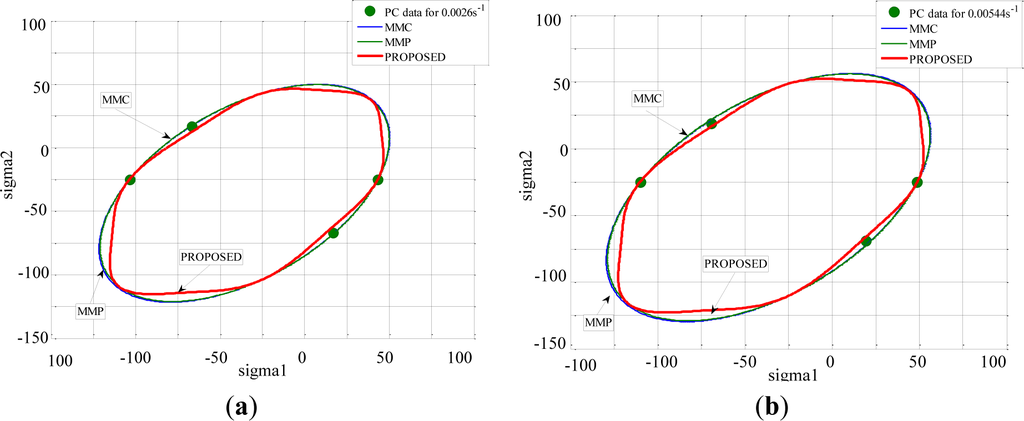

Figure 16. Predicted yield stress using different criteria and experimental results of PC represented in the principal stress plane (σI versus σII): for equivalent strain rate (a) 0.0026 s−1; (b) 0.00544 s−1; (c) 0.0176 s−1; and (d) 0.0034 s−1.

Click here to enlarge figure

Figure 16. Predicted yield stress using different criteria and experimental results of PC represented in the principal stress plane (σI versus σII): for equivalent strain rate (a) 0.0026 s−1; (b) 0.00544 s−1; (c) 0.0176 s−1; and (d) 0.0034 s−1.
Materials 07 00375f16 1024Materials 07 00375f16a 1024
Materials 07 00375f17 200
Figure 17. Self-heating of PA66 induced by torsion deformation.

Click here to enlarge figure

Figure 17. Self-heating of PA66 induced by torsion deformation.
Materials 07 00375f17 1024
Materials 07 00375f18 200
Figure 18. Self-heating of PMMA induced by torsion deformation.

Click here to enlarge figure

Figure 18. Self-heating of PMMA induced by torsion deformation.
Materials 07 00375f18 1024
Materials 07 00375f19 200
Figure 19. Self-heating of PC induced by torsion deformation.

Click here to enlarge figure

Figure 19. Self-heating of PC induced by torsion deformation.
Materials 07 00375f19 1024
Materials 07 00375f20 200
Figure 20. IR Thermographs of PA66 torsion test for V = 12 rad/min. (a) γ = 0.73 rad; (b) γ = 1.18 rad; (c) γ = 1.39 rad; and (d) γ = 1.86 rad.

Click here to enlarge figure

Figure 20. IR Thermographs of PA66 torsion test for V = 12 rad/min. (a) γ = 0.73 rad; (b) γ = 1.18 rad; (c) γ = 1.39 rad; and (d) γ = 1.86 rad.
Materials 07 00375f20 1024
Materials 07 00375f21 200
Figure 21. IR Thermographs of PMMA torsion test for V = 12 rad/min. (a) γ = 0.36 rad; (b) γ = 0.56 rad; (c) γ = 0.74 rad; and (d) γ = 0.94 rad.

Click here to enlarge figure

Figure 21. IR Thermographs of PMMA torsion test for V = 12 rad/min. (a) γ = 0.36 rad; (b) γ = 0.56 rad; (c) γ = 0.74 rad; and (d) γ = 0.94 rad.
Materials 07 00375f21 1024
Materials 07 00375f22 200Materials 07 00375f22a 200
Figure 22. IR Thermographs of PC torsion test for V = 12 rad/min. a) γ = 0.41 rad; (b) γ = 0.68 rad; (c) γ = 0.97 rad; and (d) γ = 1.29 rad.

Click here to enlarge figure

Figure 22. IR Thermographs of PC torsion test for V = 12 rad/min. a) γ = 0.41 rad; (b) γ = 0.68 rad; (c) γ = 0.97 rad; and (d) γ = 1.29 rad.
Materials 07 00375f22 1024Materials 07 00375f22a 1024
Materials 07 00375f23 200
Figure 23. Thermal dissipation and shear stress of PA66 polymers during the torsion test.

Click here to enlarge figure

Figure 23. Thermal dissipation and shear stress of PA66 polymers during the torsion test.
Materials 07 00375f23 1024
Materials 07 00375f24 200
Figure 24. Thermal dissipation and shear stress of PMMA polymers during the torsion test.

Click here to enlarge figure

Figure 24. Thermal dissipation and shear stress of PMMA polymers during the torsion test.
Materials 07 00375f24 1024
Materials 07 00375f25 200
Figure 25. Thermal dissipation and shear stress of PC polymers during the torsion test.

Click here to enlarge figure

Figure 25. Thermal dissipation and shear stress of PC polymers during the torsion test.
Materials 07 00375f25 1024
Materials 07 00375f26 200
Figure 26. Fractography of PA66 torsion test for different equivalent strain rates.

Click here to enlarge figure

Figure 26. Fractography of PA66 torsion test for different equivalent strain rates.
Materials 07 00375f26 1024
Materials 07 00375f27 200
Figure 27. Fractography of PMMA torsion test for different equivalent strain rates.

Click here to enlarge figure

Figure 27. Fractography of PMMA torsion test for different equivalent strain rates.
Materials 07 00375f27 1024
Materials 07 00375f28 200Materials 07 00375f28a 200
Figure 28. Fractography of PC torsion test for different equivalent strain rates.

Click here to enlarge figure

Figure 28. Fractography of PC torsion test for different equivalent strain rates.
Materials 07 00375f28 1024Materials 07 00375f28a 1024
Table Table 1. The assignment of principal infrared bands of polymethyl methacrylate (PMMA), polyamide (PA66), and polycarbonate (PC).

Click here to display table

Table 1. The assignment of principal infrared bands of polymethyl methacrylate (PMMA), polyamide (PA66), and polycarbonate (PC).
PolymerNO.Wavenumber (cm−1)Peak assignments
PMMA2360–2952O–CH3 stretch
1727C=O stretch (Ketone)
1450C–H bending (Alkane)
1149C–O stretch (Ether)
751–988(CH2)n with n ≥ 4 (Alkane)
PA663292N–H stretch (Amide)
1641C=O stretch (Ketone)
1198C–N stretch (Amine)
728–935(CH2)n with n ≥ 4 (Alkane)
PC2972C–H stretch (Aromatic)
1780C=O stretch (Ketone)
1501C=C stretch (Aromatic)
1189C–O stretch (Ether)
1004C–O stretch (Ether)
554(CH2)n with n ≥ 4 (Alkane)
Table Table 2. Thermal properties of studied polymers [15].

Click here to display table

Table 2. Thermal properties of studied polymers [15].
Thermal propertiesPCPMMAPA66
Tg (°C)149.7127.758.8
Tf (°C)**261.4
ΔHf (J/g)**47.7
Xc (%)**25

*No Tf for amorphous polymers.

Table Table 3. Yield shear stresses τ0max.

Click here to display table

Table 3. Yield shear stresses τ0max.
V (rad/min)Shear strain rate (s−1)PCPA66PMMA

τ0max (MPa)s **τ0max (MPa)s **τ0max (MPa)s **
0.53.93 × 10−361.80.35**74.10.3
64.71 × 10−264.80.23**87.80.73
129.42 × 10−266.10.17**92.70.1
251.96 × 10−167.30.67**100.80.83

*ISO R257 standard can’t be applied; ** Standard deviation.

Table Table 4. Best-fit parameters for Argon’s and Ree-Eyring’s model.

Click here to display table

Table 4. Best-fit parameters for Argon’s and Ree-Eyring’s model.
MaterialModel’sEquation modelabcdR2
PMMAArgon τ 0 exp T = a [ c Ln ( ε ˙ eq ) ] 5 65.7 × 10−6−239.160230.9819
Ree-Eyring τ 0 exp T = a Ln ( ε ˙ eq ) + b sin h 1 ( d ε ˙ eq ) + c3.632 × 10−2−2.7 × 10−20.436236230.9840
PCArgon τ 0 exp T = a [ c b Ln ( ε ˙ eq ) ] 5 69.8 × 10−5−24.55499.80.9877
Ree-Eyring τ 0 exp T = a Ln ( ε ˙ eq ) + b sin h 1 ( d ε ˙ eq ) + c8.4 × 10−3−1.414 × 10−20.1625−3.340.9911
PA66Argon τ 0 exp T = a [ c b Ln ( ε ˙ eq ) ] 5 62.396 × 10−3−0.896620.070.9532
Ree-Eyring τ 0 exp T = a Ln ( ε ˙ eq ) + b sin h 1 ( d ε ˙ eq ) + c4.49 × 10−3−58.18.716 × 10−2−4.819 × 10−30.9544
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
