Materials 2014, 7(1), 195-205; doi:10.3390/ma7010195

Article
Preparation of Fe3O4-Embedded Poly(styrene)/Poly(thiophene) Core/Shell Nanoparticles and Their Hydrogel Patterns for Sensor Applications
Yong Seok Kim 1, Hyun Jong Lee 1, Patakamuri Govindaiah 1, Woohyun Son 1, Won-Gun Koh 1, In Woo Cheong 2,* and Jung Hyun Kim 1,*
1
Department of Chemical and Biomolecular Engineering, Yonsei University, 50 Yonsei-ro, Seodaemoon-Gu, Seoul 120-749, Korea; E-Mails: genie0719@daum.net (Y.S.K.); bml@yonsei.ac.kr (H.J.L.); govindaiah@gmail.com (P.G.); roxxn.son@gmail.com (W.S.); wongun@yonsei.ac.kr (W.-G.K.)
2
Department of Applied Chemistry, Kyungpook National University, 80 Daehakro, Bukgu, Daegu 702-701, Korea
*
Authors to whom correspondence should be addressed; E-Mails: inwoo@knu.ac.kr (I.W.C.); jayhkim@yonsei.ac.kr (J.H.K.); Tel.: +82-53-950-7590 (I.W.C.); +82-2-2123-7633 (J.H.K.); Fax: +82-53-950-6594 (I.W.C.); +82-2-312-0305 (J.H.K.).
Received: 30 November 2013; in revised form: 26 December 2013 / Accepted: 27 December 2013 /
Published: 2 January 2014

Abstract

: This research describes the preparation and sensor applications of multifunctional monodisperse, Fe3O4 nanoparticles-embedded poly(styrene)/poly(thiophene) (Fe3O4-PSt/PTh), core/shell nanoparticles. Monodisperse Fe3O4-PSt/PTh nanoparticles were prepared by free-radical combination (mini-emulsion/emulsion) polymerization for Fe3O4-PSt core and oxidative seeded emulsion polymerization for PTh shell in the presence of FeCl3/H2O2 as a redox catalyst, respectively. For applicability of Fe3O4-PSt/PTh as sensors, Fe3O4-PSt/PTh-immobilized poly(ethylene glycol) (PEG)-based hydrogels were fabricated by photolithography. The hydrogel patterns showed a good sensing performance under different H2O2 concentrations. They also showed a quenching sensitivity of 1 μg/mL for the Pd2+ metal ion within 1 min. The hydrogel micropatterns not only provide a fast water uptake property but also suggest the feasibility of both H2O2 and Pd2+ detection.
Keywords:
polythiophene; nanoparticles; fluorescence; sensor; hydrogel patterns

1. Introduction

Recently optical sensing materials have received great attention and these can be categorized in two groups, organic and inorganic. One typical of the inorganic material group is quantum dots (QDs) [1], however, several disadvantages have emerged such as short fluorescence lifetime, susceptibility to photo-bleaching, and complexity in fabrication processes requiring multiple steps which also makes the production costly. Alternatively, conjugated polymers from the organic material group are widely used for various sensing applications. Among these, poly(thiophene) (PTh) and its derivatives have received great attention as sensing materials, particularly for DNA [2], gas [3], glucose oxidase (GOX) [4], ion chromatism [5], magnetometer [6] and pH [7]. In previous studies, we presented a synthetic mechanism of pristine PTh nanoparticles [8], a size controlling process [8], a kinetic mechanism of PSt/PTh core/shell nanoparticles [9], the control of fluorescence properties by varying the PTh shell thickness of the PSt/PTh core/shell nanoparticles [10], and a new composite mechanism and properties of hybrid Fe3O4 NPs-PSt/PTh composite nanoparticles [11].

As part of a sensing system, hydrogels of a 3D network structure can effectively enhance sensitivity, i.e., the ratio of signal to noise, owing to the swellability for large capacity and permeability of the targeting medium as well as a dimensional difference compared to a 2D sensory surface. Among hydrogels, poly(ethylene glycol) (PEG)-based hydrogels have been widely used to immobilize biomolecules or organic materials due to high water holding capacity, hydrophilicity and biocompatibility [1221]. In addition, PEG-based hydrogels can easily be modified by manipulating the molecular weight, the type and degree of crosslink, and the dimensions from micro- to millimeter-scale for versatility [22].

This work describes the preparation of monodisperse Fe3O4-PSt/PTh core/shell nanoparticles and immobilization of the nanoparticles into the crosslinked PEGDA hydrogel matrix via photolithography for the detection of H2O2 as well as Pd2+ and Fe3+ as a function of concentration with fast response detection time. As a result, the multifunctional sensing performance, properties and the versatile patterning process of nanoparticles in the hydrogel matrix as a new sensing nanomaterial make them highly suitable candidates for sensors.

2. Results and Discussion

A schematic diagram of monodisperse Fe3O4-PSt/PTh core/shell nanoparticles is illustrated in Figure 1. Oleic acid-stabilized Fe3O4 nanoparticles were prepared by a co-precipitation method and dispersed into octane to form the ferrofluid. On the other hand, styrene droplets were prepared by membrane emulsification and the resulting droplets (~3 μm in diameter) are shown in the supporting information (Figure S1). Monodisperse Fe3O4 NPs-PSt nanoparticles were prepared through the so-called “activated swelling method” of emulsion polymerization [23] where the smaller ferrofluid droplets are polymerization loci. Styrene monomer was replenished by micron-sized styrene monomer droplets. These can be rationalized by the average particle size of the resulting Fe3O4-PSt nanoparticles, as shown in Figure S2a. A polythiophene shell was then formed by oxidative polymerization in the presence of FeCl3/H2O2 [11].

For comparison, the FT-IR spectra of Fe3O4-PSt and Fe3O4-PSt/PTh core/shell nanoparticles are shown in Figure 2. The vibration band at 580 cm−1 was assigned to the Fe-O of the iron oxide, which confirmed the presence of the Fe3O4 nanoparticles in both Fe3O4-PSt and Fe3O4-PSt/PTh core/shell nanoparticles. The C–H bond of PSt was found at 1450 cm−1 and the strong absorption bands at 1470 and 1590 cm−1 were attributed to the stretching vibration of C=C bond on the benzene ring. The sharp bands 700 and 750 cm−1 were assigned to the out-of-plane bending vibrations of the mono-substituted benzene ring. After the oxidative polymerization, the strong absorption band at 1690 cm−1 newly appeared, indicating the stretching vibration of the C=C bond from PTh. These data confirmed the PTh shell layer formation.

Figure S3 shows the TGA curves of the PSt and Fe3O4-PSt nanoparticles. For PSt, the initial decomposition of SDS, OA were found at 210–240 °C in Figure S3b [24]. The weight loss of about 20% at 400 °C in Figure S3b is the typical burn out temperature of PSt in Figure S3a. Importantly, the TGA curves revealed that ca. 69 wt% Fe3O4 nanoparticles were encapsulated in the nanoparticles.

As shown in Figure 3, the magnetic properties of Fe3O4, Fe3O4-PSt and Fe3O4-PSt/PTh core/shell nanoparticles were studied with SQUID magnetometry at room temperature as a function of external field (−1 to 1 Tesla). The zero coercivity and the reversible hysteresis behavior indicate the superparamagnetic nature of the nanoparticles. The saturation magnetization value of Fe3O4 nanoparticle was 63 emu/g at 300 K. In addition, the magnetic moment of Fe3O4-PSt nanoparticles was higher than that in the previous report due to the higher volume fraction of magnetite in the nanoscale (<100 nm) [11]. After PTh (~3 nm thickness) sheath formation, the magnetic moment was decreased from 43 emu/g to 25 emu/g. This seems mainly attributable to not only the possible electromagnetic shielding effect of conjugated polymer but also to the decrease of the magnetite content and the magnetically dead layer on the shell of the particles or to a spin glass-like behavior of the surface of spins or canted spins [11].

Figure 4 shows the TEM micrographs of oleic acid-stabilized Fe3O4 nanoparticle, Fe3O4-PSt, and Fe3O4-PSt/PTh nanoparticles. As can be seen in the inset of Figure 4a, the lattice fringes in the HR-TEM image correspond to a group of atomic planes within a single crystal of Fe3O4 nanoparticle. As shown in Figure 4b, the D ¯ z of Fe3O4-PSt nanoparticles was 84.9 nm and the PDI was 0.048 (fairly monodisperse). The Fe3O4-PSt nanoparticle seems to be fully filled with Fe3O4 nanoparticles. Figure 4c clearly shows the bright shell layer of PTh. In addition, the D ¯ z of Fe3O4-PSt/PTh nanoparticles was increased to 87.3 nm (PDI = 0.061). These results confirm that Fe3O4-PSt/PTh nanoparticles were successfully prepared.

The PL spectra of Fe3O4-PSt/PTh core/shell nanoparticles were measured by spectrofluorophotometry at an excitation wavelength of 400 nm and plotted in Figure 5. The maximum emission wavelength (λmax) was 564 nm with red emission in previous report. Similarly, Fe3O4-PSt nanoparticles with the thin PTh shell also emitted red light. Also, the Fe3O4 NPs-embedded core part could not quench the PL emission [11].

For sensor application, Fe3O4-PSt/PTh core/shell nanoparticles were immobilized in the hydrogel patterns, as shown in Figure 6a. The sizes and shapes of the hydrogel patterns were regulated by photomasks in the lithography process, and the patterns of circle, square, and triangle shapes were fabricated. This multiple shape hydrogel particle could be also utilized for multiple analyses. It would be possible to detect other modified Fe3O4 NPs-PSt/PTh nanoparticles which have each different properties using a shape-coded detection system as presented previously [13,18,19].

In order to study the concentration effect of Fe3O4-PSt/PTh nanoparticles, the fluorescence intensity of the hydrogel was recorded at the different nanoparticle concentrations of 5 and 10 wt%. As shown in Figure S4, the uniformity of fluorescence intensity from the 5 wt% Fe3O4-PSt/PTh sample was more even than the inhomogeneity of 10 wt%. The results were attributed to the fluorescence uniformity originating from the aggregation of Fe3O4-PSt/PTh nanoparticles in the hydrogel matrix owing to the hydrophobic nature of the nanoparticles against the hydrophilic nature of the hydrogel matrix. Thus, applicability of Fe3O4-PSt/PTh nanoparticles as a sensor was evaluated using 200 × 200 μm2 squared hydrogel patterns at the predetermined nanoparticle concentration of 5 wt%.

Various oxidase produce H2O2 during the catalytic oxidation-reduction in the presence of oxygen [1214,20,21]. As a result, H2O2 quenches the photoluminescence of the fluorophore by electron transfer [25]. As for H2O2 sensing feasibility, the fluorescence images were recorded and the data for the square hydrogel patterns are summarized in Figure 7. The fluorescence intensity in Figure 7b decreased with the lapse of time. As the concentration of H2O2 decreased, the slope of fluorescence intensity became less steep. With 30 vol% H2O2, the intensity steeply decreased to 20% of the initial intensity within 35 min, and gradually decreased until 55 min. As for 3 vol% H2O2, the intensity was decreased to 40% when the contact time was 35 min. The rate of fluorescence quenching increased with the concentration of H2O2. The mechanism relied on the electron-transfer reaction that occurred at the surface of the Fe3O4-PSt/PTh nanoparticles where H2O2 was reduced to O2, which in turn lay in electron/hole traps on the polythiophene and could be used as a good electron acceptor, thus forming the non-fluorescent Fe3O4-PSt/PTh nanoparticles and leading to reduced fluorescence.

Regarding the feasibility test for metal ion detection, the fluorescence intensities of Fe3O4-PSt/PTh immobilized hydrogel patterns in Pd2+ ion solution were recorded and the data are shown in Figure 8. Figure 8a shows the fluorescence images of the hydrogel patterns in DDI water (before) and 100 μg/mL Pd2+ aqueous solution (after), respectively. As shown in Figure 8b, the fluorescence intensities decreased by 35% for all concentrations from 1 μg/mL to 100 μg/mL of Pd2+ ions within 1 min. The concentration dependency on the variation in fluorescence intensity was observed after several minutes. Fe3+ ion was also tested with 10 μg/mL Fe3+ aqueous solution, as shown in Figure S5, and the data presented a similar result with Pd2+ ion. About 20% of fluorescence intensity decreased immediately, and the intensity dropped until 70% of initial intensity over 5 min. Compared with the same concentration of Pd ion, the Pd ion decreased the fluorescence more dramatically than the iron ion because of a property against the oxidative nature of Fe3+ under acidic conditions and the electro-active nature of polythiophene due to non-acidic conditions. Also, Pd2+ might interact with sulfur of the PTh shell via chelating or complex reactions [2628]. In addition, complex formation of palladium ion (as a soft acid) with PTh (as a soft base) can be considered as a type of Lewis acid/base (termed as soft acid–soft base reactions) might be a possible description for higher sensitivity of nanoparticles toward palladium ion.

3. Experimental Section

3.1. Materials

All reagents used in this work were analytic grade and available commercially. Ferric chloride (FeCl3·6H2O), ferrous chloride (FeCl2·4H2O), hexadecane (99%), styrene (St), thiophene (Th), Poly(ethylene glycol) diacrylate (PEGDA, M.W. = 575 g/mol), 2-hydroxy-2-methylpropiophenone (HOMPP, 97%) were purchased from Sigma-Aldrich (St. Louis, MA, USA). Ammonia water (NH4OH, 30%, Duksan Pure Chemicals Co., Ltd., Ansan-si, Korea), sodium dodecyl sulfate (SDS, Extra Pure, Duksan Pure Chemicals Co., Ltd.), poly(oxyethylene) (20) sorbitan monolaurate (Tween 20, Duksan Pure Chemicals Co., Ltd.), and potassium persulfate (KPS, Junsei Chemical, Tokyo, Japan) were used without purification. Anhydrous FeCl3 (Kanto Chemical, Tokyo, Japan) and hydrogen peroxide (H2O2, 30%, Duksan Pure Chemicals Co., Ltd.) were used as an oxidant and reductant, respectively, without further purification. Double-distilled and deionized (DDI) water was used throughout the experiments.

3.2. Preparation of Monodisperse Fe3O4-PSt/PTh Core/Shell Nanoparticles

Fe3O4-embedded PSt nanoparticles (Fe3O4-PSt) were prepared by combined mini-emulsion/emulsion polymerization as reported elsewhere [23]. For the preparation of Fe3O4 nanoparticle, FeCl3·6H2O (24 g) and FeCl2·4H2O (10 g) were dissolved in DDI water (100 mL) at 80 °C under N2 atmosphere with vigorous stirring. Ammonia water (50 mL) was then quickly added into the above solution and the solution turned black, which was a sign of forming a black precipitate. For the hydrophobic modification of Fe3O4, oleic acid (3.76 g) was added dropwise for 20 min, at 80 °C for 1 h, and then ultra-sonicated for 15 min. The oleic acid-coated Fe3O4 nanoparticles were subsequently collected and transferred into octane to make a ferrofluid with a magnetite content of 68 wt%.

A porous glass membrane (SPG membrane, pore size = 1.0 μm, SPG Technology Co. Ltd., Miyazaki, Japan) was used as a template for the mini-emulsion polymerization of styrene. Styrene (2.5 g) and hexadecane (0.04 g) were mixed and added into the vessel for dispersion phase. SDS (0.05 g) was then dissolved in water (40 mL) for the continuous phase. Monodisperse styrene droplets were obtained under the administration of 38 kPa pressure (N2 gas) for 3 h. In order to introduce Fe3O4 nanoparticles, the ferrofluid (Fe3O4, 2 g, 68 wt% in octane) was added into the SDS aqueous solution (0.05 g SDS in 48 mL DDI water) and this mixture was ultra-sonicated (500 W, VCX-750, Sonic Inc., Atlanta, GA, USA) in an ice bath for 15 min.

For the preparation of Fe3O4-PSt, the above emulsions were added into a three-neck round-bottomed flask in the presence of KPS (20 mg) and stirred for 30 min under N2 atmosphere. Then the reactor was placed in a water bath at 80 °C to initiate polymerization. The reaction was carried out for 24 h. The resulting Fe3O4-PSt was collected by using a permanent magnet for purification. The z-average particle size ( D ¯ z) of Fe3O4-PSt was 84.9 nm and the polydispersity index (PDI) was 0.048, measured by dynamic light scattering.

For the preparation of Fe3O4-PSt/PTh core/shell nanoparticles, Fe3O4-PSt (1.5 g) was redispersed in DDI water (45 g) by bath sonication in the presence of Tween 20 (0.5 g). Above Fe3O4-PSt emulsion was stirred for 10 min for stabilization at room temperature and subsequently, thiophene monomer (0.5 g) and H2O2 aqueous solution (1 g) were added after another 10 min in order. After 10 min, FeCl3 (0.005 g) dissolved in DDI water (5 g) was slowly added to initiate polymerization. The polymerization was kept for 24 h. Finally, monodisperse Fe3O4-PSt/PTh core/shell particles were obtained with D ¯ z of 87.3 nm (PDI = 0.061). The yield of the product was 91% ± 4% after purification.

3.3. Fabrication of Hydrogel Patterns

The hydrogel patterns were fabricated via photolithography. PEGDA was first mixed with Fe3O4-PSt/PTh emulsion (5 wt%) as a 1:1 volume ratio, and then 2 vol% of HOMPP was added to the mixture. After 50 μL of precursor solution was dropped onto a slide glass, and 365 nm (10 mW/cm2) UV light (EFOS Ultra-cure 100ss Plus, UV sport lamp, Mississauga, ON, Canada) was applied through photomasks for 1 s. Unreacted precursor solution was removed via development process with water.

3.4. Characterization

The average particle size and morphology of Fe3O4-PSt/PTh nanoparticles were measured by dynamic light scattering (DLS, Zetasizer Nano ZS, Malvern, PA, USA), field emission scanning electron microscopy/energy dispersive spectroscopy (FE-SEM/EDS, JSM-6701F, JEOL Ltd., Tokyo Japan), and transmission electron microscopy (TEM, JEM-2000EXII, JEOL Ltd.). Fourier transform-infrared spectra were recorded by FT-IR (Tensor 27, Bruker Corp., Rheinstetten, Germany) in KBr pellets. All samples were scanned in the range 510–2000 cm−1. Photoluminescence (PL) spectra were recorded in a spectrofluorophotometer (RF-5301PC, Shimadzu, Kyoto, Japan). The thermal properties of the nanoparticles were analyzed by thermogravimetry (TGA) (Q50, TA Instr., New Castle, DE, USA). Magnetization hysteresis loops were measured with a superconducting quantum interference device (SQUID) magnetometer (MPMS XL, Quantum Design, Inc., lan Diego, CA, USA) at room temperature. The saturation magnetization values were normalized to the mass of nanoparticles to yield the specific magnetization, M (emu/g). A Zeiss Axiovert 200 microscope equipped with an integrated color CCD camera (Carl Zeiss Inc., Thornwood, NY, USA) was used to obtain the fluorescence images of the fluorescent hydrogel microstructures. Image analyses were performed using commercially available image analysis software (KS 300, Carl Zeiss Inc., Oberkochen, Germany).

4. Conclusions

We synthesized monodisperse Fe3O4-PSt/PTh core/shell nanoparticles successfully by combinational mini-emulsion/emulsion polymerization and oxidative polymerization. TEM and TGA results indicated that the high concentration (69 wt%) of Fe3O4 nanoparticles were embedded in the monodisperse PSt matrix even after PTh sheath formation during the oxidative polymerization. The Fe3O4-PSt/PTh nanoparticles were then immobilized in crosslinked PEG hydrogel patterns for their applicability as sensors, and this was based on the quenching effect of H2O2 or Pd2+ ion. The variations in fluorescence intensity arising from H2O2 and the metal ion were evaluated with different concentrations and contact times. The results suggest that the Fe3O4-PSt/PTh nanoparticle could be a candidate for fluorescence quenching-based optical sensors providing a size and shape controllable multiplex detection system.

Supplementary Material

  • Figure S1.:

    Optical micrograph of styrene droplets prepared by using SPG membrane emulsification.

  • Figure S2.:

    Particle size distributions of (a) Fe3O4-PSt and (b) Fe3O4-PSt/PTh nanoparticles dispersed in DDI water at the same concentration of about 0.01 wt%.

  • Figure S3.:

    TGA curves of (a) as-synthesized PSt and (b) Fe3O4-PSt nanoparticles.

  • Figure S4.:

    Fluorescence images of Fe3O4-PSt/PTh nanoparticles-immobilized hydrogel patterns, (a) 10 wt% and (b) 5 wt% Fe3O4-PSt/PTh nanoparticle concentrations, respectively. (c) is corresponding profile of fluorescence intensities recorded at the dashed lines in (a) and (b).

  • Figure S5.:

    (a) Fluorescence micrographs of Fe3O4-PSt/PTh immobilized hydrogel patterns in the 10 μg/mL Fe3+ aqueous solution and (b) corresponding fluorescence intensity as a function of contact time.

  • This research was supported by Nano-Material Technology Development Program through the National Research Foundation of Korea (NRF) funded by the Ministry of Education, Science and Technology (2008-2002380/2012-0006227), (2009-0093823) and (2007-0056566). The Pioneer Research Center Program through the National Research Foundation of Korea funded by the Ministry of Science, ICT and Future Planning (No. 2010-0019308/2010-0019550) and the Korea government (MSIP) (No. 2007-0056091).

    Conflicts of Interest

    The authors declare no conflict of interest.

    References

    1. Galian, R.E.; de la Guardia, M. The use of quantum dots in organic chemistry. TrAC Trends Anal. Chem 2009, 28, 279–291. [Google Scholar]
    2. Dubus, S.; Gravel, J.-F.; Le Drogoff, B.; Nobert, P.; Veres, T.; Boudreau, D. PCR-free DNA detection using a magnetic bead-supported polymeric transducer and microelectromagnetic traps. Anal. Chem 2006, 78, 4457–4464. [Google Scholar]
    3. Liao, F.; Subramanian, V. Experimental and theoretical studies for the optimization of polythiophene gas sensor array. ECS Trans 2008, 16, 529–538. [Google Scholar]
    4. Singhal, R.; Chaubey, A.; Kaneto, K.; Takashima, W.; Malhotra, B.D. Poly-3-hexyl thiophene Langmuir-Blodgett films for application to glucose biosensor. Biotechnol. Bioeng 2004, 85, 277–282. [Google Scholar]
    5. McCullough, R.D.; Ewbank, P.C.; Loewe, R.S. Self-assembly and disassembly of regioregular, water soluble polythiophenes: Chemoselective ionchromatic sensing in water. J. Am. Chem. Soc 1997, 119, 633–634. [Google Scholar]
    6. Gangopadhyay, P.; Lopez-Santiago, A.; Voorakaranam, R.; Himmelhuber, R.; Greenlee, C.; Thomas, J.; Persoons, A.; Norwood, R.A.; Verbiest, T.; Yamada, H.; et al. Magnetite-polymethylmethacrylate core-shell nanocomposites: Applications in all-optical magnetometers. Nonlinear Opt. Quantum Opt 2010(41), 87–104.
    7. Richter, T.V.; Buehler, C.; Ludwigs, S. Water- and ionic-liquid-soluble branched polythiophenes bearing anionic and cationic moieties. J. Am. Chem. Soc 2012, 134, 43–46. [Google Scholar]
    8. Lee, S.J.; Lee, J.M.; Cho, H.-Z.; Koh, W.G.; Cheong, I.W.; Kim, J.H. Poly(thiophene) nanoparticles prepared by Fe3+-catalyzed oxidative polymerization: Size-dependent effect on photoluminescence property. Macromolecules 2010, 43, 2484–2489. [Google Scholar]
    9. Lee, S.M.; Lee, S.J.; Kim, J.H.; Cheong, I.W. Synthesis of polystyrene/polythiophene core/shell nanoparticles by dual initiation. Polymer 2011, 52, 4227–4234. [Google Scholar]
    10. Jung, Y.J.; Lee, S.J.; Choi, S.W.; Kim, J.H. Fabrication of monodisperse luminescent nanoparticles with core/shell poly(styrene/thiophene) structure. J. Polym. Sci. Part Polym. Chem 2008, 46, 5968–5975. [Google Scholar]
    11. Kim, Y.S.; Lee, S.M.; Govindaiah, P.; Lee, S.J.; Lee, S.H.; Kim, J.H.; Cheong, I.W. Multifunctional Fe3O4 nanoparticles-embedded poly(styrene)/poly(thiophene) core/shell composite particles. Synth. Met 2013, 175, 56–61. [Google Scholar]
    12. Kim, D.-N.; Lee, W.; Koh, W.-G. Micropatterning of proteins on the surface of three-dimensional poly(ethylene glycol) hydrogel microstructures. Anal. Chim. Acta 2008, 609, 59–65. [Google Scholar]
    13. Lee, W.; Choi, D.; Kim, J.-H.; Koh, W.-G. Suspension arrays of hydrogel microparticles prepared by photopatterning for multiplexed protein-based bioassays. Biomed. Microdevices 2008, 10, 813–822. [Google Scholar]
    14. Jang, E.; Koh, W.-G. Multiplexed enzyme-based bioassay within microfluidic devices using shape-coded hydrogel microparticles. Sens. Actuators Chem 2010, 143, 681–688. [Google Scholar]
    15. Koh, W.-G.; Revzin, A.; Pishko, M.V. Poly(ethylene glycol) hydrogel microstructures encapsulating living cells. Langmuir 2002, 18, 2459–2462. [Google Scholar]
    16. Koh, W.-G.; Itle, L.J.; Pishko, M.V. Molding of hydrogel microstructures to create multiphenotype cell microarrays. Anal. Chem 2003, 75, 5783–5789. [Google Scholar]
    17. Koh, W.-G.; Pishko, M. Fabrication of cell-containing hydrogel microstructures inside microfluidic devices that can be used as cell-based biosensors. Anal. Bioanal. Chem 2006, 385, 1389–1397. [Google Scholar]
    18. Lee, H.J.; Park, Y.H.; Koh, W.-G. Fabrication of nanofiber microarchitectures localized within hydrogel microparticles and their application to protein delivery and cell encapsulation. Adv. Funct. Mater 2013, 23, 591–597. [Google Scholar]
    19. Park, S.; Lee, Y.; Kim, D.N.; Park, S.; Jang, E.; Koh, W.-G. Entrapment of enzyme-linked magnetic nanoparticles within poly(ethylene glycol) hydrogel microparticles prepared by photopatterning. React. Funct. Polym 2009, 69, 293–299. [Google Scholar]
    20. Jang, E.; Park, S.; Park, S.; Lee, Y.; Kim, D.-N.; Kim, B.; Koh, W.-G. Fabrication of poly(ethylene glycol)-based hydrogels entrapping enzyme-immobilized silica nanoparticles. Polym. Adv. Technol 2010, 21, 476–482. [Google Scholar]
    21. Jang, E.; Kim, S.; Koh, W.-G. Microfluidic bioassay system based on microarrays of hydrogel sensing elements entrapping quantum dot–enzyme conjugates. Biosens. Bioelectron 2012, 31, 529–536. [Google Scholar]
    22. Cruise, G.M.; Scharp, D.S.; Hubbell, J.A. Characterization of permeability and network structure of interfacially photopolymerized poly(ethylene glycol) diacrylate hydrogels. Biomaterials 1998, 19, 1287–1294. [Google Scholar]
    23. Xu, H.; Cui, L.; Tong, N.; Gu, H. Development of high magnetization Fe3O4/polystyrene/silica nanospheres via combined miniemulsion/emulsion polymerization. J. Am. Chem. Soc 2006, 128, 15582–15583. [Google Scholar]
    24. Swami, A.; Jadhav, A.; Kumar, A.; Adyanthaya, S.D.; Sastry, M. Water-dispersible nanoparticles via interdigitation of sodium dodecylsulphate molecules in octadecylamine-capped gold nanoparticles at a liquid-liquid interface. Proc. Indian Acad. Sci. Chem. Sci 2003, 115, 679–687. [Google Scholar]
    25. Gill, R.; Bahshi, L.; Freeman, R.; Willner, I. Optical detection of glucose and acetylcholine esterase inhibitors by H2O2-sensitive CdSe/ZnS quantum dots. Angew. Chem 2008, 120, 1700–1703. [Google Scholar]
    26. Ochiai, B.; Ogihara, T.; Mashiko, M.; Endo, T. Synthesis of rare-metal absorbing polymer by three-component polyaddition through combination of chemo-selective nucleophilic and radical additions. J. Am. Chem. Soc 2009, 131, 1636–1637. [Google Scholar]
    27. Nagai, D.; Imazeki, T.; Morinaga, H.; Nakabayashi, H. Synthesis of a rare-metal adsorbing polymer by three-component polyaddition of diamines, carbon disulfide, and diacrylates in an aqueous/organic biphasic medium. J. Polym. Sci. Polym. Chem 2010, 48, 5968–5973. [Google Scholar]
    28. Nagai, D.; Yoshida, M.; Kishi, T.; Morinaga, H.; Hara, Y.; Mori, M.; Kawakami, S.; Inoue, K. A facile and high-recovery material for rare-metals based on a water-soluble polyallylamine with side-chain thiourea groups. Chem. Commun 2013, 49, 6852–6854. [Google Scholar]
    Materials 07 00195f1 1024

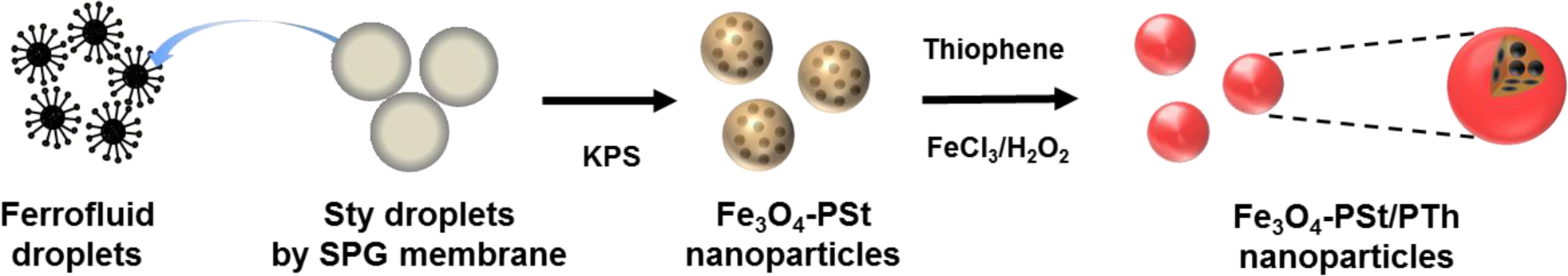

    Figure 1. A schematic illustration of the preparation of Fe3O4 nanoparticles-embedded poly(styrene)/poly(thiophene (Fe3O4-PSt/PTh) core/shell nanoparticles.

    Click here to enlarge figure

    Figure 1. A schematic illustration of the preparation of Fe3O4 nanoparticles-embedded poly(styrene)/poly(thiophene (Fe3O4-PSt/PTh) core/shell nanoparticles.
    Materials 07 00195f1 1024
    Materials 07 00195f2 1024

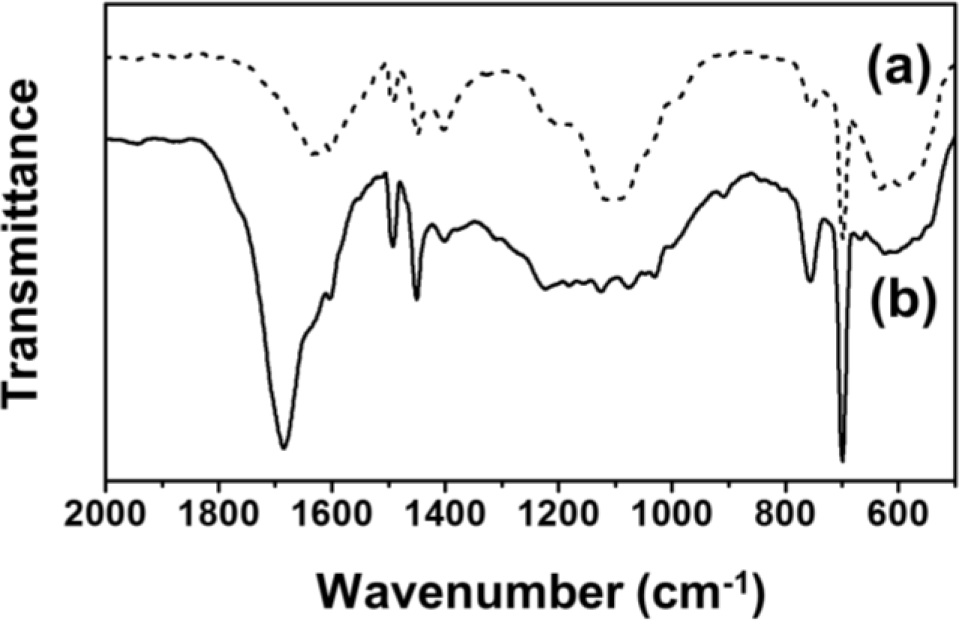

    Figure 2. Fourier transform-infrared (FT-IR) spectra of (a) Fe3O4-PSt and (b) Fe3O4-PSt/PTh core/shell nanoparticles.

    Click here to enlarge figure

    Figure 2. Fourier transform-infrared (FT-IR) spectra of (a) Fe3O4-PSt and (b) Fe3O4-PSt/PTh core/shell nanoparticles.
    Materials 07 00195f2 1024
    Materials 07 00195f3 1024

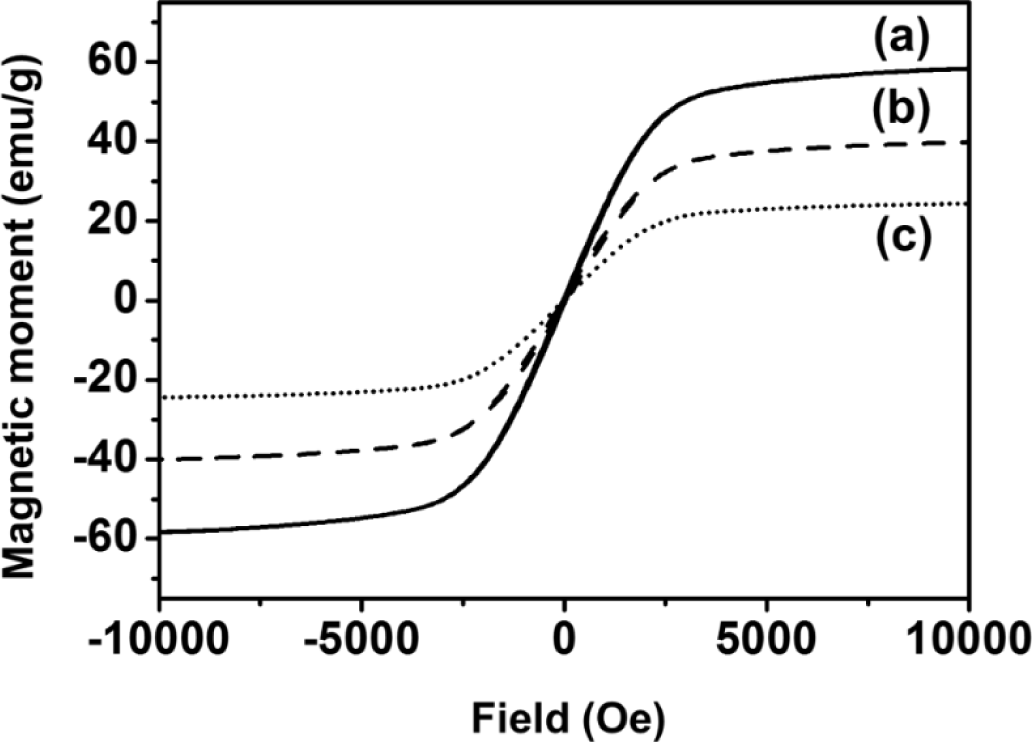

    Figure 3. Magnetization hysteresis loops of (a) Fe3O4; (b) Fe3O4-PSt and (c) Fe3O4-PSt/PTh core/shell nanoparticles measured by superconducting quantum interference device (SQUID) at room temperature.

    Click here to enlarge figure

    Figure 3. Magnetization hysteresis loops of (a) Fe3O4; (b) Fe3O4-PSt and (c) Fe3O4-PSt/PTh core/shell nanoparticles measured by superconducting quantum interference device (SQUID) at room temperature.
    Materials 07 00195f3 1024
    Materials 07 00195f4 1024
    Figure 4. Transmission electron microscopy (TEM) micrographs of (a) oleic acid-stabilized Fe3O4 nanoparticles; (b) Fe3O4-PSt and (c) Fe3O4-PSt/PTh core/shell nanoparticles. The insets of micrographs are (a) HR-TEM (b,c) highly magnified images of the corresponding sample.

    Click here to enlarge figure

    Figure 4. Transmission electron microscopy (TEM) micrographs of (a) oleic acid-stabilized Fe3O4 nanoparticles; (b) Fe3O4-PSt and (c) Fe3O4-PSt/PTh core/shell nanoparticles. The insets of micrographs are (a) HR-TEM (b,c) highly magnified images of the corresponding sample.
    Materials 07 00195f4 1024
    Materials 07 00195f5 1024

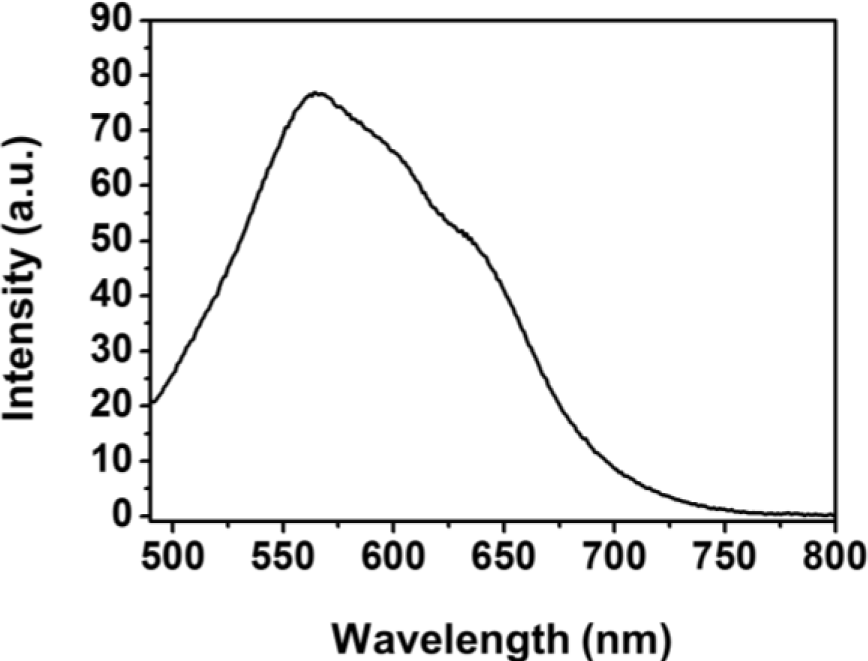

    Figure 5. Photoluminescence (PL) spectra of Fe3O4-PSt/PTh core/shell particles in an emulsion state (0.009 wt%) at an excitation wavelength of 400 nm.

    Click here to enlarge figure

    Figure 5. Photoluminescence (PL) spectra of Fe3O4-PSt/PTh core/shell particles in an emulsion state (0.009 wt%) at an excitation wavelength of 400 nm.
    Materials 07 00195f5 1024
    Materials 07 00195f6 1024

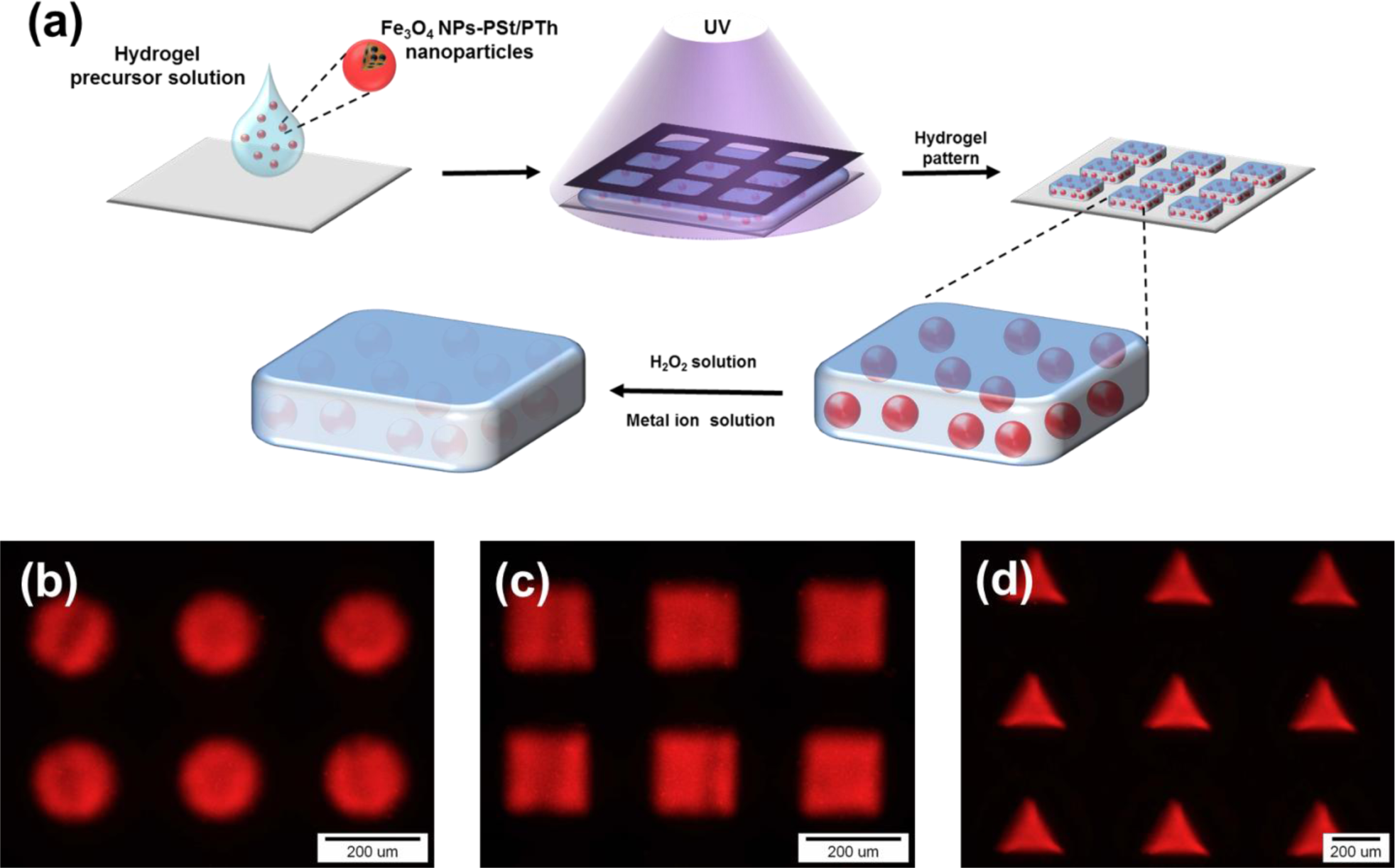

    Figure 6. (a) A schematic illustration for the fabrication of hydrogel patterns by photolithography. The fluorescent emission from the Fe3O4-PSt/PTh is quenched by H2O2 or metal ion solution; (bd) fluorescence microscopic images of Fe3O4-PSt/PTh nanoparticle-immobilized hydrogel patterns with different shapes: (b) circle; (c) square and (d) triangular shapes.

    Click here to enlarge figure

    Figure 6. (a) A schematic illustration for the fabrication of hydrogel patterns by photolithography. The fluorescent emission from the Fe3O4-PSt/PTh is quenched by H2O2 or metal ion solution; (bd) fluorescence microscopic images of Fe3O4-PSt/PTh nanoparticle-immobilized hydrogel patterns with different shapes: (b) circle; (c) square and (d) triangular shapes.
    Materials 07 00195f6 1024
    Materials 07 00195f7 1024

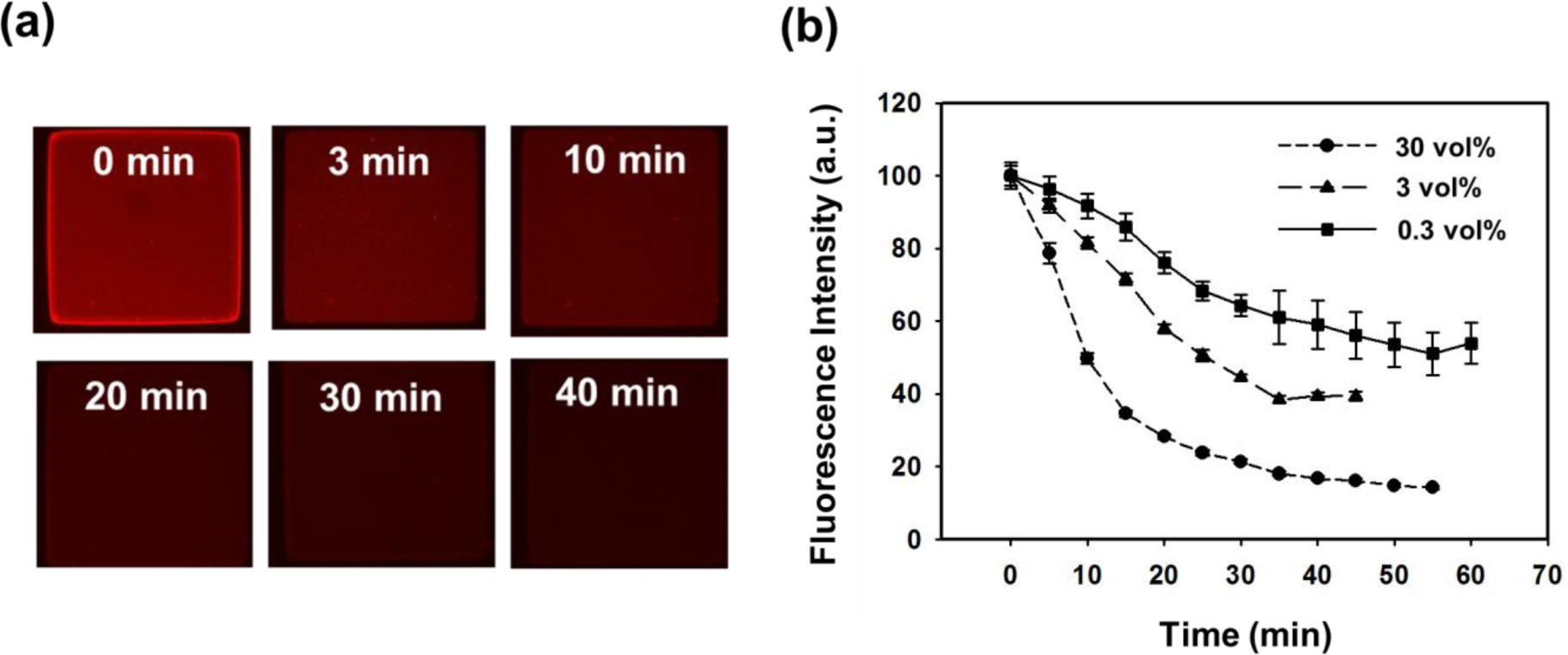

    Figure 7. (a) Fluorescence micrographs of Fe3O4-PSt/PTh immobilized hydrogel patterns in the presence of 30 vol% H2O2 with different times and (b) variations of the fluorescence intensity as a function of contact time with different H2O2 concentration.

    Click here to enlarge figure

    Figure 7. (a) Fluorescence micrographs of Fe3O4-PSt/PTh immobilized hydrogel patterns in the presence of 30 vol% H2O2 with different times and (b) variations of the fluorescence intensity as a function of contact time with different H2O2 concentration.
    Materials 07 00195f7 1024
    Materials 07 00195f8 1024

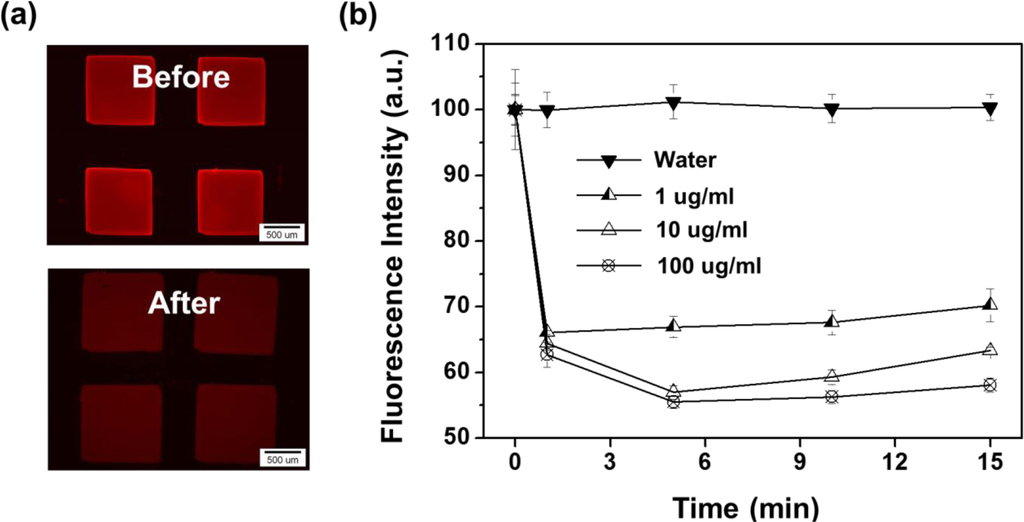

    Figure 8. (a) Fluorescence micrographs of Fe3O4-PSt/PTh immobilized hydrogel pattern in the 100 μg/mL Pd2+ and (b) variations of the fluorescence intensity as a function of contact time with different Pd2+ concentrations.

    Click here to enlarge figure

    Figure 8. (a) Fluorescence micrographs of Fe3O4-PSt/PTh immobilized hydrogel pattern in the 100 μg/mL Pd2+ and (b) variations of the fluorescence intensity as a function of contact time with different Pd2+ concentrations.
    Materials 07 00195f8 1024
