TiB2-Based Composites for Ultra-High-Temperature Devices, Fabricated by SHS, Combining Strong and Weak Exothermic Reactions

Division of Materials Science and Engineering, Hokkaido University, Sapporo 060-8628, Japan
Materials 2013, 6(5), 1903-1919; https://doi.org/10.3390/ma6051903
Submission received: 8 April 2013 / Revised: 2 May 2013 / Accepted: 2 May 2013 / Published: 10 May 2013
(This article belongs to the Special Issue Ultra-high Temperature Ceramics)

Abstract

:
TiB2-based ceramic matrix composites (CMCs) were fabricated using elemental powders of Ti, B and C. The self-propagating high temperature synthesis (SHS) was carried out for the highly exothermic “in situ” reaction of TiB2 formation and the “tailing” synthesis of boron carbide characterized by weak exothermicity. Two series of samples were fabricated, one of them being prepared with additional milling of raw materials. The effects of TiB2 vol fraction as well as grain size of reactant were investigated. The results revealed that combustion was not successful for a TiB2:B4C molar ratio of 0.96, which corresponds to 40 vol% of TiB2 in the composite, however the SHS reaction was initiated and self-propagated for the intended TiB2:B4C molar ratio of 2.16 or above. Finally B13C2 was formed as the matrix phase in each composite. Significant importance of the grain size of the C precursor with regard to the reaction completeness, which affected the microstructure homogeneity and hardness of investigated composites, was proved in this study. The grain size of Ti powder did not influence the microstructure of TiB2 grains. The best properties (HV = 25.5 GPa, average grain size of 9 μm and homogenous microstructure), were obtained for material containing 80 vol% of TiB2, fabricated using a graphite precursor of 2 μm.

1. Introduction

Due to extremely high melting point, excellent corrosion resistance, low theoretical density, and excellent creep resistance boron based compounds such as TiB2 or B4C, are ideal candidates for advanced ultra-high temperature devices [1,2,3,4,5,6]. Several applications have already been considered and reported including ultra-high temperature high wear-resistance devices. However, most consideration has been devoted to their potential application as control rods [7,8] and shielding material for the nuclear industry, due to the large neutron absorption of boron atoms [4,9,10,11,12,13].
The melting point of pure TiB2 equals 3490 K while B4C melts at 2730 K. Vallauri et al. [14] assumed that the critical assessments of several researchers had revealed that the Ti-B-C system involves only binary compounds, since no ternary ones were found. According to Udalov [15] the two phases exhibit complete mutual insolubility of the components [16] and form simple eutectics with the lowest melting point of 2470 K corresponding to 74% B4C and 26% TiB2 [15]. A similar eutectic temperature (2495 K) was calculated by Zakaryan et al. [16]. Such data are approximately consistent with calculations reported by Velikanova et al. [17], which indicated a eutectic point at 2639 K, for 78.54 at% B. This data indicates consistently that TiB2-B4C composites are expected to sustain extremely high temperatures, beyond 2300 K, while their properties should correspond well with that of pure TiB2 and B4C.
TiB2 has a unique combination of properties, such as a low density of 4.52 g/cm3, high microhardness (34 GPa) as well as good thermal and electrical conductivity [18]. It is the hardest interstitial boride possessing a hexagonal A1B2-type structure [16], where boron atoms fill the trigonal prisms formed by the atoms of titanium [14]. Such an interstitial boride is a highly wear and temperature resistant structural ceramic with excellent thermal and chemical stability up to about 2000 K, therefore it remains an interesting material for ceramic composites. Due to the anisotropy of the thermal expansion coefficient, such a phase is expected to generate crack deflection in composite materials [19]. However, the anisotropy in the structure is an additional factor impeding while sintering [14].
Boron carbide, which is an interstitial carbide assigned as B4C, is one of the hardest materials known, ranking third behind diamond and cubic boron nitride (c-BN) [9,20,21]. Boron carbide also exhibits a set of excellent properties, especially a remarkably low density of 2.54 g/cm3 [8], a high melting point, and extreme hardness of 36–38 GPa [15]. Other parameters of this compound are compressive strength of 2.86 GPa, high chemical stability [7,12] and good wear and abrasion resistance [11]. It is the hardest material at temperatures above 1373 K [9,21] which melts congruently at 2723 K at a composition of 18.5 at% C. It is not surprising, because boron carbide is ordinarily a solid solution, stable over the composition range of 8.9–24.3 at% C [21], or 10.0 to 20.9 wt% C and co-exists in equilibrium when higher concentration of carbon occurs [22]. Indeed, both carbides (B4C and B13C2) have a rhombohedral structure (R-3m), characterized by different lattice parameters and different densities 2.51 and 2.45–2.48 g/cm3, respectively. The lattice parameters of B13C2 are a = b= 5.6170, c = 12.0990 Å, while for B4C the parameters equal: a = b = 5.620, c= 12.0990 Å. The only difference in the lattice structure is the existence of C-B-C chains in the B13C2, instead of C-C-C in B4C [23,24,25], while Heian et al. [21] concluded that there is still some uncertainty about such a complex structure which is difficult to investigate. Regardless of the unclear lattice structure, the limitation of this material is low strength (200–400 MPa) and poor fracture toughness 2–3 MPa·m1/2 [20]. There is currently intensive research on B4C in order to improve its sinterability, strength and toughness. This should guarantee appropriate use of its superior high temperature hardness [19], in a way similar to TiB2. Also the high temperature properties due to covalent bonds cause poor sinterability [10,20]. To overcome this issue, metal matrix composites (MMCs), have been extensively developed [4,6,18,26,27,28]. In this case, the lower melting point metal additive used as a matrix phase, especially one forming low temperature eutectics, causes significant reduction of the maximum temperature the composite could be applied, due to softening and poor creep resistance [19,26]. Indeed, ceramic matrix composites (CMCs) based on only TiB2 and B4C, are better candidates for harsh environments [20] and ultra-high temperature devices [19].
However, due to covalent bonds and small diffusion coefficients, which are advantageous for their applications [1], both TiB2 and B4C are considered as materials which create a challenge for sintering [2,7,12]. Neither B4C nor TiB2 can be obtained as a monophasic full density material, despite many methods that have been applied, such as pressure-less sintering at 2423 K [12,29], HP (Hot Pressing) [8,14,18,20,30], SPS (Spark Plasma Sintering), reaction sintering [7,14,30] etc. The combination of two different highly refractory materials i.e. TiB2 and B4C is expected to improve sinterability, since one can play the role of a sintering additive [10,31], and due to improved densification can enhance the bending strength and fracture toughness [5,6,7,32]. The addition of a second phase significantly inhibits the grain growth [14,29,30] in the microstructure and finally extends the life time under severe harsh high temperature conditions. Therefore, research efforts have turned recently to improve sinterability and fracture toughness of Ultra-High Temperature Ceramics, (UHTCs) in the Ti-B-C system.
Self-propagating high temperature synthesis (SHS), also known as combustion synthesis, is inexpensive, straightforward and an attractive method convenient for synthesis of advanced materials, such as high-refractory non-oxide ceramics [2,18,31,33] or multiphase materials [13], from elemental powders. Exploiting the self-sustaining character of a highly exothermic reaction once initiated, allows reduction of the cost of sintering, which is significant for highly refractory materials [34]. For instance, SHS can be successfully used in order to synthesize TiB2, due to the extremely high adiabatic temperature of over 3300 K which could be reached during the synthesis using elemental Ti + B powders under adiabatic conditions [35]. Holt et al. [34] who investigated the thermodynamics and kinetics of the combustion synthesis of TiB2 assumed that the activation energy of 539 kJ for the Ti + 2B reaction is lower than the value of 773 kJ which correspond to sintering of TiB2. They indicated different mechanisms for two such processes as well as limitation in sintering of TiB2 during combustion synthesis, despite high temperature.
Also the reaction of 4B + C = B4C is exothermic, however the exothermicity is very weak and the adiabatic temperature rise of 1000 K [36] is much lower than for TiB2 formation. Based on experimental results reported by Munir [36], the reaction cannot self-sustain unless the adiabatic temperature exceeds 1800 K. It means that the reaction has to be activated to overcome both thermodynamic and kinetic limitations of the sluggish SHS process. For B4C formation Xue and Munir [33] developed a model of external fields on the combustion synthesis in 1997–1998, and recently Heian et al. [21], as well as Zhang et al. [35] proposed field activated SHS for such a purpose. The last investigations assumed that when the field-activated temperature was 800 K, 900 K and 1000 K, self-propagating reaction was not possible, due to insufficient energy to activate the reaction. When the activated temperature exceeds 1100 K, the adiabatic temperature for the combustion synthesis is more than 1800 K and the reaction can self-sustain. In most cases, SHS is applied for fabrication of monophase or composite powders [32], which can be sintered using several technological processes [11,31]. SHS was employed to achieve a low energy consumption process by using strong and weak exothermicity related to the formation of TiB2 and B4C, respectively, as well as for other combinations i.e. TiC + SiC [37,38], or SiC-B4C [13]. However, by conducting the synthesis simultaneously under high pressure, the composites can be fabricated in a one stage process. It has been demonstrated that the application of pressure during or subsequent to the combustion step can significantly increase the product density [2], especially for synthesis with additives [28,39].
The purpose of the present study was to fabricate TiB2-B4C composites using elemental powders via simultaneous synthesis and densification by means of SHS-p-HIP. The SHS reaction intended to synthesize TiB2 was combined with pseudo-hot-isostatic pressing in order to considerably improve the densification process. The energy required for “in situ” B4C formation was ensured by a highly exothermic synthesis of TiB2 by means of SHS. The kinetics of SHS can be enhanced by using ultra-fine precursors, especially carbon, or additionally by mechanical activation [3,9,32]. Since the reaction velocity depends on several parameters, including composition of the green compact as well as the grain size of precursors and homogeneity of the mixture [40], these parameters are also discussed in this paper. Several authors proposed the fabrication of TiB2-B4C composites by a carbothermal reduction method [9,10], however, with respect to purity of the composites and reduction completeness, the synthesis using pure elemental powders seems to be more effective for such purposes [3]. By using elemental powders, much better purity with significant reduction of porosity was experienced [38].

2. Experimental Procedure

The experiments were carried out using raw elemental powders of titanium (45 μm), amorphous boron (0.8 μm), and two different carbon precursors: 10 μm and 2 μm, respectively. In order to optimize the SHS process, two series of samples with different chemical composition as well as different dispersion of powders in the initial compact were fabricated and characterized. The composition of investigated materials is shown in Table 1.
Table 1. Composition of compacted powders for self-propagating high temperature synthesis (SHS).
Table 1. Composition of compacted powders for self-propagating high temperature synthesis (SHS).
CompositeCarbon precursor (μm)Intended TiB2:B4C ratioMixing/milling time (min)Combustion
Atomic ratioVolume ratio
A100.9640:6040No
B102.1660:4040Yes
C105.7680:2040Yes
D22.1660:40180Yes
E23.3670:30180Yes
F25.7680:20180Yes
G212.9590:10180Yes
The powders were composed in the proper weight ratio and homogenized with 2-propanol in a planetary mill. After mixing and drying, the powders were compacted and sealed in a steel can, and then the cans were fitted with a coiled heating element.
The reactions of the compacted powder mixtures were carried out “in situ” in the pseudo-hot isostatic device [39] via SHS under vacuum of 10 Pa. The process was initiated by resistance heating elements. It has to be emphasized, that when the reaction had started and rapid temperature increase was noted, only high pressure of 100 MPa was used, and no heating was applied after combustion. The high pressure was held for 5 min, and then reduced to 20 MPa and held for a further 10 min.
The microstructure of investigated composites was observed using optical microscopy (OM), field-emission scanning electron microscopy (FE-SEM), as well as FE-EPMA. Phase composition was determined by X-ray diffraction, (XRD) using Cu, while hardness was investigated using Vickers hardness tester under a load of 1 kg.

3. Results and Discussion

3.1. Heat Effects during SHS Process

The combustion occurred when the intended atomic ratio of TiB2:B4C was at least 2.16. The only case when the SHS reaction was not observed was for the atomic ratio of 0.96. This effect is consistent with previous reports [33].
Each time, the initiation of SHS occurred when the temperature of the steel can covering compact reached about 900–950 K. However, the maximum temperature varied with increasing volume ratio of the components for TiB2 formation.
Figure 1 indicates the temperature recorded in the device during the SHS-p-HIP process which corresponds to the processing of material with the intended 60 vol% of TiB2 (composite D).
The temperature of the steel can (with compact inside) reached almost 1600 K in this sample, however when the concentration of TiB2 in the final product was higher than 80 vol% of TiB2 the maximum temperature caused by SHS also increased. It is believed, that the temperature inside the compact is several hundred Kelvins higher than that measured for the can sealing compacts.
The synthesis of each composite in the Ti-B-C system involved an unstable heating rate at temperatures above 720 K. Such an effect of irregular temperature increase, visible especially on the derivative curve (Figure 1b), may indicate both endothermic and exothermic reactions which occur before the initiation of SHS. The process consumed and released in turn some heat, due to phase transformations or carbon and boron solid state diffusion. A similar effect, however much more intensive, was observed after the combustion while cooling, which means that the kinetics of the boride formation was improved due to a significantly increased temperature.

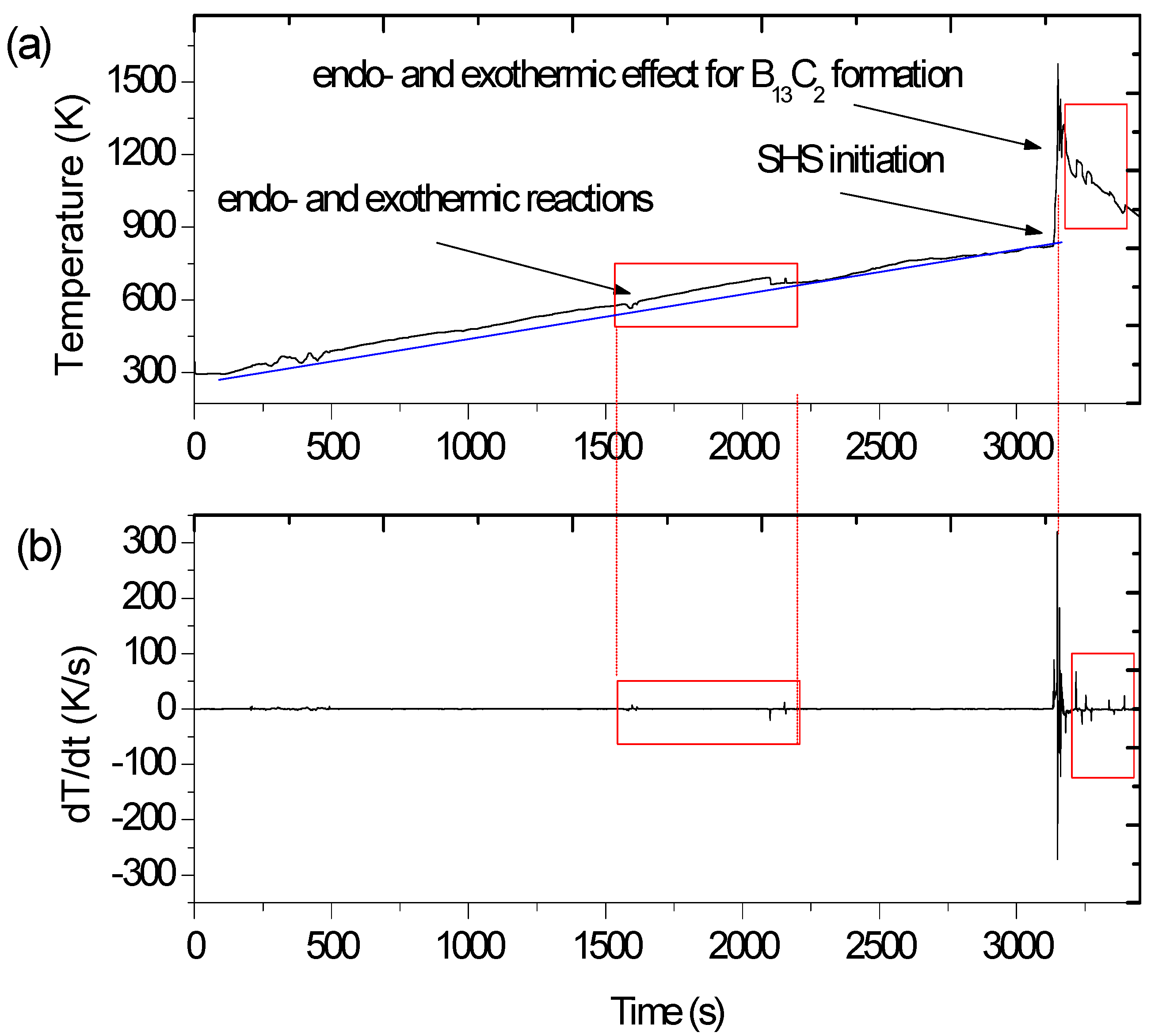

Figure 1. Temperature records during the SHS process held for synthesis of composite D (60 vol% of TiB2, C precursor 2 μm) (a) thermal effects related to reactions while heating before SHS initiation, and shortly after the combustion while cooling; (b) a derivative curve of temperature with time.
Figure 1. Temperature records during the SHS process held for synthesis of composite D (60 vol% of TiB2, C precursor 2 μm) (a) thermal effects related to reactions while heating before SHS initiation, and shortly after the combustion while cooling; (b) a derivative curve of temperature with time.
Materials 06 01903 g001

3.2. Phase Composition of Composites after SHS

The SHS process in the Ti-C-B system brought about the formation of TiB2 as a predominant phase, and B13C2 as the main component of the matrix. Moreover, a small amount of unreacted C was distinguished in each sample, sometimes in negligible concentrations (Figure 2). The efficiency of boron carbide formation expressed as B13C2:Cgraph ratio increased with a higher concentration of TiB2 in the composites. The heat released during the exothermic TiB2 synthesis as well as temperature increase with increasing concentration of such a phase. The synthesis of B4C requires heat to proceed, which seems to be insufficient when the TiB2 content is reduced. However, it should be emphasized that the accuracy of XRD is limited, especially as graphite is characterized by only one strong peak in the XRD pattern, while B13C2 and B4C have several small peaks in the reference pattern, as well as expected small crystallites of B13C2. Therefore quantitative analysis is characterized by low accuracy.

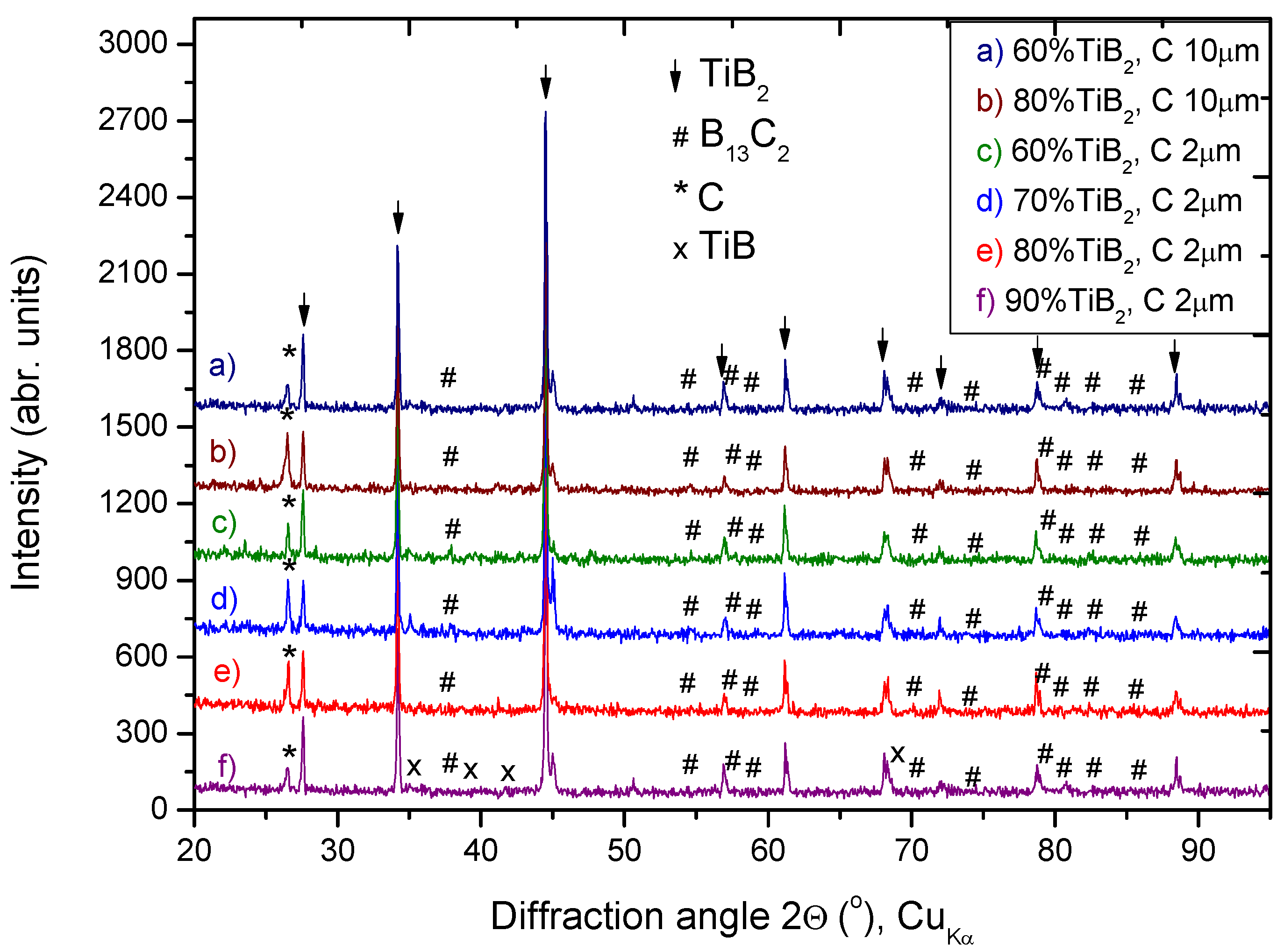

Figure 2. The X-ray diffraction, (XRD) patterns for two series of investigated samples (a–b) synthesized with Cgraph. 10 μm and milled for 40 min (composites B and C); (c–f) materials obtained using C precursor of 2 μm and the mixture milled for 3 h (composites D–G, respectively).
Figure 2. The X-ray diffraction, (XRD) patterns for two series of investigated samples (a–b) synthesized with Cgraph. 10 μm and milled for 40 min (composites B and C); (c–f) materials obtained using C precursor of 2 μm and the mixture milled for 3 h (composites D–G, respectively).
Materials 06 01903 g002
The results of unreacted carbon are apparently consistent with Zhang et al. [35], who worked on in situ synthesis and sintering using pulse electric current sintering. They assumed that synthesis of interstitial boron carbide cannot proceed by mean of SHS when the temperature is lower than 1100 K. That means for those experiments, boron carbide can be synthesized only for a limited period of time, until the temperature decreases below some specific temperature on cooling down. It is expected that the unreacted components, especially boron, cause deterioration in the properties of the final composites. However, if only a small amount of C is unconsumed (1–3wt%), improved sinterability is expected [41]. Similar results of B13C2 formation instead of B4C in the Si-B-C system were discussed by Pampuch [31], who clarified that due to spinodal decomposition of B13C2 and reaction of the secondary boron with carbon, the powder has a high chemical activity which simplifies its sintering.
Despite mechanical activation, the reaction of C with B could not be completed, because B4C was not detected in any composite. However, the effect of components particle size of C on the thickness of B13C2 as well as on the velocity of synthesis can be observed when considering the XRD pattern. As the average particle size of C precursor increased, the velocity of carbide formation decreased which resulted in limited consumption of C. During the long lasting process, the local extremely high temperature caused by the TiB2 exothermic synthesis is reduced by thermal conductivity in a non-adiabatic device and by radiation. Indeed, the temperature decreased immediately several seconds after combustion occurred. The relatively short time when the temperature is high enough for significant carbon diffusion requires a very fine carbon precursor. Otherwise, the large size graphite particles are assumed to participate as a diluent, consuming heat of the SHS reaction. Benton and Masters [8] also suggested an ultra-fine graphite precursor of 1 μm in order to synthesize and sinter B4C.

3.3. Microstructure

Based on the inhomogeneous microstructure of composites synthesized using less fine C powder of 10 μm and when the mixture of elements was blended for 40 min (Figure 3), it can be assumed that significant difficulty of TiB2 and B13C2 formation occurred. The microstructure is characterized by essential porosity, agglomerated TiB2 grains and poor homogeneity, especially in the composite with 60 vol% of TiB2.
Figure 3. Field-emission scanning electron microscopy (FE-SEM) microstructure for composites with different TiB2 vol%, fabricated using graphite powder of 10 μm (a) 80 vol%TiB2, (composite C); (b) 60 vol%TiB2 (composite B).
Figure 3. Field-emission scanning electron microscopy (FE-SEM) microstructure for composites with different TiB2 vol%, fabricated using graphite powder of 10 μm (a) 80 vol%TiB2, (composite C); (b) 60 vol%TiB2 (composite B).
Materials 06 01903 g003
Several authors working on SHS investigated the effect of precursor grain size on the mechanism and velocity of heat wave propagation, including Merzhanov, Novozhilov and their coworkers [34]. In terms of TiB2 synthesis, the finer particle size of boron should result in a greater wave velocity [34]. However, considering the high efficiency of TiB2 formation, the reason for such inhomogeneous microstructures was a carbon precursor and the slow kinetics of boron carbide formation.
Therefore, in order to improve the diffusion and reaction velocity of the boron carbide synthesis, the other C precursor with average grain size of 2 μm was applied. Moreover, the powder mixture was milled using a planetary mill for 3 h, and then a second series of four samples was prepared with the intended TiB2 content varying from 10 to 40 vol%.
The porosity of materials fabricated by means of SHS-p-HIP was significantly reduced after using more fine carbon powder.
Considering the above microstructures (Figure 3 and Figure 4) it can be assumed, that the homogeneity of investigated composites was also significantly improved when the compact for SHS was prepared using C with the grain size of 2 μm and followed by extensive milling. Such effect is especially observed when the concentration of TiB2 exceeds 70vol% in the composite.
The same composites were investigated using FE-EPMA under high magnification, and the microstructure is shown in Figure 5.
Figure 4. FE-EPMA microstructure (under low magnification) for composites with different TiB2vol% fabricated using graphite powder with the grain size of 2 μm (a) 90vol%TiB2, (composite G); (b) 80vol%TiB2 (composite F); (c) 70vol%TiB2 (composite E); (d) 60vol%TiB2 (composite D).
Figure 4. FE-EPMA microstructure (under low magnification) for composites with different TiB2vol% fabricated using graphite powder with the grain size of 2 μm (a) 90vol%TiB2, (composite G); (b) 80vol%TiB2 (composite F); (c) 70vol%TiB2 (composite E); (d) 60vol%TiB2 (composite D).
Materials 06 01903 g004
Figure 5. FE-EPMA microstructure (under high magnification) for composites with different TiB2 vol% fabricated using graphite powder with the grain size of 2 μm (a) 90vol% TiB2, (composite G); (b) 80vol% TiB2 (composite F); (c) 70vol% TiB2 (composite E); (d) 60vol% TiB2 (composite D).
Figure 5. FE-EPMA microstructure (under high magnification) for composites with different TiB2 vol% fabricated using graphite powder with the grain size of 2 μm (a) 90vol% TiB2, (composite G); (b) 80vol% TiB2 (composite F); (c) 70vol% TiB2 (composite E); (d) 60vol% TiB2 (composite D).
Materials 06 01903 g005aMaterials 06 01903 g005b
Significant improvement (by using precursors of finer grain size) in the homogeneity was confirmed by microstructure observations using high magnification, especially in samples with 80 and 90 vol% of TiB2. The FE-EPMA observation of the microstructure for composite having 90 vol% of TiB2 (Figure 5a) verified by EDS indicates that round grains of TiB2 were formed. However many defects could be observed, such as elongated pores and spallation within the grains, which were caused by too high a velocity of SHS and huge temperature gradients. Indeed, large defects were formed on cooling. Also the distribution of matrix B4C is not regular, because some TiB2 agglomerates occurred. Only 10 vol% on diluting B13C2 seems to be insufficient to avoid TiB2 agglomerations which makes further densification impossible.
The most homogenous microstructure with reduced porosity was observed in the material with a concentration of TiB2 reduced to 80 vol% (Figure 5b). The unfavorable effects of too high a velocity of SHS could be significantly decreased when the volume fraction of TiB2 was reduced, and a similar microstructure, although indicating more inhomogeneity, was observed at the composite with 70 vol% of TiB2. Finally, the microstructure becomes much worse in the composite containing only 60 vol% of TiB2. It may indicate a different reaction mechanism, caused by lower heat during the SHS process. The most probable reason for such a non-uniform microstructure is that the Ti grains in the compact were neither fully consumed for TiB2 formation nor totally melted during SHS.
Moreover, the volume fraction of TiB2 influenced the average grain size in the composites, which monotonically increased with increasing concentration of TiB2 (Figure 6).
The average grain size of TiB2 in the composites enlarged significantly when the vol fraction of TiB2 increased. Such a relationship is in good compliance with expectations, because the components for B4C formation (C + B) play the role of diluents from the perspective of TiB2 formation by means of SHS. While comparing the TiB2 grain size in samples fabricated using different carbon precursors it can be assumed, that diffusion of C into B which resulted in formation of B13C2, consumes heat from the exothermic TiB2 synthesis. The grain size of TiB2 was reduced when the efficiency of B13C2 formation increased. This indicates, that despite exothermicity of boron carbide formation (adiabatic temperature of 1273 K), such a reaction requires significant energy from an external source to be able to proceed.

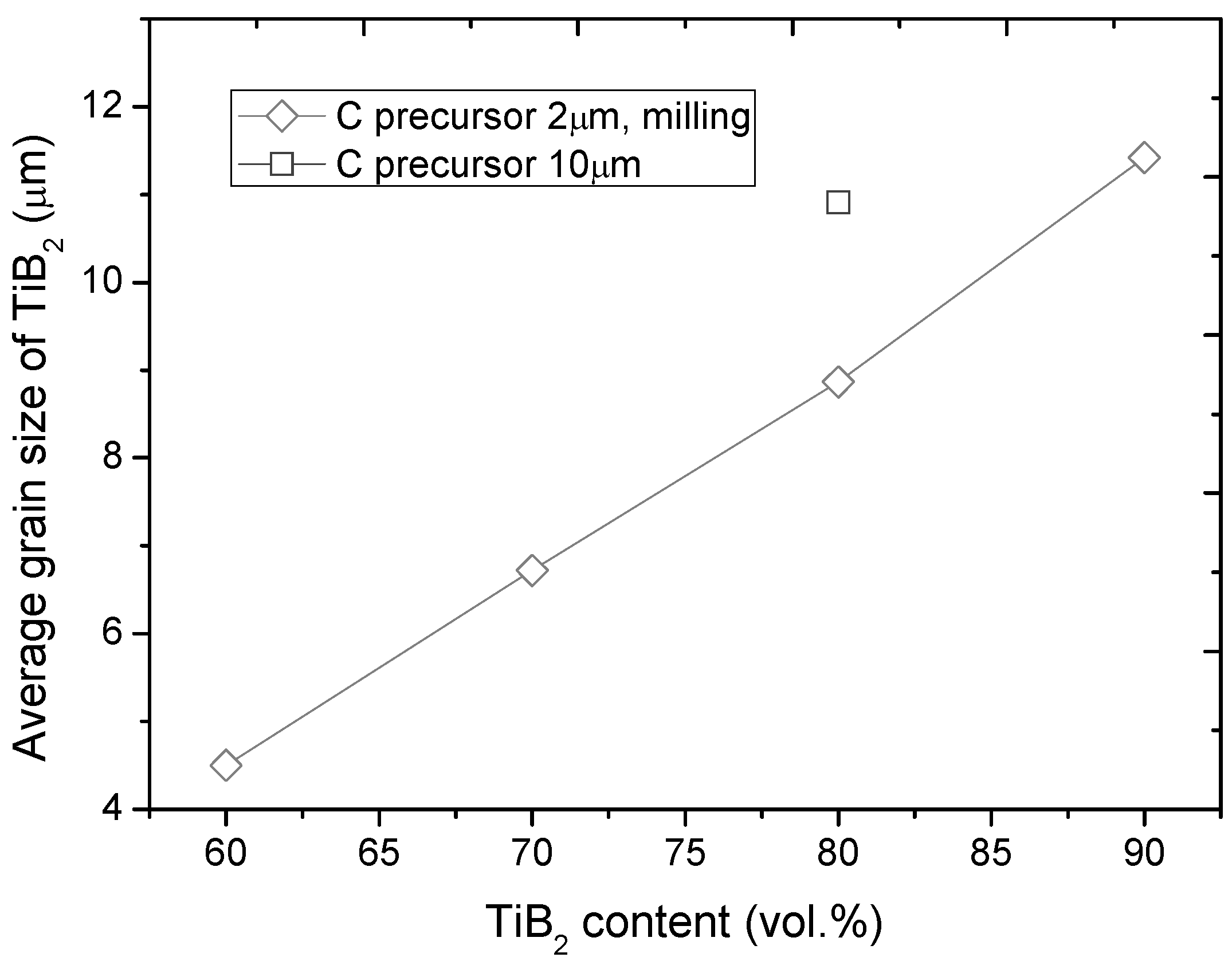

Figure 6. Average grain size of TiB2 in the microstructure of TiB2-B13C2 composites fabricated using C precursor of 2 or 10 μm.
Figure 6. Average grain size of TiB2 in the microstructure of TiB2-B13C2 composites fabricated using C precursor of 2 or 10 μm.
Materials 06 01903 g006

3.4. Dissertation on the Reaction Mechanism

The mechanism of SHS for TiB2 has already been reported by several authors. However, it is a significant challenge to determine the exact mechanism for the Ti-B-C system, especially in non-adiabatic conditions under pressure. Considering both XRD data and microstructure, the most possible scenario of the reaction includes the following processes:
  • Formation of TiB, TiB2 nanolayers on the surface of titanium grains, by means of solid state reaction. Since the formation of TiB and TiB2 is strongly exothermic, locally the temperature increases immediately and the SHS process can be initiated. The study of Ti + 2B → TiB2 reaction has shown that this reaction begins to proceed at a noticeable rate long time before Ti starts to melt [40]. A low rate diffusion of carbon into boron is also predicted simultaneously with the preliminary formation of TiB and TiB2;
  • Initiation of SHS caused by heat released from the first portion of TiB and TiB2 causes improved diffusion which affects the accelerated formation of products. Significantly increased temperature causes melting of Ti unreacted in the first stage of the process. The boron and carbon present in the mixture can be partially dissolved in the liquid titanium and precipitate as B13C2 monolayers, along with TiB2 formation. The reaction rate depends on the heating rate before combustion. The slower the sample is heated and the longer it is held at high temperature before explosion, the higher the reaction rate in the run [40];
  • Migrating thin-reaction-layer mechanism followed by precipitation from a liquid phase occurs while cooling.
It is believed that this mechanism is not significantly different from the reaction of Si-B-C [31]. However the temperature onset on the profile during synthesis (Figure 1) indicated that the combustion starts before melting of Ti.
Considering the thermodynamics the process described in this paper deals with fabrication of composites in situ, combining strong and weak exothermic reactions. The strong exothermicity involves formation of TiB2 by means of SHS, where the adiabatic temperature equals approximately 3450 K. However, many researchers admitted that despite extremely high adiabatic temperatures the maximum temperature apparently observed in the proceeding SHS reaction is significantly smaller, sometimes by 1000K, than the calculated adiabatic temperature [33]. This effect is most often explained by non-adiabatic conditions, however considering the temperature range of 2300–3300 K, the heat loss by radiation should also be considered. The heat released as well as the amount of liquid titanium depend not only on initial grain size of the components in the compact but also on the concentration of Ti and other components, working as diluents. For instance, by applying a concentration of TiB2 reduced to 60 vol%, a weak exothermic effect was generated, as well as an essentially reduced amount of liquid titanium during the SHS process. Such conditions resulted in a nonhomogeneous microstructure and essential (4B + C) reaction incompleteness. A different reaction mechanism and significantly lower adiabatic temperature, of about 1300 K, is expected for boron carbide (B13C2). Apparently, the solid state reaction is responsible for B13C2 as well as B4C formation [8], so the diffusion of carbon and boron is characterized by a much smaller rate than TiB2 formation. It means that the reaction has to be supported by an external heat source in order to proceed. Indeed, there are two steps for formation of these composites. The first one takes place at or near the leading edge of the combustion wave, while the second occurs at or near the tailing edge of the wave. A similar technique to combine strong and weak exothermic reactions was reported by Xue and Munir [33] who carried out research with field activated combustion.
The mechanism of B13C2 formation and phase transition has become recently a subject of extensive studies [23]. More information is needed on the structure-properties relationship. It can only be assumed that decreased concentration of C in the boron carbide results in unreacted carbon as a separate phase in the composites. The consequence for high-temperature application depends on the atmosphere where the material is to be applied. The application in a protective argon atmosphere should not affect its refractoriness, but only its mechanical properties. However, applicability in a harsh oxidative atmosphere should affect both corrosion resistance and mechanical properties. In order to take maximum advantage of these materials, the predictions have to be confirmed experimentally.

3.5. Hardness

The Vickers hardness revealed significant importance of TiB2 content, since the hardness varied in the wide range, from 10.7 to 25.5 GPa. Based on the Vickers hardness measurements (Figure 7), the highest hardness revealed the composite with 80 vol% of TiB2. The hardness of 25.5 GPa indicates, that boron carbide significantly enhanced the composite, since such a high hardness was obtained for polycrystalline material. The slightly reduced microhardness of 24 GPa, was measured when the volume fraction of B4C increased to 30 vol%.

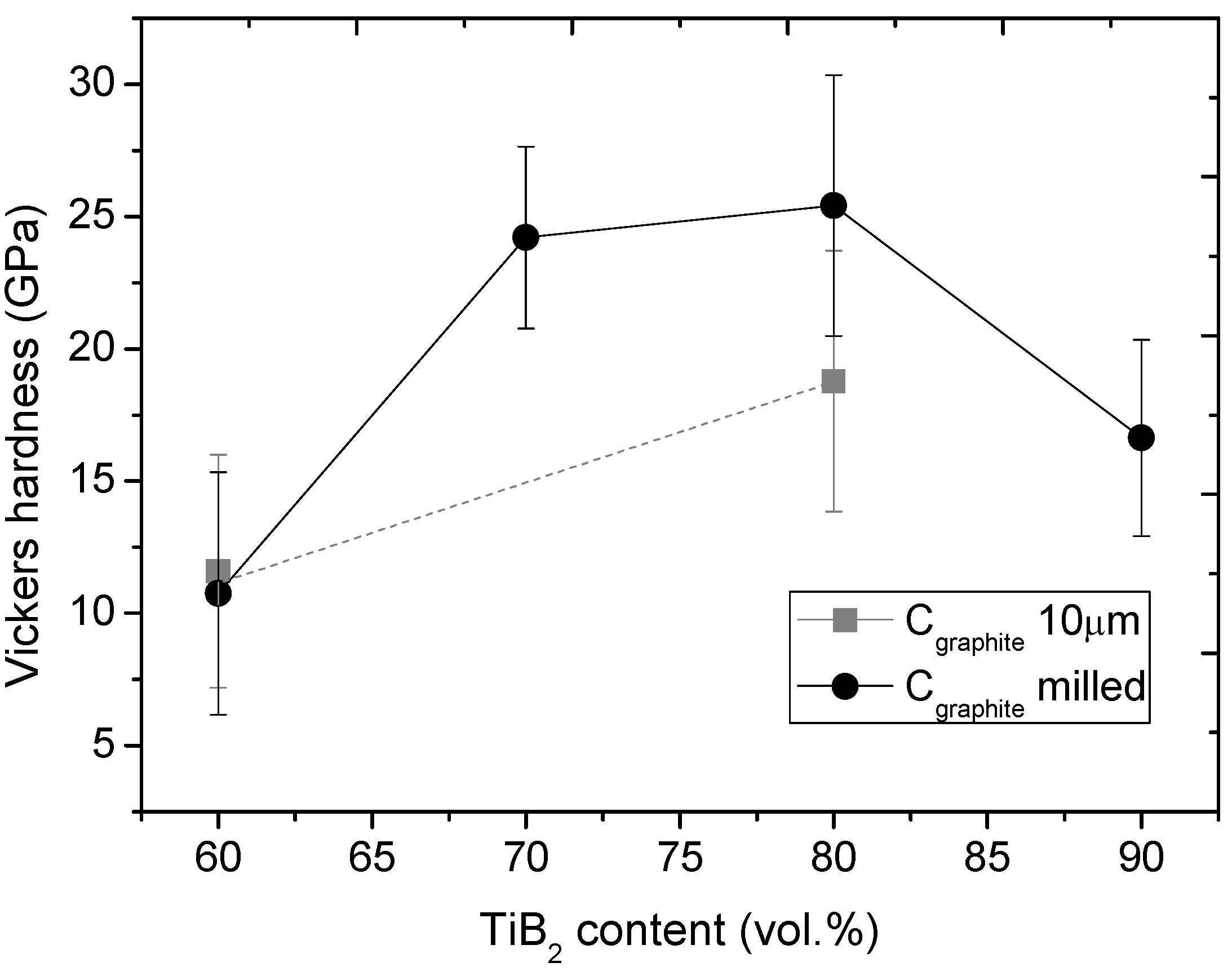

Figure 7. Vickers hardness of investigated composites with different TiB2 content, determined under a load of 1 kg.
Figure 7. Vickers hardness of investigated composites with different TiB2 content, determined under a load of 1 kg.
Materials 06 01903 g007
When the concentration of TiB2 was 60 vol%, the hardness reached the lowest value of about 11 GPa with a significant spread of results, which can be seen based on the standard deviation expressed by error bars (Figure 7). The results meet good compliance with the microstructure (Figure 3b and Figure 5d), which indicated an inhomogeneous microstructure caused by low heat released from TiB2 products in the SHS process. The increased concentration of TiB2 to 70–80 vol% caused an elevated heat effect, which affected the smooth microstructure and gave better effectiveness in B13C2 formation, which means B13C2 is an appropriate sintering additive for TiB2. When the TiB2 volume fraction increased to 90%, the hardness significantly decreased to 16.6 GPa. Such an effect can be explained by TiB formation coexisting with TiB2, according to XRD results. Such TiB is characterized by an adiabatic temperature similar to TiB2, however with a much lower hardness of about 11 GPa [42], due to less covalent character of the chemical bonds. At the same time, many defects and agglomerates can be observed in the microstructure (Figure 5a,b). It has to be assumed, that too high a velocity of the SHS process for TiB2 is disadvantageous for the microstructure of SHS products, with an extremely large temperature gradient of 105 K/cm [13]. Indeed, the temperature gradient and mismatch in the thermal expansion coefficient generates thermally induced stress. As a result, brittleness is expected from a material with such a microstructure [1].
Considering the theoretical value of the Vickers hardness for both TiB2 and boron carbide, lower hardness was recorded for each investigated composite. Such differences can be caused by several factors: matrix phase consisting of B13C2, instead of B4C, unreacted carbon detected in each composite or defects in the microstructure, including porosity.
Based on the results reported by Niihara et al. [43], increased hardness should be achieved when the matrix phase consists of almost stoichiometric B4C. For nonstoichiometric B4C (B:C >4), such as B13C2, hardness decreased with increasing B content, suggesting that excess B diminishes the bond strength in the B4C structure. Indeed, the maximum hardness of the matrix phase could be 29 rather than 36 GPa, according to Thevenot [41]. The reduced hardness, at atomic ratio B:C <4 is attributed to free C in the microstructure. According to XRD patterns, the existence of unreacted C was confirmed in each composite.
Considering the hardness of composites synthesized using different C precursors, graphite powder of 2 μm or 10 μm, it can be assumed that finer carbon is much more effective as precursor for the synthesis of interstitial boron carbide. The hardness of the composite with 80 vol% of TiB2 increased from 16 to 25 GPa, by using C powder with an average grain size of 2 μm. Despite difficulty while operating with nano- and sub-micro powders, this is the only way to ensure active non-metallic reagents for SHS, and at the same time, to ensure significant reaction efficiency.

4. Conclusions

It has been proven that combining two reactions with different exothermicities and different mechanisms (rapid highly exothermic synthesis of TiB2 and slow kinetics weak exothermic formation of B13C2) can be useful to fabricate high temperature ceramic composites by means of SHS. However, synthesis of TiB2 is much more efficient, due to a much stronger exothermicity.
  • The exothermicity of TiB2 formation by means of the SHS process can be used in order to fabricate TiB2- B13C2 composites, when the volume fraction of TiB2 is above 60%;
  • Despite B and C composed in the ratio corresponding to B4C, other stoichiometry boride B13C2 was detected as matrix phase in each composite. Perhaps, further annealing after synthesis could fulfill the diffusion needed for full saturation with carbon. However, a limited number of experimental data on diffusion and phase transformations has been reported so far and is essential for consideration;
  • Several parameters, such as microstructure homogeneity, average grain size of TiB2 and hardness of the composites, proved that the grain size of C precursor is an important factor in effectiveness of B13C2 synthesis;
  • Sinterability of TiB2 can be essentially improved by using boron carbide as sintering additive, but also reduced TiB2 grain growth was observed. The average grain size of TiB2 decreased from 11 to 5 μm when the TiB2 vol% was reduced from 90 to 60 vol%;
  • The investigations revealed that the composite containing 80 vol% of TiB2 possessed the highest hardness of 25.5 GPa, low porosity, good homogeneity and compared to the composite with 90 vol% of TiB2, a more regular grain distribution, without agglomerates.

References

  1. White, R.M.; Dickey, E.C. The effect of residual stress distributions on indentation-induced microcracking in B4C-TiB2 eutectic ceramic composites. J. Am. Ceram. Soc. 2011, 94, 4032–4039. [Google Scholar] [CrossRef]
  2. Shapiro, M.; Gotman, I.; Dudko, V. Modeling of thermal explosion in constrained dies for B4C-Ti and BN-Ti powder blends. J. Eur. Ceram. Soc. 1999, 19, 2233–2239. [Google Scholar] [CrossRef]
  3. Aviles, M.A.; Chicardi, E.; Cordoba, J.M.; Sayagus, M.J.; Gotor, F.J. In situ synthesis of ceramic composite materials in the Ti-B-C-N system by a mechanically induced self-sustaining reaction. J. Am. Ceram. Soc. 2012, 95, 2133–2139. [Google Scholar] [CrossRef]
  4. Aizenshtein, M.; Frage, N.; Froumin, N.; Shapiro-Tsoref, E.; Dariel, M.P. Interface interaction in the (B4C + TiB2)/Cu system. J. Mater. Sci. 2006, 41, 5185–5189. [Google Scholar] [CrossRef]
  5. Zhu, D.; Liu, S.; Yin, X.; Yang, L.; Xiao, C.; Zhou, H.; Zhang, J. In situ HIP synthesis of TiB2/SiC ceramic composites. J. Mater. Process. Technol. 1999, 89–90, 457–461. [Google Scholar]
  6. Kang, E.S.; Kim, C.H. Improvement in mechanical properties of TiB2 by the dispersion of B4C particles. J. Mater. Sci. 1990, 25, 580–584. [Google Scholar] [CrossRef]
  7. Deng, J.; Zhou, J.; Feng, Y.; Ding, Z. Microstructure and mechanical properties of hot-pressed B4C/(W,Ti)C ceramic composites. Ceram. Int. 2002, 28, 425–430. [Google Scholar] [CrossRef]
  8. Benton, S.T.; Masters, D.R. Method for Preparing Boron-Carbide Articles. US Patent 3,914,371, 21 October 1975. [Google Scholar]
  9. Mohammad Shafiri, E.; Karimzadeh, F.; Enayati, M.H. Mechanochemical assisted synthesis of B4C nanoparticles. Adv. Powder Technol. 2011, 22, 354–358. [Google Scholar]
  10. Pei, L.; Xiao, H. B4C/TiB2 composite powders prepared by carbothermal reduction method. J. Mater. Process. Technol. 2009, 209, 2122–2127. [Google Scholar] [CrossRef]
  11. Jiang, G.; Xu, J.; Zhuang, H.; Li, W. Combustion of Na2B4O7 + Mg + C to synthesis B4C powders. J. Nucl. Mater. 2009, 393, 487–491. [Google Scholar] [CrossRef]
  12. Baharvandi, H.R.; Tazabzadeh, N.; Ehsani, N.; Aghand, F. Synthesis of B4C-nano TiB2 composite powder by sol-gel method. J. Mater. Eng. Perform. 2009, 18, 273–277. [Google Scholar] [CrossRef]
  13. Singh, M. Thermodynamic analysis for the combustion synthesis of SiC-B4C composites. Scr. Mater. 1996, 34, 923–927. [Google Scholar] [CrossRef]
  14. Vallauri, D.; Atias Adrian, I.C.; Chrysanthou, A. TiC-TiB2 composites: A review of phase relationships, processing and properties. J. Eur. Ceram. Soc. 2008, 28, 1697–1713. [Google Scholar] [CrossRef]
  15. Upalov, Y.P.; Valova, E.E.; Ordanyan, S.S. Preparation and abrasive properties of eutectic compositions in the system B4C-SiC-TiB2. Refractories 1995, 36, 233–234. [Google Scholar] [CrossRef]
  16. Zakaryan, D.A.; Kartuzov, V.V.; Khachatryan, A.V. Pseudopotencial method for calculating the euthectic temperaturę and concentration of the components of the B4C-TiB2, TiB2-SiC, and B4C-SiC systems. Powder Metall. Met. Ceram. 2009, 48, 588–594. [Google Scholar] [CrossRef]
  17. Velikanova, T.Y.; Turchanin, M.A.; Korniyenko, K.Y.; Bondar, A.A.; Agraval, P.G.; Kartuzov, V.V. Phase equilibria in metal systems and properties of alloys; Phase equilibria in the Ti-Si-B-C quaternary system as a basis for developing new ceramic materials. Powder Metall. Met. Ceram. 2011, 50, 385–396. [Google Scholar] [CrossRef]
  18. Chen, H.; Zhang, J.; Fu, Z. Influence of Fe/Ni/Al additive on the sintering behaviors of TiB2 cermets. J. Wuhan Univ. Technol. Mater. Sci. Ed. 2009, 24, 879–882. [Google Scholar] [CrossRef]
  19. Telle, R.; Petzow, G. Strengthening and toughening of boride and carbide hard material composites. Mater. Sci. Eng. A 1988, 105–106, 97–104. [Google Scholar] [CrossRef]
  20. Deng, J.; Sun, J. Sand erosion performance of B4C based ceramic nozzles. Int. J. Refract. Met. Hard Mater. 2008, 26, 128–134. [Google Scholar] [CrossRef]
  21. Heian, E.M.; Khalsa, S.K.; Lee, J.W.; Munir, Z.A.; Yamamoto, T.; Ohyanagi, M. Synthesis of dense, high-defect-concentration B4C through mechanical activation and field-assisted combustion. J. Am. Ceram. Soc. 2004, 87, 779–783. [Google Scholar] [CrossRef]
  22. Okamoto, H. Boron-Carbon phase diagram. In ASM Handbook; Baker, H., Ed.; ASM International: Materials Park, OH, USA, 1992; Volume 3, p. 422. [Google Scholar]
  23. Widom, M.; Huhn, W.P. Prediction of orientational phase transition in boron carbide. Solid State Sci. 2012, 14, 1648–1652. [Google Scholar] [CrossRef]
  24. Will, G.; Kossobutzki, K.H. An X-ray structure analysis of boron carbide, B13C2. J. Less Common Met. 1976, 44, 87–97. [Google Scholar] [CrossRef]
  25. Zhang, S.; Lu, W.; Wang, C.; Shen, Q.; Zhang, L. Synthesis and characterization of B13C2 boron carbide ceramic by pulsed electric current sintering. Ceram. Int. 2012, 38, 895–900. [Google Scholar] [CrossRef]
  26. Andrievski, R.A.; Baiman, I.F. Short-time creep investigation of TiB2-Fe composite. J. Mater. Sci. Lett. 1992, 11, 1661–1662. [Google Scholar] [CrossRef]
  27. Zou, B.; Shen, P.; Jiang, Q. Reaction synthesis of TiC-TiB2/Al composites from an Al-Ti-B4C system. J. Mater. Sci. 2007, 42, 9927–9933. [Google Scholar] [CrossRef]
  28. Ziemnicka-Sylwester, M. Superhard TiB2-based composites with different matrix fabricated from elemental powders by SHS-p-HIP. Adv. Sci. Technol. 2013, 77, 146–152. [Google Scholar] [CrossRef]
  29. Baharvandi, H.R.; Hadian, A.M. Pressureless sintering of TiB2-B4C ceramic matrix composite. J. Mater. Eng. Perform. 2008, 17, 838–841. [Google Scholar] [CrossRef]
  30. Grigorev, O.N.; Koval’chuk, V.V.; Zaporozhets, O.I.; Bega, N.D.; Galanov, B.A.; Prilutski, E.V.; Kotenko, V.A.; Kutran, T.N.; Dordienko, N.A. Synthesis and physicomechanical properties of B4C-VB2 composites. Powder Metall. Met. Ceram. 2006, 45, 47–58. [Google Scholar] [CrossRef]
  31. Pampuch, R. Advanced HT ceramic materials via solid combustion. J. Eur. Ceram. Soc. 1999, 19, 2395–2404. [Google Scholar] [CrossRef]
  32. Nikzad, L.; Licheri, R.; Vaezi, M.R.; Orru, R.; Cao, G. Chemically and mechanically activated combustion synthesis of B4C-TiB2 composites. Int. J. Refract. Met. Hard Mater. 2012, 35, 41–48. [Google Scholar] [CrossRef]
  33. Xue, H.; Munir, Z.A. Extending the compositional limit of combustion-synthesized B4C-TiB2 composites by field activation. Metall. Mater. Trans. B 1996, 27, 475–480. [Google Scholar] [CrossRef]
  34. Holt, J.B.; Kingman, D.D.; Bianchini, G.M. Kinetics of the combustion synthesis of TiB2. Mater. Sci. Eng. 1985, 71, 321–327. [Google Scholar] [CrossRef]
  35. Zhang, G.; Xiao, G.; Fan, Q. Numerical modeling of field-activated combustion synthesis process of the B4C system. Mater. Res. Bull. 2011, 46, 345–349. [Google Scholar] [CrossRef]
  36. Munir, Z.A.; Aselmi-Tamburini, U. Self-propagating exothermic reactions: The synthesis of high-temperature materials by combustion. Mater. Sci. Rep. 1989, 3, 227–365. [Google Scholar] [CrossRef]
  37. Liu, G.; Li, J.; Chen, K.; Zhou, H. Combustion synthesis of (TiC + SiC) composite powders by coupling strong and weak exothermic reactions. J. Alloy. Compd. 2010, 492, L82–L86. [Google Scholar] [CrossRef]
  38. Panek, Z. The synthesis of SiC-B4C ceramics by combustion during hot-pressing. J. Eur. Ceram. Soc. 1993, 11, 231–236. [Google Scholar] [CrossRef]
  39. Ziemnicka-Sylwester, M.; Matsuura, K.; Ohno, M. Phase evolution, microstructure and hardness of TiB2-based Co-containing composites by SHS under pseudo-isostatic pressure. ISIJ Int. 2012, 52, 1698–1704. [Google Scholar] [CrossRef]
  40. Shteinberg, A.S.; Knyazik, V.A. Microkinetics of high-temperature heterogenous reactions: SHS aspects. Pure Appl. Chem. 1992, 64, 965–976. [Google Scholar] [CrossRef]
  41. Thevenot, F. Boron carbide—Comprehensive review. J. Eur. Ceram. Soc. 1990, 6, 205–225. [Google Scholar] [CrossRef]
  42. Gorsse, S.; Chaminade, J.P.; Le Petitcorps, Y. In situ preparation of Ti-based composites reinforced by TiB single crystals using a powder metallurgy technique. Compos. Part A Appl. Sci. Manuf. 1998, 29, 1229–1234. [Google Scholar] [CrossRef]
  43. Niihara, K.; Nakahira, A.; Hirai, T. The effect of stoichiometry on the mechanical properties of boron carbide. J. Am. Ceram. Soc. 1984, 67, C13–C14. [Google Scholar]
