Materials 2013, 6(12), 5907-5922; doi:10.3390/ma6125907
Article

A Sustainable Evaluation of Drilling Parameters for PEEK-GF30

1 Department of Construction and Manufacturing Engineering, Universidad Nacional de Educación a Distancia (UNED), C Juan del Rosal 12, Madrid 28040, Spain 2 Department of Materials Science and Metallurgical Engineering, Graphic Expression in Engineering, Cartographic Engineering, Geodesy and Photogrammetry, Mechanical Engineering and Manufacturing Engineering, Universidad de Valladolid, P.º del Cauce 59, Valladolid 47011, Spain 3 Department of Chemistry Applied to Engineering, Universidad Nacional de Educación a Distancia (UNED), C Juan del Rosal 12, Madrid 28040, Spain
* Author to whom correspondence should be addressed.
Received: 29 October 2013; in revised form: 2 December 2013 / Accepted: 10 December 2013 / Published: 13 December 2013
PDF Full-text Download PDF Full-Text [963 KB, Updated Version, uploaded 16 December 2013 20:15 CET]
The original version is still available [566 KB, uploaded 13 December 2013 15:30 CET]

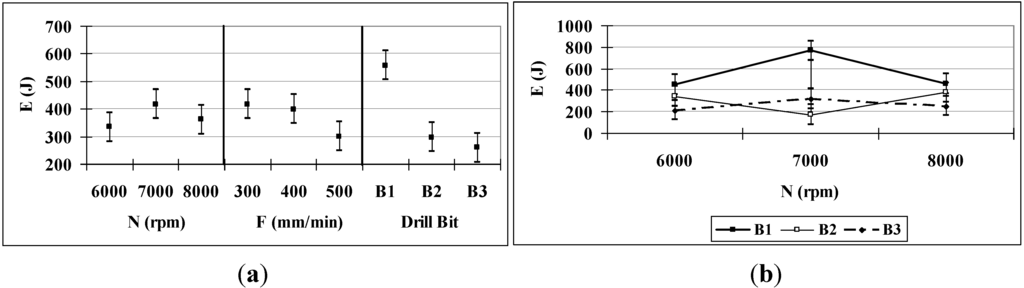

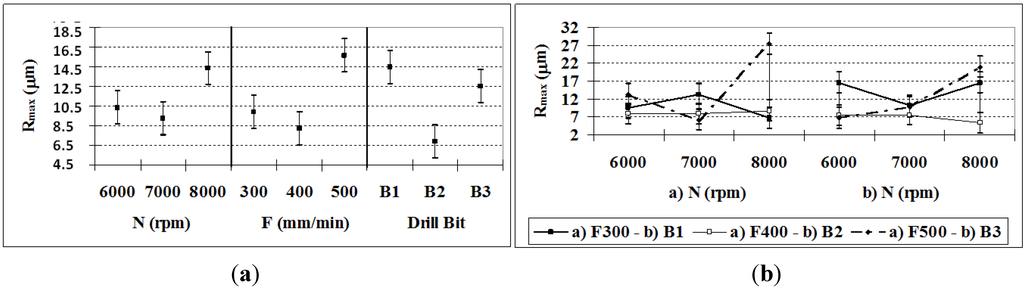

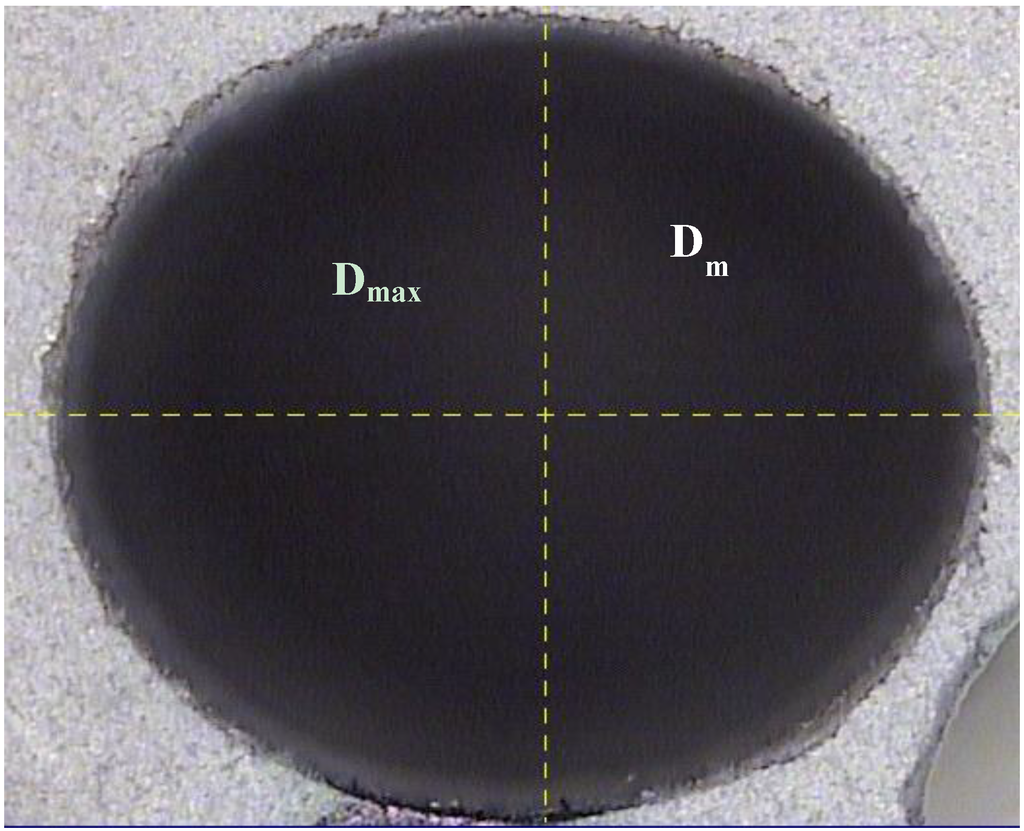

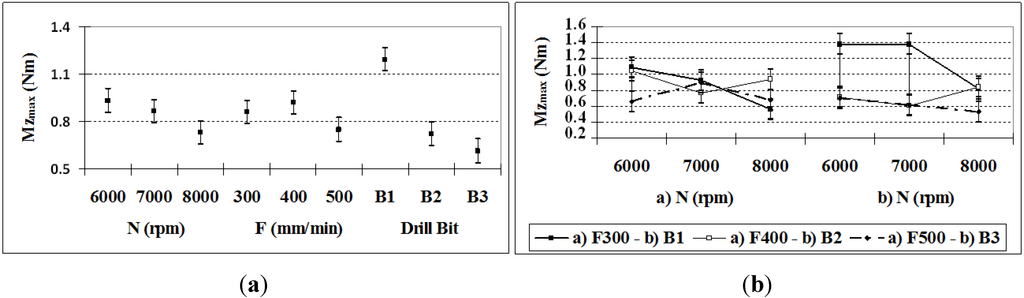

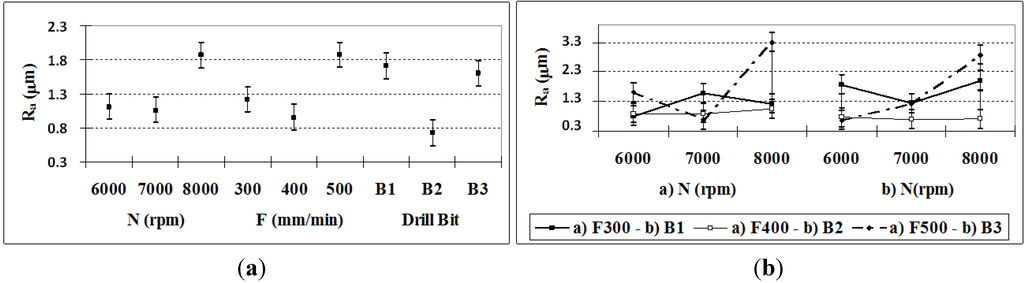

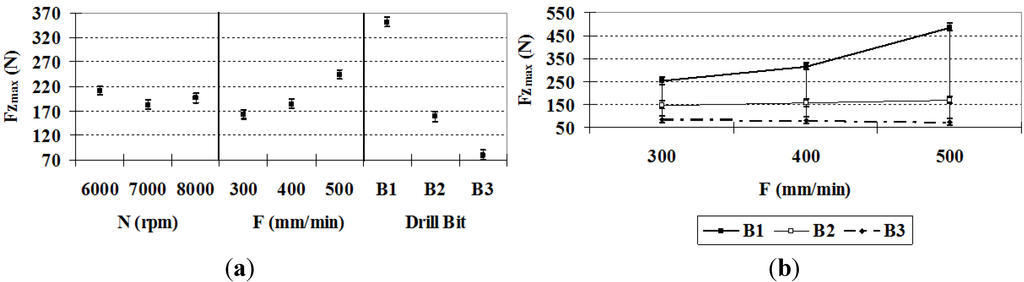

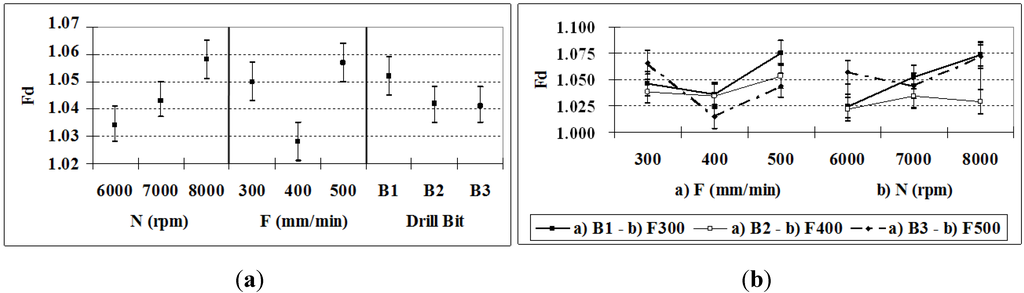

Abstract: This paper presents a study of hole quality and energy consumption in the process of drilling a thermoplastic polymeric material, polyether-ether-ketone, reinforced with 30% glass fibers (PEEK-GF30). PEEK-GF30’s capacity to be machined has focused on turning operations. Studies of drilling involving thermoplastic polymeric materials have considered materials with other types of matrices, or reinforcement. In this study, quantities such as maximum and mean surface roughness, delamination, maximum thrust force, maximum momentum, and energy required during the process were determined for three types of drill bits, and the most influential factors for each variable were identified using an ANOVA multifactor analysis. The highest quality and lowest energy consumption were achieved for a drill bit rotation speed of 7000 rpm and a feed rate of 400 mm/min with a tungsten carbide (WC) drill bit coated with titanium aluminum nitride (TiAlN). Although a WC drill bit with a diamond point reduces delamination, the roughness increases, thus, the choice of the drill bit type depends on the roughness allowed. A WC drill bit coated with TiAlN produces a good surface finish that can eliminate subsequent operations and requires less energy; thus, this type of drill bit is the most attractive of the types evaluated.
Keywords: finish; forming; composite materials; sustainable process; PEEK-GF30

Article Statistics

Load and display the download statistics.

Citations to this Article

Cite This Article

MDPI and ACS Style

Domingo, R.; García, M.; Sánchez, A.; Gómez, R. A Sustainable Evaluation of Drilling Parameters for PEEK-GF30. Materials 2013, 6, 5907-5922.

AMA Style

Domingo R, García M, Sánchez A, Gómez R. A Sustainable Evaluation of Drilling Parameters for PEEK-GF30. Materials. 2013; 6(12):5907-5922.

Chicago/Turabian Style

Domingo, Rosario; García, Manuel; Sánchez, Alberto; Gómez, Rosa. 2013. "A Sustainable Evaluation of Drilling Parameters for PEEK-GF30." Materials 6, no. 12: 5907-5922.
