Review

Macroporous Semiconductors

Institute for Materials Science, Christian-Albrechts-University of Kiel, Kaiserstr. 2, D-24143 Kiel, Germany
*
Author to whom correspondence should be addressed.
Materials 2010, 3(5), 3006-3076; https://doi.org/10.3390/ma3053006
Submission received: 19 February 2010 / Revised: 30 March 2010 / Accepted: 30 April 2010 / Published: 7 May 2010
(This article belongs to the Special Issue Porous Materials)

Abstract

:
Pores in single crystalline semiconductors come in many forms (e.g., pore sizes from 2 nm to > 10 µm; morphologies from perfect pore crystal to fractal) and exhibit many unique properties directly or as nanocompounds if the pores are filled. The various kinds of pores obtained in semiconductors like Ge, Si, III-V, and II-VI compound semiconductors are systematically reviewed, emphasizing macropores. Essentials of pore formation mechanisms will be discussed, focusing on differences and some open questions but in particular on common properties. Possible applications of porous semiconductors, including for example high explosives, high efficiency electrodes for Li ion batteries, drug delivery systems, solar cells, thermoelectric elements and many novel electronic, optical or sensor devices, will be introduced and discussed.

Table of Contents

1. Introduction3007
 1.1. Scope of the Paper3007
 1.2. Some Pictures and Definitions3007
2. Pore Etching Experiments3012
 2.1. Etching System and Degrees of Freedom3012
 2.2. Current and Dissolution3016
 2.3. First Insight into Pore Formation3017
3. Some General Aspects of Pores in Semiconductors3022
 3.1. Major Differences and Common Features3022
 3.2. Self Organization and Pore Growth Mode Transitions3025
 3.3. Pore Geometry3030
 3.4. A Closer Look at Self-Organization Issues3033
 3.5. A Closer Look at Growing Deep Pores3036
4. Multi-Mode-In-Situ FFT Impedance Spectroscopy During Pore Etching3038
 4.1. General Technique3038
 4.2. Selected Results from Si Pore Etching3043
 4.3. A Case Study for InP and GaAs3046
  4.3.1. Studying Crysto and Curro Pores in InP3046
  4.3.2. Crysto and Curro Pores in GaAs3054
5. Some Applications of Porous Semiconductors3056
 5.1. General Remarks3056
 5.2. Some New Applications3060
  5.2.1. Sensors Exploiting the Piezoelectric Properties of Porous III-V3060
  5.2.2. Single Holes with Large Aspect Ratios3060
  5.2.3. Anodes for Li Ion Batteries3060
6. Summary and Conclusions3062
Acknowledgements3063
References and Notes3063

1. Introduction

1.1. Scope of the Paper

Doing justice to all aspects of “Porous Semiconductors” would require a good-sized book, if not a whole series of books. In fact, several books about the topic have already been written. Most important in this context are perhaps the monographs of Zhang [1] and Lehmann [2], dealing mostly with the electrochemistry of semiconductors and with pore etching in Si, respectively. Then we have the by now five proceedings of the bi-annual International Conference on Porous Semiconductors Science and Technology (PSST) [3,4,5,6,7] and some special proceedings volumes of the Electrochemical Society [8,9,10]. Kochergin and Föll published a recent monograph [11] focusing on optical properties of mostly porous Si, and Notten, van den Meerakker, and Kelly looked into the general electrochemistry of III-V semiconductor compounds some years ago [12]. There is also no lack of reviews. In [13,14,15,16,17,18,19,20,21,22] many aspects of pores in semiconductors are highlighted; more recent reviews deal with macropores in Si [23], self-organization issues in the context of pore formation in semiconductors [24], the luminescence from porous Si [18,25,26,27], or the use of impedance techniques for in situ assessment of pore growth [28].
Reading through the several thousand pages quoted above will not only provide a lot of information about porous semiconductors (even more can be found in the by now several thousand regular papers), but will also illustrate two pertinent points: i) there are still many open questions concerning, e.g., formation mechanisms and properties of porous semiconductors, and ii) there has been much progress in theory, techniques, and experimental discoveries in recent years. To give just a few examples for the latter point: pore types completely different from anything else encountered so far were discovered in GaP in [29], in Ge in 2009 [30], and in ZnSe in [31,32]. The fact that these pore types were neither predicted nor understood at present, nicely illustrates the first point.
Accordingly, in this review we must restrict ourselves to some major aspects of pores in some semiconductors and omit many details. The first restriction is that this review deals mostly with macropores, i.e., pores with diameters >50 nm. For the smaller meso and micropores the reader is referred to the recent review of Sa’ar [25], the forthcoming book of Sailor [33], and the references therein. What will be dealt with here are i) some general aspects of macropore formation in semiconductors, i.e., pore properties found in several semiconductors, ii) some general aspects of pore formation models with particular emphasize on stochastic models, iii) the more recently employed techniques of in situ measurement techniques during pore formation, and iv) a short overview of special properties of porous semiconductors with respect to potential applications. All points will be illustrated in some detail with old but also quite recent results mostly from the Kiel (Germany) group of the authors.

1.2. Some Pictures and Definitions

A certain problem when dealing with pores in semiconductors is the terminology. It is hard to describe the structure of porous semiconductors in words because we encounter a huge range of geometries and morphologies, Figure 1, Figure 2 and Figure 3 give a flavor of this. The only (not very helpful) formal definition considers only the pore geometry in the sense of the (average) pore size (the word pore diameter is already too special because it implies a circular cross-section), and possibly the (average) distance between pores. According to an IUPAC convention [34], we distinguish geometrically between micropores (diameter < 2 nm), mesopores (diameter 2 nm–50 nm), or macropores (diameter > 50 nm). However, the formally undefined term “nanopores” is also used a lot for what formally should be termed micro- or mesopores. There is no convention on the use of the term “morphology”, meaning the three-dimensional appearance of pores, and there are many ad-hoc terms that relate to this like: branched pores, tree-like pores, nano-sponge; crystallographic pores, current line pores, and so on. Perfectly straight cylindrical pores are found as well as highly disordered two- or three-dimensional fractal arrangements - and anything conceivable in between. In this paper we will stick to the IUPAC convention if not otherwise noted.
Figure 1, Figure 2 and Figure 3 show exclusively pore types found in the group of the authors because these 27 pictures suffice to give a taste of what “pores in semiconductors” imply. They also demonstrate that a paper endeavoring to deal with all kinds of pores identified so far would be long and tedious. There are even more pore types than shown and the authors could add copiously to the list - and so could many other groups active in the field. Besides pores in the five semiconductors shown in the figures there are also specific pores found in, e.g., SiC (cf. [41,42,43,44,45,46,47]) or in II-VI materials like ZnSe (cf. [31]), and the reader should be aware of this.
Figure 1. Examples of pores encountered in anodically etched Silicon; (b) and (i) are top views, all others are SEM cross-sections. (a) n-macro(bsi (backside illumination), aqu, litho); (b) microporous layer on poly-crystalline Si with interference colors, (c) n-macro(bsi, aqu, litho, {111}); pores grow in <113> directions, (d) deep n-macro(bsi, aqu, litho); (e) n-macro(fsi (frontside illumination), org; off-{100}); (f) n-macro(bsi, org); (g) p-macro(org); (h) n-meso(aqu); (i) fractal surface “pores” in n-Si at extremely low HF concentration. “aq” and “org” refer to aqueous or organic electrolyte; the later usually containing DMSO or DMF. For details refer to the text and [13,35,36,37,38,39,40].
Figure 1. Examples of pores encountered in anodically etched Silicon; (b) and (i) are top views, all others are SEM cross-sections. (a) n-macro(bsi (backside illumination), aqu, litho); (b) microporous layer on poly-crystalline Si with interference colors, (c) n-macro(bsi, aqu, litho, {111}); pores grow in <113> directions, (d) deep n-macro(bsi, aqu, litho); (e) n-macro(fsi (frontside illumination), org; off-{100}); (f) n-macro(bsi, org); (g) p-macro(org); (h) n-meso(aqu); (i) fractal surface “pores” in n-Si at extremely low HF concentration. “aq” and “org” refer to aqueous or organic electrolyte; the later usually containing DMSO or DMF. For details refer to the text and [13,35,36,37,38,39,40].
Materials 03 03006 g001
Considering pores in semiconductors it is not only necessary to define the pore geometry and morphology in a sensible way - it is also imperative to define the basic parameters of the semiconductor being etched, and pertinent details of the electrochemical processing. Besides the semiconductor itself, it is important to give its doping type (p-type or n-type) and at least a rough idea of the doping level (e.g., p or p+; there are often distinct differences between lightly or heavily doped semiconductors) and the crystallographic orientation (including “A” or “B” direction for polar directions; e.g., {111}A for III-V’s, if the surface terminates in group III atoms) of the samples used. It is customary, however, to omit the latter point if the standard {100} orientation was used. In some cases (essentially Si and Ge) the use of illumination is essential, distinguished by either front side illumination (fsi) or backside illumination (bsi). The nucleation process of the pores plays a large role (something not yet fully appreciated or understood); at the very minimum we must distinguish extrinsic nucleation, usually introduced by employing some lithographically structured nucleation layer (and therefore abbreviated “litho” here), and intrinsic nucleation, i.e., nucleation that happens “somehow” (abbreviated “random” if necessary) as essential part of the pore etching process. Pore etching proceeds either under galvanostatic (i.e., constant current) or potentiostatic (i.e., constant electrode potential) conditions, or under more complex external conditions that may change with time. Some electrolyte is used that may have a rather special composition at some controlled or uncontrolled (“ambient”) temperature.

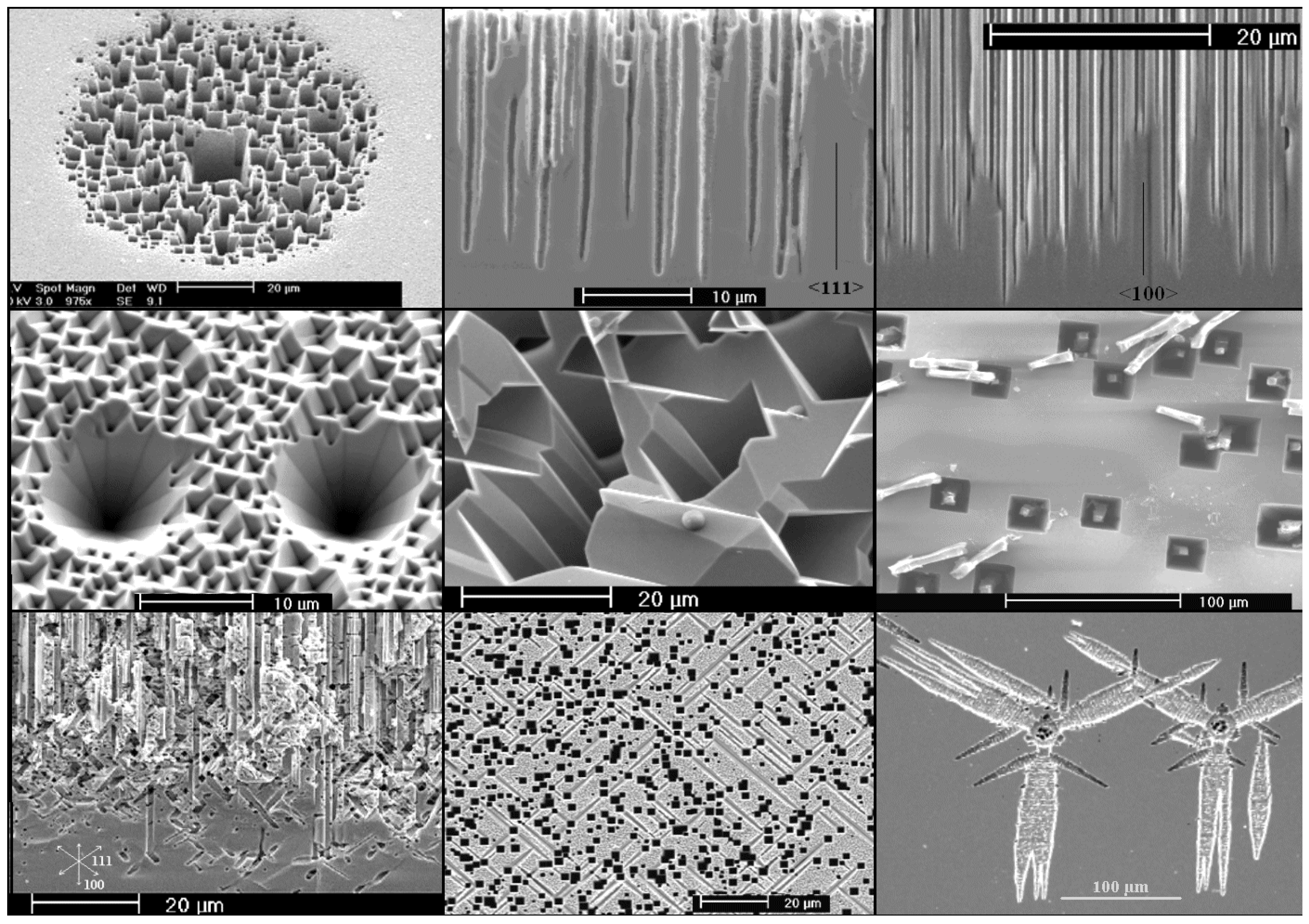

Figure 2. Example of pores encountered in anodically etched Ge. n-type and p-type Ge is covered; for details see [48,49,50,51,52,53,54].
Figure 2. Example of pores encountered in anodically etched Ge. n-type and p-type Ge is covered; for details see [48,49,50,51,52,53,54].
Materials 03 03006 g002
It is impractical to go through the full list for every example. In order to provide the absolutely necessary minimum of information, while still providing easy readability, we adopt the mostly self-explaining nomenclature introduced in [13] and refer, for example, to (straight) macropores in {100} n-type Si obtained by employing back side illumination in an aqueous electrolyte and with lithographically provided nucleation sites as: n-Si-macro(aqu, bsi, litho) pores. Not mentioned are the usual standards and specialties: (controlled) room temperature, typically galvanic conditions, electrolyte circulation, starting conditions different from steady state, and so on.
Looking at the 27 examples provided demonstrates some noteworthy common characteristic: it is quite obvious that pores often (but not always) express the crystallography of the substrate by preferring certain directions for growth. This may not be so remarkable for the typically found <100> directions in Si and Ge, or the <111>B directions in III-V’s - but why <113> should be a preferred direction in Si [61,62,64] is still rather mysterious.

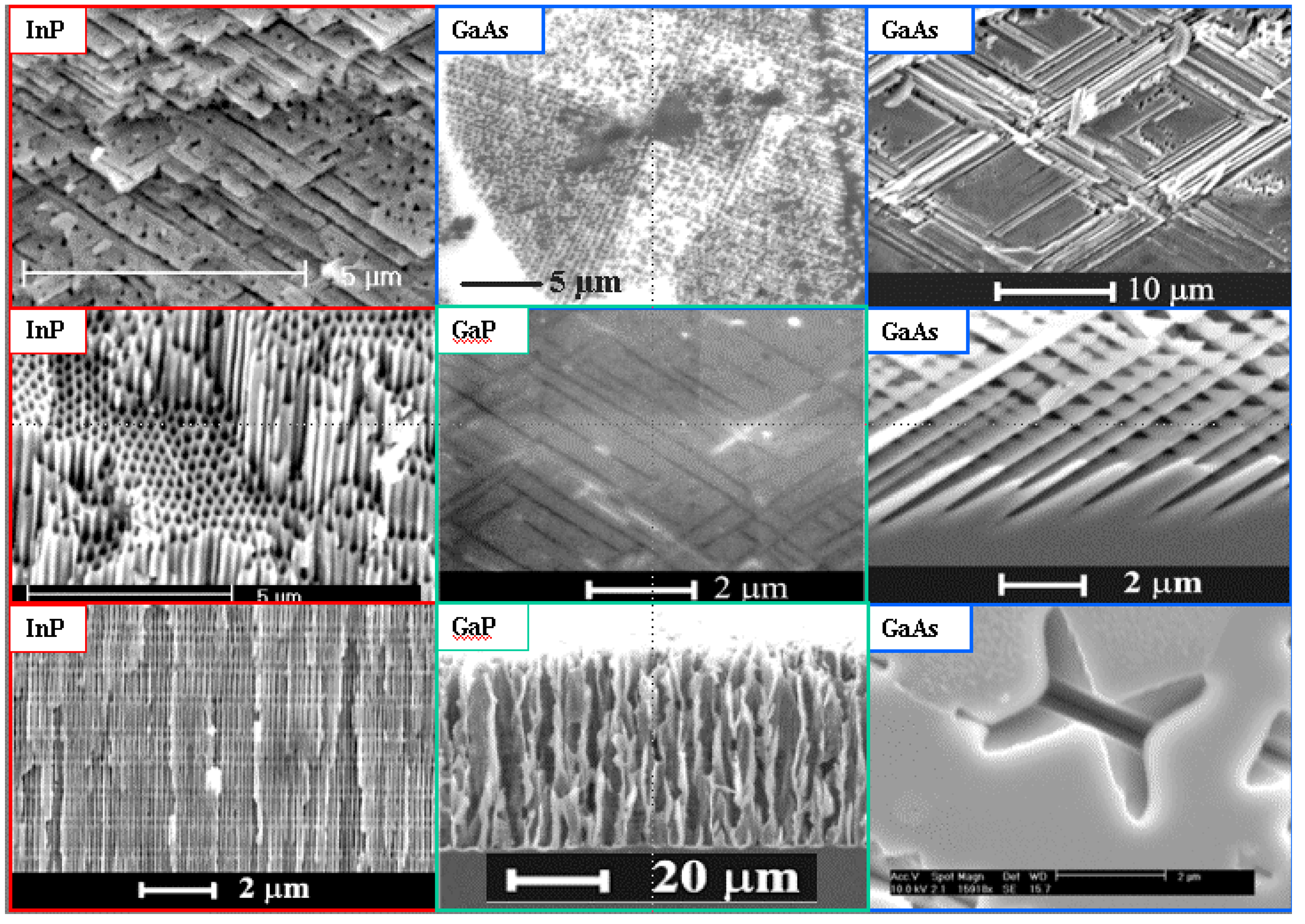

Figure 3. Example of pores encountered in anodically etched III-V’s as indicated. Pores can only be generated in n-type. For details see [14,55,56,57,58,59,60,61,62,63].
Figure 3. Example of pores encountered in anodically etched III-V’s as indicated. Pores can only be generated in n-type. For details see [14,55,56,57,58,59,60,61,62,63].
Materials 03 03006 g003
Moreover, while often a high degree of order is found, some “stochastics” is clearly present, too. The first point is expressed most spectacularly in the pore crystal visible for the InP case in Figure 3 (left, middle) but also in the rather regular arrangement of crossing pores for the GaAs case in Figure 3 (right, middle) or in the rather regular pore branching in Figure 1e), Figure 1f). The fractal pores in Figure 1i) demonstrate pure stochastics in the sense that a growing pore tip will grow in any available direction with about equal probability. Even the most regular structures found (and seeded without lithography) still exhibit stochastic properties in the sense that there is still some randomness with respect to geometric and morphological parameters.
It is important to keep in mind that all the pictures shown present a snapshot taken ex-situ or “post mortem” at the time the experiment was stopped, and that the picture may not contain much information about how the observed state was achieved as a function of time, nor how pore growth would proceed. To be sure, in most experiments there is a region in time and space, where the pores grow more or less “monotonously”, i.e., the structure would look about the same except for the length of the pores but that is neither true for short times, nor for long times. Common sense dictates that pores cannot grow indefinitely into the depth of the sample, since moving the necessary chemical species down to the tip and the reaction products out of the pore becomes increasingly difficult, not to mention that the potential at the pore tip drops continuously because of ohmic losses down the length of the pore. Pore growth as a function of time is indeed a complex issue, in particular because parameters often do not just change gradually but often suddenly—a pore growth mode transition is observed, cf. [65].
It is thus obvious that there cannot be a simple model that produces the observed pore characteristics as a function of time by just “plugging in” the major external parameters, i.e., semiconductor data, electrolyte data, and system data. It is equally obvious that those data, if complete, do determine everything that results. One problem is that nobody knows for sure what exactly would constitute a complete parameter set. In other words, how important are often ignored fine details, e.g., the exact cell design determining the exact flow pattern of the electrolyte or a crystallographic direction of the sample surface relative to the flow direction of the electrolyte? There are indications that the examples mentioned are important on occasion and that simply means that any sufficiently sophisticated general pore formation model is still far beyond the present state-of-the art.
However, it becomes increasingly clear that behind the staggering multitude of pores in semiconductors some general common “meta” features can be found in many circumstances. This indicates that on a suitable meta-level description some “simple” principles might operate that are independent of “details” like the exact chemical process of dissolution for a given semiconductor in a given chemistry. In this paper we endeavor to elucidate these general principles as far as that is presently possible.

2. Pore Etching Experiments

2.1. Etching System and Degrees of Freedom

Many R&D groups are etching pores in semiconductors, cf. [3,4,5,6,7]. Most groups use small samples of about (3–10) mm2 employing some experimental set-up that is typically self-build with respect to the electrolytical cell and the electrolyte handling, because that part of the experimental set-up seems to be simple. While this is true enough in principle, the results of a pore etching experiment may sensitively depend on details of the experimental set-up since the dissolution process is on occasion quite sensitive to some of the experimental details, like pumping of the electrolyte or small changes of the electrolyte composition. Figure 4 illustrates a few relevant points in this context.
Shown is the typical set-up for etching n-Si-macro(aqu, bsi, litho) pores first described by Lehmann and Föll in 1990 [66], the kind of pores that might be considered the paragon of “pores in semiconductors” next to the luminescent p-Si-micro(aqu) pores discovered by Canham [67] and Lehmann and Gösele [68] in 1991.
The back side illumination (bsi) with an intensity or power P generates electron-hole pairs near the back side surface; some of the holes (= minority carriers) now situated in the valence band of the Si (h+ in V), after going for some random walk, will reach the reactive Si—electrolyte interface, trigger the dissolution reaction, and become part of the external current. Other holes are lost for this process by recombination somewhere else. The reaction sequence thus initiated may lead to the injection of electrons into the conduction band (e- in C), and both the electron and the hole current in the Si are converted to an external extrinsic current I flowing across the potentiostat/galvanostat (PG), that defines the external electrical parameters. Purely chemical reactions may also occur as indicated, leading to a “chemical current” that changes the chemistry (e.g., by H2 evolution) and is not part of the external current; cf. for example [11]. Since substantial voltage drops may be encountered in the electrolyte and the periphery, it is good practice, if not absolutely required, to refer to the potential with respect to a reference electrode near the interface and a voltage probe (usually called sense electrode) at the sample back side. The electrolyte often needs to be circulated to avoid concentration gradients at the interface and should be stabilized with respect to temperature.

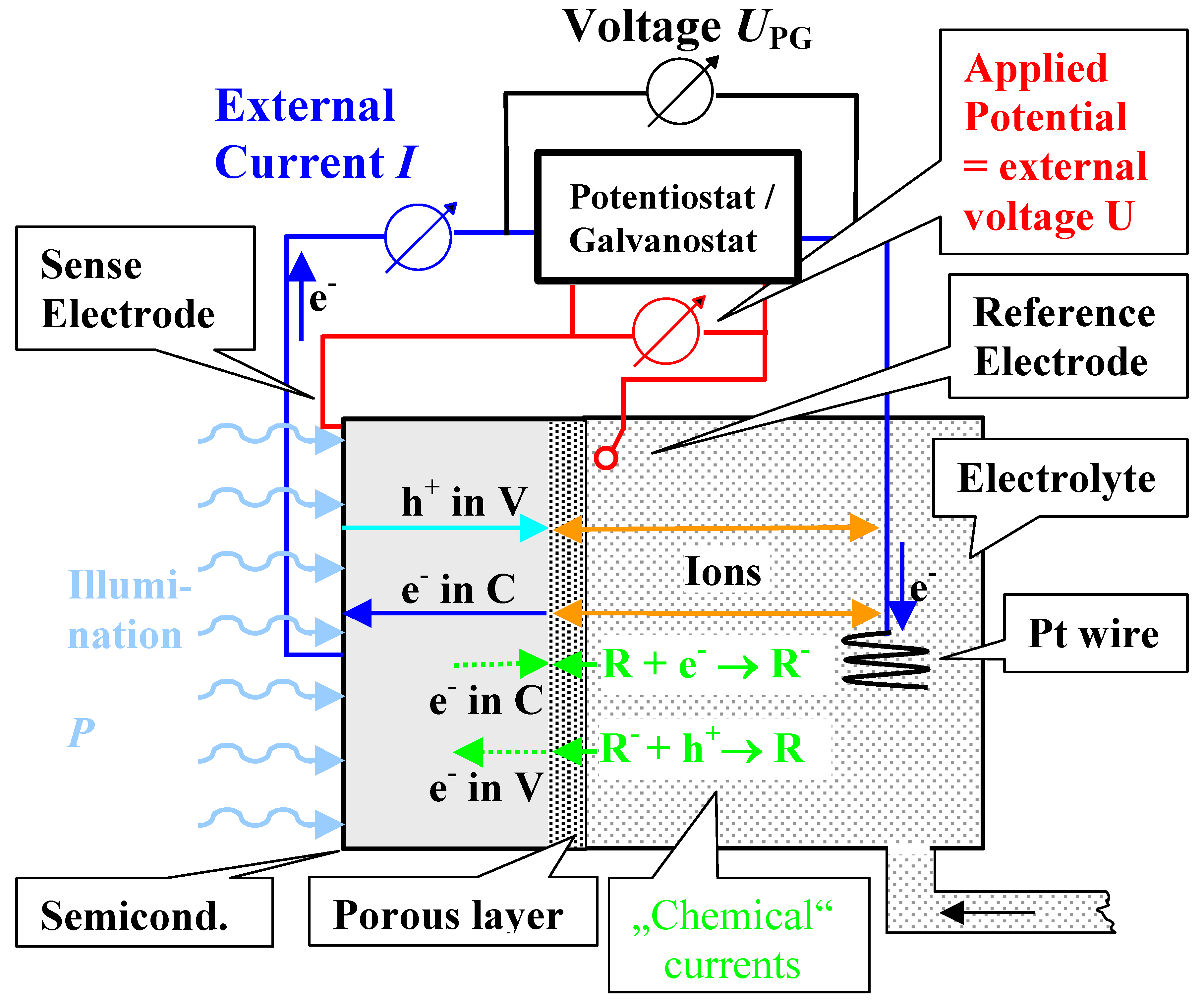

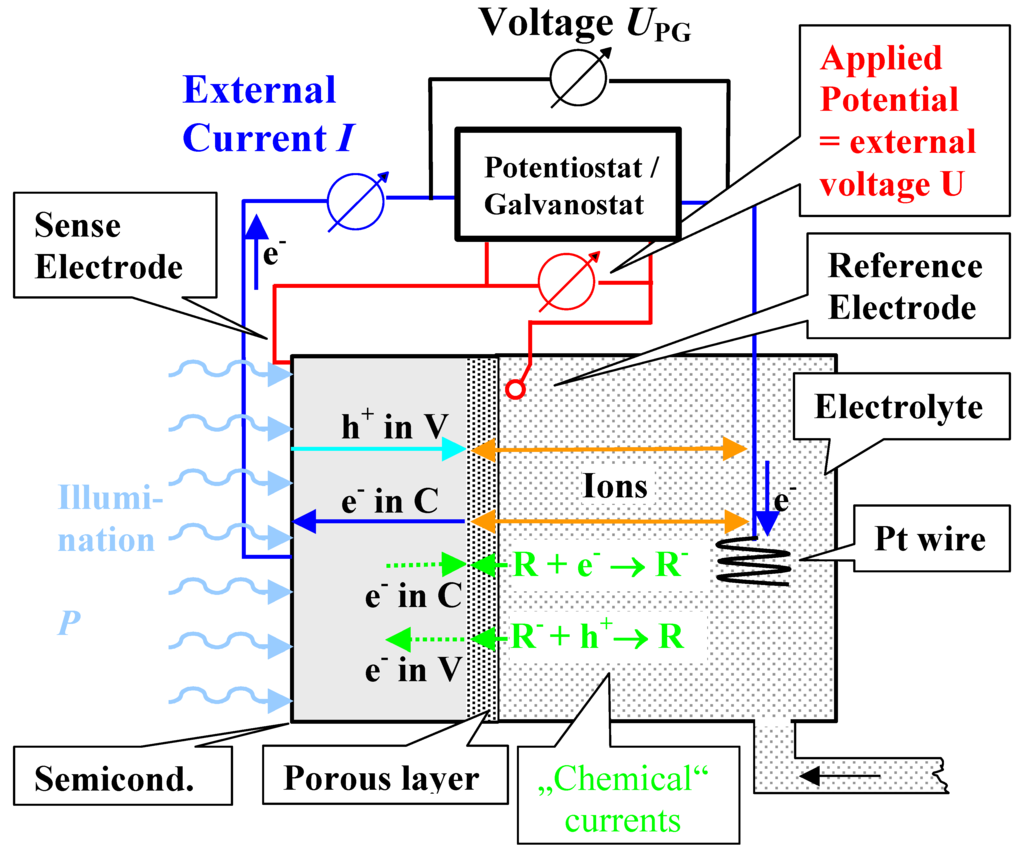

Figure 4. Principles of etching apparatus and current flow upon anodically dissolving n-type Si. Note the separation into external currents and “chemical” currents.
Figure 4. Principles of etching apparatus and current flow upon anodically dissolving n-type Si. Note the separation into external currents and “chemical” currents.
Materials 03 03006 g004
While this is still rather general and simple, the complications start as soon as we consider the particulars of a more difficult case: large area etching of Si, e.g., using a 200 mm standard Si {100} wafer as specimen. Consider that the electrolyte needs to contain hydrofluoric acid (HF), often mixed with an organic solvent. This severely limits the choice of materials for the etching cell, electrodes, windows and pumping circuitry, besides causing considerable safety and disposal problems. Looking at a few numbers suffices to turn the so far “simple” etching experiment into a complex undertaking: for typical current densities of (10–100) mA/cm2 we need a total current of (3.14–31.4) a flowing at potentials of a few Volts, necessitating heavy-duty contacts and wiring. Bearing in mind that a current density of around 30 mA/cm2 is produced by a very good solar cell at “high noon” gives an idea about the dimensions of the light source needed. Using the required kW “light bulbs” for illumination makes a temperature control to at least ± 0.2 oC rather difficult, not to mention space and money concerns. It is thus advisable to employ a matrix of about 4.000 infrared LEDs as a light source, powered by some suitable (and programmable) power supply. Providing an absolutely uniform electrolyte flow across the wafer is not an easy task at these dimensions, and allowing for programmable current, voltage, illumination intensity, and temperature profiles over time, always needed to counter increasing diffusion limitations and voltage losses in ever deeper pores (etching times may be up to 10 hours), calls for specialized hard- and software. Much effort has been extended to meet these requirements; some information concerning these points can be found in [69,70]. Taking everything together, a lab-type large area etcher from ET&TE Etch and Technology GmbH can cost about € 150,000, and a more sophisticated partially automated process station from Semitool will easily go beyond € 1,000,000.
Working with smaller specimens and/or with specimens that do not require dangerous chemicals like HF (most semiconductors besides Si and SiC) or illumination is much easier. The prize to pay is that edge effects can never be completely avoided with small samples, and peculiars of potential measurements, flow control, cell design, ohmic back side contact, and so on, may then cause poor reproducibility and questionable comparisons between results of different groups obtained at nominally similar conditions. Flow conditions, for example, may become critical while etching pores close to some growth mode transition point [14,52,63,65,71] in Si, Ge, or InP, because rather small variations in external parameters might drive the system into one growth mode or the other; this will be illustrated later in this paper.
It is now important to appreciate an essential point in semiconductor pore etching: the system has several degrees of freedom in its external and internal parameters. Omitting the temperature for the time being, we note that we have up to three external variables: current I, electrode potential UE, and (on occasion) illumination intensity P.
The first degree of freedom allows choosing potentiostatic or galvanostatic conditions. Typically galvanostatic conditions (i.e., constant current conditions) are used, because this allows in principle to “drill” the pores under constant dissolution conditions. With illumination as independent parameter, the second degree of freedom comes up. For example, galvanically etching standard n-macro(bsi) pores can be achieved in two basic ways: 1) By using the direct galvanostatic control of the potentiostat/ galvanostat at a fixed illumination intensity P - the potential UE then must be allowed to adjust to whatever value is needed. 2) By setting both current and potential to fixed values–the illumination intensity P then must be allowed to adjust to whatever it takes via a feedback loop. The latter case is typically used in n-Si-macro(aqu, bsi, litho) pore etching, with the added complication that typically I, UE, and the temperature T are programmed to follow some function of time. We will not go into details of this (cf. [2] for more information), but just use this example to illustrate that there might be more degrees of (external) freedom than just going galvanostatic or potentiostatic, and that etching state-of-the-art pores is no longer as simple as it might appear on a first glance. This is also reflected in the basic Si IU characteristics; Figure 5 gives the paradigmatic example for n-type Si.

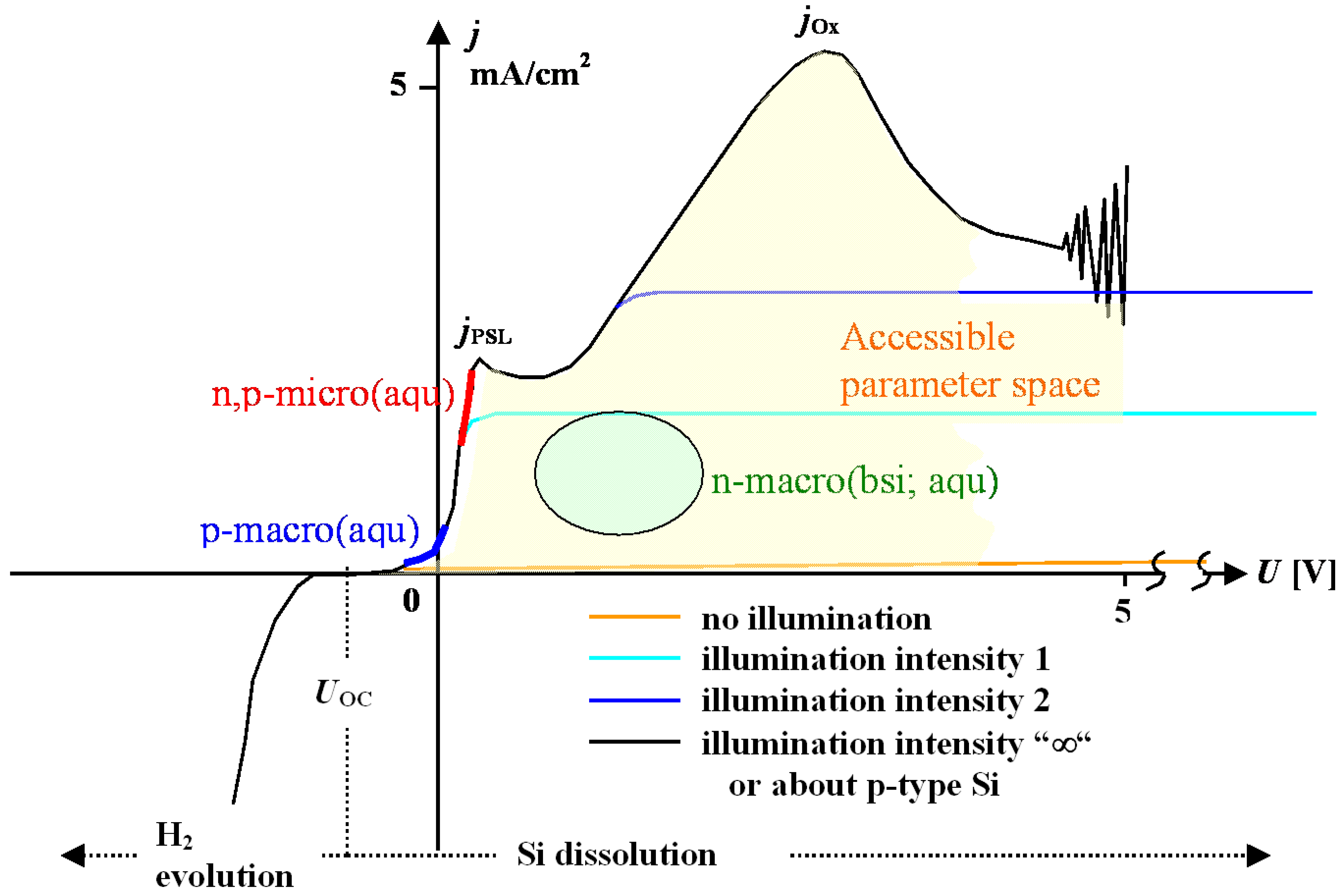

Figure 5. Basic n-Si I(U) characteristics in about 1 wt% HF aqueous electrolyte with representative numbers. Parameter spaces are indicated. Electropolishing refers to dissolution without pore formation usually accompanied by strong current / voltage oscillations. The two characteristic peaks are denoted jPSL and jOX. For high HF concentration or high doping, pore formation modes change.
Figure 5. Basic n-Si I(U) characteristics in about 1 wt% HF aqueous electrolyte with representative numbers. Parameter spaces are indicated. Electropolishing refers to dissolution without pore formation usually accompanied by strong current / voltage oscillations. The two characteristic peaks are denoted jPSL and jOX. For high HF concentration or high doping, pore formation modes change.
Materials 03 03006 g005
Besides the external degrees of freedom the system has at least one internal degree of freedom. Pore etching, by definition, implies that the local lateral current density j(x,y) is larger than the nominal current density I/A with A = sample area, and that it must be a function of the coordinates and possibly of the time. For growing pores the current density needs to be large at the pore tips and small at pore walls and at the surface between pores. In other words, the local pore current density can be an arbitrary function of place and time; j = j(x,y,z,t), with the only restriction that the total current I must be constant (for a galvanostatic experiment) at any instance in time. This is trivial and complex at the same time. It is trivial because it simply states that the dissolution is not homogeneous in time and space. It is complex because it necessitates that pores grow “electrically” correlated. If, for example, the current inside one pore decreases, it must increase somewhere else in order to keep the total current constant. If, to give another example, the nominally flowing current density inside some pores (e.g., close to the O-ring) would require a lower potential than for those in the bulk—it can’t be, there is only one potential and it is the same everywhere (neglecting ohmic losses). We now grow some different pore structure at the edge by necessity. Figure 6 illustrates some more subtle consequences of this; more will follow.
The pore structure revealed by looking at a cross-section (after cleaving the sample) is always post-mortem and ex-situ; it shows an indirect representation of j(x,y,z,t). It is indirect because it is not possible to unambiguously assess the development in time of a final pore structure. Did a macropore grow into the depth with the final diameter observed ex-situ, or was there some lateral growth, more or less independent of the growth into the depth? In other words: would the pores be thinner if one would look earlier? Do side pores develop later, i.e., nucleate at the pore wall after the pore tip has moved down, or always right at the tip?
Ex-situ pictures alone thus cannot reveal the development over time of certain pore shapes and structures; cf. also for example [50,51,52,53,54,65,72,73]. It becomes apparent at this point, that without in situ measurement techniques capable of providing some data about what is going on at the pore tip in the depth of the sample, progress in understanding pore formation is severely handicapped.

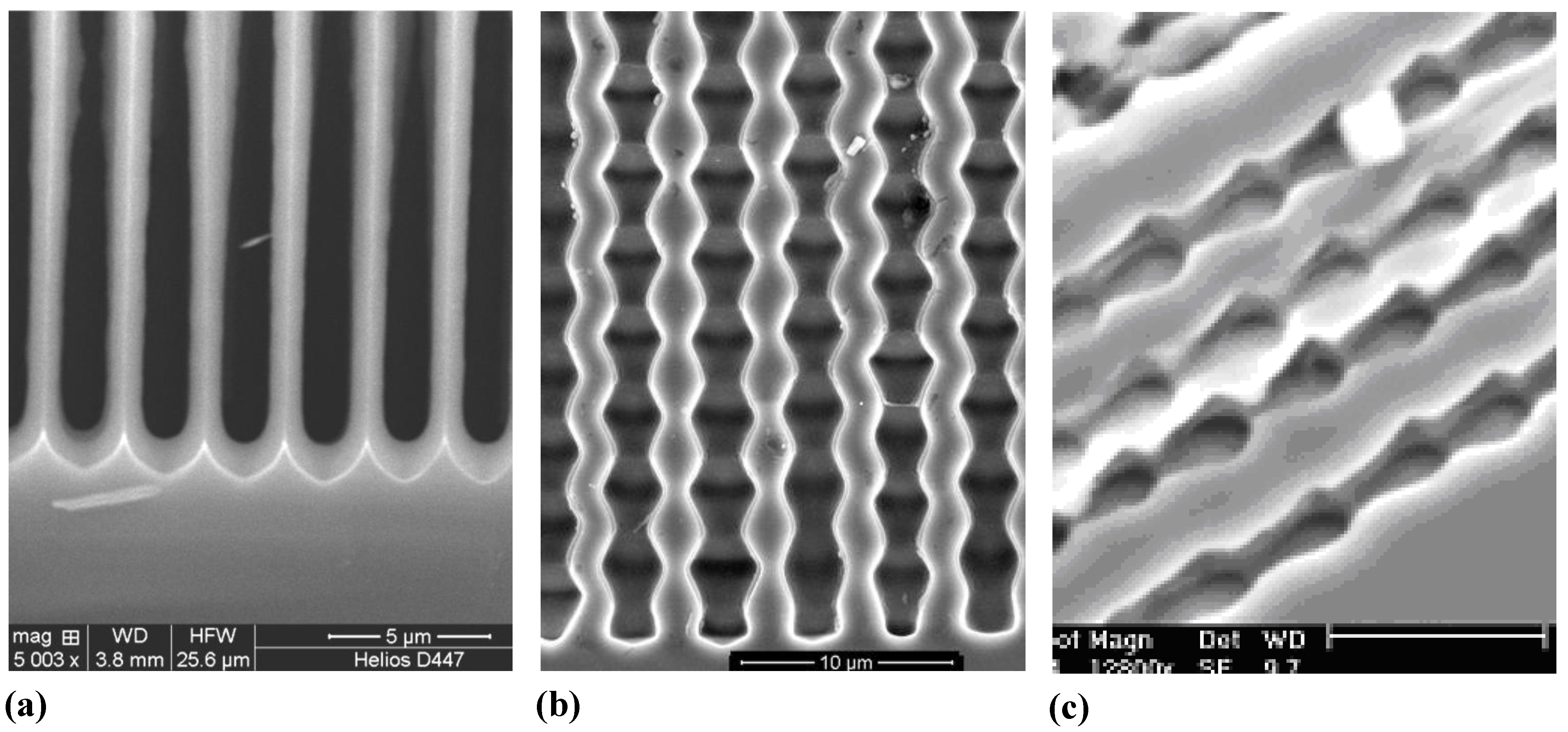

Figure 6. Correlation between pores. (a) p-Si-macro(org) pores. The current through all pores is the same at all times; a self-stabilized pore front results. (b) n-Si-macro(bsi, litho, aqu/viscous) pores. Antiphase oscillations of the current and therefore diameter are observed. (c) n-GaAs-macro pores. Uncorrelated diameter and current oscillations.
Figure 6. Correlation between pores. (a) p-Si-macro(org) pores. The current through all pores is the same at all times; a self-stabilized pore front results. (b) n-Si-macro(bsi, litho, aqu/viscous) pores. Antiphase oscillations of the current and therefore diameter are observed. (c) n-GaAs-macro pores. Uncorrelated diameter and current oscillations.
Materials 03 03006 g006

2.2. Current and Dissolution

It is generally assumed and true that anodic currents etch semiconductors. This means that the semiconductor is connected to the positive terminal of the potentiostat/galvanostat (PG), current flow thus involves holes flowing out of the valence band of the semiconductor or electrons flowing into the conduction band of the semiconductor. Both processes occur. In the case of Si, for example, there are good reasons to assume that the arrival of a hole at the Si-electrolyte interface leads to the breaking of one Si-Si bond plus the injection of one electron under certain circumstances (by “ripping off” a second bond). While this dual-carrier process (plus its variants not discussed here) is already sufficient to render the detailed dissolution kinetics fairly complex, the reality is even more complicated, because generally more than one basic dissolution mechanism exists. In the case of Si this is certain—we have direct electrochemical dissolution and dissolution by electrochemical oxide formation, followed by chemical oxide dissolution. Gross reaction equations for the three processes are given below: cf. [11] and most of the books quoted earlier give details.
Si + 6 HF + 1 h+ ⇒ [4H+ - SiF62-] + H2 + 1 e-
Si + 2 H2O + 4 h+ ⇒ SiO2 + 4 H+
SiO2 + 6 HF ⇒ SiF62- + 2 H+ + 2 H2O
Equation (1) describes direct dissolution or divalent dissolution with a valence of n = 2 (we neglect here some possible complications that could produce n ≠ 2; cf. [74]). The valence of a dissolution process simply gives the number of carriers needed to flow through the external circuit to dissolve one atom of the electrode material, i.e., to remove one Si atom from the crystal in this case. In Si one expects n = 4 for basic reasons (four bonds must be broken); smaller values then simply herald “chemical currents” flowing as sketched in Figure 4 with concomitant changes (here H2 evolution) of the electrolyte.

2.3. First Insight into Pore Formation

Equations (2) and (3) describe the tetravalent dissolution via oxide formation. The valence then is always exactly nox= 4. If we now consider the experimentally well established fact that n-Si-macro(bsi, aqu) pore etching only proceeds for n ≈ 2.7 [2], we have many of the complexities of pore etching in a nut shell since some unavoidable conclusions follow straight away for Si:
1)
Direct dissolution and dissolution by oxide formation must occur “simultaneously” in a mix that produces a valence between 2 and 4.
2)
This is, in a strict sense, impossible. One cannot have three different reactions taking place simultaneously, i.e., exactly at the same place at exactly the same time.
3)
Holes and electrons are involved in the sum total of the dissolution reactions as given above. Holes, however, are the more important species since even for direct dissolution they are needed to initiate the reaction. This goes a long way to explain pore formation in n-type Si by some mechanism of local hole production. i.e., junction breakdown at high field strength.
4)
On the other hand, it also implies that we will run into a problem understanding pore formation in p-type Si.
5)
If the three reactions above do not have nearly identical time constants, the slowest one will dominate the reaction kinetics and thus the maximum local current density.
Before we discuss the five points from above in somewhat more detail, a quick look at the dissolution mechanisms in other semiconductors is indicated. It can be a quick look because the message is simple: not much going beyond the contents of the book of Notten, van den Meerakker and Kelly [12] is known with certainty for III-V semiconductors. Rather than going into a prolonged discussion of what might be happening in various circumstances, we prove this claim by relating recent results of the Etcheberry group for InP [75], where detailed investigations into the dissolution mechanisms and the concomitant valence for InP pore formation raised far more questions than were answered. The situation is hardly better in the case of SiC, Ge, or the II-VI semiconductors. Nevertheless, since at least for compound semiconductors rather more than less basic dissolution mechanisms exist in comparison to Si (one could, for example, form In-oxide and/or P-oxide in several variants with InP), it is not too far fetched to assume that more than one gross reaction is occurring or even needed during pore formation in other semiconductors, too.
We therefore restrict the discussion of the five points from above to Si, but keep in mind that some, if not all of the reasoning, applies most likely also to other semiconductors.
The dichotomy between point 1 and 2 is easily resolved. All one has to assume is that the three processes occur decoupled in time and space on a microscopic scale but with constant averages on a macroscopic scale. In other words, on a small (some nm2) area of the electrode at t = t0 only direct dissolution might take place, followed by oxide formation at t1 that is finished at t2, and the subsequent dissolution of the oxide until t3.
There is no logical way around some scenario like this and this has far-reaching consequences. In the time span between t2 and t3 no (or very little) current will flow through the small oxide covered area considered. Current flow will start, as soon as the oxide is thin enough (and therefore the field strength sufficient to cause some break-down) at t3 and stop if a sufficiently thick oxide has been produced again. In other words: the local current “oscillates” in some stochastic manner and there is no such thing as a constant current density, at most it is smoothly varying with time and location (and describable with standard differential equations). In the opinion of the authors this basic “current burst” hypothesis is not only logically unavoidable but proven by the many oscillatory phenomena found in semiconductor electrochemistry including pore etching (see below or [76,77,78,79]).
Point 3 emphasizes the necessity of holes, and this explains quite simply why pore etching seems to be easier in n-type semiconductors than in p-type ones. If holes are a-plenty, as in p-type materials, the dissolution reaction could occur everywhere and the kinetics would not be easily limited by the hole concentration. Contrariwise, in n-type material the necessary hole concentration must be produced far above equilibrium levels, if the reactions are to proceed with some appreciable “speed”. To give an example: the maximum current that can be carried by equilibrium holes (= minority carriers) in typical 1 Ωcm n-type Si is < 1 µA/cm2, while the etching currents typically used are in the 10 mA/cm2 region. There are two ways to produce not only a sufficient non-equilibrium concentration of holes, but to induce pore growth at the same time.
  • Production of holes by illuminating the back side. Some of these holes will diffuse to the reaction front at the front side and will “automatically” end up at the pore tips (or tips initiated by lithography) because the concomitant bending of the space charge region cannot but focus holes at the tip. This SCR or “Lehmann/Föll” model [66] was (and still is) the basic model for the formation of the n-Si-macro(bsi, aqu, litho) pores. It was proposed to understand what we now would call n-Si-macro(fsi, aqu) pores, and the discovery that the first experiments immediately confirmed the prediction of the SCR model for n-Si-macro(bsi, aqu, litho) pores was seen as sufficient proof for the validity of the model for this mode of pore etching. Meanwhile, however, it has been shown that n-Si-macro(bsi/fsi, aq, litho) pore etching is more complex and not completely explained by the SCR model [11]. The SCR model is also restricted to semiconductors with a very large diffusion length of the minority carriers—in practice to very good single crystals of Si an Ge. However, in the case of Ge, back side illumination does not appear to influence pore formation very much [52], again questioning the general validity of the SCR model.
  • Production of holes by electrical breakdown (tunneling or avalanche type) at points of high field strength = tips of pores (breakdown model, cf. [19]). Local hole production by breakdown is certainly a good reason to form pores in n-type semiconductors of all kinds, and there is no doubt that the breakdown model works, cf. for example, [19].
Nevertheless, local hole production by either mechanism cannot explain all pores found in semiconductors. Micropores (= nanopores in colloquial terms) frequently produced in n-type and p-type Si (and recently also found in Ge [30] but not yet conclusively in e.g., III-V’s ( cf. [80]) must have a formation mechanism of their own, the same is true for the many kinds of pores found in p-type Si and p-type Ge but not (yet) in p-type III-V semiconductors.
The observed anisotropy in pore growth (macropores in Si prefer to grow in <100> or <113> direction; in III-V semiconductors usually the <111>B direction is preferred) is also not easily explained by localized hole generation.
Point 4 focuses this point on pores in p-type semiconductors; at present this means almost exclusively pores in Si and Ge. Holes are aplenty and there are no conceivable gradients in the concentration with a maximum at pore tips that could easily account for pore formation. This is not to be confused with a lack of holes (and electrons) in space charge layers that still may exist around existing pores at the small forward biases typically used for etching, and that may “protect” the pore walls to some extent.
One good reason for pore formation in this case can be found in a general instability of the advancing dissolution front with respect to disturbances with the “right” wavelength. This has been treated in some detail for Si [20,81], and many aspects of macropores in p-type Si emerge form this model (but not necessarily for pores in p-type Ge).
The key word in this connection is “surface passivation”. A pore, by definition, continues to grow in any material under any conditions if more current flows through the tip than through the walls. If in a thought experiment we look at a freshly generated piece of surface, many reactions can take place. Besides typically several dissolution reactions competing with each other as pointed out above, there are also reactions that do not dissolve the material but “simply” cover or functionalize the surface with some particular species. On a freshly etched Si surface, for example, the Si surface atoms initially are fluorine terminated but if one waits long enough, H-termination will be found since it is kinetically most stable. The most stable surface configuration by definition is more difficult to attack than some less stable configuration; H-terminated Si surfaces therefore are “passivated” against further dissolution in a relative way. For InP, “passivation” probably calls for Cl termination [82]; but not too much is known about passivation for other semiconductors. Passivation is a relative term. It does not mean that nothing can happen anymore, only that passivated surfaces are less reactive than un-passivated ones.
Passivation involves a reaction that takes some time and thus comes with a time constant. This time constant does not only depend on the general electrolyte composition, pH, and temperature, but also on the crystallography. For example, {111} planes in Si passivate faster and are more stable than {100} planes [83,84,85]. It is thus not too difficult to conceive scenarios, where a current flowing through some semiconductor surface is originally uniform, i.e., the current density is same at every pixel (x, y) but then decomposes into passivated areas, and areas that carry the current if the system is unstable with respect to small disturbances. Pores then develop automatically and with some close relation to the crystallography via lattice plane {hkl}dependent passivation kinetics.
Point 5 is trivial—up to a point. The point is that not only the dissolution reactions and the passivation kinetics discussed above all come with some specific reaction time constant tied to “chemistry”, including transport up and down the pores, there are also time constants tied to the semiconductor. Again, n-Si-macro(bsi) pore etching is the best case for discussing this but the general argument applies to all semiconductors. Backside illumination generates holes close to the backside, and these holes must diffuse to the solid-liquid interface at the pore tip. It takes some time tdiff = l2/D (l = distance between back side and pore tips, D = diffusion coefficient of the holes) to do this, and tdiff must be smaller than the bulk recombination life time τR, if a substantial fraction of the photo generated holes is to reach the pore tips. Some of the holes traveling all the distance may be consumed or “processed” at the pore tips, some may end up somewhere else. Interface recombination velocities S that are different at pore tips or between pores, will describe this effect at the (virtual) interface defined by the plane containing all pore tips. We will come back to this later in Section 4 and only note that the transport of holes from the backside to the pore tips contains several semiconductor related time constants.
Which one of the many time constants discussed so far limits the reaction kinetics as a function of time? Not an easy question to answer, but some points to that will be made in Section 4.
From what has been outlined above it follows self-evidently that in situ measurements are definitely needed. The catch is that it is simply impossible at present to “look” down one long, narrow, and not necessarily straight pore to “see” what is happening at the growing pore tip. These leaves only to “look” at all the pore tips as an ensemble somehow. What one then “sees” is some average of what is going on in the individual pores all over the sample, and conclusions become difficult if the etching is not rather uniform. The only method for “looking” into deep pores that has been reported so far is multi-mode in situ FFT impedance spectroscopy [28] and we will come back to that in Section 4. Looking at very shallow pores or “surface” pores as in Figure 1(i) or as reported in [86] is easier but rather limited. Some infrared spectroscopy [87,88,89,90,91] or atomic force microscopy (AFM) investigations [92,93] did produce significant results under those conditions, too.
Let’s take yet another approach to pore formation in semiconductors that leads over to the next section. We start by looking at Figure 7 where some specific pore arrangements are shown. In Figure 7(a) a nearly perfect self-organized hexagonal pore crystal in InP has formed while in Figure 7(e) a rather random arrangement of pores in Si is shown. The point is that at least Figure 7(a) can be interpreted as a self-organized current oscillation in space. The local current must be large wherever a pore is situated and small in between the pores; and there is an obvious periodicity. The pore arrangement shown in Figure 7(b) with clearly visible short range order then shows a damped current oscillation in space, and so does Figure 7(c) with a “frustrated“ pore arrangement in Si (correlations only to second nearest neighbors; see Fourier transform in the inset and [24]).

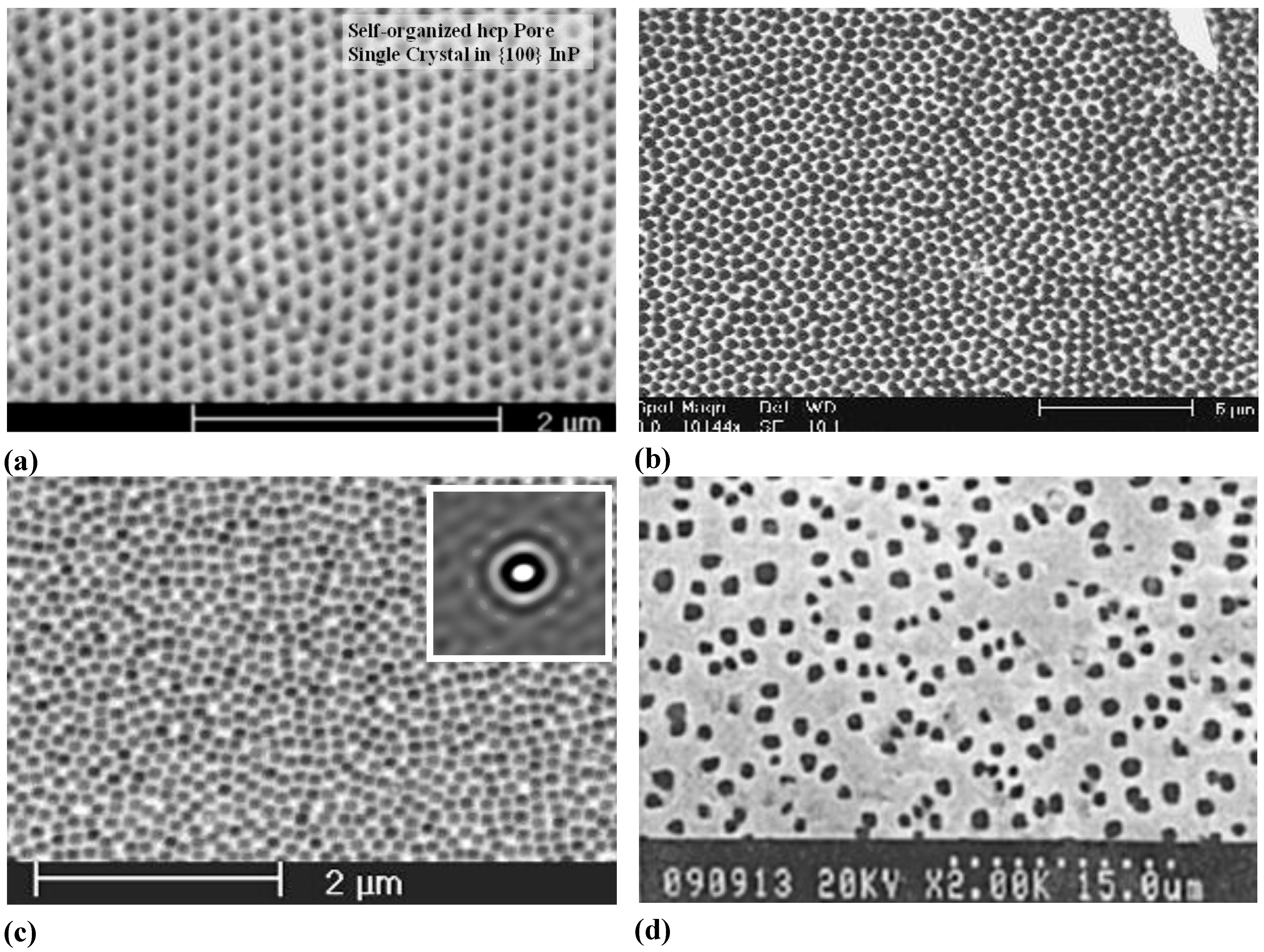

Figure 7. (a) Self-organized single pore crystal in InP demonstrating pronounced current oscillations in space; n-InP-macro(curro) pores. (b) Pore arrangement in Si with pronounced ordering demonstrating damped current oscillations in space. n-Si-macro(org, breakdown) pores. (c) Frustrated pore arrangement with no ordering on the nearest neighbor level but on the second nearest neighbor level. n-Si-macro(org, breakdown) pores. (d) Random arrangement of pores in Si. n-Si-macro(bsi, aqu, random) pores.
Figure 7. (a) Self-organized single pore crystal in InP demonstrating pronounced current oscillations in space; n-InP-macro(curro) pores. (b) Pore arrangement in Si with pronounced ordering demonstrating damped current oscillations in space. n-Si-macro(org, breakdown) pores. (c) Frustrated pore arrangement with no ordering on the nearest neighbor level but on the second nearest neighbor level. n-Si-macro(org, breakdown) pores. (d) Random arrangement of pores in Si. n-Si-macro(bsi, aqu, random) pores.
Materials 03 03006 g007
Since self-induced current oscillations in time are observed quite frequently in semiconductor electrochemistry (cf. the latest reviews [94,95,96,97,98,99,100,101,102,103,104,105]), the question to be asked is if there is some connection between these two modes of self-organization? The authors are convinced that this is indeed the case and that one of the deeper principles of pore formation in semiconductors is right at the core of both phenomena. This common denominator is the “current burst model” of the Kiel group that will be dealt with in Section 3.4.

3. Some General Aspects of Pores in Semiconductors

3.1. Major Differences and Common Features

Figure 1, Figure 2 and Figure 3 and many of the following figures prove unambiguously that there are major differences between pores in semiconductors, indeed. Figure 8 serves to demonstrate that there is even more variety than shown here so far [Figure 8(f) has not been published before].
Figure 8. (a) Three-dimensionally distributed fractal pores in ZnSe (cf. [106]); cross-section. (b) Rectangular pores in GaP; top view [29] (with kind permission from Electrochemical and Solid-State Letters). (c) Pore bundle oscillations in InP; cross-section [24]. (d) Mixture of crystallographic and fractal surface pores in Si [107]. (e) Heavily branched pores in Si (n-Si-macro(bsi, org, 111), cf. [108,109]. (f) Surface pores in Si obtained with an ionic liquid (1-butyl-3-methylimidazolium tetrafluoroborate) as electrolyte.
Figure 8. (a) Three-dimensionally distributed fractal pores in ZnSe (cf. [106]); cross-section. (b) Rectangular pores in GaP; top view [29] (with kind permission from Electrochemical and Solid-State Letters). (c) Pore bundle oscillations in InP; cross-section [24]. (d) Mixture of crystallographic and fractal surface pores in Si [107]. (e) Heavily branched pores in Si (n-Si-macro(bsi, org, 111), cf. [108,109]. (f) Surface pores in Si obtained with an ionic liquid (1-butyl-3-methylimidazolium tetrafluoroborate) as electrolyte.
Materials 03 03006 g008
Here we will not dwell on the obvious differences but enumerate major and not always obvious common aspects.

Major pore growth direction

Most pores can be classified as either “crystallographic pores” (“crysto” for short) or “current line pores” (“curro” for short) [14]. The pore axis of crysto pores is a crystallographic direction; the pore axis of curro pores follows the flow lines of the current, which are perpendicular to the equipotential surfaces. Figure 9 shows paradigmatic examples. In Figure 9(a) it can be seen that the n-macro(bsi, aqu, random) pores follow the <100> direction even for samples with a surface orientation some degrees off from the usual {100} (left hand side), but switch to <113> if the deviation becomes too large (right hand side); for details see [64,110,111].

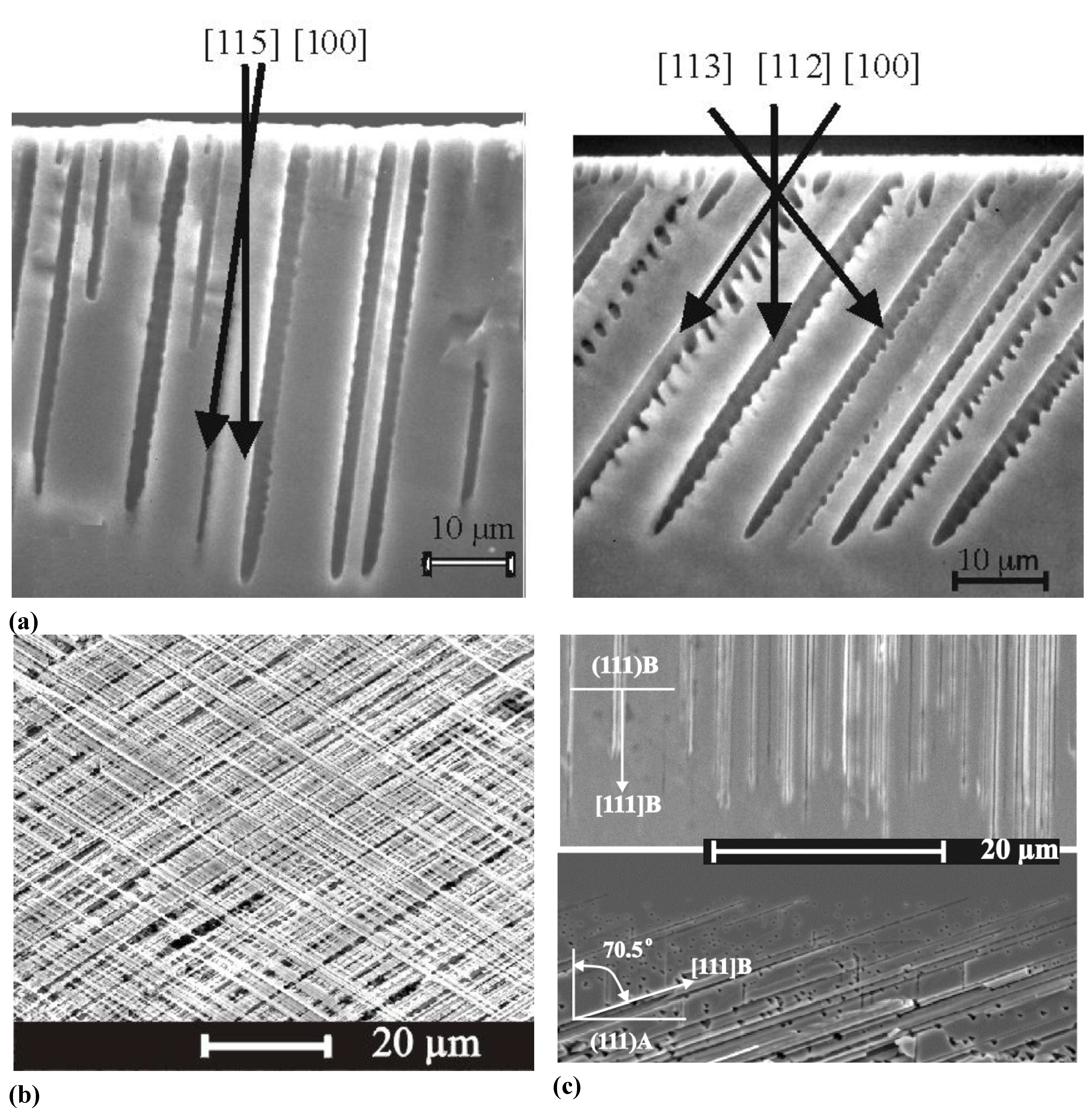

Figure 9. (a) n-Si-macro(aqu, random, crysto) pores in specimens with different surface orientations. (b) n-GaAs-macro(HCl, random, {100} crysto) pores. (c) n-GaAs-macro(HCl, random, {111} crysto) pores growing either from a {111}B or {111}A surface. (d) n-InP-macro(HCl, random, {100} curro) pores with a peculiar “hedgehog” pattern resulting from an initial nucleation at just one point.
Figure 9. (a) n-Si-macro(aqu, random, crysto) pores in specimens with different surface orientations. (b) n-GaAs-macro(HCl, random, {100} crysto) pores. (c) n-GaAs-macro(HCl, random, {111} crysto) pores growing either from a {111}B or {111}A surface. (d) n-InP-macro(HCl, random, {100} curro) pores with a peculiar “hedgehog” pattern resulting from an initial nucleation at just one point.
Materials 03 03006 g009aMaterials 03 03006 g009b
Figure 9(b) and (d) show pores in GaAs [14,112]. In Figure 9(b) two sets of pores following the two available <111>B directions are seen on the {110} cleavage plane of a {100} oriented sample; in Figure 9(d) the pores were grown from a {111}B surface and from a {111}A surface as indicated. Since only the <111>B direction, i.e., the direction pointing from P to In, is a pore growth direction, the resulting pore structures are completely different.

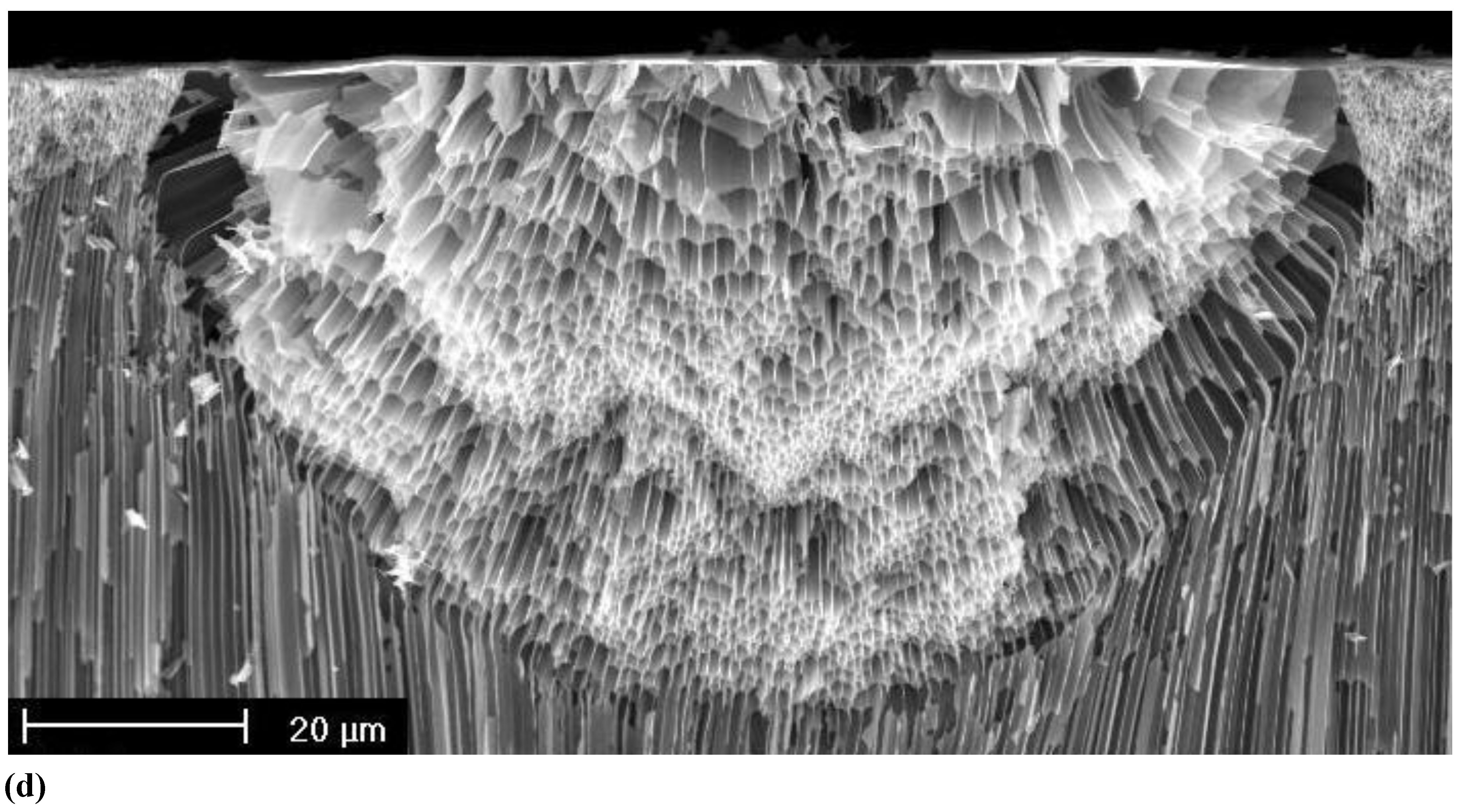

Figure 9(d) shows a “hedgehog” curro pore cluster in n-InP that turns into more regular downward curro pores eventually. This is easy to understand. Current flow, for some accidental nucleation reason, initially could only occur in a small area in the center of the “hedgehog” (cf. also [113] for similar but controlled pore structures). The equipotential surfaces in the always-present space charge region then are semi spheres for some time, and the current flow lines produce the hedgehog appearance. The picture also illustrates an important point not made so far that is valid for most pores: what one pore does all the others must do (up to a point).
One “spike” of the “hedgehog”, for example, cannot change its direction to “downward” for whatever reason since that would mean that it now must intersect the pores that keep growing in their old directions. Pore intersections are generally not allowed (cf. [58] for details and exceptions). This is a second and so far rarely appreciated principle that couples pores geometrically (the first one provided electric coupling via constant current in time and constant potential in space conditions, see Section 2.1).
Neglecting a few unclear cases (cf. [114] and Figure 12(c)] logic dictates that pores are either crysto or curro. However, what pore type is encountered cannot always be inferred with certainty from post-mortem pictures. Are the beautiful Si-p-macro(aqu+ethanol, litho) pores etched in the group of Bergstrom (see e.g., [115]) crysto or curro pores? As long as the preferred <100> crysto growth direction is identical to the current flow direction (usually perpendicular to the surface), there is no way of telling by just scrutinizing SEM pictures. The example is virulent: in [11] it was conjectured that these pores should be of the curro type, in contrast to the p-Si-macro(org = DMF, DMSO, DMA,… random) pores mostly investigated so far [37,38,116,20,117] and (implicitly) assumed to be of the crysto type; for an exception see [118].

3.2. Self Organization and Pore Growth Mode Transitions

As a rule, semiconductor electrochemistry displays many self-organization features. Some are glaringly obvious [e.g., the formation of pore single crystals as a result of self-organization in space; cf. [14,119] and Figure 7(a)], others are not that clearly recognized as a result of self-organization (e.g., the straight pore tip front for many macropores). Pronounced current or voltage oscillations of the Si electrode under potentiostatic or galvanostatic conditions provide perhaps the best-known example for this topic, cf. [94,95,96,97,98,99,100,101,102,103,104,105] for recent reviews. While these oscillations occur in the electropolishing regime, i.e., without pore formation, voltage or current oscillations are also frequently observed during pore growth, cf. [14,24,65,73,119] and Figure 7(a). These oscillations are clearly an expression of self-organization or pattern formation of some quantity in time. As will become clear from what follows, this needs an interaction of the oscillating entities in space.
Looking at Figure 10(a) the simple (and so far only) explanation assumes that the current inside any of the pores always tends to oscillate in time. There is no external indication of this as long as the phases of these oscillations are randomly distributed—the total current is the sum of the pore currents and then averages to a rather constant value suiting a constant potential. The assumed current oscillations in a single pore are already an effect of some self-organization, as in the case of the Si current oscillation mentioned above, but will not be identifiable in the external parameters. This should not be surprising at this point since in Section 2.3 good reasons for locally occurring current “oscillations” have already been presented.
Interactions between pores in space that destroy the random phase situation and induce a common phase change the situation completely. The total current could not be constant any more for a given potential and for galvanostatic conditions as shown in Figure 10a), the galvanostat must now counteract this by adjusting the voltage accordingly. This unavoidably produces the voltage oscillations observed. If the phases of the current are different by 1800 between neighboring pores (“anti-phase synchronization”) the total current can still be constant but the peculiar anti-phase diameter oscillation as shown in the Figure 10(c) and Figure 6(b) results. Note that this leads by necessity to a frustrated structure akin to the one shown in Figure 7(c); cf. [24,65] for details.
Generalizing this principle a bit, one can expect macroscopic oscillatory behavior in time (and simultaneously in space, as evidenced by the diameter oscillations shown in Figure 10), if local oscillators become synchronized to some degree. This explanation also holds for similar phenomena observed e.g., in GaP [57,120], GaAs [39,121], as well as for very recent observations concerning n+-Si-macro/meso(breakdown, random, org) pores and shown here for the first time in Figure 11. The 65 µm deep pores with diameters in the 200 nm range were galvanostatically etched with a “fast” technique (cf. [109]) in about 10 min. The electrolyte consisted of acetonitrile and HF (2:1). The term “macro/meso” emphasized that those pores are right at the definition edge: the diameter formally belongs to the “macro” regime, but the pore wall thickness meets “meso” criteria. In the general literature, pores like that are usually referred to as “meso”. The resulting structures are not only useful for thermoelectric applications as discussed in Section 5, but show synchronized in-phase diameter oscillations reminiscent of the InP case over large areas of the specimen. The predicted concomitant voltage oscillations were observed as well [Figure 11(c)], as was a strong tendency to form a pore crystal, [Figure 11(b)]. A tendency for some self-organized ordering in pore structures of this kind was also observed by [122].
Figure 10. Correlated pore diameter oscillations. (a) Curro pores in InP with self induced pore diameter oscillations in the upper half, accompanied by strong voltage oscillations. (b) Curro pores in InP with self induced pore diameter oscillations in the final stage of pore growth. (c) n-Si-macro(litho, bsi aqu + viscous) pores with antiphase diameter oscillations. (d) Curro pores in Si with pseudo-oscillations. (e) Curro pores in Si with strong correlated pore diameter oscillations bordering on periodic cavity formation producing a “layer cake” structure (see text and [24] for details).
Figure 10. Correlated pore diameter oscillations. (a) Curro pores in InP with self induced pore diameter oscillations in the upper half, accompanied by strong voltage oscillations. (b) Curro pores in InP with self induced pore diameter oscillations in the final stage of pore growth. (c) n-Si-macro(litho, bsi aqu + viscous) pores with antiphase diameter oscillations. (d) Curro pores in Si with pseudo-oscillations. (e) Curro pores in Si with strong correlated pore diameter oscillations bordering on periodic cavity formation producing a “layer cake” structure (see text and [24] for details).
Materials 03 03006 g010

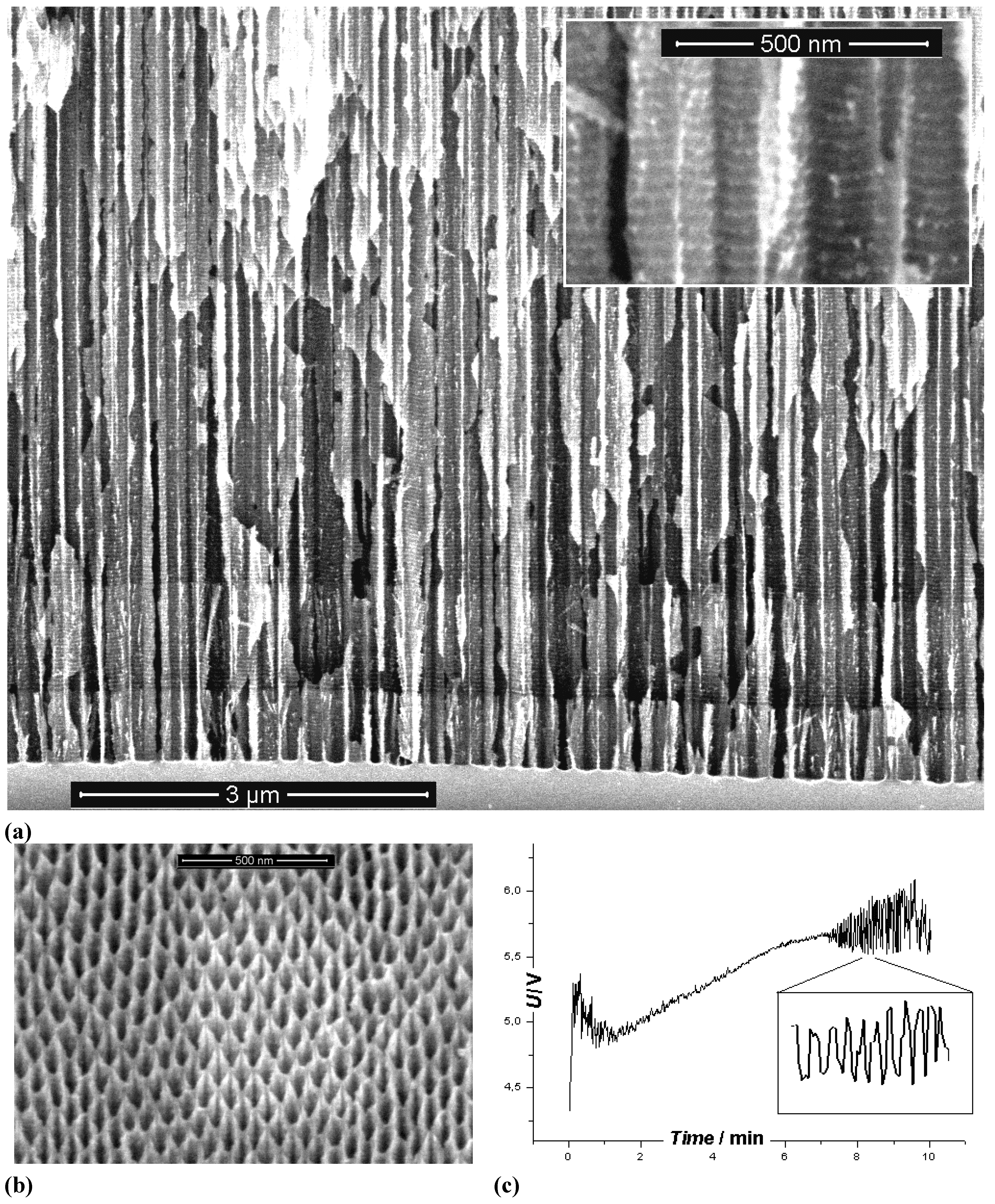

Figure 11. (a) Cross-section of synchronized large-scale diameter oscillations in n+-Si-macro/meso(breakdown, random, org) pores; the inset shows details. (b) Top-view (strongly inclined), showing the concomitant strong tendency towards pore crystal formation. (c) External voltage vs. time; strong oscillations are observed. The inset shows details.
Figure 11. (a) Cross-section of synchronized large-scale diameter oscillations in n+-Si-macro/meso(breakdown, random, org) pores; the inset shows details. (b) Top-view (strongly inclined), showing the concomitant strong tendency towards pore crystal formation. (c) External voltage vs. time; strong oscillations are observed. The inset shows details.
Materials 03 03006 g011
Generalizing even more produces the following rule.
Macroscopic oscillations (or pattern formation) in time need some interaction in space, and macroscopic oscillations (or pattern formation) in space need some interaction in time. We will come back to this later.
To be sure, not all oscillations observed in semiconductor electrochemistry, or elsewhere, fall under these rules; Figure 10(d) might be such a case. What can be seen are n-Si(random. {111}, aqu. breakdown) curro pores that actually consist of staggered “tripods”, because the pores try to grow in the three equivalent <113> directions, but come to an early stop upon encountering the neighboring pores, and then the process repeats itself. If that is a case of self-organization in the sense as given above is anybodies guess at present.

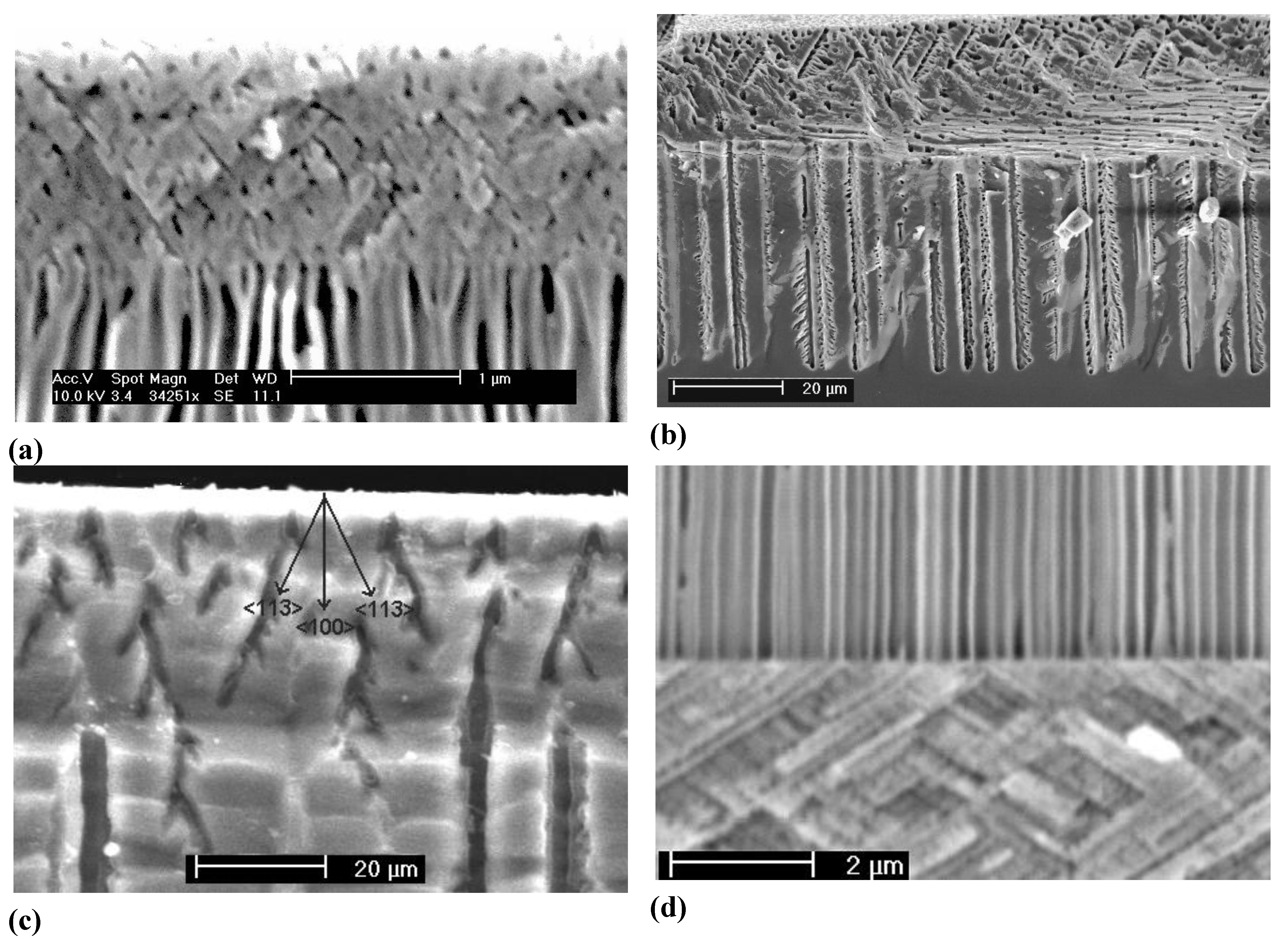

Figure 12. Growth mode transitions of the crysto—curro type. (a) Branching crysto pores in {100} n-type InP with a self-induced growth mode transition to curro pores that will show some ordering (pore crystal formation). (b) Similar phenomena in n-type {111} Si. (c) New finding in {100} n-type Si showing a growth mode transition reminiscent of the {100} InP case. (d) Growth mode transitions from curro to crysto in InP induced by reducing the external current. For details see [14,61,65,71].
Figure 12. Growth mode transitions of the crysto—curro type. (a) Branching crysto pores in {100} n-type InP with a self-induced growth mode transition to curro pores that will show some ordering (pore crystal formation). (b) Similar phenomena in n-type {111} Si. (c) New finding in {100} n-type Si showing a growth mode transition reminiscent of the {100} InP case. (d) Growth mode transitions from curro to crysto in InP induced by reducing the external current. For details see [14,61,65,71].
Materials 03 03006 g012
Figure 10 shows more than just some “oscillations” in the context of pore formation: we also have what has been termed “growth mode transitions”, cf. [65] for details. The term “phase change” is also found in the literature on occasion [123] but a bit misleading since it always describes thermodynamic equilibrium, not applicable for pore growth. In Figure 10(a) there is a clear transition from a growth mode with synchronized diameter oscillations to one without, Figure 10(b) shows essentially the opposite (transition to stable oscillations) at high magnification. The term “self-organization might also be applied to growth mode transitions, this becomes self-evident in Figure 12.
Figure 12(a) and Figure 12(d) show that a specific growth mode transition may either occur self-induced or externally induced. This is not surprising, because self-induced transitions are triggered as soon as some (gradual) change in parameters reaches a critical value. This explains why growth mode transitions are usually only observed if the system had sufficient time (= large pore depths) to suffer substantial parameter changes, or if it was started at extreme conditions [e.g., a large current density close to the maximum of what can be processed at a pore tip at full potential, i.e., only for not-too-deep pores as in Figure 12(a)–c)].
There are many more examples of growth mode transitions; here we will only look at a few of the more spectacular ones in Figure 13. Shown are so-called “fast” n-Si-macro(aqu+HAc, litho, bsi) pores, grown far faster than hitherto possible in a modified viscous electrolyte containing acetic acid (HAc) [for viscosity carboxymethylcellulose sodium salt (CMC) was added] [65,124]. After the pore had reached a depth of about 40 µm, the current was modulated by switching it periodically (t = 2 min) between the nominal value and ½ of that value; for details see [65]. Besides the induced growth mode change around 40 µm depth, two abrupt self-induced growth mode changes are visible, where the pore diameter modulations tied to the current modulation suddenly change their “wavelength” and thus the growth speed.

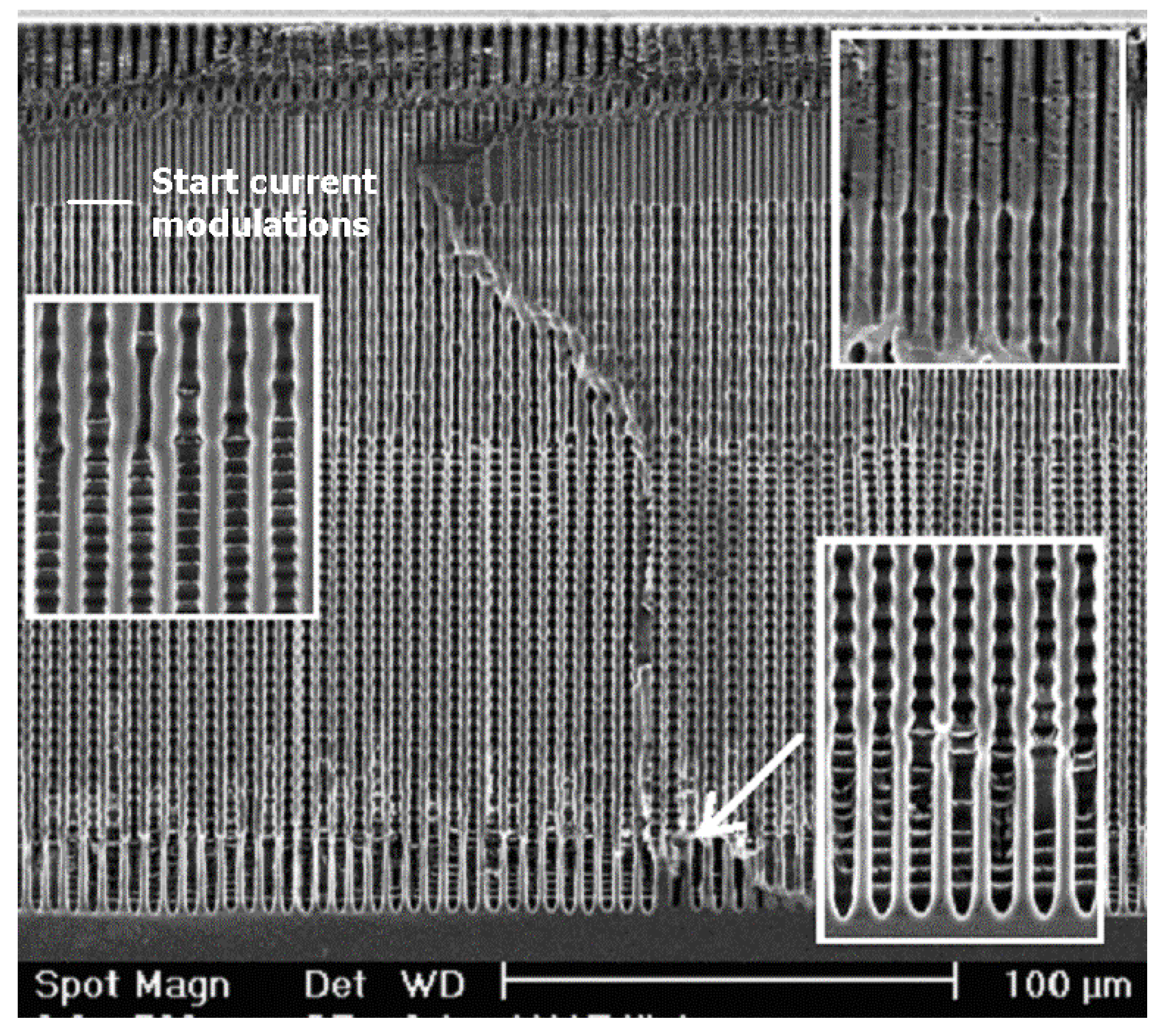

Figure 13. n-Si-macro(aqu+HAc, litho, bsi) pores, growing with a 50% modulation of the current, starting at a depth of about 40 µm. The insets illustrate the growth mode changes encountered. For details refer to [65].
Figure 13. n-Si-macro(aqu+HAc, litho, bsi) pores, growing with a 50% modulation of the current, starting at a depth of about 40 µm. The insets illustrate the growth mode changes encountered. For details refer to [65].
Materials 03 03006 g013
We will make no attempt to discuss what is going on here (it is not fully clear at present anyway, cf. [24,65]), but just point out again that one can look at ex-mortem pictures like the one in Figure 13 (or related ones) for any amount of time without being able to deduce what was going on. The same is true for the pore structures shown in Figure 14. It is becoming obvious once more, that progress in understanding pore formation in semiconductors needs some in situ assessment of relevant parameters. Figure 14 finally shows some unique cases of pore-bundle oscillations in space, so far only observed in InP. The diameters of single pores oscillates in an unsynchronized manner [the arrow in Figure 14(a) points to some faintly visible cases], but the diameter of a whole bundle of pores oscillates quite strongly and in some anti-phase synchronization reminiscent of the Si case shown in Figure 10c) for single macropores. In Figure 14(a) we have completely self-induced pore bundle oscillations of curro pores, in Figure 14(b) a periodic crysto-curro-crysto transition was externally induced in addition, but this does not normally induce pore bundle oscillations [14,125].

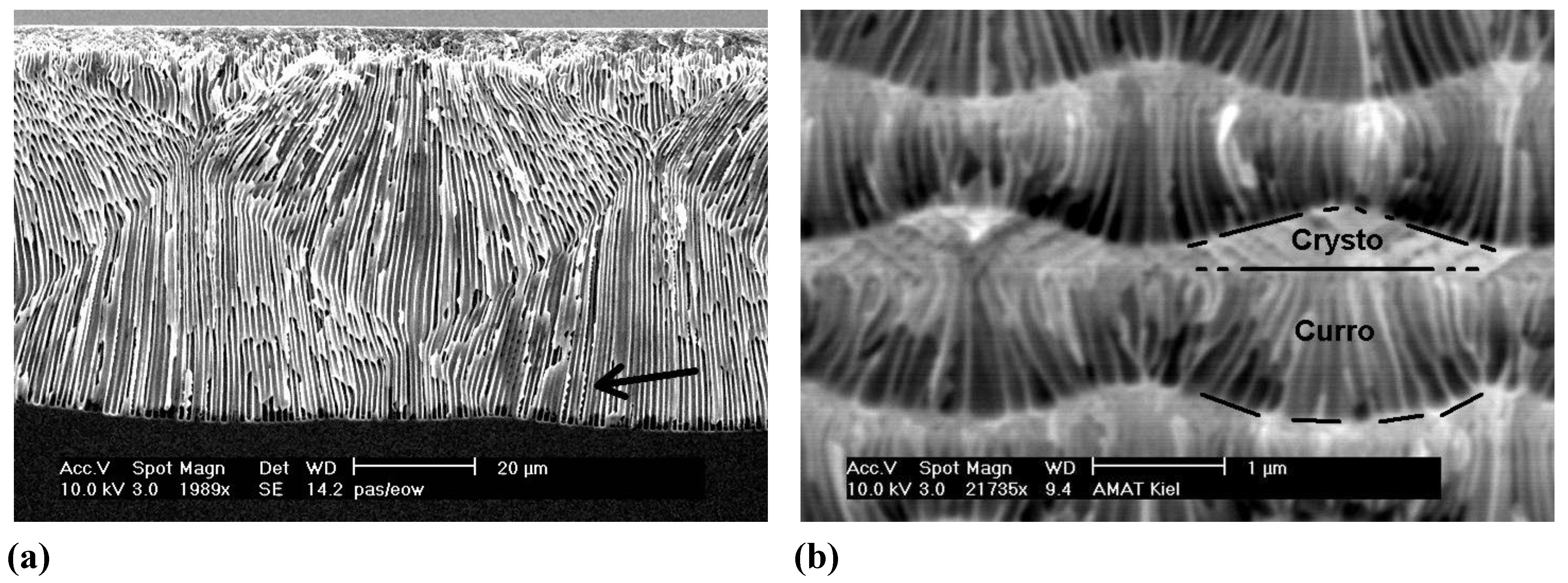

Figure 14. Self-induced pore-bundle diameter oscillations. (a) Curro pores in {100} n-type InP; wavelength ≈ 80 µm. (b) Externally induced periodic switch between crysto and curro pores with self-induced pore bundle oscillations in parts of the depth. Wavelength ≈ 2 µm.
Figure 14. Self-induced pore-bundle diameter oscillations. (a) Curro pores in {100} n-type InP; wavelength ≈ 80 µm. (b) Externally induced periodic switch between crysto and curro pores with self-induced pore bundle oscillations in parts of the depth. Wavelength ≈ 2 µm.
Materials 03 03006 g014
The point of this sub-section has now been made: self organization phenomena (including pore growth mode transitions) are not only rather common in semiconductor pore etching, but show close similarities between completely different cases. This proves that some “meta” principle must be involved in pore formation that transcends the detailed and specific chemistry of dissolution.

3.3. Pore Geometry

The geometry of pores, meaning essentially their average diameter and the average distance between pores, is either determined by structured seeding or nucleation (“litho”), or determines itself via “random” nucleation, often followed by some rearrangement of the initially nucleated pore structure. In the first case the pores may or may not nucleate at the sites provided - the size of the related process window seems to be rather large for macropores in Si and rather small for most everything else [49,50,64]. The decisive quantity seems to be to what extent the geometry of the pattern provided by lithography is commensurate with the pattern the pores aspire to achieve by self-organization. Many of the pictures here and elsewhere show rather uniform structures with rather small variances in the geometric parameters if not almost perfect pore crystals ([Figure 7(a), Figure 11(b)]. To be sure, there are many exceptions, i.e., very irregular structures, but that seems to be mostly due to inhomogeneous nucleation and not enough time for a pore structure rearrangement with depth; Figure 15(a) shows an example.

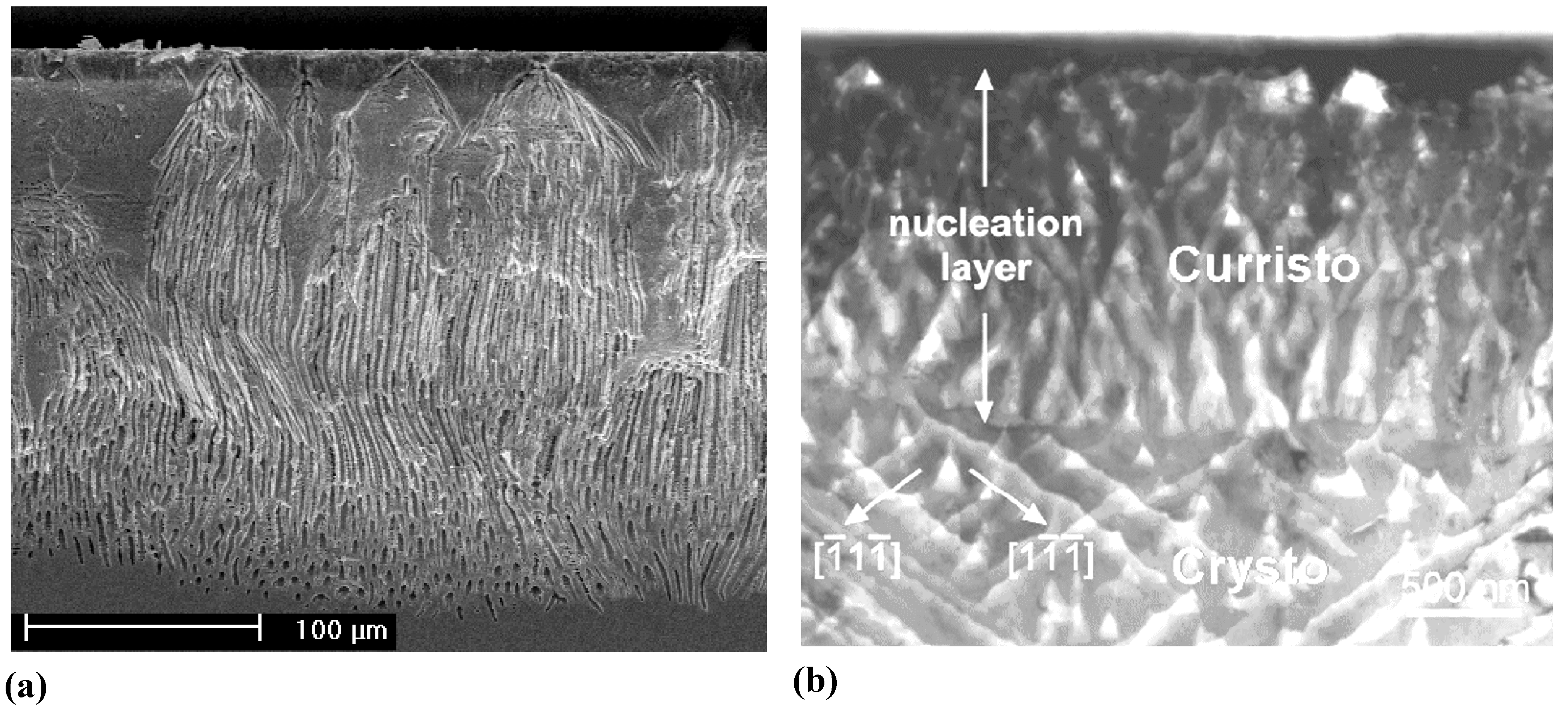

Figure 15. (a) SEM cross-section of very inhomogeneously nucleated n-Si-macro({111}, org, dark, breakdown) pores [109]. (b) Transmission electron microscopy (TEM) cross-section of pore nucleation in InP [126]. There is a thin nucleation layer of mixed pores (“curristos”; cf. [114]) before regular crysto pores are formed.
Figure 15. (a) SEM cross-section of very inhomogeneously nucleated n-Si-macro({111}, org, dark, breakdown) pores [109]. (b) Transmission electron microscopy (TEM) cross-section of pore nucleation in InP [126]. There is a thin nucleation layer of mixed pores (“curristos”; cf. [114]) before regular crysto pores are formed.
Materials 03 03006 g015
Note that a top view in the case of Figure 15(a) would show a very inhomogeneous pore structure with a geometry completely different from that somewhat deeper in the sample. Note also that in many cases the original surface is no longer present (cf. [127] for a detailed study), i.e., some of the original nucleation layer has been dissolved. We might thus conjecture that in most if not all cases of pore etching, there is a preferred structure with a rather well defined geometry, i.e., strongly preferred pore diameters and distances. In other words, there is some well-defined intrinsic length scale inherent in the pore etching system that is expressed in some specific pore geometry. This has been discussed in some detail in [13], here we just note the most important lengths scales typically encountered:
i) Width dSCR of the space charge region (SCR). This is strictly a function of doping (or more generally the majority carrier concentration) and the potential. The range of dSCR (for 1 V; multiply by 3.16 for 10 V) scales from 10 µm for low doping of 1013 cm-3 (corresponding to ρ ≈ 250 Ωcm) via 100 nm to 1019 cm-3 (corresponding to ρ ≈ 0.005 Ωcm) for n-type Si.
ii) Critical tip radius for electric breakdown (= hole formation) to occur. This is also a function of doping and potential; some details can be found in [19]. There is no simple equation correlating the breakdown field strength EBD to the pore radius r or more precisely to the radius of curvature of the pore tip, with the resistivity as parameter, because there are at least two different breakdown mechanisms (tunneling and avalanche effect; cf. [128]), and the exact shape of the pore tip will be of importance. From the graphs given in [2] one can deduce the following numbers: for pore tip radii of r ≈ 10 nm–20 nm, breakdown occurs for voltages around 1 V for the complete typical range of doping (ND ≈ (1015–1018) cm-3); for heavily doped Si (ND ≈ 1018 cm-3) breakdown always occurs at voltages below a few Volts. The breakdown field strength for a given set of parameter might also be direction dependent; cf [128] for the case of GaAs.
iii) Length scales not determined by the semiconductor and given, e.g., by lithography, diffusion in the electrolyte, quantum confinement, or by so far unknown mechanisms. For example, the 80 µm scale inherent in the pore bundle diameter oscillations shown in Figure 14(b) can hardly be found in the semiconductor, but might relate to the angle between the electrolyte flow direction and the <110> crystal direction. The nm length scale found in micropores (and “small” mesopores) relates most likely to quantum confinement as suggested [67,68,129], i.e., to the general effect of “nanowires” etc. that the effective band gap of a semiconductor increases for small dimensions of the crystal.
It is important to note that a growing pore cannot choose its diameter “at will”. Neglecting quantum confinement effects (i.e., micropores), the distance to neighboring pores has to be at least dSCR since the SCR is effectively an insulator. For a given general geometrical structure (e.g., by lithography) this imposes also an upper value for the diameter. A lower value is given for many reasons, the simplest ones being that breakdown will occur for too small diameters. At this point we note that pore growth in the “breakdown mode” (pretty much all III-V pores) does not assume dimension where breakdown starts but where it just stops. That happens to be the same practical value, but there is an important difference in visualizing the effect. “Avalanche” breakdown, as the name implies, would produce an arbitrarily large amount of holes and thus large local currents. The concomitant chemical reactions then will always stop the process—either by forming oxide or by increasing the diameter. The response to a sudden current surge at a pore tip because some breakdown event has started (in other words: a current burst was initiated) thus is always that the current is stopped again by the interplay of the various dissolution processes. Some steady state would be conceivable in principle but is highly unlikely, given the intrinsically stochastic and highly non-linear nature of breakdown events (there is no such thing as a straight and sustained bolt of lightning in a thunderstorm or a steady unchanging arc in welding, even so it’s not forbidden).
In between some limits for the pore diameter dPore, the pore has an interesting degree of freedom. A certain fraction IPore of the (constant) external current I flows through a pore; in the simplest case of z identical pores we have IPore= I/z. The current density jPore then is nominally 4IPore/ πd2Pore. However, at some differential area dA positioned somewhere on the pore tip it can (and actually must) have a quite different value. A pore now has the freedom to choose a certain nominal current density by adjusting its area within the limits given. Moreover, if the current changes, e.g., because the external current is changed, the pore can react by either changing its diameter to keep the current density constant or the growth speed to keep the diameter constant, or by suitable mix of the two. All pores together even have a third option: they may enact a growth mode transition, e.g., from crysto to curro or vice versa.
It is not obvious what a pore or the pores are going to do, and what the criteria for the choice will be. Moreover, whatever the pore wants to do must be “checked“ to some extent with its neighbors because, as pointed out above, a single pore is always correlated to its neighbors electrically and geometrically. This coupling becomes most important if the pores want to choose a growth mode transition as the third option.
Most of what was stated above applies to macropores, i.e., pores with diameters > 50 nm. For everything smaller the situation is not so clear. True nanopores so far appear to be restricted to Si (plus one recorded case for Ge [30]). Since it was difficult to generate clear pictures of very small pores with an SEM (pore research rather predates the advent of high-resolution SEMs), reliable detailed geometric data are scarce. Nevertheless, many aspects of meso- and micropores can be included in the general approach pursued here as the next sub-section endeavors to show.

3.4. A Closer Look at Self-Organization Issues

It is fair to say that the current or voltage oscillations found with a Si electrode under potentiostatic or galvanostatic conditions, as mentioned in Section 3.2, may be seen as paradigmatic for the topic of semiconductor electrochemistry self-organization. The first quantitative model for these oscillations was the so-called “current burst model” (CBM) of the Kiel group first published in [130,131]. While the CBM is not uncontested [94,95,96,97,98,99,100], it has by now quantitatively explained more experimental observations than its competitors with less basic assumptions [104]. The CBM, in a generalized and more qualitative version, has also been applied to pore formation and yielded a number of insights and several predictions, many of which were proven true in the meantime [132]. The authors are therefore convinced that the CBM provides one of the general principles underlying the common aspects of pore formation although it is not capable of explaining all aspects of pore formation. It will be introduced here very briefly, more detailed recent overviews can be found in [11,24].
For the sake of simplicity let’s look at a p-type Si electrode covered more or less uniformly with oxide in an HF containing electrolyte and at a potential where current flow is not possible at the beginning of the experiment, cf. Figure 16(a) for a schematic drawing of this situation. The applied potential drops almost completely in the insulating oxide, and all that happens in the beginning is that the oxide dissolves chemically. Under such circumstances it is usually assumed without further reasoning that current flow starts as soon as the oxide is dissolved—but that is wrong. The field strength in the oxide = U/dox reaches values large enough for electrical breakdown before its thickness dox is zero. As a quite good rule of thumb, the highest field strength the very best dielectrics can bear is about 10 MV/cm or 1 V/nm. Above that ultimate field strength electric breakdown (and current flow) is unavoidable, and for less than top-quality oxides the breakdown field strength can be considerably lower than the number given above. Violent electrical breakdown always has a stochastic component: it never can be predicted with certainty exactly when and where it will occur (witness any thunderstorm). The first ingredient of the CBM then is to assign some probability function for breakdown to occur at some field strength to the oxide barrier of our example (or to any other barrier or “passivating” layer opposing current flow). After a breakdown has occurred, current flows and produces an “oxide bump”, as shown schematically in Figure 16(b). Note that the shape of the oxide bump is unimportant, all that is needed is that it has some lateral extension scaling with the oxide thickness. The field strength in the growing oxide bump decreases and there is now a certain probability assigned to the process (increasing with decreasing field strength) for current flow to stop.
The equipotential planes and the current flow lines will be about as indicated in Figure 16(b) but that doesn’t need to be conjectured, it can be calculated given the conductivities of the Si and the electrolyte.

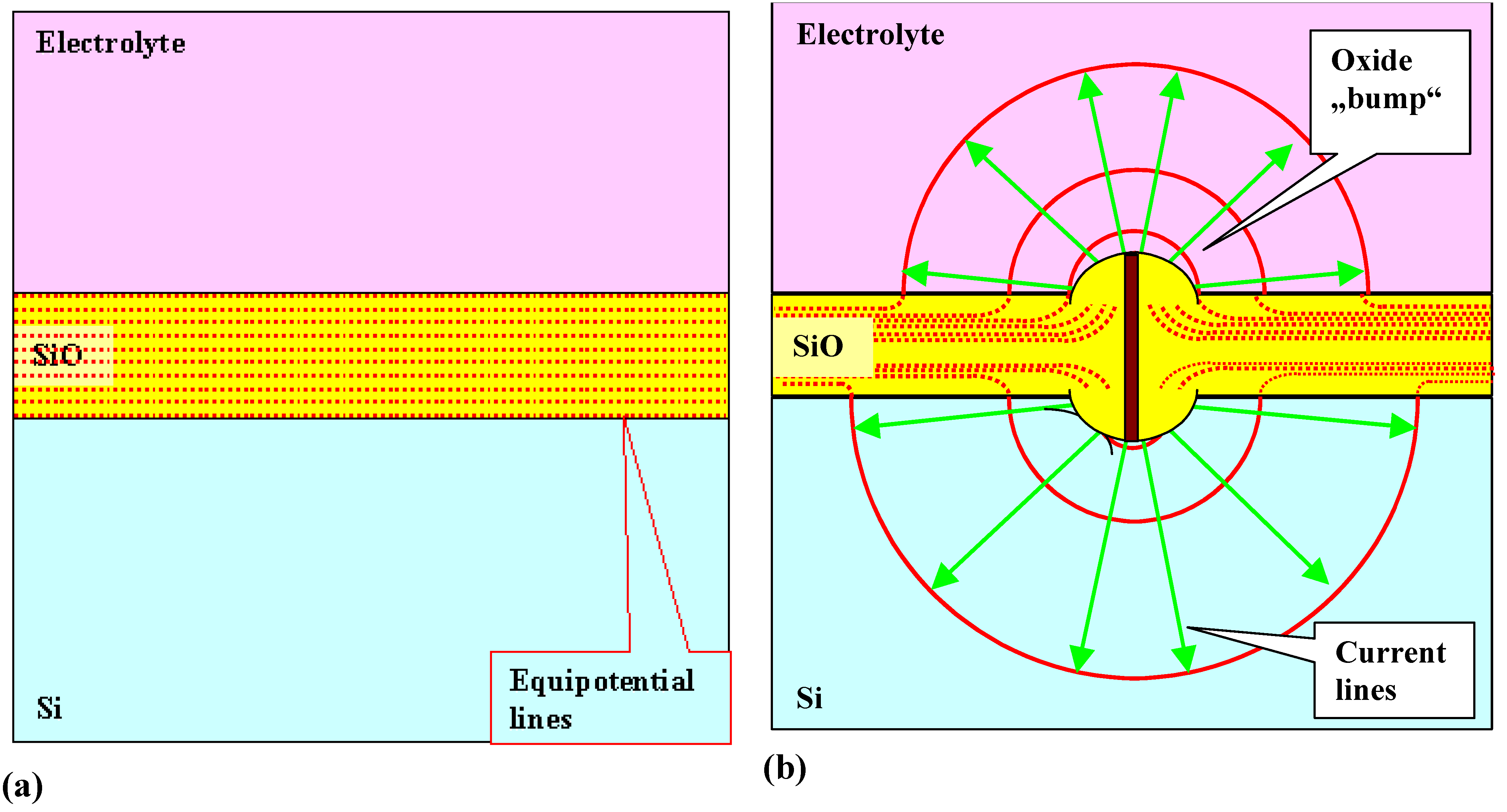

Figure 16. Schematic illustration of a current burst through an oxide layer. (a) Dissolving oxide layer. (b) A current burst occurs with some probability at high field strength = thin oxide, initiating rapid oxide growth and a concomitant redistribution of current and field lines.
Figure 16. Schematic illustration of a current burst through an oxide layer. (a) Dissolving oxide layer. (b) A current burst occurs with some probability at high field strength = thin oxide, initiating rapid oxide growth and a concomitant redistribution of current and field lines.
Materials 03 03006 g016
The two probability functions discussed above are the only basic ingredients of the CBM. Their precise mathematical formulation (cf. e.g., [104,130,131]) follows established procedures for this kind of modeling and contains the only numbers not deducible from first principles. Everything else needed for a quantitative Monte-Carlo implementation of the model can be calculated in principle. The current flow through a Si electrode is now simply given by summing over the current flowing in locally and temporarily active current bursts. Note that in any given pixel (≈ nm2) of the electrode, most of the time no current is flowing because it turns out that oxide dissolution is the process with the largest time constant and thus dominates the kinetics.
The decisive issue is that current bursts “automatically” (i.e., without further assumptions) correlate in space (and time). It is less likely, for example, that a new current burst starts close to an old one because the oxide in its neighborhood is thicker than somewhere else. In other words, there is an interaction in space and that does indeed produce “automatically” the observed oscillations of the current (or voltage) in time, cf. [104] for an in-depth review.
Section 3.2 stated “macroscopic oscillations (or pattern formation) in time need some interaction in space”. If we consider pores to be more or less damped oscillations in space, as outlined in Section 2.3 (cf. [24,104]) this would require some interaction in time in terms of a generalized current burst approach.
Some interaction in time between current bursts is exactly what happens if we replace an oxide as passivating layer by anything else that can render current flow locally more difficult, e.g., a completely hydrogen “passivated” part of the Si—electrolyte interface. Let’s consider some area where a current burst stopped some time ago and the oxide formed in the active part of the current burst now dissolves. Even for very thin oxides or no oxide, a new current burst may not nucleate for several reasons. For example, many other nearby areas might be “very busy” and draw all available current at galvanostatic conditions, or no holes are around at that location, because we have n-type Si, or for a number of other easily conceived reasons. The oxide then is completely dissolved after some time and the bare Si surface starts to passivate via hydrogen coverage. How long that takes, and how well this passivation protects the Si, depends on the crystallographic orientation, the pH value of the electrolyte, and many other parameters. The consequence for a generalized CBM is simple: the probability function for the breakdown of some passivating layer at time t and a given position (x,y,z) on the pore-electrolyte interface is no longer just a function of one parameter but of many. While the various functionalities for a certain case are not too difficult to state, the related three-dimensional modeling task is presently not computable. Nevertheless, some quite specific statements or predictions are possible, cf. [36,37,108,133,134]. Here we just consider two:
1).
Under conditions where direct dissolution prevails and the current is relatively large (i.e., in the micropore region of Figure 5), each individual current burst generates a nm-sized pore, “dug” by direct “divalent” dissolution and eventually closed by a small oxide lump. All that is required now to form sponge-like microporous Si is what one could call an “anti-correlation” in time: wherever a current burst has stopped, it is less likely that a new one will nucleate a short time after. This is likely to happen if there is a need to keep many current bursts “burning” all the time, and that is the case if the galvanostatically enforced current is close to a limiting value, here jPSL (cf. Figure 5). There is not enough time to wait for a new current burst until the oxide lump produced by the first one is sufficiently dissolved and a new current burst nucleates somewhere else—to the left or right of the oxide lump. The growing nanopore must dig into the Si in a kind of random walk (it cannot get too close to other pores, however), and a sponge-like network of nano-sized pores must result. We have not only “explained ”micropore formation in this way, but also the value of the first current peak at jPSL: it is simply the maximum current observable if the entire surface is covered with current bursts all the time.
2).
Under conditions where direct dissolution prevails and the current is relatively small (i.e., in the macropore region of Figure 5), the situation is reversed. Current bursts correlate positively in time, i.e., it is more likely to nucleate a new one in places where an old one just expired. That appears contradictory to the first case but simply states that the nucleation probability as a function of time first is low (the pore tip is still covered with an oxide bump) but then increases (the oxide becomes thinner or disappears) and then decreases again (the surface starts to passivate with hydrogen). If a positive correlation prevails, the current bursts will start to cluster as shown in Figure 17(b) and macropore formation is inevitable

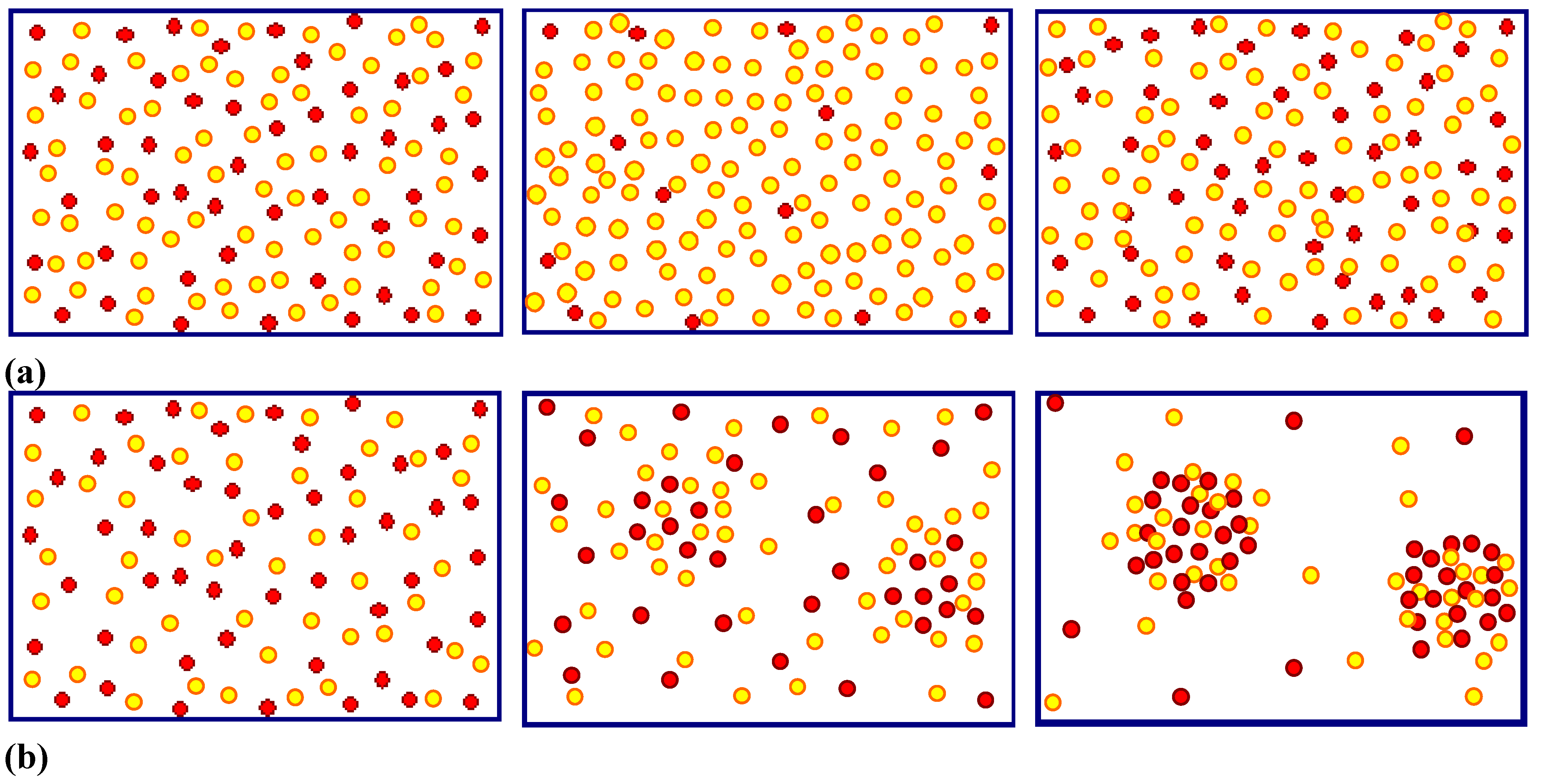

Figure 17. Schematic time sequence. Time increases from left to right, red dots mark active (current bearing) current bursts, yellow circles inactive ones just dissolving oxide bumps. (a) Current oscillations in time. (b) Formation of current oscillations in space or (macro) pore formation.
Figure 17. Schematic time sequence. Time increases from left to right, red dots mark active (current bearing) current bursts, yellow circles inactive ones just dissolving oxide bumps. (a) Current oscillations in time. (b) Formation of current oscillations in space or (macro) pore formation.
Materials 03 03006 g017
Much more could be said about the CBM and pore formation but the reader at this point is referred to the numerous articles cited in this regard. It is more illuminating to consider present limits of the CBM. First, it must be mentioned that a fully quantitative version of the CBM so far has only been implemented for small HF concentrations and therefore for small current densities. There are several effects (like electron tunneling through oxides) encountered at high current densities that are not easily dealt with, even so they do not appear to be decisive for what is going on. The same is true for other potentially occurring effects, i.e., stress induced by oxide patches [97]. While it might be safe to some content that some current burst like dynamics may always exist if there are several competing reactions at the interface, this has not proven beyond doubt for all possible combinations of a semiconductor and an electrolyte. Moreover, the CBM by its nature does not directly contain length scales tied to instabilities of an advancing dissolution front [104] or the space charge region dimension.
On the other hand, variants of the CBM have been used successfully (and to a large extent quantitatively) to model findings dealing with pure anodic oxidation of Si in various organic electrolytes with bearing on pore formation in those electrolytes plus HF [135], and for the formation of crysto pores in InP and GaAs (see [136]).

3.5. A Closer Look at Growing Deep Pores

All things considered, the CBM might be seen as supplying the “stochastic” ingredient necessary to understand pore growth in general and many of the self-organization features encountered. That is not sufficient, however, for understanding all the effects observed. As soon as one tries to grow very deep pores, or tries to grow pores very fast (or both), complex general phenomena are encountered that are not (easily) understood with the CBM alone. The growth mode transitions elucidated in Section 3.2 (and mostly found more recently while attempting the feats listed above) are a case in question, as is the inevitably encountered complete loss of pore growth at some limiting depth (often accompanied by a lift-off of the porous layer).
This needs at the outset a closer look at the more gradual changes occurring smoothly (and not stochastic) in time. This includes the actual potential at a pore tip deep in the substrate together with the local concentration of various chemical species and possibly the hole supply on the semiconductor side. While the potential Vtip might occur to be the most important parameter that cannot but decrease according to:
V t i p = V 0 j pore ρ l
with ρ = specific resistivity of the electrolyte, l = length of the pore, and jpore = nominal current density inside the pore, this is actually not really the case.
This shall be illustrated by looking at a special task: the very fast growth of very deep n-Si-macro(bsi, aqu. litho) pores. The problem is easily stated: fast growth needs high current densities, and thus such high HF concentrations. Experiments performed with this in mind invariably found, that the higher the initial growth speed, the shorter the maximum depth achievable. The nominal ohmic losses inside a pore [the jporeρl term in Equation (4)], or the decreasing HF concentration down the pore, and so on, were thought to be responsible for this behavior. However, these problems could easily be remedied to some extent: just increase the potential and the HF concentration as a function of time, and the conditions at the pore tip should not change all that much. Unfortunately, taking measures like this do not seem to work. What does work to some small extent is to decrease the temperature, or to increase the viscosity during the 10 hrs or so of etching.
Both working measures are counterintuitive because they decrease the diffusivity and thus make transport in and out of the pore rather more difficult. However, pore growth most likely does not terminate because it becomes too difficult to transport molecules in and out of long pores. This is illustrated by the rather uninhibited growth of micropores down to large depths, where the reagents must diffuse up and down a very narrow and very long (because tortuously winded) pore, or the rather fast growth of so-called “metal assisted” pores [137]. The reason is rather that some precarious balance regulating vertical (what one wants) and lateral (what one doesn’t want) pore growth must be maintained. A quick look at the particle current flowing into and out of a pore gives some impression of that. First of all, the net electrical current density carried by the ions of the electrolyte must be the same at any depth z of a pore, as long as no lateral pore wall currents are flowing. For any charged species the driving forces for that current are the concentration gradients and the electrical field (and both are correlated by the Nernst equation). In addition, the several reactions leading to dissolution may require uncharged species [e.g., HF in the case of Si, cf. Equation (3)], which are supplied to the pore tip by pure diffusion, driven only by a concentration gradient. The pore walls need to be passivated by hydrogen, needing some transport, and so on. Calculating the balance of all these particle currents (including reactions that may take place on the way down the pore, e.g., dissociation of HF) is beyond present capabilities although some valiant attempts have been made [138,139] It can be appreciated, however, that a small increase of the applied potential with time in order to counter ohmic losses, while indeed helping the pore tip to process the available holes by dissolving Si, might also cause an increase of the (small) “leakage” current density at the pore walls. The total current through the pore walls, however, is the pore wall area times the current density and a small increase of the latter by increasing the voltage might simply not leave enough current for the tip because the total current per pore is about constant.
How complex this “chemical” part of a general pore growth model can be is illustrated by the still amazing fact that the addition of some acetic acid to the standard 5% HF based aqueous electrolyte is detrimental for growing good n-Si-macro(bsi, aqu, litho) pores, while it enables quick and deep growth of those pores at 10% and 15% HF concentration [140]. Equally amazing is the often very helpful effect of making the electrolyte more viscous [124,141].
There are some in-depth speculations and reasoning about the what’s and why’s behind these and other “chemical” influences on general issues of pore formation in semiconductors, but the time is not yet ripe for summarizing principles. We rather use the information given so far to emphasize and lead over to the next section: in situ measurements during pore growth.

4. Multi-Mode-In-Situ FFT Impedance Spectroscopy During Pore Etching

4.1. General Technique

The need of in situ measurements during deep pore etching in semiconductors has been emphasized several times in the preceding sections. There is, however, no obvious monitoring technique out of the long list of possible methods (cf. e.g., the overview of Chazalviel [142]), because it is not so simple to “look” down a very long and possibly crooked pore at the interface Si/electrolyte, where things happen. The only method that can make some claim to in situ monitoring is dual-mode FFT impedance spectroscopy (IS), as recently published in [28].
Impedance spectroscopy is a well-established technique in electrochemistry and well documented in several standard textbooks and innumerable articles - but no impedance measurements have been attempted during (macro) pore etching, if we discount [143,144,145,146,147,148], where no deep pores were present. The reasons for this lack of data resides in a large number of “small” problems, that taken together rendered meaningful measurements rather difficult.
Classical impedance spectroscopy is a “black box” method that monitors the response of an electrical system output to small disturbances at its (electrical) input in the form of a A’·sin(ωt) modulation (A’ = (small) amplitude either of the current or the voltage, ω = circle frequency of the modulations). Linearity is assumed, i.e., the output can always be written as A’’·sin(ωt + ϕ). The measured quantities then are output amplitude A’’ and phase shift ϕ as a function of the input amplitude A’ and the circle frequency ω. Small amplitudes are not only necessary to ensure linear response, but also in order not to disturb the system (cf. the response to large amplitudes in Figure 13 or the growth mode transitions induced by a “modulation” of the current in Figure 12(d).
We first discuss the application of the technique to n-macro(aqu, bsi) pores, and then present a very recent case study in InP and GaAs.
Impedance spectroscopy during pore growth is easy in principle, but not in practice. First of all, the response comes from whatever happens inside of typically a few millions of pores. If the etching process is not very uniform, no meaningful conclusions might be drawn from data that then represent some unclear averages over millions of different pore tips, pore wall properties, and regions around the O-ring, with often quite different structures. This problem can be overcome to some extent with carefully optimized etching conditions.
Second, measuring sequentially for all the required many frequencies may simply take too long—the pore parameters, e.g., its depth, may have changed too much during the measurement. Modulating the input with all the desired frequencies simultaneously, plus performing a (fast) Fourier Transform of the output signal (FFT) solves this problem. However, because the total amplitude of a signal containing many frequencies now is larger, linear response demands smaller individual amplitudes, invariably leading to signal / noise problems. Nevertheless, FFT impedance spectroscopy is a must for fast in situ pore growth monitoring.
Third, classical impedance spectroscopy (abbreviated IV–IS in what follows) modulates the voltage (or current) and monitors the current (or voltage), and then obtains a proper measured electrical impedance Zexp = dV/dI with the unit Ohm (Ω). Even if good data (= not too noisy and without drift) are recorded, it is not directly clear what those data mean. Without a quantitative model, i.e., an equation for I(ω,V) and thus a theoretical impedance Ztheo = dV/dI that contains the primary parameters of interest against which the measured data can be fitted, not too much can be learned off-hand about what is going on inside the pores. We are now caught in a catch-22 situation: a model for IV–IS essentially needs a theory of the IV characteristics, and such a theory or model does not yet exist. This necessitates the use of “equivalent circuit” models with all the concomitant problems, e.g., the uniqueness and suitability of the circuit chosen [149,150].
Major progress with respect to monitoring pore formation comes from a new mode of IS: modulate the intensity P(t) of the back side illumination and record the response in the current. As it turns out, this „pseudo” or photo impedance Zbsi = dP/dI (unit is not Ohm) can be derived theoretically in great detail for n-Si-macro(bsi) pores. This mode will be called bsi-IS in what follows. Of course, one could also use modulated front side illumination wherever applicable [13]; then we have fsi-IS that turns out to be extremely useful for solar cell R&D, cf. [28,151,152] for a full discussion of both modes of photo impedance. Using more than one mode finally establishes the dual-mode FFT IS technique that will be introduced for in situ monitoring of n-macro(aqu, bsi) pores here.
It can be appreciated now, why it took the Kiel group many years to produce meaningful IS measurements during pore growth. Some dedicated and highly specialized hardware had to be conceived, built, and tested first.
During an etching experiment that may take several hours, first an IV–IS is taken during one second, followed by one second of “rest” for the system, then, a bsi-IS is taken for another second. After another second of rest the process is repeated. The spectra emerging every two seconds are recorded and matched against the theoretical equations given below. This allows to extract a number (around 10) of relevant parameters that are then displayed on-line.
First, a fully quantitative model of the bsi-IS mode will be introduced. There are several indispensable parameters that must be taken into account. Besides the geometry, with dW = thickness of wafer or specimen, lPore = length of pore and the (modulated) illumination intensity Pbsi, one needs to account for all the sinks encountered by the holes produced by the illumination. Neglecting the effects of the finite penetration depths of the illumination, and recombination of the holes right at the back side (i.e., a back side surface recombination velocity Sb = 0 cm/s is assumed), for the sake of simplicity (those effects are contained in the software evaluating of the data, though), there are three sinks for holes: i) recombination in the bulk of the Si. This is described by the diffusion length L = (Dτ)1/2 with D = diffusion constant of holes and τ = bulk life time; ii) the tip of pores, where the holes are converted into an ionic current and trigger the dissolution of Si according to Equation (1); and iii) holes ending up between the pores, essentially producing leakage current (dissolving pore walls). The latter two mechanisms translate into a boundary condition at the plane, defined by all pore tips for the recombination velocities SPt at the pore tips, and SbP between pores. As it turns out, only the term DS will appear in the solution of the diffusion problem posed in Figure 18, with ΔS = SbP - SPt (and SbP > SPt) for normal pore growth. A complete theoretical impedance for bsi-IS relevant for n-macro(aqu, bsi) pore etching is given in Equations (5) and (6):
Z complete ( ω , d B , L , Δ S P ) = A 1 ( Z bsi 1 + A 0 1 Z bsi 1 + A 2 i ω ) ( 1 1 L 2 + i ω D 1 1 L 2 + i ω D + Δ D S p )
Z bsi 1 ( ω , d B , L ) = d j sem ( ω , d B , L ) d P ( ω ) 1 cosh ( l Pore 1 L 2 + i ω D )
This does not look too simple, but it is just as complex as it has to be. Three contributions can be distinguished: the first and the second large bracket in Equation (5) and the quantity Zbsi-1 defined in Equation (6). The latter is the complete “simple” solution for the classical “Lehmann model” (cf. Section 2.3 or [28], i.e., of the diffusion problem, where a given number of holes is generated at the specimen’s back side by illumination, diffuses through the sample with a diffusion coefficient D, and recombines either in the bulk (described by the diffusion length L), or is converted to current at the pore tips. The later process is mathematically described by assigning an interface recombination velocity SP = ∞ (or rather 1/SP = 0) to a fictitious interface defined by the pore tips as shown in Figure 18. Within the SCR model this should be a reasonable approach, because all holes reaching the position of this fictitious interface would end up at a pore tip and thus disappear.
However, as shown in Figure 19, where a measured spectrum is printed in a conventional Nyquist plot (the (negative) imaginary part of the impedance is plotted vs. the real part), matching bsi-IS data against just Equation (6) alone does not produce a perfect fit. In conclusion, the SCR-model for n-macro(bsi) pore growth is too simple and must be augmented. As outlined in [28] in more detail, the problem is that the tip of the macropore is covered with oxide most of the time and thus cannot process holes at any time and at any place.

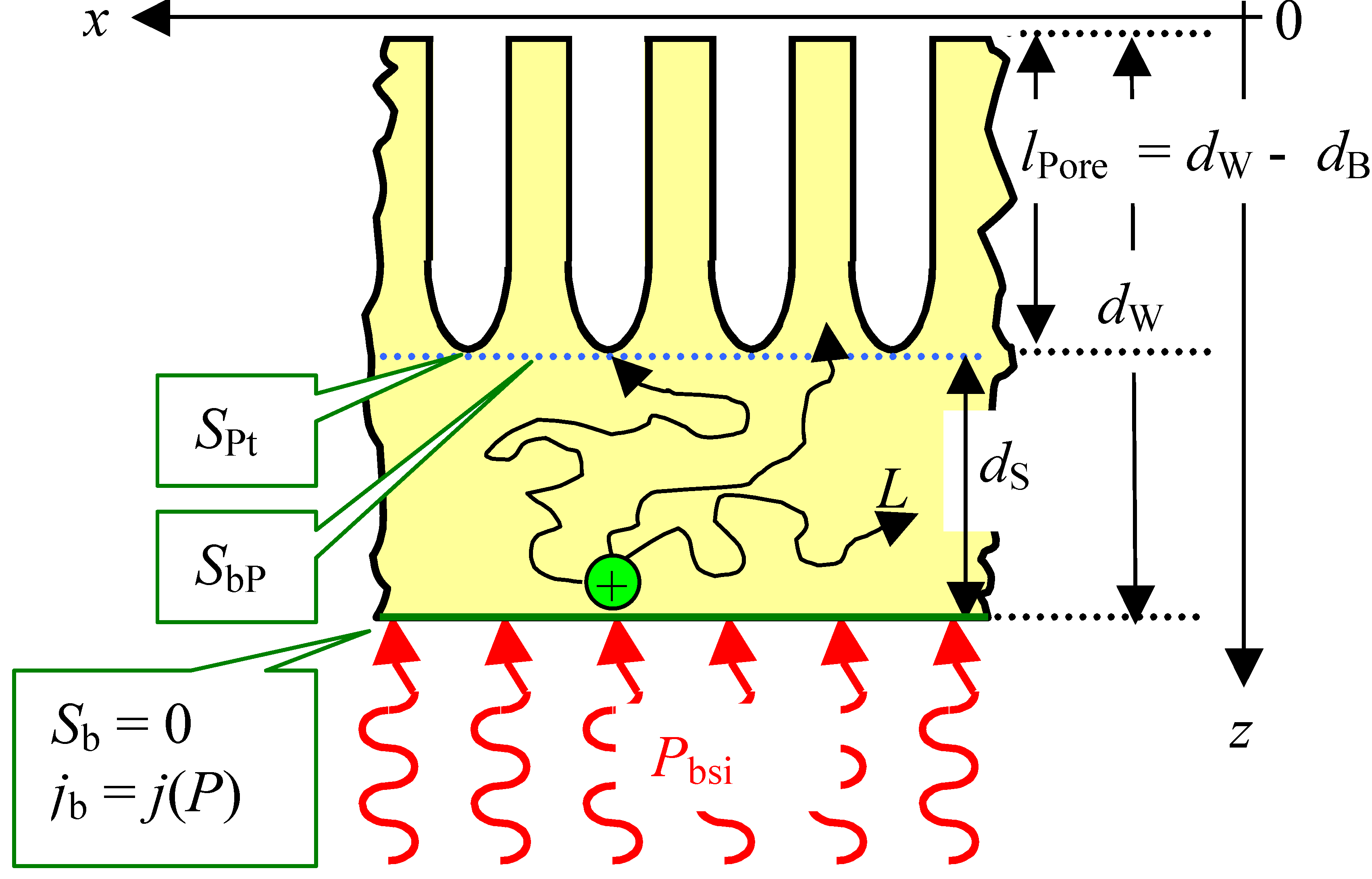

Figure 18. Geometry of n-Si-macro(bsi) etching and some quantities needed for bsi-IS. See the text for details.
Figure 18. Geometry of n-Si-macro(bsi) etching and some quantities needed for bsi-IS. See the text for details.
Materials 03 03006 g018
At a next step of sophistication, we now assume that some holes arriving at the depth lPore of the pores, do not all contribute to the pore tip current, but are also consumed at areas not very close to the pore tip; i.e., at pore walls. Mathematically this is expressed by changing the boundary condition with respect to the interface recombination velocities to a periodic expression, where the recombination velocities between the pore tip and the point halfway between the pores differ by some ΔS as outlined above. Taking this into account, the solution of this diffusion problem gives as a second approximation Zbsi-1 times the second bracket in Equation (5), that contains as a new parameter DS. The match to all the experimental data is better now, as shown in Figure 19, and in a large number of other data not shown (note that just one pore etching experiment yields several 1,000 bsi-IS spectra), but still not perfect.
A perfect match can be obtained in a third step, if one assumes that some fraction of the holes reaching the pore tip region is not immediately consumed at the tip, but has to “wait” a bit, meanwhile diffusing around. In physical terms this means that oxide covered parts of the pore tip cannot process holes instantly, but need to wait until the oxide thickness has been sufficiently reduced. More succinctly stated (and with knowledge of quantitative data, some of which are shown below), at this point it becomes necessary to postulate that the pore tip is actually covered with (thin) oxide most of the time.

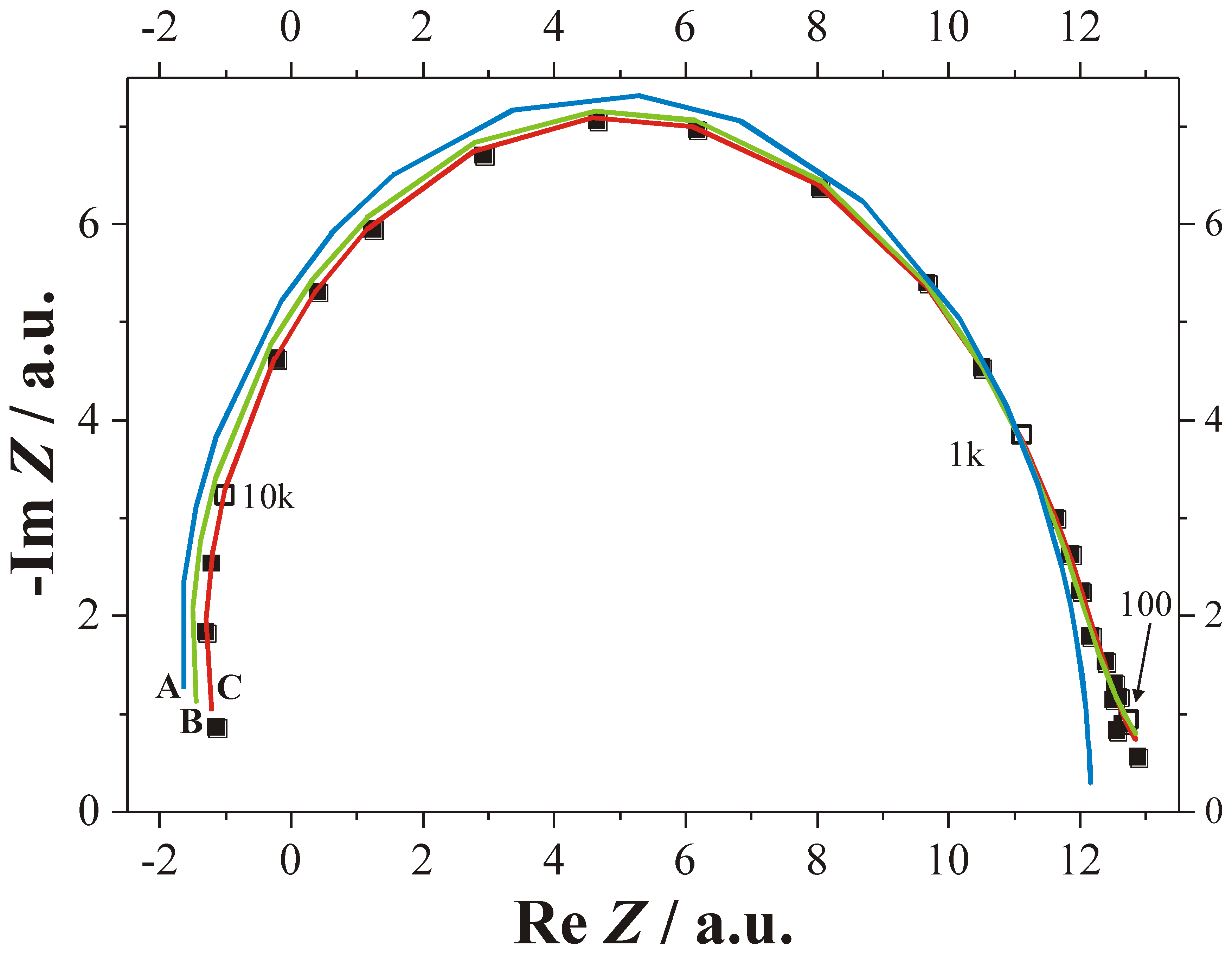

Figure 19. Fitting theory to measured in situ bsi-IS data (black squares). Curve A (blue) results from Equation (6) only. Curve B (green) results from Equation (5) without the first term, and curve C (red) is based on the complete impedance as given in Equation (5). Numbers indicate some of the 27 frequencies used in Hz (total range 10 Hz - 40 kHz).
Figure 19. Fitting theory to measured in situ bsi-IS data (black squares). Curve A (blue) results from Equation (6) only. Curve B (green) results from Equation (5) without the first term, and curve C (red) is based on the complete impedance as given in Equation (5). Numbers indicate some of the 27 frequencies used in Hz (total range 10 Hz - 40 kHz).
Materials 03 03006 g019
The proper term for this “waiting time” presently cannot be obtained from solving an appropriately posed diffusion equation, but is derived by adding a general diffusive term akin to what is known as “Warburg impedance” in VI-IS [149]. The quotation marks refer to the fact that “proper” impedances are measured in Ohm [Ω], as noted before. Besides the parameters L, lPore, and DS, two new parameters, A0 and A2, emerge beside A1, that is just a proportionality constant, and thus simply a measure for the over-all etching area defined by the envelope of the pore tips, including the area of under-etching at the O-ring or under masks. The combination of A0 and A2 quantifies the fraction of that part of the etching current that experiences the additional diffusion around the pore tips.
Evaluating the in situ FFT bsi IS data thus should give in situ information about the pore depth dPore, the diffusion length L, the total active area A1 (essentially reflecting the degree of under etching), the detailed current flow processes around the pore tips quantified by A0, A2, and DS, and the growth speed vtip of the pore via vtip = ddPore/dt. Since L is a constant by definition, the numerical evaluation procedure determines L from the first few spectra and then takes it as constant, making subsequent data extraction easier and more precise. Since lPore(t) is now a known quantity, all the other parameters extracted can be rescaled from a function of time to a function of pore depth, if so desired.
In the case of the VI-IS, there is no choice but to find the best fit to equivalent circuits expressed either in suitable circuit diagrams containing capacitances, resistors, and Warburg impedances, or slightly more abstract, but fully equivalent, by using model equations describing processes with as many time constants as needed; cf. e.g., the standard text book of MacDonald for details [149]. The equation that matches many thousands of in situ VI-IS obtained so far rather well is:
Z U ( ω ) = R s + 1 ( i ω τ s l o w ( R p + Δ R p ) ( 1 + i ω τ s l o w ) + 1 R p ( 1 + i ω τ s l o w ) ) + i ω C p
Following the standard interpretation of such a model equation, Rs describes the ohmic losses due to a general series resistance, Cp describes the capacitance of the interface, and Rp the so-called chemical transfer resistance of the chemical dissolution process. The chemical dissolution splits up into two processes with different reaction rates, characterized by the relaxation time τslow of the slow process, and the time constant RpCp of the fast process. The difference ΔRp describes the increase in the chemical transfer resistance at higher frequencies. A similar approach has been used successfully for unravelling pore formation in InP, cf. [153,154] for details.
The processes in question can only be the current-driven direct dissolution of Si (typically occurring with a valence ndd = 2) and current-driven Si oxidation (valence nOx = 4) together with the purely chemical dissolution of the oxide, as detailed in Section 2. Assuming that direct Si dissolution is the “fast” process, and that Si dissolution by oxide formation plus oxide dissolution is the “slow” process, it is possible to derive an equation for the over-all valence n (for a more detailed derivation see [28]):
n = 4 2 Δ R p R p + Δ R p
A full evaluation of in situ FFT VI-IS data thus provides as a function of time (or pore depth) the following parameters: Rs, Rp, Cp, τslow, ΔRp, and as a combination of those parameters the valence n calculated from Equation (8).
Summing up, in situ multimode FFT IS allows keeping track of 12 parameters that encode more or less directly properties of the Si (e.g., its diffusion length L), the actual pore geometry (e.g., the pore depth lPore, or the degree of under-etching at O-rings or masked parts of the sample viaA1), the processes at the interface (e.g., the valence n or ΔS), plus some “electrical” properties like the series resistance and interface capacitance, and thus crucial information not only for controlling pore growth, but for any modeling effort that endeavors to obtain a better understanding of the process.
It is beyond the scope of this section to discuss in detail what kind of conclusion with respect to the pore etching process can be drawn from multi-mode in situ FFT IS, and we will restrict ourselves to two examples of particular interest for the next sections.

4.2. Selected Results from Si Pore Etching

There are just a few investigations using the full power of dual-mode in situ FFT IS at present, but they have already yielded important data, cf. [28]. In particular, it could be shown that n-Si-macro(bsi, litho) pore etching under “standard” conditions, i.e., aqueous HF electrolyte with an HF concentration around 5%, proceeds rather smoothly, i.e., the parameters extracted from the IS data change smoothly (i.e., the pore depth) or only very little (e.g., the valence n or the pore growth speed vtip = ddPore/dt), this is not the case for the viscous and/or HAc bearing electrolytes that allow faster and deeper macropore growth [140]. The system shows what could be termed “chaotic” behavior. The intentional use of the word “chaotic” is meant to imply that deterministic chaos might be found under those conditions, but that has not yet been proven.
Here we restrict ourselves to an example that relates to the rich pore structures shown in Figure 20. Typical “fast” n-Si-macro (bsi, 5 Ωcm, litho pre-structured, aq. 15 wt % HF + 0.42 g/l of CMC) pores were grown under conditions similar to those shown in Figure 13, except that the current was not modulated most of the time, but only for two periods as shown schematically in Figure 20(a) and (b).

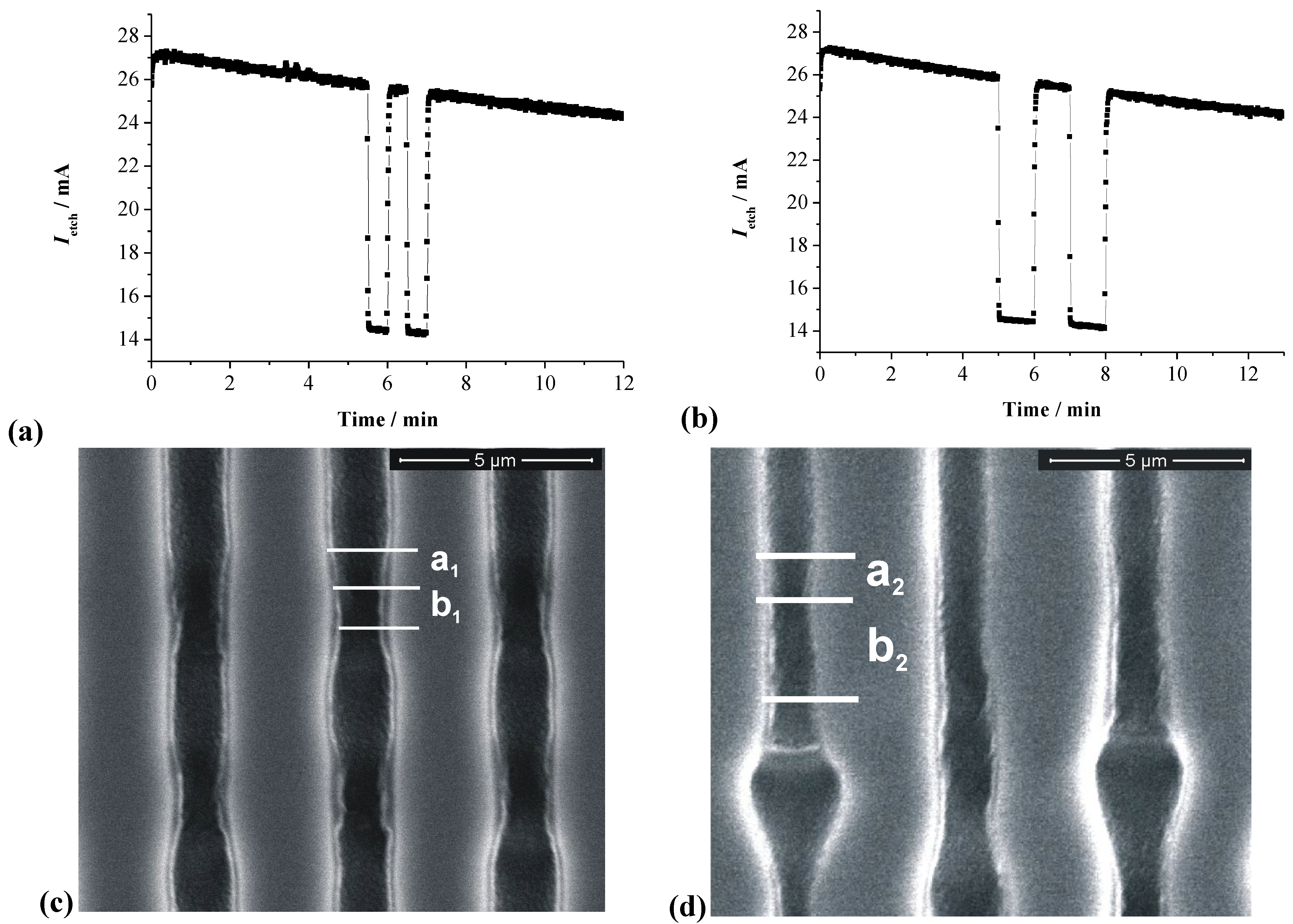

Figure 20. SEM cross-section of n-Si-(bsi, 5 Ωcm, litho, aq. 15 wt % HF + 0.42 g/L of CMC) macropores c) and d). After 5 min the current was modulated stepwise two times, with different periods: 1 min and 2 min as shown in a) and b), respectively. The white lines indicate the borders of regions a and b as described below and in Figure 21 and Figure 22.
Figure 20. SEM cross-section of n-Si-(bsi, 5 Ωcm, litho, aq. 15 wt % HF + 0.42 g/L of CMC) macropores c) and d). After 5 min the current was modulated stepwise two times, with different periods: 1 min and 2 min as shown in a) and b), respectively. The white lines indicate the borders of regions a and b as described below and in Figure 21 and Figure 22.
Materials 03 03006 g020
Figure 21 shows the most interesting parameters extracted from the impedance measurements for this case. While the series resistance Rs and the interface capacitance Cp do not change significantly upon changing the current density, strong changes are found for the time constants CpRp and τ, as well as for the transfer resistances Rp and ΔRp. The time constants CpRp and τ show a significant dependence on time, resp. pore length, while the transfer resistances Rp and ΔRp are nearly independent of the pore length. Since the noise in Rp is much smaller than the noise in ΔRp and the changes in the transfer resistance Rp are most easily understood; a detailed view is shown in Figure 22 (note the factor 2 in the scaling of the time axis).

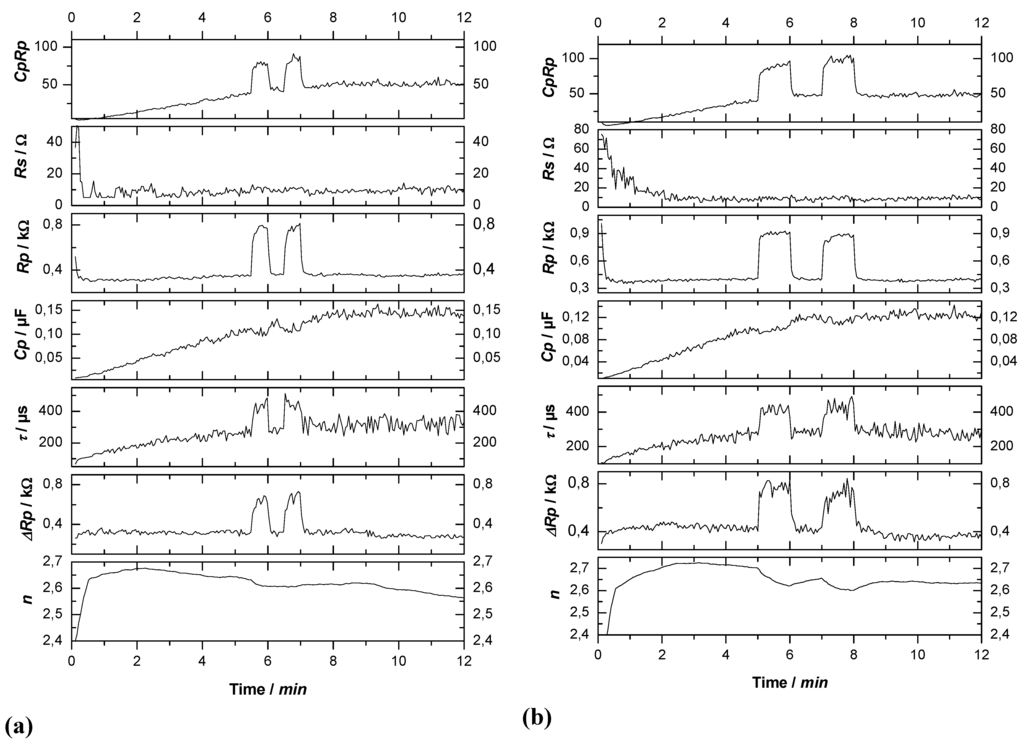

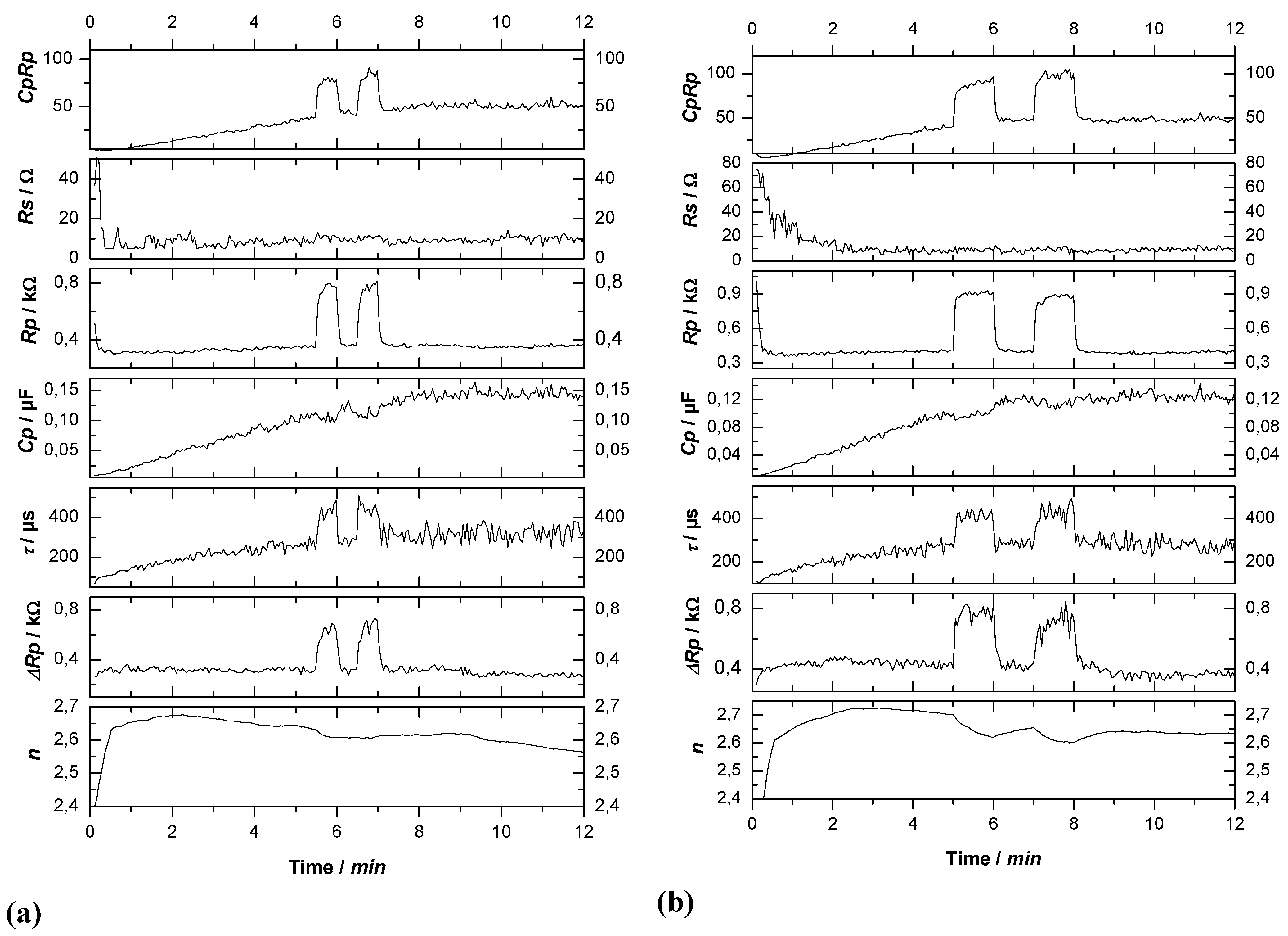

Figure 21. Etching parameters as obtained from the fit of the impedance data for the macropores shown in Figure 20.
Figure 21. Etching parameters as obtained from the fit of the impedance data for the macropores shown in Figure 20.
Materials 03 03006 g021
Rp should scale inversely proportional to the integral pore tip area, i.e., the actively etched area. In the case of n-macro(bsi) pores the etched area is the sum of all macropore tips, which under perfect conditions is proportional to the current density. Figure 22(a) and Figure 22(b) both show an increase of Rp by roughly a factor of two after reaching steady state between the phases of high current density and of low current density. This is in good agreement with the measured decrease of the pore tip areas of a factor of two.
Steady state is reached for both experiments after roughly 0.5 min; this is marked by dotted lines that separate the areas "A1" and "B1" in Figure 22(a) and "A2" and "B2" Figure 22(b). A very good agreement to the corresponding areas in Figure 20 is found: the horizontal lines mark the starting point and the end point of the areas "a1" and "b1"in Figure 20(a) and "a2" and "b2" in Figure 20(b). A nearly linear transition from large pore diameter to small pore diameter is found. The areas "a1" an "b1" in Figure 20(a) correspond to the areas "A1" and "B1" in Figure 22(a) [the same can be observed for Figure 20(b) and Figure 22(b)].

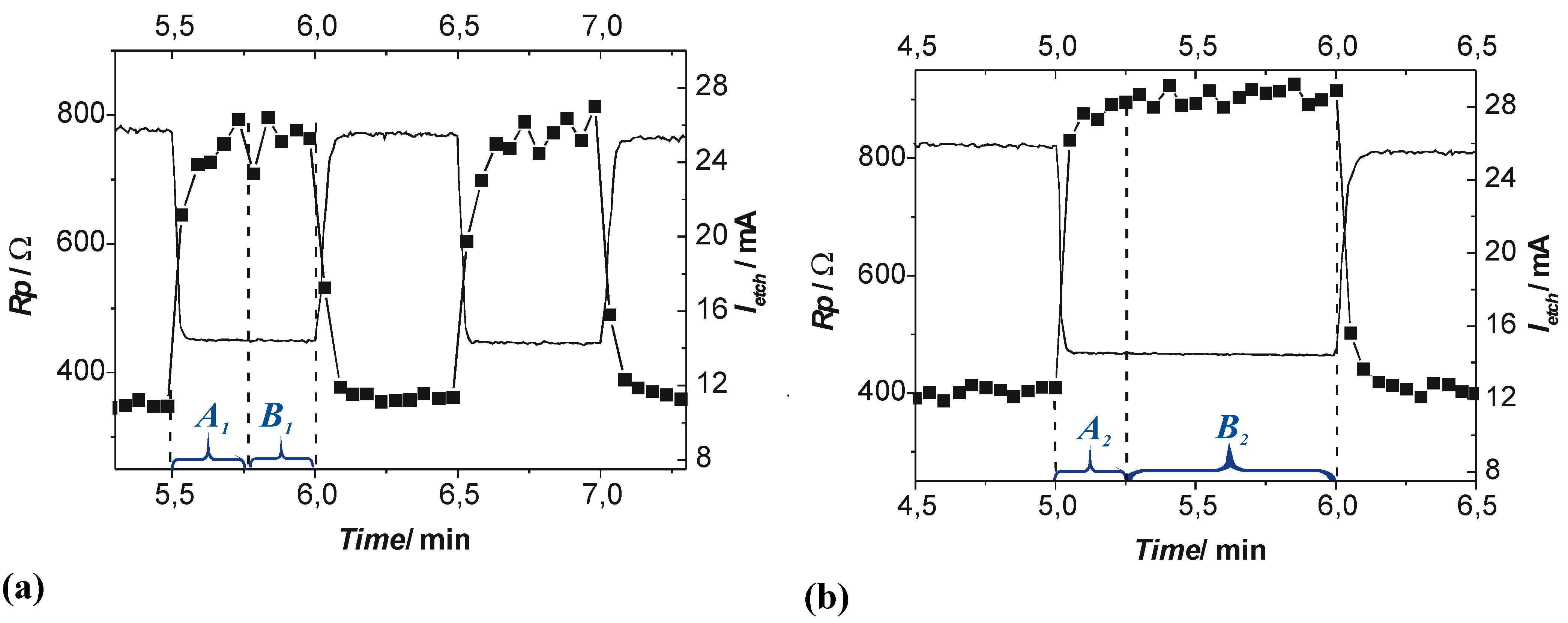

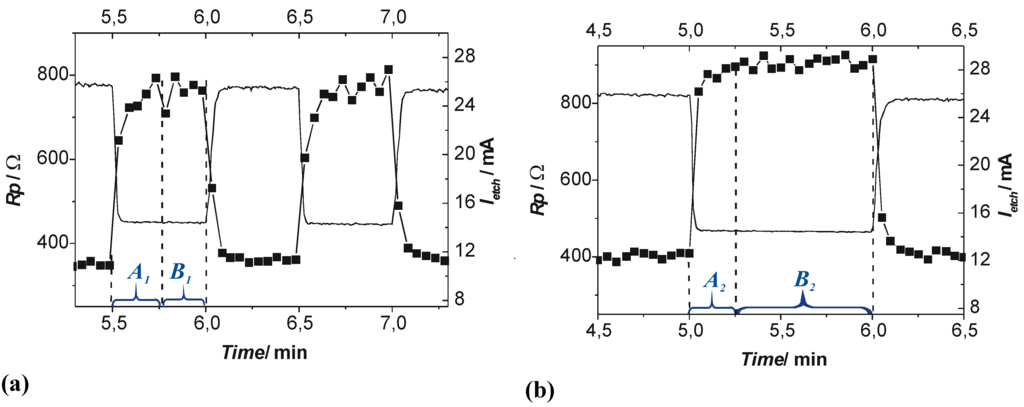

Figure 22. Details of the transfer resistance Rp, as presented in Figure 21.
Figure 22. Details of the transfer resistance Rp, as presented in Figure 21.
Materials 03 03006 g022
We will not go into more details here (cf. [155] for this), but only point out that multi-mode in situ FFT IS allows indeed to “look” at pore etching processes in considerable detail and that it will, in good time, help to understand pore etching. While at present, for the case study presented in Figure 20, Figure 21 and Figure 22, just as many questions are raised as are answered, definite progress will be made if pore formation models can explain these experimentally observed salient features.

4.3. A Case Study for InP and GaAs

4.3.1. Studying Crysto and Curro Pores in InP

In [136,154] a quantitative model for crysto pore growth in InP and GaAs was presented that is reproduced in Figure 23. The model utilizes a Monte-Carlo approach; it is of the stochastic current-burst type. In essence, an array of (1,024)3 = 1.07 × 10 9 voxels has been used, with a mesh size set to 100 nm, corresponding to the experimentally determined typical n-InP-macro(crysto) pore size. Some distribution of nucleation sites serves as starting condition. Pores can only grow in the <111>B directions, as indicated in Figure 23; in each time step a suitable voxel is “etched out”. The key point of the model is that it allows pore branching by assigning two different branching probabilities ktips and kwalls, respectively, to branching at a pore tip or from a pore wall. In addition, an adjustable length of the pore of the order of the space charge region (SCR) width dSCR is assigned k = 0, i.e., it will not be able to form branches on that length, because as long as the SCRs overlap the new tip cannot experience the full voltage drop. In a last point it is assumed that all pores stop to grow, if other pores block their trajectory. In other words, pores cannot grow through the space-charge-region surrounding other pore walls.

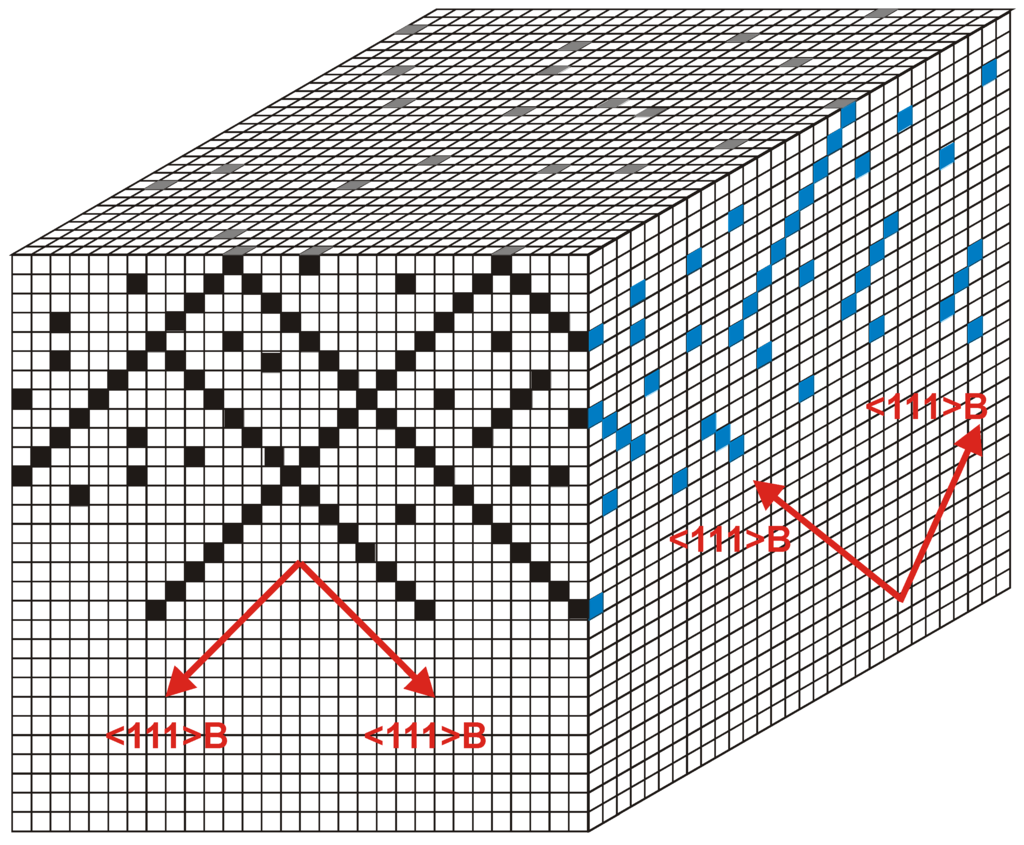

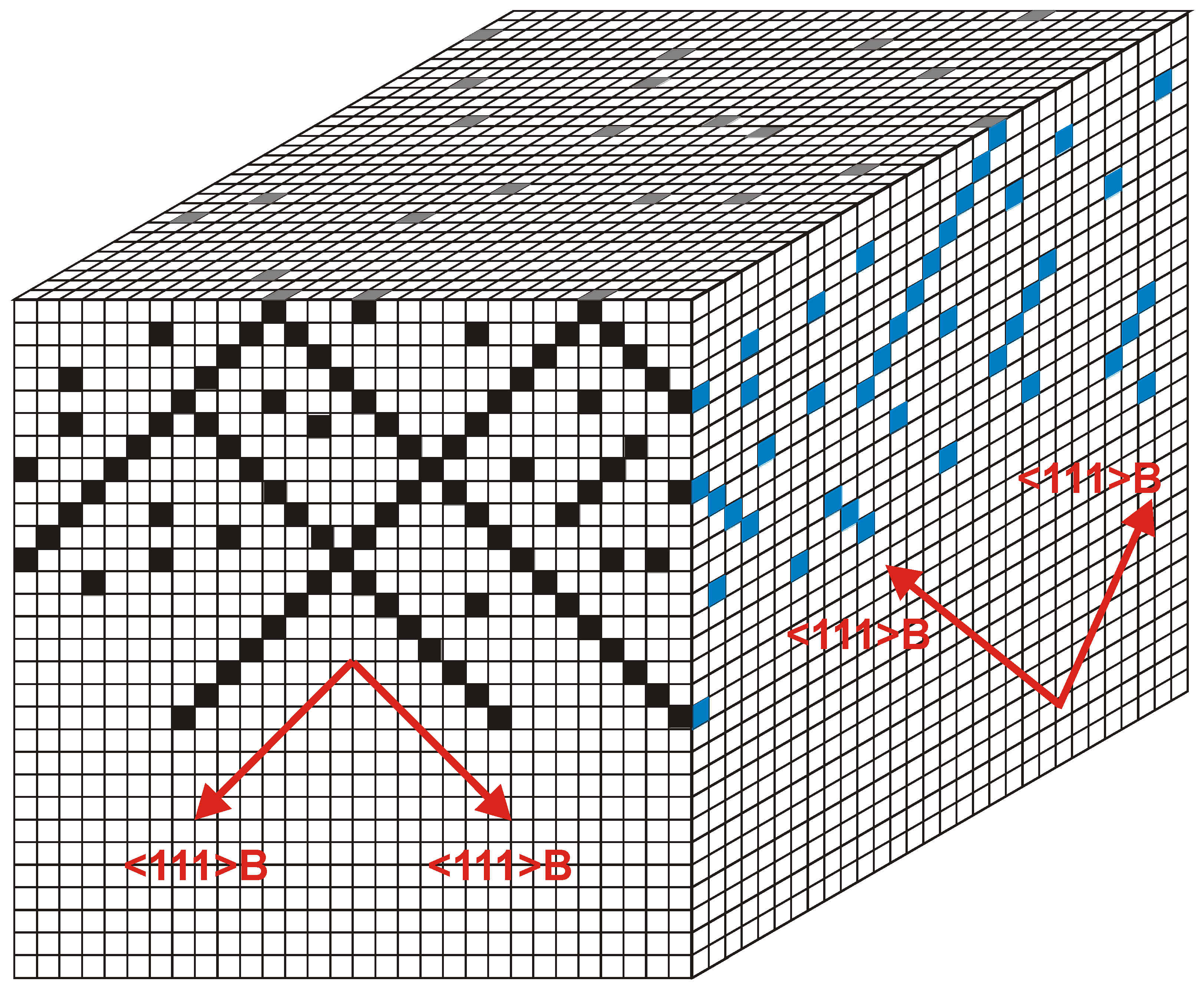

Figure 23. Three dimensional Monte Carlo model for crysto pore growth in InP and GaAs.
Figure 23. Three dimensional Monte Carlo model for crysto pore growth in InP and GaAs.
Materials 03 03006 g023
Running the model with a suitable set of branching probabilities reproduces many experimentally determined features of n-InP/GaAs-macro(crysto) pores, Figure 24 shows an example.
Figure 24. Crysto pore domains in GaAs. (a) SEM surface view of a crysto pore domain. Constant current experiment: j = 80 mA/cm2, electrolyte concentration 5 wt % HCl aq. (b) Corresponding results from the Monte-Carlo-simulations.
Figure 24. Crysto pore domains in GaAs. (a) SEM surface view of a crysto pore domain. Constant current experiment: j = 80 mA/cm2, electrolyte concentration 5 wt % HCl aq. (b) Corresponding results from the Monte-Carlo-simulations.
Materials 03 03006 g024
Running in situ FFT IS while etching n-InP-macro(crysto or curro) pores is possible and produced a wealth of data, which, together with a model briefly described above and suitable equivalent circuits for the IS data, has greatly enlarged the understanding of these pores.
{100}-oriented single-side polished n-type InP wafers with a doping concentration of ND = 1 × 1017 cm-3 were used for experiments in an electrochemical double-cell described in detail in [55]. Aqueous HCl with a concentration of 5 wt % (= 1.4 M) has been used as electrolyte. All experiments have been performed in the galvanostatic mode at a current density of j = 0.4 mA/cm2, on a sample area of A = 0.25 cm2, and at a constant temperature of 20 °C. To achieve a better nucleation, experiments were started by a current pulse of 40 mA/cm2 for 1 s. Several experiments have been performed for different etching times between 5 min and 360 min. The resulting pore structures have been investigated by scanning electron microscopy (SEM).
Figure 25 shows a typical crysto pore structure obtained together with two Nyquist plots (out of ≈ 15.000) obtained after 7 min and 75 min, respectively.

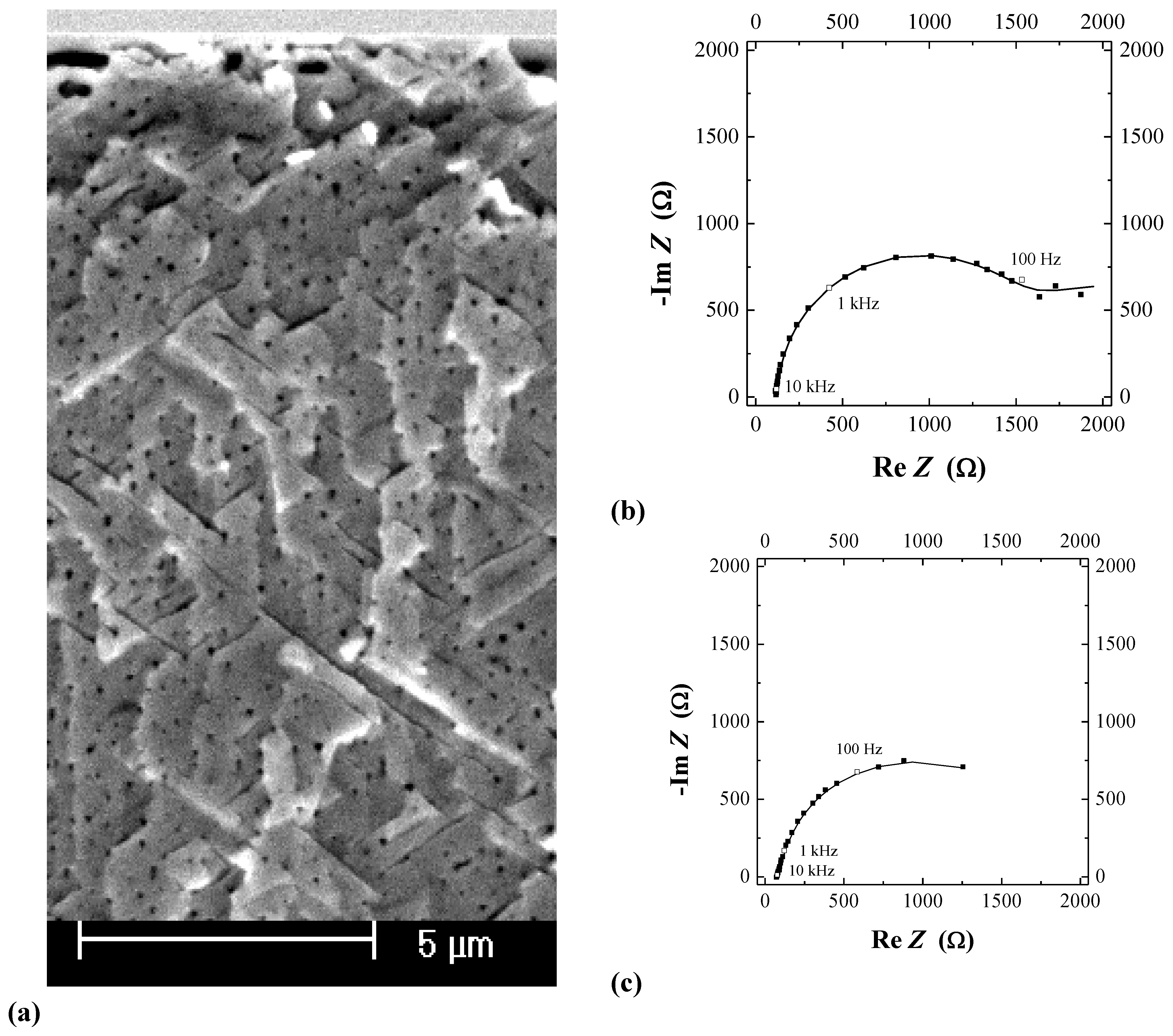

Figure 25. (a) Typical cross-section of n-InP-macro(crysto, HCl) pores. (b) and (c) Nyquist plot of IS spectra obtained during the experiment at t = 7 min (b) and 75 min (c).
Figure 25. (a) Typical cross-section of n-InP-macro(crysto, HCl) pores. (b) and (c) Nyquist plot of IS spectra obtained during the experiment at t = 7 min (b) and 75 min (c).
Materials 03 03006 g025
All IS data match extremely well with simulated data from the equivalent circuit shown in Figure 26 a). Matching IS data to an equivalent circuit is the best one can do at present since the theoretical I(U) characteristics and therefore also the impedance Z(ω) = dU/dI is what one is after, as in the Si case outlined above. Note that with less than the four resistors and three capacitors no good match is possible for all spectra obtained.
The resistors and capacitors in the equivalent circuit diagram can be interpreted to a large extent in terms of the reactions taking place, cf. [136,154] and below.

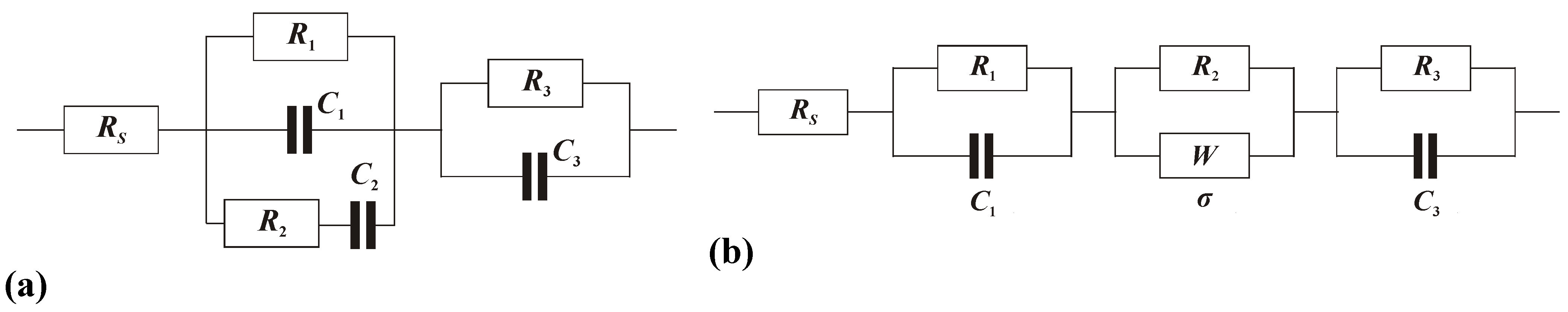

Figure 26. (a) Equivalent Circuit model of the impedance during crysto pore growth in n-type InP. (b) Equivalent Circuit model of the impedance during curro pore growth in n-type InP.
Figure 26. (a) Equivalent Circuit model of the impedance during crysto pore growth in n-type InP. (b) Equivalent Circuit model of the impedance during curro pore growth in n-type InP.
Materials 03 03006 g026
The impedance of the equivalent circuit shown in Figure 26a) is:
Z ( ω ) = R S + 1 1 R 1 + i ω C 1 + ( R 2 + 1 i ω C 2 ) 1 + R 3 1 + i ω R 3 C 3
Of particular interest are the related three time constants:
τ1 = R1C1, τ2 = R2C2, and τ3 = R3C3
This model function contains seven parameters, and we can identify RS with the serial resistance, R1, R2, and R3 with chemical transfer resistances; with the corresponding capacitances C1, C2, and C3. The values of the by now (7 + 3) variables (including the time constants) can be found by matching measured data against Eq (9) on-line. One plot of all data vs. time (or about pore depth) is shown in Figure 27.
The time dependence of the 11 parameters as shown in Figure 27 exhibits three characteristic points ti in time, which are marked with dotted lines in Figure 27. At t1 the slopes of the three resistances get drastically smaller, and extreme values for the time constants τ2 and τ3 are found. The time t1 at roughly 20 min coincides well with the time (= depth) where pores growing upwards are first observed.
The most significant time t3 in this context is reached after about 180 minutes. From t3 on most of the curves do not change significantly anymore and thus stay constant. This indicates that pore growth has reached a steady state, i.e., the pore structure is qualitatively the same between the pore tips and the top layer of highest density. The slight linear increase of RS is in good agreement with these results, since in a steady-state of pore growth only dpore changes, and thus the linear change in RS can be attributed to the linearly increasing ohmic losses. Without going into details (cf. [136,154] for this), this is in good agreement with the ex-situ results [cf. Figure 25(a)] for one example for etching times larger than 200 min.
Figure 27. Time dependence of the fitting parameters contained in Equation (9) and the voltage U(t). The time constants τi result as the product of the respective resistance Ri and capacitance Ci.
Figure 27. Time dependence of the fitting parameters contained in Equation (9) and the voltage U(t). The time constants τi result as the product of the respective resistance Ri and capacitance Ci.
Materials 03 03006 g027
A third transition time t2 occurring after roughly 80 min is clearly visible in the curves R3, R1, and τ1. It is obvious that after a certain pore density has been reached, the upward growing pores must grow into regions where many pores are already growing downwards. These pores thus will have to stop growing, as e.g., shown for GaAs as well [14,58]. The time t2 could well be related to this process, i.e., it indicates a time when a significant number of upward growing pores stop, thus paving the path to steady state.
A similar approach with n-InP-macro(curro) showed that a different equivalent circuit, as presented in Figure 26(b), was needed to match the measured impedance results. The impedance of the equivalent circuit shown in Figure 26(b) and the time constants going with it are:
Z ( ω ) = R S + R 1 1 + i ω τ 1 R 2 1 + ( 1 + i ) ω τ 2 + R 3 1 + i ω τ 3
τ1 = R1C1, τ2 = R22/2σ2, and τ3 = R3C3
This model corresponds to an equivalent circuit consisting of a serial resistance RS in series with two time constants τ1 and τ3, in series with a Warburg impedance in parallel to a resistor, characterized by the parameters τ2 and σ, in parallel to the resistance R2. R1, R2, and R3 describe the respective transfer resistances. Different models with 7 or less fit parameters have been tried as well, but yielded only unsatisfactory results, thus lending credibility to the applied fitting model.

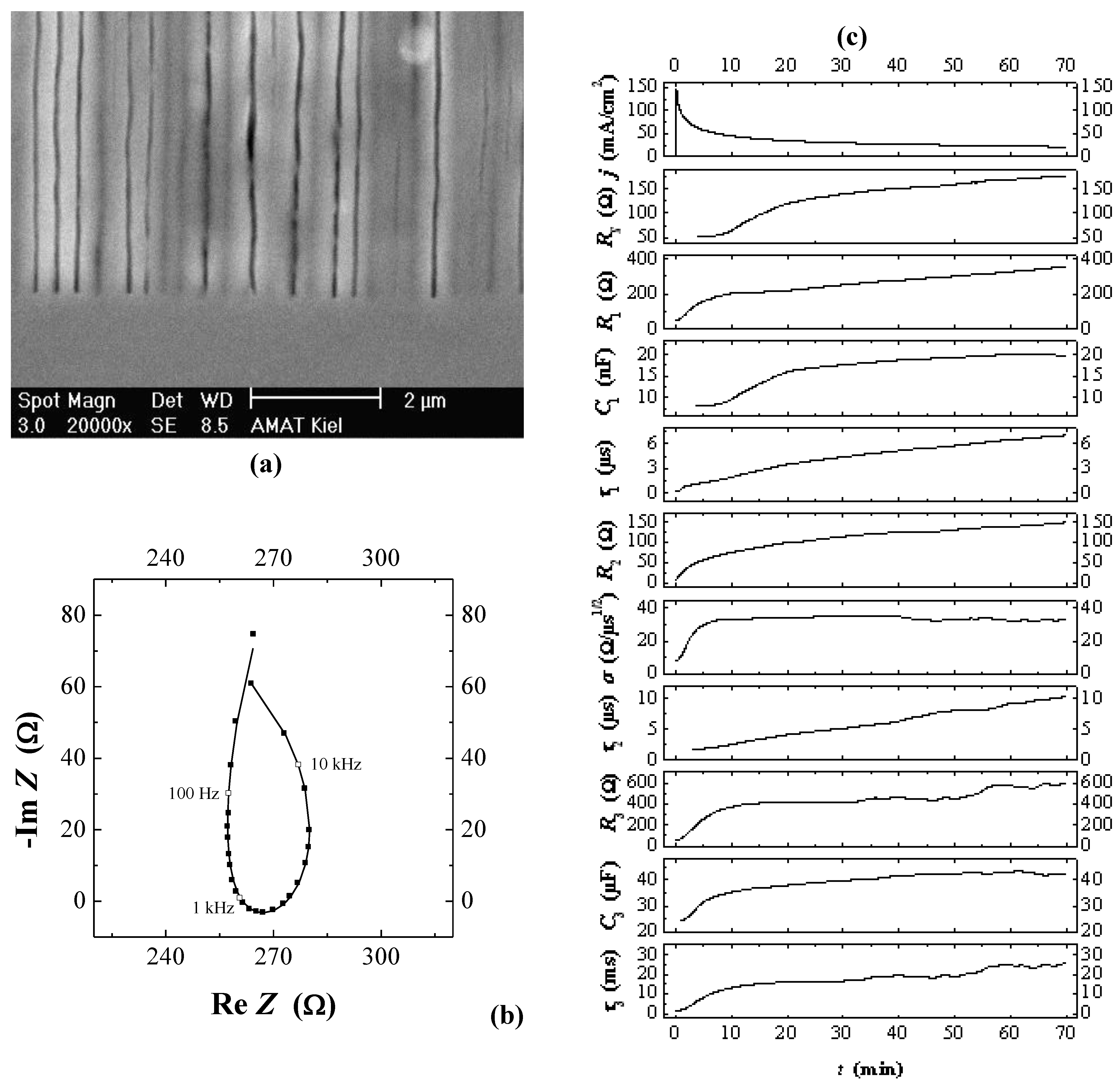

Figure 28. (a) Curro pores in (100) n-type InP, ND = 1 × 1017 cm-3. (b) A typical Nyquist plot of the impedance spectrum recorded during curro pore etching (dots: measured data, line: fit according to Equation (11)); frequency range 100 Hz–30 kHz (increasing counter-clockwise), and (c) the resulting time dependence of the fit parameters.
Figure 28. (a) Curro pores in (100) n-type InP, ND = 1 × 1017 cm-3. (b) A typical Nyquist plot of the impedance spectrum recorded during curro pore etching (dots: measured data, line: fit according to Equation (11)); frequency range 100 Hz–30 kHz (increasing counter-clockwise), and (c) the resulting time dependence of the fit parameters.
Materials 03 03006 g028
Since the impedance measurements have been performed in situ during the pore growth every 1.5 seconds, the aforementioned fitting parameters can be plotted as a function of time. The resulting curves are shown in Figure 28(c) for a 70 min curro pore etching experiment, together with an SEM cross section of the pores produced [Figure 28(a)], and one Nyquist plot of a measured impedance spectrum together with the fitting curve [Figure 28(b)].
As before for the Si case and the InP crysto pores, a number of new and far-reaching conclusions can be drawn from the curves in Figure 28. We will, however, not subject the reader to a necessarily quite lengthy discussion of what exactly the measured data imply but refer to [153] and forthcoming publications in this context. Instead, we present recent new data and extension of our model.
Figure 29(a-c) show n-InP-macro ({100}, curro, potentiost.) pores for three different doping concentrations ND etched under potentiostatic conditions. For each doping concentration exists a rather broad window of etching potentials in which “good quality” curro pores can be grown, i.e., rather straight pores with smooth walls growing self-ordered in a hexagonal lattice, as described in [119] and shown in Figure 7(a). The aforementioned potential ranges have been estimated to be 6 V to 8 V for ND = 1 × 1017 cm-3, 4 V to 7 V for ND = 3 × 1017 cm-3, and 2 V to 4 V for ND = 3 × 1018 cm-3. In these potential windows, the pore morphology does not change significantly, i.e., pore diameter and pore wall thickness stay constant. A comparison of the pore morphology for the different doping concentrations yields an additional and surprising result: the pore diameter is not dependent on the doping concentration, as one would expect from results for n-Si-macro/meso(breakdown) pores given in [2,19]. Only the pore wall thickness changes as expected, since it is generally accepted that this value corresponds roughly to twice the thickness of the space charge region dSCR, which is proportional to ND-0.5.
Figure 29(d) shows the product of the etching current I and the sum of the two transfer resistances R1 and R2, which have been measured by FFT IS. Different colors indicate the different doping concentration, and individual curves for one color represent the different etching potentials used inside the respective “potential window” given above. The product I(R1 + R2) has the dimension of a voltage [V] with rather similar values for all external potentials within the respective potential windows. Its value also hardly changes with time after the nucleation phase has been finished, and it depends (only) on the doping concentration.
In our model this voltage value has been interpreted as the internal potential Uint = I(R1 + R2) that drops in the space charge region (SCR) of the semiconductor electrode, where R1 and C1 represent the SCR transfer resistance and capacitance, respectively. R2 is then an additional resistance that describes the frequency dependence of the avalanche breakdown process, which is the commonly accepted hole generating process during pore etching. It is noteworthy that Uint defined in this way is different from the externally applied potential minus the ohmic losses as expressed in Equation (4) (it is considerably smaller) and that it can be used to obtain more information. In particular, based on this interpretation of the FFT IS data, it was possible to compare data measured by FFT IS with theoretically calculated values for three quantities:
1)
With the potential Uint the thickness of the space charge region dSCR can be calculated for the specific pore front geometry encountered (cf. [156]). The resulting values match the measured values (half of the pore wall thickness) very well.
2)
With the potential Uint the capacitance of the space charge region CSCR can be calculated for the specific pore front geometry encountered assuming semi-spherical pore tips. The result matches well with the values for C1 as directly measured by FFT IS; this is illustrated in Figure 29(e). The somewhat higher values of the calculation for higher doping concentrations might be caused by significant deviations of the pore tip shape from an ideal semi-sphere. This changes the active area and thus C1.
3)
With the potential Uint the breakdown field strength of the avalanche process can be calculated, again with the same geometrical considerations as for C1. A comparison with theoretical values [157] for solid pn-junctions shows that the values obtained in this work are somewhat smaller as one would expect and show the correct dependence on the doping concentration ND.

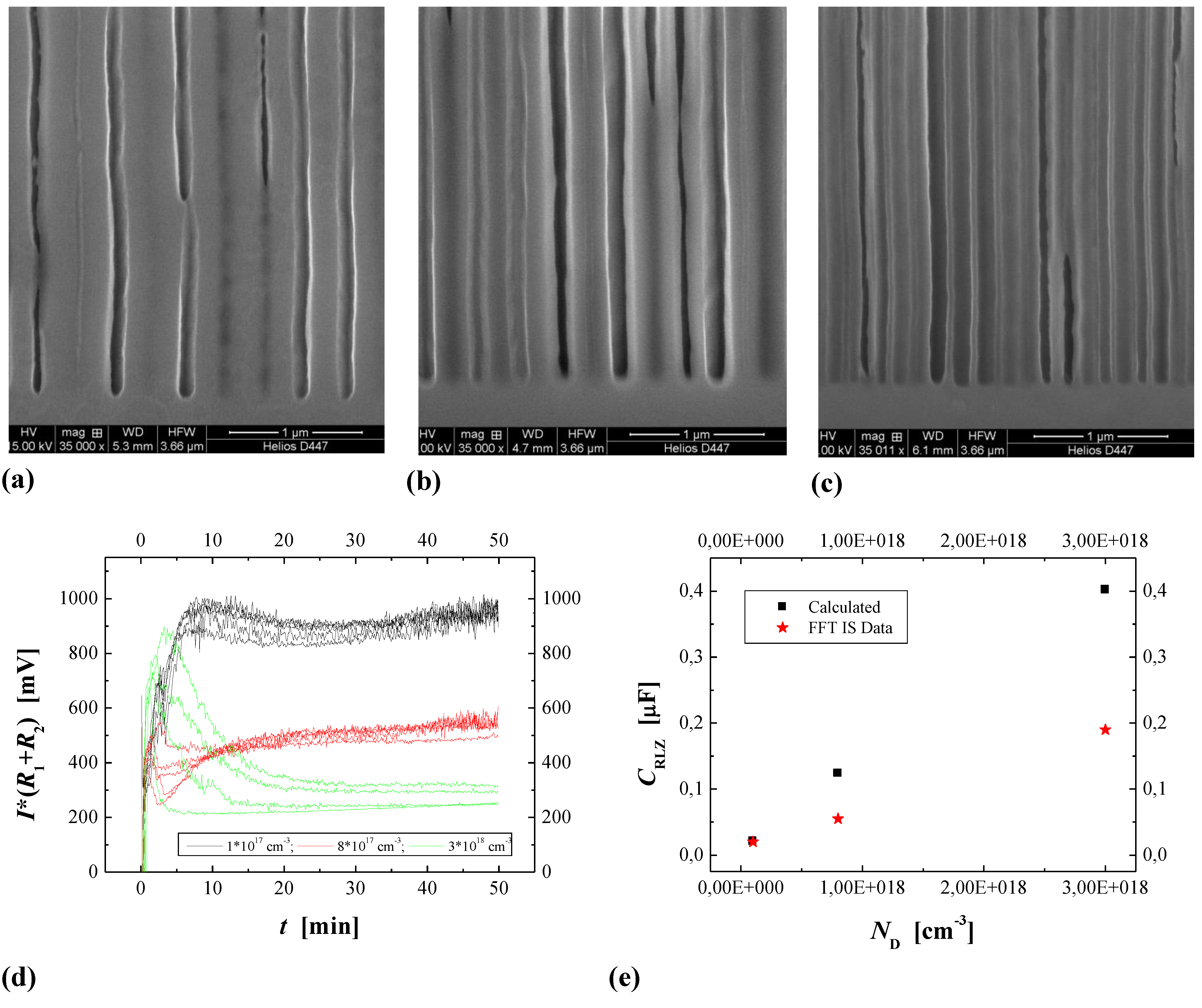

Figure 29. Curro pores etched in (100) n-type InP with different doping concentrations: (a) ND = 1 × 1017 cm-3, (b) ND = 8 × 1017 cm-3, and (c) ND = 3 × 1018 cm-3. (d) Product of the current I and the sum of the two transfer resistances R1 and R2. Different curves for each doping concentration represent differing etching potentials. For details see text. (e) Space charge capacitance, as calculated from theory (black boxes) and measured by FFT IS (red stars).
Figure 29. Curro pores etched in (100) n-type InP with different doping concentrations: (a) ND = 1 × 1017 cm-3, (b) ND = 8 × 1017 cm-3, and (c) ND = 3 × 1018 cm-3. (d) Product of the current I and the sum of the two transfer resistances R1 and R2. Different curves for each doping concentration represent differing etching potentials. For details see text. (e) Space charge capacitance, as calculated from theory (black boxes) and measured by FFT IS (red stars).
Materials 03 03006 g029
The model also allows for a simple physical interpretation of the negative resistance R2 [the “inductive” loop in Figure 28(b)]. It represents the impedance of the avalanche breakdown mechanism, which is known from theory (cf. e.g., [128]) to show negative impedance since its IV characteristics contain parts with a negative slope and thus a negative differential resistance.
Our model thus allows for the in situ extraction of several essential etching parameters, like the internal potential present at the interface, the breakdown field strength of the avalanche process, or the capacitance of the SCR. These parameters are either not accessible by ex-situ measurements, or the measured parameters do not reflect the situation which is present during pore etching (= current flow = non-equilibrium) and are therefore not relevant. Since the model is rather recent, future work should yield further insight into the details of the pore etching mechanism for curro (and crysto) pores. In particular, experiments at the edge of the “potential window” suitable for pore etching should yield results on why pore growth becomes unstable or even impossible.

4.3.2. Crysto and Curro Pores in GaAs

So far only crysto pores have been observed in GaAs [14]. This can be understood to some degree if one assumes that the surface passivation of GaAs is very pronounced, cf. [14]. In the context of the generalized pore formation model championed here, some predictions with respect to GaAs pores can be made: first, it should be possible to induce curro pores in GaAs, if the conditions are right. Second, the model presented above for InP including the FFT IS data, should also be applicable to the GaAs case, if the differing passivation behavior is taken into account. Very recent results reported here for the first time seem to indicate that both predictions are true. Experiments were performed in standard equipment as described before or in [14], the specimen used were {100} n-GaAs, Te doped, doping levels ranging from (2-3) × 1015 cm-3 to (4–11) × 1017 cm-3.
The “right conditions” alluded to above include foremost rather homogeneous pore growth - and this is difficult to achieve in GaAs. If pore growth is not homogeneous (for example, if just a few big pores are formed instead of many uniformly distributed ones), neither a typical pore structure can be deduced from ex-situ SEM pictures, nor is it possible to evaluate FFT IS data (cf. [28]). Uniform pore distributions are obtained if one or both of the following criteria is met: i) The initial nucleation is uniform with a density matched to the typical pore geometry; ii) Non-uniformly nucleated pores branch rapidly and repeatedly, leading to a uniform distribution some µm below the original surface (cf. Figure 30b) for example). GaAs normally does not meet both criteria. Initial nucleation is a complex and tortuous process [49], and branching of pores is rather rare, because of the strong passivation. Nevertheless, rather homogeneous nucleation could be achieved now by a mix of measures reminiscent of what has been reported in the case of Ge [52], and progress beyond the known state-of-the-art was possible.
First, curro pores as shown in Figure 30(a) have been observed for the first time. Uniform crysto pore growth is a prerequisite for that; Figure 30(b) shows an example of the uniformity achieved at present. Note that some older GaAs pictures appear to show more uniform pores (e.g., in Figure 3), but these pictures showed only a small part of the specimen while Figure 30(b) is representative of the whole sample.

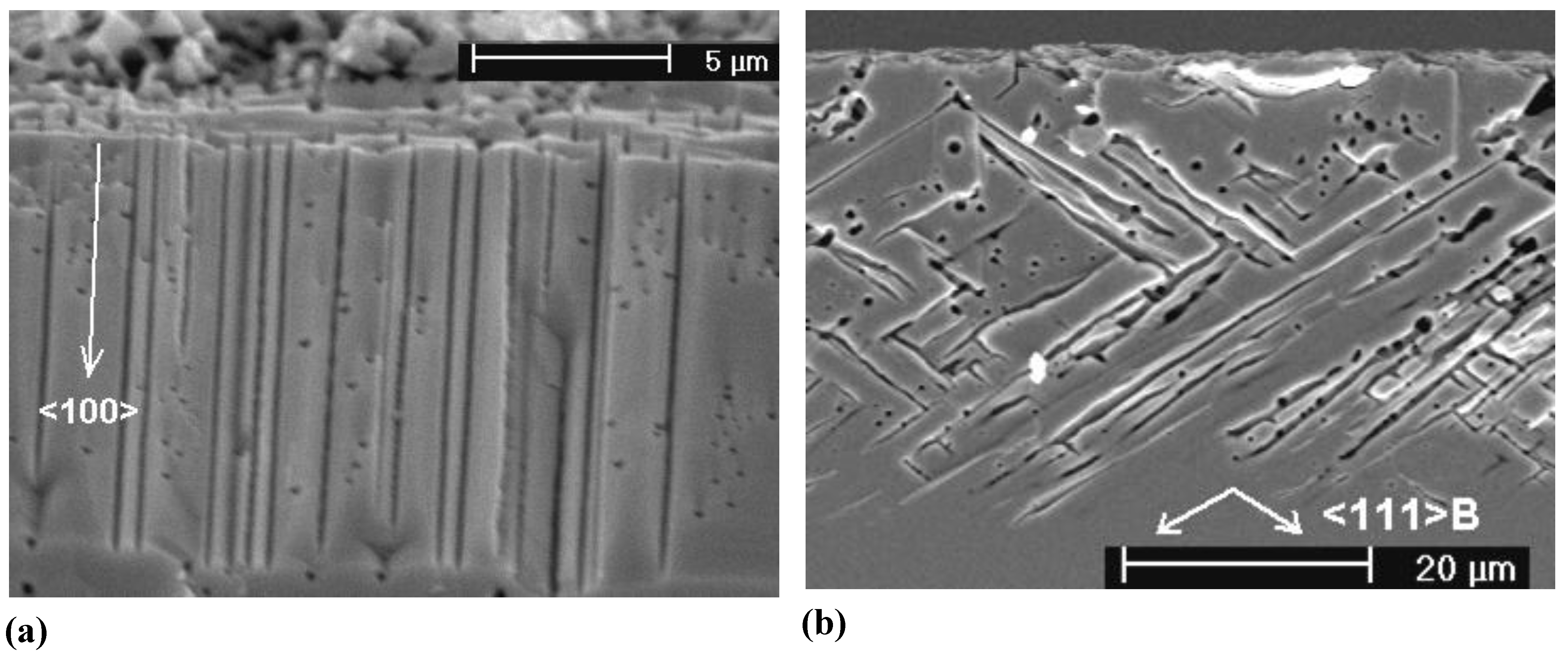

Figure 30. Pores in GaAs. a) First curro pores. b) Relatively uniform distribution of crysto pores.
Figure 30. Pores in GaAs. a) First curro pores. b) Relatively uniform distribution of crysto pores.
Materials 03 03006 g030
First valid FFT IS spectra were obtained for crysto pores. First evaluations were consistent with the approach taken for InP, provided that the branching probabilities are quite smaller than those used for modeling pore growth in InP (see above), but we will not belabor this point here. Of direct interest are the quantitative data shown in Figure 31. A plot of the crysto pore density vs. pore depth in Figure 31(a) shows strong oscillations, as expected from the InP model [136,154]. Since these oscillations mirror nucleation conditions, it is not surprising that they are more pronounced in GaAs than in InP. For the first time some data for the correlation between crysto pore diameters and doping has been measured; the result is shown in Figure 31(b). The diameters decrease with increasing doping as expected for crysto pores. Note that for curro pores this is different as outlined above.

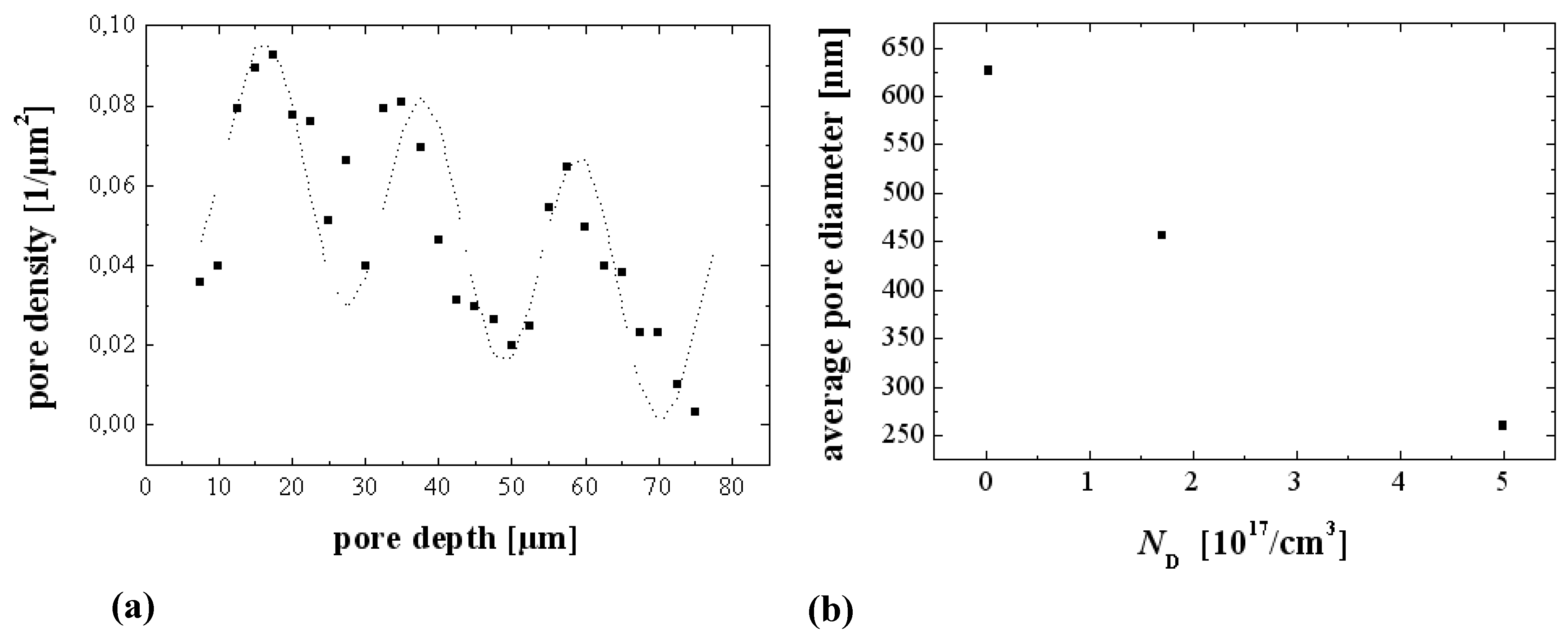

Figure 31. Some quantitative data with respect to GaAs crysto pores. a) Pore density as a function of pore depth for a doping level of ND = (2-3) × 1015 cm-3. The line is not a fit but only to guide the eye. b) Average pore diameter as function of the doping density ND of the n-type GaAs samples.
Figure 31. Some quantitative data with respect to GaAs crysto pores. a) Pore density as a function of pore depth for a doping level of ND = (2-3) × 1015 cm-3. The line is not a fit but only to guide the eye. b) Average pore diameter as function of the doping density ND of the n-type GaAs samples.
Materials 03 03006 g031
Far more details could be reported, but the point is made once more. Some “meta” principles are indeed involved in pore formation that transcends the detailed and specific chemistry of dissolution.

5. Some Applications of Porous Semiconductors

5.1. General Remarks

The electrochemistry of Si, while fascinating enough from a basic science point of view, rarely was studied without some kind of application in mind. Even before the advent of luminescent microporous layers [27,67,68,129,158] and deep n,p-Si-macropores [66,159] some applications were proposed or even investigated in detail. For example, the "FIPOS" process (short for "full isolation by oxidized porous silicon" (cf. [160]), exploited the selective formation of microporous Si in p-type material and its quick oxidation for microelectronic device purposes. Selective anodic etching of crystal lattice defects in early multi-crystalline Si sheets intended for use in solar cells around 1980 [161,162] could differentiate between docile and harmful defects. Based on this, one of the authors (hf) together with the late V. Lehmann [163] used Si electrochemistry to characterize early solar Si samples, which lead not only to the discovery of n-Si-macro(bsi, aqu, litho) pores [66] but also to the “ELYMAT” (short for ELectrolYtical MetAl Tracer) technique [164,165,166]. The ELYMAT exploits the specific properties of Si-electrolyte junctions for mapping the minority carrier lifetime in Si wafers; its development culminated in a successfully marketed piece of equipment capable of producing lifetime maps of Si wafers.
Several thousand publications concerning porous Si have been published since 1990, and many of these papers mention some applications or describe it in considerable detail. Just sorting out the major product lines envisioned would go far beyond the scope of this review, and it is impossible to go into the sometimes quite involved details of some specific applications. Instead, only a brief and somewhat subjective overview of some general developments will be given, followed by a somewhat more detailed description of very recent (and not yet fully published) new developments in the environment of the authors.
There are several reviews and books emphasizing application of porous Si [2,13,112,167,168], in [11,169,170,171,172,33] mostly optical applications of porous Si are covered. Whereas in [173,174] the topic “photonic crystals” is prominent or, somewhat simplified, light propagation perpendicular to pores in a specific array, in the most recent additions to this topic many modes of light propagation mostly in the pore direction are covered in detail in [11,33,167].
The reader who is not too familiar with porous semiconductors should be aware of some not immediately obvious issues in the context of applications:
i)
There are many potential applications where it does not matter that the porous material is actually a semiconductor. In other words, there are many applications outside the typical semiconductor domains of electronics and optics or optoelectronics.
ii)
Practically all applications discussed so far use porous Si. Microporous Ge might find applications [30,175] but so far very little has been proposed with respect to applications of porous III-V’s [176,177].
iii)
Some proposed applications, while perfectly viable, are rather impractical. For example, mono crystalline or multi crystalline Si solar cells come off the production line at a rate of about 1 (large) solar cell per second, leaving 1 second time for a single wafer process like pore etching. Producing many wafers in parallel would of course solve this problem but likely at prohibitive costs. Envisioning standard pore etching for some solar cell processes as proposed, e.g., in [178,179], is simply not practical. This is not to say that electrochemical processing is never useful in solar cell production; there are, in fact, considerable efforts under way to use a so-called layer transfer process involving (quick) pore etching for the production of cheap but highly efficient solar cells [180], but simply to say that economic or cost considerations cannot be neglected if one has a commercial product in mind.
While we refer the reader once more to the literature already given for a somewhat more complete overview of applications, we will finish this sub-section with a short list of particular non-obvious old and new applications of porous semiconductors, together with some promising new properties and ideas for using them. This list is subjective and somewhat biased with respect to the interests of the authors and neither comprehensive nor complete.
1)
High explosives from mesoporous Si. Two laboratories “discovered” the explosive properties of micro/mesoporous Si containing an oxidizing specimen more or less by accident (and fortunately without injuries to persons) cf. [181,182]. The mechanism is clear. The reaction Si + O2 ➔ SiO2 generates substantially more energy per kg than the explosion of TNT, and in a structure where a large percentage of all Si atoms are surface atoms the reaction can proceed rather fast. A sizeable project was undertaken to use “explosive Si” as a fuse for setting off airbags in cars [183], since it proceeds so fast that considerably more (valuable) time is available to process the sensory information, that might lead to an air bag deployment. The project did succeed in making a very reliable and easy-to-produce high explosive (we do not give the recipe for obvious reasons) but did not yet mature to production. There are also other efforts to use this effect [184]. This example provides perhaps the least intuitive application of porous Si and serves to illustrate that applications of porous Si may go far beyond the confines of traditional semiconductor uses.
2)
Filters that pass X-rays in the direction perpendicular to the filter axis but not at some inclination (collimators) have been produced by filling n-Si-macro(bsi, lith, aqu) pores with Pb [185]. Filters like that are very useful for medical X-ray applications, in particular if soft tissue is to be investigated, e.g., in mammography. Working filters have been demonstrated, but no production has yet been started. We mention this old example, because it provides the by far easiest and possibly oldest technique for filling Si pores with a metal: just “dip” the porous substrate in the molten metal! Figure 32 gives an illustration. Note that other uses of porous Si for X-ray imaging are also possible by filling pores with a scintillator material [186,187].
3)
In non-cubic single crystals the index of refraction is not a single number but a tensor, producing effects like birefringence [188]. Presently, advanced optics (including non-linear optics) exploiting this anisotropy must rely on what nature provides in the form of natural or laboratory-grown crystals. The effects are thus limited to “naturally occurring” numerical values of the tensor components and tensor symmetries that are always tied to the crystal symmetry. Pores in crystals break the symmetry. For example, cubic semiconductors like GaAs that contain several sets of pores [e.g., crysto pores in a {100} crystal that run along two <111> directions; cf. Figure 3, Figure 30(b), and Figure 25(a)], have a non-cubic symmetry from the viewpoint of light with a wavelength far smaller than the pore geometry. If crystals with an asymmetric pore set are produced, e.g., by cutting the specimen with an orientation somewhat off {100}, more symmetry breaking occurs and optical tensors not possible in any bulk crystals result [11]. The effect is beyond doubt, but needs yet to be demonstrated. Moreover, porous III-V crystals like GaP (and possibly also II-VI crystals) may also have very unusual non-linear properties as demonstrated in [176,177] for porous GaP, where a more than 100 fold increase of the second harmonic production was observed. This example serves to point out that so-called meta-materials can be made with porous semiconductors having properties that are so unusual that it is not surprising that they have not yet been exploited.

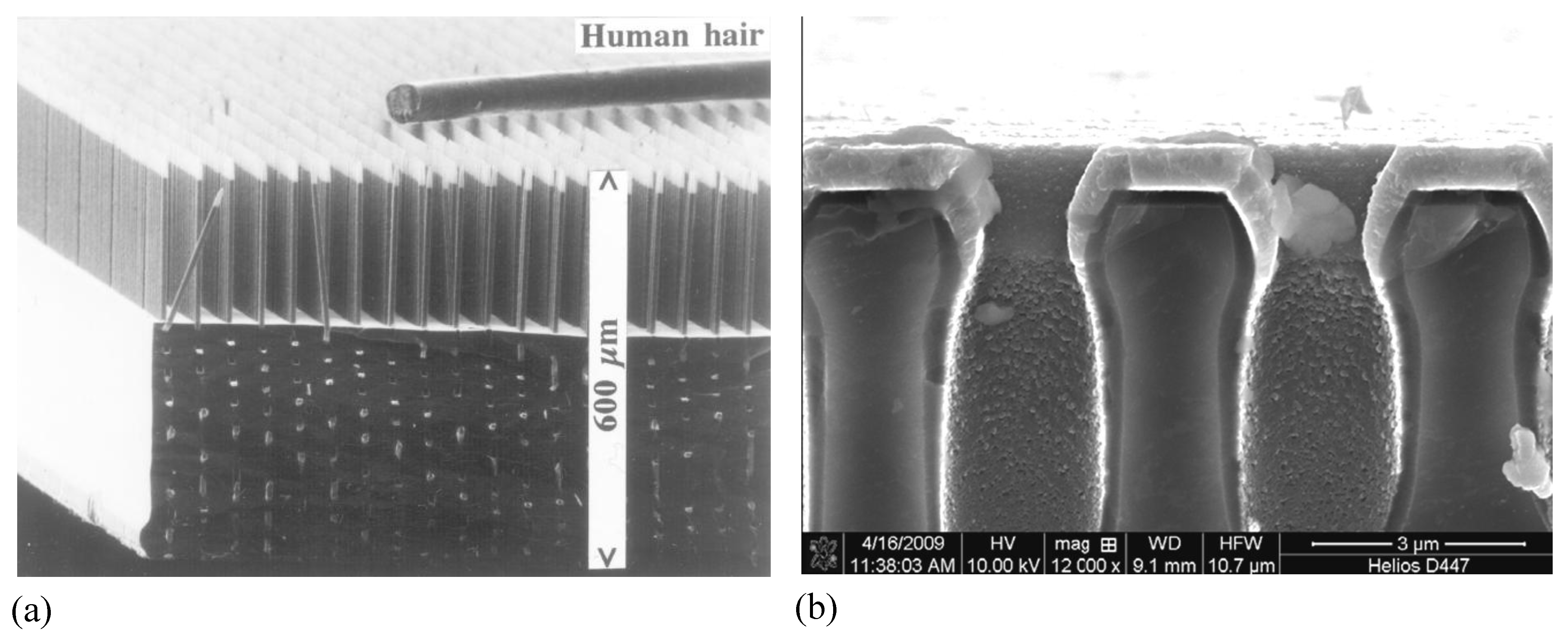

Figure 32. (a) Part of a 150 mm diameter X-ray filter with partially etched back Si, exposing the Pb needles filling the n-Si-macro(bsi, aqu, litho) pores [185]. (b) n-Si-macro (bsi, aqu viscous, litho) pores coated with TiO2 intended to be used as an UV switchable membrane for biological filtering.
Figure 32. (a) Part of a 150 mm diameter X-ray filter with partially etched back Si, exposing the Pb needles filling the n-Si-macro(bsi, aqu, litho) pores [185]. (b) n-Si-macro (bsi, aqu viscous, litho) pores coated with TiO2 intended to be used as an UV switchable membrane for biological filtering.
Materials 03 03006 g032
4)
Porous semiconductors (like other porous materials) lose whatever thermal conductivity they have, as soon as the distance between pores approaches the mean free path length of phonons. Microcrystalline porous Si is an almost perfect thermal insulator as has been demonstrated in [189,190,191]. This effect has been used for unusual kinds of loudspeakers [192] and may find future use for thermoelectric devices converting heat directly to electricity. A figure of merit for such a device is the ratio of thermal conductivity to electrical conductivity and numbers surpassing the present state of the art by a large margin should be possible with porous semiconductors. Efforts to exploit this feature are under way [193,194,195].
5)
A membrane made of macroporous Si is a direct mechanical high-precision filter for particle sizes in the µm regime [196,197]. If one can induce the diameter to decrease locally to even smaller values, a sub-µm filter results, cf. [172,198] Figure 33(b). Coating the filter with e.g., TiO2 [cf. Figure 32(b)] adds “bio” possibilities—the filter, for example, “kills” bacteria if exposed to (ultraviolet) light [199]. Filters of this type might even be useful for brewing beer [200].
6)
Biological applications of (micro and meso) porous Si have been pursued for several years by now. Not only is porous Si a very good biocompatible substrate (cell cultures thrive on it, in contrast to bulk Si [201,202,203]), porous Si implants that have been loaded with some drug before they are administered, might provide reliable long-term drug delivery without severe side effects [204,205,206].
7)
Last, it is illuminating to mention the two major porous Si products that actually were on the market some years ago but discontinued at present. First, there was V. Lehmann’s DNA chip, based on n-Si-macro(bsi, aqu, litho) pores [207]. A pilot production was running successfully for several years but could not sustain its just tolerated “niche” status in a major micro-electronics production line. Second, the so-called ELTRAN™ (Epitaxial layer TRANsfer) process from CANON™ [208], also abandoned by now, employed Si mesopores as a “zipper” layer not unlike the layer transfer process for solar cells mentioned above [180].
Considering this list, and keeping in mind that it is far from being complete and that we look back on almost 20 years of intensive porous Si research, the obvious question must now be asked: why are hardly any products out there on the market?
The same questions could have been asked after many years of research into, e.g.,, liquid crystals, organic conductors, or electric cars. While some new discoveries result in products very quickly, it usually takes far more time than envisioned in a first wave of enthusiasm to develop a new product that is not only “working” but can be sold with a profit. A long list of problems encountered in moving porous semiconductor products from a “proof of principle” in the laboratory to pilot production could be easily compiled but we will only look at two important points in this context:
1)
It seems to be no problem to process a 300 mm Si wafer with breathtaking complexity and precision (the cm2 of a 1 Gb memory chip, for example, sells for < $ 1) but very few people (if any) have anodically etched (deep) pores into Si wafers with the precision and reproducibility required for production. If that feat would be possible at all, the exceedingly large amount of money and time required to do so is simply prohibitive in laboratory work.
2)
The pore etching process (and its in situ control) is still not understood to the extent needed in a production environment. To give an example: what do you have to specify in terms of the carrier life time if you were to etch n-Si-macro(bsi, aqu, litho) pores? It should be large, of course, but how large and with what kind of global tolerances? What is the lateral uniformity needed? If your specification is very tight, are you willing or able to pay the (possible large) additional price for those wafers? What do you have to specify in terms of the carrier life time if you were to etch p-Si-macro(org) pores? There are no data at present about the possible importance in this case. If it would be important, the question is: why?
It appears that at present porous Si is only used commercially as a sacrificial layer (cf. [209] during the production of a MEMS pressure sensor by Bosch), but nothing seems to have been published to that. We are confident, however, that porous Si will, in time, find its way into products and that the insights gained in recent years will be helpful for this.

5.2. Some New Applications

5.2.1. Sensors Exploiting the Piezoelectric Properties of Porous III-V’s

A possible application for porous III-V compounds may come from the fact that they are in fact piezoelectric materials [210,211,212]. However, the deformation induced capacitive charge on the surface is more or less short-circuited by the finite conductivity of the material, and the piezoelectric properties are therefore of little use so far. Porous InP or GaAs, however, will be a rather good insulator and its piezoelectric properties—still those of a single crystal—might be used for applications. One such application may be found in a so-called multi-ferroic sensor for very small magnetic fields [213]. All that needs to be done is to fill the pores with a ferromagnetic material showing magnetostriction, e.g., Ni or “Terfenal” (an Fe—Tb compound). A magnetic field will change the dimension of the ferromagnetic material and the resulting deformation of the piezoelectric material produces a voltage that can be measured. It has been shown that sensors of this kind can detect extremely small magnetic fields and thus could find many possible applications.

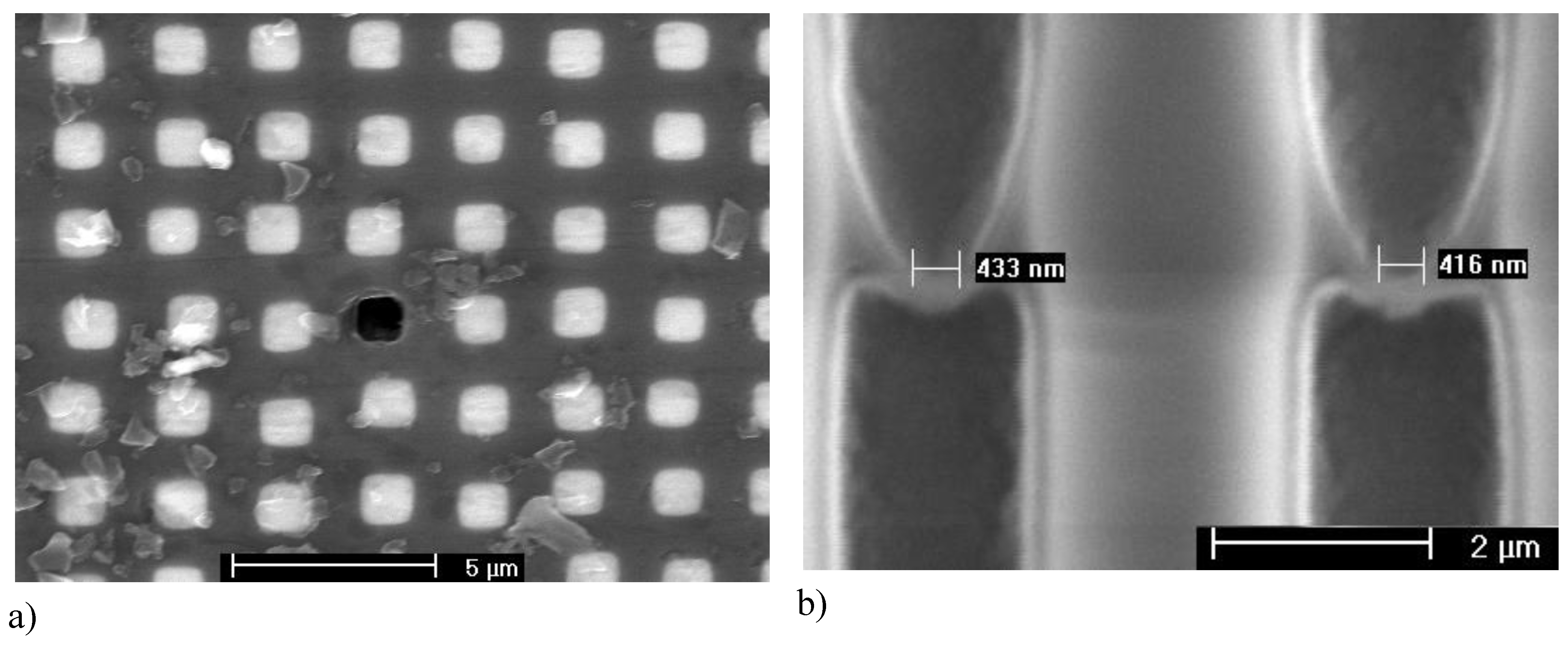

Figure 33. (a) Single hole with large aspect ratio in Si (cf. [220]). (b) n-Si-Macro(bsi, aqu, litho) pores with intentionally produced local constriction intended for filter usage.
Figure 33. (a) Single hole with large aspect ratio in Si (cf. [220]). (b) n-Si-Macro(bsi, aqu, litho) pores with intentionally produced local constriction intended for filter usage.
Materials 03 03006 g033

5.2.2. Single Holes with Large Aspect Ratios

In several branches of research, single holes with small diameters in the nm - µm range and large aspect ratios are needed but so far very hard to produce. For example, detailed studies of transport and electrochemical phenomena need holes with nanoscopic dimensions [214,215,216,217], while applications such as single-pore filtration of cells call for pores or holes with well-defined diameters of a few µm. In ref. [218] “patch clamping” is described, meaning the use of single holes with diameters around 1 µm and an aspect ratio of 200 in order to avoid laborious and difficult micromanipulations of a (micro) glass pipette under a microscope. Microfluidic applications [219] would also benefit from single holes or arrays of holes in a defined pattern and that might also be true for some nano-optics and X-ray applications. In [220] a simple way to single hole production with porous Si is described, Figure 33a) shows an example. The production process is simple: produce Si macropores, cover one pore (or some selected pores) somehow (there are many ways to do this), fill the remaining hole galvanically with, e.g., Cu; remove parts of the front and back side until the single hole formed by the unfilled pore is exposed. Single pores with diameters in the 1 µm region and aspect ratios > 100 are made with ease; diameters in the 100 nm region with comparable aspect ratios should be possible.

5.2.3. Anodes for Li Ion Batteries

Applications of the Li ion battery for large-scale energy storage, e.g., for electrical cars, requires substantial improvements of the performance/cost relationship. Improvements are needed for many parameters, here we only consider capacity as measured in Wh/kg and cycle stability, i.e., the number of charge / recharge cycles possible. The capacity is directly related to the amount of Li that can be intercalated in the anode (and cathode).
It has been known for some time that Si offers one of the best weight ratios of 4,200 mAh/g, about a factor of 11 larger than for state-of-the art graphite anodes [221]. However, upon driving Li into Si, various phases like Li12Si7, Li7Si3, Li13Si4, and Li22Si5 form with a concomitant volume change of about a factor of 4 for full loading. This invariably leads to mechanical stresses large enough to fracture bulk Si into powder after the first few cycles of charging / discharging.
In [222] it was shown that Si nanowires, while doubling their diameter during the intercalation of Li, do not fracture, and that some random arrangement of nanowires with some diameter distribution centered around 89 nm can withstand more than 10 charging/discharging cycles without significant loss of capacity. Here it will be shown that using pore etching as a decisive first step can make Si nanowire anodes with superior properties.
Optimized Si nanowire anodes were made in three basic steps: 1) Electrochemical etching of p-Si-macro(litho, aqu/ethanol) pores in an optimized (lithographically determined) arrangement. 2) Uniform chemical etching of the macroporous substrate in order to increase the pore diameters to a point where the pores touch each other, resulting in nanowires. 3) Galvanic deposition of Cu onto the substrate; encasing the nanowires into Cu. This is the critical process, since it decouples the Si substrate below the nanowires from the battery and provides for efficient current extraction. Without the Cu layer, Li would also be incorporated into the bulk Si, leading to fracture and disintegration of the anode. Figure 34(a,b) illustrate these points; some details can be found in [223].
Tests are still running but more than 60 cycles have been realized without loss of capacity. The process sequence is rather simple and there are good reasons to assume that the cost of a 100 cm2 processed anode is in the same region as that of a solar cell, i.e., approaching a few €, sufficiently low to make the anode commercially viable, too.

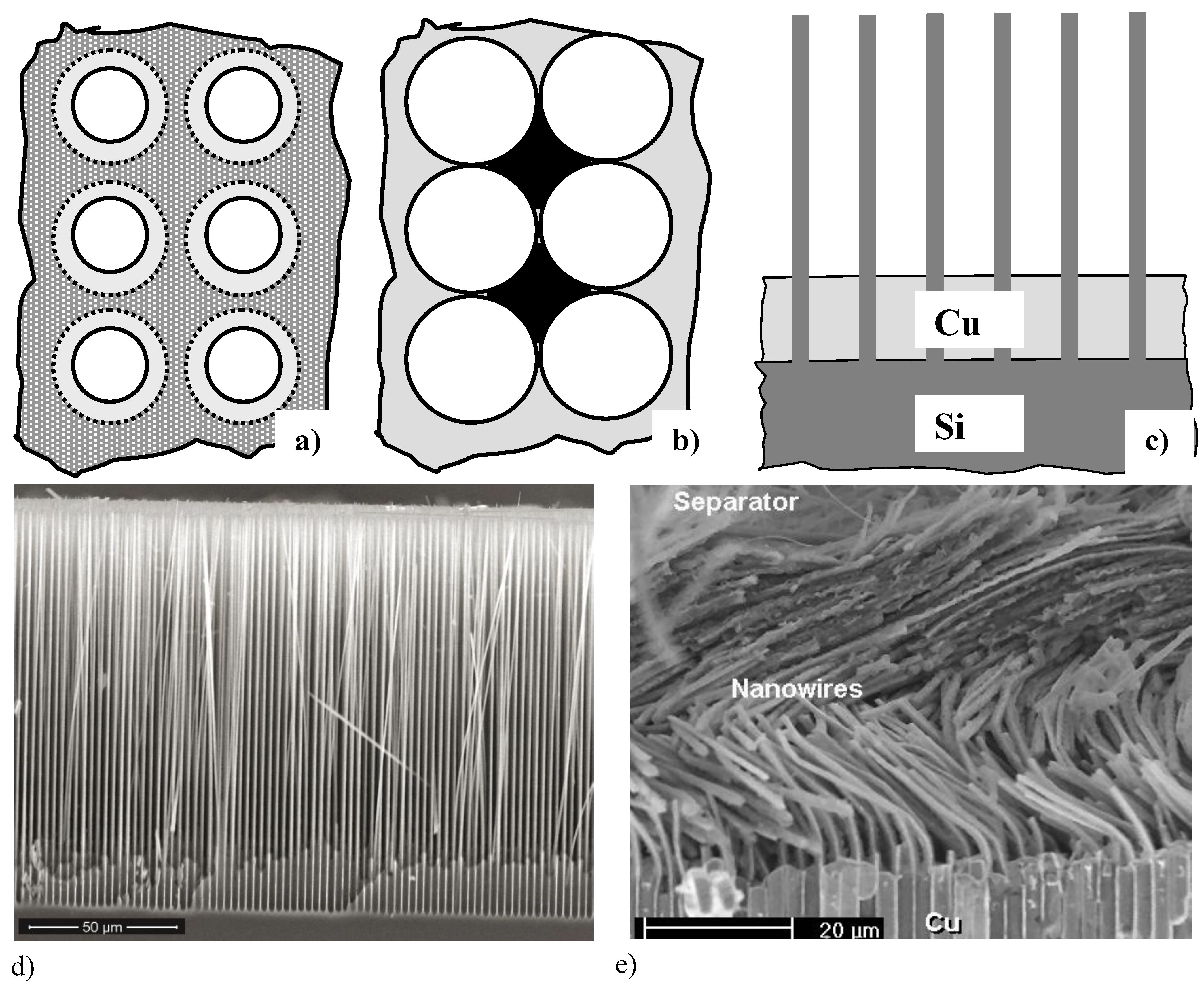

Figure 34. (a-c) Schematic process sequence for Cu stabilized Si nanowire anode. (d) Resulting nanowires in cross-section. (e) Anode after loading with Li and several cycles. Note that the occasional fracture of the nanowires was caused by specimen preparation.
Figure 34. (a-c) Schematic process sequence for Cu stabilized Si nanowire anode. (d) Resulting nanowires in cross-section. (e) Anode after loading with Li and several cycles. Note that the occasional fracture of the nanowires was caused by specimen preparation.
Materials 03 03006 g034

6. Summary and Conclusions

Porous semiconductors will provide a difficult yet fascinating object for research and development for many years to come. It is rather safe to say that not all manifestations of pores in semiconductors have yet been discovered and that included the well investigated case of Si and not just the more exotic semiconductors like the II-VI materials. It has been shown that many if not all pore structures are found in the intersection of electrochemistry, chemistry, semiconductor physics and the physics of critical phenomena (described by the catchwords “synergy” and “chaos”). This makes the in-depth study of porous semiconductors an interdisciplinary enterprise digging deeply into very basic research issues. On the other extreme, porous semiconductors have many potential uses that can be pursued on an empirical base without a full understanding of the intricacies of pore generation.
Evidence was provided that pore formation includes an intrinsic stochastic component. The current burst model of the authors provides that component and is sufficient to explain some of the features observed. However, more than that is needed to understand pore formation as outlined in the context of pore growth mode transitions.
A strong case was made that deeper insights into the anodic formation process of pores requires in situ characterization techniques and in situ multi-mode FFT impedance spectroscopy (IS) was introduced as the method of choice. IS is always an indirect method in need of a model-based interpretation and it has been shown that fully quantitative in situ data could be obtained for cases where a good model already exists. In situ FFT IS, however, is still a useful tool in cases where models must yet be established and it can be predicted with confidence that it will be instrumental for many insights in the immediate future.
Porous semiconductors have not yet produced much revenue in the form of novel products despite large efforts into product development. The authors are confident, however, that novel devices will emerge and make money in due time. Several examples were given and it can be conjectured that work is also being done right now for applications not covered in this review.

Acknowledgements

This review was based on the work of many persons in the Kiel group and thanks go to F. Cheng, M. Christophersen, E. Foca, S. Frey, M.-D. Gerngroß, G. Hasse, V. Kochergin, S. Langa, E. Ossei-Wusu, Silke Rönnebeck, and P. Schauer who contributed to much of the work reported here. The technical and administrative support of J. Bahr, K. Brandenburg is greatly appreciated. G. Popkirov was instrumental in developing the FFT IS system.
Special thanks go to I. Tiginyanu for a long and fruitful cooperation and to P. Schmuki for allowing us to use some of his results. The cooperation with R. Adelung is gratefully acknowledged.
Some of the more recent results are based on the work of students. We thank H. Hartz for the work with respect to Si nanowires and D. Dorow-Gerspach for the new result with respect to pore etching in GaAs and M. Keshavarz Hedayati for results concerning pores coated with TiO2.
Some of our work contained in this paper was supported by the DFG, the Humboldt Foundation and the BMBF.

References and Notes\reflist

  1. Zhang, X.G. Electrochemistry of Silicon and Its Oxide; Kluwer Academic-Plenum Publishers: New York, NY, USA, 2001. [Google Scholar]
  2. Lehmann, V. Electrochemistry of Silicon; Wiley-VCH: Weinheim, Germany, 2002. [Google Scholar]
  3. Canham, L.T. (Ed.) Proceedings of the 2nd International Conference on Porous Semiconductors-Science and Technology, Madrid, Spain, 12–17 March 2000. Phys. Stat. Sol. (a) 2000, 182.
  4. Canham, L.T.; Nassiopoulou, A.; Parkhutik, V. (Eds.) Proceedings of 3rd International Conference, Porous Semiconductors - Science and Technology, Tenerife, Spain, 10-15 March 2002. Phys. Stat. Sol. (a) 2003, 197.
  5. Canham, L.T.; Nassiopoulou, A.; Parkhutik, V. (Eds.) Proceedings of 4th International Conference, Porous Semiconductors - Science and Technology, Valencia, Spain, 14-19 March 2004. Phys. Stat. Sol. (a) 2005, 202.
  6. Parkhutik, V.; Nassiopoulou, A.; Sailor, M.; Canham, L.T. (Eds.) Proceedings of 5th International Conference, Porous Semiconductors - Science and Technology, Sitges, Spain, 12-17 March 2006. Phys. Stat. Sol. (a) 2007, 204.
  7. Nassiopoulou, A.; Sailor, M.; Canham, L.; Schmuki, P. (Eds.) Proceedings of 6th International Conference, Porous Semiconductors - Science and Technology, Sa Coma, Mallorca, Spain, 10-14 March 2008. Phys. Stat. Sol. (a) 2009, 206.
  8. Chou, L.; Buckley, D.; Chang, P.; Etcheberry, A.; O'Dwyer, C.; Overberg, M.; Yoshimoto, M. (Eds.) State-of-the-art program on compound semiconductors 46 (SOTAPOCS 46) and processes at the semiconductor/solution interface 2. ECS Trans. 2007, 6. number 2.
  9. Schmuki, P.; Föll, H.; Goesele, U.; Kelly, J.J.; Lockwood, D.J.; Ogata, Y.H. (Eds.) Porous semiconductors: A Symposium Held in Memory of Vitali Parkhutik and Volker Lehmann. ECS Trans. 2008, 25. number 3.
  10. Baca, A.; O'Dwyer, C.; Brown, J.; Buckley, D.; Nam, P.; Etcheberry, A. (Eds.) State-of-the-art program on compound semiconductors 50 (SOTAPOCS 50) and processes at the semiconductor solution interface 3. ECS Trans. 2009, 19. number 3.
  11. Kochergin, V.; Föll, H. Porous Semiconductors: Optical Properties and Applications; Springer: London, UK, 2009. [Google Scholar]
  12. Notten, P.H.L.; van den Meerakker, J.E.A.M.; Kelly, J.J. Etching of III-V Semiconductors: An Electrochemical Approach; Elsevier Science Publishers Ltd.: Oxford, UK, 1991. [Google Scholar]
  13. Föll, H.; Christophersen, M.; Carstensen, J.; Hasse, G. Formation and application of porous silicon. Mat. Sci. Eng. R 2002, 39, 93–141. [Google Scholar] [CrossRef]
  14. Föll, H.; Langa, S.; Carstensen, J.; Lölkes, S.; Christophersen, M.; Tiginyanu, I.M. Review: Pores in III-V Semiconductors. Adv. Mater. 2003, 15, 183–198. [Google Scholar] [CrossRef]
  15. Chazalviel, J.-N.; Ozanam, F. Macropores in p-Type Silicon. In Ordered Porous Nanostructures and Applications; Wehrspohn, R.B., Ed.; Springer: Padeborn, Germany, 2005. [Google Scholar]
  16. Smith, R.L.; Collins, S.D. Porous silicon formation mechanisms. J. Appl. Phys. 1992, 71, R1–R22. [Google Scholar] [CrossRef]
  17. Bisi, O.; Ossicini, S.; Pavesi, L. Porous silicon: a quantum sponge structure for silicon based optoelectronics. Surf. Sci. Rep. 2000, 38, 1–126. [Google Scholar] [CrossRef]
  18. Ossicini, S.; Pavesi, L.; Priolo, F. Light Emitting Silicon for Microphotonics; Springer: Berlin, Germany, 2003. [Google Scholar]
  19. Lehmann, V.; Stengl, S.; Luigart, A. On the morphology and the electrochemical formation mechanism of mesoporous silicon. Mat. Sci. Eng. B 2000, 11, 69–70. [Google Scholar]
  20. Chazalviel, J.-N.; Wehrspohn, R.; Ozanam, F. Electrochemical preparation of porous semiconductors: from phenomenology to understanding. Mat. Sci. Eng. B 2000, 1, 69–70. [Google Scholar]
  21. Barillaro, G.; Bruschi, P.; Diligenti, A.; Nannini, A. Fabrication of regular silicon microstructures by photo-electrochemical etching of silicon. Phys. Stat. Sol. (c) 2005, 2, 3198–3202. [Google Scholar] [CrossRef]
  22. John, G.C.; Singh, V.A. Porous silicon: Theoretical Studies. Phys. Rep. 1995, 263, 93–101. [Google Scholar] [CrossRef]
  23. Langner, A.; Müller, F.; Gösele, U. Macroporous Silicon. In Molecular- and Nano-Tubes; Hayden, O., Nielsch, K., Wang, D., Eds.; Springer: Padeborn, Germany, 2008. [Google Scholar]
  24. Föll, H.; Leisner, M.; Cojocaru, A.; Carstensen, J. Self-organization phenomena at semiconductor electrodes. Electrochim. Acta 2009, 55, 327–339. [Google Scholar] [CrossRef]
  25. Sa´ar, A. Photoluminescence from silicon nanostructures: The Mutual Role of Quantum Confinement and Surface Chemistry. J. Nanophoton. 2009, 3, 032501. [Google Scholar] [CrossRef]
  26. Lharch, M.; Aggour, M.; Chazalviel, J.-N.; Ozanam, F. Anodic dissolution and electrolumin-escence of p-Si at high potentials in fluoride media. J. Electrochem. Soc. 2002, 149, C250–C255. [Google Scholar] [CrossRef]
  27. Cullis, A.G.; Canham, L.T.; Calcott, P.D.J. The structural and luminescence properties of porous silicon. J. Appl. Phys. 1997, 82, 909–966. [Google Scholar] [CrossRef]
  28. Carstensen, J.; Foca, E.; Keipert, S.; Föll, H.; Leisner, M.; Cojocaru, A. New modes of FFT impedance spectroscopy applied to semiconductor pore etching and materials characterization. Phys. Stat. Sol. (a) 2008, 205, 2485–2503. [Google Scholar] [CrossRef]
  29. Wloka, J.; Mueller, K.; Schmuki, P. Pore morphology and self-organization effects during etching of n-type GaP(100) in Bromide Solutions. Electrochem. Solid-State Lett. 2005, 8, B72–B75. [Google Scholar]
  30. Rojas, E.G.; Plagwitz, H.; Terheiden, B.; Hensen, J.; Baur, C.; La Roche, G.; Strobl, G.F.X.; Brendel, R. Mesoporous germanium formation by electrochemical etching. J. Electrochem. Soc. 2009, 156, D310–D313. [Google Scholar] [CrossRef]
  31. Monaico, E.; Tiginyanu, I.M.; Ursaki, V.V.; Saruna, A.; Kuball, M.; Nedeoglo, D.D.; Sirkeli, V.P. Photoluminescence and vibrational properties of nanostructured ZnSe templates. Semicond. Sci. Technol. 2007, 22, 1115–1121. [Google Scholar] [CrossRef]
  32. Irmer, G.; Monaico, E.; Tiginyanu, I.M.; Gärtner, G.; Ursaki, V.V.; Kolibaba, G.V.; Nedeoglo, D.D. Fröhlich vibrational modes in porous ZnSe studied by Raman scattering and Fourier transform infrared reflectance. J. Phys. D: Appl. Phys. 2009, 42, 045405. [Google Scholar]
  33. Sailor, M.J. Porous Silicon in Practice: Preparation, Characterization and Applications; Wiley-VCH: Hoboken, NJ, USA, 2010. [Google Scholar]
  34. Rouquerol, J.; Avnir, D.; Fairbridge, C.W.; Everett, D.H.; Haynes, J.H.; Pernicone, N.; Ramsay, J.D.F.; Sing, K.S.W.; Unger, K.K. Recommendations for the characterization of porous solids. Pure Appl. Chem. 1994, 66, 1739–1758. [Google Scholar]
  35. Christophersen, M.; Carstensen, J.; Feuerhake, A.; Föll, H. Crystal orientation and electrolyte dependence for macropore nucleation and stable growth on p-type Si. Mater. Sci. Eng. B 2000, 69–70, 194–198. [Google Scholar]
  36. Föll, H.; Carstensen, J.; Christophersen, M.; Hasse, G. A new view of silicon electrochemistry. Phys. Stat. Sol. (a) 2000, 182, 7–16. [Google Scholar] [CrossRef]
  37. Christophersen, M.; Carstensen, J.; Föll, H. Crystal orientation dependence of macropore formation in p-type Si using organic electrolytes. Phys. Stat. Sol. (a) 2000, 182, 103–107. [Google Scholar] [CrossRef]
  38. Christophersen, M.; Carstensen, J.; Föll, H. Crystal orientation dependence of macropore formation in n-type Si using organic electrolytes. Phys. Stat. Sol. (a) 2000, 182, 601–606. [Google Scholar] [CrossRef]
  39. Claussen, J.C.; Carstensen, J.; Christophersen, M.; Langa, S.; Föll, H. Self-organized pore formation and open-loop-control in semiconductor etching. Chaos 2003, 13, 217–224. [Google Scholar] [CrossRef]
  40. Carstensen, J.; Christophersen, M.; Lölkes, S.; Ossei-Wusu, E.; Bahr, J.; Langa, S.; Popkirov, G.; Föll, H. Large area etching of porous semiconductors. Phys. Stat. Sol. (c) 2005, 2, 3339–3343. [Google Scholar] [CrossRef]
  41. Shor, J.S.; Grimberg, I.; Weiss, B.-Z.; Kurtz, A.D. Direct observation of porous SiC formed by anodization in HF. Appl. Phys. Lett. 1993, 62, 2836–2837. [Google Scholar] [CrossRef]
  42. Parkhutik, V.P. Self-organization of pores in SiC/Si composite structure. J. Appl. Phys. 1998, 83, 4647–4651. [Google Scholar] [CrossRef]
  43. Zangooie, S.; Woolam, J.A.; Arwin, H. Self-organization in porous 6H-SiC. J. Mater. Res. 2000, 15, 1860–1864. [Google Scholar] [CrossRef]
  44. Zangooie, S.; Arwin, H. Porous Anodic 4H-SiC: Thickness Dependent Anisotropy in Pore Propagation and Ellipsometric Characterization. Phys. Stat. Sol. (a) 2000, 182, 213–221. [Google Scholar] [CrossRef]
  45. Sagar, A.; Lee, C.D.; Feenstra, P.M.; Inoki, C.K.; Kuan, T.S. Morphology and effect of hydrogen etching of porous SiC. J. Appl. Phys. 2002, 92, 4070–4075. [Google Scholar] [CrossRef]
  46. Zhuang, D.; Edgar, J.H. Wet etching of GaN, AlN, and SiC: A Review. Mat. Sci. Eng. 2005, 48, 1–46. [Google Scholar] [CrossRef]
  47. Sagüés, A.A.; Wolan, J.T.; De Fex, A.; Fawcett, T.J. Impedance behavior of nanoporous SiC. Electrochim. Acta 2006, 51, 1656–1663. [Google Scholar] [CrossRef]
  48. Langa, S.; Christophersen, M.; Carstensen, J.; Tiginyanu, I.M.; Föll, H. Electrochemical pore etching in Ge. Phys. Stat. Sol. (a) 2003, 195, R4–R11. [Google Scholar] [CrossRef]
  49. Langa, S.; Carstensen, J.; Christophersen, M.; Steen, K.; Frey, S.; Tiginyanu, I.M.; Föll, H. Uniform and nonuniform nucleation of pores during the anodization of Si, Ge, and III-V Semiconductors. J. Electrochem. Soc. 2005, 152, C525–C531. [Google Scholar] [CrossRef]
  50. Langa, S.; Carstensen, J.; Tiginyanu, I.M.; Föll, H. Nucleation and growth of macro pores on (100) n-type Ge. Phys. Stat. Sol. (c) 2005, 2, 3237–3242. [Google Scholar] [CrossRef]
  51. Cheng, F.; Carstensen, J.; Föll, H. Electrochemical pore etching in Ge. Mater. Sci. Semicond. Process. 2006, 9, 694–700. [Google Scholar] [CrossRef]
  52. Fang, C.; Föll, H.; Carstensen, J. Electrochemical pore etching in germanium. J. Electroanal. Chem. 2006, 589, 259–288. [Google Scholar] [CrossRef]
  53. Fang, C.; Carstensen, J.; Föll, H. Electrochemical pore etching in n- and p-type Ge. Sol. St. Phen. 2007, 121–123, 37–40. [Google Scholar]
  54. Fang, C.; Föll, H.; Carstensen, J.; Langa, S. Electrochemical pore etching in Ge-An overview. Phys. Stat. Sol. (a) 2007, 204, 1292–1296. [Google Scholar] [CrossRef]
  55. Langa, S.; Tiginyanu, I.M.; Carstensen, J.; Christophersen, M.; Föll, H. Formation of porous layers with different morphologies during anodic etching of n-InP. Electrochem. Solid-State Lett. 2000, 3, 514–516. [Google Scholar]
  56. Stevens-Kalceff, M.A.; Tiginyanu, I.M.; Langa, S.; Föll, H. Correlation between morphology and cathodoluminescence in porous GaP. J. Appl. Phys. 2001, 89, 2560–2564. [Google Scholar] [CrossRef]
  57. Stevens-Kalceff, M.A.; Langa, S.; Tiginyanu, I.M.; Carstensen, J.; Christophersen, M.; Föll, H. Comparative SEM and Cathodoluminescence Microanalysis of Porous GaP Structures. In MRS Proceedings Fall Meeting: Microcrystalline and Nanocrystalline Semiconductors, Boston, MA, USA, 26-30 November 2001; Volume 638. Section 5.31.
  58. Langa, S.; Carstensen, J.; Christophersen, M.; Föll, H.; Tiginyanu, I.M. Observation of crossing pores in anodically etched n-GaAs. Appl. Phys. Lett. 2001, 78, 1074–1077. [Google Scholar] [CrossRef]
  59. Tiginyanu, I.M.; Langa, S.; Christophersen, M.; Carstensen, J.; Sergentu, V.; Foca, E.; Föll, H. Properties of 2D and 3D Dielectric Structures Fabricated by Electrochemical Dissolution of III-V Compounds. In MRS Proceedings Fall Meeting: Progress in Semiconductor Materials for Optoelectronic Applications, Boston, USA, 26-30 November 2002; Volume 692. K2.7.
  60. Föll, H.; Langa, S.; Carstensen, J.; Christophersen, M.; Tiginyanu, I.M.; Dichtel, K. Pore Etching in Compound Semiconductors for the Production of Photonic Crystals. In MRS Proceedings Spring Meeting: Materials and Devices for Optoelectronics and Microphotonics, Boston, USA, 26-30 November 2002. Section L6.4.
  61. Föll, H.; Carstensen, J.; Langa, S.; Christophersen, M.; Tiginyanu, I.M. Porous III-V compound semiconductors: Formation, properties, and comparison to silicon. Phys. Stat. Sol. (a) 2003, 197, 61–70. [Google Scholar] [CrossRef]
  62. Christophersen, M.; Langa, S.; Carstensen, J.; Tiginyanu, I.M.; Föll, H. A comparison of pores in silicon and pores in III-V compound materials. Phys. Stat. Sol. (a) 2003, 197, 197–203. [Google Scholar] [CrossRef]
  63. Langa, S.; Carstensen, J.; Tiginyanu, I.M.; Christophersen, M.; Föll, H. Selfordering in porous III-V compounds. In Ordered Porous Nanostructures and Applications; Wehrspohn, R.B., Ed.; Springer: Paderborn, Germany, 2005; p. 57. [Google Scholar]
  64. Rönnebeck, S.; Ottow, S.; Carstensen, J.; Föll, H. Crystal orientation dependence of macropore formation in n-Si with backside-illumination in HF-electrolyte. J. Porous Mat. 2000, 7, 353–357. [Google Scholar] [CrossRef]
  65. Cojocaru, A.; Carstensen, J.; Föll, H. Growth modes of macropores in n-type silicon. ECS Trans. 2008, 16, 157–172. [Google Scholar]
  66. Lehmann, V.; Föll, H. Formation mechanism and properties of electrochemically etched trenches in n-type silicon. J. Electrochem. Soc. 1990, 137, 653–659. [Google Scholar] [CrossRef]
  67. Canham, L.T. Silicon quantum wire array fabrication by electrochemical and chemical dissolution of wafers. Appl. Phys. Lett. 1990, 57, 1046–1049. [Google Scholar] [CrossRef]
  68. Lehmann, V.; Gösele, U. Porous silicon formation: A Quantum Wire Effect. Appl. Phys. Lett. 1991, 58, 856–559. [Google Scholar] [CrossRef]
  69. Etch, ET&TE; GmbH, Technology. Available online: http://www.et-te.com (Accessed on 31 March 2010).
  70. Semitool. Available online: http://www.semitool.com (Accessed on 31 March 2010).
  71. Langa, S.; Christophersen, M.; Carstensen, J.; Tiginyanu, I.M.; Föll, H. Single crystalline 2D porous arrays obtained by self-organization in n-InP. Phys. Stat. Sol. (a) 2003, 197, 77–82. [Google Scholar] [CrossRef]
  72. Carstensen, J.; Cojocaru, A.; Leisner, M.; Föll, H. In situ assessment of macropore growth in low-doped n-type silicon. ECS Trans. 2008, 16, 21–27. [Google Scholar]
  73. Cojocaru, A.; Carstensen, J.; Leisner, M.; Föll, H.; Tiginyanu, I.M. Self-induced oscillation of the macropore diameter in n-type silicon. Phys. Stat. Sol. (c) 2009, 206, 1533–1537. [Google Scholar] [CrossRef]
  74. Matsumura, M.; Morrison, S.R. Anodic properties of n-Si and n-Ge electrodes in HF solution under illumination and in the dark. J. Electroanal. Chem. 1983, 147, 157–166. [Google Scholar] [CrossRef]
  75. Santinacci, M.; Bouttemy, I.; Gerard, L.; Etcheberry, A. Unexpected Dissolution Process at Porous n-InP Electrodes. ECS Trans. 2009, 19, 313–320. [Google Scholar]
  76. Krischer, K. Principles of Temporal and spatial pattern formation in electrochemical systems. In Modern Aspects of Electrochemistry; Conway, B.E., Bockris, J.o'M., White, R.E., Eds.; Plenum Press: New York, NY, USA, 1999; Volume 32, p. 1. [Google Scholar]
  77. Krischer, K. Nonlinear dynamics in electrochemical systems. In Advances in Electrochemical Science and Engineering; Alkire, R.C., Kolb, D.M., Eds.; Wiley-VCH: Weinheim, Germany, 2003; Volume 8. [Google Scholar]
  78. Gerischer, H.; Allongue, P.; Kieling, V.C. The mechanism of the anodic oxidation of silicon in acidic fluoride solutions revisited. Ber. Bunsenges. Phys. Chem. 1993, 97, 753–756. [Google Scholar] [CrossRef]
  79. Gerischer, H.; Lübke, M. Electrolytic growth and dissolution of oxide layers on silicon in aqueous solutions of fluorides. Ber. Bunsenges. Phys. Chem. 1988, 92, 573–577. [Google Scholar] [CrossRef]
  80. Lockwood, D.J.; Schmuki, P.; Labbe, H.J.; Fraser, J.W. Optical properties of porous GaAs. Physica E 1999, 4, 102–106. [Google Scholar] [CrossRef]
  81. Chazalviel, J.-N.; Ozanam, F.; Gabouze, N.; Fellah, S.; Wehrspohn, R.B. Quantitative analysis of the morphology of macropores on low-doped p-Si. What is the minimum resistivity. J. Electrochem. Soc. 2002, 149, C511–C520. [Google Scholar] [CrossRef]
  82. Menezes, S.; Miller, B.; Bachmann, K.J. Electrodissolution and passivation phenomena in III-V Semiconducting compounds. J. Vac. Sci. Technol. B 1983, 1, 48–54. [Google Scholar] [CrossRef]
  83. Moslavac, K.; Lovrecek, B. The anodic passivation on silicon single crystals. Electrochim. Acta 1969, 14, 373–376. [Google Scholar] [CrossRef]
  84. Seidel, H.; Csepregi, L.; Heuberger, A.; Baumgärtel, H. Anisotropic etching of crystalline silicon in alkaline solutions. I. Orientation dependence and behavior of passivation layers. J. Electrochem. Soc. 1990, 137, 3612–3626. [Google Scholar]
  85. Smith, R.L.; Klöck, B.; Collins, S.D. Anodic Passivation of (111) Silicon in KOH. J. Electrochem. Soc. 1988, 135, 2001–2008. [Google Scholar] [CrossRef]
  86. Lublow, M.; Lewerenz, H.J. Electrochemical conditioning of fractal topographies at the silicon oxide/silicon interface. In Proceedings of Extended Abstracts-The 3rd international IEEE scientific Conference on Physics and Control, Potsdam, Germany; 2007; Volume 188. [Google Scholar]
  87. Chazalviel, J.N.; Ozanam, F. In situ infrared characterization of the silicon surface in hydrofluoric acid. J. Appl. Phys. 1997, 81, 7684–7687. [Google Scholar] [CrossRef]
  88. Chazalviel, J.-N.; da Fonseca, C.; Ozanam, F. In situ infrared study of the oscillating anodic dissolution of silicon in fluoride electrolytes. J. Electrochem. Soc. 1998, 145, 964–974. [Google Scholar] [CrossRef]
  89. Chazalviel, J.N.; Erne, B.H.; Maroun, F.; Ozanam, F. New directions and challenges in modern electrochemistry: in situ infrared spectroscopy of the semiconductor - electrolyte interface. J. Electroanal. Chem. 2001, 50, 180–190. [Google Scholar] [CrossRef]
  90. Chazalviel, J.-N.; Erne, B.H.; Maroun, F.; Ozanam, F. In situ infrared spectroscopy of the semiconductor - electrolyte interface. J. Electroanal. Chem. 2001, 509, 108–118. [Google Scholar] [CrossRef]
  91. Rappich, J.; Lewerenz, H.-J. In situ fourier transform infrared investigations on the electrolytic hydrogenation of n-silicon(111). J. Electrochem. Soc. 1995, 142, 1233–1237. [Google Scholar] [CrossRef]
  92. Nast, O.; Rauscher, S.; Jungblut, H.; Lewerenz, H.-J. Micromorphology changes of silicon oxide on Si(111) during current oscillations: a comparative in situ AFM and FTIR study. J. Electroanal. Chem. 1998, 442, 169–174. [Google Scholar] [CrossRef]
  93. Lewerenz, H.J.; Aggour, M.; Murrell, C.; Kanis, M.; Jungblut, H.; Jakubowicz, J.; Cox, P.A.; Campbell, S.A.; Hoffmann, P.; Schmeisserd, D. Initial stages of structure formation on silicon electrodes investigated by photoelectron spectroscopy using synchrotron radiation and in situ atomic force microscopy. J. Electrochem. Soc. 2003, 150, E185–E189. [Google Scholar] [CrossRef]
  94. Grzanna, J.; Jungblut, H.; Lewerenz, H.J. A model for electrochemical oscillations at the Si-electrolyte contact, Part I. Theoretical development. J. Electroanal. Chem. 2000, 486, 181–189. [Google Scholar] [CrossRef]
  95. Grzanna, J.; Jungblut, H.; Lewerenz, H.J. A model for electrochemical oscillations at the Si-electrolyte contact, Part II. Simulations and experimental results. J. Electroanal. Chem. 2000, 486, 190–203. [Google Scholar]
  96. Grzanna, J.; Jungblut, H.; Lewerenz, H.J. Nano- and macropores in the model for current oscillations at the Si/electrolyte contact. Phys. Stat. Sol. (a) 2007, 204, 1245–1249. [Google Scholar] [CrossRef]
  97. Grzanna, J.; Notz, T.; Lewerenz, H.J. Model for current oscillations at the Si/electrolyte contact: Extension to Spatial Resolution. ECS Trans. 2008, 16, 173–180. [Google Scholar]
  98. Chazalviel, J.-N.; Ozanam, F.; Etman, M.; Paolucci, F.; Peter, L.M.; Stumper, J. The p-Si/Fluoride interface in the anodic region: Damped and/or sustained oscillations. J. Electroanal. Chem. 1992, 327, 343–349. [Google Scholar] [CrossRef]
  99. Chazalviel, J.-N.; Ozanam, F. A theory for resonant response of an electrochemical system: Self-Oscillating Domains, Hidden Oscillation and Synchronization Impedance. J. Electrochem. Soc. 1992, 139, 2501–2508. [Google Scholar] [CrossRef]
  100. Ozanam, F.; Blanchard, N.; Chazalviel, J.-N. Microscopic, self-oscillating domains at the silicon surface during its anodic dissolution in a fluoride electrolyte. Electrochim. Acta 1993, 38, 1627–1630. [Google Scholar] [CrossRef]
  101. Krischer, K.; Varela, H. Oscillations and other dynamic instabilities. In Handbook of Fuel Cells; Vielstich, W., Lamm, A., Gasteiger, H., Eds.; John Wiley & Sons, Ltd: Hoboken, NJ, USA, 2003; Volume 2, p. 679. [Google Scholar]
  102. Föll, H.; Carstensen, J.; Christophersen, M.; Hasse, G. A stochastic model for current oscillations in space and time at the silicon electrode. In ECS Proceedings of Pits and Pores II: Formation Properties and Significance for Advanced Materials, New Jersey, NJ, USA; 2000; pp. 36–48. [Google Scholar]
  103. Foca, E.; Carstensen, J.; Föll, H. Monte Carlo simulation of electrochemical oscillations in the electropolishing regime. Phys. Stat. Sol. (a) 2005, 202, 1524–1528. [Google Scholar] [CrossRef]
  104. Foca, E.; Carstensen, J.; Föll, H. Modeling electrochemical current and potential oscillations at the Si electrode. J. Electroanal. Chem. 2007, 603, 175–202. [Google Scholar] [CrossRef]
  105. Föll, H.; Carstensen, J.; Foca, E. Electrochemical pore formation in semiconductors: Oscillations, Structure Formation and Control. In Proceedings of The 3rd international IEEE Scientific Conference on Physics and Control (PhysCon2007), Potsdam, Germany, 3-7 September 2007; p. 185.
  106. Langa, S.; Monaico, E.; Föll, H.; Tiginyanu, I.M. Porous morphologies in Si, III-V and II-VI compounds: A Comparative Study. In Proceedings of the 6th International Conference on Microelectronics and Computer Science, Chisinau, Moldova, 19-21 October 2009; p. 175.
  107. Claussen, J.C.; Carstensen, J.; Christophersen, M.; Langa, S.; Föll, H. Open-Loop-Control of pore formation in semiconductor etching. In Proceedings of Physics and Control, St. Petersburg, Russia, 20-22 August 2003; pp. 895–899.
  108. Christophersen, M.; Carstensen, J.; Föll, H. Macropore Formation on Highly Doped n-Type Silicon. Phys. Stat. Sol. (a) 2000, 182, 45–50. [Google Scholar] [CrossRef]
  109. Frey, S.; Kemell, M.; Carstensen, J.; Langa, S.; Föll, H. Fast pore etching. Phys. Stat. Sol. (a) 2005, 202, 1369–1373. [Google Scholar] [CrossRef]
  110. Rönnebeck, S.; Carstensen, J.; Ottow, S.; Föll, H. Crystal orientation dependence of macropore growth in n-type silicon. Electrochem. Solid-State Lett. 1999, 2, 126–128. [Google Scholar]
  111. Christophersen, M.; Carstensen, J.; Rönnebeck, S.; Jäger, C.; Jäger, W.; Föll, H. Crystal orientation dependance and anisotropic properties of macropore formation of p- and n-type silicon. J. Electrochem. Soc. 2001, 148, E267–E275. [Google Scholar] [CrossRef]
  112. Föll, H.; Carstensen, J.; Frey, S. Porous and nanoporous semiconductors and emerging applications. In Sensor, and Gas Separation Applications; Lu, S.W., Hahn, H., Weissmuller, J., Gole, J.L., Eds.; Curran Associates, Inc.: Warrendale, PA, USA, 2005; pp. R12.1–R12.1.13. [Google Scholar]
  113. Langa, S.; Frey, S.; Carstensen, J.; Föll, H.; Tiginyanu, I.M.; Hermann, M.; Böttger, G. Waveguide Structures Based on Porous Indium Phosphide. Electrochem. Sol. State Lett. 2005, 8, C30–C32. [Google Scholar] [CrossRef]
  114. Föll, H.; Leisner, M.; Carstensen, J.; Schauer, P. Growth mode transition of crysto and curro pores in III-V semiconductors. ECS Trans. 2009, 19, 329–345. [Google Scholar]
  115. Zheng, J.; Christophersen, M.; Bergstrom, P.L. Thick macroporous membranes made of p-type silicon. Phys. Stat. Sol. (a) 2005, 202, 1402–1406. [Google Scholar] [CrossRef]
  116. Christophersen, M.; Carstensen, J.; Voigt, K.; Föll, H. Organic and aqueous electrolytes used for etching macro- and mesoporous silicon. Phys. Stat. Sol. (a) 2003, 197, 34–37. [Google Scholar] [CrossRef]
  117. Slimani, A.; Iratni, A.; Chazalviel, J.-N.; Gabouze, N.; Ozanam, F. Experimental study of macropore formation in p-type silicon in a fluoride solution and the transition between macropore formation and electropolishing. Electrochim. Acta 2009, 54, 3139–3144. [Google Scholar] [CrossRef]
  118. Chazalviel, J.-N.; Ozanam, F. Are the oscillations during the anodic dissolution of Si in dilute fluoride electrolyte damped or sustained? ECS Trans. 2008, 16, 189–194. [Google Scholar]
  119. Langa, S.; Tiginyanu, I.M.; Carstensen, J.; Christophersen, M.; Föll, H. Self-organized growth of single crystals of nanopores. Appl. Phys. Lett. 2003, 82, 278–289. [Google Scholar] [CrossRef]
  120. Tiginyanu, I.M.; Langa, S.; Sirbu, L.; Monaico, E.; Stevens-Kalceff, M.A.; Föll, H. Cathodoluminescence microanalysis of porous GaP and InP structures. Eur. Phys. J.: Appl. Phys. 2004, 27, 81–84. [Google Scholar]
  121. Langa, S.; Carstensen, J.; Tiginyanu, I.M.; Christophersen, M.; Föll, H. Formation of tetrahedron-like pores during anodic etching of (100)-oriented n-GaAs. Electrochem. Solid-State Lett. 2002, 5, C14–C17. [Google Scholar]
  122. Rumpf, K.; Granitzer, P.; Krenn, H. Transition metals specifically electrodeposited into porous silicon. Phys. Stat. Sol. 2009, 206, 1592–1595. [Google Scholar] [CrossRef]
  123. Bao, X.Q.; Jiao, J.W.; Zhou, J.; Wang, Y.L. Fast speed pore formation via strong oxidizers. Electrochim. Acta 2007, 52, 6728–6733. [Google Scholar] [CrossRef]
  124. Cojocaru, A.; Carstensen, J.; Ossei-Wusu, E.K.; Leisner, M.; Riemenschneider, O.; Föll, H. Fast macropore growth in n-type silicon. Phys. Stat. Sol. (c) 2009, 206, 1571–1574. [Google Scholar] [CrossRef]
  125. Tsuchiya, H.; Hueppe, M.; Djenizian, T.; Schmuki, P. Electrochemical formation of porous superlattices on n-type (100) InP. Surf. Sci. 2003, 547, 268–274. [Google Scholar] [CrossRef]
  126. Spiecker, E.; Rudel, M.; Jäger, W.; Leisner, M.; Föll, H. Morphology, interface polarity and branching of electrochemically etched pores in InP. Phys. Stat. Sol. (a) 2005, 202, 2950–2962. [Google Scholar] [CrossRef]
  127. Hejjo Al Rifai, M.; Christophersen, M.; Ottow, S.; Carstensen, J.; Föll, H. Dependence of macropore formation on n-Si on potential, temperature, and doping. J. Electrochem. Soc. 2000, 147, 627–635. [Google Scholar] [CrossRef]
  128. Sze, S.M. Physics of Semiconductor Devices; Wiley & Sons: New York, NY, USA, 1981. [Google Scholar]
  129. Lehmann, V.; Gösele, U. Porous silicon: quantum sponge structures grown via a self-adjusting etching process. Adv. Mater. 1992, 4, 114–116. [Google Scholar] [CrossRef]
  130. Carstensen, J.; Prange, R.; Popkirov, G.S.; Föll, H. A model for current oscillations in the Si-HF system based on a quantitative analysis of current transients. Appl. Phys. A 1998, 67, 459–467. [Google Scholar] [CrossRef]
  131. Carstensen, J.; Prange, R.; Föll, H. Percolation model for the current oscillation in the Si-HF system. In Proceedings of ECS' 193rd Meeting, San Diego, CA, USA; 1998; pp. 148–156. [Google Scholar]
  132. Carstensen, J.; Christophersen, M.; Hasse, G.; Föll, H. Parameter dependence of pore formation in silicon within the model of local current bursts. Phys. Stat. Sol. (a) 2000, 182, 63–69. [Google Scholar] [CrossRef]
  133. Salem, M.S.; Sailor, M.J.; Fukami, K.; Sakka, T.; Ogata, Y.H. Preparation and optical properties of porous silicon rugate-type multilayers with different pore sizes. Phys. Stat. Sol. (c) 2009, 6, 1620–1623. [Google Scholar] [CrossRef]
  134. Bao, X.Q.; Lin, J.L.; Jiao, J.W.; Wang, Y.L. Macropore density as a function of HF-concentration and bias. Electrochim. Acta 2007, 53, 823–828. [Google Scholar] [CrossRef]
  135. Leisner, M.; Carstensen, J.; Föll, H. FFT impedance spectroscopy analysis of the growth of anodic oxides on (100) p-Si for various solvents. J. Electroanal. Chem. 2008, 615, 124–134. [Google Scholar] [CrossRef]
  136. Leisner, M.; Carstensen, J.; Föll, H. Simulating crystallographic pore growth on III-V semiconductors. ECS Trans. 2009, 19, 321–328. [Google Scholar]
  137. Beale, M.I.J.; Benjamin, J.D.; Uren, M.J.; Chew, N.G.; Cullis, A.G. The formation of porous silicon by chemical stain etches. Surf. Sci. 1986, 75, 408–414. [Google Scholar]
  138. Cheggoua, R.; Kadouna, A.; Gabouzeb, N.; Ozanam, F.; Chazalviel, J.-N. Theoretical modelling of the I–V characteristics of p-type silicon in fluoride electrolyte in the first electropolishing plateau. Electrochim. Acta 2009, 54, 3053–3058. [Google Scholar] [CrossRef]
  139. Barillaro, G.; Pieri, F. A self-consistent theoretical model for macropore growth in n-type silicon. J. Appl. Phys. 2005, 97, 116105. [Google Scholar] [CrossRef]
  140. Ossei-Wusu, E.K.; Cojocaru, A.; Carstensen, J.; Leisner, M.; Föll, H. Etching deep macropores in n-type silicon in short times. ECS Trans. 2008, 16, 109–123. [Google Scholar]
  141. Macak, J.M.; Schmuki, P. Anodic growth of self-organized anodic TiO2 nanotubes in viscous electrolytes. Electrochim. Acta 2006, 52, 1258–1264. [Google Scholar] [CrossRef]
  142. Chazalviel, J.-N. Impedance studies at semiconductor electrodes: clasical and more exotic techniques. Electrochim. Acta 1990, 35, 1545–1552. [Google Scholar] [CrossRef]
  143. Searson, P.C.; Zhang, X.G. The anodic dissolution of silicon in HF solutions. J. Electrochem. Soc. 1990, 137, 2539–2548. [Google Scholar] [CrossRef]
  144. Ozanam, F.; Chazalviel, J.-N.; Radi, A.; Etman, M. Resonant and nonresonant behavior of the anodic dissolution of silicon in fluoride media: An impedance study. J. Electrochem. Soc. 1992, 139, 2491–2501. [Google Scholar] [CrossRef]
  145. Vanmaekelbergh, D.; Searson, P.C. On the electrical impedance due to the anodic dissolution of silicon in HF solutions. J. Electrochem. Soc. 1994, 141, 697–702. [Google Scholar] [CrossRef]
  146. Shen, W.M.; Tomkiewicz, M.; Levy-Clement, C. Impedance of porous Si. J. Appl. Phys. 1994, 76, 3635–3639. [Google Scholar] [CrossRef]
  147. Koshida, N.; Naggsu, M.; Echizenya, K.; Kiuchi, Y. Impendance spectra of p-type porous Si-electrolyte interfaces. J. Electrochem. Soc. 1986, 133, 2283–2291. [Google Scholar] [CrossRef]
  148. Frateur, I.; Cattarin, S.; Musiani, M.; Tribollet, B. Electrodissolution of Ti and p-Si in acidic fluoride media: formation ratio of oxide layers from electrochemical impedance spectroscopy. J. Electroanal. Chem. 2000, 482, 202–210. [Google Scholar] [CrossRef]
  149. MacDonald, J.R. Impedance Spectroscopy; John Wiley & Sons: Hoboken, NJ, USA, 1987. [Google Scholar]
  150. Orazem, M.E.; Tribollet, B. Electrochemical Impedance Spectroscopy; Wiley-VCH: Hoboken, NJ, USA, 2008. [Google Scholar]
  151. Carstensen, J.; Schütt, A.; Föll, H. CELLO measurements with FFT impedance analysis: Drastic Increase of Measurement Speed for Analysis of Local Solar Cell Defects. In Proceedings of the 23rd European Photovoltaic Solar Energy Conference, Valencia, Spain, 1-5 September 2008. 1AO.6.1.
  152. Carstensen, J.; Schütt, A.; Föll, H. CELLO FFT impedance analysis as a routine tool for identifying various defect types on crystalline silicon solar cells. In Proceedings of the 24th European Photovoltaic Solar Energy Conference, Hamburg, Germany, 21-25 September 2009. 1AO.4.5.
  153. Leisner, M.; Carstensen, J.; Cojocaru, A.; Föll, H. Pore growth on n-InP investigated by in situ FFT impedance spectroscopy. Phys. Stat. Sol. (c) 2009, 206, 1566–1571. [Google Scholar] [CrossRef]
  154. Leisner, M.; Carstensen, J.; Cojocaru, A.; Föll, H. In situ FFT impedance spectroscopy during the growth of crystallographically oriented pores in InP. ECS Trans. 2008, 16, 133–142. [Google Scholar]
  155. Carstensen, J.; Cojocaru, A.; Leisner, M.; Föll, H. Dynamics of macropore growth in n-type silicon investigated by FFT in situ impedance analysis. ECS Trans. 2009, 19, 355–361. [Google Scholar]
  156. Zhang, X.G. Mechanism of pore formation on n-type silicon. J. Electrochem. Soc. 1991, 138, 3750–3756. [Google Scholar] [CrossRef]
  157. Hauser, J.R. Avalanche breakdown voltage for III-V semiconductors. Appl. Phys. Lett. 1978, 33, 351–356. [Google Scholar] [CrossRef]
  158. Canham, L.T. Gaining light from silicon. Nature 2000, 408, 411–412. [Google Scholar] [CrossRef]
  159. Propst, E.; Kohl, P.A. The photoelectrochemical oxidation of n-Si in anhydrous HF-Acetonitrile. J. Electrochem. Soc. 1993, 140, L78–L80. [Google Scholar] [CrossRef]
  160. Imai, K.; Unno, H. FIPOS (Full Isolation by Porous Oxidized. Silicon) Technology and Its Application to LSIs. IEEE Trans. Electron Devices. 1984, 31, 297–302. [Google Scholar]
  161. Föll, H. Anodic etching of defects in p-type silicon. J. Electrochem. Soc. 1980, 127, 1925–1931. [Google Scholar] [CrossRef]
  162. Föll, H. Anodic etching of p-type silicon as a method for discriminating electrically active and inactive defects. Appl. Phys. Lett. 1980, 37, 316–318. [Google Scholar] [CrossRef]
  163. Gösele, U.; Föll, H. Volker Lehmann: An unconventional scientist. ECS Trans. 2008, 16, 7–20. [Google Scholar]
  164. Carstensen, J.; Lippik, W.; Liebert, S.; Köster, S.; Föll, H. ELYMAT technique on multicrystalline silicon for solar cell application. In Conference proceedings of the 13th European Photovoltaic Solar Energy Conference, Nice, France, 23-27 October 1995; p. 1344.
  165. Carstensen, J.; Lippik, W.; Föll, H. Mapping of defect related bulk and surface properties with the ELYMAT technique. In Semiconductor Silicon; Huff, H.R., Bergholz, W., Sumino, K., Eds.; Electrochemical Society: San Francisco, CA, USA, 1994; p. 1105. [Google Scholar]
  166. Carstensen, J.; Lippik, W.; Föll, H. Mapping of defect related silicon properties with the ELYMAT technique in three dimensions. Mater. Sci. Forum 1995, 173, 159–164. [Google Scholar] [CrossRef]
  167. Föll, H.; Carstensen, J.; Frey, S. Porous and nanoporous semiconductors and emerging applications. J. Nanomater 2006. Article ID 91635. [Google Scholar]
  168. Stewart, M.P.; Buriak, J.M. Chemical and biological applications of porous silicon technology. Adv. Mat. 2000, 12, 859–869. [Google Scholar] [CrossRef]
  169. Müller, F.; Birner, A.; Gösele, U.; Lehmann, V.; Ottow, S.; Föll, H. Structuring of macroporous silicon for applications as photonic crystals. J. Por. Mat. 2000, 7, 201–204. [Google Scholar] [CrossRef]
  170. Kochergin, V.; Sanghavi, M.; Swinehart, P.R. Porous silicon filters for low-temperature far IR applications. Proc. SPIE 2005, 5883, 184–191. [Google Scholar]
  171. Langa, S.; Lölkes, S.; Carstensen, J.; Hermann, M.; Böttger, G.; Tiginyanu, I.M.; Föll, H. Engineering the morphology of porous InP for waveguide applications. Phys. Stat. Sol. (c) 2005, 2, 3253–3257. [Google Scholar] [CrossRef]
  172. Kochergin, V.; Föll, H. Commercial applications of porous Si: Optical Filters And Components. Phys. Stat. Sol. (c) 2007, 4, 1933–1940. [Google Scholar] [CrossRef]
  173. Wehrspohn, R.B.; Schilling, J. Electrochemically prepared pore arrays for photonic crystal applications. MRS Bull. 2001, 26, 623–626. [Google Scholar] [CrossRef]
  174. Wehrspohn, R.B.; Schweizer, S.L.; Schilling, J.; Geppert, T.; Jamois, C.; Glatthaar, R. Application of Photonic Crystals for Gas Detection and Sensing. In Photonic Crystals: Advances in Design, Fabrication, and Characterization; Busch, K., Lölkes, S., Wehrspohn, R., Föll, H., Eds.; Wiley-VCH: Weinheim, Germany, 2004. [Google Scholar]
  175. Akkari, E.; Benachour, Z.; Aouida, S.; Touayar, O.; Bessais, B.; Benbrahim, J. Study and characterization of porous germanium for radiometric measurements. Phys. Stat. Sol. (c) 2009, 6, 1685–1688. [Google Scholar] [CrossRef]
  176. Tiginyanu, I.M.; Langa, S.; Hjort, K.; Monecke, J.; Hartnagel, H.L. Nanotexturization of III-V compounds for THz-wave generation. In Proceedings of 8th International Conference on Terahertz Electronics, Darmstadt, Germany, 28–29 September 2000; p. 275.
  177. Melnikov, V.A.; Golovan, L.A.; Konorov, S.O.; Fedotov, A.B.; Petrov, G.I.; Li, L.; Yakovlev, V.V.; Gavrilov, S.A.; Zheltikov, A.M.; Timoshenko, V.Yu.; Kashkarov, P.K. Porous gallium phosphide: Challenging Material for Nonlinear-optical Applications. Phys. Stat. Sol. C 2005, 2, 3248–3252. [Google Scholar] [CrossRef]
  178. Bastide, S.; Quang, N.L.; Monna, R.; Levy-Clément, C. Chemical etching of Si by Ag nanocatalysts in HF-H2O2: Application to Multicrystalline Si Solar Cell Texturisation. Phys. Stat. Sol. (c) 2009, 206, 1536–1540. [Google Scholar] [CrossRef]
  179. Yae, S.; Tanaka, H.; Kobayashi, T.; Fukumuro, N.; Matsuda, H. Porous silicon formation by HF chemical etching for antireflection of solar cells. Phys. Stat. Sol. (c) 2005, 2, 3476–3480. [Google Scholar] [CrossRef]
  180. Brendel, R. Review of layer transfer processes for crystalline thin-film silicon solar cells. Jpn. J. Appl. Phys. Part 1 2001, 40, 4431–4439. [Google Scholar] [CrossRef]
  181. Kovalev, D.; Timoshenko, V.Yu.; Künzner, N.; Gross, E.; Koch, F. Strong explosive interaction of hydrogenated porous silicon with oxygen at cryogenic temperatures. Phys. Rev. Lett. 2001, 87, 068301. [Google Scholar] [CrossRef]
  182. Mikulec, F.V.; Kirtland, J.D.; Sailor, M.J. Explosive nanocrystalline porous silicon and its use in atomic emission spectroscopy. Adv. Mater. 2002, 14, 38–41. [Google Scholar] [CrossRef]
  183. Völlmeke, S.; Bartuch, H.; Laucht, H.; Kovalev, D. Poröses Silizium - Basiswerkstoff für pyroltechnische Bauelemente. In Proceedings of 51th International Scientific Colloquium, Ilmenau, Germany, 11-15 September 2006.
  184. Plessis, M. Investgating nanoporous silicon explosive devices. Phys. Stat. Sol. (c) 2009, 206, 1763. [Google Scholar] [CrossRef]
  185. Lehmann, V.; Rönnebeck, S. MEMS techniques applied to the fabrication of anti-scatter grids for X-ray imaging. Sens. Actuator. A 2001, 95, 202–207. [Google Scholar]
  186. Badel, X.; Galeckas, A.; Linnros, J.; Kleimann, P.; Fröjdh, C.; Petersson, C.S. Improvement of an X-ray imaging detector based on a scintillating guides screen. Nucl. Instrum. Methods Phys. Res. Sect. A 2002, 487, 129–135. [Google Scholar] [CrossRef]
  187. Badel, X.; Linnros, J.; Kleimann, P.; Norlin, B.; Koskiahde, E.; Valpas, K.; Nenonen, S.; Petersson, C.S.; Fröjdh, C. Metallized and oxidized silicon macropore arrays filled with a scintillator for CCD-based X-ray imaging detectors. IEEE Trans. Nucl. Sci. 2004, 51, 1001–1005. [Google Scholar] [CrossRef]
  188. Bonder, Y.; Wang, C. Ab initio study of birefringent porous silicon. Phys. Stat. Sol. (a) 2005, 202, 1552–1556. [Google Scholar] [CrossRef]
  189. Kaltsas, G.; Nassiopoulou, A.G. Novel C-MOS compatible monolithic silicon gas flow sensor with porous silicon thermal isolation. Sens. Actuat. A 1999, 76, 133–138. [Google Scholar] [CrossRef]
  190. Roussel, Ph.; Lysenko, V.; Remaki, B.; Delhomme, G.; Dittmar, A.; Barbier, D. Thick oxidised porous silicon layers for the design of a biomedical thermal conductivity microsensor. Sens. Actuat. 1999, 74, 100–103. [Google Scholar] [CrossRef]
  191. Wang, Z.; Zhang, J.; Xu, S.; Wang, L.; Cao, Z.; Zhan, P.; Wang, Z. 1D partially oxidized porous silicon photonic crystal reflector for mid-infrared application. J. Phys. D: Appl. Phys. 2007, 40, 4482–4484. [Google Scholar]
  192. Shinoda, H.; Nakajima, T.; Ueno, K.; Koshida, N. Thermally induced ultrasonic emission from porous silicon. Nature 1999, 400, 853–855. [Google Scholar] [CrossRef]
  193. Joshi, G.; Lee, H.; Lan, Y.; Wang, X.; Zhu, G.; Wang, D.; Gould, R.W.; Cuff, D.C.; Tang, M.Y.; Dresselhaus, M.S.; Chen, G.; Ren, Z. Enhanced Thermoelectric Figure-of-Merit in Nanostructured p-type Silicon Germanium Bulk Alloys. Nano Lett. 2008, 8, 4670–4674. [Google Scholar] [CrossRef]
  194. Lee, J.; Galli, G.A.; Grossman, J.C. Nanoporous Si as an Efficient Thermoelectric Material. Nano Lett. 2008, 8, 3750–3754. [Google Scholar] [CrossRef]
  195. Goldsmid, H.J. Porous Thermoelectric Materials. Materials 2009, 2, 903–910. [Google Scholar] [CrossRef]
  196. Müller, F.; Birner, A.; Schilling, J.; Gösele, U.; Kettner, C.; Hänggi, P. Membranes for micropumps from macroporous silicon. Phys. Stat. Sol. (a) 2000, 182, 585–590. [Google Scholar] [CrossRef]
  197. Wallner, J.Z.; Bergstrom, P.L. A porous silicon based particle filter for microsystems. Phys. Stat. Sol. (a) 2007, 204, 1469–1473. [Google Scholar] [CrossRef]
  198. Campbell, J.; Corno, J.A.; Larsen, N.; Gole, J.L. Development of porous-silicon-based active microfilters. J. Electrochem. Soc. 2008, 155, D128–D132. [Google Scholar] [CrossRef]
  199. Gole, J.L.; Corno, J.; Ozdemir, S.; Prokes, S.; Shin, H.-C. Active microfiltered sensor interfaces, photocatalytic reactors, and microbatteries using combined micro/nanoporous interfaces. Phys. Stat. Sol. (c) 2009, 6, 1773–1776. [Google Scholar] [CrossRef]
  200. Vainrot, N.; Eisen, M.S.; Semiat, R. Membranes in Desalination and Water Treatment. MRS Bull. 2008, 33, 16–20. [Google Scholar] [CrossRef]
  201. Bengtsson, M.; Ekström, S.; Drott, J.; Collins, A.; Csöregi, E.; Marko-Varga, G.; Laurell, T. Applications of microstructured porous silicon as a biocatalytic surface. Phys. Stat. Sol. (a) 2000, 182, 495–504. [Google Scholar] [CrossRef]
  202. Mayne, A.H.; Bayliss, S.C.; Barr, P.; Tobin, M.; Backberry, L.D. Biologically interfaced porous Silicon devices. Phys. Stat. Sol. (a) 2000, 182, 505–513. [Google Scholar] [CrossRef]
  203. Chan, S.; Fauchet, P.M.; Li, Y.; Rothberg, L.J.; Miller, B.L. Porous silicon microcavities for biosensing applications. Phys. Stat. Sol. (a) 2000, 182, 541–546. [Google Scholar] [CrossRef]
  204. Stewart, M.P.; Robins, E.G.; Geders, T.W.; Allen, M.J.; Cheul Choi, H.; Buriak, J.M. Derivatization, stabilization and oxidation - three methods for stabilization and functionalization of porous silicon surfaces via hydrosilylation and electrografting reactions. Phys. Stat. Sol. (a) 2000, 182, 109–115. [Google Scholar] [CrossRef]
  205. Li, Y.Y.; Cunin, F.; Link, J.R.; Gao, T.; Betts, R.E.; Reiver, S.H.; Chin, V.; Bhatia, S.N.; Sailor, M.J. Polymer replicas of photonic porous silicon for sensing and drug delivery applications. Science 2003, 299, 2045–2047. [Google Scholar] [CrossRef]
  206. Pastor, E.; Salonen, J.; Lehto, V.; Matveeva, E. Electrochemically induced bioactivity of porous silicon functionalized by acetylene. Phys. Stat. Sol. (c) 2009, 206, 1333–1338. [Google Scholar] [CrossRef]
  207. Lehmann, V. Biosensors: Barcoded Molecules. Nat. Mater. 2002, 1, 12–13. [Google Scholar] [CrossRef]
  208. Yonehara, T.; Sakaguchi, K. ELTRAN; SOI-Epi wafer™ by epitaxial layer transfer from porous Si. In Proceedings of 2nd International Symposium on Pits and Pores: Formation, Properties, Significance for Advanced Materials, Phoenix, Arizona, 22-27 October 2000; Volume 198.
  209. Bell, T.E.; Gennissen, P.T.J.; DeMunter, D.; Kuhl, M. Porous silicon as a sacrificial material. J. Micromech. Microeng. 1996, 6, 361–369. [Google Scholar] [CrossRef]
  210. Rottner, K.; Helbig, R.; Müller, G. Piezoelectric constant of InP. Appl. Phys. Lett. 1993, 62, 352–353. [Google Scholar] [CrossRef]
  211. McKitterick, J.B. First-principles calculation of dielectric properties of GaAs: Dielectric Constant, Effective Charges, and Piezoelectric Constant. Phys. Rev. B 1983, 28, 7384–7386. [Google Scholar] [CrossRef]
  212. Bernardini, F.; Fiorentini, V.; Vanderbilt, D. Spontaneous polarization and piezoelectric constants of III-V nitrides. Phys. Rev. B 1997, 56, R10024–R10027. [Google Scholar] [CrossRef]
  213. Ramesh, R.; Spaldin, N.A. Multiferroics: Progress and Prospects in Thin Films. Nat. Mat. 2007, 6, 21–29. [Google Scholar] [CrossRef]
  214. Howorka, S.; Cheley, S.; Bayley, H. Sequence-specific detection of individual DNA strands using engineered nanopores. Nat. Biotechnol. 2001, 19, 636–639. [Google Scholar] [CrossRef]
  215. Braha, O.; Gu, L.-Q.; Zhou, L.; Lu, X.; Cheley, S.; Bayley, H. Simultaneous stochastic sensing of divalent metal ions. Nat. Biotechnol. 2000, 18, 1005–1007. [Google Scholar] [CrossRef]
  216. Li, J.; Stein, D.; McMullan, C.; Branton, D.; Aziz, M.J.; Golovchenko, J.A. Ion-beam sculpting at nanometre length scales. Nature 2001, 412, 166–169. [Google Scholar] [CrossRef]
  217. Deamer, D.W.; Branton, D. Characterization of nucleic acids by nanopore analysis. Nature 2002, 35, 817–825. [Google Scholar]
  218. Fertig, N.; Blick, R.H.; Behrends, J.C. Whole cell patch recording performed on a planar glass chip. Biophys. J. 2002, 82, 3056–3062. [Google Scholar] [CrossRef]
  219. Clayton, J. Go with the microflow. Nat. Methods 2005, 2, 621–627. [Google Scholar] [CrossRef]
  220. Föll, H.; Gerngroß, M.-D.; Cojocaru, A.; Leisner, M.; Bahr, J.; Carstensen, J. How to make single small holes with large aspect ratios. Phys. Stat. Sol. (RRL) 2009, 3, 55–59. [Google Scholar] [CrossRef]
  221. Boukamp, B.A.; Lesh, G.C.; Huggins, R.A. All-solid lithium electrodes with mixed-conductor matrix. J. Electrochem. Soc. 1981, 128, 725–729. [Google Scholar] [CrossRef]
  222. Chan, C.K.; Peng, H.; Liu, G.; McIlwrath, K.; Zhang, X.F.; Huggins, R.A.; Cui, Y. High-performance lithium battery anodes using silicon nanowires. Nat. Nanotechnol. 2008, 3, 31–35. [Google Scholar] [CrossRef] [PubMed]
  223. Föll, H.; Hartz, H.; Ossei-Wusu, E.K.; Carstensen, J.; Riemenschneider, O. Si nanowires arrays as anodes in Li ion batteries. Phys. Stat. Sol. RRL 2010, 4, 4–8. [Google Scholar] [CrossRef]

Share and Cite

MDPI and ACS Style

Föll, H.; Leisner, M.; Cojocaru, A.; Carstensen, J. Macroporous Semiconductors. Materials 2010, 3, 3006-3076. https://doi.org/10.3390/ma3053006

AMA Style

Föll H, Leisner M, Cojocaru A, Carstensen J. Macroporous Semiconductors. Materials. 2010; 3(5):3006-3076. https://doi.org/10.3390/ma3053006

Chicago/Turabian Style

Föll, Helmut, Malte Leisner, Ala Cojocaru, and Jürgen Carstensen. 2010. "Macroporous Semiconductors" Materials 3, no. 5: 3006-3076. https://doi.org/10.3390/ma3053006

Article Metrics

Back to TopTop
