Article

Mesomorphic Behavior of Symmetrical and Unsymmetrical Azomethines with Two Imine Groups

1
Centre of Polymer and Carbon Materials, Polish Academy of Sciences, 34 M. Curie-Sklodowska Street, 41-819 Zabrze, Poland
2
Laboratoire d’Electronique Moléculaire, Organique et Hybride, UMR5819-SPrAM (CEA-CNRS-Univ. J. FOURIER-Grenoble I), INAC Institut Nanosciences & Cryogénie, CEA-Grenoble, 17 Rue des Martyrs, 38054 Grenoble Cedex 9, France
*
Author to whom correspondence should be addressed.
Materials 2009, 2(1), 38-61; https://doi.org/10.3390/ma2010038
Submission received: 26 November 2008 / Revised: 3 February 2009 / Accepted: 5 February 2009 / Published: 6 February 2009
(This article belongs to the Special Issue Liquid Crystals)

Abstract

:
Seven symmetrical azomethines with two imine groups (HC=N) were synthesized by condensation of the benzene-1,4-dicarboxaldehyde with five amines (first group: A1-A5) and of the 2,5-thiophenedicarboxaldehyde with two amines (second group: AT1-AT2). Additionally, two unsymmetrical azomethines were obtained by a two step condensation of benzene-1,4-dicarboxaldehyde with pyren-1-amine (1st step) (abbreviated hereinafter as AP1) and then AP1 was reacted with 4-dodecylaniline or 4-hexadecylaniline (2nd step) (third group: AP1A-AP1B). Liquid crystalline properties of the azomethines were studied by differential scanning calorimetry (DSC), polarizing optical microscopy (POM) and UV-vis spectroscopy in the function of temperature [UV-vis(T)]. The Wide-Angle X-ray Diffraction (WAXD) technique was used to probe the structural properties of the azomethines. Mesomorphic behavior was observed for symmetrical and unsymmetrical azomethines, obtained from the benzene-1,4-dicarboxaldehyde and symmetrical ones prepared from 2,5-thiophenedicarboxaldehyde and different amines having aliphatic chains. Based on the POM and DSC measurements the following mesophases were detected: nematic, smectic A, smectic C, smectic F (I), smectic G (J).

1. Introduction

The azomethines, also called Schiff bases, have been widely investigated as liquid crystalline (LC) materials. Special attention has been paid to the study of the LC properties of azomethine oligomers, prompted by their use as building blocks for polymer chains [1]. The liquid crystalline properties of the azomethines could be divided, depending on the number of HC=N bonds in the structure into: (1) Schiff bases having one azomethine (HC=N) bond [2,3,4,5,6,7,8] and (2) symmetrical and unsymmetrical azomethines with two HC=N bonds in the structure [9,10,11,12,13,14,15,16]. Moreover, numerous scientists have investigated the LC properties of symmetrical azomethines with two HC=N bonds in the structure. For example, Ribera et al. [9] studied dimeric reactive diglycidyl ethers containing imine mesogens and aliphatic spacers. The authors found that odd-member spacers led to the formation of smectic C mesophases, whereas even-membered spacers led to smectic A and/or nematic mesophases. Ribbera et al. also investigated a series of dimeric LC diglycidylester compounds containing imine groups [10]. They found that all compounds exhibited nematic mesophases. Henderson et al. [11] characterized a series of semiflexible LC tetramers containing four liquid crystal units (two H3CO-Ph-N=N-Ph and two –Ph-HC=N-Ph-) connected via three flexible alkyl spacers. The length of the outer spacers was varied from 3 to 12 units. All the tetramers exhibited an enantiotropic nematic phase. Kishikawa et al [12] synthesized one symmetrical azomethine having two imine groups and an OC3H7 group as outer spacer. The compound exhibited Sm H, Sm G, Sm C, Sm A and nematic phases along with the temperature of isotropisation at about 255 °C. Naito et al. [13] found that twin dimers with 3-methyl-pentane spacers behaved as U-shaped molecules forming Sm A phases when the carbon number of the alkyl tail group was longer than 12. On the other hand these authors found that in the case of dimers with linear pentane spacers the antiferroelectric SmCA was formed [13]. Sudhakar et al. [14] investigated the LC properties of the molecules constructed from 1,4-disubstituted benzene rings linked through ester and HC=N units. The outer-spacer was held via n = 2, 4, 6, 8, 10, 12, 14 or 16 aliphatic groups. The lower members of the serie (n = 2-8) were nematogenic, while the higher members (n = 10-14) exhibited both nematic and Sm A phases. The compound with 16 methylene groups presented only Sm A phase. Cozan et al. [15] investigated new azomethine sulfone macromers containing benzylideneaniline mesogens. A nematic texture was observed for macromers containing two benzylideneaniline mesogens either connected by etheric (-O-), methylenic links (-CH2-) or directly coupled. Mesogenic diols containing one ester group in the center and varying alkoxy spacer length (n = 2, 4, 6, 8, 10) were synthesized by Srinivasan et al. [16]. All the diols displayed nematic mesophase. Also a lot of works in the past were dedicated to the liquid crystalline properties of terephthalylidene-bis-4-n-alkylanilines [17,18,19,20,21,22,23] with aliphatic chains consisting of five to ten carbon atoms.
The symmetrical azomethines with two HC=N bonds and demonstrated banana-shapes were widely investigated as well [24,25,26,27,28,29,30]. For example, liquid crystalline trimers composed of banana-shaped and rodlike anisometric segments were synthesized and investigated by Yelamaggad et al. [24]. The LC azomethines consisted of two ester groups in the center and two cyanobiphenyl groups at the periphery of the compounds. Four alkylene spacers (6, 7, 8, 10) were used as a flexible spacer. All of the trimers displayed an enantiotropic uniaxial nematic phase. Additionally, the compound possessing a heptamethylene (odd-parity) spacer exhibited also a metastable Sm phase.
In this paper we present two groups of symmetrical azomethines and one group of unsymmetrical azomethines with two azomethine bonds. Symmetrical and unsymmetrical azomethines, obtained from benzene-1,4-dicarboxaldehyde, having methyl- or methoxy- aliphatic chains presented polymorphism, while symmetrical azomethines containing carbonitrile- or azo- moiety did not exhibit LC behaviour. Symmetrical azomethines having thiophene ring in the centre also demonstrated mesomorphic behaviour.
Liquid crystal properties of the azomethines were studied by differential scanning calorimetry (DSC) and polarizing optical microscopy (POM). The structural characterization was performed by NMR and FTIR characteristic completed via X-ray diffraction measurements and optical investigations. The LC behavior as well as photoluminescence properties of the unsymmetrical azomethines were not investigated so far. To best of our knowledge the absorption properties of the azomethines in the function of temperature were first time analyzed hitherto.
The most remarkable feature of the azomethines that we have investigated was the incorporation of carbonitrile- , azo- pyrene or methyl groups in the symmetrical or unsymmetrical azomethines. It was shown that these groups dramatically influence the thermal and optical properties of the azomethines. Additionally, synthesis and investigation of new mesogens is one of the important and interesting fields for materials research community.

2. Results and Discussion

The azomethines synthesized were new, except for A2 and A3, described in [31,32], respectively, and used here as a references.

2.1. Synthesis and characterization

The synthesis of the new symmetrical azomethines with two azomethine bonds consisted of one step, while the synthesis route of the unsymmetrical azomethines consisted of two steps. Chemical structures of the symmetrical and unsymmetrical compounds and of the aldehyde are presented in Figure 1, whereas details of synthesis procedures and molecular characteristics along with proton NMR, FTIR, UV-vis, photoluminescence (PL) spectra and elemental analysis of the azomethines and the aldehyde are given in Experimental. The spectral data of all azomethines and aldehyde were found to be consistent with their molecular structure. The absence of the residual amino (NH2) and aldehyde (CHO) groups together with the appearance of a typical for azomethine bond (HC=N) band was confirmed by FTIR and NMR spectra. The spectra confirmed both their purity and their molecular structures.

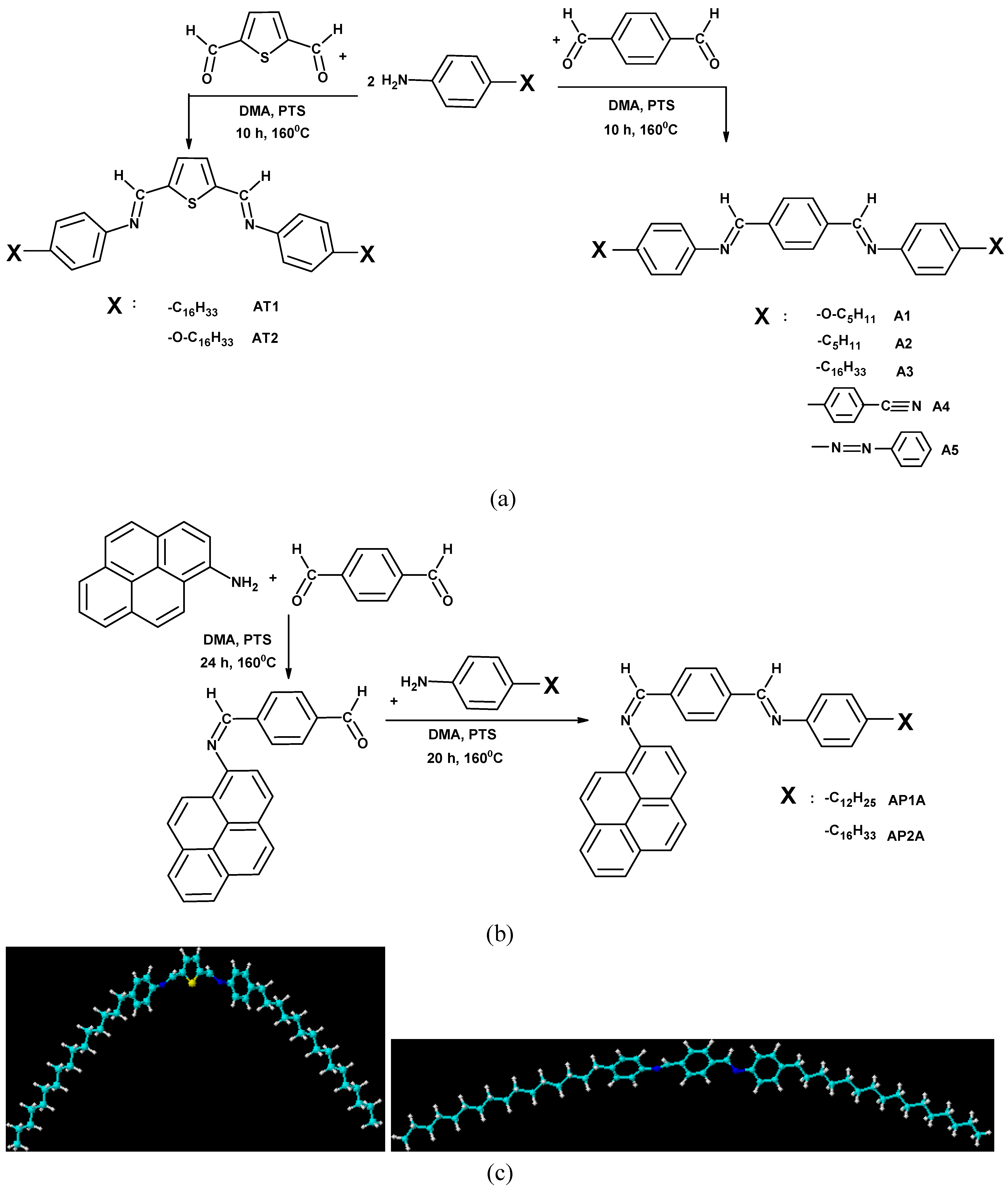

Figure 1. (a) Synthetic route to the symmetrical azomethines. (b) Synthetic route to the unsymmetrical azomethines. (c) Geometry optimization of A3 (right) and AT1 (left, side view).
Figure 1. (a) Synthetic route to the symmetrical azomethines. (b) Synthetic route to the unsymmetrical azomethines. (c) Geometry optimization of A3 (right) and AT1 (left, side view).
Materials 02 00038 g001
The UV-vis absorbance spectra of the symmetrical azomethines in solution (CH3Cl), except A5, displayed two absorption maxima, in the 272-298 nm and 357-362 nm regions (4.56-4.16 eV and 3.47-3.43 eV), whereas the UV-vis spectrum of the A5 showed one absorption maximum at 384 nm (3.23 eV). In the absorbance spectrum of the unsymmetrical azomethine AP1A three main absorption maxima at 318, 348 and about 450 nm were observed (Figure 2). For the same representative samples, the fluorescence (emission) spectra in chloroform solution (1.25 × 10-3 M) at room temperature were recorded for the 400 or 450 nm excitation wavelength. For the excitation wavelengths 400 nm, the symmetrical azomethines A3 and A4 exhibited one emission band at 535 nm (2.32 eV) and 489 nm (2.54 eV) , respectively, while the unsymmetrical azomethine AP1A exhibited one emission band at 520 nm (2.38 eV) under 450 nm excitation wavelengths.

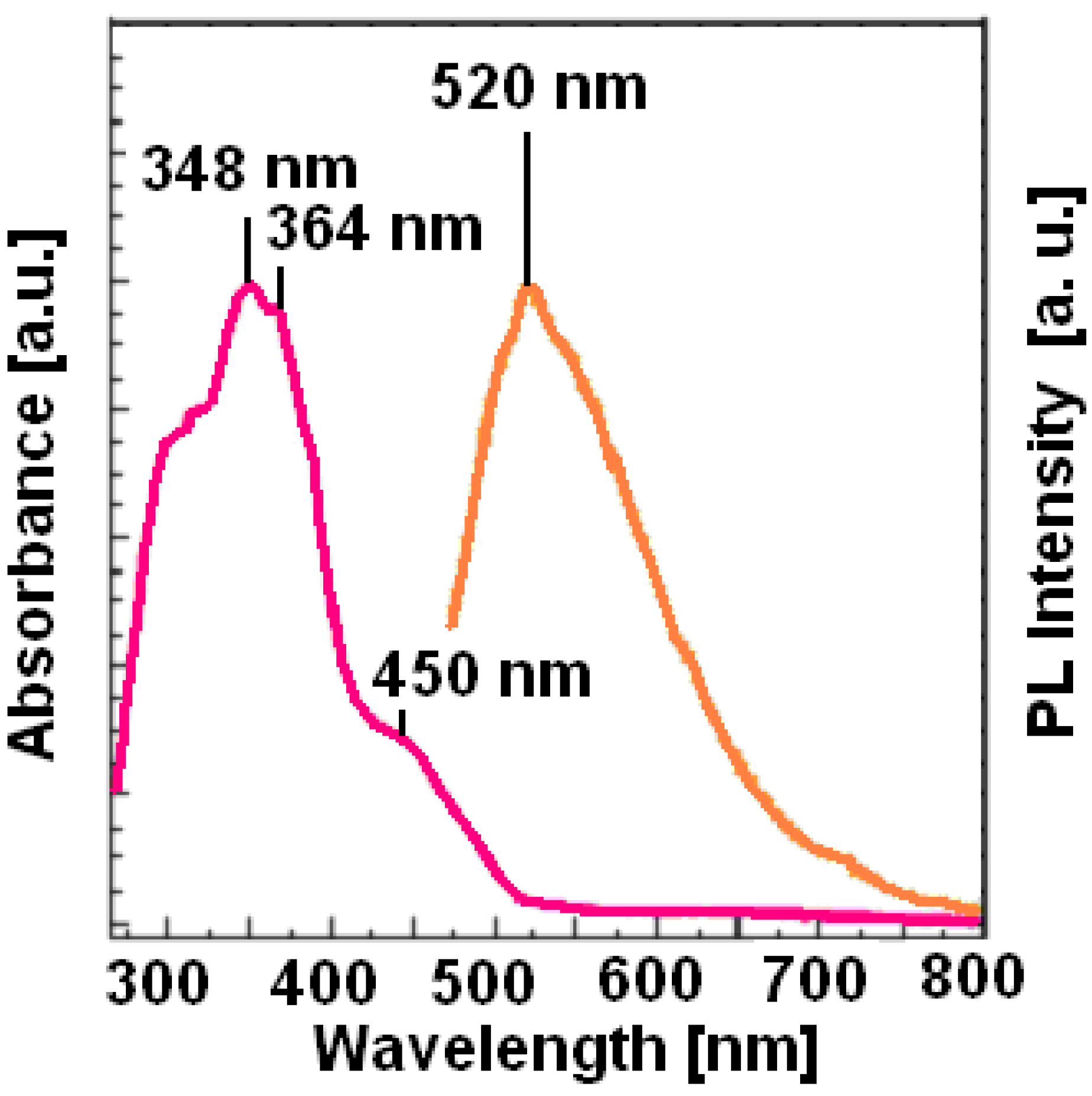

Figure 2. Absorption (UV-vis) and emission (photoluminescence) spectra of the AP1A in THF solution (450 nm excitation wavelength).
Figure 2. Absorption (UV-vis) and emission (photoluminescence) spectra of the AP1A in THF solution (450 nm excitation wavelength).
Materials 02 00038 g002
The Stokes shift for AP1A was 70 nm, while for A3 and A4 it was 178 and 127 nm, respectively. It is apparent that a hypsochromic effect (blue effect) occurred with the introduction of carbonitrile (A4) or pyrene moiety (AP1A). These spectroscopic data ascertained the fluorescence properties of these unsymmetrical and symmetrical azomethines.
As mentioned earlier, several different azomethines have been described in the literature, but only a few azomethines demonstrated fluorescence together with liquid crystalline properties have been reported hitherto [31,32].

2.2. Mesomorphic behavior

Liquid crystal properties of these three groups of the azomethines were investigated mainly with the help of differential scanning calorimetry (DSC) and polarizing optical microscope (POM). As examples, DSC thermograms obtained during the first heating and cooling cycles for A1 and AP1A are shown in Figure 3. The tentative mesophases identifications and the scenario (sequence) of phase transitions related to the all compounds are based on the identification of textures appearing in two reference textbooks for liquid crystals [33,34] and on repeated POM and DSC experiments.

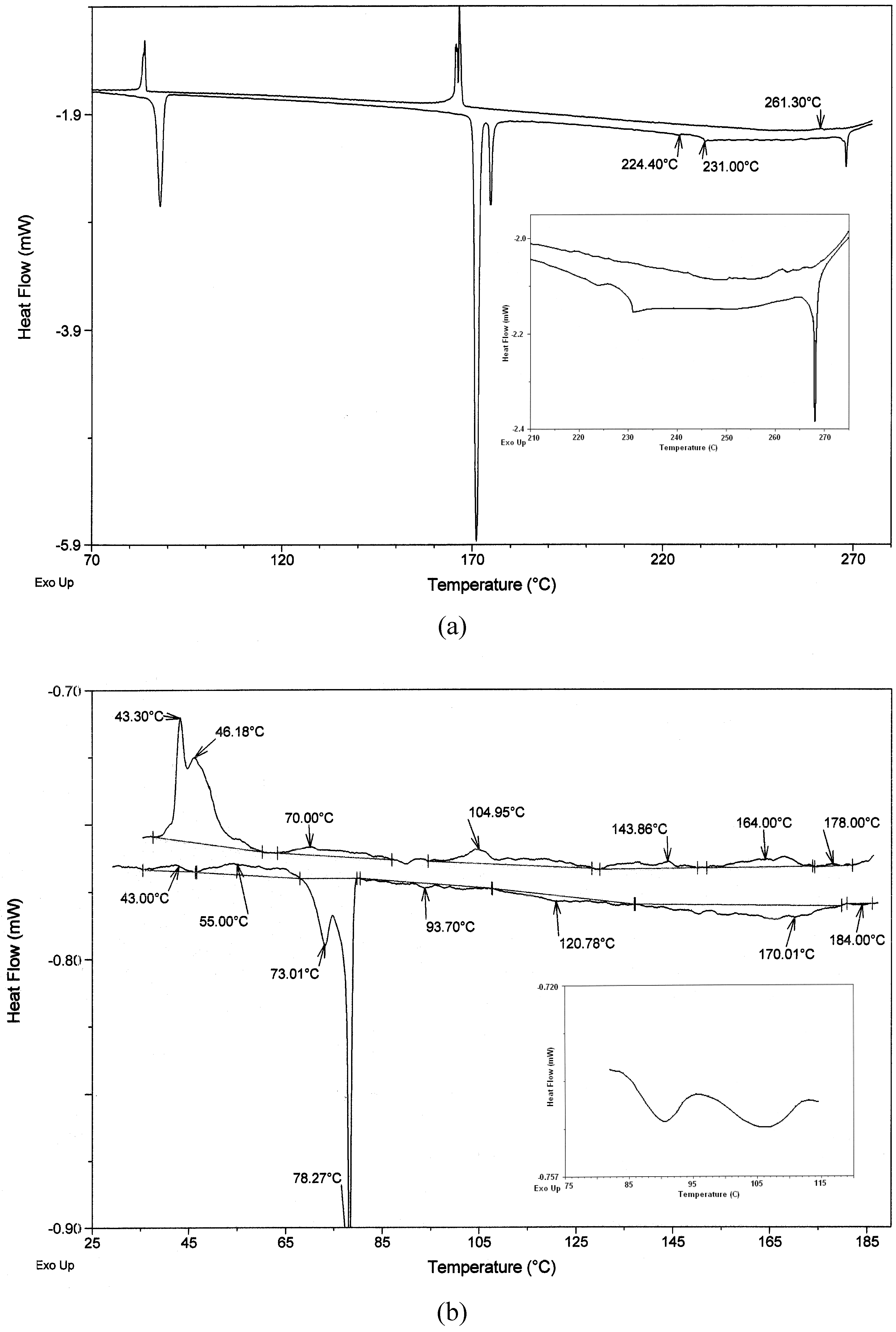

Figure 3. (a) DSC traces of symmetrical azomethine A1 at a heating/cooling (h/c) rate of 2 °C/min. (b) DSC traces of unsymmetrical azomethine AP1A at a h/c rate of 0.8 °C/min (inset heating 2 °C/min from 80 °C to 118 °C).
Figure 3. (a) DSC traces of symmetrical azomethine A1 at a heating/cooling (h/c) rate of 2 °C/min. (b) DSC traces of unsymmetrical azomethine AP1A at a h/c rate of 0.8 °C/min (inset heating 2 °C/min from 80 °C to 118 °C).
Materials 02 00038 g003
The phase sequences, transition temperatures and enthalpies of the symmetrical and unsymmetrical azomethines obtained from benzene-1,4-dicarboxaldehyde are presented in Table 1 and Table 2.
Table 1. Identified mesophases and thermal parameters of the azomethines determined by POM.
Table 1. Identified mesophases and thermal parameters of the azomethines determined by POM.
Phase transition behavior, cooling, detected by POM
A1
I 277 °C    N 277 °C till 230 °C     SmC 220 °C till 172 °C     Cr < 172 °C
A2
I 237 °C    N 237 °C till 216 °C     SmC 216 °C till 155 °C     Cr< 160 °C
A3
I 165 °C    N 165 °C till 142 °C     SmA 142 °C till 102 °C Cr < 102 °C
AP1A
I 185 °C    SmA 177 °C till 183 °C     SmC 177 °C till 157 °C     SmF (or I) 157 °C till 127 °C     SmG (or J) 127 °C till 50 °C     Cr < 50 °C
I-isotropic, Cr- crystalline, Sm- smectic, N- nematic

2.2.1. Mesomorphic behavior of the symmetrical azomethines A1-A5

Upon DSC analysis the symmetrical azomethines A1-A3 exhibited a typical transition behavior. Two enantiotropic transitions, crystal-to-mesophase (Cr/M) and mesophase-to-isotropic (M/I), were observed. The clearing temperature decreased with increase the length of the side chains, i.e., 261.3 °C (A1) > 230.5 °C (A2) > 160.7 °C (A3) on cooling cycle (Table 2). Introduction of oxygen atom into A1 caused increase of melting point and isotropic state of A1 in comparison with A2. The temperature range of the mesophases was decreased with increase the length of side chains (compare A2 and A3 in Table 2), as well. Compound A1 showed a crystal to isotropic liquid transition at 268.0 °C with a ΔH=2.9 J/g on the first heating cycle. On cooling from the isotropic state to room temperature, a small exothermic peak appeared at 261.3 °C with a ΔH= 1.7 J/g, corresponding to the transition from the isotropic liquid to the liquid crystalline phase. Compounds A2 and A3 have isotropisation at lover temperature (at 230.8 °C and at 160.9 °C) then A1 (Table 2).
The DSC analysis of the compounds A1-A3 showed three, four or six endothermic clearing transitions on the first heating cycle. When cooled from the isotropic liquid state to room temperature, the compounds exhibited three or five exotherms corresponding to the transition from the isotropic liquid to crystalline phase (see Figure 3a). Symmetrical azomethines A4-A5 did not exhibit liquid crystal behavior.
In the POM and DSC study, the compounds A1 and A2 shown stable enantiotropic smectic C (SmC) and nematic (N) liquid crystal phases, while the compound A3 presented stable enantiotropic smectic A (SmA) and nematic liquid crystal phases (see Table 1). As a representative case, the microphotographs of the nematic and smectic phases obtained for compound A1 are shown in Figure 4.
Table 2. Transition temperatures and enthalpies of the symmetrical and unsymmetrical azomethines detected by DSC.
Table 2. Transition temperatures and enthalpies of the symmetrical and unsymmetrical azomethines detected by DSC.
Phase sequences
CodePhase transitions [°C] (corresponding enthalpy changes) [J/g]
heatingcooling
A1268.0 (2.9), 231.0 (3.5), 224.4 (0.6), 174.7 (7.8), 171.1 (61.6) 87.9 (20.3)261.3 (1.7), 166.5 (50.1), 83.9 (16.4)
A2230.8 (3.4), 210.0 (1.9), 147.2 (8.7), 69.0 (42.0)230.5 (2.6), 209.8 (1.8), 146.5 (8.6), 60.7 (2.9), 47.5 (36.0)
A3160.9 (18.7), 139.0 (14.5), 88.4 (129.1)160.7 (17.7), 138.4 (13.5), 83.2 (126.1)
AP1A*182.0 (0.3), 171.0 (2.2), 158.1 (1.8), 131.4 (1.1), 97.1 (1.4), 85.0 (0.9), 78.1 (17.8), 72.8 (38.4), 51.1 (7.4)181.5 (0.2), 168.3 (6.9), 120.9 (2.1), 94.8 (2.7), 45.6, 43.1 (34.3)
AP1B292.0 (5.2), 171.8 (9.8), 119.0 (4.4), 99.8 (19.5)275.1 (34.1), 61.6 (6.7)
Peak temperatures in the DSC thermograms obtained during the first heating and cooling cycles. * at a heating/cooling rate of 1 °C/min.
Figure 4. Photomicrographs of the optical textures of mesophases obtained for the symmetrical A1 (seen at 276 °C and 200 °C).
Figure 4. Photomicrographs of the optical textures of mesophases obtained for the symmetrical A1 (seen at 276 °C and 200 °C).
Materials 02 00038 g004
The nematic phase of the symmetrical azomethines A1-A3 and SmC phase of A1 (see Figure 4) demonstrated Schlieren texture, while smectic C phase of the A2 exhibits sanded texture (data not presented here) [31,32].
X-ray diffraction studies of the symmetrical azomethines A1-A5 powders revealed their crystalline nature. The WAXD patterns for the compounds showed very sharp diffraction peaks with several weak diffractions in smaller angles (2Θ scanning), indicating that a highly ordered crystalline structure exists in the azomethines. The wide-angle X-ray diffraction patterns of the A4 and A5 over the 2θ range of 5° – 60°, as example, are shown in Figure 5a.

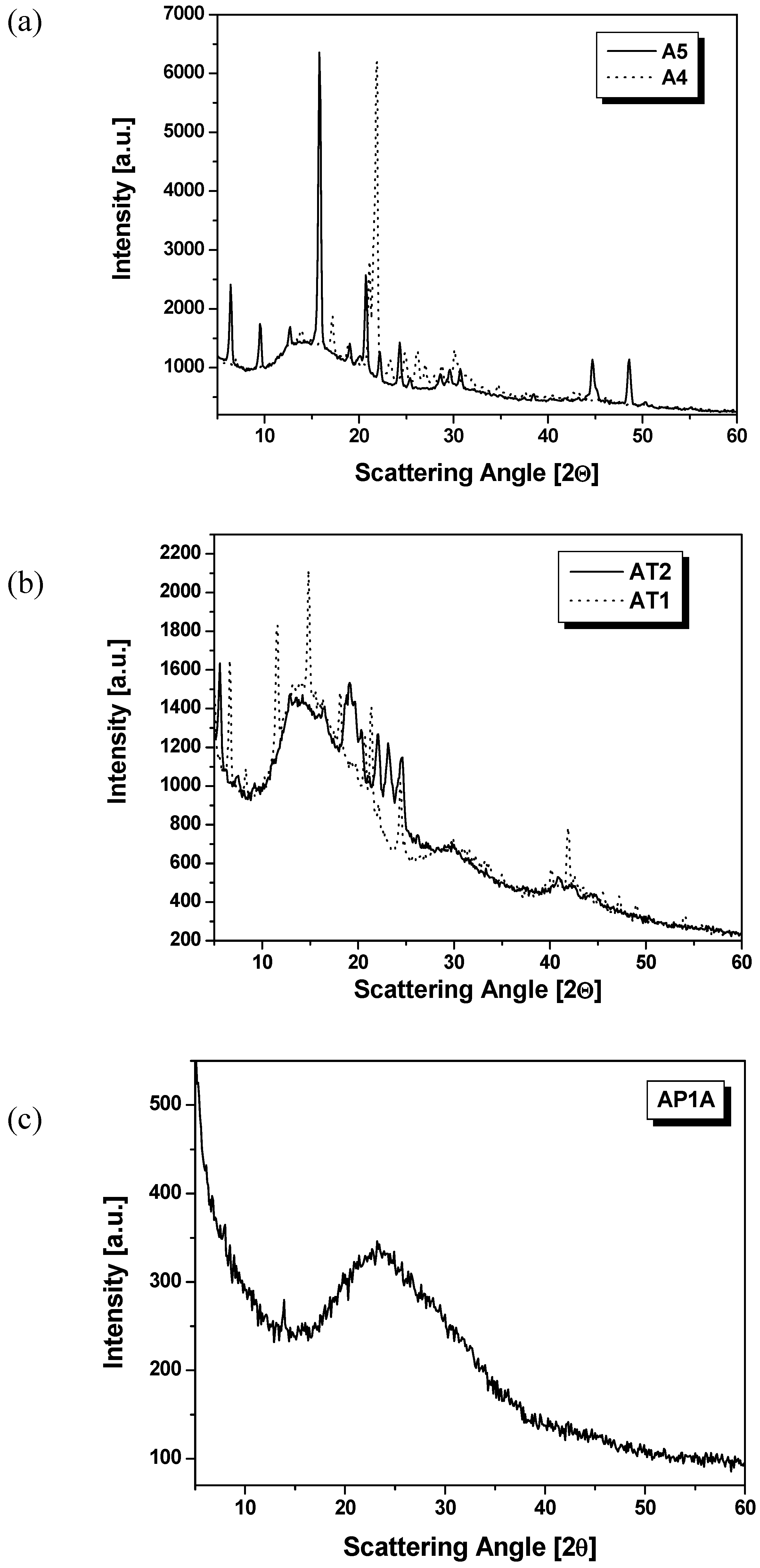

Figure 5. (a) X-ray profiles of symmetrical azomethines A4 and A5. (b) X-ray profiles of symmetrical azomethines AT1-AT2. (c) X-ray profile of unsymmetrical azomethine AP1A. (seen at room temperature).
Figure 5. (a) X-ray profiles of symmetrical azomethines A4 and A5. (b) X-ray profiles of symmetrical azomethines AT1-AT2. (c) X-ray profile of unsymmetrical azomethine AP1A. (seen at room temperature).
Materials 02 00038 g005
The reflection peaks (2θ) and d spacing from WAXS diffraction diagram of the azomethines A1-A5 are collected in Table 3.
Table 3. WAXS data for the azomethines A1-A5.
Table 3. WAXS data for the azomethines A1-A5.
CodeWAXS data
2θ [°] (corresponding d spacing) [Å]
A16.45 (13.69), 9.56 (9.24), 15.84 (5.59), 20.00 (4.43), 21.23 (4.18), 22.13 (4.01), 22.89 (3.88), 24.32 (3.66), 25.39 (3.50), 28.73 (3.10), 35.08 (2.56), 38.50 (2.34), 42.80 (2.11), 45.84 (1.98), 48.63 (1.87)
A25.57 (15.84), 11.31 (7.81), 13.53 (6.54), 17.41 (5.09), 20.56 (4.31), 22.59 (3.93), 24.46 (3.63), 28.91 (3.08)
A413.80 (6.41), 17.21 (5.15), 18.87 (4.70), 20.98 (4.23), 21.82 (4.07), 23.26 (3.82), 24.86 (3.58), 26.21 (3.40), 26.98 (3.30), 28.04 (3.18), 28.65 (3.11), 30.15 (2.96)
A56.37 (13.86), 9.56 (9.24), 12.66 (6.98), 15.78 (5.61), 19.03 (4.66), 20.62 (4.30), 22.13 (4.01), 24.24 (3.67), 25.39 (3.50), 28.65 (3.11), 29.55 (3.02), 30.76 (2.90), 44.71 (2.02), 48.57 (1.87)
Bold data indicate the main peak
The symmetrical compounds A1 and A2 exhibited one main reflection at 2θ = 6.45° and 20.56°, respectively (d spacing 13.69 Å and 4.31 Å). In the X-ray diffraction pattern of the azomethines A4 and A5 one main reflection at 2θ = 21.82° (d spacing 4.07 Å) and 2θ = 15.78° (d spacing 5.61 Å), respectively, were found (Figure 4a). On the other hand, compound A3 displayed five main reflections at 2θ = 19.55°, 20.56°, 21.15°, 21.80° and 23.45° (d spacing 4.54, 4.31, 4.20, 4.07 and 3.79 Å). The small and wide X-ray diffraction characteristics of the A3 are presented in [32].

2.2.2. Thermal behavior of the symmetrical azomethines AT1-AT2

The symmetrical azomethines AT1 and AT2 were synthesized by replaced phenyl ring via thiophene one (Fig 1a). The thermal behavior of these compounds was investigated via DSC and POM techniques. Compounds were investigated by DSC during different heating and cooling cycles. The results of the phase transition (heating scan) are presented below:
  • AT1 (heating 0.01 °C/min): CrI 133.3 °C [9.4], CrII 134.4 °C [40.8], SmX 135.5 °C [3.4], I
  • AT1 (heating 0.35 °C/min): CrI 103.8 °C [32.9], CrII 134.5 °C [89.3] I
  • AT2 (heating 1 °C/min): CrI 99.5 °C [11.8], CrII 129.8 °C [5.8], CrIII 153.5 °C [83.5] SmX1 154.6 °C [10.3], I
  • AT2 (heating 0.4 °C/min): CrI 96.4 °C [9.5], CrII 126.2 °C [1.8], CrIII 153.4 °C [87.8], I
The numbers in square brackets under the transition temperatures designate the transition enthalpies in kJ/mol. The symbol Sm X is used here for an unidentified order smectic phase. DSC curves of the compounds AT1 and AT2 during different heating and cooling cycles are presented in Figure 6 a-d. Also presented in Figure 6 are the DSC curves of A3, for comparison of the thermal behaviors of AT1 and A3.

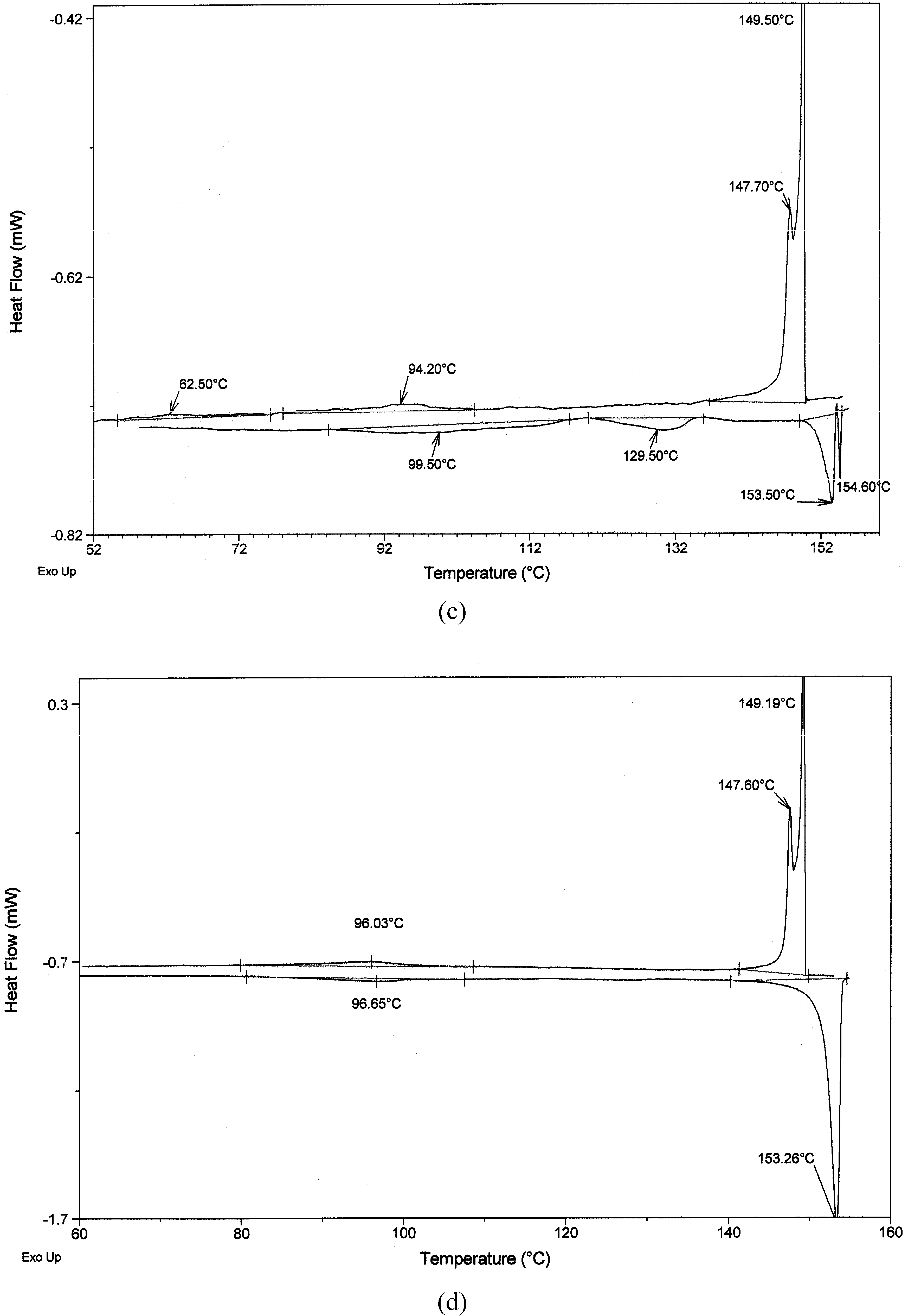

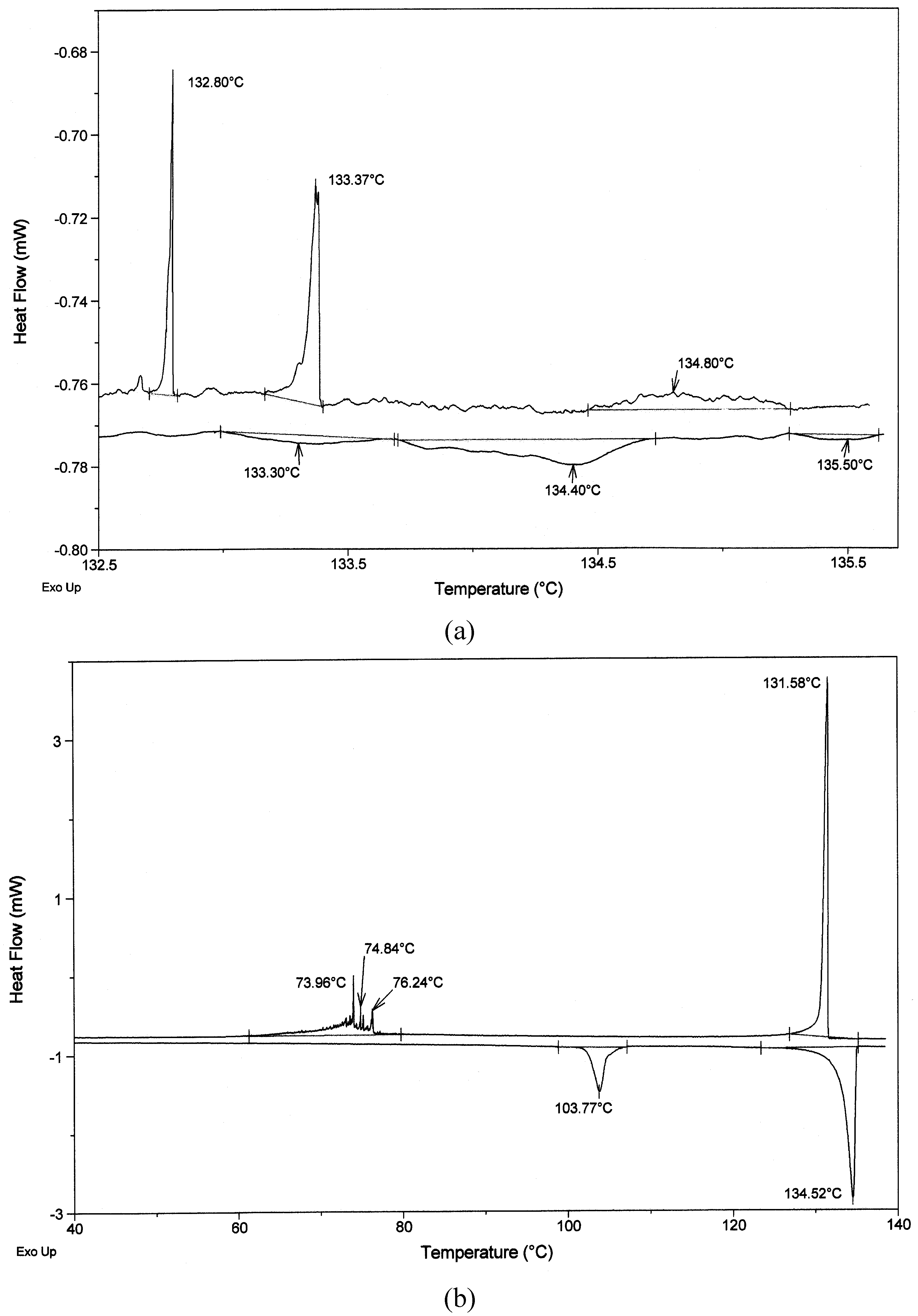

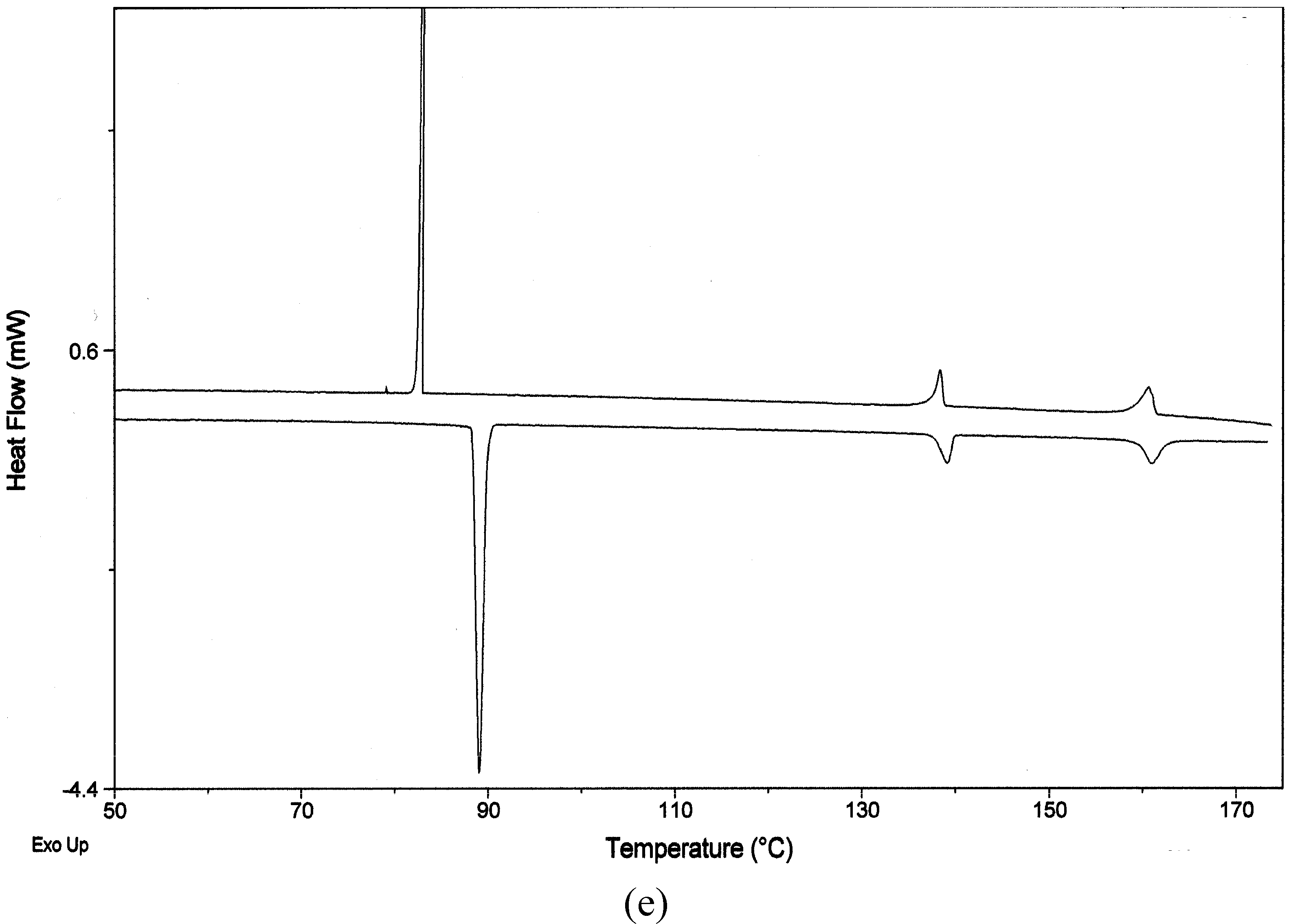

Figure 6. (a) The DSC traces of symmetrical azomethine AT1 at a h/c rate of 0.01 °C/min and (b) The DSC traces of symmetrical azomethine AT1 at a h/c rate of 0.35 °C/min. (c) DSC traces of symmetrical azomethine AT2 at a h/c rate of 1 °C/min and (d) DSC traces of symmetrical azomethine AT2 at a h/c rate of 0.4 °C/min. (e) DSC traces of symmetrical azomethine A3 at a h/c rate of 1 °C/min.
Figure 6. (a) The DSC traces of symmetrical azomethine AT1 at a h/c rate of 0.01 °C/min and (b) The DSC traces of symmetrical azomethine AT1 at a h/c rate of 0.35 °C/min. (c) DSC traces of symmetrical azomethine AT2 at a h/c rate of 1 °C/min and (d) DSC traces of symmetrical azomethine AT2 at a h/c rate of 0.4 °C/min. (e) DSC traces of symmetrical azomethine A3 at a h/c rate of 1 °C/min.
Materials 02 00038 g006aMaterials 02 00038 g006bMaterials 02 00038 g006c
On cooling the isotropic liquid of AT1 and AT2 the mesophase appeared as a mosaic texture under the microscope characteristic for the Sm X phase. Moreover, a kind of batonnets texture could be obtained for AT1 (Figure 7a, left side). Additionally, nice crystals under POM investigations were observed for both samples (Figure 7b). In contrary to the AT1 optical micrographs of the AT2 evidence showed “spherulite-like” domains (Figure 7b, right side).
To account for differences between the thermal behavior of A3 and AT1 a preliminary geometry optimalization (ACD/ChemSketch, 3D Structure Optimization) of these compounds was carried out. The average C-C bond length between the C=N linkage and phenylene ring in A3 was 1.502 Å, while that between the C=N linkage and thiophene ring in AT1 was 1.545 Å. The N-C bond length in A3 was 1.512 Å, while in the case of AT1 it was 1.552 Å. The C=N bond lengths of A3 and AT1 were 1.312 Å and 1.319 Å, respectively. Hence, bond length alternation between C-C and C=N was larger in AT1 (0.226 Å) than that in A3 (0.19 Å). As shown in Figure 1c, the valence angles between the C=N linkage and the adjacent phenylene ring in A3 and thiophene in AT1 were 122.55° and 124.75°, respectively. Also, a significant difference was shown on the valence angle between the C=N linkage and the adjacent N-phenylene ring. AT1 had a larger valence angle (125.45°), as compared with that (122.40°) of A3 by 3.05°, which suggests that A3 had a more planar conformation than AT1 (see Figure 1c).
The wide-angle X-ray diffraction patterns of the compounds AT1 and AT2 over the 2θ range of 5° – 60° are shown in Figure 5b. The diffraction arising from the crystallites is observed which confirmed crystalline pattern of both compounds. The WAXD patterns of the compounds AT1-AT2 showed very sharp diffraction peaks with several weak diffractions in smaller angles (2Θ scanning), indicating that a highly ordered crystalline structure exists in the azomethines, especially in the AT1. The compound AT1 exhibited three main reflections at 2θ = 5.47°, 12.99° and 16.50° (d spacing 16.14, 6.81 and 5.37 Å, respectively). On the other hand the diffractions arising from the crystallites were observed for AT2 at 6.61°, 8.31°, 11.50°, 14.78°, 18.07°, 20.66°, 21.42°, 22.09°, 24.46°, 29.84°, 40.19°, 41.89°, 42.62°, 45.50°, 47.27°, 49.03° and 53.90° and demonstrated less sharp diffraction peaks in the range 5-60° in comparison with the AT1 (Figure 5b).
Figure 7. (a) Photomicrographs of the optical textures of mesophases obtained for the symmetrical AT1 (left, seen at 136 °C) and AT2 (right, seen at 154 °C). (b) Photomicrographs of the optical textures of crystals obtained for the symmetrical AT1 (left, seen at 133 °C) and AT2 (right, seen at 153 °C).
Figure 7. (a) Photomicrographs of the optical textures of mesophases obtained for the symmetrical AT1 (left, seen at 136 °C) and AT2 (right, seen at 154 °C). (b) Photomicrographs of the optical textures of crystals obtained for the symmetrical AT1 (left, seen at 133 °C) and AT2 (right, seen at 153 °C).
Materials 02 00038 g007
Bent-shaped molecules (so-called banana molecules) have attracted great attention in the field of innovative liquid crystal research. Their unique properties of spontaneous chiral symmetry breaking and decoupling of polar and tilt order have been extensively studied for the last decade [24,25,26,27,28,29,30]. There are three main groups of bent-core liquid crystals: (1) molecules incorporating a rather rigid bent aromatic core (i.e. resorcinol derived compounds), (2) mesogenic dimers with an odd-number flexible spacer unit and (3) hockey-stick molecules, where an alkyl chain is attached to the meta-position at one end of an aromatic core [30]. In this paper two bent-shaped azomethines AT1 and AT2 were synthesized and investigated via DSC, POM and WAXD techniques. In X-ray diffraction measurements, a lot of sharp diffraction peaks were observed at wide angles and additionally several sharp peaks at small angles, as shown in Figure 5b. From these results the azomethines AT1 and AT2 probably exhibited B3 phase. This part of our work needs more investigations.

2.2.3. Mesomorphic behavior of the unsymmetrical azomethines AP1A-AP1B

All phase transition parameters of the unsymmetrical AP1A were determined by the DSC and POM technique and are presented in Table 1 and Table 2. Typical DSC traces of AP1A are shown in Figure 3b. This unsymmetrical azomethine exhibited very rich smectic polymorphism, as is shown in Table 1 and Table 2 and in Figure 3b. The POM and DSC observations revealed that AP1A is an enantiotropic liquid crystal exhibiting four phases (SmG, SmF, SmC, SmA). In contrast, the unsymmetrical AP1B exhibited two enantiotropic smectic phases, which implies a significant effect of the length of the aliphatic chain on the mesomorphic properties. The identification of the smectic phases was confirmed by POM. Microphotographs of the AP1A are presented in Figure 8.
Figure 8. Photomicrographs of the optical textures of mesophases obtained for the unsymmetrical azomethine AP1A. The banded focal-conic fan texture of the smectic G (or J) phase (seen at 120 °C, a), the broken focal-conic texture of the SmF (or I) phase (seen at 135 °C, b), the schlieren texture of the SmC phase (seen at 157 °C, c) and the focal-conic fan texture of the SmA phase (seen at 170 °C, d).
Figure 8. Photomicrographs of the optical textures of mesophases obtained for the unsymmetrical azomethine AP1A. The banded focal-conic fan texture of the smectic G (or J) phase (seen at 120 °C, a), the broken focal-conic texture of the SmF (or I) phase (seen at 135 °C, b), the schlieren texture of the SmC phase (seen at 157 °C, c) and the focal-conic fan texture of the SmA phase (seen at 170 °C, d).
Materials 02 00038 g008
Four kinds of textures were observed for AP1A: (1) the banded focal-conic fan texture of the smectic G (or J) phase (Figure 8a at 120 °C), (2) the broken focal-conic texture of the Sm F (or I) phase (Figure 8b at 135 °C), (3) the schlieren texture of the SmC phase (Figure 8c at 157 °C) and (4) the focal-conic fan texture of the SmA phase (Figure 8d at 170 °C).
It is very difficult to find changes between SmF and SmI or SmG and SmJ. The only change which occurs at the transition from SmF to SmI is one of tilt direction (SmF: tilt direction towards an edge of the hexagon while SmI: tilt direction towards an apex of the hexagon) [34]. Both SmF and SmI are tilted biaxial (2D) smectic mesophase in which the mesogenic molecules are hexagonally packed. They both share short range hexagonal order with no long-range correlations in between their smectic layers.
From a structural organization point of view, a transition from a SmI mesophase to a SmJ one (or from a SmF to a SmG mesophase) would imply the transition from an organization with titled 2D hexagonally packed LC molecules towards the one of titled 3D pseudo-hexagonally packed LC molecules. Put it differently a SmI > SmJ (or a SmF > SmG) transition results in a net gain of positional order of the LC molecules as well as by a transition from a 2D to 3D mesophase. When the SmG phase is formed by cooling a SmF phase the tilt direction with respect to the hexagonal net is retained it means that till towards the edge of the hexagon [34].
It is quite difficult to differentiate SmF and SmI mesophases unless they are present in a sequence of mesophases for a specific LC. Nevertheless detailed X-Ray diffraction measurements, neutron scattering studies and POM investigations could be used to highlight such a tiny difference. Additionally, DSC studies could be of great help in the case of LCs compounds show a mesophases SmF and SmI, which have usually enthalpy value in the range of 0.1-0.2 kJ/mol.
Table 2 reveals that the compound AP1A exhibited a clearing point temperature lower than AP1B. On the other hand the compound AP1B had the highest clearing point temperature in comparison with another azomethines (Table 2). Also the melting temperature of AP1B was the highest in comparison with the other azomethines. The following order was observed: 69 °C (A2) < 72.8 °C (AP1A) < 87.9 °C (A1) < 88.4 °C (A3) < 99.8 °C (AP1B).
Additionally, the phase transitions were analysed based on their entropy values (Figure 9). The melting process has the highest entropy values. The entropy values decreased from 129.1 J/mol K for A3 to the minimal values 19.5 and 20.3 J/mol K for AP1B and A1, respectively. The parameters of the heating and cooling process were more or less similar (Figure 9c-d).
The X-ray diffraction pattern obtained from AP1A is presented in Figure 5c. A broad halo and a sharp reflection at wide angles are shown in Figure 5c. One broad diffraction peak of diffusion type centered at 23.33° (2θ) and one sharp reflection at 13.82° was observed for AP1A.

2.3. UV-vis(T) Studies

The absorption properties of the azomethines in the function of temperature were first time analyzed hitherto. Figure 10 shows the temperature dependence of the UV-vis spectra of A2, as an example, in a temperature range from room temperature to the clearing point in the heating process.

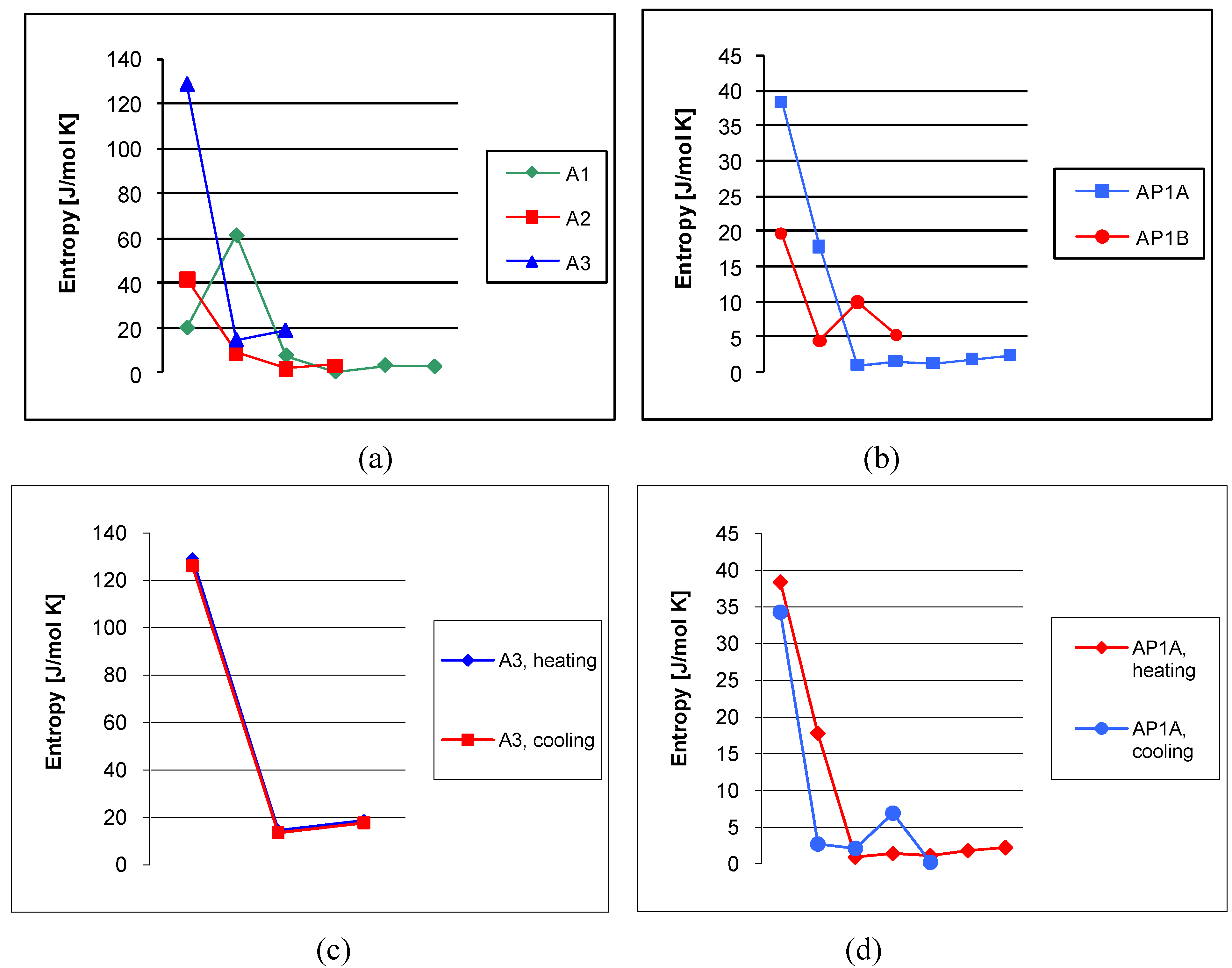

Figure 9. (a-b) Influence of the amine structure on the effect of entropy of the azomethines A1-A3 and AP1A-AP1B during heating process. (c- d) Influence of the heating and cooling process on the effect of entropy of the azomethines A3 and AP1A.
Figure 9. (a-b) Influence of the amine structure on the effect of entropy of the azomethines A1-A3 and AP1A-AP1B during heating process. (c- d) Influence of the heating and cooling process on the effect of entropy of the azomethines A3 and AP1A.
Materials 02 00038 g009
Using UV-vis spectroscopy to monitor the changes in spectroscopic properties of A2 during heating, three changes in the position of the isosbestic point were observed, indicating that the differential transitions proceeds not randomly but stepwise. An isosbestic point appears when a compound is quantitatively transformed from crystal to one mesophase and later into another during heating, so the three different isosbestic points observed suggest that three different transitions were successively formed. The spectra of the A2 gradually changed, with an isosbestic point at 406 nm due to the increase the tempararture from 25 °C to 70 °C (Figure 10, inset b). The isosbestic point at 420 nm appeared for the following temperatures 25, 150, 155, 185, 200 °C, and was about 14 nm red shifts in comparison with the isosbestic point observed at 406 nm (Figure 10, inset c). The third isosbestic point observed at 322 nm (for the temperatures 25, 70, 150, 155, 230, 237 °C, Figure 10, inset a) was about 90 nm blue shifts in comparison with another isosbestic points.
Also in the UV-vis spectra of A2 a bathochromic effect with temperature increase was observed. The absorption band around 394 nm at 25 °C was about 10 nm bathochromically shifted, along with increase the temperature to 70 °C (404 nm). At 150 °C the absorption band corresponding to the azomethine bond was broader and not well defined and was observed at this position to 185 °C what correspond to the transition Cr-SmC. Along with increase the temperature from 200 to 237 °C the absorption band disappeared along with decreased the absorption intensity (hypochromic effect).

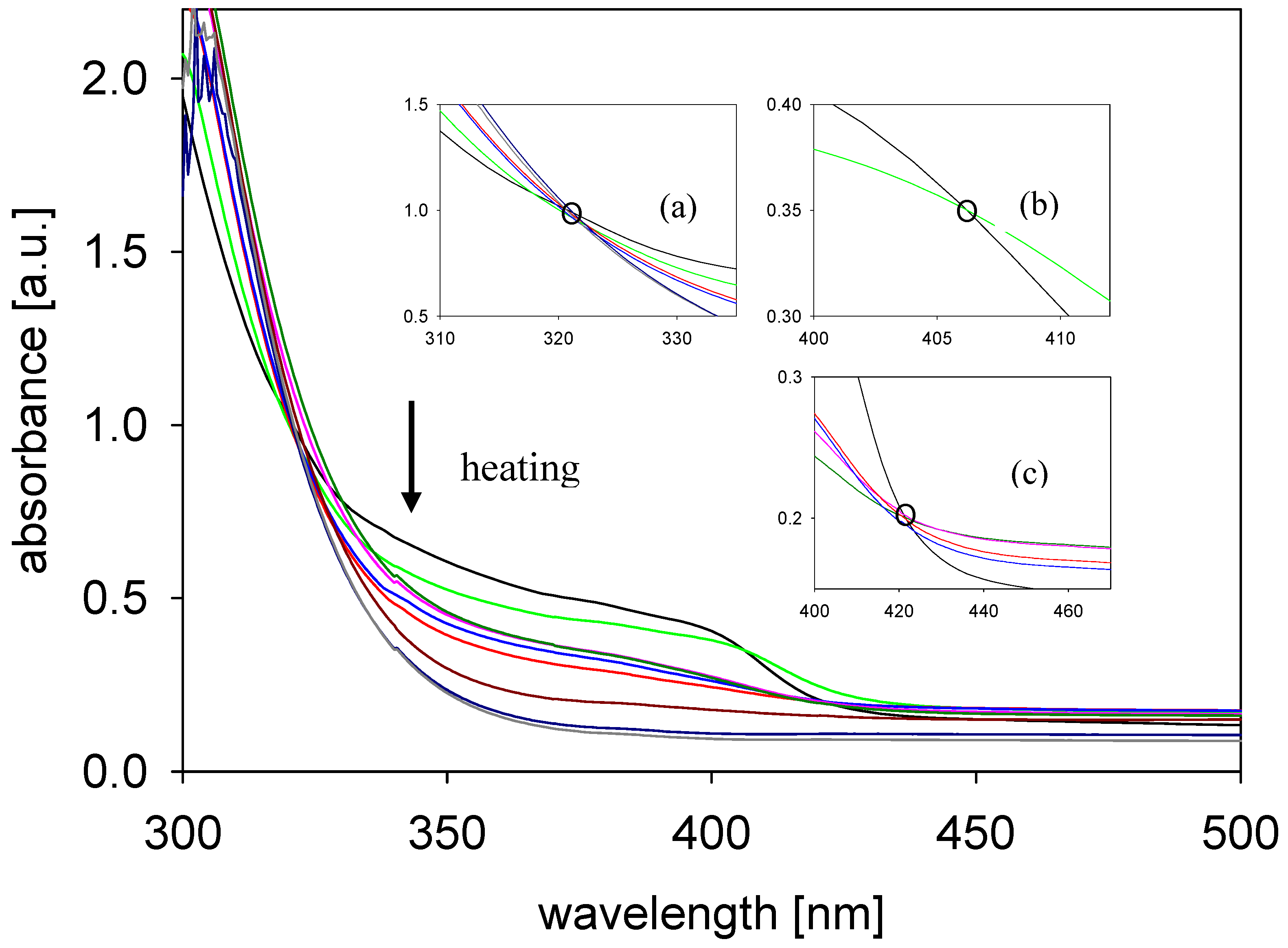

Figure 10. Temperature dependence of UV-vis spectra of the A2 at the following temperatures: 25, 70 , 150 , 155 , 185 ; 200 , 215 , 230 , 237 °C. Insets: (a) The isosbestic point at 322 nm (for the curves crossed at the following temperatures 25, 70 , 150 , 155 , 230 , 237 °C), (b) The isosbestic point at 406 nm (25 and 70 °C) and (c) The isosbestic point at 420 nm (25, 150 , 155 , 185 ; 200 °C).
Figure 10. Temperature dependence of UV-vis spectra of the A2 at the following temperatures: 25, 70 , 150 , 155 , 185 ; 200 , 215 , 230 , 237 °C. Insets: (a) The isosbestic point at 322 nm (for the curves crossed at the following temperatures 25, 70 , 150 , 155 , 230 , 237 °C), (b) The isosbestic point at 406 nm (25 and 70 °C) and (c) The isosbestic point at 420 nm (25, 150 , 155 , 185 ; 200 °C).
Materials 02 00038 g010
It should be mentioned that such LC compounds which exhibit a mesophase or a sequence of mesophases over a broad temperature range could be used in: (i) color information technology-based applications [35] for thermally stable glassy derived from cholesterol LC molecules and (ii) organic electronic devices (organic light-emitting devices, organic solar cells). Obtained compounds could be utilized in devices which operating temperature is much higher than room temperature. Moreover, such types of LCs compounds have been used in mixture with other LCs for LC displays. Particularly important are twisted nematic (TN) cells which rely on calamitic mesogens, and usually exhibit high clearing temperatures.

3. Experimental Section

General

Acetone, ethanol, N,N-dimethylacetamide (DMA) (Aldrich) 4-hexadecylaniline (Aldrich), 4-n-hexadecyloxyaniline (Alfa Aesar), 4-n-dodecylaniline (Aldrich), 4-pentylaniline (Aldrich), 4-pentyl-oxyaniline (Aldrich), 4’-aminobiphenyl-4-carbonitrile (Aldrich), 4-((4-aminophenyl)diazenyl)-N,N-dimethylbenzenamine (Aldrich), pyren-1-amine (Aldrich), 2,5-thiophenedicarboxaldehyde and benzene-1,4-dicarboxaldehyde were used without any purification. Synthesized compounds were characterized by 1H-NMR and elemental analysis. Compounds were also characterized by Fourier transform infrared (FTIR-ATR) and ultraviolet-visible (UV-vis) absorption spectroscopy. NMR was recorded on a Bruker AC 200 MHz instrument. Chloroform-d (CDCl3) containing TMS as an internal standard were used as solvent. Elemental analyses (C, H and N) were recorded on a 240C Perkin-Elmer analyzer. FTIR spectra of the compounds were recorded on a Perkin-Elmer paragon 500 spectrometer (wavenumber range: 400-4000 cm-1; resolution: 2 cm-1). Solution UV-vis absorption spectra were recorded using a Hewlett-Packard 8452A spectrophotometer. X-ray diffraction patterns were recorded using powder samples on a wide-angle HZG-4 diffractometer working in typical Bragg geometry. CuKα radiation was applied.
The phase transitions and mesogenicity were studied by differential scanning calorimetry (DSC) and polarizing microscope observations (POM). DSC were measured on a TA-DSC 2010 apparatus using sealed aluminium pans under nitrogen atmosphere at a heating/cooling rate 0.5 °C/min in a temperature range from –20 °C to over the clearing point.
The textures of the liquid-crystalline phase were observed with a Polarized Optical Microscopy (POM), set-up composed of: i) LEICA DMLM Microscope (Magnification: 2.5x, 5x, 10x, 20x and 50x) working in both transmission and reflexion modes, ii) LINKAM LTS350 (-196 °C till +350 °C) Hot plate and LINKAM CI94 temperature controller, iii) JVC Numeric 3-CCD KYF75 camera (resolution: 1360 x 1024).
The temperature dependence of the UV-vis spectra was measured for thin film on the glass (film cast from dichloroethane) by JASCO V-570 UV-Vis-NIR spectrometer using a temperature-controlled optical cell in a temperature range from the room temperature to clearing point in the heating process.

3.1. Synthesis of symmetrical azomethines

The symmetrical azomethines were prepared using the synthetic routes shown in Scheme 1a, and identical to those used to prepare the terephthalylidene-bis-4-n-alkylanilines [31,32]. Generally, a solution of dialdehyde (1.0 mmol) in DMA (5 mL) was added to a solution of amine (2.0 mmol) in DMA (5 mL) with 0,06 g of p-toluenesulfonic acid. The mixture was refluxed with stirring for 10 hours. Then the compound was filtered, washed with ethanol and later with acetone and dried at 60 °C under vacuum for 12 hours.Azomethines A2 and A3 were synthesized and described previously [31,32] and were used as references in this paper.
N,N’-(1,4-phenylenebis(methan-1-yl-1-ylidene)bis(4-(pentyloxy)benzenamine) (A1): Yield: 90%; 1H- NMR (ppm): δ= 8.54 (s, 2H, 2 × HC=N), 7.98 (4H, s, 4 × HAr), 6.93-7.29 (m, 8H, 8 × HAr), 3.96-4.00 (m, 4H, 2 × OCH2), 1.89-1.93 (m, 4H, 2 × CH2), 1.41-1.45 (m, 4H, 2 × CH2), 0.92-0.97 (m, 6H, 2 × CH3); FTIR: 2935, 2859, 1618 (HC=N), 1574, 1500, 1464, 1390, 1359, 1315, 1285, 1236, 1192, 1162, 1109, 1052, 1017, 951, 868, 837, 772, 728, 640 cm-1; Anal. Calcd for C30H36N2O2 (456.28): C, 78.91%; H, 7.95%; N, 6.13%. Found: C, 79.02%; H, 7.82%; N, 6.20%; Mp: 173 °C; UV-vis in chloroform λmax at 292 and 379 nm; PL in chloroform λmax, very low (excitation 400 nm).
N,N’-(1,4-phenylenebis(methan-1-yl-1-ylidene)bis(4-pentylbenzenamine) (A2): [31]. Yield: 88%; 1H- NMR (ppm): δ= 8.52 (s, 2H, 2 × HC=N), 7.98 (4H, s, 4 × HAr), 7.19-7.21 (m, 8H, 8 × HAr), 2.60-2.63 (m, 4H, 2 × CH2), 1.32-1.36 (m, 4H, 2 × CH2), 1.61-1.64 (m, 4H, 2 × CH2), 0.90-0.92 (m, 6H, 2 × CH3); FTIR: 2951, 2923, 2854, 1623 (HC=N), 1598, 1562, 1499, 1467, 1419, 1364, 1303, 1192, 1171, 1116, 1013, 970, 884, 852, 839, 812, 728, 591, 566, 551 cm-1; Anal. Calcd for C30H36N2 (424.29): C, 84.86%; H, 8.55%; N, 6.60%. Found: C, 84.92%; H, 8.61%; N, 6.80%; Mp: 150 °C; UV-vis in chloroform λmax at 272 and 360 nm; PL in chloroform λmax, very low (excitation 400 nm).
N,N’-(1,4-phenylenebis(methan-1-yl-1-ylidene)bis(4-hexadecylbenzenamine) (A3) [32]. Yield: 81%; 1H-NMR (ppm): δ= 8.53 (s, 2H, 2 × CH=N-), 8.00 (s, 4H, 4 × HAr), 7.20-7.24 (m, 8H, 8 × HAr), 2.60-2.66 (m, 4H, 2 × CH2-Ar), 1.56-1.63 (m, 4H, 2 × CH2-CH2-CH2-Ar), 1.26 (m, 52H, 2 × (CH2)13-CH3), 0.86-0.90 (m, 6H, 2 × CH3); FTIR: 3031, 2954, 2918, 2849, 1622 (HC=N), 1601, 1498, 1472, 1463, 1415, 1357, 1307, 1198, 1168, 1116, 1012, 971, 880, 842, 828, 807, 728, 719, 582, 557, 524 cm-1; Anal. Calcd. for C52H80N2 (732.63): C, 85.18%; H, 11.00%; N, 3.82%. Found: C, 85.35%; H, 10.96%; N, 3.95%; Mp: 92 °C; UV-vis in chloroform λmax at 294 and 357 nm; PL in chloroform λmax at 535 nm (excitation 400 nm).
4’,4”-(1,4-phenylenebis(methan-1-yl-1-ylidene))bis(azan-1-yl-1-ylidene)dibiphenyl-4-carbonitrile (A4) Yield: 75%, 1H-NMR (ppm): δ= 8.59 (s, 2H, 2 × CH=N-), 8.06 (s, 4H, 4 × HAr), 7.61-7.74 (m, 4H, 4 × HAr), 7.40-7.39 (m, 4H, 4 × HAr); FTIR: 2224 (C≡N), 1625 (HC=N), 1603, 1594, 1562, 1487,1397, 1364, 1295, 1193, 1175, 1115, 1004, 973, 888, 860, 837, 822, 741, 545 cm-1; Anal. Calcd. for C34H22N4 (486.57): C, 83.93%; H, 4.56%; N, 11.51%. Found: C, 83.35%; H, 4.64%; N, 11.41%; Mp: 282 °C; UV-vis in chloroform λmax at 298 and 362 nm; PL in chloroform λmax at 489 nm (excitation 400 nm).
N,N’-(1,4-phenylenebis(methan-1-yl-1-ylidene))bis(4-(phenyldiazenyl)benzenamine). (A5). Yield: 70%; 1H NMR (ppm): δ= 8.60 (s, 2H, 2 × CH=N-), 8.08 (s, 4H, 4 × HAr), 7.93-8.03 (m, 4H, 4 × HAr), 7.38-7.54 (m, 4H, 4 × HAr); FTIR: 2882, 1617 (HC=N), 1582, 1485,1463, 1440, 1414, 1357, 1302, 1287, 1261, 1220, 1186, 1152, 1110, 1103, 1070, 1017, 967, 918, 855, 764, 730, 686, 566, 531, 474 cm-1; Anal. Calcd. for C32H24N6 (492.57): C, 78.03%; H, 4.91%; N, 17.06%. Found: C, 78.35%; H, 4.99%; N, 16.95%; Mp: 248 °C; UV-vis in chloroform λmax at 384 nm; PL in chloroform λmax not detected under excitation 400 nm.
N-(4-hexadecylphenyl)-N-[(1)-(5-{-[(4-ethylphenyl)imino]methyl}thien-2-yl)methylene]amine. (AT1). Yield: 85%; 1H-NMR (ppm): δ= 8.63 (s, 2H, 2 × CH=N-), 7.51 (s, 2H, 2 × Hth), 7.24 (m, 8H, 8 × HAr), 2.62-2.70 (m, 4H, 2 × CH2-Ar), 1.60-1.66 (m, 4H, 2 × CH2-CH2-CH2-Ar), 1.30 (m, 52H, 2 × (CH2)13-CH3), 0.89-0.94 (m, 6H, 2 × CH3); FTIR: 2912, 2837, 2364, 2328, 1614 (HC=N), 1583, 1500, 1464, 1416, 1364, 1293, 1285, 1241, 1192, 1171, 1114, 1061, 1008, 956, 903, 859, 833, 815, 785, 710 cm-1; Anal. Calcd. for C50H78N2S (739.23): C, 81.24%; H, 10.64%; N, 3.79%. Found: C, 81.21%; H, 10.65%; N, 3.67%; Mp: 136 °C; UV-vis in dichloroethane (partially soluble) λmax at 230, 250 shoulder and 385 nm.
AT2: N-(4-hexadecyloxyphenyl)-N-[(1)-(5-{-[(4-ethoxyphenyl)imino]methyl}thien-2-yl)methylene]am-ine. Yield: 80%. 1H NMR: not soluble in DMSO, not fully soluble in CDCl3. FTIR: 2923, 2853, 2356, 2327, 1614 (HC=N), 1587, 1504, 1473, 1460, 1364, 1280, 1245, 1166, 1109, 1021, 951, 938, 837, 728 cm-1. Anal. Calcd. for C50H78N2O2S (771.23): C, 77.87%; H, 10.19%; N, 3.63%. Found: C, 77.67%; H, 9.99%; N, 3.68%. Mp: 153 °C. UV-vis in dichloroethane (partially soluble) λmax at 230, 250, 296 and 352 nm.

3.2. Synthesis of 4-[-(1H-pyren-8-ylimino)methyl]benzaldehyde aldehyde (AP1)

The aldehyde was prepared using the synthetic routes shown in Scheme 1b. Solution of benzene-1,4-dicarboxaldehyde (1.0 mmol) in DMA (5 mL) was added to a solution of pyren-1-amine (0.5 mmol) in DMA (5 mL) contaning 0.03g of p-toluenesulfonic acid. The mixture was refluxed with stirring for 24 hours. The final compound was washed with ethanol and with acetone and dried at 60 °C under vacuum for 12 hours. Yield: 75%. 1H-NMR (ppm): δ= 10.19 (s, 1H, HC=O), 8.90 (s, 1H, CH=N-), 8.03-8.35 (m, 9H, HAr, pyrene structure), 7.81-7.90 (m, 4H, 4 × HAr); FTIR: 3042, 2852, 2355, 1688 (HC=O), 1605 (HC=N), 1587, 1478, 1407, 1377, 1346, 1293, 1241, 1197, 1171, 1140, 1092, 1008, 956, 899, 833, 759, 715, 684, 622 cm-1; Anal. Calcd. for C24H15NO (333.38): C, 86.46%; H, 4.54%; N, 4.20%. Found: C, 86.21%; H, 4.65%; N, 4.27%; Mp: 321 °C; UV-vis in dichloroethane λmax at 275, 315, 343, 389 and 435 nm.

3. 3. Synthesis of unsymmetrical azomethines

The unsymmetrical azomethines were prepared using the synthetic route shown in Scheme 1b. Generally, a solution of aldehyde AP1 (1.0 mmol) in DMA (5 mL) was added to a solution of amine (1.0 mmol) in DMA (5 mL) with 0.06 g of p-toluenesulfonic acid. The mixture was refluxed with stirring for 20 hours. Then the compound was filtered, washed with ethanol and later with acetone and dried at 60 °C under vacuum for 12 hours.
N-(4-((4-doadecylphenylimino)methyl)benzylidene)pyren-1-amine. (AP1A). Yield: 70%; 1H-NMR (ppm): δ= 8.90 (s, 1H, CH=N-Arpyrene), 8.58 (s, 1H, CH=N-), 7.84-8.04 (m, 9H, HAr, pyrene structure), 7.84-7.89 (m, 4H, 4 × HAr), 7.25-7.30 (m, 4H, 4 × HAr), 2.63-2.71 (m, 2H, CH2-Ar), 1.60-1.67 (m, 2H, Ar-CH2-CH2-), 1.31 (m, 18H, (CH2)9-CH3), 0.93-0.95 (m, 3H, CH3); FTIR: 2918, 2842, 2356, 2333, 1622 (HC=N-), 1596, 1561, 1504, 1451, 1412, 1350, 1298, 1197, 1166, 1114, 1096, 1008, 969, 885, 824, 780, 706, 684, 662, 614 cm-1; Anal. Calcd. for C42H44N2 (576.81): C, 87.45%; H, 7.69%; N, 4.86%. Found: C, 87.21%; H, 7.65%; N, 4.74%; Mp: 136 °C; UV-vis in THF λmax at 304, 318, 348, 364 and ~ 450 nm; PL in THF λmax at 520 nm (excitation 450 nm).
N-(4-((4-hexadecylphenylimino)methyl)benzylidene)pyren-1-amine. (AP1B) Yield: 65%; 1H-NMR (ppm): δ= 8.88 (s, 1H, CH=N-Arpyrene), 8.58 (s, 1H, CH=N-), 7.84-8.34 (m, 9H, HAr, pyrene structure), 7.25-7.30 (m, 4H, 4 × HAr), 7.04-7.08 (m, 4H, 4 × HAr), 2.63-2.72 (m, 2H, CH2-Ar), 1.64 (m, 2H, Ar-CH2-CH2-), 1.30 (m, 26H, (CH2)13-CH3), 0.92-0.93 (m, 3H, CH3); Anal. Calcd. for C46H52N2 (632.92): C, 87.29%; H, 8.28%; N, 4.43%. Found: C, 87.21%; H, 8.45%; N, 4.37%; Mp: 99 °C.

4. Conclusions

In summary, we have reported the synthesis and characterization of new symmetrical and unsymmetrical series of the calamitic azomethines with aromatic central core based on 2,5- thiophenedicarboxaldehyde and benzene-1,4-dicarboxaldehyde. The one group of the symmetrical compounds (i.e. the three benzene-1,4-dicarboxaldehyde derivatives) consisted of molecules containing two liquid crystal units with different length of the outer spacers, i.e. the length of the outer spacer is varied from 5 to 16 methylene groups. The second symmetrical group (i.e. the two 2,5- thiophenedicarboxaldehyde derivatives) consisted of molecules containing also two liquid crystal units with the 16 methylene or 16 methoxy groups as an outer spacers. The third group consist of unsymmetrical molecules containing three LC units with different length of the outer spacers (12 or 16 methylene groups). At an ambient temperature all of the azomethines were crystalline substances which melting point ranged from 92 °C to 282 °C. The mesomorphic properties of the compounds depend on both the length of the outer flexible spacers, the connection of the azomethine group with the rod, i.e. via phenyl or thiophene ring and symmetry of the molecule. The symmetrical compounds exhibited smectic and/or nematic phases whereas the unsymmetrical azomethines displayed rich polymorphism.
The obtained unsymmetrical and symmetrical azomethines exhibit mesophases over a broad temperature range and can be used potentially in optoelectronics. For example, such LC compounds could be applied in organic light-emitting devices, whose operating temperatures could be higher than room temperature. Additionally, the obtained azomethines could be used in mixtures with other LCs for LC displays.

Acknowledgements

Dr. A. Iwan expresses her gratitude to the Chemistry Department of CNRS for the funding of her one year post-doctoral fellowship at the UMR5819-SPrAM Lab (Grenoble, France). The authors thank MS. M. Domanski for WAXD measurements.

References and Notes

  1. Iwan, A.; Sek, D. Processible polyazomethines and polyketanils: From aerospace to light emitting diodes and other advanced applications. Progr. Polym. Sci. 2008, 33, 289–345. [Google Scholar] [CrossRef]
  2. Smith, J.A.; DiStasio, R.A.; Hannah, N.A.; Winter, R.W.; Weakley, T.J.R.; Gard, G.L.; Rananavare, S.B. SF5-terminated fluorinated Schiff base liquid crystals. J. Phys. Chem. B. 2004, 108, 19940–19948. [Google Scholar] [CrossRef]
  3. Grabtchev, I.K.; Bojinov, V.B.; Moneva, I.T. Functional properties of azomethine substituted benzanthrone dyes for use in nematic liquid crystals. J. Mol. Struct. 1998, 471, 19–25. [Google Scholar] [CrossRef]
  4. Hioki, H.; Fukutaka, M.; Takahashi, H.; Kubo, M.; Matsushita, K.; Kodama, M.; Kubo, K.; Ideta, K.; Mori, A. Development of a new traceless aniline linker for solid-phase synthesis of azomethines. Application to parallel synthesis of a rod-shaped liquid crystalline library. Tetrahedron 2005, 61, 10643–10651. [Google Scholar] [CrossRef]
  5. Narasimhaswamy, T.; Srinivasan, K.S.V. Synthesis and characterization of novel thermotropic liquid crystals containing a dimethylamino group. Liquid Crystals 2004, 31, 1457–1462. [Google Scholar] [CrossRef]
  6. Yelamaggad, C.V.; Shashikala, I.S.; Liao, G.; Rao, D.S.S.; Prasad, S.K.; Li, Q.; Jakli, A. Blue phase, smectic fluids and unprecedented sequences in liquid crystal dimers. Chem. Mater. 2006, 18, 6100–6102. [Google Scholar] [CrossRef]
  7. Stamatoiu, O.; Bubnov, A.; Tarcomnicu, I.; Iovu, M. Synthesis and spectral characterization of new amido-ether Schiff bases. J. Mol. Struct. 2008, 886, 187–196. [Google Scholar] [CrossRef]
  8. Godzwon, J.; Sienkowska, M.J.; Galewski, Z. Smectic polymorphism of 4-nonyloxybenzylidene-4’-alkyloxyanilines. J. Mol. Struct. 2008, 844-845, 259–267. [Google Scholar]
  9. Ribera, D.; Mantecon, A.; Serra, A. Synthesis and Crosslinking of a Series of Dimeric Liquid Crystalline Epoxy Resins Containing Imine Mesogens. Macromol. Chem. Phys. 2001, 202, 1658–1671. [Google Scholar] [CrossRef]
  10. Ribera, D.; Mantecon, A.; Serra, A. Synthesis and crosslinking of a series of dimeric liquid crystalline diglycidylester compounds containing imine groups. J. Polym. Sci. Part A: Polym. Chem. 2002, 40, 4344–4356. [Google Scholar] [CrossRef]
  11. Henderson, P.A.; Imrie, C.T. Semiflexible liquid crystalline tetramers as models of structurally analogous copolymers. Macromolecules 2005, 38, 3307–3311. [Google Scholar] [CrossRef]
  12. Kishikawa, K.; Muramatsu, N.; Kohmoto, S.; Yamaguchi, K.; Yamamoto, M. Control of molecular aggregations by doping in mesophases: Transformation of smectic C phases to smectic CA phases by addition of long bent-core molecules possessing a central strong dipole. Chem. Mater. 2003, 15, 3443–3449. [Google Scholar] [CrossRef]
  13. Naito, Y.; Ishige, R.; Itoh, M.; Tokita, M.; Watanabe, J. Smectic A formation by twin dimers assuming U-shaped conformation. Chem. Letters 2008, 37, 880–881. [Google Scholar] [CrossRef]
  14. Sudhakar, S.; Narasimhaswamy, T.; Srinivasan, K.S.V. Synthesis, characterization and thermal properties of 4,4’-bis(4-n-alkoxybenzoyloxy)benzylideneanilines and bis(4-benzylidene-4’-n-alkoxyaniline) terephthalates. Liquid Crystals 2000, 27, 1525–1532. [Google Scholar] [CrossRef]
  15. Cozan, V.; Gaspar, M.; Butuc, E.; Stoleriu, A. Azomethine sulfone macromers with thermotropic liquid crystalline behavior. Eur. Polym. J. 2001, 37, 1–8. [Google Scholar] [CrossRef]
  16. Sabdham, K.; Srinivasan, V.; Padmavathy, T. Liquid crystalline properties of unsegmented and segmented polyurethanes synthesised from high aspect ratio mesogenic diols. Macromol. Symp. 2003, 199, 277–292. [Google Scholar] [CrossRef]
  17. Lakshminarayana, S.; Prabhu, C.R.; Potukuchi, D.M.; Rao, N.V.S.; Pisipati, V.G.K.M. Density studies in terephthalylidene-bis-p-n-alkylanilines. Liquid Crystals 1993, 15, 909–914. [Google Scholar]
  18. Boschmans, M.; El Guermai, K.; Gors, C. Thermal, X-Ray and birefringence measurements in hexatic liquid crystal phases. Mol. Cryst. Liquid Cryst. 1991, 203, 85–92. [Google Scholar] [CrossRef]
  19. Stine, K.J.; Garland, C.W. Calorimetric study of the Smectic-C to Smectic-F transition in terephtal-bis-(4n)- alkylanilines. Mol. Cryst. Liquid Cryst. 1990, 188, 91–96. [Google Scholar]
  20. Noh, D.Y.; Brock, J.D.; Litster, J.D.; Birgeneau, R.J.; Goodby, J.W. Fluid, hexatic, and crystal phases in terephthal-bis-(4n)-alkylanilines. Phys. Rev. B -Condensed Matter 1989, 40, 4920–4927. [Google Scholar] [CrossRef]
  21. Richter, L.; Demus, D.; Sackmann, H. Liquid crystalline phases in the homologous series of terephthalylidene-bis-[4-n-alkylanilines]. Mol. Cryst. Liquid Cryst. 1981, 71, 269–291. [Google Scholar] [CrossRef]
  22. Kamiishi, Y.; Kobayashi, S.; Iwayanagi, S. Calorimetric Study of Crystalline and Liquid-Crystalline Polymorphism in the Homologues of Terephthal-bis-n-alkylaniline. Mol. Cryst. Liquid Cryst. 1981, 67, 125–136. [Google Scholar] [CrossRef]
  23. Goodby, J.W.; Gray, G.W.; Mosley, A. Smectic F Phases in the terephthalyidene-bis-4-n-alkylanilines. Mol. Cryst. Liquid Cryst. 1978, 41, 183–188. [Google Scholar] [CrossRef]
  24. Yelamaggad, C.V.; Shashikala, I.S.; Li, Q. Liquid crystal trimers composed of banana-shaped and rodlike anisometric segments: Synthesis and Characterization. Chem. Mater. 2007, 19, 6561–6568. [Google Scholar] [CrossRef]
  25. Nadasi, H.; Weissflog, W.; Eremin, A.; Pelzl, G.; Diele, S.; Das, B.; Grande, S. Ferroelectric and antiferroelectric „banan phases“ of new fluorinated five-ring bent-core mesogens. J. Mater. Chem. 2002, 12, 1316–1324. [Google Scholar] [CrossRef]
  26. Nastishin, Y.A.; Achard, M.F.; Nguyen, H.T.; Kleman, M. Textural analysis of a mesophase with banana shaped molecules. Eur. Phys. J. E 2003, 2003, 12, 581–591. [Google Scholar]
  27. Ros, M.B.; Serrano, J.L.; de la Fuente, M.R.; Folcia, C.L. Banana-shaped liquid crystals: A new field to explore. J. Mater. Chem. 2005, 15, 5093–5098. [Google Scholar] [CrossRef]
  28. Takezoe, H.; Takanishi, Y. Bent-core liquid crystals: Their mysterious and attractive world. Jpn. J. Appl. Phys. 2006, 45, 597–625. [Google Scholar] [CrossRef]
  29. Pelzl, G.; Diele, S.; Weissflog, W. Banana-shaped compounds-A new field of liquid crystals. Adv. Mater. 1999, 11, 707–724. [Google Scholar] [CrossRef]
  30. Reddy, R.A.; Tschierske, C. Bent-core liquid crystals: Polar order, superstructural chirality and spontaneous desymmetrisation in soft matter systems. J. Mater. Chem. 2006, 16, 907–961. [Google Scholar] [CrossRef]
  31. Iwan, A.; Janeczek, H.; Rannou, P. Ionically self-assembled terephthalylidene-bis-4-n-alkylanilines/n-decanesulfonic acid supramolecules: Synthesis, mesomorphic behaviour and optical properties. Spectrochim. Acta Part A: Mol. Biomol. Spectrosc. 2009, 72, 72–81. [Google Scholar] [CrossRef]
  32. Iwan, A.; Janeczek, H.; Rannou, P.; Kwiatkowski, R. Synthesis, characterization, optical, structural and liquid crystalline properties of pristine and ionically self-assembled terephthalylidene-bis-4-n-alkylanilines and terephthalylidene-bis-4-n-alkylamines. Tetrahedron, (submitted , 2008).
  33. Demus, D.; Richter, L. Textures of Liquid Crystals, 1st Ed. ed; Weinheim: Verlag Chemie: Leipzig, 1978; pp. 1–228. [Google Scholar]
  34. Gray, G.W.; Gooby, J.W. Smectic Liquid Crystals-Textures and Structures; Leonard Hill: Glasgow & London, 1984; pp. 1–162. [Google Scholar]
  35. Tamaoki, N. Cholesteric Liquid Crystals for Color Information Technology. Adv. Mater. 2001, 13, 1135–1147. [Google Scholar] [CrossRef]

Share and Cite

MDPI and ACS Style

Iwan, A.; Janeczek, H.; Jarzabek, B.; Rannou, P. Mesomorphic Behavior of Symmetrical and Unsymmetrical Azomethines with Two Imine Groups. Materials 2009, 2, 38-61. https://doi.org/10.3390/ma2010038

AMA Style

Iwan A, Janeczek H, Jarzabek B, Rannou P. Mesomorphic Behavior of Symmetrical and Unsymmetrical Azomethines with Two Imine Groups. Materials. 2009; 2(1):38-61. https://doi.org/10.3390/ma2010038

Chicago/Turabian Style

Iwan, Agnieszka, Henryk Janeczek, Bozena Jarzabek, and Patrice Rannou. 2009. "Mesomorphic Behavior of Symmetrical and Unsymmetrical Azomethines with Two Imine Groups" Materials 2, no. 1: 38-61. https://doi.org/10.3390/ma2010038

Article Metrics

Back to TopTop
