Next Article in Journal
Electrical Conductivity and Optical Properties of Pulsed Laser Deposited LaNi5 Nanoscale Films
Next Article in Special Issue
Effect of Rejuvenator Containing Dodecyl Benzene Sulfonic Acid (DBSA) on Physical Properties, Chemical Components, Colloidal Structure and Micro-Morphology of Aged Bitumen
Previous Article in Journal
Annealing Behaviour of Pt and PtNi Nanowires for Proton Exchange Membrane Fuel Cells
Previous Article in Special Issue
Self-Healing Property of Ultra-Thin Wearing Courses by Induction Heating
Article Menu
Issue 8 (August) cover image

Export Article

Open AccessArticle
Materials 2018, 11(8), 1474;

Excellent Carbonation Behavior of Rankinite Prepared by Calcining the C-S-H: Potential Recycling of Waste Concrete Powders for Prefabricated Building Products

School of Civil and Architecture Engineering, East China Jiaotong University, Nanchang, 330013, China
Author to whom correspondence should be addressed.
Received: 23 July 2018 / Revised: 13 August 2018 / Accepted: 16 August 2018 / Published: 19 August 2018
(This article belongs to the Special Issue Environment-Friendly Construction Materials)
Full-Text   |   PDF [3287 KB, uploaded 20 August 2018]   |

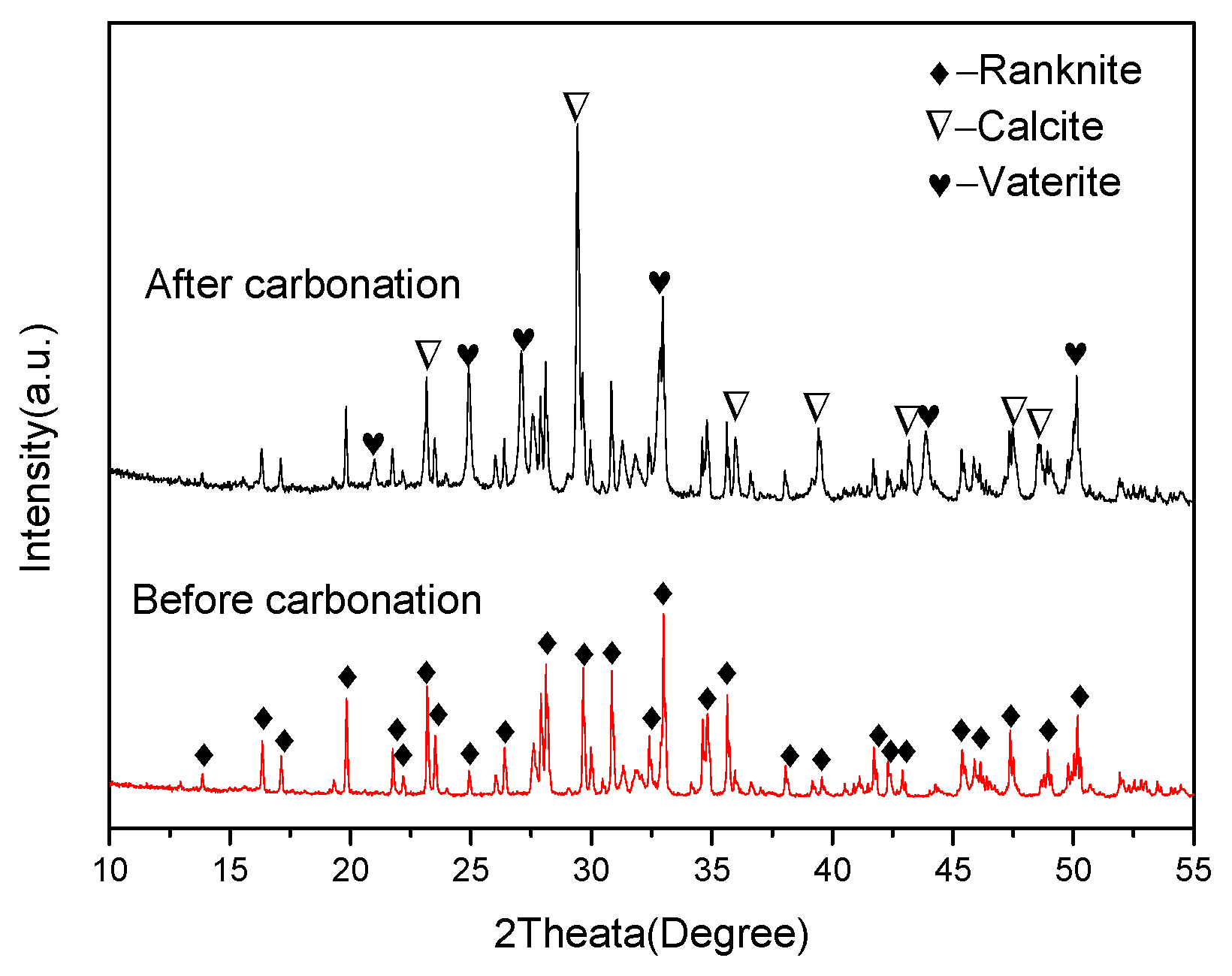

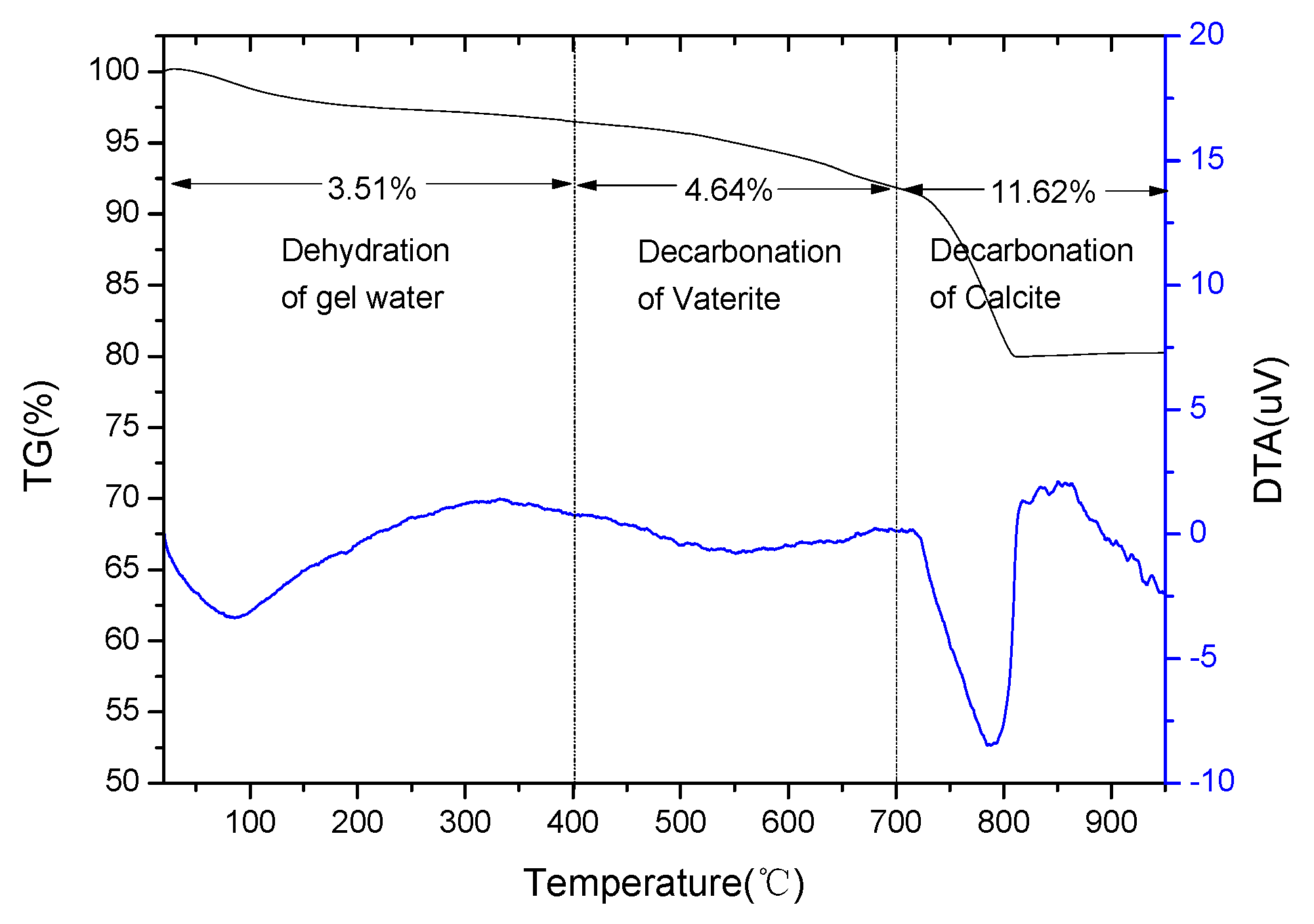

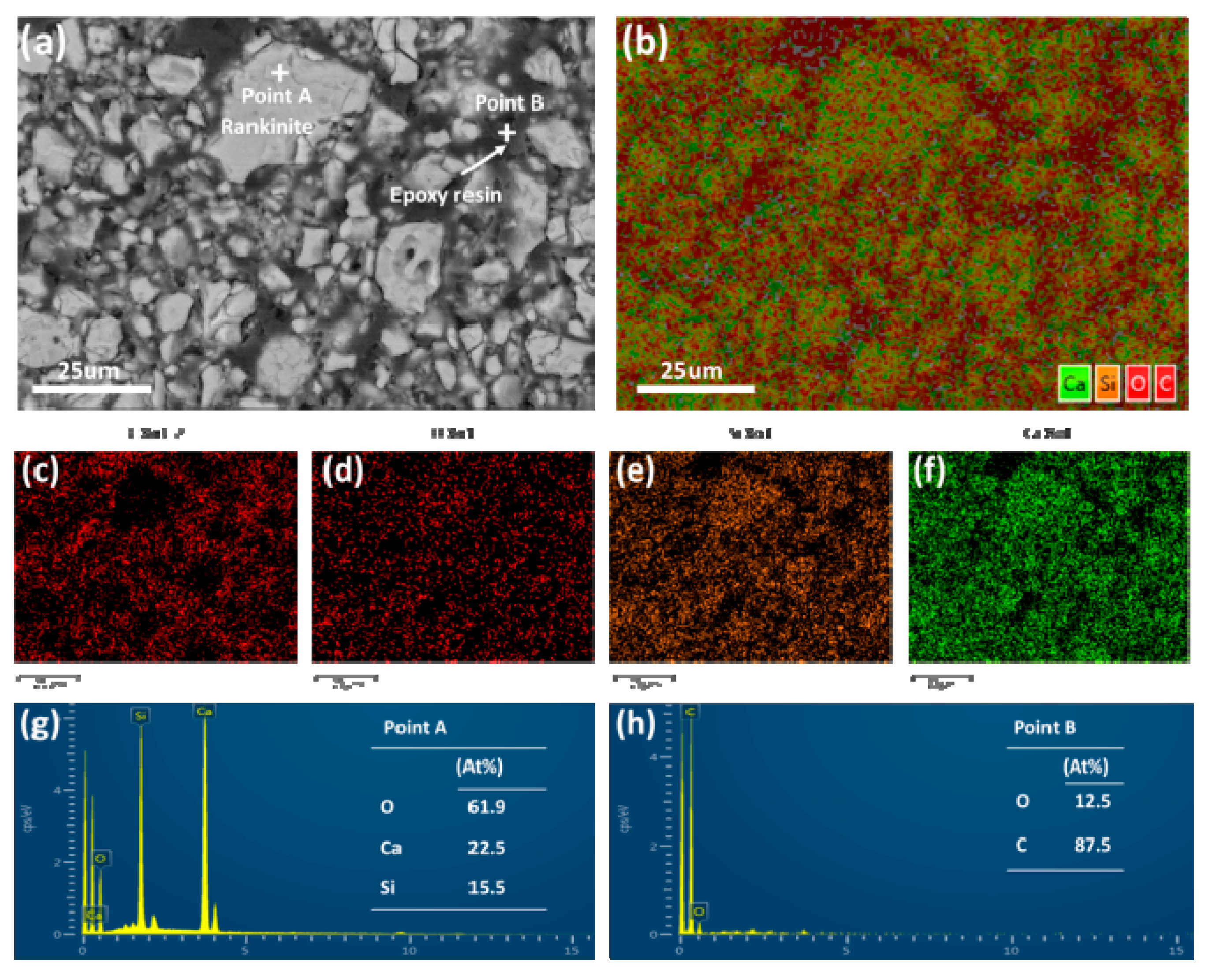

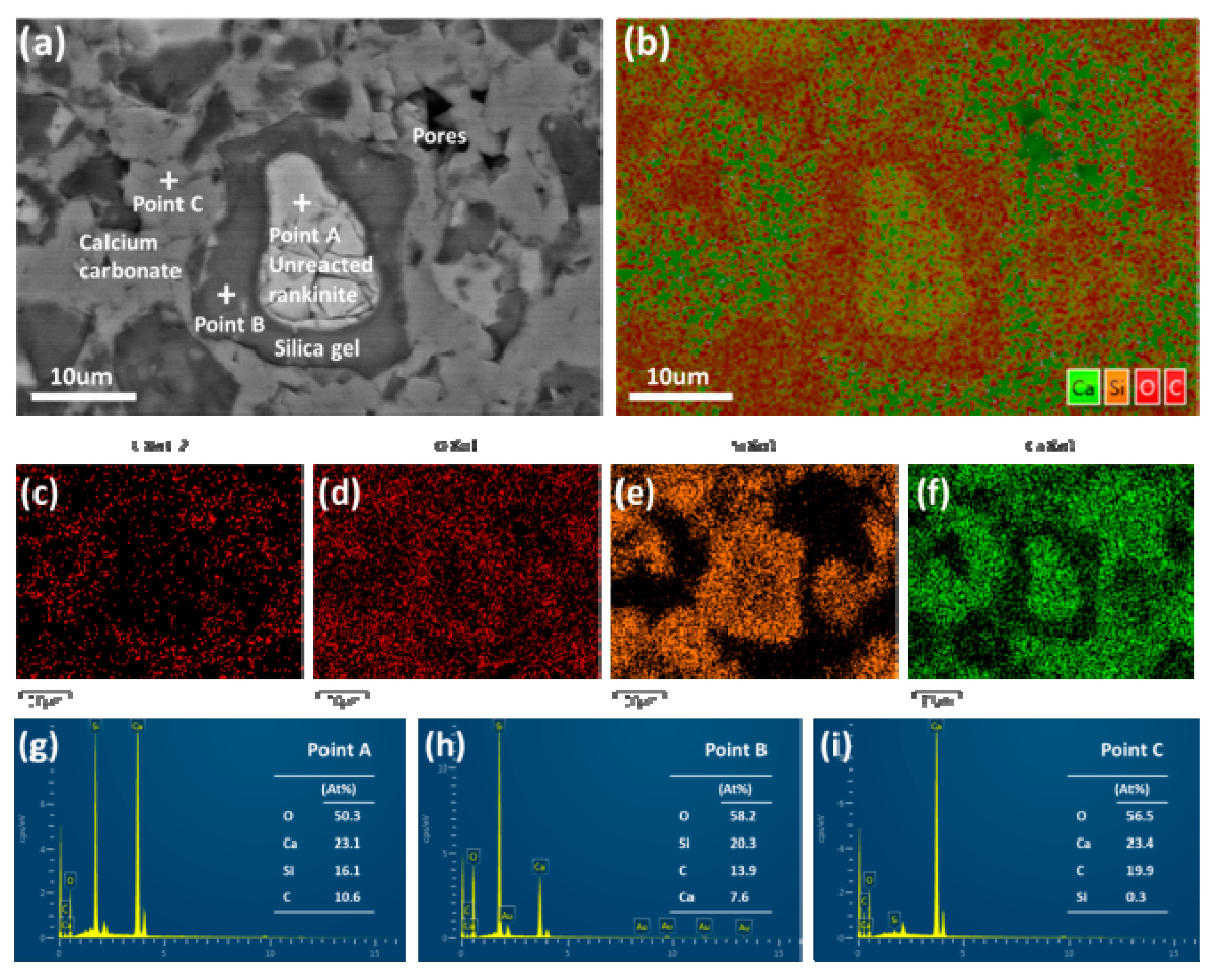

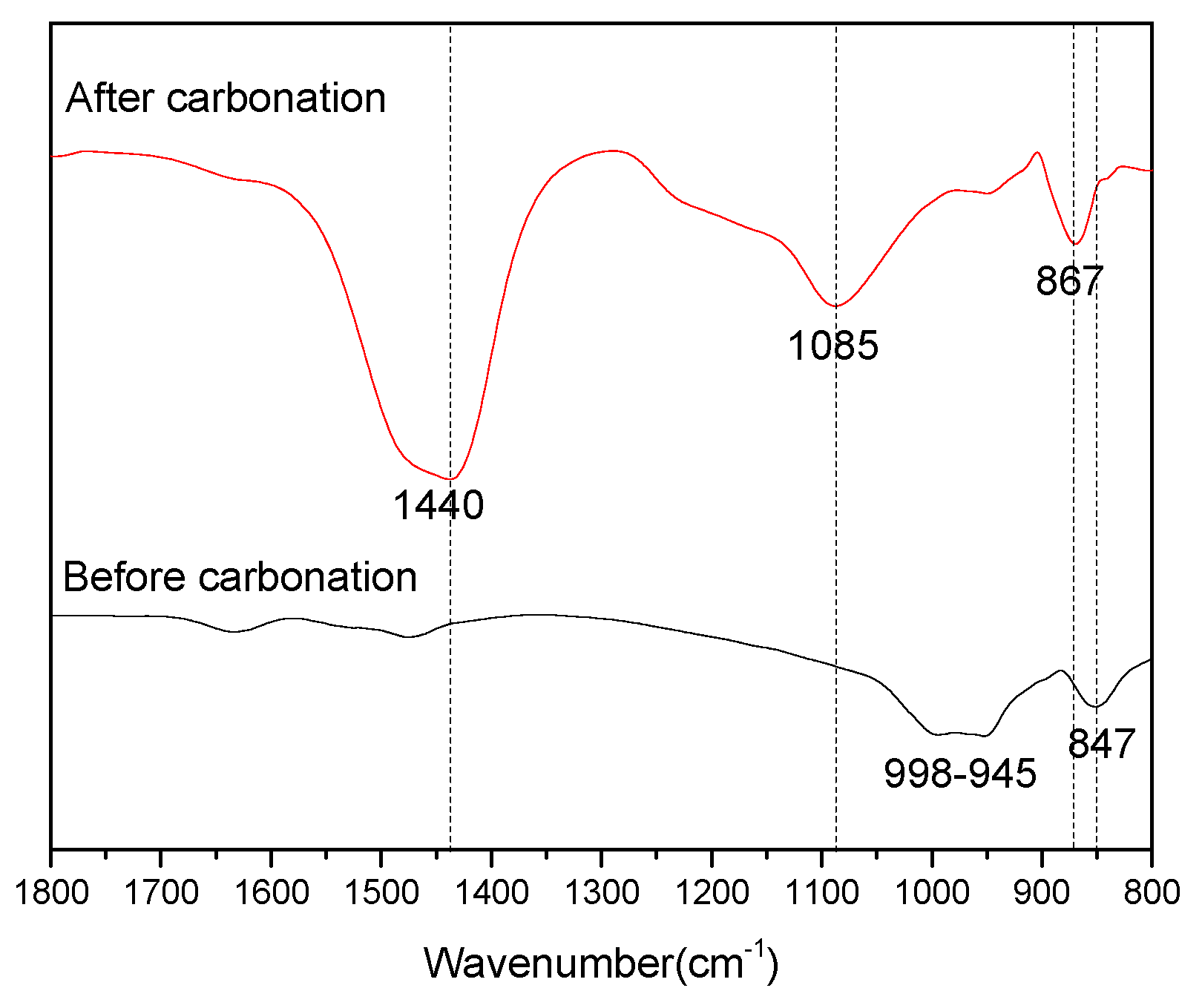

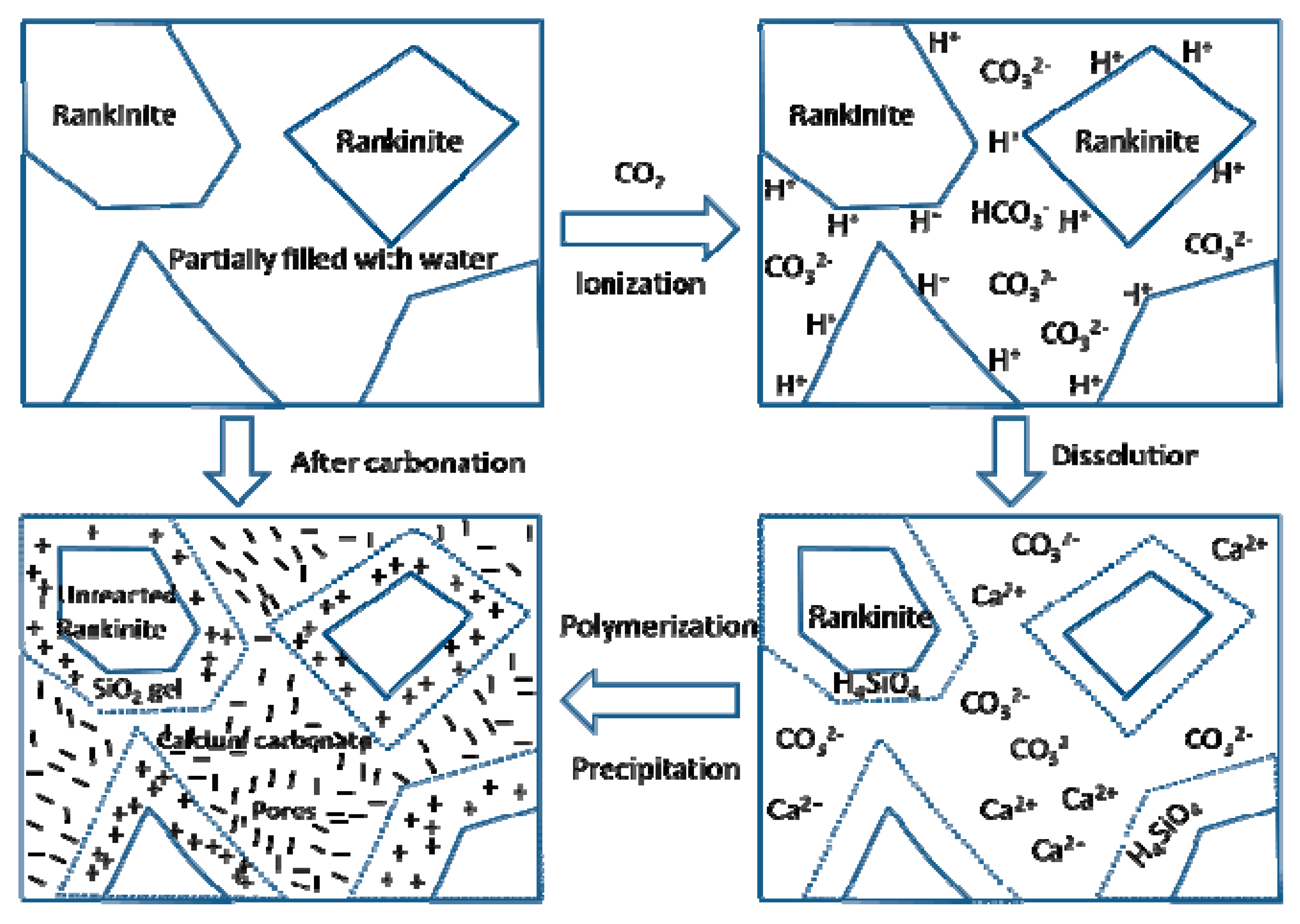

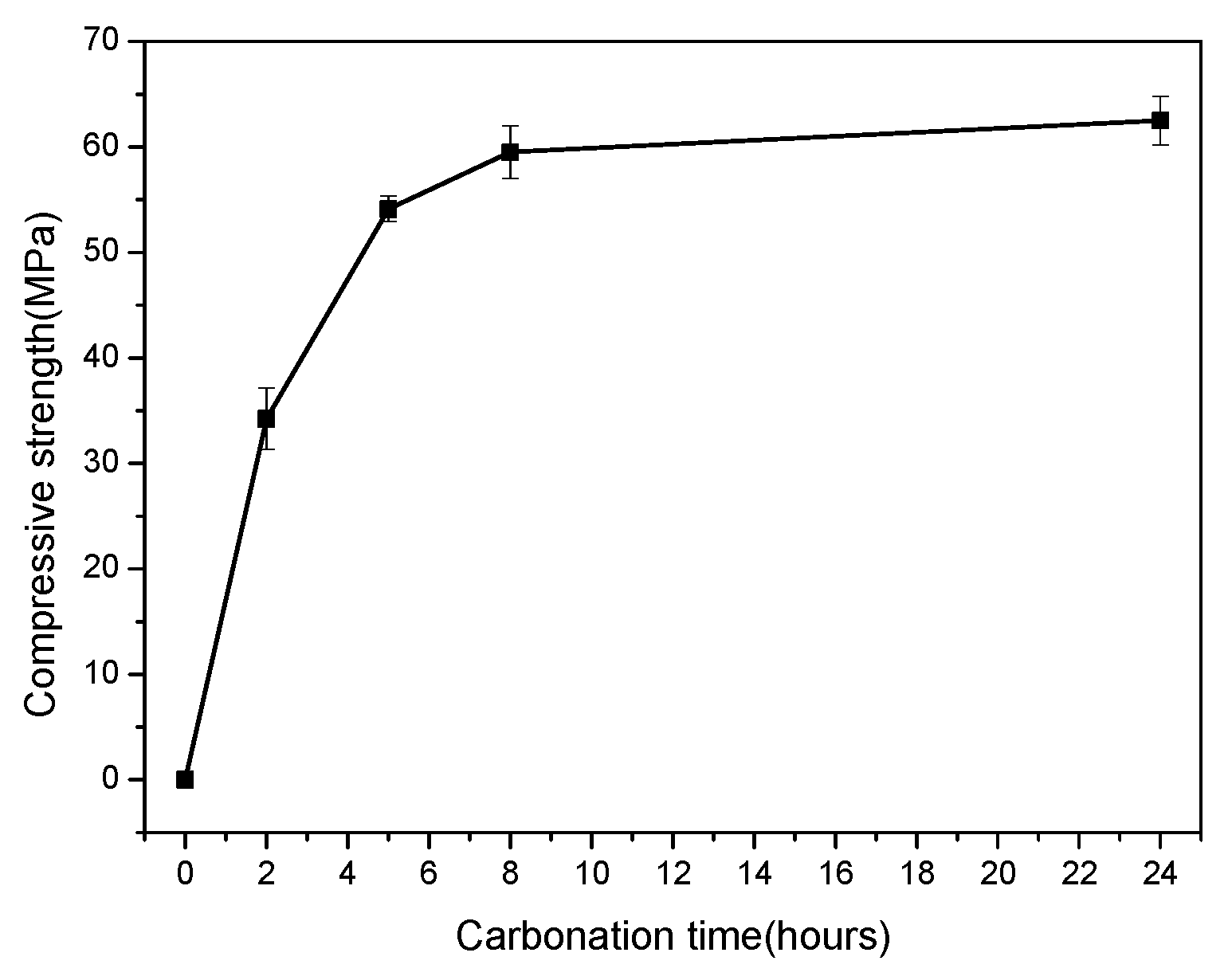

Pure rankinite (C3S2) was prepared by calcining a C-S-H gel precursor at a temperature of 1300 °C. The carbonation hardening behavior of the resulting rankinite was revealed by X-ray diffraction (XRD), Fourier transform-infrared (FT-IR) spectroscopy, thermogravimetry and differential thermal analysis (TG/DTA), and scanning electron microscope (SEM) coupled with energy dispersive spectrum (EDS). The results indicate that the pure rankinite can be easily prepared at a lower temperature. The cubic compressive strengths of the resulting rankinite samples reach a value of 62.5 MPa after 24 h of carbonation curing. The main carbonation products formed during the carbonation process are crystalline calcite, vaterite and highly polymerized amorphous silica gels. The formed carbonation products fill the pores and bind to each other, creating a dense microstructure, which contributes to the excellent mechanical strength. These results provide a novel insight into potential recycling of waste concrete powders for prefabricated building products with lower CO2 emissions. View Full-Text
Keywords: rankinite; carbonation; waste concrete; CO2 rankinite; carbonation; waste concrete; CO2

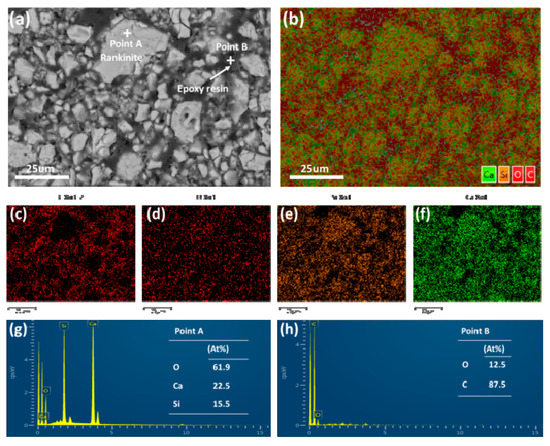

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Wang, K.; Ren, L.; Yang, L. Excellent Carbonation Behavior of Rankinite Prepared by Calcining the C-S-H: Potential Recycling of Waste Concrete Powders for Prefabricated Building Products. Materials 2018, 11, 1474.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
