Open AccessArticle
Materials 2018, 11(5), 826; https://doi.org/10.3390/ma11050826

Effect of Ultrasonic Vibration on Mechanical Properties of 3D Printing Non-Crystalline and Semi-Crystalline Polymers

1
School of Mechanical Science and Engineering, Jilin University, Renmin Street 5988, Changchun 130025, China
2
Department of Mechanical Engineering, National University of Singapore, Singapore 117576, Singapore
*
Author to whom correspondence should be addressed.
Received: 2 April 2018 / Revised: 12 May 2018 / Accepted: 15 May 2018 / Published: 17 May 2018
(This article belongs to the Section Manufacturing Processes and Systems)
View Full-Text   |   Download PDF [7838 KB, uploaded 17 May 2018]   |

Abstract

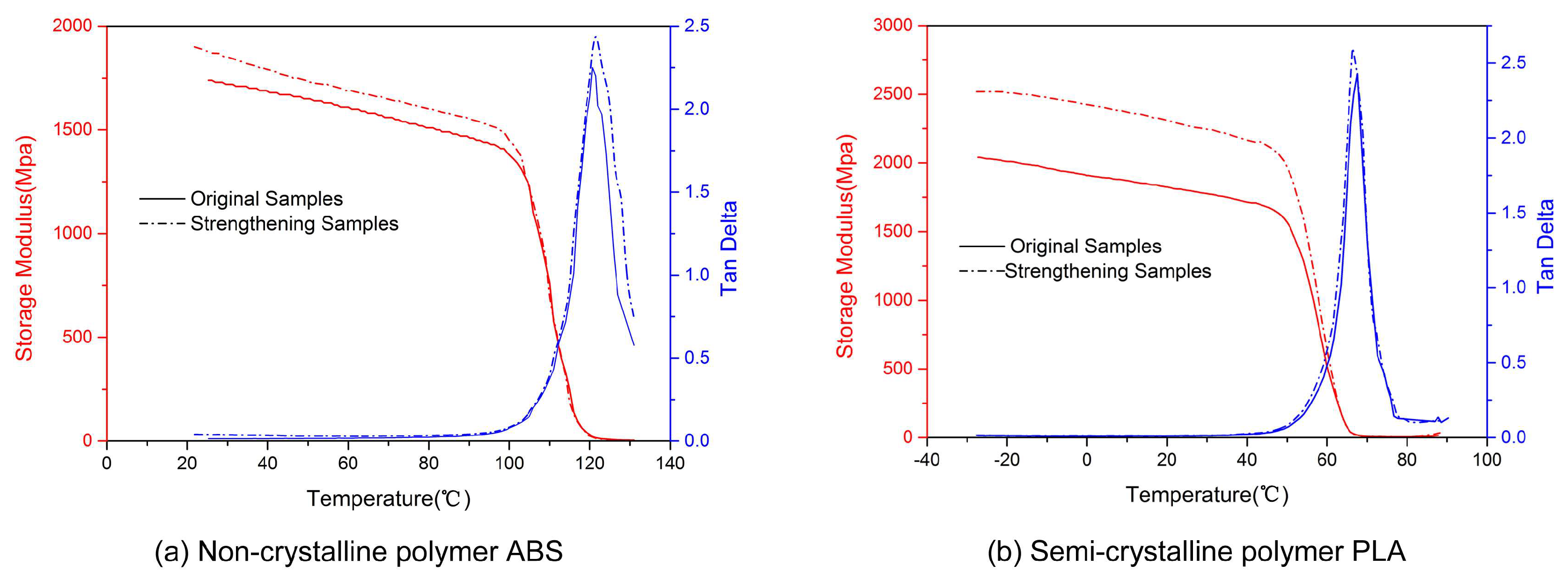

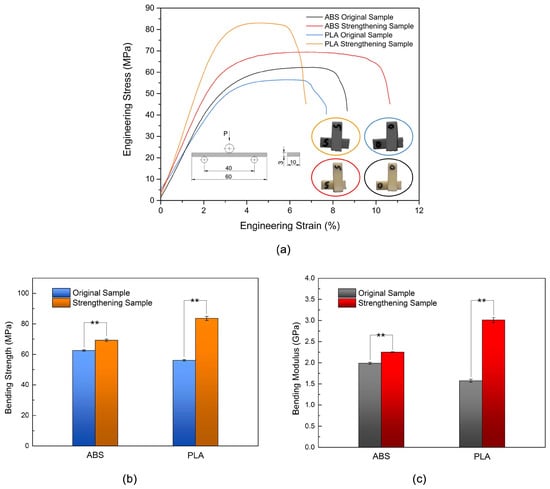

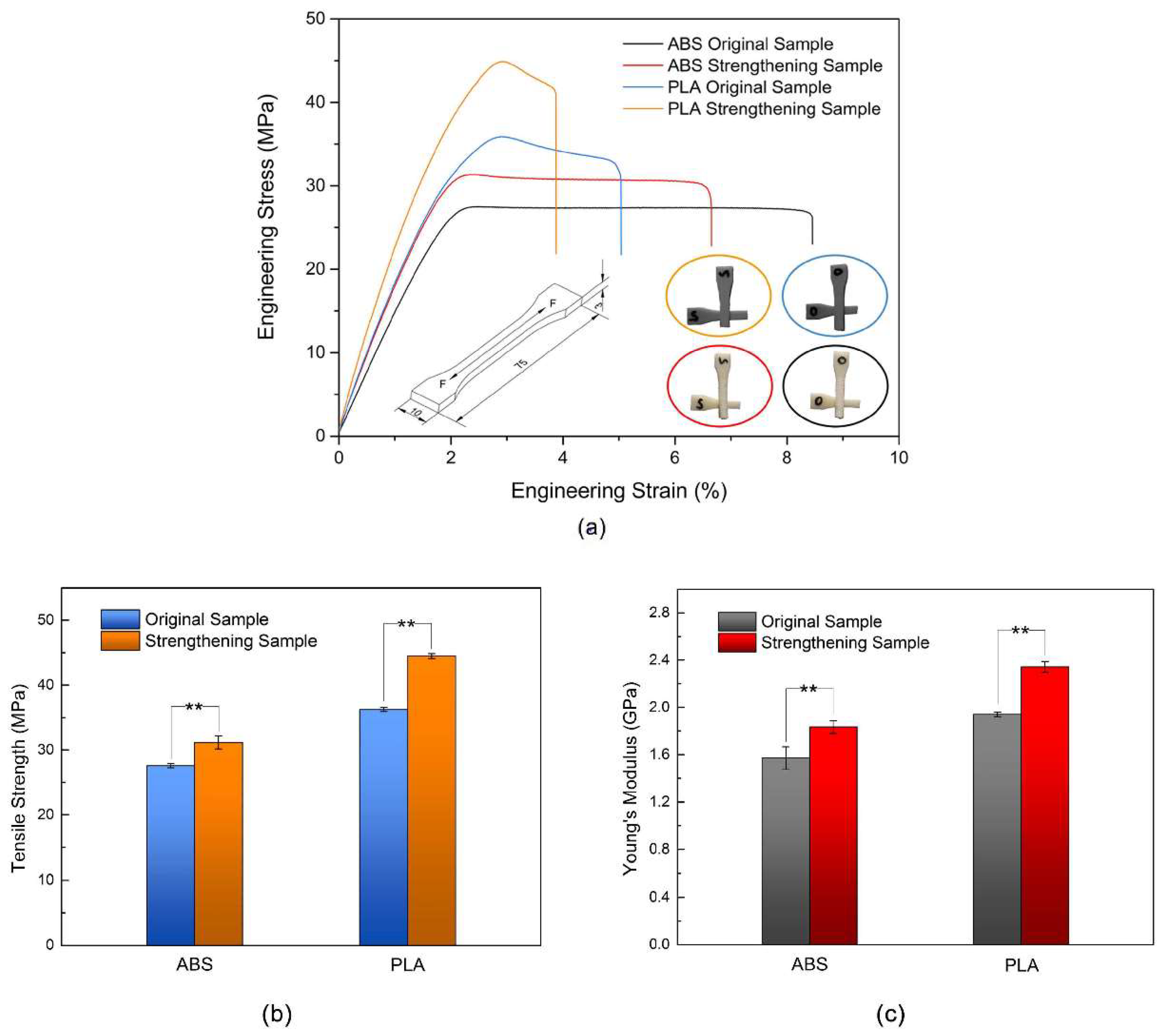

Fused deposition modeling 3D printing has become the most widely used additive manufacturing technology because of its low manufacturing cost and simple manufacturing process. However, the mechanical properties of the 3D printing parts are not satisfactory. Certain pressure and ultrasonic vibration were applied to 3D printed samples to study the effect on the mechanical properties of 3D printed non-crystalline and semi-crystalline polymers. The tensile strength of the semi-crystalline polymer polylactic acid was increased by 22.83% and the bending strength was increased by 49.05%, which were almost twice the percentage increase in the tensile strength and five times the percentage increase in the bending strength of the non-crystalline polymer acrylonitrile butadiene styrene with ultrasonic strengthening. The dynamic mechanical properties of the non-crystalline and semi-crystalline polymers were both improved after ultrasonic enhancement. Employing ultrasonic energy can significantly improve the mechanical properties of samples without modifying the 3D printed material or adjusting the forming process parameters. View Full-Text
Keywords: 3D printing; FDM; additive manufacturing; ultrasonic strengthening; mechanical properties; polymer 3D printing; FDM; additive manufacturing; ultrasonic strengthening; mechanical properties; polymer

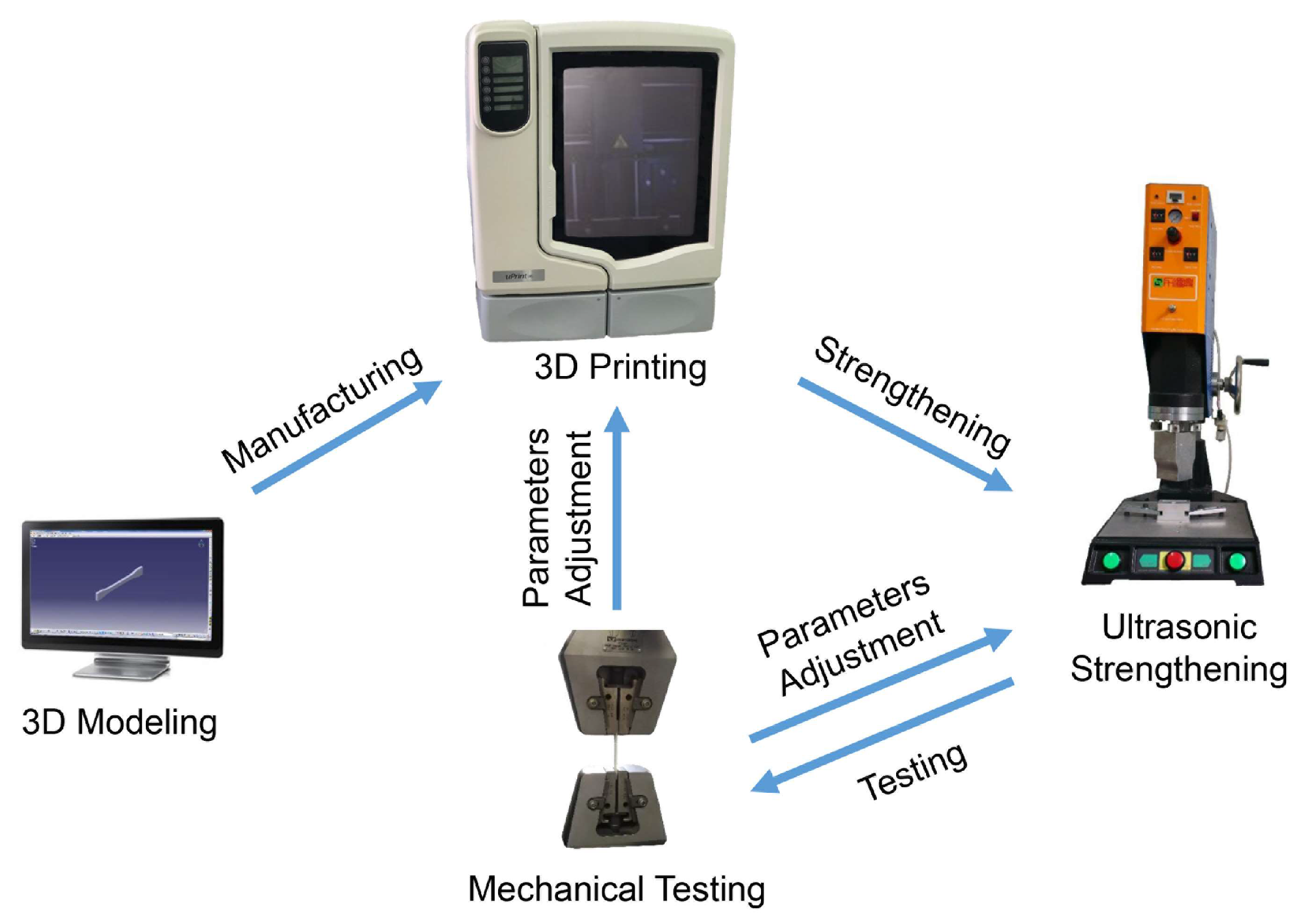

Figures

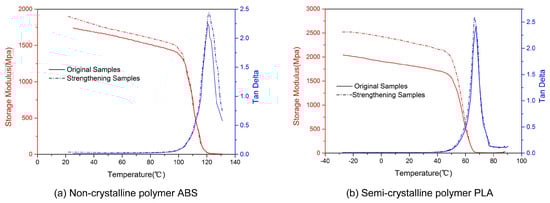

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Li, G.; Zhao, J.; Wu, W.; Jiang, J.; Wang, B.; Jiang, H.; Fuh, J.Y.H. Effect of Ultrasonic Vibration on Mechanical Properties of 3D Printing Non-Crystalline and Semi-Crystalline Polymers. Materials 2018, 11, 826.
