Next Article in Journal
An Alternative Lifetime Model for White Light Emitting Diodes under Thermal–Electrical Stresses
Previous Article in Journal
The Effect of Rod-Shaped Long-Period Stacking Ordered Phases Evolution on Corrosion Behavior of Mg95.33Zn2Y2.67 Alloy
Previous Article in Special Issue
The Effect of Ultrafine-Grained Microstructure on Creep Behaviour of 9% Cr Steel
Article Menu

Export Article

Open AccessArticle
Materials 2018, 11(5), 816; https://doi.org/10.3390/ma11050816

Evolution of Grain Interfaces in Annealed Duplex Stainless Steel after Parallel Cross Rolling and Direct Rolling

1
Institute for Advanced Manufacturing, Shandong University of Technology, Zibo 255000, China
2
School of Mechanical Engineering, Shandong University of Technology, Zibo 255000, China
3
Center of Testing and Analysis, Shandong University of Technology, Zibo 255000, China
4
Department of Mechanical Engineering, The University of Alabama, Tuscaloosa, AL 35487, USA
*
Author to whom correspondence should be addressed.
Received: 14 April 2018 / Revised: 7 May 2018 / Accepted: 14 May 2018 / Published: 16 May 2018
(This article belongs to the Special Issue Dynamic Recrystallization and Microstructural Evolution in Alloys)
Download PDF [3923 KB, uploaded 16 May 2018]

Abstract

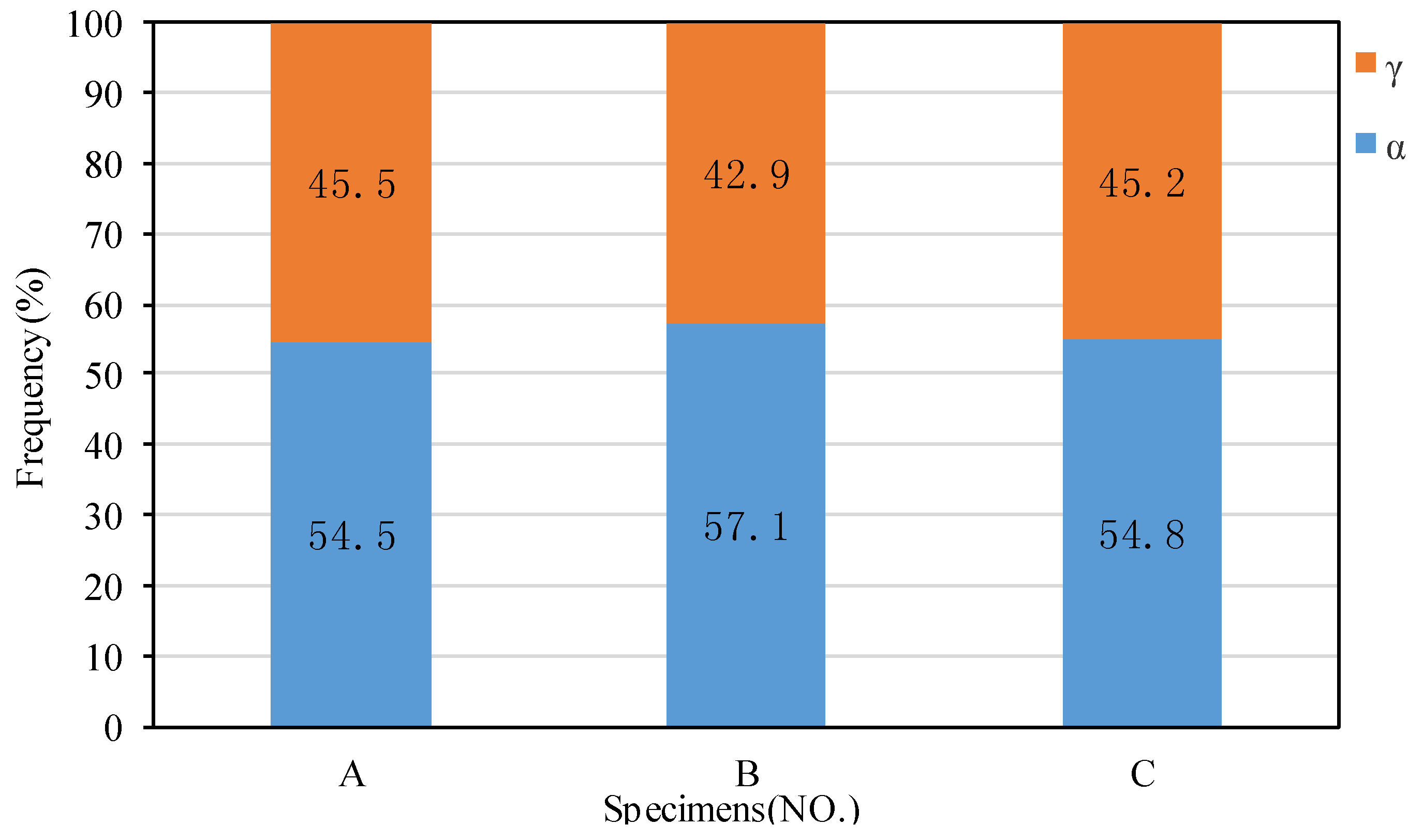

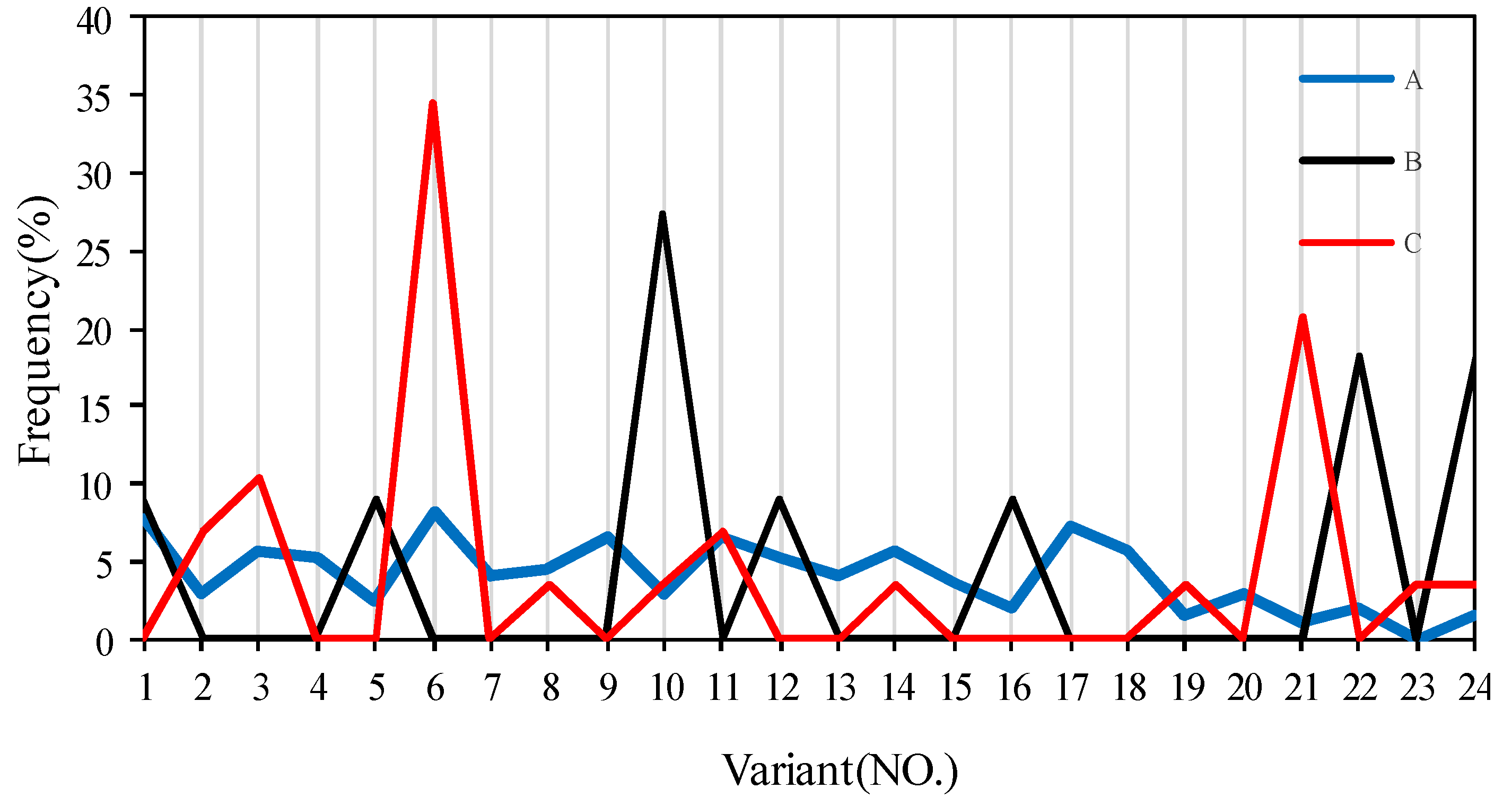

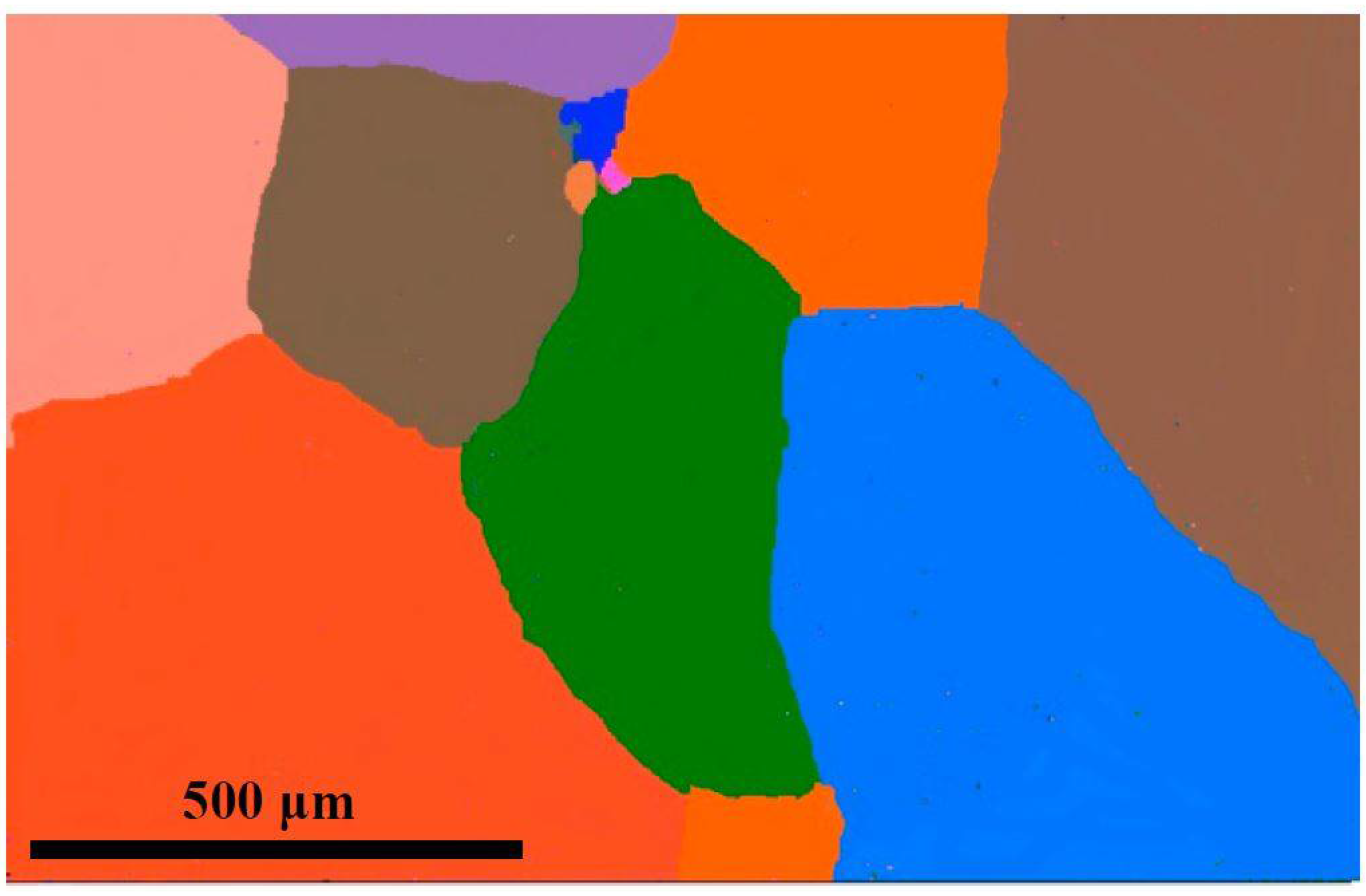

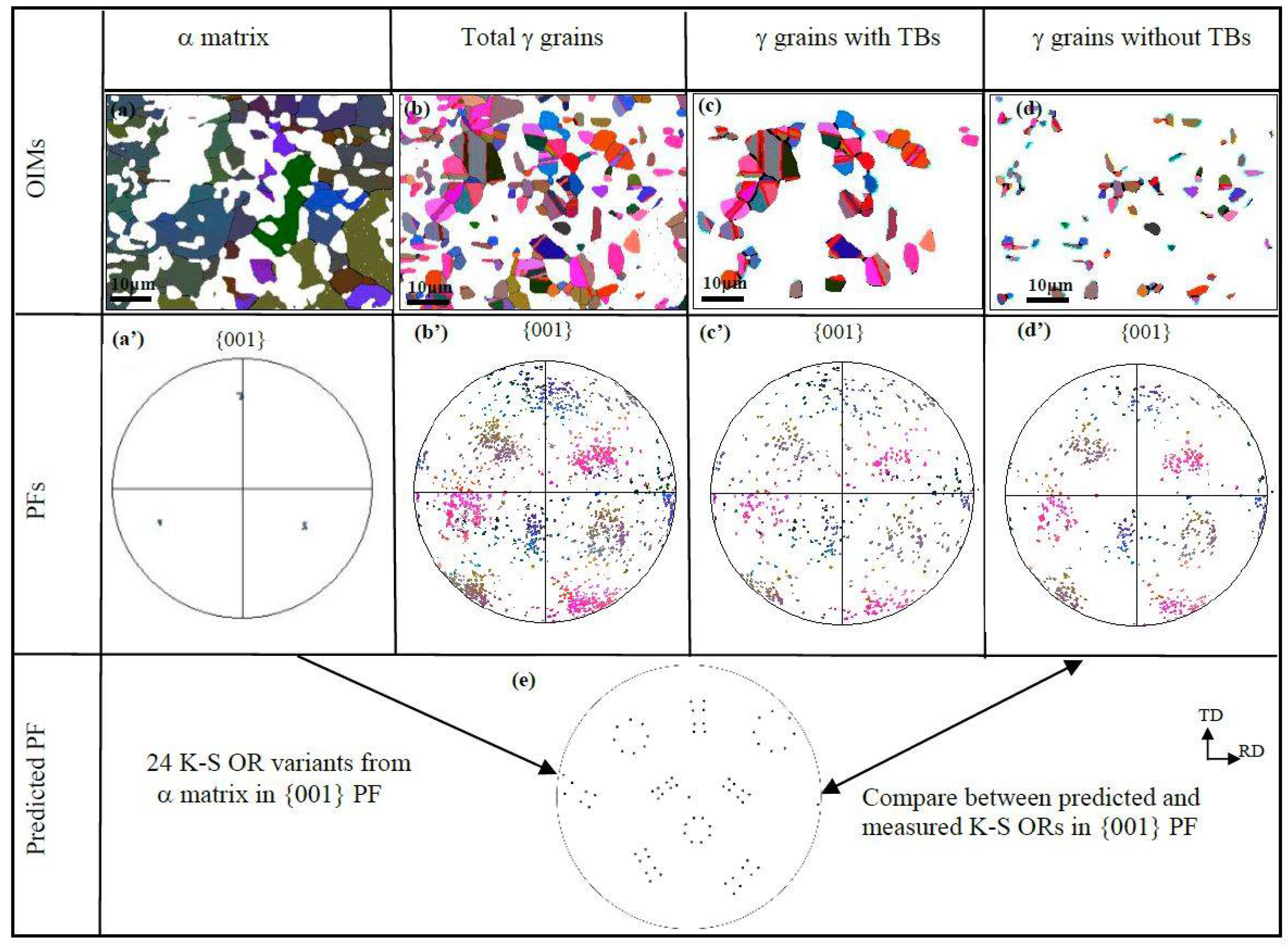

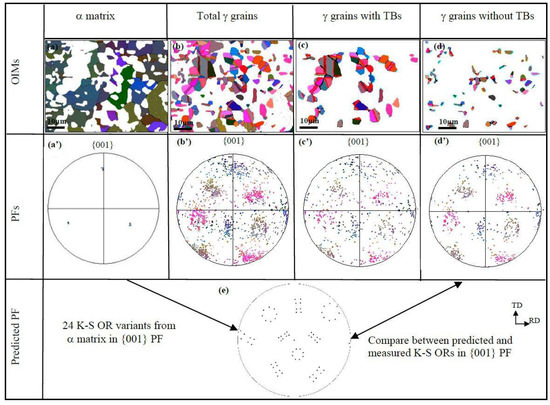

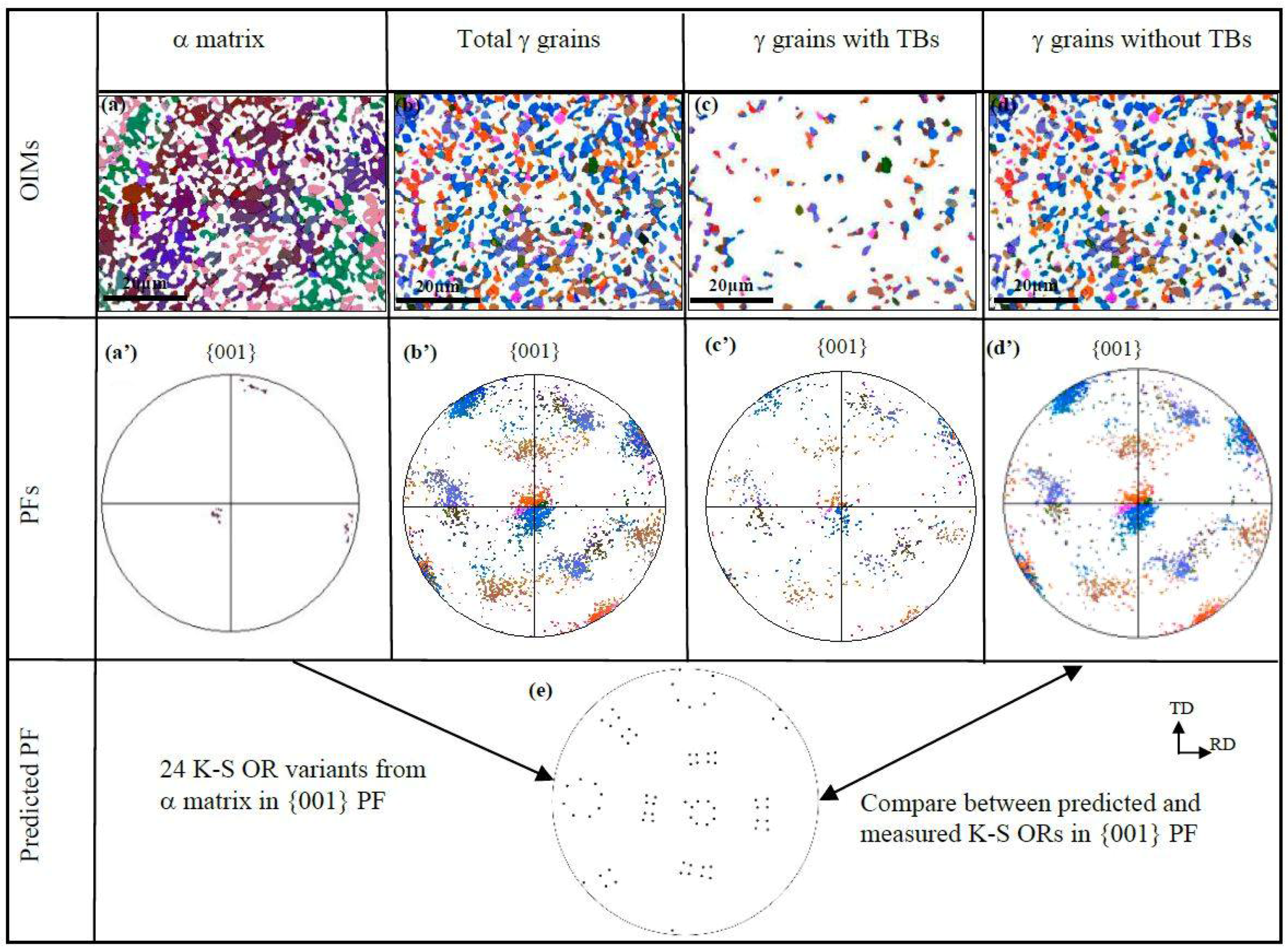

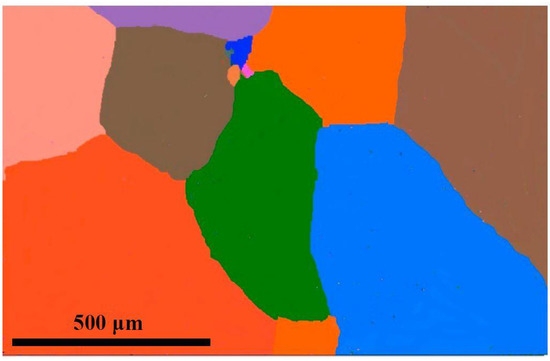

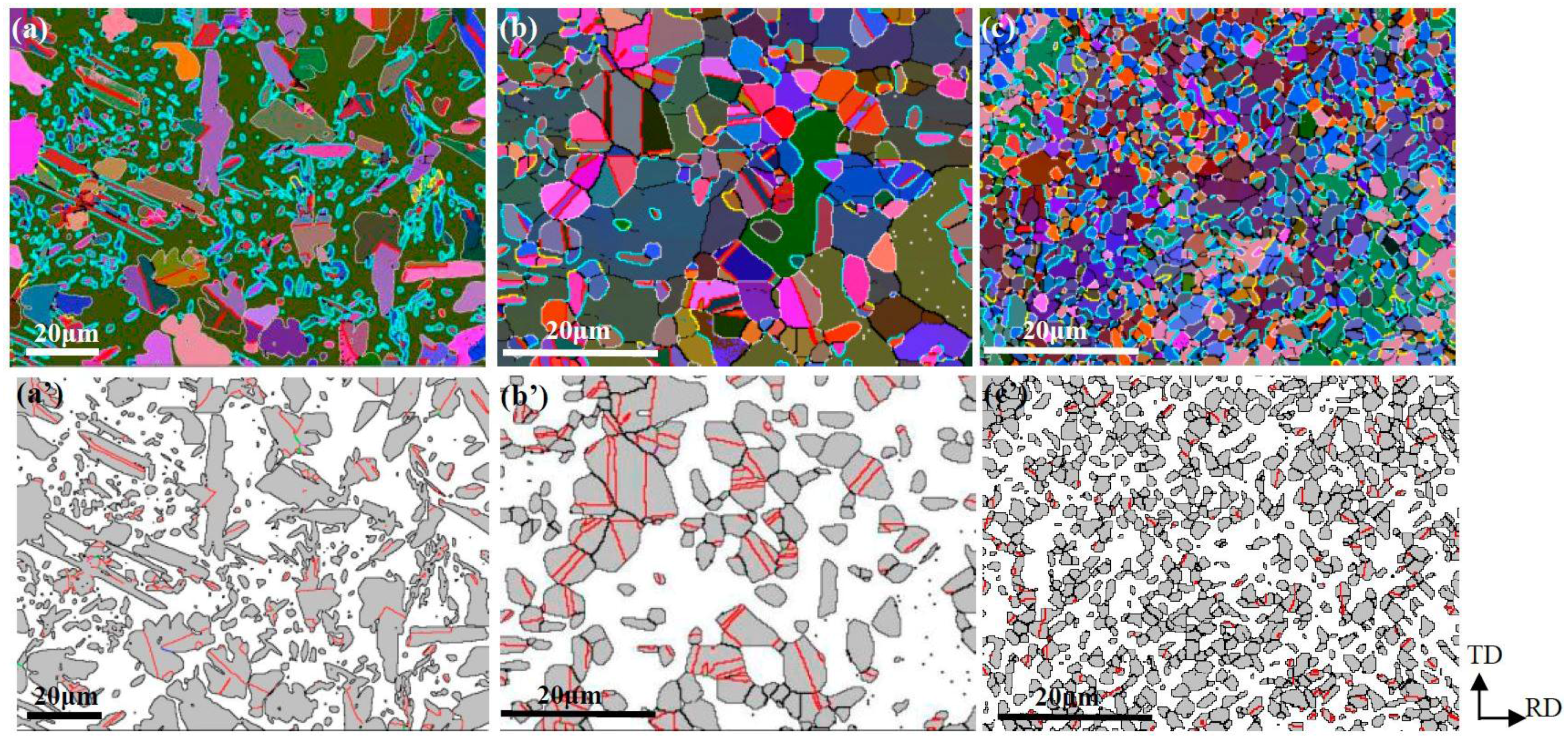

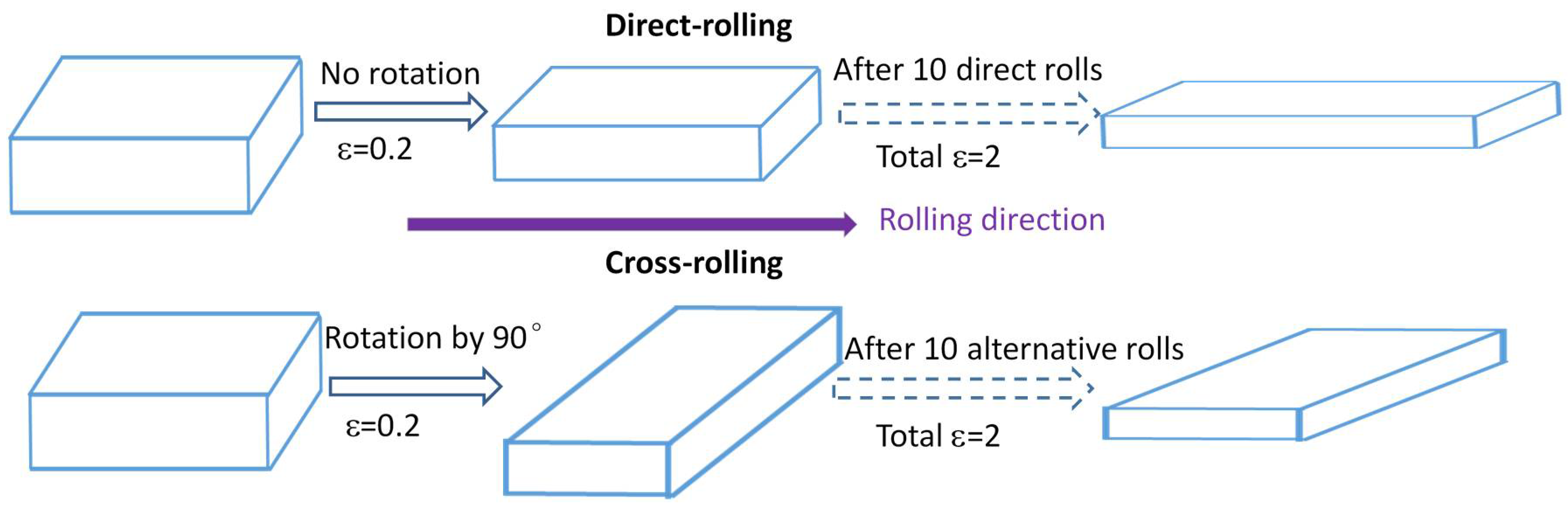

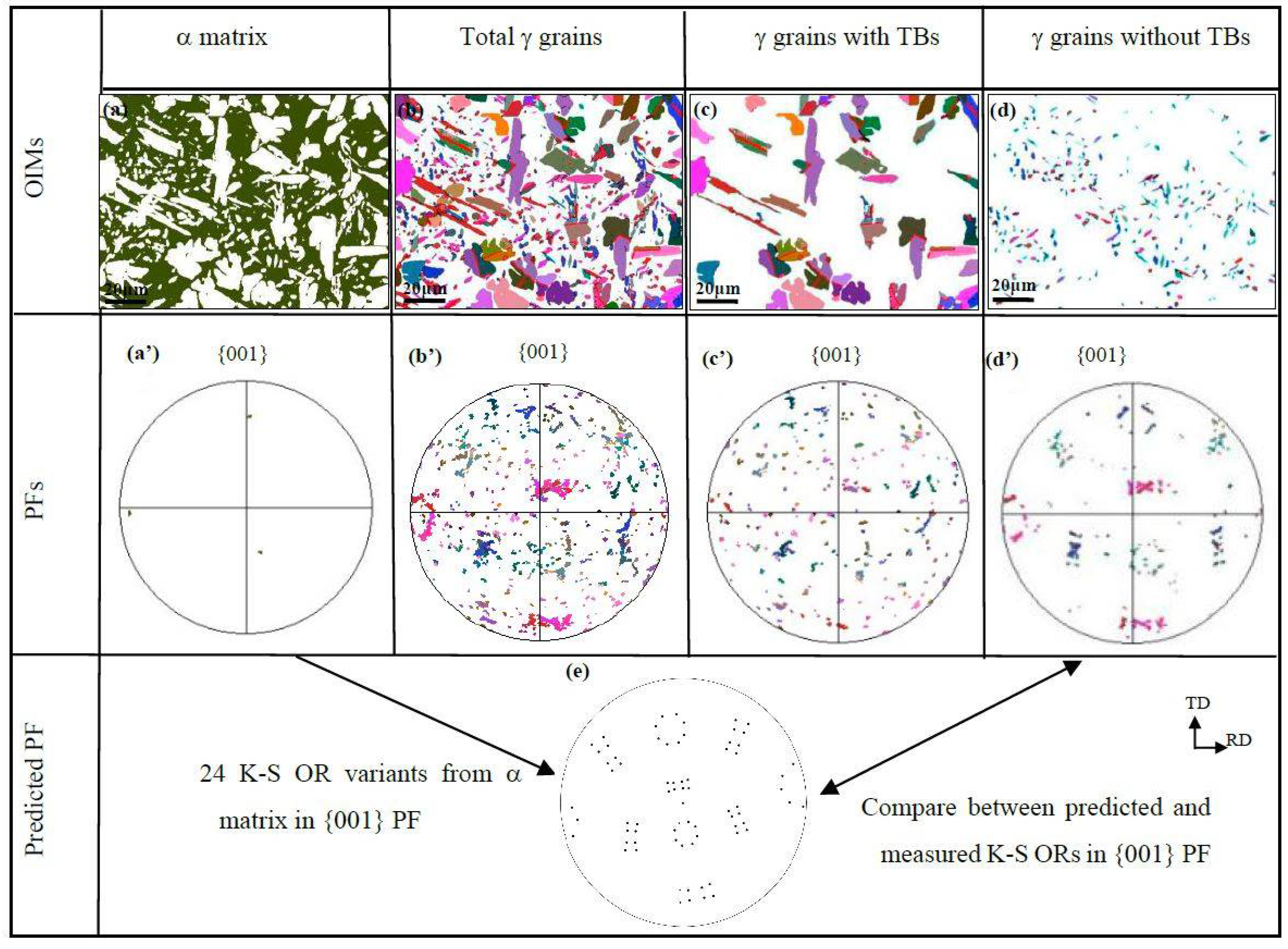

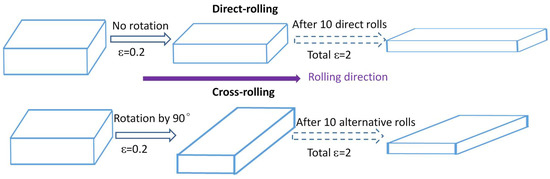

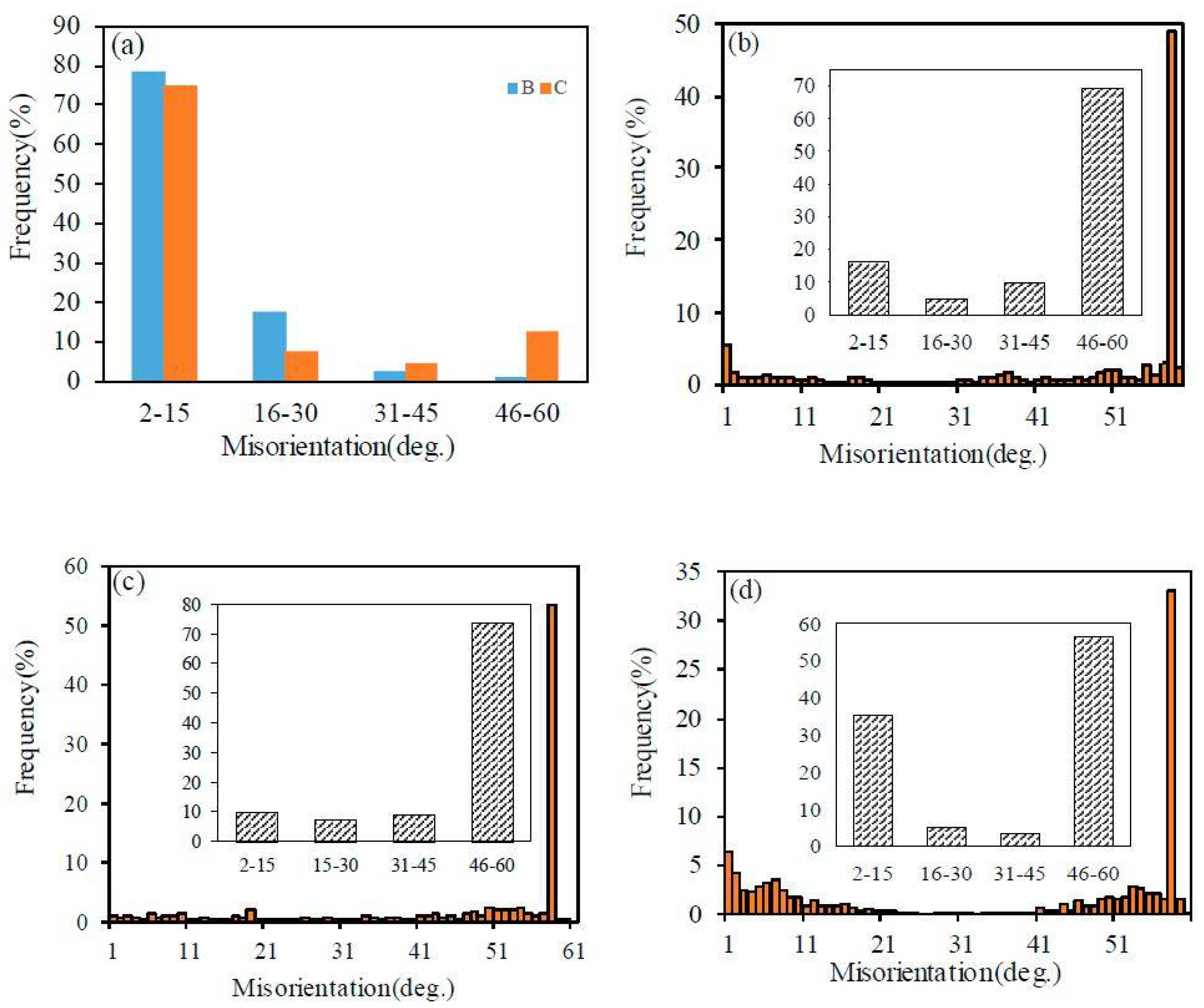

Changes in various grain interfaces, including the grain boundary and phase boundary, are a strong indication of microstructural changes, particularly ultra-fined grains achieved by large strain deformation and subsequent annealing. After direct rolling and cross rolling with the same strain of ε = 2, the distributions of the interfaces in annealed UNS S32304 duplex stainless steel were investigated using electron backscatter diffraction (EBSD) in this study. The ferrite experienced continued recovery, and a high density of low-angle grain boundaries (LAGBs) was produced. The percentage and number of twin boundaries (TBs) and LAGBs varied within the austenite. TBs were frequently found within austenite, showing a deviation from the Kurdjumov-Sachs (K-S) orientation relationship (OR) with ferrite matrix. However, LAGBs usually occur in austenite, with the K-S OR in the ferrite matrix. LAGBs were prevalent in the precipitated austenite grains, and therefore a strong texture was introduced in the cross-rolled and annealed samples, in which the precipitated austenite readily maintained the K-S OR in the ferrite matrix. By contrast, more TBs and a less robust texture were found in the precipitated austenite in direct-rolled and annealed samples, deviating from the K-S OR.
Keywords: grain interface; twin boundary; cross rolling; duplex stainless steel grain interface; twin boundary; cross rolling; duplex stainless steel
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Wang, M.; Li, H.; Tian, Y.; Guo, H.; Fang, X.; Guo, Y. Evolution of Grain Interfaces in Annealed Duplex Stainless Steel after Parallel Cross Rolling and Direct Rolling. Materials 2018, 11, 816.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
