Article

Investigation on Synthesis, Stability, and Thermal Conductivity Properties of Water-Based SnO2/Reduced Graphene Oxide Nanofluids

1
School of Materials and Energy, Guangdong University of Technology, Guangzhou 510006, China
2
Guangdong Provincial Key Laboratory of Functional Soft Condensed Matter, Guangzhou 510006, China
*
Authors to whom correspondence should be addressed.
Materials 2018, 11(1), 38; https://doi.org/10.3390/ma11010038
Submission received: 17 November 2017 / Revised: 16 December 2017 / Accepted: 21 December 2017 / Published: 27 December 2017

Abstract

:
With the rapid development of industry, heat removal and management is a major concern for any technology. Heat transfer plays a critically important role in many sectors of engineering; nowadays utilizing nanofluids is one of the relatively optimized techniques to enhance heat transfer. In the present work, a facile low-temperature solvothermal method was employed to fabricate the SnO2/reduced graphene oxide (rGO) nanocomposite. X-ray diffraction (XRD), thermogravimetric analysis (TGA), X-ray photoelectron spectroscope (XPS), Raman spectroscopy, and transmission electron microscopy (TEM) have been performed to characterize the SnO2/rGO nanocomposite. Numerous ultrasmall SnO2 nanoparticles with average diameters of 3–5 nm were anchored on the surface of rGO, which contain partial hydrophilic functional groups. Water-based SnO2/rGO nanofluids were prepared with various weight concentrations by using an ultrasonic probe without adding any surfactants. The zeta potential was measured to investigate the stability of the as-prepared nanofluid which exhibited great dispersion stability after quiescence for 60 days. A thermal properties analyzer was employed to measure thermal conductivity of water-based SnO2/rGO nanofluids, and the results showed that the enhancement of thermal conductivity could reach up to 31% at 60 °C under the mass fraction of 0.1 wt %, compared to deionized water.

1. Introduction

With the rapid development of industry, heat removal and management is a major concern for any technology. Heat transfer plays a critically important role in many sectors of engineering, which especially has been widely used in refrigerators, heat exchangers, automobiles, and electronic devices, etc. Nowadays, utilizing nanofluids is one of the relatively optimized techniques to enhance heat transfer [1,2]. The nanofluid concept was pioneered by Choi in 1995 [2], which are stable colloidal dispersions of solid nanoparticles (typically with sizes in the range of 1–100 nm) in base fluids, compared to traditional base fluids such as water, ethylene glycol, oil, and so on. Nanofluids have many excellent properties due to the large specific surface of nanoparticles. Nanoparticles are expected to greatly enhance the thermal conductivity and improve the stability of nanofluids due to their unique properties [3,4]. Consequently, many scientists have conducted substantial and theoretical studies on the different respects of thermal conductivity of nanofluids with various nanoparticles. The hypothetical nanomaterial candidates for nanofluid formulations are metals, metal oxides, and carbon materials. In the past decade, many kinds of the above materials have been studied to produce nanofluids, such as Ag, Au, CuO, Al2O3, ZnO, and carbon nanotubes [5]. Patel el al. [6] reported an enhancement in thermal conductivity of about 5–21% for an Au nanofluid at a loading volume fraction of 0.00026% in the temperature range of 30–60 °C, compared to deionized (DI)-water. Zhao et al. [4] found thermal conductivity could be enhanced with an increase of the Al2O3 nanoparticle volume fraction and temperature, with a maximum enhancement of 28% obtained at a nanoparticle volume fraction of 5.92% and a temperature of 313 K. Chandrasekar et al. [7] experimentally investigated the effective thermal conductivities and viscosities of water-based nanofluids containing Al2O3 nanoparticles. Karthikeyan et al. [8] found an ethylene glycol-based CuO nanofluid with a 1% volume fraction gave a 54% enhancement in the thermal conductivity. It was reported that the convective heat transfer coefficient of functionalized MWNT nanofluids was enhanced by up to 33–40% at a concentration of 0.25 wt %, compared with that of pure water in laminar and turbulent flows, respectively, at 20 °C [9].
Recently, graphene nanofluids have attracted many researchers’ attentions owing to their variety of remarkable properties, including high thermal conductivities, extraordinary electronic transport property, large specific surface areas, and so on [10,11,12]. Outstanding thermo-physical characteristic of graphene has made it a potential candidate in the heat-transfer fluid field. The investigations have indicated that graphene-based nanofluids have higher heat transfer and thermal conductivity properties than other carbon materials [10,13,14,15,16]. Tessy et al. [10] reported an enhancement in thermal conductivity of water-based graphene nanofluids with a very low volume fraction of 0.056% by about 14% at 25 °C, which increases to about 64% at 50 °C. A substantial thermal conductivity enhancement of graphene nanofluids was obtained even at lower concentrations, the enhancement increased from 10% to 27% with the temperature increasing from 20 to 50 °C at 0.2 vol % concentration [13]. The enhancement also shows strong temperature dependence. The alkaline-functionalized graphene nanofluid also showed good thermal conductivity with the enhancement around 14.1% at 25 °C and 17% at 50 °C compared to water [15]. Nevertheless, due to the high naturally-hydrophobic character of graphene, it cannot be dispersed in any polar solvent, such as ethylene glycol and water. In addition, the van der Waals force and the strong π-π interactions between the planar basal planes give rise to the graphene nanosheets to restack themselves and easily agglomerate in aqueous solution [17]. Therefore, it is much more difficult for graphene to be dispersed in water and suspended in a stable manner. Adding surfactants is considered to be the simplest way to avoid sediment and improve the stability of graphene nanofluids [18,19]. However, low thermal conductivity of the surfactants may decrease the heat-transfer characteristics of the nanofluids [20]. Meanwhile, strong oxidants have been applied successfully to introduce hydrophilic hydroxyl and carboxyl functional groups into graphene to make graphene more hydrophilic [21,22,23,24]. However, the structure of graphene will be destroyed during the process of acid treatment, and lead to a reduction of thermal conductivity [15,25]. Recent studies demonstrate that graphene with metal oxide nanocomposites may be one of the effective approaches to solve such problems. Due to the synergistic effect, the metal oxides could not only prevent the graphene nanosheets from restacking, but also improve thermal conductivity of the nanofluids. Mohammad et al. [26] prepared a rGO-Fe3O4 nanofluid with high stability. The thermal conductivity was enhanced up to 11% at the mass fraction of 0.5%. Hooman et al. [27] studied the functionalized graphene nanoplatelet nanofluid, it was stable and no sedimentation was observed for a long time. The enhancement of thermal conductivity was 16.94% at 20 °C and nearly 22.22% at 40 °C for 0.1% weight concentration. Baby and Sundara reported the enhancement value of thermal conductivities for CuO decorated graphene dispersed nanofluid containing a volume fraction of 0.05% at 25 °C could reach about 28% [28]. Li et al. [29] found better thermal conductivity and stability for SiO2-coated graphene nanofluids, compared to graphene fluids. Wang et al. [30] reported the water-based TiO2 anchored graphene nanofluids have good dispersion stability and the maximum value of thermal conductivity enhancement was up to 33% at a mass fraction of 0.1%.
On the other hand, SnO2 water-based nanofluids show a good enhancement of thermal conductivity as well [31,32]. Habibzadeh et al. [31] found that the thermal conductivity of water-based SnO2 nanofluids at a weight fraction of 0.024% was enhanced up to 8.7%. The electrochemical performance, specific capacitance, and cycling stability of SnO2/rGO nanocomposite have been investigated as well [33,34,35]. However, to the best of our knowledge, there are few reports concentrating on the thermal conductivity of SnO2/rGO nanocomposite dispersed nanofluids. In this work, a novel tin oxide/graphene oxide nanocomposite was synthesized by the solvothermal process. The thermal conductivity properties and stability of water-based nanofluids dispersed by the hybrid nanocomposite with various concentrations was investigated in detail.

2. Experimental

2.1. Materials

All of the reagents used in the experiments were of analytical grade and used without further purification. Graphene oxide (GO) with purity ~99% maximum particle diameter of 3 µm and maximum thickness of 1.2 nm was purchased from Chengdu Organic Chemicals Co., Ltd. (Chengdu, China), Chinese Academy of Sciences. Tin chloride pentahydrate (SnCl4·5H2O, 99.0%) and absolute ethanol (99.8%) were purchased from Sigma-Aldrich (St. Louis, MO, USA).

2.2. Synthesis of the SnO2/rGO Nanocomposites

The SnO2/rGO hybrid composites were prepared by a simple hydrothermal method. Tin chloride pentahydrate (SnCl4·5H2O) (0.1 M) was dissolved in 56 mL absolute ethanol under continuous magnetic stirring and then treated by ultrasonication for 15 min. Then 4 mL GO aqueous solution (2.5 g/mL) was dropped into the above mixture slowly under magnetic stirring. After several minutes, the mixture was transferred into a stainless steel autoclave and kept at 120 °C for 6 h to synthesize tin oxide/reduced graphene oxide composites. The black product was centrifuged and washed several times with deionized water and absolute ethanol, and then dried at 60 °C for 12 h. For comparison, the reduced graphene oxide (rGO) and pure SnO2 were also prepared via the same process without adding SnCl4 and GO, respectively.

2.3. Characterization of the SnO2/rGO Nanocomposites

X-ray diffraction (XRD) was employed to identify the crystalline structure of the gained samples with an X-ray powder diffractometer (Cukα, DMAX-UltimaIV, Rigaku Co., Tokyo, Japan). A transmission electron microscope (TEM, JEM-2100F, JEOL, Tokyo, Japan) was used to study the detailed microstructures and morphology of the samples. An X-ray photoelectron spectroscope (XPS, Kratos AXIS ULTRA DLD, Shimadzu, Kyoto, Japan) was operated to investigate the oxidation states of Sn and graphene, as well as the elemental composition of the SnO2/rGO nanocomposite. Thermogravimetric analysis (TGA, SDT-2960, TA Instruments, New Castle, DE, USA) measurements were performed to analyze the quality percentage of SnO2 in the SnO2/rGO compound, the samples were heated from room temperature to 900 °C at the rate of 10 °C/min in the air. The molecular vibration mode and defects of the samples were analyzed by Raman spectroscopy (RM2000, Renishaw, London, UK). Fourier transform infrared spectroscopy (FTIR, Nicolet iz10, Thermol scientific, Waltham, MA, USA) was used to analyze and identify the functional groups on the surface of the samples.

2.4. Preparation and Property Measurement of Water-Based Nanofluids

A high-power ultrasonication probe (HNF2000, Huanan Ultrasonic Equipment Co., Ltd., Guangzhou, China) which supplies 2000 W output power and a 20-khz frequency was used to prepare the SnO2/rGO hybrid water-based nanofluids. SnO2/rGO nanocomposite was dispersed in DI water to prepare nanofluids with different weight concentrations, including 0.02, 0.04, 0.06, 0.08, and 0.1 wt %, without adding any surfactants. As a comparison, pure SnO2 and rGO water-based nanofluids were also prepared using the same process, respectively. Zeta potential testing was employed to assess the dispersion stability of above nanofluids. A transient heated needle (KD2, Decagon, Device, TPS 500s, Hot Disk, Uppsala, Sweden) with 5% accuracy was used to measure the thermal conductivity of nanofluids based on the transient hot-wire method (THW). To avoid enhancement of effective viscosity of nanofluids, the low weight concentrations of as-prepared nanofluids in the range of 0.02–0.1 wt % were chosen, and the temperature is between from 20 to 60 °C. Each sample was repeated five times with each measurement interval of 30 min, and the average value of thermal conductivity was obtained.

3. Results and Discussion

3.1. Characterization of Prepared SnO2/rGO Nanocomposites

The structure information and crystal phase of the samples were investigated by X-ray diffraction (XRD) analysis. Figure 1 shows the XRD patterns of GO, rGO, Pure SnO2, and SnO2/rGO nanocomposite samples. The diffraction peak observed at 2θ = 10.5° is corresponding to (001) characteristic peak of GO. A broad diffraction peak centered at 25.1° appears, which can contribute to the (002) plane diffraction of rGO sheets, indicating a poor degree of graphite-like material [36]. This result reveals that the GO has been reduced into rGO through the decomposition of oxygenated functionalities during the solvothermal process and the few-layer structure of rGO has been formed. It is clear that the XRD patterns of pure SnO2 and SnO2/rGO nanocomposite are basically the same. The diffraction peaks at 2θ = 26.5°, 33.8°, 51.7°, and 64.7° could correspond to the (110), (101), (211), and (112) crystalline planes of SnO2 (JCPDS no. 41-1445), respectively [37]. The average size of particles calculated by the Debye-Scherrer equation is 4.5 nm, indicating the successful formation of ultra-small SnO2 nanocrystals.
Thermogravimetric analysis (TGA, SDT-2960, TA Instruments, New Castle, DE, USA) measurements were performed to analysis the quality percentage of SnO2 in the SnO2/rGO compound. As shown in Figure 2, there are two obvious weight loss processes for GO and SnO2/rGO. The weight loss in the range of room temperature to 150 °C is owing to the dislodgement of absorbed water and carbon combustion. The mass loss from 150 to 400 °C corresponds to the decomposition of oxygen-containing groups. At high temperatures, from 400 to 500 °C, the weight loss is attributed to the destruction of the carbon skeleton. This decomposing process causes significant weight loss, indicating that there is no GO or rGO remaining in the samples [35]. The residual mass fraction for the GO sample still reaches 14.3%, which is probably due to the introduction of impurities during preparation process. As for the SnO2/rGO compound, the mass loss equals to 45% in the range of room temperature to 500 °C. That is, the remaining weight percentage of the hybrid sample stays 55%. Therefore, according to the TGA results, the calculated weight percentage of SnO2 is about 40% in the SnO2/rGO composites.
XPS is a forceful tool to investigate the surface chemistry of the samples. As shown in Figure 3a, the as-prepared SnO2/rGO nanoparticles contain C, O, and Sn elements. In the core-level XPS signals of Sn3d (Figure 3b), the Sn3d3/2 and Sn3d5/2 peaks are observed at 495.8 and 487.4 eV, respectively, corresponding to Sn4+ ions in the tetragonal rutile structure of SnO2 [38]. For the SnO2/rGO nanocomposites, the shift of 0.4 eV is observed for the Sn3d3/2 and Sn3d5/2 peaks, which may be due to the reaction of Sn4+ ions with the active sites of rGO. Figure 3c displays the O1s XPS spectrum of the SnO2/rGO nanocomposites can be divided into two peaks. One is at the binding energy of 531 eV, which corresponds to the C=O or Sn=O group of SnO2. Another peak at 532.5 eV is attributed to the C–OH and C–O–C groups. The above results verify that the Sn element exists in the compound state of SnO2. C1s core-level XPS signals of GO and SnO2/rGO can be deconvoluted into four components, including C–C/C=C, C–O, C=O carbonyl and carboxylic groups, and O–C=O carboxylate carbon groups, respectively, as shown in Figure 3d,e [39]. The peaks of oxygen-containing groups for SnO2/rGO have been greatly suppressed compared with GO, which has abundant oxygenated groups. This demonstrates that the majority of oxygenated functional groups have been removed after the solvothermal process. However, a small amount of residual oxygenated groups still remain, indicating that GO has been partially reduced. These hydrophilic functional groups are advantageous for SnO2/rGO to be stably dispersed in aqueous solution for a long time.
The structure disordered degree of the carbonaceous materials can be gained by Raman spectroscopy. It is obvious that there are two prominent peaks at around 1351 and 1591 cm−1, corresponding to the D-band for carbon structure and the G-band for defects, respectively, as shown in Figure 4. Attributed to the solvothermal reduction of GO, the peak position is shifted which shows the damage of rGO network and the formation of defects [29]. Moreover, the intensity ratio of the D to G bands (ID/IG) normally indicates the defect degree of the materials. The ID/IG for GO, rGO, and SnO2/rGO composite are 0.88, 0.91, and 0.96, respectively, which means rGO in the SnO2/rGO nanocomposites has more defects compared with the pure rGO, revealing the SnO2 nanoparticles intercalating into the rGO sheets.
Transmission electron microscopy (TEM) has been employed to further characterize the morphologies and crystal structure of the SnO2/rGO composite. Figure 5a shows the rGO sheets are almost transparent with some wrinkles on the surface and folding at the edges under TEM. For the SnO2/rGO nanocomposite, as shown in Figure 5b,c, numerous nanoparticles are uniformly distributed on the wrinkled rGO nanosheets with the average particle size from 3 to 5 nm. It is consistent with the result we calculated from XRD. High-resolution TEM imagery (Figure 5d) reveals that the nanoparticles are crystalline, having a calculated lattice spacing of 0.33 and 0.27 nm, which are consistent with the (110) and (101) planes of rutile SnO2 [37]. The corresponding SAED pattern (inset of Figure 5d) further confirms the presence of the (110), (101), (111), and (211) lattice planes of SnO2 (JCPDS.no. 41-1445) [40,41]. Those results are also in good agreement with the XRD results, indicating SnO2 nanoparticles have been synthesized on the surface of rGO. Elemental mapping results confirm that the ultrasmall SnO2 nanoparticles dispersed homogenously as well. As illustrated in Figure 5e, the C, O, and Sn elements distribute uniformly in the selected area with high density. Considering the ultrasonic process used during the sample preparation for TEM observation, these results clearly demonstrate that the SnO2 nanoparticles have been successfully prepared and are anchored firmly on the rGO surface with high packing density.

3.2. Stability of the Water-Based SnO2/rGO Nanofluids

Zeta potential measurements and the sedimentation have been applied to identify the stability of the SnO2/rGO nanofluids as they are common and important methods to evaluate the dispersion behavior of nanoparticles in a liquid environment. In general, the nanofluid is referred to have good stability when the zeta potential values are higher than 30 mV [16]. The zeta potential values of rGO, SnO2, and SnO2/rGO nanofluids with mass fractions of 0.04% and 0.06% are shown in Figure 6. It is clear that the absolute zeta potential values of both rGO and SnO2/rGO nanofluids are higher than 30 mV, in which SnO2/rGO nanofluids has higher zeta potential value (above 50 mV) than the rGO nanofluids (about 33 mV). However, for SnO2 nanofluid, the value is less than 30 mV implying poor dispersion stability. The results indicate the suspension stability of SnO2/rGO nanofluid is better than the rGO and SnO2 nanofluids. The sedimentation photographs of the nanofluids after quiescence for 30 days also clearly show that only a small amount of precipitation could be observed for rGO and SnO2/rGO nanofluids, and SnO2 nanofluids present a pronounced precipitation over time, as exhibited in insets of Figure 6. This phenomenon may be due to the fact that on the surface of rGO still remain a small amount of hydrophilic functional groups, such as hydroxyl, carboxyl, and carbonyl groups, after the hydrothermal reaction process. Furthermore, as the ultrasmall SnO2 nanoparticles are decorated on the surface of reduced graphene oxide, the graphene sheets could avoid overlapping or stacking. Hence, this ensures the large specific surface area of rGO, good stability, and thermal conductivity for the nanofluids.
Temperature and concentration play an important role on the stability of nanofluids. As plotted in Figure 7a, it is obvious that the absolute zeta potential values of the SnO2/rGO nanofluids with mass fractions of 0.02%, 0.04%, 0.06%, and 0.08% are all higher than 40 mV at temperatures from 30 to 70 °C. This indicates that the prepared SnO2/rGO nanofluids possess much better dispersion stability. Sedimentation observation of the nanofluids after quiescence for 60 days demonstrate clearly that the SnO2/rGO nanofluids exhibit good long time dispersion stability for each prepared concentration, which also coincide with zeta potential values, as shown in Figure 7b. No obvious sedimentation is observed for all nanofluids samples, whereas little agglomeration and sedimentation are found in the samples with higher concentration, especially at 0.1 wt %.

3.3. Thermal Conductivity of the Water-Based SnO2/rGO Nanofluids

Thermal conductivity is one of the most important values for nanofluids. In this work, the thermal properties analyzer (KD2 pro, Decagon, Device, TPS 500s, Hot Disk, Uppsala, Sweden) was employed to measure the thermal conductivity of nanofluids which has a 5% accuracy. The theory of measurement was based on the transient hot-wire method (THW). Before measuring the thermal conductivity of nanofluids, the thermal conductivity of deionized water was measured at 20–60 °C to calibrate the experimental apparatus, using the standard thermal conductivity value of deionized water which comes from Ramires et al. [42]. It is clear the results are gained a maximum of error 3.48%, as demonstrated in Figure 8. Therefore, it can be concluded that the KD2 Pro worked within its designed accuracy. In order to avoid enhancement of effective viscosity of nanofluids, the low weight concentrations of the as-prepared nanofluids in the range of 0.02–0.1 wt % were chosen, and the temperature was set between 20 and 60 °C. Each sample was repeated five times with each measurement interval of 30 min, and the average value of thermal conductivity was obtained.
The thermal conductivity properties of water-based SnO2/rGO nanofluids at different weight concentrations as a function of temperature are shown in Figure 9. The thermal conductivity of deionized water and water-based pure rGO nanofluids with the same mass fraction have been measured as well for comparison. It is obvious that the thermal conductivity of SnO2/rGO nanofluids are higher than that of deionized water. The percentage enhancement in thermal conductivity (Keff) is calculated through the formula ((K − K0) × 100%)/K0, where K0 and K represents the thermal conductivity of the base fluid (deionized water) and nanofluid, respectively. As shown in Figure 9a,b, the mass fraction and temperature have significant influence on the thermal conductivity of SnO2/rGO nanofluids. The thermal conductivities of nanofluids enhance at various degrees as concentrations of SnO2/rGO nanocompounds and temperatures increase. There are several possible suggested mechanisms to explain the enhancement of thermal conductivity for nanofluids [43,44]. When the temperature of nanofluids increases, the Brownian motion of nanoparticles enhances which leads to higher thermal conductivity of nanofluids. With the increasing of nanoparticles weight concentration, the distance between particles (free path) decreases. More nanoparticles are in contact with each other, resulting in the frequency of the lattice vibration increasing and the heat transfer of electrons and phonons improving [28]. As a result, the higher the concentration of nanoparticles, the higher the thermal conductivity, which is consistent with Maxwell’s theory [45]. In addition, it is well known that there is a nano-layered structure at the solid-liquid interface when the liquid molecules are close to the solid surface. This solid-like nano-layer structure acts as a medium of heat transport from the solid to the bulk liquid which may be a major contributing mechanism to the enhancement of thermal conductivity in the nanofluid [46]. When the temperature rises from 20 to 60 °C, the enhancement of thermal conductivity icnreases from 2% to 7% at a mass fraction of 0.02 wt %, and reaches 7% to 16% at a mass fraction of 0.06 wt %. The maximum enhancement of thermal conductivity approaches to 31% at 60 °C for the concentration of 0.1 wt %. This phenomenon of non-linear enhancement is consistent with others’ previous studies [10,30]. It can be seen clearly from the results displayed in Figure 9c,d that the thermal conductivities of SnO2/rGO nanofluids are higher than rGO nanofluids under various mass fractions. It is suggested that SnO2 nanoparticles are decorated on the surface of rGO, which can block the stacking of graphene sheets. As a result, water-based SnO2/rGO nanofluids have better stability and exhibit better thermal conductivity.
It is evident that the thermal conductivity of the nanofluids relies on temperature and concentration when the nanoparticles and the base fluid are assigned. Consequently, it is clear that the thermal conductivity and dimension of the solid-liquid interfacial layer have significant impacts on the enhanced thermal conductivity of nanofluids. The typical theoretical models that have been developed for thermal conductivity of nanoparticles suspended fluids only consider thermal conductivities of the base fluid, particles, and volume fraction of particles, while particle size, shape, the distribution and motion of dispersed particles and micro convection are having important influences on thermal conductivity enhancement as well [47]. Therefore, the experimental results sometime could not be compared with the correlated values of the theoretical models [30,48]. Furthermore, the comparison between graphene-based nanofluids in most recent works is shown in Table 1, it is apparent that water-based SnO2/rGO nanofluids with low additive concentration possess a pretty good thermal conductivity enhancement, compared to those of other works with higher concentration of nanoparticles. From above results, it can be concluded that the SnO2/rGO nanocomposite could possibly be a useful candidate obtain satisfactory thermal conductivity enhancement for medium-temperature coolant applications.

4. Conclusions

In this paper, SnO2/rGO nanocomposites with ultrasmall-sized SnO2 nanoparticles anchored on the surface of rGO have been synthesized successfully via a simple solvothermal reaction. The well-dispersed water-based SnO2/rGO nanofluids with different weight concentrations have been prepared without any surfactant as well. The results reveal that the SnO2/rGO nanofluids have good dispersion stability. The absolute values of zeta potential for water-based SnO2/rGO nanofluids are basically high than 30 mV and only a few sedimentation can be observed after quiescence for 60 days. The thermal conductivity of SnO2/rGO nanofluids increases with increasing temperature, as well as weight concentration. The enhancement of thermal conductivity of water-based SnO2/rGO nanofluids could reach up to 31% at 60 °C under the mass fraction of 0.1 wt %, comparing to deionized water. The SnO2/rGO nanofluids also possess higher thermal conductivity than the water-based rGO nanofluid. The above results show the water-based SnO2/rGO nanofluids have a bright prospect in the industrial application of heat exchangers systems. However, the electrical conductivity, viscosity, and convective heat transfer coefficient of nanofluids have not yet been studied widely compared to their thermal conductivity, which are important for nanofluid research. Additionally, investigations about theoretical models of the mechanism of thermal conductivity and heat exchange enhancement are needed for further study.

Acknowledgments

This work is supported by the link project of the National Natural Science Foundation of China and Guangdong Province (grant no. U1401246), by the National Natural Science Foundation of China (grant no. 21701030), by the Science and Technology Program of Guangdong Province of China (grant no. 2015A050502047, 2016A020221031, 2017B050504004), and by the Science and Technology Program of Guangzhou City of China (grant no. 2016201604030040, 201607010089).

Author Contributions

Qibai Wu and Haiyan Zhang conceived and designed the experiments; Guoxun Zeng prepared reagents and synthesized the SnO2/rGO nanocomposite; Yang Li and Guoqiang Yang carried out the characterization of the SnO2/rGO nanocomposites; Wenwu Li contributed the preparation of nanofluids; Muyu Chen participated in the implementation of the experimental setup to measure thermal conductivity Xiaofen Yu analyzed the data and wrote the paper; Yannan Qian coordinated the redaction of the manuscript; and all authors read and approved the final manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kasaeian, A.; Daneshazarian, R.; Mahian, O.; Kolsi, L.; Chamkha, A.J.; Wongwises, S.; Pop, I. Nanofluid flow and heat transfer in porous media: A review of the latest developments. Int. J. Heat Mass Transf. 2017, 107, 778–791. [Google Scholar] [CrossRef]
  2. Eggers, J.R.; Kabelac, S. Nanofluids revisited. Appl. Therm. Eng. 2016, 106, 1114–1126. [Google Scholar] [CrossRef]
  3. Agromayor, R.; Cabaleiro, D.; Pardinas, A.A.; Vallejo, J.P.; Fernandez-Seara, J.; Lugo, L. Heat transfer performance of functionalized graphene nanoplatelet aqueous nanofluids. Materials 2016, 9, 455. [Google Scholar] [CrossRef] [PubMed]
  4. Zhao, N.; Li, Z. Experiment and artificial neural network prediction of thermal conductivity and viscosity for alumina-water nanofluids. Materials 2017, 10, 552. [Google Scholar] [CrossRef] [PubMed]
  5. Devendiran, D.K.; Amirtham, V.A. A review on preparation, characterization, properties and applications of nanofluids. Renew. Sustain. Energy Rev. 2016, 60, 21–40. [Google Scholar] [CrossRef]
  6. Patel, H.E.; Das, S.K.; Sundararajan, T.; Sreekumaran, N.A.; George, B.; Pradeep, T. Thermal conductivities of naked and monolayer protected metal nanoparticle based nanofluids: Manifestation of anomalous enhancement and chemical effects. Appl. Phys. Lett. 2003, 83, 2931–2933. [Google Scholar] [CrossRef]
  7. Chandrasekar, M.; Suresh, S.; Chandra, B.A. Experimental investigations and theoretical determination of thermal conductivity and viscosity of Al2O3/water nanofluid. Exp. Therm. Fluid Sci. 2010, 34, 210–216. [Google Scholar] [CrossRef]
  8. Karthikeyan, N.R.; Philip, J.; Raj, B. Effect of clustering on the thermal conductivity of nanofluids. Mater. Chem. Phys. 2008, 109, 50–55. [Google Scholar] [CrossRef]
  9. Amrollahi, A.; Rashidi, A.M.; Lotfi, R.; Emami, M.M.; Kashefi, K. Convection heat transfer of functionalized mwnt in aqueous fluids in laminar and turbulent flow at the entrance region. Int. Commun. Heat Mass Transf. 2010, 37, 717–723. [Google Scholar] [CrossRef]
  10. Baby, T.T.; Ramaprabhu, S. Investigation of thermal and electrical conductivity of graphene based nanofluids. J. Appl. Phys. 2010, 108, 124308. [Google Scholar] [CrossRef]
  11. Marcano, D.C.; Dmitry, V.K.; Berlin, J.M.; Sinitskii, A.; Sun, Z.; Slesarev, A.; Alemany, L.B.; Lu, W.; Tour, J.M. Improved synthesis of graphene oxide. ACS Nano 2010, 4, 4806–4814. [Google Scholar] [CrossRef] [PubMed]
  12. Aravind, S.S.J.; Ramaprabhu, S. Graphene-multiwalled carbon nanotube-based nanofluids for improved heat dissipation. RSC Adv. 2013, 3, 4199–4206. [Google Scholar] [CrossRef]
  13. Sen, G.S.; Manoj, S.V.; Krishnan, S.; Sreeprasad, T.S.; Singh, P.K.; Pradeep, T.; Das, S.K. Thermal conductivity enhancement of nanofluids containing graphene nanosheets. J. Appl. Phys. 2011, 110, 084302. [Google Scholar]
  14. Kole, M.; Dey, T.K. Investigation of thermal conductivity, viscosity, and electrical conductivity of graphene based nanofluids. J. Appl. Phys. 2013, 113, 084307. [Google Scholar] [CrossRef]
  15. Ghozatloo, A.; Shariaty-Niasar, M.; Rashidi, A.M. Preparation of nanofluids from functionalized graphene by new alkaline method and study on the thermal conductivity and stability. Int. Commun. Heat Mass Transf. 2013, 42, 89–94. [Google Scholar] [CrossRef]
  16. Kamatchi, R.; Venkatachalapathy, S.; Abhinaya, S.B. Synthesis, stability, transport properties, and surface wettability of reduced graphene oxide/water nanofluids. Int. J. Therm. Sci. 2015, 97, 17–25. [Google Scholar] [CrossRef]
  17. Liao, Q.; Li, N.; Jin, S.; Yang, G.; Wang, C. All-solid-state symmetric supercapacitor based on Co3O4 nanoparticles on vertically aligned graphene. ACS Nano 2015, 9, 5310–5317. [Google Scholar] [CrossRef] [PubMed]
  18. Sarsama, W.S.; Amiri, A.; Kazi, S.N.; Badarudin, A. Stability and thermophysical properties of non-covalently functionalized graphene nanoplatelets nanofluid. Energy Convers. Manag. 2016, 116, 101–111. [Google Scholar] [CrossRef]
  19. Uddin, M.E.; Kuila, T.; Nayak, G.C.; Kim, N.H.; Ku, B.-C.; Lee, J.H. Effects of various surfactants on the dispersion stability and electrical conductivity of surface modified graphene. J. Alloys Compd. 2013, 562, 134–142. [Google Scholar] [CrossRef]
  20. Leong, K.; Mohd, N.H.; Mohd, S.; Amer, N. The effect of surfactant on stability and thermal conductivity of carbon nanotube based nanofluids. Therm. Sci. 2016, 20, 429–436. [Google Scholar] [CrossRef]
  21. Lin, Y.; Zhang, H.; He, C.; Li, Y.; Wang, S.; Hong, H. A new kind of water-based nanofluid with a low loading of three-dimensional porous graphene. J. Mater. Sci. 2017, 52, 10485–10496. [Google Scholar] [CrossRef]
  22. Tchoul, M.N.; Ford, W.T.; Lolli, G.; Resasco, D.E.; Arepalli, S. Effect of mild nitric acid oxidation on dispersability, size, and structure of single-walled carbon nanotubes. Chem. Mater. 2007, 19, 5765–5772. [Google Scholar] [CrossRef]
  23. Baby, T.T.; Ramaprabhu, S. Enhanced convective heat transfer using graphene dispersed nanofluids. Nanoscale Res. Lett. 2011, 6, 289. [Google Scholar] [CrossRef] [PubMed]
  24. Liu, M.; Yang, Y.; Zhu, T.; Liu, Z. Chemical modification of single-walled carbon nanotubes with peroxytrifluoroacetic acid. Carbon 2005, 43, 1470–1478. [Google Scholar] [CrossRef]
  25. Zhang, L.; Ni, Q.; Fu, Y.; Natsukia, T. One-step preparation of water-soluble single-walled carbon nanotubes. Appl. Surf. Sci. 2009, 255, 7095–7099. [Google Scholar] [CrossRef]
  26. Mehrali, M.; Sadeghinezhad, E.; Akhiani, A.R.; Tahan, L.S.; Metselaar, H.S.C.; Kherbeet, A.S.; Mehrali, M. Heat transfer and entropy generation analysis of hybrid graphene/Fe3O4 ferro-nanofluid flow under the influence of a magnetic field. Powder Technol. 2017, 308, 149–157. [Google Scholar] [CrossRef]
  27. Yarmand, H.; Gharehkhani, S.; Ahmadi, G.; Shirazi, S.F.S.; Baradaran, S.; Montazer, E.; Zubir, M.N.M.; Alehashem, M.S.; Kazi, S.N.; Dahari, M. Graphene nanoplatelets-silver hybrid nanofluids for enhanced heat transfer. Energy Convers. Manag. 2015, 100, 419–428. [Google Scholar] [CrossRef]
  28. Baby, T.T.; Sundara, R. Synthesis and transport properties of metal oxide decorated graphene dispersed nanofluids. J. Phys. Chem. C 2011, 115, 8527–8533. [Google Scholar] [CrossRef]
  29. Li, X.; Chen, Y.; Mo, S.; Jia, L.; Shao, X. Effect of surface modification on the stability and thermal conductivity of water-based SiO2-coated graphene nanofluid. Thermochim. Acta 2014, 595, 6–10. [Google Scholar] [CrossRef]
  30. Wang, S.; Li, Y.; Zhang, H.; Lin, Y.; Li, Z.; Wang, W.; Wu, Q.; Qian, Y.; Hong, H.; Zhi, C. Enhancement of thermal conductivity in water-based nanofluids employing TiO2/reduced graphene oxide composites. J. Mater. Sci. 2016, 51, 10104–10115. [Google Scholar] [CrossRef]
  31. Habibzadeh, S.; Kazemi-Beydokhti, A.; Khodadadi, A.A.; Mortazavi, Y.; Omanovic, S.; Shariat-Niassar, M. Stability and thermal conductivity of nanofluids of tin dioxide synthesized via microwave-induced combustion route. Chem. Eng. J. 2010, 156, 471–478. [Google Scholar] [CrossRef]
  32. Mariano, A.; Pastoriza-Gallego, M.J.; Lugo, L.; Camacho, A.; Canzonieri, S.; Piñeiro, M.M. Thermal conductivity, rheological behaviour and density of non-newtonian ethylene glycol-based SnO2 nanofluids. Fluid Phase Equilib. 2013, 337, 119–124. [Google Scholar] [CrossRef]
  33. Zhang, D.; Liu, J.; Chang, H.; Liu, A.; Xia, B. Characterization of a hybrid composite of SnO2 nanocrystal-decorated reduced graphene oxide for ppm-level ethanol gas sensing application. RSC Adv. 2015, 5, 18666–18672. [Google Scholar] [CrossRef]
  34. Jiang, S.; Yue, W.; Gao, Z.; Ren, Y.; Ma, H.; Zhao, X.; Liu, Y.; Yang, X. Graphene-encapsulated mesoporous SnO2 composites as high performance anodes for lithium-ion batteries. J. Mater. Sci. 2013, 48, 3870–3876. [Google Scholar] [CrossRef]
  35. Chen, L.; Ma, X.; Wang, M.; Chen, C.; Ge, X. Hierarchical porous SnO2 /reduced graphene oxide composites for high-performance lithium-ion battery anodes. Electrochim. Acta 2016, 215, 42–49. [Google Scholar] [CrossRef]
  36. Xu, C.; Wang, X.; Zhu, J. Graphene-metal particle nanocomposites. J. Phys. Chem. 2008, 112, 19841–19845. [Google Scholar] [CrossRef]
  37. Wang, Y.; Ding, J.; Liu, Y.; Liu, Y.; Cai, Q.; Zhang, J. SnO2@reduced graphene oxide composite for high performance lithium-ion battery. Ceram. Int. 2015, 41, 15145–15152. [Google Scholar] [CrossRef]
  38. Zhang, X.; Huang, X.; Zhang, X.; Xia, L.; Zhong, B.; Zhang, T.; Wen, G. Cotton/rGO/carbon-coated SnO2 nanoparticle-composites as superior anode for lithium ion battery. Mater. Des. 2017, 114, 234–242. [Google Scholar] [CrossRef]
  39. Gu, Y.; Xing, M.; Zhang, J. Synthesis and photocatalytic activity of graphene based doped TiO2 nanocomposites. Appl. Surf. Sci. 2014, 319, 8–15. [Google Scholar] [CrossRef]
  40. Li, F.; Song, J.; Yang, H.; Gan, S.; Zhang, Q.; Han, D.; Ivaska, A.; Niu, L. One-step synthesis of graphene/sno2 nanocomposites and its application in electrochemical supercapacitors. Nanotechnology 2009, 20, 455602. [Google Scholar] [CrossRef] [PubMed]
  41. Wu, Q.-H.; Wang, C.; Ren, J.-G. Sn and SnO2-graphene composites as anode materials for lithium-ion batteries. Ionics 2013, 19, 1875–1882. [Google Scholar] [CrossRef]
  42. Ramires, M.L.V.; de Castro, C.A.N. Standard reference data for the thermal conductivity of water. J. Phys. Chem. Ref. Data 1995, 24, 1377–1381. [Google Scholar] [CrossRef]
  43. María, J.P.-G.; Luis, L.; Legido, J.L.; Piñeiro, M.M. Thermal conductivity and viscosity measurements of ethylene glycol-based Al2O3 nanofluids. Nanoscale Res. Lett. 2011, 6, 1–11. [Google Scholar]
  44. Keblinski, P.; Phillpot, S.R.; Choi, S.U.S.; Eastman, J.A. Mechanisms of heat flow in suspensions of nano-sized particles (nanofluids). Int. J. Heat Mass Transf. 2002, 45, 855–863. [Google Scholar] [CrossRef]
  45. Yu, W.; Choi, S.U.S. The Role of Interfacial Layers in the Enhanced Thermal Conductivity of Nanofluids: A Renovated Maxwell Model. J. Nanopart. Res. 2003, 5, 167–171. [Google Scholar] [CrossRef]
  46. Yang, L.; Xu, X. A renovated hamilton–crosser model for the effective thermal conductivity of cnts nanofluids. Int. Commun. Heat Mass Transf. 2017, 81, 42–50. [Google Scholar] [CrossRef]
  47. Patel, H.E.; Sundararajan, T.; Pradeep, T.; Dasgupta, A.; Dasgupta, N.; Das, S.K. A micro convection model for thermal conductivity of nanofluid. Pramana 2005, 65, 863–869. [Google Scholar] [CrossRef]
  48. Mehrali, M.; Sadeghinezhad, E.; Latibari, S.T.; Kazi, S.N.; Mehrali, M.; Zubir, M.N.; Metselaar, H.S. Investigation of thermal conductivity and rheological properties of nanofluids containing graphene nanoplatelets. Nanoscale Res. Lett. 2014, 9, 15. [Google Scholar] [CrossRef] [PubMed]

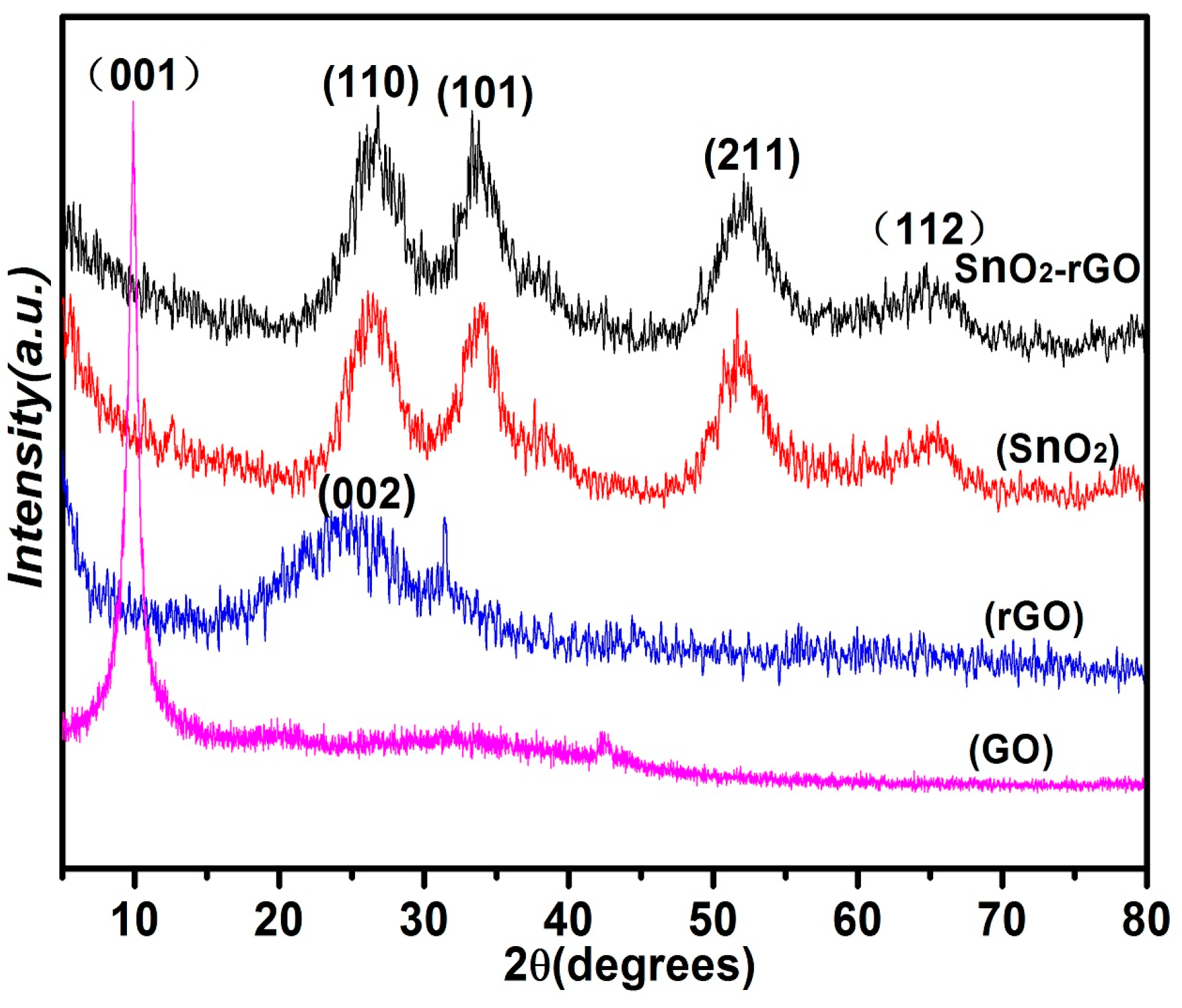

Figure 1. X-ray diffraction of GO, rGO, SnO2, and SnO2/rGO nanocomposites.
Figure 1. X-ray diffraction of GO, rGO, SnO2, and SnO2/rGO nanocomposites.
Materials 11 00038 g001

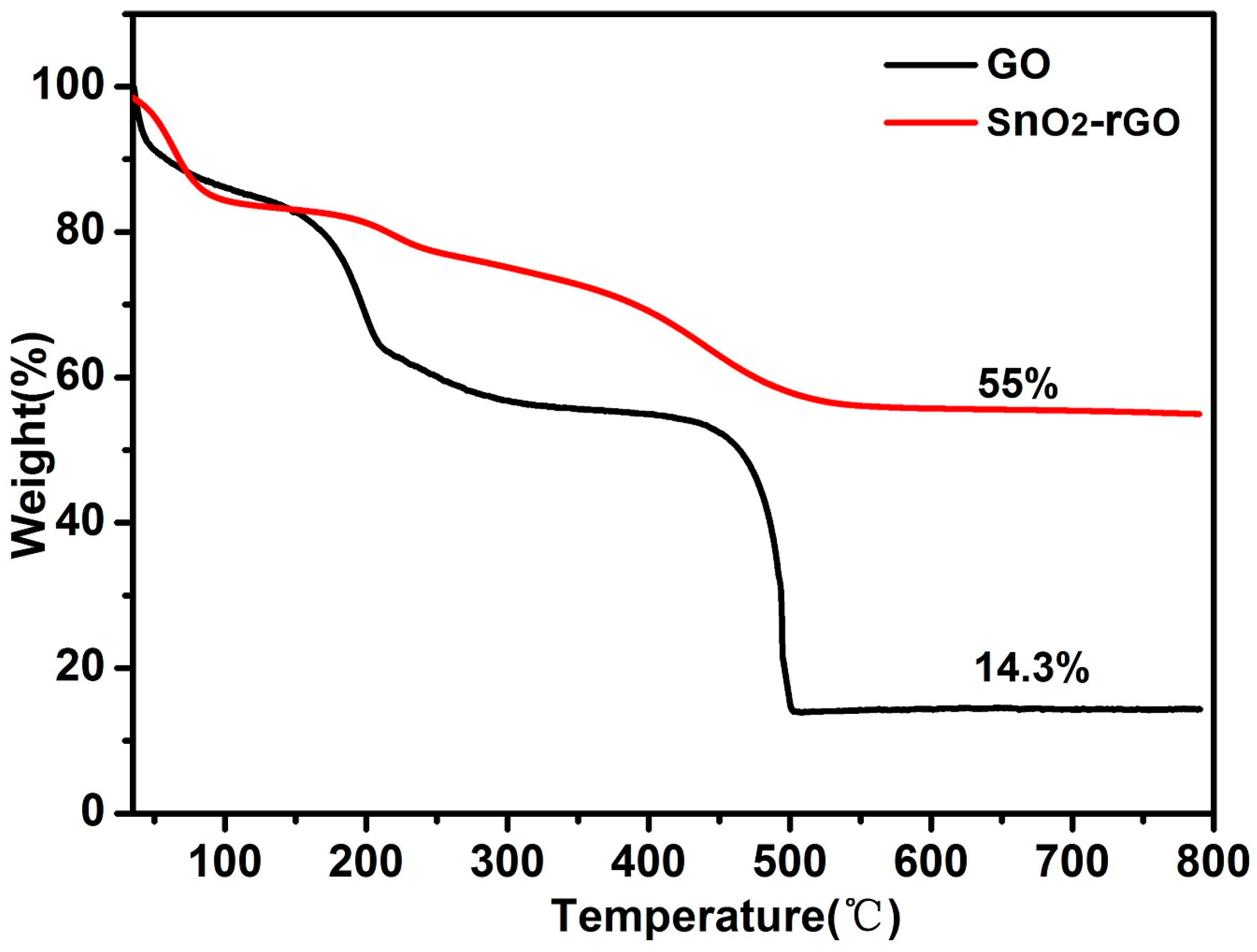

Figure 2. Thermogravimetric curves of SnO2/rGO compound and GO.
Figure 2. Thermogravimetric curves of SnO2/rGO compound and GO.
Materials 11 00038 g002

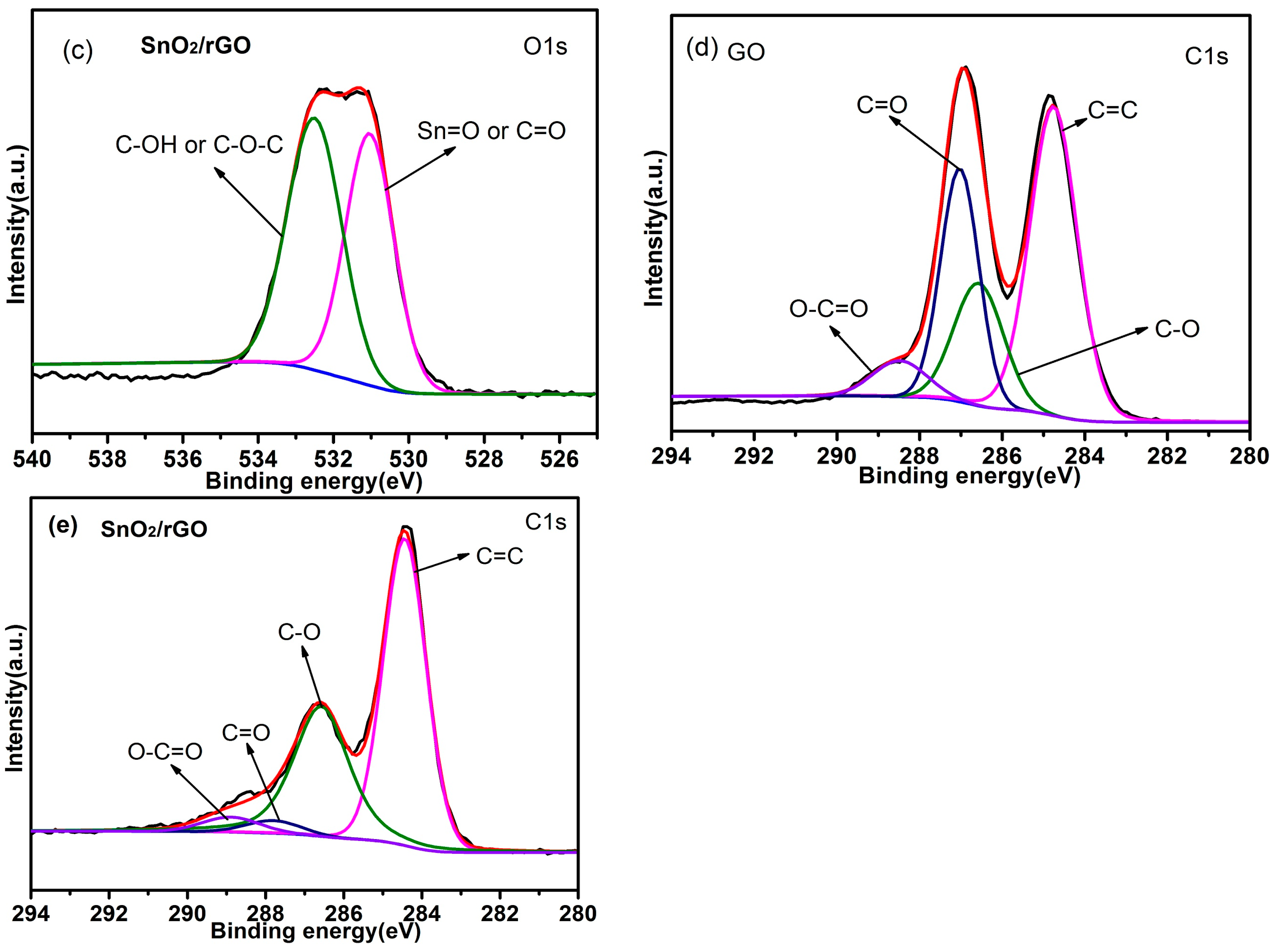

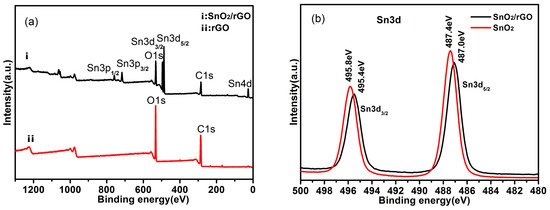

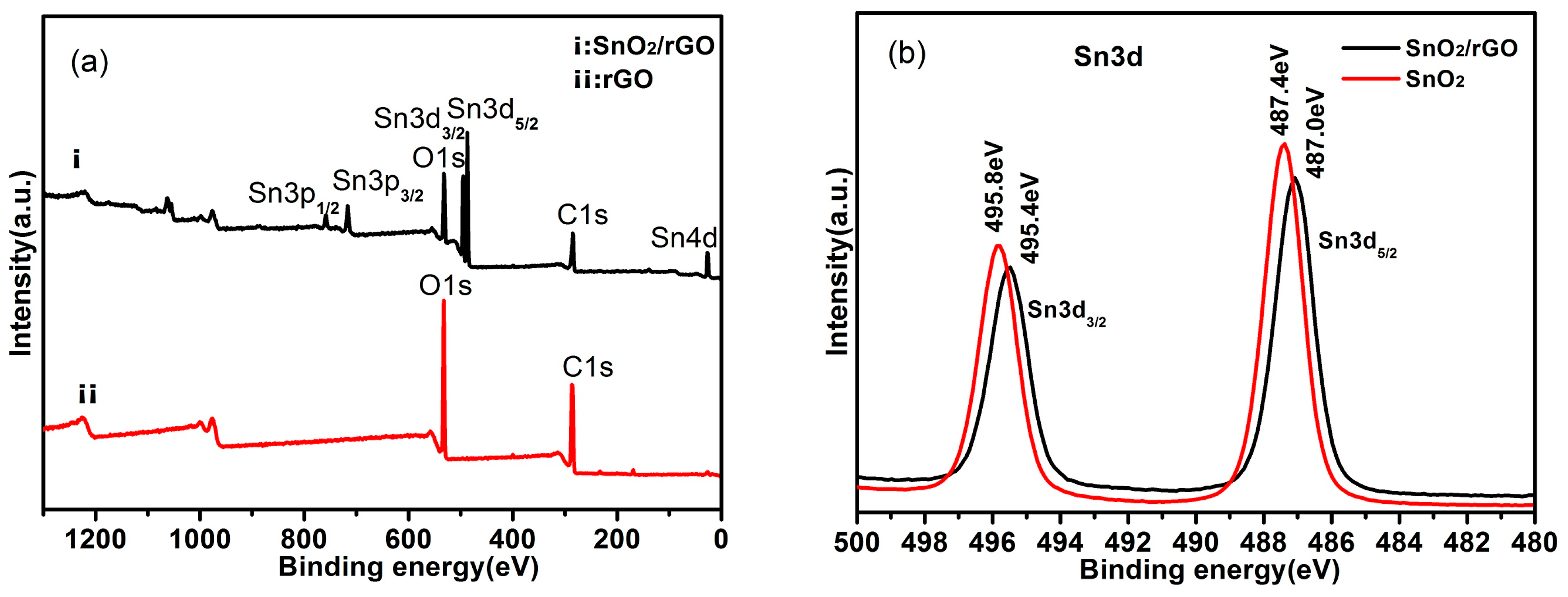

Figure 3. XPS of GO and SnO2/rGO composite. (a) XPS survey spectra of GO and SnO2/rGO; (b) XPS spectrum of Sn3d of SnO2/rGO and SnO2; (c) O 1s spectra of SnO2/rGO; and (d,e) C1s spectra of GO and SnO2/rGO.
Figure 3. XPS of GO and SnO2/rGO composite. (a) XPS survey spectra of GO and SnO2/rGO; (b) XPS spectrum of Sn3d of SnO2/rGO and SnO2; (c) O 1s spectra of SnO2/rGO; and (d,e) C1s spectra of GO and SnO2/rGO.
Materials 11 00038 g003aMaterials 11 00038 g003b

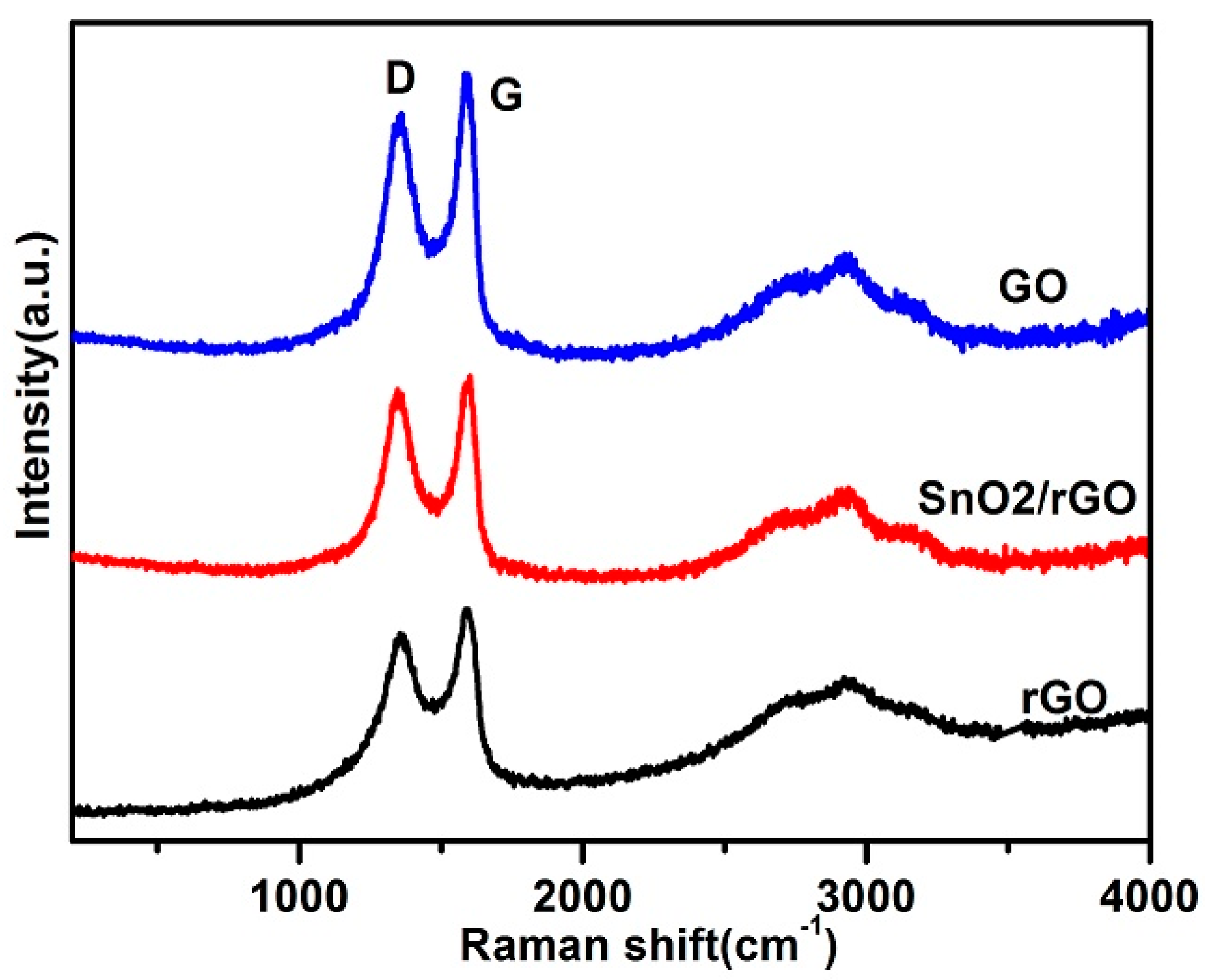

Figure 4. Raman spectra of GO, rGO, and SnO2/rGO.
Figure 4. Raman spectra of GO, rGO, and SnO2/rGO.
Materials 11 00038 g004

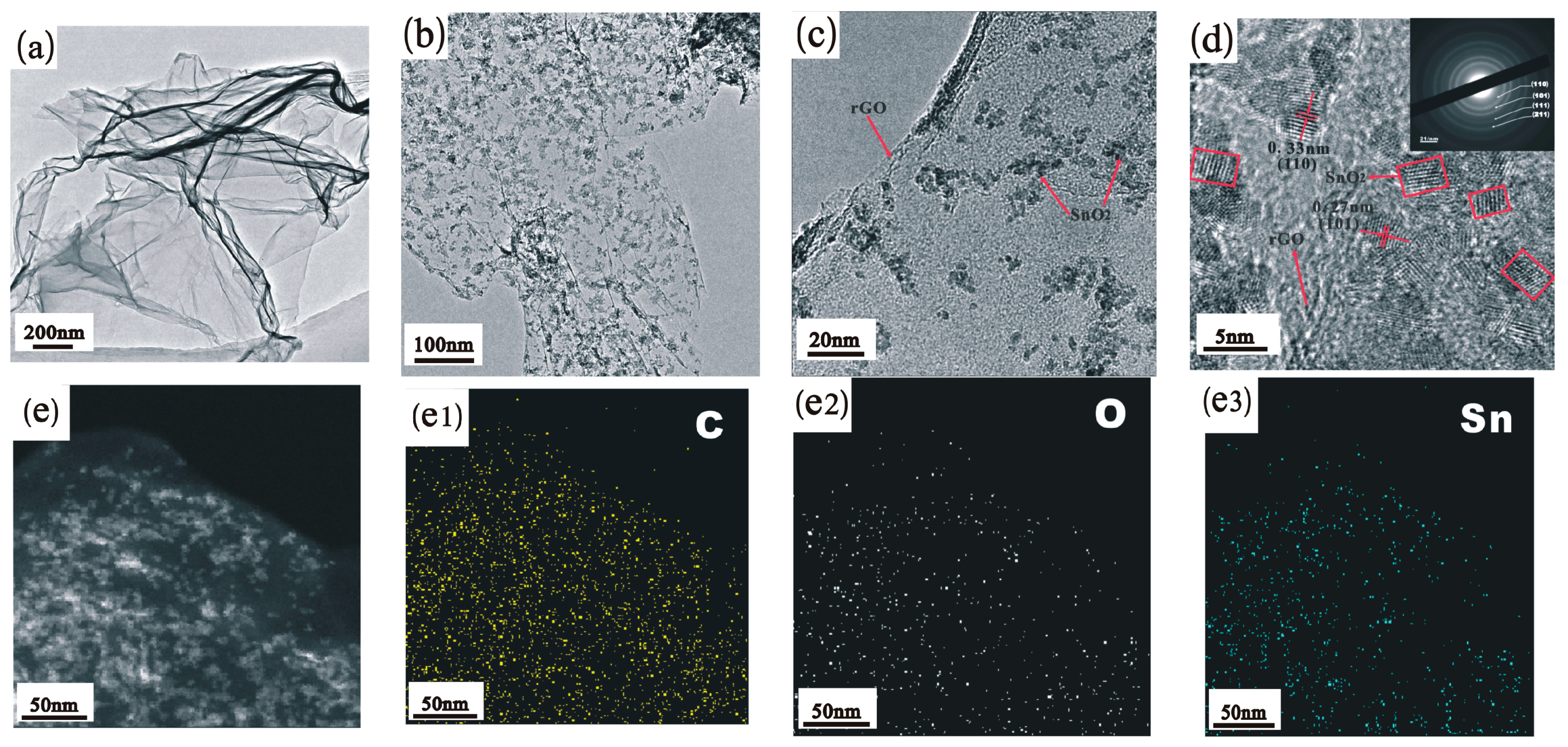

Figure 5. (a) TEM images of rGO; (b,c) TEM images of SnO2/rGO under different magnification; (d) HRTEM images of SnO2/rGO, and the inset is the corresponding SAED pattern; and (e) elemental mapping of SnO2/rGO depicting the even distribution of C (e1), O (e2), and Sn (e3).
Figure 5. (a) TEM images of rGO; (b,c) TEM images of SnO2/rGO under different magnification; (d) HRTEM images of SnO2/rGO, and the inset is the corresponding SAED pattern; and (e) elemental mapping of SnO2/rGO depicting the even distribution of C (e1), O (e2), and Sn (e3).
Materials 11 00038 g005

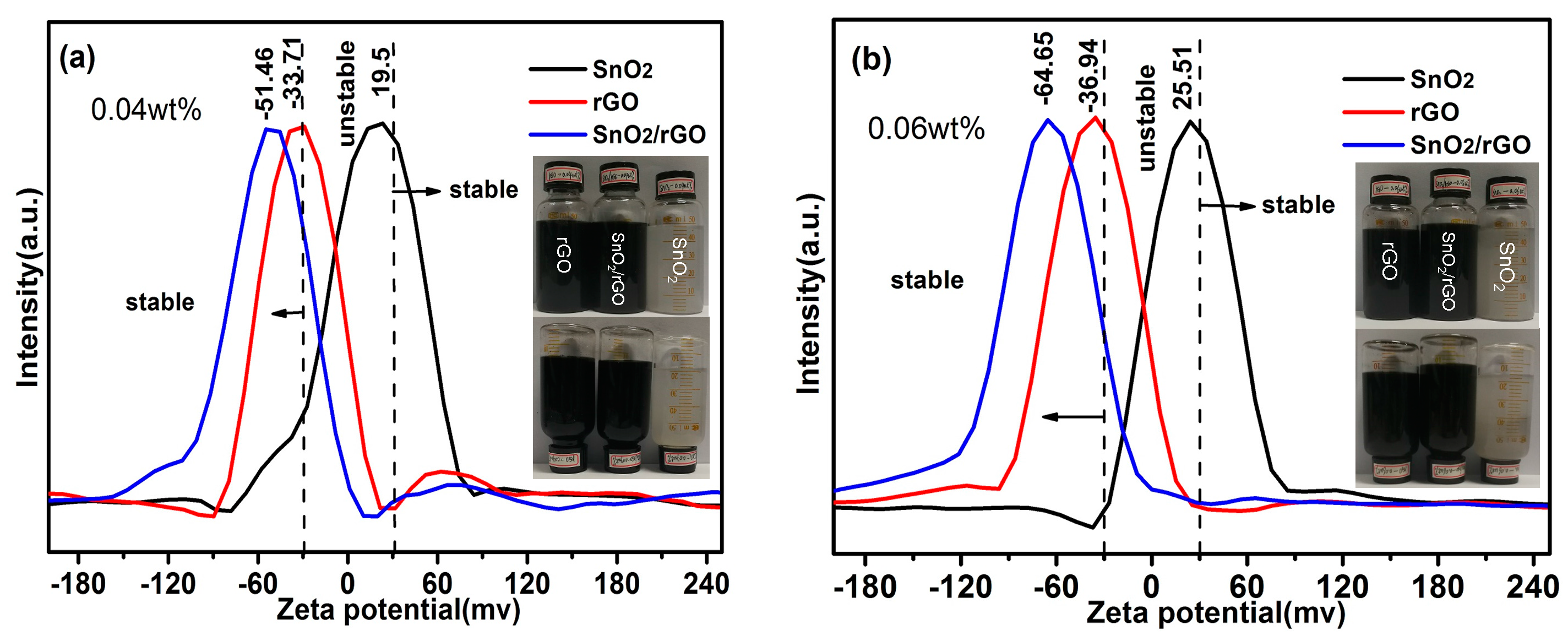

Figure 6. Zeta potential value of SnO2/rGO composite, rGO, and SnO2 nanofluids with different concentration; (a) 0.04 wt % and (b) 0.06% insets are photographs of rGO, SnO2/rGO, and SnO2 nanofluids after quiescence for 30 days.
Figure 6. Zeta potential value of SnO2/rGO composite, rGO, and SnO2 nanofluids with different concentration; (a) 0.04 wt % and (b) 0.06% insets are photographs of rGO, SnO2/rGO, and SnO2 nanofluids after quiescence for 30 days.
Materials 11 00038 g006

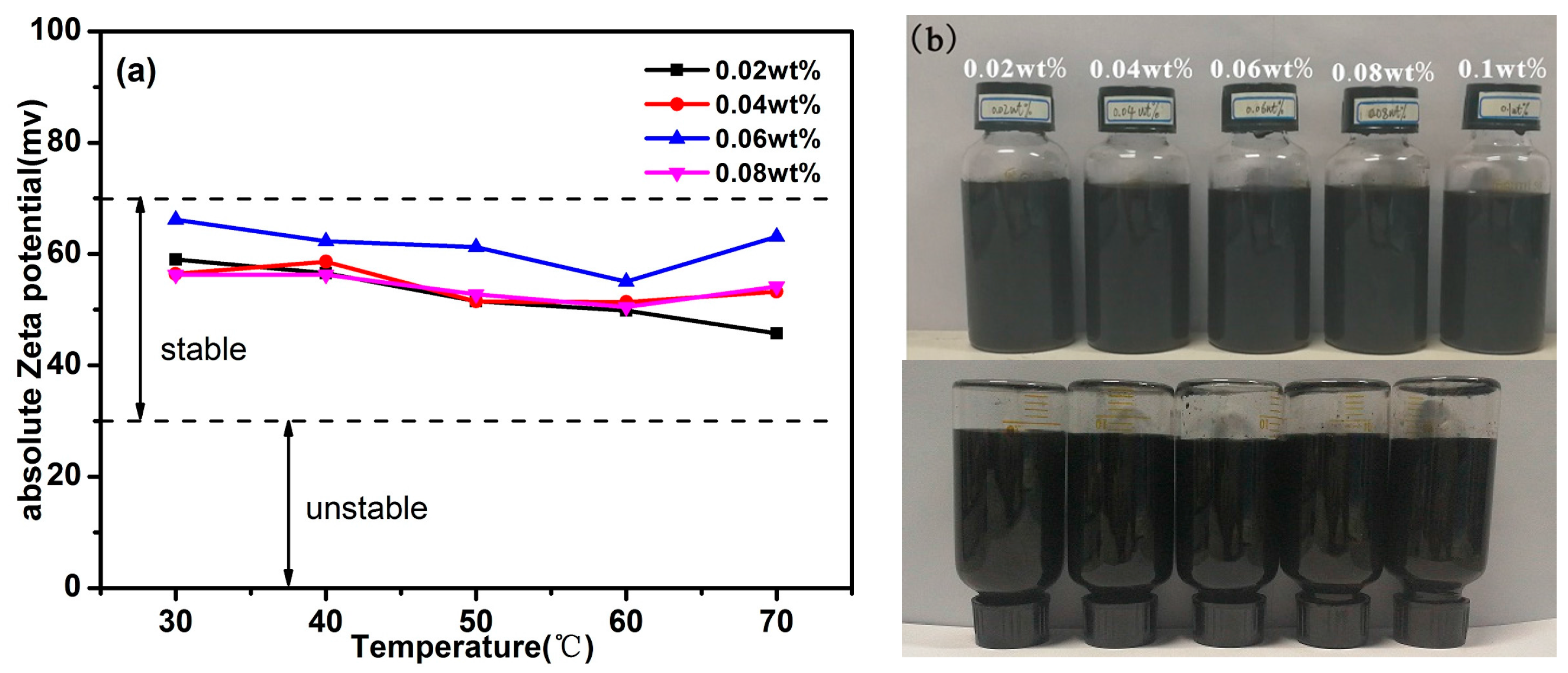

Figure 7. (a) Effect of temperature on the absolute Zeta potential values at different concentrations; (b) Photographs of 0.02, 0.04, 0.06, 0.08, and 0.1 wt % water-based nanofluids of SnO2/rGO after quiescence for 60 days.
Figure 7. (a) Effect of temperature on the absolute Zeta potential values at different concentrations; (b) Photographs of 0.02, 0.04, 0.06, 0.08, and 0.1 wt % water-based nanofluids of SnO2/rGO after quiescence for 60 days.
Materials 11 00038 g007

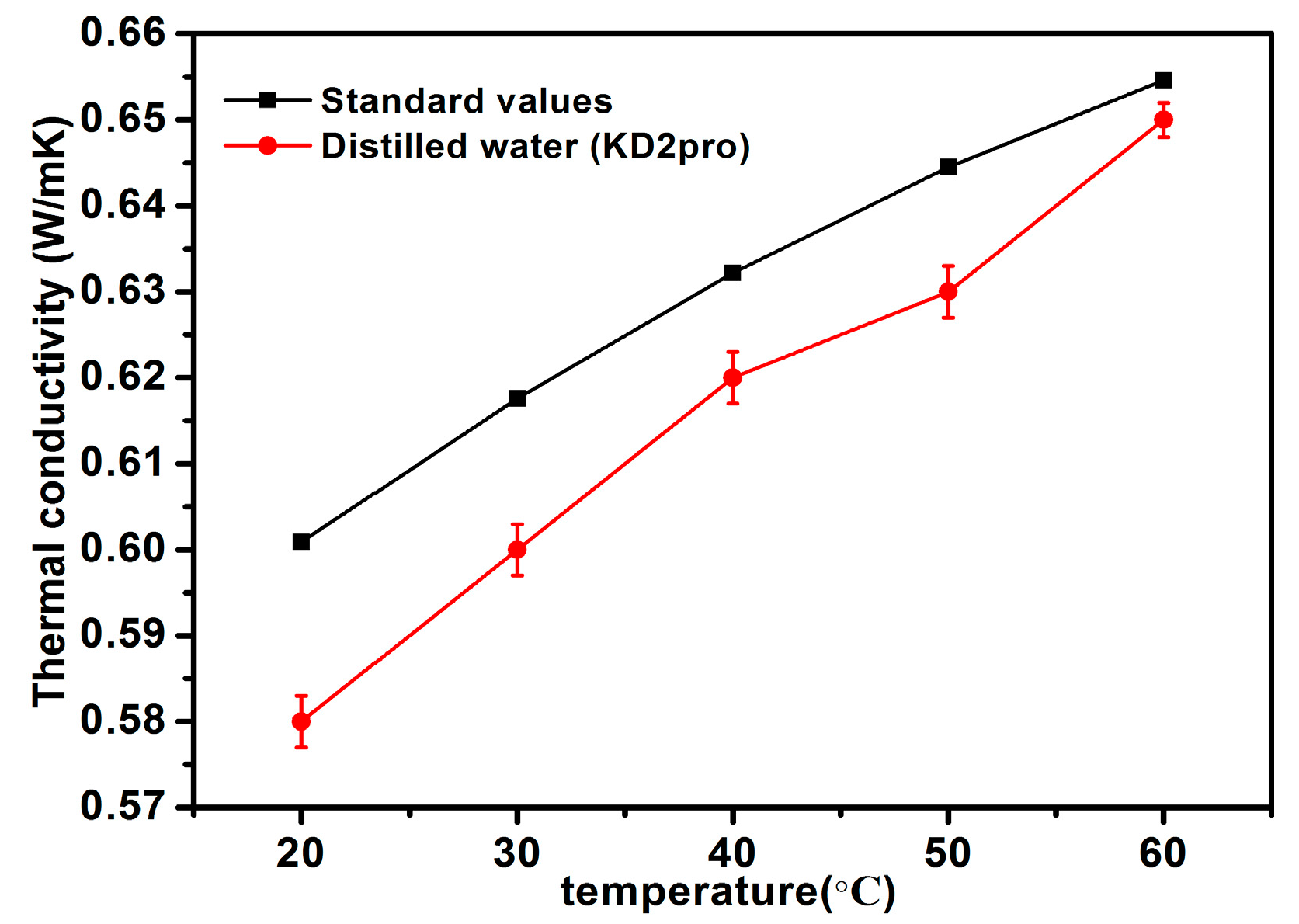

Figure 8. Comparison of the measured values of thermal conductivity using KD2 Pro for distilled water with the standard values presented by Ramires [42].
Figure 8. Comparison of the measured values of thermal conductivity using KD2 Pro for distilled water with the standard values presented by Ramires [42].
Materials 11 00038 g008

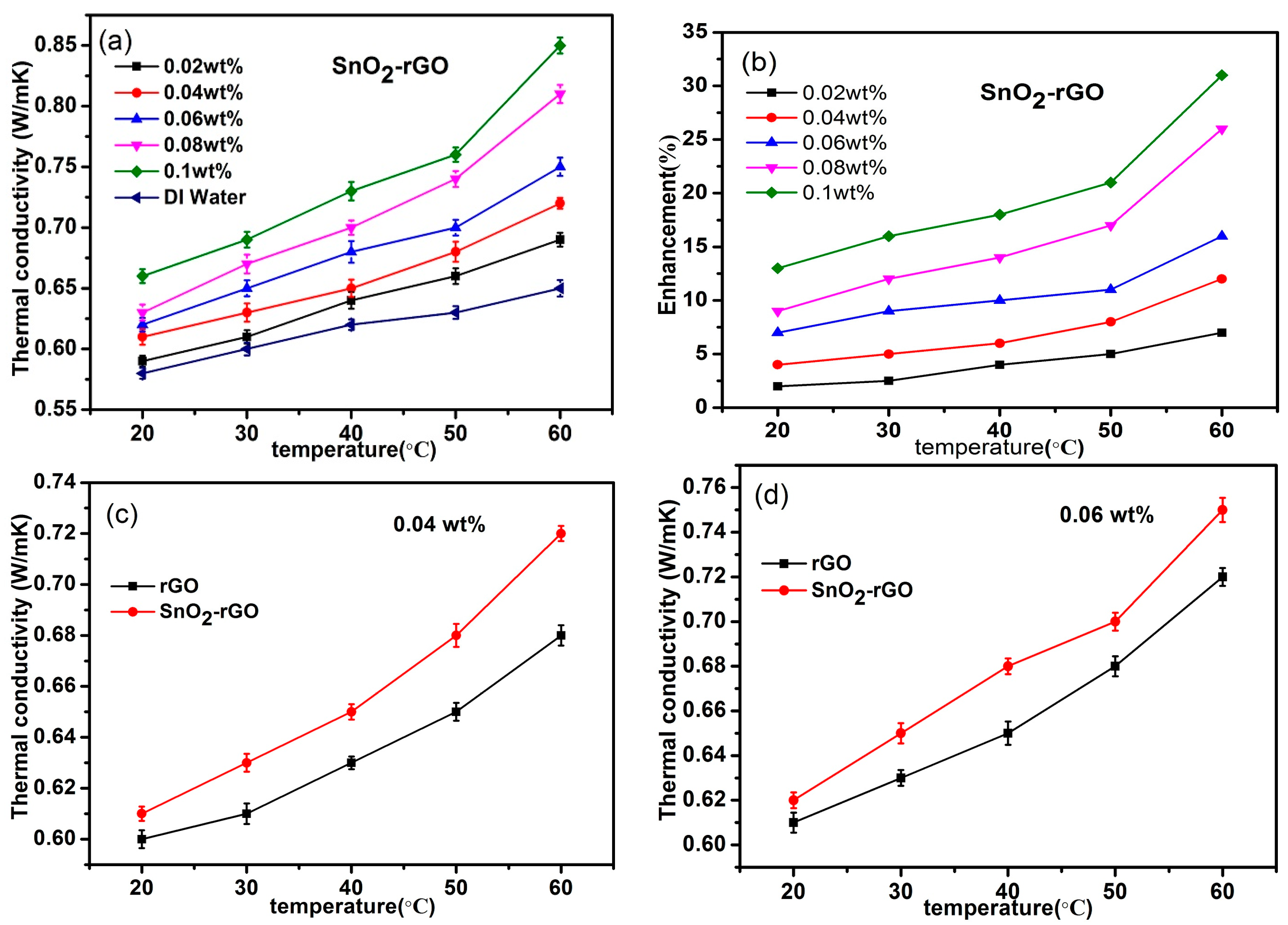

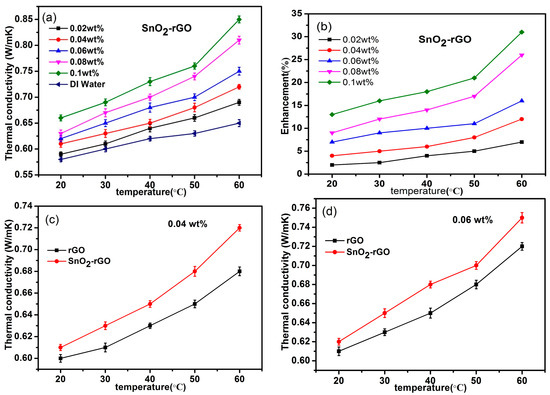

Figure 9. Thermal conductivity of water-based rGO and SnO2/rGO nanofluids as a function of temperature and the weight fraction of nanoparticles. (a) SnO2/rGO water-based nanofluids at different concentrations; (b) Effect of temperature on the thermal conductivity enhancements at different concentrations; (c,d) Comparison of SnO2/rGO and rGO water-based nanofluids at different concentrations of 0.04 wt % and 0.06 wt %.
Figure 9. Thermal conductivity of water-based rGO and SnO2/rGO nanofluids as a function of temperature and the weight fraction of nanoparticles. (a) SnO2/rGO water-based nanofluids at different concentrations; (b) Effect of temperature on the thermal conductivity enhancements at different concentrations; (c,d) Comparison of SnO2/rGO and rGO water-based nanofluids at different concentrations of 0.04 wt % and 0.06 wt %.
Materials 11 00038 g009
Table 1. Comparison of thermal conductivity enhancements of our as-prepared nanofluid with reported graphene-based nanofluids.
Table 1. Comparison of thermal conductivity enhancements of our as-prepared nanofluid with reported graphene-based nanofluids.
MaterialsBase FluidLoadingEnhancement %References
graphenewater0.2 vol %27[13]
graphenewater0.05 wt %17[15]
rGOwater0.03 wt %10[16]
f-HEGwater0.05 vol %16[23]
rGO-Fe3O4water0.5 vol %11[26]
GNP–Agwater0.1 wt %22[27]
graphene-CuOwater0.5 vol %28[28]
graphene-SiO2water0.1 wt %20[29]
rGO/TiO2water0.1 wt %33[30]
SnO2/rGOwater0.1 wt % (0.078 vol %)31This work
