Synthesis and Characterization of a Heterometallic Extended Architecture Based on a Manganese(II)-Substituted Sandwich-Type Polyoxotungstate

by
Masooma Ibrahim
1,*,
Eufemio Moreno-Pineda
1,
Thomas Bergfeldt
2,
Christopher E. Anson
3 and
Annie K. Powell
1,3,*
1
Institute of Nanotechnology (INT), Karlsruhe Institute of Technology (KIT), Postfach 3640, 76021 Karlsruhe, Germany
2
Institute for Applied Materials (IAM-AWP), Karlsruhe Institute of Technology (KIT), Postfach 3640, 76021 Karlsruhe, Germany
3
Institute of Inorganic Chemistry, Karlsruhe Institute of Technology (KIT), Engesserstrasse 15, 76131 Karlsruhe, Germany
*
Authors to whom correspondence should be addressed.
Materials 2018, 11(1), 155; https://doi.org/10.3390/ma11010155
Submission received: 21 December 2017 / Revised: 11 January 2018 / Accepted: 13 January 2018 / Published: 17 January 2018
(This article belongs to the Special Issue Polyoxometalate and Nanohybrid Materials)
Browse Figures
Versions Notes

Abstract

:
The reaction of [α-P2W15O56]12− with MnII and DyIII in an aqueous basic solution led to the isolation of an all inorganic heterometallic aggregate Na10(OH2)42[{Dy(H2O)6}2Mn4P4W30O112(H2O)2]·17H2O (Dy2Mn4-P2W15). Single-crystal X-ray diffraction revealed that Dy2Mn4-P2W15 crystallizes in the triclinic system with space group P 1 ¯ , and consists of a tetranuclear manganese(II)-substituted sandwich-type phosphotungstate [Mn4(H2O)2(P2W15O56)2]16− (Mn4-P2W15), Na, and DyIII cations. Compound Dy2Mn4-P2W15 exhibits a 1D ladder-like chain structure based on sandwich-type segments and dysprosium cations as linkers, which are further connected into a three-dimensional open framework by sodium cations. The title compound was structurally and compositionally characterized in solid state by single-crystal XRD, powder X-ray diffraction (PXRD), Fourier-transform infrared spectroscopy (FTIR), thermogravimetric (TGA), and elemental analyses. Further, the absorption and emission electronic spectra in aqueous solutions of Dy2Mn4-P2W15 and Mn4-P2W15 were studied. Also, magnetic properties were studied and compared with the magnetic behavior of [Mn4(H2O)2(P2W15O56)2]16−.

Graphical Abstract

1. Introduction

Polyoxometalates (POMs) are discrete early transition metal-oxide cluster anions whose physicochemical properties can be tuned by the incorporation of additional transition metal centers [1,2]. A large number of transition metal containing POMs have been synthesized and characterized with enhanced properties, for instance, robustness and stability emerging from the POM moiety and the predictable functional properties, depending on their electronic nature, originating from the redox metal centers. To date, transition metal (3d), lanthanide (4f), and mixed 3d-4f containing POM hybrids have been studied, which can be broadly classified as follows [3,4,5,6,7,8,9].
(a)
Three-dimensional (3d)-POMs [10,11,12,13,14]
(b)
4f-POMs [4,15]
(c)
3d-4f-POM [16,17]
(d)
4f-POM with 3d linkers [7,8]
(e)
3d-POM with 4f linkers [7,8]
There are many reports on 3d-POMs, where the number of incorporated 3d metal centers within POM system ranges from 1 to 40 [18]. When compared to 3d-POMs there are fewer publications on 4f-POMs but still a significant number of structures have been characterized and studied. Usually this class of POMs results in large assemblies for example [As12Ce16W148O524(H2O)36]76 [19], [Ce20Ge10W100O376(OH)4(H2O)30]56− [20], [Gd8As12W124O432(H2O)36]60− [15], [Gd6As6W65O229(OH)4(H2O)12(OAc)2]38− [21], [Yb10As10W88O308(OH)8(H2O)28(OAc)4]40− [21], [Na ⊂ Ln12Ge6W60O228(H2O)24]35− (Na ⊂ Ln12) (Ln = Pr, Nd) [22], [K ⊂ Sm12Ge6W60O228(H2O)22]35− [22], and [K ⊂ K7Ln24Ge12W120O444(OH)12(H2O)64]52− (K ⊂ Ln24) (Ln = Pr, Nd) [22], which is due to the fact that lanthanide ions are large in size so cannot be fully incorporated into the lacunary sites of POMs as a result of their large coordination number, in turn leading to binding with terminal oxygen atoms of adjacent POM subunits and resulting in exceptionally giant and complex architectures. Heterometallic POMs (3d-4f-POM) is one of the least explored subclass of POMs, and so far, only a few POMs have been reported where 3d-4f-heterometallic clusters are stabilized by POM ligand [16,17]. On the other hand classical heterometallic coordination chemistry has been receiving a great deal of attention in the field of molecular magnetism, because of their potential advantages to create new single-molecule magnets. In such complexes, 3d ions can give rise to high-spin ground state (S), while 4f ions, such as DyIII, TbIII, HoIII, etc. import large anisotropic magnetic moments [23]. Remarkably recently we have successfully prepared a giant novel heterometallic polyanion {Dy30Co8Ge12W108O408} with single-molecule-magnet behavior. This polyanion contains the largest number of 4f ions besides being the first polyanion which interestingly incorporates two different type of metallic assemblies; six triangular {Dy3}, and four trigonal-bipyramidal {Co2Dy3}, within same POM framework [17]. Contrarily, often in the presence of 4f and 3d metal ions “4f-POM with 3d linker” and “3d-POM with 4f linker” type aggregates are formed due to the much higher reactivity and larger size of the oxophilic 4f ions compare to the 3d metal ion in the reaction mixture. For instance {[Cu(en)2]2(H2O)[Cu(en)(2,2′-bipy)]Ln[(α-HPW11O39)2]}4− (2,20-bipy = 2,20-bipyridine and en = ethylenediamine) [24], [Cu(en)2]5[Cu(en)2(H2O)]2[RE4Ge4W46O164(H2O)3]10− [25], and {[Cu(dap)2(H2O)]2[Cu(dap)2][α-XW11O39Ln(H2O)3]2}4− (dap = 1,2-diaminopropane) [26], are some of the cases which come under the category of “4f-POM with 3d linkers” type POMs. Up to date to the best of our knowledge [(γ-SiW10O36)2(Cr(OH)(H2O))3(La(H2O)7)2]4− [27], [{Ce(H2O)7}2Mn4Si2W18O68(H2O)2]6− [28], [{Ln(H2O)n}2{Mn4(B-α-SiW9O34)2(H2O)2}]6− (Ln = LaIII, NdIII, GdIII, DyIII, ErIII) [29], and [Ce4(H2O)22(dpdo)5](Mn2HP2W15O56)2]2− (dpdo = 4,4′-bipyridine-N,N′-dioxide) [30], are the only examples that fall under “3d-POM with 4f linkers” sub class.
The construction of POM-based materials is usually controlled by various factors, such as pH, reaction time, temperature, concentration, and ionic strength, but most important is the right selection of building blocks (POM precursor) and the right choice of metals centers to induce optical, electronic, and magnetic properties. One of the promising strategies for the production of all inorganic frameworks is to use 3d metal-substituted POMs with lanthanide metal centers, usually this combination has the potential to form one-, two- and three-dimensionally ordered structures. In this aspect, lanthanide cations are excellent candidates as linkers due to their high coordination numbers and Lewis acidity (vide supra). Additionally grafting of lanthanide cations also imparts interesting luminescent and magnetic properties to these hybrid nanostructures [31,32]. Despite rapid progress being made in the field of metal-organic frameworks (MOFs), POM-based frameworks have been receiving increasing attention, especially in the fields of selective adsorption, gas sensor, ion exchange, catalysis, optics, and magnetism [2,7,8]. Most importantly, all inorganic POM-frameworks promise to associate the thermal stability and general applicability of classical MOFs. POM-based porous inorganic frameworks would display higher thermal stability in comparison to classical MOFs because the thermal and chemical stability of the MOFs depend on the nature of the organic constituents/linkers, which might be destroyed during the activation of the porous material through elimination of solvent molecules in frameworks [33]. These difficulties could be overcome by the introduction of rigid metal clusters anions, such as POMs and lanthanide cations to the system. Moreover extensive- and additive properties of such materials can be finely tuned through variation of POM precursors and transition metal centers, respectively.
Following this idea, we selected the trilacunary Wells–Dawson type POM ligand, Na12[α-P2W15O56]·24H2O (P2W15) [34], as a building block unit and introduced DyIII ions and MnII ions cations to build up POM-based heterometallic extended frameworks.
Herein, we report a facile and convenient “one-pot” procedure for the synthesis of a heterometallic all inorganic system Na10(OH2)42[{Dy(H2O)6}2Mn4P4W30O112(H2O)2]·17H2O (Dy2Mn4-P2W15), which forms a framework structure, and so we designate as a Polyoxometalate Inorganic Framework, or POMIF. The title compound was structurally and compositionally characterized in solid state by single-crystal XRD, powder X-ray diffraction, Fourier-transform infrared spectroscopy, and thermal and elemental analyses. In solution state, UV–vis absorption spectroscopy and luminescence spectroscopy were performed. Furthermore, in order to check the bulk purity and to probe the solution state stability of the Dy2Mn4-P2W15 comparative studies were performed with the well-known thermodynamically favorable and stable POM [Mn4(H2O)2(α-P2W15O56)2]16− (Mn4-P2W15), a building block that is part of the [{Dy(H2O)6}2Mn4P4W30O112(H2O)2]10−. In addition, magnetic properties were studied and compared with that of Na16[Mn4(H2O)2(α-P2W15O56)2]·53H2O.

2. Experimental

The POM ligand, Na12[α-P2W15O56]·24H2O [34], and Na16[Mn4(H2O)2(α-P2W15O56)2]·53H2O [35], were synthesized according to the literature methods, and were characterized by IR spectroscopy. All reactions were carried out under aerobic conditions. All of the other reagents were purchased commercially and were used without further purification.

2.1. Synthesis

Synthesis procedure for Dy2Mn4-P2W15: MnCl2·4H2O (0.12 g, 0.6 mmol) was dissolved in 20 mL of water. Then Na12[α-P2W15O56]·24H2O (0.88 g, 0.1 mmol) was added to the above solution. Then, 0.30 mL of 1 M Dy(NO3)3·5H2O (0.13 g, 0.3 mmol) was added to this solution in small portions. The pH value of the mixture was adjusted to 7.6 by adding CH₃COONa (0.50 g, 6 mmol) in small portions under stirring. The resultant turbid orange solution was stirred at room temperature for 10 min, and then heated for 1 h at 80 °C. The resulting solution was filtered and left to slowly evaporate at room temperature, and orange crystals were obtained after approximately three weeks. Yield 229.8 mg (49% based on W). IR (2% KBr pellet, ν/cm−1): 1622 (m), 1082 (s), 1038 (w), 922 (s), 872 (w), 765 (w), 702 (w), 595 (w), 515 (m). Elemental analysis (%) calc. for Na10(OH2)42[{Dy(HO2)6}2Mn4P4W30O112(H2O)2]·17H2O (found): Na 2.34 (2.02), Mn 2.28 (2.56), W 57.17 (57.20), P 1.26 (1.28), Dy 3.37 (3.65).

2.2. Methods

Elemental analyses were performed at the Institute for Applied Materials, Karlsruhe Institute of Technology. Fourier transform IR spectra were measured on a Perkin-Elmer Spectrum One Spectrometer with samples prepared as KBr discs at the Institute of Nanotechnology, Karlsruhe Institute of Technology. X-ray powder diffraction patterns were measured at room temperature using a Stoe STADI-P diffractometer with a Cu-Kα radiation at the Institute of Nanotechnology, Karlsruhe Institute of Technology. UV-vis spectra and fluorescent spectra were recorded on Cary 500 UV-vis-NIR spectrophotometer and Cary Eclipse fluorescence spectrophotometer, respectively, at the Institute of Nanotechnology, Karlsruhe Institute of Technology.

2.2.1. Crystallography

Data were measured at 180(2) K on a Rigaku Oxford Diffraction SuperNova E diffractometer (Rigaku Europe, Kemsing, UK) with Mo-Kα radiation from a microfocus source, and corrected semi-empirically for absorption. Structure solution was by dual-space direct-methods (SHELXT) [36], followed by full-matrix least-squares refinement (SHELX-2016) [37], with anisotropic thermal parameters for all the ordered non-H atoms. In a few cases, rigid-bond restraints (RIGU) were applied to the thermal parameters of mutually-bonded sodium cations and aquo oxygen atoms. Some of the lattice waters and aquo ligands coordinated to sodium cations were disordered; these were was modelled using pairs of isotropic partial-occupancy (0.60 and 0.40) oxygen atoms, with similarity restraints (SADI) applied to Na-O bond lengths where necessary. No attempt was made to locate any water H-atoms. Further details of the X-ray structural analysis are given in Table 1.
Further details of the crystal structure investigation may be obtained from FIZ Karlsruhe, 76344 Eggenstein-Leopoldshafen, Germany (Fax: (+49)7247-808-666; e-mail: [email protected], on quoting the deposition number CSD-433863).

2.2.2. Magnetic Measurements

Magnetic susceptibility measurements were collected using a Quantum Design MPMS3 and MPMS-XL SQUID magnetometer (Quantum Design, San Diego, CA, USA). DC susceptibility measurements for all of the compounds were performed at temperatures ranging from 2 to 300 K, using an applied field of 1 kOe. Magnetization versus field data was collected between 2 and 5 K with applied field between 0 and 7 T. The AC data were collected using an oscillating magnetic field of 3.5 Oe. All data were corrected for diamagnetic contributions from the eicosane and core diamagnetism, estimated using Pascal’s constants [38].

3. Results and Discussion

3.1. Synthesis

The heterometallic compound Na10(OH2)42[{Dy(H2O)6}2Mn4P4W30O112(H2O)2]·17H2O (Dy2Mn4-P2W15) was prepared by reaction of MnII ions and DyIII ions with the trilacunary Wells-Dawson type [α-P2W15O56]12− POM in aqueous basic media at 80 °C. It is important to note that the isolation of Dy2Mn4-P2W15 was only possible in presence of excess of sodium acetate. The addition of Na3PO4, NaOH and Na2CO3 in the reaction mixture systems, while keeping the pH at 7.6, led to the formation of Na16[Mn4(H2O)2(α-P2W15O56)2]·53H2O [35]. In order to avoid one of the major difficulties, which is the formation of precipitate, due to the reaction of highly oxophilic lanthanides ions with highly negative and oxygen rich system like POMs, sodium acetate, and DyIII ions were added slowly in portions. This illustrates the challenges of rationalizing the mechanistic pathways of heterometallic POM isolation in the form of crystals. To the best of our knowledge, Dy2Mn4-P2W15 not only represents the first all inorganic heterometallic 3D POMIF compound based on Wells-Dawson type [α-P2W15O56]12−, but also provides a feasible route to the formation of highly robust multifunctional extended structures base on POMs.

3.2. Structure

Single-crystal X-ray diffraction revealed that Dy2Mn4-P2W15 crystallizes in the triclinic system with space group P 1 ¯ , and consists of tetranuclear manganese-substituted sandwich-type [Mn4(H2O)2(α-P2W15O56)2]16− (Mn4-P2W15), Na and DyIII cations (Figure 1). The crystal structure can be viewed as a one-dimensional (1D) ladder-like chain, built up of the sandwich anions Mn4-P2W15 and the DyIII ions (Figure 2). Each DyIII center connects two Mn4-P2W15 subunits via two W═O···Dy bonds and the bond lengths are in the range 2.31–2.42 Å. The DyIII ions are octacoordinate and possess square antiprism geometry (Figure 1). The coordination environment is completed by six terminal water molecules and two bridged oxygen atoms from two sandwich-type polyoxoanion. Furthermore, the DyIII ions can be viewed as μ2-bridges which link two Mn4-P2W15 into a 1D network structure which are further extended into a three-dimensional open framework by the sodium cations (Na1, Na4, and Na5), while Na2 and Na3 are just charge-balancing segments on the surface of the POM. The adjacent ladder-like chains are connected by the sodium cations to form a two-dimensional framework (Figure 3). Until now, there are only few reports on the heterometallic extended aggregates systems where 3d metal substituted sandwich-type POMs are linked by lanthanide cations, for instance [(γ-SiW10O36)2(Cr(OH)(H2O))3(La(H2O)7)2]4− [27], [{Ce(H2O)7}2Mn4Si2W18O68(H2O)2]6− [28], [{Ln(H2O)n}2{Mn4(B-α-SiW9O34)2(H2O)2}]6− (Ln = La, Nd, Gd, Dy, Er) [29] and [Ce4(H2O)22(dpdo)5](Mn2HP2W15O56)2]2− (dpdo = 4,4′-bipyridine-N,N′-dioxide) [30]. So far to the best of our knowledge, the only heterometallic 3D POMOF based on trilacunary Wells-Dawson type POM is [Ce4(H2O)22(dpdo)5](Mn2HP2W15O56)2]2− (dpdo = 4,4′-bipyridine-N,N′-dioxide), which is composed of sandwich type precursor with formula [Mn4(HP2W15O56)2]14−, two Na ions, two CeIII cations, and three dpdo ligands [30]. Except [{Ln(H2O)n}2{Mn4(B-α-SiW9O34)2(H2O)2}]6−, in all of the above reported aggregates, transition metal substituted sandwich-type POMs were used as precursor, while in our case, Mn4-P2W15 can be formed in situ. The sandwich-type building block, Mn4-P2W15 is constructed by two trivacant Dawson moieties [α-P2W15O56]12− sandwiching a regular rhomb-like cluster {Mn4O16(H2O)2} through the W–O–Mn and P–O–Mn bridging modes. All of the W and MnII centers display an octahedral coordination environment. The bond lengths of W–O are in the range 1.71–2.39 Å, whereas the bond lengths of Mn–O are between 2.09 Å and 2.29 Å.

3.3. Characterizations

Infrared is spectroscopy is one of the most frequently employed techniques for the characterization of polyoxometalates, due to its characteristic peaks in the in the region (1200–450 cm−1), which is called the fingerprint region for the POM backbone [39]. The similarity in the IR spectra of Na10(OH2)42[{Dy(H2O)6}2Mn4P4W30O112(H2O)2]·17H2O and Na16[Mn4(H2O)2(α-P2W15O56)2]·53H2O (Figure 4) suggests that the attachment of the DyIII cations on the Mn4-P2W15 surface has not changed the vibration modes in Dy2Mn4-P2W15, except for some minor shifts that are observed due to the influence of the dysprosium linkers (Figure 4).
Since the FTIR studies were not a helpful tool to check the bulk purity of the product in this case, we decided to carry out the powder X-ray diffraction (PXRD) analysis for the compounds Dy2Mn4-P2W15, Mn4-P2W15 and P2W15, in order to examine the bulk purity of the title product (Figure 5). The experimental PXRD pattern of Dy2Mn4-P2W15 corresponds well to the simulated PXRD pattern, indicating that the bulk phase materials are isomorphous. The very minor differences in peak intensity and 2 theta values are likely due to the loss of some lattice water molecules, bearing in mind that the simulated patterns are generated from the single crystal X-ray diffraction data set, which was collected at 100 K.
Thermogravimetric analysis of Dy2Mn4-P2W15 was performed between 20 and 900 °C under a nitrogen atmosphere to determine the number of crystal waters (Figure 6). The continuous weight loss of about 10% between 25 and 330 °C can be attributed to the loss of all lattice and coordinated water molecules present in Dy2Mn4-P2W15.
Elemental analysis on Mn, Dy, O, W, P, and Na was also carried out by means of inductively coupled plasma optical emission spectrometry, and the results are presented in Section 2.1.
Solution state UV−vis measurements were performed on Mn4-P2W15, Dy2Mn4-P2W15 and P2W15 in order to investigate the incorporation of metal centers in the polytungstate framework and to check the structural integrity in solution. The UV-Vis absorption spectra show that the Dy2Mn4-P2W15 is like that of Mn4-P2W15 in solution, which is one of the most stable POMs in solution. However the absorption spectra of Dy2Mn4-P2W15 and Mn4-P2W15 are significantly different from that of the P2W15 precursor, which gives a clear indication that the incorporation of metal centers in the polytungstate framework has an extensive effect on the physicochemical properties of the resulting clusters. However, information about the possibility that there are coordinated DyIII cations on the POM surface in solution phase cannot be achieved from these studies. The UV-Vis spectra (Figure 7) show absorbance bands between 200 and 400 nm, which can be associated with the characteristic charge-transfer bands of terminal oxygen and bridging oxygen atoms to tungsten centers, respectively (oxygen-to-metal charge transfer (O → M LMCT).
When compared to absorption studies, emission spectroscopy is an advantageous tool, particularly in any heterometallic system, to investigate the origin of the emission bands, since in comparison with the non-Ln containing materials, the Ln-containing systems often have higher luminescence efficiency, better photochemical stability, and prolonged fluorescence life times. The lanthanide’s emission is substantially induced by the photoexcitation of the oxygen-to-metal charge transfer (O → M LMCT) bands of 4f-POM systems [31,40]. Consequently, in order to gain insight on the solution behavior of the title compound, the luminescent properties of Dy2Mn4-P2W15 and Mn4-P2W15 were measured at room temperature under the same excitation of 275 nm. As shown in Figure 8, Dy2Mn4-P2W15 displays an intense characteristic photoluminescence emission band (450–650 nm wide) centered at 545 nm, which can be assigned to the 4F9/2 → 6H13/2 and 4F9/2 → 6H11/2 transitions in DyIII ions, while the weak emission of DyIII ions at 379 can be attributed to the 4F9/2 → 6H15/2 transition [41]. It should also be noted that the DyIII emission bands (450–650 nm) overlap with the characteristic broad MnII emission band (Figure 9) (ca. 500–600 nm) [42], and therefore are not distinguishable. The presence of the emission band of DyIII ions at 379 nm (only observed in the photoluminescence spectrum of Dy2Mn4-P2W15) (Figure 8), indicating the existence of [{Dy(OH2)6}2Mn4P4W30O112(H2O)2]10− in solution. However, whether the extended framework is preserve in solution cannot be determined from these data. Further, it can also be observed that the emission profile slightly changes and emission intensity increases drastically in the case of Dy2Mn4-P2W15. Although the solutions were only weakly luminescent, distinct differences could be observed not only in the emission intensity, but also in the number of emissions bands.

4. Magnetic Properties

To further characterize the physical properties of both POM complexes, SQUID measurements were conducted on polycrystalline materials. Firstly, we studied the static magnetic behavior of the building block POM unit using neat polycrystalline powders under an applied dc field of 1 kOe in the temperature range 2 to 300 K (Figure 10a). The room temperature χMT product (where χM is molar magnetic susceptibility) for the building block is close to the expected value for four isolated MnII ions for Mn4-P2W15, i.e., 16.8 cm3 K mol−1 (cf. 17.5 cm3 K mol−1 for four MnII, s = 5/2, g = 2.00). Upon cooling, the χMT product stays constant down to ca. 50 K, after which it smoothly decreases reaching 3.2 cm3 K mol−1 at 1.8 K, indicating that antiferromagnetic interactions are be operative within the cluster. Furthermore, we studied the molar magnetization (Mβ) as function of applied magnetic field at 2 and 5 K in the field range 0–7 T. The Mβ versus applied field, H, for the compound Mn4-P2W15, indicates a strong antiferromagnetic interaction, as observed in the almost linear behavior of the magnetization curves. The Mβ(H) data at the maximum field (7 T) and the lowest temperature (2 K) yield a value of 14.8 μβ (Figure 10b). The isotropic nature of the compound Mn4-P2W15 allows for us to simultaneously fit the χMT(T) and Mβ(H) using the simple Heisenberg Hamiltonian, taking into account two exchange interactions, i.e., H ^ =   − 2 J 1 S ^ 1 ∙ S ^ 2 − 2 J 2 ( S ^ 1 ∙ S ^ 3 + S ^ 1 ∙ S ^ 4 + S ^ 2 ∙ S ^ 3 + S ^ 2 ∙ S ^ 4 ) + g μ B H ∑ i = 1 4 S ^ i . A single g-value 2.025 for all MnII ions and two small interactions of similar magnitude reproduce the small down turn in χMT(T) and Mβ(H) (solid lines in Figure 10), i.e., J1 = −0.463(1) cm−1 between nearest MnII ions, while J2 = −0.342(1) cm−1 for the MnII at longer distances. These values are in line with those found in previous work [35].
After magnetically characterizing the building block POM, we proceed with the study of the magnetic properties of the POMIF, i.e., Dy2Mn4-P2W15. As can be observed in Figure 10a, the χMT(T) shows a room temperature χMT value of 45.3 cm3 K mol−1 close to the value that is expected for the building block and two non-interacting dysprosium ions, i.e., 45.8 cm3 K mol−1 for four Mn(II), s = 5/2, g = 2.00 and two DyIII, J = 15/2; gJ = 4/3). Likewise, the χMT product starts decreasing below 100 K, reaching a minimum value of 24.5 cm3 K mol−1. In this case, the drop observed in the χMT product could arise from a combined effect of the antiferromagnetic exchange operating in the Dy2Mn4-P2W15 unit along with the anisotropic magnetic properties of DyIII ions, that is, depopulation of the ligand field levels. The Mβ(H) for compound Dy2Mn4-P2W15 similarly shows very anisotropic behavior and no saturation of the Mβ(H) (see Figure 11), with a Mβ value of 25.3 μβ at the maximum field (7 T) and the lowest temperature (2 K). Additionally, we have tested the dynamic behavior of this complex at 2 K in the frequency range 1–1500 Hz without and with applied dc fields (ranging from 0 to 5 kOe), and an oscillating magnetic field of 3.5 Oe. No out of phase component in could be observed within the measurement parameters of our equipment and there is SMM behavior under these conditions.

5. Conclusions

In conclusion, an all inorganic heterometallic extended framework incorporating POM units has been synthesized in aqueous media under “one-pot” conditions. This Polyoxometalate Inorganic Framework, or POMIF, [{Dy(HO2)6}2Mn4P4W30O112(H2O)2]10− (Dy2Mn4-P2W15), was prepared by reaction of MnII ions and DyIII ions with the trilacunary Dawson ion [α-P2W15O56]12−. The hydrated salt of Dy2Mn4-P2W15 was structurally characterized in the solid state by single-crystal X-ray diffraction, X-ray powder diffraction (XRD), Fourier transform infrared (FTIR) spectroscopy, and thermal and elemental analyses and in solution by UV-Visible absorption spectroscopy and luminescence emission spectroscopy. Furthermore, magnetic properties were also studied and compared with Na16[Mn4(H2O)2(α-P2W1SO56)2]·53H2O. We are presently attempting to synthesize analogs containing various combinations of 3d and 4f elements in order to do systematic and comparative studies of the resultant frameworks.

Acknowledgments

M.I. thanks the German Science Foundation (DFG-IB 123/1-1). She also thanks the University of Balochistan, Quetta, Pakistan for allowing her to pursue her Ph.D. and postdoctoral work at Jacobs University and KIT, respectively. M.I. and A.K.P. thank the Helmholtz STN POF programme. This work was partially carried out with the support of the Karlsruhe Nano Micro Facility (KNMF, www.knmf.kit.edu), a Helmholtz research infrastructure at Karlsruhe Institute of Technology (KIT, www.kit.edu).We also thank Sven Stahl for performing TGA measurements.

Author Contributions

All the authors contributed to this work. A.K.P. and M.I. conceived and designed the experiments. M.I. synthesized and characterized the compound and wrote the paper draft. E.M.-P. performed the magnetic studies. T.B. performed the elemental analysis. C.E.A. solved the structure. All authors contributed to producing the final manuscript, which has been checked and approved by all of them.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Pope, M.T. Heteropoly and Isopoly Oxometalates; Springer: Berlin, Germany, 1983. [Google Scholar]
  2. Long, D.L.; Tsunashima, R.; Cronin, L. Polyoxometalates: Building blocks for functional nanoscale systems. Angew. Chem. Int. Ed. 2010, 49, 1736–1758. [Google Scholar] [CrossRef] [PubMed]
  3. Lv, H.; Geletii, Y.V.; Zhao, C.; Vickers, J.W.; Zhu, G.; Luo, Z.; Song, J.; Lian, T.; Musaev, D.G.; Hill, C.L. Polyoxometalate water oxidation catalysts and the production of green fuel. Chem. Soc. Rev. 2012, 41, 7572–7589. [Google Scholar] [CrossRef] [PubMed]
  4. Bassil, B.S.; Kortz, U. Recent advances in lanthanide-containing polyoxotungstates. Z. Anorg. Allg. Chem. 2010, 636, 2222–2231. [Google Scholar] [CrossRef]
  5. Liu, X.; Wang, F. Transition metal complexes that catalyze oxygen formation from water: 1979–2010. Coord. Chem. Rev. 2012, 256, 1115–1136. [Google Scholar] [CrossRef]
  6. Ruttinger, W.; Dismukes, G.C. Synthetic water-oxidation catalysts for artificial photosynthetic water oxidation. Chem. Rev. 1997, 97, 1–24. [Google Scholar] [CrossRef] [PubMed]
  7. Zhao, J.; Li, Y.; Chen, L.; Yang, G. Research progress on polyoxometalate-based transition-metal–rare-earth heterometallic derived materials: Synthetic strategies, structural overview and functional applications. Chem. Commun. 2016, 52, 4418–4445. [Google Scholar] [CrossRef] [PubMed]
  8. Liu, J.; Han, Q.; Chen, L.; Zhao, J. A brief review of the crucial progress on heterometallic polyoxotungstates in the past decade. CrystEngComm 2016, 18, 842–862. [Google Scholar] [CrossRef]
  9. Ibrahim, M.; Dickman, M.H.; Suchopar, A.; Kortz, U. Large cation- Anion materials based on trinuclear ruthenium(III) salts of Keggin and Wells-Dawson anions having water-filled channels. Inorg. Chem. 2009, 48, 1649–1654. [Google Scholar] [CrossRef] [PubMed]
  10. Oms, O.; Dolbecq, A.; Mialane, P. Diversity in structures and properties of 3d-incorporating polyoxotungstates. Chem. Soc. Rev. 2012, 41, 7497–7536. [Google Scholar] [CrossRef] [PubMed]
  11. Ibrahim, M.; Lan, Y.; Bassil, B.S.; Xiang, Y.; Suchopar, A.; Powell, A.K.; Kortz, U. Hexadecacobalt(II)-containing polyoxometalate-based single-molecule magnet. Angew. Chem. Int. Ed. 2011, 50, 4708–4711. [Google Scholar] [CrossRef] [PubMed]
  12. Ibrahim, M.; Haider, A.; Xiang, Y.; Bassil, B.S.; Carey, A.M.; Rullik, L.; Jameson, G.B.; Doungmene, F.; Mbomekallé, I.M.; De Oliveira, P.; et al. Tetradecanuclear iron(III)-oxo nanoclusters stabilized by trilacunary heteropolyanions. Inorg. Chem. 2015, 54, 6136–6146. [Google Scholar] [CrossRef] [PubMed]
  13. Haider, A.; Ibrahim, M.; Bassil, B.S.; Carey, A.M.; Viet, A.N.; Xing, X.; Ayass, W.W.; Miñambres, J.F.; Liu, R.; Zhang, G.; et al. Mixed-valent Mn16-containing heteropolyanions: Tuning of oxidation state and associated physicochemical properties. Inorg. Chem. 2016, 55, 2755–2764. [Google Scholar] [CrossRef] [PubMed]
  14. Bassil, B.S.; Ibrahim, M.; Al-Oweini, R.; Asano, M.; Wang, Z.; Van Tol, J.; Dalal, N.S.; Choi, K.Y.; Ngo Biboum, R.; Keita, B.; et al. A planar {Mn19(OH)12}26+ unit incorporated in a 60-tungsto-6-silicate polyanion. Angew. Chem. Int. Ed. 2011, 50, 5961–5964. [Google Scholar] [CrossRef] [PubMed]
  15. Hussain, F.; Conrad, F.; Patzke, G.R. A gadolinium-bridged polytungstoarsenate(III) nanocluster: [Gd8As12W124O432(H2O)22]60−. Angew. Chem. Int. Ed. 2009, 48, 9088–9091. [Google Scholar] [CrossRef] [PubMed]
  16. Reinoso, S. Heterometallic 3d-4f polyoxometalates: Still an incipient field. Dalton Trans. 2011, 40, 6610–6615. [Google Scholar] [CrossRef] [PubMed]
  17. Ibrahim, M.; Mereacre, V.; Leblanc, N.; Wernsdorfer, W.; Anson, C.E.; Powell, A.K. Self-assembly of a giant tetrahedral 3 d-4 f single-molecule magnet within a polyoxometalate system. Angew. Chem. Int. Ed. 2015, 54, 15574–15578. [Google Scholar] [CrossRef] [PubMed]
  18. Fang, X.; Kögerler, P.; Furukawa, Y.; Speldrich, M.; Luban, M. Molecular growth of a core-shell polyoxometalate. Angew. Chem. Int. Ed. 2011, 50, 5212–5216. [Google Scholar] [CrossRef] [PubMed]
  19. Wassermann, K.; Dickman, M.H.; Pope, M.T. Self-assembly of supramolecular polyoxometalates: The compact, water-soluble heteropolytungstate anion[As12IIICe16III(H2O)36W148O524]76−. Angew. Chem. Int. Ed. Engl. 1997, 36, 1445–1448. [Google Scholar] [CrossRef]
  20. Bassil, B.S.; Dickman, M.H.; Römer, I.; Von Der Kammer, B.; Kortz, U. The tungstogermanate [Ce20Ge10W100O376(OH)4(H2O)30]56−: A polyoxometalate containing 20 cerium(III) atoms. Angew. Chem. Int. Ed. 2007, 46, 6192–6195. [Google Scholar] [CrossRef] [PubMed]
  21. Hussain, F.; Gable, R.W.; Speldrich, M.; Kögerler, P.; Boskovic, C. Polyoxotungstate-encapsulated Gd6 and Yb10 complexes. Chem. Commun. 2009, 328–330. [Google Scholar] [CrossRef] [PubMed]
  22. Artetxe, B.; Reinoso, S.; San Felices, L.; Gutiérrez-Zorrilla, J.M.; García, J.A.; Haso, F.; Liu, T.; Vicent, C. Crown-shaped tungstogermanates as solvent-controlled dual systems in the formation of vesicle-like assemblies. Chem. A Eur. J. 2015, 21, 7736–7745. [Google Scholar] [CrossRef] [PubMed]
  23. Sessoli, R.; Powell, A.K. Strategies towards single molecule magnets based on lanthanide ions. Coord. Chem. Rev. 2009, 253, 2328–2341. [Google Scholar] [CrossRef]
  24. Niu, J.; Zhang, S.; Chen, H.; Zhao, J.; Ma, P.; Wang, J. 1-D, 2-D, and 3-D organic-inorganic hybrids assembled from keggin-type polyoxometalates and 3d-4f heterometals. Cryst. Growth Des. 2011, 11, 3769–3777. [Google Scholar] [CrossRef]
  25. Zhao, J.; Shi, D.; Chen, L.; Ma, P.; Wang, J.; Zhang, J.; Niu, J. Tetrahedral polyoxometalate nanoclusters with tetrameric rare-earth cores and germanotungstate vertexes. Cryst. Growth Des. 2013, 13, 4368–4377. [Google Scholar] [CrossRef]
  26. Zhao, J.-W.; Li, Y.-Z.; Ji, F.; Yuan, J.; Chen, L.-J.; Yang, G.-Y. Syntheses, structures and electrochemical properties of a class of 1-D double chain polyoxotungstate hybrids [H2dap][Cu(dap)2]0.5[Cu(dap)2(H2O)][Ln(H2O)3(α-GeW11O39)]·3H2O. Dalton Trans. 2014, 43, 5694–5706. [Google Scholar] [CrossRef] [PubMed]
  27. Compain, J.D.; Mialane, P.; Dolbecq, A.; Mbomekallé, I.M.; Marrot, J.; Sécheresse, F.; Duboc, C.; Rivière, E. Structural, magnetic, EPR, and electrochemical characterizations of a spin-frustrated trinuclear CrIII polyoxometalate and study of its reactivity with lanthanum cations. Inorg. Chem. 2010, 49, 2851–2858. [Google Scholar] [CrossRef] [PubMed]
  28. Chen, W.; Li, Y.; Wang, Y.; Wang, E. An inorganic aggregate based on a sandwich-type polyoxometalate with lanthanide and potassium cations: From 1D chiral ladder-like chains to a 3D open framework. Eur. J. Inorg. Chem. 2007, 2216–2220. [Google Scholar] [CrossRef]
  29. Fan, L.Y.; Lin, Z.G.; Cao, J.; Hu, C.W. Probing the Self-Assembly Mechanism of Lanthanide-Containing Sandwich-Type Silicotungstates [{Ln(H2O)n}2{Mn4(B-α-SiW9O34)2(H2O)2}]6− Using Time-Resolved Mass Spectrometry and X-ray Crystallography. Inorg. Chem. 2016, 55, 2900–2908. [Google Scholar] [CrossRef] [PubMed]
  30. Yu, T.; Ma, H.; Zhang, C.; Pang, H.; Li, S.; Liu, H. A 3d–4f heterometallic 3D POMOF based on lacunary Dawson polyoxometalates. Dalton Trans. 2013, 42, 16328–16333. [Google Scholar] [CrossRef] [PubMed]
  31. Ritchie, C.; Moore, E.G.; Speldrich, M.; Kögerler, P.; Boskovic, C. Terbium polyoxometalate organic complexes: Correlation of structure with luminescence properties. Angew. Chem. Int. Ed. 2010, 49, 7702–7705. [Google Scholar] [CrossRef] [PubMed]
  32. Vonci, M.; Boskovic, C. Polyoxometalate-supported lanthanoid single-molecule magnets. Aust. J. Chem. 2014, 67, 1542–1552. [Google Scholar] [CrossRef]
  33. Bosch, M.; Zhang, M.; Zhou, H.-C. Increasing the stability of metal-organic frameworks. Adv. Chem. 2014, 2014, 1–8. [Google Scholar] [CrossRef]
  34. Finke, R.G.; Droege, M.W.; Domaille, P.J. Rational syntheses, characterization, two-dimensional tungsten-183 NMR, and properties of tungstometallophosphates P2W18M4(H2O)2O6810− and P4W30M4(H2O)2O11216− (M = cobalt, copper, zinc). Inorg. Chem. 1987, 26, 3886–3896. [Google Scholar] [CrossRef]
  35. Gómez-García, C.J.; Borrás-Almenar, J.J.; Coronado, E.; Ouahab, L. Single-crystal X-Ray structure and magnetic properties of the polyoxotungstate complexes Na16[M4(H2O)2(P2W15O56)2]·nH2O (M = MnII, n = 53; M = NiII, n = 52): An antiferromagnetic MnII tetramer and a ferromagnetic NiII tetramer. Inorg. Chem. 1994, 33, 4016–4022. [Google Scholar] [CrossRef]
  36. Sheldrick, G.M. SHELXT—Integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, A71, 3–8. [Google Scholar] [CrossRef] [PubMed]
  37. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8. [Google Scholar]
  38. Bain, G.A.; Berry, J.F. Diamagnetic corrections and Pascal’s Constants. J. Chem. Educ. 2008, 85, 532–536. [Google Scholar] [CrossRef]
  39. Rocchiccioli-Deltcheff, C.; Fournier, M.; Franck, R.; Thouvenot, R. Vibrational investigations of polyoxometalates. 2. Evidence for anion-anion interactions in molybdenum(VI) and tungsten(VI) compounds related to the Keggin structure. Inorg. Chem. 1983, 22, 207–216. [Google Scholar] [CrossRef]
  40. Yamase, T.; Kobayashi, T.; Sugeta, M.; Naruke, H. Europium(III) luminescence and intramolecular energy transfer studies of polyoxometalloeuropates. J. Phys. Chem. A 1997, 101, 5046–5053. [Google Scholar] [CrossRef]
  41. Sun, H.; Liu, M.Q.; Zhang, B.J. Two dysprosium complexes based on 8-hydroxyquinoline Schiff base: Structures, luminescence properties and single-molecule magnets behaviors. Inorg. Chim. Acta 2016, 453, 681–686. [Google Scholar] [CrossRef]
  42. Xu, L.J.; Sun, C.Z.; Xiao, H.; Wu, Y.; Chen, Z.N. Green-light-emitting diodes based on tetrabromide manganese(II) complex through solution process. Adv. Mater. 2017, 29, 2–6. [Google Scholar] [CrossRef] [PubMed]
Materials 11 00155 g001 550

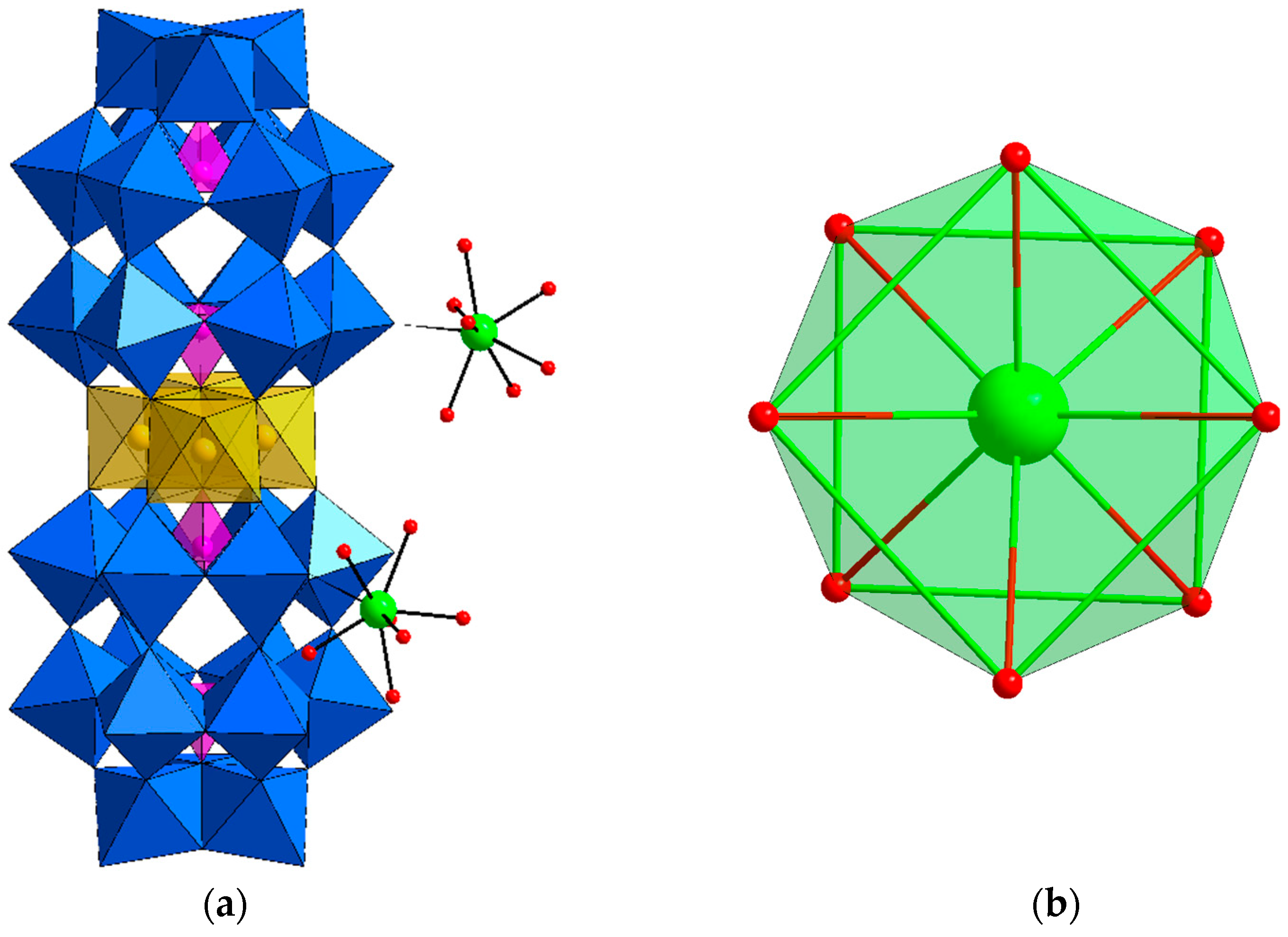

Figure 1. (a) Polyhedral and ball-and-stick representation of the sandwich-type polyanion and the dysprosium cations of Dy2Mn4-P2W15; (b) Local geometry around the dysprosium cation in Dy2Mn4-P2W15, possessing a square antiprism geometry. Color scheme: Dy = green; O = red; WO6 octahedron = blue, MnO6 octahedron = gold; PO4 tetrahedron = Pink.
Figure 1. (a) Polyhedral and ball-and-stick representation of the sandwich-type polyanion and the dysprosium cations of Dy2Mn4-P2W15; (b) Local geometry around the dysprosium cation in Dy2Mn4-P2W15, possessing a square antiprism geometry. Color scheme: Dy = green; O = red; WO6 octahedron = blue, MnO6 octahedron = gold; PO4 tetrahedron = Pink.
Materials 11 00155 g001
Materials 11 00155 g002 550

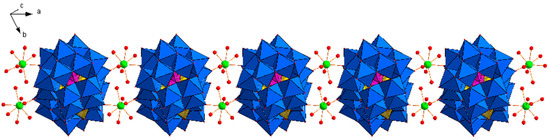

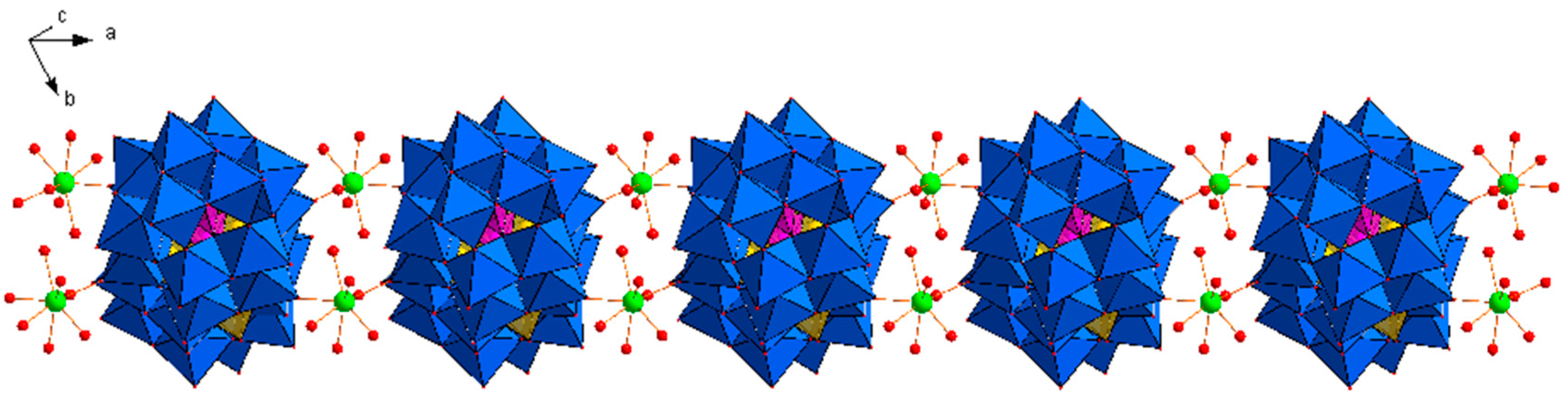

Figure 2. View of the one-dimensional (1D) ladder like chain in Dy2Mn4-P2W15. Color scheme: Dy = green; O = red; WO6 octahedron = blue, MnO6 octahedron = gold; PO4 tetrahedron = Pink.
Figure 2. View of the one-dimensional (1D) ladder like chain in Dy2Mn4-P2W15. Color scheme: Dy = green; O = red; WO6 octahedron = blue, MnO6 octahedron = gold; PO4 tetrahedron = Pink.
Materials 11 00155 g002
Materials 11 00155 g003 550

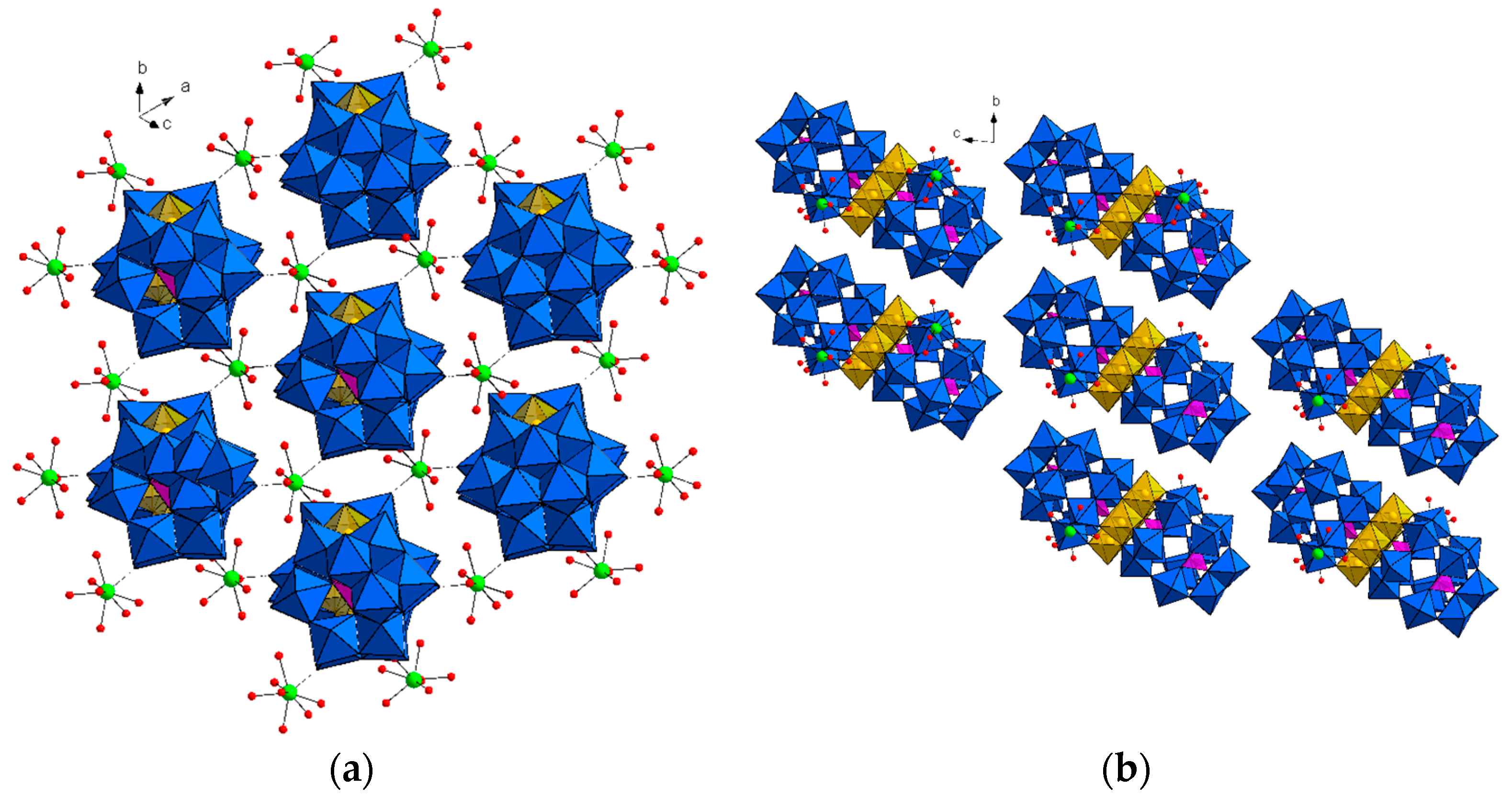

Figure 3. (a) The two-dimensional (2D) network packing arrangement in Dy2Mn4-P2W15; (b) packing of Dy2Mn4-P2W15 viewed down the a-axis. Crystal water molecules and sodium cations are omitted for clarity. Color scheme: Dy = green; O = red; WO6 octahedron = blue, MnO6 octahedron = gold; PO4 tetrahedron = Pink.
Figure 3. (a) The two-dimensional (2D) network packing arrangement in Dy2Mn4-P2W15; (b) packing of Dy2Mn4-P2W15 viewed down the a-axis. Crystal water molecules and sodium cations are omitted for clarity. Color scheme: Dy = green; O = red; WO6 octahedron = blue, MnO6 octahedron = gold; PO4 tetrahedron = Pink.
Materials 11 00155 g003
Materials 11 00155 g004 550

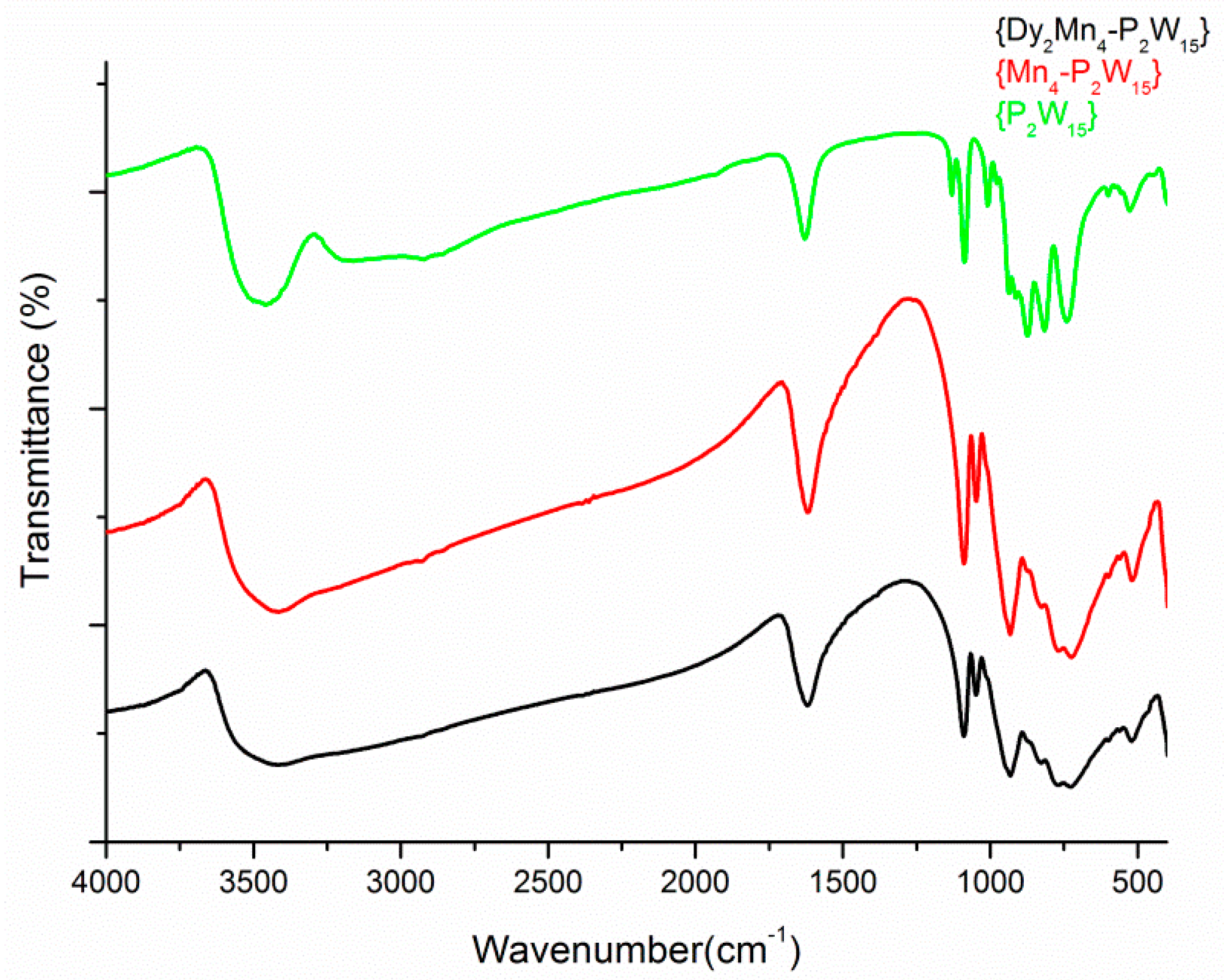

Figure 4. Fourier transform infrared (FT-IR) spectroscopy of Dy2Mn4-P2W15, Mn4-P2W15, and P2W15.
Figure 4. Fourier transform infrared (FT-IR) spectroscopy of Dy2Mn4-P2W15, Mn4-P2W15, and P2W15.
Materials 11 00155 g004
Materials 11 00155 g005 550

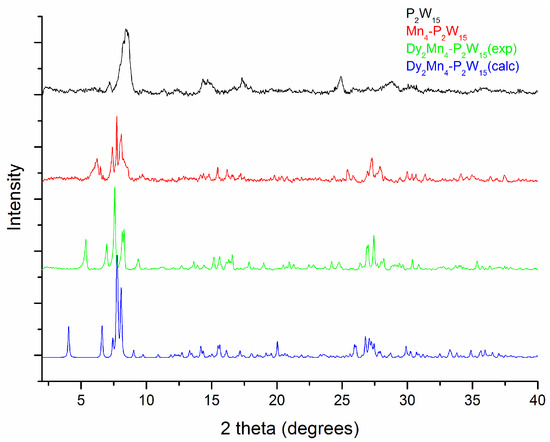

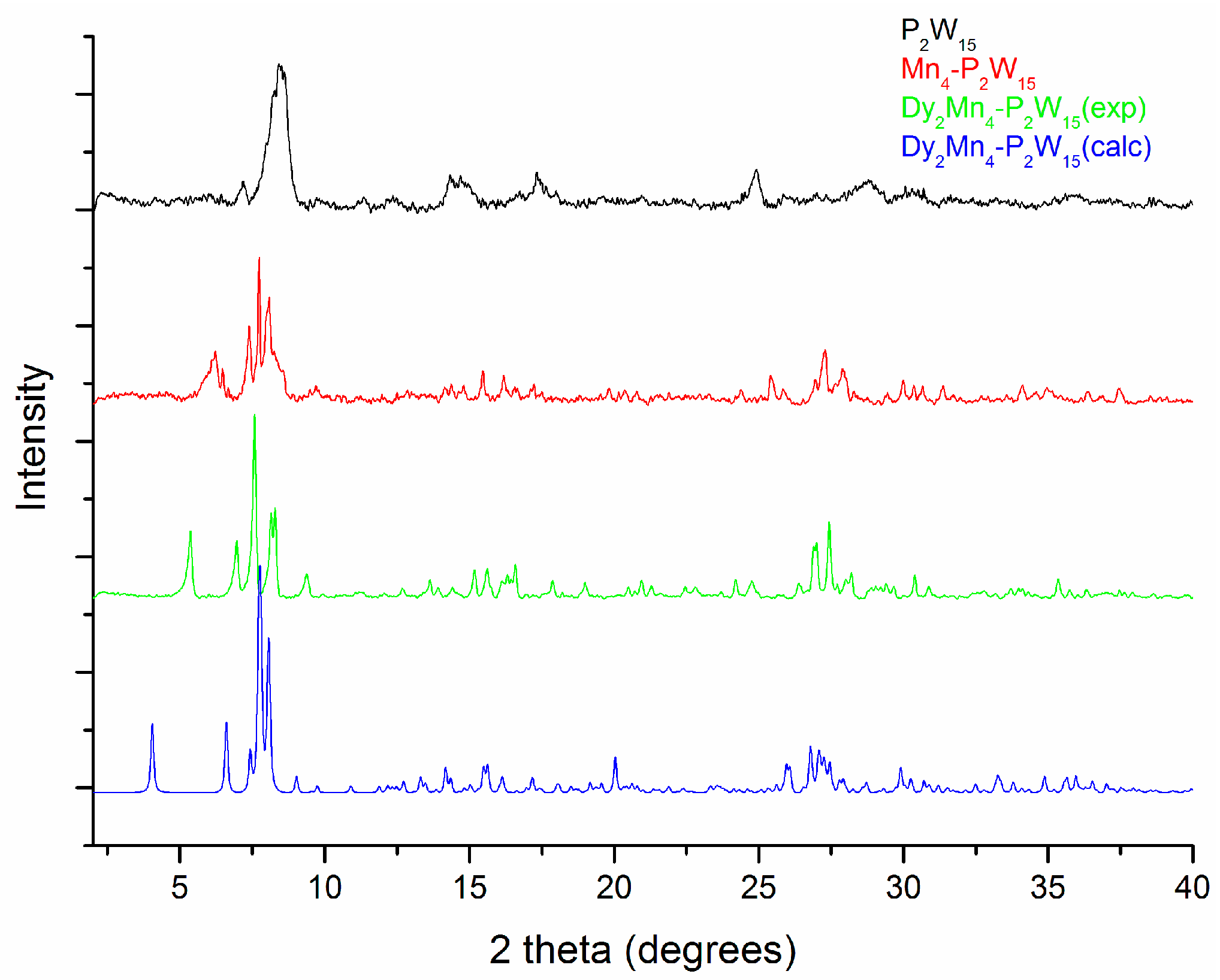

Figure 5. Stimulated and experimental powder X-ray diffraction (PXRD) patterns of Dy2Mn4-P2W15, along with experimental PXRD patterns of Mn4-P2W15, and P2W15.
Figure 5. Stimulated and experimental powder X-ray diffraction (PXRD) patterns of Dy2Mn4-P2W15, along with experimental PXRD patterns of Mn4-P2W15, and P2W15.
Materials 11 00155 g005
Materials 11 00155 g006 550

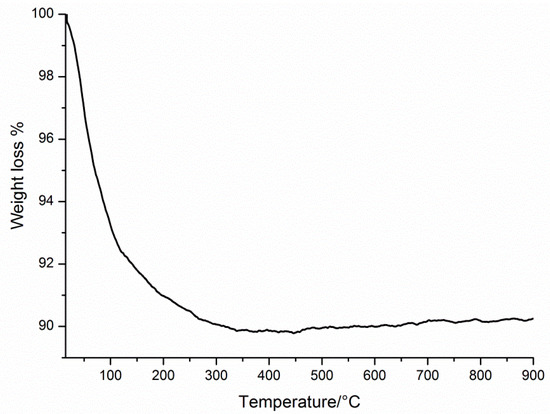

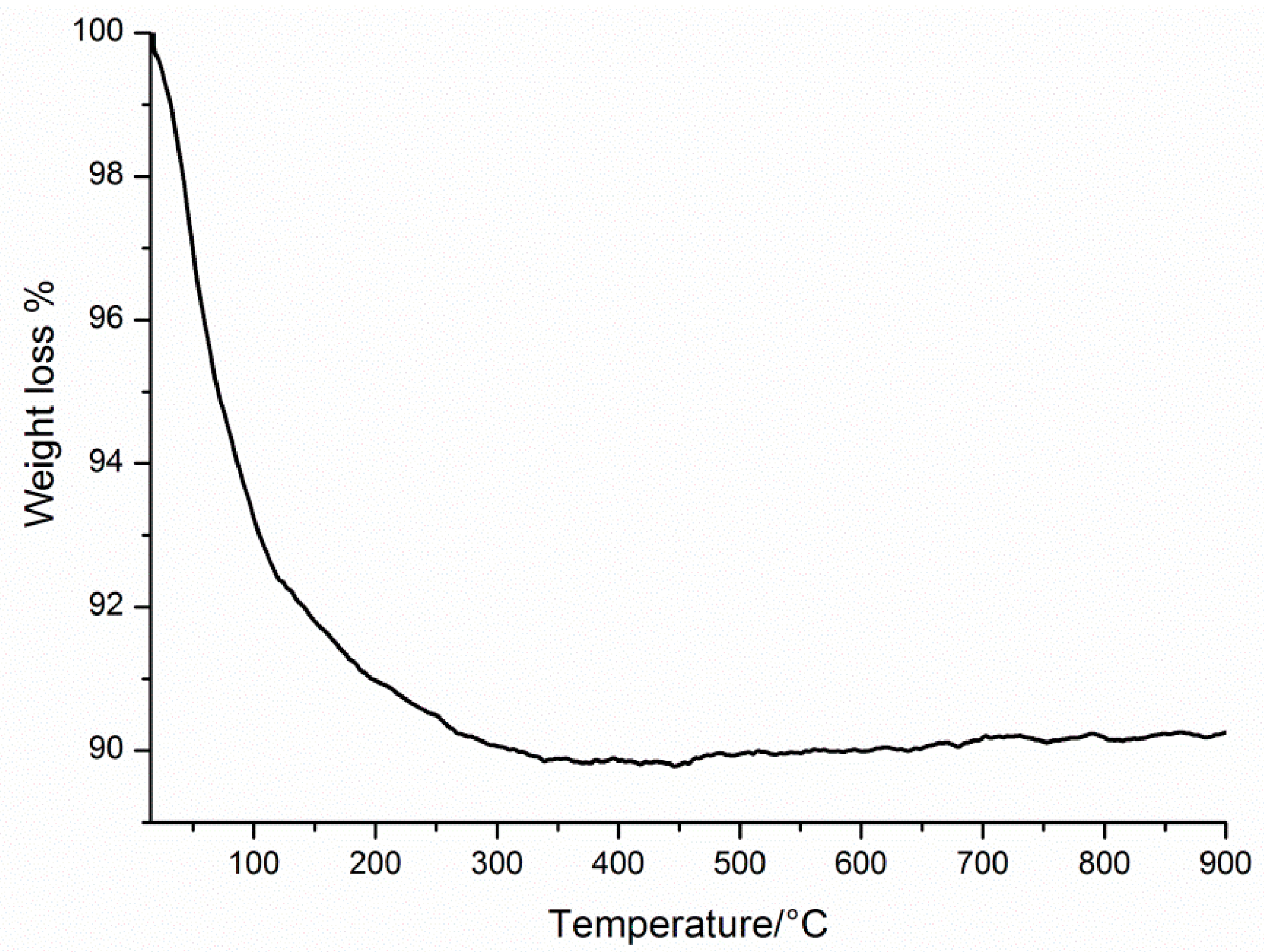

Figure 6. Thermogram of Dy2Mn4-P2W15 from room temperature to 900 °C.
Figure 6. Thermogram of Dy2Mn4-P2W15 from room temperature to 900 °C.
Materials 11 00155 g006
Materials 11 00155 g007 550

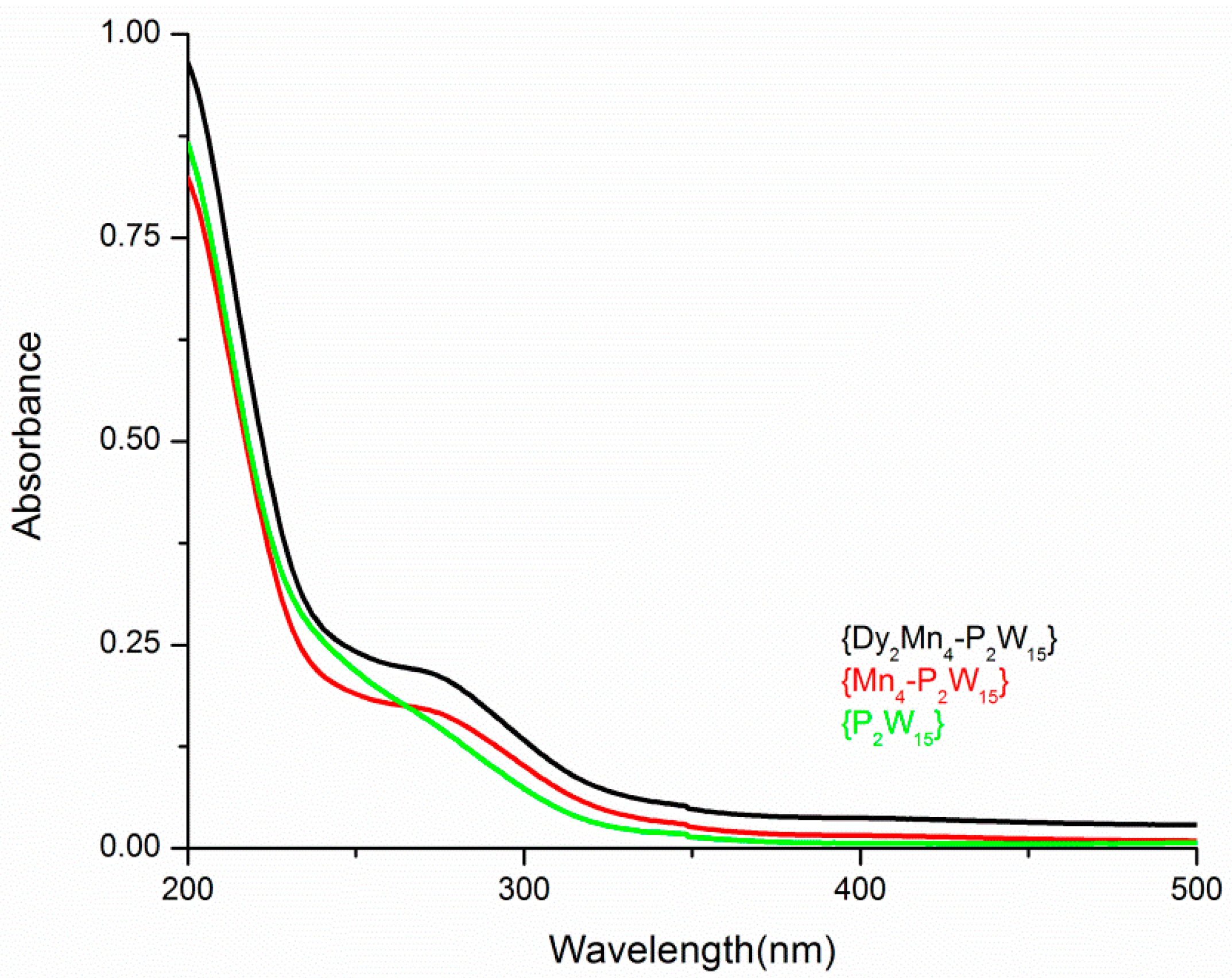

Figure 7. UV-vis spectra Dy2Mn4-P2W15, Mn4-P2W15, and P2W15.
Figure 7. UV-vis spectra Dy2Mn4-P2W15, Mn4-P2W15, and P2W15.
Materials 11 00155 g007
Materials 11 00155 g008 550

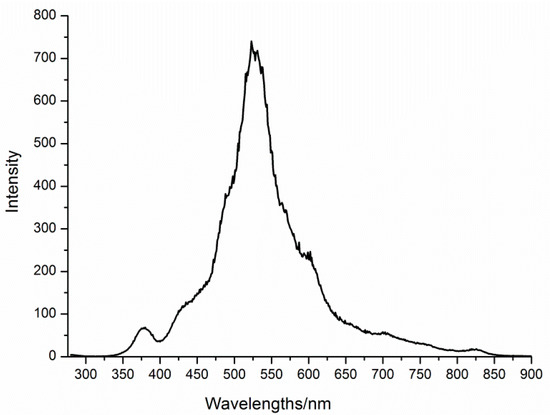

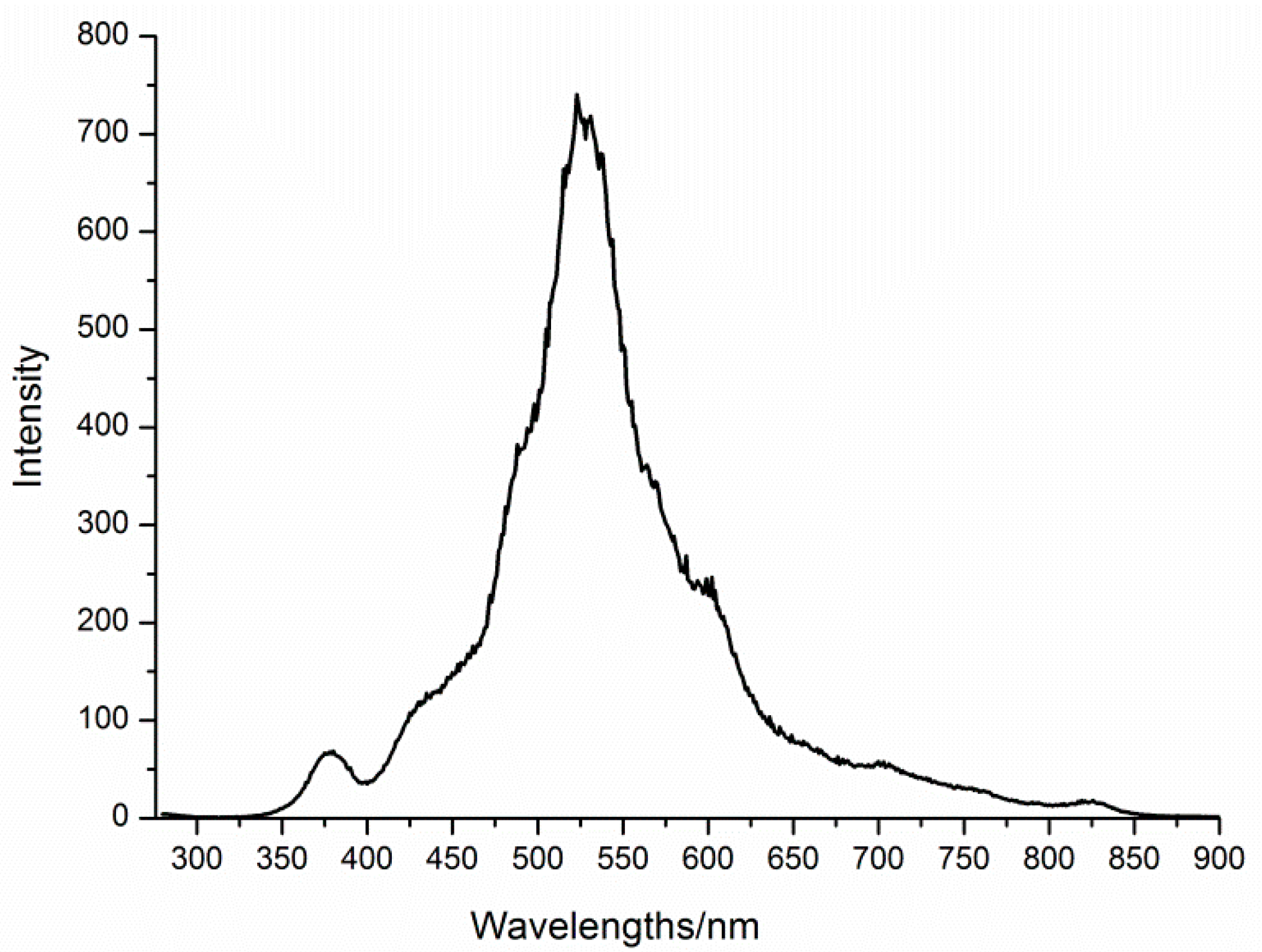

Figure 8. Emission spectrum (λex = 275 nm) of Dy2Mn4-P2W15 showing DyIII emission.
Figure 8. Emission spectrum (λex = 275 nm) of Dy2Mn4-P2W15 showing DyIII emission.
Materials 11 00155 g008
Materials 11 00155 g009 550

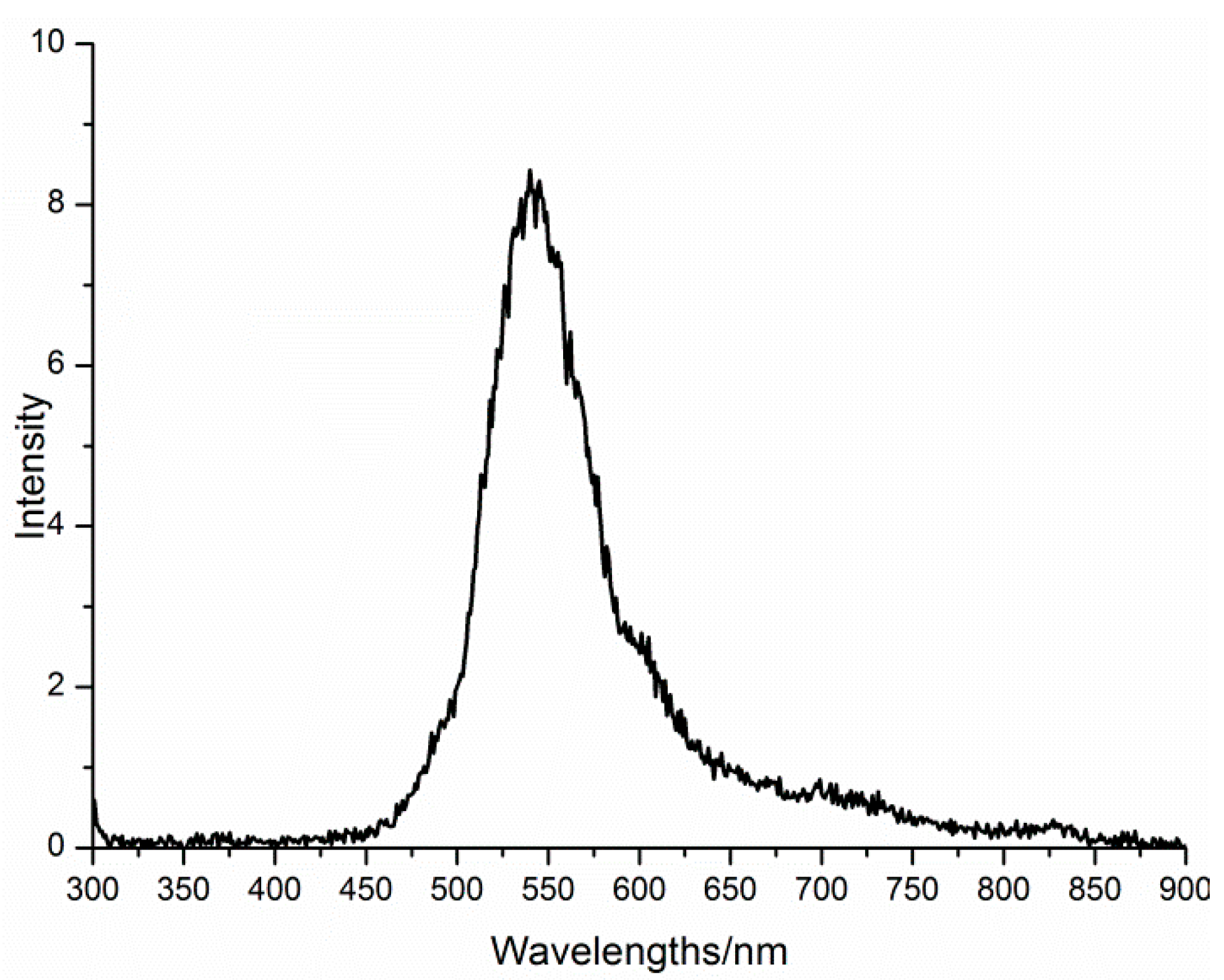

Figure 9. Emission spectrum (λex = 275 nm) of Mn4-P2W15.
Figure 9. Emission spectrum (λex = 275 nm) of Mn4-P2W15.
Materials 11 00155 g009
Materials 11 00155 g010 550

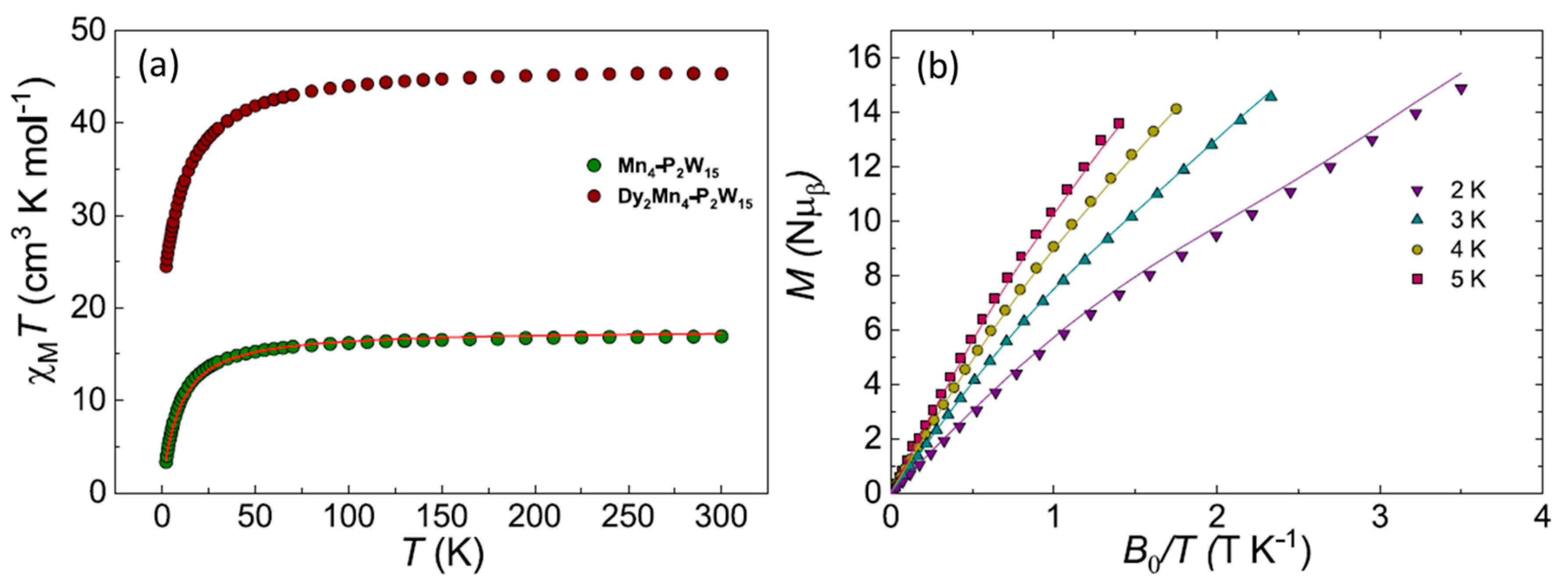

Figure 10. (a) Experimental χMT v T curves for Mn4-P2W15 and Dy2Mn4-P2W15, with best fit (red line) for Mn4-P2W15; (b) The reduced magnetization and best fits (solid lines) at given temperatures employing parameters in the text.
Figure 10. (a) Experimental χMT v T curves for Mn4-P2W15 and Dy2Mn4-P2W15, with best fit (red line) for Mn4-P2W15; (b) The reduced magnetization and best fits (solid lines) at given temperatures employing parameters in the text.
Materials 11 00155 g010
Materials 11 00155 g011 550

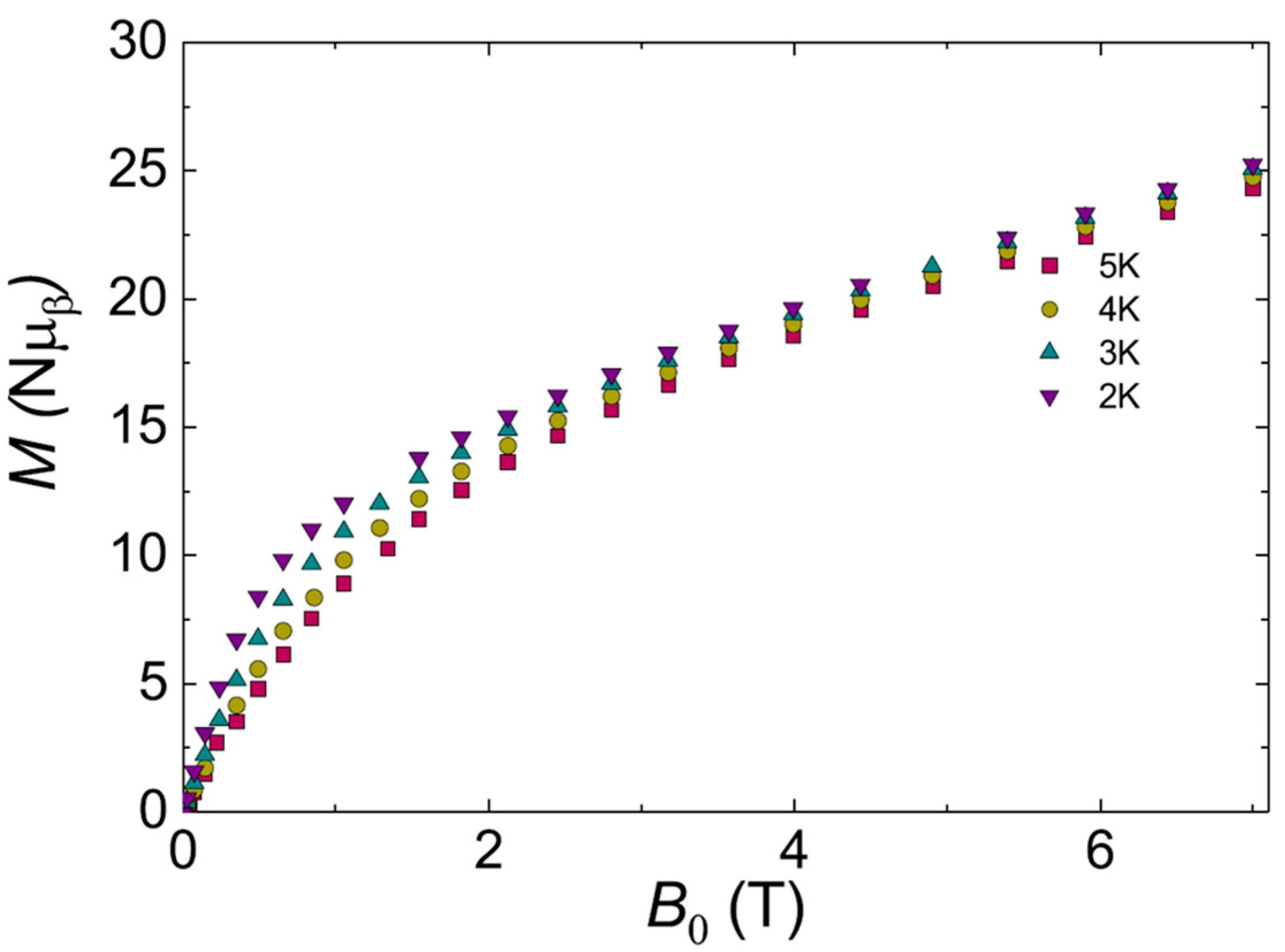

Figure 11. Experimental magnetization versus field at different temperatures (M(H,T)) for Dy2Mn4-P2W15.
Figure 11. Experimental magnetization versus field at different temperatures (M(H,T)) for Dy2Mn4-P2W15.
Materials 11 00155 g011
Table
Table 1. Crystal Data.
Table 1. Crystal Data.
CompoundDy2Mn4-P2W15
FormulaDy2H146Mn4Na10O185P4W30
Formula weight9521.20
Crystal SystemTriclinic
Space GroupP 1 ¯
a/Å13.3544(4)
b/Å14.7907(4)
c/Å22.5101(6)
α/°79.938(2)
β/°76.843(2)
γ/°65.236(3)
V/Å33915.5(2)
Z2
T/K180(2)
Crystal dimensions/mm0.11 × 0.06 × 0.02
F(000)4248
Dc/Mg m−34.038
μ(Mo-Kα)/mm−123.389
Data Measured49,270
Unique Data17,079
Rint0.0427
Data with I ≥ 2σ(I)14,193
wR2 (all data)0.2055
S (all data)1.083
R1 [I ≥ 2σ(I)]0.0732
Parameters/Restraints1045/29
Biggest diff. peak/hole/eÅ−3+4.53/−1.87
FIZ-CSD number433863
