Next Article in Journal
Effect of Nanosized NbC Precipitates on Hydrogen Diffusion in X80 Pipeline Steel
Previous Article in Journal
Design and Production of Continuously Gradient Macro/Microporous Calcium Phosphate (CaP) Scaffolds Using Ceramic/Camphene-Based 3D Extrusion
Article Menu
Issue 7 (July) cover image

Export Article

Open AccessArticle
Materials 2017, 10(7), 720; doi:10.3390/ma10070720

Corrosion Behavior of X80 Steel with Coupled Coating Defects under Alternating Current Interference in Alkaline Environment

1
Department of Chemical and Biomolecular Engineering, Institute for Corrosion and Multiphase Technology, Ohio University, Athens, OH 45701, USA
2
Corrosion and Protection Center, University of Science and Technology Beijing, Beijing 100083, China
*
Author to whom correspondence should be addressed.
Received: 7 May 2017 / Revised: 19 June 2017 / Accepted: 20 June 2017 / Published: 28 June 2017
View Full-Text   |   Download PDF [8056 KB, uploaded 30 June 2017]   |

Abstract

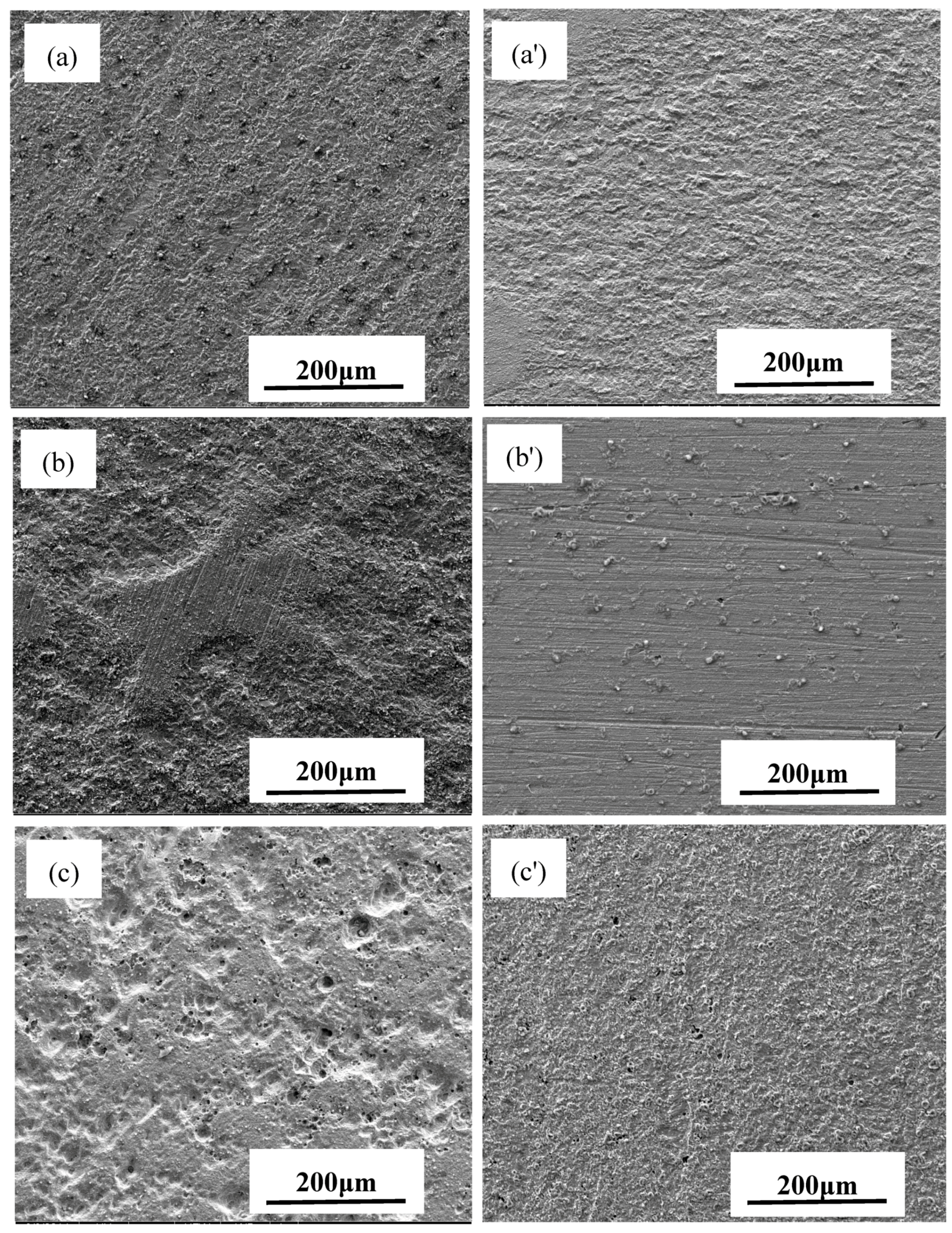

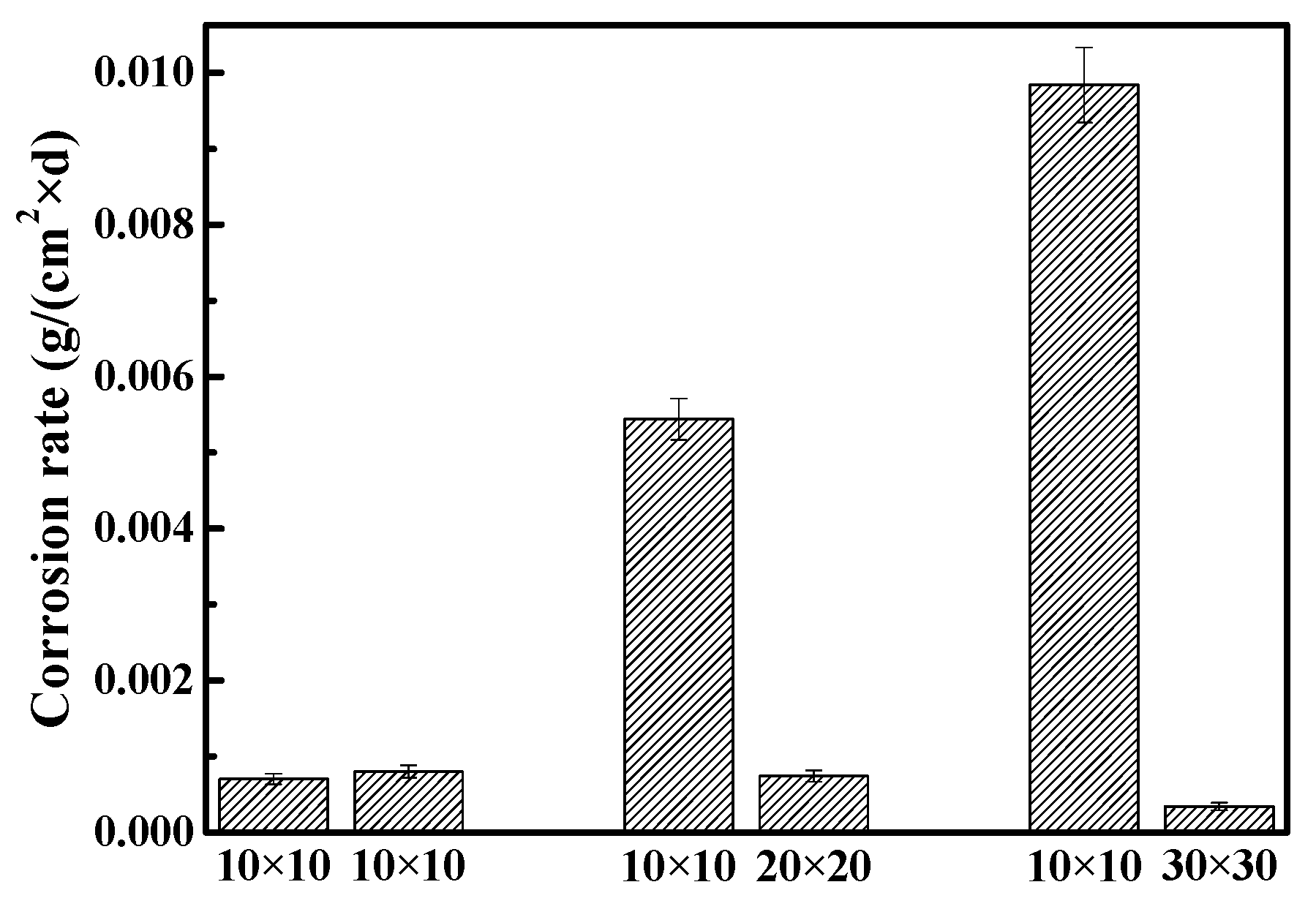

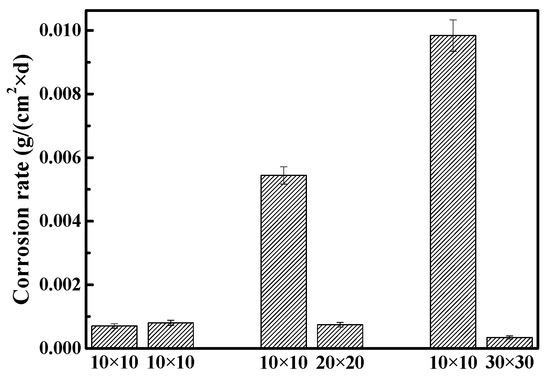

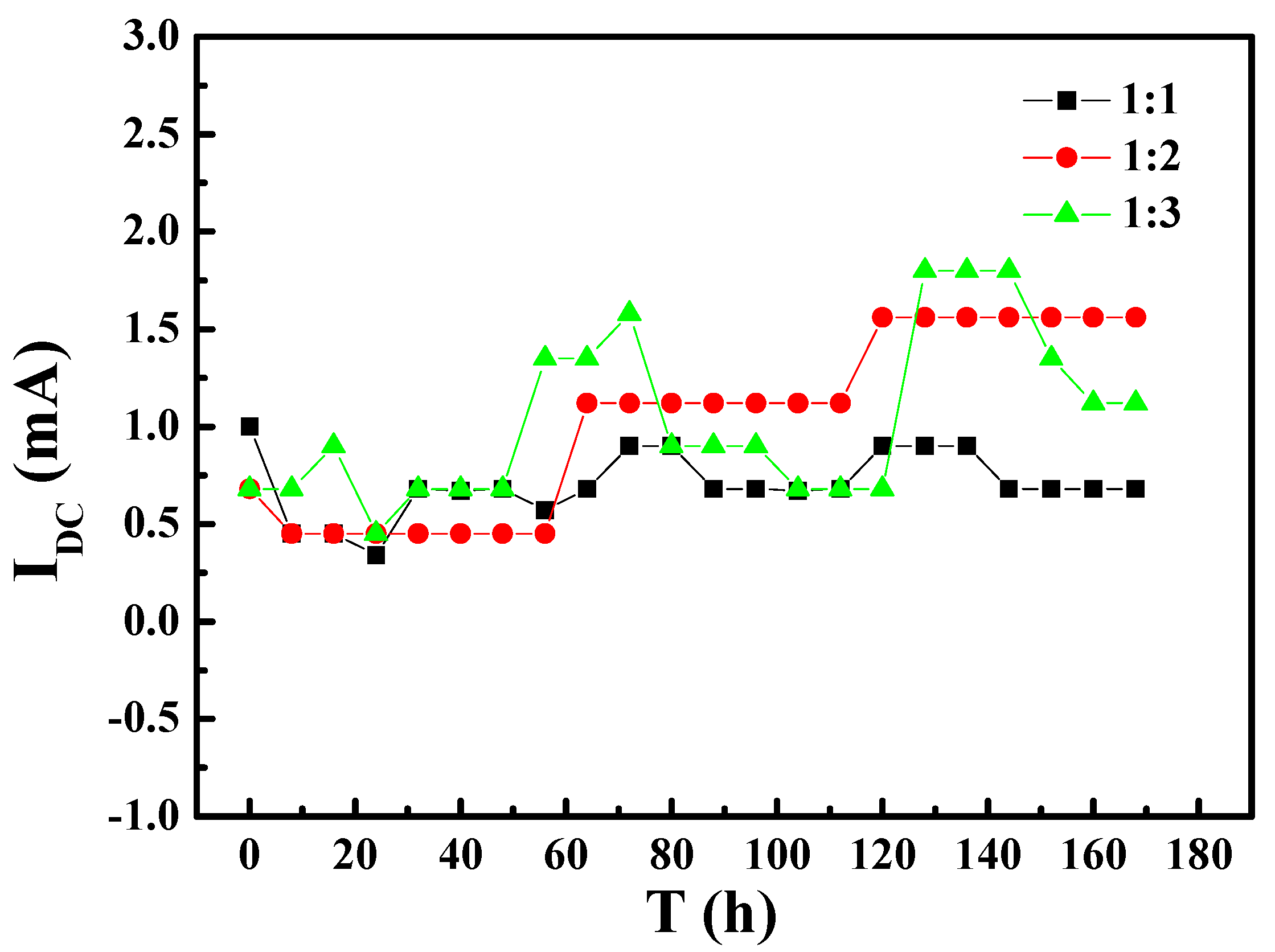

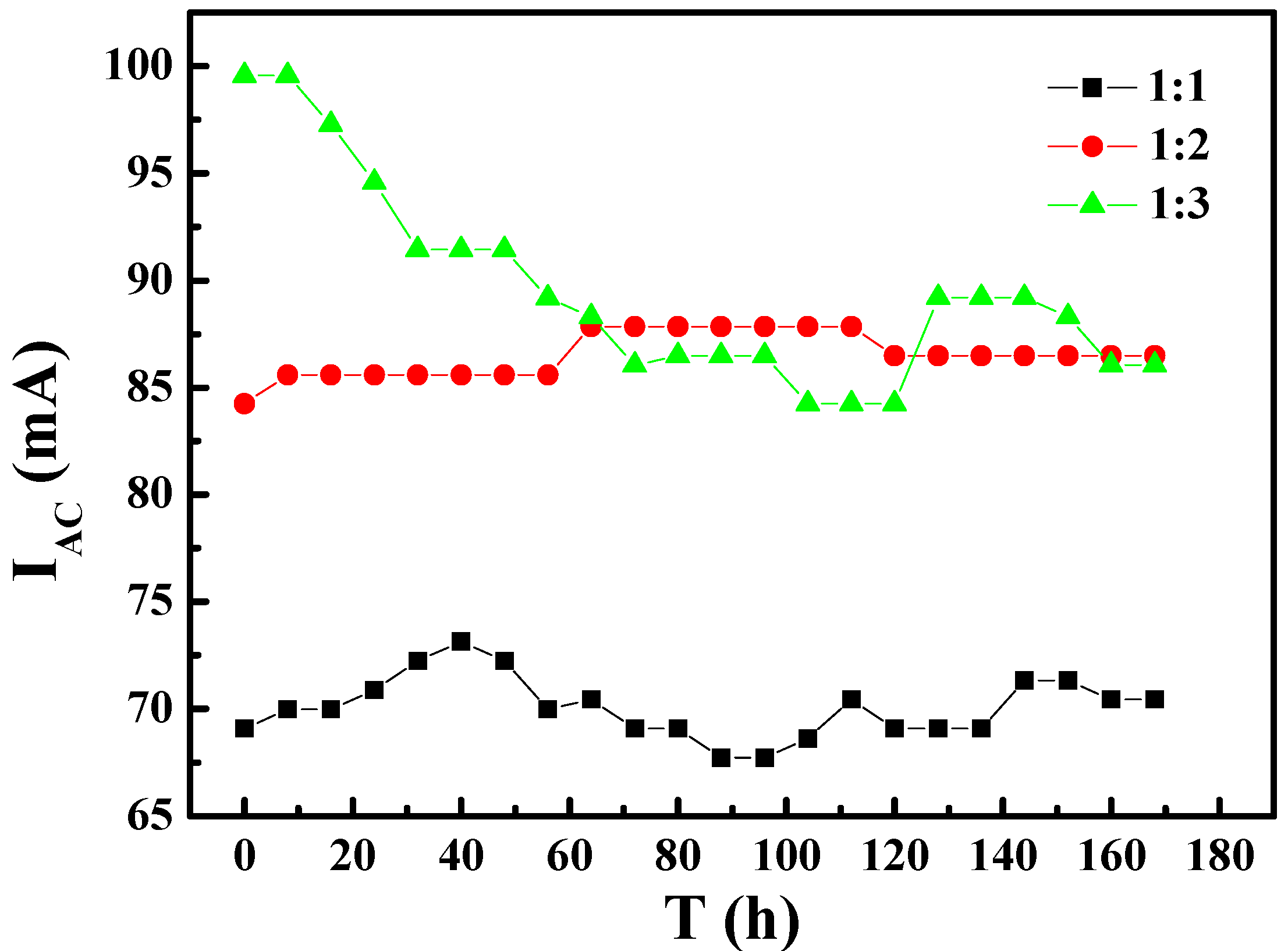

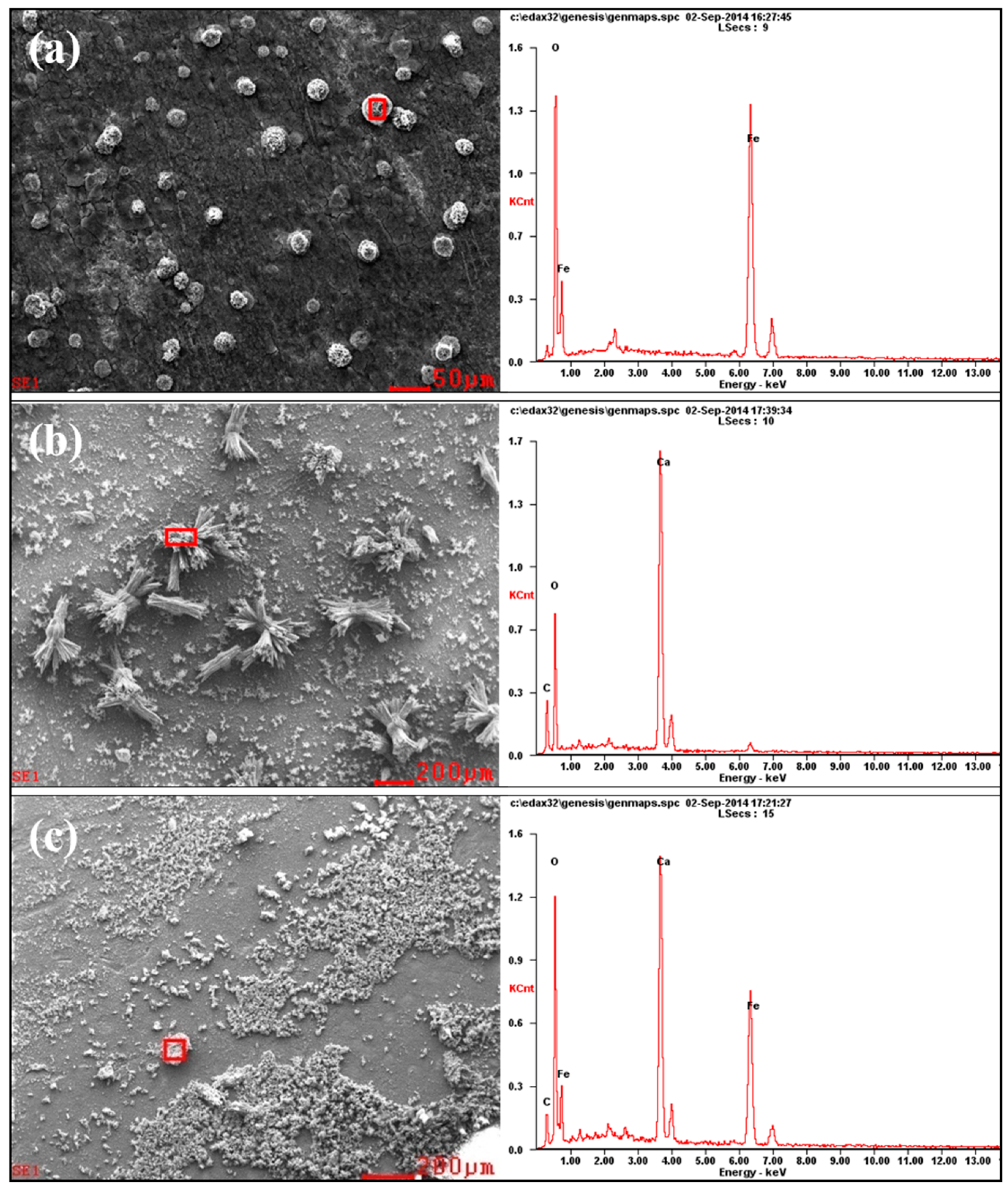

The corrosion behavior of X80 steel in the presence of coupled coating defects was simulated and studied under the interference of alternating current (AC) in an alkaline environment. The results from electrochemical measurements showed that the electrode potential of the coating defect with the smaller exposed area was lower than that with the larger area, which indicated that the steel with the smaller coating defect was more prone to corrosion. The result of weight loss tests also showed that the smaller coating defect had induced a higher corrosion rate. However, the corrosion rate of X80 steel at the larger coating defect decreased gradually with the increase of the larger defect area at a constant smaller defect area. The corrosion morphology images showed that the coating defects with smaller areas suffered from more severe pitting corrosion. View Full-Text
Keywords: corrosion; X80 steel; coating defect; alternating current interference corrosion; X80 steel; coating defect; alternating current interference
Figures

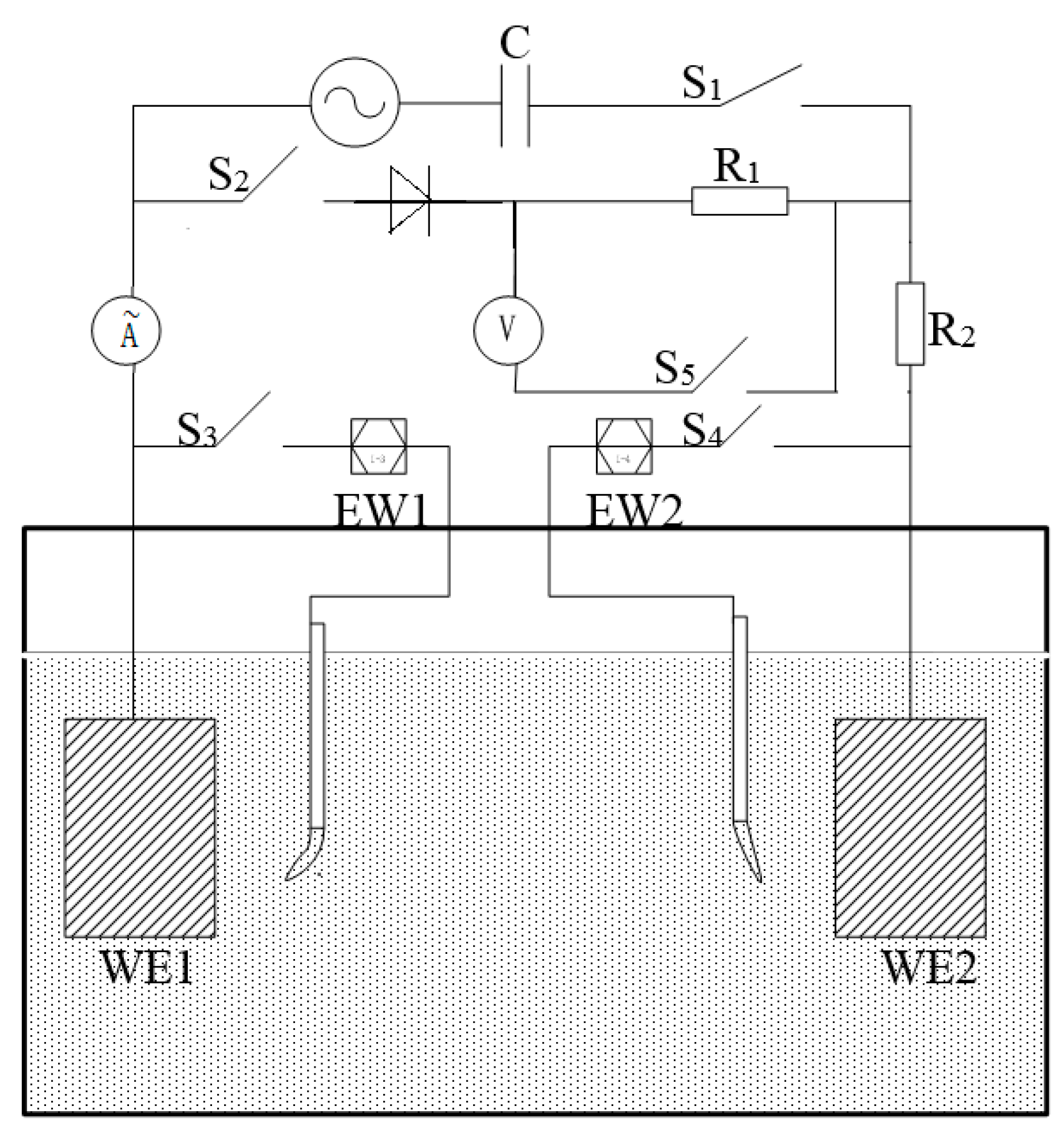

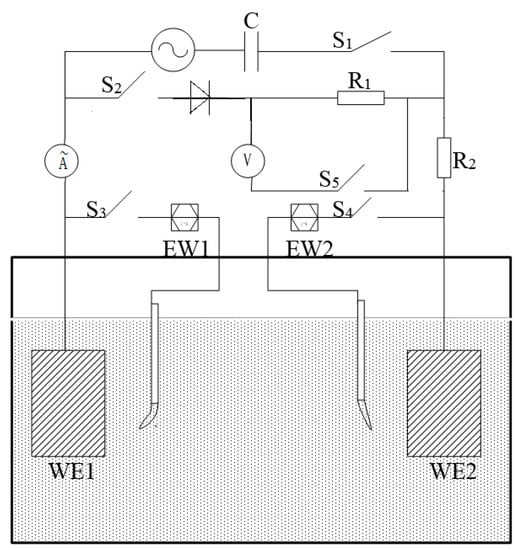

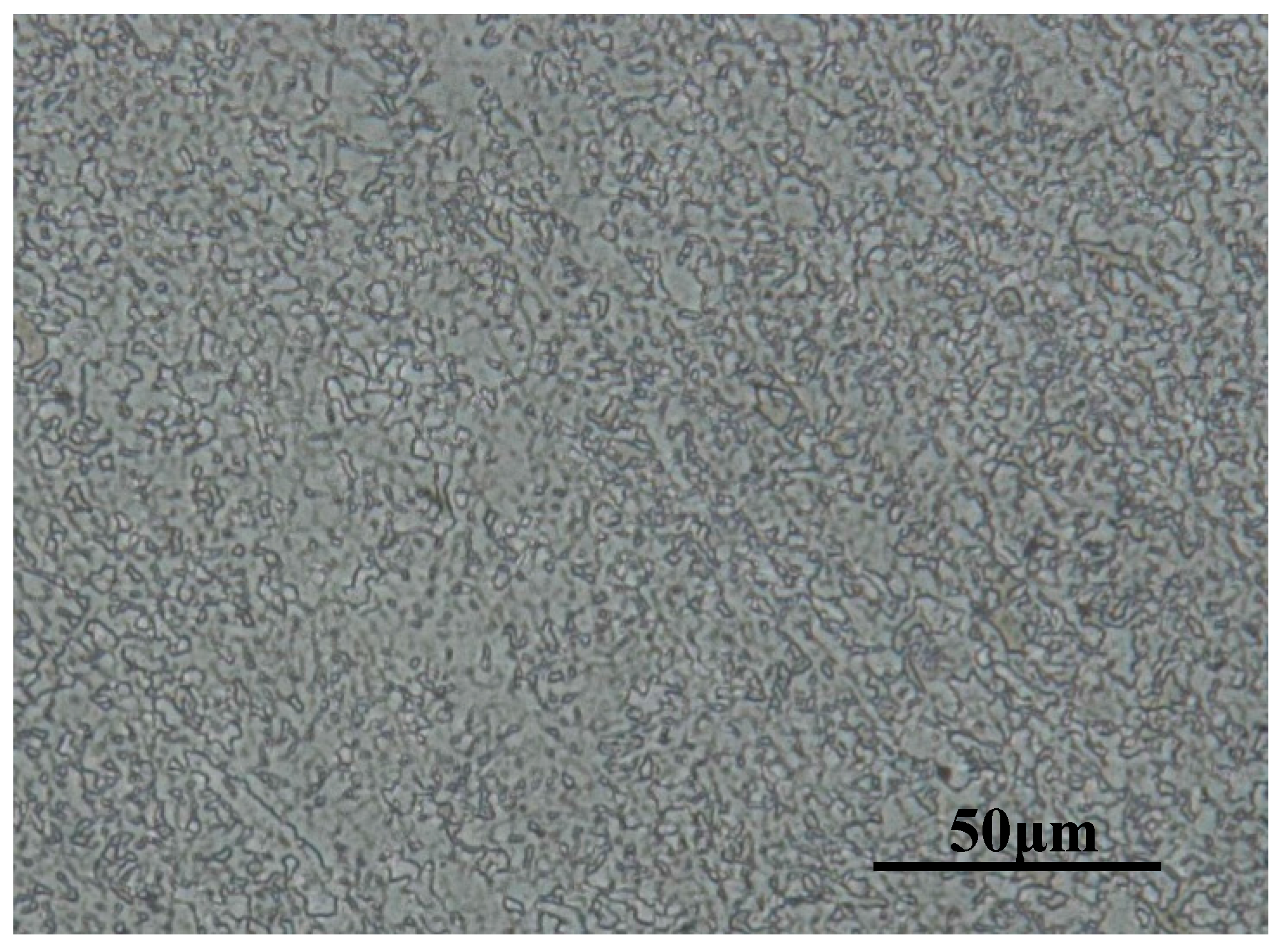

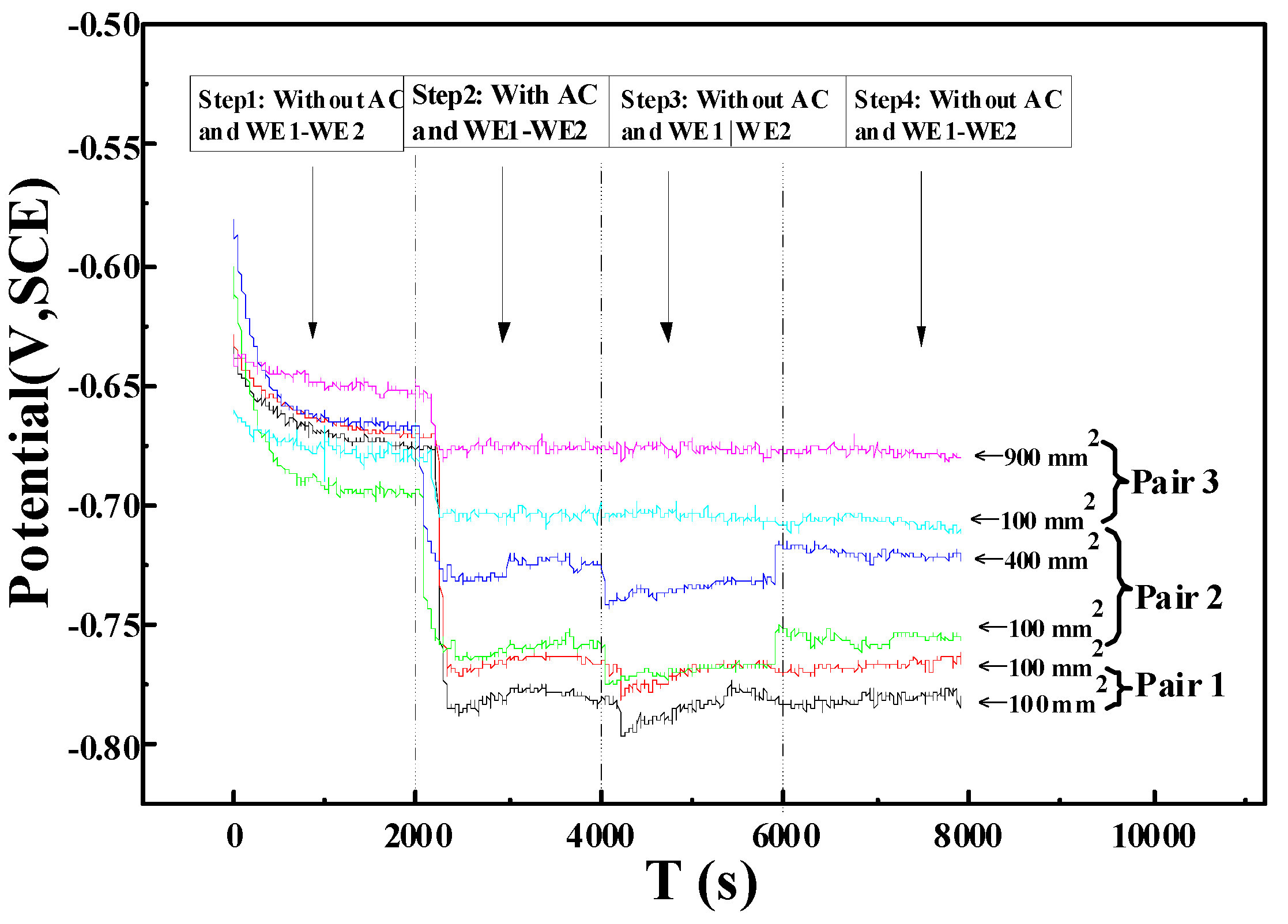

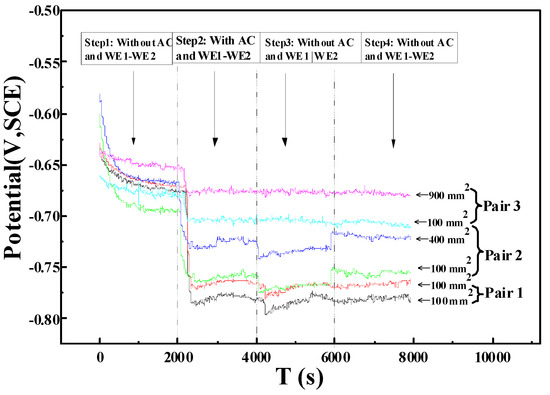

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Li, Z.; Li, C.; Qian, H.; Li, J.; Huang, L.; Du, C. Corrosion Behavior of X80 Steel with Coupled Coating Defects under Alternating Current Interference in Alkaline Environment. Materials 2017, 10, 720.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
