High Mobility Thin Film Transistors Based on Amorphous Indium Zinc Tin Oxide

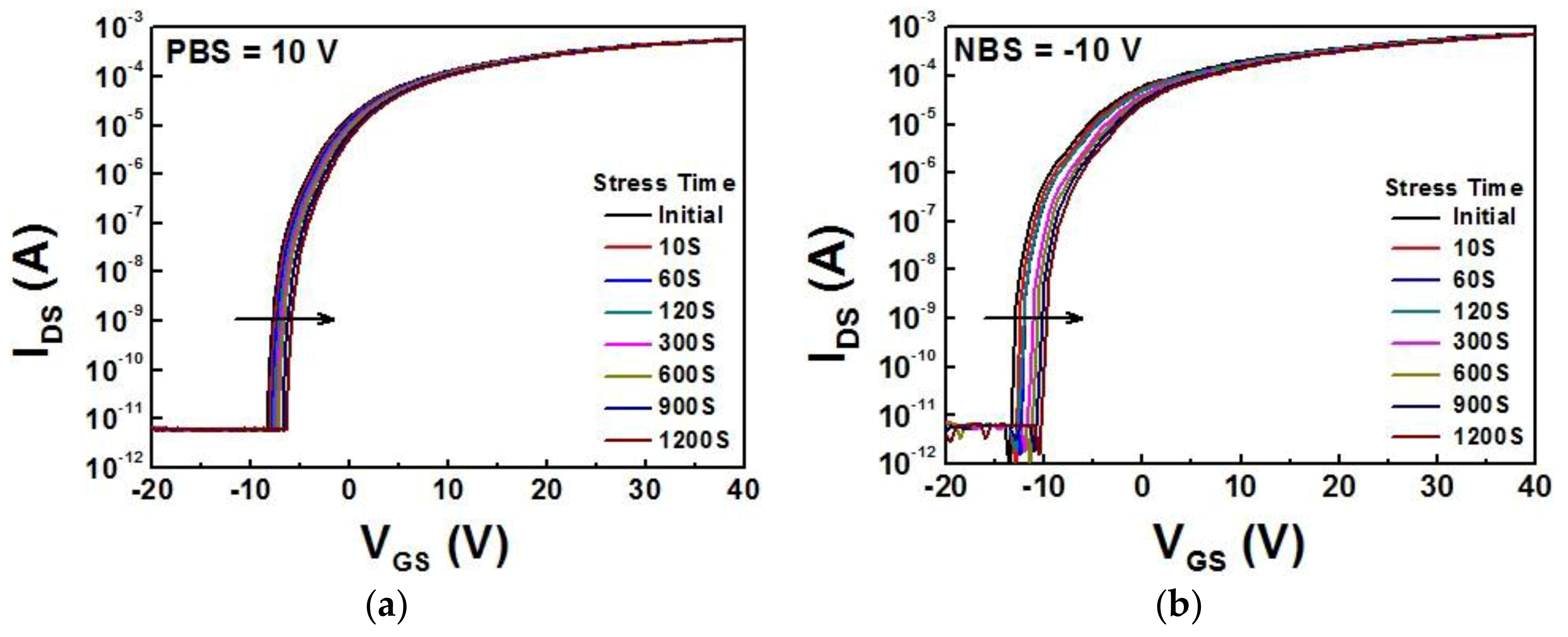

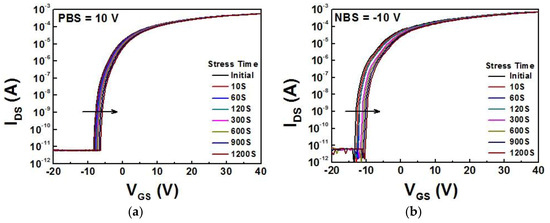

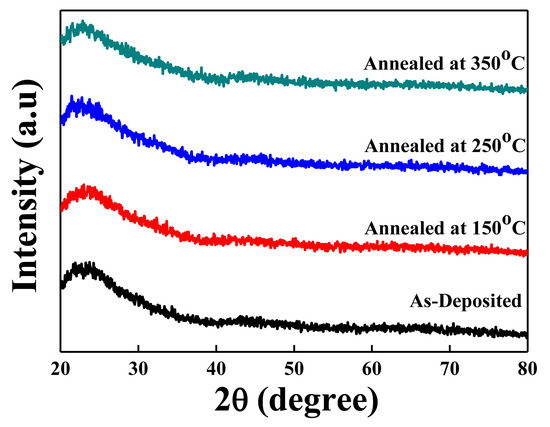

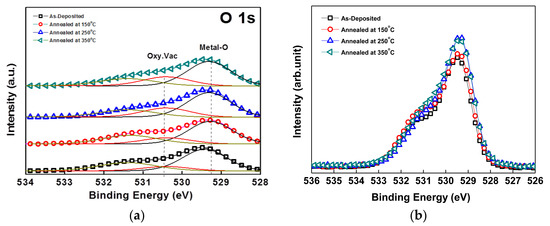

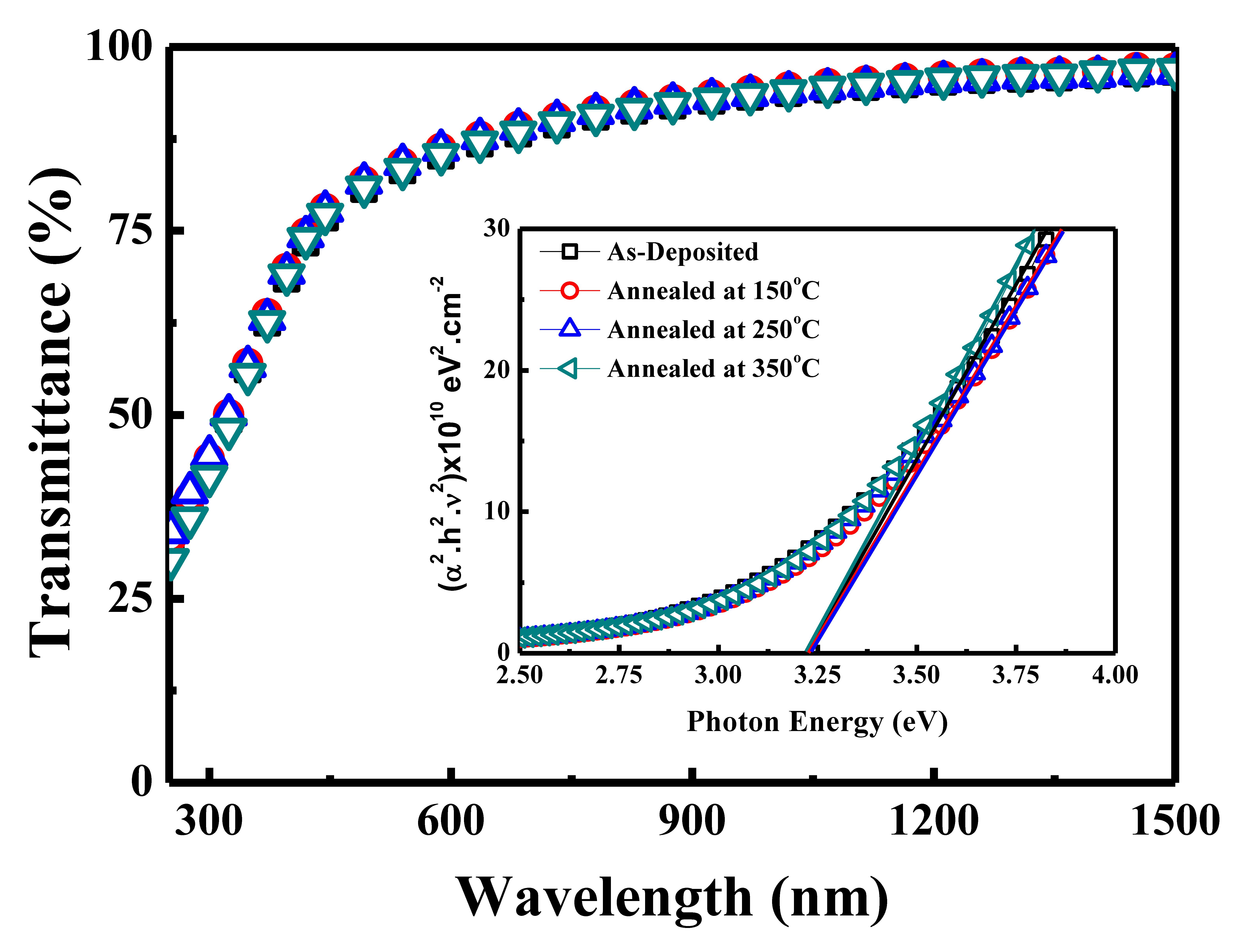

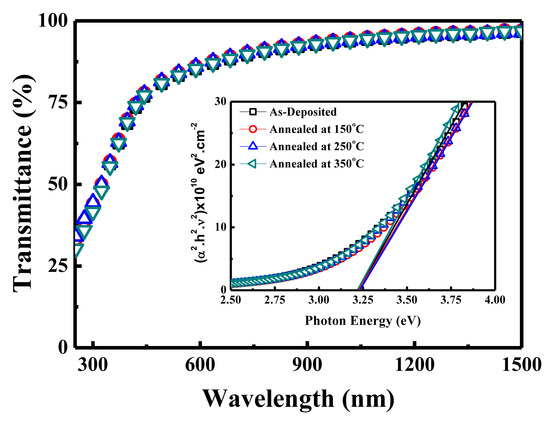

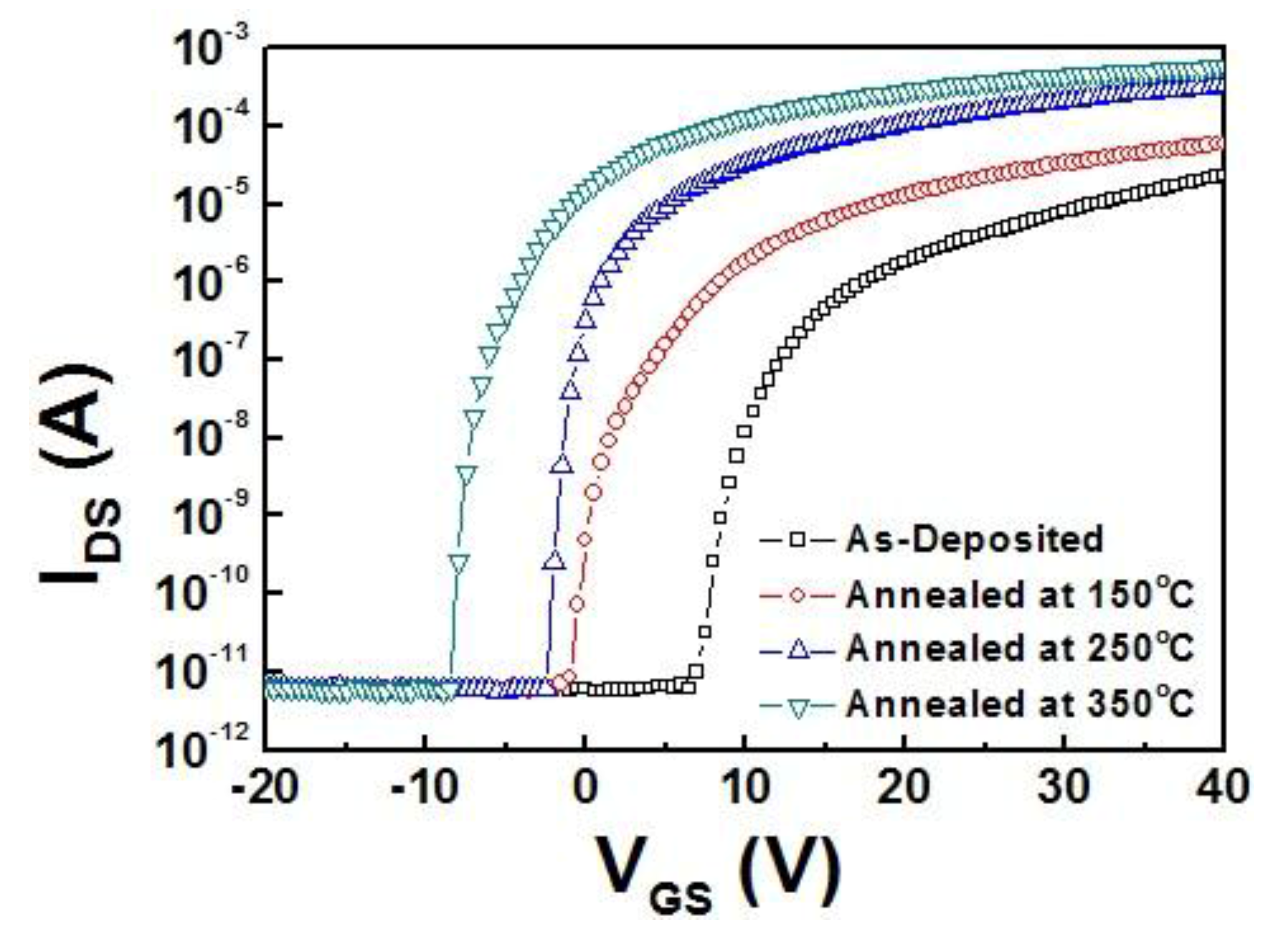

AbstractTop-contact bottom-gate thin film transistors (TFTs) with zinc-rich indium zinc tin oxide (IZTO) active layer were prepared at room temperature by radio frequency magnetron sputtering. Sintered ceramic target was prepared and used for deposition from oxide powder mixture having the molar ratio of In2O3:ZnO:SnO2 = 2:5:1. Annealing treatment was carried out for as-deposited films at various temperatures to investigate its effect on TFT performances. It was found that annealing treatment at 350 °C for 30 min in air atmosphere yielded the best result, with the high field effect mobility value of 34 cm2/Vs and the minimum subthreshold swing value of 0.12 V/dec. All IZTO thin films were amorphous, even after annealing treatment of up to 350 °C. View Full-Text
Scifeed alert for new publicationsNever miss any articles matching your research from any publisher
- Get alerts for new papers matching your research
- Find out the new papers from selected authors
- Updated daily for 49'000+ journals and 6000+ publishers
- Define your Scifeed now
Noviyana, I.; Lestari, A.D.; Putri, M.; Won, M.-S.; Bae, J.-S.; Heo, Y.-W.; Lee, H.Y. High Mobility Thin Film Transistors Based on Amorphous Indium Zinc Tin Oxide. Materials 2017, 10, 702.
Noviyana I, Lestari AD, Putri M, Won M-S, Bae J-S, Heo Y-W, Lee HY. High Mobility Thin Film Transistors Based on Amorphous Indium Zinc Tin Oxide. Materials. 2017; 10(7):702.Chicago/Turabian Style
Noviyana, Imas; Lestari, Annisa Dwi; Putri, Maryane; Won, Mi-Sook; Bae, Jong-Seong; Heo, Young-Woo; Lee, Hee Young. 2017. "High Mobility Thin Film Transistors Based on Amorphous Indium Zinc Tin Oxide." Materials 10, no. 7: 702.
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.
