Materials 2017, 10(6), 657; doi:10.3390/ma10060657

Warm White Light-Emitting Diodes Based on a Novel Orange Cationic Iridium(III) Complex

Key Laboratory of Comprehensive Utilization of Mineral Resources in Ethnic Regions, Joint Research Centre for International Cross-border Ethnic Regions Biomass Clean Utilization in Yunnan, School of Chemistry & Environment, Yunnan Minzu University, Kunming 650500, China
*
Authors to whom correspondence should be addressed.
Received: 19 April 2017 / Revised: 21 May 2017 / Accepted: 8 June 2017 / Published: 16 June 2017
(This article belongs to the Special Issue Luminescent Materials 2017)
View Full-Text   |   Download PDF [2154 KB, uploaded 16 June 2017]   |

Abstract

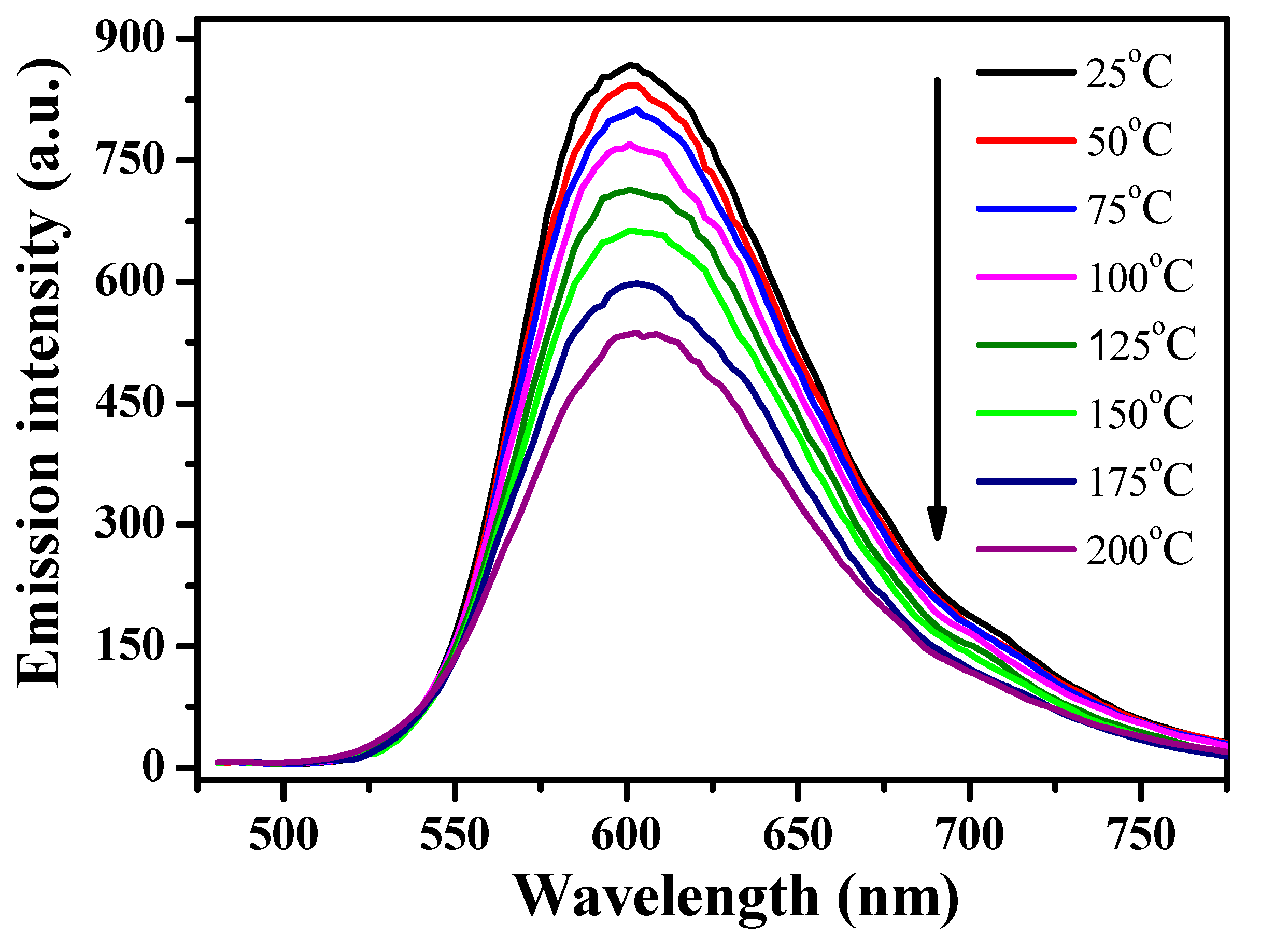

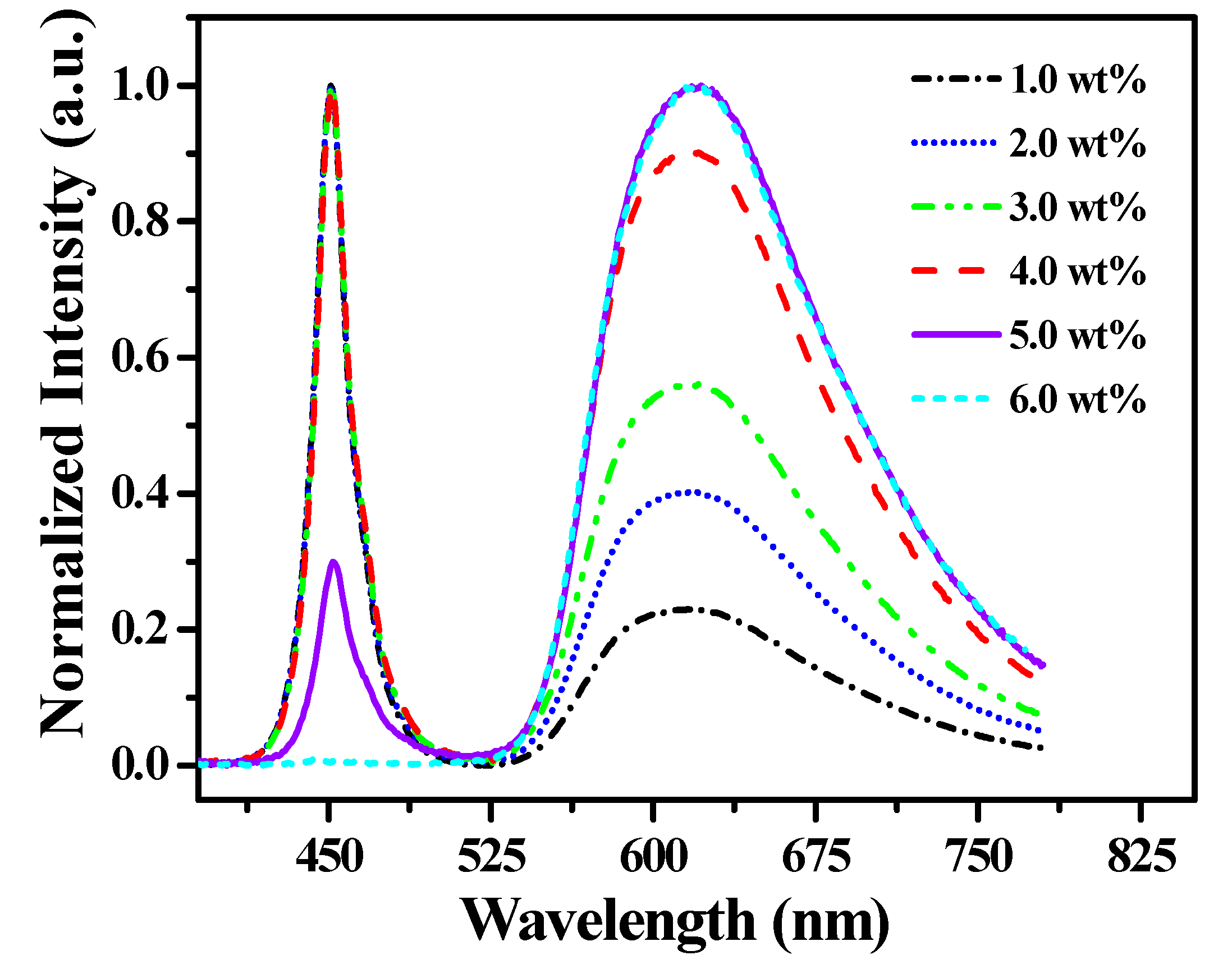

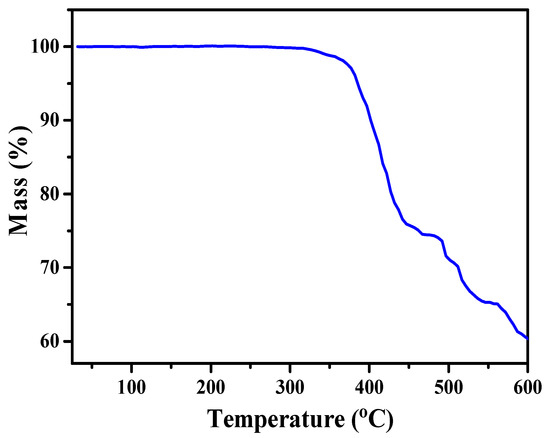

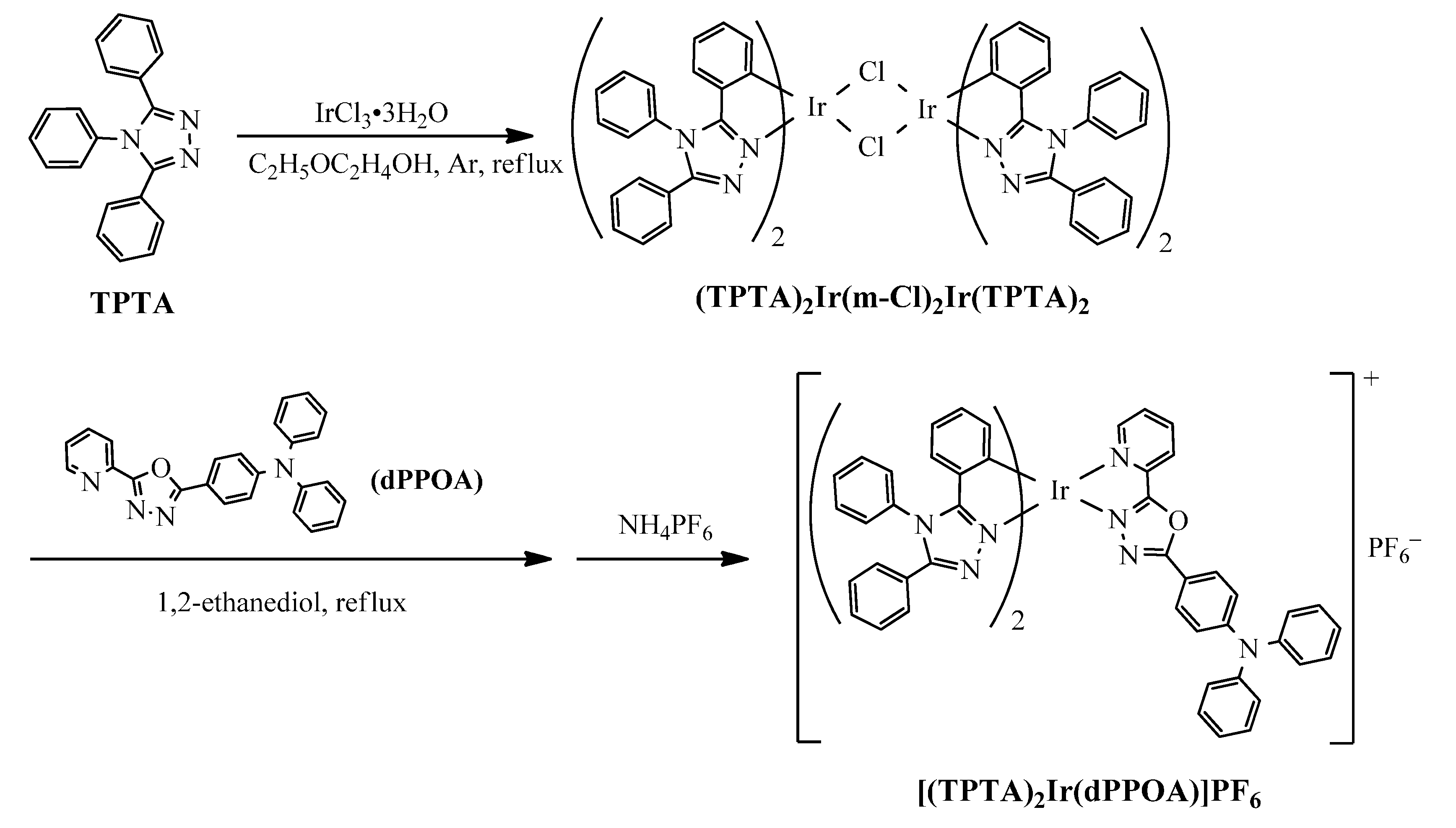

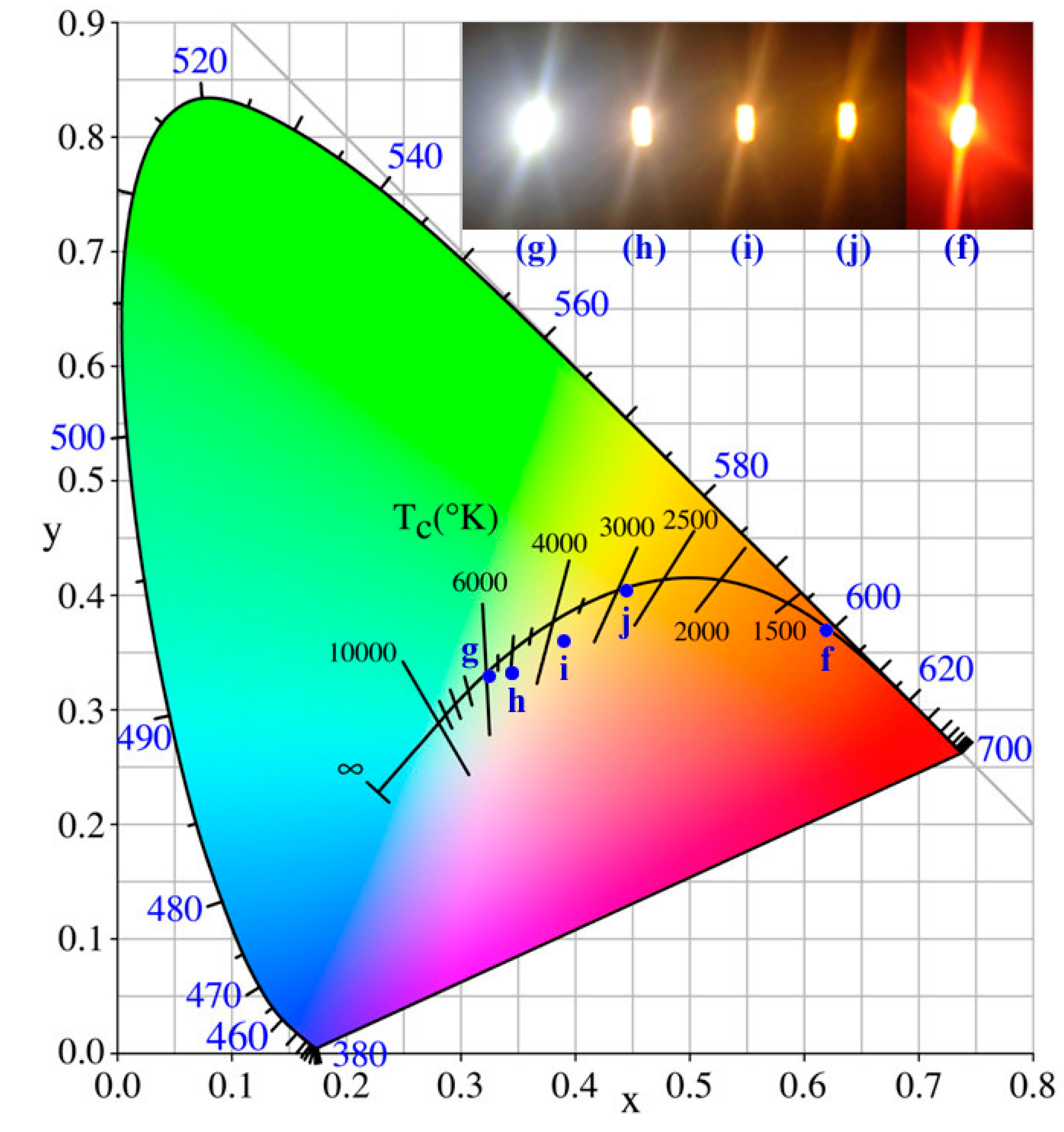

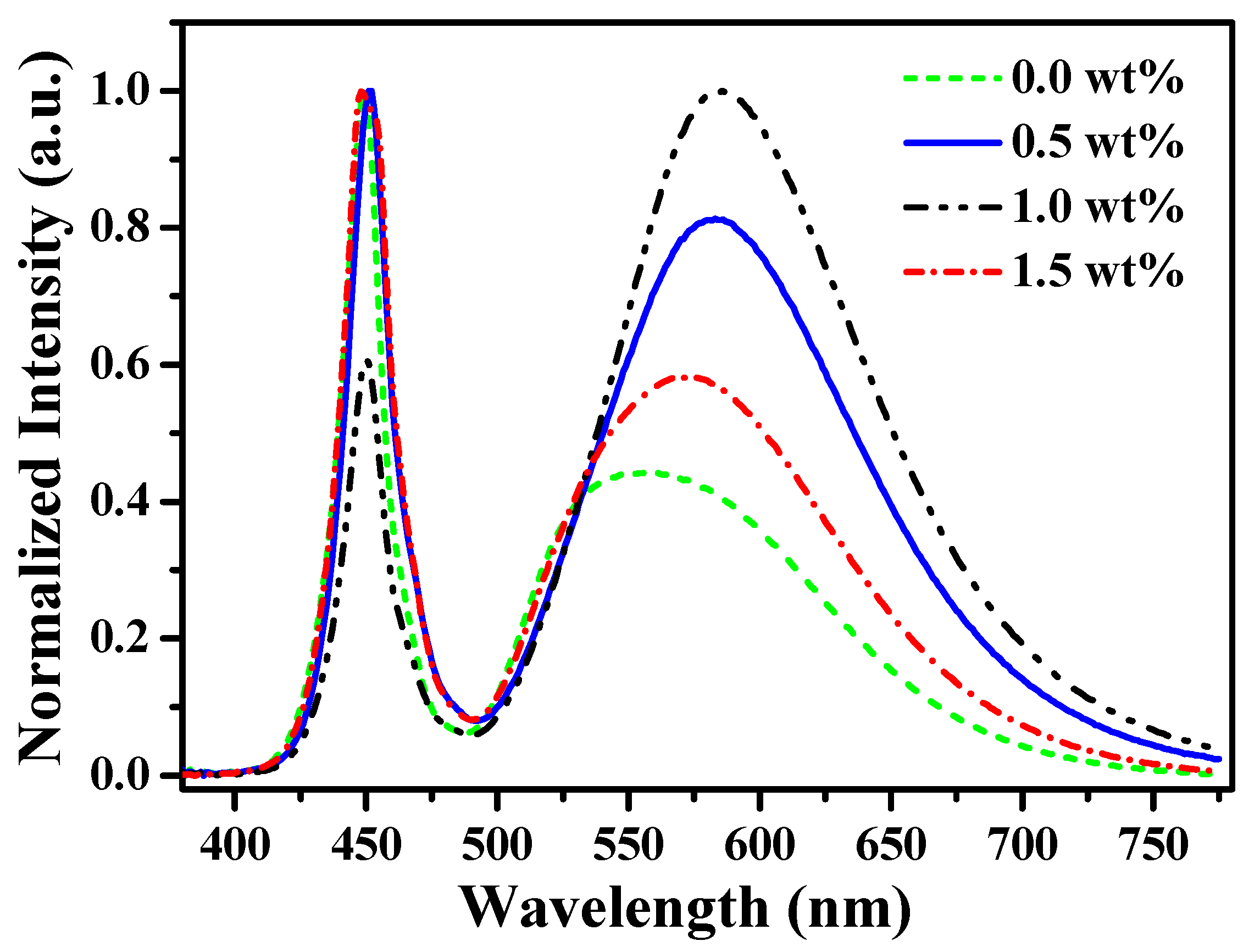

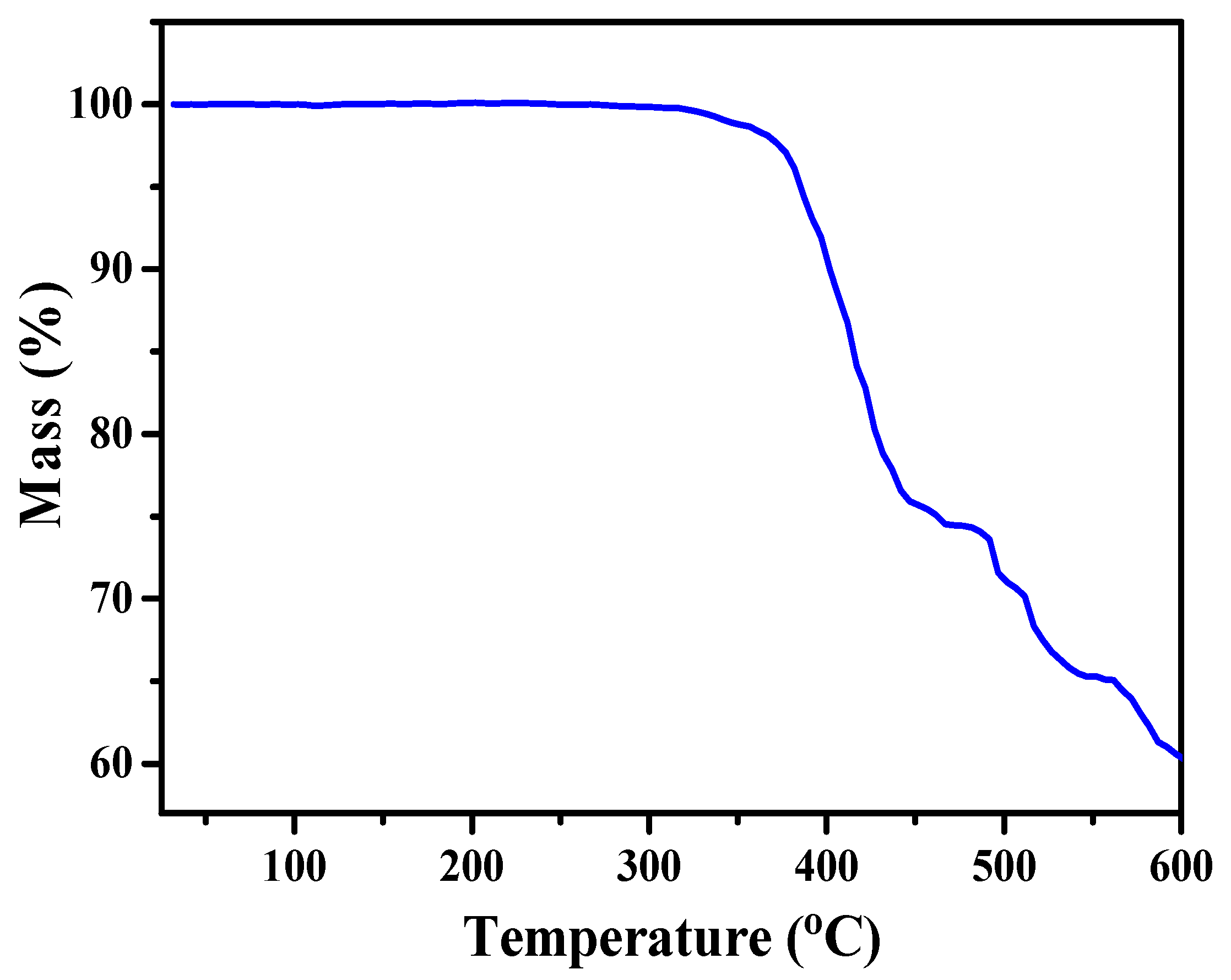

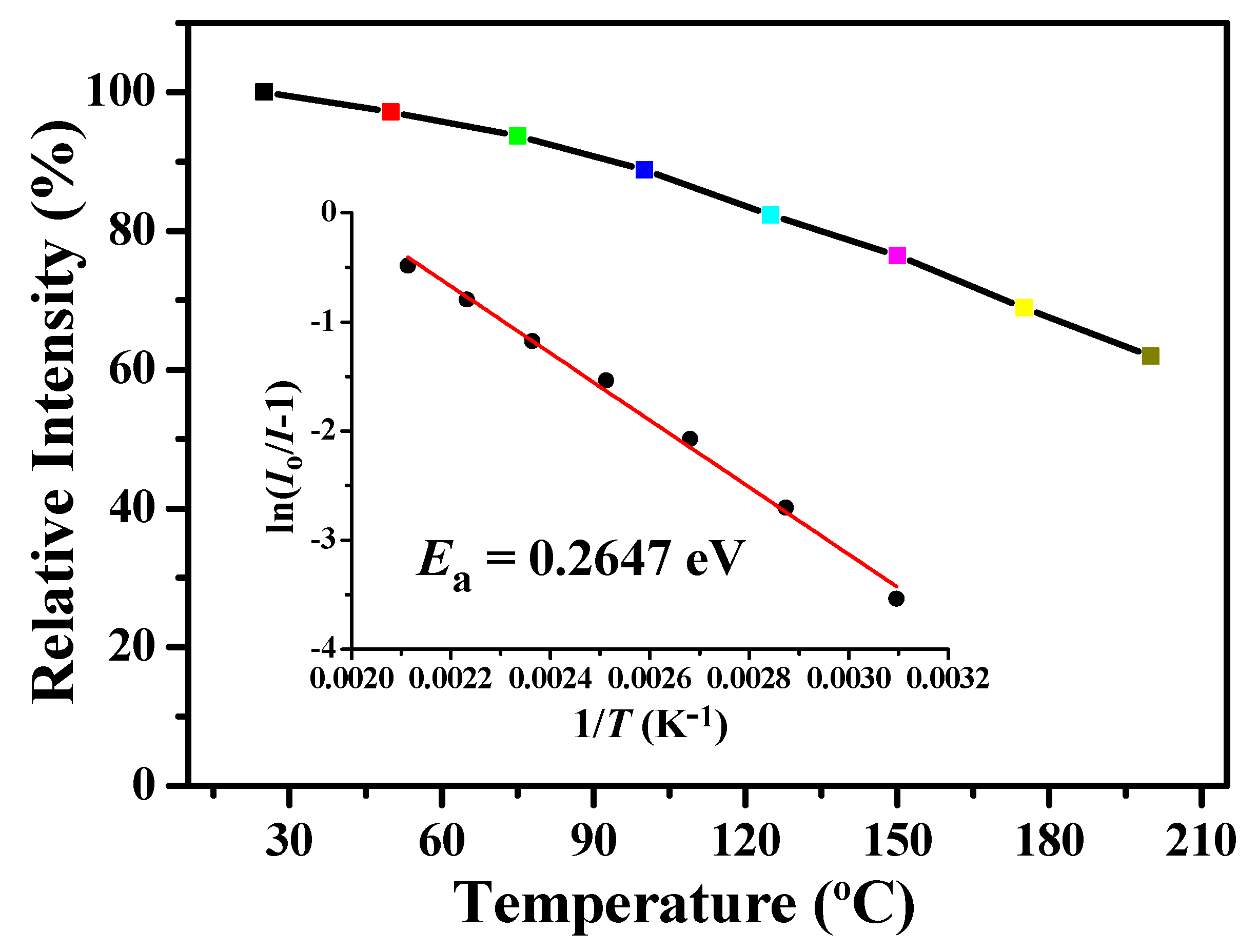

A novel orange cationic iridium(III) complex [(TPTA)2Ir(dPPOA)]PF6 (TPTA: 3,4,5-triphenyl-4H-1,2,4-triazole, dPPOA: N,N-diphenyl-4-(5-(pyridin-2-yl)-1,3,4-oxadiazol-2-yl)aniline) was synthesized and used as a phosphor in light-emitting diodes (LEDs). [(TPTA)2Ir(dPPOA)]PF6 has high thermal stability with a decomposition temperature (Td) of 375 °C, and its relative emission intensity at 100 °C is 88.8% of that at 25°C. When only [(TPTA)2Ir(dPPOA)]PF6 was used as a phosphor at 6.0 wt % in silicone and excited by a blue GaN (GaN: gallium nitride) chip (450 nm), an orange LED was obtained. A white LED fabricated by a blue GaN chip (450 nm) and only yellow phosphor Y3Al5O12:Ce3+ (YAG:Ce) (1.0 wt % in silicone) emitted cold white light, its CIE (CIE: Commission International de I’Eclairage) value was (0.32, 0.33), color rendering index (CRI) was 72.2, correlated color temperature (CCT) was 6877 K, and luminous efficiency (ηL) was 128.5 lm∙W−1. Such a cold white LED became a neutral white LED when [(TPTA)2Ir(dPPOA)]PF6 was added at 0.5 wt %; its corresponding CIE value was (0.35, 0.33), CRI was 78.4, CCT was 4896 K, and ηL was 85.2 lm∙W−1. It further became a warm white LED when [(TPTA)2Ir(dPPOA)]PF6 was added at 1.0 wt %; its corresponding CIE value was (0.39, 0.36), CRI was 80.2, CCT was 3473 K, and ηL was 46.1 lm∙W−1. The results show that [(TPTA)2Ir(dPPOA)]PF6 is a promising phosphor candidate for fabricating warm white LEDs. View Full-Text
Keywords: cationic iridium(III) complex; warm whitelight-emitting diode; photoluminescence; blue GaN chip; YAG:Ce cationic iridium(III) complex; warm whitelight-emitting diode; photoluminescence; blue GaN chip; YAG:Ce
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Supplementary material

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Tang, H.; Meng, G.; Chen, Z.; Wang, K.; Zhou, Q.; Wang, Z. Warm White Light-Emitting Diodes Based on a Novel Orange Cationic Iridium(III) Complex. Materials 2017, 10, 657.
