Next Article in Journal
Damage Evolution in Complex-Phase and Dual-Phase Steels during Edge Stretching
Next Article in Special Issue
Challenges in Additive Manufacturing of Space Parts: Powder Feedstock Cross-Contamination and Its Impact on End Products
Previous Article in Journal
LiV3O8/Polytriphenylamine Composites with Enhanced Electrochemical Performances as Cathode Materials for Rechargeable Lithium Batteries
Previous Article in Special Issue
Laser Engineered Net Shaping of Nickel-Based Superalloy Inconel 718 Powders onto AISI 4140 Alloy Steel Substrates: Interface Bond and Fracture Failure Mechanism
Article Menu
Issue 4 (April) cover image

Export Article

Open AccessFeature PaperArticle
Materials 2017, 10(4), 348;

An Assessment of Subsurface Residual Stress Analysis in SLM Ti-6Al-4V

Bundesanstalt für Materialforschung und-prüfung (BAM; Federal Institute for Materials Research and Testing), Unter den Eichen 87, 12205 Berlin, Germany
Institute of Materials Research, German Aerospace Center (DLR; Deutsches Zentrum für Luft-und Raumfahrt), Linder Höhe, 51147 Cologne, Germany
Helmholtz-Zentrum Berlin für Materialien und Energie GmbH, Hahn-Meitner Platz 1, 14109 Berlin, Germany
Institute of Physics and Astronomy, University of Potsdam, Karl-Liebknecht-Straße 24/25, 14476 Potsdam, Germany
Author to whom correspondence should be addressed.
Academic Editor: J. Paulo Davim
Received: 3 February 2017 / Revised: 17 March 2017 / Accepted: 22 March 2017 / Published: 27 March 2017
(This article belongs to the Special Issue Metals for Additive Manufacturing)
View Full-Text   |   Download PDF [5290 KB, uploaded 7 April 2017]   |

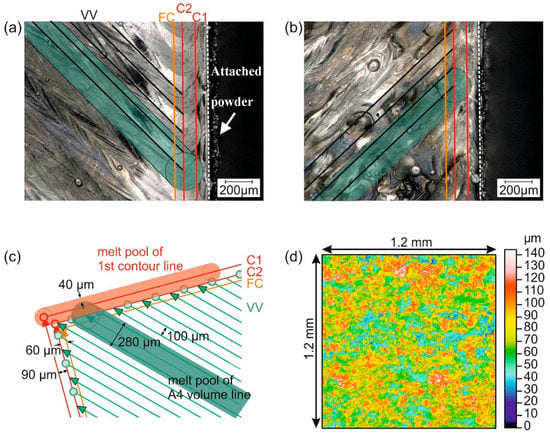

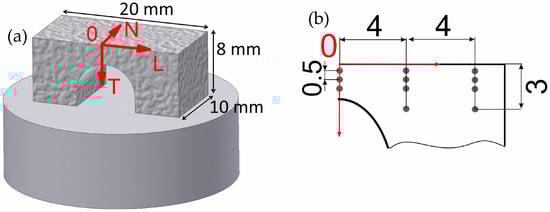

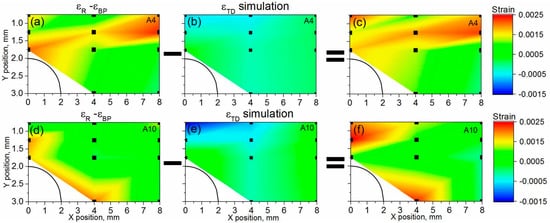

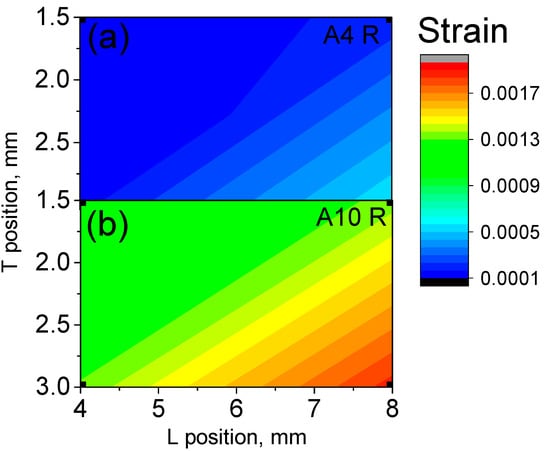

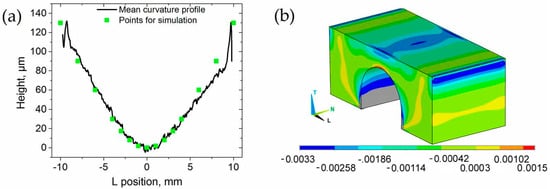

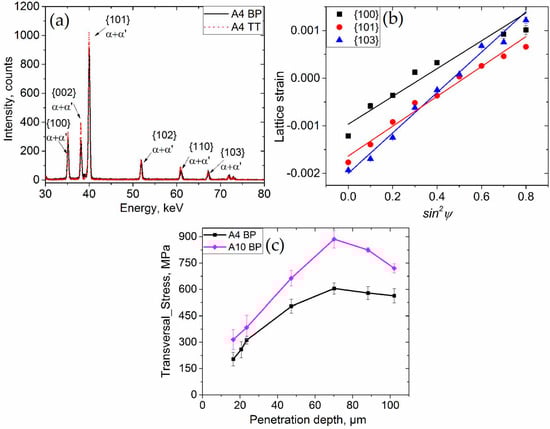

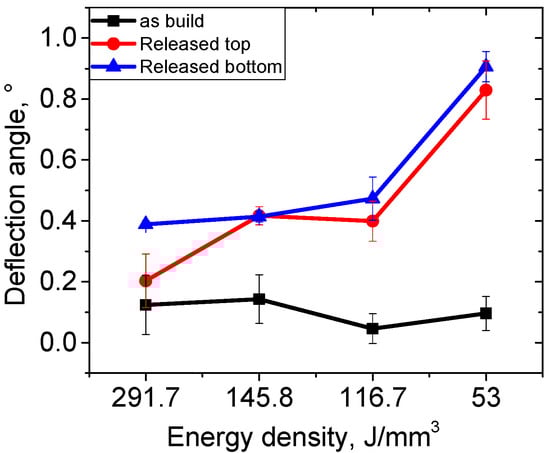

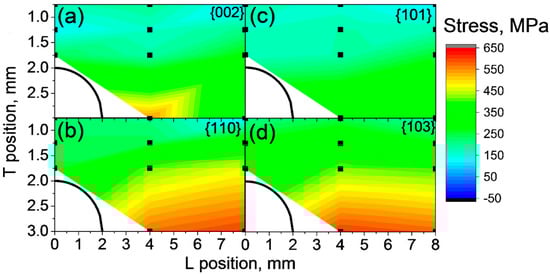

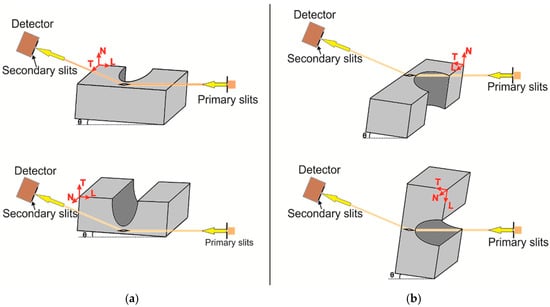

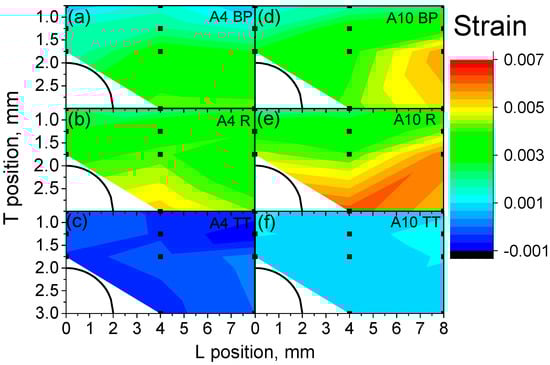

Ti-6Al-4V bridges were additively fabricated by selective laser melting (SLM) under different scanning speed conditions, to compare the effect of process energy density on the residual stress state. Subsurface lattice strain characterization was conducted by means of synchrotron diffraction in energy dispersive mode. High tensile strain gradients were found at the frontal surface for samples in an as-built condition. The geometry of the samples promotes increasing strains towards the pillar of the bridges. We observed that the higher the laser energy density during fabrication, the lower the lattice strains. A relief of lattice strains takes place after heat treatment. View Full-Text
Keywords: selective laser melting; additive manufacturing; heat treatment; Ti-6Al-4V; synchrotron X-ray diffraction; residual stress selective laser melting; additive manufacturing; heat treatment; Ti-6Al-4V; synchrotron X-ray diffraction; residual stress

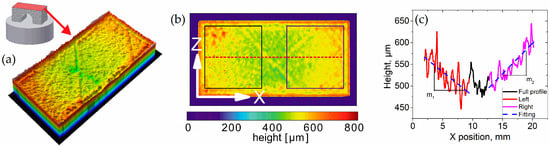

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Mishurova, T.; Cabeza, S.; Artzt, K.; Haubrich, J.; Klaus, M.; Genzel, C.; Requena, G.; Bruno, G. An Assessment of Subsurface Residual Stress Analysis in SLM Ti-6Al-4V. Materials 2017, 10, 348.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
