Review

Gold Nanoparticles in Photonic Crystals Applications: A Review

by
Iole Venditti
Department of Chemistry, Sapienza University of Rome, Piazzale Aldo Moro 5, 00187 Rome, Italy
Materials 2017, 10(2), 97; https://doi.org/10.3390/ma10020097
Submission received: 30 November 2016 / Revised: 11 January 2017 / Accepted: 12 January 2017 / Published: 24 January 2017
(This article belongs to the Special Issue Noble Metal Nanoparticles)
Browse Figures
Versions Notes

Abstract

:
This review concerns the recently emerged class of composite colloidal photonic crystals (PCs), in which gold nanoparticles (AuNPs) are included in the photonic structure. The use of composites allows achieving a strong modification of the optical properties of photonic crystals by involving the light scattering with electronic excitations of the gold component (surface plasmon resonance, SPR) realizing a combination of absorption bands with the diffraction resonances occurring in the body of the photonic crystals. Considering different preparations of composite plasmonic-photonic crystals, based on 3D-PCs in presence of AuNPs, different resonance phenomena determine the optical response of hybrid crystals leading to a broadly tunable functionality of these crystals. Several chemical methods for fabrication of opals and inverse opals are presented together with preparations of composites plasmonic-photonic crystals: the influence of SPR on the optical properties of PCs is also discussed. Main applications of this new class of composite materials are illustrated with the aim to offer the reader an overview of the recent advances in this field.

Graphical Abstract

1. Introduction

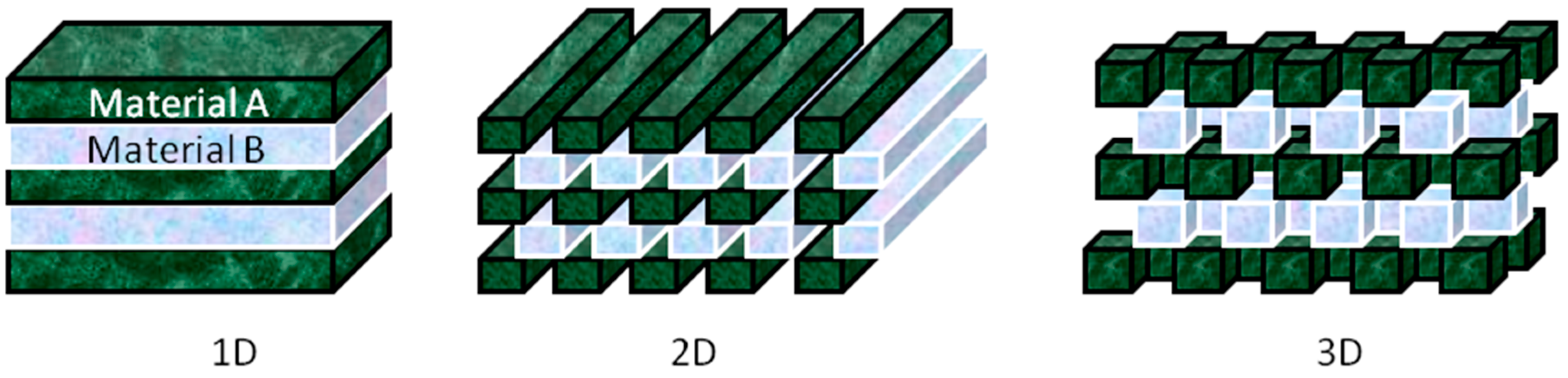

Photonic crystals (PCs) are a class of optical media represented by natural or artificial structures with periodic modulation of the refractive index. The period of refractive index repetition must be comparable to the wavelength of the light for intended application.
This characteristic of PCs guides to a range of frequency being allowed in transmission, while blocking others. This forbidden range of frequency forms the stop band. The material is a complete photonic band gap (CPBG) material, if the stop band is present in all directions, or else, it is a pseudo band gap material. The band gap properties are decided by parameters such as the refractive index contrast between the individual dielectric constituents, lattice parameters, and the crystal structure. The stop band positions depend largely on three factors: the refractive index contrast between the periodic components and the surrounding phase, the lattice constant and the filling [1]. Any one of these parameters in the photonic structures that is stimuli-responsive can be used for the creation of responsive PCs: PCs optical properties are related to the changeable photonic band gap characteristics through the application of chemical stimuli, temperature, mechanical forces, electrical/magnetic fields, or light. Much effort is devoted to study the PBG [2,3,4], for example, many works of Joannopoulos group are dedicated on problems related to a new kind of PCs, having structures with full three-dimensional band gaps [5,6]. Depending on geometry of the structure, PCs can be divided into three broad categories, namely one-dimensional (1D), two-dimensional (2D) and three-dimensional (3D) structures. Schematic examples are shown in Figure 1.
Historically, the preparation of PCs has been moved forward by following different phases. Firstly, bare opals, prepared starting from several polymeric and co-polymeric materials, are studied [7,8]; afterwards, opals infiltrated with different guest materials were also realized to modulate the optical properties of the composite PCs, both 2D and 3D [9,10,11,12,13,14,15]. These crystals can be characterized as weak PCs with directional band gaps, but they are always the test platform for the investigation of fundamental physical effects applicable to other types of PCs.
Then, new properties have been achieved by introducing the inverse opals with strong light-to-structure interaction including a chance of approaching the omni directionality of the band gap and the possibility to fill the holes with different materials [16,17,18].
Furthermore, different kinds of materials can be introduced into the opals and inverse opals, allowing modulation of composite optical properties. In particular, materials with complex dielectric constant, such as silver and gold, are interesting option as they support both localized and propagating surface plasmon modes. Metallo-dielectric PCs have been shown to possess CPBG in the visible wavelength range [19]. For example, monolayer of self-assembled spherical colloids coated by a thin silver or gold film can be used as support for localized surface plasmon resonance (LSPR) whose peak position can be tuned by varying the sphere diameter, the metal film thickness, or both [15,20,21,22]. Apart from metallic thin films, metal nanoparticles are also used to increase the light–matter interaction in the PCs. In particular, gold nanoparticles are used for enhanced light harvesting due to the intrinsic plasmonic resonances [23,24,25]. A frequent example of composites based on colloidal PCs and noble metal NPs is the immobilization synthesized AuNPs into PCs. Among others, easy dipping method to immobilize AuNPs on the surface of a prefabricated three-dimensional (3D) ordered SiO2 opal film is reported and allowed to observe both LSPR of the NPs and the stop band of the PC structures [26]. Comparing with opal structures, inverse opals with both resonance peaks and diffraction peaks are especially desirable because they combine the advantages of high surface area with the accessible diffusion pathways associated with periodic macroporous structures [27,28]. Nevertheless, such a kind of structure has rarely been reported due to the difficult to control the uniform distribution of noble metal NPs and the low robustness of metal-dielectric inverse opals [29].
Much effort has been made to overcome these problems, for example, AuNPs infiltrated polystyrene (PS) inverse opal are fabricated via a multistep approach, and both LSPR properties of AuNPs and photonic features of the PCs were demonstrated [30,31,32,33,34,35].
Regarding the preparation of AuNPs, different methods have been investigated to allow controlling size and monodispersity, using hydrophilic or bifunctional thiols, or avoiding the use of capping agent by means of sputtering deposition (e.g., [36,37,38,39,40]).
The composite PCs described in this review can also be considered as a new class of PCs, in which the light transport depends on synergy of different resonance phenomena. The strong alteration of optical properties of composite colloidal PCs was achieved by purposive engineering of their structure topology and composition [41].
Moreover, due to the increasing demand for miniaturized sensing platforms with fast response, composite PCs have become appealing optical materials for the control and manipulation of light [42,43]. In particular, photonic band gaps in the visible range can generate the visible diffraction colors and PCs with incomplete band gaps: these materials can be used as reflective coatings for optics, waveguides for directing the propagation of light, and many other optical components. Furthermore, PCs are widely applicable in different areas such as biological and chemical sensing, tunable color displays, and many optically active components [44,45,46,47,48,49,50,51,52,53,54,55,56,57].
The objectives of this review, schematically reported in Table 1, are: (i) summarize the materials and methods for the fabrication of photonic structured materials; (ii) discuss strategies for creating photonic materials with AuNPs; and (iii) give an overview of the various applications filed in which these innovate materials are evolved.

2. AuNPs with Opals

Opals are natural photonic crystals, as biological insects or birds with these structural colors (for example, peon’s feather, and Morpho Rethenor’s wing) reveal. An opal is a hexagonal or cubic close-packed hydrated form of silica. It is easy to reproduce opals with nanobeads of polystyrene, silica or even polymethylmethacrylate using self-assembly. Self-assembly can be used because of the energetically favored face-centered cubic (fcc) close-packing of spheres.
A great advantage of colloidal crystals is their inexpensive and convenient bottom-up preparation giving a good optical performance with iridescent reflection colors caused by Bragg diffraction of visible light [69,70] and by controlling the surface of the particles [71,72,73,74,75]. Silica and polymeric nanoparticles are widely used for this purpose, and in particular polymers and copolymers can be prefer due to both their versatile synthesis both for their modulable chemico-physical properties [76,77,78,79,80,81,82]. Effectively, during these years, much progress has been made in the synthesis and fabrication of polymeric PCs. First, the emulsion and miniemulsion synthesis allowed obtaining monodispersed polymeric particles starting from several monomers, in some cases also using the inverse emulsion synthesis technique [83,84]. The key factor in these results are the size and shape control of the polymeric particles, that permitted to use them for following self assembly procedures [85,86,87]. In fact, the fabrication of polymeric PCs can also be made using different technique, such as top-down lithography [88,89], or solvent-driven self-assembly [90,91].
A versatile method for the preparation of PCs is the vertical deposition [92,93,94]. This method is both very simple and convenient, and can be used to fabricate simple structures, such as PCs face-centered cubic (fcc) lattices, however, the resultant structures lack mechanical robustness [9,95]. In some cases, this problems can be overcome by photo cross-linking of the soft matrix after the film preparation [96], but also different approaches have been developed, in particular the combinations of melting and shear-ordering methods have been successfully applied to produce highly ordered opal films from monodispersed core–interlayer–shell polymer beads: the resultant structures are low-defect flexible polymer fcc opal films, with fundamental optical resonances tunable across the visible and near-infrared regions [97,98]. The color generation occurs through spectrally resonant scattering inside a three-dimensional (3D) fcc-lattice PCs [99,100].
A particular system is the binary colloidal crystals (BCCs) that can be fabricated by co-assembling large (L) and small (S) particles, with size ratio between 0.154 and 0.376, made of the same or different materials [101,102,103,104,105]. Moreover, it was demonstrated that two different structures can be self-assembled in one crystal structure from a binary colloidal dispersion [106,107]. These BCCs offer higher flexibility in engineering the photonic bandgap structures compared with one-size colloidal PCs, and these materials have found wide applications in sensing, protein patterning, and bioseparation [108,109].
In this context, composite materials containing metal nanoparticles (MNPs) are now considered as a basis for designing new photonic media for sensing, optoelectronics and nonlinear optics [62,110,111,112,113].
PCs covered with a thin film of metal has been shown to support localized surface plasmon resonance (LSPR) whose peak position could be tuned, by varying the colloidal diameter, or the metal film thickness, or both [20]. Directional emission is reported from a monolayer containing a gain medium grown on a thin gold film [13,15,114,115]. The synthesis of metal nanoparticles can be achieved by using different methods, from electrodeposition [116], to chemical wet reduction [117], with single or double phase [118,119,120], and suitably selecting the amount and type of ligands, in particular, thiols [121] or amines [122]. This allows you to control the size and functionality of AuNPs and improves the effective interaction with the photonic material [123]. A red shift in the stop band is observed after the infiltration of metal nanoparticles into the voids of self-assembled PCs [58]. Recently, the enhancement in emission from dye-doped PCs infiltrated with gold nanoparticles (GIPC) was reported by Rout et al. as result of resonant interaction between LSPR of AuNPs and the photonic stop band [59,60]. In Figure 2 the optical microscope images of (a) PCs and (b) GIPC, grown from polystyrene nanoparticles with average diameter of 277 nm and spectra of all features present in the sample are reported: the optical microscope (OM) images have a distinctive color difference in their appearance for PhC and GIPhC due to a red shift in the wavelength of the reflected light from the crystal surface for GIPhC. FESEM image, in Figure 2c, shows a hexagonal periodic ordering of the colloids in a plane parallel to the plane of the glass substrate on which they are grown and from the inset the cross-sectional image of the crystal, the hexagonal ordering is the (111) lattice plane of the fcc crystal. The FESEM image shown in Figure 2d gives an average value of 40 nm and a spread of 3 nm for the AuNPs diameter. In Figure 2e, all the relevant spectra on a normalized scale were reported, wherein the overlap of Rhodamine B emission spectrum and the PhC stop band ensures a modified light–matter interaction and further, the emission spectrum of the dye has a finite overlap with the LSPR band, as seen. The resonant interaction depends on the spectral overlap between photonic stop band and the LSPR band; on the other hand, an efficient modification of the spontaneous emission would find potential applications in several fields such as fluorescence-based sensors, light emitting diodes, and the solar photovoltaic systems [63].
It is important to verify the direct contribution of the LSPR in enhancing the emission from the dye and to elucidate its effect on the fluorescence lifetime of the dye in a metallo-dielectric PCs environment. By including the plasmonic contributions in the appropriate wavelength range, the energy transfer between the emission and LSPR can be modified, enabling a controlled light management inside the GIPC: the enhanced emission intensity in the dye-doped metallo-dielectric PCs is associated with a reduction in the excited state life time of the dye and the disappearance of the non-radiative component in fluorescence decay. This clearly emphasizes the resonant nature of the light–matter interaction due to the gold nanoparticles doped into the crystalline structures.
Among photonic materials, core–shell particles have attracted considerable attention in physics, chemistry, and medicine, due to their application potential in optoelectronics, catalysis, and drug delivery [64,124,125,126,127]. PS@SiO2 is a popular basic core shell system [128]: PS core have uniform spherical shape, a high monodispersity, a possible inner core shell structure as well and it can be easily removed by calcination, to obtain hollow particles or yolk–shell systems. In general, the Stober-like method is used to fabricate the SiO2 shell delivering a controllable homogeneous thickness, tunable porosity, and its negative surface charge prevent the aggregation of the colloidal particles [129]. However, commonly used PS particles are also negatively charged, and it is hard to get smooth and homogeneous coating of SiO2 [130]. Many different ways have been developed to modify the surface of PS particles, e.g., SiOH-functionalized surfaces [131], PVP stabilized surfaces [128], and polyelectrolyte deposited surfaces [130,131,132]. However, temperature and most chemical tunings lead to lattice constant changes, which can be acceptable for sensor applications, but not for application in many other photonic devices, because they induce defects up to lead to the destruction of the ordered structure. Different ways have been applied to graft AuNPs on or in SiO2 matrix particles [133,134,135,136]. One way is to infiltrate Au precursor into mesoporous SiO2 spheres, being the host for the formation of AuNPs inside the pores. Another way is the use thiol groups [134,136]. For example, a series of organically functionalized core–shell spheres were synthesized which fixed the AuNPs on the core surface by the binding between thiol and Au [134] but there are some problems: the low loading with AuNPs, especially for low-surface area materials [136]; and the migration of AuNPs leads to aggregation and to a loss of catalytic activity at elevated temperatures (about 200 °C) [134,137]. A method to synthesize monodisperse PS@v-SiO2 core–shell particles is based on the use of PS particles as template and vinlytrimethoxysilane (VTMS) as the precursor, as reported by Deng et al. [138]. In this work a one-step method to coat PS particles with organo-SiO2 is proposed, using a pre-hydrolysis of VTMS precursor in water and then directly coating vinyl-SiO2 on the PS surface at room temperature. The reduction of this two-step procedure to one-step makes it easier to generalize this approach to flexible organic ligands. For example, PS@v-SiO2 core–shell systems can be modified with bromine leading to efficiently tunable colloidal crystals with stable lattices. Furthermore, mercaptopropyl-SiO2 shells were impregnated with HAuCl4 forming a high loading of well distributed AuNPs inside the SiO2 shell, with loading ratio of about 20 wt. % and stable at 550 °C [61]. The strategy of direct organo-silica coating has the general advantage of an inherently homogeneous distribution of the functional groups, in comparison with post-synthesis grafting and it could be a key method for the construction of complex functional nanostructures.
The application for several AuNPs doped PCs are focused on the optical properties because, in these composite materials, the PC layer localizes, traps, and provides multiple paths for the plasmonic wavelength of the AuNPs, which magnifies light intensity at visible wavelength and thus enhances the SPR of the AuNPs. Furthermore, the catalytic properties of AuNPs can be employed for enhanced selectivity in sensing and photocatalytic applications and the biocompatibility of gold allows exploring a wide range of medical studies.

3. AuNPs with Inverse Opals

Starting from PCs, it is therefore easy to fill the voids between the beads with a metal oxide and to remove the sacrificial beads to obtain an inverse opal. Inverse opals are similar to a honeycomb: walls are regularly spaced between adjacent pockets of air or water and because air has a low refractive index of 1, and water of 1.4, it is necessary to use a metal oxide with a refractive index higher than 2 to obtain a complete PBG.
There are several processes to obtain inverse opals and typically there are two-step deposition followed by inversion: the first deposition step produces an artificial direct opal template by self-assembly of monodispersed particles of certain polymers or silica; the second step ceramic phase infiltrate the self-assembled structure; in the inversion of the direct structure the polymer calcination or silica template selective etching are performed.
Inverse opals made of SiO2, TiO2, and Al2O3 are the most popular realization of 3D PCs [139] because of the high refractive index of these materials and a wide variety of applicable colloidal crystal templating processes, such as sol-gel infiltration [140,141], atomic layer deposition [142,143], nanoparticle infiltration [18], and co-deposition [144]. Inverse opals from other important ceramic materials, especially from those having more complex composition (e.g., solid solutions of mixed oxides) [145] or from nonoxides (carbides and nitrides) [146], are less studied and often much more difficult to produce. Among the main process to obtain inverse opals, such as sol-gel infiltration, infiltration nanoparticle, co-deposition, and atomic layer deposition, the conventional infiltration techniques suffer the inevitable problem of volume change of the infiltrant before and after the inverse PCs creation. The negative effect is magnified particularly when high temperatures are necessary, under which crystallization, phase transformation(s), and densification of ceramics can occur: these processes induce formation and broadening of cracks as well as coarsening of the pore structure. Dispersions of nanoparticles instead of conventional sol-gel precursors can be used minimizing these harmful effects of chemical transformation of the infiltrant. Deposition of the sacrificial template and liquid-phase infiltration can be combined in a single process, co-assembly, where polymeric microspheres and ceramic precursors or nanoparticles are simultaneously deposited from mixed dispersions [147], thus reducing the number of required processing steps and processing time. Atomic layer deposition (ALD) is an exceptional tool for the growth of thin films with excellent conformity and thickness control down to atomic levels. For these features, this technique is used to create inverse opals, allowing the formation of film with porosity control. This method and similar are effectively used with inverse opals based on SiO2 or TiO2 [148,149,150,151,152]. The maximum filling factor with this technique is 80%–86%, very close to the optimum 90% of pore volume and infiltration control <1 nm, allowing a fine tuning of PCs.
The incorporation of metal nanoparticles into inverse opals has recently attracted particular attention in the literature [34,103,153]. The high surface area and photonic properties of inverse opals coupled with the typical properties of metal nanoparticles greatly expand the possible applications of these materials as catalysts [35,154,155], sensors [30,34,156], photonic structures [66,157] and in surface-enhanced Raman spectroscopy (SERS) [65,158].
Among others, AuNPs are widely studied. The presence of the selectively absorbing AuNPs further enhances the hue and saturation of the inverse opals’ color by enhancing resonant scattering while suppressing incoherent diffuse scattering. In particular, for thin inverse opal films on reflecting surfaces, where thin film interference often results in non-negligible reflected intensity in the blue or green spectral range, this allows creating strong red hues, which are difficult to achieve without the AuNPs absorption. Moreover, using selective functionalization of doped opals, local changes in the composition and optical properties of these films can be induced. Two main approaches can be used to obtain inverse opals embedded with AuNPs, such as co-assembly or infiltration, as reported in several works [66].

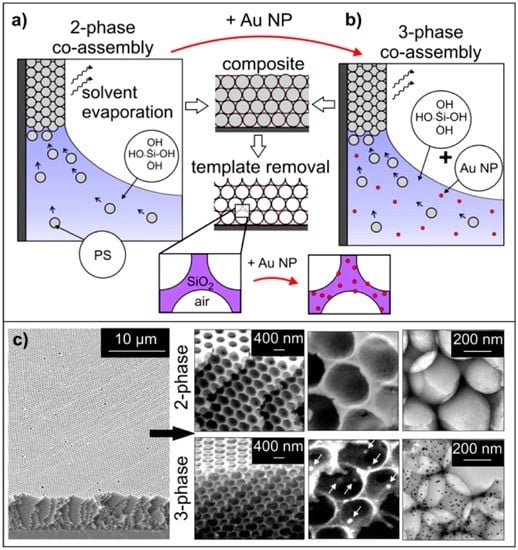

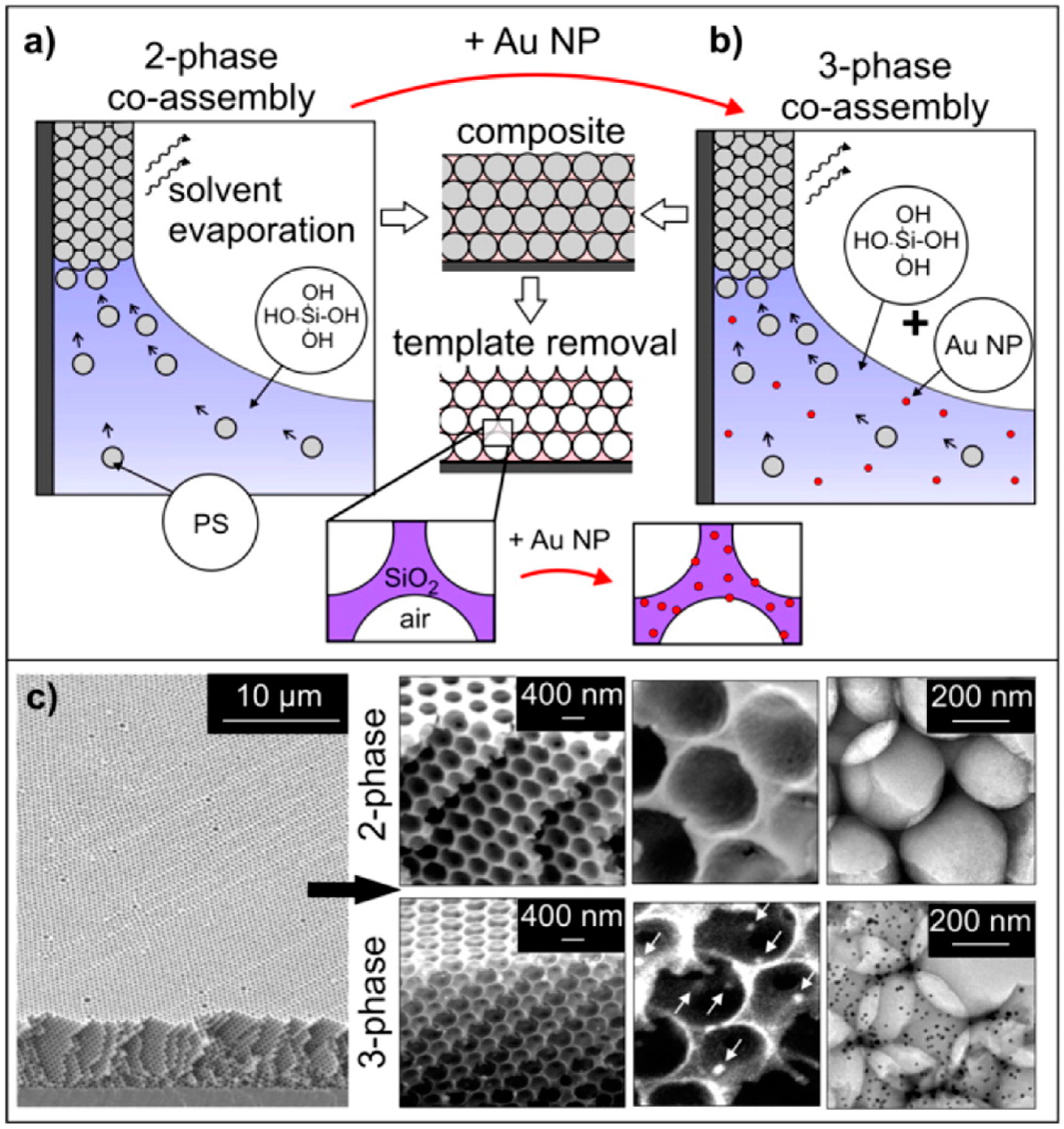

Vasquez et al. developed a three-phase co-assembly method to produce inverse opal films with incorporated gold (Au) nanoparticles [17]. This three-phase co-assembly platform provides a versatile, one-pot approach to create highly ordered functional inverse opal films with embedded, uniformly distributed, accessible gold nanoparticles, as reported in Figure 3.
The high surface area, interconnected porosity, superior compositional and structural uniformity, and accessibility of both pores and embedded nanoparticles of these films make them a viable bottom-up materials candidate for various applications including optics and sensing. Such level of control over materials properties is not achievable by typical inverse opal synthesis methods. This bottom-up technique is also substantially less demanding than top-down fabrication techniques, in terms of both the equipment required and the time needed. The coupled optical properties of the highly uniform Au-doped inverse opal films, resulting from superposition of the angle-dependent Bragg peak of inverse opals and the angle-independent absorption peak of gold nanoparticles, are easily tunable, either by changing the concentration of added nanoparticles to the solution before assembly or by selectively growing the embedded nanoparticles after colloidal template removal (see Figure 4).

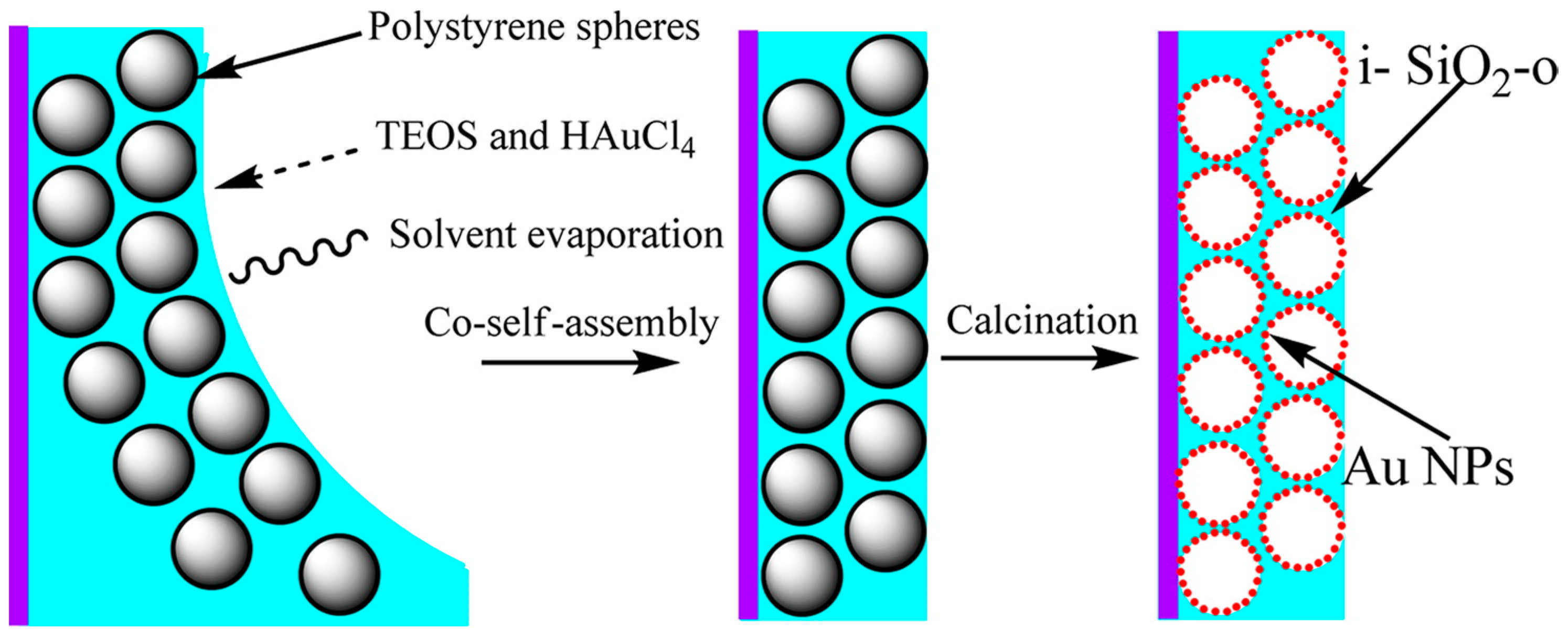

Recently, Cai et al. report the fabrication of inverse SiO2 opals “doped” with gold (i-Au-SiO2-o) nanoparticles (NPs) via a co-self-assembly method combined with subsequent removal of polystyrene colloidal spheres by calcinations [34]. They have developed a facile method to fabricate high-quality i-Au-SiO2-o films free of cracks over a large area (>100 × 100 μm2). The in situ “doping” of AuNPs with tunable sizes and the formation of a three-dimensional ordered macroporous structure occur in the same step, as reported in Figure 5.
The AuNPs are uniformly distributed on the wall of i-SiO2-o films. By controlling the sintering temperature, the size of the AuNPs can be effectively tuned from 6 to 30 nm. The i-Au-SiO2-o films show both LSPR of individual AuNPs and PBG of i-SiO2-o films, which serve as two indicators for sensing of change in RI of the surrounding medium, such as water (n = 1.333), ethanol (n = 1.360), 2-propanol (n = 1.377), and n-butyl alcohol (n = 1.399) (see Figure 6).
Different approach is reported by Zhang et al. using a magnetron sputtering deposition as last step to obtain hexagonal periodic spherical nanoparticles array [159]. In this case, regular network-structured arrays are first templated by colloidal monolayers and then they are changed to novel periodic spherical nanoparticle arrays by further sputtering deposition due to multiple direction deposition and shadow effect between adjacent nanoparticles: nanogaps between two adjacent spherical nanoparticles can be well tuned by controlling deposition time. Moreover, the periodic nanoparticle arrays with gold coatings show sensitive surface-enhanced Raman scattering spectroscopy (SERS) performance.
Besides Au-loaded SiO2 and polystyrene inverse opal structures, other useful structures have been explored in the last years. Among others, Au-loaded in TiO2 or ZnO inverse opals structures result interesting for the use in photocatalytic applications [35,67,68,160]. In particular TiO2 has advantageous photocatalytic properties: it has a band gap wide enough to be able to reduce or oxidize numerous species, and it is heterogeneous as it exchanges electrons and holes with chemisorb species at its surface in a different aggregation state, and it is photocatalyst because it absorbs photons to gain the necessary energy to help chemical bond breaking. These titania composite PCs can enhance the performance of the photocatalysts at wavelength ranges where their absorption is poor: the key of the strategy is the “slow photon effect”, occurring at the edges of a forbidden band for photons. Zhang et al. [67] prepared a visible light responsive plasmonic photocatalytic composite material, designed by rationally selecting Au nanocrystals and assembling them with the TiO2-based photonic crystal substrate: the selection of AuNPs size is so that the SPR matches the photonic band gap of the photonic crystal and thus that the SPR of the AuNPs collects assistance from the photonic crystal substrate. Regarding application, these latter composite materials may open exciting ways in fields related to light absorption, such as solar cells, and optical and electro-optical devices.

4. Conclusions

Composite colloidal PCs represent an innovative platform that may lead to the realization of different optical functions. Better opportunities for the application of these crystals are based on tuning of particular resonances and on the largely extended control on their functionalities. In fact, exploiting the synergy between the PGB of PCs and SPR of AuNPs, it is possible to obtain innovative performance, which make the composite structures promising for catalysis, optoelectronics, sensing and photovoltaic applications. The practical realization of hybrid arrays with specific optical resonances, however, remains challenging since it requires a high level of control for simultaneously positioning both metallic and dielectric NPs. For this reason, this review is focused on the recent studies on functionalized AuNPs in composite colloidal PCs, considered extraordinary systems for their photonic-plasmonic properties, useful in several relevant application fields.

Acknowledgments

This work was funded by Ateneo Sapienza with grants 2015/C26A15H5J9 and 2015/C26A15LRMA.

Conflicts of Interest

The author declares no conflict of interest.

References

  1. Aguirre, C.I.; Reguera, E.; Stein, A. Tuneable colors in opals and inverse opal photonic crystals. Adv. Funct. Mater. 2010, 20, 2565–2578. [Google Scholar] [CrossRef]
  2. Fu, J.; Tandaechanurat, A.; Iwamoto, S.; Arakawa, Y. Design of large-bandwidth single-mode operation waveguides in silicon three-dimensional photonic crystals using two guided modes. Opt. Express 2013, 21, 12443–12450. [Google Scholar] [CrossRef] [PubMed]
  3. Wahle, M.; Ebel, J.; Wilkes, D.; Kitzerow, H.-S. Asymmetric band gap shift in electrically addressed blue phase photonic crystal fibers. Opt. Express 2016, 24, 22718–22729. [Google Scholar] [CrossRef] [PubMed]
  4. Schutzmann, S.; Venditti, I.; Prosposito, P.; Casalboni, M.; Russo, M.V. High-energy angle resolved reflection spectroscopy on three-dimensional photonic crystals of self-organized polymeric nanospheres. Opt. Express 2008, 16, 897–907. [Google Scholar] [CrossRef] [PubMed]
  5. Miller, O.D.; Polimeridis, A.G.; Homer Reid, M.T.; Hsu, C.W.; DeLacy, B.G.; Joannopoulos, J.D.; Soljacic, M.; Johnson, S.G. Fundamental limits to optical response in absorptive systems. Opt. Express 2016, 24, 3329–3364. [Google Scholar] [CrossRef] [PubMed]
  6. Lidorikis, E.; Egusa, S.; Joannopoulos, J.D. Effective medium properties and photonic crystal superstructures of metallic nanoparticle arrays. J. Appl. Phys. 2007, 101, 054304. [Google Scholar] [CrossRef]
  7. Müller, M.; Zentel, R.; Maka, T.; Romanov, S.G.; Torres, C.M.S. Dye-Containing Polymer Beads as Photonic Crystals. Chem. Mater. 2000, 12, 2508–2512. [Google Scholar] [CrossRef]
  8. Imai, Y.; Finlayson, C.E.; Goldberg-Oppenheimer, P.; Zhao, Q.; Spahn, P.; Snoswell, D.R.E.; Haines, A.I.; Hellmannb, G.P.; Baumberg, J.J. Electrically conductive polymeric photonic crystals. Soft Matter 2012, 8, 6280–6290. [Google Scholar] [CrossRef]
  9. Galisteo-López, J.F.; Ibisate, M.; Sapienza, R.; Froufe-Pérez, L.S.; Blanco, Á.; López, C. Self-Assembled Photonic Structures. Adv. Mater. 2011, 23, 30–69. [Google Scholar] [CrossRef] [PubMed]
  10. Bardosova, M.; Pemble, M.E.; Povey, I.M.; Tredgold, R.H. The Langmuir-Blodgett Approach to Making Colloidal Photonic Crystals from Silica Spheres. Adv. Mater. 2010, 22, 3104–3124. [Google Scholar] [CrossRef] [PubMed]
  11. Shi, L.; Liu, X.; Yina, H.; Zi, J. Optical response of a flat metallic surface coated with a monolayer array of latex spheres. Phys. Lett. A 2010, 374, 1059–1062. [Google Scholar] [CrossRef]
  12. Yu, X.; Shi, L.; Han, D.; Zi, J.; Braun, P.V. High Quality Factor Metallodielectric Hybrid Plasmonic-Photonic Crystals. Adv. Funct. Mater. 2010, 20, 1910–1916. [Google Scholar] [CrossRef]
  13. López-García, M.; Galisteo-López, J.F.; Blanco, A.; Sanchez-Márcos, J.; Lopez, C.; García-Martín, A. Enhancement and directionality of spontaneous emission in hybrid self-assembled photonic-plasmonic crystals. Small 2010, 6, 1757–1761. [Google Scholar] [CrossRef] [PubMed]
  14. Wang, W.; Asher, S.A. Photochemical Incorporation of Silver Quantum Dots in Monodisperse Silica Colloids for Photonic Crystal Applications. J. Am. Chem. Soc. 2001, 123, 12528–12535. [Google Scholar] [CrossRef] [PubMed]
  15. Cai, Z.; Liu, Y.J.; Leong, E.S.P.; Teng, J.; Lu, X. Highly ordered and gap controllable two-dimensional non-close-packed colloidal crystals and plasmonic-photonic crystals with enhanced optical transmission. J. Mater. Chem. 2012, 22, 24668–24675. [Google Scholar] [CrossRef]
  16. Ding, B.; Bardosova, M.; Pemble, M.E.; Korovin, A.V.; Peschel, U.; Romanov, S.G. Broadband omnidirectional diversion of light in hybrid plasmonic-photonic heterocrystals. Adv. Funct. Mater. 2011, 21, 4182–4192. [Google Scholar] [CrossRef]
  17. Vasquez, Y.; Kolle, M.; Mishchenko, L.; Hatton, B.D.; Aizenberg, J. Three-Phase Co-assembly: In Situ Incorporation of Nanoparticles into Tuneable, Highly Ordered, Porous Silica Films. ACS Photonics 2014, 1, 53–60. [Google Scholar] [CrossRef]
  18. Kim, S.; Mitropoulos, A.N.; Spitzberg, J.D.; Tao, H.; Kaplan, D.L.; Omenetto, V. Silk inverse opals. Nat. Photonics 2012, 6, 818–823. [Google Scholar] [CrossRef]
  19. Moroz, A. Three-dimensional complete photonic-band-gap structures in the visible. Phys. Rev. Lett. 1999, 83, 5274–5277. [Google Scholar] [CrossRef]
  20. Cushing, S.K.; Hornak, L.A.; Lankford, J.; Liu, Y.; Wu, N. Origin of localized surface plasmon resonances in thin silver film over nanosphere patterns. Appl. Phys. A 2011, 103, 955–958. [Google Scholar] [CrossRef]
  21. Porcaro, F.; Carlini, L.; Ugolini, A.; Visaggio, D.; Luisetto, I.; Visca, P.; Fratoddi, I.; Venditti, I.; Simonelli, L.; Marini, C.; et al. Synthesis and Structural Characterization of Silver Nanoparticles Stabilized with 3-Mercapto-1-Propansulfonate and 1-Thioglucose Mixed Thiols for Antibacterial Applications. Materials 2016, 9, 1028. [Google Scholar] [CrossRef]
  22. Prosposito, P.; Mochi, F.; Ciotta, E.; Casalboni, M.; Venditti, I.; Fontana, L.; Testa, G.; Fratoddi, I. Hydrophilic silver nanoparticles with tuneable optical properties: Application for the detection of heavy metals in water. Beilstein J. Nanotechnol. 2016, 7, 1654–1661. [Google Scholar] [CrossRef]
  23. Xu, M.-F.; Zhu, X.-Z.; Shi, X.-B.; Liang, J.; Jin, Y.; Wang, Z.-K.; Liao, L.-S. Plasmon resonance enhanced optical absorption in inverted polymer/fullerene solar cells with metal nanoparticle-doped solutionprocessable TiO2 layer. ACS Appl. Mater. Interfaces 2014, 5, 2935–2942. [Google Scholar] [CrossRef] [PubMed]
  24. Ding, T.; Song, K.; Clays, K.; Tung, C.-H. Fabrication of 3D Photonic Crystals of Ellipsoids: Convective Self-Assembly in Magnetic Field. Adv. Mater. 2009, 21, 1936–1940. [Google Scholar] [CrossRef]
  25. Cai, Z.; Leong, E.S.P.; Wang, Z.; Niu, W.; Zhang, W.; Ravaine, S.; Yakovlev, N.L.; Liu, Y.J.; Teng, J.; Lu, X. Sandwich-structured Fe2O3@SiO2@Au nanoparticles with magnetoplasmonic responses. J. Mater. Chem. C 2015, 3, 11645–11652. [Google Scholar] [CrossRef]
  26. Gu, Z.-Z.; Horie, R.; Kubo, S.; Yamada, Y.; Fujishima, A.; Sato, O. Fabrication of a Metal-Coated Three-Dimensionally Ordered Macroporous Film and its Application as a Refractive Index Sensor. Angew. Chem. Int. Ed. 2002, 41, 1153–1156. [Google Scholar] [CrossRef]
  27. Wang, D.; Salgueirino-Maceira, V.; Liz-Marzan, L.M.; Caruso, F. Gold-Silica Inverse Opals by Colloidal Crystal Templating. Adv. Mater. 2002, 14, 908–912. [Google Scholar] [CrossRef]
  28. Kuncicky, D.M.; Prevo, B.G.; Velev, O.D. Controlled Assembly of SERS Substrates Templated by Colloidal Crystal Films. J. Mater. Chem. 2006, 16, 1207–1211. [Google Scholar] [CrossRef]
  29. Jones, M.R.; Osberg, K.D.; Macfarlane, R.J.; Langille, M.R.; Mirkin, C.A. Templated Techniques for the Synthesis and Assembly of Plasmonic Nanostructures. Chem. Rev. 2011, 111, 3736–3827. [Google Scholar] [CrossRef] [PubMed]
  30. Tan, Y.; Qian, W.; Ding, S.; Wang, Y. Gold-Nanoparticle Infiltrated Polystyrene Inverse Opals: A Three-Dimensional Platform for Generating Combined Optical Properties. Chem. Mater. 2006, 18, 3385–3389. [Google Scholar] [CrossRef]
  31. Ding, S.; Qian, W.; Tan, Y.; Wang, Y. In-Situ Incorporation of Gold Nanoparticles of Desired Sizes into Three-Dimensional Macroporous Matrixes. Langmuir 2006, 22, 7105–7108. [Google Scholar] [CrossRef] [PubMed]
  32. Khokhar, A.Z.; Rahman, F.; Johnson, N.P. Preparation and properties of gold-infiltrated polystyrene photonic crystals. J. Phys. Chem. Solids 2011, 72, 185–189. [Google Scholar] [CrossRef]
  33. Wang, D.; Li, J.; Chan, C.T.; Salgueirino-Maceira, V.; LizMarzan, L.M.; Romanov, S.; Caruso, F. Optical Properties of Nanoparticle-Based Metallodielectric Inverse Opals. Small 2005, 1, 122–130. [Google Scholar] [CrossRef] [PubMed]
  34. Cai, Z.; Jun Liu, Y.; Lu, X.; Teng, J. In Situ “Doping” Inverse Silica Opals with Size-Controllable Gold Nanoparticles for Refractive Index Sensing. J. Phys. Chem. C 2013, 117, 9440–9445. [Google Scholar] [CrossRef]
  35. Cai, Z.; Xiong, Z.; Lu, X.; Teng, J. In situ gold-loaded titania photonic crystals with enhanced photocatalytic activity. J. Mater. Chem. A 2014, 2, 545–553. [Google Scholar] [CrossRef]
  36. Parkhomenko, R.G.; Plekhanov, A.I.; Kuchyanov, A.S.; Trubin, S.V.; Kuchumov, B.M.; Igumenov, I.K. Gold nanostructure formation in the photonic crystal matrix by means of MOCVD technique. Surf. Coat. Technol. 2013, 230, 279–283. [Google Scholar] [CrossRef]
  37. Yeh, Y.-C.; Creran, B.; Rotello, V.M. Gold nanoparticles: Preparation, properties, and applications in bionanotechnology. Nanoscale 2012, 4, 1871–1880. [Google Scholar] [CrossRef] [PubMed]
  38. Venditti, I.; Chronopoulou, L.; Fratoddi, I.; Palocci, C.; Diociaiuti, M.; Russo, M.V. Candida rugosa lipase immobilization on hydrophilic charged gold nanoparticles as promising biocatalysts: Activity and stability investigations. Colloid Surf. B Biointerfaces 2015, 131, 93–101. [Google Scholar] [CrossRef] [PubMed]
  39. Rossi, S.; Donadio, S.; Fontana, L.; Porcaro, F.; Battocchio, C.; Venditti, I.; Bracci, L.; Fratoddi, I. Negatively charged gold nanoparticles as dexamethasone carrier: Stability and citotoxic activity. RCS Adv. 2016, 6, 99016–99022. [Google Scholar]
  40. Castro, H.P.S.; Wender, H.; Alencar, M.A.R.C.; Teixeira, S.R.; Dupont, J.; Hickmann, J.M. Third-order nonlinear optical response of colloidal gold nanoparticles prepared by sputtering deposition. J. Appl. Phys. 2013, 114, 183104. [Google Scholar] [CrossRef]
  41. López-García, M.; Galisteo-López, J.F.; Blanco, Á.; López, C.; García-Martín, A. High Degree of Optical Tunability of Self-Assembled Photonic-Plasmonic Crystals by Filling Fraction Modification. Adv. Funct. Mater. 2011, 20, 4338–4343. [Google Scholar] [CrossRef]
  42. Ahn, W.; Boriskina, S.V.; Hong, Y.; Reinhard, B.M. Photonic-Plasmonic Mode Coupling in On-Chip Integrated Optoplasmonic Molecules. ACS Nano 2012, 6, 951–960. [Google Scholar] [CrossRef] [PubMed]
  43. Hong, Y.; Pourmand, M.; Boriskina, S.V.; Reinhard, B.M. Enhanced Light Focusing in Self-Assembled Optoplasmonic Clusters with Subwavelength Dimensions. Adv. Mater. 2012, 25, 115–119. [Google Scholar] [CrossRef] [PubMed]
  44. Yang, Q.; Zhu, S.; Peng, W.; Yin, C.; Wang, W.; Gu, J.; Zhang, W.; Ma, J.; Deng, T.; Feng, C. Bioinspired fabrication of hierarchically structured, pH-tuneable photonic crystals with unique transition. ACS Nano 2013, 7, 4911–4918. [Google Scholar] [CrossRef] [PubMed]
  45. Venditti, I.; Fratoddi, I.; Bearzotti, A. Self-assembled copolymeric nanoparticles as chemical interactive materials for humidity sensors. Nanotechnology 2010, 21, 355502. [Google Scholar] [CrossRef] [PubMed]
  46. Pantalei, S.; Zampetti, E.; Macagnano, A.; Bearzotti, A.; Venditti, I.; Russo, M.V. Enhanced sensory properties of a multichannel quartz crystal microbalance coated with polymeric nanobeads. Sensors 2007, 7, 2920–2928. [Google Scholar] [CrossRef]
  47. Bearzotti, A.; Macagnano, A.; Pantalei, S.; Zampetti, E.; Venditti, I.; Fratoddi, I.; Russo, M.V. Alcohol vapors sensory properties of nanostructured conjugated polymer. J. Phys. Condens. Matter 2008, 20, 474207. [Google Scholar] [CrossRef]
  48. Holtz, J.H.; Asher, S.A. Polymerized colloidal crystal hydrogel films as intelligent chemical sensing materials. Nature 1997, 389, 829–832. [Google Scholar] [CrossRef]
  49. Asher, S.A.; Alexeev, V.L.; Goponenko, A.V.; Sharma, A.C.; Lednev, I.K.; Wilcox, C.S.; Finegold, D.N. Photonic Crystal Carbohydrate Sensors: Low Ionic Strength Sugar Sensing. J. Am. Chem. Soc. 2003, 125, 3322–3329. [Google Scholar] [CrossRef] [PubMed]
  50. Cai, Z.; Zhang, J.-T.; Xue, F.; Hong, Z.; Punihaole, D.; Asher, S.A. 2D Photonic Crystal Protein Hydrogel Coulometer for Sensing Serum Albumin Ligand Binding. Anal. Chem. 2014, 86, 4840–4847. [Google Scholar] [CrossRef] [PubMed]
  51. Venditti, I.; Fratoddi, I.; Russo, M.V.; Bellucci, S.; Crescenzo, R.; Iozzino, L.; Staiano, M.; Aurilia, V.; Varriale, A.; Rossi, M.; et al. Nanobeads-based Assays. The case of gluten detection. J. Phys. Condens. Matter 2008, 20, 474202. [Google Scholar] [CrossRef]
  52. Cai, Z.; Kwak, D.H.; Punihaole, D.; Hong, Z.; Velankar, S.S.; Liu, X.; Asher, S.A. A Photonic Crystal Protein Hydrogel Sensor for Candida albicans. Angew. Chem. Int. Ed. 2015, 54, 13036–13040. [Google Scholar] [CrossRef] [PubMed]
  53. Cai, Z.; Smith, N.L.; Zhang, J.-T.; Asher, S.A. Two-Dimensional Photonic Crystal Chemical and Biomolecular Sensors. Anal. Chem. 2015, 87, 5013–5025. [Google Scholar] [CrossRef] [PubMed]
  54. Fratoddi, I.; Bearzotti, A.; Venditti, I.; Cametti, C.; Russo, M.V. Role of nanostructured polymers on the improvement of electrical response-based relative humidity sensors. Sens. Actuators B 2016, 225, 96–108. [Google Scholar] [CrossRef]
  55. Cai, Z.; Luck, L.A.; Punihaole, D.; Madura, J.D.; Asher, S.A. Photonic crystal protein hydrogel sensor materials enabled by conformationally induced volume phase transition. Chem. Sci. 2016, 7, 4557–4562. [Google Scholar] [CrossRef]
  56. Arsenault, A.C.; Puzzo, D.P.; Manners, I.; Ozin, G.A. Photonic-crystal full-colour displays. Nat. Photonics 2007, 1, 468–472. [Google Scholar] [CrossRef]
  57. Liu, L.; Karuturi, S.K.; Su, L.T.; Wang, Q.; Tok, A.I.Y. Electrochromic photonic crystal displays with versatile color tenability. Electrochem. Commun. 2011, 13, 1163–1165. [Google Scholar] [CrossRef]
  58. Morandi, V.; Marabelli, F.; Amendola, V.; Meneghetti, M.; Comoretto, D. Light localization effect on the optical properties of opals doped with gold nanoparticles. J. Phys. Chem. C 2008, 112, 6293–6298. [Google Scholar] [CrossRef]
  59. Rout, D.; Vijaya, R. Plasmonic resonance-induced effects on stopband and emission characteristics of dye-doped opals. Plasmonics 2015, 10, 713–719. [Google Scholar] [CrossRef]
  60. Rout, D.; Vijaya, R. Localized surface plasmon-influenced fluorescence decay in dye-doped metallo-dielectric opals. J. Appl. Phys. 2016, 119, 023108. [Google Scholar] [CrossRef]
  61. Deng, T.-S.; Bongard, H.-J.; Marlow, F. A one-step method to coat polystyrene particles with an organo-silica shell and their functionalization. Mater. Chem. Phys. 2015, 162, 548–554. [Google Scholar] [CrossRef]
  62. Fratoddi, I.; Venditti, I.; Cametti, C.; Russo, M.V. Chemiresistive Polyaniline-Based Gas Sensors. A Mini Review. Sens. Actuators B 2015, 220, 534–548. [Google Scholar] [CrossRef]
  63. Pelton, M. Modified spontaneous emission in nanophotonic structures. Nat. Photonics 2015, 9, 427–435. [Google Scholar] [CrossRef]
  64. Vivero-Escoto, J.L.; Huxford-Phillips, R.C.; Lin, W. Silica-based nanoprobes for biomedical imaging and theranostic applications. Chem. Soc. Rev. 2012, 41, 2673–2685. [Google Scholar] [CrossRef] [PubMed]
  65. Ankudze, B.; Philip, A.; Pakkanen, T.T.; Matikainen, A.; Vahimaa, P. Highly active surface-enhanced Raman scattering (SERS) substrates based on gold nanoparticles infiltrated into SiO2 inverse opals. Appl. Surf. Sci. 2016, 387, 595–602. [Google Scholar] [CrossRef]
  66. Erola, M.O.A.; Philip, A.; Ahmed, T.; Suvanto, S.; Pakkanen, T.T. Fabrication of Au- and Ag-SiO2 inverse opals having both localized surface plasmon resonance and Bragg diffraction. J. Solid State Chem. 2015, 230, 209–217. [Google Scholar] [CrossRef]
  67. Zhang, Z.; Zhang, L.; Hedhili, M.N.; Zhang, H.; Wang, P. Plasmonic Gold Nanocrystals Coupled with Photonic Crystal Seamlessly on TiO2 Nanotube Photoelectrodes for Efficient Visible Light Photoelectrochemical Water Splitting. Nano Lett. 2013, 13, 14–20. [Google Scholar] [CrossRef] [PubMed]
  68. Wei, Y.; Jiao, J.; Zhao, Z.; Liu, J.; Li, J.; Jiang, G.; Wang, Y.; Duan, A. Fabrication of inverse opal TiO2-supported Au@CdS core–shell nanoparticles for efficient photocatalytic CO2 conversion. Appl. Catal. B 2015, 179, 422–432. [Google Scholar] [CrossRef]
  69. Zhao, Q.; Haines, A.; Snoswell, D.; Keplinger, C.; Kaltseis, R.; Bauer, S.; Graz, I.; Denk, R.; Spahn, P.; Hellmann, G.; et al. Electric-field-tuned color in photonic crystal elastomers. J. Appl. Phys. Lett. 2012, 100, 101902. [Google Scholar] [CrossRef]
  70. Zhang, J.; Li, Y.; Zhang, X.; Yang, B. Colloidal Self-Assembly Meets Nanofabrication: From Two-Dimensional Colloidal Crystals to Nanostructure Arrays. Adv. Mater. 2010, 22, 4249–4269. [Google Scholar] [CrossRef] [PubMed]
  71. Mazurowski, M.; Gallei, M.; Li, J.; Didzoleit, H.; Stuhn, B.; Rehahn, M. Redox-Responsive Polymer Brushes Grafted from Polystyrene Nanoparticles by Means of Surface Initiated Atom Transfer Radical Polymerization. Macromolecules 2012, 45, 8970–8981. [Google Scholar] [CrossRef]
  72. Venditti, I.; D’Amato, R.; Russo, M.V.; Falconieri, M. Synthesis of conjugated polymeric nanobeads for photonic bandgap materials. Sens. Actuetors B 2007, 126, 35–40. [Google Scholar] [CrossRef]
  73. Von Freymann, G.; Kitaev, V.; Lotsch, B.V.; Ozin, G.A. Bottom-up assembly of photonic crystals. Chem. Soc. Rev. 2013, 42, 2528–2554. [Google Scholar] [CrossRef] [PubMed]
  74. Venditti, I.; Fratoddi, I.; Palazzesi, C.; Prosposito, P.; Casalboni, M.; Cametti, C.; Battocchio, C.; Polzonetti, G.; Russo, M.V. Self-assembled nanoparticles of functional copolymers for photonic applications. J. Colloid Interface Sci. 2010, 348, 424–430. [Google Scholar] [CrossRef] [PubMed]
  75. Chen, T.; Ferris, R.; Zhang, J.; Ducker, R.; Zauscher, S. Stimulus-responsive polymer brushes on surfaces: Transduction mechanisms and applications. Prog. Polym. Sci. 2010, 35, 94–112. [Google Scholar] [CrossRef]
  76. Samant, S.; Hailu, S.T.; Al-Enizi, A.M.; Karim, A.; Raghavan, D. Orientation Control in Nanoparticle Filled Block Copolymer Cold Zone Annealed Films. J. Polym. Sci. B 2015, 53, 604–614. [Google Scholar] [CrossRef]
  77. Vitale, F.; Mirenghi, L.; Piscopiello, E.; Pellegrini, G.; Trave, E.; Mattei, G.; Fratoddi, I.; Russo, M.V.; Tapfer, L.; Mazzoldi, P. Gold nanoclusters-organometallic polymer nanocomposites: Synthesis and characterization. Mater. Sci. Eng. C 2007, 27, 1300–1304. [Google Scholar] [CrossRef]
  78. Fratoddi, I.; Altamura, P.; Bearzotti, A.; Furlani, A.; Russo, M.V. Electrical and Morphological Characterization of Poly(Monosubstituted)Acetylene Based Membranes: Application as Humidity and Organic Vapours Sensors. Thin Solid Films 2004, 458, 292–298. [Google Scholar] [CrossRef]
  79. Fratoddi, I.; Battocchio, C.; Groia, A.L.; Russo, M.V. Nanostructured polymetallaynes of controlled length: Synthesis and characterization of oligomers and polymers from 1,1′-Bis-(ethynyl)4,4′-biphenyl bridging Pt(II) or Pd(II) centers. J. Polym. Sci. A 2007, 45, 3311–3329. [Google Scholar] [CrossRef]
  80. Kurta, R.P.; Grodd, L.; Mikayelyan, E.; Gorobtsov, O.Y.; Zaluzhnyy, I.A.; Fratoddi, I.; Venditti, I.; Russo, M.V.; Sprung, M.; Vartanyants, I.A.; et al. Local structure of semicrystalline P3HT films probed by nanofocused coherent X-rays. Phys. Chem. Chem. Phys. 2015, 17, 7404–7410. [Google Scholar] [CrossRef] [PubMed]
  81. Laganà, A.; Venditti, I.; Fratoddi, I.; Capriotti, A.L.; Caruso, G.; Battocchio, C.; Polzonetti, G.; Acconcia, F.; Marino, M.; Russo, M.V. Nanostructured functional copolymers bioconjugate integrin inhibitors. J. Colloid Interface Sci. 2011, 361, 465–471. [Google Scholar] [CrossRef] [PubMed]
  82. Venditti, I.; Fratoddi, I.; Battocchio, C.; Polzonetti, G.; Cametti, C.; Russo, M.V. Soluble polymers of monosubstituted acetylenes with quaternary ammonium pendant groups: Structure and morphology. Polym. Int. 2011, 60. [Google Scholar] [CrossRef]
  83. Landfester, K. Miniemulsion Polymerization and the Structure of Polymer and Hybrid Nanoparticles. Angew. Chem. Int. Ed. 2009, 48, 4488–4507. [Google Scholar] [CrossRef] [PubMed]
  84. D’Amato, R.; Medei, L.; Venditti, I.; Russo, M.V.; Falconieri, M. Chemical synthesis of polyphenylacetylene nanospheres with controlled dimensions for photonic crystals. Mater. Sci. Eng. C 2003, 23, 861–865. [Google Scholar] [CrossRef]
  85. Capek, I. On inverse miniemulsion polymerization of conventional water-soluble monomers. Adv. Colloid Interface. Sci. 2010, 156, 35–61. [Google Scholar] [CrossRef] [PubMed]
  86. D’Amato, R.; Venditti, I.; Russo, M.V.; Falconieri, M. Growth Control and Long range Self-assembly of Polymethylmethacrylate Nanospheres. J. Appl. Polym. Sci. 2006, 102, 4493–4499. [Google Scholar] [CrossRef]
  87. Wang, J.; Zhang, Y.; Wang, S.; Song, Y.; Jiang, L. Bioinspired Colloidal Photonic Crystals with Controllable Wettability. Acc. Chem. Res. 2011, 44, 405–415. [Google Scholar] [CrossRef] [PubMed]
  88. Cheng, M.; Yingnan, J.; Xudong, Y.; Chuanxi, W.; Hui, L.; Fengxia, D.; Bai, Y.; Kui, Y.; Quan, L. Centrifugation-Induced Water-Tuneable Photonic Colloidal Crystalswith Narrow Diffraction Bandwidth and Highly Sensitive Detection of SCN−. ACS Appl. Mater. Interfaces 2013, 5, 1990–1996. [Google Scholar]
  89. De la Rue, R. News and Views. Nat. Mater. 2003, 2, 74–76. [Google Scholar] [CrossRef] [PubMed]
  90. Wathuthanthri, I.; Liu, Y.; Du, K.; Xu, W.; Choi, C.-H. Simple Holographic Patterning for High-Aspect-Ratio Three-Dimensional Nanostructures with Large Coverage Area. Adv. Funct. Mater. 2013, 23, 608–618. [Google Scholar] [CrossRef]
  91. Hatton, B.; Mishchenko, L.; Davis, S.; Sandhage, K.H.; Aizenberg, J. Assembly of large-area, highly ordered, crack-free inverse opal films. Proc. Natl. Acad. Sci. USA 2010, 107, 10354–10359. [Google Scholar] [CrossRef] [PubMed]
  92. De Angelis, R.; Venditti, I.; Fratoddi, I.; de Matteis, F.; Prosposito, P.; Cacciotti, I.; D’Amico, L.; Nanni, F.; Yadav, A.; Casalboni, M.; et al. From nanospheres to microribbons: Self-assembled Eosin Y doped PMMA nanoparticles as photonic crystals. J. Colloid Interface Sci. 2014, 414, 24–32. [Google Scholar] [CrossRef] [PubMed]
  93. Junhu, Z.; Zhiqiang, S.; Bai, Y. Self-assembly of photonic crystals from polymer colloids. Curr. Opin. Colloid Interface Sci. 2009, 14, 103–114. [Google Scholar]
  94. Baryshev, A.V.; Khanikaev, A.B.; Fujikawa, R.; Uchida, H.; Inoue, M. Polarized light coupling to thin silica-air opal films grown by vertical deposition. Phys. Rev. B 2007, 76, 014305. [Google Scholar] [CrossRef]
  95. Shen, Z.; Shi, L.; You, B.; Wu, L.; Zhao, D. Large-scale fabrication of three-dimensional ordered polymer films with strong structure colors and robust mechanical properties. J. Mater. Chem. 2012, 22, 8069–8075. [Google Scholar] [CrossRef]
  96. Spahn, P.; Finlayson, C.E.; Etah, W.M.; Snoswell, D.R.E.; Baumberg, J.J.; Hellmann, G.P.J. Modification of the refractive-index contrast in polymer opal films. Mater. Chem. 2011, 21, 8893–8897. [Google Scholar] [CrossRef]
  97. Finlayson, C.E.; Spahn, P.; Snoswell, D.R.; Yates, G.; Kontogeorgos, A.; Haines, A.I.; Hellmann, G.P.; Baumberg, J.J. 3D bulk ordering in macroscopic solid opaline films by edge-induced rotational shearing. Adv. Mater. 2011, 23, 1540–1544. [Google Scholar] [CrossRef] [PubMed]
  98. Finlayson, C.E.; Baumberg, J.J. Polymer opals as novel photonic materials. Polym. Int. 2013, 62, 1403–1407. [Google Scholar] [CrossRef]
  99. Baumberg, J.J.; Pursiainen, O.L.J.; Spahn, P. Resonant optical scattering in nanoparticle-doped polymer photonic crystals. Phys. Rev. B 2009, 80, 201103. [Google Scholar] [CrossRef]
  100. Schafer, C.G.; Gallei, M.; Zahn, J.T.; Engelhardt, J.; Hellmann, G.P.; Rehahn, M. Reversible Light, Thermo, and Mechano-Responsive Elastomeric Polymer Opal Films. Chem. Mater. 2013, 25, 2309–2318. [Google Scholar] [CrossRef]
  101. Cai, Z.; Liu, Y.J.; Lu, X.; Teng, J. Fabrication of Well-Ordered Binary Colloidal Crystals with Extended Size Ratios for Broadband Reflectance. ACS Appl. Mater. Interface 2014, 6, 10265–10273. [Google Scholar] [CrossRef] [PubMed]
  102. Leunissen, M.E.; Christova, C.G.; Hynninen, A.-P.; Royall, C.P.; Campbell, A.I.; Imhof, A.; Dijkstra, M.; van Roij, R.; van Blaaderen, A. Ionic colloidal crystals of oppositely charged particles. Nature 2005, 437, 235–240. [Google Scholar] [CrossRef] [PubMed]
  103. Wang, J.; Ahl, S.; Li, Q.; Kreiter, M.; Neumann, T.; Burkert, K.; Knoll, W.; Jonas, U. Structural and Optical Characterization of 3D Binary Colloidal Crystal and Inverse Opal Films Prepared by Direct Co-Deposition. J. Mater. Chem. 2008, 18, 981–988. [Google Scholar] [CrossRef]
  104. Tan, K.W.; Li, G.; Koh, Y.K.; Yan, Q.; Wong, C.C. Layer-by-Layer Growth of Attractive Binary Colloidal Particles. Langmuir 2008, 24, 9273–9278. [Google Scholar] [CrossRef] [PubMed]
  105. Singh, G.; Pillai, S.; Arpanaei, A.; Kingshott, P. Layer-by-Layer Growth of Multicomponent Colloidal Crystals over Large Areas. Adv. Funct. Mater. 2011, 21, 2556–2563. [Google Scholar] [CrossRef]
  106. Hynninen, A.-P.; Thijssen, J.H.J.; Vermolen, E.C.M.; Dijkstra, M.; van Blaaderen, A. Self-assembly route for photonic crystals with a bandgap in the visible region. Nat. Mater. 2007, 6, 202–205. [Google Scholar] [CrossRef] [PubMed]
  107. Ngo, T.T.; Liddell, C.M.; Ghebrebrhan, M.; Joannopoulos, J.D. Tetrastack: Colloidal diamond-inspired structure with omnidirectional photonic band gap for low refractive index. Appl. Phys. Lett. 2006, 88, 241920. [Google Scholar] [CrossRef]
  108. Singh, G.; Gohri, V.; Pillai, S.; Arpanaei, A.; Foss, M.; Kingshott, P. Large-Area Protein Patterns Generated by Ordered Binary Colloidal Assemblies as Templates. ACS Nano 2011, 5, 3542–3551. [Google Scholar] [CrossRef] [PubMed]
  109. Nazemifard, N.; Wang, L.; Ye, W.; Bhattacharjee, S.; Masliyah, J.H.; Harrison, D.J. A Systematic Evaluation of the Role of Crystalline Order in Nanoporous Materials on DNA Separation. Lab Chip 2012, 12, 146–152. [Google Scholar] [CrossRef] [PubMed]
  110. Venditti, I.; Fratoddi, I.; Russo, M.V.; Bearzotti, A. A Nanostructured composite based on polyaniline and gold nanoparticles: Synthesis and gas sensing properties. Nanotechnology 2013, 24, 155503. [Google Scholar] [CrossRef] [PubMed]
  111. Stepanov, A.L. Linear optical properties of implanted metal nanoparticles in various transparent matrixes: A review. Rev. Adv. Mater. Sci. 2011, 27, 115–145. [Google Scholar]
  112. Fontana, L.; Fratoddi, I.; Venditti, I.; Ksenzov, D.; Russo, M.V.; Grigorian, S. Structural studies on drop-cast film based on functionalized gold nanoparticles network: The effect of thermal treatment. Appl. Surf. Sci. 2016, 369, 115–119. [Google Scholar] [CrossRef]
  113. Testa, G.; Fontana, L.; Venditti, I.; Fratoddi, I. Functionalized Platinum Nanoparticles with surface charge trigged by pH: Synthesis, characterization and stability studies. Beilstein J. Nanotechnol. 2016, 7, 1822–1828. [Google Scholar] [CrossRef]
  114. Kedia, S.; Vijaya, R.; Ray, A.K.; Sinha, S. Spectral narrowing and lasing threshold in self-assembled active photonic crystal. Opt. Commun. 2011, 284, 2056–2060. [Google Scholar] [CrossRef]
  115. Ding, B.Y.; Pemble, M.E.; Korovin, A.V.; Peschel, U.; Romanov, S.G. Three-dimensional photonic crystals with an active surface: Gold film terminated opals. Phys. Rev. B 2010, 82, 035119. [Google Scholar] [CrossRef]
  116. Venditti, I.; Barbero, N.; Russo, M.V.; di Carlo, A.; Decker, F.; Fratoddi, I.; Barolo, C.; Dini, D. Electrodeposited ZnO with squaraine sentisizers as photoactive anode of DSCs. Mater. Res. Express 2014, 1, 015040. [Google Scholar] [CrossRef]
  117. Fratoddi, I.; Venditti, I.; Cametti, C.; Russo, M.V. The puzzle of toxicity of gold nanoparticles. The case-study of HeLa cells. Toxicol. Res. 2015, 4, 796–800. [Google Scholar] [CrossRef]
  118. Venditti, I.; Fontana, L.; Fratoddi, I.; Battocchio, C.; Cametti, C.; Sennato, S.; Mura, F.; Sciubba, F.; Delfini, M.; Russo, M.V. Direct interaction of hydrophilic gold nanoparticles with dexamethasone drug: Loading and release study. J. Colloid Interface Sci. 2014, 418, 52–60. [Google Scholar] [CrossRef] [PubMed]
  119. Fratoddi, I.; Zampetti, E.; Venditti, I.; Battocchio, C.; Russo, M.V.; Macagnano, A.; Bearzotti, A. Platinum nanoparticles on electrospun titania nanofibers as hydrogen sensing material working at room temperature. Nanoscale 2014, 6, 9177–9184. [Google Scholar] [CrossRef] [PubMed]
  120. Matassa, R.; Familiari, G.; Battaglione, E.; Sibilia, C.; Leahu, G.; Belardini, A.; Venditti, I.; Fontana, L.; Fratoddi, I. Electron microscopy reveals soluble hybrid network of individual nanocrystal self-anchored by bifunctional thiol fluorescent bridges. Nanoscale 2016, 8, 18161–18169. [Google Scholar] [CrossRef] [PubMed]
  121. Porcaro, F.; Battocchio, C.; Antoccia, A.; Fratoddi, I.; Venditti, I.; Moreno, S.; Luisetto, I.; Russo, M.V.; Polzonetti, G. Synthesis of functionalized gold nanoparticles capped with 3-mercapto-1-propansulfonate and 1-thioglucose mixed thiols and “in vitro” bioresponse. Colloid Surf. B 2016, 142, 408–416. [Google Scholar] [CrossRef] [PubMed]
  122. Venditti, I.; Hassanein, T.F.; Fratoddi, I.; Fontana, L.; Battocchio, C.; Rinaldi, F.; Carafa, M.; Marianecci, C.; Diociaiuti, M.; Agostinelli, E.; et al. Bioconjugation of gold-polymer core-shell nanoparticles with bovine serum amine oxidase for biomedical applications. Colloid Surf. B 2015, 134, 314–321. [Google Scholar] [CrossRef] [PubMed]
  123. Bessar, H.; Venditti, I.; Fratoddi, I.; Benassi, L.; Vaschieri, C.; Azzoni, P.; Pellacani, G.; Magnoni, C.; Botti, E.; Casagrande, V.; et al. Functionalized gold nanoparticles for topical delivery of Methotrexate for the possible treatment of psoriasis. Colloid Surf. B 2016, 141, 141–147. [Google Scholar] [CrossRef] [PubMed]
  124. Chaudhuri, R.G.; Paria, S. Core/shell nanoparticles: Classes, properties, synthesis mechanisms, characterization, and applications. Chem. Rev. 2012, 112, 2373–2433. [Google Scholar] [CrossRef] [PubMed]
  125. Guerrero-Martínez, A.; Pérez-Juste, J.; Liz-Marzán, L.M. Recent progress on silicacoating of nanoparticles and related nanomaterials. Adv. Mater. 2010, 22, 1182–1195. [Google Scholar] [CrossRef] [PubMed]
  126. Fratoddi, I.; Venditti, I.; Battocchio, C.; Polzonetti, G.; Cametti, C.; Russo, M.V. Core shell hybrids based on noble metal nanoparticles and conjugated polymers: Synthesis and characterization. Nanoscale Res. Lett. 2011, 6, 98. [Google Scholar] [CrossRef] [PubMed]
  127. Bardhan, R.; Lal, S.; Joshi, A.; Halas, N.J. Theranostic Nanoshells: From Probe Design to Imaging and Treatment of Cancer. Acc. Chem. Res. 2011, 44, 936–946. [Google Scholar] [CrossRef] [PubMed]
  128. Qi, G.; Wang, Y.; Estevez, L.; Switzer, A.K.; Duan, X.; Yang, X.; Giannelis, E.P. Facile and scalable synthesis of monodispersed spherical capsules with a mesoporous shell. Chem. Mater. 2010, 22, 2693–2695. [Google Scholar] [CrossRef]
  129. Stober, W.; Fink, A.; Bohn, E. Controlled growth of monodisperse silica spheresin micron size range. J. Colloid Interface Sci. 1968, 26, 62–69. [Google Scholar] [CrossRef]
  130. Sun, B.; Mutch, S.A.; Lorenz, R.M.; Chiu, D.T. Layered polyelectrolyte silica coating for nanocapsules. Langmuir 2005, 21, 10763–10769. [Google Scholar] [CrossRef] [PubMed]
  131. Tissot, I.; Reymond, J.P.; Lefebvre, F.; Bourgeat-Lami, E. SiOH-functionalized polystyrene latexes. A step toward the synthesis of hollow silica nanoparticles. Chem. Mater. 2002, 14, 1325–1331. [Google Scholar] [CrossRef]
  132. Wang, L.; Asher, S.A. Fabrication of silica shell photonic crystals through flexible core templates. Chem. Mater. 2009, 21, 4608–4613. [Google Scholar] [CrossRef] [PubMed]
  133. Lu, Z.; Goebl, J.; Ge, J.; Yin, Y. Self-assembly and tuneable plasmonic property of gold nanoparticles on mercapto-silica microspheres. J. Mater. Chem. 2009, 19, 4597–4602. [Google Scholar] [CrossRef]
  134. Kumagi, H.; Yano, K. Synthesis and characterization of Au-loaded core/shell mesoporous silica spheres containing propyl group in the shell. Chem. Mater. 2010, 22, 5112–5118. [Google Scholar] [CrossRef]
  135. Tan, L.; Chen, D.; Liu, H.; Tang, F. A silica nanorattle with a mesoporous shell: An ideal nanoreactor for the preparation of tuneable gold cores. Adv. Mater. 2010, 22, 4885–4889. [Google Scholar] [CrossRef] [PubMed]
  136. Lu, Z.; Gao, C.; Zhang, Q.; Chi, M.; Howe, J.Y.; Yin, Y. Direct assembly of hydrophobic nanoparticles to multifunctional structures. Nano Lett. 2011, 11, 3404–3412. [Google Scholar] [CrossRef] [PubMed]
  137. Tsung, C.-K.; Hong, W.; Shi, Q.; Kou, X.; Yeung, M.H.; Wang, J.; Stucky, G.D. Shapeand orientation-controlled gold nanoparticles formed within mesoporous silica nanofibers. Adv. Funct. Mater. 2006, 16, 2225–2230. [Google Scholar] [CrossRef]
  138. Deng, T.S.; Marlow, F. Synthesis of monodisperse polystyrene@vinyl-SiO2 core shell particles and hollow SiO2 spheres. Chem. Mater. 2012, 24, 536–542. [Google Scholar] [CrossRef]
  139. Zhao, X.S.; Su, F.B.; Yan, Q.F.; Guo, W.P.; Bao, X.Y.; Lv, L.; Zhou, Z.C. Templating methods for preparation of porous structures. J. Mater. Chem. 2006, 16, 637–648. [Google Scholar] [CrossRef]
  140. Li, Y.; Piret, F.; Leonard, T.; Su, B.-L. Rutile TiO2 inverse opal with photonic bandgap in the UV-visible range. J. Colloid Interface Sci. 2010, 348, 43–48. [Google Scholar] [CrossRef] [PubMed]
  141. Galusha, J.W.; Tsung, C.K.; Stucky, G.D.; Bartl, M.H. Optimizing Sol-Gel Infiltration and Processing Methods for the Fabrication of High-Quality Planar Titania Inverse Opals. Chem. Mater. 2008, 20, 4925–4930. [Google Scholar] [CrossRef]
  142. Kubrin, R.; Lee, H.S.; Zierold, R.; Yu Petrov, A.; Janssen, R.; Nielsch, K.; Eich, M.; Schneider, G.A. Stacking of Ceramic Inverse Opals with Different Lattice Constants. J. Am. Ceram. Soc. 2012, 95, 2226–2235. [Google Scholar] [CrossRef]
  143. Lee, H.S.; Kubrin, R.; Zierold, R.; Petrov, A.Y.; Nielsch, K.; Schneider, G.A.; Eich, M. Photonic properties of titania inverse opal heterostructures. Opt. Mater. Express 2013, 3, 1007–1019. [Google Scholar] [CrossRef]
  144. Seo, Y.G.; Woo, K.; Kim, J.; Lee, H.; Lee, W. Rapid Fabrication of an Inverse Opal TiO2 Photoelectrode for DSSC Using a Binary Mixture of TiO2 Nanoparticles and Polymer Microspheres. Adv. Funct. Mater. 2011, 21, 3094–3103. [Google Scholar] [CrossRef]
  145. Rudisill, S.G.; Hein, N.M.; Terzic, D.; Stein, A. Controlling Microstructural Evolution in Pechini Gels through the Interplay between Precursor Complexation, Step-Growth Polymerization, and Template Confinement. Chem. Mater. 2013, 25, 745–753. [Google Scholar] [CrossRef]
  146. Zhou, J.; Li, H.; Ye, L.; Liu, J.; Wang, J.; Zhao, T.; Jiang, L.; Song, Y. Facile Fabrication of Tough SiC Inverse Opal Photonic Crystals. J. Phys. Chem. C 2010, 114, 22303–22308. [Google Scholar] [CrossRef]
  147. Zheng, Z.; Gao, K.; Luo, Y.; Li, D.; Meng, Q.B.; Wang, Y.; Zhang, D. Rapidly Infrared-Assisted Cooperatively Self-Assembled Highly Ordered Multiscale Porous Materials. J. Am. Chem. Soc. 2008, 130, 9785–9789. [Google Scholar] [CrossRef] [PubMed]
  148. Guddala, S.; Alee, K.S.; Rao, D.N. Fabrication of multifunctional SnO2 and SiO2-SnO2 inverse opal structures with prominent photonic band gap properties. Opt. Mater. Express 2013, 3, 407–417. [Google Scholar] [CrossRef]
  149. King, J.S.; Graugnard, E.; Summers, C. TiO2 inverse opals fabricated using low temperature atomic layer deposition. Adv. Mater. 2005, 17, 1010–1013. [Google Scholar] [CrossRef]
  150. Niu, W.; Li, X.; Karuturi, S.K.; Fam, D.W.; Fan, H.; Shrestha, S.; Wong, L.H.; Tok, A.I.Y. Applications of atomic layer deposition in solar cells. Nanotechnology 2015, 26, 064001. [Google Scholar] [CrossRef] [PubMed]
  151. Saleem, M.R.; Ali, R.; Khan, M.B.; Honkanen, S.; Turunen, J. Impact of atomic layer deposition to nanophotonic structures and device. Front. Mater. 2014, 1. [Google Scholar] [CrossRef]
  152. Saleem, M.; Ali, R.; Honkanen, S.; Turunen, J. Thermal properties of thin Al2O3 films and their barrier layer effect on thermo-optic properties of TiO2 films grown by atomic layer deposition. Thin Solid Films 2013, 542, 257–262. [Google Scholar] [CrossRef]
  153. Kubrin, R.; do Rosario, J.J.; Lee, H.S.; Mohanty, S.; Subrahmanyam, R.P.; Smirnova, I.; Petrov, A.; Petrov, A.Y.; Eich, M.; Schneider, G.A. Vertical Convective Coassembly of Refractory YSZ Inverse Opals from Crystalline Nanoparticles. ACS Appl. Mater. Interfaces 2013, 5, 13146–13152. [Google Scholar] [CrossRef] [PubMed]
  154. Collins, G.; Blomker, M.; Osiak, M.; Holmes, J.D.; Bredol, M.; O’Dwyer, C. Three-Dimensionally Ordered Hierarchically Porous Tin Dioxide Inverse Opals and Immobilization of Palladium Nanoparticles for Catalytic Applications. Chem. Mater. 2013, 25, 4312–4320. [Google Scholar] [CrossRef]
  155. Guan, G.Q.; Zapf, R.; Kolb, G.; Hessel, V.; Lowe, H.; Ye, J.H.; Zentel, R. Preferential CO oxidation over catalysts with well-defined inverse opal structures in microchannels. Int. J. Hydrogen Energy 2008, 33, 797–801. [Google Scholar] [CrossRef]
  156. Pavlichenko, I.; Broda, E.; Fukuda, Y.; Szendrei, K.; Hatz, A.K.; Scarpa, G.; Lugli, P.; Brauchle, C.; Lotsch, B.V. Bringing one-dimensional photonic crystals to a new light: An electrophotonic platform for chemical mass transport visualisation and cell monitoring. Mater. Horiz. 2015, 2, 299–308. [Google Scholar] [CrossRef]
  157. Chae, W.-S.; Lee, M.-J.; Kim, K.; Hyun, J.K.; Jeon, S. Metal-induced fluorescence proper ties of three-dimensionally ordered macroporous silver inverse opal platforms. Appl. Phys. Lett. 2016, 108, 071909. [Google Scholar] [CrossRef]
  158. He, L.; Huang, J.; Xu, T.; Chen, L.; Zhang, K.; Han, S.; He, Y.; Lee, S.T. Silver nanosheet-coated inverse opal film as a highly active and uniform SERS substrate. J. Mater. Chem. 2012, 22, 1370–1374. [Google Scholar] [CrossRef]
  159. Zhang, H.; Zhou, F.; Liu, M.; Liu, D.; Men, D.; Cai, W.; Duan, G.; Li, Y. Spherical Nanoparticle Arrays with Tuneable Nanogaps and Their Hydrophobicity Enhanced Rapid SERS Detection by Localized Concentration of Droplet Evaporation. Adv. Mater. Interfaces 2015, 2, 1500031. [Google Scholar] [CrossRef]
  160. Liu, J.; Jin, J.; Li, Y.; Huang, H.-W.; Wang, C.; Wu, M.; Chen, L.-H.; Su, B.-L. Tracing the slow photon effect in a ZnO inverse opal film for photocatalytic activity enhancement. J. Mater. Chem. A 2014, 2, 5051–5059. [Google Scholar] [CrossRef]
Materials 10 00097 g001 550
Figure 1. Schematic representation of 1D, 2D, and 3D PCs. The classification of dimensionality is determined by the spatial arrangement of the two materials having different refractive index.
Figure 1. Schematic representation of 1D, 2D, and 3D PCs. The classification of dimensionality is determined by the spatial arrangement of the two materials having different refractive index.
Materials 10 00097 g001

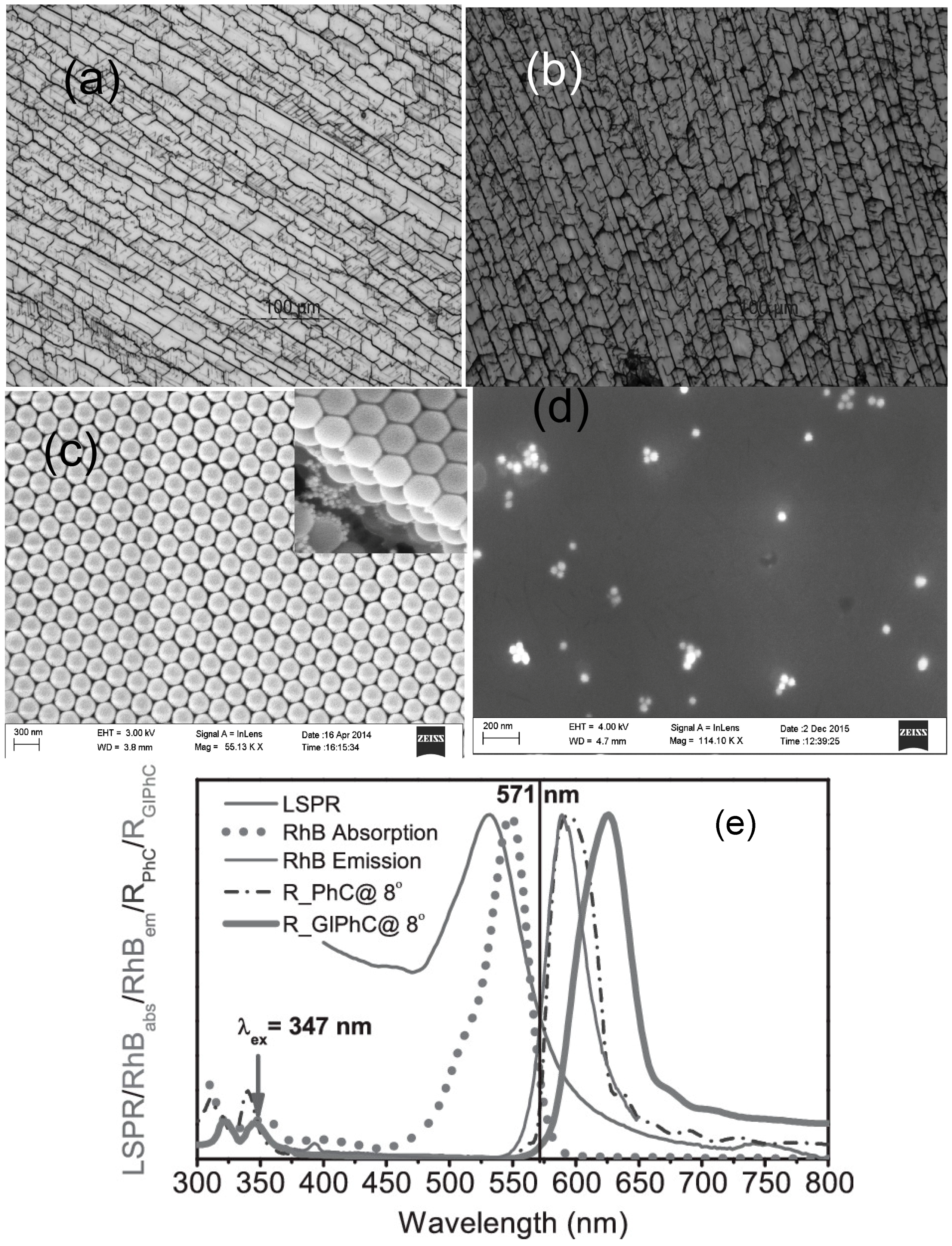

Materials 10 00097 g002 550
Figure 2. Optical microscope images of: (a) PCs; and (b) GIPC, grown from polystyrene colloids with average diameter of 277 nm. The scale bar is 100 μm; (c) The FESEM image of PCs with the same colloidal diameter showing hexagonal periodic arrangement on the top surface. The scale bar is 300 nm. The inset shows the ordering in the different layers of the crystal, and the smaller particles inside the cracks are the gold nanoparticles infiltrated into the structure; (d) The FESEM image of AuNPs dispersed over a silicon substrate yields an average value of 40 nm for their diameter; (e) The normalized spectra of all features present in the sample, where the solid vertical line at 347 nm denotes the excitation wavelength and the vertical line at 571 nm marks the wavelength of maximum spectral overlap between the emission spectrum and the LSPR band of gold nanoparticles. Spectral bands (from left to right): first band is LSPR due to AuNPs, RhB in dot line is due to Rhodamine B absorption, then RhB line is due to RhB emission, R_PhC@8 in dot line is due to RhB in polystyrene PCs, and finally R_GIPhC@8 in thick solid gray line is due to RhB in polystyrene PCs infiltrated with AuNPs (adapted from [60]).
Figure 2. Optical microscope images of: (a) PCs; and (b) GIPC, grown from polystyrene colloids with average diameter of 277 nm. The scale bar is 100 μm; (c) The FESEM image of PCs with the same colloidal diameter showing hexagonal periodic arrangement on the top surface. The scale bar is 300 nm. The inset shows the ordering in the different layers of the crystal, and the smaller particles inside the cracks are the gold nanoparticles infiltrated into the structure; (d) The FESEM image of AuNPs dispersed over a silicon substrate yields an average value of 40 nm for their diameter; (e) The normalized spectra of all features present in the sample, where the solid vertical line at 347 nm denotes the excitation wavelength and the vertical line at 571 nm marks the wavelength of maximum spectral overlap between the emission spectrum and the LSPR band of gold nanoparticles. Spectral bands (from left to right): first band is LSPR due to AuNPs, RhB in dot line is due to Rhodamine B absorption, then RhB line is due to RhB emission, R_PhC@8 in dot line is due to RhB in polystyrene PCs, and finally R_GIPhC@8 in thick solid gray line is due to RhB in polystyrene PCs infiltrated with AuNPs (adapted from [60]).
Materials 10 00097 g002
Materials 10 00097 g003 550
Figure 3. Schematics of: two-phase (a); and three-phase (b) co-assembly methods. The organic colloidal template was removed via calcination to create an inverse opal structure. In three-phase co-assembly, gold nanoparticles assemble along with the colloids and TEOS that resulted in an inverse opal structure with embedded nanoparticles in the walls; (c) SEM and TEM images show the large-scale, ordered, crack-free thin films formed by two- and three-phase co-assembly. SEM and TEM images of Au-loaded inverse opals (bottom) show that three-phase co-assembly leads to films with uniformly distributed nanoparticles in the walls [17].
Figure 3. Schematics of: two-phase (a); and three-phase (b) co-assembly methods. The organic colloidal template was removed via calcination to create an inverse opal structure. In three-phase co-assembly, gold nanoparticles assemble along with the colloids and TEOS that resulted in an inverse opal structure with embedded nanoparticles in the walls; (c) SEM and TEM images show the large-scale, ordered, crack-free thin films formed by two- and three-phase co-assembly. SEM and TEM images of Au-loaded inverse opals (bottom) show that three-phase co-assembly leads to films with uniformly distributed nanoparticles in the walls [17].
Materials 10 00097 g003

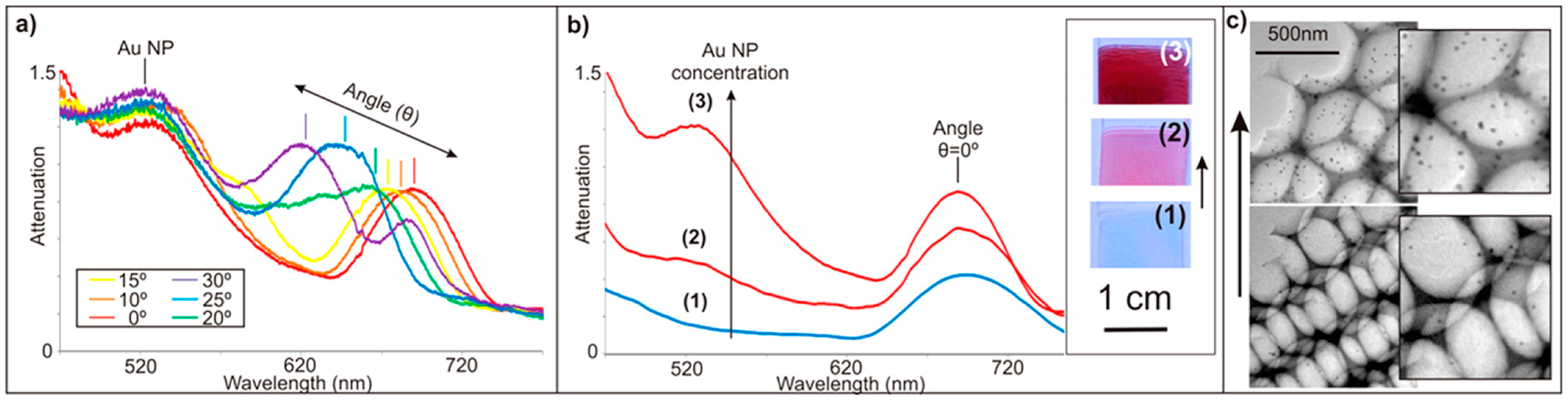

Materials 10 00097 g004 550
Figure 4. (a) Au-loaded inverse opals combine the angle-dependent Bragg peak of inverse opals (~700 nm at normal incidence) with the angle-independent absorption peak of gold nanoparticles (~520 nm); (b) The gold absorbance peak can be tuned prior to opal assembly by adding higher amounts of gold nanoparticles to the colloidal solution. The optical images and plots correspond to three different concentrations of gold nanoparticles added to the colloidal suspension: 0 Np/mL (1); 1.2 × 1015 NPs/mL (2); and 7.2 × 1015 NPs/mL (3); (c) TEM images correspond to inverse opals assembled with 6.0 × 1014 NPs/mL (bottom) and 1.2 × 1015 NPs/mL (top) [17].
Figure 4. (a) Au-loaded inverse opals combine the angle-dependent Bragg peak of inverse opals (~700 nm at normal incidence) with the angle-independent absorption peak of gold nanoparticles (~520 nm); (b) The gold absorbance peak can be tuned prior to opal assembly by adding higher amounts of gold nanoparticles to the colloidal solution. The optical images and plots correspond to three different concentrations of gold nanoparticles added to the colloidal suspension: 0 Np/mL (1); 1.2 × 1015 NPs/mL (2); and 7.2 × 1015 NPs/mL (3); (c) TEM images correspond to inverse opals assembled with 6.0 × 1014 NPs/mL (bottom) and 1.2 × 1015 NPs/mL (top) [17].
Materials 10 00097 g004
Materials 10 00097 g005 550
Figure 5. Fabrication of i-Au-SiO2-o Films [34].
Figure 5. Fabrication of i-Au-SiO2-o Films [34].
Materials 10 00097 g005

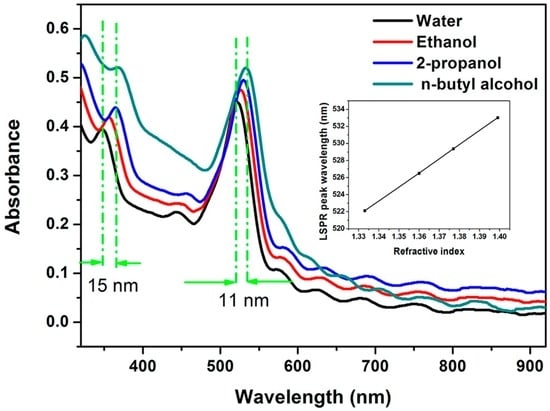

Materials 10 00097 g006 550
Figure 6. Absorption spectra of i-Au-SiO2-o films with 277 nm pores infiltrated with media of varying RIs as follows: (a) water (n = 1.333); (b) ethanol (n = 1.360); (c) 2-propanol (n = 1.377); and (d) N-butyl alcohol (n = 1.399). The inset is the plot of the LSPR peak wavelength as a function of the refractive index of the surrounding medium [34].
Figure 6. Absorption spectra of i-Au-SiO2-o films with 277 nm pores infiltrated with media of varying RIs as follows: (a) water (n = 1.333); (b) ethanol (n = 1.360); (c) 2-propanol (n = 1.377); and (d) N-butyl alcohol (n = 1.399). The inset is the plot of the LSPR peak wavelength as a function of the refractive index of the surrounding medium [34].
Materials 10 00097 g006
Table
Table 1. Examples of composite PCs, useful in several application fields.
Table 1. Examples of composite PCs, useful in several application fields.
PCsAuNPs Diameter (nm)PCs Lattice Diameter (nm)PCs Lattice MaterialsComposite PCs Fabrication MethodsApplication FieldsReference
Opals~5260–300PSInfiltrationoptics[58]
~40~300PSInfiltrationoptics[59]
--~300PSInfiltrationoptics[60]
--520PSDepositionoptics[13]
~10~695PS@SiO2Inclusionoptics[61]
~10400PANIInclusionsensing[62]
~7–10300; 400SiO2CVDoptics[36]
200–1000SiO2Infiltrationsensing[63]
----SiO2Infiltrationbiomedicine[64]
Inverse opals12 ± 1.5200; 400SiO2InfiltrationSERS[65]
187 ± 2; 353 ± 7500–600SiO2Infiltrationoptics[66]
6; 30~200–400SiO2Co-depositionsensing[34]
~10~200SiO2Co-assemblyoptics[17]
~20398TiO2Co-depositionoptics[35]
~10~200TiO2Co-depositionphotocatalysis[67]
~3–5155–285TiO2Co-depositionphotocatalysis[68]
PANI: Polyaniline; CVD: Chemical vapor deposition; SERS: Surface-enhanced Raman spectroscopy.

Share and Cite

MDPI and ACS Style

Venditti, I. Gold Nanoparticles in Photonic Crystals Applications: A Review. Materials 2017, 10, 97. https://doi.org/10.3390/ma10020097

AMA Style

Venditti I. Gold Nanoparticles in Photonic Crystals Applications: A Review. Materials. 2017; 10(2):97. https://doi.org/10.3390/ma10020097

Chicago/Turabian Style

Venditti, Iole. 2017. "Gold Nanoparticles in Photonic Crystals Applications: A Review" Materials 10, no. 2: 97. https://doi.org/10.3390/ma10020097

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
