Photocatalytic Degradation of Organic Dye under UV‐A Irradiation Using TiO2‐Vetiver Multifunctional Nano Particles

1
Department of Civil Engineering, Faculty of Engineering, Naresuan University, Phitsanulok 65000, Thailand
2
Centre of Excellence for Innovation and Technology for Water Treatment, Naresuan University, Phitsanulok 65000, Thailand
3
Department of Chemistry, Faculty of Science, Naresuan University, Phitsanulok 65000, Thailand
4
Research Center for Academic Excellence in Petroleum, Petrochemicals and Advanced Materials, Naresuan University, Phitsanulok 65000, Thailand
5
Department of Industrial Engineering, Faculty of Engineering, Naresuan University, Phitsanulok 65000, Thailand
*
Author to whom correspondence should be addressed.
Materials 2017, 10(2), 122; https://doi.org/10.3390/ma10020122
Submission received: 29 November 2016 / Accepted: 25 January 2017 / Published: 30 January 2017
(This article belongs to the Special Issue Enhancing the Photocatalytic Activity of TiO2 Photocatalysts)

Abstract

:
The properties and photocatalytic performance of anatase nanoparticles of pure TiO2 and a core–shell structure of TiO2 on calcined vetiver grass leaves have been compared. Samples were fabricated by sol-gel and heating at 450 °C for 5 h. The comparison was based on data for X-ray diffraction (XRD), UV-Vis spectrophotometry, photoluminescence, transmission electron microscopy, specific surface area measurement, pore volume assessment, and methylene blue degradation testing. The results showed that the pure TiO2 consisted of agglomerated equiaxed nanoparticles of individual grain sizes in the range 10–20 nm. In contrast, the TiO2-vetiver composite exhibited a core–shell structure consisting of a carbonaceous core and TiO2 shell of thickness 10–15 nm. These features influenced the photocatalytic performance in such a way that the lower cross-sectional area, greater surface area, and higher pore volume of the TiO2 shell increased the number of active sites, reduced the charge carrier diffusion distance, and reduced the recombination rate, thereby improving the photocatalytic activity. This improvement derived from morphological characteristics rather than crystallographic, semiconducting, or optical properties. The improved performance of the TiO2-vetiver core–shell was unexpected since the X-ray diffraction data showed that the crystallinity of the TiO2 was lower than that of the pure TiO2. These outcomes are attributed to the reducing effect of the carbon on the TiO2 during heating, thereby facilitating the formation of oxygen vacancies, which enhance charge separation and hence photocatalysis by TiO2.

Graphical Abstract

1. Introduction

Water is an indispensable part of life because it is essential for various purposes, including drinking, public hygiene, energy, agriculture, and industry. However, freshwater resources currently are diminishing due to the increasing growth of global population, over-exploitation, and water pollution [1]. In order to deal with water scarcity, wastewater treatment and reclamation are favourable approaches because they can prevent water pollution, protect public health, and provide reclaimed water source for agriculture and industry [2].
The textile industries annually produce huge amounts of wastewater that contains organic dyes, which significantly contribute to global water pollution [3]. Most synthetic dyes used in the textile industries consist of aromatic ring structures, which make them toxic, chemically resistant, and non-biodegradable in the natural environment [4,5]. Therefore, removal of organic dyes is an important target in wastewater treatment and reclamation.
The key criterion in wastewater treatment and reclamation is the quality of the treated water so that it can be determined as safe for use. At present, some common technologies used in wastewater treatment include sedimentation, flocculation and coagulation, filtration, adsorption, and biological processes. These traditional wastewater treatment technologies have had a long history in large-scale applications and effectiveness for the removal of various pollutants, such as organic compounds, nutrients, pathogens, and heavy metals [6]. However, a significant drawback of these technologies is the generation of secondary waste, which requires additional post-treatment.
In order to overcome secondary waste generation from wastewater treatment and satisfy the stringent standards for water treatment and use, technologies based on photocatalysis have attracted considerable interest. Among the semiconductor photocatalysts, TiO2 is used widely owing to its high photoactivity, photocorrosion resistance, thermal stability, non-toxicity, cost effectiveness, and potential applications under UV light (300–390 nm) [7,8]. When excited by a light source of energy equal to or greater than the band gap of the TiO2 photocatalyst (3.0–3.2 eV [9]), electron and hole pairs are generated. The generated holes then can transfer to the surface of TiO2 particles and react with water to form hydroxyl radicals (•OH) and superoxide radicals (•O2−) [10]. These radicals then act as or react with the environment to produce reactive oxygen species (ROS) in the form of hydroxyl (•OH) groups, hyperperoxyl (•HO2) groups, and hydrogen peroxide (H2O2). These ROS have the advantage of being able to mineralise a wide range of organic compounds in wastewater into simpler organic products [11] or to decompose them completely into carbon dioxide and weak mineral acids [12,13,14].
The effectiveness of pollutant removal can be increased through the applications of the (1) surface modification [15,16,17]; (2) band gap narrowing [18,19,20]; and (3) co-mechanisms of adsorption by adsorbent and photocatalysis [21]. Consequently, there are many studies that have reported the immobilisation of TiO2 particles on adsorbents such as zeolites, activated carbon, silica, and clays [22,23,24,25,26]. Furthermore, the immobilisation of TiO2 on an adsorbent can help to reduce the wash-out of TiO2 into the treatment system [27].
Zeolites and activated carbon are two of the most commonly used adsorbents in wastewater treatment. Both can be synthesised from agricultural wastes, such as coconut shell, straw, rice husk, bamboo, sedge weed, pokeweed, and sugarcane bagasse; these approaches are attractive from the perspectives of cost effectiveness and reduction of waste generation [28,29]. Amongst agricultural wastes, vetiver grass (Vetiveria zizanioides (L.) Nash) is a potential precursor, as it is most frequently used for erosion control and oil extraction in many tropical and subtropical countries [30]. The fragrant and volatile oil extracted from the roots of vetiver grass is used commercially in a range of industries, including perfumery, cosmetics, soap, and pharmaceuticals [31]. In environmental applications, vetiver grass has shown an ability to accumulate persistent organic pollutants (POPs), polycyclic aromatic hydrocarbons (PAHs), phenol, and a variety of heavy metals from contaminated soil and water [31,32,33]. However, the principal uses of vetiver grass for erosion control and extracted oil production result in the production of a large amount of agricultural waste in the form of its unused leaves [34].
In the present work, vetiver leaves were used as a precursor to synthesise a multifunctional material combining the adsorption ability of the vetiver leaves and the photocatalytic activity of TiO2. The synthesised material was characterised for a range of physicochemical properties and its applicability to wastewater treatment assessed by degradation of the organic dye methylene blue (MB).2. Methodology.

2.1. Preparation of Vetiver Adsorbent

Vetiver grass was collected from the field in Phitsanulok Province, Thailand. Only the leaves of the vetiver grass were used to synthesise the adsorbent while other parts were removed. After cleaning with water to remove dirt, the vetiver leaves were dried in a muffle furnace at 105 °C for 12 h in order to remove moisture. The dried vetiver leaves were crushed with a porcelain mortar and pestle and sieved to a particle size in the range 0.1–0.6 mm, after which they were pyrolysed in the same muffle furnace at 600 °C for 3 h, followed by natural cooling. After pyrolysis, the residue was stored in an airtight container. The main inorganic components of the solid residue of vetiver leaves were determined previously to be potassium (45 wt%) and silicon (27 wt%) [35]. The physical and chemical properties of dried vetiver and adsorption mechanism were reported in the previous work [35].

2.2. Synthesis of Pure TiO2 and TiO2-Vetiver Core–Shell

The pure TiO2 and TiO2-vetiver core–shell was synthesised using a sol-gel method reported elsewhere [36]. For the latter, 1 g of calcined vetiver adsorbent was added to a mixture of 12.5 mL of titanium isopropoxide (TTIP), 80 mL of 2-propanol, and 3 mL of deionised (DI) water, after which blending was achieved by magnetic stirring for 4 h. The resultant suspension was filtered, washed by double distilled water, and dried at 105 °C for 12 h. The dried product then was calcined in the muffle furnace at 450 °C for 5 h in (3 °C/min) order to recrystallise the TiO2, followed by natural cooling. After calcination, the residue was stored in an airtight container. Pure TiO2 was prepared by the same procedure but without the addition of calcined vetiver.

2.3. Characterisation

For both pure TiO2 and the TiO2-vetiver core–shell, the following characterisation was undertaken. The mineralogies were determined by X-ray diffraction (XRD, Philips X’ Pert PRO PW 3719). The crystallite size of particle was calculated using the Scherrer’s equation [37]. The band gaps were calculated from data obtained by UV-Vis spectrophotometry from the diffuse reflectance spectra (DRS, Shimadzu UV-3600) with an integrating sphere attachment (Shimadzu ISR-3100) and the application of the Kubelka–Munk equation [38]. Photoluminescence spectra (PL) were recorded at 300 nm at room temperature a using spectrophotometer (Horiba Jobin Yvon Fluoromax-4). The morphologies were assessed by transmission electron microscopy (TEM, JEOL JSM-2010). The specific surface areas and pore size distributions were determined by N2 gas adsorption-desorption using the Brunauer–Emmett–Teller (BET) method (Quantachrome Adtosorb 1 MP).

2.4. Photocatalytic Performance Testing

Methylene blue (MB, Sigma-Aldrich (Singpore), ≥95%) was used as the organic dye pollutant. A typical batch test involved mixing 0.01 g of the synthesised core–shell or pure TiO2 with 50 mL of MB aqueous solution of 10−5 M concentration and magnetic stirring for 12 h in dark conditions (without UV-A irradiation) in order to adsorb the MB maximally on the particle surfaces. The suspensions then were irradiated by UV-A (two 20 W black lights, 370 nm) for 4 h. The irradiation was from above and the distance to the suspension surface was 15 cm. At periodic intervals of irradiation, a small sample of liquid was removed using a vacuum filter. The removed aliquot then was characterised by UV-Vis spectrophotometry using the standard absorbance intensity of λmax = 664 nm using the UV-visible spectrophotometer.

3. Results and Discussion

Figure 1 shows the XRD patterns for pure TiO2 and the TiO2-vetiver core–shell. The sharp peaks at 25.2°, 37.6°, 48.0°, 54.9°, 62.6°, 70.3°, and 75.0° 2θ for pure TiO2 show that it consists solely of the anatase polymorph [39]. In contrast, the TiO2-vetiver core–shell peaks also indicate anatase but of lower intensities, which are attributed to the effect of the amorphous residue of the vetiver grass leaves. The reduced intensities, which derived from reduced crystallinity of the anatase, probably resulted from the one or more of the following causes. First, silicon is known as a grain growth inhibitor for TiO2 [40], which may have had a similar effect in suppressing nucleation and hence growth. Second, the crystal radii of K and Si in sixfold coordination (0.152 nm and 0.054 nm, respectively) are considerably different from that of Ti (0.0745 nm) [41] and the interstitial site (0.0782 nm) [42]. Consequently, if these dissolved in the TiO2 lattice, they would have served to destabilise it. Third, carbon is a very strong reducing agent, so the Ti4+ (0.0745 nm) could have been reduced partially to Ti3+ (0.081 nm) [41], which could have expanded the lattice at these sites and contracted the lattice at the sites of the charge-compensating oxygen vacancies, which also would have had the potential to destabilise the lattice.
The data used to calculate the optical indirect band gaps, which are shown in Figure 2, indicate that these are 3.58 eV and 3.66 eV for pure TiO2 and the TiO2-vetiver core–shell, respectively. The band gap of the former was higher than the commonly reported value of 3.2 eV [9]. However, the band gap of anatase TiO2 has been reported to cover a wide range of 3.23–3.59 eV [39]. Although the determined value is within this range, it is possible that it reflects silicon contamination, which is known to increase the band gap [9,43]. The even higher band gap of the TiO2-vetiver core–shell is likely to derive from the previously mentioned effect of carbon in the partial reduction of TiO2. Consequently, the XRD and band gap data are mutually supportive in suggesting that the presence of carbon caused lattice destabilisation and partial amorphisation. This is supported by modeling of the band gaps of both reduced TiO2, which contains oxygen vacancies [44] and of amorphous TiO2 [45], which were substantially higher than that of the stoichiometric crystalline analogue.
Figure 3 shows photoluminescence (PL) spectra of pure TiO2 and the TiO2-vetiver core–shell. Since PL emission occurs upon the recombination of the photogenerated electrons and holes [46], then the higher PL intensity of pure TiO2 and that of the TiO2-vetiver core–shell suggests that the latter experienced enhanced charge separation and so exhibited a reduced recombination rate [47,48]. These effects would increase the probability for electrons and holes to form ROS and hence increase the photocatalytic activity [36,48].
For the TiO2-vetiver core–shell, it is likely that reduction by carbon and the consequent generation of oxygen vacancies are responsible for this since it has been reported that oxygen vacancies can enhance charge separation by acting as electron donors [49,50]. It is unlikely that dissolved K or Si played a role since (1) it is highly unlikely that K would dissolve either substitutionally or interstitially owing to size considerations; (2) Si dissolved substitutionally would not affect ionic charge compensation and hence create no oxygen vacancies; and (3) Si dissolved interstitially is likely to have resulted in ionic charge compensation by the formation of Ti vacancies. While Ti vacancies could have acted as hole donors, it is considered that the displacement of Ti4+ by Si4+ and the resultant formation of Ti vacancies are energetically unfavorable. It has to be noted that, in this work, the increasing of oxygen vacancy has not been directly observed. The increase of oxygen vacancy is implied from the increasing of surface area, which can lead to increasing the surface defects and oxygen vacancy [51,52,53].
Figure 4 shows TEM images of pure TiO2 and the TiO2-vetiver core–shell. The pure TiO2 was equiaxed and of particle size in the range 10–20 nm, albeit highly agglomerated. It has to be noted that the particle size is very close to the crystallite size, as shown in Table 1. It can be said that the pure TiO2 is single grain particle. More interestingly, the TiO2-vetiver core–shell exhibited a core–shell structure, where the vetiver acted as the core and the TiO2 acted as the shell. The size of the TiO2-vetiver core–shell was variable, depending on the nature of the vetiver substrate. The TiO2 shell was continuous and of thickness in the range 10–15 nm.
Such core–shell structures have gained considerable interest owing to their ability to enhance both charge separation and resistance to photocorrosion. Analogues of the present core–shell structure exist in the form of TiO2 on the surfaces of carbon nanotubes (CNT) [54], TiO2 coated on amorphous carbon [55], and the converse arrangement of a TiO2 core and graphitic carbon shell [56].
N2 adsorption–desorption isotherms of the pure TiO2 and TiO2-vetiver core–shell were also studied, as shown in Figure 5. The gas-adsorption isotherm is reported as the volume of gas adsorbed as a function of P/Po. The results suggest that the prepared samples own typical Type IV isotherm. The gap between equilibrium adsorption and desorption pressures above P/Po of about 0.4, further confirming the characteristic of the mesoporous material.
The results for the specific surface area and pore volume of pure TiO2 and the TiO2-vetiver core–shell are given in Table 1. It can be seen that the values for the pure TiO2 are less than half those of the TiO2-vetiver core–shell. The evidence for the reason for these differences lies in the nature of the TiO2 shell of the TiO2-vetiver core–shell. While the pure TiO2 appears to have a considerably greater specific surface area, even with the agglomeration, as well as greater pore volume, the TiO2 shell of the TiO2-vetiver core–shell appears to be smooth. This apparent contradiction can be explained by closer examination of the TiO2 shell, which reveals a granular nanostructure that exhibits both surface topography and a network of spherical pores in the sub-nanometre size range. The unexpected presence of the pores is likely to have resulted from the oxidation of the carbon during annealing, which would have disturbed the establishment of the solid nanostructure upon recrystallisation of the TiO2. Since the pores appear to be spherical, this suggests gas entrapment during the process. It also is possible that the pores were ruptured and hence continuous, which would increase the specific surface area further.
Figure 6a shows the complete data for MB adsorption followed by MB degradation. These data confirm that the pure TiO2 has less than half the surface area of the TiO2-vetiver core–shell. Figure 6b shows the normalised data for MB degradation, where it can be seen that the extent of MB degradation by the TiO2-vetiver core–shell effectively was complete within 2 h. The pure TiO2 appears to have experienced a 1 h time lag, after which the kinetics of MB degradation were similar to those of the TiO2-vetiver core–shell, although the process does not appear to have reached steady-state after 4 h. It is clear that both photocatalyst types perform considerably better under UV-A light.
The preceding data suggest that the photocatalytic activity of the pure TiO2 is somewhat inferior to that of the TiO2-vetiver core–shell. This observation is consistent with the findings for the photoluminence (Figure 3) and specific surface area data (Table 1), but it contradicts the data for the X-ray diffraction (Figure 1) and the band gap (Figure 2). From this, it is concluded that the controlling factors in the performance depend more on a reduced recombination rate (photoluminescence) and the number of surface active sites (specific surface area) rather than the crystallinity (X-ray diffraction) or the semiconducting and optical properties (band gap). In addition, the charge carrier diffusion distance in the TiO2-vetiver core–shell would be relatively short owing to the 10–15 nm shell thickness and the possibility that it could be even less owing to the thinner walls resulting from the porosity. The diffusion distance in the pure TiO2 would be longer owing to the larger 10–20 nm (solid) grain size. It is well known that the recombination rate decreases with decreasing charge carrier diffusion distance. Figure 7 shows the kinetic rate of MB removal. It can be seen that after irradiation the MB was completely remove in 2 h by TiO2-vetiver core–shell. Since the TiO2-vetiver core–shell has higher surface area and volume of pores, then this can result higher adsorption (Figure 6a). Then, during the photocatalytic mechanism (after irradiation), the MB at the surface could be decomposed quickly so the surface can adsorb more MB. It can be said that the co-mechanisms of adsorption by adsorbent and photocatalysis lead to higher performance compared to only photocatalytic of pure TiO2.
Data provides the surface area-normalised degradation constants. The comparison of normalised degradation constants excluded the influence of surface areas. In order to investigate the effect of surface area from the adsorbent on the degradation activity of TiO2, the surface area-normalised degradation values against light irradiation time were plotted as shown in Figure 8 and the calculated surface area-normalised rate constants are presented in Table 1. The results clearly suggested that surface area of the catalyst has a crucial impact on the activity of degradation in this study because the surface area-normalised rate constants of TiO2-vetiver core–shell are increased from the pure TiO2.
The schematic representation of the photocatalytic mechanism is present in Figure 9. It can be explained that during the adsorption process MB can be adsorbed at the surface of TiO2-vetiver core–shell as can be seen in Figure 5a. After irradiation, the photocatalytic at the surface of TiO2-vetiver core–shell can occur immediately. This results in enhancing the photocatalytic performance of MB degradation.

4. Conclusions

The present work reports a comparison between nanoparticles of pure TiO2 and a core–shell structure of TiO2 on calcined vetiver grass leaves. The samples were fabricated using a sol-gel method that involved heating at 450 °C for 5 h, which yielded the anatase polymorph of TiO2. The comparison was based on data for X-ray diffraction, UV-Vis spectrophotometry, photoluminescence, transmission electron microscopy, specific surface area measurement, pore volume assessment, and methylene blue degradation testing.
The results showed that the pure TiO2 consisted of agglomerated equiaxed nanoparticles of individual grain sizes in the range 10–20 nm. In contrast, the TiO2-vetiver composite exhibited a core–shell structure consisting of a carbonaceous core and TiO2 shell of thickness 10–15 nm. The TiO2 shell formed a continuous coating with topography and porous network at a sub-nanometre scale. These features appear to have had a significant influence on the photocatalytic performance in that, compared to the pure TiO2, the lower cross-sectional area, greater surface area, and higher pore volume of the TiO2 shell potentially increased the number of active sites, reduced the charge carrier diffusion distance, and reduced the recombination rate, thereby improving the photocatalytic activity. This improvement derived from morphological characteristics rather than crystallographic, semiconducting, or optical properties.
The improved performance of the TiO2-vetiver core–shell was unexpected in light of the X-ray diffraction data, which showed that the crystallinity of the TiO2 was lower than that of the pure TiO2. It also was unexpected in consideration of the unusually high band gap of the TiO2 shell. However, both of these outcomes are likely to have been generated through the reducing effect of the carbon on the TiO2 during heating, thereby facilitating the formation of oxygen vacancies, which enhance charge separation and hence photocatalysis by TiO2. In this sense, the effect of charge separation dominated those of crystallinity and band gap. It has to be noted that, in this work, the increasing of oxygen vacancy has not been directly observed. The increase of oxygen vacancy is implied from the increasing of surface area, which can lead to increasing the surface defects and oxygen vacancy.

Acknowledgments

The authors would like to thank Naresuan University for the financial support, which enabled this research.

Author Contributions

W.K. and A.N conceived and designed the experiments and analyses; L.T.S.T. and T.T.T.D. performed the experiments; D.C. undertook the calculations; L.T.S.T., W.K., D.C. and A.N. analyzed the data; L.T.S.T. wrote the initial draft of the paper; A.N. wrote the final draft of the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Managing Water Uncertainty and Risk. The United Nations World Water Development Report 4. 2012, Volume 1. Available online: http://www.unesco.org/new/en/natural-sciences/environment/water/wwap/wwdr/wwdr4-2012/ (accessed on 1 November 2016).
  2. Vo, P.T.; Ngo, H.H.; Guo, W.; Zhou, J.L.; Nguyen, P.D.; Listowski, A.; Wang, X.C. A mini-review on the impacts of climate change on wastewater reclamation and reuse. Sci. Total Environ. 2014, 494–495, 9–17. [Google Scholar]
  3. Visa, M.; Andronic, L.; Duta, A. Fly ash-TiO2 nanocomposite material for multi-pollutants wastewater treatment. J. Environ. Manag. 2015, 150, 336–343. [Google Scholar] [CrossRef] [PubMed]
  4. Asghar, A.; Raman, A.A.A.; Daud, W.M.A.W. Advanced oxidation processes for in-situ production of hydrogen peroxide/hydroxyl radical for textile wastewater treatment: A review. J. Clean Prod. 2015, 87, 826–838. [Google Scholar] [CrossRef]
  5. Pang, Y.L.; Abdullah, A.Z. Fe3+ doped TiO2 nanotubes for combined adsorption–sonocatalytic degradation of real textile wastewater. Appl. Catal. B 2013, 129, 473–481. [Google Scholar] [CrossRef]
  6. United States Environmental Protection Agency (EPA). Guidelines for Water Reuse; 2012. Available online: http://nepis.epa.gov/Exe/ZyPURL.cgi?Dockey=P100FS7K.TXT (accessed on 1 November 2016).
  7. De la Cruz, N.; Romero, V.; Dantas, R.F.; Marco, P.; Bayarri, B.; Giménez, J.; Esplugas, S. o-Nitrobenzaldehyde actinometry in the presence of suspended TiO2 for photocatalytic reactors. Catal. Today 2013, 209, 209–214. [Google Scholar] [CrossRef]
  8. Zhang, Z.; Wu, H.; Yuan, Y.; Fang, Y.; Jin, L. Development of a novel capillary array photocatalytic reactor and application for degradation of azo dye. Chem. Eng. J. 2012, 184, 9–15. [Google Scholar] [CrossRef]
  9. Nakaruk, A.; Ragazzon, D.; Sorrell, C.C. Anatase–rutile transformation through high-temperature annealing of titania films produced by ultrasonic spray pyrolysis. Thin Solid Films 2010, 518, 3735–3742. [Google Scholar] [CrossRef]
  10. Mills, A.; O’Rourke, C.; Moore, K. Powder semiconductor photocatalysis in aqueous solution: An overview of kinetics-based reaction mechanisms. J. Photochem. Photobiol. A 2015, 310, 66–105. [Google Scholar] [CrossRef]
  11. Pelaez, M.; Nolan, N.T.; Pillai, S.C.; Seery, M.K.; Falaras, P.; Kontos, A.G.; Dunlop, P.S.M.; Hamilton, J.W.J.; Byrnee, J.A.; O’Shea, K.; et al. A review on the visible light active titanium dioxide photocatalysts for environmental applications. Appl. Catal. B 2012, 125, 331–349. [Google Scholar] [CrossRef]
  12. Zangeneh, H.; Zinatizadeh, A.A.L.; Habibi, M.; Akia, M.; Hasnain Isa, M. Photocatalytic oxidation of organic dyes and pollutants in wastewater using different modified titanium dioxides: A comparative review. J. Ind. Eng. Chem. 2015, 26, 1–36. [Google Scholar] [CrossRef]
  13. Spasiano, D.; Marotta, R.; Malato, S.; Fernandez-Ibanez, P.; Somma, I.D. Solar photocatalysis: Materials, reactors, some commercial, and pre-industrialized applications. A comprehensive approach. Appl. Catal. B 2015, 170–171, 90–123. [Google Scholar] [CrossRef]
  14. Cardoso, J.C.; Lucchiari, N.; Zanoni, M.V.B. Bubble annular photoeletrocatalytic reactor with TiO2 nanotubes arrays applied in the textile wastewater. J. Environ. Chem. Eng. 2015, 3, 1177–1184. [Google Scholar] [CrossRef]
  15. Kılıç, B.; Gedik, N.; Pıravadıllı Mucur, S.; Serhan Hergula, A.; Gür, E. Band gap engineering and modifying surface of TiO2 nanostructures by Fe2O3 for enhanced-performance of dye sensitized solar cell. Mater. Sci. Semicon. Proc. 2015, 31, 363–371. [Google Scholar] [CrossRef]
  16. Rico, V.; Romero, P.; Hueso, J.L.; Espinós, J.P.; González-Elipe, A.R. Wetting angles and photocatalytic activities of illuminated TiO2 thin films. Catal. Today 2009, 143, 347–354. [Google Scholar] [CrossRef]
  17. Dittricha, T.; Ofir, A.; Tirosh, S.; Grinis, L.; Zaban, A. Influence of the porosity on diffusion and lifetime in porous TiO2 layers. Appl. Phys. Lett. 2006, 88, 182110. [Google Scholar] [CrossRef] [Green Version]
  18. Romero-Gómez, P.; Hamad, S.; González, J.C.; Barranco, A.; Espinós, J.P.; Cotrino, J.; González-Elipe, A.R. Band gap narrowing versus formation of electronic states in the gap in N−TiO2 thin films. J. Phys. Chem. C 2010, 114, 22546–22557. [Google Scholar] [CrossRef]
  19. Romero-Gómez, P.; Rico, V.; Borrás, A.; Barranco, A.; Espinós, J.P.; Cotrino, J.; González-Elipe, A.R. Chemical state of nitrogen and visible surface and Schottky barrier driven photoactivities of N-doped TiO2 thin films. J. Phys. Chem. C 2009, 113, 13341–13351. [Google Scholar] [CrossRef]
  20. Bulushev, D.A.; Kiwi-Minsker, L.; Zaikovskii, V.I.; Lapina, O.B.; Ivanov, A.A.; Reshetnikov, S.I.; Renken, A. Effect of potassium doping on the structural and catalytic properties of V/Ti-oxide in selective toluene oxidation. Appl. Catal. A 2000, 202, 243–250. [Google Scholar] [CrossRef]
  21. Phanichphant, S.; Nakaruk, A.; Channei, D. Photocatalytic activity of the binary composite CeO2/SiO2 for degradation of dye. Appl. Surf. Sci. 2016, 387, 214–220. [Google Scholar] [CrossRef]
  22. Chong, M.N.; Jin, B.; Chow, C.W.K.; Saint, C. Recent developments in photocatalytic water treatment technology: A review. Water Res. 2010, 44, 2997–3027. [Google Scholar] [CrossRef] [PubMed]
  23. Liu, S.; Lim, M. Amal, R. TiO2-coated natural zeolite: Rapid humic acid adsorption and effective photocatalytic regeneration. Chem. Eng. Sci. 2014, 105, 46–52. [Google Scholar] [CrossRef]
  24. Moustakas, N.G.; Kontos, A.G.; Likodimos, V.; Katsaros, F.; Boukos, N.; Tsoutsou, D.; Dimoulas, A.; Romanos, G.E.; Dionysiou, D.D.; Falaras, P. Inorganic–organic core–shell titania nanoparticles for efficient visible light activated photocatalysis. Appl. Catal. B 2013, 130–131, 14–24. [Google Scholar] [CrossRef]
  25. Su, T.; Chen, S.; Quan, X.; Zhao, H.; Zhang, Y. A silicon-doped TiO2 nanotube arrays electrode with enhanced photoelectrocatalytic activity. Appl. Surf. Sci. 2008, 255, 2167–2172. [Google Scholar] [CrossRef]
  26. Courcot, D.; Grzybowska, B.; Barbaux, Y.; Rigole, M.; Ponchel, A.; Guelton, M. Effect of potassium addition to the TiO2 support on the structure of V2O5/TiO2 and its catalytic properties in the oxidative dehydrogenation of propane. J. Chem. Soc. Faraday Trans. 1996, 92, 1609–1617. [Google Scholar] [CrossRef]
  27. Kanakaraju, D.; Kockler, J.; Motti, C.A.; Glass, B.D.; Oelgemoller, M. Titanium dioxide/zeolite integrated photocatalytic adsorbents for the degradation of amoxicillin. Appl. Catal. B 2015, 166–167, 45–55. [Google Scholar] [CrossRef]
  28. Ghorbani, F.; Younesi, H.; Mehraban, Z.; Celik, M.S.; Ghoreyshi, A.A.; Anbia, M. Preparation and characterization of highly pure silica from sedge as agricultural waste and its utilization in the synthesis of mesoporous silica MCM-41. J. Taiwan Inst. Chem. Eng. 2013, 44, 821–828. [Google Scholar] [CrossRef]
  29. Chen, Y.D.; Huang, M.J.; Huang, B.; Chen, X.R. Mesoporous activated carbon from inherently potassium-rich pokeweed by in situ self-activation and its use for phenol removal. J. Anal. Appl. Pyrolysis 2012, 98, 159–165. [Google Scholar] [CrossRef]
  30. Ye, M.; Sun, M.; Liu, Z.; Ni, N.; Chen, Y.; Gu, C.; Kengara, F.O.; Li, H.; Jiang, X. Evaluation of enhanced soil washing process and phytoremediation with maize oil, carboxymethyl-b-cyclodextrin, and vetiver grass for the recovery of organochlorine pesticides and heavy metals from a pesticide factory site. J. Environ. Manage. 2014, 141, 161–168. [Google Scholar] [CrossRef] [PubMed]
  31. Paillat, L.; Périchet, C.; Pierrat, J.; Lavoine, S.; Filippi, J.; Meierhenrich, U.; Fernandez, X. Purification of vetiver alcohols and esters for quantitative high-performance thin-layer chromatography determination in Haitian vetiver essential oils and vetiver acetates. J. Chromatogr. A 2012, 1241, 103–111. [Google Scholar] [CrossRef] [PubMed]
  32. Yaseen, M.; Singh, M.; Ram, D. Growth, yield and economics of vetiver (Vetiveria zizanioides L. Nash) under intercropping system. Ind. Crops Prod. 2014, 61, 417–421. [Google Scholar] [CrossRef]
  33. Singh, R.; Narzary, D.; Bhardwaj, J.; Singh, A.K.; Kumar, S.; Kumar, A. Molecular diversity and SSR transferability studies in Vetiver grass (Vetiveria zizanioides L. Nash). Ind. Crops Prod. 2014, 53, 187–198. [Google Scholar] [CrossRef]
  34. Lal, R.K.; Gupta, P.; Gupta, V.; Sarkar, S.; Singh, S. Genetic variability and character associations in vetiver (Vetiveria zizanioides L. Nash). Ind. Crops Prod. 2013, 49, 273–277. [Google Scholar] [CrossRef]
  35. Le, S.T.T.; Yuangpho, N.; Threrujirapapong, T.; Khanitchaidecha, W.; Nakaruk, A. Synthesis of mesoporous materials from vetiver grass for wastewater treatment. J. Aust. Ceram. Soc. 2015, 51, 40–44. [Google Scholar]
  36. Rajamanickam, D.; Shanthi, M. Photocatalytic degradation of an azo dye Sunset Yellow under UV-A light using TiO2/CAC composite catalysts. Spectrochim. Acta, Part A 2014, 128, 100–108. [Google Scholar] [CrossRef] [PubMed]
  37. Dai, S.; Wu, Y.; Sakai, T.; Du, Z.; Sakai, H.; Abe, M. Preparation of highly crystalline TiO2 nanostructures by acid-assisted hydrothermal treatment of hexagonal-structured nanocrystalline titania/cetyltrimethyammonium bromide nanoskeleton. Nanoscale Res. Lett. 2010, 5, 1829–1835. [Google Scholar] [CrossRef] [PubMed]
  38. Bezares, I.; del Campo, A.; Herrasti, P.; Muñoz-Bonilla, A. A simple aqueous electrochemical method to synthesize TiO2 nanoparticles. Phys. Chem. Chem. Phys. 2015, 17, 29319–29326. [Google Scholar] [CrossRef] [PubMed]
  39. Hanaor, D.A.H.; Sorrell, C.C. Review of the anatase to rutile phase transformation. J. Mater. Sci. 2011, 46, 855–874. [Google Scholar] [CrossRef]
  40. Lin, C.P.; Chen, H.; Nakaruk, A.; Koshy, P.; Sorrell, C.C. Effect of annealing temperature on the photocatalytic activity of TiO2 thin films. Energy Procedia 2013, 34, 627–636. [Google Scholar] [CrossRef]
  41. Shannon, R.D. Revised effective ionic radii and systematic studies of interatomic distances in halides and chalcogenides. Acta Crystallogr. A 1976, 32, 751–767. [Google Scholar] [CrossRef]
  42. Chen, W.F.; Koshy, P.; Huang, Y.; Adabifiroozjaei, E.; Yao, Y.; Sorrell, C.C. Effects of precipitation, liquid formation, and intervalence charge transfer on the properties and photocatalytic performance of cobalt- or vanadium-doped TiO2 thin films. Int. J. Hydrogen Energy 2016, 41, 19025–19056. [Google Scholar] [CrossRef]
  43. Nakaruk, A.; Lin, C.Y.W.; Koshy, P.; Sorrell, C.C. Iron doped titania thin films prepared by spin coating. Adv. Appl. Ceram. 2012, 111, 129–133. [Google Scholar] [CrossRef]
  44. Lin, Z.; Orlov, A.; Lambert, R.M.; Payne, M.C. New insights into the origin of visible light photocatalytic activity of nitrogen-doped and oxygen-deficient anatase TiO2. J. Phys. Chem. B 2005, 109, 20948–20952. [Google Scholar] [CrossRef] [PubMed]
  45. Prasai, B.; Cai, B.; Underwood, M.K.; Lewis, J.P.; Drabold, D.A. Properties of amorphous and crystalline titanium dioxide from first principles. J. Mater. Sci. 2012, 47, 7515–7521. [Google Scholar] [CrossRef]
  46. Yu, J.G.; Yu, H.G.; Cheng, B.; Zhao, X.J.; Yu, J.C.; Ho, W.K. The effect of calcination temperature on the surface microstructure and photocatalytic activity of TiO2 thin films prepared by liquid phase deposition. J. Phys. Chem. B 2003, 107, 13871–13879. [Google Scholar] [CrossRef]
  47. Zhang, F.; Maeda, K.; Takata, T.; Domen, K. Improvement of the photocatalytic hydrogen evolution activity of Sm2Ti2S2O5 under visible light by metal ion additives. J. Catal. 2011, 280, 1–7. [Google Scholar] [CrossRef]
  48. Tian, F.; Wu, Z.; Chen, Q.; Yan, Y.; Cravotto, G.; Wu, Z. Microwave-induced crystallization of AC/TiO2 for improving the performance of rhodamine B dye degradation. Appl. Surf. Sci. 2015, 351, 104–112. [Google Scholar] [CrossRef]
  49. Pesci, F.M.; Wang, G.; Klug, D.R.; Li, Y.; Cowan, A.J. Efficient suppression of electron–hole recombination in oxygen-deficient hydrogen-treated TiO2 nanowires for photoelectrochemical water splitting. J. Phys. Chem. C 2013, 117, 25837–25844. [Google Scholar] [CrossRef] [PubMed]
  50. Wang, G.; Wang, H.; Ling, Y.; Tang, Y.; Yang, X.; Fitzmorris, R.C.; Wang, C.; Zhang, J.Z.; Li, Y. Hydrogen-treated TiO2 nanowire arrays for photoelectrochemical water splitting. Nano Lett. 2011, 11, 3026–3033. [Google Scholar] [CrossRef] [PubMed]
  51. Zhang, J.; Zhao, Z.; Wang, X.; Yu, T.; Guan, J.; Yu, Z.; Li, Z.; Zou, Z. Increasing the oxygen vacancy density on the TiO2 surface by La-doping for dye-sensitized solar cells. J. Phys. Chem. C 2010, 114, 18396–18400. [Google Scholar] [CrossRef]
  52. Fujii, K.; Sato, Y.; Takase, S.; Shimizu, Y. Effects of oxygen vacancies and reaction conditions on oxygen reduction reaction on Pyrochlore-Type lead-ruthenium oxide. J. Electrochem. Soc. 2015, 162, F129–F135. [Google Scholar] [CrossRef]
  53. Xu, L.; Jiang, Q.; Xiao, Z.; Li, X.; Huo, J.; Wang, S.; Dai, L. Plasma-engraved Co3O4 nanosheets with oxygen vacancies and high surface area for the oxygen evolution reaction. Angew. Chem. Int. Ed. 2016, 55, 5277–5281. [Google Scholar] [CrossRef] [PubMed]
  54. Huang, S.H.; Wang, C.C.; Liao, S.Y.; Gan, J.Y.; Perng, T.P. CNT/TiO2 core–shell structures prepared by atomic layer deposition and characterization of their photocatalytic properties. Thin Solid Films 2016, 616, 151–159. [Google Scholar] [CrossRef]
  55. Zhang, G.; Teng, F.; Zhao, C.; Chen, L.; Zhang, P.; Wang, Y.; Gong, C.; Zhang, Z.; Xie, E. Enhanced photocatalytic activity of TiO2/carbon@TiO2 core–shell nanocomposite prepared by two-step hydrothermal method. Appl. Surf. Sci. 2014, 311, 384–390. [Google Scholar] [CrossRef]
  56. Lee, J.M.; Han, S.B.; Kim, J.Y.; Lee, Y.W.; Ko, A.R.; Roh, B.; Hwang, I.; Park, K.W. TiO2@carbon core–shell nanostructure supports for platinum and their use for methanol electrooxidation. Carbon 2010, 48, 2290–2296. [Google Scholar] [CrossRef]

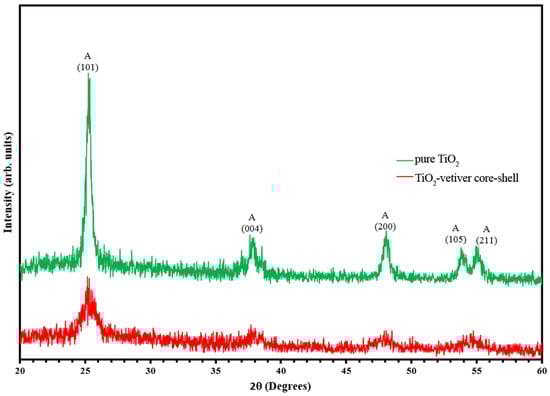

Figure 1. XRD patterns of pure TiO2 and TiO2-vetiver core–shell.
Figure 1. XRD patterns of pure TiO2 and TiO2-vetiver core–shell.
Materials 10 00122 g001

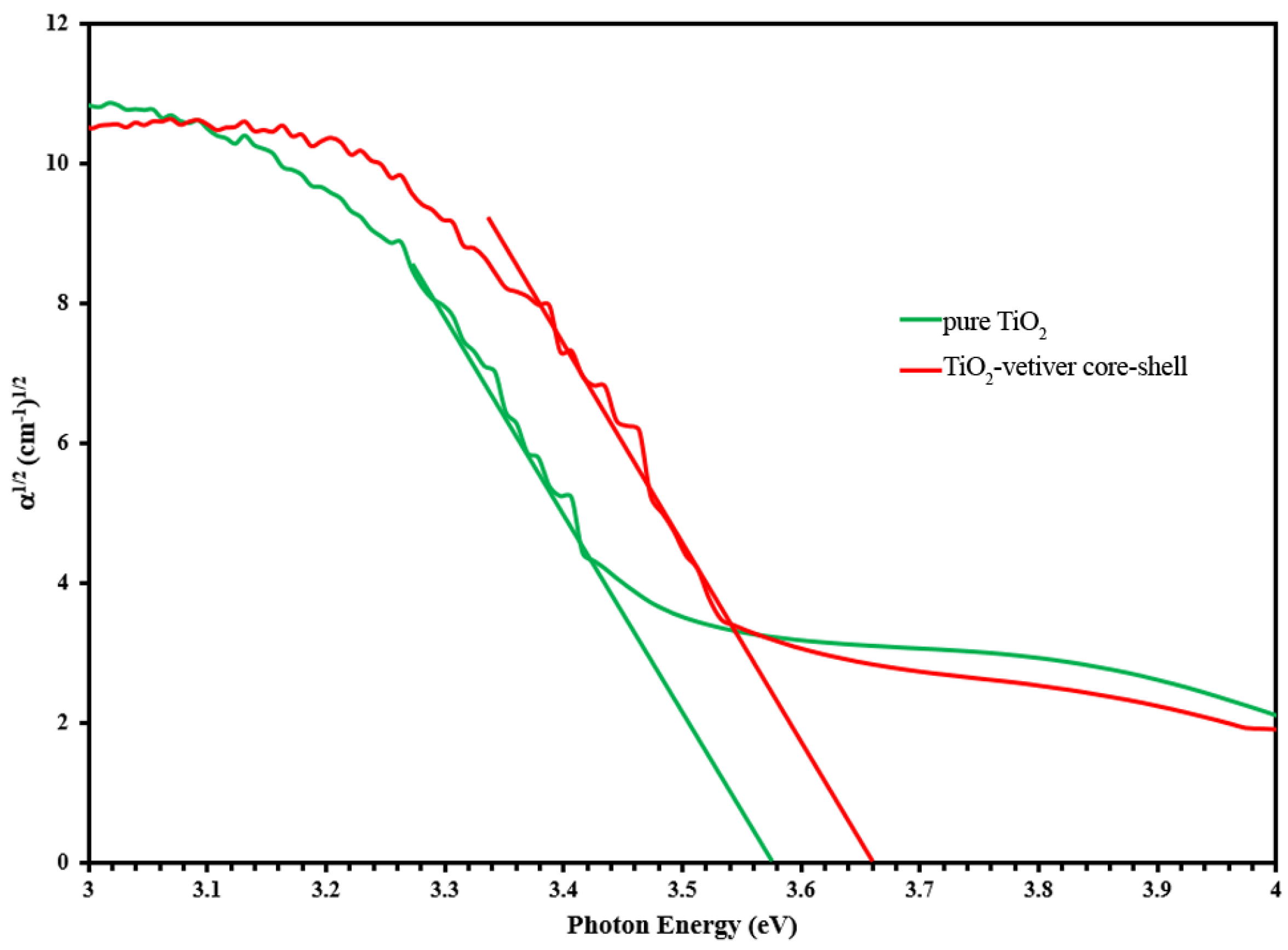

Figure 2. Optical indirect band gaps calculated from DRS data for pure TiO2 and TiO2-vetiver core–shell.
Figure 2. Optical indirect band gaps calculated from DRS data for pure TiO2 and TiO2-vetiver core–shell.
Materials 10 00122 g002

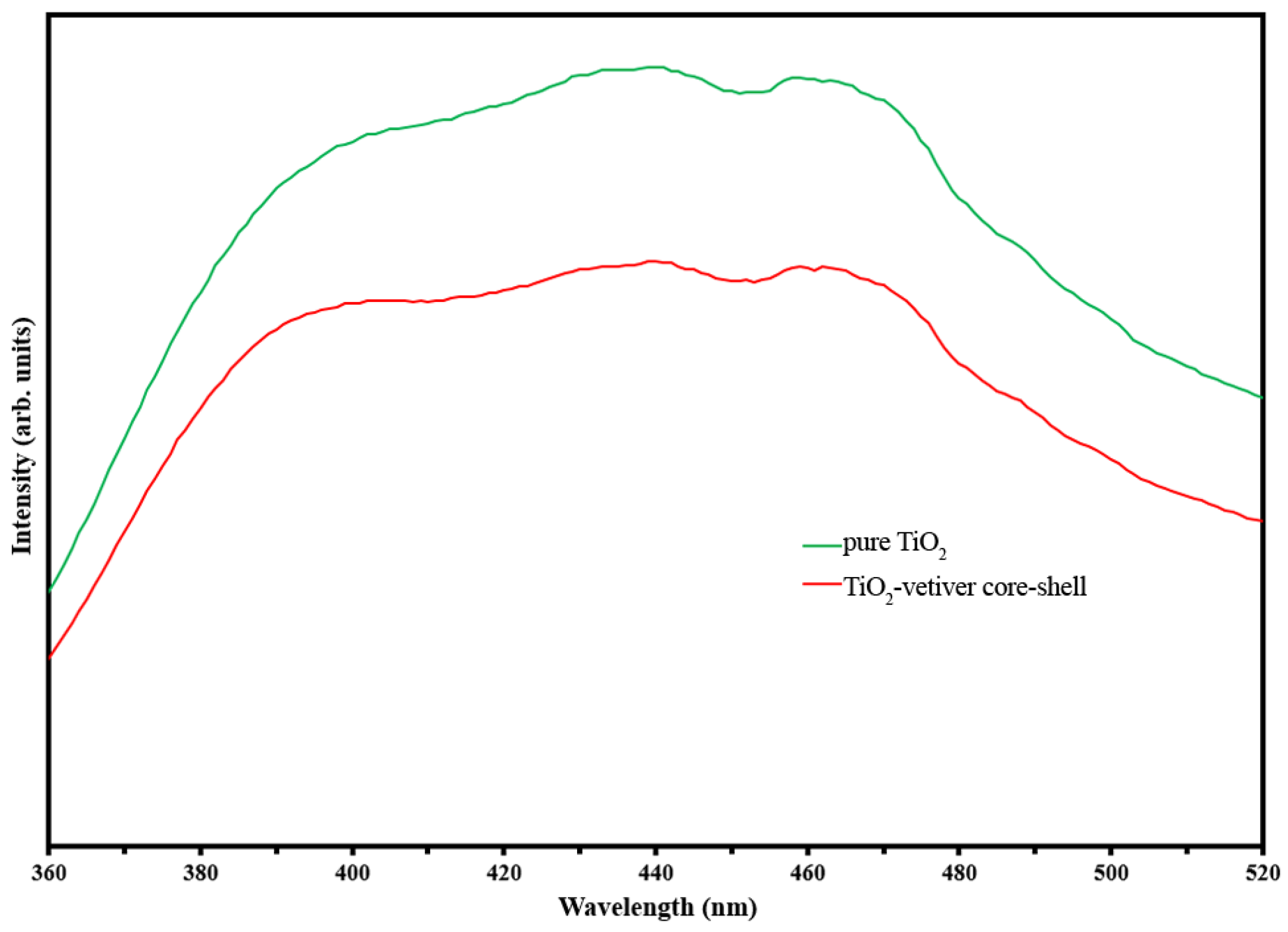

Figure 3. Photoluminescence (PL) spectra of pure TiO2 and TiO2-vetiver core–shell.
Figure 3. Photoluminescence (PL) spectra of pure TiO2 and TiO2-vetiver core–shell.
Materials 10 00122 g003
Figure 4. TEM images of (a) pure TiO2; and (b) TiO2-vetiver core–shell.
Figure 4. TEM images of (a) pure TiO2; and (b) TiO2-vetiver core–shell.
Materials 10 00122 g004

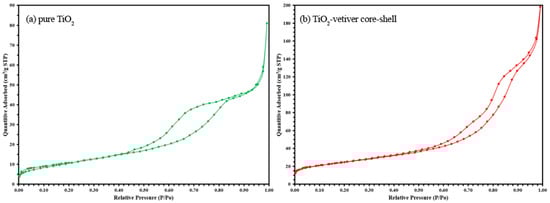

Figure 5. Nitrogen adsorption–desorption isotherm plots for (a) pure TiO2; and (b) TiO2-vetiver core–shell.
Figure 5. Nitrogen adsorption–desorption isotherm plots for (a) pure TiO2; and (b) TiO2-vetiver core–shell.
Materials 10 00122 g005

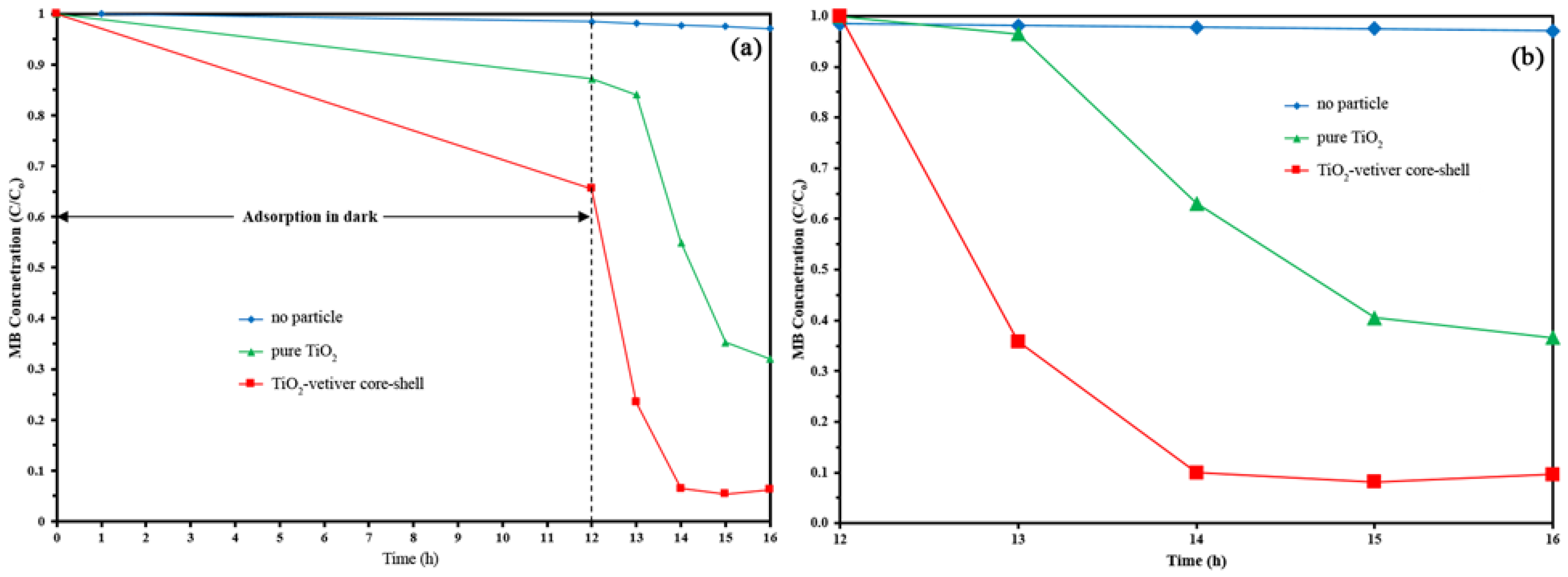

Figure 6. Photocatalytic activity of pure TiO2 and TiO2-vetiver core–shells, showing (a) data for complete test sequence; and (b) data normalised following MB adsorption.
Figure 6. Photocatalytic activity of pure TiO2 and TiO2-vetiver core–shells, showing (a) data for complete test sequence; and (b) data normalised following MB adsorption.
Materials 10 00122 g006

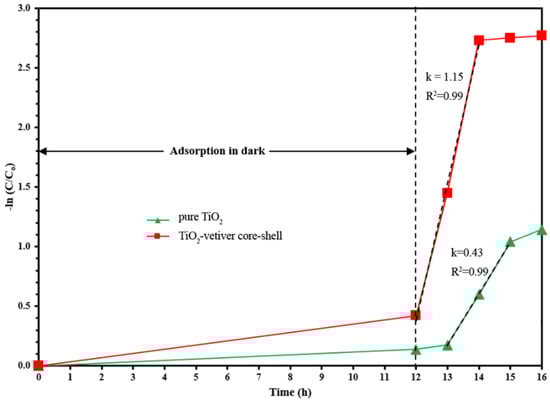

Figure 7. The kinetic of methylene blue degradation.
Figure 7. The kinetic of methylene blue degradation.
Materials 10 00122 g007

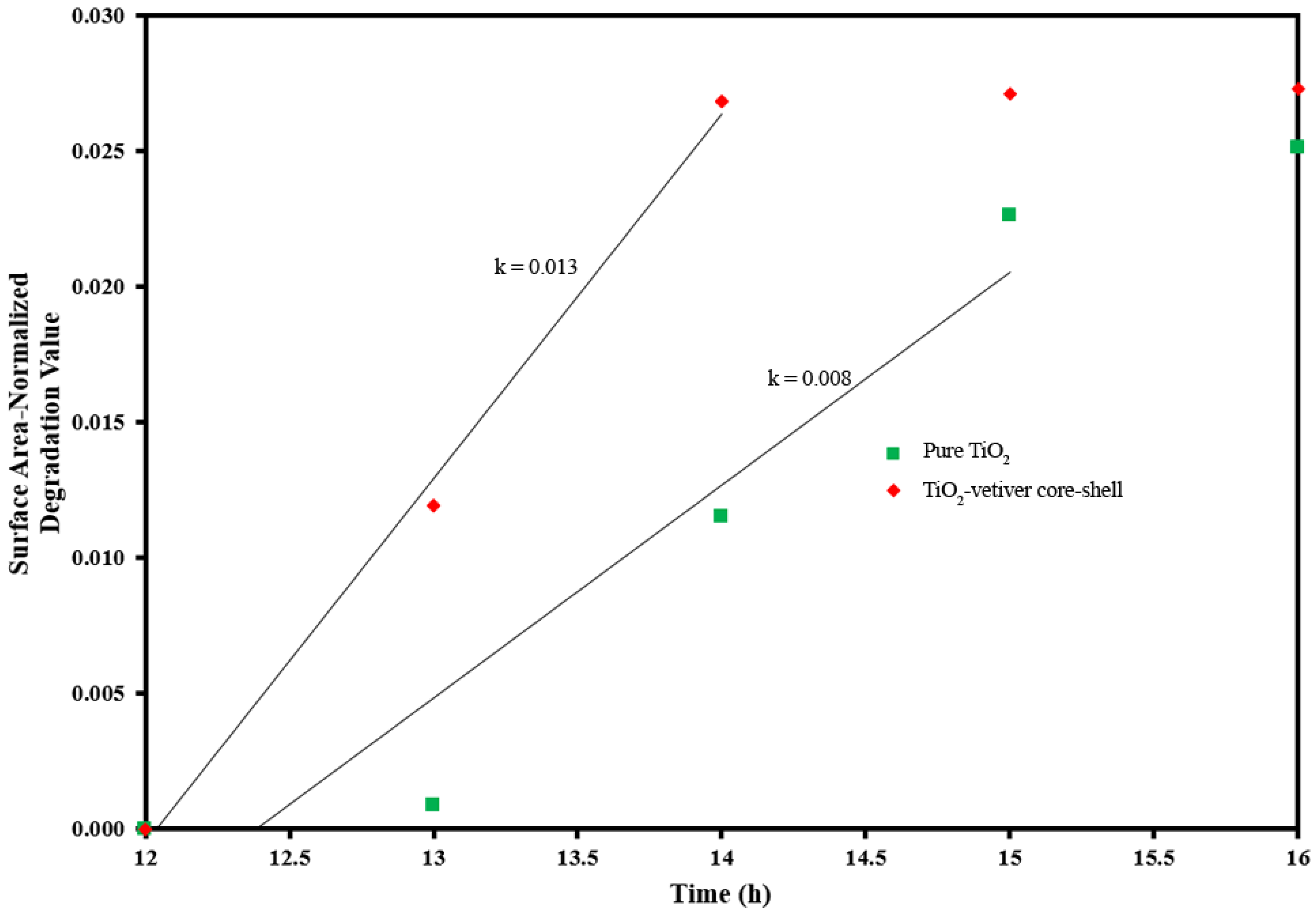

Figure 8. Kinetics plots of the surface area-normalised degradation values against light irradiation time.
Figure 8. Kinetics plots of the surface area-normalised degradation values against light irradiation time.
Materials 10 00122 g008

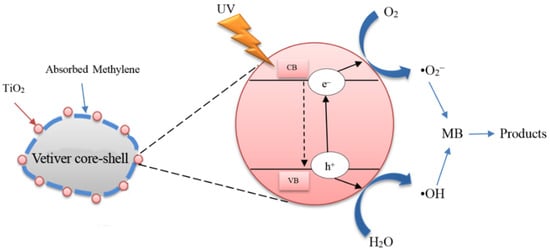

Figure 9. The schematic representation of the photocatalytic mechanism.
Figure 9. The schematic representation of the photocatalytic mechanism.
Materials 10 00122 g009
Table 1. BET data for surface properties of pure TiO2 and TiO2-vetiver core–shell.
Table 1. BET data for surface properties of pure TiO2 and TiO2-vetiver core–shell.
SampleSpecific Surface Area (m2/g)Pore Volume (cm3/g)Crystallite Size at (101) nmSurface Area-Normalised Rate Constants (h−1·m−2·g)
Pure TiO2400.1252210.008
TiO2-Vetiver Core–shell860.3065140.013
