Open AccessArticle
Materials 2017, 10(12), 1415; https://doi.org/10.3390/ma10121415

Bipolar Switching Properties of Neodymium Oxide RRAM Devices Using by a Low Temperature Improvement Method

1
Department of Electrical Engineering and Computer Science, Tung Fang Design University, Kaohsiung 82941, Taiwan
2
Department of Electronic Engineering, Hsiuping University of Science and Technology, Taichung 41280, Taiwan
3
Department of Electronic Engineering, Southern Taiwan University of Science and Technology, Tainan 71005, Taiwan
*
Author to whom correspondence should be addressed.
Received: 19 October 2017 / Revised: 26 November 2017 / Accepted: 7 December 2017 / Published: 12 December 2017
(This article belongs to the Special Issue Stretchable and Flexible Electronic Materials & Devices)
Full-Text   |   PDF [4349 KB, uploaded 15 December 2017]   |

Abstract

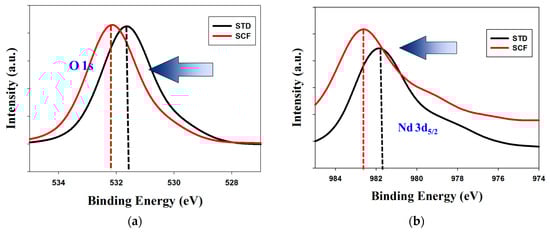

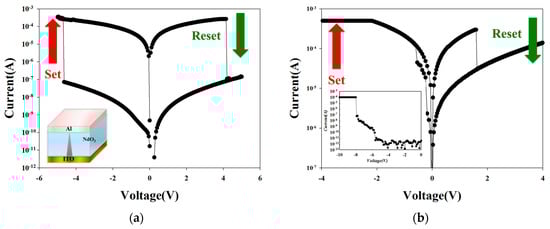

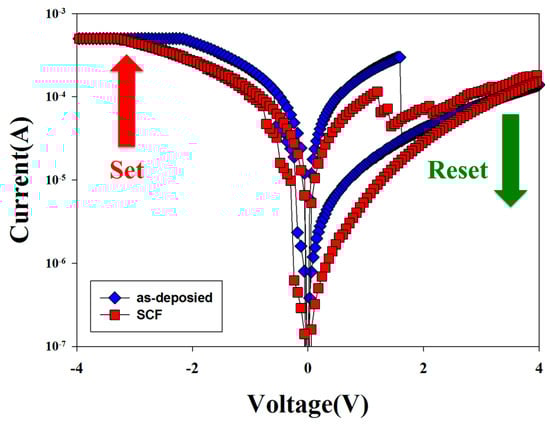

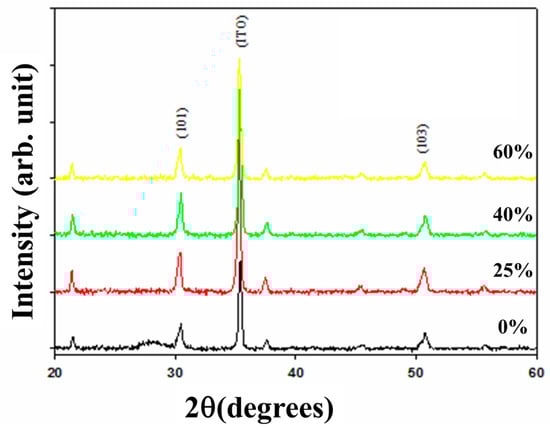

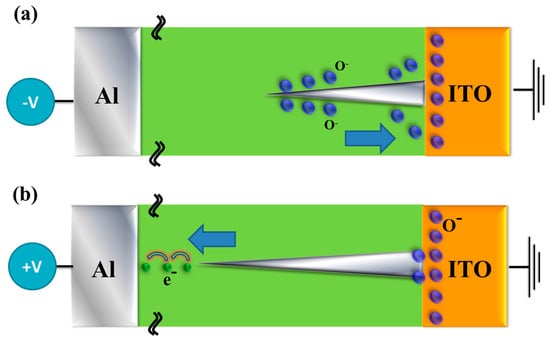

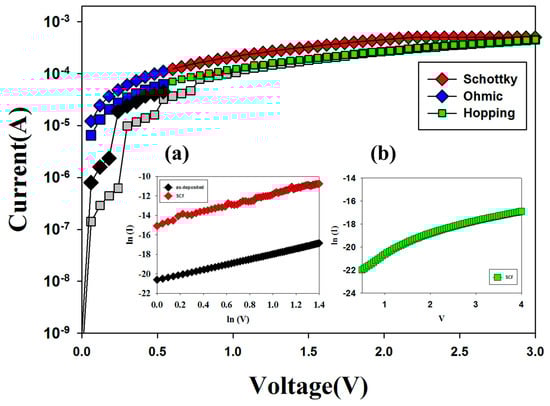

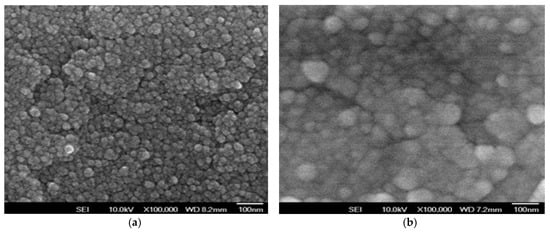

Bipolar resistive switching properties and endurance switching behavior of the neodymium oxide (Nd2O3) thin films resistive random access memory (RRAM) devices for a high resistive status/low resistive status (HRS/LRS) using a low temperature supercritical carbon dioxide fluid (SCF) improvement post-treatment process were investigated. Electrical and physical properties improvement of Nd2O3 thin films were measured by X-ray diffraction (XRD), scanning electron microscopy (SEM), X-ray photoelectron spectroscopy (XPS), and current versus voltage (I-V) measurement. The metal-like behavior of ohmic conduction mechanism and metallic cluster reaction of hopping conduction mechanism in initial metallic filament path forming process of the SCF-treated thin films RRAM devices was assumed and discussed. Finally, the electrical conduction mechanism of the thin films RRAM derives for set/reset was also discussed and verified in filament path physical model. View Full-Text

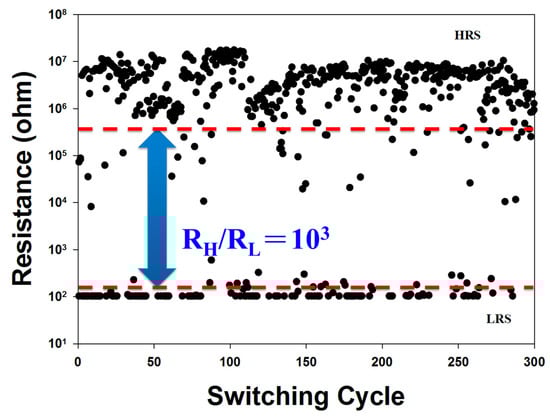

Keywords: SCF; bipolar switching properties; neodymium oxide; thin film; RRAM SCF; bipolar switching properties; neodymium oxide; thin film; RRAM
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
