Energies 2016, 9(8), 616; doi:10.3390/en9080616

DG Mix and Energy Storage Units for Optimal Planning of Self-Sufficient Micro Energy Grids

1
Faculty of Energy Systems and Nuclear Science, University of Ontario Institute of Technology, 2000 Simcoe Street North, Oshawa, ON L1H 7K4, Canada
2
Faculty of Engineering and Applied Science, University of Ontario Institute of Technology, 2000 Simcoe Street North, Oshawa, ON L1H 7K4, Canada
3
Department of Electrical Engineering, Faculty of Engineering, Assiut University, Assiut 71515, Egypt
*
Author to whom correspondence should be addressed.
Academic Editor: Chunhua Liu
Received: 21 April 2016 / Revised: 12 July 2016 / Accepted: 26 July 2016 / Published: 4 August 2016
View Full-Text   |   Download PDF [1446 KB, uploaded 4 August 2016]   |

Abstract

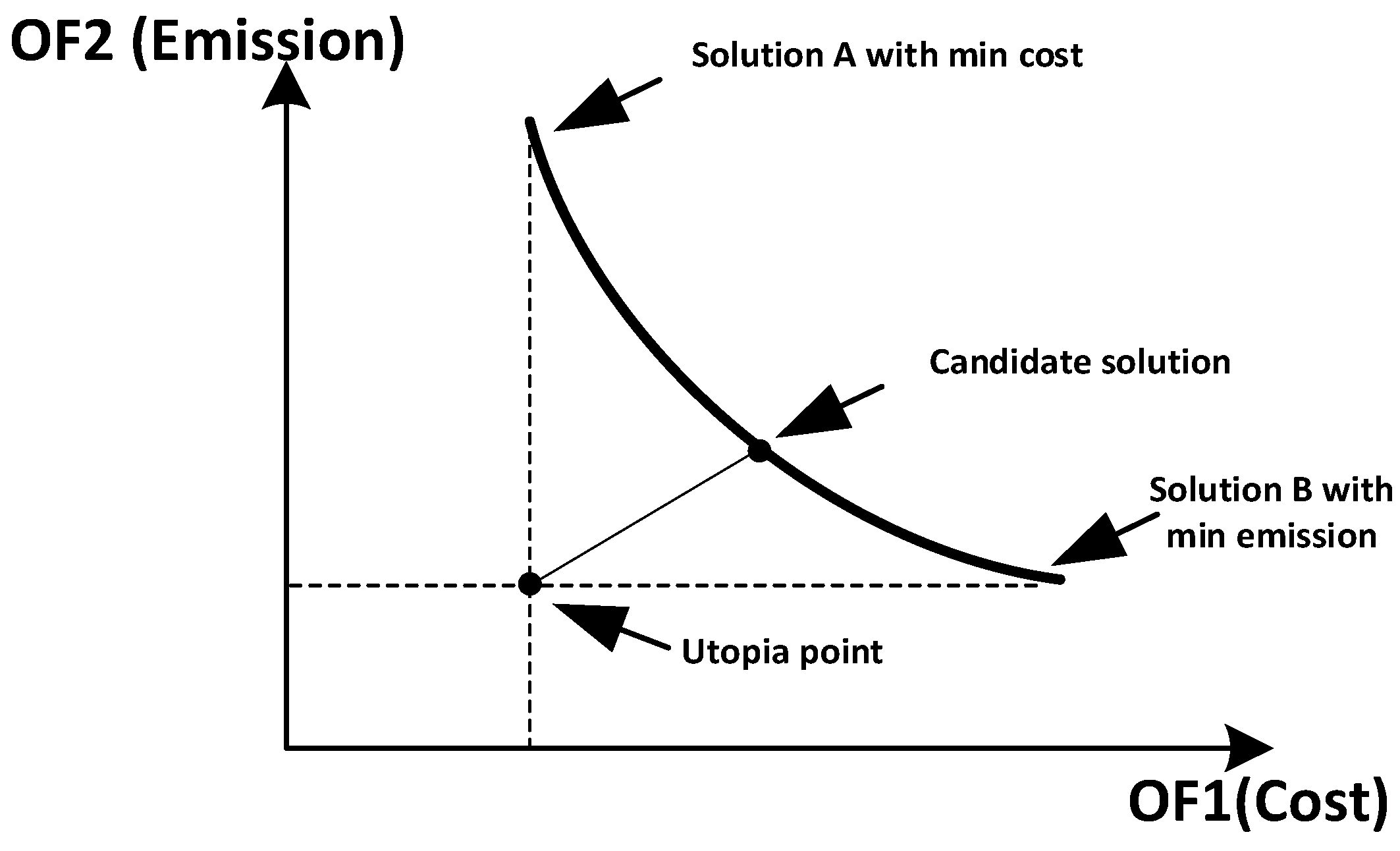

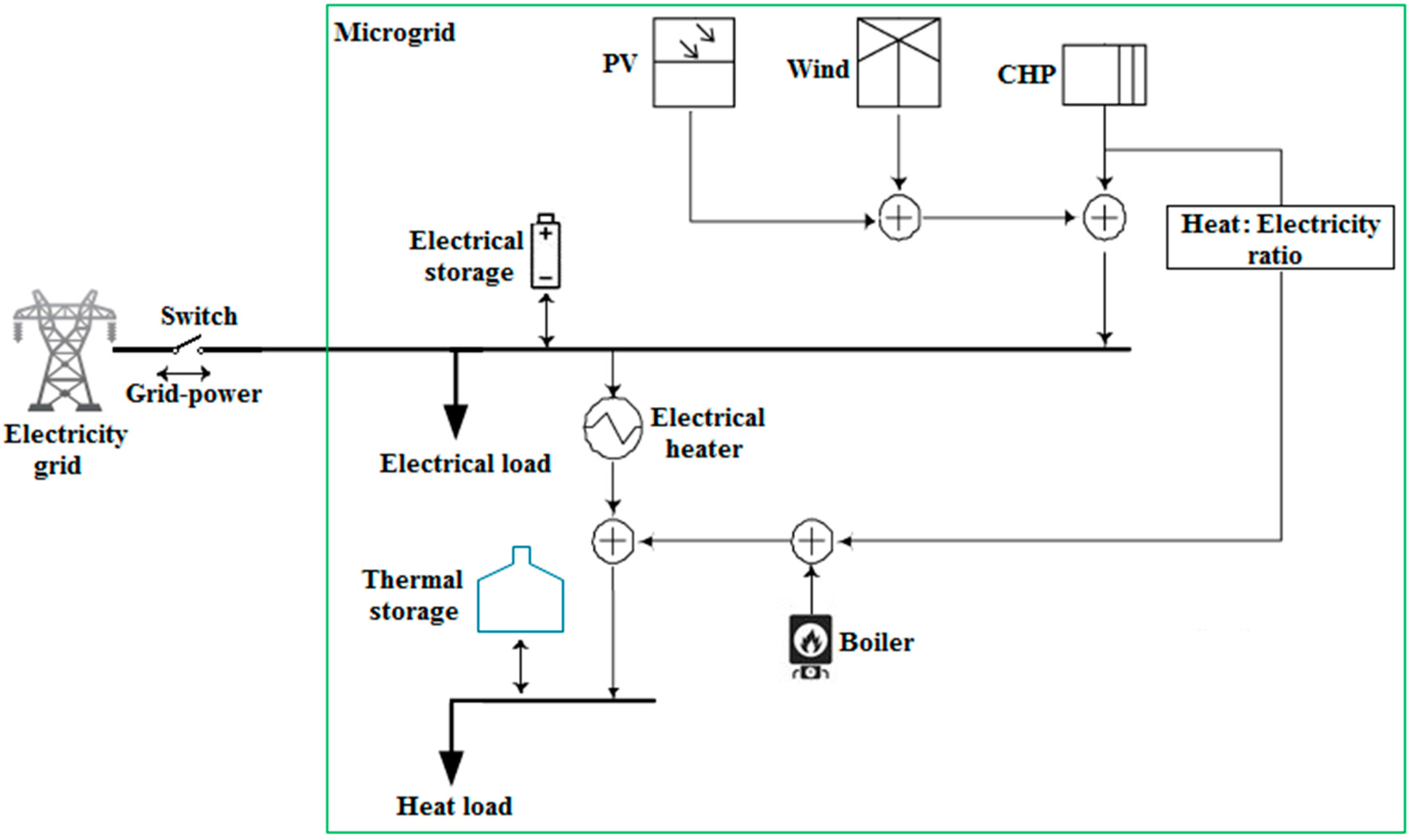

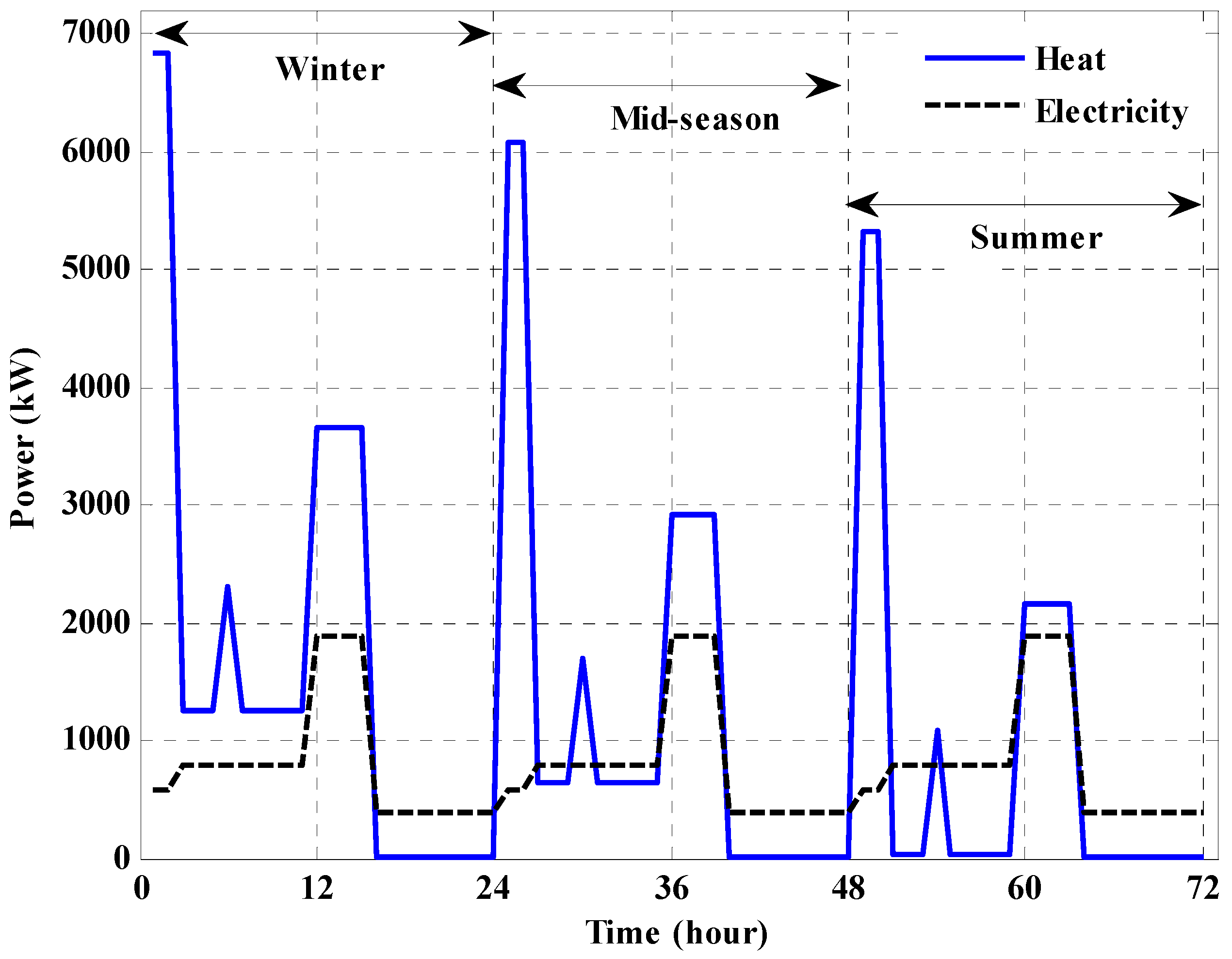

Micro energy grids have many merits and promising applications under the smart grid vision. There are demanding procedures for their optimal planning and performance enhancement. One of the key features of a micro energy grid is its ability to separate and isolate itself from the main electrical network to continue feeding its own islanded portion. In this paper, an optimal sizing and operation strategy for micro energy grids equipped with renewable and non-renewable based distributed generation (DG) and storage are presented. The general optimization objective is to define the best DG mix and energy storage units for self-sufficient micro energy grids. A multi-objective genetic algorithm (GA) was applied to solve the planning problem at a minimum optimization goal of overall cost (including investment cost, operation and maintenance cost, and fuel cost) and carbon dioxide emission. The constraints include power and heat demands constraints, and DGs capacity limits. The candidate technologies include CHPs (combined heat and power) with different characteristics, boilers, thermal and electrical storages, and renewable generators (wind and photovoltaic). In order to assess different configuration options and components sizes, several case studies for a typical micro energy grid have been presented. View Full-Text
Keywords: micro energy grid; self-sufficient; combined heat and power; renewable; gas-power; multi-objective; genetic algorithm micro energy grid; self-sufficient; combined heat and power; renewable; gas-power; multi-objective; genetic algorithm
Figures

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Zidan, A.; Gabbar, H.A. DG Mix and Energy Storage Units for Optimal Planning of Self-Sufficient Micro Energy Grids. Energies 2016, 9, 616.
