Open AccessArticle
Energies 2016, 9(8), 609;

Real Time Hybrid Model Predictive Control for the Current Profile of the Tokamak à Configuration Variable (TCV)

Faculty of Engineering, University of the Basque Country (UPV/EHU), Paseo Rafael Moreno 3, Bilbao 48013, Spain
Centre de Recherches en Physique des Plasmas, École Polytechnique Fédérale de Lausanne (CRPP-EPFL), CH-1015 Lausanne, Switzerland
Author to whom correspondence should be addressed.
Academic Editor: Matthew Hole
Received: 27 February 2016 / Revised: 26 July 2016 / Accepted: 27 July 2016 / Published: 3 August 2016
(This article belongs to the Special Issue Fusion Power)
Full-Text   |   PDF [2511 KB, uploaded 3 August 2016]   |

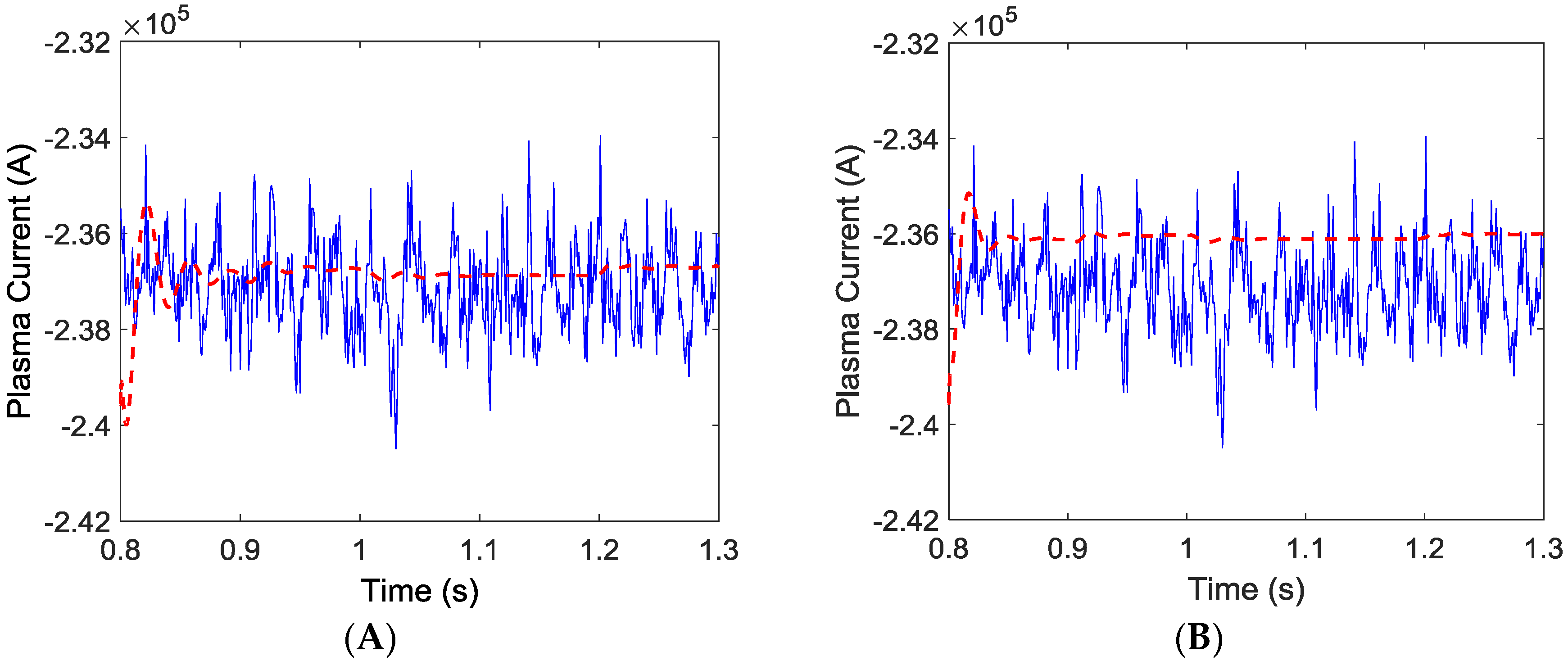

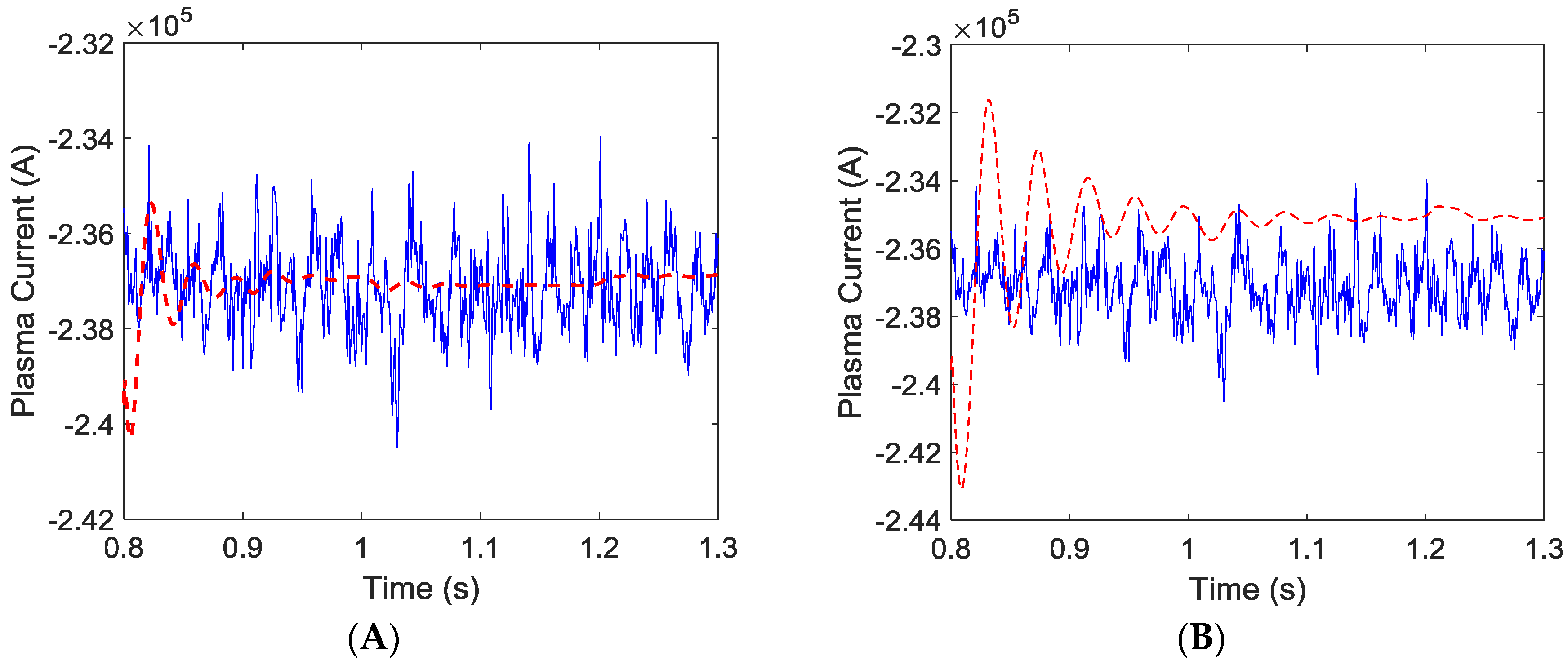

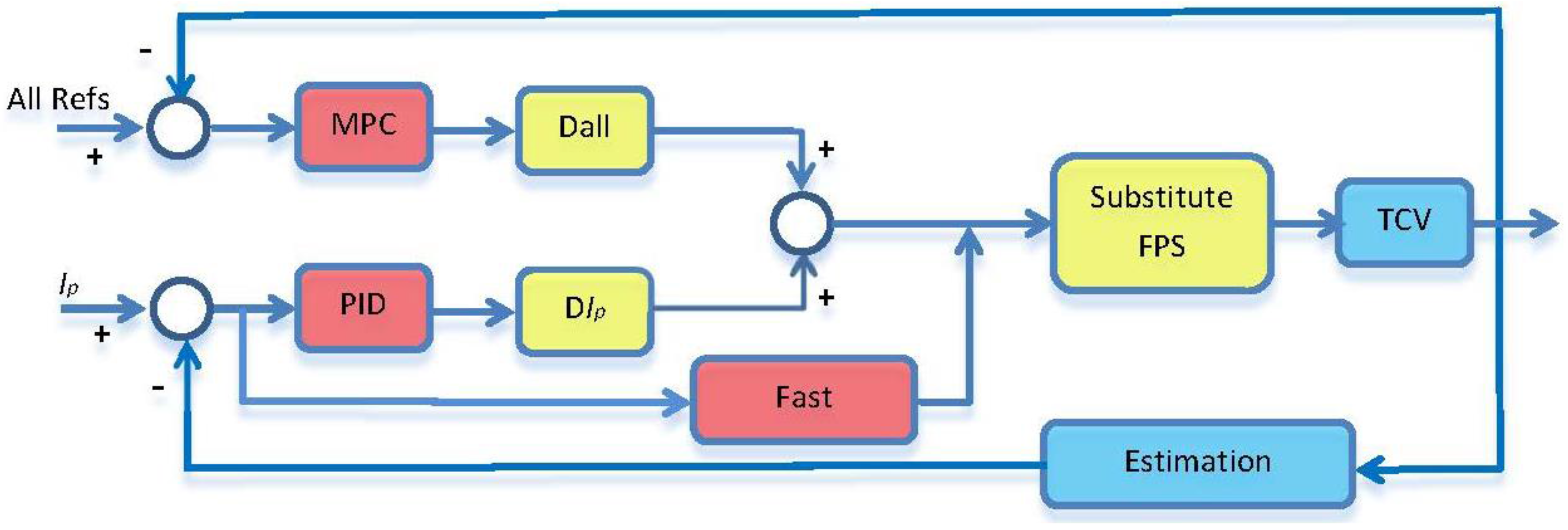

Plasma stability is one of the obstacles in the path to the successful operation of fusion devices. Numerical control-oriented codes as it is the case of the widely accepted RZIp may be used within Tokamak simulations. The novelty of this article relies in the hierarchical development of a dynamic control loop. It is based on a current profile Model Predictive Control (MPC) algorithm within a multiloop structure, where a MPC is developed at each step so as to improve the Proportional Integral Derivative (PID) global scheme. The inner control loop is composed of a PID-based controller that acts over the Multiple Input Multiple Output (MIMO) system resulting from the RZIp plasma model of the Tokamak à Configuration Variable (TCV). The coefficients of this PID controller are initially tuned using an eigenmode reduction over the passive structure model. The control action corresponding to the state of interest is then optimized in the outer MPC loop. For the sake of comparison, both the traditionally used PID global controller as well as the multiloop enhanced MPC are applied to the same TCV shot. The results show that the proposed control algorithm presents a superior performance over the conventional PID algorithm in terms of convergence. Furthermore, this enhanced MPC algorithm contributes to extend the discharge length and to overcome the limited power availability restrictions that hinder the performance of advanced tokamaks. View Full-Text
Keywords: model predictive control; multiloop control; fusion reactors; plasma control model predictive control; multiloop control; fusion reactors; plasma control

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Supplementary material


Share & Cite This Article

MDPI and ACS Style

Garrido, I.; Garrido, A.J.; Coda, S.; Le, H.B.; Moret, J.M. Real Time Hybrid Model Predictive Control for the Current Profile of the Tokamak à Configuration Variable (TCV). Energies 2016, 9, 609.
